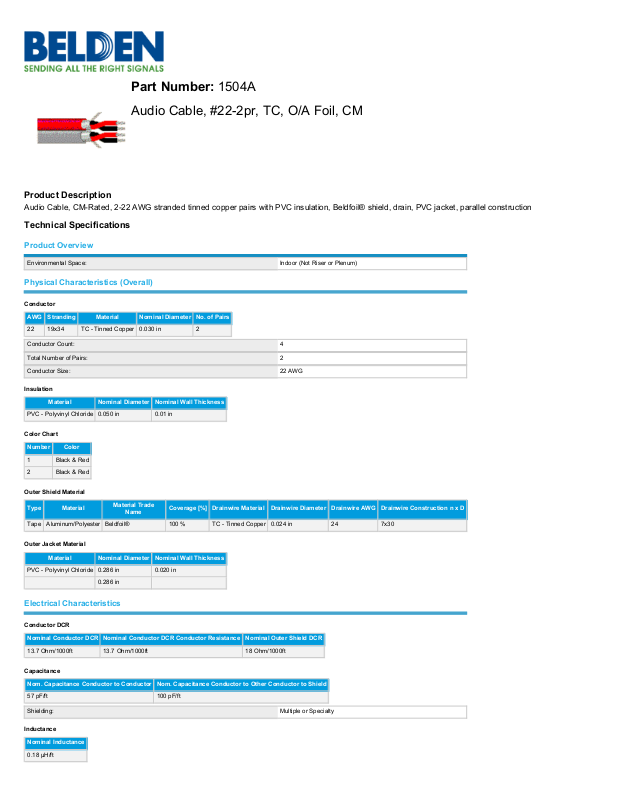

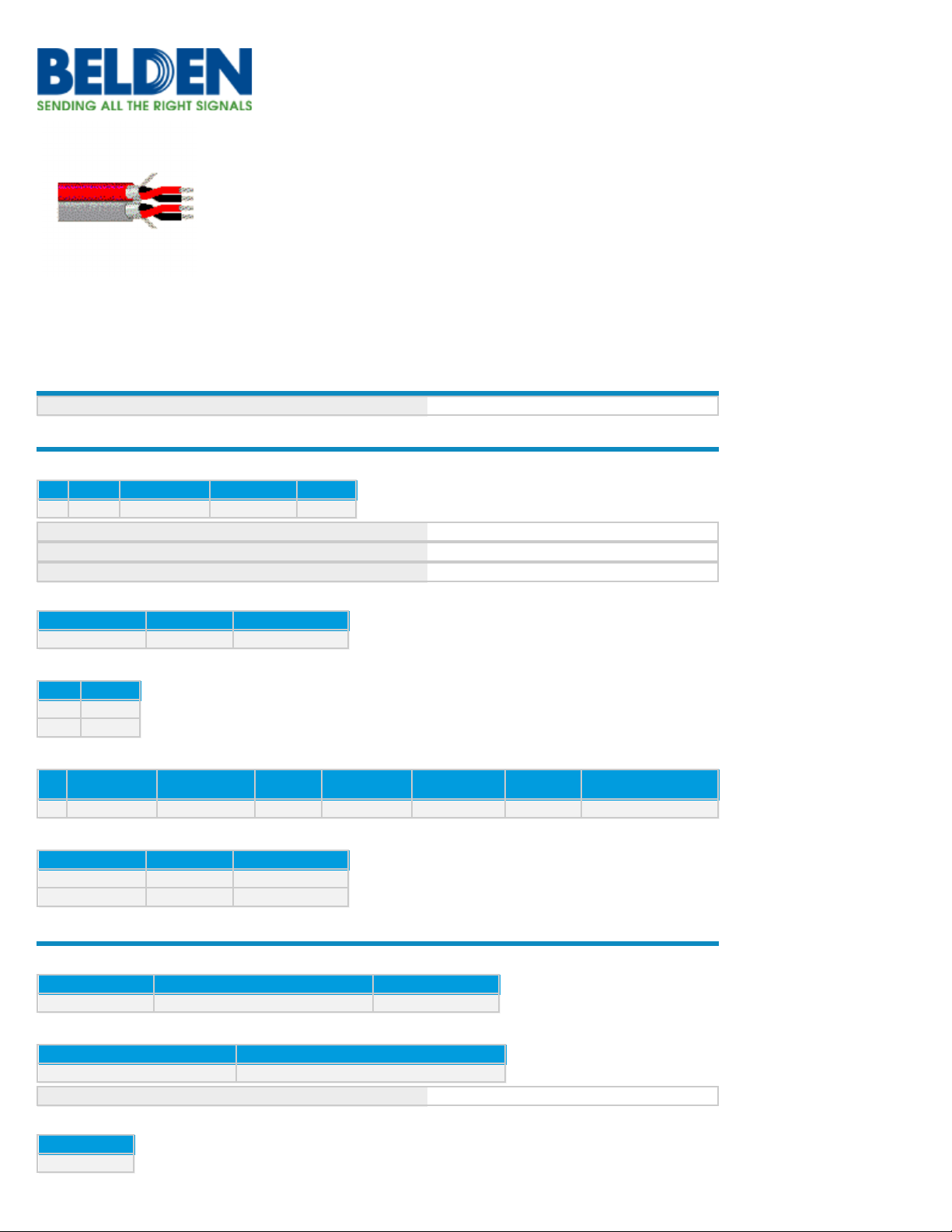

Page 1
Part Number: 1504A
Audio Cable, #22-2pr, TC, O/A Foil, CM
Product Description
Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper pairs with PVC insulation, Beldfoil® shield, drain, PVC jacket, parallel construction
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 19x34 TC - Tinned Copper 0.030 in 2
Conductor Count: 4
Total Number of Pairs: 2
Conductor Size: 22 AWG
Insulation
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.050 in 0.01 in
Color Chart
Number Color
1 Black & Red
2 Black & Red
Outer Shield Material
Type Material
Material Trade
Name
Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
Tape Aluminum/Polyester Beldfoil® 100 % TC - Tinned Copper 0.024 in 24 7x30
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.286 in 0.020 in
0.286 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
13.7 Ohm/1000ft 13.7 Ohm/1000ft 18 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
57 pF/ft 100 pF/ft
Shielding: Multiple or Specialty
Inductance
Nominal Inductance
0.18 µH/ft
Page 2
Impedance
Nominal Characteristic Impedance
45 Ohm
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.5 ns/ft 66 %
Current
Max. Recommended Current [A]
2.9 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
150 V RMS
Temperature Range
UL Temp Rating: 60°C
Operating Temp Range: -30°C To +60°C
Mechanical Characteristics
Bulk Cable Weight: 30 lbs/1000ft
Max Recommended Pulling Tension: 25 lbs
Min Bend Radius/Minor Axis: 1.5 in
Standards
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1685 UL Loading
UL voltage rating: 150 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color Footnote
1504A J77U1000 Black and Red Pair
1504A 0531000 Red and Gray Pair
1504A 0532000 Red and Gray Pair C
1504A 053U1000 Red and Gray Pair
Page 3
1504A A5Q2000 Red and Green Pair C
1504A A5QU1000 Red and Green Pair
1504A G04U1000 Red and Purple Pair
Footnote: C - CRATE REEL PUT-UP.
