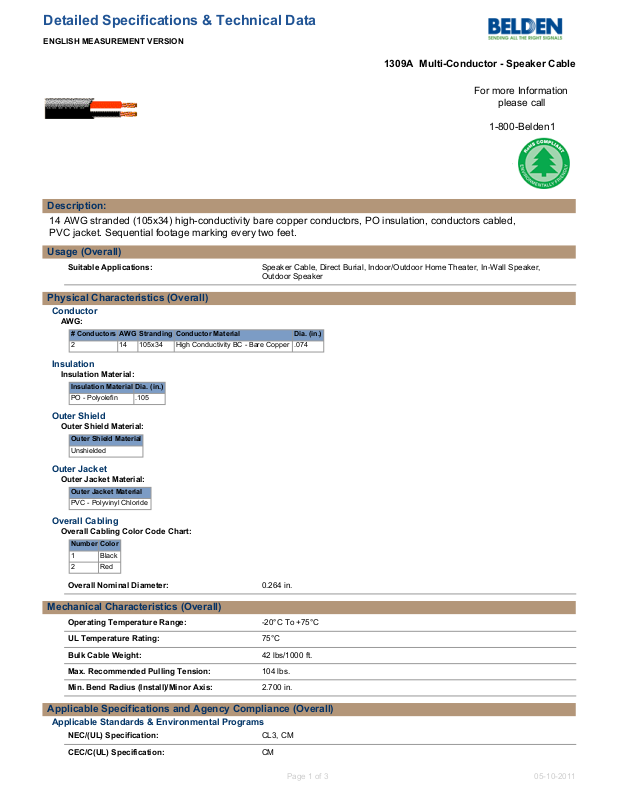

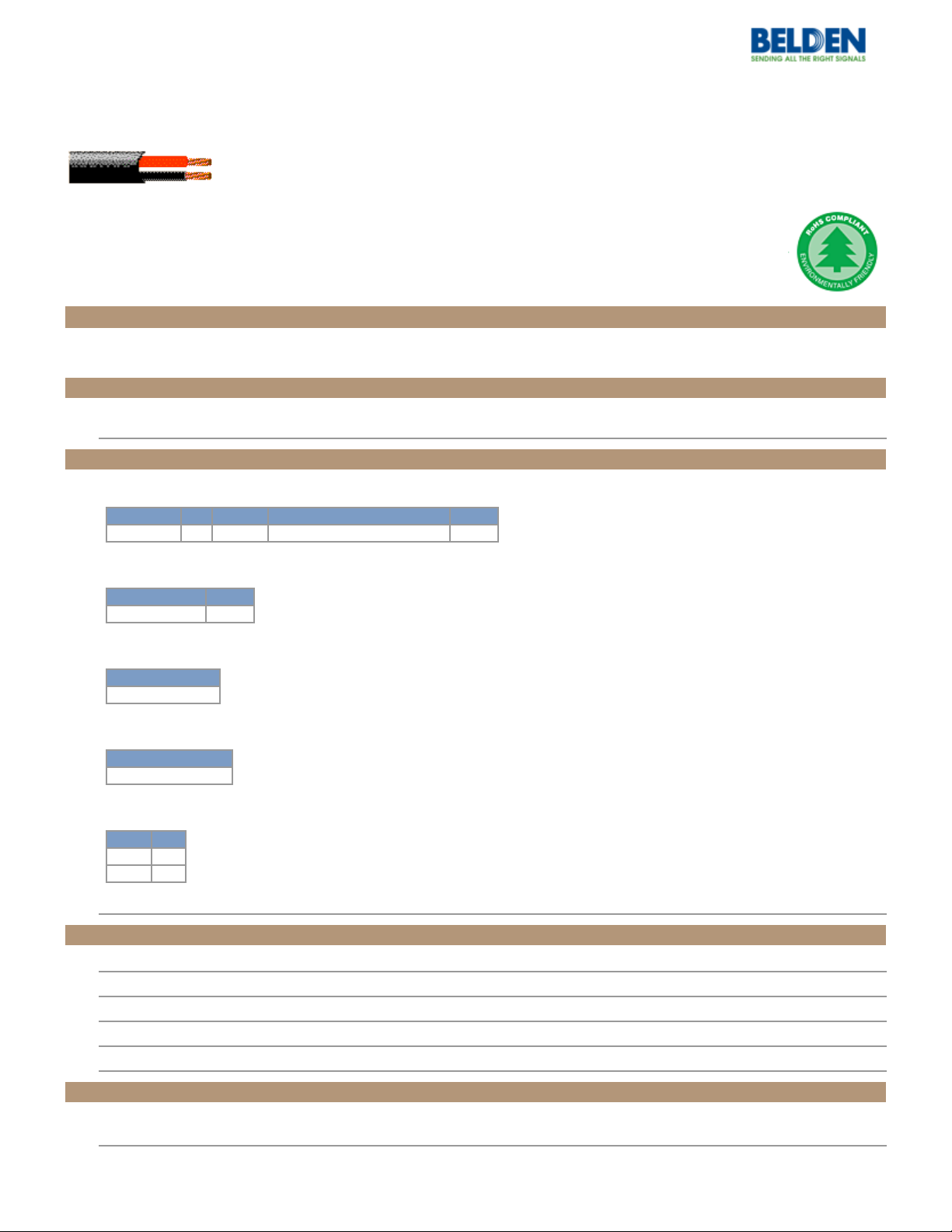

Page 1
For more Information
please call
1-800-Belden1
Description:
14 AWG stranded (105x34) high-conductivity bare copper conductors, PO insulation, conductors cabled,
PVC jacket. Sequential footage marking every two feet.
Usage (Overall)
Suitable Applications: Speaker Cable, Direct Burial, Indoor/Outdoor Home Theater, In-Wall Speaker,
Outdoor Speaker
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors AWG Stranding Conductor Material Dia. (in.)
2 14 105x34 High Conductivity BC - Bare Copper .074
Insulation
Insulation Material:
Insulation Material Dia. (in.)
PO - Polyolefin .105
Outer Shield
Outer Shield Material:
Outer Shield Material
Unshielded
Outer Jacket
Outer Jacket Material:
Outer Jacket Material
PVC - Polyvinyl Chloride
Overall Cabling
Overall Cabling Color Code Chart:
Number Color
1 Black
2 Red
Overall Nominal Diameter: 0.264 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: -20°C To +75°C
UL Temperature Rating: 75°C
Bulk Cable Weight: 42 lbs/1000 ft.
Max. Recommended Pulling Tension: 104 lbs.
Min. Bend Radius (Install)/Minor Axis: 2.700 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CL3, CM
CEC/C(UL) Specification: CM
Page 1 of 3 05-10-2011
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
1309A Multi-Conductor - Speaker Cable
Page 2
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flame Test
UL Flame Test: UL1581 Vertical Flame and FT-1 Flame Test
CSA Flame Test: FT1
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Plenum Number: 6100UE
Electrical Characteristics (Overall)
Nom. Inductance:
Inductance (µH/ft)
.16
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/ft)
20.5
Nominal Velocity of Propagation:
VP (%)
66
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
2.5
Max. Operating Voltage - UL:
Voltage
300 V RMS
Max. Recommended Current:
Current
13 Amps per conductor @ 25°C
Related Documents:
No related documents are available for this product
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
1309A N3UU500 500 FT 22.500 LB GREEN, MIL C 2 #14 PE FRPVC
1309A 006U500 500 FT 22.500 LB BLUE, LIGHT 2 #14 PE FRPVC
1309A 008U500 500 FT 22.500 LB GRAY 2 #14 PE FRPVC
1309A 0081000 1,000 FT 46.000 LB GRAY C 2 #14 PE FRPVC
1309A 010U500 500 FT 22.500 LB BLACK 2 #14 PE FRPVC
1309A 0101000 1,000 FT 46.000 LB BLACK C 2 #14 PE FRPVC
1309A 1SLU500 500 FT 22.500 LB WHITE 1SL 2 #14 PE FRPVC
1309A 1SL1000 1,000 FT 46.000 LB WHITE 1SL C 2 #14 PE FRPVC
Page 2 of 3 05-10-2011
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
1309A Multi-Conductor - Speaker Cable
Page 3
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 1 Revision Date: 03-03-2008
© 2011 Belden, Inc
All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications
described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not
ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the
compliance date may be in stock at Belden facilities and in our Distributor’s inventory. The information provided in this Product Disclosure, and
the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden’s knowledge,
information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide
for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not
to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for
determining the applicability of legislation and regulations based on their individual usage of the product.
Page 3 of 3 05-10-2011
