Dear Customer,
We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an e
Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.
The user manual will help you use the product in a fast and safe way.
•Read the manual before installing and operating the product.
•Make sure you read the safety instructions.
•Keep the manual in an easily accessible place as you may need it later.
•Read the other documents given with the product.
Remember that this user manual is also applicable for several other models. Dir
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips.
Warning against dangerous conditions for life and property. Warning against electric voltage.
CONTENTS
1 Your Refrigerator |
|
3 |
|
5 Using your refrigerator |
16 |
|
|
|
|
|
Indicator panel |
16 |
|
2 Important Safety |
|
|
|
|||
|
|
|
Freezing fresh food .......................... |
21 |
||
Warnings |
|
4 |
|
Recommendations for preservation of |
||
Intended use ..................................... |
|
4 |
......................................frozen food |
21 |
||
General safety .................................. |
|
4 |
Placing the food .............................. |
21 |
||
For products with a .......................... |
|
8 |
Making ice ....................................... |
22 |
||
water dispenser; ................................ |
|
8 |
Deep-freeze information .................. |
22 |
||
Child safety ........................................ |
|
9 |
Twist Ice – matic ............................ |
23 |
||
Compliance with WEEE Directive and |
|
|
Ice container .................................... |
23 |
||
Disposing of the Waste Product: ....... |
|
9 |
Fan .................................................. |
24 |
||
Package information .......................... |
|
9 |
Crisper ............................................ |
24 |
||
HC warning ....................................... |
|
9 |
Chiller compartment ........................ |
24 |
||
Things to be done for energy saving |
10 |
Description and cleaning of odour |
|
|
||
Recommendations for the fresh food |
|
|
lter: ............................................... |
25 |
||
compartment................................... |
|
10 |
Reversing the door ................. |
26 |
||
|
|
|
|
6 Maintenance and |
|
|
3 Installation |
11 |
|
cleaning |
27 |
|
|
|
|
|
|
Protection of plastic surfaces |
27 |
|
Points to be paid attention to when the |
||||||
relocation of the refrigerator ............. |
|
11 |
7 Troubleshooting |
28 |
|
|
Electrical connection ........................ |
|
11 |
|
|||
.............Disposing of the packaging |
|
12 |
|
|
|
|
Disposing of your old refrigerator ..... |
|
12 |
|
|
|
|
Placing and Installation .................... |
|
12 |
|
|
|
|
Adjusting the legs ............................ |
|
13 |
|
|
|
|
Door Open Warning ......................... |
|
13 |
|
|
|
|
Changing the illumination lamp ....... |
|
13 |
|
|
|
|
4 Preparation |
15 |
|
|
|
|
2 EN
1 Your Refrigerator
8 *10
7 |
*9 |
|
*14
7
16
6
5
13
15
11
4 |
4 |
1
2
12
3
1.Door shelf
2.Egg section
3.Bottle shelf
4.Adjustable feet
5.Fridge crisper
6.Chiller compartment
7.Glass Shelf
8.Fan
9.Temperature setting button
10.Ion Guard
11.Freezer Crisper
12.Moveing door shelf
13.Ice box / Ice-making
14.Air Filter
15.Freezer compartment
16.Fridge compartment
*optional
Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
3 EN
2 Important Safety Warnings
•Keep ventilation openings, in the appliance enclosure or in the. built-in structure,
clear of obstruction
•Do not use electrical appliances inside the food appliance, unless they are of the type storage compartments of the appliance, unless they are of the type recommended by the manufacturer
•this appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
•children shall not play with the appliance.
•Cleaning and user maintenance shall
not be made by children without supervision
Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.
The service life of your product is 10 years. During this period, original spare parts will be available to operate the product properly.
Intended use
This product is intended to be used
•indoors and in closed areas such as homes;
•in closed working environments such as stores and os;
•in closed accommodation areas
such as farm houses, hotels, pensions.
• It should not be used outdoors.
General safety
•When you want to dispose/scrap the
product, we recommend you to consult the authorized service
in order to learn the. required information and authorized bodies.
•Consult your authorised service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
• For products with a |
. |
|
freezer compartment; |
||
|
||
Do not eat cone ice |
|
|
cream and ice cubes |
|
|
immediately after you |
|
|
take them out of the |
|
|
freezer compartment! |
|
|
(This may cause frostbite |
|
|
in your mouth.) |
|
•For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment.
Otherwise, these may burst.
•Do not touch frozen food by hand; they may stick to your hand.
4 EN
•Unplug your refrigerator before cleaning or defrosting.
•Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
•Never use the parts on your refrigerator such as the door as a means of support or step.
•Do not use electrical devices inside the refrigerator.
•Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
•Do not cover or block the ventilation holes on your refrigerator with any material.
•Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.
•In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse
or unplugging your appliance.
•Do not pull by the cable when pulling off the plug.
•Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright.
•Never store spray cans containing
flammable and explosive substances in the refrigerator.
•Do not use mechanical devices or other means to accelerate the defrosting process, other than those
5 EN
recommended by the manufacturer.
•This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will
be responsible for their safety or who will instruct them accordingly for use of the product
•Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
•Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
•Contact authorized service when there is a power cable damage to avoid danger.
•Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
•This refrigerator is intended for only storing food items. It must not be used for any other purpose.
•Label of technical specifications is located on the left wall inside the refrigerator.
•Never connect your refrigerator to electricitysaving systems; they may damage the refrigerator.
•If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
•For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
•This operation manual should be handed in to the new owner of the product when it is given to others.
6 EN
•Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.
•Do not plug the refrigerator if the wall outlet is loose.
•Water should not be sprayed on inner or outer parts of the product for safety purposes.
•Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
•Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire.
•Do not overload the refrigerator with food. If overloaded, the food
items may fall down and hurt you and damage
refrigerator when you |
|
open the door. |
7 |
•Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator’s door.
•As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
•If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
•The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
•Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
•When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
EN
|
• When you have to place |
|
For products with a |
||
|
your product next to |
|
|||
|
|
water dispenser; |
|||
|
another refrigerator or |
|
|||
|
|
• Pressure for cold water |
|||
|
freezer, the distance |
|
|||
|
|
inlet shall be maximum |
|||
|
between devices |
|
|||
|
|
90 psi (6.2 bar). If your |
|||
|
should be at least 8cm. |
|
|||
|
|
water pressure exceeds |
|||
|
Otherwise, adjacent side |
|
|||
|
|
80 psi (5.5 bar), use a |
|||
|
walls may be humidi ed. |
|
|||
|
|
pressure limiting valve |
|||
|
• The product shall never |
|
|||
|
|
in your mains system. If |
|||
|
be used while the |
|
|||
|
|
you do not know how |
|||
|
compartment which is |
|
|||
|
|
to check your water |
|||
|
located at the top or |
|
|||
|
|
pressure, ask for the |
|||
|
back of your product |
|
|||
|
|
help of a professional |
|||
|
and in which electronic |
|
|||
|
|
plumber. |
|||
|
boards are available |
|
|||
|
|
• If there is risk of water |
|||
|
(electronic board box |
|
|||
|
|
hammer e |
|||
|
cover) (1) is open. |
|
|||
|
|
installation, always |
|||
|
|
|
|
|
|
|
|
|
|
|
use a water hammer |
|
|
|
|
|
prevention equipment |
|
|
|
|
|
in your installation. |
|
1 |
|
|
|
Consult Professional |
|
|
|
|
|
plumbers if you are not |
|
|
|
|
|
sure that there is a |
|
|
|
|
|
water hammer e |
|
|
|
|
|
your installation. |
|
|
|
|
|
• Do not install on the |
|
|
|
|
|
hot water inlet. Take |
|
|
|
|
|
precautions against |
|
|
|
|
|
of the risk of freezing |
|
|
|
|
|
of the hoses. Water |
|
|
|
|
|
temperature operating |
|
|
|
|
|
interval shall be 33°F |
|
|
|
|
|
(0.6°C) minimum |
|
|
|
|
|
and 100°F (38°C) |
|
8 |
|
EN maximum. |
||
|
|
||||
|
|
|
|
|
|
•Use only potable water.
Child safety
•If the door has a lock, the key should be kept away from reach of children.
•Children must be supervised to prevent them from tampering
with the product.
Compliance with WEEE Directive and Disposing of the Waste Product:
This product complies
with EU WEEE Directive (2012/19/EU). This product
bears a classification symbol for waste electrical and electronic equipment
(WEEE).
This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities
to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children’s safety, cut the power cable and break the locking mechanism of the door, if any, so
that it will be non-functional before disposing of the product.
Package information
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
Do not forget...
Any recycled substance is an indispensable matter for nature and our national asset wealth.
If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.
HC warning
If your product's cooling system contains R600a:
This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.
Ignore this warning if your product's cooling system contains R134a.
Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.
Never throw the product in fire for disposal.
9 EN
Recommendations for the fresh food compartment
*May not be available in all models
Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.
Do not place hot foods in the product.
•Do not overload your refrigerator so that the air circulation inside of it is not prevented.
•Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from
•heat emitting sources and at least 5cm from electrical ovens.
•Pay attention to keep your food in closed containers.
For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There
is no harm to use a shelf or drawer
•according to the shapes and size of food to be frozen.
Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.
Things to be done for energy saving
•Do not leave the doors of your refrigerator open for a long time.
•Do not put hot food or drinks in your refrigerator.
10 EN
3 Installation
In case the information which are given in the user manual are not taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention to when the relocation of the refrigerator
1. Your refrigerator should be unplugged.Before transportation of your refrigerator, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be red against impacts. Package should
be bound with a thick tape and the transportation rules
on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.
Before you start the refrigerator,
Check the following before you start to use your refrigerator:
1.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.
2.Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.
3.When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges and both sides of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.
Electrical connection
Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.
Important:
The connection must be in compliance with national regulations.
•The power plug must be easily accessible after installation.
•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
•The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
•Extension cables and multi plugs must not be used for connection.
11 EN
A damaged power cable must be replaced by a qualid electrician.
Product must not be operated before it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities .
The packing of your refrigerator is produced from recyclable materials.
Disposing of your old refrigerator
Dispose of your old refrigerator without giving any harm to the environment.
•You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.
Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.
Placing and Installation
If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then remove the
doors of your refrigerator and pass it sideways through the door.
1.Install your refrigerator to a place that allows ease of use.
2.Keep your refrigerator away from heat sources, humid places and direct sunlight.
3.There must be appropriate air ventilation around your refrigerator in
order to achieve an e If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4.Place your refrigerator on an
revent jolts.
12 EN
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by turning its front legs as illustrated in the gure. The corner where the leg exists is lowered when you turn in the direction of black arrow and
raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.
Changing the illumination lamp
To change the Bulb/LED used for illumination of your refrigerator, call your Authorised service.
The lamp(s) used in this appliance is not suitable for household room
illumination. The intended purpose of this lamp is to assist the user to place foodstu s in the refrigerator/freezer in a safe and comfortable way.The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.
(only chest and upright freezer)
Door Open Warning
*May not be available in all models
An audio warning signal will be given when the door of your product is
left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.
13 EN
|
100 mm |
|
50 mm |
|
50 mm |
50 mm |
50 mm |
|
115̊
m m
5 7 2 1
1001 mm
14 EN
4 |
Preparation |
|
|
• |
Your refrigerator should be |
Electronic Temperature Control |
|
installed at least 30 cm away from |
System. |
||
heat sources such as hobs, ovens, |
youcan place your product in the garage |
||
central heater and stoves and at least |
or an unheated room without the |
||
5 cm away from electrical ovens and |
concern of causing frozen food to |
||
should not be located under direct |
get rotten. However, it is likely that |
||
sunlight. |
above mentioned low temperatures |
||
• Please make sure that the interior |
may cause the freezing of the food in |
||
of your refrigerator is cleaned |
the fridge compartment; thus, please |
||
thoroughly. |
consume the food items in the fridge |
||
• If two coolers are to be installed side |
in a controlled way as needed. When |
||
by side, there should be at least 2 cm |
ambient temperature goes back |
||
distance between them. |
to normal, you may change button |
||
• When you operate your refrigerator |
setting according to your need. |
||
for the rst time, please observe the |
• If the ambient temperature is below |
||
following instructions during the initial |
0°C, the food in fridge compartment |
||
six hours. |
will freeze. Therefore, we recommend |
||
• Its door should not be opened |
not using the fridge compartment |
||
frequently. |
in such low ambient temperatures. |
||
• It must be operated empty without |
You may continue to use the freezer |
||
placing any food in it. |
compartment as usual. |
||
• Do not unplug your refrigerator |
• In some models, the instrument panel |
||
If a power failure occurs out of your |
automatically turns o 5 minutes |
||
control, please see the warnings in |
after the door has closed. It will |
||
the “Recommended solutions for the |
be reactivated when the door has |
||
problems” section. |
opened or pressed on any key. |
||
• The baskets/drawers that are |
• Due to temperature change as a |
||
provided with the chill compartment |
result of opening/closing the product |
||
must always be in use for low energy |
door during operation, condensation |
||
consumption and for better storage |
on the door/body shelves and the |
||
conditions. |
glass containers is normal. |
||
• Food contact with the temperature |
|
|
|
sensor in the freezer compartment |
|
|
|
may increase energy consumption of |
|
|
|
the appliance. Thus any contact with |
|
|
|
the sensor(s) must be avoided. |
|
|
|
• This product has been designed to |
|
|
|
function at ambient temperatures |
|
|
|
up to 43 °C (90 SDgrF). Even if the |
|
|
|
ambient temperature falls to -15 |
|
|
|
°C, frozen food in the freezer does |
|
|
|
not thaw thanks to its Advanced |
|
|
15 EN
5 Using your refrigerator
Indicator panel (External Display) *Optional
Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.
1 2
12
11 *10 |
9 |
8 |
7 |
1. Power failure/High temperature / error warning indicator
This indicator () illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches y. After checking the food located in the freezer compartment () press the alarm orning.
Please refer to "remedies advised for troubleshooting" section on your manual if you observe that this indicator is illuminated.
|
|
|
|
|
|
6 |
5 |
4 |
3 |
2. Energy saving function (display
If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. ()
When energy saving function is activated, all symbols on the display other than energy saving symbol will turn o
function is activated, if any button is pressed or the door is opened, energy saving function will be cancelled and the symbols on display will return to normal.
Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
16 EN
Energy saving function is activated during delivery from factory and cannot be canceled.
3.Quick fridge function
The button has two functions. To activate or deactivate the quick cool function press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings. ( )
CUse quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food, activate this function before putting the food into
.the product
CIf you do not cancel it, quick cooling will cancel itself automatically after 1 hours or when the fridge compartment reaches to the required
.temperature
CIf you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not
.start up immediately
CThis function is not recalled when power restores after a
.power failure
4.Fridge compartment temperature setting button
Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8... respectively. Press this button to set the fridge
compartment temperature to the desired value. ()
5.Vacation Function
In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode indicator () will be activated. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation function button again.
6. Alarm off warning:
In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button () to clear the warning.
7. Key lock
Press key lock button ( ) simultaneously for 3 seconds. Key lock symbol
( ) will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.
Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( ).
8. Eco fuzzy
Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in
the most economic mode at least 6 hours later and the economic usage
17 EN
indicator will turn on when the function
is active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.
This indicator is illuminated after 6 hours when eco fuzzy is activated.
9.Freezer compartment temperature setting button
Press this button to set the temperature of the freezer compartment to-16,-17,-18,-19,-20,- 22,-24,-16... respectively. Press this
button to set the freezer compartment temperature to the desired value.()
10.Icematic function (optional)
Indicates whether the icematic is on
or off. ()If On, then the icematic is not operating. To operate the icematic again press and hold the On-Off button for 3 seconds.
CWater flow from water tank will stop when this function is selected. However, ice made previously can be taken from
.the icematic
11.Quick freeze function button
Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to
a temperature lower than the set value. ()
CUse the quick freeze function when you want to quickly freeze the food placed in fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into
.the product
CIf you do not cancel it, Quick Freeze will cancel itself automatically after 24 hours or when the fridge compartment reaches to the required
.temperature
CThis function is not recalled when power restores after a
.power failure
12.Economic usage indicator
Indicates that the product is running
in energy-efficient mode. ()This indicator will be active if the Freezer Compartment temperature is set to -16 or the energy efficient cooling is being performed due to Eco-Extra function.
CEconomic usage indicator is turned off when quick cooling or quick freeze functions are
.selected
18 EN
5 Using your refrigerator
Indicator panel (Internal Display) *Optional
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
8 |
|
|
|
|
7 |
|
2 |
|
|
3 |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9
1 |
6 |
5 |
4 |
1.Freezer compartment indicator
2.Error status indicator
3.Temperature indicator
4.Vacation function button
5.Temperature setting button
6.Compartment selection button
7.Fridge Compartment Indicator
8.Economy mode indicator
9.Vacation function indicator
*optional
Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.
19 EN
1.Freezer compartment indicator
Fridge compartment light is illuminated while the freezer compartment temperature is set.
2.Error status indicator
If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on
the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.
3. Temperature indicator
Indicates freezer, fridge compartment temperature.
4. Vacation function button
Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the
fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation button again.
5. Temperature setting button
Changes the temperature of the relevant compartment between -24°C... -16°C and 8°C...1°C.
6. Compartment selection button
Selection button: Press compartment selection button to switch between fridge and freezer compartments.
7. Fridge compartment indicator
Fridge compartment light is illuminated while the fridge compartment temperature is set.
8. Economy mode indicator
Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -16°C.
9. Vacation function indicator
Indicates that vacation is activated.
20 EN
Freezing fresh food
•It must be preferred to wrap or cover the food before placing them in the refrigerator.
•Hot food must cool down to the room temperature before putting them in the refrigerator.
•The foodstuthat you want to freeze must be fresh and in good quality.
•Foodstumust be divided into portions according to the family’s daily or meal based consumption needs.
•The foodstumust be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
•Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odour, oils and acids and they must also be airtight.
Moreover, they must be well closed and they must be made from easy- to-use materials that are suitable for deep freeze usage.
•Frozen food must be used immediately after they are thawed and they should never be re-frozen.
•Please observe the following instructions to obtain the best results.
1.Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
2.Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
3.Take special care not to mix already frozen food and fresh food.
Recommendations for preservation of frozen food
•Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment.
•To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:
1.Put packages in the freezer as quickly as possible after purchase.
2.Ensure that contents are labeled and dated.
3.Do not exceed "Use By", "Best Before" dates on the packaging.
Defrosting
The freezer compartment defrosts automatically.
Placing the food
Freezer |
Various frozen food |
|
such as meat, |
||
compartment |
||
ream, |
||
shelves |
||
vegetables and etc. |
||
|
||
|
|
|
Egg tray |
Egg |
|
|
|
|
Fridge |
Food in pans, |
|
compartment |
covered plates and |
|
shelves |
closed containers |
|
|
|
|
Fridge |
Small and packaged |
|
food or drinks (such |
||
compartment |
||
as milk, fruit juice and |
||
door shelves |
||
beer) |
||
|
||
|
|
|
Crisper |
Vegetables and fruits |
|
|
|
21 EN
|
Delicatessen |
Freshzone |
products (cheese, |
compartment |
butter, salami and |
|
etc.) |
Deep-freeze information
Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.
It is possible to keep the food for a long time only at -18°C or lower temperatures.
You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).
WARNING!
•Foodstumust be divided into portions according to the family’s daily or meal based consumption needs.
•Foodstumust be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
•Materials necessary for packaging:
•Cold resistant adhesive tape
•Self adhesive label
•Rubber rings
•Pen
Materials to be used for packaging the foodstur-proof and resistant to cold, humidity ,odour, oils and acids.
Foodsturozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.
Frozen food must be used immediately after they are thawed and they should never be re-frozen.
Making ice
(This feature is optional )
Fill the ice container with water and place it into the freezer compartment. Your ice will be ready approximately in two hours.
You can remove the ice in the ice container by removing it from the freezer and twisting it.
22 EN

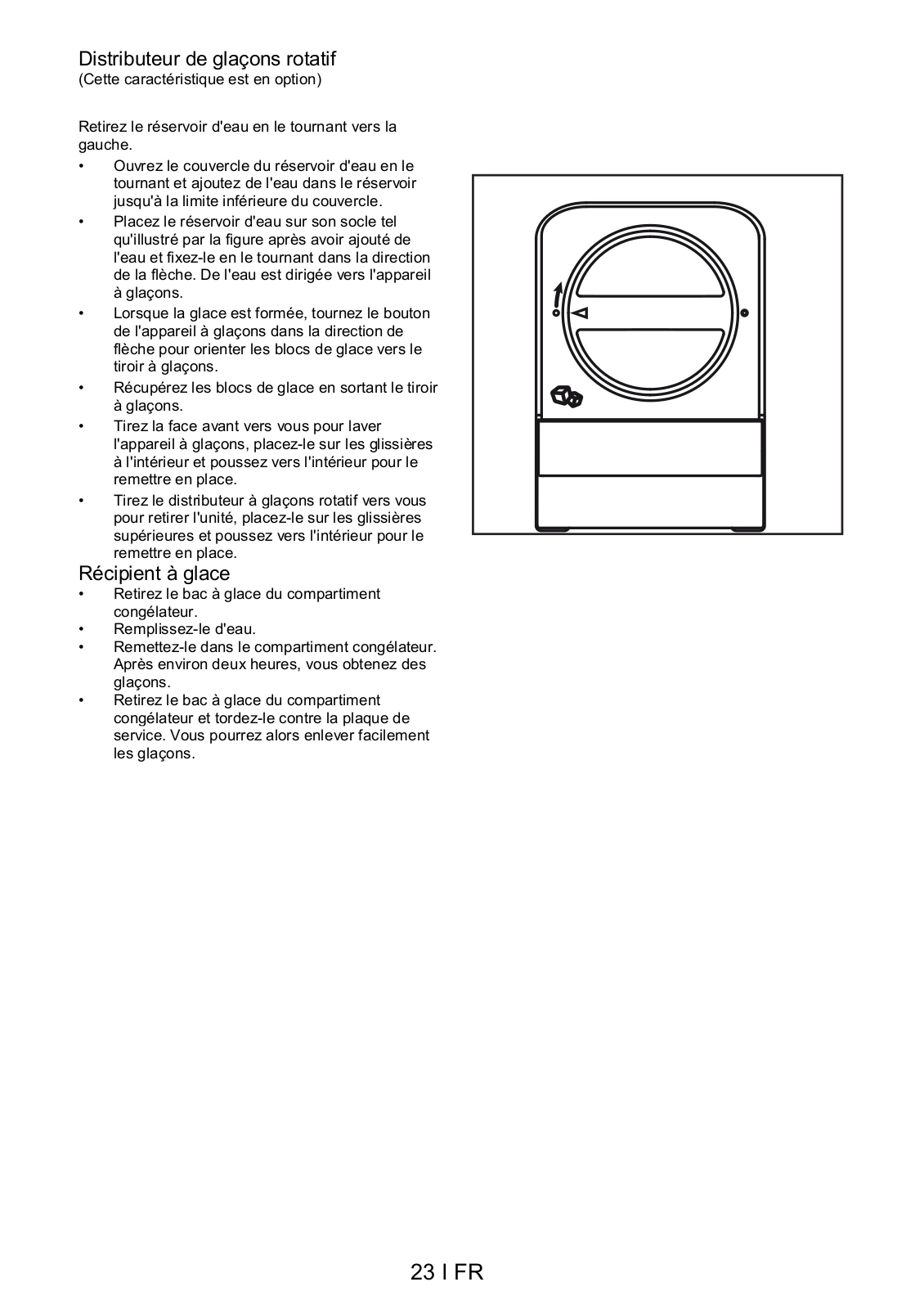

Twist Ice – matic
(This feature is optional)
•Remove the water tank by rotating it to the left.
•Open the water tank cover by turning it and add water to the water tank up to the lower part of the water tank cover.
•Place the water tank on its place as
shown in the ure after adding water and have it seated by rotating it on the direction of the arrow. Water shall be poured down to the icebank.
•When ice has formed, rotate icebank knob in the direction of the arrow to allow that the ice is dropped down to the ice drawer.
•Take the ice cubes by pulling ice drawer out.
•Pull the front face towards you in order to wash the icebank, and put it on the slides on the interior area and push it to its place in order to replace it.
•Pull the twist icematic unit towards you in order to remove the unit, and put it on the slides on the ceiling and push it to its place in order to replace it.
Ice container
•Remove the ice container from the freezer compartment.
•Fill the ice container with water.
•Place the ice container in the freezer compartment. About two hours later, the ice is ready.
•Remove the ice container from the freezer compartment and bend it over the service plate. Ice cubes will easily fall down to the service plate.
23 EN
Fan
Fan is designed to ensure homoge - neous distribution and circulation of the cold air inside your refrigerator.
Operation time of the fan may vary depending on the properties of your product.
While the fan works only with the com - pressor in some products, the control system determines its operation time in some products in accordance with the cooling requirement.
Chiller compartment
(This feature is optional)
Use this compartment to store delicatessen that shall be stored in a lower temperature or meat products that you will consume in a short time. Chiller compartment is the coolest place in your refrigerator where you can keep dairy p
poultry under ideal storage conditions. Fruits and vegetables should not be stored in this compartment.
Crisper
Crisper of the product is designed specially to keep the vegetables fresh without loosing their humidity. For this purpose, cool air circulation
round the crisper in
general. |
24 EN
Description and cleaning of odour lter:
optional *
Odour lter prevents unpleasant odour build-up in your refrigerator. Pull the cover into which the odour lter is installed downwards from the front section and remove as illustrated. Leave the lter under sunlight for one day. Filter will be cleaned during this time. Install the lter back to its place. Odour lter must be cleaned once in
a year.
25 EN
Reversing the doors
1
H1 1 |
3 |
2
2 |
H2 |
5 |
|
||
|
|
4 8 |
5 H3 |
6
6
H4
7 |
9
12 H2
11 |
10 |
|
|
H1 |
13 |
|
16 H4 |
15 H3 |
14 |
12
11
16 |
15
26 EN
6 Maintenance and cleaning
Never use gasoline, benzene or similar substances for cleaning purposes.
We recommend that you unplug the appliance before cleaning.
Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of
bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
Make sure that no water enters the lamp housing and other electrical items.
If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then
wipe it dry.
Protection of plastic surfaces
Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.
27 EN
