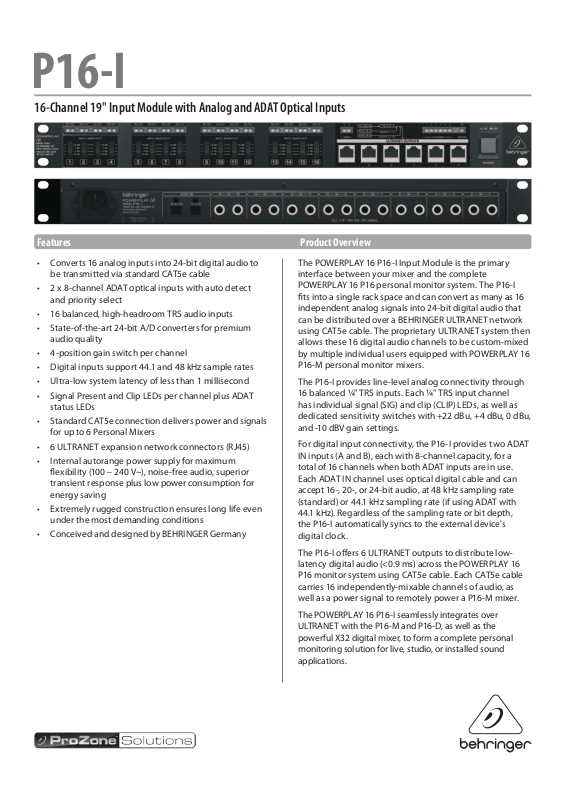

Behringer 16 P16-I Specification Sheet

P16-I

16-Channel 19'' Input Module with Analog and ADAT Optical Inputs

Features Product Overview

• Converts 16 analog inputs into 24-bit digital audio to
be transmitted via standard CAT5e cable

• 2 x 8-channel ADAT optical inputs with auto detect
and priority select

• 16 balanced, high-headroom TRS audio inputs

• State-of-the-art 24-bit A/D converters for premium

audio quality

• 4-position gain switch per channel

• Digital inputs support 44.1 and 48 kHz sample rates

• Ultra-low system latency of less than 1 millisecond

• Signal Present and Clip LEDs per channel plus ADAT

status LEDs

• Standard CAT5e connection delivers power and signals
for up to 6 Personal Mixers

• 6 ULTRANET expansion network connectors (RJ45)

• Internal autorange power supply for maximum

exibility (100 – 240 V~), noise-free audio, superior
transient response plus low power consumption for
energy saving

• Extremely rugged construction ensures long life even
under the most demanding conditions

• Conceived and designed by BEHRINGER Germany

The POWERPLAY 16 P16-I Input Module is the primary
interface between your mixer and the complete
POWERPLAY 16 P16 personal monitor system. The P16-I
ts into a single rack space and can convert as many as 16
independent analog signals into 24-bit digital audio that
can be distributed over a BEHRINGER ULTRANET network
using CAT5e cable. The proprietary ULTRANET system then
allows these 16 digital audio channels to be custom-mixed
by multiple individual users equipped with POWERPLAY 16
P16-M personal monitor mixers.

The P16-I provides line-level analog connectivity through
16 balanced ¼" TRS inputs. Each ¼" TRS input channel
has individual signal (SIG) and clip (CLIP) LEDs, as well as
dedicated sensitivity switches with +22 dBu, +4 dBu, 0 dBu,
and -10 dBV gain settings.

For digital input connectivity, the P16-I provides two ADAT
IN inputs (A and B), each with 8-channel capacity, for a
total of 16 channels when both ADAT inputs are in use.
EachADAT IN channel uses optical digital cable and can
accept 16-, 20-, or 24-bit audio, at 48 kHz sampling rate
(standard) or 44.1 kHz sampling rate (if using ADAT with

44.1kHz). Regardless of the sampling rate or bit depth,
theP16-I automatically syncs to the external device's
digitalclock.

The P16-I oers 6 ULTRANET outputs to distribute low­latency digital audio (<0.9 ms) across the POWERPLAY 16
P16 monitor system using CAT5e cable. Each CAT5e cable
carries 16 independently-mixable channels of audio, as
well as a power signal to remotely power a P16-M mixer.

The POWERPLAY 16 P16-I seamlessly integrates over
ULTRANET with the P16-M and P16-D, as well as the
powerful X32 digital mixer, to form a complete personal
monitoring solution for live, studio, or installed sound
applications.

P16-I

16-Channel 19'' Input Module with Analog and ADAT Optical Inputs

Product Overview

Technical Specications

Input Module

Analog Inputs

• Inputs 16 x ¼" TRS, balanced, line-level

• Input level +4 dBu optimal, +22 dBu maximal

• Input gain -10 dBV / 0 dBu / +4 dBu /

+22 dBu, adjustable

• Gain selector 4-position switch (per channel)

Digital Inputs

• Optical inputs 2 x standard TOS-link

optical connector

• Input format ADAT, 16 / 20 / 24-bit

48 kHz (standard)/ 44.1 kHz

• 8 channels per ADAT connection

• Synchronization From ADAT input A only

(externalclock)

• Indicators 2 x LED's

• Input selection Auto select for channels 1 – 8 /

9 – 16

Digital Outputs (Ultranet)

• Connectors 6 x RJ45

Ultranet Digital Network

Digital Processing

• A/D conversion 24-bit
48 kHz (standard for analog in)

44.1 kHz (if ADAT 44.1 kHz)

• Converter type 24-bit, delta-sigma

System

• Signal 16 channels, plus bus-power
for P16-M

• Latency <0.9 ms (from P16-I to P16-M)

• Frequency response 20 Hz to 20 kHz (+0 / -3 dB)

• Dynamic range typical 92 dB

Cabling

• Connectors RJ45

• Cables Shielded CAT5

• Cable length max. 246 ft / 75 m recommended

Power Supply / Voltage (Fuses)

• USA / Canada 120 V~, 60 Hz (T 1 A H 250 V)

• UK / Australia / Europe 220-240 V~, 50/60 Hz (T 1 A H 250 V)

• Korea / China 220-240 V~, 50/60 Hz (T 1 A H 250 V)

• Japan 100 V~, 50/60 Hz (T 1 A H 250 V)

Power consumption max. 40 W

Mains connection Standard IEC receptacle

Dimensions / Weight

• Dimensions (H x W x D) appr. 1.7 x 19 x 7.5"
appr. 44 x 482 x 190 mm (1U)

• Weight appr. 4.6 lbs / 2.1 kg

2
