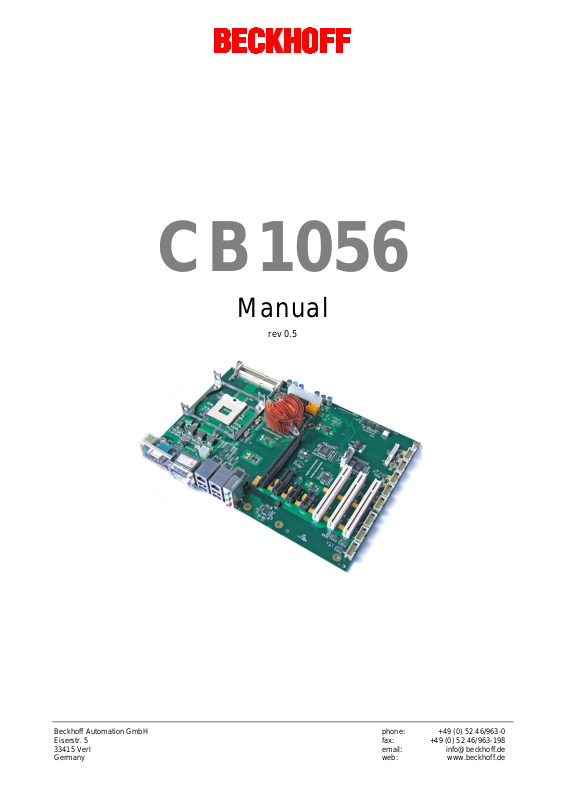

Beckhoff CB1056 User Manual

CB1056

Manual

rev 0.5

Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de

Contents

0 Document History................................................................................................................................. 7

1 Introduction .......................................................................................................................................... 8

1.1 Notes on the Documentation ........................................................................................................ 8

1.1.1 Liability Conditions ................................................................................................................ 8

1.1.2 Copyright ............................................................................................................................... 8

1.2 Safety Instructions ........................................................................................................................ 9

1.2.1 Disclaimer ............................................................................................................................. 9

1.2.2 Description of Safety Symbols ............................................................................................ 10

1.3 Essential Safety Measures ......................................................................................................... 11

1.3.1 Operator's Obligation to Exercise Diligence ....................................................................... 11

1.3.2 National Regulations Depending on the Machine Type ..................................................... 11

1.3.3 Operator Requirements ...................................................................................................... 11

1.4 Functional Range ........................................................................................................................ 12

2 Overview ............................................................................................................................................ 13

2.1 Features ...................................................................................................................................... 13

2.2 Specifications and Documents ................................................................................................... 15

3 Connectors ......................................................................................................................................... 17

3.1 Power Supply, System Connectors, CPU .................................................................................. 17

3.1.1 Power Supply ...................................................................................................................... 17

3.1.2 System ................................................................................................................................ 19

3.1.3 CPU Socket ........................................................................................................................ 20

3.1.4 CMOS Battery ..................................................................................................................... 21

3.2 Back Panel Connectors .............................................................................................................. 22

3.2.1 DVI Connectors................................................................................................................... 22

3.2.2 DVI/HDMI ............................................................................................................................ 24

3.2.3 Display Port ......................................................................................................................... 25

3.2.4 PS/2 Keyboard and Mouse ................................................................................................. 26

3.2.5 Serial Interface COM1 ........................................................................................................ 27

3.2.6 USB and LAN...................................................................................................................... 28

3.2.7 Audio Connectors ............................................................................................................... 29

3.3 SATA and Memory ..................................................................................................................... 30

3.3.1 SATA Interfaces .................................................................................................................. 30

3.3.2 Memory ............................................................................................................................... 31

3.4 Internal Connectors .................................................................................................................... 34

3.4.1 USB 5-14 ............................................................................................................................ 34

3.4.2 Serial ports COM2 to COM4 ............................................................................................... 35

3.4.3 LVDS ................................................................................................................................... 36

3.4.4 CD-In ................................................................................................................................... 38

3.4.5 S/PDIF ................................................................................................................................ 39

3.4.6 PCI interfaces ..................................................................................................................... 40

3.4.7 PCI-express Interfaces (x1) ................................................................................................ 42

3.4.8 PCI-express interface (x4) .................................................................................................. 43

3.4.9 PCI-express interface (x16) ................................................................................................ 45

3.4.10 SMB/I2C .............................................................................................................................. 47

3.4.11 GPIO ................................................................................................................................... 48

3.4.12 Fan Connectors .................................................................................................................. 49

Beckhoff New Automation Technology CB1056 page 3

Contents

3.5 Jumper Settings .......................................................................................................................... 50

3.5.1 Clear CMOS ........................................................................................................................ 50

3.5.2 Jumper: Keyboard Power (KBPWR)................................................................................... 51

4 BIOS Settings ..................................................................................................................................... 52

4.1 General Remarks ........................................................................................................................ 52

4.2 Main ............................................................................................................................................ 53

4.3 Advanced .................................................................................................................................... 55

4.3.1 PCI Subsystem Settings ..................................................................................................... 57

4.3.2 ACPI Settings...................................................................................................................... 59

4.3.3 CPU Configuration .............................................................................................................. 60

4.3.4 SATA Configuration ............................................................................................................ 62

4.3.5 PCH FW Configurations ..................................................................................................... 63

4.3.6 AMT Configuration .............................................................................................................. 65

4.3.7 Power Controller Options .................................................................................................... 67

4.3.8 USB Configuration .............................................................................................................. 69

4.3.9 Super IO Configuration ....................................................................................................... 70

4.3.10 H/W Monitor ........................................................................................................................ 72

4.3.11 Serial Port Console Redirection.......................................................................................... 74

4.3.12 Network Stack ..................................................................................................................... 76

4.3.13 CPU PPM Configuration ..................................................................................................... 77

4.3.14 Intel(R) GigabitNetworkConnection .................................................................................... 78

4.4 Chipset ........................................................................................................................................ 80

4.4.1 PCH-IO Configuration ......................................................................................................... 81

4.4.2 System Agent (SA) Configuration ....................................................................................... 88

4.5 Boot ............................................................................................................................................. 97

4.5.1 CSM Parameters ................................................................................................................ 99

4.6 Security ..................................................................................................................................... 100

4.6.1 Secure Boot Policy ........................................................................................................... 101

4.6.2 Key Management .............................................................................................................. 102

4.7 Save & Exit ............................................................................................................................... 104

4.8 BIOS-Update ............................................................................................................................ 105

5 Mechanical Drawings ....................................................................................................................... 106

5.1 PCB: Mounting Holes ............................................................................................................... 106

5.2 PCB: Pin 1 Dimensions ............................................................................................................ 107

5.3 PCB: Die Center ....................................................................................................................... 108

6 Technical Data ................................................................................................................................. 109

6.1 Electrical Data ........................................................................................................................... 109

6.2 Environmental Conditions ......................................................................................................... 109

6.3 Thermal Specifications ............................................................................................................. 110

7 Support and Service ........................................................................................................................ 111

7.1 Beckhoff's Branch Offices and Representatives ...................................................................... 111

7.2 Beckhoff Headquarters ............................................................................................................. 111

7.2.1 Beckhoff Support .............................................................................................................. 111

7.2.2 Beckhoff Service ............................................................................................................... 111

I Annex: Post-Codes .......................................................................................................................... 113

II Annex: Resources ............................................................................................................................ 114

IO Range .............................................................................................................................................. 114

Memory Range ..................................................................................................................................... 114

page 4 Beckhoff New Automation Technology CB1056

Contents

Interrupt ................................................................................................................................................ 114

PCI Devices .......................................................................................................................................... 115

SMB Devices ........................................................................................................................................ 115

Beckhoff New Automation Technology CB1056 page 5

Chapter: Document History Notes on the Documentation

page 6 Beckhoff New Automation Technology CB1056

Notes on the Documentation Chapter: Document History

Version

Changes

0.1

first pre-release

0.2

updated BIOS setup

0.3

updated BIOS setup

0.4

chapter 3.5.1: amended note

0.5

updated chapter 3.4.9; updated LAN pinout in chapter 3.2.6

0 Document History

NOTE

All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law.

Beckhoff New Automation Technology CB1056 page 7

Chapter: Introduction Notes on the Documentation

1 Introduction

1.1 Notes on the Documentation

This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components.

1.1.1 Liability Conditions

The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards. The documentation has been prepared with care. The products described are, however, constantly under development. For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics. None of the statements of this manual represents a guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.

1.1.2 Copyright

page 8 Beckhoff New Automation Technology CB1056

Safety Instructions Chapter: Introduction

1.2 Safety Instructions

Please consider the following safety instructions and descriptions. Product specific safety instructions are to be found on the following pages or in the areas mounting, wiring, commissioning etc.

1.2.1 Disclaimer

All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.

Beckhoff New Automation Technology CB1056 page 9

Chapter: Introduction Safety Instructions

1.2.2 Description of Safety Symbols

The following safety symbols are used in this documentation. They are intended to alert the reader to the associated safety instructions.

ACUTE RISK OF INJURY!

If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health of individuals!

RISK OF INJURY!

If you do not adhere to the safety advise next to this symbol, there is danger to life and health of individuals!

HAZARD TO INDIVIDUALS, ENVIRONMENT, DEVICES, OR DATA!

If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data.

NOTE OR POINTER

This symbol indicates information that contributes to better understanding.

page 10 Beckhoff New Automation Technology CB1056

Essential Safety Measures Chapter: Introduction

1.3 Essential Safety Measures

1.3.1 Operator's Obligation to Exercise Diligence

The operator must ensure that

o the product is only used for its intended purpose o the product is only operated in sound condition and in working order o the instruction manual is in good condition and complete, and always available for reference at the

location where the products are used

o the product is only used by suitably qualified and authorised personnel o the personnel is instructed regularly about relevant occupational safety and environmental protection

aspects

o the operating personnel is familiar with the operating manual and in particular the safety notes

contained herein

1.3.2 National Regulations Depending on the Machine Type

Depending on the type of machine and plant in which the product is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. These regulations cover, amongst other things, the intervals between inspections of the controller. The operator must initiate such inspections in good time.

1.3.3 Operator Requirements

o Read the operating instructions All users of the product must have read the operating instructions for the system they work with. o System know-how All users must be familiar with all accessible functions of the product.

Beckhoff New Automation Technology CB1056 page 11

Chapter: Introduction Functional Range

1.4 Functional Range

NOTE

The descriptions contained in the present documentation represent a detailed and extensive product description. As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. Due to several models of Industrial PCs, variations in the component placement of the motherboards are possible. Support and service benefits for the built-in motherboard will be rendered by Beckhoff Automation GmbH exclusively as specified in the product description (inclusive operation system) of the particular Industrial PC.

page 12 Beckhoff New Automation Technology CB1056

Features Chapter: Overview

Intel® QM67 PCH

SMSC®

SCH3114

LPC

PCI

Intel®

82574L

2x SO-DIMM204

DDR3-1600

(dual channel)

MEMORY

PCIe to PCI

Bridge

PI7C9X111SL

BIOS

MS

2x SATA

RealTek®

ALC889

MIC

LINE IN LINE OUT

HDA Link

KB

PCI Slot 1

LAN2

USB1-14

COM1-4

CRT

Intel® Core™ i7-

2710QE, i5-2510E,

Celeron® B810

FDI

1.5/3/6 GB/s

SPDIF i SPDIF o

PCI Slot 2

PCI Slot 3

Intel®

82579L

LAN1

4x SATA

PCIe

PCIe x4 Slot 1

SMBus

PCIe x1 Slot 2

PCIe x1 Slot 3

PCIe (PEG)

PCIe x16

FAN 1-4

USB 2.0

8x GPIO

I2C

CD IN

1.5/3 GB/s

DMI

(n/a if x4 dev. in sl. 1)

DVI/HDMI DVI/HDMI

DP

SPI

LVDS

18/24/36/48

Power VCCCore; VTT;

DDRVTT, GFXVCC

1,05V; 1,5V; 1,8V; 3,3V

2 Overview

2.1 Features

The CB1056 is a computer motherboard for industrial applications. Complying to the ATX form factor and based on Intel®'s QM67 PCH chipset, it is equipped with an rPGA988B CPU socket for Intel® CPUs of the 2nd Generation Core™ and Celeron® families. Modern DDR3 technology provides top-notch memory performance, accommodating up to 16 GByte of RAM (DDR3-1066/1333/1600) via SO-DIMM204. Expansion cards can be added into three PCI slots, two PCIeX1 slots, one PCIeX4 slot and one PCIeX16 slots. The CB1056 also offers a wide range of internal and external connectors, such as four serial ports, two LAN connectors, 14 USB channels, six SATA connectors (two of which offering up to 6Gb/s), digital and analogue audio, VGA/DVI/HDMI connectors, DisplayPort connector, LCD connector, etc.

o Socket rPGA988B o Suitable CPUs: Intel® Core™ i7-2710QE, i5-2510E, Celeron® B810 o Chipset Intel® QM67 PCH o Two SO-DIMM204 sockets for up to 16 GByte DDR3-1066/1333/1600 RAM o Three PCI sockets o Two PCIe-x1 sockets o One PCIe-x4 socket o One PCIe-x16 socket o Four serial interfaces COM1 to COM4 o Two LAN interfaces Ethernet 10/100/1000 (Base-T) o Six SATA channels (two of which up to 6Gb/s transfer rate) o PS2 keyboard / mouse interface o 14 USB 2.0 interfaces o BIOS AMI® Aptio

Beckhoff New Automation Technology CB1056 page 13

Chapter: Overview Features

o 1x DVI-I o 1x DVI-D, 1x internal HDMI (can't be used simultaneously) o CRT connection o TFT connection via LVDS 18/24/36/48 o HDA compatible sound controller with SPDIF in and out o 8x GPIO o RTC with external CMOS battery o ATX power connector incl. 2x2pin 12V connector o Format: ATX (305mm x 220mm)

page 14 Beckhoff New Automation Technology CB1056

Specifications and Documents Chapter: Overview

2.2 Specifications and Documents

In making this manual and for further reading of technical documentation, the following documents, specifications and web-pages were used and are recommended.

 ATX Specification

Version 2.2

www.formfactors.com

 PCI Specification

Version 2.3 resp. 3.0

www.pcisig.com

 PCI Express® Base Specification

Version 2.0

www.pcisig.com

 ACPI Specification

Version 3.0

www.acpi.info

 ATA/ATAPI Specification

Version 7 Rev. 1

www.t13.org

 USB Specifications

www.usb.org

 SM-Bus Specification

Version 2.0

www.smbus.org

 Intel® Chipset Description

Intel® 6 Series Chipset datasheet

www.intel.com

 Intel® Chip Description

2nd Gen. Intel® Core™ Processor Family Mobile datasheet

www.intel.com

 Intel® Chip Description

82579L Datasheet

www.intel.com

 Intel® Chip Description

82574L Datasheet

www.intel.com

 SMSC® Chip Description

SCH3114 Datasheet

www.smsc.com

(NDA required)

 Realtek® Chip Description

ALC885/889 Datasheet

www.realtek.com.tw

 ICS® Chip Description

ICS9LPRS501 Datasheet

www.idt.com

 American Megatrends®

Aptio™ Text Setup Environment (TSE) User Manual

www.ami.com

Beckhoff New Automation Technology CB1056 page 15

Chapter: Overview Specifications and Documents

 American Megatrends®

Aptio™ 4.x Status Codes

www.ami.com

page 16 Beckhoff New Automation Technology CB1056

Power Supply, System Connectors, CPU Chapter: Connectors

Description

Name

Description

3.3 volt supply

3.3V

1

11

3.3V

3.3 volt supply

3.3V

2

12

-12V

12 volt supply

ground

GND

3

13

GND

ground

5 volt supply

VCC

4

14

PWRBTN#

powerbutton

ground

GND

5

15

GND

ground

5 volt supply

VCC

6

16

GND

ground

GND

7

17

GND

ground

power on

PWR_ON

8

18

-5V

volt supply -5V

standby supply 5V

SVCC

9

19

VCC

5 volt supply

12 volt supply

12V

10

20

VCC

5 volt supply

3 Connectors

This section describes all the connectors found on the CB1056.

CAUTION

For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. Please refer to the respective specifications and use suitable cables at all times.

3.1 Power Supply, System Connectors, CPU

3.1.1 Power Supply

The connector for the power supply is a 2x10pin ATX connector ("ATX20", Foxconn HM3510E-P2). It is accompanied by a 2x2pin connector, which must be used to provide the COREIN power supply.

Pinout "ATX20" power connector:

Beckhoff New Automation Technology CB1056 page 17

Chapter: Connectors Power Supply, System Connectors, CPU

Description

Name

Description

ground

GND

1 3 COREIN

12 volt supply

ground

GND

2 4 COREIN

12 volt supply

Pinout ATX power connector 2x2:

page 18 Beckhoff New Automation Technology CB1056

Power Supply, System Connectors, CPU Chapter: Connectors

Description

Name

Description

on/suspend button

PWRBTN#

A1

B1

GND

ground

GND

A2

B2

KBLOCK

keyboard lock

reserved

N/C

A3

B3

PWLED#

power LED

ground

GND

A4

B4

N/C

reserved

5 volt supply

VCC

A5

B5

PWLED

3.3 volt supply

harddisk LED

HDLED#

A6

B6

N/C

reserved

5 volt supply

VCC

A7

B7

VCC

5 volt supply

reserved

N/C

A8

B8

GND

ground

IrDA transmit

IRTX

A9

B9

N/C

reserved

ground

GND

A10

B10

BEEP

speaker

IrDA receive

IRRX

A11

B11

N/C

reserved

IrDA control

CIRRX

A12

B12

GND

ground

5 volt supply

VCC

A13

B13

RESET#

reset

3.1.2 System

Typical signals for system control are provided through a 2x13 IDC socket connector with a spacing of

2.54mm. This connector combines signals for power button, reset, keyboard lock, IrDA, and several LEDs.

Pinout IDC socket connector "System 1":

Beckhoff New Automation Technology CB1056 page 19

Chapter: Connectors Power Supply, System Connectors, CPU

3.1.3 CPU Socket

The CB1056 board has an rPGA988B CPU socket accomodating certain versions of Intel®'s 2nd

generation Core™ architecture CPUs. The rPGA988B is a ZIF (Zero Insertion Force) socket, which means

that you can insert the processor without there being any resistance. There is only one orientation in which the processor will fit into the socket. Once the processor is in place, the fastening screw must be tightened to ensure proper electrical contact.

NOTE

Processors must be ordered separately. The board ships without a CPU.

page 20 Beckhoff New Automation Technology CB1056

Power Supply, System Connectors, CPU Chapter: Connectors

Name

Description

1

BATT

battery 3.3 volt

2

GND

ground

3.1.4 CMOS Battery

The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2).

Beckhoff New Automation Technology CB1056 page 21

Chapter: Connectors Back Panel Connectors

Name

Description

1

TMDSDAT2#

DVI data 2 -

2

TMDSDAT2

DVI data 2 +

3

GND

ground

4

N/C

reserved

5

N/C

reserved

6

DDC CLK

DDC clock (DVI/VGA)

7

DDC DAT

DDC data (DVI/VGA)

8

VSYNC

VGA vertical sync

9

TMDSDAT1#

DVI data 1 -

10

TMDSDAT1

DVI data 1 +

11

GND

ground

12

N/C

reserved

13

N/C

reserved

14

VCC

5 volt supply

15

GND

ground

16

HP_DETECT

hot plug detect

17

TMDSDAT0#

DVI data 0 -

18

TMDSDAT0

DVI data 0 +

19

GND

ground

20

N/C

reserved

3.2 Back Panel Connectors

The board complies with the ATX form factor and thus honours the "I/O Connector Area" as defined in the ATX specification. A range of standard connectors are available: You can connect PS/2 keyboard and mouse, displays, speakers, microphone, LAN, USB etc. If the board is mounted in a normal ATX compliant case, these connectors are located on the back side of the case.

3.2.1 DVI Connectors

The CB1056 has one DVI-I connector and one DVI-D connector combined in one component (Foxconn QH11121-DADF-4F). With an appropriate adapter, you can connect a CRT display to the DVI-I connector. Digital DVI or HDMI displays can be attached to both connectors. The CPU's graphics system supports up to two independent displays.

Pinout DVI-I:

page 22 Beckhoff New Automation Technology CB1056

Back Panel Connectors Chapter: Connectors

Name

Description

21

N/C

reserved

22

GND

ground

23

TMDS CLK

DVI clock

24

TMDS CLK#

DVI clock

C1

RED

VGA red

C2

GREEN

VGA green

C3

BLUE

VGA blue

C4

HSYNC

VGA horizontal sync

C5

GND

ground

Name

Description

1

TMDSDAT2#

DVI data 2 -

2

TMDSDAT2

DVI data 2 +

3

GND

ground

4

N/C

reserved

5

N/C

reserved

6

DDC CLK

DDC clock (DVI/VGA)

7

DDC DAT

DDC data (DVI/VGA)

8

N/C

reserved

9

TMDSDAT1#

DVI data 1 -

10

TMDSDAT1

DVI data 1 +

11

GND

ground

12

N/C

reserved

13

N/C

reserved

14

VCC

5 volt supply

15

GND

ground

16

HP_DETECT

hot plug detect

17

TMDSDAT0#

DVI data 0 -

18

TMDSDAT0

DVI data 0 +

19

GND

ground

20

N/C

reserved

21

N/C

reserved

22

GND

ground

23

TMDS CLK

DVI clock +

24

TMDS CLK#

DVI clock -

C1

N/C

reserved

C2

N/C

reserved

C3

N/C

reserved

C4

N/C

reserved

C5

GND

ground

Pinout DVI-D:

Beckhoff New Automation Technology CB1056 page 23

Chapter: Connectors Back Panel Connectors

Description

Name

Description

HDMI panel detected

HPD_SINK

1 2 N/C

reserved

SMBus clock (DDC)

SCL_SINK

3 4 SDA_SINK

SMBus dat (DDC)

5 volt supply

VCC

5 6 GND

ground

GND

7 8 TMDS_CLK#

DVI clock -

DVI data 0 -

TMDS_D0#

9

10

TMDS_CLK

DVI clock +

DVI data 0 +

TMDS_D0

11

12

GND

ground

GND

13

14

TMDS_D1#

DVI data 1 -

DVI data 2 -

TMDS_D2#

15

16

TMDS_D1

DVI data 1 +

DVI data 2 +

TMDS_D2

17

18

GND

ground

3.2.2 DVI/HDMI

The CB1056 provides a second DVI interface which is realized as a 2x9pin header (Molex 87831-1820, mating connector e.g. Molex 0791098658-ND). Analog VGA is not available on this connector. However, an HDMI device can be connected. This connector and the DVI-D connector cannot be used simultaneously.

Pinout 2x9pin connector DVI/HDMI:

page 24 Beckhoff New Automation Technology CB1056

Back Panel Connectors Chapter: Connectors

Description

Name

Description

displayport lane 0 +

DPL0

1 2 GND

ground

displayport lane 0 -

DPL0#

3 4 DPL1

displayport lane 1 +

ground

GND

5 6 DPL1#

displayport lane 1 -

displayport lane 2 +

DPL2

7 8 GND

ground

displayport lane 2 -

DPL2#

9

10

DPL3

displayport lane 3 +

ground

GND

11

12

DPL3#

displayport lane 3 -

ground

GND

13

14

GND

ground

displayport aux +

DPAUX

15

16

GND

ground

displayport aux -

DPAUX#

17

18

HPD

hotplug detect

ground

GND

19

20

3.3V

3.3V supply

3.2.3 Display Port

For DisplayPort devices, a suitable standard connector is available (Foxconn 3VD11207-H7AB-4H).

Pinout DisplayPort connector:

Beckhoff New Automation Technology CB1056 page 25

Chapter: Connectors Back Panel Connectors

Description

Name

Description

mouse data

MDAT

B1

B2

N/C

reserved

ground

GND

B3

B4

(S)VCC

5 volt supply

mouse clock

MCLK

B5

B6

N/C

reserved

Description

Name

Description

keyboard data

KDAT

A1

A2

MDAT

mouse data

ground

GND

A3

A4

(S)VCC

5 volt supply

keyboard clock

KCLK

A5

A6

MCLK

mouse clock

3.2.4 PS/2 Keyboard and Mouse

PS/2 mice and keyboards are connected via standard mini-DIN connectors. If you want to use the keyboard or mouse to wake up the board from standby or suspend mode you have to activate this functionality by adjusting the KBPWR jumper settings (page 51). With this jumper you can switch from normal power supply (VCC) to standby power supply (SVCC) for keyboard/mouse. Some relevant settings will have to be adjusted in BIOS setup.

Pinout PS/2 mouse:

Pinout PS/2 keyboard:

page 26 Beckhoff New Automation Technology CB1056

Back Panel Connectors Chapter: Connectors

Description

Name

Description

data carrier detect

DCD

1 6 DSR

data set ready

receive data

RXD

2 7 RTS

request to send

transmit data

TXD

3 8 CTS

clear to send

data terminal ready

DTR

4 9 RI

ring indicator

ground

GND

5

3.2.5 Serial Interface COM1

The serial interface COM1 is made available via a 9-pin standard DSUB-connector (male, e.g. Foxconn DM10152-H5W3-4F). Signal level is RS232. The port address and the interrupt are set via the BIOS setup.

Pinout serial port (DSUB connector):

Beckhoff New Automation Technology CB1056 page 27

Chapter: Connectors Back Panel Connectors

Name

Description

1

VCC

5 volt for USBX

2

USBX#

minus channel USBX

3

USBX

plus channel USBX

4

GND

ground

Name

Description

1

LAN2-0

LAN2 channel 0 plus

2

LAN2-0#

LAN2 channel 0 minus

3

LAN2-1

LAN2 channel 1 plus

4

LAN2-2

LAN2 channel 2 plus

5

LAN2-2#

LAN2 channel 2 minus

6

LAN2-1#

LAN2 channel 1 minus

7

LAN2-3

LAN2 channel 3 plus

8

LAN2-3#

LAN2 channel 3 minus

3.2.6 USB and LAN

To save space USB and LAN connectors are provided in the form of combo connectors. These either comprise two USB connectors or two USB connectors and one LAN connector. This way all board variants provide four external USB channels. The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with these features enabled may lead to significant performance or functionality limitations. Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse. The board comes in different variants, some with one Gigabit-LAN connector, others with two. All LAN connectors support 10/100/1000 Ethernet with automatic bandwith selection. Controller chips are the ICH9R (MAC) accompanied by the 82579L (PHY, LAN1) and, if present, the 82574L (MAC/PHY, LAN2).

Pinout USB connector for channel X:

Pinout LAN 10/100/1000:

page 28 Beckhoff New Automation Technology CB1056

Back Panel Connectors Chapter: Connectors

3.2.7 Audio Connectors

Line-in, line-out, and microphone signals are provided in the form of three 3,5mm-TRS-connectors.

Beckhoff New Automation Technology CB1056 page 29

Chapter: Connectors SATA and Memory

Name

Description

1

GND

ground

2

SATATX

SATA transmit +

3

SATATX#

SATA transmit -

4

GND

ground

5

SATARX

SATA receive -

6

SATARX#

SATA receive +

7

GND

ground

3.3 SATA and Memory

3.3.1 SATA Interfaces

The CB1056 provides six SATA interfaces. They all support transfer rates of 1,5GB/s and 3GB/s. Additionally, SATA1 & SATA2 support 6GB/s.

Pinout SATA:

page 30 Beckhoff New Automation Technology CB1056

SATA and Memory Chapter: Connectors

Description

Name

Description

memory reference current

REF-DQ

1 2 GND

ground

GND

3 4 DQ4

data 4

data 0

DQ0

5 6 DQ5

data 5

data 1

DQ1

7 8 GND

ground

GND

9

10

DQS0#

data strobe 0 -

data mask 0

DM0

11

12

DQS0

data strobe 0 +

ground

GND

13

14

GND

ground

data 2

DQ2

15

16

DQ6

data 6

data 3

DQ3

17

18

DQ7

data 7

ground

GND

19

20

GND

ground

data 8

DQ8

21

22

DQ12

data 12

data 9

DQ9

23

24

DQ13

data 13

ground

GND

25

26

GND

ground

data strobe 1 -

DQS1#

27

28

DM1

data mask 1

data strobe 1 +

DQS1

29

30

RESET#

Reset

ground

GND

31

32

GND

ground

data 10

DQ10

33

34

DQ14

data 14

data 11

DQ11

35

36

DQ15

data 15

ground

GND

37

38

GND

ground

data 16

DQ16

39

40

DQ20

data 20

data 17

DQ17

41

42

DQ21

data 21

ground

GND

43

44

GND

ground

data strobe 2 -

DQS2#

45

46

DM2

data mask 2

data strobe 2 +

DQS2

47

48

GND

ground

GND

49

50

DQ22

data 22

data 18

DQ18

51

52

DQ23

data 23

3.3.2 Memory

The CB1056 is equipped with two SO-DIMM204 sockets for DDR3-1066/1333/1600-RAM. For technical and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules With currently available memory modules a memory extension up to 16 GByte is possible. All timing parameters for different memory modules are automatically set by BIOS.

Pinout SO-DIMM204:

Beckhoff New Automation Technology CB1056 page 31

Chapter: Connectors SATA and Memory

Description

Name

Description

data 19

DQ19

53

54

GND

ground

GND

55

56

DQ28

data 28

data 24

DQ24

57

58

DQ29

data 29

data 25

DQ25

59

60

GND

ground

GND

61

62

DQS3#

data strobe 3 -

data mask 3

DQM3

63

64

DQS3

data strobe 3 +

ground

GND

65

66

GND

ground

data 26

DQ26

67

68

DQ30

data 30

data 27

DQ27

69

70

DQ31

data 31

ground

GND

71

72

GND

ground

clock enables 0

CKE0

73

74

CKE1

clock enables 1

1.5 volt supply

1.5V

75

76

1.5V

1.5 volt supply

reserved

N/C

77

78

(A15)

reserved

SDRAM bank 2

BA2

79

80

A14

address 14

1.5 volt supply

1.5V

81

82

1.5V

1.5 volt supply

address 12 (burst chop)

A12/BC#

83

84

A11

address 11

address 9

A9

85

86

A7

address 7

1.5 volt supply

1.5V

87

88

1.5V

1.5 volt supply

address 8

A8

89

90

A6

address 6

address 5

A5

91

92

A4

address 4

1.5 volt supply

1.5V

93

94

1.5V

1.5 volt supply

address 3

A3

95

96

A2

address 2

address 1

A1

97

98

A0

address 0

1.5 volt supply

1.5V

99

100

1.5V

1.5 volt supply

Clock 0 +

CK0

101

102

CK1

clock 1 +

Clock 0 -

CK0#

103

104

CK1#

clock 1 -

1.5 volt supply

1.5V

105

106

1.5V

1.5 volt supply

address 10 (auto precharge)

A10/AP

107

108

BA1

SDRAM bank 1

SDRAM Bank 0

BA0

109

110

RAS#

row address strobe

1.5 volt supply

1.5V

111

112

1.5V

1.5 volt supply

write enable

WE#

113

114

S0#

chip select 0

column address strobe

CAS#

115

116

ODT0

on die termination 0

1.5 volt supply

1.5V

117

118

1.5V

1.5 volt supply

address 13

A13

119

120

ODT1

on die termination 1

Chip Select 1

S1#

121

122

N/C

reserved

1.5 volt supply

1.5V

123

124

1.5V

1.5 volt supply

reserved

(TEST)

125

126

REF-CA

reference current

ground

GND

127

128

GND

ground

data 32

DQ32

129

130

DQ36

data 36

data 33

DQ33

131

132

DQ37

data 37

ground

GND

133

134

GND

ground

data strobe 4 -

DQS4#

135

136

DQM4

data mask 4

data strobe 4 +

DQS4

137

138

GND

ground

GND

139

140

DQ38

data 38

data 34

DQ34

141

142

DQ39

data 39

data 35

DQ35

143

144

GND

ground

GND

145

146

DQ44

data 44

data 40

DQ40

147

148

DQ45

data 45

data 41

DQ41

149

150

GND

ground

GND

151

152

DQS5#

data strobe 5 -

data mask 5

DQM5

153

154

DQS5

data strobe 5 +

ground

GND

155

156

GND

ground

data 42

DQ42

157

158

DQ46

data 46

data 43

DQ43

159

160

DQ47

data 47

ground

GND

161

162

GND

ground

page 32 Beckhoff New Automation Technology CB1056

SATA and Memory Chapter: Connectors

Description

Name

Description

data 48

DQ48

163

164

DQ52

data 52

data 49

DQ49

165

166

DQ53

data 53

ground

GND

167

168

GND

ground

data strobe 6 -

DQS6#

169

170

DQM6

data mask 6

data strobe 6

DQS6

171

172

GND

ground

GND

173

174

DQ54

data 54

data 50

DQ50

175

176

DQ55

data 55

data 51

DQ51

177

178

GND

ground

GND

179

180

DQ60

data 60

data 56

DQ56

181

182

DQ61

data 61

data 57

DQ57

183

184

GND

ground

GND

185

186

DQS7#

data strobe 7 -

data mask 7

DQM7

187

188

DQS7

data strobe 7 +

ground

GND

189

190

GND

ground

data 58

DQ58

191

192

DQ62

data 62

data 59

DQ59

193

194

DQ63

data 63

ground

GND

195

196

GND

ground

SPD address 0

SA0

197

198

EVENT#

Event

3.3 volt supply

3.3V

199

200

SDA

SMBus data

SPD address 1

SA1

201

202

SCL

SMBus clock

termination current

VTT

203

204

VTT

termination current

Beckhoff New Automation Technology CB1056 page 33

Chapter: Connectors Internal Connectors

Description

Name

Description

5 volt for USBx

VCC

1 2 VCC

5 volt for USBy

minus channel USBx

USBx#

3 4 USBy#

minus channel USBy

plus channel USBx

USBx

5 6 USBy

plus channel USBy

ground

GND

7 8 GND

ground

reserved

N/C

9

10

N/C

reserved

3.4 Internal Connectors

3.4.1 USB 5-14

The USB channels 5 to 14 are provided via five 2x5 pin connectors (FCI 75869-301LF, mating connector FCI 71600-610LF). The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with these features enabled may lead to significant performance or functionality limitations. Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.

Pinout 2x5 pin connector USB x/y:

page 34 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

data carrier detect

DCD

1 2 DSR

data set ready

receive data

RXD

3 4 RTS

request to send

transmit data

TXD

5 6 CTS

clear to send

data terminal ready

DTR

7 8 RI

ring indicator

ground

GND

9

10

VCC

5 volt supply

3.4.2 Serial ports COM2 to COM4

The three serial ports COM2 to COM4 are made available via a 2x5 pin connector each (FCI 75869-301LF, mating connector FCI 71600-610LF). Signals are RS232. The port address and the interrupt are set via the BIOS setup.

Pinout COM connector:

Beckhoff New Automation Technology CB1056 page 35

Chapter: Connectors Internal Connectors

Name

Description

1

TXO00#

LVDS even data 0 -

2

TXO00

LVDS even data 0 +

3

TXO01#

LVDS even data 1 -

4

TXO01

LVDS even data 1 +

5

TXO02#

LVDS even data 2 -

6

TXO02

LVDS even data 2 +

7

GND

ground

8

TXO0C#

LVDS even clock -

9

TXO0C

LVDS even clock +

10

TXO03#

LVDS even data 3 -

11

TXO03

LVDS even data 3 +

12

TXO10#

LVDS odd data 0 -

13

TXO10

LVDS odd data 0 +

14

GND

ground

15

TXO11#

LVDS odd data 1 -

16

TXO11

LVDS odd data 1 +

17

GND

ground

18

TXO12#

LVDS odd data 2 -

19

TXO12

LVDS odd data 2 +

20

TXO1C#

LVDS odd clock -

21

TXO1C

LVDS odd clock +

22

TXO13#

LVDS odd data 3 -

23

TXO13

LVDS odd data 3 +

24

GND

ground

25

3.3V

3.3 volt supply

26

DDC_CLK

EDID clock for LCD

27

DDC_DAT

EDID data for LCD

3.4.3 LVDS

The board also offers the possibility to use displays with LVDS interface. These can be connected via a 30 pin flat-cable plug (JAE FI-X30S-HF-NPB, mating connector: FI-X30C(2)-NPB). Only shielded and twisted cables may be used. The display type is to be chosen over the BIOS setup. The connector has two additional shield pins S1 and S2 which are omitted in the pinout table below.

Pinout LVDS connector:

page 36 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Name

Description

28

FP_3.3V

switched 3.3 volt for display

29

FP_BL

switched 5 volt for backlight

30

VCC

5 volt supply

Beckhoff New Automation Technology CB1056 page 37

Chapter: Connectors Internal Connectors

Name

Description

1

CD_L

CD left channel

2

CD_GND

CD ground

3

CD_GND

CD ground

4

CD_R

CD right channel

3.4.4 CD-In

In addition to the external TRS connectors mentioned above, the CB1056 offers an internal 4 pin connector (Foxconn HF1104E-P1), providing customers with even more possibilities to connect audio devices (analogue signals).

Pinout CD-in connector:

page 38 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

ground

GND

1 2 SPDIFO

SPDIF out

3.3 volt supply

3,3V

3 4 VCC

5 volt supply

ground

GND

5 6 SPDIFI

SPDIF in

3.4.5 S/PDIF

For digital audio signals an SPDIF interface is available, which can be accessed using an internal 2x3 pin IDC socket connector with a spacing of 2,54mm.

Pinout SPDIF connector:

Beckhoff New Automation Technology CB1056 page 39

Chapter: Connectors Internal Connectors

Description

Name

Description

test logic reset

TRST#

A1

B1

-12V

-12 volt supply

12 volt supply

12V

A2

B2

TCK

test clock

test mde select

TMS

A3

B3

GND

ground

test data input

TDI

A4

B4

TDO

test data output

5 volt supply

VCC

A5

B5

VCC

5 volt supply

interrupt A

INTA#

A6

B6

VCC

5 volt supply

interrupt C

INTC#

A7

B7

INTB#

interrupt B

5 volt supply

VCC

A8

B8

INTD#

interrupt D

reserved

N/C

A9

B9

GND

ground

5 volt supply

VCC

A10

B10

N/C

reserved

N/C

A11

B11

GND

ground

GND

A12

B12

GND

ground

GND

A13

B13

GND

ground

3.3 volt supply

3.3VAux

A14

B14

N/C

reserved

PCI reset

PRST#

A15

B15

GND

ground

5 volt supply

VCC

A16

B16

PCLK

clock

grant PCI use

GNT#

A17

B17

GND

ground

GND

A18

B18

REQ#

request

power management event

PME#

A19

B19

VCC

5 volt supply

address/data 30

AD30

A20

B20

AD31

address/data 31

3.3 volt supply

3.3V

A21

B21

AD29

address/data 29

address/data 28

AD28

A22

B22

GND

ground

address/data 26

AD26

A23

B23

AD27

address/data 27

ground

GND

A24

B24

AD25

address/data 25

3.4.6 PCI interfaces

There are three standard PCI slots available on the CB1056.

NOTE

Please note that due to the nature of the PCI bus some signals in the following table are different from one PCI slot to the other. This applies to the test signals (A4, B4), the interrupt signals (A6, A7, B7, B8), the clock signal (B16), the grant signal (A17), the request signal (B18), and the ID-select signal (A26).

Pinout PCI slot:

page 40 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

address/data 24

AD24

A25

B25

3.3V

3.3 volt supply

init device select

IDSEL

A26

B26

CBE3#

command, byte enable 3

3.3 volt supply

3.3V

A27

B27

AD23

address/data 23

address/data 22

AD22

A28

B28

GND

ground

address/data 20

AD20

A29

B29

AD21

address/data 21

ground

GND

A30

B30

AD19

address/data 19

address/data 18

AD18

A31

B31

3.3V

3.3 volt supply

address/data 16

AD16

A32

B32

AD17

address/data 17

3.3 volt supply

3.3V

A33

B33

CBE2#

command, byte enable 2

cycle frame

FRAME#

A34

B34

GND

ground

GND

A35

B35

IRDY#

initiator ready

Target Ready

TRDY#

A36

B36

3.3V

3.3 volt supply

ground

GND

A37

B37

DEVSEL#

device select

stop request by target

STOP#

A38

B38

GND

ground

3.3 volt supply

3.3V

A39

B39

PLOCK#

lock bus

SMBus clock PCI

SMBCLK

A40

B40

PERR#

parity error

SMBus data PCI

SMBDAT

A41

B41

3.3V

3.3 volt supply

ground

GND

A42

B42

SERR#

system error

parity

PAR

A43

B43

3.3V

3.3 volt supply

address/data 15

AD15

A44

B44

CBE1#

command, byte enable 1

3.3 volt supply

3.3V

A45

B45

AD14

address/data 14

address/data 13

AD13

A46

B46

GND

ground

address/data 11

AD11

A47

B47

AD12

address/data 12

ground

GND

A48

B48

AD10

address/data 10

address/data 9

AD9

A49

B49

GND

ground

coded

N/C

A50

B50

N/C

coded

N/C

A51

B51

N/C

coded

command, byte enable 0

CBEO#

A52

B52

AD8

address/data 8

3.3 volt supply

3.3V

A53

B53

AD7

address/data 7

address/data 6

AD6

A54

B54

3.3V

3.3 volt supply

address/data 4

AD4

A55

B55

AD5

address/data 5

ground

GND

A56

B56

AD3

address/data 3

address/data 2

AD2

A57

B57

GND

ground

address/data 0

AD0

A58

B58

AD1

address/data 1

5 volt supply

VCC

A59

B59

VCC

5 volt supply

reserved

N/C

A60

B60

VCC

5 volt supply

VCC

A61

B61

VCC

5 volt supply

VCC

A62

B62

VCC

5 volt supply

Beckhoff New Automation Technology CB1056 page 41

Chapter: Connectors Internal Connectors

Description

Name

Description

hot plug detect 1

PRSNT1#

A1

B1

12V

12 volt supply

12V

A2

B2

12V

12 volt supply

12V

A3

B3

N/C

reserved

ground

GND

A4

B4

GND

ground

reserved

N/C

A5

B5

SMBCLK

SMBus clock PCIe

reserved

N/C

A6

B6

SMBDAT

SMBus data PCIe

reserved

N/C

A7

B7

GND

ground

reserved

N/C

A8

B8

3.3V

3.3 volt supply

3.3V

A9

B9

N/C

reserved

3.3 volt supply

3.3V

A10

B10

S3.3V

3.3V standby-supply

PCIe reset

PERST#

A11

B11

PEWAKE#

link reactivation

ground

GND

A12

B12

N/C

reserved

reference clock +

REFCLK

A13

B13

GND

ground

reference clock -

REFCLK#

A14

B14

PET0

transmit lane 0 +

ground

GND

A15

B15

PET0#

transmit lane 0 -

receive lane 0 +

PER0

A16

B16

GND

ground

receive lane 0 -

PER0#

A17

B17

PRSNT2#

hot plug detect 2

ground

GND

A18

B18

GND

ground

3.4.7 PCI-express Interfaces (x1)

The CB1056 board has two slots for PCIe-x1 expansion cards.

NOTE

When the motherboard PCIe-x4 slot (page 43) is occupied with a x4 device, then x1 slot 2 is de-activated.

NOTE

Please note that some signals in the following table are different from one PCIe slot to the other. This applies to the clock signals (A13, A14), the receive signals (A16, A17), and the transmit signals (B14, B15).

Pinout PCI-express-x1 connector:

page 42 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

hot plug detect 1

PRSNT1#

A1

B1

12V

12V supply

12V

A2

B2

12V

12V supply

12V

A3

B3

N/C

reserved

ground

GND

A4

B4

GND

ground

reserved

N/C

A5

B5

SMBCLK

SMBus clock PCIe

reserved

N/C

A6

B6

SMBDAT

SMBus data PCIe

reserved

N/C

A7

B7

GND

ground

reserved

N/C

A8

B8

3,3V

3.3V supply

3,3V

A9

B9

N/C

reserved

3.3V supply

3,3V

A10

B10

S3,3V

3.3V standby

PCIe reset

PERST#

A11

B11

PEWAKE#

link reactivation

ground

GND

A12

B12

N/C

reserved

reference clock +

REFCLK

A13

B13

GND

ground

reference clock -

REFCLK#

A14

B14

PET0

transmit lane 0 +

ground

GND

A15

B15

PET0#

transmit lane 0 -

receive lane 0 +

PER0

A16

B16

GND

ground

receive lane 0 -

PER0#

A17

B17

PRSNT2#

hot plug detect 2

ground

GND

A18

B18

GND

ground

reserved

N/C

A19

B19

PET1

transmit lane 1 +

ground

GND

A20

B20

PET1#

transmit lane 1 -

receive lane 1 +

PER1

A21

B21

GND

ground

receive lane 1 -

PER1#

A22

B22

GND

ground

GND

A23

B23

PET2

transmit lane 2 +

ground

GND

A24

B24

PET2#

transmit lane 2 -

receive lane 2 +

PER2

A25

B25

GND

ground

receive lane 2 -

PER2#

A26

B26

GND

ground

3.4.8 PCI-express interface (x4)

The CB1056 has one slot for PCIe-x4 expansion cards. This slot also accomodates x1 expansion cards.

NOTE

When the slot is occupied with an x4 device, PCIe-x1 slot 2 (s. p. 42) is de-activated.

Pinout PCI-express-x1 connector:

Beckhoff New Automation Technology CB1056 page 43

Chapter: Connectors Internal Connectors

Description

Name

Description

ground

GND

A27

B27

PET3

transmit lane 3 +

ground

GND

A28

B28

PET3#

transmit lane 3 -

receive lane 3 +

PER3

A29

B29

GND

ground

receive lane 3 -

PER3#

A30

B30

N/C

reserved

ground

GND

A31

B31

PRSNT2#

hot plug detect 2

reserved

N/C

A32

B32

GND

ground

page 44 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

hot plug detect 1

PRSNT1#

A1

B1

12V

12 volt supply

12V

A2

B2

12V

12 volt supply

12V

A3

B3

N/C

reserved

ground

GND

A4

B4

GND

ground

reserved

N/C

A5

B5

SMBCLK

SMBus clock PCIe

reserved

N/C

A6

B6

SMBDAT

SMBus data PCIe

reserved

N/C

A7

B7

GND

ground

reserved

N/C

A8

B8

3.3V

3.3 volt supply

3.3V

A9

B9

N/C

reserved

3.3 volt supply

3.3V

A10

B10

S3.3V

3.3V standby-supply

PCIe reset

PERST#

A11

B11

PEWAKE#

link reactivation

ground

GND

A12

B12

N/C

reserved

reference clock +

REFCLK

A13

B13

GND

ground

reference clock -

REFCLK#

A14

B14

PET0

transmit lane 0 +

ground

GND

A15

B15

PET0#

transmit lane 0 -

receive lane 0 +

PER0

A16

B16

GND

ground

receive lane 0 -

PER0#

A17

B17

PRSNT2#

hot plug detect 2

ground

GND

A18

B18

GND

ground

reserved

N/C

A19

B19

PET1

transmit lane 1 +

ground

GND

A20

B20

PET1#

transmit lane 1 -

receive lane 1 +

PER1

A21

B21

GND

ground

receive lane 1 -

PER1#

A22

B22

GND

ground

GND

A23

B23

PET2

transmit lane 2 +

ground

GND

A24

B24

PET2#

transmit lane 2 -

receive lane 2 +

PER2

A25

B25

GND

ground

receive lane 2 -

PER2#

A26

B26

GND

ground

GND

A27

B27

PET3

transmit lane 3 +

ground

GND

A28

B28

PET3#

transmit lane 3 -

receive lane 3 +

PER3

A29

B29

GND

ground

3.4.9 PCI-express interface (x16)

One slot for PCI-express-x16-cards makes the expansion options on the CB1056 complete. You can use this slot for PCIe-x16 graphic adapters. This slot also acommodates x1 or x4 expansion cards.

Pinout PCI-express-x16 connector:

Beckhoff New Automation Technology CB1056 page 45

Chapter: Connectors Internal Connectors

Description

Name

Description

receive lane 3 -

PER3#

A30

B30

N/C

reserved

ground

GND

A31

B31

PRSNT2#

hot plug detect 2

reserved

N/C

A32

B32

GND

ground

reserved

N/C

A33

B33

PET4

transmit lane 4 +

ground

GND

A34

B34

PET4#

transmit lane 4 -

receive lane 4 +

PER4

A35

B35

GND

ground

receive lane 4 -

PER4#

A36

B36

GND

ground

GND

A37

B37

PET5

transmit lane 5 +

ground

GND

A38

B38

PET5#

transmit lane 5 -

receive lane 5 +

PER5

A39

B39

GND

ground

receive lane 5 -

PER5#

A40

B40

GND

ground

GND

A41

B41

PET6

transmit lane 6 +

ground

GND

A42

B42

PET6#

transmit lane 6 -

receive lane 6 +

PER6

A43

B43

GND

ground

receive lane 6 -

PER6#

A44

B44

GND

ground

GND

A45

B45

PET7

transmit lane 7 +

ground

GND

A46

B46

PET7#

transmit lane 7 -

receive lane 7 +

PER7

A47

B47

GND

ground

receive lane 7 -

PER7#

A48

B48

PRSNT2#

hot plug detect 2

ground

GND

A49

B49

GND

ground

reserved

N/C

A50

B50

PET8

transmit lane 8 +

ground

GND

A51

B51

PET8#

transmit lane 8 -

receive lane 8 +

PER8

A52

B52

GND

ground

receive lane 8 -

PER8#

A53

B53

GND

ground

GND

A54

B54

PET9

transmit lane 9 +

ground

GND

A55

B55

PET9#

transmit lane 9 -

receive lane 9 +

PER9

A56

B56

GND

ground

receive lane 9 -

PER9#

A57

B57

GND

ground

GND

A58

B58

PET10

transmit lane 10 +

ground

GND

A59

B59

PET10#

transmit lane 10 -

receive lane 10 +

PER10

A60

B60

GND

ground

receive lane 10 -

PER10#

A61

B61

GND

ground

GND

A62

B62

PET11

transmit lane 11 +

ground

GND

A63

B63

PET11#

transmit lane 11 -

receive lane 11 +

PER11

A64

B64

GND

ground

receive lane 11 -

PER11#

A65

B65

GND

ground

GND

A66

B66

PET12

transmit lane 12 +

ground

GND

A67

B67

PET12#

transmit lane 12 -

receive lane 12 +

PER12

A68

B68

GND

ground

receive lane 12 -

PER12#

A69

B69

GND

ground

GND

A70

B70

PET13

transmit lane 13 +

ground

GND

A71

B71

PET13#

transmit lane 13 -

receive lane 13+

PER13

A72

B72

GND

ground

receive lane 13-

PER13#

A73

B73

GND

ground

GND

A74

B74

PET14

transmit lane 14 +

ground

GND

A75

B75

PET14#

transmit lane 14 -

receive lane 14 +

PER14

A76

B76

GND

ground

receive lane 14 -

PER14#

A77

B77

GND

ground

GND

A78

B78

PET15

transmit lane 15 +

ground

GND

A79

B79

PET15#

transmit lane 15 -

receive lane 15 +

PER15

A80

B80

GND

ground

receive lane 15 -

PER15#

A81

B81

N/C

reserved

ground

GND

A82

B82

N/C

reserved

page 46 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Description

Name

Description

3.3 volt supply

3.3V

1 6 GND

ground

SMBus clock

SMBCLK

2 7 SMBDAT

SMBus data

SMBus alarm

SMBALRT#

3 8 SVCC

standby supply 5V

I2C bus clock

I2CLK

4 9 I2DAT

I2C bus data

5 volt supply

VCC

5

10

GND

ground

3.4.10 SMB/I2C

The CB1056 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the chipset, the I2C signals are processed by the SIO unit.

Pinout SMBus/I2C connector:

Beckhoff New Automation Technology CB1056 page 47

Chapter: Connectors Internal Connectors

Description

Name

Description

5 volt supply

VCC

1

11

VCC

5 volt supply

GP input/output 10

GPIO10

2

12

N/C

reserved

GP input/output 11

GPIO11

3

13

N/C

reserved

GP input/output 12

GPIO12

4

14

N/C

reserved

GP input/output 13

GPIO13

5

15

N/C

reserved

GP input/output 14

GPIO14

6

16

N/C

reserved

GP input/output 15

GPIO15

7

17

N/C

reserved

GP input/output 16

GPIO16

8

18

N/C

reserved

GP input/output 17

GPIO17

9

19

N/C

reserved

ground

GND

10

20

GND

ground

3.4.11 GPIO

The General Purpose Input/Output interface is made available through a 2x10 pin connector (JST B20B-PHDSSLFSN, mating connector: PHDR-20VS). To make use of this interface the SIO unit must be programmed accordingly. Please refer to your distributor for information on available software support.

page 48 Beckhoff New Automation Technology CB1056

Internal Connectors Chapter: Connectors

Name

Description

1

GND

ground

2

12V

12 volt supply regulated

3

TACHO

fan monitoring signal

3.4.12 Fan Connectors

Four 3 pin connectors are available for attaching external 12V fans. All connectors except FAN4 can monitor fan speed. For this to work the fans must provide a corresponding speed signal.

Pinout fan connector:

NOTE

The FAN4 connector doesn't have pin 3 connected (N/C).

Beckhoff New Automation Technology CB1056 page 49

Chapter: Connectors Jumper Settings

3.5 Jumper Settings

3.5.1 Clear CMOS

In case the board doesn't start up anymore and BIOS setup is inaccessible there is a "last resort": You can use the "Clear CMOS" jumpers to reset all CMOS settings to factory defaults. In order to do so you need to shut down the computer, change the jumper settings from normal (pins 1 & 2 short) to "Clear CMOS" (pins 2 & 3 short) first on jumper Clear CMOS 1 and then on jumper Clear CMOS 2, wait a few seconds, put the jumpers back into normal position and reboot.

CAUTION

In order to avoid an undefined system state it is essential to ensure that the shorting of jumper Clear CMOS 1 (J1800) takes place BEFORE and only combined with the shorting of jumper Clear CMOS 2 (J1801).

Furthermore please notice, that if you reset the CMOS this does not only bring all settings made in BIOS setup back to default values, it also clears the date and time information stored in CMOS. So don't forget that, after the Clear CMOS procedure, you will have to set the clock again.

page 50 Beckhoff New Automation Technology CB1056

Jumper Settings Chapter: Connectors

3.5.2 Jumper: Keyboard Power (KBPWR)

Power supply for keyboard and mouse can be provided in two different ways, either using normal power supply VCC or standby power supply SVCC. You can switch between the two by using the KBPWR jumper. For VCC you need to short pins 1 and 2, for SVCC please short pins 2 and 3.

Beckhoff New Automation Technology CB1056 page 51

Chapter: BIOS Settings General Remarks

4 BIOS Settings

4.1 General Remarks

In each setup page, standard values for all setup entries can be loaded. Previously saved settings are loaded by pressing F2 and factory defaults are loaded with F3. Both F2 and F3, and also F4 ("Save & Exit") always affect the whole set of setup entries.

Setup entries starting with a „►" sign represent submenus. Navigation between entries is done using the

arrow keys on the keyboard, with the <Enter> key being used to select an entry, which either opens up a dialog box or opens a whole new submenu of setup entries. Each setup entry has a short help text associated with it. This is displayed in the upper right hand corner of the screen.

NOTE

BIOS features and setup options are subject to change without notice. The settings displayed in the screenshots on the following pages are meant to be examples only. They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used.

page 52 Beckhoff New Automation Technology CB1056

Main Chapter: BIOS Settings

4.2 Main

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Set the Date. Use Tab to │ │ Board Information │switch between Data elements. │ │ Board CB1056 │ │ │ Revision 3 │ │ │ Bios Version 1.37 │ │ │ │ │ │ Processor Information │ │ │ Name SandyBridge │ │ │ Brand String Intel(R) Celeron(R) CPU │ │ │ Frequency 1400 MHz │ │ │ Processor ID 206a7 │ │ │ Stepping D2 │ │ │ Number of Processors 1Core(s) / 1Thread(s) │────────────────────────────────│ │ Microcode Revision 28 │→←: Select Screen │ │ GT Info GT1 (800 MHz) │↑↓: Select Item │ │ │Enter: Select │ │ IGFX VBIOS Version 2165 │+/-: Change Opt. │ │ Memory RC Version 1.2.2.0 │F1: General Help │ │ Total Memory 4096 MB (DDR3) │F2: Previous Values │ │ Memory Frequency 1333 Mhz │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ System Date [Mon 27/02/2014] │ESC: Exit │ │ System Time [00:47:04] │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Board

Options: none

 Revision

Options: none

 Bios Version

Options: none

 Processor Information

Options: none

 Name

Options: none

 Brand String

Options: none

 Frequency

Options: none

 Processor ID

Options: none

 Stepping

Options: none

 Number of Processors

Options: none

 Microcode Revision

Options: none

Beckhoff New Automation Technology CB1056 page 53

Chapter: BIOS Settings Main  GT Info

Options: none

 IGFX VBIOS Version

Options: none

 Memory RC Version

Options: none

 Total Memory

Options: none

 Memory Frequency

Options: none

 System Date

Options: The system date can be adjusted here.

 System Time

Options: The system time can be adjusted here.

page 54 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3 Advanced

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Power-Supply Type [ATX] │Select the Type of the Power │ │ SoftOff on Overheat [Disabled] │Supply: AT/ATX │ │► PCI Subsystem Settings │ │ │► ACPI Settingstion │ │ │► CPU Configuration │ │ │► SATA Configuration │ │ │► Power Controller Options │ │ │► USB Configuration │ │ │► Super IO Configuration │ │ │► H/W Monitor │ │ │► Serial Port Console Redirection │ │ │► Network Stack │ │ │► CPU PPM Configuration │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │► Intel(R) 82579LM Gigabit Network Connection - 00:01:05:1... │Enter: Select │ │► Intel(R) 82574L Gigabit Network Connection - 00:01:05:11... │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Power-Supply Type

Options: ATX / AT

 SoftOff on Overheat

Options: Disabled / Enabled

 PCI Subsystem Settings

Sub menu: see "PCI Subsystem Settings" (page 57)

 ACPI Settings

Sub menu: see "ACPI Settings" (page 59)

 CPU Configuration

Sub menu: see "CPU Configuration" (page 60)

 SATA Configuration

Sub menu: see "SATA Configuration" (page 62)

 Power Controller Options

Sub menu: see "Power Controller Options" (page 67)

 USB Configuration

Sub menu: see "USB Configuration" (page 69)

 Super IO Configuration

Sub menu: see "Super IO Configuration" (page 70)

 H/W Monitor

Sub menu: see "H/W Monitor" (page 72)

 Serial Port Console Redirection

Sub menu: see "Serial Port Console Redirection" (page 74)

Beckhoff New Automation Technology CB1056 page 55

Chapter: BIOS Settings Advanced  Network Stack

Sub menu: see "Network Stack" (page 76)

 CPU PPM Configuration

Sub menu: see "CPU PPM Configuration" (page 77)

 Intel(R) Gigabit Network Connection

Sub menu: see "Intel(R) GigabitNetworkConnection" (page 78)

page 56 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.1 PCI Subsystem Settings

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Bus Driver Version V 2.05.02 │Enables or Disables 64bit │ │ │capable Devices to be Decoded │ │ │in Above 4G Address Space │ │ PCI 64bit Resources Handling │(Only if System Supports 64 │ │ Above 4G Decoding [Disabled] │bit PCI Decoding). │ │ │ │ │ PCI Common Settings │ │ │ PCI Latency Timer [32 PCI Bus Clocks] │ │ │ │ │ │► PCI Express Settings │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Above 4G Decoding

Options: Enabled / Disabled

 PCI Latency Timer

Options: 32, 64,...224, 248 PCI Bus Clocks

 PCI Express Settings

Sub menu: see "PCI Express Settings" (page 58)

Beckhoff New Automation Technology CB1056 page 57

Chapter: BIOS Settings Advanced

4.3.1.1 PCI Express Settings

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Express Device Register Settings │Enables or Disables PCI │ │ Relaxed Ordering [Disabled] │Express Device Relaxed │ │ Extended Tag [Disabled] │Ordering │ │ No Snoop [Enabled] │ │ │ Maximum Payload [Auto] │ │ │ Maximum Read Request [Auto] │ │ │ │ │ │ PCI Express Link Register Settings │ │ │ ASPM Support [Disabled] │ │ │ WARNING: Enabling ASPM may cause some │ │ │ PCI-E devices to fail │ │ │ Extended Synch [Disabled] │ │ │ │────────────────────────────────│ │ Link Training Retry [5] │→←: Select Screen │ │ Link Training Timeout (uS) 100 │↑↓: Select Item │ │ Unpopulated Links [Disable] │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Relaxed Ordering

Options: Enabled / Disabled

 Extended Tag

Options: Enabled / Disabled

 No Snoop

Options: Enabled / Disabled

 Maximum Payload

Options: Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes

 Maximum Read Request

Options: Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes

 ASPM Support

Options: Disabled / Auto / Force L0s

 Extended Synch

Options: Enabled / Disabled

 Link Training Retry

Options: Disabled / 2 / 3 / 5

 Link Training Timeout (uS)

Options: 10...1000

 Unpopulated Links

Options: Keep Link ON / Disable Link

page 58 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.2 ACPI Settings

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ ACPI Settings │Enables or Disables BIOS ACPI │ │ │Auto Configuration. │ │ Enable ACPI Auto Configuration [Disabled] │ │ │ │ │ │ Enable Hibernation [Enabled] │ │ │ ACPI Sleep State [S1 only(CPU Stop C1...] │ │ │ Lock Legacy Resources [Disabled] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Enable ACPI Auto Configuration

Options: Enabled / Disabled

 Enable Hibernation

Options: Enabled / Disabled

 ACPI Sleep State

Options: Suspend Disabled / S1 (CPU Stop Clock)

 Lock Legacy Resources

Options: Enabled / Disabled

Beckhoff New Automation Technology CB1056 page 59

Chapter: BIOS Settings Advanced

4.3.3 CPU Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ CPU Configuration │Disabled for Windows XP │ │ │ │ │ Intel(R) Celeron(R) CPU 827E @ 1.4GHz │ │ │ CPU Signature 206a7 │ │ │ Microcode Patch 28 │ │ │ Max CPU Speed 1400 MHz │ │ │ Min CPU Speed 800 MHz │ │ │ CPU Speed 1400 MHz │ │ │ Processor Cores 1 │ │ │ Intel HT Technology Not Supported │ │ │ Intel VT-x Technology Supported │ │ │ Intel SMX Technology Not Supported │ │ │ 64-bit Supported │ │ │ │ │ │ L1 Data Cache 32 kB x 1 │ │ │ L1 Code Cache 32 kB x 1 │────────────────────────────────│ │ L2 Cache 256 kB x 1 │→←: Select Screen │ │ L3 Cache 1536 kB │↑↓: Select Item │ │ │Enter: Select │ │ Hyperthreading [Enabled] │+/-: Change Opt. │ │ Active Processor Cores [All] │F1: General Help │ │ Limit CPUID Maximum [Disabled] │F2: Previous Values │ │ Execute Disable Bit [Enabled] │F3: Optimized Defaults │ │ Intel Virtualization Technology [Disabled] │F4: Save & Exit │ │ TCC Activation offset 0 │ESC: Exit │ │ Primary Plane Current value 0 │ │ │ Secondary Plane Current value 0 │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 CPU Signature

Options: none

 Microcode Patch

Options: none

 Max CPU Speed

Options: none

 Min CPU Speed

Options: none

 CPU Speed

Options: none

 Processor Cores

Options: none

 Intel HT Technology

Options: none

 Intel VT-x Technology

Options: none

 Intel SMX Technology

Options: none

 64-bit

Options: none

 L1 Data Cache

Options: none

page 60 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings  L1 Code Cache

Options: none

 L2 Cache

Options: none

 L3 Cache

Options: none

 Hyper-threading

Options: Disabled / Enabled

 Active Processor Cores

Options: All

 Limit CPUID Maximum

Options: Enabled / Disabled

 Execute Disable Bit

Options: Enabled / Disabled

 Intel Virtualization Technology

Options: Enabled / Disabled

 TCC Activation Offset

Options: 0...15

 Primary Plane Current value

Options: 0...255

 Secondary Plane Current value

Options: 0...255

Beckhoff New Automation Technology CB1056 page 61

Chapter: BIOS Settings Advanced

4.3.4 SATA Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ SATA Controller(s) [Enabled] ▲│Enable or disable SATA Device. │ │ SATA Mode Selection [RAID] █│ │ │ SATA Test Mode [Disabled] █│ │ │ Alternate ID [Disabled] █│ │ │ █│ │ │ Serial ATA Port 0 Empty █│ │ │ Software Preserve Unknown █│ │ │ Port 0 [Enabled] █│ │ │ Hot Plug [Enabled] █│ │ │ Spin Up Device [Disabled] █│ │ │ Serial ATA Port 1 Empty █│ │ │ Software Preserve Unknown █│ │ │ Port 1 [Enabled] █│────────────────────────────────│ │ Hot Plug [Enabled] █│→←: Select Screen │ │ Spin Up Device [Disabled] █│↑↓: Select Item n │ │ Serial ATA Port 2 Empty █│Enter: Select │ │ Software Preserve Unknown █│+/-: Change Opt. │ │ Port 2 [Enabled] █│F1: General Help │ │ Hot Plug [Disabled] █│F2: Previous Values │ │ External SATA [Disabled] █│F3: Optimized Defaults │ │ Hot Plug [Enabled] █│F4: Save & Exit │ │ Spin Up Device [Disabled] Drive] █│ESC: Exit │ │ Serial ATA Port 3 Empty █│ │ │ Software Preserve Unknown █│ │ │ Port 3 [Enabled] █│ │ │ Hot Plug [Enabled] ░│ │ │ External SATA [Disabled] ▼│ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 SATA Controller(s)

Options: Enabled / Disabled

 SATA Mode Selection

Options: IDE / AHCI / RAID

 SATA Test Mode

Options: Enabled / Disabled

 Alternate ID

Options: Enabled / Disabled

 Serial ATA Port X

Options: none

 Software Preserve

Options: none

 Port X

Options: Enabled / Disabled

 Hot Plug

Options: Enabled / Disabled

 External SATA

Options: Enabled / Disabled

 Spin Up Device

Options: Enabled / Disabled

page 62 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.5 PCH FW Configurations

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ ME FW Version 8.0.3.1427 │Configure Management Engine │ │ ME Firmware Mode Normal Mode │Technology Parameters │ │ ME Firmware Type Full Sku Firmware │ │ │ ME Firmware SKU 5MB │ │ │ MDES BIOS Status Code [Disabled] │ │ │► Firmware Update Configuration │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 ME FW Version

Options: none

 ME Firmware Mode

Options: none

 ME Firmware Type

Options: none

 ME Firmware SKU

Options: none

 MDES BIOS Status Code

Options: Disabled / Enabled

 Firmware Update Configuration

Sub menu: see "Firmware Update Configuration" (page 64)

Beckhoff New Automation Technology CB1056 page 63

Chapter: BIOS Settings Advanced

4.3.5.1 Firmware Update Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ ME FW Image Re-Flash [Disabled] │Enables or Disables Me FW Image │ │ │Re-Flash function. │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 ME FW Image Re-Flash

Options: Disabled / Enabled

page 64 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.6 AMT Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Intel AMT [Disabled] │Enable/Disabled Intel (R) │ │ BIOS Hotkey Pressed [Disabled] │Active Management Technology │ │ MEBx Selection Screen [Disabled] │BIOS Extension. │ │ Hide Un-Configure ME Confirmation [Disabled] │Note : iAMT H/W is always │ │ Un-Configure ME [Disabled] │enabled. │ │ Amt Wait Timer 0 │This option just controls the │ │ Disable ME [Disabled] │BIOS extension execution. │ │ ASF [Enabled] │If enabled, this requires │ │ Activate Remote Assistance Process [Disabled] │additional firmware in the SPI │ │ USB Configure [Enabled] │device │ │ PET Progress [Enabled] │ │ │ AMT CIRA Timeout 0 │ │ │ WatchDog [Disabled] │────────────────────────────────│ │ OS Timer 0 │→←: Select Screen │ │ BIOS Timer 0 │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Intel AMT

Options: Disabled / Enabled

 BIOS Hotkey Pressed

Options: Disabled / Enabled

 MEBx Selection Screen

Options: Disabled / Enabled

 Hide Un-Configure ME Configuration

Options: Disabled / Enabled

 MEBx Debug Message Output

Options: Disabled / Enabled

 Un-Configure ME

Options: Disabled / Enabled

 Amt Wait Timer

Options: none

 Disable ME

Options: Disabled / Enabled

 ASF

Options: Disabled / Enabled

 Activate Remote Assistance Process

Options: Disabled / Enabled

 USB Configure

Options: Disabled / Enabled

 PET Progress

Options: Disabled / Enabled

Beckhoff New Automation Technology CB1056 page 65

Chapter: BIOS Settings Advanced  AMT CIRA Timeout

Options: none

 Watchdog

Options: Disabled / Enabled

 OS Timer

Options: none

 BIOS Timer

Options: none

page 66 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.7 Power Controller Options

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Bootloader Version 1.00-07 │Select Power line for external │ │ Firmware Version 1.00-35 │USB devices, if powered-down │ │ Mainboard Serial No 0948251130007 │ │ │ Mainboard Prod. Date (Week.Year) 28.12 │ │ │ Mainboard BootCount 128 │ │ │ Mainboard Operation Time 12090min (201h) │ │ │ Voltage (Min/Max) 4.60V / 5.20V │ │ │ Temperature (Min/Max) 18'C /51'C │ │ │ │ │ │ ext. USB-Port Voltage [Off in S3-5] │ │ │ int. USB-Port Voltage [Off in S3-5] │ │ │ │ │ │ WatchDogTimer Mode [Normal Mode] │────────────────────────────────│ │ WDT OSBOOT Timeout [Disabled] │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Bootloader Version

Options: none

 Firmware Version

Options: none

 Mainboard Serial No

Options: none

 Mainboard Prod. Date (Week.Year)

Options: none

 Boot Count

Options: none

 Minute Meter

Options: none

 Voltage (Min/Max)

Options: none

 Temperature (Min/Max)

Options: none

 ext. USB-Port Voltage

Options: Off in S3-5 / by SVCC

 int. USB-Port Voltage

Options: Off in S3-5 / by SVCC

 WatchDogTimer Mode

Options: Normal Mode / Compatibility Mode

Beckhoff New Automation Technology CB1056 page 67

Chapter: BIOS Settings Advanced  WDT OSBoot Timeout

Options: Disabled / 45 Seconds ... 255 Seconds

page 68 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.8 USB Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ USB Configuration │Enables Legacy USB support. │ │ │AUTO option disables legacy │ │ USB Devices: │support if no USB devices are │ │ 1 Drive, 1 Keyboard, 1 Mouse │connected. DISABLE option will │ │ │keep USB devices available │ │ Legacy USB Support [Auto] │only for EFI applications. │ │ USB3.0 Support [Enabled] │ │ │ XHCI Hand-off [Enabled] │ │ │ EHCI Hand-off [Enabled] │ │ │ │ │ │ USB hardware delays and time-outs: │ │ │ USB transfer time-out [5 sec] │ │ │ Device reset time-out [10 sec] │────────────────────────────────│ │ Device power-up delay [Manual] │→←: Select Screen │ │ Device power-up delay in seconds 5 │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 USB Devices

Options: none

 Legacy USB Support

Options: Enabled / Disabled / Auto

 USB3.0 Support

Options: Enabled / Disabled

 XHCI Hand-off

Options: Enabled / Disabled

 EHCI Hand-off

Options: Enabled / Disabled

 USB transfer time-out

Options: 5 sec / 10 sec / 20 sec

 Device reset time-out

Options: 10 sec / 20 sec / 30 sec / 40 sec

 Device power-up delay

Options: Auto / Manual

 Device power-up delay in seconds

Options: 1..40

Beckhoff New Automation Technology CB1056 page 69

Chapter: BIOS Settings Advanced

4.3.9 Super IO Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Super IO Configuration │Set Parameters of Serial Port │ │ │0 (COMA) │ │ Super IO Chip SMSC SCH3114 │ │ │► Serial Port 0 Configuration │ │ │► Serial Port 1 Configuration │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Super IO Chip

Options: none

 Serial Port X Configuration

Sub menu: see "Serial Port Configuration" (page 71)

page 70 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.9.1 Serial Port Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Serial Port 0 Configuration │Enable or Disable Serial Port │ │ │(COM) │ │ Serial Port [Enabled] │ │ │ Device Settings IO=3F8h; IRQ=4; │ │ │ │ │ │ Change Settings [Auto] │ │ │ Device Mode [Normal] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Serial Port

Options: Enabled / Disabled

 Device Settings

Options: none

 Change Settings

Options: Auto / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, ...12 / IO=2F8h; IRQ=3, ...12 / IO=3E8h; IRQ=3,

...12 / IO=2E8h; IRQ=3, ...12

 Device Mode

Options: Normal / High Speed

Beckhoff New Automation Technology CB1056 page 71

Chapter: BIOS Settings Advanced

4.3.10 H/W Monitor

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ H/W Monitor │ │ │ │ │ │ CPU Temperature : +38'C │ │ │ Board Temperature : +25'C │ │ │ Memory Temperature : +40'C │ │ │ SYS FAN Speed : N/A │ │ │ CPU FAN Speed : N/A │ │ │ AUX FAN Speed : N/A │ │ │ +1.05V : +1.04 V │ │ │ VccCore : +1.07 V │ │ │ +3.3V : +3.33 V │ │ │ Vcc : +4.68 V │ │ │ +12V : +12.61 V │────────────────────────────────│ │ VTR : +3.31 V │→←: Select Screen │ │ Vbat : +0.13 V │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 CPU Temperature

Options: none

 Board Temperature

Options: none

 Memory Temperature

Options: none

 SYS FAN Speed

Options: none

 CPU FAN Speed

Options: none

 AUX FAN Speed

Options: none

 +1.05V

Options: none

 VccCore

Options: none

 +3.3V

Options: none

 Vcc

Options: none

 +12V

Options: none

page 72 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings  VTR

Options: none

 Vbat

Options: none

Beckhoff New Automation Technology CB1056 page 73

Chapter: BIOS Settings Advanced

4.3.11 Serial Port Console Redirection

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Console Redirection Enable or │ │ COM0 │Disable. │ │ Console Redirection [Enabled] │ │ │► Console Redirection Settings │ │ │ │ │ │ COM1 │ │ │ Console Redirection [Disabled] │ │ │► Console Redirection Settings │ │ │ │ │ │ COM2 │ │ │ Console Redirection [Disabled] │ │ │► Console Redirection Settings │ │ │ │────────────────────────────────│ │ COM3 │→←: Select Screen │ │ Console Redirection [Disabled] │↑↓: Select Item │ │► Console Redirection Settings │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Console Redirection

Options: Enabled / Disabled

 Console Redirection Settings

Sub menu: see "Console Redirection Settings" (page 75)

page 74 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.11.1 Console Redirection Settings

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ COM0 │Emulation: ANSI: Extended │ │ Console Redirection Settings │ASCII char set. VT100: ASCII │ │ │char set. VT100+: Extends │ │ Terminal Type [VT-UTF8] │VT100 to support color, │ │ Bits per second [115200] │function keys, etc. VT-UTF8: │ │ Data Bits [8] │Uses UTF8 encoding to map │ │ Parity [None] │Unicode chars onto 1 or more │ │ Stop Bits [1] │bytes. │ │ Flow Control [None] │ │ │ VT-UTF8 Combo Key Support [Enabled] │ │ │ Recorder Mode [Disabled] │ │ │ Resolution 100x31 [Enabled] │ │ │ Legacy OS Redirection Resolution [80x24] │────────────────────────────────│ │ Putty KeyPad [VT100] │→←: Select Screen │ │ Redirection After BIOS POST [Always Enable] │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Terminal Type

Options: VT100 / VT100+ / VT-UTF8 / ANSI

 Bits per second

Options: 9600 / 19200 / 38400 / 57600 / 115200

 Data Bits

Options: 7 / 8

 Parity

Options: None / Even / Odd / Mark / Space

 Stop Bits

Options: 1 / 2

 Flow Control

Options: None / Hardware RTS/CTS

 VT-UTF8 Combo Key Support

Options: Disabled / Enabled

 Recorder Mode

Options: Disabled / Enabled

 Resolution 100x31

Options: Disabled / Enabled

 Legacy OS Redirection Resolution

Options: 80x24 / 80x25

 Putty KeyPad

Options: VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400

Beckhoff New Automation Technology CB1056 page 75

Chapter: BIOS Settings Advanced

4.3.12 Network Stack

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Network stack [Enable] │Enable/Disable UEFI network │ │ Ipv4 PXE Support [Enable] │stack │ │ Ipv6 PXE Support [Enable] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Network Stack

Options: Disabled / Enabled

 Ipv4 PXE Support

Options: Disabled / Enabled

 Ipv6 PXE Support

Options: Disabled / Enabled

page 76 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.13 CPU PPM Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ CPU PPM Configuration │Enable/Disable Intel SpeedStep │ │ │ │ │ EIST [Enabled] │ │ │ Config TDP LOCK [Enabled] │ │ │ Long duration power limit 0 │ │ │ Long duration maintained 1 │ │ │ Short duration power limit 0 │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 EIST

Options: Disabled / Enabled

 Config TDP LOCK

Options: Disabled / Enabled

 Long duration power limit

Options: 0-255

 Long duration power maintained

Options: 1-120

 Short duration power limit

Options: 0-255

Beckhoff New Automation Technology CB1056 page 77

Chapter: BIOS Settings Advanced

4.3.14 Intel(R) GigabitNetworkConnection

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PORT CONFIGURATION MENU │Click to configure the network │ │► NIC Configuration │device port. │ │ │ │ │ Blink LEDs 0 │ │ │ │ │ │ PORT CONFIGURATION INFORMATION │ │ │ UEFI Driver: Intel(R) PRO/1000 5.7.06 │ │ │ Adapter PBA: FFFFFF-0FF │ │ │ Chip Type Intel i210 │ │ │ PCI Device ID 153A │ │ │ Bus:Device:Function 00:19:00 │ │ │ Link Status [Disconnected] │ │ │ MAC Address 88:88:88:88:87:88 │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 NIC Configuration

Sub menu: see "NIC Configuration" (page 79)

 Blink LEDs

Options: none

 UEFI Driver:

Options: none

 Adapter PBA:

Options: none

 Chip Type

Options: none

 PCI Device ID

Options: none

 PCI Bus:Device:Function

Options: none

 Link Status

Options: none

 Factory MAC Adress

Options: none

page 78 Beckhoff New Automation Technology CB1056

Advanced Chapter: BIOS Settings

4.3.14.1 NIC Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Link Speed [Auto Neg] │Specifies the port speed used │ │ Wake On LAN [Enabled] │for the selected boot protocol. │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Link Speed

Options: Auto Negotiated / 10Mbps Half / 10Mbps full / 100Mbps Half / 100Mbps Full

 Wake On LAN

Options: Enabled / Disabled

Beckhoff New Automation Technology CB1056 page 79

Chapter: BIOS Settings Chipset

4.4 Chipset

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │► PCH-IO Configuration │System Agent (SA) Parameters │ │► System Agent (SA) Configuration │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PCH-IO Configuration

Sub menu: see "PCH-IO Configuration" (page 81)

 System Agent (SA) Configuration

Sub menu: see "System Agent (SA) Configuration" (page 88)

page 80 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.1 PCH-IO Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Intel PCH RC Version 1.5.0.0 │PCI Express Configuration │ │ Intel PCH SKU Name QM67 │settings │ │ Intel PCH Rev ID 05/B3 │ │ │ │ │ │► PCI Express Configuration │ │ │► USB Configuration │ │ │► PCH Azalia Configuration │ │ │ │ │ │ PCH LAN Controller [Enabled] │ │ │ LAN1 MAC address 88:88:88:88:87:88 │ │ │ Wake on LAN [Disabled] │ │ │ Second LAN Controller [Enabled] │────────────────────────────────│ │ LAN2 MAC address 00:01:05:13:90:8F │→←: Select Screen │ │ CLKRUN# Logic [Disabled] │↑↓: Select Item │ │ SB Crid [Disabled] │Enter: Select │ │ │+/-: Change Opt. │ │ High Precision Event Timer Configuration │F1: General Help │ │ High Precision Timer [Enabled] │F2: Previous Values │ │ │F3: Optimized Defaults │ │ Restore AC Power Loss [Power On] │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Intel PCH RC Version

Options: none

 Intel PCH SKU Name

Options: none

 Intel PCH Rev ID

Options: none

 PCI Express Configuration

Sub menu: see "PCI Express Configuration" (page 83)

 USB Configuration

Sub menu: see "USB Configuration" (page 86)

 PCH Azalia Configuration

Sub menu: see "PCH Azalia Configuration" (page 87)

 PCH LAN Controller

Options: Disabled / Enabled

 LAN1 MAC address

Options: none

 Wake on LAN

Options: Disabled / Enabled

 Second LAN Controller

Options: Disabled / Enabled

 LAN2 MAC address

Options: none

Beckhoff New Automation Technology CB1056 page 81

Chapter: BIOS Settings Chipset  CLKRUN# Logic

Options: Disabled

 SB CRID

Options: Disabled / Enabled

 High Precision Timer

Options: Disabled / Enabled

 Restore AC Power Loss

Options: Power Off / Power On / Last State

page 82 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.1.1 PCI Express Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Express Configuration │Enable or disable PCI Express │ │ │Clock Gating for each root │ │ PCI Express Clock Gating [Enabled] │port. │ │ DMI Link ASPM Control [Enabled] │ │ │ DMI Link Extended Synch Control [Disabled] │ │ │ PCIe-USB Glitch W/A [Disabled] │ │ │ Subtractive Decode [Disabled] │ │ │ │ │ │ PCI Express Root Port 1 │ │ │► PCI Express Root Port 2 │ │ │► PCI Express Root Port 3 │ │ │► PCI Express Root Port 4 │ │ │ PCIE Port 5 is assigned to LAN │────────────────────────────────│ │ PCIE Port 6 is assigned to LAN2 │→←: Select Screen │ │ PCIE Port 7 is assigned to PCIe to PCI Bridge │↑↓: Select Item │ │► PCI Express Root Port 8 │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PCI Express Clock Gating

Options: Disabled / Enabled

 DMI Link ASPM Control

Options: Disabled / Enabled

 DMI Link Extended Synch Control

Options: Disabled / Enabled

 PCIe-USB Glitch W/A

Options: Disabled / Enabled

 Subtractive Decode

Options: Disabled

 PCI Express Root Port X

Sub menu: see "PCI Express Settings" (page 84)

Beckhoff New Automation Technology CB1056 page 83

Chapter: BIOS Settings Chipset

4.4.1.1.1 PCI Express Root Port

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Express Root Port 2 [Enabled] │Control the PCI Express Root │ │ ASPM Support [Auto] │Port. │ │ URR [Disabled] │ │ │ FER [Disabled] │ │ │ NFER [Disabled] │ │ │ CER [Disabled] │ │ │ CTO [Disabled] │ │ │ SEFE [Disabled] │ │ │ SENFE [Disabled] │ │ │ SECE [Disabled] │ │ │ PME SCI [Enabled] │ │ │ Hot Plug [Disabled] │ │ │ PCIe Speed [Auto] │────────────────────────────────│ │ Extra Bus Reserved 0 │→←: Select Screen │ │ Reserved Memory 10 │↑↓: Select Item │ │ Prefetchable Memory 10 │Enter: Select │ │ Reserved I/O 4 │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PCI Express Root Port x

Options: Disabled / Enabled

 ASPM Support

Options: Disabled / L0s / L1 / L0sL1 / Auto

 URR

Options: Disabled / Enabled

 FER

Options: Disabled / Enabled

 NFER

Options: Disabled / Enabled

 CER

Options: Disabled / Enabled

 CTO

Options: Disabled / Enabled

 SEFE

Options: Disabled / Enabled

 SENFE

Options: Disabled / Enabled

 SECE

Options: Disabled / Enabled

 PME SCI

Options: Disabled / Enabled

page 84 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings  Hot Plug

Options: Disabled / Enabled

 PCIe Speed

Options: Auto / Gen1 / Gen2

 Extra Bus Reserved

Options: 0...7

 Reserved Memory

Options: 1...20

 Prefetchable Memory

Options: 1...20

 Reserved I/O

Options: 4 / 8 / 12 / 16 / 20

Beckhoff New Automation Technology CB1056 page 85

Chapter: BIOS Settings Chipset

4.4.1.2 USB Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ USB Configuration │Control each of the USB ports │ │ │(0~13) disabling. │ │ EHCI1 [Enabled] │ │ │ EHCI2 [Enabled] │ │ │ │ │ │ USB Ports Per-Port Disable Control [Enabled] │ │ │ USB Port #0 Disable [Enabled] │ │ │ USB Port #1 Disable [Enabled] │ │ │ USB Port #2 Disable [Enabled] │ │ │ USB Poer #3 Disable [Enabled] │ │ │ USB Port #4 Disable [Enabled] │ │ │ USB Port #5 Disable [Enabled] │ │ │ USB Port #6 Disable [Enabled] │────────────────────────────────│ │ USB Port #7 Disable [Enabled] │→←: Select Screen │ │ USB Port #8 Disable [Enabled] │↑↓: Select Item │ │ USB Port #9 Disable [Enabled] │Enter: Select │ │ USB Port #10 Disable [Enabled] │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 EHCI1

Options: Enabled

 EHCI2

Options: Enabled

 USB Ports Per-Port Disable Control

Options: Disabled / Enabled

 USB Port #x Disable

Options: Disabled / Enabled

page 86 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.1.3 PCH Azalia Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCH Azalia Configuration │Control Detection of the │ │ │Azalia device. │ │ Azalia [Auto] │Disabled = Azalia will be │ │ Azalia PME [Disabled] │unconditionally disabled │ │ Azalia Internal HDMI Codec [Enabled] │Enabled = Azalia will be │ │ Azalia HDMI codec Port B [Disabled] │unconditionally Enabled │ │ Azalia HDMI codec Port C [Disabled] │Auto = Azalia will be enabled │ │ Azalia HDMI codec Port D [Enabled] │if present, disabled otherwise. │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Azalia

Options: Disabled / Enabled / Auto

 Azalia PME

Options: Disabled / Enabled

 Azalia Internal HDMI Codec

Options: Disabled / Enabled

 Azalia HDMI codec Port X

Options: Disabled / Enabled

Beckhoff New Automation Technology CB1056 page 87

Chapter: BIOS Settings Chipset

4.4.2 System Agent (SA) Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ System Agent Bridge Name SandyBridge │Enable or disable SA CHAP │ │ System Agent RC Version 1.5.0.0 │Device. │ │ │ │ │ CHAP Device (B0:D7:F0) │ │ │ Thermal Device (B0:D4:F0) [Enabled] │ │ │ Enable NB CRID [Disabled] │ │ │ BDAT ACPI Table Support [Disabled] │ │ │ C-State Pre-Wake [Disabled] │ │ │ │ │ │ │ │ │► Graphics Configuration │ │ │► NB PCIe Configuration │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 System Agent Bridge Name

Options: none

 System Agent RC Version

Options: none

 VT-d Capability

Options: none

 VT-d

Options: Disabled / Enabled

 CHAP Device (B0:D7:F0)

Options: Disabled / Enabled

 Thermal Device (B0:D4:F0)

Options: Disabled / Enabled

 Enable NB CRID

Options: Disabled / Enabled

 BDAT ACPI Table Support

Options: Disabled / Enabled

 C-State Pre-Wake

Options: Disabled / Enabled

 Graphics Configuration

Sub menu: see "Graphics Configuration" (page 89)

 NB PCIe Configuration

Sub menu: see "NB PCIe Configuration" (page 91)

page 88 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.2.1 Graphics Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Graphics Configuration │Graphics turbo IMON current │ │ IGFX VBIOS Version 2137 │values supported (14-31) │ │ IGfx Frequency 650 MHz │ │ │ Graphics Turbo IMON Current 31 │ │ │ │ │ │ Primary Display [Auto] │ │ │ Internal Graphics [Auto] │ │ │ GTT Size [2MB] │ │ │ Aperture Size [256MB] │ │ │ DVMT Pre-Allocated [64M] │ │ │ DVMT Total Gfx Mem [256M] │ │ │ Gfx Low Power Mode [Disabled] │ │ │► LCD Control │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 IGFX VBIOS Version

Options: none

 IGFX Frequency

Options: none

 Graphics Turbo IMON Current

Options: 14...31

 Primary Display

Options: Auto / IGFX / PEG / PCI

 Internal Graphics

Options: Auto / Disabled / Enabled

 GTT Size

Options: 1MB / 2MB

 Aperture Size

Options: 128MB / 256MB / 512MB

 DVMT Pre-Allocated

Options: 32M / 64M ... 480M / 512M / 1024M

 DVMT Total Gfx Mem

Options: 128M / 256M / MAX

 Gfx Low Power Mode

Options: Disabled / Enabled

 LCD Control

Sub menu: see "LCD Control" (page 90)

Beckhoff New Automation Technology CB1056 page 89

Chapter: BIOS Settings Chipset

4.4.2.1.1 LCD Control

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ LCD Control │Select the Video Device which │ │ │will be activated during POST. │ │ Primary IGFX Boot Display [CRT] │This has no effect if external │ │ Secondary IGFX Boot Display [Disabled] │graphics present. │ │ LCD Panel Type [VBIOS Default] │Secondary boot display │ │ Spread Spectrum clock Chip [Off] │selection will appear based on │ │ ALS Support [Disabled] │your selection. │ │ │VGA modes will be supported │ │ │only on primary display │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Primary IGFX Boot Display

Options: VBIOS Default / CRT / EFP / LFP / EFP3 / EFP2 / LFP2

 Secondary IGFX Boot Display

Options: VBIOS Default / CRT / EFP / LFP / EFP3 / EFP2 / LFP2

 LCD Panel Type

Options: VBIOS Default / 640x480 LVDS ...1920x1080 LVDS / 2048x1536 LVDS

 Spread Spectrum Clock Chip

Options: Off / Hardware / Software

 ALS Support

Options: Disabled / Enabled

page 90 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.2.2 NB PCIe Configuration

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ ▲│Configure PEG0 B0:D1:F0 │ │ PEG0 Not Present █│Gen1-Gen3 │ │ PEG0 - Gen X [Auto] █│ │ │ PEG0 ASPM [Auto] █│ │ │ █│ │ │ Enable PEG [Auto] █│ │ │ Detect Non-Compliance Device [Disabled] █│ │ │ De-Emphasis Control [-3.5 dB] █│ │ │ PEG Sampler Calibrate [Auto] █│ │ │ Swing Control [Full] █│ │ │ Gen3 Equalization [Enabled] █│ │ │ Gen3 Eq Phase 2 [Disabled] █│────────────────────────────────│ │► PEG Gen3 Root Port Preset Value for each Lane █│→←: Select Screen │ │► PEG Gen3 Endpoint Preset Value each Lane █│↑↓: Select Item │ │► PEG Gen3 Endpoint Hint Value each Lane █│Enter: Select │ │ Gen3 Eq Preset Search [Enabled] █│+/-: Change Opt. │ │ Always re-search Gen3 Eq Preset [Disabled] █│F1: General Help │ │ Preset Search Dwell Time 100 █│F2: Previous Values │ │ Timing Margin Steps 2 █│F3: Optimized Defaults │ │ Timing Start Margin 15 █│F4: Save & Exit │ │ Voltage Margin Steps 2 █│ESC: Exit │ │ Voltage Start Margin 20 █│ │ │ Favor Timing Margin [Disabled] ░│ │ │ PEG Link Disabled [Disabled] ░│ │ │ Fast PEG Init [Enabled] ▼│ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PEGn - Gen X

Options: Auto / Gen1 / Gen2 / Gen3

 PEGn ASPM

Options: Disabled / Auto / ASPM L0s / ASPM L1 / ASPM L0sL1

 Enable PEG

Options: Disabled / Enabled / Auto

 Detect Non-Compliance Device

Options: Disabled / Enabled

 De-emphasis Control

Options: -6 dB / -3.5 dB

 PEG Sampler Calibrate

Options: Auto / Disabled / Enabled

 Swing Control

Options: Reduced / Half / Full

 Gen3 Equalization

Options: Disabled / Enabled

 Gen3 Eq Phase 2

Options: Auto / Enabled / Disabled

 Gen3 Root Port Preset Value for each Lane

Sub menu: see "PEG Gen3 Root Port Preset Value for each Lane" (page 93)

 PEG Gen3 Endpoint Preset Value for each Lane

Sub menu: see "PEG Gen3 Endpoint Preset Value each Lane" (page 94)

Beckhoff New Automation Technology CB1056 page 91

Chapter: BIOS Settings Chipset  PEG Gen3 Endpoint Hint Value for each Lane

Sub menu: see "PEG Gen3 Endpoint Hint Value each Lane" (page 95)

 Gen3 Eq Preset Search

Options: Enabled / Disabled

 Always re-search Gen3 Eq Preset

Options: Enabled / Disabled

 Preset Search Dwell Time

Options: 0-65535

 Timing Margin Steps

Options: 1-255

 Timing Start Margin

Options: 4-255

 Voltage Margin Steps

Options: 1-255

 Voltage Start Margin

Options: 4-255

 Favor Timing Margin

Options: Enabled / Disabled

 PEG Link Disabled

Options: Disabled / Enabled

 Fast PEG Init

Options: Disabled / Enabled

 RxCEM Loop back

Options: Disabled / Enabled

 RxCEM Loop back lane

Options: Lane 0...15

 PCIe Gen3 RxCTLEp Setting

Options: 0...15

page 92 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.2.2.1 PEG Gen3 Root Port Preset Value for each Lane

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PEG Gen3 Root Port Preset Value for each Lane │Lane 0 Root port preset value │ │ │for Gen3 Equalization. │ │ Gen3 Root Port Preset Lane 0 8 │ │ │ Gen3 Root Port Preset Lane 1 8 │ │ │ Gen3 Root Port Preset Lane 2 8 │ │ │ Gen3 Root Port Preset Lane 3 8 │ │ │ Gen3 Root Port Preset Lane 4 8 │ │ │ Gen3 Root Port Preset Lane 5 8 │ │ │ Gen3 Root Port Preset Lane 6 8 │ │ │ Gen3 Root Port Preset Lane 7 8 │ │ │ Gen3 Root Port Preset Lane 8 8 │ │ │ Gen3 Root Port Preset Lane 9 8 │ │ │ Gen3 Root Port Preset Lane 10 8 │────────────────────────────────│ │ Gen3 Root Port Preset Lane 11 8 │→←: Select Screen │ │ Gen3 Root Port Preset Lane 12 8 │↑↓: Select Item │ │ Gen3 Root Port Preset Lane 13 8 │Enter: Select │ │ Gen3 Root Port Preset Lane 14 8 │+/-: Change Opt. │ │ Gen3 Root Port Preset Lane 15 8 │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Gen3 Root Port Preset Value for each Lane

Options: 1..11

Beckhoff New Automation Technology CB1056 page 93

Chapter: BIOS Settings Chipset

4.4.2.2.2 PEG Gen3 Endpoint Preset Value each Lane

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PEG Gen3 Endpoint Preset Value each Lane │Lane 0 End point preset value │ │ │for Gen3 Equalization. │ │ Gen3 Root Port Preset Lane 0 7 │ │ │ Gen3 Root Port Preset Lane 1 7 │ │ │ Gen3 Root Port Preset Lane 2 7 │ │ │ Gen3 Root Port Preset Lane 3 7 │ │ │ Gen3 Root Port Preset Lane 4 7 │ │ │ Gen3 Root Port Preset Lane 5 7 │ │ │ Gen3 Root Port Preset Lane 6 7 │ │ │ Gen3 Root Port Preset Lane 7 7 │ │ │ Gen3 Root Port Preset Lane 8 7 │ │ │ Gen3 Root Port Preset Lane 9 7 │ │ │ Gen3 Root Port Preset Lane 10 7 │────────────────────────────────│ │ Gen3 Root Port Preset Lane 11 7 │→←: Select Screen │ │ Gen3 Root Port Preset Lane 12 7 │↑↓: Select Item │ │ Gen3 Root Port Preset Lane 13 7 │Enter: Select │ │ Gen3 Root Port Preset Lane 14 7 │+/-: Change Opt. │ │ Gen3 Root Port Preset Lane 15 7 │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Gen3 Endpoint Preset Value each Lane

Options: 0..11

page 94 Beckhoff New Automation Technology CB1056

Chipset Chapter: BIOS Settings

4.4.2.2.3 PEG Gen3 Endpoint Hint Value each Lane

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PEG Gen3 Endpoint Hint Value each Lane │Lane 0 End Point Hint value │ │ │for Gen3 Equalization. │ │ Gen3 Root Port Preset Lane 0 2 │ │ │ Gen3 Root Port Preset Lane 1 2 │ │ │ Gen3 Root Port Preset Lane 2 2 │ │ │ Gen3 Root Port Preset Lane 3 2 │ │ │ Gen3 Root Port Preset Lane 4 2 │ │ │ Gen3 Root Port Preset Lane 5 2 │ │ │ Gen3 Root Port Preset Lane 6 2 │ │ │ Gen3 Root Port Preset Lane 7 2 │ │ │ Gen3 Root Port Preset Lane 8 2 │ │ │ Gen3 Root Port Preset Lane 9 2 │ │ │ Gen3 Root Port Preset Lane 10 2 │────────────────────────────────│ │ Gen3 Root Port Preset Lane 11 2 │→←: Select Screen │ │ Gen3 Root Port Preset Lane 12 2 │↑↓: Select Item │ │ Gen3 Root Port Preset Lane 13 2 │Enter: Select │ │ Gen3 Root Port Preset Lane 14 2 │+/-: Change Opt. │ │ Gen3 Root Port Preset Lane 15 2 │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PEG Gen3 Endpoint Hint Value each Lane

Options: 0..11

Beckhoff New Automation Technology CB1056 page 95

Chapter: BIOS Settings Chipset

4.4.2.2.4 PCIe Gen3 RxCTLEp Setting

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCIe Gen3 RxCTLEp Setting │Select the Video Device which │ │ │will be activated during POST. │ │ PCIe Gen3 RxCTLEp Setting 0 8 │This has no effect if external │ │ PCIe Gen3 RxCTLEp Setting 1 8 │graphics present. │ │ PCIe Gen3 RxCTLEp Setting 2 8 │Secondary boot display │ │ PCIe Gen3 RxCTLEp Setting 3 8 │selection will appear based on │ │ PCIe Gen3 RxCTLEp Setting 4 8 │your selection. │ │ PCIe Gen3 RxCTLEp Setting 5 8 │VGA modes will be supported │ │ PCIe Gen3 RxCTLEp Setting 6 8 │only on primary display │ │ PCIe Gen3 RxCTLEp Setting 7 8 │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 PCIe Gen3 RxCTLEp Setting x

Options: 0..15

page 96 Beckhoff New Automation Technology CB1056

Boot Chapter: BIOS Settings

4.5 Boot

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Boot Configuration │Number of 1/10 sec. to wait │ │ Setup Prompt Timeout 5 │for setup activation key. 0 │ │ Bootup NumLock State [On] │means no wait. │ │ │ │ │ Full Screen Logo [Enabled] │ │ │ Fast Boot [Enabled] │ │ │ Skip VGA [Disabled] │ │ │ Skip USB [Disabled] │ │ │ Skip PS2 [Disabled] │ │ │ │ │ │ CSM16 Module Version 07.69 │ │ │ │ │ │ GateA20 Active [Upon Request] │────────────────────────────────│ │ INT19 Trap Response [Postponed] │→←: Select Screen │ │ Boot mode select [UEFI] │↑↓: Select Item │ │ │Enter: Select │ │ FIXED BOOT ORDER Priorities │+/-: Change Opt. │ │ Boot Option #1 [UEFI Hard Disk] │F1: General Help │ │ Boot Option #2 [UEFI CD/DVD] │F2: Previous Values │ │ Boot Option #3 [UEFI USB Hard Disk] │F3: Optimized Defaults │ │ Boot Option #4 [UEFI USB CD/DVD] │F4: Save & Exit │ │ Boot Option #5 [UEFI USB Stick] │ESC: Exit │ │ Boot Option #6 [UEFI USB Floppy] │ │ │ Boot Option #7 [UEFI Network] │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Setup Prompt Timeout

Options: 0...65535 [x 1/10 sec.]

 Bootup NumLock State

Options: On / Off

 Full Screen Logo

Options: Disabled / Enabled

 Fast Boot

Options: Disabled / Enabled

 Skip VGA

Options: Disabled / Enabled

 Skip USB

Options: Disabled / Enabled

 Skip PS2

Options: Disabled / Enabled

 CSM16 Module Version

Options: none

 GateA20 Active

Options: Upon Request / Always

 INT9 Trap Response

Options: Immediate / Postponed

 Boot mode select

Options: Legacy / UEFI / DUAL

Beckhoff New Automation Technology CB1056 page 97

Chapter: BIOS Settings Boot  Fixed Boot Order Priorities

Options: Review or change the sequence of available boot devices

 Boot Option Priorities

Options: Review or change the sequence of available boot devices

 CSM Parameters

Sub menu: see "CSM Parameters" (page 99)

page 98 Beckhoff New Automation Technology CB1056

Boot Chapter: BIOS Settings

4.5.1 CSM Parameters

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Launch CSM [Always] │Controls the execution of UEFI │ │ Boot option filter [UEFI only] │and Legacy PXE OpROM │ │ Launch PXE OpROM policy [Enable] │ │ │ Launch Storage OpROM policy [Legacy only] │ │ │ Launch Video OpROM policy [Legacy only] │ │ │ │ │ │ Other PCI device ROM priority [Legacy OpROM] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Launch CSM

Options: Enabled / Disabled

 Boot option filter

Options: UEFI and Legacy / Legacy only / UEFI only

 Launch PXE OpROM policy

Options: Disable / Enable

 Launch Storage OpROM policy

Options: Do not launch / UEFI only / Legacy only

 Launch Video OpROM policy

Options: Do not launch / UEFI only / Legacy only

 Other PCI device ROM priority

Options: UEFI OpROM / Legacy OpROM

Beckhoff New Automation Technology CB1056 page 99

Chapter: BIOS Settings Security

4.6 Security

┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ The password length must be │Set Administrator Password. │ │ in the following range: │When set, this password has to │ │ Minimum length 3 │be entered to enter setup │ │ Maximum length 20 │ │ │ │ │ │ Administrator Password │ │ │ │ │ │ UEFI Secure Boot Management │ │ │ Secure Boot control [Enabled] │ │ │► Secure Boot Policy │ │ │► Key Management │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘

 Administrator Password

Options: Press [Enter]

 Secure Boot control

Options: Disabled / Enabled

 Secure Boot Policy

Sub menu: see "Secure Boot Policy" (page 101)

 Key Management

Sub menu: see "Key Management" (page 102)

page 100 Beckhoff New Automation Technology CB1056

Beckhoff CB1056 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
