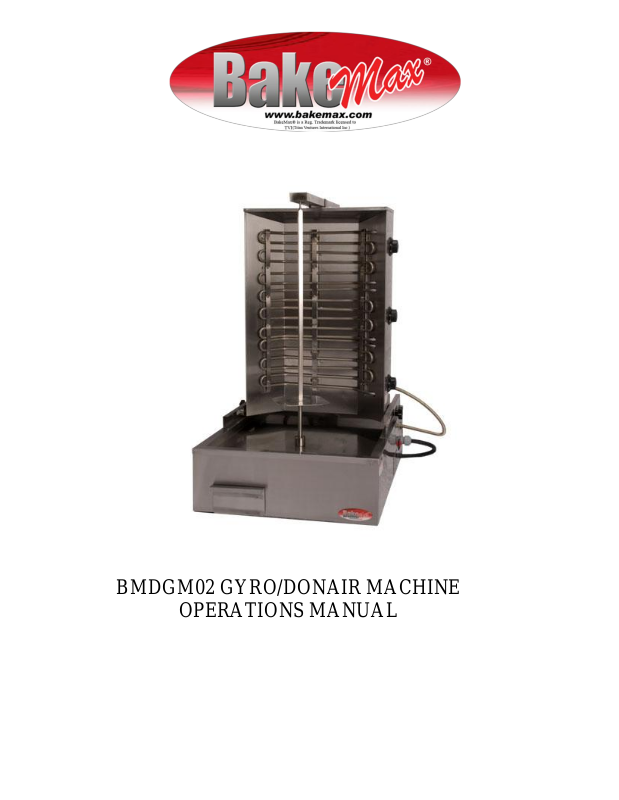

BMDGM02 GYRO/DONAIR MACHINE
OPERATIONS MANUAL
The BakeMax® BMDGM02 is made of stainless steel outer shell with a speed controlled motor,
Name
Model
Voltage
Power
frequency
Size (mm)
Gyro/Donair Machine
BMDGM02
208V
6Kw
60Hz
580X480X830
specially designed with advanced technology. Newly-designed and easily-operated.
A. Features:
1. Temperature control: there are four groups of heating tubes divided into two sections, together
with two temperature controls.
2. Changeable distance/proximity for heating: the distances of the food can be changed according to
the size of the food product.
B. Specifications:
C. Transportation and storage:
When being transported, be careful not to shake the machine violently or collide with anything
else; do not place outdoors or in the direct sunlight for extended periods of time. If the machine
must be placed outside for a period of time please avoid rainfall. Store in ventilated places away from
corrosive gases; Do not place up-side-down.
D. Cautions:
1. Place machine on stable ground and level. No other machines, products or materials should be kept
within 30 cm from the machine. There should be space of 10cm between the back and the wall. Do
not place combustible items on top of the machine, such as towel and clothes.
2. The power supply should be the same as the machine's (about 208V+10%).
3. Use a suitable switch, a fuse and a protected mode near the machine. Do not pile items around the
machine which will inhibit from easily operating.
4. The ground wire of this machine (green and yellow) comes from the same wire as the power, which
should be connected safely with copper screw.
5. The output connection is at the lower back part of the oven. Connect copper wires no less than
2.5mm with ground wire safely
6. Make sure the wires contact well and firmly. Ensure the output is suitable and the ground wires are
safe before using.
7. All connections and installation should be done by a qualified electrician.
E. Operation
1. Enter the food onto the main axle. Connect the power to turn the power light on, which means
the machine is ready to work. Turn the temperature selection to the desired temperature. The heating
light is on, the electrical tube begins to work, and the temperature rises; this means food is being
roasting.
2. There are parts to change the distance between an axis and electrical tube at the top and the base.
When turned clockwise, it will move forward. If you want to change the distance, the two should be
verticle
.
3. The main axle is for putting food. The food should be put in the middle of it, when it moves, the food
moves as well.
F. Cleaning and protection:
1. Cut off the power when cleaning to avoid injury or accident.
2. Use towel with non-corrosive detergent to clean the outer part of the machine, the inside and around
the place from which the power wire comes every day after using. Don't use running water to wash it
directly, it will damage the electrical function.
