Page 1
Operational Maintenance
Model
BMMP01
Heater Proofer
Page 2
Page 3
Page 4
TABLE OF CONTENTS
General Information ...........................................................................................................................................................................1
Unpacking and Installing ................................................................................................................................................................ 1
Maintenance and Caution .................................................................................................................................................................. 1
Power Supply ....................................................................................................................................................................................... 1
Operating ................................................................................................................................................................................................. 2
Service Specifications..........................................................................................................................................................................2
Parts List .................................................................................................................................................................................................... 3
Drawer Assembly ............................................................................................................................................................................... 3

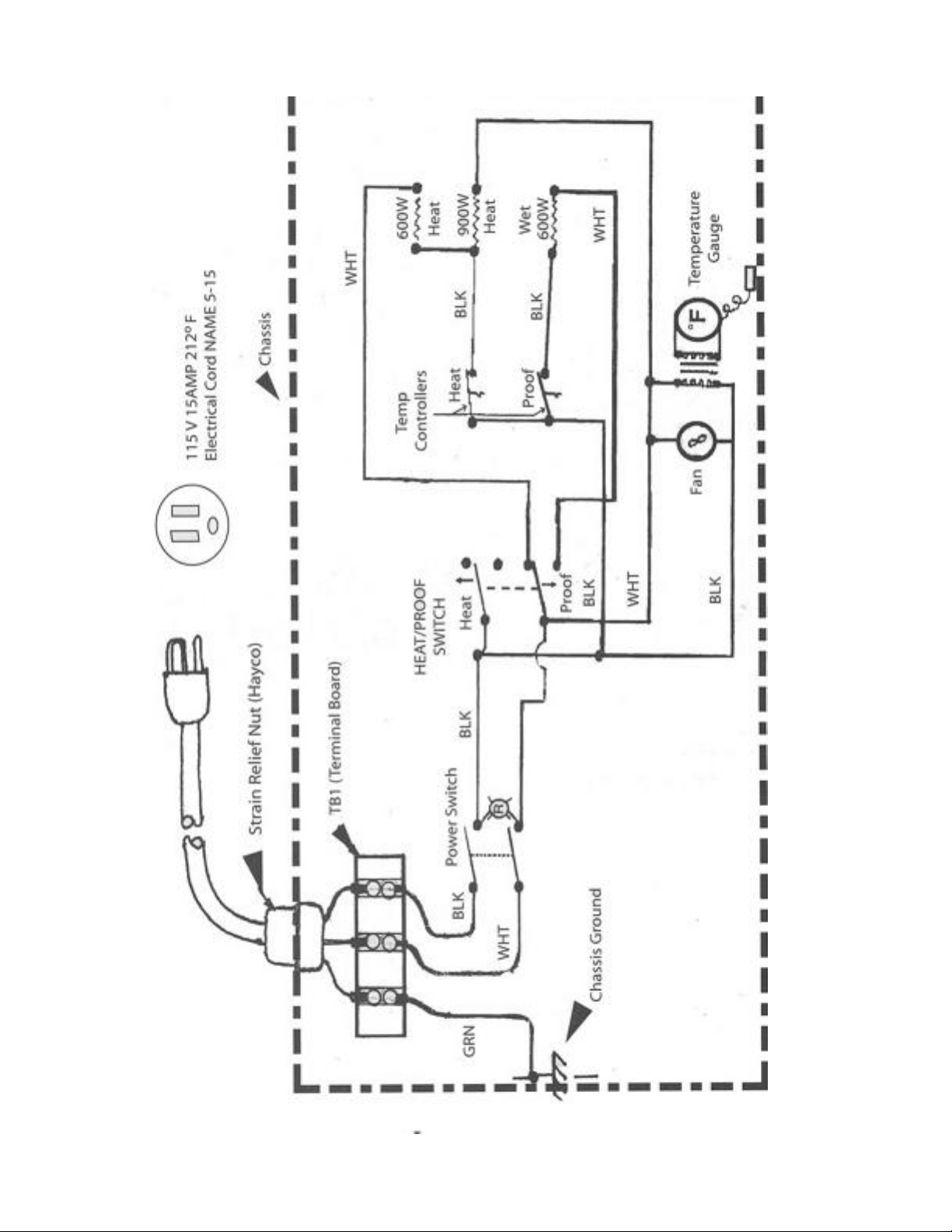

Wiring Diagram and Schematic ....................................................................................................................................................... 4
Trouble Shooting ............................................................................................................................................................................... 5
Page 5
General Information
The model BMMP01 Series cabinet will hold food hot at a constant temperature and supply humidity for proofing when
the application applies.
This cabinet is NOT a cooking appliance.
Photos are for general purposes only. Product may not be exactly as shown.
UNPACKING
Examine the interior of the unit to make sure all packing materials are removed before the unit is plugged into an
electrical outlet. Examine the interior and exterior to determine whether any damage was incurred during delivery. If so,
notify the carrier immediately to file a damage claim. All BakeMax® equipment is carefully tested and inspected prior to
shipment, When accepted for delivery by carrier, the responsibility for safe arrival at the destination is assumed by the
carrier.
CAUTION
Should any damage be found, do not attempt to operate the unit. Call your dealer IMMEDIATELY to arrange for service.
INSTALLATION
Position your unit on a stable level surface and plug in the supplied cord into any grounded 120-volt AC power supply. It
does not require a dedicated circuit but is designed for use with the power cord supplied with the unit. It is highly
recommended that you use ONLY the power cord supplied. Use of a dedicated circuit should insure operational efficiency.
Do not operate the unit with an extension cord.
MAINTENANCE
The equipment has been designed to require minimum maintenance and has been constructed to meet National
Sanitation Foundation and U.S. Public Health Service standards. Non-toxic chemical cleaners or mild detergents are
recommended for cleaning of fixtures. DO NOT use steel wools of any kind. Steel wool particles will work into the grains
of the metal causing corrosion. Also: these particles can cause a health hazard. Should scouring be required, use a
non-abrasive type of cleaner. Do not use caustic solutions on your equipment. Hosing or steam cleaning should not be
necessary to keep these fixtures clean and sanitary. Do not allow water or steam to come into contact with electrical
components. Never power wash or steam clean the cabinet with the power drawer inserted.
POWER SUPPLY
The BMMP01 does not require a dedicated circuit but is designed for use with the power cord which is supplied. It is
highly recommended that you use ONLY the power cord supplied. Use of a dedicated circuit should insure operational
efficiency. Do not operate the unit with an extension cord.
CAUTION
Be sure to disconnect power source before cleaning and servicing the unit. Liability for improper or careless use is the
responsibility of the equipment owner or persons servicing the unit, including the authorized service agent.
Page 6

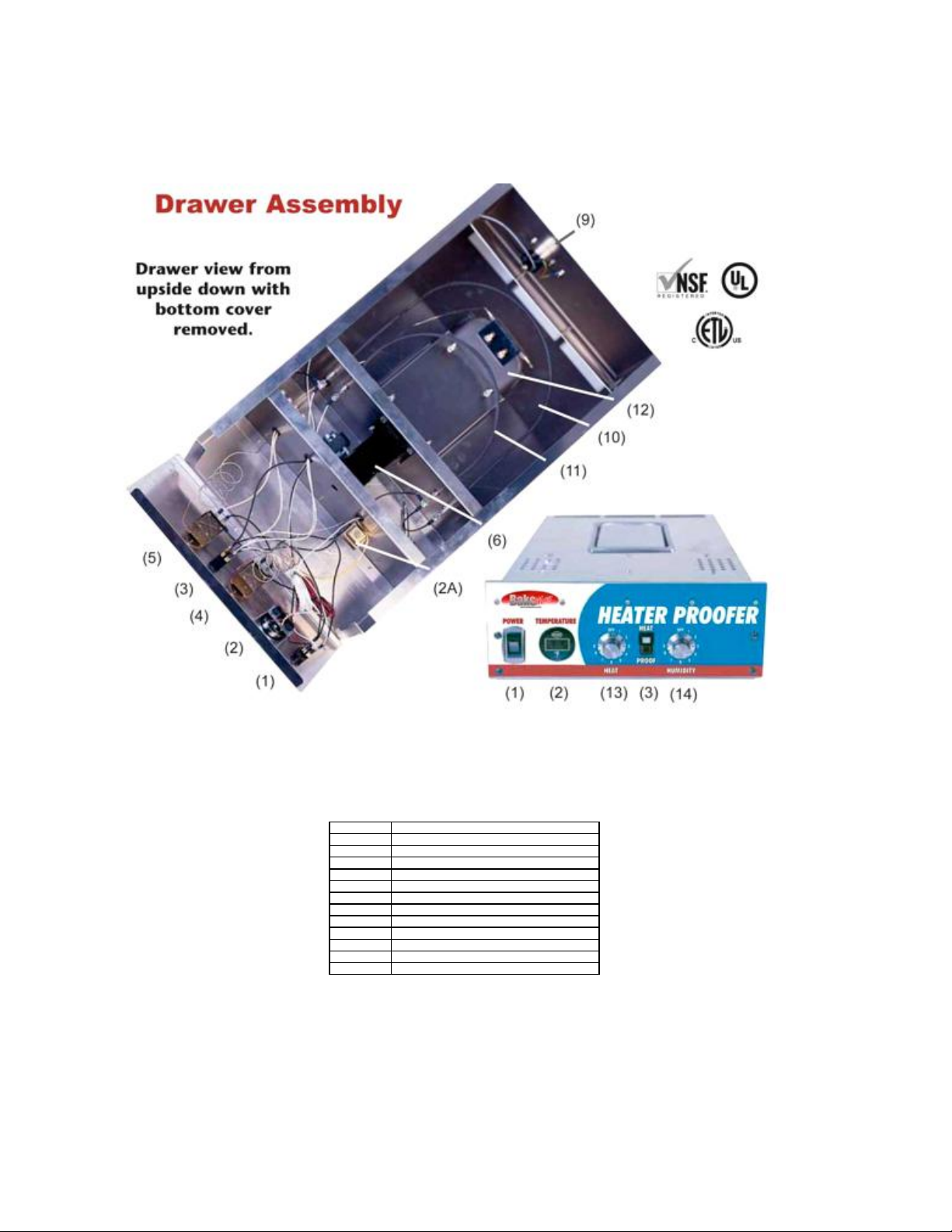

BMMP01 Drawer Assembly
1
Main Power Switch
2
L ED . Thermometer
2A
Thermometer Transformer
3
Heat/Proof Switch
4
Thermostat (Heat)
5
Thermostat (Proof)
6
Blower and Motor Assembly
9
Power Inlet
10
900W Heater Element
11
600W Heater Element
12
600W Water Pan Heater Element
13
Heat Control Knob
14
Proofer Control Knob
Page 7
Page 8
Trouble Shooting
CAUTION
Before disassembling unit electrical power must be disconnected by unplugging the unit! Failure to unplug the
unit prior to servicing may result in electrical shock.
Each unit is shipped with an instruction manual and should be used as a reference guide for all service areas.
The manual shows a picture of the drawer, showing the location of electrical components and a description of
each. If the unit does not operate correctly, or malfunctions for any reason, the following check list should
provide a solution.
1) Check to make sure "cord set" is firmly plugged into the "power receptacle" in the back of the cabinet and
into the wall outlet.
2) Check circuit breaker of wall outlet and reset if necessary.
3) IF. 1)and 2) fail, please do the following:
Remove heat drawer from cabinet. Remove bottom cover of drawer. Visually inspect to observe for:
a. Loose or disconnected wires
b. Black marks or burning on an components
c. Loose heating elements.
4. If any burn marks or discoloration of wires is noted on any component, the component along with all wires
attached to the damaged component must be replaced.
5. If heater element is loose, or if it has broken loose from mounting tabs, the wires will short out on the metal,
causing permanent damage. Both the element and main power switch (with wires on switch) must be replaced.
6. If temperature on "L.E.D, Thermometer" is not reading a constant temperature, it must be replaced along with
its power supply transformer. If the "L.E.D. Thermometer" shows only the number then the cabinet temperature
has exceeded 200°F and must be lowered immediately to maximum temperature of 185°F.
