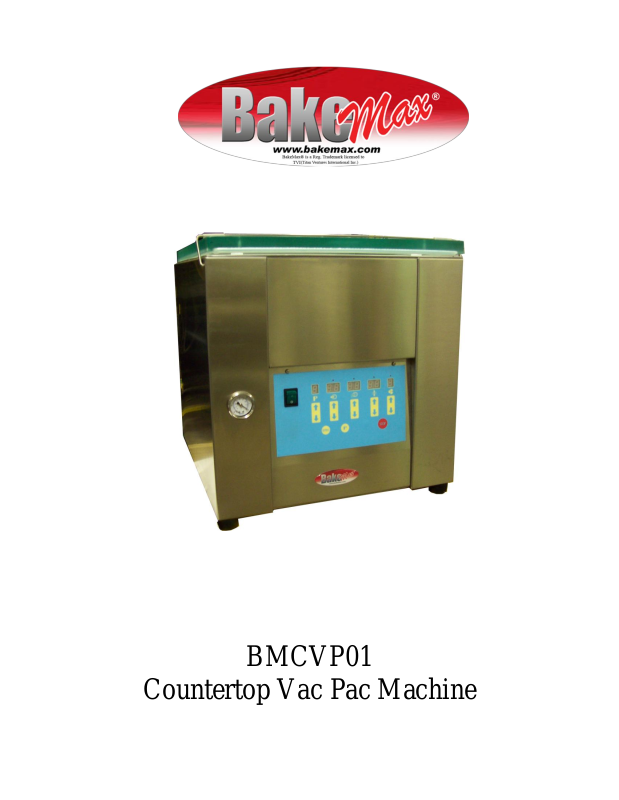

Bakemax BMCVP01 Installation Manual

BMCVP01

Countertop Vac Pac Machine

2

Safe Operation Practices

General Operation

• Read, understand, and follow all instructions in the manual and on the machine before starting. Keep

this manual in a safe place for further and regular reference and for ordering replacement parts.

• Only allow people who familiar with the instructions to operate the machine. Be sure to know controls

and how to stop the machine quickly.

• Do not put your hands near moving parts.

• Remove all obstacles, which may interfere with the machine functions.

• Clear the work area such as electrical wires, gloves, knives etc.

• Be sure that everyone else is clear of your work area before operating the machine.

• Do not sit nor stand on the machine.

• Be sure turn off the machine after your work is finished. Never leave a running machine unattended.

• Always disconnect and wait until the machine has cooled before doing any maintenance.

• Do not wear loose fitting clothes or jewelry as they may get caught in moving parts of the

machine.

• Please wear security shoes, to avoid injury caused by moving the machine or objects falling from the

machine.

• Never exceed the time limit to seal, which is suggested by the manufacturer. This is to avoid any

damage that may be caused to the sealing bars and to reduce the risk of fire in the machine.

• Never touch the sealing bars after they have been used, this will avoid corporal burns. Wait a few

minutes to let the machine cool down before touching.

• Make sure the sealing bars are well installed in their "Guide Blocks" before starting package.

• Never incline the machine more than 30 degrees, it may tip over and hurt someone seriously.

Your responsibility

This machine should only be operated by personnel who can read, understand and respect warnings and
instruction regarding this machine in the owners manual.

3

Content

Chapter 1 - Safety precautions

1.1 Precautions of transportation, installation and packing

1.2 Precautions before and after machine starting

Chapter 2 - Overall description of the machine

2.1 Features of the machine

2.2 Function of the machine

2.3 Product proper for this machine

2.4 Usage life of the machine

2.5 Marking location and content description

2.6 Specification of the machine

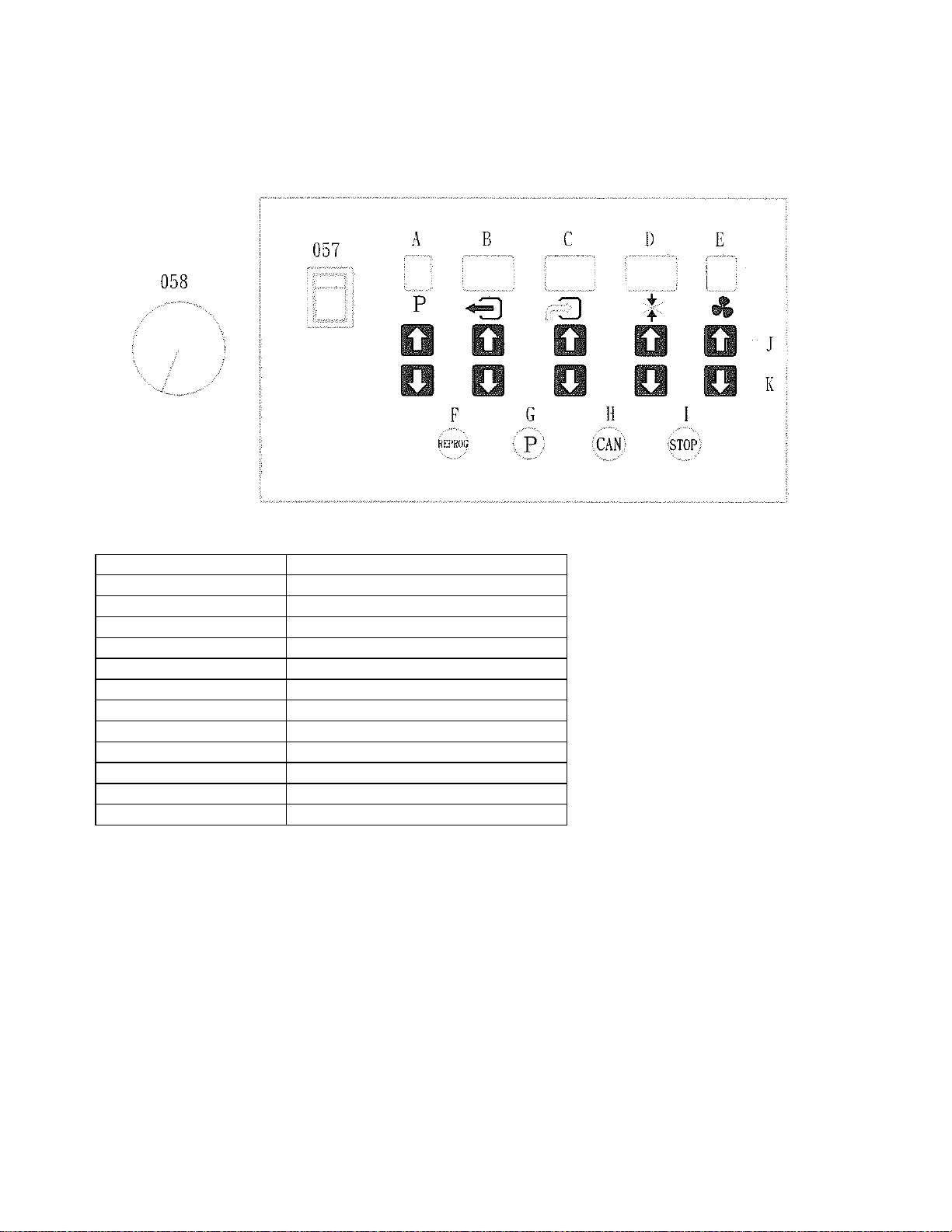

Chapter 3 - Function description of the pushbuttons on the panel
Chapter 4 - Instructions of operation, maintenance and

troubleshooting

4.1 Operation sequence

4.2 Maintenance

4.3 Troubleshooting

Chapter 5 - Related environment and accessories of the machine

5.1 Accessory

5.2 Airborne noise level

5.3 Storage condition

5.4 Operation environment

4

Chapter 1 • Safety precautions

1.1 Precautions of transportation, installation and packing

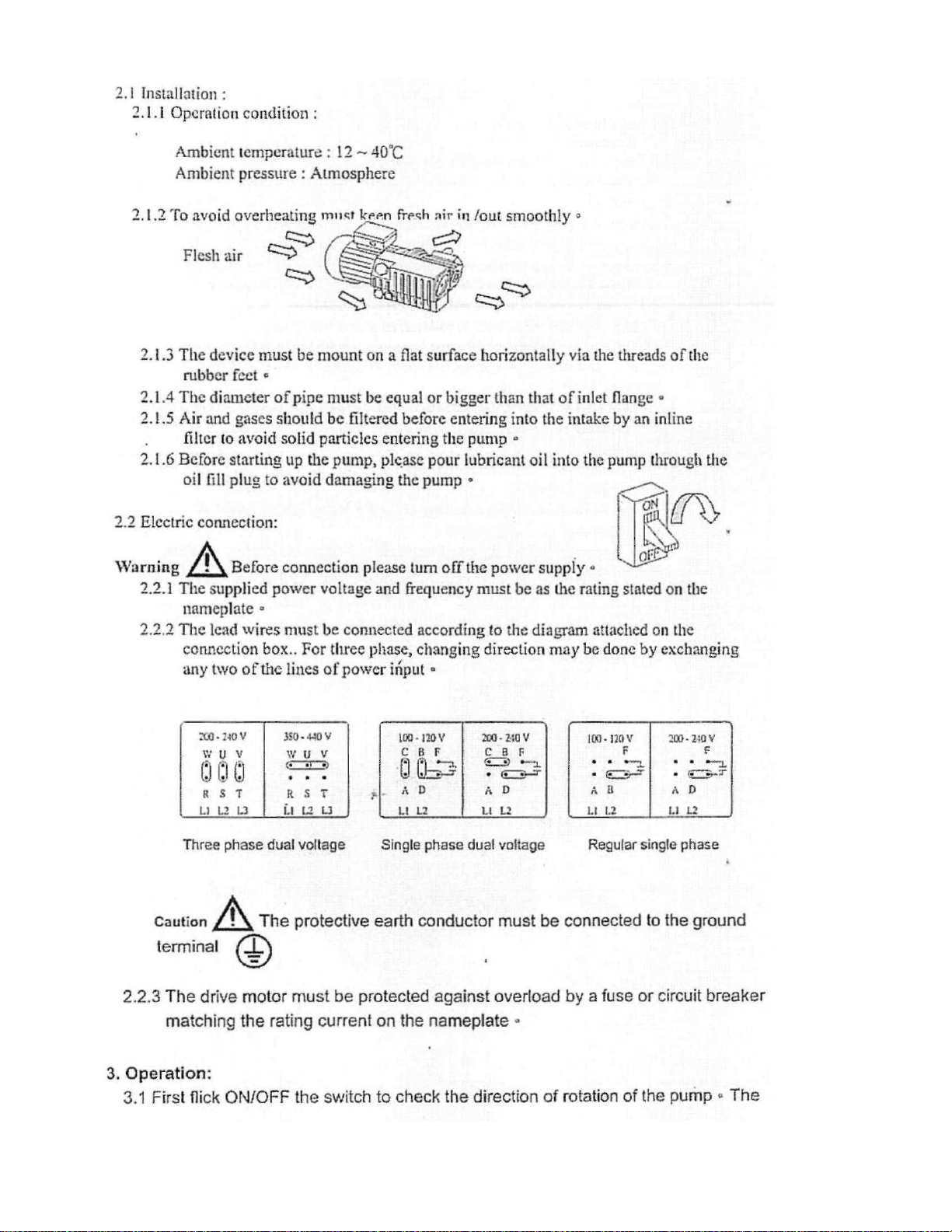

1.1.1 Preparations before installation

1.1.1.1 Power requirement:

Voltage: Look at the nameplate Current:
Look at the nameplate Frequency:
50/60Hz Phase: 10

1.1.1.2 Installation requirement

1.1.1.2.1 Prevent to install the machine in the environment full of dust and corrosive atmosphere

with acid and alkali.

1.1.1.2.2 Prevent to install the machine in the environment with abnormal vibration.

1.1.1.2.3 Prevent to install the machine under direct sunlight or near vapor. Such will affect its

vacuum degree.

1.1.1.2.4 Don't install the machine in the potentially explosive atmosphere.

1.1.1.2.5 Installation space includes the requirement of the operator and machine Length x

Width x Height = lmxl.5mx2.5m

5

1.1.2 Preparations during transportation

1.1.2.1 The weight of this machine is 80kg, so that the loading capacity of any handling device is

recommended to be more than 150kg. If you are not sure of the safe loading capacity,
please contact the manufacturer of such handling device. If the situation is clearly
understood, don't try to handle the machine by yourselves.

1.1.2.2 Either by lifting or by handling, it's necessary to check the balance carefully in advance.

1.1.2.3 The work of lifting or by handling should be carried out by means of qualified operator.

1.1.2.4 During machine handling, any people or car is not allowed to approach the surrounding of

the machine.

1.1.2.5 During handling, notice that whether there is any person or barrier on the handling path and

the surrounding of the machine. If it is, clear it before machine handling.

1.1.3 Precautions during packing

1.1.3.1 Packing material: cardboard box.

1.1.3.2 Packing sequence: Open the cardboard box and put the machine covered with plastic film

into the box. Next, put vibration-absorbing board around the machine. Then, close the box

and seal with tape. At last, bind it with pp stripes.

1.2 Precautions before and after machine starting

1.2.1 Precautions before machine starting

1.2.1.1 Before using this machine, read and realize the contents of this manual in detail.

1.2.1.2 Check that whether the voltage is correct.

1.2.1.3 Confirm that whether the electric power and its rating is sufficient.

1.2.1.4 Check that whether all the safety related devices are normal, and notice that whether anyone

within the danger zone.

1.2.1.5 Visual check that whether all mechanical and electric parts are normal, and also notice that

whether the surrounding environment is clean.

1.2.1.6 Sequences of power on:

1.2.1.6.1 Turn on the factory power.

1.2.1.6.2 Turn on the main switch of the machine.

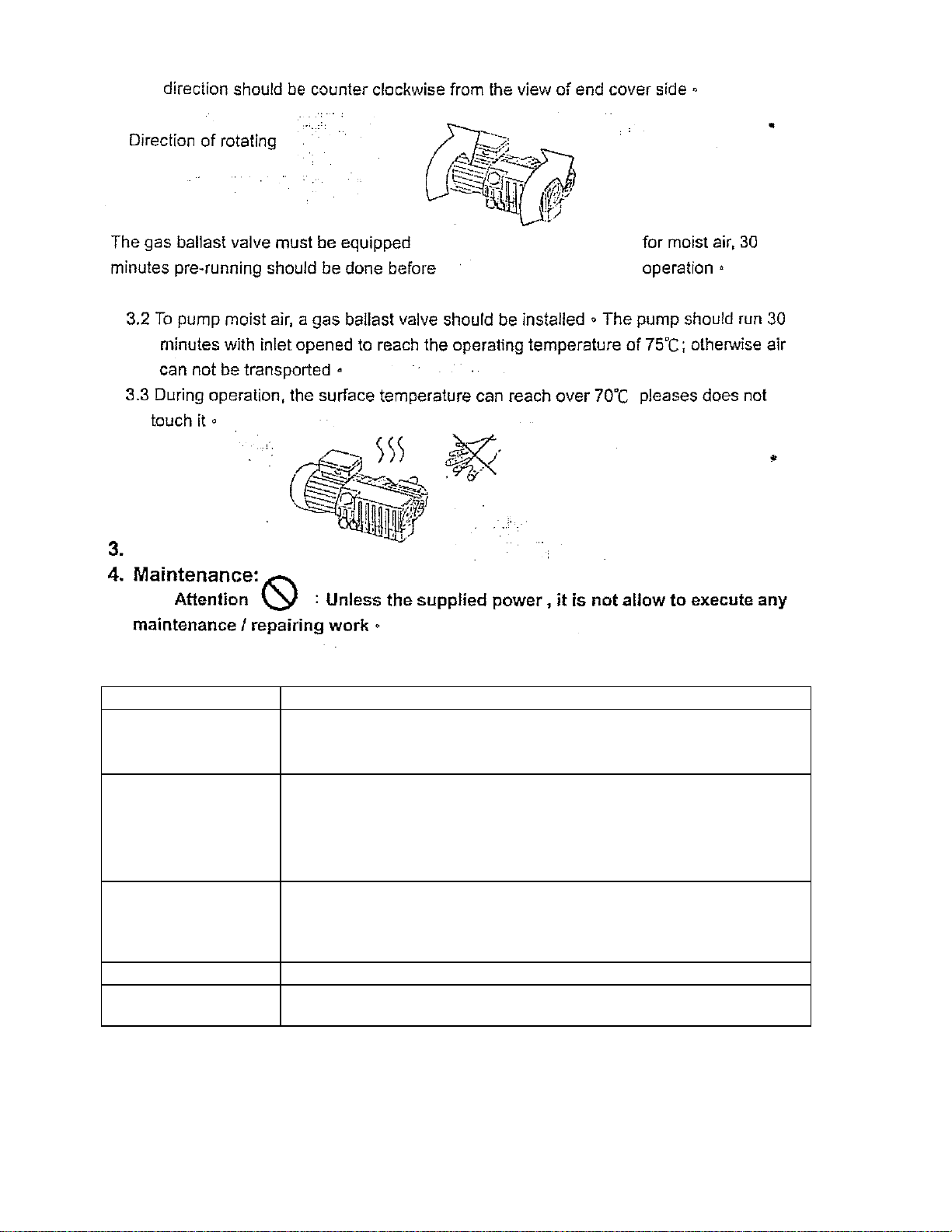

1.2.2 Precautions after machine starting

1.2.2.1 Confirm that whether the display is correct.

1.2.2.2 Confirm that whether the sound coming from pump running is normal.

1.2.2.3 Make sure that whether the pressing bar of the upper lid is released.

1.2.2.4 Make sure that the opening angle of the upper lid is about 60°.

1.2.2.5 Wear safety shoes, protection clothes and mask to ensure safety and hygiene of the operator.
