Monarch

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Company Overview

Contents

Company Overview ...................... 1

9825 Tabletop Bar Code Printer .....................2

9855 Tabletop Bar Code Printer .....................2

9860 Tabletop Bar Code

Ticketing System ...................................3

9855

RFID Solutions .....................................4

RFID Supplies Solutions ..................................5

9800

In-stock Supplies for

9800 Printer ..........................................6

SG & Avery Dennison Attachers ..................10

Specialty Attachers ...................................... 11

9854...............................................................12

9864...............................................................13

6032...............................................................14

6039...............................................................15

9416

XL ........................................................16

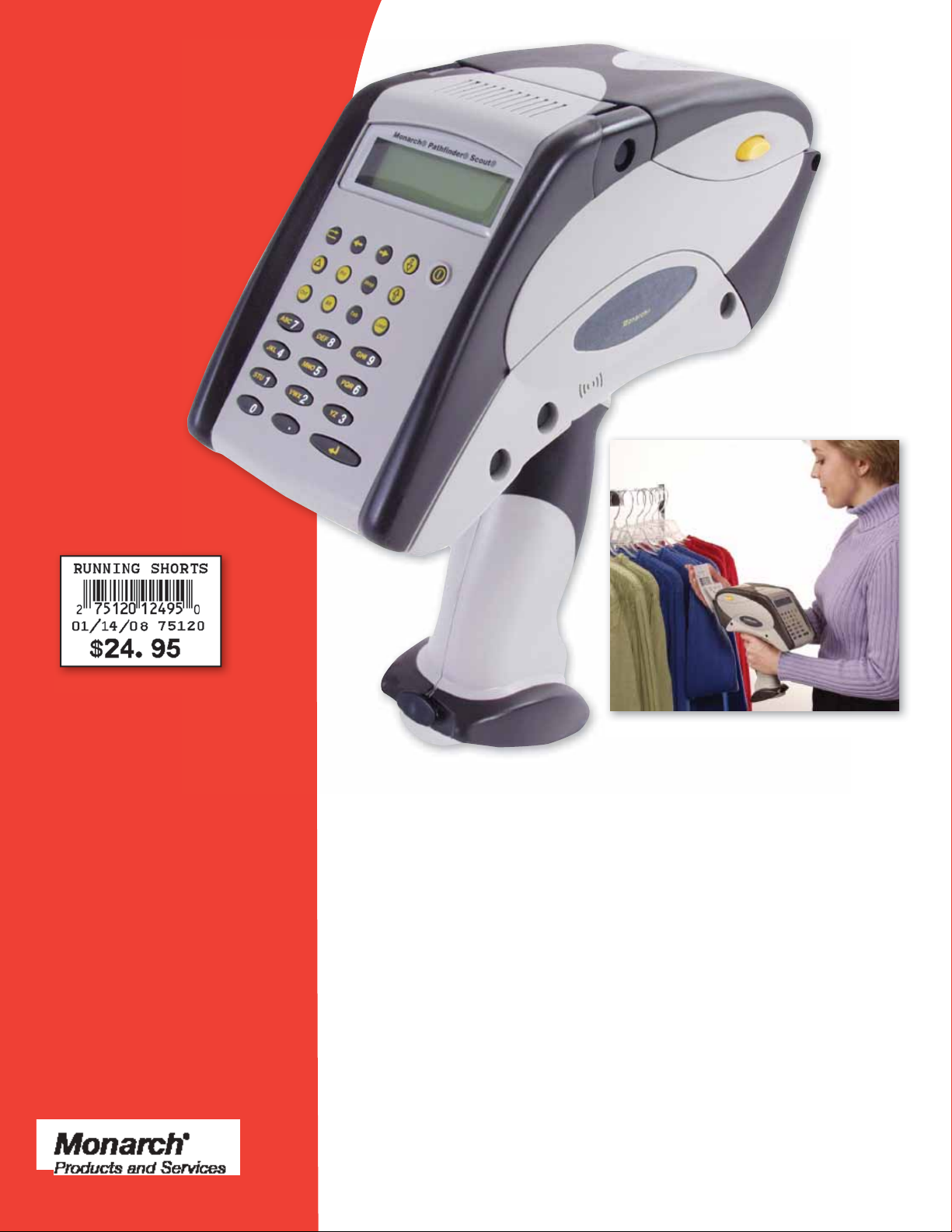

Portable Printers ...........................................17

Monarch Supplies for Zebra and

Other Printers ...............................................18

Monarch Ribbons for Zebra and

Other Printers ...............................................21

Monarch Off-line Solutions .......................... 22

Mobile Work Stations ................................... 23

Labels and Tags for

Laser/Inkjet Printers.....................................24

Network Solutions ........................................ 26

System Integration Service .......................... 27

Monarch

Supplies Technology Laboratory ............... IBC

Special Offer: Ultra® Silver 6032™

Printer Package ...............................IFC

IFC = Inside Front Cover IBC = Inside Back Cover

Q Service® ...................................28

Avery Dennison

We are a $6 billion company serving hundreds of thousands of customers worldwide. We are the acknowledged retail and apparel manufacturing industry leader with over 100 years of experience providing market-proven innovation and excellence. With 33,000 employees in approximately 50 countries, Avery Dennison can meet the requirements of any business, from local to global. The Printer Systems Division of Avery Dennison is the original manufacturer of Monarch products, the leader in the retail industry for over 100 years.

Consistently Outstanding Quality

Avery Dennison designs its products to last. Monarch manufacturing facilities at Miamisburg, Ohio are ISO 9001 certified, ensuring consistently excellent quality. Our plant was recognized by Industry Week in 2000 as one of the Top 10 plants in America across all industries.

Exceptional Service Worldwide

Avery Dennison has the most extensive service organization in the industry, a factory-direct service force over 100 strong in North America alone.

Innovative Technology

Monarch product innovations over the years have included the first retail pin-ticketing machine (1890), one of the earliest bar codes (Codabar,

1971) and the first battery-operated handheld bar code printer (1984). Our history of innovation continues with our RFID printer/encoders of Smart Labels. When your business can benefit from RFID, Avery Dennison can guide you.

We Stand Behind Our Products

Your purchase of Monarch products from Avery Dennison is risk-free. Return any standard item within 30 days, for any reason, and receive a full refund. (Custom supplies and custom machines may be returned if Avery Dennison was in error in filling the order). In general, machines and equipment are warranted to be free from defects in materials and workmanship for one year. Supplies and accessories are warranted for 90 days and are guaranteed to operate in any properly functioning Monarch machine for which they were designed. The applicable written warranty is available upon request.

How to Order

Call 1-800-543-6650, prompt 5, between 8 a.m. and 5 p.m. Eastern time. Visa, MasterCard or American Express accepted. For established customers, terms are net 30 days.

Most in-stock items will ship the same day, if ordered by 3 p.m. Eastern time, Monday – Friday. Minimum order is one case of supplies unless otherwise noted. Typographic, descriptive, or photographic errors are subject to correction.

Not Sure Where to Begin?

We can help! Just call us…our Systems and Sales Consultants are experienced and well trained in all aspects of bar coding and RFID. We are committed to providing you with assistance every step of the way.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Tabletop Bar Code Printers

9825™ & 9855

Applications for the 9825 and 9855

• Shipping/pallet labeling

• Price and item marking

• Pick and pack

• Compliance labeling

• Inventory control

• Bin marking

9825 Printer Key Features

9825

• Prints thermal direct and thermal transfer

• 203 DPI, user-replaceable printhead flips

• Larger supply rolls result in fewer supply changes

• Unique ribbon control virtually eliminates wrinkling

• Dynamic dot shifting for prolonged printhead life

• Print speed up to 6 inches per second (IPS)

• DC-powered cart version available (see p. 23)

• Parallel, Serial and USB connectivity standard

• Optional peel mode and linerless capability

9855®: All features of 9825, Plus:

• Super-fast 150 MHz

processor and print speeds up to 12 IPS

• Optional knife and

stacker for medium volume tag printing

• 203 DPI standard,

300 DPI optional

• Optional full-metal cover

• Memory expansion

available

starts at

2,200

Prints

labels and perforated tags up to 10 mils thick

abels

203 D

up for easy ribbon and supply loading

up for Large Uniqu

of ribbon

f ri Dyna Print s DC Parall Optio

starts at

tarts

1,675

Options for the 9855 Printer

926™ Knife $1,205 927™ Hopper $99 928™ Tag Stacker $2,415 935™ External Rewind (also 9825 compatible) $585 938™ High Speed Verifier $2,695

4" x 6"

939™ Data Entry Keyboard $399 945™ Unwind $470 Dual Wired/Wireless Ethernet Controller (also 9825 compatible) $595 Internal Ethernet Controller (also 9825 compatible) $295 MonarchNet2™ Enterprise Print Management

System $195

s for the 9855 Printe

Monarch® Products and Services

Monarch

Pri

9860™

Tabletop Bar Code Ticketing System

Applications for the 9860 Printer

• High-volume ticketing

• Item tag printing

• Compliance item tags

• Cutting, stacking tags with batch separators

The 9860 Printer is pictured here with the optional

932 Stacker and 938 Verifier.

nter

9860 Key Features

• Prints clear, crisp thermal direct

or thermal transfer hang tags up to 12 mils thick

• Integrated, heavy-duty knife

cuts up to 8 IPS

• Sub-second imaging time

• Heavy-duty, full-metal cover

• Verifier option for peace of

mind when printing bar codes

• User-friendly keyboard

• 203 DPI, user-replaceable

printhead with optional 300 DPI printhead available

• Parallel, Serial and USB

connectivity standard

• Optional wired/wireless

Ethernet

• 939i keyboard available–

provides second serial port for scanner or other external device

starts at

5,245

932

1.5" x 2.2"

938™ Verifier $2,695

Verifie

(shown with 9860 printer)

(shown with 9

1.2" x 2.7"

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

™

Stacker $2,495

tacker $2,49

Monarch

9855® RFID

Shown with optional Monarch® 926™ Knife

RFID Solutions

Monarch® 9855® RFMP

ona

• Supports UHF protocols, including EPC Gen2 and EM 4122

Sup

• Compatible with a full range of inlays including Avery

Com

Dennison, Alien Technology, KSW, UPM Raflatac,

Den

RFIDentics and more

RFID

• Meets OSHA requirements for use in workplace and

Meet

is FCC certified, RoHS Compliant

s F

• Prints Bar Code Data

• Thermal Direct or Transfer

Ther

• Dual Wireless 802.11b/g/Wired Ethernet available

Dual

Perfect for:

• Retail Compliance

• DOD Compliance

• Item Level Carton and Pallet Marking

• Asset Tracking

• WIP Tracking

Monarch® 9855® RFMP RFID Printer Encoder

starts at

4,995

Monarch® 9855® HF

• Supports HF protocols, including ISO 15693-2, -3,

TI Tag-IT, NXP I-Code and ISO-18000-3

• Meets OSHA requirements for use in workplace and

is FCC certified, RoHS Compliant

• Prints Bar Code Data

• Thermal Direct or Transfer

• Dual Wireless 802.11b/g/Wired Ethernet available

Perfect for:

• Item Level Retail

• Pharmaceutical Tracking

• Asset Tracking

• WIP Tracking

• Library Tracking

• Authentication

Monarch® 9855® HF RFID Printer/Encoder

starts at

3,995

Monarch® Products and Services

Monarch

RFID Supplies

• Twice-Tested for Quality

• UHF and HF Protocols

• Pre-Printed Supplies Available

• Smart Label Performance Guarantee

on every shipment

• Full line of adhesives, including permanent

general purpose, freezer and removable

Perfect for:

• Retail Compliance

• Carton and Pallet Labeling

• Item Level Labeling

• Retail Tags

• Asset Tracking

• High Temperatures

• Cold Temperatures

• Tote Tracking

• Pharmaceutical

• Jewelry Labeling

UHF and HF Supplies

We manufacture a wide variety of top quality, reliable RFID supplies for all major RFID printers on the market.

UHF 860-960 MHz protocols

• EPC Gen 2

• EM 4122

HF 13.56 MHz protocols

• ISO 15693-2, -3

• ISO 18000-3

• TI Tag-It

• NXP I-Code

• TASGSYS C270, C370

We work with the best inlay companies in the industry to provide you the solution that works best for your application

• Avery Dennnison

• Alien Technology

• KSW Microtec

• RFIDentics

• TAGSYS

RFID Labels

Dimensions Item No. M/Case Antenna

4" x 2" 900651 5.5 Gen 2 AD 222

4" x 6" 900650 3.85 Gen 2 AD 222

Call for availability. Many more sizes and types available.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

900413

1–

2.0" X 1.0"

2–

21,000/case

3–

Monarch

LEGEND:

1 ITEM #

2 LABEL SIZE (Width x Length)

3 QUANTITY (per case)

Labels shown are actual size, plain white and are thermal transfer, permanent adhesive unless noted otherwise.

Labels are on rolls and perforated between labels unless noted.

Thermal transfer labels include appropriate number of ribbons.

In-stock Labels for Monarch® 9800® Series Printers

900322

2.0" X 1.0" 20,740/case (ultra tuff with clear overlay)

900413

2.0" X 1.0" 21,000/case

900401

3.0" X 5.0" 4,500/case (no perforation)

900308

2.1" X 1.8" 24,384/case (no perforation between Labels)

900405

1.2" X 0.7" 80,100/case

900323

1.5" X 1.1" 38,430/case (two across)

900423

1.2" X 1.1" 57,800/case (three across)

900329

1.5" X 1.1" 57,600/case

900403

3.0" X 1.5" 14,400/case (no perforation)

900406

3.0" X 1.0" 20,700/case

900313

4.0" X 2.0" 11,100/case

900409 11,100/case (fanfold, 925 sheets per stack, 2 stacks per case )

900412

4.0" X 1.0" 20,700/case

900420

3.0" X 3.0" 7,500/case (no perforation)

900328

2.0" X 1.5" 28,800/case

900610

2.0" X 1.6" 22,495/case (ultra removable adhesive)

Custom labels also available. Please call for details.

Monarch® Products and Services

Monarch

9800™ Label and Tag Supplies

900319

4.0"X 6.0" 3,600/case

900318 (cannot be used in the M09820) 3,600/case (no perforation)

900320 3,800/case (fanfold, 950 sheets per stack, 2 stacks per case)

No-Mar3 Labels

900576 3,800/case (fanfold, 950 sheets per stack, 2 stacks per case)

No-Mar3 Labels 900603 3,855/case (no perforation)

No-Mar3 Labels

900613 3,855/case

cont’d

900324

4.0" X 3.0" 7,400/case (fanfold, 925 sheets per stack, 2 stacks per case)

900421

4.0" X 8.0" 2,700/case (no perforation)

900314

4.0" X 4.0" 5,700/case

900410 5,700/case (fanfold, 950 sheets per stack, 3 stacks per case)

No-Mar3™ Labels 900617 5,700/case

No-Mar Advanced 900643 2,983/case

No-Mar Advanced

900643 (fanfold,) 2,983/case

Linerless Thermal Direct

900157 6,000/case

Custom labels also available. Please call for details.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

)

9800™ Label and Tag Supplies

1– 900411

LEGEND:

1 ITEM #

2 LABEL SIZE (Width x Length)

3 QUANTITY (per case)

2– 1.2" X 1.1" 3– 63,900/case

Width x Length

In-stock Monarch

for 9800

900411

1.2" X 1.1" 63,900/case

900609 85,920/case (removable adhesive)

Printers

900518

1.2" X 1.1" 90,000/case (direct)

900120 90,000/case(direct, removable adhesive)

Labels and Tags

900606 12,888/case

900084

2.2" X 3.7" 8,400/case (direct)

Supplies shown are actual size, plain white and are thermal transfer, permanent adhesive unless noted otherwise.

Labels and tags are on rolls.

Thermal transfer supplies include appropriate number of ribbons.

900597

1.2" X 1.6" Tag 44,568/case

900589

1.2" X 2.7" Tag 25,464/case

900598

1.2" X 2.2" Tag 31,824/case

900511 32,200/case (direct)

900407

1.5" X 1.6" 45,000/case

900517 51,200/case (direct)

900607 45,108/case (removable adhesive)

900588

1.5" X 2.7" Tag 16,976/case

900513 19,800/case (direct)

900327 8,400/case (perforated between each tag)

000220

2.3" X 1.0" 46,800/case

(synthetic rat tail) TUFFLABEL®

900118

2.0" X 2.2" 27,600/case (direct)

900611

2.0" X 1.6" 29,070/case (synthetic removable adhesive)

900402

1.5" X 2.2" Tag 10,400/case (perforated between each tag)

900113 25,300/case (direct)

Custom labels also available. Please call for details.

Monarch® Products and Services

Monarch

9800™ Label and Tag Supplies

cont’d

900587

2.0" X 2.7" Tag 8,640/case

900408

4.0" X 7874" (656’) 3 rolls/case (24,622 inches continuous label)

900578

2.4" X 1.2" Tag 19,100/case

900101 28,000/case (direct)

900400

3.0" X 1.2" Tag 19,200/case

900674

3.2" X 1.6" Tag 13,200/case (direct)

900072 24,600/case (direct)

Custom labels also available. Please call for details.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Tag Attachers

Tag Attachers and matching Tagger Tail

Fasteners

When it comes to choosing the Attacher and Tagger Tail Fasteners that are right for you–we are here to help!

Consider when making your selection

What is your Application?

• Price, Brand or Identify Ticketing

• Pairing of Merchandise

• Hanging Merchandise for Display

What types of merchandise will you price, pair or display?

• Standard/General Merchandise

• Fine or Delicate Fabrics

• Heavy-Duty Materials

• Specialty Applications

SG® Attacher Needles

954785

Fine SG® Attacher

• Use to attach tags to knit, cotton, lightweight,

fine woven fabric

• Soft, non-slip cushion comfort grip molded

into handle and trigge

• Provides a firmer grip

• Utilize the 100 clip or 50 clip fasteners

• Compatible with most other manufacturers’

fasteners and needles

Regular Attacher MOSGR-01 $38.50

954785 Plastic Shank Needles–4/pack $21.20

118202 All Steel Needles–4/pack $21.20

117802 Heavy Duty All Steel Needles–4/pack $19.00

Fine SG® Attacher

Regular SG® Attacher

• Tag delicate and woven fabric such as silk, linen

• Soft, non-slip cushion comfort grip molded

into handle and trigge

• Provides a firmer grip

• Utilize the 100 clip or 50 clip fasteners

Fine Attacher MOSGF-01 $38.50

954786 Plastic Shank Needles–4/pack $25.35

118201 All Steel Needles–4/pack $25.35

Avery Dennison Mark III™ Pistol Tool Attacher

• Ideal for tagging knit shirts, light to medium

weight fabrics, cotton, cotton twill corduroy

• Improved ergonomic design–easy squeeze

mechanism for operator comfort

• Utilize 50 clip fasteners

• 90 day Written Warranty on attacher

954786

Avery Dennison Mark III™

Attacher Needles

954886

954887

954889

Regular Attacher 954885 $28.75

954886 Short plastic base Needles–4/pack $13.25

954887 Heavy Duty short all steel Needles–4/pack $25.35

Avery Dennison Mark III™ Fine Fabric

™

Pistol Tool Attacher

• Ideal for tagging silk, satin,nylon,

elastic, micro fibers, lycra, rayon, polyester, fine linens, infant wear

• Optimized spring tension and short trigger

stroke provide smooth operation

• Utilize 50 clip fine fabric fasteners

Fine Attacher 954888 $29.95

954889 Plastic base Needles–4/pack $13.25

954890 (Short all steel) Needles–4/pack $25.35

Monarch® Products and Services

Monarch

ura

ddl

Fasteners

Regular Paddle

Fine Paddle

Double Paddle

ouble Pa

Tagger Loop

Tagger Hook

T-End

Specialty Attachers

Black

lac

Natural

Blue

Orange

Gray Gray

Pink

Green

Red

Lilac

Yellow

String Tach

If you want to reflect an up scale image– use String Tachs! Use to secure price or brand identity tags onto product. Polyester thread with durable plastic ends lock easily into place. Available in Black or White strings. 100 per pack.

Shipped immediately.

954909 4.7" Black Poly Thread 954905 7.9" White Poly Thread

Display-It Hooks– Increase Product Visibility

• Provide a durable method for hanging items

• Hang socks, gloves, toys and more

• Use in conjunction with Attacher & Tagger Tail® Fasteners

• Will not crack or fall off under constant handling

• 1-7/8" available in Black or White

Shipped immediately.

954223 White 954222 Black

Minimum order 2,000.

™

***Minimum Tensile Strength

Regular Paddle Fasteners–

Order in multiples of 5,000 unless noted

Size Per Clip Color Tensile Strength*** Order +

1/2" 50 Natural 3.1 lbs. 000902 1/2" 50 Clear Nylon 5.1 lbs. 954605 1/2"* 100** Natural 3.1 lbs. 954777 1/2" 50 Red 3.1 lbs. 954713 1/2" 50 Black 3.1 lbs. 954718 1/2" 50 Green 3.1 lbs. 954717 1/2" 50 Blue 3.1 lbs. 954714 1/2" 50 Yellow 3.1 lbs. 954715 1" 50 Natural 3.1 lbs. 000997 1" 50 Clear Nylon 5.1 lbs. 954604 1"* 100** Natural 3.1 lbs. 954778 1" 50 Red 3.1 lbs. 000111 1" 50 Black 3.1 lbs. 000112 1" 50 Green 3.1 lbs. 000113 1" 50 Blue 3.1 lbs. 000114 1" 50 Yellow 3.1 lbs. 000115 1" 50 Pink 3.1 lbs. 900260 1" 50 Orange 3.1 lbs. 900261 1" 50 Gray 3.1 lbs. 954462 1" 50 Lilac 3.1 lbs. 954498 2" 50 Natural 3.1 lbs. 900212 3" 50 Natural 3.1 lbs. 000994 3"* 100** Natural 3.1 lbs. 954780 3" 50 Red 3.1 lbs. 000123 3" 50 Black 3.1 lbs. 000124 3" 50 Green 3.1 lbs. 000125 3" 50 Blue 3.1 lbs. 000126 3" 50 Yellow 3.1 lbs. 000127 3" 50 Pink 3.1 lbs. 900257 3" 50 Orange 3.1 lbs. 900256 5" 50 Clear Nylon 5.1 lbs. 000993

*Order in multiples of 10,000 **SG Attacher M0SGR-01 is the only attacher that can utilize the 100 clip fasteners

***Minimum Tensile Strength

Fine Paddle Fasteners–

Order in multiples of 5,000 unless noted

Size Per Clip Color Tensile Strength*** Order

1/2" 50 Natural 2.3 lbs. 000916 3/8"* 50 T-End Natural 3.5 lbs. 954343 3/4" 50 Clear Nylon 2.3 lbs. 000968 3/4" 50 White 2.3 lbs. 954174 3/4"* 100** Natural 2.3 lbs. 954781 3/4"* 100** Clear Nylon 2.3 lbs. 954784 1" 50 Natural 2.3 lbs. 000991 1"* 100** Natural 3.5 lbs. 954782 2" 50 Natural 2.3 lbs. 000985 2"* 100** Natural 2.3 lbs. 954783 3" 50 Natural 2.3 lbs. 954432

*Order in multiples of 10,000 **SG Attacher M0SGF-01 is the only attacher that can utilize the 100 clip fasteners

***Minimum Tensile Strength

Regular Hook Fasteners–

Order in multiples of 5,000

Size Per Clip Color Tensile Strength*** Order

1-1/2" 50 Natural 3.1 lbs. 000918 2" 50 Natural 3.1 lbs. 000919

Regular Loop Fasteners –

Order in multiples of 5,000

Size Per Clip Color Tensile Strength*** Order

1-1/2" 25 Clear Nylon 5.1 lbs. 900341 3" 25 Clear Nylon 5.1 lbs. 900342

***Minimum Tensile Strength

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Monarch® 9854™ Printer

• 150 MHz processor and print speeds up to 8 IPS

• Fast, easy and intuitive supply loading

• Real time clock built in to allow for date/time stamp

• Secure off-line operation– store formats on removable compact flash card

• 4.72" supply widths, max. print length is 39.4"

• Wired Ethernet, one USB port, serial port, parallel port and PS 2 keyboard port

• Free starter edition of NiceLabel Software is shipped with each printer

• Accessories include

- Foot switch for controlling

on-demand mode

- Mini keyboard for

off-line data entry

- Compact flash expanded

memory card for formats, fonts and/or graphics

- Cutters available

starts at

2,395

9854 Ribbons

High Speed Wax

Width Length

Item No. Inches mm Feet

12747315 1.52 38 1640 500

12747320 2.0 53 1640 500

12747330 3.125 79 1640 500

12747335 3.5 89 1640 500

12747340 4.25 108 1640 500

12747345 4.5 114 1640 500

See page 21 for additional 9854 ribbons

4" x 6"

9854 Labels

Width Length M Labels/

Item No. Inches Inches

900655 1.2 0.75 58.626

900656 1.5 1 30.396

900657 2 1.125 40.528

900658 2 1.5 28.056

900659 4 2 8.046

900660 4 4 4.143

900661 4 6 2.79

All other labels for this printer must be custom quoted.

Please call for details.

Monarch® Products and Services

Monarch

Monarch® 9864™ Printer

• 4", 5", 6" or 8" printer

• 400 MHz processor and

print speeds up to 16 IPS

• Industrial design stands up to

harsh conditions with a protective equipment rating of IP41

• Built-in ribbon saver

• Real time clock built-in to

allow for date/time stamp

• Secure off-line operation–store formats

on removable compact flash card

• 1.2"-8.5" supply widths, max. print length is 39.4"

• Wired Ethernet, two USB ports, serial port,

parallel port and PS 2 keyboard port

• Free starter edition of NiceLabel Software is

shipped with each printer

• Accessories include

- Foot switch for controlling on-demand mode

- Mini keyboard for off-line data entry

- Remote display

- Compact flash expanded memory card

for formats, fonts and/or graphics

- Dispenser module (not on 8")

- Cutters available

starts at

6 ,116

9864 Ribbons

Near Edge Wax/Resin

Width Length

Item No. Inches mm Feet

900539 2.09" 53 1968' 600

900538 2.52" 64 1968' 600

900532 3.50" 89 1968' 600

900535 4.33" 110 1968' 600

900652 5.12" 130 1968' 600

900653 5.98" 153 1968' 600

900654 8.43" 214 1968' 600

Thermal Transfer Labels

Dimensions Item No. M Per Case

4.5" x 2.5" 909854 10.0M

4.5" x 3" 909855 7.6M

4.5" x 4.5" 909856 5.6M

4.5" x 5" 909857 4.8M

4.5" x 6" 909858 3.98M

5" x 2.5" 909859 10.0M

5" x 3" 909860 7.6M

6" x 4" 910082 3.0M

5" x 4" 909861 6.0M

6" x 4" 909862 6.0M

6.5" x 4" 909863 6.0M

8.5" x 6" 909864 4.0M

Fanfold

Thermal Direct Labels

Dimensions Item No. M Per Case

4.5

" x

2.5" 909937 10.0M

" x

4.5" 909938 5.6M

" x 6"

909939 4.0M

" x 4"

909940 6.0M

Other labels shown on pages 18-20.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Pathfinder® Ultra® Silver 6032

Applications for the Pathfinder

Ultra

Silver 6032TM printer

• Markdowns

• In-store pricing

• Item UPC marking

• Item identification

• Routing

Printer

Handheld Printer/Scanner

Key Features and Benefits of the Pathfinder Ultra Silver 6032

• Complete, stand-alone label printing system

• Combines a scanner (optional) and label printer in

a unique “print and apply” design

• User-friendly design keeps one hand free to

handle merchandise

• Eliminates walk time to a stationary printer

• Lithium Ion battery for longer use between charges

• Work faster and increase productivity

• 203 DPI, 2-inch-wide printhead

• 10 standard formats included (see below)

• Custom format development available

• Lookup capability available

Standard Ultra® Silver

label formats

Custom formats

available

starts at

1,255

1.5" x 1.1"

Monarch® Products and Services

Monarch

Deluxe Handheld Data Terminal

Pathfinder® Ultra® Platinum 6039

Applications for the Pathfinder® Ultra® Platinum 6039TM printer

• Markdowns/Markups

• Receiving

• Store Transfers

• Replacement Tags

• Item Marking

• Remarking

Printer

Printer and Scanner

Key Features and Benefits of the Pathfinder Ultra Platinum 6039

• A lightweight, one-piece handheld thermal printer, laser

scanner and data terminal helps reduce labor hours

• Windows CE operating system for greater programming flexibility

• Touchscreen technology for quick and efficient operation

• Prints receipts, tags and labels promoting versatility in your

marking processes

• 64MB of flash memory and up to 512MB SD increases

application, language and video capacity/memory

• Integrated RF (radio frequency) connectivity available

• Lithium Ion battery for longer use between charges

• Custom programming available

starts at

3,000

Pathfinder® Ultra® Silver

and Platinum Supplies

Dimensions Item No. M Per Case

1.5" x 1.1" Piggy back 900692 16.0

1.2" x .8" 900355 37.5

1.2" x 1.1" 900441 25.75

1.5" x 1.1" 900690 20.0

1.5" x 1.5" 900392 16.0

1.5" x 2.2" 900346 10.8

1.5" x 2.5" 900573 9.28

2" x 2" 900391 9.0

2" x 4" 900695 4.5

2 " x 3" Receipt Paper 000022 15.6

All stock labels have permanent adhesive.

Custom labels also available. Please call for details.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Desktop Printer

9416®XL

Applications for the Monarch 9416XL® Desktop Printer:

• Prints tags, labels

and receipts

• Item/price marking

• Shelf labeling

• Re-ticketing

Monarch® 9416®XL Thermal Direct Desktop Printer

Key Features and Benefits

• Selectable print speed, up to 5 IPS

• Thermal Transfer or Thermal Direct available

• Easy-to-load clamshell design

• Printing versatility

• 8MB of RAM, 2MB of Flash

• Memory upgrades with SD card

• Parallel, Serial and USB connectivity

• Prints labels up to 2.4 mils thick

and tags up to 10 mils thick

• PC Software included to create and

print format

Thermal Direct

starts at

570

Thermal Transfer

starts at

ilabl

650

9416® Desktop Printer Labels

Label Sizes Available–Both Transfer and Direct

Thermal Thermal M Per

Dimensions Transfer Direct Case

1.5" x 1.1" 900628 – 17.262

2.0" x 1.0" 909964 909959 16.5"

2.25" x 1.25" 909946 909947 13.62

3" x 1" 909965 909960 16.5

3.5" x 1.0" 909966 909961 16.5

4" x 1.0" 909967 909962 16.5

4" x 1.5" 909948 909949 11.52

4" x 2.0" 909968 909963 8.82

4" x 3" 909950 909951 6.0

4" x 4" 909972 909958 4.56

4" x 6" 909952 909953 3.0

4" x 6.5" 909954 909955 2.76

4" x 6.75" – 909969 3.0

Monarch Thermal Transfer Desktop Printer

9416®TTXL

™

9416® Desktop Printer Tags

Fanfold, Transfer, Perforation between each tag

Dimensions Item No. M Per Case

3" x 1.5"* 909942 8.0

4" x 3" 909943 4.0

4" x 6" 909944 4.0

4" x 6.5" 909945 4.0

*Includes chadless for attacher

Monarch® supplies will work in Monarch 9416 printer

as well as some Zebra Eltron Desktop printers.

Monarch® Products and Services

Monarch

2.9" x 1.1"* Removable Adhesive 8

Portable Bar Code Printers

Sierra Sport™2 9460

9433

™

Portable Printer

™

SS3

Monarch Sierra Sport2 Printer Key Features and Benefits

• Versatile: set on tabletops, carry by hand, waist or shoulder straps

• Power options include rechargeable Lithium Ion battery or AC adapter

• Eliminate cables with wireless options such as Bluetooth

• Fast, clean imaging up to 3 IPS at 203 DPI

• Handles thermal direct labels, tags or receipts up to 2-inch print width

• Multiple connectivity options including 802.11 b/g wireless in the 9460SNP

• Supply roll on door for easy loading

starts at

891

Sierra Sport Printer Supplies

Dimensions Description M Per Case

1.2" x 1.1" Permanent Adhesive 16.32

1.9" x 1.1" General Purpose/Freezer Grade Adhesive 12

2.9" x 1.1"* Removable Adhesive 8

*SS3 (9433) only

Features and Benefits of Monarch® 9433 Sierra Sport3 Printer

• Paper, synthetic, tag or linerless roll or fanfold

from .75" to 3" wide

• RS-232, USB, Optional Bluetooth

• Operates on any 802.11b/g WiFi RF Network

• Supports MPCLII

• Prints up to 3.6 IPS

• Shoulder strap for hands free operation

• Lightweight and durable

• Fanfold slot for continuous supplies or card stock

• Supply roll on door for easy loading

starts at

995

Custom labels also available. Please call for details.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Thermal Transfer Labels Thermal Transfer Labels (cont’d)

Supplies for Zebra and Other Printers

Dimensions Item No. M Per Case

1" x 1" 909800 44.0M

1" x 2" 909801 23.2M

1" x 3" 909802 15.2M

1" x 4" 909803 12.0M

1.3" x .5" 909804 76.8M

1.5" x .8" 909806 60.0M

2 wide 1.5" x .8" 909805 60.0M

1.5" x 1" 909807 44.0M

2 wide 1.5" x 1" 909808 40.0M

1.5" x 1.3" 909809 35.6M

1.5" x 1.5" 909810 28.8M

2 wide 1.5" x 1.5" 909811 28.8M

1.5" x 2" 909812 23.2M

1.8" x 2.5" 909813 20.0M

2" x 1" 909814 44.0M

2 wide 2" x 1" 909815 44.0M

2" x 1.3" 909816 35.6M

2" x 1.5" 909817 28.8M

2" x 2" 909818 23.2M

2" x 3" 909819 15.2M

2" x 4" 909820 12.0M

2.3" x 1.3" 909821 35.6M

2.5" x 1" 909822 44.0M

2.5" x 1.5" 909823 28.8M

2.5" x 2" 909824 23.2M

2.5" x 2.5" 909825 20.0M

2.8" x .7" 909826 42.7M

3" x 1" 909827 44.0M

3" x 1.5" 909828 28.8M

3" x 2" 909829 24.0M

3" x 3" 909830 16.0M

3" x 3.5" 909831 13.6M

3" x 4" 909832 12.0M

3" x 5" 909833 9.6M

3.1" x 5" 909834 4.7M

3.5" x 1" 909835 22.0M

Dimensions Item No. M Per Case

3.5" x 1.5" 909836 14.4M

3.5" x 2" 909837 12.0M

3.5" x 8" 909838 3.0M

4" x 1" 909839 22.0M

4" x 1.5" 909840 14.4M

4" x 2" 909841 11.6M

4" x 2"* 909842 11.6M

4" x 2.3" 909843 10.3M

4" x 2.5" 909844 10.0M

4" x 3" 909845 7.6M

4" x 3"* 909846 7.6M

4" x 4" 909847 6.0M

4" x 5" 909848 4.8M

4" x 6" 909849 4.0M

4" x 6"* 909850 4.0M

4" x 6.5" 909851 3.6M

4" x 8" 909852 3.0M

4" x 1.3" 909853 1.8M

4.5" x 2.5" 909854 10.0M

4.5" x 3" 909855 7.6M

4.5" x 4.5" 909856 5.6M

4.5" x 5" 909857 4.8M

4.5" x 6" 909858 3.98M

5" x 2.5" 909859 10.0M

5" x 3" 909860 7.6M

5" x 4" 909861 6.0M

6" x 4" 909862 6.0M

6.5" x 4" 909863 6.0M

8.5" x 6" 909864 4.0M

* No perforation

• Monarch® supplies will work in many thermal printers, such as Zebra, Datamax and Intermec.

• All supplies are wound out and are on 3" core unless noted. Supply roll has 8" outer diameter.

• Ribbons are sold separately and can be found on page 21.

Custom labels also available.

Please call for details.

Monarch® Products and Services

Monarch

Supplies for Zebra and Other Printers

Thermal Direct Labels

Dimensions Item No. M Per Case

1.5" x 1

1.5

2.3

2.5" x 1

2.5" x 2

3.1

3.5

4.5

4" x 6.5" with 1/2" Horizontal Color Bar at Trailing Edgeons.

" x 1"

910110 44.0M

" x 4"

909912 12.0M

909913 44.0M

x 1.3" 909914 35.6M

" x

1.5" 909915 28.8M

" x 1"

909916 44.0M

" x 2"

909917 23.2M

" x 3"

909918 15.2M

" x

1.3" 909919 35.6M

909920 44.0M

909921 23.2M

" x 1"

909922 44.0M

" x 2"

909923 23.2M

" x 3"

909924 15.2M

" x 5"

909925 9.6M

x 5" 909926 4.8M

x 1" 909927 22.0M

" x

1.5" 909928 14.4M

" x 1"

909929 22.0M

" x

1.5" 909930 14.4M

" x 2"

909931 11.6M

" x 3"

909933 7.6M

" x 4"

909934 6.0M

" x 6"

900422 4.0M

" x

6.5" 909936 3.6M

" x

2.5" 909937 10.0M

" x

4.5" 909938 5.6M

" x 6"

909939 4.0M

" x 4"

909940 6.0M

Warehouse Label

(cont’d)

Full Tint Labels

Thermal Transferons.

Dimensions Item No. M Per Case

4" x 2" Blue 910009 11.6M

4" x 2" Green 910092 11.6M

4" x 2" Orange 910093 11.6M

4" x 2" Yellow 910075 11.6M

4" x 6" Yellow 909873 4.0M

4" x 6" Pink 909874 4.0M

4" x 6" Green 909875 4.0M

4" x 6" Red 910091 4.0M

4" x 6" Blue 909876 4.0M

4" x 6" Orange 909877 4.0M

Fluorescent 4" x 6" Labels

Thermal Transferons.

Dimensions Item No. M Per Case

4" x 6" FL Red 909878 4.0M

4" x 6" FL Chartreuse 909879 4.0M

4" x 6" FL Green 909880 4.0M

4" x 6" FL Orange 909881 4.0M

4" x 6" FL Pink 909882 4.0M

1.5" Diameter Circles

Thermal Transferons.

Dimensions Item No. M Per Case

1.5" x 1.5" FL Red 909883 26.29M

1.5" x 1.5" FL Chartreuse 909884 26.29M

1.5" x 1.5" FL Green 909885 26.29M

1.5" x 1.5" FL Orange 909886 26.29M

1.5" x 1.5" FL Pink 909887 26.29M

1.5" x 1.5" White 909888 28.0M

1.5" x 1.5" Blue 910016 4.0M

Dimensions Item No. M Per Case

4" x 6.5" Blue 909868 4.0M

4" x 6.5" Green 909869 4.0M

4" x 6.5" Orange 909870 4.0M

4" x 6.5" Purple 909871 4.0M

* Pink, Tan, or Yellow – Available as Custom

Dimensions Item No. M Per Case

4" x 6" 900647 4.0M

Fanfold

Thermal Directons.

Custom labels also available.

Please call for details.

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Supplies for Zebra and

Fanfold

Thermal Transferons.

Dimensions Item No. M Per Case

4" x 1" 910115 21.0.0M

4" x 2" 909865 5.0M

4" x 3" 909743 5.0M

4" x 4" 909957 5.0M

4" x 6" 909956 4.0M

4" x 6.5" 909867 4.0M

6" x 4" 910082 3.0M

Fanfold Tags

Thermal Transfer C1S Tag Stock–7 Mils,

Notches at Perf. for Sensingons.

Dimensions Item No. M Per Case

3" x 1.5"* 909942 8.0M

4" x 3" 909943 4.0M

4" x 6" 909944 4.0M

4" x 6.5" 909945 4.0M

* With chadless for attacher

Removable Adhesive

Thermal Transferons.

Other Printers

(cont’d)

TUFFMARK® II White Gloss Polyester

U.L. Recognized Componentons.

Dimensions Item No. M Per Case

1.5" x .8" 909904 60.0M

2 wide 1.5" x .8" 909905 60.0M

1.8" x .5" 909906 80.0M

2" x 1" 909907 40.0M

3" x 1" 909908 40.0M

4" x 1" 909909 20.0M

4" x 2" 909910 12.0M

4" x 6" 909911 4.2M

No-Mar™ Labels

Dimensions Item No. M Per Case

4" x 6" 900625 3.237M

4" x 6"* 900616 3.237M

4" x 6"** 900629 3.9M

* No Perf ** Fanfold

Dimensions Item No. M Per Case

3" x 1" 910085 44.0M

4" x 6" 909889 4.0M

TUFFLABEL

Smudge Proof Kimduraons.

Dimensions Item No. M Per Case

2" x 1" 909897 41.2M

4" x 2" 909898 10.92M

4" x 6" 909899 3.8M

Shipping Label with Doc. Tab

8" O.D. Thermal Direct (Near IR) No Perf.

Dimensions Item No. M Per Case

4" x 6.8" 909971 3.28M

• Monarch® supplies will work in many thermal printers, such as Zebra, Datamax and Intermec.

• All supplies are wound out and are on 3" core unless noted. Supply roll has 8" outer diameter.

• Ribbons are sold separately and can be found on page 21.

Custom labels also available. Please call for details.

Monarch® Products and Services

Monarch

Up to 4 inches 910052 910011

Monarch® Ribbons for Zebra

Ribbons

Monarch ribbons are available

for virtually all thermal printers

on the market today.

Our technical experts can

help you select the most

appropriate ribbon for your

printing needs.

and Other Printers

Resin Ribbon

Best suited for: Harsh outdoor applications or other applications requiring superior durability, chemical exposure or highly abrasive conditions. Primarily used on highly durable coated polyester or polyamide films.

No-Mar™ Ribbons

For use with item 900616 No-Mar labels in some

models of printer brands shown below

Supply Width Zebra Intermec Datamax Sato 8400

Up to 4 inches 910052 910011 910031 910109

910109910031

Wax/Resin Ribbon

Best suited for: Outdoor and other demanding applications requiring more durable images, incidental chemical exposure, multiple scans or other rough handling situations. Recommended for use with coated labels and tags, coated and uncoated polyethylene and polypropylene films, and coated Tyvek.

Wax/Resin

For use with some models of printer brands shown below

Supply Width Zebra Intermec Datamax Sato 8400 Monarch 9854

Up to 2 inches 909262 909262 909262

Up to 3 inches 909715 909266

Up to 4 inches 909353 126301 126301 126301

Custom Quoted

Custom

Quoted Custom

Quoted

Custom Quoted

Custom

Quoted

Resin

For use with some models of printer brands shown below

Supply Width Zebra Intermec Datamax Sato 8400 Monarch 9854

Up to 2 inches 909659 909265 909265 909265

Up to 4 inches 909660 909635 909266 909727 909266

Custom Quoted

Standard Wax Ribbon

Best suited for: Short-lived applications with only light label/tag contact during handling; long-term durability not required. Primarily used on coated and uncoated label and tag stocks and coated polyethylene and polypropylene synthetic film.

Wax

For use with some models of printer brands shown below

Supply Width Zebra Intermec Datamax Sato 8400 Monarch

Up to 2 inches 910040 909273 910026 910026 910026

Up to 3 inches 910045 909256 910028 910028 910028

Up to 4 inches 910052 910090 910031 910031 910031

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Off-line Printer Solutions

Economy Kits

Monarch® 9416 Thermal Direct Printer

Economy Kits

Monarch 9416CT–

$1,150 + Format & Download Charge

- Monarch 9416 thermal transfer printer

- KU008 Keyboard

- External supply holder

Option:

- Up to 8 additional formats at $250 each

Monarch 9416FFKIT–$1,310

- Monarch 9416 thermal transfer printer

- Monarch 939i Intelligent Qwerty Keyboard

- 11 fixed formats

Option:

- External supply holder $75

- Keyboard stand $104

Monarch 9416CTi–

$1,465 + Format & Download Charge

- Monarch 9416 thermal transfer printer

- Monarch 939i Intelligent Qwerty Keyboard

Option:

- External custom formats (quoted)

- External Supply Holder $75

- Keyboard Stand $104

- Scanner $210

Value Kits

Monarch 9825–

$2,200 + Format & Download Charge

- Monarch 9825 thermal bar code printer

- Monarch 939i Intelligent Qwerty Keyboard

Option:

- Unlimited custom formats at $250 each

- Scanner input or custom applications available in a quoted script

- Keyboard Stand $104

- Scanner $210

- Monarch

935 Rewind $585

Monarch® 939i Intelligent

Qwerty Keyboard

Industrial Kits

Monarch 9855CT–$2,515

- Monarch 9855 thermal bar code printer

- Monarch 939 terminal

Option:

- Unlimited custom formats at $250 each

- Monarch

Monarch 9855CTi–$2,725

- Monarch 9855 thermal bar code printer

- Monarch 939i intelligent Qwerty Keyboard

Option:

- Unlimited custom formats at $250 each

- Scanner input or custom applications available in a quoted script

- Keyboard Stand $104

- Scanner $210

- Monarch

935 Rewind $585

Monarch® Products and Services

Monarch

MWS

™

Mobile Work Stations

Retail MWS Solutions–Choose the system size to fit your needs!

Monarch 9878-C1™ Mobile Pricing MWS–

Same benefits and performance as our full-sized workstations with a smaller footprint for greater maneuverability!

• Long lasting–run a desktop printer, laptop and data

terminal for 20-100 hours (based on equipment) before requiring a charge

• Streamline pricing process–take printer to the product, even in narrow aisles

starts at

1,795

Monarch 9878-C1

Monarch 9878-C™MWS

™

Monarch 9878C3™ MWS–

• Long lasting–run a tabletop printer, laptop and data

terminal for 20-100 hours (based on equipment) before requiring a charge

• Small enough to fit into tight work areas, but big enough to complete the job

starts at

2,095

small investment, big return

Monarch 9878-03™ Mobile Pricing MWS–

Print shelf labels, markdown labels, small signs in the aisle at the product location

• Long lasting–run a tabletop printer, laptop and data

terminal for 20-100 hours (based on equipment) before requiring a charge

• Simplifies process–holds all tools and provides work space for associates

starts at

2,395

Monarch 9878-LSP™ Mobile Printing MWS–

Prints signs one at a time, right on the selling floor!

• Long lasting–enough power to run a medium-sized laser

printer for 6-10 hours before requiring a charge.

• Improves accuracy–the right sign is automatically verified

and printed at the product

starts at

2,995

Monarch 9878-03

Monarch 9878-LSP

™

DC MWS Solutions–Choose the system size to fit your needs!

Monarch 9876™ MWS Series–

through inventory changes without moving the items!

• Long lasting–run a tabletop printer, laptop and data

terminal for 20-100 hours (based on equipment) before requiring a charge

• Simplifies process–space and power to be a total mobile employee workstation

starts at

2,195

Monarch 9878™ MWS Series–

• Long lasting–run a tabletop printer, laptop and data

terminal for 20-100 hours (based on equipment) before requiring a charge

• Fits under/over most conveyors

Monarch 9876™MWS Monarch 9878™MWS

starts at

1,795

Helps you work

Print labels on the spot

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

1" Circle

" Circl

2.6" x 1"

.6" x 1

Labels and Tags for Laser/Inkjet Printers

Die Cut, Permanent Adhesive,

Die Cut, Permanent Adhesive

8.5” x 11” Sheet

8.5" x 11" Sheet

Dimensions Item No. Labels Per Sheet

1" Circle 909775 63

1.5" x .5" 909796 100

1.5" x 1" 909797 50

1.5" Circle 909774 24

1.8" x .5" 909798 80

1.8" x 1" 909795 44

1.5" x 1"

.5" x 1

3.4" x .9"

3.4" x .9

2.5" x 1.6" 909794 18

2.5" Circle 909773 12

2.6" x 1" 909793 30

2.8" x 1" 909792 33

3.5" x .8" 909789 28

4" x 1" 909788 20

4" x 1.8" 909787 12

4" x 2" 909786 10

4" x 3.3" 909785 6

4" x .5" 909784 4

4.3" x 1" 909783 22

4.3" x 1.5" 909782 14

4.3" x 2" 909781 10

4.3" x 2.8" 909780 8

4.25" x 5.5" 909779 4

8.5" x 11" 909776 1

8.5" x 3.5" 909778 3

8.5" x 5.5" 909777 2

All cases contain 1,000 sheets

4" x 2"

x 2

8.5" x 5.5"

.5" x 5.

Custom labels also available. Please call for details.

Monarch® Products and Services

Monarch

)

4" x 6"

" x 6

Labels and Tags for Laser/Inkjet Printers (cont’d)

Die Cut, Permanent Adhesive

8.5" x 14" Sheet

Dimensions Item No. Labels Per Sheet

4" x 6" 909771 4

4.3" x 14" 909772 2

8.5" x 14" 909770 1

Die Cut, Removable Adhesive

8.5" x 11" Sheet

Dimensions Item No. Labels Per Sheet

2.6" x 1" 909769 30

4" x 2" 909768 10

Die Cut, Ultra-Removable Adhesive

8.5" x 11" Sheet

Dimensions Item No. Labels Per Sheet

4" x 2" (Clear)

" x 2" (Clear

4" x 2" 909767 10

4" x 5" 909766 4

4" x 5"

Die Cut, Clear Synthetic

8.5" x 11" Sheet

Dimensions Item No. Labels Per Sheet

2.6" x 1" 909765 30

4" x 2" 909764 10

Die Cut, 7 Pt Tag,

8.5" x 11" Sheet

Dimensions Item No. Labels Per Sheet

2.6" x 1"

2.6" x 1

Custom labels also available. Please call for details.

3.4" x .9" 909762 20

3.4" x 2" 909763 10

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

The Tools You Need for Integration

Network and Software Solutions

and Printer Management

System Integration Solutions

Avery Dennison’s System Integration Group provides integration services to allow your Monarch equipment to work with your existing systems. Avery Dennison can also develop custom formats, software and scripts to make our printers best fit your needs.

Network Solutions

Avery Dennison has developed a variety of Monarch integration and printer management tools—all designed to keep you connected.

Many of our printers support a wide range of networking standards, including Ethernet, Bluetooth, IP Addressability, Coax/Twinax and ERP Connectivity.

Our MonarchNet2 efficiency of your operations by providing complete visibility and control of networked printers from one central location.

Software Solutions

Label Design and Management Software for PC

NiceLabel Express

• Comprehensive label design with wizard driven interface

• Supports industry standard linear and composite bar codes

• Simple data base support

NiceLabel Pro

• Full-featured label design and printing, including RFID capabilities

• Easy to use with wizard-driven label generation tools

• Support for latest 2-D barcode symbologies including PDF-417

• Complete database support (ODBC, SQL, Excell, Access, etc)

Nice Label Suite

• All of the features of NiceLabel Pro, plus powerful tools for printer

management and application integration

- NiceForm–Create user-friendly interfaces for label printing operators

- NiceWatch–Label printing server for label printing on any platform or operating system

- NicePrint–Pre-designed production interfaces ensures error free label printing

- Pocket NiceLabel–Label printing interface for handheld (Windows CE) devices

Loftware Label Manager

• Supports unlimited printers from one workstation

• Provides design and print solution for bar code labels in an environment

that does not require integration into larger business systems

BarTender Enterprise Edition Software

• Support unlimited users and up to 3 printers

• Provides a full range of powerful features including label design, data access and

the ability to allow automation control by other programs

BarTender Professional Edition Software

• Supports unlimited printers from one workstation

• Provides powerful label design and data access

™

Enterprise Printer Management System allows you to improve the

Label Design and Management Software for IBM iSeries (AS/400) computers

Cybra MarkMagic5

• Design bar code labels on any PC with a connection to an iSeries

• Unparalleled printing performance and complete control over print options including

paper handling, cutting, stacking and other finishing requirements

Monarch® Products and Services

Monarch

Responsive and Reliable Service

Service and System Integration Services

Services Available

• Preventative maintenance

• Service agreements

• Warranty repair for Monarch

and Avery Dennison printers

• Installation

• Dedicated electronic repair

center for ship-in service

• Overnight printer replace-

ment

• Service for non-Avery

Dennison/Monarch equipment

System Integration Services

Your equipment needs to operate at peak performance levels at all times to ensure maximum productivity and on-time delivery. You can depend on the expertise and responsiveness of the Monarch Service Group to meet these needs. We can assume responsibility for installation, preventative maintenance and service agreements for your printers as well as providing warranty coverage for Avery Dennison printers.

• Global presence

• Service engineers have an average of 21 years experience

• Toll-free phone support available Monday–Friday,

8 a.m. – 5 p.m. Eastern time

• Consulting

• Custom Programming

• Installation/Training

• Project Management

• Systems Design

• Custom Media

• Training

• Maintenance and Repair

• Documentation

• Support

System Integration Service

Why put up with inefficient compliance labeling, re-ticketing, inventory flow and manual data entry when you can increase efficiency with system solutions that quickly pay for themselves? Our System Integration Group specializes in developing innovative solutions that can include any combination of Monarch products and services, in-house application software development, OEM products, third-party integration, and professional services. Let our consultants help you create the best possible solution to your business challenges.

For more information on our service offerings, contact us at 800-543-6650, prompt 5

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

Monarch

Q-Service

™

Monarch® Q-Service® Pre-printed Labels and Tags from Avery Dennison

Q-Service

• Call 1-800-543-6650 ext. 2096 or e-mail qservice@averydennison.com for Q-Service order form.

• Select any of the 9800 Series Stocked Labels you see on pages 6-9 of this catalog.

• Fax or e-mail your order form, including label format and data needs.

• Initial order turnaround time varies; repeat orders are filled in 48 hours.

• We can print any image you need in black, including graphics,

barcodes, etc.

Q-Service® for RFID: (Including DOD formats)

• Call 1-800-543-6650 and press 5 or e-mail qservice@averydennison.com

for Q-Service or RFID order form.

• Choose from our full range of high quality RFID supplies, including 4" x 6", 4" x 2", 4" x 1" and specialty supply sizes, including DOD.

• Fax or e-mail your order form, including label format, RFID data to encode, and the bar code/human readable information to print.

• Initial order turnaround time varies; repeat orders are filled in 48 hours.

A complete library of Wal-Mart formats is available to meet Wal-Mart’s EPC requirements.

Examples of pre-printed labels. Custom labels available.

Monarch® Products and Services

Monarch

Avery Dennison’s Supplies

These are examples of real world challenges solved by the Avery Dennison supplies doctors

20%

OFF

STERLING

7" BRACELET

$19.99

Technology Laboratory

Developing Customized Products to Your Specifications

Inside our supplies technology laboratory, our expert supplies engineers and technicians apply their knowledge using the latest technology, to construct customized label and tag solutions specific to your usage and environment. What are your most challenging tag or label problems?

What if...

What

• You need a thermal transfer label that holds up to high temperatures and friction?

• You need a bar coded security device to prevent a tote of merchandise from being opened prior to delivery?

• You need a label with superior adhesion and a surface that will withstand cleaning with high pressure and high temperature soap and water?

• You need a label or tag with a custom shape to fit your product?

• You require specific perforations for multiple detach-and-apply functions?

Call the “supplies doctors.” They’ve solved all of these challenges and more. Our supplies technology chemists, engineers, laboratory technicians and product developers, are among the best and brightest in the industry, having an average of over 32 years experience, each holding degrees in his or her area of expertise, and several with multiple patent awards.

We are so confident that we can solve your toughest thermal label or tag challenge that we’ll analyze your existing labels or provide you with an on-site consultation free of charge.

Call us today at 1-800-543-6650, press 5

To order, call 1-800-543-6650, press 5 (Monday-Friday, 8am-5pm ET) • www.monarch.com

BAR CODE 001 1/2008

Monarch® Products and Services

Monarch

Special Offer: Ultra

Silver Start-up Package

1.5" x 1.1"

See page 14 for other standard label formats

Custom Formats available

Start Bar Coding Today with the Pathfinder

The Ultra Silver Printer is a simple, one-piece labeling solution. It’s portable, so you can take the printer where you need it

The Ultra Silver Start-up Package includes:

• Ultra Silver Printer

• Battery and charger

• Ten standard label formats

• One case of 1.2" x 1.1" labels

Ultra® Silver 6032™ Printer

SAVE 34%

Special Package Price

List Price $1,523 Now $999

To order, call 1-800-543-6650,

Press 5 www.monarch.com

Monarch® Products and Services

Avery 6032, 9860, 9864, 6039, 9825 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
