PRODUCT OVERVIEW.............1

BEFORE YOU BEGIN ..................2

Parts List ...............................................2

Tools Needed ......................................2

DSL Users ............................................4

Glossary ................................................5

Programmable Features List.............6

Audible Signals ...................................8

INSTALLATION .............................9

Battery Installation .............................9

Table/Desk Installation ....................11

Wall Installation ................................13

Convenience Ports .........................17

MENU OPERATION..................18

Menu Structure ................................19

Shortcut to Language Menu ..........20

Rapid Scroll ........................................20

FEATURE SETUP........................21

Set One Touch Preference ............21

Assign an Extension Number

to Your Phone ...............................22

Turn the Ringer On or Off

for Each Line .................................23

Select the Ringer Type ....................24

Set Delay Ring ...................................25

Turn Auto-Mute On or Off............26

Set Dial Mode ...................................27

Turn Hold Reminder

On or Off ......................................27

Set the Time and Date ...................28

Turn Line Usage On or Off

for Each Line .................................29

Assign the Prime Line

(Line Preference) .........................30

Set Automatic Mode ......................31

Set the Scroll Rate ...........................32

Turn Screen Backlight

On or Off ......................................33

Assign the Line Group

for this Phone ...............................34

Erase All Settings and Return

the Phone to Default Settings ..35

Set This Phone to be the

Centrex Console Phone ...........36

Set the Centrex Console

Delayed Ring Time .......................37

Set the Display Language ...............37

TELEPHONE

OPERATION ..................................38

Make or Answer a Call ...................38

Switch Between Handset,

Headset and Speakerphone ......40

Timer ....................................................40

Call Privacy ........................................41

Do Not Disturb ...............................41

Volume ................................................42

Redial ...................................................42

Redial Stack .......................................43

Auto Redial ........................................43

Hold .....................................................44

Switch Between Lines .....................44

Mute ....................................................45

Flash .....................................................45

Temporary Tone Dialing .................45

Conference Calls .............................46

Transfer a Call ...................................47

Low Battery Indicator ....................48

Lights and What They Mean ........49

ONE TOUCH

OPERATION ..................................50

Store a Number in a

One Touch Location ...................51

Review a One Touch Entry ..........53

Dial a One Touch Number ............54

INTERCOM

OPERATION ..................................55

Basic Intercom Operations ..........56

Make an Intercom Call with

the Handset ...................................57

Make an Intercom Call with the

Speakerphone or Headset ........58

Answer an Intercom Call ..............59

End an Intercom or Page Call ......59

CONTENTS

945 CIB 2ATT 3/14/05 9:58 AM Page i

Page a Specific Extension

(Single-phone Page) .....................60

Answer a Single-phone Page .........60

Page All System Phones ..................61

Answer a System-wide Page .........61

Make an Intercom

Conference Call ...........................62

Room Monitor ..................................62

ADDING A FAX

MACHINE........................................63

Using a Fax Switch ...........................63

GENERAL PRODUCT

CARE ..................................................64

TECHNICAL

SPECIFICATIONS.......................65

IN CASE OF DIFFICULTY.....66

EXPANDING THE

PHONE SYSTEM.........................70

Line Groups .......................................70

Private Lines ......................................71

CENTREX OPERATION.........72

Setup Checklist .................................72

Enabling the Console Phone .........72

Console Operation .........................72

Setting Ring Delay Duration .........73

Answering a Delayed Ring .............73

Picking Up Another

Station’s Line .................................73

INDEX ...............................................74

CONTENTS

945 CIB 2ATT 3/14/05 9:58 AM Page ii

This AT&T 945 Four-Line Small Business System Speakerphone is expandable to a 16-extension telephone system. The 945 is compatible with AT&T 974, 984, 944, 955 and 964 telephones. (See BEFORE YOU BEGIN starting on page 2 and EXPANDING THE PHONE SYSTEM beginning on page 70 for details.)

The 945 is hearing-aid compatible and can be connected to up to four incoming telephone lines. This phone features a speakerphone for hands-free use and a headset jack compatible with most two-band 2.5 mm headsets (sold separately). The 945 allows paging, intercom and call transfers between system phones and is capable of connecting three parties in a conference call. This phone also features a 32-number memory for faster dialing. There are two convenience ports available for connecting the phone to another device such as a fax machine or modem.

The 945 is compatible with Centrex service. Centrex is a special subscriber service which may be available from your local telephone company for a fee. If you subscribe to Centrex service, refer to the CENTREX OPERATION section of this manual, beginning on page 72.

This User's Manual contains detailed instructions for installing, programming and operating your AT&T 945 Four-Line Small Business System Speakerphone. Please be sure to read BEFORE YOU BEGIN starting on page 2 before installing this phone.

PRODUCT OVERVIEW

945 CIB 2ATT 3/14/05 9:58 AM Page 1

Parts List

Your box should include:

Tools Needed

You will also need a small Phillips head screw driver to install your phone.

BEFORE YOU BEGIN

Coiled handset cord

Power adapter

Eight-inch line cord

Two seven-foot twisted pair line cords

Handset

This User’s Manual

Quick Start Guide

Base unit with wedge attached

945 CIB 2ATT 3/14/05 9:58 AM Page 2

Four-Line Small Business System

Speakerphone 945

AT&T and the Globe Design are trademarks of AT&TCorp.,licensed to Advanced American Telephones.

USER’S MANUAL

Please also read

Part 1 — Important Product Information

Part 2

QUICK START GUIDE

Four-Line Small Business System Speakerphone 945

This Quick Start Guide provides basic instructions. For additional installation options and complete instructions which allow you to use all features of this phone, refer to your AT&T Four-Line Small Business Speakerphone 945 User's Manual, Part 2.

INSTALLATION

Installation of a DSL splitter and an AT&T Z800A filter is required to use the advanced features of this telephone if you have DSL (Digital Subscriber Line) service. Please see “DSL Users” starting on page 4 of your User’s Manual,Part 2 for details.

If you are installing multiple phones in your phone system, you must install and program one set at a time. Each phone

MUSTbe assigned a unique extension number.

Battery Installation

Install a 9V alkaline battery (purchased separately) in order to use some features of this telephone in the event of a power failure. If power fails and a working battery is installed,all four lines of this phone will work only to answer calls with the handset or headset,and to dial calls using the dial pad keys and the One Touch or Redial features. No other features will work until power is restored.

1 Remove the wedge from the underside of the base unit.

Press on the tabs and pull the wedge away from the phone.

2 Remove the battery compartment screw with a small

Phillips head screwdriver.

3 Pull on the tab to remove the battery compartment cover.

continued on page 2

This 945 telephone is fully compatible with any AT&T Four-Line Small Business System Speakerphone 984 or 974 units you may have installed. You can use a total of 16 945/974/984 units together as extensions in your phone system.

This 945 telephone is also compatible with any AT&T 964/955/944 phones you have previously installed. This 945 telephone is NOT compatible with any 843, 853, 854, 874, or 954 telephones you may have previously installed.



NOTE: If you have one or more 964, 955, or 944 phone(s) installed in the same phone system with this 945 telephone, you can have only 12 extensions and 15 telephone lines in the phone system.

• You must have a modular telephone jack and an electrical outlet not controlled by a wall switch near where you’re installing the phone.

The total length of telephone wiring used in this system MUST NOT be more than 600 feet. In some cases a Z800A filter can be used in a phone system with more than 600 feet of wire.

AT&T highly recommends that a Z800A filter be installed by a professional. AT&T CANNOT guarantee that this telephone will work with such a filter, and IS NOT responsible for the cost of such installations or for arranging the installation. A Z800A filter can be obtained by calling

1 800 222-3111.

• Identify the number of phone lines you’ll use.

• Plan the layout of your phone system.

• All connected phones must have the same Line 1 phone number for the Intercom and Page features to work.

Every individual phone in your telephone system MUST be assigned a unique extension number for the Intercom feature to work. If you try to assign the same extension number to a second phone, you will hear a repeating short ring and the screen display will include EXT XX is already used Assign new EXT #. For directions see "Assign an Extension Number to Your Phone" on page 22 of this manual for directions.

• Decide if you want a private line. A private line does not appear on all connected phones.

• Choose your setting for each feature. You will need to program the features after installation. See “Programmable Features List” beginning on page 6 for a brief description of the features. See the FEATURE SETUP section beginning on page 21 for programming instructions.

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 3

DSL Users

Installation of a DSL splitter and an AT&T Z800A filter is required to use the advanced features of this telephone if you have DSL (Digital Subscriber Line) service.

Set-Up for DSL Users

If you are a DSL (Digital Subscriber Line) customer, you may experience interference with the advanced features of this telephone. Certain features of this phone (e.g., intercom, hold, line privacy, etc.) work by sending a data signal using Line 1. This data signal is sent at some of the same frequencies as those used by your DSL service. Microfilters are used to block the high frequency DSL signals from being transmitted through and interfering with your telephones. These same microfilters that may have been installed for your DSL service will also block the data signals between your system phones. Therefore, some features of this phone may not work properly when DSL filters are installed in your building. This problem can occur even if the DSL line is not one of the lines used by the phone system. If you use the microfilters that your DSL service provider may have supplied when you activated DSL service with this phone, some of the phone features will not work. Once the DSL splitter (described below) is installed, you should no longer experience interference.

Installation, by your DSL service provider or other professional, of a DSL splitter (not a"microfilter") AND an AT&T Z800A Isolation Filter as close as possible to the "protection block" or "network interface" (where the telephone line enters the house) may resolve DSL interference. (It may be necessary to use a DSL splitter intended for outdoor use.) A DSL splitter allows the data and voice signals to use the same telephone line without interfering with each other. An AT&T Z800A filter isolates the splitter from your phone system and reduces interference with the signals used by the system phones to communicate with each other.

You can obtain an AT&T Z800A filter at no charge by calling 1 800 222-

3111. You will also receive a diagram showing the proper installation of

the AT&T Z800A filter with a DSL splitter, DSL modem and your system phones. AT&T cannot supply the DSL splitter.

Please contact your DSL service provider or professional contractor for details about obtaining and installing a DSL splitter. Your DSL service provider may require you to bear any installation costs. AT&T and the manufacturer of this product have no affiliation with your DSL provider and the type or quality of services they offer. Installation must be performed at your own expense and AT&T cannot troubleshoot or provide installation support.

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 4



NOTE: If your DSL service provider cannot supply a DSL splitter, it is possible to purchase an outdoor DSL splitter (such as a Corning or Allen Tel brand DSL splitter) over the Internet.

If you are a new DSL customer, your DSL service provider will likely ask you if you have more than one telephone line in your home or business. If you answer yes, your DSL service provider will probably advise you that you need a splitter. Your DSL service provider may also ask if you are installing a phone system. If you answer yes, your DSL service provider will most likely advise you that you need a splitter. In most cases, your DSL service provider will supply you with the proper splitter for your specific situation. The DSL splitter, installed properly and in conjunction with a Z800A filter, should help overcome any interference between the DSL signal and the signals sent by your phone system.

AT&T shall not be responsible for the cost of installation, any damages, lost business, direct or indirect expenses accrued or associated with installation, or other compatibility issues which may arise as a result of using this product while you subscribe to DSL service.

Glossary

Centrex Service: A special subscriber service which may be available

from your local telephone company for a fee. This 945 telephone can be used with Centrex Service.

DND: When activated, the Do Not Disturb (DND) feature prevents interruptions during a call.

Line Group: A group of system phones sharing some lines within a multi-phone system.

Navigation buttons: These are the buttons used when programming your 945 phone and for scrolling through feature options (E, +,

-, >, <).

Phone System: Two or more system phones combined to form an interacting system of shared lines. You can have up to 16 system phones in the system.



NOTE: If you have one or more 964, 955, or 944 phone(s) installed in the same phone system with this 945 telephone, you can have only 12 extensions in the phone system.

Prime Line: This is the line on your phone you designate to be selected automatically when you lift the handset, press K, or press h.

System Phone: Any 944, 945, 955, 964, 974 or 984 phone in your phone system (also called an extension).

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 5

Programmable Features List

Default settings indicated by *.

FEATURE: FUNCTION: OPTIONS:

ONE TOUCH Choose default mode Intercom* or Telephone

PREFERENCE for One Touch (EXT)

buttons.

EXTENSION NO Assign an extension 11*-26

number to this phone.

RINGER ON /OFF Turn the ringer on or On* or Off

off for each line.

RINGER TYPE Select a ring pattern Type 1*, 2, 3, 4

for this phone.

DELAY RING Select desired time Off*, 2, 4, 6, up to

to delay Central 30 seconds Office ring.

AUTO-MUTE Turn Auto-Mute on On* or Off

or off (sounds at this extension will be heard automatically when paged).

TONE/PULSE Set the dial mode for Tone* or Pulse

touch tone or dial pulse (rotary) dialing.

HOLD REMINDER Turn on or off the On* or Off

audible reminder that a call at this extension is on hold.

TIME/DATE Set the time and date. 01:00 AM 01/01 Sunday*

LINE USAGE Turn Line Usage on On* or Off

or off for each line.



NOTE: One ring is equal to about six seconds, two rings equals twelve seconds, and so on.

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 6

Programmable Features List

Default settings indicated by *.

FEATURE: FUNCTION: OPTIONS:

PRIME LINE Assign a line on this Line 1*, 2, 3, 4

phone to be selected automatically when you lift the handset, press K,or press h.

AUTOMATIC Choose default mode Speakerphone* or MODE for calls connected Headset

with the handset in the cradle.

SCROLL RATE Set the scrolling Very Slow, Slow, Medium*,

speed for Rapid Fast, or Very Fast Scroll.

LCD BACKLIGHT Turn the screen On* or Off

display backlight on or off.

LINE GROUP Assign your phone Line Group 4*-15 or

to a Line Group. PRV (private)

RESET ALL Return all features N/A

to default settings.

CONSOLE Specify whether your On or Off*

phone is the Centrex Console phone for your phone system.

CSL DELAY RING Set the time to delay Off*, 2, 4, 6, up to

ring for Centrex 30 seconds Console phone.

LANGUAGE Select the language English*, Espanol, or

for screen displays. Français



NOTE: One ring is equal to about six seconds, two rings equals twelve seconds, and so on.

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 7

Audible Signals

WHEN YOU HEAR: IT MEANS:

A RAPID DOUBLE-RING You have an incoming intercom call. PATTERN, REPEATING

A LONG SINGLE RING, You have an incoming transferred call. REPEATING

A SHORT SINGLE RING, The extension number you just REPEATING (error ring) programmed has already been assigned.

Choose another number for this extension.

A SHORT SINGLE TONE, The extension you are calling is REPEATING in DND mode.

A LONG SINGLE TONE, The extension you are calling is busy. REPEATING

A VERY LONG SINGLE The extension you are calling is TONE, REPEATING ringing or in DND mode.

BEFORE YOU BEGIN

945 CIB 2ATT 3/14/05 9:58 AM Page 8

If you are installing multiple phones in your telephone system, you must install and program one set at a time. If more than one extension is assigned the same extension number, a repeating short ring (error ring) sounds at the extension you are programming and the screen display includes EXT XX is already used Assign new EXT #. Assign a different extension number from 11 to 26 (see “Assign an Extension Number to Your Phone” on page 22).

Battery Installation

Install a 9V alkaline battery (purchased separately) in order to use some features of this telephone in the event of a power failure. If power fails and a working battery is installed, all four lines of this phone will work only to answer calls with the handset or headset, and to dial calls using the dial pad keys and the One Touch or Redial features. No other features will work until power is restored.

1 Remove the wedge from the underside of the base unit.

Press on the tabs in the direction of the arrows and pull the wedge away from the phone.

2 Remove the battery compartment screw with a small

Phillips head screwdriver.

continued on page 10

INSTALLATION

945 CIB 2ATT 3/14/05 9:58 AM Page 9

Battery Installation

continued from page 9

3 Pull on the tab to remove the battery compartment cover.

4 Insert a 9V battery (purchased separately) following the

polarity markings in the battery compartment.

5 Replace the battery compartment cover and the screw. 6 If you are wall mounting the phone, turn to “Wall Installation”

beginning on page 13. (You will not need the wedge; store it in case you use the phone on a table or desk in the future.)

—OR— If you are using the phone on a table or desk, reattach the

wedge to the base unit by sliding the tabs into the holes as shown. Snap the wedge onto the base. Then, turn to “Table/Desk Installation”

beginning on page 11.

INSTALLATION

Polarity Markings

945 CIB 2ATT 3/14/05 9:58 AM Page 10

Table/Desk Installation

For best results, follow the directions in “Battery Installation” beginning on page 9 before installing the phone.

1 Connect the telephone line cords to the telephone and

wall jacks as shown in the appropriate illustration below.

Use only the line cords that came with this phone.

• Four One-Line Jacks (To use this installation option, you’ll

need to purchase two two-line adapters. Adapters are available at retail stores or by calling 1 800 222–3111.)

• Two Two-Line Jacks

continued on page 12

INSTALLATION

Two-line adapters

Telephone

line cords

Modular telephone jacks Lines 3 and 4

Modular telephone jacks Lines 1 and 2

L1/L2 jack

L3/L4 jack

Modular

telephone jack

Lines 3 and 4

Modular telephone jack Lines 1 and 2

Telephone

line cords

L1/L2 jack

L3/L4 jack

945 CIB 2ATT 3/14/05 9:58 AM Page 11

Table/Desk Installation

continued from page 11

2 Connect the handset cord.

Plug one end of the coiled handset cord into the jack on the left side of the phone. Plug the other end into the handset and hang up.

3 Connect the power adapter to the telephone.

Use only the power adapter provided with this product.

To obtain a replacement, call

1 800 222–3111.

Plug one end of the power adapter into the jack labeled POWER on the back of the phone. Plug the other end into a standard electrical outlet not controlled by a wall switch.

4 Initialization.

If no battery is installed when you connect the power cord, the phone runs a quick self-test and the screen displays Initializing.. for about seven seconds.



NOTE:The phone will run through this same initialization any time it is reconnected to AC power if a working battery is not installed (for example, after a power failure or when the unit has been unplugged).

5 Check for dial tone.

Lift the handset and listen for a dial tone. If you cannot hear a dial tone, turn to IN CASE OF DIFFICULTY beginning on page 66.

INSTALLATION

Standard electrical

outlet

Power adapter

POWER jack

945 CIB 2ATT 3/14/05 9:58 AM Page 12

Wall Installation

For best results, follow the directions in “Battery Installation” beginning on page 9 before installing the phone.

1 If the wedge is still attached to the underside of the base

unit, follow Step 1 in “Battery Installation” on page 9 to remove

the wedge.

2 Reverse the handset tab.

Hold down the switchhook, then pull out the handset tab and rotate it 180 degrees. Push the handset tab down into the grooves so it settles into position.

3 Connect the telephone line cords to the telephone as shown.

4 Connect the handset cord.

Plug one end of the coiled handset cord into the jack on the left side of the phone. Plug the other end into the handset and hang up.

continued on page 14

INSTALLATION

Switchhook

Handset tab

L1/L2 jack

L3/L4 jack

945 CIB 2ATT 3/14/05 9:58 AM Page 13

Wall Installation

continued from page 13

5 Connect the power adapter to the telephone.

Use only the power adapter provided with this product. To obtain a replacement, call 1 800 222–3111.

Plug one end of the power adapter into the jack labeled POWER on the back of the phone. Plug the power adapter into a standard electrical outlet not controlled by a wall switch.

INSTALLATION

Standard electrical

outlet

Power adapter

POWER jack

945 CIB 2ATT 3/14/05 9:58 AM Page 14

6 Connect the telephone line cords to the wall jacks as shown

in the appropriate illustration and mount the phone on the wall. Use only the line cords that came with this phone.

• Four One-Line Jacks (To use this installation option,

you’ll need to purchase two two-line adapters. You will also need to purchase and install a blank wall plate. Adapters and blank wall plates are available at retail stores or by calling

1 800 222-3111.)

continued on page 16

INSTALLATION

Modular telephone jacks Lines 3 and 4

Modular telephone Jacks Lines 1 and 2

Standard electrical outlet

Blank wall plate

Power adapter

Two-line

adapters

945 CIB 2ATT 3/14/05 9:58 AM Page 15

Wall Installation

continued from page 15

• Two Two-Line Jacks (To use this illustration option you may want to use the short line cord for Lines 1 and 2.)

7 Initialization.

If no battery is installed when you connect the power cord, the phone runs a quick self-test and the screen displays Initializing.. for about seven seconds.



8 Check for dial tone.

Lift the handset and listen for a dial tone. If you cannot hear a dial tone, turn to IN CASE OF DIFFICULTY beginning on page 66.

INSTALLATION

Modular

telephone jack

Lines 3 and 4

Modular telephone jack Lines 1 and 2

Standard electrical outlet

Power adapter

945 CIB 2ATT 3/14/05 9:58 AM Page 16

Convenience Ports

If you want to connect another device (such as a modem or fax machine) to the wall jack, you can use the jacks on the phone labeled AUX. These convenience ports use Lines 3 and 4; a call picked up on Line 3 or 4 at another extension may interrupt fax, modem, or message transmission.

• Four One-Line Jacks

• Two Two-Line Jacks

INSTALLATION

Modular telephone jacks Lines 3 and 4 with two-line adapter

Modular telephone jacks Lines 1 and 2 with two-line adapter

Standard electrical outlet

Power adapter

L1/L2 jack

L3/L4 jack

AUX L4 jack

AUX L3 jack

Modular telephone jack Lines 3 and 4

Modular telephone jack Lines 1 and 2

Standard electrical outlet

Power adapter

L1/L2 jack

L3/L4 jack

AUX L4 jack

AUX L3 jack

945 CIB 2ATT 3/14/05 9:58 AM Page 17

MENU OPERATION

Feature setup, memory programming and some individual feature operations for the 945 use menus shown in the screen display. Use the navigation buttons (<, >, +, -, E) to begin, end and move through menu operations (for example, feature setup).

• Press E to activate a menu operation. The first menu item for this topic or data will appear in line four of the screen. For example, the screen displays:



NOTE: If you do not press a key to continue menu operations within 30 seconds, the telephone automatically exits the menu.

• When x is displayed, you can press the - or + button repeatedly to move through the menu.

• Press E to choose the menu item currently displayed. This may be a lower level menu, an action, or a feature settings screen. For example:

• When () is displayed, you can press the > or < button to scroll through setting choices.

• Press E to store the setting, or press - to store the setting and show the next option for the feature currently displayed.

• To return to the main menu, press the - or + button until the screen display includes MAIN MENU or EXIT. Then, press E.

• To exit programming mode, press and hold E.



NOTE: If the phone beeps twice, repeat the steps to program the feature.

ONE TOUCH

()Intercom PREFERENCE x

FEATURE SETUP

ONE TOUCH x

MENU OPERATION

Menu item

Menu topic or data

Menu indicator

Current Setting

Feature

MMMMM

❖❖❖❖❖

❙❙❙❙❙

◗◗◗◗◗

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 18

MENU OPERATION

Menu Structure

Use the menu to set up the values for the 945 features. Access the menu by pressing E when the phone is idle. The menu structure for the feature setup menu is below.

ONE TOUCH

PREFERENCE

INTERCOM TELEPHONE

PROGRAM

PAUSE TONE FLASH CANCEL

VIEW

DONE

MAIN MENU

PHONE SETTINGS

EXTENSION NO RINGER ON/OFF RINGER TYPE DELAY RING AUTO-MUTE TONE/PULSE HOLD REMINDER MAIN MENU

TIME/DATE

SPECIAL OPTIONS

LINE USAGE

PRIME LINE AUTOMATIC MODE SCROLL RATE LCD BACKLIGHT LINE GROUP RESET ALL MAIN MENU

CENTREX

CONSOLE CSL DELAY RING MAIN MENU

LANGUAGE

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 19

MENU OPERATION

Shortcut to Language Menu

This phone comes programmed for English screen displays. If you need to change the screen language to Spanish or French, you can use these steps to reach the LANGUAGE menu more quickly.

1 Press E to begin feature setup. 2 Press + twice. The screen display includes

LANGUAGE and the current setting.

3 Press < or > to scroll through the language

choices (English, Espanol, or Français). When the language you want to use is displayed, press - to save your choice. The screen display includes EXIT.

4 Press E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

Rapid Scroll

You can scroll through menu items or setting choices more quickly using this feature. Press and hold the desired scroll button (+, -, > or <). The screen will scroll through your choices at the rate you program during feature fetup. See “Set the Scroll Rate” on page 32 for programming instructions.

MMMMM

❖❖❖❖❖

❙❙❙❙❙

◗◗◗◗◗

MMMMM

❖❖❖❖❖

❙❙❙❙❙

◗◗◗◗◗

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 20

Set One Touch Preference

Choose whether pressing an EXT button automatically initiates an intercom or One Touch call. If you want to place One Touch calls using only one button, set this feature to TELEPHONE. If you want to place intercom calls using only one button, set this feature to INTERCOM. See ONE TOUCH OPERATION beginning on page 50 and INTERCOM OPERATION beginning on page 55 for details about One Touch and intercom calls.

1 Press E to begin feature setup. 2 Press E. The screen display includes

PREFERENCE and the current setting.

3 Press < or > to toggle between INTERCOM

and TELEPHONE.

4 When the correct setting is shown, press

- to save your choice. The screen display includes PROGRAM.

5 Press and hold E to return to the idle

screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 21

Assign an Extension Number to Your Phone

Every individual phone in your telephone system MUST be assigned a unique extension number for the intercom feature to work.

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO and the current setting.

4 Press < or > to change the extension

number (11 … 26).

5 When the desired extension number is shown

press - to save your choice. The screen display includes RINGER ON/OFF.



NOTE: If you duplicate an extension number already in use, you will hear a repeating short ring (error ring) and the screen display will include EXT XX is already used Assign new EXT #. Repeat Steps 1-5 at the ringing phone to assign a different extension number (from 11 - 26).

6 Proceed to Step 5 on page 23 to set the next

feature (Ringer On or Off)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 22

Turn the Ringer On or Off for Each Line

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

RINGER ON/OFF.

5 Press E. The screen display includes

L1 RINGER and the current setting.

6 Press < or > to toggle between On and Off

for the line shown.

7 When the desired setting for this line is shown,

press - to save your choice. The screen display will include the current ringer setting for the next line (L1 … L4).

8 Repeat Steps 6 and 7 to turn the ringer on

or off for other lines at this phone.

9 When you are finished setting the ringer, press

- until the screen display includes DONE.

10 Press E. The screen display includes

RINGER ON/OFF.

11 Proceed to Step 4 on page 24 to set the next

feature (Ringer Type)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 23

Select the Ringer Type

You can choose a ring pattern for incoming phone calls.



NOTE: Incoming intercom calls use Ringer Type 1 and cannot be changed.

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

RINGER TYPE.

5 Press E. The screen display includes

L1 RINGER TYPE and the current setting.

6 Press < or > to change the ringer type

(Type 1 … Type 4) for the line shown.

7 When the desired setting for this line is shown,

press - to save your choice and move to the next line with its ringer type.

8 Repeat Steps 6 and 7 to set ringer types

for other lines on this phone (L1 … L4).

9 When you are finished setting the ringer

type, press - until the screen display includes DONE.

10 Press E. The screen display includes

RINGER TYPE.

11 Proceed to Step 4 on page 25 to set the

next feature (Delay Ring)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 24

Set Delay Ring

Set the length of time before incoming calls will ring at this extension.



NOTE: If you choose to set a delayed ring on a phone with Voice Mail service, the phone may not ring at all before Voice Mail picks up the call.

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

DELAY RING and the current setting.

5 Press < or > to change the delay ring setting

(Off, 2 sec … 30 sec).

6 When the correct delay setting is shown, press

- to save your choice. The screen display includes Auto-Mute.

7 Proceed to Step 5 on page 26 to set the next

feature (Auto-Mute)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 25

Turn Auto-Mute On or Off

Choose whether sounds at this extension will be heard automatically in response to a page (Auto-Mute Off) or only when M is pressed. Auto-Mute Off permits hands-free conversation and room monitoring; Auto-Mute On protects privacy.

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

Auto-Mute and the current setting.

5 Press < or > to toggle between On and Off. 6 When the correct setting is shown, press -

to save your choice. The screen display includes TONE/PULSE.

7 Proceed to Step 5 of “Set Dial Mode” on page

27 to set the next feature (Tone/Pulse)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 26

Set Dial Mode

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

TONE/PULSE and the current setting.

5 Press < or > to toggle between Tone

and Pulse.

6 When the correct setting is shown, press

- to save your choice. The screen display includes HOLD REMINDER.

7 Proceed to Step 5 below to set the next

feature (Hold Reminder)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

Turn Hold Reminder On or Off

1 Press E to begin feature setup. 2 Press - until the screen display includes

PHONE SETTINGS.

3 Press E. The screen display includes

EXTENSION NO.

4 Press - until the screen display includes

HOLD REMINDER and the current setting.

5 Press < or > to toggle between On and Off. 6 When the correct setting is shown, press -

to save your choice. The screen display includes MAIN MENU.

7 Press and hold E to return to the idle

screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 27

Set the Time and Date

1 Press E to begin feature setup. 2 Press - until the screen display includes

TIME/DATE.

3 Press E. The screen display includes

HOUR and the current hour setting.

4 Press < or > until the correct hour is shown. 5 Press - to save the hour setting. The screen

display includes MINUTE and the current minute setting.

6 Press < or > until the correct minute

is shown.

7 Press - to save the minute setting. The screen

display includes AM/PM and the current setting.

8 Press < or > to toggle between AM and PM. 9 Press - to save the AM/PM setting. The screen

display includes MONTH and the number of the current month setting.

10 Press < or > until the number of the correct

month is shown.

11 Press - to save the correct month setting. The

screen display includes DATE and the current day of the month setting.

12 Press < or > until the correct day of the

month is shown.

13 Press - to save the day of the month. The

screen display includes DAY OF WEEK and the current setting.

14 Press < or > until the correct day of the

week is shown.

15 Press - to save the Time/Date setting. The

screen display includes MAIN MENU.

16 Press and hold E to return to the idle

screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 28

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

Turn Line Usage On or Off for Each Line

If you are not using all four phone lines at this extension, you need to turn off Line Usage for the unused lines. If you expand to a second, third or fourth line, turn Line Usage back on. Line 1 must be turned for the intercom to work.



NOTE:You may use any combination of lines. Lines used do not need to be in order. For example, Line Usage can be turned on for Lines 1 and 3 and turned off for Lines 2 and 4.

You may also restrict the use of certain lines on this phone to intercom and paging only by turning off Line Usage for each line you want restricted. When Line Usage is turned off, that line cannot be used to answer incoming calls or to make outgoing or transfer calls.

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press E. The screen display includes

L1 USAGE and the current setting for this line.

5 Press < or > to toggle between On and Off

for the line shown.

6 Press - to save the current setting for this line

and move to the next line with its current Line Usage setting.

7 Repeat Steps 5 and 6 to set Line Usage for

other lines at this extension.

8 When you are finished setting Line Usage,

press - until the screen display includes DONE.

9 Press E. The screen display includes

LINE USAGE.

10 Proceed to Step 4 on page 30 to set up the

next feature (Prime Line)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

945 CIB 2ATT 3/14/05 9:58 AM Page 29

Assign the Prime Line (Line Preference)

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

PRIME LINE and the current setting.

5 Press < or > to scroll through the line

choices (Line 1 … Line 4).

6 When the line you wish to set as prime is

displayed, press - to save your choice. The screen display includes AUTOMATIC MODE.

7 Proceed to Step 5 on page 31 to set the

next feature (Automatic Mode)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 30

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

Set Automatic Mode

Choose the mode (headset or speakerphone) to be used automatically when you press a LINE button with the handset in the cradle.

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

AUTOMATIC MODE and the current setting.

5 Press < or > to toggle between

SpeakerPhone and Headset.

6 When the desired mode is displayed, press

- to save your choice. The screen display includes SCROLL RATE.

7 Proceed to Step 5 on page 32 to set the

next feature (Scroll Rate)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 31

Set the Scroll Rate

You can choose the speed for the Rapid Scroll feature. (See “Rapid Scroll” on page 20 for details.)

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

SCROLL RATE and the current setting.

5 Press < or > to change the setting (Very

Slow, Slow, Medium, Fast, or Very Fast).

6 When the correct scroll rate is shown, press

- to save your choice. The screen display includes LCD BACKLIGHT.

7 Proceed to Step 5 on page 33 to set the

next feature (LCD Backlight)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 32

Turn Screen Backlight On or Off

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

LCD BACKLIGHT and the current setting.

5 Press < or > to toggle between On and Off. 6 When the correct setting is shown, press -

to save your choice. The screen display includes LINE GROUP.

7 Proceed to Step 5 on page 34 to set the next

feature (Line Group)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 33

Assign the Line Group for this Phone

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

LINE GROUP and the current setting.

5 Press > or < to scroll through the Line Group

choices (Line 04 … Line15, or PRV).

6 When the Line Group you want is shown,

press - to save your choice. The screen display includes RESET ALL.

7 Proceed to Step 5 on page 35 to reset all

feature settings to default values

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 34

Erase All Settings and Return the Phone to Default Settings

If you reset all features to the default settings, all previous feature programming and One Touch entries will be erased. You will need to program your preferences for every feature again and re-enter numbers in One Touch locations. You cannot undo the RESET ALL command.

1 Press E to begin feature setup. 2 Press - until the screen display includes

SPECIAL OPTIONS.

3 Press E. The screen display includes

LINE USAGE.

4 Press - until the screen display includes

RESET ALL.

5 Press E. The screen display includes

ENTER:Reset all?.

6 Press E to confirm the command. The

screen displays Reset!. A tone sounds and the screen returns to showing RESET ALL.

7 Press and hold E to return to the idle

screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 35

You will need to program the next two features if this phone is the designated Console Phone for your Centrex system.

Set This Phone to be the Centrex Console Phone



NOTE: This feature is for use with Centrex systems only.

1 Press E to begin feature setup. 2 Press - until the screen display includes

CENTREX.

3 Press E. The screen display includes

CONSOLE and the current setting.

4 Press < or > to toggle between On and Off. 5 Press - to save your choice. The screen display

includes CSL DELAY RING.

6 Proceed to Step 5 of “Set the Centrex Console

Delayed Ring Time” on page 37 to change the next feature (Console Delay Ring)

—OR—

Press and hold E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 36

Set the Centrex Console Delayed Ring Time



NOTE: This feature is for use with Centrex systems only.

Set the length of time the phone will route your calls to the Centrex Console phone. One ring is about six seconds.

1 Press E to begin feature setup. 2 Press - until the screen display includes

CENTREX.

3 Press E. The screen display includes

CONSOLE.

4 Press - until the screen display includes

CSL DELAY RING and the current setting.

5 Press < or > to scroll through the choices

(Off, 02 sec … 30 sec).

6 Press - to save your choice. The screen display

includes MAIN MENU.

7 Press and hold E to return to the idle

screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

Set the Display Language

1 Press E to begin feature setup. 2 Press - until the screen display includes

LANGUAGE and the current setting.

3 Press < or > to scroll through the language

choices (English, Espanol, or Français). When the language you want to use is displayed, press - to save your choice. The screen display includes EXIT.

4 Press E to return to the idle screen.



NOTE:You can exit feature setup and return to the idle screen any time. Simply press and hold E.

FEATURE SETUP

FEATURE SETUPFEATURE SETUP

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

MMMMM

❖❖❖❖❖

❙❙❙❙❙

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 37



NOTE: When you make a call, the phone selects the Prime Line you programmed (See “Assign the Prime Line” on page 30). When you answer a call, the phone automatically selects the ringing line.

Make or Answer a Call



NOTE: This phone will automatically make and answer calls in the mode (speakerphone or headset) you programmed (see “Set Automatic Mode” on page 31). Follow the directions below to choose a mode manually. If the phone is in use on one line, any other calls made or answered will use the same mode already in use.



NOTE: If you dial a phone number longer than 15 digits, the screen will display only the last 13 digits.

Handset

To make a call, lift the handset and dial the call.

To answer a call, lift the handset. Replace the handset

to end the call.

To override automatic line selection, press the LINE button for the line you wish to select, then lift the handset.

TELEPHONE OPERATION

MMMMMMMMMMMMMMMMMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 38

Speakerphone

To make a call, press and release the desired LINE

button or K. The SPEAKER light goes on. Wait for a dial tone, then dial the call. Press K to end the call.

To answer a call, press K or press the LINE button of the incoming call. Press K again to end the call.



NOTE: If headset is programmed as the default mode (see “Set Automatic Mode” on page 31), you must press K to activate the speakerphone.

Headset

You can use this phone hands-free when you install any AT&T two-band 2.5 mm headset or other compatible, electronically isolated headset. The headsets must be purchased separately. Headsets are available by calling Customer Service at 1 800 222–3111. For best results use an AT&T two-band 2.5 mm headset.

Make sure the headset is plugged into the headset jack. You will hear a double-beep if you press h when the headset is not plugged in.



NOTE: If headset is programmed as the default mode, (see “Set Automatic Mode” on page 31) but the headset is not plugged in, the phone will switch to speakerphone.

To make a call, press and release h or press the desired LINE button and then press h. The HEADSET light turns on. Wait for a dial tone, then dial the call. Press h to end the call.

To answer a call, press h. Press h again to end the call.



NOTE: If speakerphone is programmed as the default mode (See “Set Automatic Mode” on page 31), you must press h to activate the headset.

TELEPHONE OPERATION

❖❖❖❖❖

MMMMMMMMMMMMMMMMMMMM

❖❖❖❖❖

MMMMMMMMMMMMMMMMMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 39

Switch Between Handset, Headset and Speakerphone

To switch from handset to headset or speakerphone, press h or K, then replace

the handset. (In order to use the headset, it must be plugged in.)

To switch from speakerphone to handset, lift the handset. (Do not press K or the call will be disconnected.)

To switch from headset to handset when the handset is in the cradle, lift the handset.

To switch from headset to handset when the handset is off-hook, press h again.

To switch from headset to speakerphone, press

To switch from speakerphone to headset, insert the headset plug into the jack, and press h.

To override automatic line selection, press and release a LINE button. This activates the speakerphone or headset, whichever is programmed as the default mode.

Timer

When you make or answer a call, the timer automatically starts. The screen displays the elapsed time in minutes and seconds for the first hour (up to 59:59) and then begins again. The timer stops automatically when you hang up and the recorded time is displayed for about 10 seconds. The timer also stops when you place a call on hold and resets to 00:00 when you release hold.

TELEPHONE OPERATION

❖❖❖❖❖

MMMMMMMMMMMMMMMMMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 40

TELEPHONE OPERATION

Call Privacy

To ensure call privacy, this phone allows only one set at a time to use a line.

Cancel Call Privacy

During the call, press the LINE button for the call. You’ll hear a short beep. Others can now join the call.

Restore Call Privacy

Press the LINE button again during the call. You’ll hear a double-beep. The other phones will be dropped from the call.



NOTE: Call privacy is automatically restored when you end the call.



NOTE: When a non-system phone answers a call, any other system phone can pick up the call by pressing the LINE button. Once a system phone picks up the call, Call Privacy is activated and no other system phones can listen to the call unless Call Privacy is canceled, but non-system phones which share that line can still join the call.

Do Not Disturb

When you activate Do Not Disturb (DND), you will not hear paging tones, voice paging, or incoming call rings. Instead, the LINE light flashes and the INTERCOM light goes on to signal an incoming call or page. If you receive an intercom call, the INTERCOM light flashes, and the number of the intercom extension calling you appears on the display.

1 Press N to prevent interruptions. The DND

light goes on and the screen display includes DND.

2 Press N again to resume normal call alerts.

The DND light goes off and the screen no longer shows DND.

When this feature is activated, callers from within your phone system will hear long beeps.

❚❚❚❚❚

MMMMMMMMMMMMMMMMMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 41

Volume

Handset/Speakerphone/Headset Volume Control

When you are on a call, press VOLUME + to increase call volume. Press VOLUME - to decrease volume. You will hear a beep when you reach the minimum or maximum level.

Ringer Volume

When the phone is ringing, press VOLUME + or VOLUME - to adjust the ringer volume. This phone has four ringer volume levels. As you adjust the ringer, you will hear the ring change.

Turning Ringer Off

You may turn the ringer for each line on or off. For detailed instructions see “Turn the Ringer On/Off for Each Line” on page 23.

Redial

The last number dialed from this extension (up to 32 digits) is stored in redial memory until you dial another number.

Handset

To dial the same number again, lift the handset, listen for the dial tone, then press R.

Speakerphone or Headset

To dial the same number again, press a LINE button, then press R. The phone automatically dials the last number.



NOTE: You must go off hook (lift handset or press a LINE button for speakerphone or headset) before you press R. If you press R without going off hook, the screen displays the redial memory stack. (See “Redial Stack” on page 43.)



NOTE: You will experience a delay before the call is dialed when using the Redial feature. This is normal.

TELEPHONE OPERATION

PPPPP NNNNN

NNNNN

◗◗◗◗◗ ◗◗◗◗◗◗◗◗◗◗◗◗◗◗◗

945 CIB 2ATT 3/14/05 9:58 AM Page 42

Redial Stack

The last six numbers dialed from this extension are automatically stored in the redial memory stack. You can review the numbers in the redial memory and dial one if you wish.

1 When the phone is not on a call, press

2 Press + or - to scroll through the last six

numbers dialed at this extension.

3 When the number you want to call is displayed,

press E or a LINE button. The call is dialed automatically using the mode (headset or speakerphone) you programmed as the Automatic Mode. (See “Set Automatic Mode” on page 31.)



NOTE: If you do not place a call within 30 seconds, the screen returns to idle.

Auto Redial

This phone can automatically redial a number every 60 seconds up to ten times, or until the other line rings or you cancel Auto Redial. When the phone automatically redials the number, it always uses the line you originally used to dial the call.

1 Follow the instructions under “Redial Stack”

to find the number you want to call.

2 Press a LINE button

— OR —

Press E. The phone will dial the call.

3 When the other line rings or the other party

answers, lift the handset

— OR —

Press K

— OR —

Press h and speak with the other party.



NOTE: You will hear a double-beep if you press

h when the headset is not plugged in.

To cancel Auto Redial, press any button except VOLUME + or VOLUME -.

TELEPHONE OPERATION

◗◗◗◗◗ ◗◗◗◗◗◗◗◗◗◗◗◗◗◗◗

PPPPP

◗◗◗◗◗

MMMMM

❖❖❖❖❖

NNNNN

◗◗◗◗◗ ◗◗◗◗◗◗◗◗◗◗◗◗◗◗◗

PPPPP

◗◗◗◗◗ MMMMM

NNNNN

945 CIB 2ATT 3/14/05 9:58 AM Page 43

Hold

While on a call, press and release H. The LINE light for the line on hold flashes slowly in green, and a double-beep sounds every 30 seconds to remind you the call is on hold. (To turn off the reminder beep, see “Turn Hold Reminder On or Off ” on page 27.) If you were using the handset, you can replace the handset in the cradle without disconnecting the call. If you were using the speakerphone, the speakerphone is automatically turned off when you press H.

To release Hold, press and release the LINE button of the call on hold.



NOTE: The phone automatically disconnects a call on hold after 20 minutes. To keep a call on hold longer than 20 minutes, release Hold before 20 minutes and then place the call on hold again.



NOTE: You cannot put an intercom call on hold.



NOTE: If a line is in use, pressing I will place the line on hold and activate the intercom.

Switch Between Lines

1 Press and release H to keep a call on

the first line.

2 Press and release the LINE button of another

line to make or answer another call.



NOTE: If you switch lines without pressing H first, you will drop the call.

TELEPHONE OPERATION

MMMMMMMMMMMMMMMMMMMM

PPPPP

MMMMMMMMMMMMMMMMMMMM

PPPPP

945 CIB 2ATT 3/14/05 9:58 AM Page 44

Mute

Mute allows you to hear the other party, but the other party can’t hear you.

To activate this feature, press and release M. The MUTE light goes on.

To return to the conversation, press and release M again.



NOTE: Switching from handset to speakerphone or headset, or from speakerphone or headset to handset, changing lines, and putting a call on hold also cancels Mute.

Flash

Use F instead of the switchhook to activate telephone company subscriber services such as Call Waiting or Three-Way Calling.

Temporary Tone Dialing

If you have dial pulse (rotary) service, you can change from dial pulse to touch tone dialing during a call by pressing t.

1 Dial the number. 2 Press and release t. Buttons pressed

after this send touch tone signals.

3 After you hang up, the phone automatically

returns to pulse service.

TELEPHONE OPERATION

❖❖❖❖❖

❚❚❚❚❚

MMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 45

Conference Calls

This feature lets you set up a three-party call by using two lines at the same time. You can also join an intercom call with a call on an outside line. The outside line call must be established first because an intercom call cannot be placed on hold.

1 Make or answer a call. 2 Press and release H. 3 Call someone on another line. 4 When this call is answered, press c. The

three-party conference begins immediately.

5 To end a conference call, hang up. All parties

will disconnect.

To talk privately with one party:

1 Press H to place both lines on hold. 2 Press a LINE button to talk privately with the

person on that line.

3 Press c to resume the conference call.



NOTE: An intercom call cannot be placed on hold. If one party is on the intercom, that party will be dropped from the call if you press H.

To drop one line:

Press the LINE button of the party you want to keep. The other line will be dropped.



NOTE: Occasionally, the far-end parties on a conference call might not hear one another.

TELEPHONE OPERATION

MMMMMMMMMMMMMMMMMMMM

❚❚❚❚❚

PPPPP

945 CIB 2ATT 3/14/05 9:58 AM Page 46

Transfer a Call

You can transfer a call you answer to any other system phone. Once you transfer a call, it can be picked up at any other system phone, not just at the extension you called. For information about using the display screen menus, see MENU OPERATION beginning on page 18.



NOTE: If a transferred call is not picked up within 20 minutes, the phone will automatically disconnect the call.

Blind Transfer

While on a call:

1 Press t. The screen display is similar to:

2 Press the EXT button for the extension where

you’re transferring the call

— OR —

Dial the extension number where you’re transferring the call.

The screen display is similar to:

3 Hang up.

Your phone reminds you with a double-beep every 30 seconds when a transferred call has not been answered.



NOTE: If you do not dial an extension within 10 seconds, the transfer is automatically cancelled.

continued on page 48

12:08 PM 12/26 EXT 11 Transfer 12

12:08 PM 12/26 EXT 11 Transfer

TELEPHONE OPERATION

❚❚❚❚❚

❘❘❘❘❘

This extension

Extension called

945 CIB 2ATT 3/14/05 9:58 AM Page 47

Transfer a Call

continued from page 47

Transfer a Call and Speak to the Receiving Party

While on a call:

1 Press H.

2 Press I. The screen display is similar to:

3 Press E. The screen display is similar to:

4 Press the EXT button for the extension where

you’re transferring the call. The screen display is similar to:

When the other party answers you can announce the call.

5 Press T, then press the EXT button for

the extension where you’re transferring the call.

6 Hang up.



NOTE: If you do not dial an extension within 10 seconds, the transfer is automatically cancelled.

Answer a Transferred Call

When you hear a long transfer ring, pick up the handset or press the LINE button of the call to use the speakerphone or headset.

Low Battery Indicator

The screen displays LOW BATT when the battery needs to be replaced, or when no battery is installed.

12:08 PM 12/26 EXT 11 PAGE 12

12:08 PM 12/26 EXT 11 Paging PAGE

12:08 PM 12/26 EXT 11 INTERCOM TO_ PAGE x

TELEPHONE OPERATION

❚❚❚❚❚

❘❘❘❘❘

PPPPP

MMMMMMMMMMMMMMMMMMMM

PPPPP NNNNN

This extension

Extension called

945 CIB 2ATT 3/14/05 9:58 AM Page 48

TELEPHONE OPERATION

Lights and What They Mean

LIGHT: STATUS: MEANS:

LINE On steadily, This line is in use at this

green extension.

On steadily, This line is in use at red another extension.

Flashing slowly, This line is on hold at this green extension.

Flashing slowly, This line is on hold at red another extension.

Flashing quickly, This line is ringing. green —OR—

You are transferring a call from this extension.

Triple flash, red A call on this line is being

transferred at another extension.

INTERCOM Flashing slowly The intercom is in use at

another extension.

Flashing quickly You have an incoming

intercom call.

On steadily You are on an intercom call.

MUTE On This phone is muted.

SPEAKER On You are on a speakerphone call.

Flashing slowly This phone is dialing an Auto

Redial call.

HEADSET On You are on a headset call.

DND On Do Not Disturb is turned on.

(AUTO)REDIAL On steadily The phone is waiting to

redial an Auto Redial call.

Flashing slowly This phone is dialing an

Auto Redial call.

945 CIB 2ATT 3/14/05 9:58 AM Page 49

ONE TOUCH OPERATION

This telephone has 32 One Touch locations where you can store phone numbers you wish to dial using fewer keys than usual. You can store up to 24 digits in each location. The steps used to dial numbers stored in One Touch locations vary according to how you programmed the One Touch Preference. See “Set One Touch Preference” on page 21 and “Dial a One Touch Number” on page 54 for more details.

The first 16 locations can be accessed using only the EXT buttons. To access the remaining 16 locations, press W and then the EXT button for the desired location.



NOTE: The EXT buttons are also used to place intercom calls. See INTERCOM OPERATION beginning on page 55 for details.

You may wish to write the names or telephone numbers of One Touch entries on the directory card, using the light gray spaces for the first 16 locations and the dark gray spaces for the second 16 locations.

ONE TOUCH OPERATION

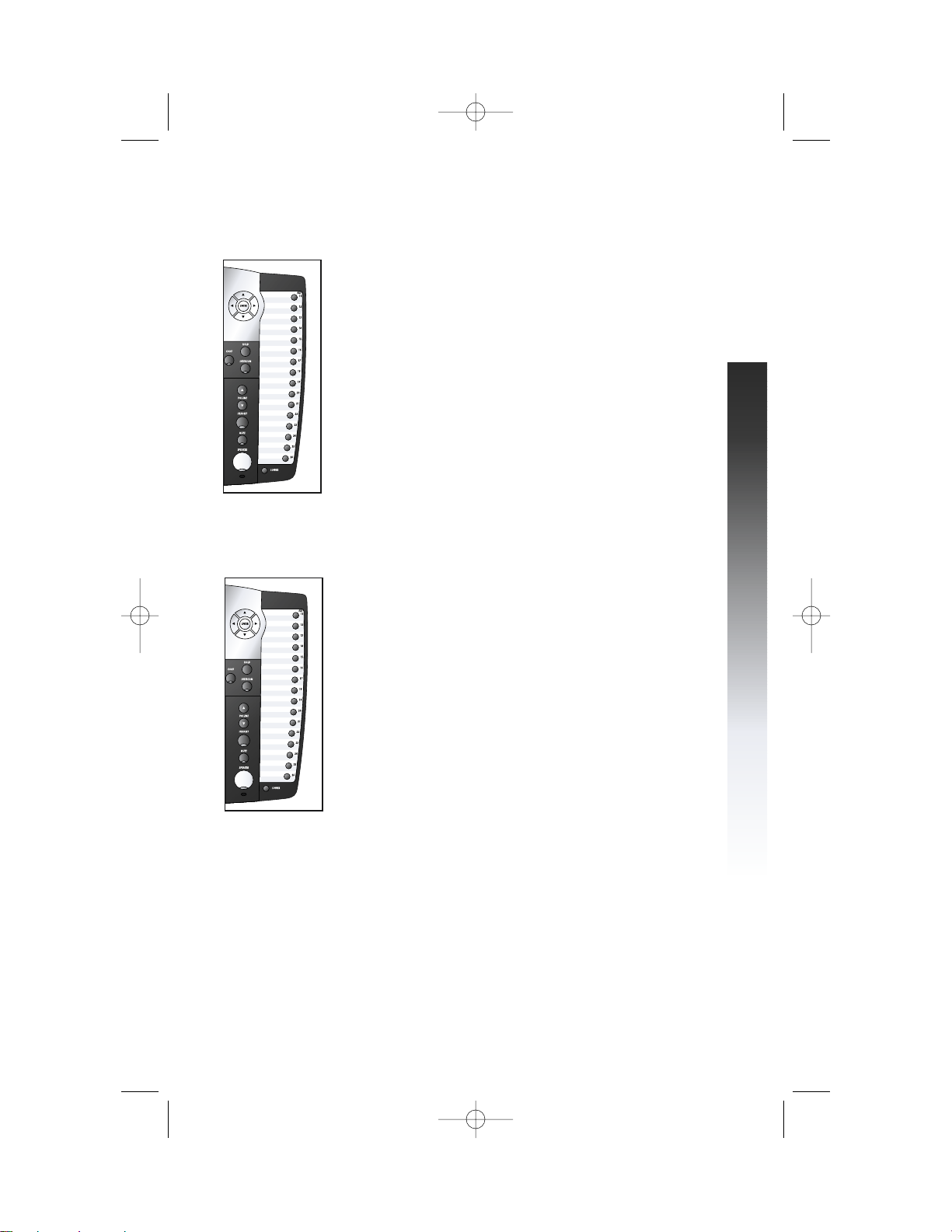

16 lower One Touch locations (all dark gray spaces)

EXT buttons

LOWER button

16 One Touch locations (all light gray spaces)

❚

❚❚

945 CIB 2ATT 3/14/05 9:58 AM Page 50

Store a Number in a One Touch Location

For information about using the display screen menus, see MENU OPERATION on page 18.

1 Press E to enter the feature menu. The

screen displays ONE TOUCH.

2 Press E. The screen display includes

PREFERENCE and the current setting.

3 Press - until the screen display includes

PROGRAM.

4 Press E. The screen display includes

Enter Number.

5 Enter the phone number using the dial pad keys

—OR—

Press R to copy the last number dialed from this extension to this location.

The screen will show the number as you enter it. You can press < to backspace.

6 When you are finished entering the number,

choose a One Touch location: Press the EXT button

—OR—

Press W, then press the EXT button. The screen displays the number entered and

Stored!.



NOTE: Only the last number dialed from this extension can be copied to a One Touch location. The other numbers in the redial stack cannot be copied.



NOTE: You can exit storing a number at any time. Press - until the screen shows CANCEL, then press E.

—OR—

Press and hold E.

continued on page 52

ONE TOUCH OPERATION

❚❚❚❚❚

PPPPP

MMMMM

❘❘❘❘❘

945 CIB 2ATT 3/14/05 9:58 AM Page 51

Store a Number in a One Touch Location

continued from page 51

Store a Pause in a One Touch Entry

You can include a pause while storing a dialing sequence which requires a pause during actual dialing.

While you are entering the number to be stored, the screen display includes PAUSE.

Press E where you want to store a pause. Each pause counts as one digit. Continue storing the number as usual.

Store Temporary Touch Tone signals in a One Touch Entry

If you have dial pulse (rotary) service, you can store a dialing sequence which includes the touch tone signals required for some special services.

While you are entering the number to be stored, the screen display includes PAUSE.

When you want to begin storing temporary tone signals, press - until the screen display includes TONE, then press E. All numbers you enter after this will send touch tone signals during dialing.

Store a Flash in a One Touch Entry

You can store the flash signal required by some special services as part of a dialing sequence.

While you are entering the number to be stored, the screen display includes PAUSE.

When you want to enter a flash signal, press - until the screen display includes FLASH, then press E. Continue storing the number as usual.

ONE TOUCH OPERATION

PPPPP

MMMMM

945 CIB 2ATT 3/14/05 9:58 AM Page 52

Review a One Touch Entry

For more information about using the display screen menus, see MENU OPERATION on page 18.

1 Press E to enter the feature menu. The

screen displays ONE TOUCH.

2 Press E. The screen display incudes

PREFERENCE.

3 Press - until the screen display includes VIEW. 4 Press E. 5 Press the EXT button

—OR—

Press W, then the EXT button for the entry you want to review.

The screen displays the number stored in that location. If there is no number stored in this location, the screen display includes (empty).

6 Press and hold E to return to the idle

screen.



NOTE: You can exit One Touch review at any time. Simply press and hold E.

ONE TOUCH OPERATION

❘❘❘❘❘

MMMMM

PPPPP

945 CIB 2ATT 3/14/05 9:58 AM Page 53

ONE TOUCH OPERATION

❚❚❚❚❚

❘❘❘❘❘

❙❙❙❙❙ ❙❙❙❙❙

Dial a One Touch Number

The steps used to call a One Touch number depend on how you programmed the One Touch Preference (see “Set One Touch Preference” on page 21).

If One Touch Preference is set to INTERCOM:

1 Lift the handset

—OR—

Press K

—OR—

Press h and listen for the dial tone.

2 Press the EXT button

—OR—

Press W, then press the EXT button for

the number you want to call. The screen displays the number as it is dialed.

If One Touch Preference is set to TELEPHONE, you do not need to go off the hook and listen for a dial tone before you dial a One Touch number. You can simply:

Press the EXT button

—OR—

Press W, then press the EXT button for the number

you want to call.

The screen displays the number as it is dialed using the speakerphone or headset as programmed for Automatic Mode (see “Set Automatic Mode” on page 31).

945 CIB 2ATT 3/14/05 9:58 AM Page 54

INTERCOM OPERATION

This 945 telephone is fully compatible with any AT&T Small Business System Speakerphone 974 or 984 units you may have installed. You can use a total of 16 945/974/984 units together as extensions in your phone system.



NOTE: If you have one or more 964, 955, or 944 phone(s) installed in the same phone system with this 945 telephone, you can have only 12 extensions in the phone system.

Each individual phone in your telephone system MUST be assigned a unique extension number for the intercom feature to work. See

“Assign an Extension Number to Your Phone” on page 22 for instructions.



NOTE: If you subscribe to DSL service, please read “DSL Users” beginning on page 4 for information about minimizing problems with this phone caused by DSL signals.

This intercom features both a single-phone page and a system-wide page. A single-phone page alerts only one phone. A system-wide page alerts all system phones. Any phone with the Do Not Disturb (DND) feature activated will not receive a page.

An intercom call rings at the extension called with a repeating double-ring pattern.

A single-phone page automatically activates the speakerphone on the receiving phone. You can deactivate the speakerphone by lifting the handset.



NOTE: If a line is in use, pressing I will place the line on hold and activate the intercom.

INTERCOM OPERATION

945 CIB 2ATT 3/14/05 9:58 AM Page 55

INTERCOM OPERATION

Basic Intercom Operations

OPERATION: FUNCTION:

INTERCOM Any two extensions connected to Line 1 can ring

each other.

PAGE Lets you “announce” over the speaker of the

phone you’re calling. The person you’ve called can respond just by talking.

PAGE ALL Lets you “announce” to all phones in the system at

the same time (system-wide page).

CONFERENCE Lets you connect another intercom call with an

outside line.

945 CIB 2ATT 3/14/05 9:58 AM Page 56

Make an Intercom Call with the Handset

1 If One Touch Preference is set to INTERCOM,

skip to Step 2 —OR—

If One Touch Preference is set to TELEPHONE, press I.

2 Press the EXT button for the party you wish

to call, then lift the handset. The screen display is similar to:

If the extension you called is idle or set to Do Not Disturb, you will hear long beeps. If the other extension is on a call, you will hear a busy signal.



NOTE: The intercom call is automatically cancelled if you do not press an EXT button within 10 seconds.



NOTE: When you direct an intercom call to one extension, any extension in the system can answer the call by pressing I.

12:08 PM 12/26

INTERCOM TO 15

INTERCOM OPERATION

Extension called

❘❘❘❘❘

NNNNN

945 CIB 2ATT 3/14/05 9:58 AM Page 57

Make an Intercom Call with the Speakerphone or Headset

With the handset in the cradle:

1 If One Touch Preference is set to INTERCOM,

skip to Step 2

—OR—

If One Touch Preference is set to TELEPHONE, press I. The phone will automatically activate the line in the mode (headset or speakerphone) of the last call made.

2 Press the EXT button of the party you wish

to reach. The screen display is similar to:

If the extension you called is idle or set to Do Not Disturb, you will hear long beeps. If the other extension is busy, you will hear a busy signal.



NOTE: The intercom call is automatically cancelled if you do not press an EXT button within 10 seconds.



NOTE: When you direct an intercom call to one extension, any extension in the system can answer the call by pressing I.

12:08 PM 12/26

INTERCOM TO 15

INTERCOM OPERATION

❘❘❘❘❘

NNNNN

Extension called

945 CIB 2ATT 3/14/05 9:58 AM Page 58

Answer an Intercom Call



NOTE: An intercom call can be answered at any extension in the phone system by pressing I.

When you receive an intercom call you will hear a repeating double-ring pattern and your screen displays INTERCOM FROM with the extension number of the caller. Answer the intercom call by lifting the handset, or by pressing I, K or h to take the call hands-free.



NOTE: If you press I to answer the call, the phone will automatically use the mode (speakerphone or headset) you programmed as the Automatic Mode (see “Set Automatic Mode” on page 31).

End an Intercom or Page Call

To end the intercom or page call, press I

—OR—

Hang up or press K or h again.

INTERCOM OPERATION

❚❚❚❚❚

NNNNN

❚❚❚❚❚

945 CIB 2ATT 3/14/05 9:58 AM Page 59

Page a Specific Extension (Single-phone Page)

1 Press I. The screen display is similar to:

2 Press E. The screen display is similar to:

3 Press the EXT button for the party you wish

to page. The screen display is similar to:

Answer a Single-phone Page

Auto-Mute Off

When your extension receives a page, the phone beeps and the speakerphone is automatically activated. Answer the call by simply speaking.

If you are on the headset, you can answer the page by pressing h and speaking through the headset.

Auto-Mute On

The MUTE light will be on. Lift the handset or press M to temporarily deactivate Auto-Mute and answer the page.

12:08 PM 12/26 EXT 11 PAGE 15

12:08 PM 12/26 EXT 11 Paging PAGE

12:08 PM 12/26 EXT 11 INTERCOM TO_ PAGE x

INTERCOM OPERATION

❘❘❘❘❘

PPPPP

NNNNN

❙❙❙❙❙ ❙❙❙❙❙

Extension paged

This extension

945 CIB 2ATT 3/14/05 9:58 AM Page 60

Page All System Phones

1 Press I. The screen display is similar to:

2 Press - until the screen display is similar to:

3 Press E. The screen display is similar to:

Once the page is answered at another extension, speak and your voice will be heard at all idle extensions in your phone system.

Answer a System-wide Page



NOTE: Only one extension can answer a system-wide page.

When you receive a system-wide page, your phone beeps and the screen shows the paging extension with a display similar to:

1 Press I to answer the page. The screen

display is similar to:

2 To end, press and release K or h.

12:08 PM 12/26

INTERCOM TO 12

12:08 PM 12/26

PAGE ALL FROM 12

12:08 PM 12/26 EXT 11 PAGE ALL

12:08 PM 12/26 EXT 11 INTERCOM TO_ PAGE ALL x

12:08 PM 12/26 EXT 11 INTERCOM TO_ PAGE x

INTERCOM OPERATION

NNNNN

❘❘❘❘❘

❚❚❚❚❚

❙❙❙❙❙

NNNNN

945 CIB 2ATT 3/14/05 9:58 AM Page 61

Make an Intercom Conference Call

A system phone on a two-way conversation using an outside line can invite a third party at an intercom extension into the conversation. Follow the directions under “Conference Calls” on page 46, making sure to establish the non-intercom call first.



NOTE: You cannot put an intercom conference call on hold.

Room Monitor

You can activate the speaker of another phone to monitor sounds in that room. The Auto-Mute feature must be turned off at the phone you want to monitor. (See “Turn Auto-Mute On or Off” on page 26 for instructions.)

1 Press I. The screen displays:

2 Press E. The screen displays:

3 Press the EXT button for the telephone

you want to monitor. The screen display is similar to:

The party at the extension being monitored will hear the intercom ring as with any page call, signaling that the speakerphone has been activated.

12:08 PM 12/26 EXT 11 PAGE 15

12:08 PM 12/26 EXT 11 Paging PAGE

12:08 PM 12/26 EXT 11 INTERCOM TO_ PAGE x

INTERCOM OPERATION

❘❘❘❘❘

NNNNN

PPPPP

945 CIB 2ATT 3/14/05 9:58 AM Page 62

ADDING A FAX MACHINE



NOTE: Do not connect a fax machine to Line 1. Doing so will interrupt the telephone’s intercom data channel.

You may wish to use a fax machine with your phone. Choose Line 2, 3 or 4 for the fax machine, and connect it according to the manufacturer’s instructions for installation and use.

• That line’s telephone number is your fax number.

• The same line can be used for outgoing calls (incoming faxes will get a busy signal when the line is in use).

• Set your fax machine to answer on the first ring (follow manufacturer’s instructions).

• To prevent the fax line from ringing at all the extensions, turn the ringer off for that line at other extensions (see "Turn the Ringer On or Off for Each Line" on page 23).



NOTE: If you are using a fax switch, or a fax machine with a built-in fax switch, see "Using a Fax Switch" below.

Using a Fax Switch

A fax switch lets the telephone know, before the phone rings, whether an incoming call is a voice call or a fax call. Some fax machines have a built-in fax switch. Using a fax switch may affect the operation of the LINE lights or other system features.

ADDING A FAX MACHINE

945 CIB 2ATT 3/14/05 9:58 AM Page 63

To keep your phone working and looking good, follow these guidelines:

• Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps).

• DO NOT expose it to direct sunlight or moisture.

• Avoid dropping the phone and/or other rough treatment.

• Clean with a soft cloth.

• Never use a strong cleaning agent or abrasive powder because this will damage the finish.

• Retain the original packaging in case you need to ship it at a later date.

GENERAL PRODUCT CARE

GENERAL PRODUCT CAREGENERAL PRODUCT CARE

945 CIB 2ATT 3/14/05 9:58 AM Page 64

TECHNICAL SPECIFICATIONS

REN 0.3B

POWER ADAPTER Input: AC 120V, 60Hz

Output: DC 12V, 500mA

BATTERY One 9V alkaline battery required

INTERCOM SIGNAL Data 455 KHz FREQUENCY

TECHNICAL SPECIFICATIONS

945 CIB 2ATT 3/14/05 9:58 AM Page 65

If you have difficulty operating this phone, try the suggestions below. For Customer Service, visit our website at www.telephones.att.com or call 1 800 222–3111. Have the serial number, found on the

underside of your phone, available when contacting Customer Service. Please retain your receipt as your proof of purchase.

To purchase accessories or replacement parts contact Customer Service. Visit our website at www.telephones.att.com or call

1 800 222–3111.

TELEPHONE OPERATION

PROBLEM SOLUTION

Telephone Does Not • This 945 telephone is not compatible with Work Properly any 843, 853, 854, 874, or 954 telephones

you may have previously installed.

PROBLEM SOLUTION

No Dial Tone • Make sure all plugs are connected properly.

Inspect the line cord connections at the modular jack(s) and at the telephone. Also inspect the coiled handset cord connection at both ends.

• Make sure a line is selected.

• Make sure Hold is not activated.

• If you do not hear a dial tone when you press h, make sure the headset is firmly connected at the jack.

PROBLEM SOLUTION

Telephone Does • Make sure the Do Not Disturb (DND) Not Ring feature is not activated.

• Make sure the ringers are turned on.

• If there are several non-system phones on the line that doesn’t ring, disconnect some of them. Having too many phones connected can also result in low ringer volume for non-system telephones.

• If the INTERCOM light flashes but you don’t hear a paging signal, make sure the Do Not Disturb feature is not activated.

IN CASE OF DIFFICULTY

945 CIB 2ATT 3/14/05 9:58 AM Page 66

TELEPHONE OPERATION

PROBLEM SOLUTION

A Repeating Short Ring The extension number you chose is (Error Ring) Sounds at already assigned. Begin again and choose All Extensions When a different extension number from 11 to You Assign an 26 (see “Assign an Extension Number Extension Number to Your Phone” on page 22). You MUST to Your Phone assign a different extension number to every

phone in your system.

PROBLEM SOLUTION

Intercom Paging Make sure you have programmed your Signal Not Received intercom extension number correctly.

Line 1 must be connected at all extensions, and must be the same telephone number/line for Page and Intercom to work properly.

PROBLEM SOLUTION

Cannot Join a The Call Privacy feature prevents another Conversation in set on the system from interrupting Progress a conversation. Make sure you press the

LINE button to release privacy. (See “Call Privacy” on page 41.)

PROBLEM SOLUTION

Error Tone (Fast The Do Not Disturb feature is Busy Signal) Heard activated at the extension you are calling. When Making a Page Call

PROBLEM SOLUTION

A Double-Beep There is a call on hold at this extension. Sounds Every Press and release the LINE button of the call Thirty Seconds on hold to return to the call and turn off the

reminder beep.

IN CASE OF DIFFICULTY

945 CIB 2ATT 3/14/05 9:58 AM Page 67

TELEPHONE OPERATION

PROBLEM SOLUTION

LINE Lights Remain • Make sure the phone is programmed On When No Line is for that line to be absent. (See “Turn Connected Line Usage On or Off for Each Line”

on page 29.)

• Make sure that your Line Groups are

programmed properly. (See “Assign the Line Group for this Phone” on page 34.)

• Disconnect all other devices (fax, modem,

credit card reader, etc.) from any lines connected to your 945 phone. These devices can interfere with the telephone’s data links.

• Make sure the total length of telephone

wiring used in your phone system is less than 600 feet. In some cases a Z800A filter can be used in a phone system with more than 600 feet of wire. AT&T highly recommends that a Z800A filter be installed by a professional. AT&T CANNOT guarantee that this telephone will work with such a filter, and IS NOT responsible for such installations. A Z800A filter can be obtained by calling 1 800 222-3111. (See “DSL Users” beginning on page 4 for details.)

PROBLEM SOLUTION

Tone Signals Do Tone signaling does not work during Not Activate a conference calls. Remote Device

IN CASE OF DIFFICULTY

945 CIB 2ATT 3/14/05 9:58 AM Page 68

TELEPHONE OPERATION

PROBLEM SOLUTION

Operation During This phone will operate during a power a Power Failure failure if a working battery has been installed.

You will be able to answer calls with the handset or headset, and dial calls using the dial key pads and the One Touch or Redial features. No other features will work until power is restored. All programming is retained during power failure.

PROBLEM SOLUTION

The Screen Displays The phone has been disconnected from AC

Powerfail power. When power is restored, a key is

pressed, or the phone is taken off the hook, the screen will return to the usual display. One Touch and Redial numbers are retained until power is restored.

PROBLEM SOLUTION

Display Screen Make sure the power cord is connected is Blank to both the phone and an electrical outlet

not controlled by a wall switch.

PROBLEM SOLUTION

Intercom, Hold, Call • The total length of telephone wiring in Privacy or Other your phone system MUST NOT be more Advanced Features Do than 600 feet. Not Work Properly • If you are a DSL customer, you may need

to arrange for installation of a splitter and an AT&T Z800A filter. See “DSL Users” beginning on page 4 for details.

• Another device connected to Line 1 may be causing interference. Try disconnecting the device.

IN CASE OF DIFFICULTY

945 CIB 2ATT 3/14/05 9:58 AM Page 69

EXPANDING THE PHONE SYSTEM

When you combine two or more 945/974/984/944/955/964 phones you create an interacting system where phones share lines. If you have only 945/974/984 phones on your phone system, you can have up to 16 phones and up to 19 telephone lines. If you have one or more 944/955/964 phones in your phone system, you can have up to 12 phones and up to 15 telephone lines. The system can be expanded with or without Centrex service.



NOTE: All 945 features work as described earlier in this manual.

Line Groups

When phones share lines, the LINE lights let users at different extensions know when a specific line is in use. For accurate LINE lights, the same lines must be connected to each extension in the Line Group, and they must have the same incoming telephone number at each extension.

The chart below shows 16 extensions, each sharing the first three lines, but being assigned to different Line Groups based on other shared or private lines.

Lines in System

Intercom Extensions

L1 L2 L3 L4 L5 L6 L7

EXT 11 ✔✔✔✔ EXT 12 ✔✔✔ ✔ EXT 13 ✔✔✔✔ ✔ EXT 14 ✔✔✔ ✔ EXT 15 ✔✔✔✔ ✔ EXT 16 ✔✔✔ ✔ EXT 17 ✔✔✔✔ ✔ EXT 18 ✔✔✔ ✔ EXT 19 ✔✔✔✔ ✔ EXT 20 ✔✔✔ ✔ EXT 21 ✔✔✔✔ ✔ EXT 22 ✔✔✔ ✔ EXT 23 ✔✔✔✔ ✔ EXT 24 ✔✔✔ ✔ EXT 25 ✔✔✔✔ ✔ EXT 26 ✔✔✔ ✔

945 CIB 2ATT 3/14/05 9:58 AM Page 70

Private Lines

You can use the fourth line on each extension as a private line. A private line is a telephone number assigned to just one extension.



NOTE: You must program the lines you are using at each extension so that the phone knows which lines are shared and which are private. (You can physically wire lines with different telephone numbers into each unit for Line 4.)

The chart below shows 16 extensions, each sharing the first three lines.

EXPANDING THE PHONE SYSTEM

Intercom Extensions

Lines in System

L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 L19

EXT 11 ✔✔✔✔ EXT 12 ✔✔✔ ✔ EXT 13 ✔✔✔ ✔ EXT 14 ✔✔✔ ✔ EXT 15 ✔✔✔ ✔ EXT 16 ✔✔✔ ✔ EXT 17 ✔✔✔ ✔ EXT 18 ✔✔✔ ✔ EXT 19 ✔✔✔ ✔ EXT 20 ✔✔✔ ✔ EXT 21 ✔✔✔ ✔ EXT 22 ✔✔✔ ✔ EXT 23 ✔✔✔ ✔ EXT 24 ✔✔✔ ✔ EXT 25 ✔✔✔ ✔ EXT 26 ✔✔✔ ✔

945 CIB 2ATT 3/14/05 9:58 AM Page 71

Setup Checklist

Before expanding your system or installing for Centrex, review the installation checklist. If you have Centrex, contact your local telephone company for further information about Centrex service.

• The phone number for Line 1 must be the same on all phones in order for the Intercom and Page features to work.

• Determine the number of phones that will be on the system.

• Identify the phone that will be the Console phone.

• Identify the private line for the Console phone. The Console phone must have its own private line. This line is not shared with any other phone.

• Follow the regular installation instructions in this manual.

• Enable the Console phone.

• Store the Centrex pickup codes and the seven-digit phone numbers in One Touch locations. (See ONE TOUCH OPERATION beginning on page 50.)

Enabling the Console Phone

Determine which phone will be the Console phone for your system and program the Console following the directions to “Set This Phone to be the Centrex Console Phone” on page 36. It is recommended that Line 4 of the Console be programmed as a private line, to be sure a line is available for Centrex access.

Console Operation

Once another system phone has enabled its delayed ring, the Console phone will receive those calls. All the 945 features work in the same manner as described in this manual.

The Console phone can pick up other Centrex lines through Centrex switching. You can store the Centrex pickup codes and the seven-digit phone number of each station, except for the Console phone, in the One Touch locations.

CENTREX OPERATION

945 CIB 2ATT 3/14/05 9:58 AM Page 72

Setting Ring Delay Duration

This feature allows other system telephones’ calls to ring at the Console phone. After a specified ring delay, the calls will ring at the Console phone. (See “Set the Centrex Console Delayed Ring Time” on page 37.)

Answering a Delayed Ring

The Console phone rings and the screen displays the extension number of the intercom sending the delayed ring.

1 Select a free line. 2 Enter the Centrex pickup code. 3 Enter the seven-digit phone number of the extension sending

the delayed ring.



NOTE: If the Console is using another line and receives a delayed ring,

the Console phone can put the other line on hold and follow Steps 1–3. If the Console is on an intercom call, the intercom call should be ended before picking up the ringing phone.

Picking Up Another Station’s Line

1 Choose a free Centrex line. 2 Enter the Centrex pickup code. 3 Enter the seven-digit phone number of the line you want.

CENTREX OPERATION

945 CIB 2ATT 3/14/05 9:58 AM Page 73

+ 5, 18, 20, 43

- 5, 18, 20, 43

x 18

< 5, 18, 20

> 5, 18, 20

() 18

A Repeating Short Ring

(Error Ring) Sounds

at All Extensions 67 AM/PM 28 answer a call 38–39 Auto Redial 43 (AUTO)REDIAL 49 R 42–43, 51 auto-mute 6, 26, 60, 62 automatic line selection 38, 40 automatic mode 7, 31, 43, 54, 59 Aux L3 jack 17 Aux L4 jack 17

Base unit 2, 9–10 battery 9–10, 16, 48, 69 battery compartment 9–10 Blind Transfer 47

call privacy 41 call volume 42 Call Waiting 45 CANCEL 51 Cannot Join a Conversation

in Progress 67 Centrex 1, 5, 36–37, 70, 72 Centrex Console Delayed Ring 37 Centrex Console Phone 7, 36

Centrex pickup code 72–73

c 46

conference 56

conference call 46, 68

console 7

Console phone 72–73. See also

Centrex Console Phone

Convenience Ports 17

CSL DELAY RING 7

date 28

day of the month 28

day of the week 28

default mode 39–40

default settings 6, 7, 35

delay ring 6, 25

delayed ring 25, 72–73

dial mode 6, 27

dial pulse (rotary) 6, 45, 52

dial tone 12, 39, 42

dialing sequence 52

Digital Subscriber Line 4

directory card 50

Display Screen is Blank 69

DND 5, 8, 49

Do Not Disturb 5, 49, 67

Do Not Disturb (DND) 55, 66

DSL 4

DSL filters 4

DSL service 4, 5, 55

DSL service provider 4, 5

DSL splitter 4, 5

INDEX

945 CIB 2ATT 3/14/05 9:58 AM Page 74

English 20, 37 E 5, 18, 43, 48, 60, 61, 62 erase all settings 35 error ring 8–9, 22 Error Tone (Fast Busy Signal)

Heard When Making a Intercom Call 67

Espanol 20, 37 EXT button 21, 47, 48, 50, 51,

53–54, 57–58, 60, 62

extension 5, 9, 29, 47–49, 55,

57–62, 67, 70–71

extension no 6 extension number 3, 6, 8–9, 47, 55,

59, 67, 73

extensions 3, 55, 63

fax 68 fax machine 63 fax switch 63 feature setup 18–19 Flash 45, 52 F 45 Français 20, 37

hands-free 26, 59 handset 2, 12–13, 31, 38, 40, 42,

43–45, 48, 55, 57–59, 69

handset cord 2, 12, 13 handset tab 13 headset 7, 31, 38–40, 42, 43, 45,

48–49, 54, 59–60, 69

H 5, 7, 39, 43, 54, 59–61 headset jack 1, 39 HEADSET light 39 hearing aid 1

hold 6, 40, 45, 49, 62

H 44, 46, 48

hold reminder 6, 27, 44

hour 28

incoming call 39

incoming calls 29

incoming intercom call 49

Initializing.. 12, 16

Intercom 8, 21–22, 29, 55, 62,

67, 72. See also Centrex Console Phone

I 44, 48, 57– 59, 60–62

intercom call 24, 44, 46, 49–50,

57–59

intercom conference call 62

INTERCOM light 66

Intercom Paging Signal

Not Received 67

L1/L2 jack 11

L3/L4 jack 11

Language 7, 20, 37

LCD Backlight 7

Lights 49

Line 1 phone number 3

LINE button 31, 38,–44, 46, 48, 67

line cords 2, 11

Line Group 5, 34, 68, 70

LINE light 44

LINE lights 63, 70

Line Lights Remain On 68

Line Preference 30

line usage 6, 29, 68

LOW BATT 48

W 50–51, 53–54

INDEX

945 CIB 2ATT 3/14/05 9:58 AM Page 75

make a call 38, 39

Menu item 18

menu operation 18, 19

microfilters 4

minute 28

month 28

multi-phone system 5

Mute 45, 49

M 45, 60

MUTE light 45, 60

Navigation buttons 5, 18

non-system phone 41, 66

One Touch 9, 21, 53, 69

One Touch (EXT) buttons 6

One Touch Location 51

One Touch locations 50, 72

One Touch number 54

One Touch Preference 6, 50, 54,

57, 58

outgoing calls 63

outgoing or transfer calls 29

outside line 46

Page 56, 60, 61, 67, 72

page all 56

page call 62

paging only 29

pause 52

phone system 3–5, 7, 55, 59, 61,

68, 70

power adapter 2, 12

power cord 69

power failure 9, 16, 69

POWER jack 12, 14

prime line 5, 7, 30, 38

privacy 26, 67

private line 70

PRV 34

Pulse 27

Rapid Scroll 7, 20, 32

Redial 9, 43, 69

redial memory 42

reset all 7

return to the conversation 45

ring delay 73

ring pattern 6, 24

ring setting 25

ringer 23, 63, 66

ringer on /off 6

ringer type 6

Ringer Volume 42

room monitor 26, 62

Screen Backlight 33

screen display 18

Screen Displays Powerfail 69

scroll button 20

scroll rate 7, 32

single-phone page 55, 60

speaker 62

K 5, 7, 39, 43, 54, 59, 61

SPEAKER light 39

INDEX

945 CIB 2ATT 3/14/05 9:58 AM Page 76

speakerphone 1, 7, 31, 38–40,

43–45, 48–49, 54, 55, 58–60, 62

splitter 4 Stored! 51 switch lines 44 Switchhook 13, 45 system phone 5, 41, 47, 62 system phones 5 system-wide page 55, 61

Telephone Does Not Ring 66 telephone lines 3 telephone system 9, 22, 55 telephone wiring 3, 68 Temporary Tone 45, 52 Three-Party Call 46 Three-Way Calling 45 Time 28 Time/Date 6 timer 40 Tone 27 t 45 Tone Signals Do Not Activate

a Remote Device 68

tone/pulse 6 touch tone 6, 45, 52 transfer 47–49 t 47, 48 transfer ring 48 two-line adapter 11

unused lines 29

Voice Mail service 25 VOLUME + 42 VOLUME - 42

INDEX

Z800A filter 3, 4, 5, 68

945 CIB 2ATT 3/14/05 9:58 AM Page 77

945 CIB 2ATT 3/14/05 9:58 AM Page 78

In case of difficulty, visit our Service Center at

www.telephones.att.com or call 1 800 222–3111.

Printed in Singapore. Issue 2AT&T 03/05

945 CIB 2ATT 3/14/05 9:58 AM Page 79

AT&T 945 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
