Asus WL-566GM User Manual
ASUS WL-5XX Series Wireless
Router Internet Configuration
User’s Guide
Contents
Chapter 1 Introduction:..............................................................................................1
Chapter 2 Connecting the wireless router..................................................................1
Chapter 3 Getting to know your Internet connection type ........................................1
Chapter 4 Configuring the router...............................................................................2
4.1 Enter into router’s Web-based configuration page.......................................2

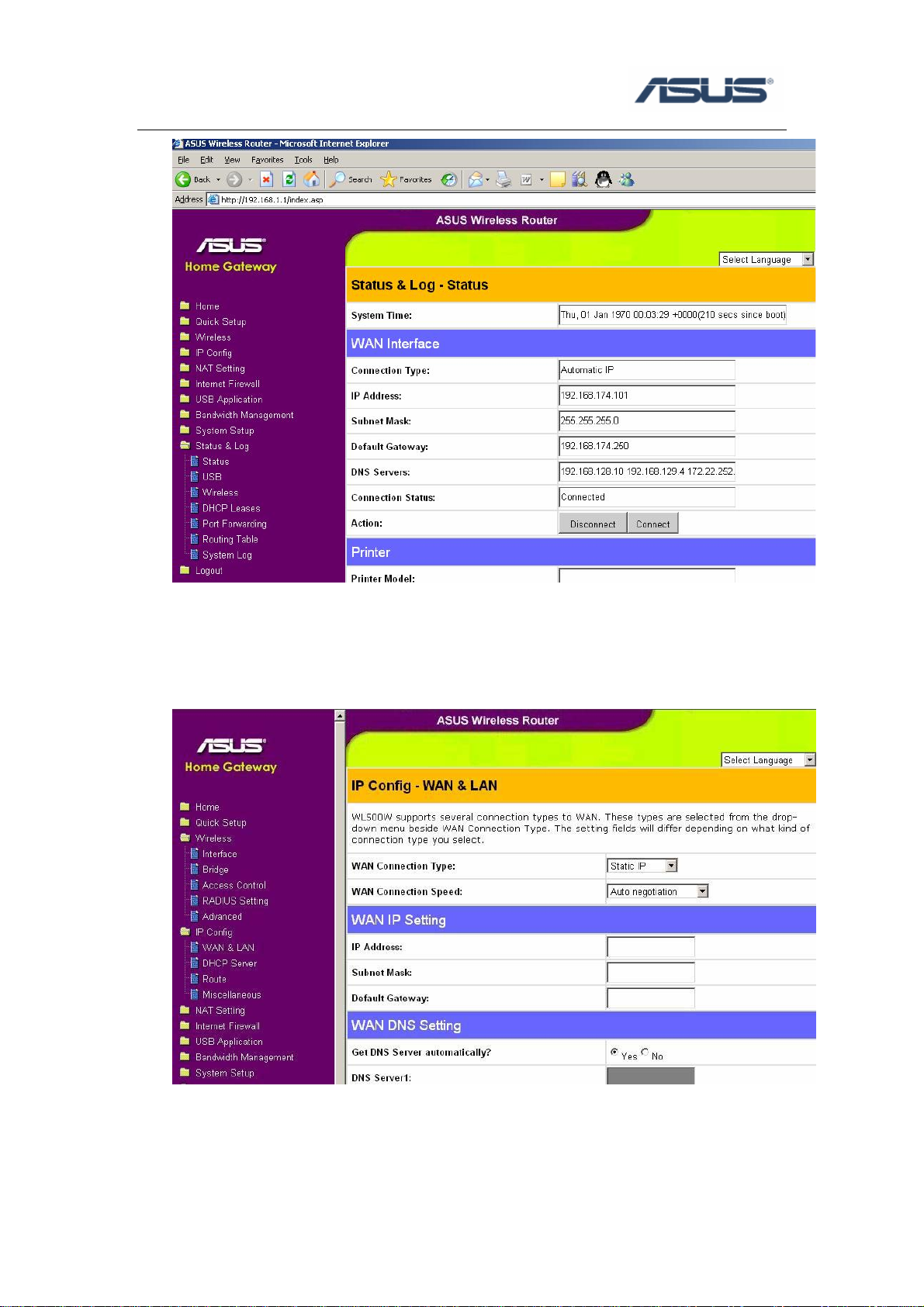

4.2 WAN Connection Type ---- Automatic IP...................................................3
4.3 WAN Connection Type ---- Static IP...........................................................4

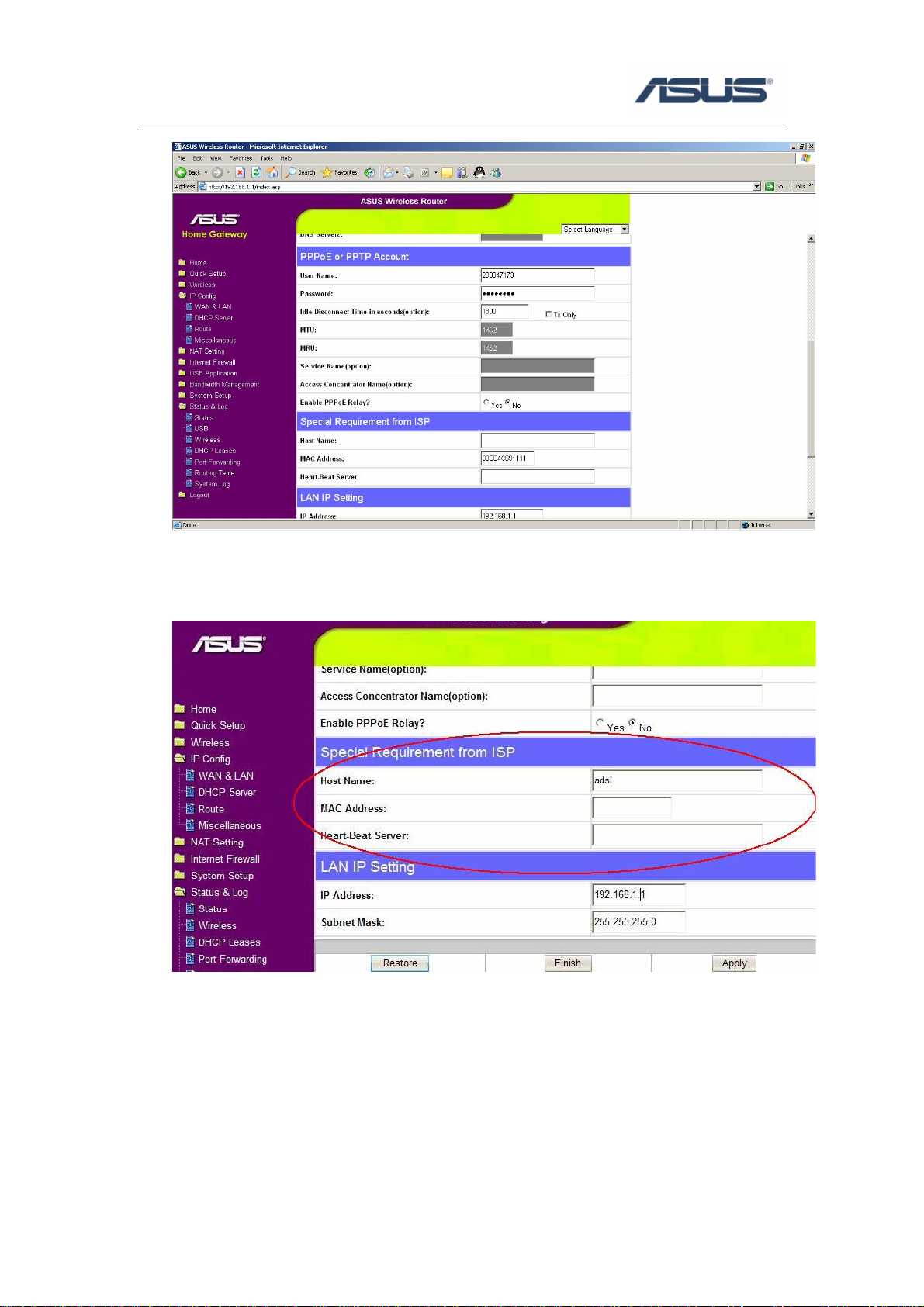

4.4 WAN Connection Type ---- PPPOE ............................................................5

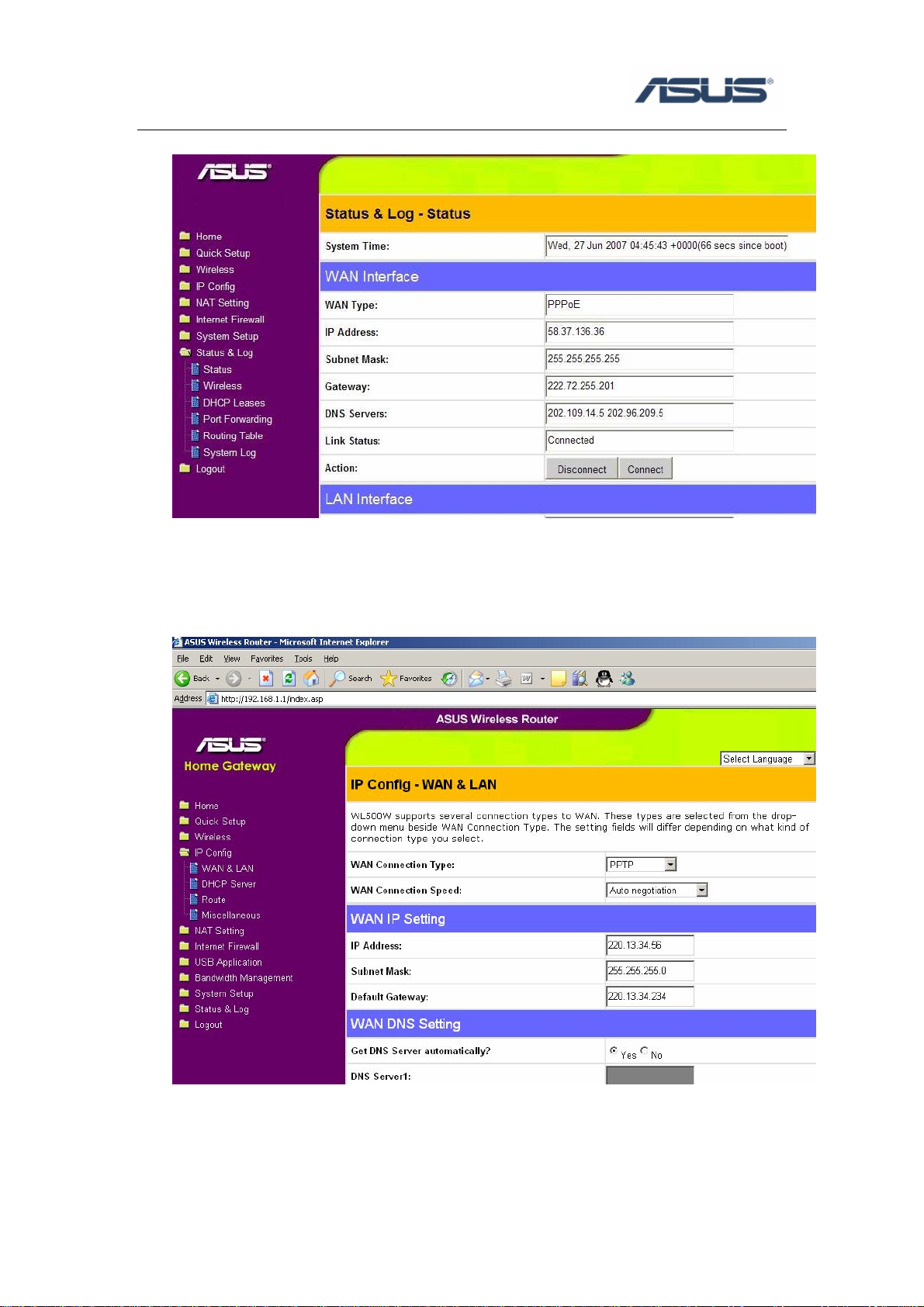

4.5 WAN Connection Type ---- PPTP ...............................................................7
4.6 WAN Connection Type ---- BigPond. .........................................................9

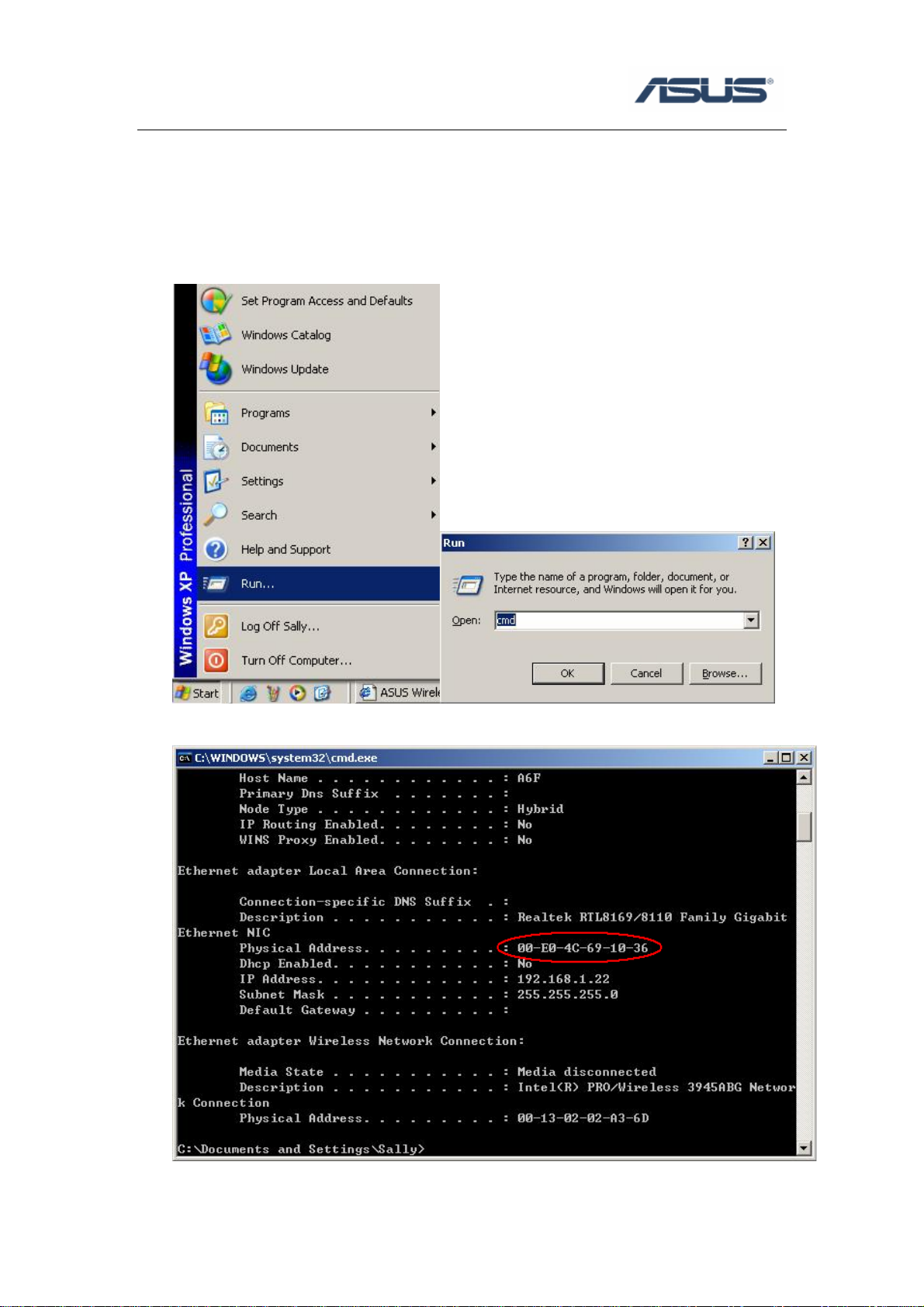

Chapter 5 Troubleshooting........................................................................................9
Chapter 1
This document describes how to set up ASUS WL-5XX series wireless router to getting
connection to the Internet and provides troubleshooting tips to help you fix some simple
problems.
Chapter 2
The figure below illustrates a connection diagram example.
Introduction:
Connecting the wireless router
Chapter 3 Getting to know your Internet
connection type
The router supports following connection types: Automatic IP, Static IP, PPPOE,
PPTP, and Bigpond
By default, the Router’s Internet Connection Type is set to Automatic IP, which
should be kept only if your ISP (Internet Service Provider) supports DHCP
(Dynamic Host Configuration Protocol) or you are connecting through a dynamic
IP address.
If your ISP has assigned you a permanent, fixed (static) IP address for your
1
computer, select “Static IP”. In this type, you should have a static IP address from
your ISP, and Subnet mask, Gateway IP address are necessary.
Most of DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to
establish Internet connections, select “PPPOE”. If you are connected to the
Internet through a DSL line, check with your ISP to see if they use PPPoE. In this
type, you should have Username and Password from your ISP.
Point to Point Tunneling Protocol (PPTP), is a service that usually applies to
connections in some European countries only. In this type, you should have IP
address, Subnet mask, Default Gateway, Username and Password from your ISP.
BigPond is a service used in Australia only. If you are using a Bigpond
connection, check with your ISP for the necessary setup information.
Chapter 4 Configuring the router
4.1 Enter into router’s Web-based configuration page
1. Open browser and type router’s IP address: http://192.168.1.1 (the default address)
NOTE: If you are using WL-530g, make sure that WAN port is securely plug ged in
with a network cable so that you are able to login the router.
2. Input username and password, both of them: admin (the default value)
3. Click “Cancel” when show “do you like to start Quick Setup directly” (if you
want to use Quick Setup, please refer to manual or Quick Start Guide’s
2
