ARRIS SBG901 User Manual
Motorola SURFboard®
SBG901 Wireless Cable Modem Gateway
User Guide
Safety and Regulatory Information
i
SAFETY AND REGULATORY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
When using your equipment, basic safety precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
• Read all of the instructions listed here and/or in the user manual before you operate this device.
Give particular attention to all safety precautions. Retain the instructions for future reference.
• This device must be installed and used in strict accordance with manufacturer’s instructions, as
described in the user documentation that is included with the device.
• Comply with all warning and caution statements in the instructions. Observe all warning and
caution symbols that are affixed to this device.
• To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not
be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the
device.
• This device was qualified under test conditions that included the use of the supplied cables
between systems components. To ensure regulatory and safety compliance, use only the provided
power and interface cables and install them properly.
• Different types of cord sets may be used for connections to the main supply circuit. Use only a
main line cord that complies with all applicable device safety requirements of the country of use.
• Installation of this device must be in accordance with national wiring codes and conform to local
regulations.
• Operate this device only from the type of power source indicated on the device’s marking label. If
you are not sure of the type of power supplied to your home, consult your dealer or local power
company.
• Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock.
Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation,
and broken plugs are dangerous. They may result in a shock or fire hazard.
• Route power supply cords so that they are not likely to be walked on or pinched by items placed
upon or against them. Pay particular attention to cords where they are attached to plugs and
convenience receptacles, and examine the point where they exit from the device.
• Place this device in a location that is close enough to an electrical outlet to accommodate the
length of the power cord.
• Place the device to allow for easy access when disconnecting the power cord of the device from
the AC wall outlet.
• Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be
fully inserted with no part of the blades exposed.
i Safety and Regulatory Information 2
This document is uncontrolled pending incorporation in PDM
• Place this device on a stable surface.
• It is recommended that the customer install an AC surge protector in the AC outlet to which this
device is connected. This is to avoid damaging the device by local lightning strikes and other
electrical surges.
• Postpone installation until there is no risk of thunderstorm or lightning activity in the area.
• Do not cover the device or block the airflow to the device with any other objects. Keep the device
away from excessive heat and humidity and keep the device free from vibration and dust.
• Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray
cleaners directly on the device or use forced air to remove dust.
• Do not use this product near water: for example, near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement, or near a swimming pool.
• Upon completion of any service or repairs to this device, ask the service technician to perform
safety checks to determine that the device is in safe operating condition.
• Do not open the device. Do not perform any servicing other than that contained in the installation
and troubleshooting instructions. Refer all servicing to qualified service personnel.
• This device should not be used in an environment that exceeds 40º C.
SAVE THESE INSTRUCTIONS
Note to CATV System Installer: This reminder is provided to call the CATV system installer's attention to
Section 820-93 of the National Electric Code, which provides guidelines for proper grounding and, in
particular, specifies that the coaxial cable shield shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
CARING FOR THE ENVIRONMENT BY RECYCLING
When you see this symbol on a Motorola product, do not dispose of the product with
residential or commercial waste.
Recycling your Motorola Equipment
Please do not dispose of this product with your residential or commercial waste. Some
countries or regions, such as the European Union, have set up systems to collect and
recycle electrical and electronic waste items. Contact your local authorities for information
about practices established for your region. If collection systems are not available, call
Motorola Customer Service for assistance. Please visit www.motorola.com/recycle
instructions on recycling.
for
FCC STATEMENTS
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential environment. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
i Safety and Regulatory Information 3
This document is uncontrolled pending incorporation in PDM
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
FCC CAUTION: Any changes or modifications not expressly approved by Motorola for compliance could
void the user’s authority to operate the equipment.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To
comply with the FCC RF exposure compliance requirements, the separation distance between the antenna
and any person’s body (including hands, wrists, feet and ankles) must be at least 20 cm (8 inches).
This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and
are firmware programmed at the factory to match the intended destinations. The firmware setting is not
accessible by the end user.
INDUSTRY CANADA (IC) STATEMENT
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of
the device.
This device is designed to operate with two internal antennas as part of the printed wiring board. The top
facing antenna has a maximum gain of 2dBi and the front facing antenna has a maximum gain of 4dBi.
To reduce potential radio interference to other users, the antenna types and their gains were so chosen that
the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful
communications.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC RADIATION EXPOSURE STATEMENT
IMPORTANT NOTE: This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
WIRELESS LAN INFORMATION
This device is a wireless network product that uses Direct Sequence Spread Spectrum (DSSS) and
Orthogonal Frequency-Division Multiple Access (OFDMA) radio technologies. The device is designed to be
interoperable with any other wireless DSSS and OFDMA products that comply with:
i Safety and Regulatory Information 4
This document is uncontrolled pending incorporation in PDM
• The IEEE 802.11 Standard on Wireless LANs (Revision B and Revision G), as defined and approved
by the Institute of Electrical Electronics Engineers
• The Wireless Fidelity (Wi-Fi) certification as defined by the Wireless Ethernet Compatibility Alliance
(WECA).
RESTRICTIONS ON THE USE OF WIRELESS DEVICES
In some situations or environments, the use of wireless devices may be restricted by the proprietor of the
building or responsible representatives of the organization. For example, using wireless equipment in any
environment where the risk of interference to other devices or services is perceived or identified as
harmful.
If you are uncertain of the applicable policy for the use of wireless equipment in a specific organization or
environment, you are encouraged to ask for authorization to use the device prior to turning on the
equipment.
The manufacturer is not responsible for any radio or television interference caused by unauthorized
modification of the devices included with this product, or the substitution or attachment of connecting
cables and equipment other than specified by the manufacturer. Correction of the interference caused by
such unauthorized modification, substitution, or attachment is the responsibility of the user.
The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of
government regulations that may arise from failing to comply with these guidelines.
SECURITY WARNING: This device allows you to create a wireless network. Wireless network connections
may be accessible by unauthorized users. Please read the SBG901 User Guide or visit the Motorola website
to learn how to protect your network.
INTERNATIONAL DECLARATION OF CONFORMITY
We, Motorola, Inc., 101 Tournament Drive, Horsham, PA 19044, U.S.A., declare under our sole
responsibility that the SBG901 to which this declaration relates is in conformity with one or more of the
following standards:
EN55022 EN55024 EN60950-1 EN61000-3-2 EN61000-3-3
CISPR-22 CISPR-24 IEC 60950-1 ETSI EN 300 328 ETSI EN 301 489-1/-17
and the following provisions of the Directive(s) of the Council of the European Union: WEEE Directive
2002/96/EC, R&TTE 1999/5/EC, RoHS Directive 2005/95/EC
i Safety and Regulatory Information 5
This document is uncontrolled pending incorporation in PDM
Models Standards
SBG901, SBG901 Diagnostic FCC Part 15, ICES-003
UL60950-1, CAN/CSA-C22.2 No. 60950-1
EN55022, EN55024, CISPR22, CISPR24, EN61000-3-2,
EN61000-3-3, EN60950-1, IEC60950-1, ETSI EN 300 328,
ETSI EN 301 489-1/-17
© 2008 Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any
form or by any means or used to make any derivative work (such as translation, transformation,
or adaptation) without written permission from Motorola, Inc.
MOTOROLA and the Stylized M logo are registered in the US Patent & Trademark Office.
SURFboard is a registered trademark of General Instrument Corporation, a wholly-owned
subsidiary of Motorola, Inc. Microsoft, Windows, Windows NT, Windows Vista, Internet Explorer,
DirectX, and Xbox LIVE are registered trademarks of Microsoft Corporation; and Windows XP is a
trademark of Microsoft Corporation. Linux® is a registered trademark of Linus Torvalds in the
U.S. and other countries. UNIX is a registered trademark of the Open Group in the United States
and other countries. Macintosh is a registered trademark of Apple Computer, Inc. Adobe, Adobe
Acrobat, and Adobe Acrobat Reader are registered trademarks of Adobe Systems, Inc. All other
product or service names are property of their respective owners .No part of the contents of this
document may be reproduced or transmitted in any form or by any means without the written
permission of the publisher.
Motorola reserves the right to revise this publication and to make changes in content from time
to time without obligation on the part of Motorola to provide notification of such revision or
change. Motorola provides this guide without warranty of any kind, implied or expressed,
including, but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. Motorola may make improvements or changes in the product(s) described in this
manual at any time.
i Safety and Regulatory Information 6
This document is uncontrolled pending incorporation in PDM
Contents
Safety and Regulatory Information
Introduction
SBG901 Features ........................................................................................................................................ 13
Easy Setup ..................................................................................................................................................14
Network Connection Types.........................................................................................................................14
Powerful Features in a Single Unit.............................................................................................................. 14
Sample Hybrid LAN ..............................................................................................................................15
Optional Accessories ............................................................................................................................ 15
Front Panel ..................................................................................................................................................16
Rear Panel ................................................................................................................................................... 17
Bottom Label on the SBG901 .....................................................................................................................18
SBG901 LAN Choices .................................................................................................................................18
Wireless LAN........................................................................................................................................ 19
Wired Ethernet LAN ............................................................................................................................. 20
Security ....................................................................................................................................................... 20
Firewall .................................................................................................................................................21
DMZ...................................................................................................................................................... 21
Port Triggering ......................................................................................................................................21
Wireless Security.................................................................................................................................. 22
Port Forwarding ....................................................................................................................................22
Getting Started
Before You Begin ........................................................................................................................................ 23
Precautions..................................................................................................................................................24
Signing Up for Service................................................................................................................................. 24
Computer System Requirements ............................................................................................................... 25
Connecting the SBG901 to the Cable System............................................................................................ 25
Cabling the LAN .......................................................................................................................................... 26
Obtaining an IP Address for an Ethernet Connection................................................................................. 27
Configuring TCP/IP ...................................................................................................................................... 27
Configuring TCP/IP in Windows 2000 .................................................................................................. 27
Configuring TCP/IP in Windows XP...................................................................................................... 30
i Safety and Regulatory Information 7
This document is uncontrolled pending incorporation in PDM
Configuring TCP/IP in Windows Vista...................................................................................................32
Verifying the IP Address in Windows 2000 or Windows XP................................................................ 34
Verifying the IP Address in Windows Vista.......................................................................................... 35
Renewing Your IP Address .........................................................................................................................35
Wall Mounting the SBG901 ........................................................................................................................ 36
Wall Mounting Template ......................................................................................................................38
Basic Configuration
Starting the SBG901 Configuration Manager (CMGR)................................................................................40
SBG901 Menu Options Bar......................................................................................................................... 42
SBG901 Submenu Options ..................................................................................................................42
Changing the SBG901 Default Password ...................................................................................................43
Restore Factory Defaults...................................................................................................................... 43
Getting Help ................................................................................................................................................ 44
Gaming Configuration Guidelines ...............................................................................................................44
Configuring the Firewall for Gaming..................................................................................................... 44
Configuring Port Triggers...................................................................................................................... 45
Configuring a Gaming DMZ Host .........................................................................................................45
Exiting the SBG901 Configuration Manager ............................................................................................... 45
Status Pages
Status Software Page .................................................................................................................................47
Status Connection Page.............................................................................................................................. 48
Status Security Page ................................................................................................................................... 49
Changing the SBG901 Default Password............................................................................................. 49
Status Diagnostics Page ............................................................................................................................. 49
Ping Utility............................................................................................................................................. 50
Traceroute Utility ..................................................................................................................................51
Status Event Log Page................................................................................................................................52
Basic Pages
Basic Setup Page ........................................................................................................................................53
Basic DHCP Page........................................................................................................................................ 55
Basic DDNS Page........................................................................................................................................ 56
Basic Backup Page...................................................................................................................................... 57
Restoring Your SBG901 Configuration ................................................................................................. 57
i Safety and Regulatory Information 8
This document is uncontrolled pending incorporation in PDM
Backing Up Your SBG901 Configuration ..............................................................................................58
Advanced Pages
Advanced Options Page.............................................................................................................................. 59
Advanced IP Filtering Page .........................................................................................................................61
Advanced MAC Filtering Page .................................................................................................................... 62
Setting a MAC Address Filter............................................................................................................... 62
Advanced Port Filtering Page...................................................................................................................... 63
Advanced Port Forwarding Page................................................................................................................. 64
Advanced Port Triggers Page...................................................................................................................... 65
Advanced DMZ Host Page.......................................................................................................................... 66
Setting Up the DMZ Host..................................................................................................................... 66
Advanced Routing Information Protocol Setup Page.................................................................................. 67
Firewall Pages
Firewall Web Content Filter Page ...............................................................................................................69
Firewall Local Log Page ..............................................................................................................................71
Firewall Remote Log Page.......................................................................................................................... 72
Parental Control Pages
Parental Control User Setup Page .............................................................................................................. 73
Parental Control Basic Setup Page ............................................................................................................. 75
Parental Control ToD Access Policy Page................................................................................................... 76
Parental Control Event Log Page ................................................................................................................ 77
Wireless Pages
Setting Up Your Wireless LAN.................................................................................................................... 79
Encrypting Wireless LAN Transmissions ............................................................................................. 80
Wireless 802.11b/g Basic Page ..................................................................................................................81
Wireless 802.11b/g Privacy Page................................................................................................................ 83
Wireless 802.11b/g Access Control Page................................................................................................... 86
Wireless 802.11b/g Advanced Page ...........................................................................................................87
Wireless Bridging Page............................................................................................................................... 89

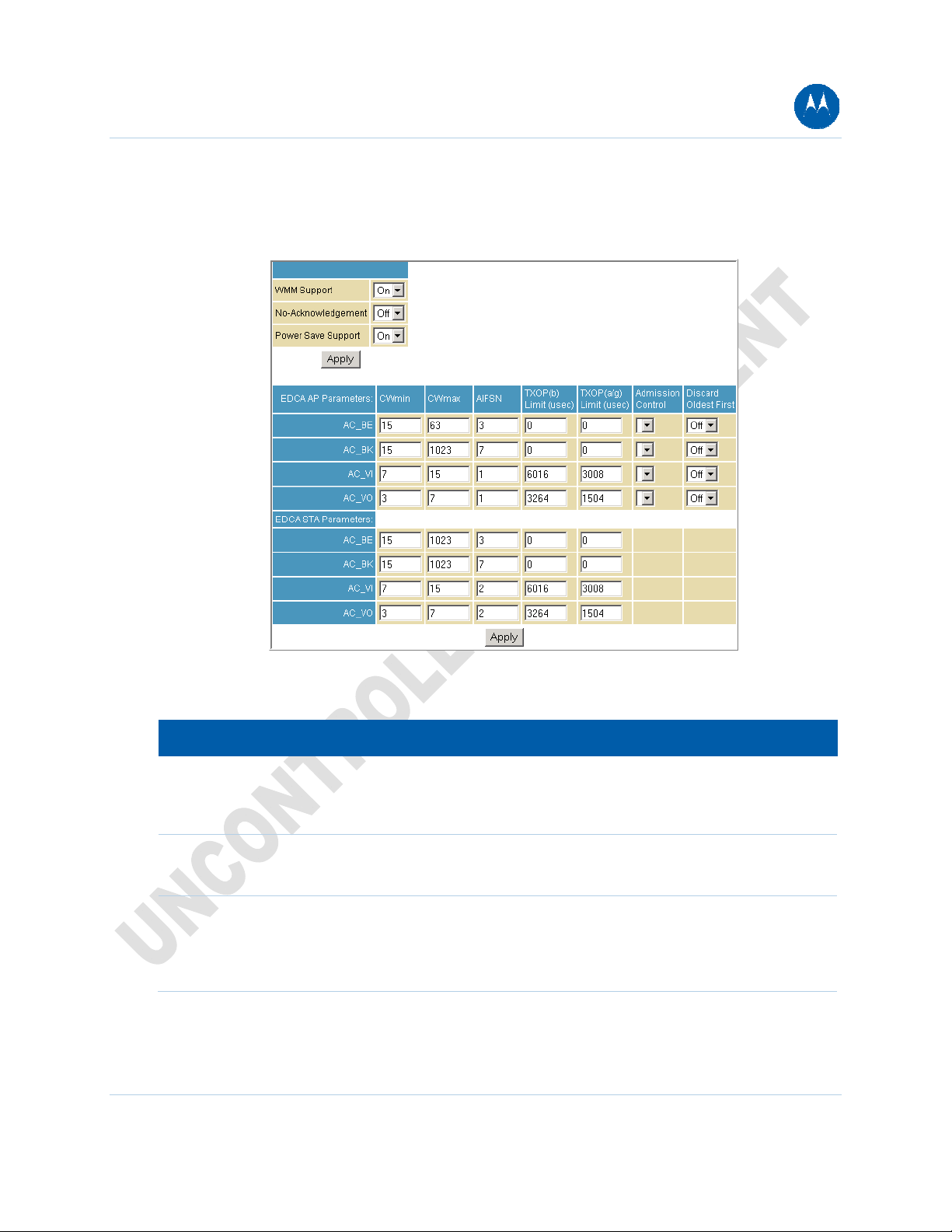

Wireless 802.11b/g Wi-Fi Multimedia Page................................................................................................ 90
Wireless 802.11b/g Guest Network Page...................................................................................................92
Configuring the Wireless Clients ................................................................................................................94
Configuring a Wireless Client for WPA ................................................................................................94
Configuring a Wireless Client for WEP................................................................................................. 95
i Safety and Regulatory Information 9
This document is uncontrolled pending incorporation in PDM
Configuring a Wireless Client with the Network Name (SSID) ............................................................95
Troubleshooting
Solutions...................................................................................................................................................... 97
Front-Panel LEDs and Error Conditions.......................................................................................................98
Contact Us
Specifications
Glossary
Software License
Tab l es
SBG901 Front-Panel LED Indicators ........................................................................................................... 16
SBG901 Rear Panel Connectors and Indicators.......................................................................................... 17
Items Included with Your SBG901.............................................................................................................. 23
SBG901 Light Activity during Startup .........................................................................................................26
Configuration Manager Menu Option Bar................................................................................................... 42
Field Descriptions for the Status Connection Page ....................................................................................48
Descriptions for the Status Event Log Page............................................................................................... 52
Field Descriptions for the Basic Setup Page............................................................................................... 54
Field Descriptions for the Basic DHCP Page .............................................................................................. 56
Field Descriptions for Basic DDNS Page ....................................................................................................57
Field Descriptions for the Basic Backup Page ............................................................................................ 57
Field Descriptions for the Advanced Options Page ....................................................................................60
Field Descriptions for the Advanced IP Filtering Page................................................................................ 61
Field Descriptions for the Advanced MAC Filtering Page........................................................................... 62
Field Descriptions for the Advanced Port Filtering Page ............................................................................63
Field Descriptions for the Advanced Port Triggers Page ............................................................................65
Field Descriptions for the Firewall Local Log Page..................................................................................... 71
Field Description for the Firewall Remote Log Page ..................................................................................72
Field Descriptions for the Parental Control User Setup Page..................................................................... 74
Enabling Wireless Security on Your LAN.................................................................................................... 79
Encrypting Wireless LAN Transmissions ....................................................................................................80
Field Descriptions for the Wireless 802.11b/g Basic Page......................................................................... 81
Field Descriptions for the Wireless 802.11b/g Privacy Page ......................................................................84
Field Descriptions for the Wireless 802.11b/g Access Control Page .........................................................86
Field Descriptions for the Wireless 802.11b/g Access Control Page .........................................................87
i Safety and Regulatory Information 10
This document is uncontrolled pending incorporation in PDM
Field Descriptions for the Wireless Bridging Page ..................................................................................... 89
Field Descriptions for the Wireless 802.11b/g Wi-Fi Multimedia Page ......................................................90
Field Descriptions for the Wireless 802.11b/g Guest Network Page .........................................................93
Configuring Wireless Clients....................................................................................................................... 94
Troubleshooting Solutions...........................................................................................................................97
Front-Panel Lights and Error Conditions ..................................................................................................... 98
Specifications ............................................................................................................................................ 101
Glossary..................................................................................................................................................... 105
Figures
Sample Hybrid LAN..................................................................................................................................... 15
SBG901 Front Panel LEDs ..........................................................................................................................16
SBG901 Rear Panel..................................................................................................................................... 17
MAC Label................................................................................................................................................... 18
Sample Wireless Network Connections .....................................................................................................19
Sample Ethernet to Computer Connection................................................................................................. 20
Connecting the SBG901..............................................................................................................................26
Local Area Connection Status window....................................................................................................... 28
Local Area Connection Properties window................................................................................................. 28
Select Network Component Type window................................................................................................. 29
Local Area Connection Properties window................................................................................................. 29
Network and Internet Connections window............................................................................................... 30
Windows XP Classic View Control Panel.................................................................................................... 30
Network Connections window ...................................................................................................................31
Local Area Connection Properties window................................................................................................. 31
Network and Sharing Center window......................................................................................................... 32
LAN or High-Speed Internet connections window .....................................................................................32
Local Area Connection Properties window................................................................................................. 33
Internet Protocol Version 4 (TCP/IPv4) Properties window ........................................................................33
IPCONFIG window 1 for Windows 2000 and XP........................................................................................ 34
IPCONFIG window 2 for Windows 2000 and XP........................................................................................ 34
IPCONFIG window for Windows Vista .......................................................................................................35
Renew IPCONFIG window1 .......................................................................................................................36
Printer Settings for Wall Mounting Template .............................................................................................37
Wall Mounting Screw Dimensions .............................................................................................................37
i Safety and Regulatory Information 11
This document is uncontrolled pending incorporation in PDM
Wall Mounting Template............................................................................................................................. 39
Status Software Page .................................................................................................................................47
Status Connection Page.............................................................................................................................. 48
Change User Information window.............................................................................................................. 49
Ping Utility window ..................................................................................................................................... 50
Traceroute Utility window........................................................................................................................... 51
Status Event Log Page................................................................................................................................52
Basic Setup Page ........................................................................................................................................53
Basic DHCP Page........................................................................................................................................ 55
Basic DDNS Page........................................................................................................................................ 56
Basic Backup Page...................................................................................................................................... 57
Advance Options Page................................................................................................................................59
Advanced IP Filtering Page .........................................................................................................................61
Advanced MAC Filtering Page .................................................................................................................... 62
Advanced Port Filtering Page...................................................................................................................... 63
Advanced Port Forwarding Page................................................................................................................. 64
Advanced Port Triggers Page...................................................................................................................... 65
Advanced DMZ Host Page.......................................................................................................................... 66
Advanced RIP Setup Page ..........................................................................................................................67
Firewall Web Content Filter Page ...............................................................................................................70
Firewall Local Log Page ..............................................................................................................................71
Firewall Remote Log Page.......................................................................................................................... 72
Parental Control User Setup Page .............................................................................................................. 74
Parental Control Basic Setup Page ............................................................................................................. 75
Parental Control ToD Access Policy Page................................................................................................... 76
Parental Control Event Log Page ................................................................................................................ 77
Wireless 802.11b/g Basic Page ..................................................................................................................81
Wireless 802.11b/g Privacy Page................................................................................................................ 83
Wireless 802.11b/g Access Control Page................................................................................................... 86
Wireless 802.11b/g Advanced Page ...........................................................................................................87
Wireless Bridging Page............................................................................................................................... 89
Wireless 802.11b/g Wi-Fi Multimedia Page................................................................................................ 90
Wireless 802.11b/g Guest Network Page...................................................................................................92
i Safety and Regulatory Information 12
This document is uncontrolled pending incorporation in PDM
Introduction
1
Congratulations, you have a Motorola SBG901 SURFboard® Wireless Cable Modem Gateway for
your home, home office, or small business/enterprise. Applications where the Motorola SBG901
is especially useful include:
• Households with multiple computers requiring a network connection and Internet access
• Households with one or more computers capable of wireless connectivity for remote access
to the cable modem
• Small businesses or home offices that require fast, affordable, and secure Internet access to
provide an internet connection for wireless gaming systems
• Video conferencing
A home network enables you to share information between two or more computers. You can
connect your home network to the Internet through your cable TV system. The SBG901 is the
central connection point between your computers and the Internet. It directs (routes)
information between the computers connected to your home network. A built-in cable modem
transmits information between your home network and the Internet.
SBG901 Features
The SBG901 offers the following standard features:
• Combines four separate products — a DOCSIS
access point (Wi-Fi
compact unit
• Enables you to create a custom network sharing a single broadband connection, files, and
peripherals, with or without wires
• Advanced firewall for enhanced network security for wired and wireless users
• Provides an easy installation and security setup wizard
For the most recent product documentation, visit the Modems & Gateways page on the
Motorola website: http://broadband.motorola.com/consumers/support/default.asp
©
certified), Ethernet 10/100Base-T connection, and firewall — into one
®
2.0 cable modem, IEEE 802.11g wireless
.
1 Introduction 13
This document is uncontrolled pending incorporation in PDM
Easy Setup
It is much easier to configure a local area network (LAN) using an SBG901 than using traditional
networking equipment:
• The Installation Assistant application on the SBG901 Installation CD-ROM enables easy
connection to the cable network and setup for security.
• For basic wired or wireless operation, most default settings require no modification.
• The SBG901 Configuration Manager (CMGR) provides a graphical user interface (GUI) for
easy configuration of necessary wireless, Ethernet, router, DHCP, and security settings. For
information about using the SBG901 Configuration Manager, see Basic Configuration
Network Connection Types
The SBG901 provides different network connection types for your computers to exchange data.
The connection between your computers and the SBG901 may be with a wireless or a wired
connection or a combination of the two. Your network can use one or any combination of the
following network connections:
.
• Ethernet local area network (LAN)
• Wireless LAN (IEEE 802.11g
• Wi-Fi (Wireless Fidelity) connections to Wi-Fi enabled devices
that also supports IEEE 802.11b wireless clients)
Powerful Features in a Single Unit
An SBG901 combines high-speed Internet access, networking, and computer security for a home
or small-office LAN. An SBG901 provides:
• An integrated high-speed cable modem for continuous broadband access to the Internet and
other online services with much faster data transfer than traditional dial-up or ISDN modems
• One broadband connection for up to 245 computers to surf the web; all computers on the LAN
communicate as if they were connected to the same physical network
• An IEEE 802.11g
moving around the home or small office or to connect desktop computers without installing
network wiring. Depending on distance, wireless connection speeds can vary.
• A secure Wi-Fi broadband connection for Wi-Fi enabled devices on your network, such as
your cellular telephone, laptops, printers, PDAs, and desktops.
• One10/100Base-T Ethernet uplink port supporting a half- or full-duplex
auto-MDIX
• Routing for a wireless LAN (WLAN) or a wired Ethernet LAN; you can connect a single
computer using a hub and/or switch
• A built-in DHCP server to easily configure a combined wired and/or wireless Class C private
LAN
wireless access point to enable laptop users to remain connected while
capability
connection with
1 Introduction 14
This document is uncontrolled pending incorporation in PDM
• An advanced firewall supporting stateful-inspection, intrusion detection, DMZ, denial-of-service
attack prevention, and Network Address Translation (NAT)
• Port Forwarding
to configure ports to run applications having special network requirements
Sample Hybrid LAN
The sample LAN illustrated below contains the following devices, all protected by the SBG901
firewall. Clockwise from top-right, the devices are:
• PDA, an Apple Macintosh
LAN connection
®
computer, a desktop PC, and a laptop PC with a 802.11g wireless
Figure 1 Sample Hybrid LAN
Optional Accessories
All networks are composed of multiple devices. The SBG901 works with any Wi-Fi certified IEEE
802.11g or IEEE 802.11b compliant client product.
The Wi-Fi capability of the SBG901 can also be used to allow other Wi-Fi enabled devices to
connect to the Internet.
The maximum range of Wi-Fi devices is 300 feet and the maximum data transfer speed is 54
Mbps
Note: Wi-Fi (Wireless Fidelity) is used to identify wireless products that have
been certified to conform to the IEEE 802.11b/g wireless networking
specification.
1 Introduction 15
This document is uncontrolled pending incorporation in PDM
Front Panel
The front panel contains indicator lights and a button for client card pairing. The display remains
dark until there is a connection or activity on an interface.
Figure 2 SBG901 Front Panel LEDs
The lights provide status and information about power, communications, and errors:
Table 1 SBG901 Front-Panel LED Indicators
Key Light Flashing On
1
2
3
4
5
POWER This light does not flash Power is provided to the SBG901
RECEIVE Scanning for a receive (downstream)
channel connection
SEND Scanning for a send (upstream) channel
connection
ONLINE Scanning for configuration parameters. Startup process is complete and the
WIRELESS Green: Wi-Fi enabled with encrypted
wireless data activity. A long/short flash
indicates mobile pairing in progress.
Amber: Wi-Fi enabled with unencrypted
wireless data activity.
Downstream channel is connected
Upstream channel is connected
SBG901 is online
Green: Wireless pairing
successfully established between
the SBG901 and another Wi-Fi
enabled device on your network
— printer, PDA, laptop, etc.
1 Introduction 16
This document is uncontrolled pending incorporation in PDM
Rear Panel
The rear panel contains cabling connectors and the power receptacle.
Figure 3 SBG901 Rear Panel
Table 2 SBG901 Rear Panel Connectors and Indicators
Key Item Description
1
2
3
4
ETHERNET Connects to an Ethernet-equipped computer, hub, or switch using an RJ-45 cable
connection
Connects the SBG901 to a cable wall outlet coaxial cable connection
CABLE
RESET Resets the digital voice modem.
Resetting the modem may take from five to 30 minutes.
+12VDC Provides power to the cable modem
1 Introduction 17
This document is uncontrolled pending incorporation in PDM
Bottom Label on the SBG901
The label on the bottom of the SBG901 contains the Media Access Control (MAC) address, a
unique, 48-bit value permanently saved in ROM at the factory to identify each Ethernet network
device. To receive data service, you will need to provide the MAC address
to your Internet Service provider.
Figure 4 MAC Label
SBG901 LAN Choices
marked HFC MAC ID
You can connect up to 245 client computers to the SBG901 using a combination of:
• Wireless LAN (WLAN) vs. LAN for wired
Each computer needs appropriate network adapter
the Ethernet or wireless interfaces can share:
• Internet access with a single Internet Service provider account, subject to Internet Service
provider terms and conditions
• Files, printers, storage devices, multi-user software applications, games, and video
conferencing
• Wireless and wired network connections use Windows networking to share files and
peripheral devices such as printers, CD-ROM drives, floppy disk drives, and external USB
drives.
hardware and driver software. The clients on
1 Introduction 18
This document is uncontrolled pending incorporation in PDM
Wireless LAN
Wireless communication occurs over radio waves rather than a wire. Like a cordless telephone, a
WLAN uses radio signals instead of wires to exchange data. A wireless network eliminates the
need for expensive and intrusive wiring to connect computers throughout the home or office.
Mobile users can remain connected to the network even when carrying their laptop to different
locations in the home or office.
Each computer on a WLAN requires a wireless adapter.
Laptop PCs — Use a wireless notebook adapter in the PCMCIA slot or a wireless USB adapter.
Desktop PCs — Use a wireless PCI adapter, wireless USB adapter, or compatible product in the
PCI slot or USB port, respectively.
Figure 5 Sample Wireless Network Connections
To set up the SBG901 on a computer wired to the SBG901 with an Ethernet connection, perform
the procedures found on the Wireless Pages.
wireless connection.
Your maximum wireless operation distance depends on the type of materials through which the
signal must pass and the location of your SBG901 and clients (stations). Motorola cannot
guarantee wireless operation for all supported distances in all environments.
1 Introduction 19
This document is uncontrolled pending incorporation in PDM
Do not attempt to configure the SBG901 over a
Wired Ethernet LAN
You can easily connect any PC with an Ethernet LAN port to the SBG901 Ethernet connection.
Because the SBG901 Ethernet port supports auto-MDIX
cross-over cable to connect a hub, switch, or computer. Use category 5, or better, cabling for all
Ethernet connections.
, you can use straight-through or
The physical wiring arrangement has no connection to the logical network allocation of IP
addresses.
A wired Ethernet LAN with more than one computer requires one or more hubs
routers
• Connect a hub or switch to the Ethernet port on the SBG901
• Use Ethernet hubs, switches, or routers to connect up to 245 computers to the SBG901
A complete discussion of Ethernet cabling is beyond the scope of this document.
. You can do the following:
Security
The SBG901 provides the following:
• A firewall
• For wireless transmissions, data encryption and network access control
Network Address Translation (NAT
LAN computers are not visible on the Internet.
Figure 6 Sample Ethernet to Computer Connection
, switches, or
to protect the SBG901 LAN from undesired attacks over the Internet
) provides some security because the IP addresses of SBG901
1 Introduction 20
This document is uncontrolled pending incorporation in PDM
Firewall
The SBG901 firewall protects the SBG901 LAN from undesired attacks and other intrusions from
the Internet. It provides an advanced, integrated stateful-inspection
detection, session tracking, and denial-of-service attack prevention. The firewall:
firewall supporting intrusion
DMZ
• Maintains state data for every TCP/IP
• Monitors all incoming and outgoing packets
screens for improper packets and intrusion attempts
• Provides comprehensive logging for all:
User authentications
Rejected internal and external connection requests
Session creation and termination
Outside attacks (intrusion detection)
You can configure the firewall filters to set rules for port usage. For information about choosing a
predefined firewall policy template, see the Firewall Pages
A de-militarized zone (DMZ) is one or more computers logically located outside the firewall
between an SBG901 LAN and the Internet. A DMZ prevents direct access by outside users to
private data.
For example, you can set up a web server on a DMZ computer to enable outside users to access
your website without exposing confidential data on your network.
A DMZ can also be useful to play interactive games that may have a problem running through a
firewall. You can leave a computer used for gaming only exposed to the Internet while protecting the
rest of your network. For more information, see Gaming Configuration Guidelines
session on the OSI network and transport layers
, applies the firewall policy to each one, and
.
.
Port Triggering
When you run an application that accesses the Internet, it typically initiates communications with
a computer on the Internet. For some applications, especially gaming, the computer on the
Internet also initiates communications with your computer. Because NAT does not normally allow
these incoming connections:
• If needed, you can configure additional port triggers on the Advanced Port Triggers Page.
1 Introduction 21
This document is uncontrolled pending incorporation in PDM
Wireless Security
Because WLAN data is transmitted using radio signals, it may be possible for an unauthorized
person to access your WLAN unless you prevent them from doing so. To prevent unauthorized
eavesdropping of data transmitted over your LAN, you must enable wireless security. The default
SBG901 settings neither provide security for transmitted data nor protect network data from
unauthorized intrusions.
The SBG901 provides the following wireless security measures, which are described on the
Wireless Pages
To prevent unauthorized eavesdropping, you must encrypt data transmitted over the wireless
interface using one of the following:
• If all of your wireless clients support Wi-Fi Protected Access (WPA or WPA2) encryption,
Motorola recommends using WPA2. Otherwise, configure a Wired Equivalency Privacy
(WEP) key on the SBG901 and each WLAN client.
• To protect the wireless LAN from unauthorized intrusions (see Setting Up Your Wireless
LAN), you can do one or both of the following:
Restrict WLAN access to computers having known MAC addresses
Enable closed network operation by disabling SSID broadcasting
.
Port Forwarding
The SBG901 opens logical data ports when a computer on its LAN sends data, such as e-mail
messages or web data, to the Internet. A logical data port is different from a physical port, such
as an Ethernet port. Data from a protocol must go through certain data ports.
Some applications, such as games and video conferencing, require multiple data ports. If you
enable NAT, this can cause problems because NAT assumes that data sent through one port will
return to the same port. You may need to configure port forwarding to run applications with
special requirements.
To configure port forwarding, you must specify an inbound (source) port or range of ports. The
inbound port opens only when data is sent to the inbound port and closes again after a specified
time elapses with no data sent to it. You can configure up to 32 port forwarding entries using the
Advanced Port Forwarding Page.
1 Introduction 22
This document is uncontrolled pending incorporation in PDM
Getting Started
2
The following topics provide information about installing the SBG901 hardware:
• Before You Begin
• Precautions
• Signing Up for Service
• Computer System Requirements
• Connecting the SBG901 to the Cable System
• Cabling the LAN
• Configuring TCP/IP
• Wall Mounting Your SBG901
For information about WLAN setup, see Setting Up Your Wireless LAN
Before You Begin
Before you begin the installation, check that the following items were included with your
Motorola SBG901 Gateway:
Item Description
Power cord
.
Table 3 Items Included with Your SBG901
Connects the SBG901 to a power adapter that connects
to an AC electrical outlet
Ethernet cable
SBG901 Installation
CD-ROM
SBG901 Install Sheet
2 Getting Started 23
This document is uncontrolled pending incorporation in PDM
Connects to the Ethernet port
Contains SBG901 Installation Assistant, and this user
guide
Contains basic information for getting started with the
SBG901
You must have the latest service packs and patches installed on your computer for your operating
system. You will need 75-ohm coaxial cable
nearest cable outlet. If a TV is connected to the cable outlet, you may need a 5 to 900 MHz RF
splitter
Determine the connection types you will make to the SBG901. Check that you have the required
cables, adapters, and adapter software. You may need:
Item Description
and two additional coaxial cables to use both the TV and the SBG901.
with F-type connectors to connect the SBG901 to the
Wireless LAN
Wired Ethernet
LAN
Wireless adapter and driver software for each computer having a wireless
connection
Ethernet cables and network interface cards (NICs) with accompanying
installation software
To connect more than one computer via an Ethernet connection to the SBG901
Precautions
Postpone SBG901 installation until there is no risk of thunderstorm or lightning activity in the
area.
To avoid potential shock, always unplug the power cord from the wall outlet or other power
source before disconnecting it from the SBG901 rear panel.
To prevent overheating the SBG901, do not block the ventilation holes on the sides of the unit.
Do not open the unit. Refer all service to your Internet Service provider.
Signing Up for Service
You must sign up with an Internet Service provider to access the Internet and other online
services. To activate your service, call your local Internet Service provider.
You need to provide the MAC address marked HFC MAC ID printed on the Bottom Label on the
SBG901. You can record it in the SBG901 Install Sheet.
You should ask your Internet Service provider the following questions:
• Do you have any special system requirements?
• When can I begin to use my SBG901?
• Are there any files I need to download after connecting the SBG901?
• Do I need a user name or password to access the Internet or use e-mail?
2 Getting Started 24
This document is uncontrolled pending incorporation in PDM
Computer System Requirements
You can connect Microsoft® Windows®, Macintosh®, UNIX®, or Linux® computers to the SBG901
LAN using one of the following:
• Ethernet — 10Base-T or 10/100Base-T Ethernet adapter with proper driver software installed.
For user with Microsoft Vista™, please note the following information on driver support:
Vista OS support
Vista Home Basic (32 bit and 64 bit)
Vista Home Premium (32 bit and 64 bit)
Vista Business (32 bit and 64 bit)
Vista Ultimate (32 bit and 64 bit)
Please note the following Euro market versions without Windows Media Player:
Vista Home Basic (32 bit and 64 bit)
Vista Home Premium (32 bit and 64 bit)
Vista Business (32 bit and 64 bit)
Vista Ultimate (32 bit and 64 bit)
• Wireless — Any IEEE 802.11g or IEEE 802.11b device. This includes any Wi-Fi certified
wireless device, such as a cellular telephone equipped with this feature.
In addition, your computer must meet the following requirements:
©
• PC with Pentium
• Windows 2000, Windows XP, Windows Vista, Macintosh, Linux, or UNIX operating system
with operating system CD-ROM available
Minimum 256 MB RAM recommended
10 MB available hard disk space
You can use any web browser with the SBG901.
class or better processor
Connecting the SBG901 to the Cable System
Before starting, be sure the computer is turned on and the SBG901 is unplugged.
1. Connect one end of the coaxial cable to the cable outlet or splitter.
2. Connect the other end of the coaxial cable to the cable connector on the SBG901. Hand-
tighten the connectors to avoid damaging them.
3. Plug the power cord into the power connector on the SBG901.
4. Plug the power cord into the electrical outlet. This turns the SBG901 on. You do not need to
unplug it when not in use. The first time you plug in the SBG901, allow it 5 to 30 minutes to
find and lock on the appropriate communications channels.
2 Getting Started 25
This document is uncontrolled pending incorporation in PDM
Figure 7 Connecting the SBG901
Check that the lights on the front panel cycle through this sequence:
Table 4 SBG901 Light Activity During Startup
Light Description
POWER
RECEIVE
SEND
ONLINE
Turns on when AC power is connected to the SBG901.
Indicates that the power is connected properly.
Flashes while scanning for the downstream receive channel.
Changes to solid green when the receive channel is locked.
Flashes while scanning for the upstream send channel.
Changes to solid green when the send channel is locked.
Flashes during SBG901 registration and configuration.
Changes to solid green when the SBG901 is registered.
Cabling the LAN
After connecting to the cable system, you can connect your wired Ethernet LAN. Some sample
connections are shown in Wired Ethernet LAN
proper drivers for the Ethernet adapter. Detailed information about network cabling is beyond the
scope of this document.
. On each networked computer, you must install
2 Getting Started 26
This document is uncontrolled pending incorporation in PDM
Obtaining an IP Address for an Ethernet Connection
You can use either of the following two options to obtain the IP address for the network interface
on your computer:
• Retrieve the statically defined IP address and DNS address
• Automatically retrieve the IP address using the Network DHCP server
The Motorola SBG901 gateway provides a DHCP server on its LAN. It is recommended that you
configure your LAN to obtain the IPs for the LAN and DNS server automatically.
Configuring TCP/IP
Make sure all client computers are configured for TCP/IP, which is a protocol for communication
between computers. Perform one of the following for the operating system you are running:
• Configuring TCP/IP in Windows 2000
• Configuring TCP/IP in Windows XP
• Configuring TCP/IP in Windows Vista
• For UNIX systems, follow the instructions in the applicable UNIX user documentation.
After configuring TCP/IP on your computer, you must verify the IP address. Perform one of the
following:
• Verifying the IP Address in Windows 2000 or Windows XP
• Verifying the IP Address in Windows Vista
For UNIX systems, follow the instructions in the applicable UNIX user documentation.
Your cable provider may provide additional instructions to set up your computer.
Configuring TCP/IP in Windows 2000
1. Select Control Panel from either the Windows Start menu or Windows Desktop to display
the Control Panel window.
2. Double-click Network and Dial-up Connections to display the Network and Dial-up
Connections window.
In the steps that follow, a connection number such as 1, 2, or 3 represents PCs with multiple
network interfaces. PCs having only one network interface may be represented as “Local
Area Connection.”
3. Double-click Local Area Connection number to display the Local Area Connection number
Status window. The value of number varies from system to system.
2 Getting Started 27
This document is uncontrolled pending incorporation in PDM
Figure 8 Local Area Connection Status window
4. Click Properties to display the Local Area Connection number Properties window.
Information similar to the following is displayed.
Figure 9 Local Area Connection Properties window
5. If Internet Protocol (TCP/IP) is in the list of components, TCP/IP is installed. You can skip to
step 8.
6. If Internet Protocol (TCP/IP) is not in the list of components, click Install. The Select Network
Component Type window is displayed.
2 Getting Started 28
This document is uncontrolled pending incorporation in PDM
Figure 10 Select Network Component Type window
7. Click Protocol and then click Add. The Select Network Protocol window is displayed.
8. Click Internet Protocol (TCP/IP)
Properties window is redisplayed.
, and then click OK. The Local Area Connection number
Figure 11 Local Area Connection Properties window
9. Click Internet Protocol (TCP/IP)
(TCP/IP) Properties window.
10. Be sure Obtain an IP address automatically and Obtain DNS server address
automatically are selected.
11. Click OK to save the TCP/IP settings and exit the TCP/IP Properties window.
12. Click OK to exit the Local Area Connection Properties window.
13. Click OK when prompted to restart the computer and click OK again.
14. When you complete the TCP/IP configuration, go to Verifying the IP Address in Windows
2000 or Windows XP.
2 Getting Started 29
This document is uncontrolled pending incorporation in PDM
, and then click Properties to display the Internet Protocol
Configuring TCP/IP in Windows XP
1. On the Windows desktop, click Start to display the Start window.
2. Click Control Panel to display the Control Panel window. The display varies, depending on
the Windows XP view options. If the display is a Category view, as shown below, continue
with step 3. Otherwise, skip to step 5.
3. Click Network and Internet Connections to display the Network and Internet Connections
window.
Figure 12 Network and Internet Connections window
4. Click Network Connections to display the LAN or High-Speed connections. You can skip to
step 7.
5. If a Classic view similar to the screenshot below is displayed, double-click Network
Connections to display LAN or High-Speed Internet connections.
Figure 13 Windows XP Classic View Control Panel
6. Right-click the network connection. If more than one connection is displayed, be sure to
select the one for your network interface.
2 Getting Started 30
This document is uncontrolled pending incorporation in PDM
Loading...
