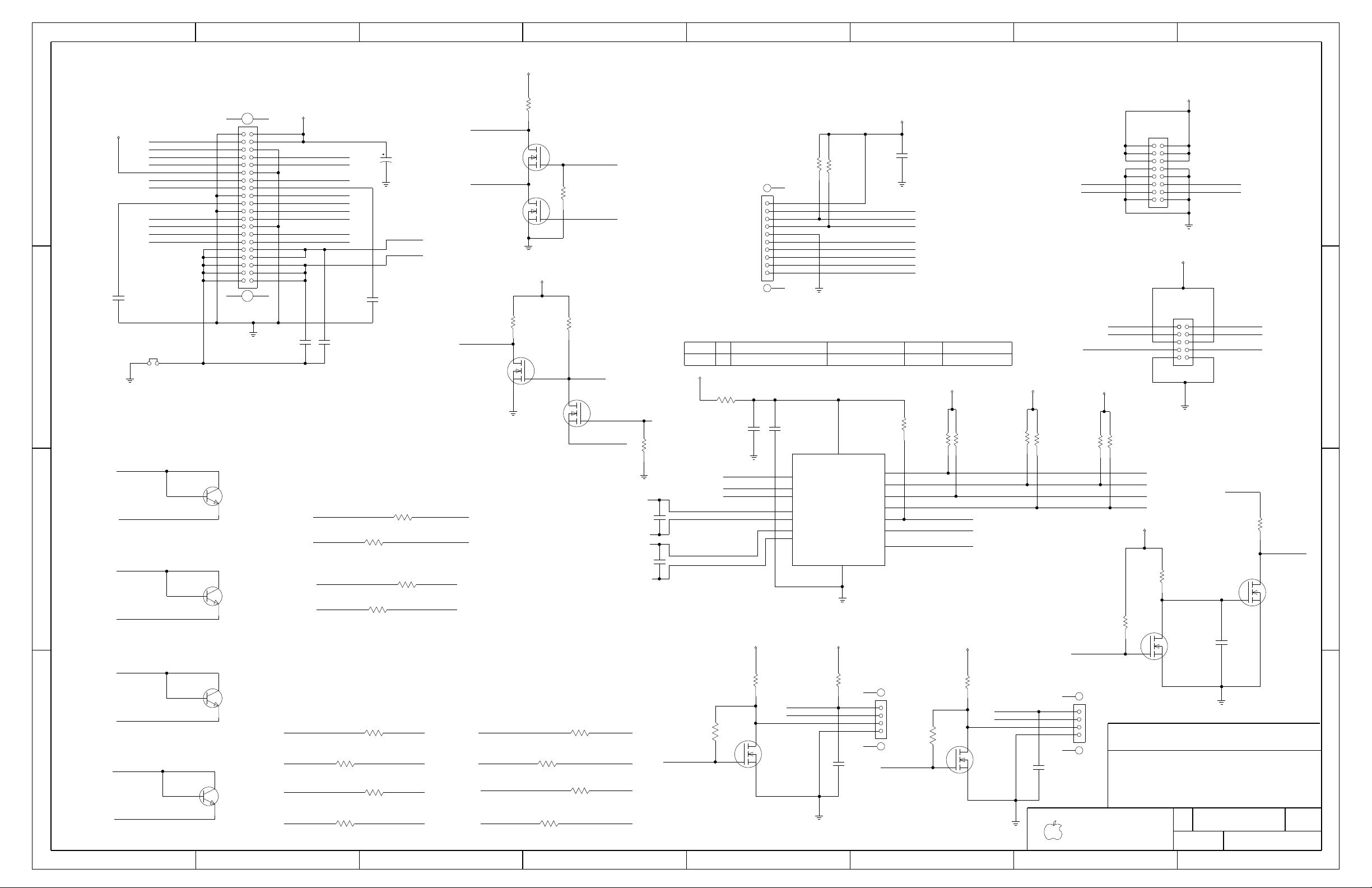

Apple A1106 Schematic

Download

REFERENCE DESIGNATOR(S)

BOM OPTION

TABLE_5_HEAD

QTY

DESCRIPTION

PART#

TABLE_5_ITEM

ANGLES

3. ALL CRYSTALS & OSCILLATOR VALUES ARE IN HERTZ.

2. ALL CAPACITANCE VALUES ARE IN MICROFARADS.

1. ALL RESISTANCE VALUES ARE IN OHMS, 0.1 WATT +/- 5%.

DATE

APPD

ENG

DATE

APPD

ECN

ZONE

REV

DO NOT SCALE DRAWING

X.XXX

X.XX

DIMENSIONS ARE IN MILLIMETERS

THIRD ANGLE PROJECTION

SIZE

APPLICABLE

NOTED AS

MATERIAL/FINISH

NONE

SCALE

DESIGNER

MFG APPD

DESIGN CK

RELEASE

QA APPD

ENG APPD

DRAFTER

METRIC

SHT

DRAWING NUMBER

TITLE

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

Apple Computer Inc.

REV.

DESCRIPTION OF CHANGE

SCHEM,MLB,PB15"

12/17/2004

PAGE

VIDEO CONNECTORS - INVERTER,DVI,

DDR MEMORY MUXES

MPC7447A MAXBUS INTERFACE

MPC7447A DATA/NC PINS/BOOTBANGER

CPU PLL AND CONFIGURATION STRAPS

REVISION HISTORY

SIGNAL CONSTRAINTS(PG4)-POWER NETS

SIGNAL CONSTRAINTS(PG3)-DIGITAL/DIFF

SIGNAL CONSTRAINTS(PG2)-CPU

PBUS SUPPLY,PMU SUPPLY,SUPERCAP

PMU

LVDS,S-VIDEO

27 28

SYSTEM BLOCK DIAGRAM

TITLE PAGE AND CONTENTS

CONTENTS

SIGNAL CONSTRAINTS(PG1)-DDR MEM/CLK

CARDBUS INTERFACE (PCI1510)

3.3V/5V SYSTEM POWER SUPPLY

BATTERY CHARGER AND CONNECTOR

BBANG INT_2_5V_HOT

(BETTER/BEST)

(BEST128)

(BETTER/BEST)

PAGE

1 2 3 4

7 8

9 10 11 12

17 18 19 20

43-46

POWER BLOCK DIAGRAM

PCB NOTES AND HOLES

INTREPID MAXBUS AND BOOT STRAPS

INTREPID MEMORY INTERFACE/BOOTROM

400PIN STACKED DDR SODIMM CONNECTOR

INTREPID AGP 4X/PCI

USB 2.0 INTERFACE (uPD720101)

INTERFACES INTREPID GPIOS/SERIAL/USB

SCHEMATIC CREF AND NETLIST REPORTS

1.5V/1.8V/2.5V SYS. POWER SUPPLIES

CPU CORE VOLTAGE POWER SUPPLY

,BACKUP BATTERY

FIREWIRE PORTS

FIREWIRE PHY

GIGABIT ETHERNET INTERFACE

INTERNAL CONNECTORS-AIRPORT,HDD,ODD

MMM & BATTERY CURRENT SENSE CIRCUIT

SPIDEY,PWR BUTTON,ALS

STUFF 1_8V_MAXBUS NO_SSCG 5V_HD_LOGIC NO_BBANG

ATI_MEMIO_HI

INT_2_5V_COLD

SOFT_MODEM

EMI

GPU_PWRMSR GPU_SS

VGA_BUFFER_RES

MMM

SUPERCAP ADT7460

INT_TMDS

EXT_TMDS

ADT7467

NO STUFF

3V_HD_LOGIC

1_5V_MAXBUS SSCG

ATI_MEMIO_LO

USB_MODEM

EXT_TMDS

INT_TMDS

BACKUP_BATT

INTERFACES/SSCG

INTREPID DECOUPLING

M11 AGP INTERFACE & SPREAD SPECTRUM

EXTERNAL TMDS (DUAL TMDS - SIL178)

M11 LVDS/TMDS/GPIO & GPU VCORE

M11 POWER

FAN CONTROLLER,SW MODEM,SERIAL DEBUG SOUND/LEFT USB/BLUETOOTH

BOM OPTIONS (IN COMMON PARTS)

CONTENTS

INTREPID ENET/FW/UATA/EIDE

INTREPID POWER RAILS/1.5V LDO

FUNCTIONAL TESTPOINTS

051-6680

PRODUCTION RELEASED

12/17/04

356292

SCHEM,MLB,PB15

051-6680

SCH1

SCHEM,MLB,PB15

820-1679 PCB1

PCBF,MLB,PB15

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

NOT USED

(INTERNAL MEM)

U16/U18/U28/U27

(INTERNAL MEM)

NOT USED

@ 400MHZ

2 DATA PAIRS

NOT USED

Ethernet

Connector

P.28

J23

4 DATA PAIRS

U43

Ethernet

PHY

P.28

G/MII

3.3V

10/100/1000

8BIT TX 8BIT RX 125MHZ

U15/U20/U58

MMM

P.25

BATTERY

CURRENT

U41

SENSOR

P.25

BlueTooth (LIO)

P.27

J10

SPIDEY

P.24

MAXBUS

1.8V

167MHZ 32BIT ADDRESS 64BIT DATA

U56

APOLLO

CPU

(MPC7447)

P.5-6

PMU

P.7

Config

CPU PLL

P.11

SO-DIMM Connector

DDR SDRAM DIMM 1

DDR SDRAM DIMM 0

J25

P.10

2:1 DDR MUXES

64BITS

167MHZ

2.5V

MEMORY BUS

P.9

DDR MEMORY

P.8

MAXBUS

P.12

4X AGP

P.12

33MHZ

64BITS

PCI

INTREPID

U51

P.14

USB PORT F

P.14

USB PORT E

P.14

USB PORT D

P.14

USB PORT C

P.14

USB PORT B

P.14

USB PORT A

ETHERNET

10/100/1000

P.13

FIREWIRE

400 MB/S

P.13

UATA 100

P.13

EIDE

P.13

CARDSLOT

P.13

I2S

P.14

I2C

P.13 P.14

SCCA

P.14

VIA/PMU

P.14

BOOTROM

P.12

NOT USED

I2C

I2CI2S

EIDE

P.26

Connector

HDD

P.26

Connector

ODD

J13

J12

J24

FW - A

Connector

P.30

2 DATA PAIRS @ 200MHz

U36

FireWire

PHY

P.29

1394 OHCI

3.3V

8BIT TX/RX

50MHZ

J20

FW - B

Connector

P.30

UIDE

J15

SW MODEM

Connector

P.27

LIO/Audio

Connector

P.27

Circuit

Fan

U53/J1/J18

SLEEP

P.24

J28

Serial Debug

Connector

P.27

U11

BOOT ROM

1M X 8

P.9

SERIAL

PMU

U28

3.3V

SMBUS

P.32

Connector

Battery

J26

P.32-36

& Charger

Power Supply

P.32

Connector

DC-In

J27

P.33

SUPERCAP

C692

BACKUP

BATTERY

CONNECTOR

P.33

J16

P.24

Connector

ALS BOARD

P.24

Connector

RUX Board

J19

CARDBUS

Connector

P.18

33MHZ 16/32 BITS

3.3V/5V

TI PCI1510

CardBus

Controller

P.18

PCI BUS

33MHZ

32BITS

3.3V

AIRPORT

Connector

P.26

P.31

U47

ATI M11

64MB

P.19-22

AGP BUS

1.5V/3.3V

66MHZ

32BITS

Inverter

Connector

P.23

J14

LCD Panel

Connector

P.23

LVDS

EDID (I2C)

COMPOSITE

TMDS

(VIA SIL1162)

RGB

DDC

DVI-I

P.23

J22

P.23

J21

MEMORY CH. A

MEMORY

CH. C

MEMORY CH. D

MEMORY CH. B

RIGHT USB

J17

(VIA STATLER)

P.27

(VIA LIO)

LEFT USB

P.17

EHCI HC

NEC USB2.0

U17

SYSTEM BLOCK DIAGRAM

ConnectorConnector

S-Video

S-VIDEO

LED

051-6680

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

+PBUS

14V CHARGES BACKUP BATTERY

BACKUP BATTERY

+5V_MAIN

MAP31 DDR CORE

<~13.44V SHUTS-OFF

+PBUS

PG 33

+1.5V_MAIN

+2.5V_MAIN

+BATT

14V_PBUS

+5V_MAIN

+3V_PMU

+4_6V_BU

+5V_MAIN

1V20_REF

>~13.44V TURNS-ON

+3V_PMU

INTERNAL ZENER CLAMP TO 6V

TURNS ON AT >1V

STARTS 2.0MSEC AFTER DCDC_EN_L BECOMES LOW

DCDC_EN_L WILL PULL ON1/ON2

1_5V_2_5V_OK

RC AT 1M*0.1UF @ 24V

STARTS ~4.25MSEC AFTER DCDC_EN_L BECOMES LOW

LDO

BACKUP BATTERY CIRCUIT CHARGES OFF +PBUS

(D3COLD)

(D3HOT)

(AT LTC1778 RUN/SS)

(MAX1715 OUTPUT)

+PBUS

DDR POWER

AGP I/O

+PBUS

3S 2P 18650 CELLS

INTERNAL ZENER CLAMP TO 6V

DCDC_EN_L D3_HOT

D3_HOT

1_5V_2_5V_OK WILL NOT PULL LOW UNTIL +5V_MAIN TURNS ON

BECOMES ’1’; MUCH LESS THAN THE

DCDC_EN_L OR PMU_POWERUP_L

RC CHARGING AT INT_VCC (5V)

HOWEVER, 5V SHOULD TURN ON ~2.23MS AFTER

D3_COLD

14V_PBUS

(UNTIL DRAINED)

AFTER PMU IS UP AND RUNNING

DCDC_EN_L

TURNS ON AT >1V

<100UA ALLOWED

INTERNAL 1.2UA CURRENT SOURCE

INTREPID CORE

MAP31 DDR I/O

24V IS OUTPUT ONLY FROM

LOW IN SHUTDOWN

AND PREVENTS +PBUS AND +24V_PBUS FROM DROPPING BELOW 6V

POWER SYSTEM ARCHITECTURE

ADAPTER

PG 32

INRUSH

LIMITER

PG 32

+24V_PBUS

RUN/SS

BUCK

REGULATOR

VCC

NO AC: BATTERY VOLTAGE

AC: 12.8V

PG 33

(LTC1625)

1625 NOT RUNNING

SHUTDOWN: RUNNING

SLEEP: RUNNING

RUN: RUNNING

BATTERY VOLTAGE

FEED-IN PATH

PG 32

WHEN ONLY BATTERY IS CONNECTED

NO INRUSH PROTECTION

PG 36

RUN: RUNNING

SLEEP: STOPPED

SHUTDOWN: STOPPED

(LTC3411)

DC/DC

MAXBUS

+1.8V_MAIN

PG 32

(MAX1772)

CHARGER

BATTERY

+BATT

PG 33

& BOOST OUTPUT

CHARGER INPUT

BATTERY

BACKUP

+24V_PBUS

WHEN ONLY BATTERY IS CONNECTED

NO INRUSH PROTECTION

STBYMD

PGOOD

PG 34

(LTC3707)

DC/DC

MAIN 3V/5V

VCC

SHUTDOWN: STOPPED

SLEEP: RUNNING

RUN: RUNNING

RUN/SS - 3V

RUN/SS - 5V

+5V_MAIN

3V_5V_OK

+3.3V_MAIN

RC AT 1M*0.047UF @ 24V

BACKLIGHT

INVERTER

+5V_MAIN

MAIN 2.5V/1.5V

VCC

DC/DC

(MAX1715)

PG 36

PGOOD

SHUTDOWN: STOPPED

SLEEP: RUNNING

RUN: RUNNING

TURNS ON OUTPUT @ 2.4V

ON1/ON2

DCDC_EN

SLEEP

MAXBUS

SEQUENCING

+5V_MAIN

VCC

SHDN

DC/DC

(MAX1717)

SHUTDOWN: STOPPED

SLEEP: STOPPED

RUN: RUNNING

PG 35

CPU_VCORE

(+1.385V)

GPU_VCORE

+1.2V

VCC

EXT_VCC

DC/DC

(LTC1778)

SHUTDOWN: STOPPED

SLEEP: D3COLD

RUN: RUNNING

TURNS ON AS LOW AS 0.8V/TYP 1.5V

PG 20

RUN/SS

DCDC_EN

SLEEP

GPU_VCORE

SEQUENCING

1M & 0.1UF @14V, IT TAKES ~5.88MS TO START SWITCHER

1_5V_2_5V_OK

HOLDS BOTH RUN/SS AT GND WHEN IT’S CONNECTED TO GND

TURNS CONTROL TO RUN/SS WHEN IT’S OPEN

POWER BLOCK DIAGRAM

SHUT-DOWN

RUN

SLEEP

RUN

SHUT-DOWN

SLEEP

SLEEP_L_LS5

DCDC_EN

DCDC_EN_L

+5V_MAIN

+5V_SLEEP

+3V_MAIN

+3V_SLEEP

3V_5V_OK

+2_5V_MAIN

+2_5V_SLEEP

+1_5V_MAIN

+1_5V_SLEEP

1_5V_2_5V_OK

GPU_VCORE GPU_VCORE

~8.2MS

??? MS

2.4V - ??? MS

~7.36MS

~2.23MS

051-6680

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

GROUND VIAS

1 2

PREPREG (3 MIL)

CORE (3 MIL)

PREPREG (5 MIL)

CORE (5 MIL)

PREPREG (5 MIL)

CORE (3 MIL)

PREPREG (3 MIL)

SIGNAL (1/2 OZ + COPPER PLATING)

SIGNAL (1/2 OZ)

GROUND (1/2 OZ)

SIGNAL (1/2 OZ)

CUT POWER PLANE (1 OZ)

SIGNAL (1/2 OZ)

GROUND (1/2 OZ)

SIGNAL (1/2 OZ)

SIGNAL (1/2 OZ + COPPER PLATING)

BOARD HOLES

CHASSIS MOUNTS

INVERTER

ASICS HEATSINK MOUNTS

I/O AREA

LEFT CPU

UPPER RT GPU

LWR CPU

LWR RT GPU

1394

DVI

MECH. HOLES

BATT. CHRGR

BOARD INFORMATION

PCB SPECS

THICKNESS : 1.2 MM / 0.047 IN

1/2 OZ CU THICKNESS: 0.7 MILS

1.0 OZ CU THICKNESS: 1.4 MILS

IMPEDANCE : 50 OHMS +/- 10% DIELECTRIC: FR-4 LAYER COUNT: 10 SIGNAL TRACE WIDTH: 4 MILS

SIGNAL TRACE SPACING: 4 MILS PREPREG THICKNESS: 2-3 MILS

SEE PCB CAD FILES FOR MORE SPECIFIC INFO.

BOARD STACK-UP AND CONSTRUCTION

1-8-1 BLIND MICROVIA/20R10 BURIED VIA/20R10 TH VIA

PREPREG (3 MIL)

DVI

ZT70

HOLE-VIA-20R10

ZT9

HOLE-VIA-20R10

ZT2

HOLE-VIA-20R10

ZT73

HOLE-VIA-20R10

ZT75

HOLE-VIA-20R10

ZT63

HOLE-VIA-20R10

ZT77

HOLE-VIA-20R10

ZT66

HOLE-VIA-20R10

ZT65

HOLE-VIA-20R10

ZT62

HOLE-VIA-20R10

ZT25

HOLE-VIA-20R10

ZT24

HOLE-VIA-20R10

ZT19

HOLE-VIA-20R10

ZT67

HOLE-VIA-20R10

ZT37

HOLE-VIA-20R10

ZT29

HOLE-VIA-20R10

ZT31

HOLE-VIA-20R10

ZT1

HOLE-VIA-20R10

ZT12

HOLE-VIA-20R10

ZT14

HOLE-VIA-20R10

ZT27

HOLE-VIA-20R10

ZT26

HOLE-VIA-20R10

ZT13

HOLE-VIA-20R10

ZT30

HOLE-VIA-20R10

ZT33

HOLE-VIA-20R10

ZT18

HOLE-VIA-20R10

SH1

OG-503040

SHLD-SM

CHGND5

ZT7

HOLE-VIA-20R10

ZT21

HOLE-VIA-20R10

ZT59

HOLE-VIA-20R10

ZT58

HOLE-VIA-20R10

ZT85

HOLE-VIA-20R10

ZT86

HOLE-VIA-20R10

ZT16

HOLE-VIA-20R10

ZT74

HOLE-VIA-20R10

ZT36

HOLE-VIA-20R10

ZT23

HOLE-VIA-20R10

ZT42

HOLE-VIA-20R10

CHGND2

CHGND1

CHGND3

ZT76

HOLE-VIA-20R10

ZT41

HOLE-VIA-20R10

ZT40

HOLE-VIA-20R10

ZT39

HOLE-VIA-20R10

ZT38

HOLE-VIA-20R10

ZT61

HOLE-VIA-20R10

ZT64

HOLE-VIA-20R10

ZT68

HOLE-VIA-20R10

ZT69

HOLE-VIA-20R10

ZT72

HOLE-VIA-20R10

ZT28

HOLE-VIA-20R10

ZT46

HOLE-VIA-20R10

ZT71

HOLE-VIA-20R10

ZT78

HOLE-VIA-20R10

ZT80

HOLE-VIA-20R10

ZT51

HOLE-VIA-20R10

ZT50

HOLE-VIA-20R10

ZT52

HOLE-VIA-20R10

ZT53

HOLE-VIA-20R10

ZT57

HOLE-VIA-20R10

ZT82

HOLE-VIA-20R10

ZT60

HOLE-VIA-20R10

ZT22

HOLE-VIA-20R10

ZT17

HOLE-VIA-20R10

ZT35

HOLE-VIA-20R10

ZT45

HOLE-VIA-20R10

ZT79

HOLE-VIA-20R10

ZT83

HOLE-VIA-20R10

ZT81

HOLE-VIA-20R10

ZT49

HOLE-VIA-20R10

ZT47

HOLE-VIA-20R10

ZT48

HOLE-VIA-20R10

ZT54

HOLE-VIA-20R10

ZT55

HOLE-VIA-20R10

ZT56

HOLE-VIA-20R10

ZT5

HOLE-VIA-20R10

ZT84

HOLE-VIA-20R10

ZT15

HOLE-VIA-20R10

ZT44

HOLE-VIA-20R10

ZT4

HOLE-VIA-20R10

ZT8

HOLE-VIA-20R10

ZT6

HOLE-VIA-20R10

ZT3

HOLE-VIA-20R10

ZT32

HOLE-VIA-20R10

ZT10

HOLE-VIA-20R10

ZT34

HOLE-VIA-20R10

ZT11

HOLE-VIA-20R10

ZT20

HOLE-VIA-20R10

ZT43

HOLE-VIA-20R10

051-6680

ZT10_SPN NO_TEST=TRUE

ZT302_SPN NO_TEST=TRUE

NO_TEST=TRUE

ZT301_SPN

QACK*

TEA*

A10

MCP*

A23

A28 A29

TRST*

PMON_OUT*

SHD1* HIT*

SHD0*

ARTRY*

AACK*

CI*

WT*

GBL*

TBST*

TS*

BG*

BR*

GND

VDD

A1 A2

A11

A8 A9

A12

A22

A21

A20

A19

A18

A17

A16

A15

A14

A13

A32

A31

A30

A27

A24 A25

AP1

AP4

AP2 AP3

AP0

A35

A34

A33

TT0

TT4

TSIZ1 TSIZ2

TSIZ0

TT1 TT2 TT3

DTI3

DTI2

TDI TDO TMS TCK

A26

BMODE0*

PMON_IN*

BMODE1*

DTI1

DTI0

LSSD_MODE*

TA*

L2_TSTCLK

L1_TSTCLK

EXT_QUAL

CHKS*

DX*

SRW0*

IARTRY0*

SRW1*

(1 OF 3)

HRESET*

SRESET*

TBEN

QREQ*

CKSTP_IN*

CKSTP_OUT*

SYSCLK

INT* SMI*

PLL_CFG1

CLK_OUT

OVDD

PLL_CFG0

PLL_CFG3

DRDY*

DBG*

PLL_CFG2

PLL_CFG4

BVSEL

AVDD

OVDDSENSE

PG EN

VIN

ADJ

VOUT

GND

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

(NAP VOLTAGE=0.98V FOR ALL CONFIG.)

470OHM FOR BOOT BANGER

(R1)

MPC7447 MAXBUS

Place R449 & R452 close to U5 pin 6&5

Vout=0.59*(1+R1/R2)

MPC7447 PULL-UPS

CPU_OVDD DECOUPLING NETWORK

CPU_VCORE DECOUPLING NETWORK

MORE 0805 10UF CAPS ON VCORE POWER SUPPLY PAGE (PG 32)

For CPU DFS mode, Must stuff R748

CPU INTERNAL PLL FILTERING

10K

1/16W

402

R46

10K

1/16W

402

R13

10K

1/16W

402

R20

470

1/16W

5% MF

402

R32

10K

1/16W

402

R11

10K

1/16W

402

1/16W

402

10K

1/16W

402

R24

10K

1/16W

402

R34

0.1uF

20% 10V CERM 402

C89

0.1uF

20% 10V CERM 402

C73

0.1uF

20% 10V CERM 402

C18

CERM 402

20%

0.1uF

10V

C20

0.1uF

20% 10V CERM 402

C75

0.1uF

20% 10V CERM 402

20%

402

CERM

10V

0.1uF

C49

402

CERM

10V

20%

0.1uF

C46

402

CERM

10V

20%

0.1uF

C30

0.1uF

402

CERM

10V

20%

C56

402

CERM

10V

20%

0.1uF

C45

402

CERM

10V

20%

0.1uF

C48

0.1uF

20% 10V CERM 402

C44

0.1uF

10V

20% CERM

402

C86

0.1uF

20% 10V CERM 402

C88

20%

0.1uF

10V CERM 402

C10

0.1uF

20% 10V CERM 402

C38

0.1uF

20% 10V CERM 402

C72

402

1/16W

470

R89

0.1uF

20% 10V CERM 402

C50

402

CERM

10V

20%

0.1uF

C28

402

CERM

10V

20%

0.1uF

C39

402

CERM

10V

20%

0.1uF

C47

402

CERM

10V

20%

0.1uF

C26

402

CERM

10V

20%

0.1uF

C31

402

1/16W

5% MF

470

R38

10K

1/16W

402

R36

470

1/16W

402

R45

10K

1/16W

402

R28

1/16W

402

805

20%

6.3V

10uF

CERM

C32

805

CERM

6.3V

20%

10uF

C33

805

CERM

6.3V

20%

10uF

C59

805

CERM

6.3V

20%

10uF

C58

10K

1/16W

402

R27

10K

1/16W

402

R33

2.2uF

20% 10V CERM 805

C62

805

CERM

10V

20%

2.2uF

C34

10K

1/16W

402

R25

10K

1/16W

402

1_5V_MAXBUS

1/16W

603

R281

1_8V_MAXBUS

1/16W

603

R283

+1_5V_SLEEP

+1_8V_SLEEP

470

1/16W

402

APOLL7_PM-R1.1

1.50GHZ-1.28V BGA

OMIT

K10

J13

J11

J9J7H12

H10

M12

M10

L13

L11

L9L7K14

K12

F11

A10

E10

B10

P4 G5

G18

E18

L5K2J5H3F2D5C12

V14

V10

V7V4U16

U12

U2C2T9T6R16

R13

P11

P8P2N6

G17

E17

V15

V11

U17

U13

D13

T10

R17

R14

P12

M13D6M11

L12

L10

K13

K11

J12

J10

H13

H11

A11

D10

A12

B7D2

C10

D11

F10

B11

G10

B12

C11

D12

E11

U56

402

CERM

10V

20%

0.1uF

C29

402

CERM

10V

20%

0.1uF

C27

20%

402

CERM

10V

0.1uF

C25

402

CERM

10V

20%

0.1uF

C54

402

CERM

10V

20%

0.1uF

C53

402

CERM

10V

20%

0.1uF

C55

0.1uF

20% 10V CERM 402

C87

0.1uF

20% 10V CERM 402

C69

0.1uF

402

CERM

10V

20%

C17

0.1uF

402

CERM

10V

20%

C82

0.1uF

20% 10V CERM 402

C81

0.1uF

20% 10V CERM 402

C61

10K

1/16W

402

10K

1/16W

402

R37

10K

1/16W

402

R19

10K

1/16W

402

R26

402

CERM

10V

20%

0.1uF

402

CERM

10V

20%

0.1uF

C103

402

CERM

10V

20%

0.1uF

C68

402

CERM

10V

20%

0.1uF

C109

0.1uF

20% 10V CERM 402

C107

CERM 805

6.3V

20%

10uF

C104

402

CERM

10V

20%

0.1uF

C108

402

CERM

10V

20%

0.1uF

C110

402

CERM

10V

20%

0.1uF

OMIT

XW34

FAN2558

SOT23-6

3 5

100K

1% 1/16W

402

R452

1uF

10%

6.3V CERM 402

C102

2.2uF

10%

6.3V

CERM1

603

C85

1/16W

603

R302

+3V_SLEEP

1/16W

402

2 1

R748

NO STUFF

1/16W

402

2 1

R453

1/16W

402

100K

5% MF

R455

MBR0530

2 1

D17

0.1uF

20% 10V CERM 402

C502

0.001uF

10% 50V

CERM

402

C626

1/16W

MF 402

R755

NO STUFF

200K

5% 1/16W MF 402

R775

1/16W

CPU_BST

402

118K

R449

0.1uF

20% 10V CERM 402

C810

4.7uF

20%

6.3V CERM 805

C811

IC,A7PM,R1.2.3,1.50GHZ,1.2VCORE,18W,85C

337S2952

CRITICAL

CPU_BTR

U56

CPU_BST_VCORE126

IC,A7PM,R1.2.3,1.67GHZ,1.26VCORE,23W,85C

337S3069

CRITICAL

IC,A7PM,R1.3,1.50GHZ,1.20VCORE,18W,85C

337S3027

NO STUFF

U56

CPU_BST_VCORE126

114S1155

RES,MF,1/16W,115K OHM,1%,0402,SMD

R449

IC,A7PM,R1.3,1.67GHZ,1.29VCORE,18W,85C

U56

CRITICAL

337S3028

NO STUFF

CPU_BTR

R449

RES,MF,1/16W,105K OHM,1%,0402,SMD

114S0413

051-6680

U56

IC,A7PM,R1.2.3,1.67GHZ,1.28VCORE,23W,85C

CPU_BST

CRITICAL

337S2953

CPU_L1TSTCLK

CPU_AVDD

CPU_TA_L

ADT7467_VCORE_MON

CPU_AVDD_SHDN_L

CPU_LSSD_MODE

MAXBUS_SLEEP

CPU_HRESET_L

JTAG_CPU_TDI

JTAG_CPU_TCK

SYSCLK_CPU

CPU_BG_L

CPU_PULLUP

CPU_PLL_CFG<4>

JTAG_CPU_TCK

CPU_L1TSTCLK

CPU_MCP_L

CPU_ADDR<18>

CPU_PULLDOWN

CPU_PMONIN_L

CPU_EMODE0_L

CPU_ARTRY_L CPU_SHD0_L

CPU_BR_L

CPU_ADDR<4>

CPU_ADDR<6>

CPU_ADDR<5>

CPU_ADDR<9>

CPU_ADDR<11>

CPU_ADDR<10>

CPU_ADDR<12>

CPU_ADDR<15>

CPU_ADDR<17>

CPU_ADDR<20>

CPU_ADDR<22>

CPU_ADDR<24>

CPU_ADDR<23>

CPU_ADDR<25>

CPU_ADDR<27> CPU_ADDR<28>

CPU_TT<0> CPU_TT<1>

CPU_TT<3>

CPU_TT<2>

CPU_TBST_L CPU_TSIZ<0>

CPU_TSIZ<2>

CPU_TSIZ<1>

CPU_WT_L

CPU_GBL_L

CPU_CI_L CPU_AACK_L

CPU_ADDR<7>

CPU_PULLDOWN

CPU_EMODE1_L

CPU_SRWX_L

CPU_PULLUP

CPU_HRESET_L

CPU_SRESET_L

MPIC_CPU_INT_L CPU_SMI_L

CPU_CHKS_L

CPU_SHD1_L

CPU_MCP_L

CPU_L2TSTCLK

MPIC_CPU_INT_L

JTAG_CPU_TMS

CPU_PULLDOWN

VCORE_SHDN_L_3V

CPU_DTI<0>

CPU_TBEN

CPU_SHD0_L

CPU_EDTI

CPU_VCORE_SLEEP

CPU_EMODE1_L

CPU_CHKSTP_OUT_L

CPU_SMI_L

CPU_SRESET_L

CPU_ADDR<19>

JTAG_CPU_TRST_L

CPU_AVDD_VIN

CPU_PMONIN_L

CPU_SRWX_L

CPU_ADDR<21>

CPU_DTI<1>

CPU_ADDR<0> CPU_ADDR<1> CPU_ADDR<2> CPU_ADDR<3>

CPU_ADDR<8>

CPU_ADDR<13> CPU_ADDR<14>

CPU_ADDR<16>

CPU_ADDR<26>

CPU_ADDR<29> CPU_ADDR<30> CPU_ADDR<31>

CPU_AVDD_ADJ

CPU_HIT_L

CPU_SHD1_L

CPU_TT<4>

CPU_PLL_CFG<0>

MAXBUS_SLEEP

VCORE_SHDN_L

CPU_AVDD_VOUT

CPU_VCORE_SLEEP

CPU_BUS_VSEL

NO_TEST=TRUE

CPU_CLKOUT_SPN

CPU_PLL_CFG<1> CPU_PLL_CFG<2>

CPU_DRDY_L

CPU_PLL_CFG<3>

CPU_DBG_L

CPU_EDTI

CPU_DTI<2>

JTAG_CPU_TDI JTAG_CPU_TDO_TP JTAG_CPU_TMS

CPU_LSSD_MODE

CPU_L2TSTCLK

CPU_TEA_L

CPU_TBEN CPU_QREQ_L CPU_QACK_L

CPU_CHKSTP_OUT_L

CPU_CHKS_L

CPU_PULLDOWN

CPU_TS_L

38 38

8 38

8 8

7 7

5 8

D22

D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21

D28

D27

D23 D24 D25 D26

D29

D32

D31

D30

D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44

D48

D47

D45 D46

D49

D51

D50

D52 D53 D54 D55

D58

D57

D56

D59

DP6

DP5

DP4

DP3

DP2

DP1

DP0

DP7

D63

D62

D61

D60

(2 OF 3)

VDD

N/C_1

N/C_4

N/C_8

N/C_13

N/C_17

N/C_20

N/C_22 N/C_23

N/C_31

N/C_39

N/C_30

N/C_33

N/C_35 N/C_36

N/C_38

N/C_29

N/C_28

N/C_27

N/C_25

N/C_24

N/C_21

N/C_19

N/C_18

N/C_16

N/C_15

N/C_14

N/C_12

N/C_11

N/C_10

N/C_9

N/C_7

N/C_6

N/C_5

N/C_3

N/C_2

(3 OF 3)

N/C_26

N/C_32

N/C_34

N/C_37

SENSEVDD

GND

TEMP_CATHODE

TEMP_ANODE

SENSEGND

HPR*

SYM_VER2

WC*

VCC

VSS

SDA SCL

NC1 NC2 NC3

VCC

RESET* XTAL1 XTAL2 PB0

PD6

PD5

PD4

PD3

PD2

PD1

PD0

GND

PB1 PB2 PB3 PB4 PB5 PB6 PB7

REFERENCE DESIGNATOR(S)

BOM OPTION

TABLE_5_HEAD

QTY

DESCRIPTION

PART#

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

TABLE_5_ITEM

WILL DISABLE THE CONTROLLER

(Rb)

INPUTS ARE 3V TOLERANT

NC NC

NC NC NC NC NC

NC NC NC

(Ra)

UNSTUFFING Ra AND STUFFING Rb

INPUTS ARE 3V TOLERANT

BOOT BANGER - TWEAK PROCESSOR BITS AFTER POWER-ON

470OHM FOR BOOT BANGER

MPC7447/BBANG

W13

V13

P14

U15

V17

T17

T18

T16

W18

T15

W17

U18

W19

U19

T19

V19

R18

V18

R19

P17

W16

V16

W10

U10

P10

R10

T11

W11

U11

R11

T14

N10

N11

V12

W12

T12

R12

W14

U14

P13

T13

W15

R15

U56

APOLL7_PM-R1.1

1.50GHZ-1.28V

OMIT

BGA

P18

P16

N17

N15

M18

M16

M14

H19

H17

H14

G16

G11

F19

F17

F12

E16

E13

C13

B19

B17

A18

A16

A13

N19

N18

G13

N12

G12

N13

B15

A15

G14

F14

E14

D14

L19

K19

J19

L18

K18

J18

L17

K17

J17

L16

C14

K16

J16

H16

D19

C19

D18

C18

D17

C17

D16

B14

C16

L15

K15

J15

H15

G15

F15

E15

D15

C15

A14

P19

P15

N16

N14

M19

M17

M15

L14

J14

H18

G19

F18

F16

F13

E19

E12

B18

B16

B13

A19

A17

U56

APOLL7_PM-R1.1

1.50GHZ-1.28V

OMIT

BGA

+3V_MAIN

RP46

25V

1/32W

10K

BBANG

C762

402

CERM

10V

20%

0.1uF

BBANG

+3V_MAIN

C120

BBANG

402

CERM

10V

20%

0.1uF

+3V_MAIN

5 6

U52

SOI

32KX8_M24256B

OMIT

R100

BBANG

10K

1/16W

402

BBANG

SN74AUC1G08

SC70-5

R104

NO_BBANG

1/16W

402

+3V_MAIN

R103

BBANG

10K

1/16W

402

U10

SN74AUC1G08

SC70-5

BBANG

R105

10K

BBANG

402

1/16W

2 1

R637

BBANG

402

1/16W

10K

2 1

R707

402

1/16W

10K

BBANG

2 1

R712

BBANG

10K

1% 1/16W MF

402

2 1

R846

402

1/16W

10K

BBANG

2 1

R844

BBANG

402

1/16W MF

10K

2 1

R838

BBANG

402

1/16W MF

10K

2 1

R847

402

1/16W

10K

NO STUFF

2 1

R845

402

1/16W

10K

NO STUFF

2 1

R839

402

1/16W

10K

NO STUFF

+3V_MAIN

2 1

R692

402

1/16W

10K

BBANG

2 1

R709

402

1/16W

10K

NO STUFF

U54

SOI

ATTINY2313

OMIT

BBANG

470

5% 1/16W MF 402

R10

NO_BBANG

200

5% 1/16W MF 402

BBANG

U541

341S1660

MCU,PROGRAMMED W/ BBANGER

051-6680

BBANG

1 U52

341S1661

I2C EEPROM,PROGRAMMED W/ BBANGER

BB_MISO BB_SCK

BB_MOSI

INT_I2C_DATA0

INT_I2C_CLK0

BBANG_HRESET_L

RESET_VREF

PMU_CPU_HRESET_L

JTAG_CPU_TDI JTAG_CPU_TRST_L

JTAG_CPU_TMS

BBANG_JTAG_TCK

ICT_TRST_L

ESP_EN_L BFR_TDO

TP_BB_XTAL1

BB_RESET_L

BB_EEPR_ADDR2

BB_EEPR_ADDR0

CPU_DATA<4>

CPU_DATA<3>

CPU_DATA<1>

CPU_DATA<0>

CPU_DATA<2>

CPU_DATA<5>

BB_MOSI

CPU_DATA<27>

MAXBUS_SLEEP

BB_EEPR_ADDR1

ESP_EN_L BFR_TDO

BBANG_JTAG_TCK

BB_SCK

PMU_CPU_HRESET_L

BBANG_HRESET_L

ICT_TRST_L

CPU_DATA<59>

CPU_DATA<53>

CPU_DATA<52>

CPU_DATA<51>

CPU_DATA<6>

CPU_DATA<50>

CPU_DATA<23>

CPU_THERM_DP CPU_THERM_DM

CPU_DATA<8>

CPU_DATA<7>

CPU_DATA<9> CPU_DATA<10> CPU_DATA<11> CPU_DATA<12> CPU_DATA<13> CPU_DATA<14> CPU_DATA<15> CPU_DATA<16> CPU_DATA<17> CPU_DATA<18> CPU_DATA<19> CPU_DATA<20> CPU_DATA<21> CPU_DATA<22>

CPU_DATA<24> CPU_DATA<25> CPU_DATA<26>

CPU_DATA<28> CPU_DATA<29> CPU_DATA<30> CPU_DATA<31> CPU_DATA<32>

CPU_DATA<34>

CPU_DATA<33>

CPU_DATA<35>

CPU_DATA<37>

CPU_DATA<36>

CPU_DATA<39>

CPU_DATA<38>

CPU_DATA<40>

CPU_DATA<42>

CPU_DATA<41>

CPU_DATA<43> CPU_DATA<44> CPU_DATA<45>

CPU_DATA<47>

CPU_DATA<46>

CPU_DATA<48> CPU_DATA<49>

CPU_DATA<54> CPU_DATA<55> CPU_DATA<56> CPU_DATA<57> CPU_DATA<58>

CPU_DATA<60> CPU_DATA<61> CPU_DATA<62> CPU_DATA<63>

MAXBUS_SLEEP

BBANG_TCK_EN

BBANG_JTAG_TCK

JTAG_CPU_TCK

BB_MISO

CPU_VCORE_SLEEP

CPU_HRESET_L

INT_I2C_CLK0

INT_I2C_DATA0

BB_EEPR_WP_PD

MAXBUS_SLEEP

JTAG_CPU_TRST_L

41 6

38 38

5 5

6 6

8 8

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

CPU CONFIGURATION

PLL OFF

PLL BYPASS

333 267

400500

667 533

667833

917 733

800

1000 1083

867 933

1167 1250 1000

10671333

1417 1133

12001500

1583 1267

13331667

1750 1400

14671833

1917 1533

16002000

2083 1667

17332167

2250 1800

18672333

2500 2000

21332667

2833 2267

24003000

3333 2667

28003500

4000 3200

37334667

28.0X

24.0X

21.0X

20.0X

18.0X

17.0X

16.0X

15.0X

13.5X

14.0X

13.0X

12.5X

12.0X

11.5X

11.0X

10.5X

10.0X

9.5X

9.0X

8.5X

8.0X

7.5X

7.0X

6.5X

6.0X

5.5X

5.0X

4.0X

3.0X

2.0X

1.0X

0.0X

E ABCD HEX

4 0123

CPU_PLL_CFG

(MHZ)

133MHZ167MHZ

(AT BUS FREQUENCY)

CORE FREQUENCY

(Bus-to-Core)

MULTIPLIER

APOLLO 7PM

CPU FREQUENCY CONFIGURATION

CPU_BUS_VSEL

(PROCESSOR)

CPU_EMODE0_L

CPU_HRESET_L CPU_HRESET_L

LOW

CPU_HRESET_INV

1.5V INTERFACE

1.8V INTERFACE

2.5V INTERFACE

MAX BUS MODE

60X BUS MODE

APPLICATION

TIED

SIGNAL

APOLLO ONLY SUPPORTS MAXBUS

BUSTYPE SELECT

CPU CONFIGURATION

NEED TO CHARACTERIZE

INVERTER TO INVERT HRESET_L

DESKTOP HAD PROBLEM USING

1.8V INTERFACE

1.5V INTERFACE

INVERTED HRESET_L

MAXBUS VSEL

PLL DISABLE 1 X

HIGH SPEED 0 1

LOW SPEED 0 0

STATE ENCODING CPU_PLL_STOP_OC CPU_VCORE_HI_OC

R00ER10ER01ER10DR00DR01DR10CR00CR01CR01B R00B R10BR10AR00AR01A

TRANSISTOR ON CPU_PLL_CFG<4> IS MET.

PULLUP TO ENSURE THAT Vgs OF PASS

+5V_SLEEP NOW REQUIRED FOR PLL_STOP_L

CPU PLL CONFIG CIRCUITRY

STUFF PASS TRANSISTOR ONLY IF R10E, R01E, OR PULLUP STUFFED

HIGH

0 1111 0F 0 0011 03 0 0100 04 0 1000 08 0 1010 0A 0 1011 0B 0 1001 09 0 1101 0D 0 0101 05 0 0010 02 0 0001 01 0 1100 0C 0 0110 06 1 0111 17 0 0111 07 1 1010 1A 1 1000 18 1 1001 19 0 0000 00 1 1011 1B 1 1111 1F 1 0101 15 0 1110 0E 1 1100 1C 1 0001 11 1 1101 1D 1 0000 10 1 0010 12 1 0011 13 1 0100 14 1 0110 16 1 1110 1E

R63

CPU_BST&CPU_BST_VCORE126

5% 1/16W MF 402

R92

NO STUFF

402

1/16W

R35

10K

5% 1/16W MF 402

R50

402

1/16W

10K

R68

10K

5% 1/16W MF 402

R79

10K

5% 1/16W MF 402

R133

402

1/16W

47K

R132

402

1/16W

10K

R14

402

1/16W

82K

R31

NO STUFF

5% 1/16W MF 402

R23

NO STUFF

402

1/16W

Q14

SOT-363

2N7002DW

Q14

SOT-363

2N7002DW

U12

1_5V_MAXBUS

SN74AUC1G04

SC70-5

R12

NO STUFF

5% 1/16W MF 402

2N7002DW

SOT-363

2N7002DW

SOT-363

+5V_SLEEP

1 2

1_5V_MAXBUS

1/16W

402

R70

NO STUFF

5% 1/16W MF 402

R18

10K

5% 1/16W MF 402

1 2

R110

402

1/16W

R17

1_8V_MAXBUS

1/16W

402

Q13

2N7002

Q12

2N3904

R131

1/16W

402

249K

R43

NO STUFF

1/16W MF 402

+3V_SLEEP

R44

1/16W MF 402

CPU_BTR

R48

1/16W MF 402

NO STUFF

R60

NO STUFF

5% 1/16W MF 402

R64

NO STUFF

5% 1/16W MF 402

R76

NO STUFF

5% 1/16W MF 402

R84

NO STUFF

5% 1/16W MF 402

R78

NO STUFF

402

1/16W

R88

CPU_BST&CPU_BST_VCORE126

5% 1/16W MF 402

051-6680

CPU_PLL_CFG<1>

CPU_PLL_CFG<4>

CPU_PLL_CFG<3>

CPU_VCORE_HI_OC

PLL_STOP_L

CPU_PLL_STOP_OC

CPU_PLL_FS10

CPU_PLL_STOP_BASE

CPU_PLL_FS00

CPU_PLL_CFG<0>

PLL_STOP_L

CPU_PLL_CFGEXT

CPU_PLL_STOP_OC

CPU_BUS_VSELCPU_HRESET_L

CPU_EMODE0_LCPU_HRESET_L

CPU_HRESET_INV

MAXBUS_SLEEP

CPU_PLL_CFG<2>

MAXBUS_SLEEP

CPU_PLL_FS01

5 5

(PLL6)

VSSA_7

(PLL6)

VDD15A_7

D_42

D_41

D_40

D_39

D_38

D_44

D_43

D_45 D_46 D_47 D_48

D_52

D_51

D_50

D_49

D_53

D_55

D_54

D_56 D_57 D_58

D_60

D_59

D_62

D_61

D_63

DBG

DRDY

DTI_0

TEA

DTI_2

DTI_1

D_1

D_0

D_2

D_6

D_5

D_4

D_3

D_7

D_11

D_10

D_9

D_8

D_12

D_14

D_13

D_15 D_16 D_17

D_22

D_21

D_20

D_19

D_18

D_23 D_24 D_25 D_26 D_27

D_32

D_31

D_30

D_29

D_28

D_34

D_33

D_35 D_36 D_37

(1 OF 9)

MAXBUS

INTERFACE

A_0 A_1 A_2 A_3 A_4 A_5

A_9

A_6 A_7 A_8

A_10

A_14

A_13

A_12

A_11

A_20

A_16 A_17 A_18 A_19

A_15

A_27

A_22

A_21

A_30

A_29

A_28

A_26

A_25

A_24

A_23

TT_2

TT_1

TT_0

A_31

TBST TSIZ_0 TSIZ_1 TSIZ_2

CI GBL

TT_4

AACK

QREQ

ARTRY

TT_3

HIT

ANALYZER_CLK

SUSPENDACK

SUSPENDREQ

QACK

STOPCPUCLK

CPU_FB_OUT

CPU_FB_IN

CPU_CLK

TBEN

ACS_REF

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

Vin = Intrepid Vcore (1.5V)

INPUT - PD

INPUT - PU

NO BUS KEEPER - PU

INPUT - PU

NO BUS KEEPER - ? NO BUS KEEPER - ? NO BUS KEEPER - ?

NO BUS KEEPER - PU NO BUS KEEPER - PU

INTREPID OUTPUTS HIGH BY DEFAULT

NO BUS KEEPER - PU

Vout = MaxBus rail (1.8V)

NO BUS KEEPER - ?

Spare

ExtPLL_SDwn_Pol

0: Active high

1: Active low

DDR_TPDEn_Pol

1: Active low

0: Active high

AnalyzerClk_En_h

0: Inactive

1: Active

DDR_TPDModeEnable_h

0: TDI input (JTAG)

1: TDI output

BIT 40 TO 47

PCI0 Source Clock

0: PLL5 (no spread)

1: PLL4

PCI1 Source Clock

0: PLL5 (no spread)

1: PLL4

(SW CNTL ONLY)

InternalSpreadEn

0: Inactive

1: Active

BIT0BIT1BIT2

PLL4MODESEL_NXT[2:0] 000: 166.4MHZ (2.5X) 001: 149.76MHZ 010: 133.12MHZ (2.0X) 011: 99.84MHZ (1.5X) 100: 83.20MHZ

MODE A (2.5X) IS FOR STATIC OPERATION MODE C (2.0X) IS FOR CLOCK SLEW OPERATION

Spare

BIT 48 TO 55

1: Active

0: Inactive

BUF_REF_CLK_OUTEnable_h

1: External source

0: PLL5

SelPLL4ExtSrc

1: BootROM on PCI1

0: BootROM on IDE/CardSlot

En_PCI_ROM_P

OBSOLETE (Should remain high)

1: TI PHY workaround

0: Normal 1394b

TI 1394b workaround

BIT2 BIT1 BIT0

Spare

MaxBus output impedance 111: 28.6 ohm 011: 33.3 ohm 101: 40 ohm 001: 50 ohm

010: 100 ohm

110: 66.6 ohm

100: 200 ohm 000: 200 ohm

INPUT NO BUS KEEPER

NO BUS KEEPER

FB BUFFER HAS 50 OHM OUTPUT IMPEDANCE

SHORT = 1" SHORTER THAN MATCHED LENGTH

LONG = 1" LONGER THAN MATCHED LENGTH

THE FOLLOWING STRAP BITS CAN BE CHANGED BY SOFTWARE:

1/ D47 - SELAGPSPREADCLK - SLEEP/WAKE CYCLE REQUIRED 2/ D46 - SELPCI1SPREADCLK - SLEEP/WAKE CYCLE REQUIRED 3/ D44 - PLL4MODESEL_NXT<0> - SLEEP/WAKE CYCLE REQUIRED 4/ D43 - PLL4MODESEL_NXT<1> - SLEEP/WAKE CYCLE REQUIRED 5/ D42 - PLL4MODESEL_NXT<2> - SLEEP/WAKE CYCLE REQUIRED 6/ D33 - ANALYZERCLK_EN_H - IMMEDIATE EFFECT

IF A STRAP IS NOT LISTED, THEN IT CANNOT BE CHANGED BY SOFTWARE

MAXBUS PULL-UPS

INTREPID BOOT STRAPS

BIT 56 TO 63

Spare

OBSOLETE

ROM_Ovrly_Rng

0: 0 IDE / 1 PCI1

1: 0-1 IDE / 2-3 PCI1

1: GPIOs

0: REQ/GNT

PCI1_REQ2_L / PCI1_GNT2_L

1: GPIOs

0: REQ/GNT

PCI1_REQ1_L / PCI1_GNT1_L

1: GPIOs

0: REQ/GNT

PCI1_REQ0_L / PCI1_GNT0_L

1: 60x bus (G3)

Intrepid MaxBus

INTREPID BOOT STRAPS

BIT 32 TO 39

Processor Bus Mode

0: Max Bus (G4)

FireWire PHY interface

0: Legacy interface

1: B-mode interface

R161

402

1/16W

C187

402

CERM

6.3V

20%

0.22uF

R159

402

1/16W

4.7

R168

402

1/16W

2 1

R155

402

1/16W

R169

402

1/16W

511

R666

402

1/16W

10K

R638

NO STUFF

10K

402

1/16W

R639

402

1/16W

10K

NO STUFF

R650

402

1/16W

10K

R652

402

1/16W

10K

R620

402

1/16W

10K

R621

402

1/16W

10K

R653

402

1/16W

10K

NO STUFF

R618

402

1/16W

10K

R619

402

1/16W

10K

R640

402

1/16W

10K

NO STUFF

R622

402

1/16W

10K

R699

402

1/16W

10K

NO STUFF

R693

402

1/16W

10K

NO_SSCG

R694

402

1/16W

10K

NO STUFF

R664

402

1/16W

10K

NO STUFF

R665

402

1/16W

10K

SSCG

R641

402

1/16W

10K

NO STUFF

R684

402

1/16W

10K

R679

402

1/16W

10K

R678

402

1/16W

10K

SSCG

R649

402

1/16W

10K

R651

402

1/16W

10K

NO_SSCG

R623

402

1/16W

10K

R677

402

1/16W

10K

R648

402

1/16W

10K

R642

NO STUFF

402

1/16W

10K

R698

402

1/16W

10K

R643

402

1/16W

10K

NO STUFF

R668

1/16W

402

10K

NO STUFF

R667

402

1/16W

10K

R695

402

1/16W

10K

SSCG

R626

402

1/16W

10K

R683

402

1/16W

10K

NO STUFF

R624

402

1/16W

10K

R625

402

1/16W

10K

R655

402

1/16W

10K

R654

402

1/16W

10K

NO STUFF

R680

402

1/16W

10K

NO_SSCG

R696

402

1/16W

10K

SSCG

R681

402

1/16W

10K

NO_SSCG

R646

402

1/16W

10K

NO STUFF

R644

402

1/16W

10K

R670

402

1/16W

10K

NO STUFF

R697

402

1/16W

10K

NO STUFF

R645

402

1/16W

10K

NO STUFF

R669

402

1/16W

10K

NO STUFF

R629

402

1/16W

10K

R658

402

1/16W

10K

R627

402

1/16W

10K

NO STUFF

R682

402

1/16W

10K

R628

402

1/16W

10K

R657

402

1/16W

10K

R685

402

1/16W

10K

R656

402

1/16W

10K

R146

402

1/16W

NO STUFF

R140

402

1/16W

R141

402

1/16W

R128

402

1/16W

NO STUFF

R147

402

1/16W

R136

402

1/16W

NO STUFF

D28

H25

H26

J25

D27

B28

G25

E25

D26

H24

G24

B27

E28

A28

A31

E27

AK9 AM8

AH9

A32

G27

B31

A29

D11

E12

G20

B20

G19

E19

D19

A20

J19

B19

H19

A19

A18

D18

B18

E18

B17

A17

G18

D17

H18

J18

A16

E17

B16

A15

H17

B15

G17

E16

D16

A13

A14

D15

J16

E15

H11

G16

A12

B14

D14

H15

B13

G15

B12

E14

H14

E11

G14

A11

D13

B11

G13

E13

D12

A10

J13

B10

G12

D10

B30

D29

K25

G28

A30

H16

J24

J15

G26

E29 E26

E23

A25

D23

A26

B26

G23

A21

D20

E24

B21

E20

A22

H21

B22

H20

A23

D21

A24

E21

A27

G21

J21

E22

B23

B24

D22

G22

H22

B25

J22

D25

D24

H23

H13

B29

U51

CRITCAL

BGA

INTREPID-REV2.1

OMIT

R152

1/16W

402

10K

R150

402

1/16W

10K

R151

402

1/16W

10K

RP2

SM1

1/16W

10K

RP2

SM1

1/16W

10K

RP2

SM1

1/16W

10K

RP3

SM1

1/16W

10K

RP3

SM1

1/16W

10K

RP3

SM1

1/16W

10K

RP3

SM1

1/16W

10K

RP2

SM1

1/16W

10K

8 46

051-6680

CPU_DATA<59> CPU_DATA<60> CPU_DATA<61> CPU_DATA<62> CPU_DATA<63>

CPU_DATA<38>

CPU_DATA<37>

CPU_DATA<36>

CPU_DATA<34> CPU_DATA<35>

CPU_DATA<39>

MAXBUS_SLEEP

CPU_ADDR<11>

CPU_ADDR<13>

CPU_DATA<32> CPU_DATA<33>

CPU_DATA<58>

CPU_DATA<56>

SYSCLK_CPU_UF

CPU_DATA<49>

MAXBUS_SLEEP

CPU_DATA<47>

CPU_DATA<46>

CPU_DATA<45>

MAXBUS_SLEEP

CPU_ADDR<0>

CPU_TS_L

CPU_BG_L

CPU_DATA<13> CPU_DATA<14> CPU_DATA<15>

CPU_ADDR<10>

CPU_ADDR<7>

CPU_ADDR<2>

CPU_ADDR<6>

+1_5V_INTREPID_PLL

CPU_ADDR<3>

CPU_DATA<40>

CPU_DATA<42>

CPU_DATA<53>

CPU_DATA<55>

CPU_DATA<43> CPU_DATA<44>

CPU_DATA<41>

CPU_TSIZ<0>

CPU_GBL_L

SYSCLK_CPU

CPU_QREQ_L

CPU_BG_L

CPU_AACK_L

CPU_TEA_L

CPU_DRDY_L

CPU_HIT_L

CPU_ARTRY_L

CPU_BR_L

CPU_TS_L

CPU_TA_L

CPU_DATA<54>

CPU_DATA<49>

CPU_DATA<48>

CPU_DATA<57>

INT_CPUFB_OUT

INT_CPUFB_OUT_SHORT

INT_CPUFB_IN

INT_CPUFB_OUT_NORM

INT_CPUFB_IN_NORM

INT_CPUFB_LONG

MAXBUS_SLEEP

+1_5V_INTREPID_PLL7

CPU_TEA_L

CPU_TA_L

CPU_DTI<2>

CPU_DTI<1>

CPU_DTI<0>

CPU_DRDY_L

CPU_DBG_L

CPU_DATA<63>

CPU_DATA<61> CPU_DATA<62>

CPU_DATA<60>

CPU_DATA<58> CPU_DATA<59>

CPU_DATA<57>

CPU_DATA<56>

CPU_DATA<55>

CPU_DATA<53> CPU_DATA<54>

CPU_DATA<52>

CPU_DATA<51>

CPU_DATA<48>

CPU_DATA<50>

CPU_DATA<47>

CPU_DATA<46>

CPU_DATA<45>

CPU_DATA<43>

CPU_DATA<41> CPU_DATA<42>

CPU_DATA<40>

CPU_DATA<39>

CPU_DATA<38>

CPU_DATA<37>

CPU_DATA<36>

CPU_DATA<35>

CPU_DATA<34>

CPU_DATA<33>

CPU_DATA<32>

CPU_DATA<30> CPU_DATA<31>

CPU_DATA<29>

CPU_DATA<28>

CPU_DATA<27>

CPU_DATA<25> CPU_DATA<26>

CPU_DATA<24>

CPU_DATA<23>

CPU_DATA<22>

CPU_DATA<20> CPU_DATA<21>

CPU_DATA<19>

CPU_DATA<17> CPU_DATA<18>

CPU_DATA<16>

CPU_DATA<12>

CPU_DATA<11>

CPU_DATA<10>

CPU_DATA<7>

CPU_DATA<9>

CPU_DATA<8>

CPU_DATA<6>

CPU_DATA<5>

CPU_DATA<2>

CPU_DATA<4>

CPU_DATA<3>

CPU_DATA<0> CPU_DATA<1>

CPU_BR_L

CPU_ADDR<1>

CPU_ADDR<4> CPU_ADDR<5>

CPU_ADDR<8> CPU_ADDR<9>

CPU_ADDR<12>

CPU_ADDR<15> CPU_ADDR<16>

CPU_ADDR<19> CPU_ADDR<20>

CPU_ADDR<22>

CPU_ADDR<21>

CPU_ADDR<24>

CPU_ADDR<23>

CPU_ADDR<25> CPU_ADDR<26> CPU_ADDR<27>

CPU_ADDR<29>

CPU_ADDR<28>

CPU_ADDR<31>

CPU_CI_L

CPU_TBST_L

CPU_TSIZ<2>

CPU_TSIZ<1>

CPU_TT<1>

CPU_TT<0>

CPU_TT<2>

CPU_TT<4>

CPU_TT<3>

CPU_WT_L

CPU_AACK_L

CPU_HIT_L

CPU_ARTRY_L

CPU_QREQ_L

CPU_QACK_L INT_SUSPEND_REQ_L INT_SUSPEND_ACK_L

INT_CPUFB_IN INT_CPUFB_OUT SYSCLK_LA_TP

CPU_CLK_EN

CPU_TBEN

CPU_DBG_L

CPU_ADDR<30>

CPU_DATA<44>

INTREPID_ACS_REF

CPU_DATA<51>

MAXBUS_SLEEP

CPU_DATA<50>

CPU_DATA<52>

CPU_ADDR<18>

CPU_ADDR<17>

CPU_ADDR<14>

38 38

8 8

38 38

8 8

38 38

6 6

31 31

A0 A1

A2 A3 A4 A5

A10 A11 A12 A13 A14 A15 A16

A20

A17 A18 A19

CE OE WE WP PWD

GND

DQ0 DQ1

DQ6

DQ5

DQ2 DQ3 DQ4

DQ7

VPP VCC

FEPR-1MX8

(2 OF 9)

DDR_VREF_1

DDR_VREF_0

DDR_DATA_0 DDR_DATA_1 DDR_DATA_2 DDR_DATA_3 DDR_DATA_4 DDR_DATA_5 DDR_DATA_6 DDR_DATA_7 DDR_DATA_8 DDR_DATA_9 DDR_DATA_10 DDR_DATA_11 DDR_DATA_12 DDR_DATA_13 DDR_DATA_14 DDR_DATA_15 DDR_DATA_16 DDR_DATA_17 DDR_DATA_18 DDR_DATA_19 DDR_DATA_20 DDR_DATA_21

DDR_DATA_25 DDR_DATA_26 DDR_DATA_27 DDR_DATA_28 DDR_DATA_29 DDR_DATA_30

DDR_DATA_33 DDR_DATA_34 DDR_DATA_35 DDR_DATA_36 DDR_DATA_37 DDR_DATA_38 DDR_DATA_39 DDR_DATA_40 DDR_DATA_41 DDR_DATA_42 DDR_DATA_43 DDR_DATA_44 DDR_DATA_45 DDR_DATA_46 DDR_DATA_47 DDR_DATA_48 DDR_DATA_49 DDR_DATA_50 DDR_DATA_51 DDR_DATA_52 DDR_DATA_53 DDR_DATA_54 DDR_DATA_55 DDR_DATA_56 DDR_DATA_57 DDR_DATA_58 DDR_DATA_59 DDR_DATA_60 DDR_DATA_61 DDR_DATA_62 DDR_DATA_63

DDR_DATA_22 DDR_DATA_23 DDR_DATA_24

DDR_DATA_31 DDR_DATA_32

DDR_BA_0 DDR_BA_1

DDRCS_3

DDRCS_2

DDRCS_1

DDRCS_0

DDR_DQS_7

DDR_DQS_6

DDR_DQS_5

DDR_DQS_4

DDR_DQS_3

DDR_DQS_2

DDR_DQS_1

DDR_DQS_0

DDR_DM_7

DDR_DM_6

DDR_DM_5

DDR_DM_4

DDR_DM_3

DDR_DM_2

DDR_DM_1

DDR_DM_0

DDRRAS DDRCAS

DDRWE DDRCKE0 DDRCKE1 DDRCKE2 DDRCKE3

DDR_MCLK_0_P DDR_MCLK_0_N DDR_MCLK_1_P DDR_MCLK_1_N DDR_MCLK_2_P DDR_MCLK_2_N DDR_MCLK_3_P DDR_MCLK_3_N DDR_MCLK_4_P DDR_MCLK_4_N DDR_MCLK_5_P DDR_MCLK_5_N

DDR_REF

DDR_SELHI_0 DDR_SELHI_1 DDR_SELLO_0 DDR_SELLO_1

MEMORY

DDR

INTERFACE

DDR_A_10 DDR_A_11 DDR_A_12

DDR_A_9

DDR_A_8

DDR_A_7

DDR_A_6

DDR_A_5

DDR_A_4

DDR_A_3

DDR_A_2

DDR_A_1

DDR_A_0

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SERIES RESISTORS FOR CLOCK/CONTROL SIGNALS

PINS ARE SWAPABLE FOR RPAKS

CLOCKS

’2’ & ’3’ GO TO SLOT B

’0’ & ’1’ GO TO SLOT A

’0’ & ’1’ GO TO SLOT A ’2’ & ’3’ GO TO SLOT B

’1’S ARE SAME POLARITY (ACTIVE-HI)

’0’S ARE SAME POLARITY (ACTIVE-LO)

MEM_VREF

CKE

ADDR

CNTL

1MB BOOT ROM

OVERRIDE ROM MODULE INTERCEPTS ROM CHIP SELECT

Weak pulldowns ensure CKEs stay low after 2.5V I/O to Intrepid shuts off.

INT - DDR/BOOTROM

R260

INT_2_5V_COLD

10K

5% 1/16W MF 402

R265

INT_2_5V_COLD

10K

5% 1/16W MF 402

11 3130

3923

U11

OMIT

1MX8-3.3V

TSOP

402

1/16W

NO STUFF

R271

NO STUFF

1/16W

402

R194

402

1/16W

NO STUFF

R236

5% 1/16W MF 402

NO STUFF

R176

1/16W

402

R209

402

1/16W

R208

402

1/16W

10K

C249

402

CERM

10V

20%

0.1uF

R202

402

1/16W

10K

C125

2.2uF

20% 10V CERM 805

C773

0.1uF

20% 10V CERM 402

C122

0.1uF

20% 10V CERM 402

R112

10K

1/16W

402

+3V_MAIN

T22

Y22

T32

N30

AE29

AB32

AA22

W35 W36

V33 V32

W32 W33

Y30 W30

Y35 Y36

Y32 Y33

L32

N29

P32

V30

AB30

AD32

AH31

AJ31

L33

N32

T33

T35

AC35

AD33

AH33

AJ33

AG35

AG33

AJ36

K35

K36

J36

K33

AJ35

K32

J35

J33

J32

M30

N33

L36

M33

M35

L35

AJ32

M36

N35

R32

R33

R35

R36

P36

P35

R30

P33

AK36

T36

U35

U36

T30

V35

U32

U33

V36

AB33

AA32

AK35

AC36

AB35

AB36

AA33

AA35

AA36

AD35

AD36

AE33

AE35

AK31

AE36

AF36

AF35

AE32

AG31

AG32

AH32

AH36

AG36

AH35

AK33

AK32

M29

L30

H36

D36

G32

E36

E35

F35

F36

G36

D35

H33

G33

G35

H35

K30

L29

AL33

AL35

AN36

AN34

AL36

AM36

AM35

AN35

H32

U51

CRITICAL

BGA

INTREPID-REV2.1

OMIT

R691

10K

5% 1/16W MF 402

R674

1/16W

402

RP20

SM1

1/16W

RP20

SM1

1/16W

RP22

SM1

1/16W

RP22

1/16W

SM1

RP20

SM1

1/16W

RP22

SM1

1/16W

R162

1/16W

402

RP20

1/16W

SM1

RP22

SM1

1/16W

RP31

SM1

1/16W

RP29

SM1

1/16W

RP31

SM1

1/16W

RP31

1/16W

SM1

RP31

SM1

1/16W

RP29

SM1

1/16W

RP29

SM1

1/16W

RP29

SM1

1/16W

RP14

SM1

1/16W

RP12

SM1

1/16W

RP12

SM1

1/16W

RP12

SM1

1/16W

RP12

SM1

1/16W

RP9

SM1

1/16W

RP9

SM1

1/16W

RP14

SM1

1/16W

RP9

SM1

1/16W

RP14

1/16W

SM1

RP14

1/16W

SM1

RP17

1/16W

SM1

RP9

1/16W

SM1

RP17

1/16W

SM1

RP17

1/16W

SM1

RP17

1/16W

SM1

+3V_MAIN

R247

INT_2_5V_COLD

10K

5% 1/16W MF 402

R257

10K

5% 1/16W MF 402

INT_2_5V_COLD

1 ?

341S1555

IC,BOOTROM Q16B

CRITICAL

U11

051-6680

469

MEM_ADDR<8> RAM_ADDR<8>

RAM_ADDR<6>

RAM_ADDR<7>

RAM_ADDR<11>

RAM_ADDR<9>

RAM_ADDR<5>

PCI_AD<26>

PCI_AD<31>

RAM_CKE<0>

MEM_CKE<3>

MEM_CKE<2>

MEM_MUXSEL_LSB_L_TP

MEM_ADDR<12>

MEM_ADDR<11>

MEM_ADDR<10>

MEM_ADDR<9>

MEM_ADDR<8>

MEM_ADDR<7>

MEM_ADDR<6>

MEM_ADDR<5>

MEM_ADDR<4>

MEM_ADDR<3>

MEM_ADDR<2>

MEM_ADDR<1>

MEM_ADDR<0>

MEM_MUXSEL_LSB

MEM_MUXSEL_MSB

MEM_MUXSEL_MSB_L_TP

INT_MEM_REF_H

INT_DDRCLK5_P_TP INT_DDRCLK5_N_TP

SYSCLK_DDRCLK_B1_L_UF

SYSCLK_DDRCLK_B1_UF

SYSCLK_DDRCLK_B0_L_UF

INT_DDRCLK2_N_TP

SYSCLK_DDRCLK_B0_UF

INT_DDRCLK2_P_TP

SYSCLK_DDRCLK_A1_UF SYSCLK_DDRCLK_A1_L_UF

SYSCLK_DDRCLK_A0_L_UF

SYSCLK_DDRCLK_A0_UF

MEM_CKE<1>

MEM_CKE<0>

MEM_WE_L

MEM_CAS_L

MEM_RAS_L

MEM_DQM<7>

MEM_DQM<6>

MEM_DQM<5>

MEM_DQM<4>

MEM_DQM<3>

MEM_DQM<1>

MEM_DQM<0>

MEM_DQM<2>

MEM_DQS<7>

MEM_DQS<6>

MEM_DQS<5>

MEM_DQS<4>

MEM_DQS<3>

MEM_DQS<2>

MEM_DQS<1>

MEM_DQS<0>

MEM_CS_L<2>

MEM_CS_L<1>

MEM_CS_L<0>

MEM_CS_L<3>

MEM_BA<1>

MEM_BA<0>

MEM_DATA<54>

MEM_DATA<31>

MEM_DATA<29>

MEM_DATA<25>

MEM_DATA<24>

MEM_DATA<15>

MEM_DATA<63>

MEM_DATA<62>

MEM_DATA<61>

MEM_DATA<60>

MEM_DATA<59>

MEM_DATA<58>

MEM_DATA<57>

MEM_DATA<56>

MEM_DATA<55>

MEM_DATA<53>

MEM_DATA<52>

MEM_DATA<51>

MEM_DATA<50>

MEM_DATA<49>

MEM_DATA<48>

MEM_DATA<47>

MEM_DATA<46>

MEM_DATA<45>

MEM_DATA<44>

MEM_DATA<43>

MEM_DATA<42>

MEM_DATA<41>

MEM_DATA<40>

MEM_DATA<39>

MEM_DATA<38>

MEM_DATA<37>

MEM_DATA<36>

MEM_DATA<35>

MEM_DATA<34>

MEM_DATA<33>

MEM_DATA<32>

MEM_DATA<30>

MEM_DATA<28>

MEM_DATA<27>

MEM_DATA<26>

MEM_DATA<23>

MEM_DATA<22>

MEM_DATA<21>

MEM_DATA<20>

MEM_DATA<19>

MEM_DATA<18>

MEM_DATA<17>

MEM_DATA<16>

MEM_DATA<14>

MEM_DATA<13>

MEM_DATA<12>

MEM_DATA<11>

MEM_DATA<10>

MEM_DATA<9>

MEM_DATA<8>

MEM_DATA<7>

MEM_DATA<6>

MEM_DATA<5>

MEM_DATA<4>

MEM_DATA<3>

MEM_DATA<2>

MEM_DATA<1>

MEM_DATA<0>

INT_MEM_VREF

SYSCLK_DDRCLK_A0_UF

PCI_AD<18>

SYSCLK_DDRCLK_A1_L_UF

PCI_AD<1>

PCI_AD<5>

ROM_OE_L

ROM_WP_L

ROM_ONBOARD_CS_L

PCI_AD<25>

PCI_AD<27>

RAM_ADDR<1>

ROM_RW_TP_L

ROM_RW_L

SYSCLK_DDRCLK_B0_UF

SYSCLK_DDRCLK_B0_L

PCI_AD<24>

PCI_AD<14>

RAM_CS_L<3>

PCI_AD<20>

PCI_AD<19>

PCI_AD<9>

RAM_CKE<0>

ROM_OE_TP_L

INT_MEM_VREF

SYSCLK_DDRCLK_B0_L_UF

PCI_AD<11> PCI_AD<12>

PCI_AD<17>

PCI_AD<7> PCI_AD<8>

PCI_AD<28> PCI_AD<29> PCI_AD<30>

RAM_ADDR<2>

RAM_CKE<3>

RAM_CKE<1> RAM_CKE<2>

RAM_BA<1>

MEM_RAS_L RAM_RAS_L

RAM_WE_LMEM_WE_L

MEM_CAS_L RAM_CAS_L

RAM_BA<0>

RAM_ADDR<12>

RAM_ADDR<10>

MEM_ADDR<5>

MEM_ADDR<3>

MEM_ADDR<1>

RAM_ADDR<4>MEM_ADDR<4>

RAM_ADDR<0>

MEM_CKE<1>

MEM_CS_L<3>

SYSCLK_DDRCLK_B1

SYSCLK_DDRCLK_A1_L

SYSCLK_DDRCLK_A0

SYSCLK_DDRCLK_A1

RAM_CS_L<0>

MEM_BA<1>

MEM_ADDR<11>

MEM_BA<0>

MEM_ADDR<12>

MEM_ADDR<10>

MEM_ADDR<9>

MEM_ADDR<6>

MEM_ADDR<2>

+2_5V_INTREPID

RAM_CKE<3>

RAM_CKE<1>

SYSCLK_DDRCLK_A0_L

RAM_CKE<2>

ROM_ONBOARD_CS_TP_L

MEM_CKE<0>

SYSCLK_DDRCLK_B1_L_UF

SYSCLK_DDRCLK_B1_UF

MEM_CS_L<2> RAM_CS_L<2>

PCI_AD<10>

SYSCLK_DDRCLK_A0_L_UF

SYSCLK_DDRCLK_B1_L

PCI_AD<3>

PCI_AD<2>

PCI_AD<6>

PCI_AD<4>

PCI_AD<0>

RAM_ADDR<3>

MEM_CS_L<1>

MEM_CS_L<0>

MEM_CKE<3>

SYSCLK_DDRCLK_A1_UF

SYSCLK_DDRCLK_B0

PCI_AD<16>

PCI_AD<15>

PCI_AD<13>

MEM_ADDR<7>

RAM_CS_L<1>

INT_RESET_L

MEM_ADDR<0>

MEM_CKE<2>

ROM_CS_L

ROM_CS_TP_L

41 41

39 39

26 26

18 18

37 37

17 17

37 37

9 9

12 12

GND

DA10

SEL

DH19

DH18

DH17

DH16

DH15

DH14

DH13

DH12

DH11

DH10

DH9

DH8

DH7

DH6

DH5

DH4

DH3

DH2

DH1

DH0

DA19

DA18

DA17

DA16

DA15

DA14

DA13

DA12

DA11DB0*

DA9

DA8

DA7

DA6

DA5

DA4

DA3

DA2

DA1

DA0

DB19*

DB18*

DB17*

DB16*

DB15*

DB14*

DB13*

DB12*

DB11*

DB10*

DB9*

DB8*

DB7*

DB6*

DB5*

DB4*

DB3*

DB2*

DB1*

VDD

GND

DA10

SEL

DH19

DH18

DH17

DH16

DH15

DH14

DH13

DH12

DH11

DH10

DH9

DH8

DH7

DH6

DH5

DH4

DH3

DH2

DH1

DH0

DA19

DA18

DA17

DA16

DA15

DA14

DA13

DA12

DA11DB0*

DA9

DA8

DA7

DA6

DA5

DA4

DA3

DA2

DA1

DA0

DB19*

DB18*

DB17*

DB16*

DB15*

DB14*

DB13*

DB12*

DB11*

DB10*

DB9*

DB8*

DB7*

DB6*

DB5*

DB4*

DB3*

DB2*

DB1*

VDD

GND

DA10

SEL

DH19

DH18

DH17

DH16

DH15

DH14

DH13

DH12

DH11

DH10

DH9

DH8

DH7

DH6

DH5

DH4

DH3

DH2

DH1

DH0

DA19

DA18

DA17

DA16

DA15

DA14

DA13

DA12

DA11DB0*

DA9

DA8

DA7

DA6

DA5

DA4

DA3

DA2

DA1

DA0

DB19*

DB18*

DB17*

DB16*

DB15*

DB14*

DB13*

DB12*

DB11*

DB10*

DB9*

DB8*

DB7*

DB6*

DB5*

DB4*

DB3*

DB2*

DB1*

VDD

GND

DA10

SEL

DH19

DH18

DH17

DH16

DH15

DH14

DH13

DH12

DH11

DH10

DH9

DH8

DH7

DH6

DH5

DH4

DH3

DH2

DH1

DH0

DA19

DA18

DA17

DA16

DA15

DA14

DA13

DA12

DA11DB0*

DA9

DA8

DA7

DA6

DA5

DA4

DA3

DA2

DA1

DA0

DB19*

DB18*

DB17*

DB16*

DB15*

DB14*

DB13*

DB12*

DB11*

DB10*

DB9*

DB8*

DB7*

DB6*

DB5*

DB4*

DB3*

DB2*

DB1*

VDD

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

BIT 0..15

BIT 16..31

BIT 32..47 BIT 48..63

SEL = LOW; HOST = B PORT; A PORT = 100OHM TO GND SEL = HIGH; HOST = A PORT; B PORT = 100OHM TO GND

16BIT 2:1 DDR MUXES

C727

0.1uF

20% 10V CERM 402

C745

0.1uF

20% 10V CERM 402

C742

0.1uF

20% 10V CERM 402

C732

0.1uF

20% 10V CERM 402

C733

0.1uF

20% 10V CERM 402

C741

0.1uF

20% 10V CERM 402

C764

0.1uF

20% 10V CERM 402

C734

0.1uF

20% 10V CERM 402

C726

0.1uF

20% 10V CERM 402

C730

0.1uF

20% 10V CERM 402

C758

0.1uF

20% 10V CERM 402

C757

0.1uF

20% 10V CERM 402

F8F3E8

H6H5G9G2D9D2C6

B10

D10

F10

H10

K10

A10

C10

E10

G10

J10

U28

CRITICAL

CBTV4020

BGA

F8F3E8

H6H5G9G2D9D2C6

B10

D10

F10

H10

K10

A10

C10

E10

G10

J10

U27

CBTV4020

BGA

CRITICAL

F8F3E8

H6H5G9G2D9D2C6

B10

D10

F10

H10

K10

A10

C10

E10

G10

J10

U18

CRITICAL

CBTV4020

BGA

F8F3E8

H6H5G9G2D9D2C6

B10

D10

F10

H10

K10

A10

C10

E10

G10

J10

U16

CRITICAL

CBTV4020

BGA

051-6680

10 46

+2_5V_INTREPID

RAM_DQS_A<2>

RAM_DATA_A<23>

RAM_DATA_A<22>

MEM_DATA<12>

MEM_DATA<11>

MEM_DATA<10>

MEM_DATA<9>

MEM_DATA<1>

MEM_DATA<0>

MEM_DQS<0>

MEM_DATA<13>

MEM_DATA<15>

MEM_DQS<1> MEM_DQM<1>

MEM_MUXSEL_LSB

MEM_DATA<8>

MEM_DQM<0>

MEM_DATA<7>

MEM_DATA<6>

MEM_DATA<5>

MEM_DATA<4>

MEM_DATA<3>

RAM_DATA_B<0> RAM_DATA_B<1> RAM_DATA_B<2>

RAM_DATA_B<10>

RAM_DATA_B<9>

RAM_DATA_B<8>

RAM_DQM_B<0>

RAM_DQS_B<0>

RAM_DATA_B<4>

RAM_DATA_B<3>

RAM_DATA_B<7>

RAM_DATA_B<6>

RAM_DATA_B<5>

RAM_DQM_B<1>

RAM_DQS_B<1>

RAM_DATA_B<15>

RAM_DATA_B<14>

RAM_DATA_B<12>

RAM_DATA_B<11>

RAM_DATA_A<10> RAM_DATA_A<11>

RAM_DATA_A<13>

RAM_DATA_A<12>

RAM_DATA_A<15>

RAM_DATA_A<14>

RAM_DQS_A<1> RAM_DQM_A<1>

MEM_DATA<2>

MEM_DATA<14>

RAM_DQM_A<0>

RAM_DQS_A<0>

RAM_DATA_A<7>

RAM_DATA_A<6>

RAM_DATA_A<4> RAM_DATA_A<5>

RAM_DATA_A<1>

RAM_DATA_A<3>

RAM_DATA_A<2>

RAM_DATA_A<0>

RAM_DATA_A<8>

RAM_DATA_B<16> RAM_DATA_B<17> RAM_DATA_B<18>

RAM_DATA_B<26>

RAM_DATA_B<24>

RAM_DQM_B<2>

RAM_DQS_B<2>

RAM_DATA_B<20>

RAM_DATA_B<19>

RAM_DATA_B<23>

RAM_DATA_B<22>

RAM_DATA_B<21>

RAM_DQM_B<3>

RAM_DQS_B<3>

RAM_DATA_B<31>

RAM_DATA_B<30>

RAM_DATA_B<28>

RAM_DATA_B<27>

RAM_DATA_A<26> RAM_DATA_A<27>

RAM_DATA_A<29>

RAM_DATA_A<28>

RAM_DATA_A<31>

RAM_DATA_A<30>

RAM_DQS_A<3>

MEM_DATA<16>

RAM_DQM_A<3>

MEM_DATA<19>

MEM_DATA<17> MEM_DATA<18>

MEM_DATA<21>

MEM_DATA<20>

MEM_DQS<2>

MEM_DATA<22> MEM_DATA<23>

MEM_DQM<2>

MEM_DATA<24>

MEM_DATA<27>

MEM_DATA<26>

MEM_DATA<25>

MEM_DATA<29>

MEM_DATA<28>

MEM_DATA<30>

MEM_MUXSEL_LSB

RAM_DQM_A<2>

RAM_DATA_A<20> RAM_DATA_A<21>

RAM_DATA_A<17>

RAM_DATA_A<19>

RAM_DATA_A<18>

RAM_DATA_A<16>

RAM_DATA_A<24>

MEM_DQM<3>

RAM_DATA_A<25>

RAM_DATA_B<32> RAM_DATA_B<33> RAM_DATA_B<34>

RAM_DATA_B<42>

RAM_DATA_B<41>

RAM_DATA_B<40>

RAM_DQM_B<4>

RAM_DQS_B<4>

RAM_DATA_B<36>

RAM_DATA_B<35>

RAM_DATA_B<39>

RAM_DATA_B<38>

RAM_DATA_B<37>

RAM_DQM_B<5>

RAM_DQS_B<5>

RAM_DATA_B<46>

RAM_DATA_B<44>

RAM_DATA_B<43>

RAM_DATA_A<42> RAM_DATA_A<43>

RAM_DATA_A<45>

RAM_DATA_A<44>

RAM_DATA_A<47>

RAM_DATA_A<46>

RAM_DQS_A<5>

MEM_DATA<32>

RAM_DQM_A<5>

MEM_DATA<35>

MEM_DATA<33> MEM_DATA<34>

MEM_DATA<37>

MEM_DATA<36>

MEM_DQS<4>

MEM_DATA<38> MEM_DATA<39>

MEM_DQM<4>

MEM_DATA<40>

MEM_DATA<43>

MEM_DATA<42>

MEM_DATA<41>

MEM_DATA<45>

MEM_DATA<44>

MEM_DATA<46>

MEM_DQS<5>

MEM_DATA<47>

MEM_MUXSEL_MSB

RAM_DQM_A<4>

RAM_DQS_A<4>

RAM_DATA_A<39>

RAM_DATA_A<38>

RAM_DATA_A<36>

RAM_DATA_A<33> RAM_DATA_A<34>

RAM_DATA_A<32>

RAM_DATA_A<40>

MEM_DQM<5>

RAM_DATA_A<41> RAM_DATA_B<48>

RAM_DATA_B<49> RAM_DATA_B<50>

RAM_DATA_B<58>

RAM_DATA_B<57>

RAM_DATA_B<56>

RAM_DQM_B<6>

RAM_DQS_B<6>

RAM_DATA_B<52>

RAM_DATA_B<51>

RAM_DATA_B<55>

RAM_DATA_B<54>

RAM_DATA_B<53>

RAM_DQM_B<7>

RAM_DQS_B<7>

RAM_DATA_B<63>

RAM_DATA_B<62>

RAM_DATA_B<61>

RAM_DATA_B<60>

RAM_DATA_B<59>

RAM_DATA_A<58> RAM_DATA_A<59>

RAM_DATA_A<61>

RAM_DATA_A<60>

RAM_DATA_A<63>

RAM_DATA_A<62>

RAM_DQS_A<7>

MEM_DATA<48>

RAM_DQM_A<7>

MEM_DATA<51>

MEM_DATA<49> MEM_DATA<50>

MEM_DATA<53>

MEM_DATA<52>

MEM_DQS<6>

MEM_DATA<54> MEM_DATA<55>

MEM_DQM<6>

MEM_DATA<56>

MEM_DATA<59>

MEM_DATA<58>

MEM_DATA<57>

MEM_DATA<61>

MEM_DATA<60>

MEM_DATA<62>

MEM_DQS<7>

MEM_DATA<63>

MEM_MUXSEL_MSB

RAM_DQM_A<6>

RAM_DQS_A<6>

RAM_DATA_A<55>

RAM_DATA_A<54>

RAM_DATA_A<52> RAM_DATA_A<53>

RAM_DATA_A<49>

RAM_DATA_A<51>

RAM_DATA_A<50>

RAM_DATA_A<48>

RAM_DATA_A<56>

MEM_DQM<7>

RAM_DATA_A<57>

+2_5V_INTREPID+2_5V_INTREPID

RAM_DATA_B<47>

RAM_DATA_B<45>

RAM_DATA_B<25>

MEM_DATA<31>

MEM_DQS<3>

RAM_DATA_B<13>

RAM_DATA_A<37>

RAM_DATA_A<35>

RAM_DATA_B<29>

RAM_DATA_A<9>

40 40

16 16

37 37

15 15

37 37

10 10

37 37

9 9

11 11

9 9

11 11

9 9

11 11

9 9

DQ58

RFU18

KEY

VDD6 VSS6 VSS8

VDD5

DQ15

DQ13

DQ14

VSS5

DM1

VDD3

VSS3

DQ7

DQ12

DQ6

DM0

DQ4 DQ5

VSS1

VREF1

VDD1

SA1 SA2

RFU19

SA0

VDD32

DQ63

DQ62

VSS32

DQ61

VDD30

DQ60

DQ55

DM7

VSS30

DQ54

DM6

VDD28

DQ53

DQ52

VDD25

CK1*

CK1

VSS28

DQ47

DQ46

VDD23

VSS25

DM5

DQ45

DQ44

DM4

DQ39

VSS23

DQ38

DQ37

RFU17

DQ36

VSS21

VDD21

VDD19

RAS*

BA1

CAS*

S1*

A6 A4 A2 A0

VSS19

A11

VDD17

RFU15

CKE0

VDD15

VSS17

RFU11 VSS16

RFU9

VDD14

RFU3

VSS14

RFU5 RFU7

RFU1

VDD12

VSS12

DM3

DQ31

DQ30

DQ29

VSS10

VDD10

DQ28

DQ23

DM2

DQ20

VDD8

DQ21

DQ22

VDDSPD

SCL

SDA

VDD31

VSS31

DQ59

DQS7

DQ51

VDD29

DQ56

VSS29

DQ57

DQ48

DQS6

VDD27

DQ49

DQ50

DQ43

VSS26

VDD26

VDD24

VSS27

DQ41 DQS5 VSS24

VDD22

DQ42

DQ34 VSS22 DQ35

DQS4

DQ40

VDD20

RFU16

DQ32

VSS20

DQ33

S0*

VDD18

BA0

A10_AP

WE*

A5 A3

VSS18

CKE1 RFU14

RFU13 VDD16

VDD13

VSS15

RFU10

RFU8

RFU12

RFU0

RFU4

VSS13

RFU2

RFU6

VSS11 DQ26 DQ27

DQS3

VDD11

DQ19 DQ24 VDD9

VSS9

DQ25

DQ18

DQ16

VDD7

DQ17

DQS2

DQ11 VDD4

VSS7

CK0*

CK0

DQS1 VSS4 DQ10

VDD2 DQ9

DQ2

DQS0

DQ8

DQ3

VSS2

VDD0

DQ0 DQ1

VSS0

VREF0

A12

(1 OF 2)(2 OF 2)

DQ58

RFU18

KEY

VDD6 VSS6 VSS8

VDD5

DQ15

DQ13

DQ14

VSS5

DM1

VDD3

VSS3

DQ7

DQ12

DQ6

DM0

DQ4 DQ5

VSS1

VREF1

VDD1

SA1 SA2

RFU19

SA0

VDD32

DQ63

DQ62

VSS32

DQ61

VDD30

DQ60

DQ55

DM7

VSS30

DQ54

DM6

VDD28

DQ53

DQ52

VDD25

CK1*

CK1

VSS28

DQ47

DQ46

VDD23

VSS25

DM5

DQ45

DQ44

DM4

DQ39

VSS23

DQ38

DQ37

RFU17

DQ36

VSS21

VDD21

VDD19

RAS*

BA1

CAS*

S1*

A6 A4 A2 A0

VSS19

A11

VDD17

RFU15

CKE0

VDD15

VSS17

RFU11 VSS16

RFU9

VDD14

RFU3

VSS14

RFU5 RFU7

RFU1

VDD12

VSS12

DM3

DQ31

DQ30

DQ29

VSS10

VDD10

DQ28

DQ23

DM2

DQ20

VDD8

DQ21

DQ22

VDDSPD

SCL

SDA

VDD31

VSS31

DQ59

DQS7

DQ51

VDD29

DQ56

VSS29

DQ57

DQ48

DQS6

VDD27

DQ49

DQ50

DQ43

VSS26

VDD26

VDD24

VSS27

DQ41 DQS5 VSS24

VDD22

DQ42

DQ34 VSS22 DQ35

DQS4

DQ40

VDD20

RFU16

DQ32

VSS20

DQ33

S0*

VDD18

BA0

A10_AP

WE*

A5 A3

VSS18

CKE1 RFU14

RFU13 VDD16

VDD13

VSS15

RFU10

RFU8

RFU12

RFU0

RFU4

VSS13

RFU2

RFU6

VSS11 DQ26 DQ27

DQS3

VDD11

DQ19 DQ24 VDD9

VSS9

DQ25

DQ18

DQ16

VDD7

DQ17

DQS2

DQ11 VDD4

VSS7

CK0*

CK0

DQS1 VSS4 DQ10

VDD2 DQ9

DQ2

DQS0

DQ8

DQ3

VSS2

VDD0

DQ0 DQ1

VSS0

VREF0

A12

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

NCNC

NC NC

NCNC

NC NC

SLOT "A" LOWER SLOT

FACTORY SLOT

SLOT "B" UPPER SLOT

CUSTOMER SLOT

ADDR=0XA0(WR)/0XA1(RD) ADDR=0XA2(WR)/0XA3(RD)

on the PCB for additional mounting

DDR VREF

ONE 0.1UF PER SLOT

DDR BYPASS

SLOT "A"

SLOT "B"

DDR SODIMM CONNS

NOTE: The SODIMM connector footprint has a through-hole slot

C140

0.1uF

20% 10V CERM 402

C156

0.1uF

20% 10V CERM 402

C132

0.1uF

20% 10V CERM 402

119B

51B

40B39B

38B

28B27B

16B

186B185B

174B

15B

173B

162B161B

159B

150B149B

138B137B

126B125B

104B103B

90B

88B87B

76B75B

64B63B

52B

2B1B

197B

57B

46B45B

36B

34B33B

22B

192B191B

180B

21B

179B

168B167B

157B

156B155B

144B143B

132B131B

10B

114B113B

94B93B

92B

82B81B

70B69B

58B

193B 195B

198B

196B

194B

122B121B

84B83B

80B79B

78B77B

74B73B

72B

200B199B

124B123B

98B97B

91B

89B

86B85B

71B

118B

402

401

183B

169B

147B

133B

61B

47B

25B

11B

23B

19B

18B

14B

190B

188B

182B

178B

189B

187B

181B

177B

176B

172B

166B

164B

175B

171B

165B

163B

154B

152B

146B

142B

153B

151B

145B

141B

17B

140B

136B

130B

128B

139B

135B

129B

127B

68B

66B

13B

60B

56B

67B

65B

59B

55B

54B

50B

44B

42B

53B

49B

43B

41B

32B

30B

24B

20B

31B

29B

184B

170B

148B

134B

62B

48B

26B

12B

95B 96B

158B 160B

37B

35B

120B

116B

117B

101B 102B

105B 106B 107B 108B 109B 110B 111B

99B

100B

115B

112B

J25

CRITICAL

F-RT-SM

DDR-SO-DIMM-DUAL

119A

51A

40A39A

38A

28A27A

16A

186A185A

174A

15A

173A

162A161A

159A

150A149A

138A137A

126A125A

104A103A

90A

88A87A

76A75A

64A63A

52A

2A1A

197A

57A

46A45A

36A

34A33A

22A

192A191A

180A

21A

179A

168A167A

157A

156A155A

144A143A

132A131A

10A

114A113A

94A93A

92A

82A81A

70A69A

58A

193A 195A

198A

196A

194A

122A121A

84A83A

80A79A

78A77A

74A73A

72A

200A199A

124A123A

98A97A

91A

89A

86A85A

71A

118A

404

403

183A

169A

147A

133A

61A

47A

25A

11A

23A

19A

18A

14A

190A

188A

182A

178A

189A

187A

181A

177A

176A

172A

166A

164A

175A

171A

165A

163A

154A

152A

146A

142A

153A

151A

145A

141A

17A

140A

136A

130A

128A

139A

135A

129A

127A

68A

66A

13A

60A

56A

67A

65A

59A

55A

54A

50A

44A

42A

53A

49A

43A

41A

32A

30A

24A

20A

31A

29A

184A

170A

148A

134A

62A

48A

26A

12A

95A 96A

158A 160A

37A

35A

120A

116A

117A

101A 102A

105A 106A 107A 108A 109A 110A 111A

99A

100A

115A

112A

J25

CRITICAL

F-RT-SM

DDR-SO-DIMM-DUAL

C404

10uF

20%

6.3V CERM 805

C128

10uF

20%

6.3V CERM 805

R299

1% 1/16W MF 402

R303

1% 1/16W MF 402

C397

0.1uF

20% 10V CERM 402

C403

0.1uF

20%

402

CERM

10V

+2_5V_MAIN+2_5V_MAIN

+2_5V_MAIN

+2_5V_MAIN+2_5V_MAIN

+3V_MAIN +3V_MAIN

+3V_MAIN

C169

0.1uF

10V

20% CERM

402

C391

20%

0.1uF

10V 402

CERM

C356

0.1uF

20% 10V CERM 402

C211

0.1uF

20% 10V CERM 402

C127

0.1uF

20% 10V CERM 402

+2_5V_MAIN

C174

10uF

20%

6.3V 805

CERM

C150

0.1uF

20% 10V CERM 402

C157

10uF

20%

6.3V CERM 805

C383

0.1uF

20% 10V CERM 402

051-6680

4611

SYSCLK_DDRCLK_B1_L

INT_I2C_DATA0 INT_I2C_CLK0

RAM_DATA_A<26>

RAM_DQS_A<2>

RAM_DATA_A<9> RAM_DQS_A<1>

RAM_DATA_A<10>

DDR_VREF

RAM_DATA_A<4>

RAM_DATA_B<21>

RAM_DATA_B<5>

RAM_DATA_B<37>

RAM_DATA_B<63>

RAM_DATA_B<62>

RAM_DQM_B<7>

RAM_DATA_B<61>

RAM_DATA_B<60>

RAM_DATA_B<55>

RAM_DATA_B<54>

RAM_DQM_B<6>

RAM_DATA_B<53>

RAM_DATA_B<52>

SYSCLK_DDRCLK_B1

RAM_DATA_B<47>

RAM_DATA_B<46>

RAM_DQM_B<5>

RAM_DATA_B<45>

RAM_DATA_B<44>

RAM_DATA_B<39>

RAM_DATA_B<38>

RAM_DQM_B<4>

RAM_DATA_B<36>

RAM_CS_L<3>

RAM_CAS_L

RAM_RAS_L

RAM_BA<1>

RAM_ADDR<0>

RAM_ADDR<2>

RAM_ADDR<4>

RAM_ADDR<6>

RAM_ADDR<8>

RAM_ADDR<11>

RAM_CKE<2>

RAM_DATA_B<31>

RAM_DATA_B<30>

RAM_DQM_B<3>

RAM_DATA_B<29>

RAM_DATA_B<28>

RAM_DATA_B<23>

RAM_DATA_B<22>

RAM_DQM_B<2>

RAM_DATA_B<20>

RAM_DATA_B<15>

RAM_DATA_B<14>

RAM_DQM_B<1>

RAM_DATA_B<13>

RAM_DATA_B<12>

RAM_DATA_B<7>

RAM_DATA_B<6>

RAM_DQM_B<0>

RAM_DATA_B<4>

DDR_VREF

INT_I2C_CLK0

INT_I2C_DATA0

RAM_DATA_B<59>

RAM_DATA_B<58>

RAM_DQS_B<7>

RAM_DATA_B<57>

RAM_DATA_B<56>

RAM_DATA_B<51>

RAM_DATA_B<50>

RAM_DQS_B<6>

RAM_DATA_B<49>

RAM_DATA_B<48>

RAM_DATA_B<43>

RAM_DATA_B<42>

RAM_DQS_B<5>

RAM_DATA_B<41>

RAM_DATA_B<40>

RAM_DATA_B<35>

RAM_DATA_B<34>

RAM_DQS_B<4>

RAM_DATA_B<33>

RAM_DATA_B<32>

RAM_CS_L<2>

RAM_WE_L

RAM_BA<0>

RAM_ADDR<10>

RAM_ADDR<1>

RAM_ADDR<3>

RAM_ADDR<5>

RAM_ADDR<7>

RAM_ADDR<9>

RAM_ADDR<12>

RAM_CKE<3>

RAM_DATA_B<27>

RAM_DATA_B<26>

RAM_DQS_B<3>

RAM_DATA_B<25>

RAM_DATA_B<24>

RAM_DATA_B<19>

RAM_DATA_B<18>

RAM_DQS_B<2>

RAM_DATA_B<17>

RAM_DATA_B<16>

SYSCLK_DDRCLK_B0_L

SYSCLK_DDRCLK_B0

RAM_DATA_B<11>

RAM_DATA_B<10>

RAM_DQS_B<1>

RAM_DATA_B<9>

RAM_DATA_B<8>

RAM_DATA_B<3>

RAM_DATA_B<2>

RAM_DQS_B<0>

RAM_DATA_B<1>

RAM_DATA_B<0>

DDR_VREF

RAM_DATA_A<7>

RAM_DATA_A<13>

RAM_DATA_A<20>

RAM_DATA_A<22>

RAM_DATA_A<28>

RAM_ADDR<8>

RAM_ADDR<2>

RAM_DATA_A<39>

RAM_DATA_A<47>

RAM_DQM_A<6>

RAM_DATA_A<60>

RAM_DATA_A<43>

RAM_DATA_A<42>

RAM_DQS_A<4>

RAM_DATA_A<33>

RAM_DATA_A<40>

RAM_DQS_A<5>

RAM_DATA_A<41>

RAM_ADDR<10>

RAM_ADDR<3> RAM_ADDR<1>

RAM_ADDR<12>

RAM_DATA_A<27>

RAM_DATA_A<17>

RAM_DATA_A<16>

RAM_DQS_A<0>

RAM_DATA_A<1>

DDR_VREF

RAM_DATA_A<0>

SYSCLK_DDRCLK_A1_L

RAM_DATA_A<21>

DDR_VREF

RAM_DATA_A<38>

RAM_DQM_A<4>

RAM_BA<1>

RAM_DATA_A<15>

RAM_DATA_A<63>

RAM_DATA_A<62>

RAM_DQM_A<7>

RAM_DATA_A<61>

RAM_DATA_A<55>

RAM_DATA_A<54>

RAM_DATA_A<53>

RAM_DATA_A<52>

SYSCLK_DDRCLK_A1

RAM_DATA_A<46>

RAM_DQM_A<5>

RAM_DATA_A<45>

RAM_DATA_A<44>

RAM_DATA_A<37>

RAM_DATA_A<36>

RAM_CS_L<1>

RAM_CAS_L

RAM_ADDR<0>

RAM_ADDR<4>

RAM_ADDR<6>

RAM_ADDR<11>

RAM_CKE<0>

RAM_DATA_A<30>

RAM_DQM_A<3>

RAM_DATA_A<29>

RAM_DATA_A<14>

RAM_DQM_A<1>

RAM_DATA_A<12>

RAM_DQM_A<0>

RAM_DATA_A<5>

RAM_DATA_A<56>

RAM_DATA_A<50>

RAM_DATA_A<59>

RAM_DATA_A<58>

RAM_DQS_A<7>

RAM_DATA_A<57>

RAM_DATA_A<51>

RAM_DQS_A<6>

RAM_DATA_A<49>

RAM_DATA_A<48>

RAM_DATA_A<35>

RAM_DATA_A<34>

RAM_DATA_A<32>

RAM_CS_L<0>

RAM_WE_L

RAM_BA<0>

RAM_ADDR<5>

RAM_ADDR<7>

RAM_ADDR<9>

RAM_CKE<1>

RAM_DQS_A<3>

RAM_DATA_A<25>

RAM_DATA_A<24>

RAM_DATA_A<19>

SYSCLK_DDRCLK_A0_L

SYSCLK_DDRCLK_A0

RAM_DATA_A<11>

RAM_DATA_A<8>

RAM_DATA_A<3>

RAM_DATA_A<2>

RAM_RAS_L

RAM_DATA_A<6>

RAM_DATA_A<18>

RAM_DQM_A<2>

RAM_DATA_A<31>

RAM_DATA_A<23>

41 41

41 24

24 24

24 13

37 37

11 11

10 10

9 9

(PLL4)

VDD15A_6

(PLL4) VSSA_6

ROM_WE

ROM_OE

PCI_STOP PCI_DEVSEL

PCI_CBE_3

PCI_CBE_2

PCI_CBE_1

PCI_CBE_0

ROM_CS

PCI_CLK_IN

PCI_CLK_OUT

PCI_CLK2

PCI_CLK1

PCI_CLK0

PCI_FRAME

PCI_PAR

PCI_TRDY PCI_IRDY

PCI_REQ_2

PCI_REQ_1

PCI_REQ_0

PCI_GNT_0 PCI_GNT_1 PCI_GNT_2

PCI/ROM

INTERFACE

PCIAD_31

PCIAD_30

PCIAD_28

PCIAD_27

PCIAD_26

PCIAD_25

PCIAD_29

PCIAD_19

PCIAD_18

PCIAD_17

PCIAD_16

PCIAD_15

PCIAD_23 PCIAD_24

PCIAD_20 PCIAD_21 PCIAD_22

PCIAD_14

(7 OF 9)

PCIAD_11

PCIAD_10

PCIAD_12 PCIAD_13

PCIAD_9

PCIAD_6

PCIAD_5

PCIAD_7 PCIAD_8

PCIAD_4

PCIAD_3

PCIAD_1 PCIAD_2

PCIAD_0

ROM_OVRLY_EN

VSSA_5 (PLL5)

(PLL5)

VDD15A_5

STP_AGP AGPPVT AGPVREF0 AGPVREF1

AGP_BUSY AGP_CLK AGP_FB_IN AGP_FB_OUT

AGPAD0

AGPREQ AGPGNT

AGP_SBA3

AGP_SBA2

AGP_SBA1

AGP_SBA0

AGPCBE_3

AGPFRAME

AGPTRDY AGPIRDY AGPSTOP

AGPDEVSEL

AGPPAR

AGPAD31

AGPAD30

AGPCBE_0 AGPCBE_1 AGPCBE_2

AGP_ST2

AGP_AD_STB0_P AGP_AD_STB0_N AGP_AD_STB1_P AGP_AD_STB1_N

AGPPIPE

AGPRBF

AGP_ST1

AGP_SBA7

AGP_SB_STB_P AGP_SB_STB_N

AGP_ST0

AGP_WBF

AGP

INTERFACES

AGP_SBA6

AGP_SBA5

AGP_SBA4

AGPAD29

AGPAD28

AGPAD27

AGPAD26

AGPAD25

AGPAD24

AGPAD23

AGPAD22

AGPAD21

AGPAD20

AGPAD19

AGPAD18

AGPAD17

AGPAD16

AGPAD15

AGPAD14

AGPAD13

AGPAD12

AGPAD11

AGPAD10

AGPAD9

AGPAD8

AGPAD7

AGPAD6

AGPAD5

AGPAD4

AGPAD3

AGPAD2

AGPAD1

(3 OF 9)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PCI FEEDBACK CLOCK MATCHES LONGEST PCI CLOCK ROUTE

PLACE NEAR INTREPID

VOUT = 3.3V

VIN = 1.5V

PCI PULL-UPS

BECAUSE THIS CHIP IS POWERED DURING SLEEP

NEC USB2 REQ REMAINS ON +3V_MAIN

AGP I/O REFERENCE

BECAUSE SINGLE AGP PWR PLANE AND CLOSE PROXIMITY OF CHIPS

SIMPLY PROVIDING REFERENCE TO CHIP

(PLACE CLOSE TO INTREPID AGP BALLS)

SERIES RESISTORS FOR BOOTROM CONTROL SIGNALS

PLACE CLOSE TO INTREPID SIDE

AGP_FB_CLK IS ROUTED THE SAME LENGTH AS CLK66M_GPU_AGP

USE 52-OHM A RESISTOR HERE.

NOTE: Designs using AGP slot should

Vout = AGPIO (1.5V) Vin = Vcore (1.5V) Vout = AGPIO (1.5V)

INTREPID AGP/PCI

AGP PULL-UPS/PULL DOWNS

R197

4.7

1/16W

402

R246

402

1/16W

R245

60.4

1% 1/16W MF 402

RP34

SM1

1/16W

10K

R167

4.7

1/16W

402

C190

0.22uF

20%

6.3V CERM

402

J10

J11

AN9

AK17

AR7

AM9

AT15

AR15

AT17

AR16

AR17

AT14

AH16

AN17

AN18

AT16

AN16

AM17

AM18 AJ19

AT18

AH18

AR18

AJ15

AM16

AK16

AR14

AR9

AK13

AH13

AN11

AT8

AN10

AM15

AN15

AJ8

AK14

AT13

AN14

AH15

AK15

AR13

AM11

AT12

AJ11

AR12

AK12

AM13

AN13

AT10

AT11

AK11

AN12

AM12

AR11

AT9

AR10

AR8

AM10

U51

OMIT

INTREPID-REV2.1

BGA

CRITICAL

R272

1/16W

402

R230

1/16W

402

R264

5% MF

1/16W

402

R244

5% 1/16W MF 402

+3V_SLEEP

RP33

10K

1/16W

SM1

RP33

10K

1/16W

SM1

RP36

10K

1/16W

SM1

RP36

10K

1/16W

SM1

RP36

10K

1/16W

SM1

RP36

10K

1/16W

SM1

RP33

10K

1/16W

SM1

RP33

10K

1/16W

SM1

R282

1/16W

402

R278

1/16W

402

R277

1/16W

402

R252

1/16W

402

R273

1/16W

402

C311

NO STUFF

12PF

50V

CERM

402

C362

NO STUFF

12PF

50V

CERM

402

C372

NO STUFF

12PF

50V

CERM

402

R553

402

1/16W

10K

R318

402

1/16W

10K

R316

402

1/16W

10K

R314

10K

1/16W

402

R317

402

1/16W

10K

R552

402

1/16W

10K

R334

10K

1/16W

402

R308

10K

1/16W

402

+3V_MAIN

R255

402

1/16W

10K

R239

402

1/16W

10K

R254

10K

1/16W

402

R256

402

1/16W

10K

R253

402

1/16W

10K

R235

402

1/16W

10K

R225

1% MF

1/16W

402

R219

1/16W

402

C291

0.22uF

6.3V

20% CERM

402

RP34

SM1

1/16W

10K

RP34

1/16W

SM1

10K

RP34

SM1

1/16W

10K

V13

V14

AN19

AK30

AR30

AT30

AN29

AH25 AG25

AN30

AM30

AT31

AR31

AN31

AM31

AR32

AT32

AK25

AK27

AK28

AT19

AK21 AK22

AK20 AK19

AB21

AB20

AR29

AM28

AT33

AK24

AJ24

AJ29

AT29

AT28

AM29

AN28

AM27

AL25

AN24

AT23

AM20

AT22

AM21

AN21

AR21

AN20

AT21

AN27

AR28

AR20

AT27

AR27

AM26

AN26

AM25

AT26

AR26

AL24

AN25

AM24

AT20

AR25

AT25

AR24

AM23

AT24

AR23

AN23

AM22

AN22

AR22

AM19

AR19

U51

OMIT

INTREPID-REV2.1

BGA

CRITICAL

C270

0.22uF

20%

402

6.3V

CERM

051-6680

4612

AGP_GNT_L

AGP_AD<0> AGP_AD<1>

+1_5V_INTREPID_PLL

CLK33M_CBUS_UF

CLK33M_AIRPORT_UF

+1_5V_INTREPID_PLL5

+1_5V_INTREPID_PLL

+1_5V_INTREPID_PLL6

AIRPORT_PCI_REQ_L

INT_PCI_FB_OUT INT_PCI_FB_IN

PCI_TRDY_L

INT_ROM_CS_L INT_ROM_OE_L

PCI_CBE<0>

PCI_IRDY_L PCI_STOP_L PCI_DEVSEL_L

PCI_CBE<1> PCI_CBE<2> PCI_CBE<3>

CLK66M_GPU_AGP_UF

PCI_TRDY_L

INT_AGP_VREF

PCI_AD<11>

PCI_AD<10>

PCI_AD<6>

AIRPORT_PCI_GNT_L CBUS_PCI_GNT_L

PCI_AD<9>

STOP_AGP_L

INT_AGP_FB_OUT

INT_AGP_FB_IN

+1_5V_AGP

AGP_SB_STB_L

PCI_AD<31>

CLK33M_NEC

CLK33M_AIRPORT

INT_ROM_RW_L

PCI_FRAME_L

PCI_PAR

NEC_PCI_GNT_L

CBUS_PCI_REQ_L

PCI_AD<30>

PCI_AD<29>

PCI_AD<28>

PCI_AD<27>

PCI_AD<26>

PCI_AD<25>

PCI_AD<24>

PCI_AD<23>

PCI_AD<22>

PCI_AD<21>

PCI_AD<20>

PCI_AD<17> PCI_AD<18>

PCI_AD<15>

PCI_AD<14>

PCI_AD<16>

PCI_AD<12> PCI_AD<13>

PCI_AD<7> PCI_AD<8>

PCI_AD<5>

PCI_AD<4>

PCI_AD<2>

PCI_AD<1>

PCI_AD<0>

PCI_STOP_L

PCI_DEVSEL_L

PCI_FRAME_L

+1_5V_AGP

INT_AGPPVT

+1_5V_AGP

AGP_SBA<1>

AGP_REQ_L

STOP_AGP_L

INT_AGP_VREF

AGP_AD<2> AGP_AD<3> AGP_AD<4>

AGP_AD<10> AGP_AD<11> AGP_AD<12>

AGP_AD<14> AGP_AD<15> AGP_AD<16>

AGP_AD<18> AGP_AD<19>

AGP_AD<22> AGP_AD<23> AGP_AD<24> AGP_AD<25> AGP_AD<26> AGP_AD<27>

AGP_AD<29> AGP_AD<30> AGP_AD<31>

AGP_CBE<0> AGP_CBE<1> AGP_CBE<2> AGP_CBE<3>

AGP_PAR AGP_FRAME_L AGP_TRDY_L AGP_IRDY_L AGP_STOP_L AGP_DEVSEL_L

AGP_SBA<0>

AGP_SBA<2> AGP_SBA<3> AGP_SBA<4> AGP_SBA<5> AGP_SBA<6> AGP_SBA<7>

AGP_SB_STB AGP_SB_STB_L

AGP_ST<0>

AGP_ST<2>

AGP_ST<1>

AGP_AD_STB<1> AGP_AD_STB_L<1>

AGP_AD_STB<0> AGP_AD_STB_L<0>

AGP_PIPE_L AGP_RBF_L

AGP_WBF_L

ROM_OE_LINT_ROM_OE_L

ROM_CS_LINT_ROM_CS_L

ROM_RW_LINT_ROM_RW_L

AGP_REQ_L

AGP_AD_STB<1>

AGP_AD_STB_L<0>

AGP_IRDY_L

AGP_WBF_L

AGP_AD_STB<0>

AGP_SB_STB

AGP_AD_STB_L<1>

AGP_BUSY_L

CLK66M_AGP_1_5V_TP

CLK66M_GPU_AGP

AGP_AD<5>

AGP_AD<8>

AGP_AD<7>

AGP_TRDY_L

AGP_AD<17>

AGP_STOP_L

AGP_PIPE_L

PCI_AD<19>

AGP_AD<28>

AGP_AD<6>

AGP_AD<9>

AGP_AD<13>

AGP_FRAME_L

AGP_DEVSEL_L

AGP_RBF_L

AGP_BUSY_L

+3V_GPU

CLK33M_CBUS

CLK33M_NEC_UF

AIRPORT_PCI_REQ_L

AGP_AD<21>

AGP_GNT_L

AGP_AD<20>

NEC_PCI_REQ_L

CBUS_PCI_REQ_L

PCI_IRDY_L

PCI_AD<3>

NEC_PCI_REQ_L

41 41

39 39

26 26

39 39

26 26

18 18

26 26

18 18

39 39

17 17

18 18

17 17

39 39

39 19

19 19

39 39

37 37

12 12

17 17

9 9

12 12

19 19

19 12

12 12

19 19

CS_CE2

CS_CE1

CS_IORD CS_IOWR

ATA_CS1

ATA_CS0

IDE

IDEINTRQ

IDECHRDY

IDECS0 IDECS1

IDEDMACK IDEDMARQ

IDERD

IDEWR

IDERST

IDEA9

IDEA8

IDEA7

IDEA6

IDEA5

IDEA4

IDEA3

IDEA2

IDEA1

IDEA0

IDEDD15

IDEDD14

IDEDD13

IDEDD12

IDEDD11

IDEDD10

IDEDD9

IDEDD8

IDEDD7

IDEDD6

IDEDD5

IDEDD4

IDEDD3

IDEDD2

IDEDD1

IDEDD0

CARDSLOT

CS_WAIT

CS_OE CS_WE

ATA_INTRQ

ATA_DMARQ

ATA_CHRDY

ATA_DMACK

ATA_RD

ATA_WR

ATA_RST

ATA_VREF

UATA100

ATA_A1 ATA_A2

ATA_A0

ATA_D12

ATA_D11

ATA_D15

ATA_D14

ATA_D13

ATA_D10

ATA_D9

ATA_D3

ATA_D2

ATA_D1

ATA_D0

ATA_D4

ATA_D8

ATA_D7

ATA_D6

ATA_D5

(5 OF 9)

IICDATA_1

IICCLK_1

IICCLK_0 IICDATA_0

TST_PLLEN

TST_MONOUT

TST_MONIN

TEI

TRSTN

TMS

TCK

TDO

TDI

TEST

MDC

GBE_REFCLK

MDIO

COL

CRS

GTX_CLK

RXD_6

RXD_4 RXD_5

RXD_3

RXD_7

RXD_2

RXD_1

RX_ER

RX_DV

RX_CLK

RXD_0

FW_PINT

FW_LINKON

FWR_LCLK

TX_ER

TX_EN

TX_CLK

TXD_0

RESET

PURESET

PHY_LPS PHY_CTL0 PHY_CTL1 PHY_LREQ FWR_PCLK

(4 OF 9)

MISC

TXD_3

TXD_2

TXD_1

TXD_4 TXD_5 TXD_6 TXD_7

GB ETHERNET

FIREWIRE

PHY_DATA0 PHY_DATA1 PHY_DATA2 PHY_DATA3

PHY_DATA5

PHY_DATA7

PHY_DATA4

PHY_DATA6

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

UDMA - STOP UDMA - HOSTDMARDY/HSTROBE UDMA - DEVICEDMARDY/DSTROBE

CS_WAIT IS AN INPUT

Keep C847 stub short

NOT USING CARDSLOT INTERFACE

ENET_TXD SERIES TERMINATION

JTG_RSTN_L

TST_TEI_H

JTG_TDO_H

(I/O)

JTG_TDI_H

(I/O)

TST_PLLEN_H

ANALYZER_CLK

DESCRIPTION

1 0 0 0 0

0 0 0 0 0

X 0 0 0 1

1 1 1 1 1

1(I)

0(I)

(INPUT)

TESTSEL5

HWPLL_

(OUTPUT)

SHUTDOWN

EXTPLL

X X X X

JTAG MODE

NORMAL OPERATION

TPDENABLE

DDR_

(OUTPUT)

0(I) 1(I) 0(I)

1(I) 1(I) 0(I) 0(I) 1(I)

MEMWE

(OUTPUT)

SELECTED

PLL OUTPUTS

SELECTED

PLL OUTPUTS

SYNC/MEM DATA

BYPASS

X(I) X(I) X(I) X(I) X(I)

FUNCTIONAL TEST IDDQ

POSTSCALAR BYPASS

FUNCTIONAL TEST WITH

POSTSCALAR BYPASS

FUNCTIONAL TEST WITHOUT

TEST TRI-STATE

ATPG IDDQ

ATPG NORMAL

VIEW PLLS (HARDWARE)

VIEW PLLS (SOFTWARE)

TEST PULL-UPS/DOWNS

HW_PLL<BIT 0>

I2C PULL-UPS

ADDR LSB INDICATES READ (’1’) OR WRITE (’0’) MODES

BUS

ADDR

A0-WR A1-RD A2-WR A3-RD AC-WR AD-RD AE-WR AF-RD 84-WR 85-RD 5C-WR 5D-RD 6A-WR 6B-RD D2-WR D3-RD B0-WR B1-RD

I2C-0

(MAIN)

RAM - LOWER

J25 - PG 11

RAM - UPPER

J25 - PG 11

N/A

BOOTBANG EEPROM

U51 - PG 6

LMU

J3000 - PG 24

(LMU on RUX Brd.)

N/A N/A N/A N/A

I2C-1

(MAIN)

I2C-2

(SLEEP)

PMU

(SLEEP)

N/AN/AN/A

N/A

N/A N/A

N/A

SOFT MODEM

J14 - PG 26

N/A N/A

N/A

N/A N/A

N/A

FAN CONTROLLER

U52 - PG 26

N/A

N/A N/A

SNAPPER SOUND

J2 - PG 26

N/A

CLOCK SLEW SSCG

U30 - PG 14

N/A N/A

N/AN/A

MMM

U15 - PG 42

INT - ENET/FW/UATA

EIDE/I2C

R259

1/16W

402

RP35

10K

1/16W

SM1

R232

10K

5% 1/16W MF 402

RP16

1/16W

SM1

RP10

1/16W

SM1

RP10

1/16W

SM1

RP10

1/16W

SM1

RP10

1/16W

SM1

RP16

1/16W

SM1

RP16

1/16W

SM1

RP16

1/16W

SM1

+3V_MAIN

R269

10K

1/16W

402

R270

10K

1/16W

402

C847

NO STUFF

10pF

5% 50V CERM 402

R630

NO STUFF

10K

1/16W

402

+3V_MAIN

R263

1/16W

402

RP32

2.2K

1/16W

SM1

RP32

2.2K

1/16W

SM1

RP32

2.2K

1/16W

SM1

RP32

2.2K

1/16W

SM1

RP35

10K

1/16W

SM1

RP35

10K

1/16W

SM1

RP35

10K

1/16W

SM1

R207

1% 1/16W MF 402

AM2

AJ4

AL2

AA7

AH7

AG8

AE5

AE4

AG2

AD5

AH1

AF2

AG1

AF1

AJ2

AJ1

AG4

AD7

AH2

AF4

AD4

AC5

AM1

AB7

AK4

AG7

AF7

AH5

AK2

AL1

AH4

AG5

AK1

AE7

AF5

AE1 AE2

AC4

AD2

AB5

AB4

AD1

AA1

Y15

AA2

AA8

AC2

AC1

AB2

AA4

AA5

AB1

U51

CRITICAL

INTREPID-REV2.1

OMIT

BGA

R224

1/16W

402

R205

402

1/16W

E10

G10

H10

AR6

AK10

AM7

AN6

AR5

AH10

AT5

AK8

AP5

J12

B5 B6

AM3

AN1

AK5

AN2

H12

L13

U14 E6 C5

U51

BGA

OMIT

INTREPID-REV2.1

CRITICAL

R195

5% MF

1/16W

402

R186

402

1/16W

R149

1/16W

402

R145

1/16W

402

R160

1/16W

402

051-6680

4613

HD_DMARQ

UIDE_ADDR<1>

UIDE_DATA<13>

UIDE_DATA<12>

UIDE_DATA<10>

JTAG_ASIC_TRST_L

UIDE_DATA<11>

ENET_PHY_TXD<6>

ENET_PHY_TXD<7>

ENET_RX_DV

UIDE_DATA<1>

UIDE_DATA<0>

UIDE_DATA<3>

UIDE_DATA<5>

ENET_LINK_TXD<1>

ENET_PHY_TXD<1>

ENET_PHY_TXD<0>

EIDE_DATA<13>

FW_LKON

CLKFW_LINK_LCLK

FW_PHY_LPS

ENET_PHY_TXD<5>

ENET_LINK_RXD<4> ENET_LINK_RXD<5>

ENET_LINK_RXD<7>

ENET_COL

ENET_LINK_TXD<0>

CLKENET_LINK_TX

HD_INTRQ

CLKENET_PHY_GTX

UIDE_REF

UIDE_CS1_L

UIDE_DIOR_L

EIDE_DATA<1> EIDE_DATA<2>

ENET_PHY_TX_ER

CLKFW_LINK_PCLK

FW_LINK_CNTL<0> FW_LINK_CNTL<1>

FW_LINK_DATA<7>

FW_LINK_DATA<0> FW_LINK_DATA<1>

ENET_LINK_TXD<2>

FW_PINT

ENET_LINK_RXD<0>

ENET_LINK_RXD<3>

ENET_LINK_RXD<2>

INT_I2C_DATA0

INT_I2C_DATA1

INT_I2C_CLK1

JTAG_ASIC_TCK

INT_RESET_L

INT_PU_RESET_L

ENET_LINK_TXD<0>

ENET_PHY_TXD<3>

ENET_LINK_TXD<3>

ENET_PHY_TXD<4>

ENET_LINK_TXD<4>

ENET_PHY_TXD<2>

ENET_LINK_TXD<2>

ENET_LINK_TXD<5>

ENET_LINK_TXD<7>

ENET_LINK_TXD<6>

INT_I2C_DATA1

INT_I2C_CLK1

CLKFW_PHY_LCLK

FW_PHY_LREQ

CSLOT_CE2_L_SPN

NO_TEST=TRUE

CSLOT_CE1_L_SPN

NO_TEST=TRUE

UIDE_CS0_L

CSLOT_IOWR_L_SPN

NO_TEST=TRUE

CSLOT_IORD_L_SPN

NO_TEST=TRUE

EIDE_INT

EIDE_DMACK_L EIDE_DMARQ

EIDE_WR_L EIDE_RD_L

EIDE_RST_L

EIDE_IOCHRDY

CSLOT_ADDR9_SPN

NO_TEST=TRUE

CSLOT_ADDR8_SPN

NO_TEST=TRUE

CSLOT_ADDR7_SPN

NO_TEST=TRUE

CSLOT_ADDR6_SPN

NO_TEST=TRUE

CSLOT_ADDR5_SPN

NO_TEST=TRUE

CSLOT_ADDR4_SPN

NO_TEST=TRUE

CSLOT_ADDR3_SPN

NO_TEST=TRUE

EIDE_ADDR<2>

EIDE_ADDR<1>

EIDE_ADDR<0>

EIDE_DATA<14> EIDE_DATA<15>

EIDE_DATA<11> EIDE_DATA<12>

EIDE_DATA<9> EIDE_DATA<10>

EIDE_DATA<8>

EIDE_DATA<6> EIDE_DATA<7>

EIDE_DATA<4> EIDE_DATA<5>

EIDE_DATA<3>

EIDE_DATA<0>

CSLOT_IOWAIT_L_PU

CSLOT_WE_L_SPN

NO_TEST=TRUE

CSLOT_OE_L_SPN

NO_TEST=TRUE

UIDE_INTRQ

UIDE_DMARQ

UIDE_IOCHRDY

UIDE_DMACK_L

UIDE_DIOW_L

UIDE_RST_L

UIDE_ADDR<2>

UIDE_ADDR<0>

UIDE_DATA<15>

UIDE_DATA<14>

UIDE_DATA<9>

UIDE_DATA<8>

UIDE_DATA<7>

UIDE_DATA<6>

UIDE_DATA<2>

EIDE_CS0_L EIDE_CS1_L

INT_I2C_DATA0

ENET_LINK_TXD<3>

ENET_LINK_TXD<5>

ENET_PHY_TX_EN

ENET_LINK_TX_ER

ENET_LINK_TXD<6>

ENET_MDIO ENET_MDC

ENET_LINK_RXD<1>

JTAG_ASIC_TDI

INT_TST_PLLEN_PD

JTAG_ASIC_TCK

FW_LINK_DATA<3> FW_LINK_DATA<4> FW_LINK_DATA<5> FW_LINK_DATA<6>

JTAG_ASIC_TRST_L

FW_LINK_LREQ

INT_TDO

JTAG_ASIC_TMS

ENET_LINK_TX_EN

UIDE_DATA<4>

FW_LINK_DATA<2>

INT_TST_MONIN_PD

ENET_CRS

CLKENET_LINK_GBE_REF

ENET_LINK_RXD<6>

ENET_RX_ER

CLKENET_LINK_RX

ENET_LINK_TXD<4>

JTAG_ASIC_TDI INT_TDO

JTAG_ASIC_TMS

INT_JTAG_TEI INT_TST_MONIN_PD INT_TST_MONOUT_TP INT_TST_PLLEN_PD

ENET_LINK_TXD<1>

INT_I2C_CLK0

INT_JTAG_TEI

ENET_LINK_TXD<7>

CLKENET_LINK_GTX

39 39

41 14

41 41

28 26

26 26

28 13

26 26

29 29

13 13

(PLL9)

(PLL7)

(PLL3)

(PLL2)

(PLL1)

VSSA_8

VSSA4

VSSA3

VSSA2

VSSA1

(PLL9)

(PLL7)

(PLL3)

(PLL2)

(PLL1)

VDD15A_8

VDD15A_4

VDD15A_3

VDD15A_2

VDD15A_1

CPU_INT PCIPME

EXTINT12 EXTINT13 EXTINT14 EXTINT15 EXTINT16 EXTINT17

GPIO16

GPIO15

GPIO12

GPIO11

GPIO9

GPIO6

GPIO5

GPIO4

GPIO3

GPIO2

GPIO1

GPIO0

VSSU_2

VDDU33_2

VDDU33_1

(6 OF 9)

SCCRTSA

SCCTXDA

SCCDTRA

SCCRXDA SCCGPIOA SCCTRXCA

SCCTXDB

SCCGPIOB SCCTRXCB

SCCRXDB

SCCRTSB

PURPOSE

GENERAL

I/O’S

EXTINT8

EXTINT7

EXTINT6

EXTINT0

INTERRUPTS

EXTINT11

EXTINT4 EXTINT5

EXTINT10

EXTINT9

EXTINT3

EXTINT2

EXTINT1

AUD_DTO

AUD_DTI AUD_SYNC

MOD_DTO

AUD_BITCLK AUD_CLKOUT

IICCLK_2

MOD_SYNC

MOD_DTI

MOD_CLKOUT

IICDATA_2

MOD_BITCLK

IIC

AUDIO/I2S

CLOCKS

XTAL_OUT

PROCSLEEPREQ PENDPROCINT

XTAL_IN

SS_REF_CLK_IN

BUF_REF_CLK_OUT

STOPXTAL

WATCHDOG

PCI_

VSSU_1

PCI_

USB_VD0_P USB_VD0_N

USB_VD1_P USB_VD1_N

USB_VD2_N

USB_VD2_P

USB_PWRFLT0

USB_PRTPWR0

USB_VD3_N

USB_VD3_P

USB

USB_PRTPWR1 USB_PWRFLT1

USB_VD4_N

USB_VD4_P

USB_VD5_N

USB_VD5_P

USB_PRTPWR2 USB_PWRFLT2

ADJ

BYP GND

OUT

SHDN

CPU0

VDDA

VDD0

VDD1

VDDC

VDDQ

VSS1

VSS0

VSSA

VSSC

VSSQ

LOCK ODSEL

PD*

SDATA

SCLK

FSEL

CLKIN

RESET*

ADDRSEL

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_11_HEAD

REFERENCE DESIGNATOR(S)

BOM OPTION

QTY

DESCRIPTION

VALUE VOLT. WATT.

TOL.PART #

PACKAGE

DEVICE

TABLE_11_HEAD

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

INTERNAL 250K PULL-UP

NC NC

MISO

ACK* SCK

MOSI

REQ*

PCI INTERRUPTS

-> 1.55V OUTPUT

GPIO/EXTINT PULLUPS

EXTINT11

EXTINT12

OPEN DRAIN OUTPUT

INTERNAL 250K PULL-UP

OUTPUT IMPEDANCE ~18-20 OHMS

INTERNAL 250K PULL-DOWN

PLACE NEAR INTREPID TO MINIMIZE OVERSHOOT

CRYSTAL LOAD CAPACITANCE IS 16PF

HWPLL_

TESTMUXSEL

SIGNAL NAME

MOD_BITCLK_B_H MOD_CLKOUT_B_H MOD_DTO_B_H MOD_SYNC_B_H MOD_DTI_B_H JTG_TDO_H

POWERBOOK SPARE

CBUS_REG_L CBUS_IREQ_L

(SIGNAL FROM MODEM)

VCORE A/B SEL

PORT F/TRACKPAD

PORT E/BLUETOOTH

PORT A B C D/UNUSED

USB PORT ASSIGNMENTS

VIA

INT - USB/GPIOS/I2S

+3V_MAIN

C256

10uF

6.3V CERM 805

20%

R166

100K

1/16W

402

+3V_MAIN

C246

0.1uF

20% 10V CERM 402

C235

0.01uF

CERM

16V

20%

402

R179

402

1/16W

R174

402

1/16W

RP13

1/16W

SM1

RP13

1/16W

SM1

RP13

1/16W

SM1

RP13

SM1

1/16W

V15

AT7

AH29

AK18

AJ16

AJ13

AA15

AG29

P8 N8

K5 L5

M7 M8

H2 H1

G2 G1

L8 L7

AN7

AR4

AF9

AM5

AT4

AG10

AG11

AL5

AN3

AP4

AG9

AF10

AT6

AN8

AJ18

AJ17

AJ12

AA16

AJ7

R2 T4

AH8

AL4

C32

D31

G30

E31

A33

B33

D34

C33

E30

B32

E34

F33

D30

U15

R4 R7

U51

CRITICAL

OMIT

INTREPID-REV2.1

BGA

+3V_SLEEP

C387

0.22uF

20%

6.3V CERM

402

R201

4.7

1/16W

402

C386

0.22uF

20%

6.3V CERM

402

R243

4.7

1/16W

402

C388

0.22uF

20%

6.3V CERM

402

R279

4.7

1/16W

402

C337

0.22uF

20%

6.3V CERM

402

C389

402

CERM

6.3V

20%

0.22uF

R240

4.7

402

1/16W

R280

4.7

1/16W

5% MF

402

2 1

R144

NO STUFF

1/16W

402

10M

C151

402

CERM

50V

22pF

C152

22pF

50V

CERM

402

R134

NO STUFF

1/16W

402

NO STUFF

U.FL-R_SMT

F-ST-SM

R113

NO STUFF

5% 1/16W MF 402

R143

5% 1/16W MF 402

C721

1uF

20% 10V

CERM

603

R567

68.1K

402

1/16W

R574

18.7K

1/16W

402

C723

10uF

20%

6.3V CERM 805

R568

NO STUFF

1/16W

603

R565

1/16W

603

+2_5V_MAIN

+1_8V_MAIN

U49

LT1962-ADJ

MSOP

C392

0.01uF

20% 16V

CERM

402

R187

10K

1/16W

402

R191

10K

1/16W

402

R258

5% 1/16W MF 402

R241

5% 1/16W MF 402

RP8

10K

1/16W

SM1

RP8

10K

1/16W

SM1

RP5

10K

1/16W

SM1

RP6

10K

1/16W

SM1

RP6

10K

SM1

1/16W

RP6

10K

1/16W

SM1

RP8

10K

1/16W

SM1

RP7

10K

1/16W

SM1

RP7

10K

1/16W

SM1

RP4

10K

1/16W

SM1

RP5

10K

1/16W

SM1

RP6

10K

1/16W

SM1

RP4

10K

1/16W

SM1

RP8

10K

1/16W

SM1

L13

FERR-EMI-100-OHM

+2_5V_MAIN

+3V_MAIN

L14

SSCG

400-OHM-EMI

SM-1

C394

SSCG

0.1uF

20% 10V CERM 402

L15

SSCG

400-OHM-EMI

SM-1

C399

402

CERM

10V

20%

0.1uF

SSCG

C402

SSCG

1uF

20% 10V CERM 603

R293

SSCG

1/16W

402

R292

SSCG

402

1/16W

C400

SSCG

0.1uF

10V

20% CERM

402

R288

SSCG

10K

1/16W

402

R284

SSCG

1/16W

402

R178

15K

1/16W

402

R175

5% 1/16W MF 402

15K

R142

SSCG

1/16W

402

2 1

R164

402

1/16W

10K

2 1

R165

402

1/16W

10K

2 1

R182

402

1/16W

10K

2 1

R180

402

1/16W

10K

2 1

R183

10K

1/16W

402

2 1

R181

10K

1/16W

402

R250

10K

402

1/16W

RP11

10K

1/16W

SM1

RP11

10K

1/16W

SM1

RP11

10K

1/16W

SM1

RP11

10K

1/16W

SM1

R295

1/16W

MF 402

10K

NO STUFF

R296

10K

5% 1/16W MF 402

NO STUFF

R153

10K

1/16W

402

R287

SSCG

5% 1/16W MF 402

10K

R286

NO STUFF

1/16W

402

R218

1/16W

402

+3V_SLEEP

R746

402

1/16W

10K

R158

10K

1/16W

402

R148

10K

1/16W

402

+3V_MAIN

17 13

U31

CRITICAL

CY28512D

TSSOP

OMIT

RP47

SM1

1/16W

SOFT_MODEM

RP47

SM1

1/16W

SOFT_MODEM

RP47

1/16W

SM1

SOFT_MODEM

RP47

SM1

1/16W

SOFT_MODEM

R206

USB_MODEM

10K

1/16W

402

RP15

USB_MODEM

10K

1/16W

SM1

RP15

USB_MODEM

10K

1/16W

SM1

RP15

USB_MODEM

10K

1/16W

SM1

RP15

USB_MODEM

10K

1/16W

SM1

CRITICAL

OMIT

18.432M

8X4.5MM-SM

R450

SSCG

1/16W

402

R467

NO STUFF

5% MF

1/16W

402

R457

1/16W

402

R125

15K

5% 1/16W MF 402

R129

1/16W

402

15K

R635

1/16W

402

R603

1/16W

402

R121

402

1/16W

10K

R123

10K

1/16W

402

+3V_MAIN

R801

NO STUFF

10K

1/16W

MF 402

R802

10K

NO STUFF

1/16W

402

197S0090

XTAL,CER,LOW PROF,18,432MHZ,8X4.5MM,SMD

CRITICAL

116S1104

RES

RES-0402-V2

RESISTOR

10K

1/16W

R292

NO_SSCG

359S0086

IC,CY28512-2

U31

CRITICAL

SSCG

051-6680

14 46

INT_I2C_DATA2

INT_I2S0_SND_MCLK_UF

INT_MOD_BITCLK_UF

USB_DAP

USB_DBM

USB_DCM

USB_DCP

LTC1962_INT_VIN

PMU_REQ_L

INT_GPIO12_PU

AIRPORT_PCI_INT_L

PMU_REQ_L

COMM_TRXC

+1_5V_INTREPID_PLL3

+1_5V_INTREPID_PLL1

+1_5V_INTREPID_PLL

INT_MOD_DTO_UF

CLK18M_INT_XIN

MMM_FFIRQ_L

PMU_CLK

PMU_ACK_L

INT_GPIO1_PU

INT_MOD_CLKOUT_UF

MMM_SIRQ_L

CLK18M_INT_EXT

INT_EXTINT16_PU

PMU_INT_NMI

INT_EXTINT13_PU

PMU_INT_L

INT_EXTINT10_PU

INT_EXTINT8_PU

COMM_RING_DET_L

INT_EXTINT14_PU

USB_OC_AB_L

USB_PWREN_AB_L

USB_PWREN_CD_L

USB_OC_CD_L

INT_GPIO15_PU

VCORE_VGATE

INT_I2C_DATA1

CG_LOCK

CG_SYSCLK_EN

INT_I2C_CLK1

CG_ADDRSEL

CG_FSEL

MAIN_RESET_L

INT_REF_CLK_OUT

INT_TDO

INT_PROC_SLEEP_REQ_L

PMU_PME_L

MPIC_CPU_INT_L

NEC_PCI_INT_L

INT_PEND_PROC_INT

INT_WATCHDOG_L

INT_REF_CLK_IN

INT_REF_CLK_OUT_UF

INT_REF_CLK_IN

+2_5V_CG_MAIN

CG_FSEL

SND_HP_SENSE_L

INT_EXTINT13_PU

MMM_SIRQ_L

MMM_FFIRQ_L

PMU_INT_NMI

AGP_ATI_INT_L INT_EXTINT3_PU

COMM_RING_DET_L

INT_ENET_RST_L

INT_GPIO12_PU

INT_EXTINT16_PU

PMU_INT_L

INT_EXTINT14_PU

INT_GPIO15_PU

CBUS_INT_L INT_EXTINT8_PU

INT_EXTINT10_PU

ENET_ENERGY_DET

SND_LIN_SENSE_L

SND_HW_RESET_L

INT_GPIO9_PU

SND_AMP_MUTE_L

SND_HP_MUTE_L

FW_PHY_PD

COMM_RESET_L

CG_FSEL_INT INT_GPIO1_PU

USB_OC_EF_L

USB_PWREN_EF_L

NEC_PCI_INT_L

CBUS_INT_L

AIRPORT_PCI_INT_L

LT1962_INT_BYP

LT1962_INT_ADJ

INT_I2S0_SND_FROM_ADC

INT_MOD_DTI

USB_DEM

USB_DFM

USB_DDP

USB_DCM

USB_OC_CD_L

USB_OC_EF_L

USB_DFP

USB_DCP

USB_PWREN_EF_L

USB_OC_AB_L

USB_DEP

USB_PWREN_CD_L

USB_DDM

USB_DBP

USB_PWREN_AB_L

USB_DBM

COMM_RXD

COMM_TXD_L

PMU_FROM_INT

PMU_TO_INT

USB_DAM

COMM_DTR_L

COMM_GPIO_L

COMM_RTS_L

INT_I2C_CLK2

INT_MOD_CLKOUT_UF

INT_MOD_DTO

INT_MOD_BITCLK

INT_MOD_CLKOUT

INT_I2S0_SND_SCLK

INT_I2S0_SND_LRCLK

USB_DFP

USB_DEP

USB_DFM

INT_I2S0_SND_MCLK

USB_TPAD_N

USB_TPAD_P

BT_USB_DM

BT_USB_DP

+1_5V_INTREPID_PLL4

+1_5V_INTREPID_PLL2

+3V_INTREPID_USB

USB_DDM

USB_DBP

USB_DAM

USB_DDP

INT_MOD_BITCLK_UF

INT_MOD_DTI

INT_MOD_SYNC_UF

INT_GPIO9_PU

INT_EXTINT3_PU

INT_REF_CLK_OUT

VCORE_VGATE

CG_SYSCLK_EN

SYSTEM_CLK_EN

INT_I2S0_SND_TO_DAC_UF

INT_I2S0_SND_LRCLK_UF INT_I2S0_SND_SCLK_UF

INT_MOD_SYNC_UF

INT_MOD_SYNC

INT_MOD_DTO_UF

INT_I2S0_SND_TO_DAC

USB_DEM

+1_5V_INTREPID_PLL8

+3V_CG_PLL_MAIN

CG_RESET_L

CG_CLKOUT

SYSTEM_CLK_EN

CLK18M_INT_XOUT

CLK18M_XTAL_IN

SND_HW_RESET_L

41 31

28 26

19 14

14 14

POWER/GROUND

VSS

(8 OF 9)

VDD2.5

VSS

VDD1.8/CPUVIO

GROUND

POWER

(9 OF 9)

VDD1.5

AGP_IO_VDD

VDD3.3

AGP_IO_VSS

VSS

VDD3.3

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

Intrepid Power

M34

M32

M31

M28

M24

M21

M20

M18

M17

M14

L24

J34

J31

F34

F31F3F28

F25

F22

F19

F16

F13

F10D4D33C7C36

C34

C31

C28

C25

C22

C19

C16

C13

C10

B35

AT34

AT3

AR35

AR2

AP9

AP6

AP36

AP34

AP33

AP30

AP3

AP27

AP24

AP21

AP18

AP15

AP12

AP1

AN4

AN33

U16

U10

T27

T24

T23

T14

T11

R34

R31

R29

R26

R24

R23

R21

R19

R18

R16

R14

P29

P22

P17

P12

N25

N15

AE31

AC28

AC27

AC25

AB34

E33

Y29

Y27

W34

AB31

W31

W25

V29

V25

U28

U25

T34

T31

T29

T28

AB27

T25

R27

R25

P28

P25

N36

N34

N31

N28

K34

AB25

K31

G34

G31

C35

AP35

AK34

AH34

AH30

AF28

AE34

AA29

AA25

F12

C30

C27

C24

C21

C18

P19

P16

N23

N21

N18

C15

M23

M22

M19

M16

M15

F27

F24

F21

F18

F15

C12

U51

OMIT

INTREPID-REV2.1

BGA

CRITICAL

AE21

AE19

AE18

AE16

AE14

AD6

AL9

AL6

AL34

AL31

AL27

AD34

AL21

AL18

AL15

AL12

AK7

AK3

AH27

AH23

AH21

AD31

AH20

AG6

AG34

AG30

Y25

Y24

Y23

Y19

Y16

AG3

Y14

Y12

Y11

W26

W23

W14

W11

V34

V31

AG24

V24

V21

V18

V17

V12

V10

U29

U27

U22

AG23

U19

AG21

AE28

AE22

AD3

AD28

G3F9F7

F30

B34

D32

AR3

AC13

AP7

AP2

W13

W12

U12

T18

AC12

T12

R22

P14

P13

N24

AP16

AB6

AP13

AP10

AN5

AM4

AL7

AL3

AL16

AL13

AL10

AK6

AB3

AH6

AH3

AF25

AE6

AE3

AE17

AE15

AD21

AC14

AA12

AA11

AD13

AC23

AC19

AC17

AB19

AB17

AB15

Y18

Y13

W24

W16

V22

V20

V19

V16

U24

U18

AB13

U17

T13

R20

R17

P21

P20

P18

P15

AD22

AD15

AA24

AA21

AA6

AA34

AA31

AA3

AA27

AA20

A34

AD25

AD23

AD12

AC26

AC22

AC20

AC18

AC16A3AC15

AC11

AB29

AB28

AB24

AB18

AB16

AB14

AB12

AB11

AL19

AJ23

AJ21

AH28

AH22

AH19

AF22

AR34

AE23

AR33

AP31

AP28

AP25

AP22

AP19

AN32

AL30

AL28

AL22

AE20

AD20

U51

OMIT

INTREPID-REV2.1

BGA

CRITICAL

+1_5V_MAIN

+3V_MAIN

R276

INT_2_5V_COLD

1/10W

805

R274

INT_2_5V_HOT

1/10W

805

+2_5V_MAIN

+2_5V_SLEEP

IC,ASIC,INTREPID,REV2.1,974 BGA,FAST

343S0305 CRITICAL

U51

051-6680

15 46

+1_5V_AGP

MAXBUS_SLEEP

+2_5V_INTREPID

21 8 19 7 16 6 12

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

INTREPID MAXBUS DECOUPLING

24 Balls 4 X 10UF (0805) 28 X 0.22UF (0402)

INTREPID AGP I/O DECOUPLING

21 X 0.22UF (0402)

4 X 10UF (0805)

21 Balls

INTREPID DDR DECOUPLING

44 Balls 4 X 10UF (0805) 46 X 0.22UF (0402)

INTREPID CORE DECOUPLING

4 X 10UF (0805)

30 Balls 29 X 0.22UF (0402)

INTREPID 3.3V DECOUPLING

57 Balls 4 X 10UF (0805) 40 X 0.22UF (0402)

INTREPID/MAIN 2.5V DECOUPLING

10 X 0.22UF (0402)

Place these 2.5V Decoupling Caps near the Edge of +2.5V_MAIN and +2.5V_INTREPID split

Intrepid Decoupling

C178

0.22uF

20%

6.3V CERM 402

C182

0.22uF

20%

6.3V CERM 402

C204

0.22uF

20%

6.3V CERM 402

C166

402

CERM

6.3V

20%

0.22uF

C142

10uF

20%

6.3V CERM

805

C148

10uF

6.3V CERM

805

20%

C141

0.22uF

20%

6.3V CERM 402

C205

0.22uF

20%

6.3V CERM 402

C145

0.22uF

20%

6.3V CERM 402

C223

0.22uF

20%

6.3V CERM 402

C214

0.22uF

20%

6.3V CERM 402

C229

402

CERM

6.3V

20%

0.22uF

C163

0.22uF

20%

6.3V CERM 402

C181

0.22uF

20%

6.3V CERM 402

C164

0.22uF

20%

6.3V CERM 402

C207

0.22uF

20%

6.3V CERM 402

C225

0.22uF

20%

6.3V CERM 402

C208

0.22uF

20%

6.3V CERM 402

C149

0.22uF

20%

6.3V CERM 402

C147

0.22uF

20%

6.3V CERM 402

C206

0.22uF

20%

6.3V CERM 402

C165

0.22uF

20%

6.3V CERM 402

C146

20%

6.3V CERM

805

10uF

C144

10uF

20%

6.3V CERM

805

C241

0.22uF

20%

6.3V CERM 402

C334

0.22uF

20%

6.3V CERM 402

C369

0.22uF

6.3V

20% CERM

402

C315

0.22uF

20%

6.3V CERM 402

C274

0.22uF

20%

6.3V CERM 402

C219

0.22uF

20%

6.3V CERM 402

C253

0.22uF

20%

6.3V CERM 402

C218

0.22uF

20%

6.3V CERM 402

C186

0.22uF

20%

6.3V CERM 402

C243

0.22uF

20%

6.3V CERM 402

C281

0.22uF

20%

6.3V CERM 402

C240

0.22uF

20%

6.3V CERM 402

C305

0.22uF

20%

6.3V CERM 402

C297

0.22uF

20%

6.3V CERM 402

C254

0.22uF

20%

6.3V

CERM 402

C172

0.22uF

20%

6.3V CERM 402

C266

0.22uF

402

CERM

6.3V

20%

C275

0.22uF

20%

6.3V CERM 402

C216

0.22uF

20%

6.3V CERM 402

C252

0.22uF

20%

6.3V CERM 402

C251

0.22uF

20%

6.3V CERM 402

C304

0.22uF

20%

6.3V CERM 402

C306

0.22uF

20%

6.3V CERM 402

C265

402

CERM

6.3V

20%

0.22uF

C322

10uF

20%

6.3V CERM

805

C202

10uF

805

CERM

6.3V

20%

C314

10uF

20%

6.3V CERM

805

C191

805

CERM

6.3V

20%

10uF

C293

0.22uF

20%

6.3V CERM 402

C230

0.22uF

20%

6.3V CERM 402

C217

0.22uF

20%

6.3V CERM 402

C333

0.22uF

402

CERM

6.3V

20%

C203

402

CERM

6.3V

20%

0.22uF

C282

0.22uF

20%

6.3V CERM 402

C242

0.22uF

6.3V 402

CERM

20%

C185

0.22uF

6.3V

20% CERM

402

C273

402

CERM

6.3V

20%

0.22uF

C316

0.22uF

20%

6.3V CERM 402

C323

402

CERM

6.3V

20%

0.22uF

C239

0.22uF

20%

6.3V CERM 402

C320

0.22uF

6.3V

20% CERM

402

C361

0.22uF

20%

402

CERM

6.3V

C312

0.22uF

20%

6.3V CERM 402

C331

0.22uF

20%

6.3V CERM 402

C332

0.22uF

CERM 402

6.3V

20%

C344

0.22uF

20% CERM

6.3V 402

C366

0.22uF

20%

6.3V CERM 402

C363

0.22uF

20% CERM

6.3V 402

C373

0.22uF

20%

6.3V CERM 402

C346

0.22uF

20%

6.3V CERM 402

C330

0.22uF

20%

6.3V CERM 402

C319

0.22uF

20%

6.3V CERM 402

C345

0.22uF

20%

6.3V CERM 402

C329

0.22uF

20%

6.3V CERM 402

C367

0.22uF

20%

6.3V CERM 402

C365

0.22uF

20%

6.3V CERM 402

C321

0.22uF

20%

6.3V CERM 402

C380

10uF

6.3V

20%

CERM

805

C379

10uF

20%

805

6.3V CERM

C381

10uF

6.3V

20%

CERM

805

C382

10uF

20%

6.3V CERM

805

C290

0.22uF

20%

6.3V CERM 402

C300

0.22uF

20%

6.3V CERM 402

C222

0.22uF

20%

6.3V CERM 402

C236

0.22uF

20%

6.3V CERM 402

C224

0.22uF

20%

6.3V CERM 402

C258

402

CERM

20%

6.3V

0.22uF

C302

0.22uF

20%

6.3V CERM 402

C263

0.22uF

20%

6.3V CERM 402

C287

0.22uF

20%

6.3V CERM 402

C248

0.22uF

402

CERM

6.3V

20%

C292

0.22uF

20%

6.3V CERM 402

C250

0.22uF

20%

6.3V CERM 402

C303

0.22uF

6.3V 402

CERM

20%

C238

0.22uF

402

CERM

6.3V

20%

C260

0.22uF

20%

6.3V CERM 402

C262

0.22uF

20%

6.3V CERM 402

C279

0.22uF

20%

6.3V CERM 402

C226

0.22uF

20%

6.3V CERM 402

C288

0.22uF

20%

6.3V CERM 402

C278

0.22uF

20%

6.3V CERM 402

C310

0.22uF

20%

6.3V CERM 402

C299

0.22uF

20%

6.3V CERM 402

C301

0.22uF

20%

6.3V CERM 402

C271

0.22uF

20%

6.3V CERM 402

C325

10uF

20%

6.3V CERM

805

C200

10uF

20%

6.3V CERM

805

C324

10uF

20%

805

CERM

6.3V

C201

10uF

20%

6.3V CERM

805

C171

0.22uF

20%

6.3V CERM 402

C352

6.3V

20% CERM

402

0.22uF

C215

0.22uF

402

CERM

6.3V

20%

C342

0.22uF

20%

6.3V CERM 402

C327

0.22uF

20%

6.3V CERM 402

C268

0.22uF

20%

6.3V CERM 402

C358

402

CERM

6.3V

20%

0.22uF

C167

0.22uF

20%

6.3V CERM 402

C189

0.22uF

20%

6.3V CERM 402

C343

0.22uF

20%

6.3V CERM 402

C212

0.22uF

20%

6.3V CERM 402

C257

0.22uF

20%

6.3V CERM 402

C177

0.22uF

20%

6.3V CERM 402

C176

0.22uF

20%

6.3V CERM 402

C247

0.22uF

20%

6.3V CERM 402

C341

0.22uF

20%

6.3V CERM 402

C286

0.22uF

20%

6.3V CERM 402

C350

0.22uF

20%

6.3V CERM 402

C234

0.22uF

20%

6.3V CERM 402

C317

0.22uF

20%

6.3V CERM 402

C221

0.22uF

20% CERM

6.3V 402

C237

0.22uF

20%

6.3V CERM 402

C351

0.22uF

20%

6.3V CERM 402

C357

0.22uF

20%

6.3V CERM 402

C269

402

CERM

6.3V

20%

0.22uF

C318

402

CERM

6.3V

20%

0.22uF

C283

0.22uF

20%

6.3V CERM 402

C308

0.22uF

20%

6.3V CERM 402

C170

20%

6.3V CERM 402

0.22uF

C376

10uF

20%

6.3V CERM

805

C378

10uF

20%

6.3V CERM

805

C175

0.22uF

20%

6.3V CERM 402

C285

0.22uF

20%

6.3V CERM 402

C360

0.22uF

20%

6.3V CERM 402

C375

10uF

20%

6.3V CERM

805

C377

10uF

20%

6.3V CERM

805

C289

0.22uF

20%

6.3V CERM 402

C261

0.22uF

6.3V

20% CERM

402

C272

0.22uF

20%

6.3V CERM 402

C227

0.22uF

20%

6.3V CERM 402

C259

0.22uF

20%

6.3V CERM 402

C309

0.22uF

20%

6.3V CERM 402

C158

0.22uF

20%

6.3V CERM 402

C359

0.22uF

20%

6.3V CERM 402

C371

0.22uF

20%

6.3V CERM 402

C228

0.22uF

20%

6.3V CERM 402

C313

0.22uF

20%

6.3V CERM 402

C184

0.22uF

20%

6.3V CERM 402

C349

0.22uF

20%

6.3V CERM 402

C192

0.22uF

20%

6.3V CERM 402

C348

0.22uF

6.3V

20% CERM

402

C168

0.22uF

402

CERM

6.3V

20%

C368

0.22uF

20%

6.3V CERM 402

C294

0.22uF

20%

6.3V CERM 402

C264

0.22uF

20%

6.3V CERM 402

C296

0.22uF

20%

6.3V CERM 402

C231

0.22uF

20%

6.3V CERM 402

C280

0.22uF

20%

6.3V 402

CERM

C295

0.22uF

20%

6.3V CERM 402

C364

0.22uF

20%

6.3V CERM 402

C328

0.22uF

20%

6.3V CERM 402

C347

0.22uF

20%

6.3V CERM 402

C354

0.22uF

402

CERM

6.3V

20%

C159

0.22uF

20%

6.3V CERM 402

C160

0.22uF

20%

6.3V CERM 402

C180

0.22uF

20%

6.3V CERM 402

C183

0.22uF

402

CERM

6.3V

20%

C213

0.22uF

20%

6.3V CERM 402

C161

0.22uF

20%

6.3V CERM 402

C162

0.22uF

20%

6.3V CERM 402

C179

0.22uF

20%

6.3V CERM 402

+1_5V_MAIN

+3V_MAIN

C385

0.22uF

20%

6.3V CERM 402

C374

0.22uF

20%

6.3V CERM 402

C395

0.22uF

20%

6.3V CERM 402

C739

0.22uF

20%

6.3V CERM 402

C736

0.22uF

20% CERM

6.3V 402

C245

20%

0.22uF

6.3V CERM 402

C735

0.22uF

20%

6.3V CERM 402

C335

0.22uF

20%

6.3V CERM 402

C139

0.22uF

20%

6.3V CERM 402

C770

0.22uF

20%

6.3V CERM 402

+2_5V_MAIN

051-6680

4616

+1_5V_AGP

+2_5V_INTREPID

MAXBUS_SLEEP

AVDD

VDD

VDD_PCI

AD3 AD4 AD5

AD2

AD0 AD1

VSS

AD6 AD7

AD17

AD16

AD15

AD8 AD9 AD10 AD11 AD12 AD13 AD14

AD27

AD26

AD25

AD18 AD19 AD20 AD21 AD22 AD23 AD24

AD28 AD29 AD30 AD31

CBE0 CBE1 CBE2 CBE3

PAR

PERR

GNT

DEVSEL

IDSEL

FRAME IRDY TRDY STOP

REQ

SERR

CRUN

SMI

VBBRST

VCCRST

INTA INTB INTC PCLK

PME

LEGC

XT2

DM1 DP1

DM2 DP2

DM3 DP3

RSDM4

RSDM2

RSDP2

RSDM3

RSDP3

RSDP1

XT1/SCLK

RSDM1

DM4 DP4

DM5 DP5

RREF

OCI1 OCI2

OCI4

OCI3

OCI5

RSDP4

RSDM5

RSDP5

PPON1

NC1 NC2

SMC

TEB

NTEST1

PPON2 PPON3 PPON4 PPON5

AVSS(R)

AVSS

SRCLK SRDTA SRMOD

NANDTEST

AMC

TEST

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

Tie to GND (NEC_AVSS_F) at ball N11

(NEC_USB_DBM)

Low/Full/High Speed (External)

(NEC_USB_DAM) (NEC_USB_DAP)

(NEC_USB_DBP)

facilitate NAND-tree testing

Series Rpaks required to

(PCI_AD<27>)

IPD

NEC documentation indicates that NCs must be tied high.

OUT OUT OUT OUT OUT

Y1’s LOAD CAPACITANCE = 16 pF

USB 2.0

R636

1/16W

402

+3V_MAIN

R614

9.09K

1/16W

1% MF

402

FERR-EMI-100-OHM

C759

27pF

5% 50V CERM 402

C136

402

50V CERM

27pF

R124

100

1/16W

402

B14

H14

N14

P10

F11

J11

D12

H12

L12

M11

B13

N13

C8M4H3

L13

N8E2A3

A12

A13

P12

G12

D13

F13

H13

J13

C14

E14

G14

J12

K13

E13

F12

H11

K14

M14

P11

C10

C11

A11

C12

A10

B10

B11

B12

M10

C13

E12

G13

J14

L14

D14

F14

G11

K12

M13

N11

M12

P13

N12

N10

U17

CRITICAL

NEC_uPD720101_USB2

FBGA

R606

10K

1/16W

402

+3V_MAIN

C744

NO STUFF

402

CERM

10V

20%

0.1uF

R607

1/16W

402

C743

NO STUFF

0.1uF

20% 10V CERM 402

RP43

10K

1/16W

SM1

RP43

10K

1/16W

SM1

RP43

10K

5% 1/16W SM1

RP43

10K

SM1

1/16W

RP45

1/16W

SM1

RP44

1/16W

SM1

R608

1/16W

402

2 1

R615

1/16W

402

2 1

R632

1/16W

402

R172

603

1/16W

R613

402

1/16W

43.2

R612

43.2

1/16W

1% MF

402

R610

43.2

402

1/16W

R609

43.2

1/16W

402

R798

603

1/16W

OMIT

CRITICAL

30.0000M

8X4.5MM-SM

C749

402

CERM

10V

20%

0.1uF

C750

0.1uF

20% 10V CERM 402

C761

0.1uF

20% 10V CERM 402

C752

0.1uF

20% 10V CERM 402

C769

0.1uF

20% 10V CERM 402

C748

0.1uF

20% 10V CERM 402

C756

0.1uF

20% 10V CERM 402

C747

0.1uF

20% 10V CERM 402

C746

0.1uF

20% 10V CERM 402

C765

10V CERM 402

20%

0.1uF

C768

0.1uF

20% 10V CERM 402

C197

10uF

20%

6.3V CERM 805

R617

4.7K

402

1/16W

C173

10uF

20%

6.3V CERM

805

C751

0.1uF

402

CERM

10V

20%

C760

0.1uF

20% 10V

CERM

402

197S0087

1 Y1

CRITICAL

XTAL,CER,LW PROF,30.0000MHZ,8X4.5MM,SMD

051-6680

4617

+3V_NEC_VDD

NEC_USB_RSDM1

NEC_USB_RSDP1

NEC_USB_DAM

+3V_NEC_VDD

NEC_NC<2>

NEC_NANDTESTOUT_TP

NEC_USB_DBM

NEC_AVSS_F

NEC_OCI<3>

NEC_PCI_INTA_L NEC_PCI_INTB_L

NEC_PME_L

NEC_LEGC

NEC_PCI_INT_L

NEC_MAIN_RESET_L

PCI_AD<4>

PCI_AD<3>

PCI_AD<1>

NEC_USB_RSDM2

NEC_USB_RSDP2

NEC_USB_DAP

NEC_LUSB_OCI

NEC_LUSB_OCI_UF

NEC_XT2_R

PCI_AD<27>

PCI_AD<17>

PCI_AD<24>

NEC_LUSB_OCI NEC_RUSB_OCI

NEC_PPON4_TP

NEC_LUSB_PPON NEC_RUSB_PPON NEC_PPON3_TP

NEC_PPON5_TP NEC_NC<1>

NEC_AVDD

PCI_AD<0>

PCI_AD<2>

PCI_AD<9> PCI_AD<10> PCI_AD<11> PCI_AD<12> PCI_AD<13> PCI_AD<14> PCI_AD<15> PCI_AD<16>

PCI_AD<18> PCI_AD<19>

PCI_AD<21> PCI_AD<22>

PCI_AD<20>

PCI_AD<23>

PCI_AD<26>

PCI_AD<25>

PCI_AD<29>

PCI_AD<28>

PCI_AD<30> PCI_AD<31>

PCI_CBE<0> PCI_CBE<1> PCI_CBE<2> PCI_CBE<3>

PCI_PAR PCI_FRAME_L PCI_IRDY_L PCI_TRDY_L PCI_STOP_L

NEC_PCI_REQ_L NEC_PCI_GNT_L PCI_PERR_L PCI_SERR_L

NEC_SMI_L_TP

NEC_OCI<5>

NEC_AMC_TP

NEC_IO_RESET_L

NEC_MAIN_RESET_L

CLK33M_NEC

NEC_CRUN_L

NEC_PCI_INTC_L

IO_RESET_L PMU_PME_L

NEC_IO_RESET_L

NEC_PME_L MAIN_RESET_L NEC_LEGC

NEC_OCI<4>

NEC_NANDTESTEN_TP

NEC_AVSS_F

NEC_XT1

NEC_RREF

NEC_XT2

PCI_AD<8>

PCI_AD<5>

NEC_RUSB_OCI

NEC_RUSB_OCI_UF

NEC_USB_DBP

PCI_DEVSEL_L

NEC_IDSEL

+3V_NEC_VDD

PCI_AD<7>

PCI_AD<6>

39 39

41 41

26 26

39 39

31 41

41 18

18 18

26 26

28 31

39 12

41 41

12 12

18 18

25 26

17 27

17 17

27 27

9 9

12 12

24 14

17 17

14 17

17 27

C/BE3*

C/BE2*

C/BE1*

C/BE0*

VR_EN* VR_PORT

VCCCB

VCCP

GND

VCC

GRST

MFUNC4 MFUNC5 MFUNC6

MFUNC3

MFUNC0

SUSPEND

MFUNC1 MFUNC2

PCLK

SPKROUT

GNT

TRDY

STOP

FRAME

PRST REQ

DEVSEL

PERR

IDSEL

SERR

IRDY

AD31

PAR

AD30

AD29

AD28

AD27

AD20 AD21

AD18 AD19

AD26

AD25

AD24

AD23

AD22

AD17

AD10 AD11

AD9

AD8

AD16

AD15

AD14

AD13

AD12

AD7

AD0

AD2 AD3 AD4 AD5 AD6

AD1

D14/RSVD

D13/CAD6

D12/CAD4

D11/CAD2

D10/CAD31

D15/CAD8

D9/CAD30

D8/CAD28

D7/CAD7

D6/CAD5

D5/CAD3

D4/CAD1

D3/CAD0

D2/RSVD

D1/CAD29

D0/CAD27

A22/CTRDY*

A20/CSTOP*

A23/CFRAME*

A21/CDEVSEL*

A19/CBLOCK*

A15/CIRDY*

A14/CPERR*

A12/CC/BE2*

A8/CC/BE1*

A25/CAD19

A24/CAD17

A18/RSVD

A17/CAD16

A16/CCLK

A13/CPAR

A11/CAD12

A10/CAD9

A9/CAD14

A7/CAD18

A6/CAD20

A5/CAD21

CE2/CAD10*

INPACK/CREQ*

WAIT/CSERR*

A4/CAD22

A3/CAD23

A2/CAD24

A1/CAD25

A0/CAD26

VPPD1

VPPD0

VCCD0* VCCD1*

IORD*/CAD13 IOWR*/CAD15

OE*/CAD11

WE*/CGNT*

CD2*/CCD2*

CD1*/CCD1*

CE1*/CC/BE0*

RDY/IREQ*/CINT*

VS1*/CVS1 VS2*/CVS2

REG*/CC/BE3*

RESET/CRST*

BVD1/CSTSCHG/STSCHG*/RI*

BVD2/SPKR*/CAUDIO

WP/IOIS16*/CCLKRUN*

RI_OUT/PME

CLK_48_RSVD/NC

TPS2211

AVPP

AVCC2

AVCC1

AVCC0

GND

SHTDWN

VCCD0 VCCD1 VPPD0 VPPD1

V_5_2

V_5_1

V_3_2

V_3_1

V_12

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(PCI_AD<19>)

TI REFERENCE SCHEMATIC DID NOT HAVE BULK ON +VCC_CBUS_SW

PCI1510 PULL-UPS

INTEGRATED PULL-UP

CLAMP FOR PC-CARD CLAMP FOR PCI

MAKE SURE VCC AND VPP ARE WIDE PLANE/TRACES TO MINIMIZE INDUCTANCE!

0.1UF ARE USED TO INCREASE ESD DISCHARGES OF UP TO 10KV

PC CARD/CARDBUS CONNECTOR

CARDBUS

+3V_MAIN

+5V_MAIN

C37

0.1uF

20% 10V CERM 402

R718

10K

1/16W

402

R714

1/16W

402

10K

R722

1/16W

402

10K

RP1

10K

1/32W

25V

C776

10uF

20%

6.3V CERM 805

D13

M11

L12

N13

B11

N11

N7M1E1D5

C13

N10

G10

L10

N12

M10

K10

C11

F12

L11

M13

K8H4

F13

A11

H12

J10

J13

K12

K11

H11

J12

K13

J11

M12

H10

G13

H13

L13

F11

E11

A12

B12

D10

B10

A10

C12

D11

E10

A13

E13

F10

B13

C10

D12

E12

G12

G11

CRITICAL

PCI1510GGU

BGA

+2_5V_SLEEP

R721

10K

402

1/16W

C796

2.2uF

20% 10V CERM 805

C800

2.2uF

20% 10V CERM 805

C787

4.7uF

805

CERM

6.3V

20%

C60

10uF

20%

6.3V CERM 805

+3V_SLEEP

+3V_SLEEP_PCCARD

83 82

80879

78 77

76 75

74 73

72 71

70769

68 67

66 65

64 63

62 61

58 57

56 55

54 53

52 51

48 47

46 45

44 43

42 41

38 37

36 35

34 33

32 31

28 27

26 25

24 23

22 21

18 17

16 15

14 13

12 11

CRITICAL

QT500806-L111

M-ST-SM1

R756

5% 1/16W

603

R726

1/16W

402

C786

0.22uF

20%

6.3V CERM 402

SSOI

C775

0.22uF

20%

6.3V CERM 402

C778

0.22uF

20%

6.3V CERM 402

C784

0.22uF

20%

6.3V CERM 402

C783

0.22uF

20%

6.3V CERM 402

C791

0.22uF

20%

6.3V CERM 402

R724

1/16W

402

C789

0.22uF

20%

6.3V CERM 402

C782

0.22uF

20%

6.3V CERM 402

C40

0.1uF

20% 10V

CERM

402

R719

1/16W

402

R723

1/16W

402

051-6680

CBUS_DATA<11>

CBUS_DET_1_L

+3V_SLEEP_PCCARD

PCI_SERR_L

CBUS_PCI_IDSEL

CBUS_MFUNC1_PD CBUS_MFUNC2_PD

CBUS_BVD2_L

PCI_IRDY_L PCI_SERR_L

CBUS_MFUNC6_PD

CBUS_MFUNC4_PD CBUS_MFUNC5_PD

MAIN_RESET_L

TPS2211_SHTDWN_L

+VPP_CBUS_SW

PCI1510_VR_EN_L

CBUS_MFUNC3_PD

CBUS_SUSPEND_PU

PCI_PERR_L

CBUS_BVD1_L

CBUS_DET_1_L CBUS_DET_2_L CBUS_IORD_L CBUS_IOWR_L CBUS_OE_L CBUS_CE1_L

CBUS_WE_L CBUS_READY CBUS_RESET_L CBUS_REG_L

CBUS_WP_L CBUS_CE2_L CBUS_INPACK_L CBUS_WAIT_L

CBUS_DATA<14>

CBUS_DATA<13>

CBUS_DATA<12>

CBUS_DATA<11>

CBUS_DATA<10>

CBUS_DATA<9>

CBUS_DATA<8>

CBUS_DATA<6>

CBUS_DATA<5>

CBUS_DATA<4>

CBUS_DATA<3>

CBUS_DATA<2>

CBUS_DATA<1>

CBUS_DATA<0>

CBUS_ADDR<25>

CBUS_ADDR<24>

CBUS_ADDR<23>

CBUS_ADDR<22>

CBUS_ADDR<21>

CBUS_ADDR<20>

CBUS_ADDR<19>

CBUS_ADDR<18>

CBUS_ADDR<17>

CBUS_ADDR_16_UF

CBUS_ADDR<15>

CBUS_ADDR<14>

CBUS_ADDR<13>

CBUS_ADDR<12>

CBUS_ADDR<11>

CBUS_ADDR<10>

CBUS_ADDR<9>

CBUS_ADDR<8>

CBUS_ADDR<7>

CBUS_ADDR<6>

CBUS_ADDR<5>

CBUS_ADDR<4>

CBUS_ADDR<3>

CBUS_ADDR<2>

CBUS_ADDR<1>

CBUS_ADDR<0>

CBUS_DATA<15>

CBUS_VS1 CBUS_VS2

CBUS_ADDR<16>

PCI_PERR_L PCI_FRAME_L

PCI_PAR

CBUS_MFUNC1_PD CBUS_MFUNC2_PD CBUS_MFUNC3_PD CBUS_MFUNC4_PD CBUS_MFUNC5_PD CBUS_MFUNC6_PD

PCI_DEVSEL_L

PCI_TRDY_L

PCI_STOP_L

PCI_AD<0> PCI_AD<1>

PCI_CBE<3>

PCI_CBE<2>

PCI_CBE<1>

PCI_CBE<0>

PCI_AD<10> PCI_AD<11> PCI_AD<12> PCI_AD<13> PCI_AD<14> PCI_AD<15> PCI_AD<16> PCI_AD<17> PCI_AD<18>

PCI_AD<2>

PCI_AD<20> PCI_AD<21> PCI_AD<22> PCI_AD<23> PCI_AD<24> PCI_AD<25>

PCI_AD<9>

PCI_AD<8>

PCI_AD<7>

PCI_AD<6>

PCI_AD<5>

PCI_AD<4>

PCI_AD<31>

PCI_AD<30>

PCI_AD<3>

PCI_AD<29>

PCI_AD<28>

PCI_AD<27>

PCI_AD<26>

CBUS_VPPD0

CBUS_VCCD1_L

CBUS_VCCD0_L

PCI_AD<19>

CBUS_DATA<3> CBUS_DATA<4> CBUS_DATA<5>

CBUS_DATA<7> CBUS_CE1_L CBUS_ADDR<10> CBUS_OE_L

CBUS_ADDR<11> CBUS_ADDR<9>

CBUS_ADDR<13>

CBUS_ADDR<14> CBUS_WE_L CBUS_READY +VCC_CBUS_SW

+VPP_CBUS_SW

CBUS_ADDR<7> CBUS_ADDR<6> CBUS_ADDR<5> CBUS_ADDR<4>

CBUS_ADDR<3> CBUS_ADDR<2> CBUS_ADDR<1> CBUS_ADDR<0>

CBUS_DATA<0> CBUS_DATA<1> CBUS_DATA<2> CBUS_WP_L

CBUS_ADDR<8>

CBUS_ADDR<25>

CBUS_DATA<12> CBUS_DATA<13>

CBUS_DATA<14> CBUS_DATA<15> CBUS_CE2_L CBUS_VS1

CBUS_IORD_L CBUS_IOWR_L CBUS_ADDR<17> CBUS_ADDR<18>

CBUS_ADDR<19> CBUS_ADDR<20> CBUS_ADDR<21> +VCC_CBUS_SW

+VPP_CBUS_SW CBUS_ADDR<22> CBUS_ADDR<23> CBUS_ADDR<24>

CBUS_VS2 CBUS_RESET_L CBUS_WAIT_L

CBUS_INPACK_L CBUS_REG_L CBUS_BVD2_L CBUS_BVD1_L

CBUS_DATA<8>

CBUS_DATA<10> CBUS_DET_2_L

SLEEP_L_LS5

CBUS_VPPD1

+VCC_CBUS_SW

CBUS_DATA<6>

CBUS_ADDR<16> CBUS_ADDR<15> CBUS_ADDR<12>

CBUS_DATA<9>

CBUS_DATA<7>

CBUS_PCI_RESET_L

CBUS_INT_L

CBUS_SUSPEND_PU

CBUS_PCI_REQ_L CBUS_PCI_GNT_L CLK33M_CBUS

41 31

41 41

39 39

39 41

26 26

26 39

17 17

17 26

12 12

12 17

18 18

9 9

9 12

18 18

12 12

MVREF

VSS

(1 OF 6)

RAGE_MOBILITY

AGP_BUSYB

AD_STBB1

AD_STBB0

AD_STB0

AGPREF

AD_STB1

AD30

AD31

AD29 AD28 AD27 AD26 AD25 AD24

AD17

AD14

AD15

AD23 AD22

AD19

AD20

AD21

AD16

AD18

AD6 AD5 AD4

AD13

AD11

AD12

AD10 AD9 AD8 AD7

AD3

CBEB1

CBEB2

CBEB3

AD0

AD1

AD2

CBEB0 PCICLK

FRAMEB

PAR

IRDYB TRDYB

RSTB

INTAB

GNTB

REQB

DEVSELB

STOPB

MEMVMODE1

MEMVMODE0

TEST_YCLK TEST_MLCK

D+ D-

VREFG

MEMTEST PLLTEST

WBF

ST0 ST1 ST2

SBA5

SBA6

SBA3

SBA4

SBA7

SBA2

STP_AGPB

RBFB

SB_STB

SBA1 SBA0

SUS_STAT

AGPTEST

AGP8X_DETB

RSTB_MSK

DBI_LO DBI_HI

SB_STBS

(2 OF 6)

RAGE_MOBILITY

VSS VSS

VSSVSS

RAGE_MOBILITY

(6 OF 6)

VSS

VDDCI

GND

OUT

VCC

OSC

XIN/CLKIN

SSCLK

VSS

FRSEL

XOUT

VDD

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

MAIN_RESET_L IS TOGGLED FOR SLEEP

PLACE VERF VOLTAGE DIVIDER CLOSE TO ATI M11 VREF PIN

FOR 2.5 VDDR1

MEMVMODE0=1.8V MEMVMODE1=GND

FOR 1.8 VDDR1

MEMVMODE0=GND MEMVMODE1=1.8V

(PLACE C408 CLOSE TO AGPREF PIN)

(PULL-UP to GPU_MEM_IO)

PLACE NEAR M11

27M OSC

(PLACE THE OSCILLATOR AND R304 AND R305

CLOSE TO ATI PIN AJ29)

(PLACE R315 CLOSE TO OSC)

SPREAD SPECTRUM SUPPORT

S0=1;S1=M => -1.5% DOWN-SPREAD

M11 AGP INTERFACE

R309

1/16W

402

R337

10K

1/16W

402

L22

60-OHM-EMI

C457

0.01uF

20% 16V CERM 402

C458

10uF

20%

6.3V CERM 805

R338

20K

5% 1/16W MF 402

R335

20K

5% 1/16W MF 402

R372

45.3

1% 1/16W MF 402

R336

1/16W

402

R323

10K

1/16W

402

R371

4.7K

5% 1/16W

402

ATI_MEMIO_HI

R375

ATI_MEMIO_HI

4.7K

1/16W

402

R388

1/16W

402

R397

1/16W

402

R373

402

1/16W

R365

1/16W

402

MF 2

C516

0.1uF

10V

20%

CERM

402

C508

10uF

20%

6.3V CERM

805

R313

1/16W

402

R324

47K

5% 1/16W MF 402

R325

402

1/16W

47K

R376

4.7K

5% 1/16W MF 402

ATI_MEMIO_LO

R370

ATI_MEMIO_LO

4.7K

1/16W

402

C412

0.01uF

20% 16V

CERM

402

C476

0.01uF

20% 16V CERM 402

C490

0.01uF

20% 16V CERM 402

C442

0.01uF

20% 16V CERM 402

C530

0.01uF

20% 16V CERM 402

C408

0.1uF

20% 10V CERM 402

AE27

A22

B22

A23

B23

AC4

AB2

A10

C11

A15

C16

C26

B29

G27

G29

D19

A18

A19

B18

C19

AK3

T28

E8 J6

AJ28

AG29

T27

AE29

AF28

AF30

AC28 AB29 AC27 AC30 AD27 AD30 AE28 AD29

AD28

AC29

AD24

AH30

AF29

AE30

AC22

AG30

R28

B7 C8

T30

AH29

AF27

U27

T29

Y25 Y27

AC11

AC10

W28 U29 R30 N27

K29

K30

AG28

U25

Y29

W29

M28

N29

N28 N30 M30 M27 M29 L28

AB30 AB27

L30

AA29 AB28 AA30 AA27

Y30

AA28

W30 W27 V30 V28

L27

V29 V27 U30 U28 R27 R29 P28 P30 P27 P29

L29 K28

U47

CRITICAL

M11-CSP64

64MB

BGA

OMIT

G30

B27

A27

D23

C23

D22

C20

D20

C21

D21

C22

A25

B25

A26

B26

AE4

AE3

AD4

AD3

AB4

AB3

AA4

AA3

AD2

AD1

AC2

AC1

AA2

AA1

A11

B11

A12

B12

C10

D10

C12

D12

C13

D13

A13

B13

A14

B14

A16

B16

A17

B17

C14

D14

C15

D15

C17

D17

C18

D18

C24

D24

C25

D25

C27

D27

C28

D28

B28

A28

A29

A30

C29

C30

D29

D30

E27

E28

F27

F28

H27

H28

J27

J28

E29

E30

F29

F30

H29

H30

J29

J30

AC3

AB1

B10

D11

B15

D16

D26

B30

G28

U47

CRITICAL

M11-CSP64

64MB

BGA

OMIT

R19

R18

R17

R16

T16

U16

V16

W16

T14

T13

T12

T15

R15

P15

N15

M15

B19

A21

P25

F18

AE15

U47

CRITICAL

OMIT

M11-CSP64

64MB

BGA

C401

4.7uF

20%

6.3V CERM 805

C409

0.1uF

20% 10V

CERM

402

R315

287

1% MF

402

1/16W

CRITICAL

27MHZ

R304

NO STUFF

100K

1/16W

402

L16

FERR-EMI-100-OHM

R305

GPU_SS

1/16W

402

R320

162

1/16W

402

+3V_SLEEP

C390

0.1uF

20% 10V CERM 402

GPU_SS

C384

GPU_SS

10uF

20%

6.3V 805

CERM

3 4

U30

GPU_SS

CRITICAL

CY25811

SOI

R297

GPU_SS

5% 1/16W MF 402

R289

NO STUFF

1/16W

402

R298

NO STUFF

5% 1/16W MF 402

R290

NO STUFF

402

1/16W

R285

GPU_SS

5% 1/16W MF 402

L66

GPU_SS

FERR-EMI-100-OHM

+3V_SLEEP

R597

1/16W

402

EXT_TMDS

R192

EXT_TMDS

1/16W

402

R193

EXT_TMDS

1/16W

402

051-6680

4619

+1_5V_AGP

+3V_GPU

AGP_AD<14>

AGP_AD<15>

AGP_AD<16>

AGP_AD<17>

AGP_AD<18>

AGP_AD<19>

AGP_AD<20>

AGP_AD<22>

AGP_AD<23>

AGP_AD<11> AGP_AD<10>

AGP_CBE<2> AGP_CBE<1> AGP_CBE<0>

CLK66M_GPU_AGP AGP_FRAME_L

AGP_ATI_VREF

AGP_ATI_VREFG

AGP_WBF_L

AGP_ATI_RESET_L

AGP_GNT_L

AGP_REQ_L

AGP_AD<9>

AGP_AD<13>

AGP_AD<21>

AGP_AD<24>

AGP_AD<25>

AGP_AD<26>

AGP_AD<27>

AGP_AD<28>

AGP_AD<29>

AGP_AD<31>

GPU_VCORE

GPU_VCORE_VDDCI

ATI_DVO_CLKP

GPU_DVO_CLKP_R2

GPU_DVO_CLKP_R1

GPU_DVO_CLKP

AGP8X_DET_PU

INT_AGP_VREF

ATI_CLK27M_IN

ATI_CLK27M_OSC

AGP_AD_STB_L<0>

AGP_ST<0>

AGP_AD<30>

AGP_SBA<4>

AGP_BUSY_L

AGP_AD_STB<1>

ATI_SSCLK_UF

ATI_SSCLK_IN

AGP_AD<6>

AGP_AD<4>

GPU_MEM_IO

AGP_PAR

MAIN_RESET_L

+1_8V_GPU

+3V_GPU

GPU_VCORE_VDDCI

AGP_SB_STB_L

AGP_SB_STB

AGP_STP_L

AGP_RBF_L

AGP_SBA<5>

ATI_MEMTEST

GPU_THERM_DM

GPU_THERM_DP

GPU_MEM_IO

ATI_MEMVMODE1

ATI_MEMVMODE0

AGP_ATI_INT_L

AGP_STOP_L AGP_DEVSEL_L

AGP_IRDY_L AGP_TRDY_L

AGP_AD<0> AGP_CBE<3>

AGP_AD<1>

AGP_AD<3> AGP_AD<2>

AGP_AD<5>

AGP_AD<7>

AGP_AD<8>

AGP_AD<12>

AGP_AD_STB_L<1>

GPU_AGP_TEST

AGP_AD_STB<0>

AGP_ST<1>

AGP_SBA<6>

AGP_ST<2> AGP_SBA<7>

AGP_SBA<2> AGP_SBA<1>

ATI_DBI_LO_PU

ATI_RSTB_MSK

ATI_OSC_OE

+3V_GPU

AGP_SBA<0>

ATI_DBI_HI_PU

+3V_ATI_OSC_SLEEP

+1_5V_AGP

ATI_CLK27M_OSC_SS

CY25811_S1 CY25811_S0

+3V_ATI_SS

AGP_SBA<3>

AGP_SUS_STAT_L_PU

ATI_CLK27M_OSC_SS

39 39

12 12

D0 D1 D2

D5 D6 D7

D10

D12/DUAL

D11

D15

D13/MAST D14/SYNCO

D16 D17 D18

D20

D19

D22

D21

D23

HSYNC/SYNCI

VREF

VSYNC

IDCK-

IDCK+

BSEL/SCL DSEL/SDA

ISEL/RST*

PD*

MSEN

DK1 DK3

EXT_SWING

EDGE/HTPLG

TX0+ TX0-

TX1-

TX1+

TX2+ TX2-

TXC+ TXC-

GND

PGND1

AGND

PGND2

RSVD

PVCC2

AVCC

PVCC1

VCC

D0 D1 D2

D5 D6 D7

D10

D12/DUAL

D11

D15

D13/MAST D14/SYNCO

D16 D17 D18

D20

D19

D22

D21

D23

HSYNC/SYNCI

VREF

VSYNC

IDCK-

IDCK+

BSEL/SCL DSEL/SDA

ISEL/RST*

PD*

MSEN

DK1 DK3

EXT_SWING

EDGE/HTPLG

TX0+ TX0-

TX1-

TX1+

TX2+ TX2-

TXC+ TXC-

GND

PGND1

AGND

PGND2

RSVD

PVCC2

AVCC

PVCC1

VCC

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

NC NC

INT/EXT TMDS D<0:2> TERMINATION

EXT TMDS D<3:5> TERMINATION

ATI INTERNAL TMDS

SERIES TERMINATION

SILICON IMAGE TMDS SERIES TERMINATION

INT/EXT TMDS

R867

EXT_TMDS

10K

5% 1/16W MF 402

3312

4918

4817

643516

63 15

2923

322620

U24

EXT_TMDS CRITICAL

TQFP

SIL178

R300

4.99K

NO STUFF

1/16W

402

R671

NO STUFF

4.99K

1/16W

402

C909

EXT_TMDS

0.1uF

20% 10V

CERM

402

D34

1N914

SOT23

NO STUFF

R675

1/16W

MF 402

EXT_TMDS

R676

EXT_TMDS

1/16W

402

R769

EXT_TMDS

1/16W

MF 402

R776

EXT_TMDS

1/16W

402

R780

EXT_TMDS

1/16W

402

R781

EXT_TMDS

1/16W

402

R782

EXT_TMDS

1/16W

402

R783

EXT_TMDS

1/16W

402

RP70

EXT_TMDS

1/16W

SM1

RP61

EXT_TMDS

SM1

1/16W

R828

EXT_TMDS

1/16W

402

RP72

EXT_TMDS

SM1

1/16W

R869

357

EXT_TMDS

1/16W

402

R876

357

EXT_TMDS

1/16W

MF 402

2 1

R765

INT_TMDS

1/16W

402

2 1

R767

INT_TMDS

1/16W

402

2 1

R760

INT_TMDS

1/16W

402

2 1

R762

INT_TMDS

1/16W

402

2 1

R764

INT_TMDS

1/16W

402

2 1

R766

INT_TMDS

1/16W

402

2 1

R761

INT_TMDS

1/16W

402

2 1

R763

INT_TMDS

1/16W

402

2 1

R377

INT_TMDS

49.9

1/16W

402

2 1

R374

402

1/16W

49.9

INT_TMDS

C536

0.001UF

10% 50V CERM 402

2 1

R369

INT_TMDS

1/16W

402

2 1

R355

INT_TMDS

1/16W

402

2 1

R340

INT_TMDS

1/16W

402

2 1

R367

INT_TMDS

1/16W

402

C515

0.001UF

50V CERM 402

10%

2 1

R362

INT_TMDS

1/16W

402

C487

0.001UF

10% 50V CERM 402

2 1

R350

402

1/16W

INT_TMDS

C479

0.001UF

10% 50V CERM 402

R850

EXT_TMDS

82.5

402

1/16W

R851

EXT_TMDS

82.5

1/16W

402

R852

EXT_TMDS

82.5

1/16W

402

R859

EXT_TMDS

82.5

1/16W

402

R858

EXT_TMDS

82.5

402

1/16W

R857

EXT_TMDS

82.5

1/16W

402

C889

EXT_TMDS

10uF

20%

6.3V CERM 805

R647

10K

EXT_TMDS

1/16W

402

C210

EXT_TMDS

100pF

5% 50V CERM 402

C887

EXT_TMDS

100pF

5% 50V CERM 402

C885

EXT_TMDS

100pF

5% 50V CERM 402

C913

EXT_TMDS

10uF

20%

6.3V CERM 805

C912

EXT_TMDS

10uF

20%

6.3V CERM 805

C911

EXT_TMDS

100pF

5% 50V CERM 402

C890

EXT_TMDS

100pF

5% 50V CERM 402

C910

EXT_TMDS

100pF

5% CERM

402

50V

C886

EXT_TMDS

402

CERM

50V

100pF

C892

EXT_TMDS

10% 50V CERM 402

0.001UF

C891

EXT_TMDS

0.001UF

10% 50V CERM 402

C893

EXT_TMDS

0.001UF

10% 50V CERM 402

R596

402

1/16W

10K

EXT_TMDS

3312

4918

4817

643516

63 15

2923

322620

U25

EXT_TMDS CRITICAL

SIL178

TQFP

L86

EXT_TMDS

400-OHM-EMI

SM-1

+3V_SLEEP+3V_SLEEP

RP74

EXT_TMDS

10K

1/16W

SM1

R223

10K

1/16W

402

EXT_TMDS

RP75

10K

1/16W

SM1

EXT_TMDS

L50

EXT_TMDS

400-OHM-EMI

SM-1

L90

EXT_TMDS

400-OHM-EMI

SM-1

L91

EXT_TMDS

400-OHM-EMI

SM-1

+3V_SLEEP+3V_SLEEP

L82

EXT_TMDS

400-OHM-EMI

SM-1

L84

EXT_TMDS

400-OHM-EMI

SM-1

R832

NO STUFF

10K

1/16W

402

C883

EXT_TMDS

5% 50V CERM 402

100pF

C870

EXT_TMDS

100pF

5% 50V CERM 402

C130

EXT_TMDS

100pF

5% 50V CERM 402

C836

EXT_TMDS

10uF

20%

6.3V CERM 805

C908

EXT_TMDS

100pF

402

CERM

50V

C907

EXT_TMDS

100pF

5% 50V CERM 402

C882

EXT_TMDS

100pF

5% 50V CERM 402

C837

EXT_TMDS

100pF

5% 50V CERM 402

C906

EXT_TMDS

20%

6.3V CERM 805

10uF

C905

EXT_TMDS

10uF

20%

6.3V CERM 805

R871

402

1/16W

EXT_TMDS

C497

0.1uF

EXT_TMDS

402

CERM

10V

20%

R872

402

1/16W

EXT_TMDS

RES, MF, 1/16W, 75 OHM, 1%, 0402, SMD

114S7501

R374, R377

EXT_TMDS

051-6680

4620

RES, MF, 1/16W, 82.5 OHM, 1%, 0402, SMD

114S8251

R340, R350, R355, R362, R367, R369

EXT_TMDS

PP3V3_SI_VCC1

TMDS_CLKP

PP3V3_SI_PVCC2

MIN_LINE_WIDTH=15 MIL MIN_NECK_WIDTH=10 MIL

TMDS_D2_CMF

TMDS_D1_CMF

TMDS_D0_CMF

TMDS_DP<0>

TMDS_DN<1>

PP3V3_SI_VCC2

SI_TMDS_DN<1>

SI_TMDS_DP<1>

SI_TMDS_CLKP

SI_TMDS_CLKN

MIN_LINE_WIDTH=15 MIL MIN_NECK_WIDTH=10 MIL

PP3V3_SI_VCC2

SI_I2C_CLK SI_I2S_DATA

ATI_TMDS_DN<2>

ATI_TMDS_DP<2>

ATI_TMDS_CLKN

SI_TMDS_DP<4>

SI_TMDS_DP<3>

MASTER_SWING

SI_SECONDARY

SLAVE_SWING

MSEN_S

PP3V3_SI_AVCC2

PP3V3_SI_AVCC1

TMDS_DP<2> TMDS_DN<2>

ATI_DVOD<13>

TMDS_CLK_CMF

TMDS_DN<0>

TMDS_CLKN

MSEN_M

SI_RESET_L_R

SI_I2C_CLK

SI_I2S_DATA

TMDS_MASTER

SI_DUAL_MODE

PP3V3_SI_AVCC2

MIN_LINE_WIDTH=15 MIL MIN_NECK_WIDTH=10 MIL

ATI_TMDS_CLKP

TMDS_CLKP

TMDS_CLKN

TMDS_DP<2>

TMDS_DN<2>

TMDS_DP<1>

TMDS_DN<1>

ATI_TMDS_DP<1>

ATI_TMDS_DN<1>

ATI_TMDS_DN<0>

ATI_TMDS_DP<0>

TMDS_DP<0>

TMDS_DN<0>

TMDS_CLKN

TMDS_CLKP

SI_TMDS_DN<0>

TMDS_DN<0>

SI_TMDS_DP<0>

TMDS_DP<0>

TMDS_DP<1>

TMDS_DN<1>

SI_TMDS_DP<2>

TMDS_DP<2>

SI_TMDS_DN<2>

TMDS_DN<2>

SI_TMDS_DN<3>

TMDS_DN<3>

TMDS_DP<3>

SI_TMDS_DN<4>

TMDS_DN<4>

TMDS_DP<4>

SI_TMDS_DN<5>

SI_TMDS_DP<5>

TMDS_DN<5>

TMDS_DP<5>

ATI_DVOD<22>

SI_TMDS_DN<5>

MAIN_RESET_L

+1_8V_GPU

PP3V3_SI_AVCC1

MIN_LINE_WIDTH=15 MIL MIN_NECK_WIDTH=10 MIL

PP3V3_SI_VCC1

SI_RESET_L

SI_RESET_L_R

SI_TMDS_DN<0>

SI_TMDS_DN<1>

ATI_DVO_VSYNC

TMDS_SYNC

SI_M_HTPLG

MASTER_SWING

SI_TMDS_DP<0>

SI_VREF ATI_DVO_HSYNC

SI_DUAL_MODE TMDS_MASTER

ATI_DVOD_DE

SI_VREF TMDS_SYNC

SI_TMDS_CLKP

ATI_DVOD<11>

GPU_DVO_CLKP_R1

ATI_DVOD<6>

ATI_DVOD<17>

SI_I2S_DATA

ATI_DVOD<20>

ATI_DVOD<12>

ATI_DVOD<14>

ATI_DVOD<16>

ATI_DVOD<21>

SI_SECONDARY

ATI_DVOD<23>

ATI_DVOD_DE

ATI_DVOD<1> ATI_DVOD<2>

ATI_DVOD<4>

ATI_DVOD<3>

ATI_DVOD<5>

ATI_DVOD<9>

ATI_DVOD<8>

ATI_DVOD<10>

SI_TMDS_DP<1>

SI_TMDS_DP<2>

SI_TMDS_CLKN

ATI_DVOD<0>

ATI_DVOD<7>

GPU_DVO_CLKP_R2

SI_TMDS_DN<2>

ATI_DVO_VSYNC

ATI_DVOD<19>

ATI_DVOD<18>

MSEN_M

SI_I2C_CLK

ATI_DVOD<15>

SI_RESET_L_R

PP3V3_SI_PVCC1

MIN_NECK_WIDTH=10 MIL

MIN_LINE_WIDTH=15 MIL

TMDS_DP<1>

MSEN_S

TMDS_DP<3>

SI_TMDS_DN<3>

SLAVE_SWING

SI_TMDS_DP<4>

SI_TMDS_DP<5>

SI_TMDS_DN<4>

SI_S_HTPLG

SI_TMDS_DP<3>

TMDS_DP<4>

TMDS_DP<5>

EXT_TMDS_D3_CMF

TMDS_DN<3>

EXT_TMDS_D4_CMF

EXT_TMDS_D5_CMF

TMDS_DN<5>

TMDS_DN<4>

31 26

41 41

39 39

38 38

23 23

39 23

38 23

38 38

20 20

21 20

20 20

20 21

20 20

21 21

B00ST

EXT VCC VCC

INT

VIN

SGND PGND

RUN/SS

VFB

ITH

ION

PGOOD

VRNG FCB

VDD15

VSS

RAGE_MOBILITY

(5 OF 6)

VDDC

ZV_LCDDATA11 ZV_LCDDATA12

VSS

(3 OF 6)

RAGE_MOBILITY

ZV_LCDDATA0 ZV_LCDDATA1

ROMCSB

SSIN

TESTEN

XTALOUT

SSOUT

TXCLK_LP

TXCLK_LN

TXOUT_L3P

XTALIN

TXCP

TX0P TX1M

TXCM

TX2M

TX1P

TX2P

TX0M

GPIO13 GPIO14

GPIO9

GPIO11

GPIO10

GPIO12

GPIO8

TXOUT_U1N

TXOUT_U0N TXOUT_U0P

TXOUT_U1P TXOUT_U2N

TXCLK_UP

TXOUT_U3N

TXOUT_L1P

TXOUT_L1N

TXOUT_L0P

TXOUT_L0N

TXOUT_U2P

TXCLK_UN

TXOUT_U3P

TXOUT_L2N TXOUT_L2P TXOUT_L3N

GPIO4

GPIO3

GPIO2

GPIO6 GPIO7

GPIO5

GPIO1

GPIO0

ZV_LCDCNTL3

ZV_LCDCNTL2

ZV_LCDDATA19

ZV_LCDDATA18

ZV_LCDDATA17

ZV_LCDDATA23

ZV_LCDDATA22

ZV_LCDCNTL1

ZV_LCDCNTL0

ZV_LCDDATA20 ZV_LCDDATA21

AUXWIN

COMP_B

DIGON

C_R

ZV_LCDDATA16

ZV_LCDDATA10

ZV_LCDDATA9

ZV_LCDDATA8

ZV_LCDDATA7

ZV_LCDDATA13 ZV_LCDDATA14 ZV_LCDDATA15

ZV_LCDDATA6

ZV_LCDDATA2 ZV_LCDDATA3 ZV_LCDDATA4 ZV_LCDDATA5

VSYNC

V2SYNC

HSYNC

H2SYNC

RSET

R2SET

Y_G

R G

GPIO15 GPIO16

BLON

DDC2DATA

DDC2CLK

DDC1DATA

DDC1CLK

DDC3DATA

DDC3CLK

HPD1

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(500mA)

(NO ICT TEST) (NO ICT TEST)

GPU VCORE - 1.2V

(PUT ALL CAPs BELOW ATI ASIC)

M10 Power Shut down Sequencing

(GPIO0) (GPIO1) (GPIO2) (GPIO3) (GPIO4) (GPIO5) (GPIO6)

close to GPU

PLACE ALL TMDS 0 OHMS

GPU VCORE SUPPLY

WHEN VCORE_CNTL HIGH => 1.2V

1.2V = 0.8V * (1 + R329 / (R328//R330))

WHEN VCORE_CNTL LOW => 1.0V

1.0V = 0.8V * (1 + R329 / R330)

M11 CORE PWR/LVDS/TMDS

C440

0.22uF

20%

6.3V CERM 402

C484

10uF

20%

6.3V CERM 805

C485

10uF

20%

6.3V CERM 805

C441

0.22uF

20%

6.3V CERM 402

C445

0.22uF

20%

6.3V CERM 402

C446

0.22uF

20% CERM

6.3V 402

C449

0.22uF

20%

6.3V CERM 402

C434

20%

6.3V CERM 402

0.22uF

C452

0.22uF

20%

6.3V CERM 402

C451

0.22uF

20%

6.3V CERM 402

C494

0.22uF

20%

6.3V CERM 402

C498

0.22uF

20%

6.3V CERM 402

C509

0.22uF

20%

6.3V CERM 402

C510

0.22uF

20%

6.3V CERM 402

C512

0.22uF

20%

6.3V CERM 402

C513

0.22uF

20%

6.3V CERM 402

C524

0.22uF

20%

6.3V CERM 402

C525

0.22uF

20%

6.3V CERM 402

C528

0.22uF

20%

6.3V 402

CERM

C531

0.22uF

20%

6.3V CERM 402

C533

0.22uF

CERM 402

6.3V

20%

C477

0.22uF

20%

6.3V CERM 402

C486

402

CERM

6.3V

20%

0.22uF

C495

0.22uF

20%

6.3V CERM 402

C704

22uF

20% 10V CERM 1210

D29

MBRS130LT3

D12

1N914

SOT23

C481

0.1uF

20% 25V

CERM

603

R358

2.2

1/16W

603

C431

0.1uF

20% 25V

CERM

603

R331

5% 1/16W MF 603

R326

576K

1% 1/16W MF 402

+5V_MAIN

R343

5% 1/16W MF 402

R330

20K

1/16W

402

C712

NO STUFF

0.1uF

20% 10V

CERM

402

R549

GPU_PWRMSR

10K

1/16W

402

XW6

OMIT SM

15 14

1149

U32

LTC1778

SSOP

CRITICAL

R344

402

1/16W

NO STUFF

C465

220pF

5% 25V CERM 402

C708

4.7uF

25V CERM 1206

20%

+PBUS

R327

5% 1/16W MF 402

C480

0.1uF

20% 10V CERM 402

C455

10% 50V

CERM

402

470pF

R339

1% MF

1/16W

402

20K

R352

402

1/16W MF

NO STUFF

63.4K

R353

5% 1/16W MF 402

R380

NO STUFF

10K

402

1/16W

C706

4.7uF

20%

25V CERM 1206

R556

100K

402

1/16W

R559

100K

1/16W

402

6 1

DP7

BAS16TW

SOT-363

Q51

2N3904

Q52

2N3904

R558

10K

1/16W

402

DP7

BAS16TW

SOT-363

DP7

BAS16TW

SOT-363

+5V_MAIN

R366

402

1/16W

10K

R368

10K

402

1/16W

R359

402

1/16W

R341

402

1/16W

R342

1% 1/16W MF 402

R346

1/16W MF 402

R356

1% 1/16W

402

R360

1% 1/16W MF 402

R333

499

1% 1/16W

402

R332

402

1/16W

715

R387

10K

5% 1/16W MF 402

R396

NO STUFF

10K

5% 1/16W MF 402

R386

NO STUFF

10K

5% 1/16W MF 402

R382

NO STUFF

10K

5% 1/16W MF 402

R391

NO STUFF

10K

1/16W MF 402

R383

NO STUFF

10K

5% 1/16W MF 402

R392

NO STUFF

10K

402

1/16W

R385

NO STUFF

10K

5% 1/16W MF 402

R394

NO STUFF

5% 1/16W

402

10K

R384

10K

5% 1/16W MF 402

R393

NO STUFF

402

5% 1/16W

10K

R381

NO STUFF

10K

5% 1/16W MF 402

R390

NO STUFF

10K

5% 1/16W MF 402

R395

NO STUFF

10K

5% 1/16W MF 402

2 1

R351

1/16W

402

C411

10uF

20%

6.3V CERM 805

C482

0.01uF

20% 16V CERM 402

C435

0.01uF

20% 16V CERM 402

C443

0.01uF

20% 16V CERM 402

C448

0.01uF

20% 16V CERM 402

C526

0.01uF

20% 16V CERM 402

C529

0.01uF

20% 16V CERM 402

C532

0.01uF

20% 16V CERM 402

C505

0.01uF

20%

16V CERM 402

R329

4.99K

1/16W

402

R389

INT_TMDS

1/16W

402

10K

L17

FERR-220-OHM

0805

R357

100K

5% 1/16W MF 402

R555

33K

1/16W

402

Q23

CRITICAL

SI3446DV

TSOP

C407

1000pF

402

X7R

25V

10%

DP5

BAS16TW

SOT-363

DP5

BAS16TW

SOT-363

DP5

BAS16TW

SOT-363

+2_5V_SLEEP

XW11

XW12

XW5

XW9

XW4

R378

402

1/16W

R779

5% 1/16W MF 402

10K

Q25

2N7002DW

SOT-363

Q25

2N7002DW

SOT-363

R786

100K

1/16W

402

+5V_MAIN

321

8765

Q49

CRITICAL

IRF7832

SO-8

321

Q48

CRITICAL

SI7860DP

SO-8-PWRPK

C838

NO STUFF

0.001uF

20% 50V

402

CERM

R328

GPU_PWRMSR

18.2K

1% 1/16W MF 402

R361

402

1/16W

GPU_PWRMSR

1.82K

C846

GPU_PWRMSR

0.1uF

20% 10V

CERM

402

C705

CRITICAL

330uF

20%

6.3V TANT CASE-D4

C707

CRITICAL

330uF

20%

6.3V TANT

CASE-D4

C711

CRITICAL

330uF

20%

6.3V TANT

CASE-D4

R840

EXT_TMDS

10K

5% 1/16W MF 402

L64

CRITICAL

2.1uH-11A

G16

G15

AD23

G14

AD22

AD21

AD20

AD19

AD18

AD17

AD16

AD15

AD14

AD13

G13

AD12

AD11

AD10

AD9

AD8

AD7

AC24

AC23

AC8

AC7

G12

AB24

AB7

AA24

AA7

Y24

W24

V24

G11

U24

T24

R24

P24

N24

G10

M24

L24

K24

J24

H24

H23

G24

G23

G22

G21

G20

G19

G18

G17

AD26

AF5

V25

W25

N25

M25

F25

AE24

F24

AH4

F23

AE18

AC25

AE17

AF15

W26

AF14

AE14

F14

F13

AG4

AE11

F11

AE10

F10

AE6

AD6

AC6

AF25

AJ3

AB25

R25

G25

F17

AB6

F12

U47

CRITICAL

OMIT

M11-CSP64

64MB

BGA

AK7

AJ7

AH7

AG7

AK6

AJ6

AH6

AH11

AG11

AK10

AJ10

AG6

AH10

AG10

AK9

AJ9

AH9

AG9

AK8

AJ8

AH8

AG8

AK5

AJ5

AG5

AH5

AK4

AJ4

AK23

AJ30

AJ29

AG27

B21

A20

A24

B20

B24

AG25

AG22

AH22

AG20

AH20

AG19

AH19

AG18

AH18

AJ20

AK20

AJ18

AK18

AJ17

AK17

AJ16

AK16

AK12

AJ12

AG21

AH21

AJ19

AK19

AK15

AJ15

AK14

AJ14

AK13

AJ13

AH24

AJ25AJ26

AK25

AE5

AJ24

AK28

AG26

AF11

AG24

AF3

AG3

AH1

AF4

AJ1

AH2

AH3

AK1

AE1

AE2

AF1

AG1

AF2

AG2

AK2

AJ2

AK27

AE13

AH26 AH25

AE12 AF12

AH28 AH27

AK22

AK24

AF13

AK26

AJ27

U47

CRITICAL

OMIT

M11-CSP64

64MB

BGA

C466

4.7UF

20% 10V CERM 1206

051-6680

4621

GPU_VCORE

HIGH_VCORE_DIVD

1778_VFB

ATI_GPIO12_SPN

GPU_VCORE_PWR_SEQ

GPU_VCORE_SEQ_L

FP_PWR_EN

GPU_Y

+3V_GPU

ATI_DVOD<0>

ATI_DVOD<2> ATI_DVOD<3>

+3V_GPU

ATI_DVOD<11>

ATI_DVOD<9> ATI_DVOD<10>

+3V_GPU

ATI_X1CLK_SKEW<1>

ATI_AGP_FBSKEW<1>

ATI_AGP_FBSKEW<0>

ATI_RSET

ATI_VSYNC

ATI_DVOD<8>

+1_8V_GPU

GPU_DVI_DDC_DATA

+1_8V_PVDD_NECK

+1_5V_AGP_NECK

1778_VCC

1778_SHDN_L

1778_ION

GPU_VCORE_SW

GPU_VCORE

ATI_BUS_CFG<1>

+1_8V_ATI_PVDD

ATI_R2SET

ATI_DVOD<14>

ATI_DVOD<16>

ATI_DVOD<19>

ATI_AGP_FBSKEW<0>

ATI_X1CLK_SKEW<0>

ATI_GPIO9_SPN

ATI_GPIO13_SPN

GPU_VCORE_CNTL_L ATI_SSCLK_IN

ATI_TMDS_DN<2> ATI_TMDS_DP<2> ATI_TMDS_CLKN

ATI_CLK27M_IN

ATI_DVOD<5>

ATI_TESTEN

CLKLVDS_LN

LVDS_L3P_TP

LVDS_L3N_TP

LVDS_L2P

LVDS_L2N

LVDS_L1P

LVDS_L1N

LVDS_DDC_CLK

LVDS_DDC_DATA

GPU_COMP

GPU_B

GPU_R

ATI_DVOD<20>

1778_BST_RC

1778_VIN

ATI_BUS_CFG<2>

ATI_BUS_CFG<0> ATI_BUS_CFG<1>

+1_5V_GPU_VDD15

ATI_TMDS_CLKP

+1_5V_AGP

GPU_DVI_DDC_CLK

ATI_DVO_VSYNC

LVDS_L0P

ATI_X1CLK_SKEW<1>

ATI_DVO_CLKP

ATI_DVO_HSYNC

ATI_DVOD<15>

ATI_DVOD_DE

ATI_TMDS_DP<0>

LVDS_L0N

ATI_X1CLK_SKEW<0>

ATI_DVOD<6>

ATI_DVOD<17>

GPU_HPD

GPU_VCORE

GPU_VCORE_NECK

+GPU_VDD15_NECK

CLKLVDS_LP

ATI_TMDS_DN<0>

+1_5V_AGP

1778_BG

+3V_GPU

DCDC_EN

GPU_VCORE_SEQ

+1_5V_AGP

1778_GND

GPU_CORE_OK

1778_VRNG

+GPU_VDD15_UF

GPU_VCORE_CNTL_L

HIGH_VCORE

1778_VFB

GPU_CORE_OK

GPU_C

INV_ON_PWM

ATI_AGP_FBSKEW<1>

ATI_HSYNC

SI_I2S_DATA

+2_5V_SLEEP_NECK1

SI_I2C_CLK

ATI_BUS_CFG<2>

ATI_BUS_CFG<0>

+GPU_VDD15_UF

SLEEP_L_LS5

GPU_VCORE_CNTL

GPU_VCORE_CNTL_RC

1778_TG

1778_BST

1778_GND

1778_FCB

1778_ITH

1778_ITH_RC

ATI_TMDS_DP<1>

ATI_TMDS_DN<1>

HPD_PWR_SNS_EN

ATI_GPIO11_SPN

ATI_GPIO10_SPN

ATI_GPIO8_PD

SI_RESET_L

ATI_DVOD<23>

ATI_DVOD<22>

ATI_DVOD<21>

ATI_DVOD<18>

ATI_DVOD<13>

ATI_DVOD<12>

ATI_DVOD<7>

AUXWIN_PU

ATI_DVOD<4>

GPU_G

ATI_DVOD<1>

38 38

39 39

20 20

CONT

NOISE

VIN

VOUT

GND

CONT

NOISE

VIN

VOUT

GND

VDDR4

VDDR3

TXVSSR1 TXVSSR2 TXVSSR3

TXVDDR2

TXVDDR1

TXVDDR0

TXVDDR3

MPVDD

TPVDD

LPVDD

LVDDR_18 LVDDR_18

VDDM

LVSSR3

LVSSR2

LVSSR1

LVSSR0

MPVSS

TPVSS

LPVSS

VDDP

VDDRH1

VDDRH0

A2VDDQ

AVDD0 AVDD1

PVDD

A2VDD1

A2VDD0

VDDR1

VSSRH1

VSSRH0

A2VSSN1

A2VSSN0

A2VSSQ AVSSN0 AVSSN1

AVSSQ

PVSS

RAGE_MOBILITY

(4 OF 6)

VDD1DI VDD2DI

VSS1DI VSS2DI

LVDDR_25 LVDDR_25

DVOVMODE

VDDR1

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(180mA)

(350mA)

(40mA)

(20mA)

(1200mA)

(20mA)

(AVDD+VDDDI=75mA)

(140mA)

(2mA)

1.5V

1.8V

1.8V 2.5V

3.3V

GPU POWER SOURCES - 1.5V, 1.8V, 2.5V & 3.3V

(150mA MAX)

GPU PLL - 1.8V

(21mA)

(AVDD+VDDDI=75mA)

LVDS - 2.5V

3.3V IO SUPPLY

(Max Current varies, depends on usage)

1.8V DVO POWER (EXT.TMDS)

MEMORY I/O

(150mA MAX)

M11 POWER

LVDS PLL - 1.8V

MEMORY PLL - 1.8V

AGP 4X I/O - 1.5V

(1800mA)

MEMORY CORE - 2.5V

LVDS/TMDS - 1.8V

C488

0.1uF

20% 10V CERM 402

C456

0.1uF

20% 10V CERM 402

C421

0.1uF

20% 10V CERM 402

C544

0.1uF

20% CERM

10V 402

C545

0.1uF

20% 10V CERM 402

C551

10uF

20%

6.3V CERM 805

C546

0.1uF

20% 10V CERM 402

C422

10uF

20%

6.3V CERM 805

C424

0.1uF

20% 10V CERM 402

C417

0.01uF

20% 16V CERM 402

C547

0.1uF

20% 10V CERM 402

C540

0.1uF

20% 10V CERM 402

C437

0.1uF

20% 10V CERM 402

C436

0.1uF

20% 10V

402

CERM

C423

0.1uF

20% 10V CERM 402

C444

0.1uF

20% 10V CERM 402

C425

0.01uF

20% 16V CERM 402

C447

402

CERM

16V

20%

0.01uF

C438

0.1uF

20% 10V CERM 402

C439

0.01uF

20% 16V CERM 402

C517

0.1uF

20% 10V CERM 402

C543

0.1uF

20% 10V CERM 402

C541

0.1uF

20%

10V CERM 402

C542

0.01uF

20% 16V CERM 402

C483

10uF

20%

6.3V CERM 805

C419

0.1uF

20% 10V CERM 402

C420

0.01uF

20% 16V CERM 402

C475

0.1uF

20% 10V CERM 402

C504

0.01uF

20% 16V CERM 402

C538

0.01uF

20% 16V CERM 402

C539

0.1uF

20% 10V CERM 402

C470

0.1uF

10V CERM 402

20%

C471

0.01uF

20% 16V CERM 402

C489

0.1uF

20% 10V CERM 402

C496

0.1uF

20% 10V CERM 402

C506

0.01uF

20% 16V CERM 402

C492

0.1uF

20% 10V CERM 402

C501

0.01uF

20% 16V CERM 402

C450

20% 16V CERM 402

0.01uF

C453

0.01uF

16V

20%

CERM 402

C473

0.01uF

20% 16V CERM 402

C500

0.01uF

20% 16V CERM 402

C430

0.1uF

20% 10V CERM 402

C460

0.01uF

20% 16V CERM 402

C463

0.01uF

20% 16V CERM 402

C462

0.01uF

20% 16V CERM 402

C454

0.01uF

20% 16V CERM 402

C472

20% 16V CERM 402

0.01uF

C527

20% 16V CERM 402

0.01uF

+1_5V_SLEEP

R275

5% 1/10W FF 805

+2_5V_SLEEP

R319

805

1/10W

ATI_MEMIO_HI

+3V_SLEEP

R379

805

1/10W

+1_8V_SLEEP

R312

ATI_MEMIO_LO

1/10W

805

C468

0.01uF

20% 16V CERM 402

C523

0.01uF

20% 16V CERM 402

R363

805

1/10W

+1_8V_SLEEP

+2_5V_SLEEP

C413

0.01uF

20% 16V CERM 402

C464

10uF

20%

6.3V CERM 805

C478

10uF

20% CERM

6.3V 805

C461

0.01uF

16V

20% CERM

402

C459

10uF

6.3V

20% CERM

805

C511

10uF

20%

6.3V CERM 805

C427

10uF

20%

6.3V CERM 805

C493

10uF

20%

6.3V CERM 805

C537

10uF

20%

6.3V CERM 805

C499

10uF

6.3V CERM 805

20%

C414

0.1uF

20% 10V CERM 402

C418

10uF

20%

6.3V CERM 805

C514

10uF

20%

6.3V CERM 805

C491

0.1uF

CERM 402

20% 10V

L23

0402

FERR-220-OHM

L21

FERR-220-OHM

0402

L24

FERR-220-OHM

0402

L28

FERR-220-OHM

0402

L20

FERR-220-OHM

0402

L19

FERR-220-OHM

0402

L32

FERR-220-OHM

0402

L30

FERR-220-OHM

0402

L29

FERR-220-OHM

0402

C552

10uF

20%

6.3V CERM 805

L25

FERR-220-OHM

0805

L26

FERR-10-OHM-500MA

L31

FERR-220-OHM

0805

L18

FERR-10-OHM-500MA

51 4

U34

MM1571J SOT-25A

CRITICAL

C553

0.01uF

20% 16V CERM 402

C830

1uF

20% 10V

CERM

603

+2_5V_SLEEP

51 4

U60

MM1571J SOT-25A

CRITICAL

C833

1uF

20% 10V

CERM

603

C834

0.01uF

20% 16V CERM 402

C835

10uF

20%

6.3V CERM 805

L75

0402

FERR-220-OHM

C831

10uF

20%

6.3V CERM 805

C832

0.01uF

20% 16V CERM 402

R787

5% 1/16W MF 402

R788

1/16W MF 402

C519

0.1uF

20% 10V CERM 402

C534

0.1uF

20% 10V CERM 402

C535

10uF

20%

6.3V CERM 805

C521

0.1uF

20% 10V CERM 402

C550

10uF

20%

6.3V CERM 805

C518

0.1uF

20% 10V CERM 402

C520

0.1uF

20% 10V CERM 402

2 1

L33

FERR-10-OHM-500MA

L81

EXT_TMDS

FERR-10-OHM-500MA

R842

EXT_TMDS

1/16W

402

C881

0.1uF

20% 10V CERM 402

C880

0.1uF

20% 10V CERM 402

C426

0.1uF

20% 10V CERM 402

R841

INT_TMDS

1/16W

402

R843

INT_TMDS

5% 1/16W

603

F20

AF19

AG23

AE8

AF7

AE7

AF6

AE25

AD25

AF10

AF9

AE9

AF8

AF26

AE26

E25

E24

E23

E22

E21

E17

E16

E15

E14

E11

E10

H26

J26

J25

H25

F22

F21

F16

F15

AA6

G26

AD5

AC5

AB5

AA5

N26

M26

L26

K26

AA25

K27

Y28

T25

AC26

AB26

AA26

Y26

V26

U26

T26

R26

P26

L25

K25

F26

E26

E20

E19

E18

E13

E12

AF20

AH23

AH15

AH14

AH13

AG15

AG14

AG13

AG12

AJ11AK11

AK30AK29

A6A7

AF18

AH17

AG17

AH16

AF17

AG16

AF16

AE16

AJ21AK21

AH12

AF22

AE23

AE22

AF24

AF23

AJ22

AE20

AE19

U47

OMIT

CRITICAL

M11-CSP64

64MB

BGA

+2_5V_SLEEP

338S0214

IC,ATI,M11-CSP128,GRAPHICTLR,667BGA,HYNIX GC

U47

CRITICAL

ATI_128MB

338S0207

IC,ATI,M11-CSP64,GRAPHICTLR,667BGA,HYNIX MEM

U47

CRITICAL ATI_64MB

051-6680

4622

+2_5V_GPU_PNLIO

+1_8V_GPU_AVDDQ

+2_5V_GPU_A2VDD

+2_5V_GPU_MEMCORE

+1_5V_AGP_GPU

GPU_MEM_IO_FLT

+1_8V_GPU_PNLPLL

+1_8V_GPU

+1_8V_GPU_AVDD

+1_8V_GPU_VDDDI

GPU_MEM_IO

+2_5V_GPU_MCLK

GPU_CORE_OK

+3V_GPU_FLT

+1_8V_GPU_DVO

+1_8V_GPU

+1_8V_ATI_PVDD

+1_8V_GPU_AVDDQ

+1_8V_GPU_VDDDI

GPU_MEM_IO

+1_8V_GPU_MEMPLL +1_8V_GPU_TP_PLL

+3V_GPU

1_8V_TPVDD_STD

+1_8V_ATI_TPVDD

1_8V_PVDD_STD

ATI_TPVDD_BYP

+1_8V_GPU_TP_PLL

GPU_CORE_OK

ATI_PVDD_BYP

+1_8V_ATI_PVDD

+1_8V_GPU

+1_8V_ATI_PVDD

+1_8V_GPU

ATI_DVOVMODE

GPU_MEM_IO

+1_8V_GPU

+1_5V_AGP

+1_8V_GPU_PLL

+2_5V_GPU_A2VDD

+1_8V_GPU_PNLIO

+1_5V_AGP

+1_8V_GPU

+3V_GPU

+2_5V_GPU_MCLK

V-

V+

MINIDIN

SYM_VER-1

LCFILTER

SYM_VER-1

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

INVERTER EXPECTS ACTIVE HIGH SIGNAL

(+5V_DDC SLEEP)

NC NC

Isolation required for DVI power switch

VGA SYNC BUFFERS

PLACE L1002 & L1003 CLOSE TO DVI CONNECTOR

TMDS FILTERING

PLACE CLOSE TO CONNECTOR

ANALOG FILTERING

PLACE CLOSE TO CONNECTOR

S-VIDEO/COMP OUT INTERFACE

Place GND shorts at graphics controller

Panel has 2K pull-ups

no-panel case (development)

100K pull-ups are for

(LVDS DDC POWER)

EXTERNAL VIDEO (DVI) INTERFACE

DVI DDC CURRENT LIMIT

(55mA requirement per DVI spec)

3V LEVEL SHIFTERS

PLACE NEAR 3, 11 & 19

PLACE NEAR C5A & C5B

LCD INTERFACE

LVDS INTERFACE

LCD POWER SWITCH

NOTE: Pulldown for DVI_HPD provided by DVI power switch interface

Power key detect path when system is shutdown or asleep.. DDC_CLK is isolated from

power key on remote device

NV17M DURING SHUTDOWN. WHEN is pressed, 5V will be driven

into DDC_CLK. Since host rails on, driving SOFT_PWR_ON_L low.

will be low, TP0610 will turn As host rails rise, TP0610

will turn off, as will remote device path into DDC_CLK. Isolation will be disabled as well.

DVI POWER SWITCH

Pulldown prevents has active, self-

powered DDC clock pullup.

3904 from turning on when DVI monitor

COMPARATOR ENABLED BY NV17MAP

HPD will be driven to 5V.

on remote device pressed,

3.3V. When power key

HPD normally driven to

when system is running.

Power key detect path

GPIO.

INVERTER INTERFACE

VIDEO CONNECTORS

+5V_MAIN

R750

100K

1/16W

5% MF

402

C816

0.001uF

20% 50V

CERM

402

CHGND3

C815

0.001uF

20% 50V CERM 402

C812

0.001uF

50V

20% CERM

402

C813

10uF

20%

6.3V CERM 805

L73

FERR-1K-OHM-EMI

L72

400-OHM-EMI

SM-1

+PBUS

+3V_MAIN

C22

0.1uF

20% 10V

CERM

402

3 2

Q76

FDG6324L

SC70-6

Q76

SC70-6

FDG6324L

R474

10K

5% 1/16W MF 402

R480

10K

5% 1/16W MF 402

Q39

SOT-363

2N7002DW

+3V_SLEEP

Q39

2N7002DW

SOT-363

R481

402

1/16W

100K

C655

100pF

5% 25V CERM 201

R476

4.7K

1/16W 402

R478

4.7K

1/16W

402

C654

100pF

5% CERM

25V 201

C667

0.01uF

20% 50V

CERM

603

L42

400-OHM-EMI

SM-1

Q40

SOT-363

2N7002DW

0.5AMP-13.2V

CRITICAL

D19

MBR0530

C653

100pF

5% 25V CERM 201

R475

10K

1/16W

402

C668

0.1uF

20% 10V CERM 402

R485

68.1K

1/16W

402

U42

LMC7211

R472

10K

1% MF

1/16W

402

R484

100K

1/16W

402

R482

10K

1/16W

402

Q40

2N7002DW

SOT-363

R483

470K

1/16W

402

R460

10K

1/16W

402

R459

330

1/16W

402

Q38

TP0610

C657

0.01uF

20% 50V

CERM

603

CHGND1

C656

560pF

10% 50V

402

CERM

L54

FERR-10-OHM-500MA

L53

3.3uH

0603

L57

3.3uH

0603

C660

560pF

10% 50V

CERM

402

C658

560pF

10% 50V

CERM

402

C659

0.01uF

20% 50V

CERM

603

L55

3.3uH

0603

L56

FERR-10-OHM-500MA

C663

560pF

10% 50V

CERM

402

C661

560pF

10% 50V

CERM

402

C664

560pF

10%

CERM

50V 402

+3V_SLEEP

+5V_SLEEP

XW15

XW14

R479

100

1/16W

402

R477

100

1/16W

402

R469

402

1/16W

100

CRITICAL

SM-2MT

L74

400-OHM-EMI

SM-1

4 3 2 1

1110

J21

CRITICAL

RT-TH

MH11773-WMR8A

CHGND4

C548

0.001uF

20%

CERM

50V 402

R543

100K

1/16W

402

C701

0.001uF

20% 50V

CERM

402

CHGND4

+3V_SLEEP

R544

402

1/16W

100K

CHGND4

2 1

C549

402

CERM

50V

20%

0.001uF

CHGND4

C503

0.001uF

20% 50V

CERM

402

L27

FERR-250-OHM

+3V_MAIN

C474

2200pF

50V

CERM

603

3 6

5 2 1

Q29

SI3443DV

TSOP

R354

402

1/16W

100K

R347

402

1/16W

100K

Q28

2N7002

2 1

R473

680

1/16W

402

CHGND1

CHGND3

C819

0.01uF

50V

20%

CERM

603

C5B C5A

J22

CRITICAL

QH1112

F-RT-TH

R753

1/16W

402

J14

CRITICAL

G-501973

F-RT-SM

NC7S32

SC70

C702

NO STUFF

0.001uF

20% 50V

CERM

402

R470

330

5% MF

1/16W 402

L36

OMIT

FERR-60-OHM-0.1A

0402

L38

OMIT

FERR-60-OHM-0.1A

0402

+3V_MAIN

U40

74AHC1G32

+3V_MAIN

U39

74AHC1G32

FERR-250-OHM

C19

0.001uF

20% 50V CERM 402

CHGND2

CHGND1

CHGND2

2 1

R464

1/16W

402

2 1

R463

1/16W

402

Q35

MMDT3904

SOT-363

Q35

MMDT3904

SOT-363

L37

370-OHM

L45

90-OHM-300mA

2012H

CRITICAL

C634

0.25% 50V

402

CERM

3.3pF

R456

NO STUFF

1/16W

1% 402

R462

1% 1/16W MF 402

NO STUFF

R458

1/16W

1% MF

402

NO STUFF

C631

402

CERM

0.25% 50V

3.3pF

C641

402

CERM

50V

0.25%

3.3pF

FL1

CRITICAL

SM-220MHZ

FL2

CRITICAL

SM-220MHZ

FL3

CRITICAL

SM-220MHZ

L47

CRITICAL

90-OHM-300mA

2012H

L46

CRITICAL

90-OHM-300mA

2012H

L44

CRITICAL

90-OHM-300mA

2012H

EXT_TMDS

L49

CRITICAL

EXT_TMDS

2012H

90-OHM-300mA

L85

CRITICAL

EXT_TMDS

90-OHM-300mA

2012H

051-6680

4623

116S1331

DISCRETE,RES,33OHM,0402

L36,L38 VGA_BUFFER_RES

ATI_VSYNC

+5V_DDC_SLEEP

DVI_DDC_CLK_UF

DVI_DDC_DATA_UF

GPU_DVI_DDC_CLK

DDC_CLK_ISO

VGA_B

VGA_G

TV_GND1

TV_Y

TV_COMP

TV_C

INV_ON_PWM

BRIGHT_PWM

TMDS_DP<5>

TMDS_DP<4>

HPD_4V_REF

DVI_TURN_ON

DVI_TURN_ON_ILIM

GPU_C

GPU_Y

VGA_G

+5V_DDC_SLEEP_UF

TMDS_CONN_DP<0>

TMDS_CONN_DN<0>

TMDS_CONN_DP<5>

TMDS_DP<1>

GPU_TV_GND2

LCD_DIGON_L

VGA_VSYNC

TMDS_CONN_DP<1>

TMDS_CONN_DN<4>

DVI_HPD_UF

TMDS_CONN_DP<3>

VGA_VSYNC

TMDS_CONN_DN<1>

VGA_RVGA_B

VGA_HSYNC

DVI_TURN_ON_BASE

+14V_INV

BRIGHT_PWM_UF

LVDS_L2N

LVDS_L0N

LVDS_DDC_DATA

TMDS_DP<3>

+5V_DDC_SLEEP

DVI_HPD_DIV

HPD_REF_EN_L

CLKLVDS_LN

LCD_PWREN_L

DVI_HPD

+3V_LCD_SW

TMDS_CONN_DP<3>

TMDS_CONN_DN<3>

TMDS_DN<3>

SOFT_PWR_ON_L

TMDS_CONN_DN<5>

TMDS_CONN_CLKN

TMDS_CONN_CLKP

VGA_HSYNC

TMDS_CLKN

TMDS_CLKP

ATI_VSYNC_BUF

TMDS_DN<5>

TMDS_CONN_DN<5>

TMDS_CONN_DP<4>

GPU_HPD

+5V_INV_SW

TMDS_DN<4>

TMDS_CONN_DN<4>

HPD_PWR_SNS_EN

HPD_PWR_SW

HPD_PWR_SW_BASE

LVDS_DDC_CLK

LVDS_L2P

LVDS_DDC_DATA

+5V_INV_UF_SW

DVI_DDC_CLK_UF

LVDS_DDC_CLK

CLKLVDS_LP

LVDS_L1P

LVDS_L1N

ATI_HSYNC

ATI_HSYNC_BUF

INV_GND

FP_PWR_EN

DVI_DDC_CLK

GPU_B

GPU_R

LVDS_L0P

TMDS_DN<0>

TMDS_CONN_DP<5>

TMDS_CONN_CLKN

TMDS_CONN_DP<4>

TMDS_CONN_DN<2>

TMDS_DN<1>

FP_PWR_EN_L

FP_PWR_EN

GPU_G

TMDS_DP<0>

TMDS_DP<2>

TMDS_DN<2>

TMDS_CONN_DP<2>

TMDS_CONN_DP<1>

TMDS_CONN_DN<1>

TMDS_CONN_DN<2>

+3V_LCD

TMDS_CONN_DP<2>

TMDS_CONN_DN<3>

TMDS_CONN_CLKP

DVI_HPD_UF

GPU_COMP

TV_GND2

GPU_DVI_DDC_DATA

DVI_DDC_DATA

VGA_R

GPU_TV_GND1

41 41

38 38

23 23

23 20

20 23

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

Connect caps, DZ1 to pin 6 via trace

LMU/RIGHT SENSOR CONNECTOR

LEFT LIGHT SENSOR CONNECTOR

DEBUG HELPERS

PLACE "POWER BUTTON" IN SILK NEAR RESISTOR

PLACE ON TOP SIDE NEAR FRONT EDGE OF BOARD

PLACE "PMU RESET" IN SILK NEAR RESISTOR

SLEEP LED

NOTE: KEEP FERRITE CLOSE TO CAP

KEYBOARD PULLUPS

USB Trackpad Connector

KEYBOARD/TPAD/SLEEP LED

+3V_PMU

R569

100K

1/16W

402

RP42

10K

1/32W

25V

RP40

10K

1/32W

25V

+5V_MAIN

R611

402

1/16W

100

R616

402

1/16W

2.2K

R154

4.7K

1/16W

402

CRITICAL

SM-2MT

Q58

2N3906

L68

400-OHM-EMI

C766

470pF

10% 50V

CERM

603

Q18

SOT-363

2N7002DW

+3V_MAIN

R173

10K

1/16W

402

Q18

2N7002DW

SOT-363

R185

NO STUFF

470K

1/16W

603

R190

NO STUFF

470K

1/16W

603

R138

402

1/16W

SM-2MT

CRITICAL

U21

SOT23-5

74LVC1G125

CRITICAL

R198

100K

1/16W

402

+3V_MAIN

2 1

R228

1/16W

402

NO STUFF

1817

1615

1413

1211

J19

CRITICAL

54102

F-ST-SM

R754

100K

1/16W

402

+3V_PMU

CHGND5

R789

5% 1/16W MF 402

R758

603

5% 1/16W MF

R577

603

1/16W

+5V_SLEEP

1615

1413

1211

J10

QT500166-L010

M-ST-SM1

CRITICAL

+3V_PMU

2 1

R163

402

5% MF

1/16W

C188

0.001uF

20% 50V

CERM

402

L11

400-OHM-EMI

SM-1

C220

0.001uF

20% 50V

CERM

402

400-OHM-EMI

SM-1

C198

0.001uF

20% 50V

CERM

402

400-OHM-EMI

SM-1

C199

0.001uF

402

CERM

50V

20%

15V

NO STUFF

SOT23

+5V_MAIN

Q22

2N7002

3 6

5 2 1

Q36

+5V_TPAD

SI3443DV

TSOP

+3V_MAIN

C698

0.001uF

20% 50V CERM 402

R672

100K

1/16W

402

2 1

R809

1/16W

402

R784

402

1/16W

470K

C507

20% 10V CERM 402

0.1UF

051-6680

+3V_MAIN_LMU

KBDLED_ANODE

+5V_SLEEP_LMU

KBD_ID

KBD_OPTION_L

KBD_SHIFT_L

3V_5V_OK_L

LID_CLOSED_L

KBDLED_RETURN

KBDLED_ANODE

PWR_BUTTON_L

INT_I2C_CLK1

PMU_LID_CLOSED_L

+3V_HALL_EFFECT

INT_I2C_DATA1

3V_5V_OK_G

3V_5V_OK

ST7_SLEEP_LED_H

KBD_FUNCTION_L

KBD_COMMAND_L

USB_TPAD_P USB_TPAD_N

+3V_SENSOR

KBD_CONTROL_L

KBD_X<8> KBD_X<9>

KBD_X<1>

KBD_X<0>

KBD_X<3> KBD_X<5> KBD_X<7> KBD_X<6>

PMU_SLEEP_LED

LMU_DETECT

KBDLED_RETURN

SLEEP

LUX_ALS_OUT +5V_SLEEP_LMU

PMU_LID_CLOSED_L

SLEEP_LED_DGND

SLEEP_LED_I

SLEEP_LED_UF

SLEEP_LED

PMU_SLEEP_LED

LUX_ALS_GAIN_SW

LMU_DETECT

ST7_SLEEP_LED_H

PMU_SLEEP_LED_L

+3V_MAIN

PMU_RESET_BUTTON_L

SOFT_PWR_ON_L

KBD_X<4>

KBD_X<2>

ST7_SLEEP_LED_H

SLEEP_LED_SW_L

LUX_ALS_GAIN_SW LUX_ALS_OUT

PWR_BUTTON_L

INT_I2C_DATA0

IO_RESET_L

INT_I2C_CLK0

ADT7467_THERM_L

+5V_TPAD_FB

SLEEP_LED_L

41 41

31 31

VDD

RA7/OSC1/CLKI

RB4/SCK/SCL

RA3/AN3/VREF+ RA4/AN4/T0CKI

THM PADGND

RA5/MCLR*/VPP

RA1/AN1

RA0/AN0

RA2/AN2/VREF-

RA6/OSC2/CLKO

RB0/INT

RB1/SDI/SDA

RB3/CCP1/PGM

RB6/T1OSO/T1CKI/PGC

RB7/T1OSI/PGD

RB5/SS*

RB2/SDO/CCP1

GND

OUT

VIN+ VIN-

V+

THM

GND PAD

PWRDWN

SELFTEST

RSVD

VDD

VOUTY

VOUTZ

VOUTX

OUTPUTY

OUTPUTZ

DNC

RSVD

TEST

SELF

PARITY

RSVD

GND PAD

THRML

OUTPUTX

VDD

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

NC NC

NC NC NC NC

MMM

I2C Wr: 0xB0, Rd: 0xB1

BATTERY CURRENT SENSE

MMM & BATTERY CURRENT SENSOR

C696

MMM

20% 10V

CERM

402

0.1UF

C635

OMIT

0.0047UF

10% 25V CERM 402

R797

MMM

10K

402

1/16W

C632

MMM

0.1UF

20% 10V CERM 402

C522

MMM

0.1UF

20% 10V

CERM

402

U15

OMIT

CRITICAL

16F818

QFN

MMM_PIC_SIRQ_L

MMM_PIC_FFIRQ_L

R796

MMM

10K

1/16W

402

R795

MMM

1/16W

402

R800

MMM

1/16W

402

C821

10UF

20% 4V X5R 603

R812

49.9K

1/16W

402

+BATT

XW37

OMIT

5 1

U41

SOT23-5

CRITICAL

INA138

R811

150K

1/16W

402

XW36

OMIT

R810

0.010

1% 1W MF

2512

XW35

OMIT

R799

MMM

402

1/16W

C820

0.1UF

20% 10V CERM 402

+3V_SLEEP

R794

KIONIX_ACCEL

10K

402

1/16W

R822

NO STUFF

10K

1/16W

402

R823

NO STUFF

402

1/16W

10K

C643

KIONIX_ACCEL

0.1UF

20% 10V

CERM

402

R818

MMM

402

1/16W

R785

MMM

1/16W

402

+3V_MAIN

+3V_PMU

R793

NO STUFF

1/16W

402

+BATT_ISNS

C823

ST_ACCEL

0.1UF

402

CERM

10V

20%

R805

NO STUFF

402

1/16W

10K

R824

ST_ACCEL

10K

402

1/16W

U58

LIS3L02AQ

QFN

ST_ACCEL

R827

ST_ACCEL

10K

1/16W

402

U20

KXM52-2050

QFN

R813

MMM

10K

5% 1/16W MF 402

R820

KIONIX_ACCEL

402

1/16W

10K

C642

OMIT

0.0047UF

10% 25V CERM 402

C636

OMIT

0.0047UF

25V

10% CERM

402

CAP CER .0015UF, 10%, 25V, X7R, 0402, SMD

ST_ACCEL

132S0072

C635, C636, C642

IC,UCTLR,MMM,PIC16F818,SMD, W/PROGRAM

CRITICAL

MMM

341S1630

U15

KIONIX_ACCEL

CAP CER .0047UF, 10%, 25V, X7R, 0402, SMD

132S4733

C635, C636, C642

A051-6680

25 46

MIN_NECK_WIDTH=10MIL

MIN_LINE_WIDTH=25MIL

PP3V3_MMM

VOLTAGE=3.3V MIN_LINE_WIDTH=0.25 MIL MIN_NECK_WIDTH=0.2 MIL

MMM_ACC_DETECT

MMM_ACC_PWRDOWN

PP3V3_MMM

MMM_ACC_X_AXIS MMM_ACC_Y_AXIS

MMM_PIC_AN2_PD MMM_PIC_AN3_PU

MMM_ACC_Z_AXIS

MMM_RESET_L

PP3V3_MMM_PIC

VOLTAGE=3.3V MIN_LINE_WIDTH=0.25 MIL MIN_NECK_WIDTH=0.2 MIL

MMM_ACC_Z_AXIS

MMM_ACC_SELFTEST

MMM_ACC_PWRDOWN

MMM_ACC_SELFTEST

TP_MMM_ICSP_PGM

INT_I2C_CLK1

MMM_PIC_AAC_PWRDOWN

PP3V3_MMM_PIC

MMM_ACC_Y_AXIS

MMM_ACC_X_AXIS

+PPBATT_ISNS_N

MIN_LINE_WIDTH=25MIL MIN_NECK_WIDTH=10MIL

SYS_BATT_ISNS

TP_MMM_ICSP_PGD

MMM_ACC_SELFTEST

MMM_ACC_PWRDOWN

MMM_FFIRQ_L

MMM_SIRQ_L

IO_RESET_L

TP_MMM_ICSP_PGC

MMM_RESET_L

BATT_ISNS_OUT

BATT_ISNS_R

MIN_LINE_WIDTH=25MIL MIN_NECK_WIDTH=10MIL

+BATT_ISNS_P

MMM_ACC_DETECT

INT_I2C_DATA1

MMM_ACC_Y_AXIS MMM_ACC_Z_AXIS

MMM_ACC_X_AXIS

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

INTERNAL I/O CONNECTORS

+5V_HD_SLEEP AND +3V_SLEEP

ANY SEQUENCING REQUIREMENT BETWEEN

HARD DRIVE INTERFACE (UATA100)

IOCHRDY - UATA100 REQUIRES PULL-UP TO 3.3V

PLACE PULLUP RESISTORS CLOSE TO INTREPID

PLACE SERIES R CLOSE TO INTERPID

OPTICAL DRIVE INTERFACE (EIDE)

WIRELESS INTERFACE

PLACE TERMINATORS NEAR INTREPID

EIDE SERIES TERMINATION

NC NC

R203

402

1/16W

10K

R199

402

1/16W

R196

402

1/16W

10K

R215

1/16W

402

R200

402

1/16W

R229

402

1/16W

R214

402

1/16W

+5V_SLEEP

R546

402

1/16W MF

10K

NO STUFF

R540

402

1/16W

10K

R542

10K

5% 1/16W MF 402

R541

402

1/16W

100K

NO STUFF

R545

20K

1/16W

402

R234

402

1/16W

10K

R268

402

1/16W

R251

402

1/16W

R217

402

1/16W

R213

402

1/16W

10K

R262

402

1/16W

R237

402

1/16W

R238

402

1/16W

R266

402

1/16W

R242

402

1/16W

+3V_SLEEP

R204

1/16W

402

10K

R216

402

1/16W

C284

402

CERM

50V

10pF

RP19

SM1

1/16W

RP18

SM1

1/16W

RP18

SM1

1/16W

RP18

SM1

1/16W

RP18

SM1

1/16W

RP19

SM1

1/16W

RP19

SM1

1/16W

RP19

SM1

1/16W

RP21

SM1

1/16W

RP23

1/16W

SM1

RP21

SM1

1/16W

RP21

1/16W

SM1

RP23

SM1

1/16W

RP25

SM1

1/16W

RP25

SM1

1/16W

RP25

SM1

1/16W

RP23

SM1

1/16W

RP25

SM1

1/16W

RP21

1/16W

SM1

RP23

1/16W

SM1

RP26

SM1

1/16W

RP26

SM1

1/16W

RP24

SM1

1/16W

RP27

SM1

1/16W

RP30

SM1

1/16W

RP30

SM1

1/16W

RP27

SM1

1/16W

RP30

SM1

1/16W

RP28

SM1

1/16W

RP28

SM1

1/16W

RP28

SM1

1/16W

RP28

SM1

1/16W

R737

5% 1/16W MF 402

+3V_SLEEP

R573

402

1/16W

3V_HD_LOGIC

R570

402

1/16W

5V_HD_LOGIC

RP24

SM1

1/16W

RP24

SM1

1/16W

RP24

SM1

1/16W

RP26

SM1

1/16W

RP26

SM1

1/16W

RP30

SM1

1/16W

RP27

SM1

1/16W

RP27

SM1

1/16W

R739

1/16W

402

10K

NO STUFF

R747

402

1/16W

10K

C808

100pF

50V

CERM

402

NO STUFF

C805

402

CERM

50V

100pF

NO STUFF

+3V_SLEEP

83 82

80879

78 77

76 75

74 73

72 71

70769

68 67

66 65

64 63

62 61

60659

58 57

56 55

54 53

52 51

50549

48 47

46 45

44 43

42 41

40439

38 37

36 35

34 33

32 31

30329

28 27

26 25

24 23

22 21

20219

18 17

16 15

14 13

12 11

F-ST-SM1

QT510806-L111

CRITICAL

49 48 47 46 45 44 43 42 41 40

39 38 37 36 35 34 33 32 31 30

29 28 27 2625

J12

M-SM

CRITICAL

49 48 47 46 45 44 43 42 41 40

39 38 37 36 35 34 33 32 31 30

29 28 27 2625

J13

M-SM

CRITICAL

R759

805

1/10W

+5V_SLEEP

R579

402

1/16W

20K

R578

10K

5% 1/16W MF 402

26 46

051-6680

MAIN_RESET_L RF_DISABLE_L

PCI_AD<29>

PCI_AD<31>

AIRPORT_IDSEL

PCI_AD<22>

PCI_AD<23>

AIRPORT_PCI_REQ_L

CLK33M_AIRPORT

PMU_PME_L

AIRPORT_PCI_INT_L

AIRPORT_PCI_GNT_L

UIDE_DATA<1>

UIDE_DATA<3>

UIDE_DATA<11>

HD_DATA<1>

HD_DATA<3>

HD_DATA<2>

HD_DATA<0>

HD_DMARQ HD_DIOR_L

HD_DMACK_L HD_ADDR<1>

HD_ADDR<0> HD_CS0_L

HD_CS0_L

EIDE_OPTICAL_DATA<10>

+5V_SLEEP_OPT

EIDE_OPTICAL_RST_L

EIDE_OPTICAL_DATA<0>

EIDE_OPTICAL_DATA<13>

EIDE_OPTICAL_DATA<7>

EIDE_OPTICAL_IOCHRDY

EIDE_OPTICAL_WR_L

EIDE_OPTICAL_INT EIDE_OPTICAL_ADDR<1> EIDE_OPTICAL_ADDR<0>

EIDE_OPTICAL_DMA_RQ

EIDE_OPTICAL_ADDR<2>

EIDE_OPTICAL_READ_L

EIDE_OPTICAL_DATA<13>

EIDE_OPTICAL_DMAACK_L

EIDE_OPTICAL_DATA<10>

UIDE_ADDR<1>

UIDE_DATA<14>

PCI_AD<17>

PCI_CBE<2> PCI_IRDY_L

PCI_AD<11>

UIDE_ADDR<2>

UIDE_DATA<13>

EIDE_OPTICAL_DATA<11>

EIDE_OPTICAL_DATA<15>

EIDE_OPTICAL_DATA<12>

EIDE_OPTICAL_DATA<11>

EIDE_OPTICAL_CS0_L

EIDE_OPTICAL_DATA<0>

EIDE_OPTICAL_DATA<1>

EIDE_OPTICAL_DATA<2>

EIDE_OPTICAL_DATA<3>

EIDE_OPTICAL_DATA<4>

EIDE_OPTICAL_DATA<5>

EIDE_OPTICAL_DATA<6>

EIDE_OPTICAL_CS1_L

EIDE_OPTICAL_DATA<14>

EIDE_OPTICAL_DATA<9>

EIDE_OPTICAL_DATA<8>

HD_CS1_L

HD_ADDR<2>

HD_INTRQ

HD_IOCHRDY

HD_DIOW_L

HD_DATA<15>

HD_DATA<14>

HD_DATA<13>

HD_DATA<12>

HD_DATA<11>

HD_DATA<10>

HD_DATA<8>

HD_DATA<1>

HD_DATA<3>

PCI_FRAME_L

PCI_TRDY_L PCI_STOP_L

PCI_DEVSEL_L

PCI_AD<15> PCI_AD<13>

PCI_CBE<0>

PCI_AD<4>

EIDE_OPTICAL_DATA<7>

EIDE_OPTICAL_DATA<3>

EIDE_OPTICAL_DATA<6>

PCI_AD<18>

PCI_PAR

PCI_AD<20>

PCI_AD<16>

PCI_AD<21> PCI_AD<19>

UIDE_IOCHRDY

UIDE_DIOW_L

HD_DIOR_L

HD_DATA<10>

UIDE_CS0_L

EIDE_OPTICAL_DATA<15>

EIDE_OPTICAL_DATA<12>

PCI_CBE<3>

PCI_AD<30>

PCI_AD<26> PCI_AD<24>

PCI_AD<27>

EIDE_OPTICAL_DATA<8>

EIDE_ADDR<0>

EIDE_ADDR<2>

EIDE_CS0_L

EIDE_DATA<15>

EIDE_DATA<14>

EIDE_DATA<11>

EIDE_DATA<10>

EIDE_DATA<12>

EIDE_DATA<9>

EIDE_DATA<8>

HD_CS1_L

UIDE_CS1_L

HD_DMACK_L

HD_DIOW_L

UIDE_DIOR_L

UIDE_DATA<12>

UIDE_DATA<10>

UIDE_DATA<8>

UIDE_DATA<9>

UIDE_DATA<5>

HD_DATA<7>

HD_DATA<4>

HD_ADDR<0>

HD_DATA<13>

HD_ADDR<1>

HD_ADDR<2>

HD_DATA<15>

HD_DATA<12>

HD_DATA<6>

HD_DATA<9>

HD_DATA<14>

HD_DATA<5>

HD_DATA<0>

HD_DATA<11>

EIDE_OPTICAL_ADDR<0>

EIDE_OPTICAL_ADDR<1>

EIDE_OPTICAL_ADDR<2>

EIDE_OPTICAL_CS0_L

EIDE_OPTICAL_DATA<14>

EIDE_OPTICAL_DATA<9>

EIDE_DATA<13>

EIDE_DATA<2>

EIDE_OPTICAL_DATA<2>

EIDE_DATA<1>

EIDE_OPTICAL_DATA<1>

EIDE_DATA<0>

EIDE_DATA<6>

EIDE_DATA<3>

EIDE_DATA<4>

EIDE_OPTICAL_DATA<4>

EIDE_DATA<5>

EIDE_OPTICAL_DATA<5>

EIDE_OPTICAL_CS1_L

EIDE_CS1_L

EIDE_DMARQ

EIDE_RD_L

EIDE_DMACK_L

EIDE_IOCHRDY

EIDE_OPTICAL_RST_L

EIDE_RST_L

EIDE_OPTICAL_WR_L

EIDE_WR_L

EIDE_OPTICAL_INTEIDE_INT

EIDE_DATA<7>

EIDE_OPTICAL_IOCHRDY

EIDE_OPTICAL_DMA_RQ

EIDE_OPTICAL_DMAACK_L

EIDE_OPTICAL_READ_L

HD_IOCHRDY

HD_RESET_L

UIDE_DATA<15>

PCI_AD<7>

ROM_ONBOARD_CS_TP_L

PCI_AD<2>

PCI_AD<6>

ROM_OE_TP_L

PCI_AD<9>

PCI_AD<0>

PCI_AD<10>

AIRPORT_CLKRUN_L

PCI_AD<25>

PCI_CBE<1> PCI_AD<14>

PCI_AD<12>

ROM_RW_TP_L PCI_AD<8>

PCI_AD<5>

PCI_AD<3>

ROM_CS_TP_L

PCI_AD<1>

UIDE_ADDR<0>

EIDE_ADDR<1>

UIDE_DATA<2>

UIDE_DMACK_L

UIDE_RST_L

HD_DATA<8>

UIDE_DATA<6>

UIDE_DATA<4>

PCI_AD<28>

UIDE_DATA<7>

PCI_AD<18>

UIDE_DATA<0>

HD_DATA<7> HD_DATA<6>

HD_DATA<5> HD_DATA<4>

HD_DATA<9>

HD_RESET_L

+HD_LOGIC_SLEEP

+5V_HD_SLEEP

41 41

39 39

18 18

17 17

39 39

17 17

12 12

39 39

14 41

13 26

12 12

9 9

26 13

13 26

26 13

26 26

VER 1

VCCP

TACH3

THERM#/

SMBALERT#/GPIO

D1-

D1+

D2-

D2+

SCL

VCC

XTO

TACH1

SMBALERT#

TACH2

TACH4/

PWM2/

PWM1/

GND

SDA

PWM3

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

FAN CONTROLLER

FAN INTERFACE

SERIAL DEBUG INTERFACE

PLACE NEAR CONNECTOR PINS 1

LEFT I/O & AUDIO BOARD (LIO)

Place it near J3

PLACE CLOSE TO CPU

MAIN1

PLACE IN BETWEEN 3/5/1.5/2.5V PWR SUPPLY

MAIN2

PLACE UNDERNEATH UPPER RAM

ALTERNATE1

PLACE CLOSE TO BATTERY CHARGER/VCORE

ALTERNATE2

KEEP STUFFING RESISTORS CLOSE TO ADT7460 CONTROLLER

PREVENTS POWER-ON POP AND

GENERATES ACTIVE HIGH SPKR MUTE

PREVENTS POWER-ON POP AND PROPAGATES ACTIVE LOW HP MUTE

SOFT MODEM CONN

RIGHT USB BOARD

CPU FAN

GPU FAN

FAN/MODEM/SOUND/BACKUP BATT.

C763

402

CERM

10V

20%

0.1uF

R749

10K

1/16W

402

+5V_SLEEP

Q59

2N3904

Q46

2N3904

R454

10K

5% 1/16W MF 402

Q67

2N3904

Q61

2N3904

R686

1/16W

402

R687

1/16W

402

R703

402

1/16W

R704

1/16W

402

R701

NO STUFF

1/16W

402

R702

NO STUFF

1/16W

402

R688

NO STUFF

1/16W

402

R689

NO STUFF

1/16W

402

+5V_MAIN

R547

5% 1/10W FF 805

+3V_SLEEP

C669

4.7uF

20%

6.3V CERM 805

+5V_MAIN

+3V_MAIN

R633

10K

1/16W

402

R659

NO STUFF

1/16W

402

R661

NO STUFF

1/16W

402

C818

NO STUFF

0.001uF

20% 50V CERM 402

C817

NO STUFF

0.001uF

20% 50V

CERM

402

R700

NO STUFF

5% MF

1/16W

402

R705

NO STUFF

1/16W

402

C814

4.7uF

6.3V

20% CERM

805

R752

100K

5% 1/16W MF 402

Q77

2N7002DW

SOT-363

Q77

2N7002DW

SOT-363

+5V_MAIN

R751

100K

5% 1/16W MF 402

CRITICAL

SM04B-SSR

M-RT-SM

J18

CRITICAL

SM04B-SSR

M-RT-SM

XW30

OMIT

C829

0.1uF

20% 10V CERM 402

C828

0.1uF

20% 10V

CERM

402

Q78

2N7002DW

SOT-363

Q78

2N7002DW

SOT-363

R156

100K

5% 1/16W MF 402

R768

100K

5% 1/16W MF 402

+3V_MAIN

R770

100K

5% 1/16W MF 402

R774

ADT7460

10K

1/16W

402

R773

ADT7460

10K

5% 1/16W MF 402

Q79

2N7002DW

SOT-363

ADT7460

R772

402

5% 1/16W

10K

Q79

ADT7460

2N7002DW

SOT-363

R771

10K

5% 1/16W MF 402

9 8 7 65

101

J28

M-ST-5087

CRITICAL

NO STUFF

+5V_MAIN

+5V_SLEEP

Q83

2N7002DW

SOT-363

Q83

2N7002DW

SOT-363

C850

0.1uF

20% 10V CERM 402

R817

5% 1/16W MF 402

100K

R808

100K

402

1/16W

R807

100K

402

1/16W

+3V_MAIN

C848

150uF

20%

6.3V TANT SMD-1

C849

1uF

603

CERM

6.3V

10%

R806

1/16W

402

+3V_MAIN

C868

1000pF

10% 25V X7R 402

C869

1000pF

10% 25V X7R 402

8 7

6 5

4 3

16 15

14 13

12 11

J17

CRITICAL

QT500166-L010

M-ST-SM1

3837

3635

3433

3231

2827

2625

2423

2221

1817

1615

1413

1211

4443

4241

CRITICAL

QT500406-L111

M-ST-SM1

+3V_MAIN

C689

10uF

20%

6.3V CERM 805

R530

10K

5% 1/16W MF 402

R778

10K

1/16W

402

J15

FF14-10A

F-RT-SM

R135

ADT7467

1/16W

402

R189

1/16W

402

ADT7467

U53

ADT7467

QSOP

ADT7467

CRITICAL

R848

NO STUFF

10K

1/16W

402

R849

10K

1/16W

402

NO STUFF

+5V_SLEEP

+3V_SLEEP

IC,ADT7460,FAN CTLR,16P QSOP

353S0608

U53

CRITICAL

ADT7460

051-6680

4627

FAN2_PWM_L

FAN2_TACH

FAN1_TACH

FAN1_PWM_L

ADT7467_TACH3_TP

ADT7467_ADR_ENABLE_L

FAN2_PWM_L

FAN2_PWM

FAN1_TACH

FAN1_PWM

FAN1_PWM_L

ADT7467_THERM_L

COMM_TRXC

COMM_TXD_L

ADT7467_THERM_L

THERM_INV

THERM_L_OC

+3V_PMU_AVCC

+FAN_PWR FAN2_TACH

COMM_GPIO_L

INT_I2C_CLK1

THERM1_DM

THERM2_DM

ADT7467_VCORE_MON

THERM1_DM

CPU_THERM_DP

THERM1_A_DP

THERM2_M_DM

THERM2_M_DP

THERM1_M_DM

AUD_GND

SND_HP_MUTE_LO

+5V_MAIN_AUD

INT_I2C_DATA2

SND_AMP_MUTE

+3V_MAIN_AUD

ADAPTER_DET

THERM2_M_DP

INT_I2S0_SND_SCLK INT_I2S0_SND_FROM_ADC

INT_MOD_CLKOUT INT_MOD_DTO INT_MOD_BITCLK

SND_AMP_MUTE_L

BT_USB_DM

NEC_LUSB_PPON

CHARGE_LED_L

NEC_USB_DAM

INT_I2S0_SND_MCLK

SND_HP_SENSE_L

NEC_USB_DAP

THERM1_DM

SND_AMP_MUTE

CPU_THERM_DM

THERM1_DP

THERM1_M_DM

THERM2_DP

THERM2_M_DM

THERM2_DM

NEC_RUSB_OCI_UF NEC_RUSB_PPON

SND_HP_MUTE_LO

THERM2_A_DM

THERM1_A_DM

THERM2_A_DP

THERM1_DP

THERM2_DP

THERM2_DM

THERM1_DP

THERM2_A_DP

THERM1_A_DM

THERM2_A_DM

THERM1_A_DP

THERM1_DM

SND_LIN_SENSE_L

INT_I2S0_SND_TO_DAC

INT_I2S0_SND_LRCLK

BT_USB_DP

NEC_LUSB_OCI_UF

THERM2_DM

INT_I2C_CLK2

SLEEP

SND_HW_RESET_L

SND_AMP_MUTE_CTRL

SND_HP_MUTE_L

THERM2_DP

GPU_THERM_DM

GPU_THERM_DP

INT_PU_RESET_L

THERM1_M_DP

INT_MOD_SYNC

SND_HP_MUTE

COMM_RING_DET_L SOFTMODEM_FC_RGDT COMM_RESET_L

THERM1_DP

SND_AMP_MUTE_CTRL

ADT7467_VCC

NEC_USB_DBM NEC_USB_DBP

COMM_RXD

COMM_RTS_L

COMM_DTR_L

INT_MOD_DTI

THERM2_DP

INT_I2C_DATA1

+FAN_PWR

39 39

14 14

27 27

VFB

MODE

RUN

VIN

GND

TX_EN

TXD7

TXD6

TXD5

TXD4

TX_ER

GTX_CLK

125CLK

RX_CLK

TXD0

TXD3

TXD2

TXD1

TX_CLK

VDDOX

VDDOH

VDDO

DVDD

CTRL10

MDC

CRS COL

RX_ER

RX_DV

RXD7

RXD1 RXD2 RXD3 RXD4 RXD5 RXD6

RXD0

MDI1MDI2+ MDI2MDI3+

MDI1+

MDI0-

MDI0+

AVDD

VSSC

XTAL2

HSDAC-

HSDAC+

S_CLK-

S_CLK+

XTAL1

S_OUT-

S_OUT+

S_IN-

S_IN+

COMA

RESET

INT+

INT-/

MDIO

LED_LINK1000

LED_LINK100

GND

SEL_2.5V

SEL_OSC

TRST

RSET

TDO

TDI

TCK TMS

CONFIG5 CONFIG6

CONFIG4

CONFIG0 CONFIG1 CONFIG2 CONFIG3

LED_TX

LED_RX

LED_DUPLEX

LED_LINK10

MDI3-

1000PF, 2000VSHIELD

PRIMARY

ENET_CTAP

MDI_2-

MDI_3-

MDI_3+

MDI_1-

MDI_1+

MDI_0-

MDI_0+

MDI_2+

ENET_CTAP

CHIP SIDE

RJ45

75 OHM

1CT:1CT

J5 J6 J7 J8

SECONDARY

CABLE SIDE

RJ45

75 OHM

1CT:1CT

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PART NUMBER

ALTERNATE FOR

PART NUMBER

BOM OPTION

REF DES

COMMENTS:

TABLE_ALT_HEAD

TABLE_ALT_ITEM

PLACES PHY IN "COMA" MODE WHEN

Y6 LOAD CAPACITANCE IS 16PF

PUT CRYSTAL CIRCUIT CLOSE TO PHY

NC NC

ASLEEP ON BATTERY (SAVES POWER)

PLACE ALL SERIES RES CLOSE TO PHY

Keep C851 & C852 Stubs short

(000) (000) (111) (110) (111) (101) (000)

(BELOW)

SEE CONFIG TABLES

VOUT = 0.8V*(1+R2EQV/R1)

R2EQV = R2A||R2B

R2A

R2B

PLACE CAPS (IN ORDER) ON PINS 1, 6, 10/15, 57/62, 67/71, 85

PLACE CAPS AT CONNECTOR PINS 5 & 6

PLACE CAPS (IN ORDER) ON PINS 5, 21/26, 48/52, 66/72, 88, 96

PLACE CAPS (IN ORDER) ON PINS 32/35, 36/40, 45 & 78

Ethernet routing priority:

1. Decoupling caps

2. TX SERIES TERMINATION - LOCATE NEAR LINK

3. RX SERIES TERMINATION - LOCATE NEAR PHY

All differential signals should be close, parallel, matched lengths, with minimum via count, and short if possible

Must maintain 50-ohms trace impedance on all MDI pairs and all RJ45 pairs

Sandwich each RJ54 pair between chassis grounds

PLACE RESISTORS CLOSE TO PHY

CONFIG DEFINITIONS

BIT[2:0]

VDDO LED_LINK10 LED_LINK100 LED_LINK1000 LED_DUPLEX LED_RX LED_TX VSS 000

001

010

011

100

101

110

111

CONFIG INPUTS

BIT[2] BIT[1] BIT[0]

CONFIG<0> PHYADR[2] PHYADR[1] PHYADR[0]

PHYADR[3] ANEG[1] DIS_125 MODE[0] MODE[3] 75/50 OHM

INT_POL

DIS_SLEEP

MODE[1]

ENA_XC

ANEG[2]

PHYADR[4]ENA_PAUSE ANEG[3] ANEG[0] MODE[2] DIS_FC SEL_BDT

CONFIG<6>

CONFIG<5>

CONFIG<4>

CONFIG<3>

CONFIG<2>

CONFIG<1>

MARVELL 88E1111

10/100/1000 ETHERNET

R435

49.9

1/16W

402

R436

49.9

1% 1/16W MF 402

R433

49.9

402

1/16W

R434

49.9

1% 1/16W MF 402

C604

27pF

50V

CERM

402

C624

27pF

50V

CERM

402

R421

1/16W

402

R430

10K

1/16W

402

CHGND1

R439

49.9

1/16W

402

R437

49.9

1/16W

402

R440

49.9

1% 1/16W MF 402

R438

49.9

1% 1/16W MF 402

C622

0.01uF

20% 16V

402

CERM

C615

0.01uF

20% 16V CERM 402

C617

0.01uF

20% 16V

402

CERM

C647

402

CERM

10V

20%

0.1uF

C645

402

CERM

10V

20%

0.1uF

C648

0.1uF

20% 10V CERM 402

C646

0.1uF

10V

20% CERM

402

R424

NO STUFF

49.9

1/16W

402

R429

NO STUFF

49.9

1/16W

402

R423

402

1/16W

R428

10K

5% 1/16W MF 402

R445

1/16W

402

R432

1.5K

1/16W

402

R427

4.99K

1% 1/16W MF 402

C611

2.2uF

20% 10V

CERM

805

C616

0.01uF

20% 16V CERM 402

C614

0.1uF

20% 10V CERM 402

C602

0.01uF

16V

20% CERM

402

C618

0.1uF

20% 10V CERM 402

C592

10uF

20%

6.3V CERM 805

C598

0.1uF

20% 10V CERM 402

C600

0.01uF

20% 16V CERM 402

C623

0.1uF

10V

20% CERM

402

C612

0.01uF

20% 16V CERM 402

C597

0.1uF

20% CERM

402

10V

C595

10uF

20%

6.3V CERM 805

L35

FERR-EMI-600-OHM

+2_5V_MAIN

U45

LTC3405

SOT23-6

CRITICAL

L60

CRITICAL

3.3uH

SM1

R506

665K

402

1/16W

C675

22pF

50V

CERM

402

R504

49.9K

402

1/16W

R503

182K

402

1/16W

R513

NO STUFF

1/16W

402

C619

0.01uF

20% 16V CERM 402

C608

0.1uF

20% 10V CERM 402

C601

0.01uF

20% CERM

16V 402

C594

0.1uF

20% 10V CERM 402

C599

0.01uF

20% 16V CERM 402

C603

0.1uF

20% 10V CERM 402

R507

1/16W

402

3 1

D15

1N914

SOT23

+3V_MAIN

C674

10uF

805

CERM

6.3V

20%

C680

10uF

20%

6.3V CERM

805

Q32

2N7002DW

SOT-363

Q32

2N7002DW

SOT-363

56 13

24 43

U43

88E1111

CRITICAL

BCC

R425

NO STUFF

20K

1/16W

402

R441

5% 1/16W MF 402

R431

10K

1/16W

402

C613

0.01uF

20% 16V CERM 402

CRITICAL

SM-3

25.0000M

C852

10pF

50V

CERM

402

C851

NO STUFF

10pF

50V

CERM

402

J23

MJ-R0076

F-RT-TH

R422

1/16W

402

2 1

R442

1/10W

805

2 1

R814

1/10W

5% FF

805

051-6680

4628

338S0223

MARVELL 88E1111 B1 DIE

U43

338S0079

LTC3405_SW

+2_5V_MARVELL_CONN

ENET_MDIO

INT_ENET_RST_L

ENET_CRS

LED_LINK10

SLEEP_L_LS5

+2_5V_MARVELL

ENET_COL

ENET_ENERGY_DET

ENET_RX_ER

ENET_RX_DV

ENET_LINK_RXD<5> ENET_LINK_RXD<6> ENET_LINK_RXD<7>

LED_LINK100

INT_TDO

JTAG_ASIC_TDO_TP

JTAG_ASIC_TMS

JTAG_ASIC_TRST_L

CLK25M_XTAL_IN

LED_RX_SPN

ENET_HSDACM

ENET_MDC

ENET_PHY_TXD<3> ENET_PHY_TXD<4> ENET_PHY_TXD<5>

ENET_PHY_TXD<7>

ENET_PHY_TX_EN

CLKENET_PHY_GTX

ENET_PHY_TXD<1> ENET_PHY_TXD<2>

ENET_PHY_TXD<0>

ENET_LINK_RXD<4>

ENET_LINK_RXD<3>

ENET_LINK_RXD<2>

ENET_LINK_RXD<1>

ENET_LINK_RXD<0>

AC_IN

MDI0_PD MDI1_PD

CLKENET_LINK_GBE_REF

CLKENET_LINK_RX

MDI3_PD

CLKENET_LINK_TX

3405_MODE

MDI_P<0>

MDI_P<1>

MDI_M<2>

MDI_M<1> MDI_P<2>

MDI_M<3>

MDI2_PD

JTAG_ASIC_TCK

ENET_RSET

ENET_HSDACP

CLK25M_ENET_XOUT

CLK25M_ENET_XIN

IO_RESET_L ENET_RST_L

ENET_PHY_TX_ER

CLKENET_PHY_GBE_REF

CLKENET_PHY_TX

MDI_M<0>

ENET_PHY_TXD<6>

MDI_P<3>

+2_5V_MARVELL_AVDD

CLKENET_PHY_RX

+1_0V_MARVELL

3405_VFB

ENET_COMA

ENET_VSSC

+2_5V_MARVELL

36 35

39 39

13 13

GND

OUT

VCC

OSC

SYM_VER2

GND

OUTIN

BYP ADJ

ADJ

BYP GND

OUT

SHDN

(SYM_VER1)

VREG_PD

PAD

THRML

AGND

TESTM

D5 D6

RESETZ

DGND

PLL VDD

1.8

3.3

DVDD

PLLGND

PLL

3.3

VDD

D3 D4

D1 D2

BMODE

PC2

PC1

CPS

PC0

LREQ

LPS

LCLK

3.3

AVDD DVDD

1.8

TPA1+ TPA1-

PCLK

TPA0-

TPA0+

TPA2+ TPA2-

C/LKON

CTL0 CTL1

CNA

PINT

TPBIAS0 TPBIAS1

TPBIAS2

TPB2-

TPB2+

TPB1-

TPB1+

TPB0-

TPB0+

DS0 DS1

ON/OFF

GND

VOUT

VIN

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PART NUMBER

ALTERNATE FOR

PART NUMBER

BOM OPTION

REF DES

COMMENTS:

TABLE_ALT_HEAD

TABLE_ALT_ITEM

(FWB-TX)

(FW_TPA0P)

(FW_TPB0P)

(FW_TPA0N)

(FW_TPA1P) (FW_TPA1N)

(FW_TPB0N)

(FW_TPB1P) (FW_TPB1N)

(FWB-RX)

(FWA-RX)

(FWA-TX)

165MA MAX LOAD

IADJ = 30NA AT 25C

VOUT = 1.22*(1+R2/R1)+ IADJ*R2

PHY PIN 50

PHY PIN 61

PHY PIN 64

PHY PIN 40

PHY PIN 21

PWR CLASS = 100

MAY REQUIRE UP TO 3W)

(MAY PROVIDE POWER, OR

(PC0 IS MSB, PC2 IS LSB)

PHY PINS 72,76

PHY PIN 28

PHY PIN 25

PHY PIN 38

CAPACITOR IN CONJUCTION WITH INTERNAL PULLUP PROVIDES RESET PULSE WHEN PHY FIRST RECEIVES POWER

PHY PINS 4,14

DSx Strap Options

0 = Bilingual port 1 = A-only port

FIREWIRE PHY

PHY PIN 38

TX0

RX0

NC NC

SN0201029PFP

1MA (MAX) BUS HOLDERS

(DS2)

R514

402

1/16W

C679

20%

6.3V CERM

402

0.22uF

RP38

SM1

1/16W

RP37

SM1

1/16W

R519

1/16W

402

R520

402

1/16W

C683

402

CERM

20% 10V

0.1uF

C610

402

CERM

16V

20%

0.01uF

SM-A

98.304MHZ

CRITICAL

R508

402

1/16W

R412

1/16W

402

100K

NO STUFF

R510

1/16W

402

R511

1/16W

MF 402

100

C583

402

CERM

6.3V

20%

0.22uF

C584

603

CERM

10V

20%

1uF

C596

603

CERM

10V

20%

1uF

C606

603

CERM

10V

20%

1uF

C593

603

CERM

10V

20%

1uF

R413

1/16W

603

R420

603

1/16W

R426

603

1/16W

R418

1/16W

603

3 4

U44

CRITICAL

SOT-23-1

LTC1761ES5-BYP

C671

805

CERM

10V

20%

2.2uF

R496

402

1/16W

16.2K

R495

402

1/16W

27.4K

R443

1% 1/16W MF 402

16.2K

R444

1% 1/16W MF 402

27.4K

C625

805

CERM

10V

20%

2.2uF

R419

603

1/16W

C586

1uF

20% 10V

CERM

603

C678

CERM

20% 10V

603

1uF

R416

1/16W MF 603

3.3

R415

1/16W

603

3.3

C585

805

CERM

10V

20%

2.2uF

C588

805

20% 10V CERM

2.2uF

R414

5% 1/16W MF 603

L34

400-OHM-EMI

SM-1

U38

MSOP

LT1962-ADJ

CRITICAL

C590

402

CERM

10V

20%

0.1uF

R417

603

1/16W

C591

402

CERM

10V

20%

0.1uF

R501

402

1/16W

D25

SDM20E40C

SC-59

+5V_SLEEP

R505

402

1/16W

69186

767264

575144

504340

U36

PQFP

TSB81BA3A

CRITICAL

C670

100UF

CASE-B-3528

POLY

6.3V

20%

C677

402

CERM

10V

20%

0.1uF

C620

20%

6.3V CERM 805

10uF

R491

1% 1/16W MF 402

56.2

R492

1/16W

402

56.2

R487

1% 1/16W MF 402

56.2

C676

20% 10V CERM 402

0.1uF

R488

1/16W

402

56.2

C607

603

CERM

10V

20%

1uF

C605

603

CERM

10V

20%

1uF

R489

56.2

1% 1/16W MF 402

R498

MF 402

1/16W

4.99K

R490

1/16W

402

56.2

C672

402

CERM

25V

220pF

R493

402

1/16W

56.2

R499

4.99K

1/16W MF 402

R494

402

1/16W

56.2

C673

402

CERM

25V

220pF

R486

1/16W

402

C682

20% 10V CERM 402

0.1uF

C681

805

CERM

6.3V

20%

10uF

C621

20%

16V CERM 402

0.01uF

C609

805

CERM

6.3V

20%

10uF

C587

0.1uF

20% CERM

10V 402

L59

SM-3

CRITICAL

220uH

D16

MBR0540

U37

LM2594

CRITICAL

C665

2320

CERM

50V

N20P20%

10uF

R502

1/16W

402

402K

C589

20%

0.1uF

10V CERM 402

R518

1/16W

402

C684

20% 10V CERM 402

0.1uF

R512

1/16W

402

6.34K

R516

5% 1/16W MF 402

10K

R497

402

1/16W

R509

402

5% 1/16W

R515

1/16W

402

R500

402

1/16W

470

R517

5% 1/16W MF 402

29 46

051-6680

Alt. for Siward Part

197S0052197S0011

+1_95V_FW_DVDD

+3V_FW

+1_95V_FW_DVDD_TX0

FW_LKON

FW_PINT

+3V_FW_AVDD

+3V_FW_AVDD_PORT1

+1_95V_FW_DVDD_RX0

+1_95V_FW_DVDD_PORT1

+1_95V_FW_PLL400VDD

LM2594_IN

+3V_FW_UF

+FW_PWR_OR

+1_95V_FW_PLLVDD

+3V_FW_AVDD_PORT2

+3V_FW_AVDD_PORT0

FW_TPB1N

+3V_FW

FW_TPI0N

FW_TPI0P

FW_TPA1N

FW_TPA1P

FW_TPO0N

FW_TPO0P

FW_BIAS1

FW_BIAS0

+1_95V_FW_PLL500VDD

FW_PHY_CNTL<1>

CLKFW_PHY_PCLK

+1_95V_FW_PLLVDD

CLKFW_PHY_PCLK

+1_95V_FW_DVDD

FW_CORE_ADJ

FW_CORE_BYP

CLKFW_LINK_PCLK

FWB_TPB1FWB_TPB0

FW_OSC

FW_LINK_DATA<2> FW_LINK_DATA<3> FW_LINK_DATA<4> FW_LINK_DATA<5> FW_LINK_DATA<6> FW_LINK_DATA<7>

+FW_PWR_OR

FW_LINK_CNTL<0>

FW_LINK_CNTL<1>

FW_PHY_CNTL<0>

FW_PHY_RESET_L

FW_PHY_DATA<7>

FW_PHY_DATA<6>

FW_PHY_DATA<5>

FW_PHY_DATA<3>

FW_PHY_DATA<2>

FW_PHY_DATA<1>

FW_PHY_DATA<4>

FW_BMODE

FW_CPS

FW_PHY_DATA<0>

FW_PHY_LPS

CLKFW_PHY_LCLK

FW_PHY_CNTL<1>

FW_XI

FW_R0 FW_R1

FW_TPB2_PD

FW_PORT1_SEL

FW_OSC_EN

FW_PHY_CNTL<0>

FW_TPB1P

FWPLL_BYP

FW_PLL_ADJ

FW_LINK_DATA<1>

FW_LINK_DATA<0>

FW_PHY_PD

FW_PHY_LREQ

FW_TESTM

FW_INPUT_PD

FW_VREG_PD

FW_PC_PD

FW_PC_PU

39 39

13 13

SYM_VER-1

V-

V+

SYM_VER-2

VP VGND

TPI#

TPO

TPI

TPO#

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PORT POWER SWITCH

ENABLES PORT POWER WHEN

PLACE NEAR D24

2.5V REG: 2.50V - 2.15V 200MS - 500MS

CLEAR OUT ALL PLANES UNDER TRANSFORMERS

PORT 1

1394a ONLY

514-0057

(TPI0R)

(AREF)

(BREF)

PORT 0

1394a/b

(BILINGUAL)

514S0058

INT-SHIELD

TPA TPA(R) TPA* VG SC VP TPB TPB(R) TPB*

INT-SHIELD

AREF NEEDS TO BE ISOLATED FROM ALL LOCAL GROUNDS PER 1394B SPEC

PLUGGED TO A BETA-ONLY DEVICE,

SO WHEN A BILINGUAL DEVICE IS

THERE’S NO DC PATH BETWEEN THEM (TO AVOID GROUND OFFSET ISSUE)

BREF SHOULD BE HARD CONNECTED TO LOGIC GROUND FOR SPEED SIGNALING AND CONNECTION DETECTION CURRENTS PER 1394B V1.33

FIREWIRE PORTS

MACHINE IS RUNNING OR WHEN ASLEEP ON AC

PLACE NEAR D23

2.5V REG

R465

402

1/16W

CHGND1

R448

470K

1/16W

402

R461

330K

402

1/16W

C639

0.01UF

402

CERM

16V

20%

C651

NO STUFF

20% 16V CERM 402

0.01uF

DP6

BAS16TW

SOT-363

D24

CRITICAL

SMB

B340B

R777

402

1/16W

470K

C650

402

CERM

16V

20%

0.01uF

J20

CRITICAL

1394B

F-RT-SM

3 2

L76

90-OHM-300mA

2012H

CRITICAL

3 2

L77

90-OHM-300mA

2012H

CRITICAL

3 2 1

8 7 6 5

Q34

CRITICAL

SOI

NDS9407

R466

805

1/10W

Q33

2N7002DW

SOT-363

R803

402

1/16W

CHGND1

R816

EMI

402

1/16W

C822

0.1UF

20% 10V

CERM

402

NO STUFF

R834

402

1/16W

10K

NO STUFF

R831

649K

1/16W

402

NO STUFF

R829

470K

1/16W

402

NO STUFF

Q73

2N7002

NO STUFF

R830

470K

402

1/16W

NO STUFF

C826

0.01UF

16V CERM 402

NO STUFF

20%

C825

0.1UF

20% 10V

402

NO STUFF

CERM

D35

NO STUFF

MBR0540

C824

1UF

20% 10V CERM 603

NO STUFF

D18

BAV99DW

SOT-363

Q37

SI2319DS

SOT23

NO STUFF

R837

1/16W

603

R835

1/16W

402

NO STUFF

102K

R833

604K

1/16W

1% MF

NO STUFF

402

U59

LMC7211

NO STUFF

R836

332K

1/16W

402

NO STUFF

2 1

R451

402

10K

5% MF

1/16W

D21

SOT23

1N5227B

D22

BAV99DW

SOT-363

D18

BAV99DW

SOT-363

L52

SM1

260-OHM-330MA

L48

SM1

260-OHM-330MA

D22

BAV99DW

SOT-363

10987

J24

CRITICAL

1394A

F-RT-TH

C666

20% 16V

CERM

402

0.01uF

CHGND1

C662

CERM 402

16V

20%

0.01uF

C649

805

CERM

50V

20%

0.1uF

R471

805

1/10W

D23

BAV99DW

SOT-363

+3V_PMU

R447

100K

1/16W

402

4 3

DP6

BAS16TW

SOT-363

D23

BAV99DW

SOT-363

DP6

BAS16TW

SOT-363

Q33

2N7002DW

SOT-363

2 1

R446

10K

402

1/16W

CHGND1

C652

0.01uF

20% 16V

CERM

402

NO STUFF

D20

BAV99DW

SOT-363

L58

FERR-250-OHM

L51

FERR-250-OHM

D20

SOT-363

BAV99DW

L39

400-OHM-EMI

SM-1

C630

20% 10V

CERM

402

0.1UF

C638

20% 16V

CERM

402

0.01UF

C637

0.001UF

402

CERM

50V

20%

C640

402

CERM

16V

20%

0.01UF

1.5AMP-33V

C633

402

CERM

16V

20%

0.01UF

C644

0.01UF

20% 16V CERM 402

1.5A-24V

+PBUS

30 46

051-6680

+3V_FW_ESD

+3V_FW_ESD_ILIM

+3V_FW

+FW_PWR_OR

+2_5V_REG

+FW_PWR_CTRL

+FW_PWR_OR_GATE

+FW_PWR_OR_GATE_L

+FW_PWR_OR_F

+3V_FW_ESD

FW_POWER_UP

FW_TPI0N

FW_TPI0P

+FW_SW

+FW_PBUS

FW_GATE_EN

POWER_UP

PMU_POWER_UP_L

FW_TPBI0P

FW_TPO0R

FW_TPAO0P

AC_IN

DCDC_EN

FW_VGND0

FW_TPBI0N

DCDC_EN_CTRL

FW_VGND1

FW_TPI1P

FW_TPI1N

AC_IN_FW_CNTL

FW_TPO1P

FW_TPO1N

+FW_VP1

FW_TPA1N

FW_TPB1P

FW_TPB1N

FW_TPA1P

+3V_FW_ESD

+FW_VP0

FW_TPO0P

FW_TPO0N

+FW_PWR1

FW_TPAO0N

FW_GATE_EN_RC

+2_5V_REG_F

+3V_FW

+3V_FW_ESD_R

RSET*

MR*

GND

VCC

P86_XCOUT

AVSS

VSS

XIN RESET

VREF

CNVSS

BYTE XOUT

AVCC

P50_WRL_WR

P51_WRH_BHE

P52_RD

P65_CLK1 P66_RXD1 P67_TXD1

P74_TA2OUT_W

P75_TA2IN_W

P60_CTS0_RTS0

P57_RDY_CLKOUT

P56_ALE

P55_HOLD

P54_HLDA

P53_BCLK

P61_CLK0 P62_RXD0 P63_TXD0

P70_TXD2_SDA_TA0OUT

P72_CLK2_TA1OUT_V

P73_CTS2_RTS2_TA1IN_V

P100_AN0

P90_TB0IN_CLK3 P91_TB1IN_SIN3

P92_TB2IN_SOUT3

P93_DA0_TB3IN P94_DA1_TB4IN

P95_ANEX0_CLK4

P96_ANEX1_SOUT4

P97_ADTRG_SIN4

P87_XCIN

P85_NMI

P84_INT2

P83_INT1

P82_INT0

P81_TA4IN_U

P80_TA4OUT_U

P77_TA3IN

P76_TA3OUT

P107_AN7_KI3

P106_AN6_KI2

P105_AN5_KI1

P104_AN4_KI0

P103_AN3

P102_AN2

P101_AN1

P64_CTS1_RTS1_CTS0_CLKS1

P71_RXD2_SCL_TA0IN_TB5IN

VCC

P01_D1

P00_D0

P02_D2 P03_D3 P04_D4 P05_D5 P06_D6 P07_D7

P10_D8

P11_D9 P12_D10 P13_D11

P21_A1_D1_D0

P22_A2_D2_D1

P23_A3_D3_D2

P24_A4_D4_D3

P25_A5_D5_D4

P14_D12

P17_D15_INT5

P15_D13_INT3 P16_D14_INT4

P20_A0_D0

P27_A7_D7_D6

P26_A6_D6_D5

P30_A8_D7

P31_A9 P32_A10 P33_A11 P34_A12 P35_A13 P36_A14 P37_A15

P45_CS1 P46_CS2 P47_CS3

P44_CS0

P43_A19

P40_A16 P41_A17 P42_A18

V-

V+

REFERENCE DESIGNATOR(S)

BOM OPTION

TABLE_5_HEAD

QTY

DESCRIPTION

PART#

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

Keep crystal subcircuit close to PMU.

PMU KEYBOARD RESET CIRCUIT

NC NC NC NC NC NC NC NC

NC NC

Keep crystal subcircuit close to PMU.

Y5’S LOAD CAPACITANCE IS 12PF

CPU_VCORE_HI_OC/PMU_AP should reset. MLB will have a pull-up

have a pulldown for coming out of

to +3V_MAIN or +3V_SLEEP, which

will act as our pulldown since both are off during PMU reset.

(PMU_AP)

NC NC

(CHARGE_I)

NC NC

ADAPTER IDs

ADAPTER

ID RANGE

PIN VOLTAGE

2.007-2.066V

2.558-2.661V

0.589-0.663V

0.33-0.99V

AIRLINE

A29 (45W)

Q11 (65W)

1.65-2.31V

2.31-2.97V

A29 ADAPTER DETECTION

Y3’S LOAD CAPACITANCE IS 12.5PF

PMU

+3V_PMU

+3V_SLEEP

+3V_PMU

Q30

2N7002

OMIT

CRITICAL

10.0000M

8X4.5MM-SM

+5V_SLEEP

R188

100K

402

1/16W

6 1

DP8

BAS16TW

SOT-363

5 2

DP8

BAS16TW

SOT-363

R564

10K

1/16W

402

Q19

2N7002DW

SOT-363

Q19

2N7002DW

SOT-363

U26

MAX6804

SOT143

R267

5% 1/16W MF 402

+3V_PMU

C370

0.1uF

402

CERM

10V

20%

R157

402

1/16W

100K

+3V_MAIN

+3V_PMU

R815

NO STUFF

1/16W

402

R819

1/16W

402

R821

10K

1/16W

402

R825

10K

402

1/16W

R826

NO STUFF

10K

1/16W

402

+3V_PMU

R575

10K

1/16W

402

R599

10K

1/16W

402

R598

10K

1/16W

402

R563

10K

1/16W

402

R576

100K

1/16W

402

R562

100K

1/16W

5% MF

402

R561

100K

1/16W

402

R594

10K

402

1/16W

C731

0.1uF

20% 10V

CERM

402

11 13

6212

6014

100

U29

OMIT

M16C62

FLAS

R602

4.7

1/16W

402

R589

470K

1/16W

402

C724

0.1uF

20%

CERM

10V 402

C729

0.1uF

20% 10V

CERM

402

R249

5% 1/16W MF 402

R248

NO STUFF

10M

1/16W

402

C340

12pF

5% 50V CERM 402

C339

12pF

5% 50V CERM 402

R588

1/16W

402

R600

1/16W

402

R261

100K

1/16W

402

+3V_PMU

C255

10uF

20%

6.3V CERM

805

R595

470K

1/16W

402

+3V_PMU

R582

10K

1/16W

402

R560

100K

1/16W

402

R592

100K

1% 1/16W MF 402

R583

10K

1/16W

402

RP39

100K

1/16W

SM1

RP39

SM1

1/16W

100K

RP39

SM1

1/16W

100K

+3V_PMU

R591

470K

1/16W

5% MF

402

R580

NO STUFF

402

1/16W

10M

C728

12pF

50V

CERM

402

R581

1/16W

402

C406

12pF

CERM

402

50V

R586

402

1/16W

10K

RP39

100K

1/16W

SM1

RP41

10K

1/16W

SM1

R587

402

1/16W

R593

100K

1% 1/16W MF 402

R590

402K

1% 1/16W MF 402

CRITICAL

SM-2

32.768K

R584

7.15K

402

1/16W

R585

7.15K

1/16W

1% MF

402

RP41

10K

1/16W

SM1

RP41

10K

1/16W

SM1

RP41

10K

1/16W

SM1

U33

LMC7211

R348

52.3K

1% 1/16W MF 402

R349

127K

1% 1/16W MF 402

R345

4.7M

1/16W

402

R364

100K

5% 1/16W MF 402

C467

0.1uF

20% 10V CERM 402

U29

IC,PMU,V81B

341S1008

XTAL,10.0000MHZ,.01%,12PF,8X4.5MM,SMD

CRITICAL

197S0088

051-6680

CHARGE_LED_L

CLK32K_PMU_XOUT CLK32K_PMU_XIN

PMU_BATT0_DET_L

THERM_L_OC

PMU_OOPS

SYS_BATT_ISNS1

PMU_BATT1_DET_L_PU

PMU_SELECT

INT_WATCHDOG_L

KBD_X<4>

KBD_X<6> KBD_X<7>

KBD_X<8>

PMU_NMI_L

PMU_CPU_HRESET_L

PMU_EPM

CHARGE_LED_L

SOFT_PWR_ON_L

+3V_PMU_AVCC

PMU_TO_INT PMU_REQ_L

CLK10M_PMU_XOUT_UF

PMU_RESET_L +3V_PMU_AVCC

PMU_AC_DET

AC_IN

CPU_SMI_L POWER_VALID

PMU_BATT_DET_L

SYS_BATT_ISNS

INT_PEND_PROC_INT

PMU_AC_DET

PMU_AC_IN

INT_PROC_SLEEP_REQ_L

PMU_PME_L

CLK32K_PMU_XOUT_UF

PMU_CHRG_BATT_0

CPU_VCORE_HI_OC

A29_DET_REF

KBD_SHIFT_L

INT_PU_RESET_L

PMU_PME_L

TPAD_TXD

PMU_SMB_CLK

PMU_NMI_L

PMU_BATT_DET_L

PMU_I2C_DATA

PMU_BATT_DET_L

PMU_CUSTOM_RESET

+3V_PMU_RESET

INT_SUSPEND_REQ_L

INT_RESET_L

SLEEP

IO_RESET_L

PMU_POWER_UP_L

PMU_CUSTOM_RESET

KBD_ID CPU_PLL_STOP_OC

SOFT_PWR_ON_L

AC_IN_L

KBD_COMMAND_L

IO_RESET_L

KBD_X<3>

INT_RESET_L

A29_DETECT

A29_DET_L

PMU_SMB_DATA

PMU_RESET_BUTTON_L

PMU_POWERUP_OK

PMU_BATT1_DET_L_PU

PMU_NMI_BUTTON_L

PMU_I2C_CLK

PMU_LID_CLOSED_L

PMU_OOPS

KBD_OPTION_L

TPAD_RXD

POWER_VALID

KBD_X<5>

KBD_X<2>

KBD_X<1>

KBD_X<0>

MAIN_RESET_L

PMU_EPM

PMU_BYTE

KBD_CONTROL_L

SLEEP

INT_SUSPEND_ACK_L

PMU_CUSTOM_RESET_L

PMU_CHARGE_V

PMU_SLEEP_LED_L

PMU_POWERUP_OK

INT_PU_RESET_L

TPAD_RXD

MAIN_RESET_L

CPU_CLK_EN

SYSTEM_CLK_EN

TPAD_TXD

SYS_BATT_ISNS1

PMU_I2C_CLK

PMU_FROM_INT

PMU_CLK

PMU_ACK_L

KBD_FUNCTION_L

PMU_INT_L

SYS_BATT_ISNS2

PMU_NMI_BUTTON_L

PMU_RESET_BUTTON_L

PMU_LID_CLOSED_L

PMU_I2C_DATA PMU_SMB_CLK PMU_SMB_DATA

CLK10M_PMU_XIN

INT_SUSPEND_REQ_L

PMU_RESET_L

PMU_CNVSS

PMU_BYTE

KBD_X<9>

SYS_BATT_ISNS2

PMU_INT_NMI

COMM_RING_DET_L

SOFT_PWR_ON_L

PMU_POWER_UP_L

PMU_CNVSS

CLK10M_PMU_XOUT

AC_DET

ADAPTER_DET

+4_85V_RAW

14 14

31 27

31 31

CSIP CSIN

BATT

PGND

DLO

DHI

BST

DLOV

LDO

CELLS

GND

CSSNCSSP

REF

CCS

CCI

CCV

IINP

ICHG

ICTL

VCTL

RFIN

ACOK

ACIN

DCIN

CLS

GATE

S3 D4

D3 D2

GATE

S3 D4

D3 D2

GATE

S3D4

D3 D2

V-

V+

GND

OUT

RS-

V+

RS+

NC2

NC1

V-

V+

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(+3V_PMU)

(BATT_IN_PD)

(GND)

DC POWER INPUT

(POWER JACK, ETC. ON SEPARATE BOARD)

BACKFEED

PROTECTION

DC INRUSH LIMITER

GREATER THAN 13.1V DETECT

PLACE U24 NEXT TO R382

Place close to RS-

+PBUS CURRENT LIMIT

BATTERY SWITCH-OVER CIRCUIT

ROUTE LTC1625_ITH CAREFULLY

PLACE R383 CLOSE TO LTC1625

WHEN AC IS IN, P-CHANNEL FETS ARE QUICKLY (DIODE) TURNED OFF WHEN AC IS NOT PLUGGED, P-CHANNEL FETS ARE ON

RC TIME IS 480K*10UF @ +3V_PMU

PMU SELECTS BETWEEN TWO VOLTAGES

SWITCHER VOLTAGE CONTROL SWITCHER CURRENT CONTROL

CHARGE DISABLED BY PMU OR INPUT VOLTAGE <18V CHARGE THROTTLED BY LOW BATTERY VOLTAGE

I = (0.2048/R ) * (V / V )

CHG _62

ICTL

REFIN

For 4.20V cells, VCTL = 0.245 REFIN

For 4.15V cells, VCTL = 0.123 REFIN

REFIN

VCTL

BATT

V = CELLS X (4.096 + (0.4096 * V / V ))

OD OUTPUT LOW - WHEN AC GREATER THAN 18V

BATTERY CONNECTOR

BATTERY CHARGER

14 10

27 26

19 18

MAX1772

QSOP

CRITICAL

C41

603

CERM

10V

20%

1uF

R716

47K

1/16W

402

R717

402

1/16W

10K

3 2 1

8 7 6 5

CRITICAL

SI4435DY

SOI

5AMP-125V

SM-2

5AMP-125V

SM-2

R83

402

1/16W

R56

402

1/16W

+24V_PBUS

R725

1/8W

1206

+BATT

+3V_PMU

C36

0.01uF

20% 50V CERM 603

3 2 1

8 7 6 5

Q68

SI4435DY

SOI

R29

470K

5% 1/16W MF 402

R52

100K

1/16W

402

C11

0.1uF

20% 50V

CERM

805

R21

330K

1/16W

402

C801

0.01uF

20% 16V

CERM

402

R41

1/16W

402

+3V_PMU

R51

20K

402

1/16W

R16

100K

1/16W

402

R40

97.6K

1/16W

402

R30

57.6K

1/16W

402

R42

402

1/16W

10K

3 2 1

8 7 6 5

Q69

SI4435DY

SOI

SOT-363

2N7002DW

R102

158K

1/16W

1% MF

402

1N914

SOT23

R710

402

1/16W

47K

R711

402

1/16W

10K

R720

603

1/16W

2N7002DW

SOT-363

2N7002DW

SOT-363

C97

0.1uF

20% 25V

CERM

603

R59

100K

402

1/16W

C118

10uF

805

CERM

6.3V

20%

Q71

SOT-363

2N7002DW

R15

10K

5% 1/16W MF 402

R22

470K

5% 1/16W MF 402

2N7002DW

SOT-363

2N7002DW

SOT-363

2N7002DW

SOT-363

R58

10K

1% 1/16W MF 402

Q71

2N7002DW

SOT-363

Q72

SOT-363

2N7002DW

R741

100K

1/16W

402

Q72

2N7002DW

SOT-363

+3V_PMU

C96

805

CERM

50V

20%

0.1uF

R77

CRITICAL

2.21K

0.1%

1/16W

603

2 1

R119

150

402

1/16W

LMC7211

5 2

DP1

BAS16TW

SOT-363

DP1

BAS16TW

SOT-363

C780

1206

CERM

25V

20%

4.7uF

R94

100K

402

1/16W

C777

1206

CERM

25V

20%

4.7uF

C792

1206

CERM

25V

20%

4.7uF

C795

1206

CERM

25V

20%

4.7uF

R53

4.12K

402

1/16W

R54

10K

402

1/16W

FERR-50-OHM

FERR-EMI-100-OHM

FERR-50-OHM

FERR-EMI-100-OHM

R61

0.025

1% 1W MF

2512

CRITICAL

+PBUS

J26

87438-0833

M-RT-SM

CRITICAL

J27

CRITICAL

87438-0433

M-RT-SM

321

8765

Q64

SO-8

IRF7811W

CRITICAL

+24V_PBUS

CRITICAL

MAX4172

TSSOP

+24V_PBUS

R82

4.7

5% MF

1/16W

402

U55

LMC7111 SOT23-5

Q74

2N7002DW

SOT-363

Q74

SOT-363

2N7002DW

C794

0.1uF

402

CERM

10V

20%

R744

100K

5% 1/16W MF 402

R87

4.7

402

1/16W

+3V_PMU

2 1

R727

10K

402

1/16W

R745

42.2K

CRITICAL

603

1/16W

0.1%

2 1

R728

402

1/16W

C798

0.1uF

402

CERM

10V

20%

6 1

DP1

BAS16TW

SOT-363

C809

1uF

20% 10V

CERM

603

C71

0.47uF

20%

50V CERM 1206

R736

CRITICAL

42.2K

0.1%

1/16W

603

R738

FF 603

1/16W

0.1%

82.5K

CRITICAL

R47

402

1/16W

6.34K

C35

0.1uF

10% 50V X7R 603-1

D36

MBRS140T3

C95

0.47uF

20% 50V CERM 1206

2N7002DW

SOT-363

2N7002DW

SOT-363

TO-252

SUD45P03

CRITICAL

C853

402

X7R

25V

10%

1000pF

NO STUFF

C112

1206

X7R

50V

10%

2.2UF

C117

1206

X7R

50V

10%

2.2UF

C116

2.2UF

50V

10%

1206

X7R

C113

1206

X7R

50V

10%

2.2UF

C115

1206

X7R

50V

10%

2.2UF

C233

0.1UF

10% 50V X7R 603-1

C803

0.01UF

20% 50V CERM 603

+BATT_ISNS

R742

1/16W

CRITICAL

603

0.1%

51.1K

C23

1uF

20% 10V

CERM

603

R57

100K

1/16W

402

R49

12.7K

1/16W

1% MF

402

C67

1uF

20% 50V CERM 1210

L70

CRITICAL

10uH

SM1

R715

2512

0.05

R713

603

1/16W

C42

0.01uF

20% 16V CERM 402

C98

0.1uF

20% 25V

CERM

603

C99

0.1uF

20% 25V CERM 603

+3V_PMU

R73

27.4K

402

1/16W

R74

4.12K

1/16W

402

R62

402

1/16W

10K

R733

1/16W

402

20K

R75

5.23K

402

1/16W

C43

0.01uF

402

CERM

16V

20%

R731

1/16W

402

321

8765

Q70

CRITICAL

IRF7805

U57

LMC7211

+3V_PMU

R55

402

1/16W

R729

1/16W

402

100K

R730

100K

402

1/16W

R740

1/16W MF 402

499K

R735

100K

1% 1/16W MF 402

C807

0.047uF

10% 16V CERM 402

C799

0.1uF

20% 10V CERM 402

1N914

SOT23

C24

0.1uF

20% 10V CERM 402

C790

1206

CERM

25V

20%

4.7uF

C785

1206

CERM

25V

20%

4.7uF

C779

SM1

ELEC

25V

20%

33uF

XW1

R96

4.7

603

1/16W

R732

1/16W

402

47K

R734

68K

402

1/16W

051-6680

+ADAPTER

1772_DCIN

AC_IN_L_RC

+BATT_24V_FUSE

1772_CSIP

BATT_DIV 1V65_REF

BATTV_HIGH

AC_IN_L

LTC1625_ITH

A29_DETECT

+ADAPTER_SENSE

AC_DIV

1V20_REF

AC_IN

AC_ENABLE_L

AC_ENABLE_GATE

MAX4172_OUT

1772_LDO

1772_DLOV

1772_BST_ESR

1772_BST

1772_GND

+ADAPTER_SW

IAC_FB

A29_CURRENT_ADJ

AC_GTR_18V

+BATT_24V_FUSE

BATT_14V_GATE

1772_DHI

1772_LX

1772_CSIN

1772_CELLS

1772_CSSP

BKFD_PROT_EN_L

1772_REF

1772_CLS

1772_CCS

AC_IN

1772_ACOK_L

+BATT_14V_FUSE

+BATT_RSNS

PMU_CHARGE_V

BATTV_LOW

PMU_CHRG_BATT_0

CHARGE_DISABLE

BATT_LOW_L

1772_CCV_RC

1772_CCI

BATT_24PBUS_EN

IAC_RC_COMP

PMU_BATT_DET_L

BATT_NEG

BATT_14PBUS_EN

A29_DETECT

A29_CLS_ADJ

1625_COMP

BATT_24V_GATE

1772_DLO

PMU_SMB_CLK

BKFD_PROT_GATE

AC_IN_L

CURRENT_THRESHOLD

OVER_18V_ADJ

ADAPTER_I_REG

1772_ICHG

1772_CCV

1772_IINP

1772_CSSN

+BATT_VSNS

PMU_SMB_DATA

+BATT_POS

BATT_CLK BATT_DATA

BATT_LOW

1772_VCTL 1772_ICTL

1772_ACOK_L

1772_ACIN

41 41

V-

V+

VTAP

IN OUT SENSE

GND

FDBK

ERR

LP2951

SHUT

PLUS5VTAP

LP2951

ERR

FDBK

GND

SENSE

OUTIN

BOOST

SGND PGND

VIN

SYNC RUN/SS

VPROG

ITH FCB

INTVCC

VOSENSE

LTC1625

EXTVCC

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

3V_PMU_SENSE

WHEN +24V_PBUS IS BELOW ~13.1V, 1625 IS SHUT-OFF

CONNECT LTC1625 TK PIN AT TOP-SIDE FET

KEEP VIN/TK LOOP SHORT

12.8V PBUS SUPPLY

PBUS HOLD-UP CAPS

BACKUP

BATTERY

OUTPUT FROM BATTERY

FROM BATTERY

INPUT TO AND OUTPUT

BOOTSTRAP SYSTEM FROM

ADAPTER OR BATTERY

PMU SUPPLY

IF SUPERCAP BOM OPTION IS CHOSEN: OUTPUT AT U23.1 IS 5.65V

OUTPUT AT U22.8 IS 5.4V

12.8V REGULATOR

R127

1/16W

603

+PBUS

R107

4.99K

1/16W

402

321

8765

Q17

IRF7805

CRITICAL

+24V_PBUS

3 1

1N914

SOT23

C804

SM-1

ELEC

35V

20%

100uF

C806

20% 25V

ELEC

220uF

C134

402

CERM

10V

20%

0.1uF

R108

158K

1% 1/16W MF 402

R109

402

1/16W

16.2K

U14

LMC7211

+3V_PMU

C772

402

CERM

10V

20%

0.1uF

R690

1/16W

402

97.6K

R673

10K

1/16W

402

R663

402

1/16W

Q15

SC70-6

FDG6324L

CRITICAL

3 2

Q15

CRITICAL

FDG6324L

SC70-6

+5V_MAIN

R130

470K

1/16W

402

R122

603

1/16W

2.2

C119

4.7uF

1206

CERM

10V

20%

R120

NO STUFF

5% 1/16W MF 402

R118

402

1/16W

XW3

OMIT

MBR0540

R39

1210

1/4W

390

+BATT

+PBUS

MBR0540

+3V_PMU

R231

5% 1/16W MF 603

C326

10uF

20%

805

CERM

6.3V

U22

SOI-3.3V

D10

MBR0520LT

BACKUP_BATT

D11

MBR0520LT

C740

0.1uF

20% 10V CERM 402

+5V_MAIN

R233

BACKUP_BATT

5% 1/16W MF 603

C336

BACKUP_BATT

2.2uF

20% 10V CERM 805

C276

470pF

10% 50V CERM 603

R604

BACKUP_BATT

294K

1% MF

1/16W

402

R605

100K

1/16W

402

C737

0.1uF

20% 10V

402

CERM

U23

SOI

C244

0.1uF

20% 50V CERM 805

C138

402

CERM

25V

10%

0.0047uF

NO STUFF

321

8765

Q16

CRITICAL

IRF7811W

SO-8

J16

BACKUP_BATT

CRITICAL

SM-2MT

+24V_PBUS

+PBUS

D32

SM MBRS140T3

1N914

SOT23

L69

CRITICAL

8.0uH-6.8A

SM1

C754

1206

X7R

50V

10%

2.2UF

C154

10%

1206

X7R

50V

2.2UF

C155

1206

X7R

50V

10%

2.2UF

C755

2.2UF

10% 50V X7R 1206

C153

2.2UF

10% 50V X7R 1206

C753

2.2UF

10% 50V X7R 1206

C692

ELEC

5.5V

N20P80%

SUPERCAP

0.33F

R804

SUPERCAP

100

1/10W

805

C135

805

CERM

25V

20%

0.22uF

C767

4.7uF

20%

25V CERM 1206

C771

4.7uF

20%

CERM 1206

25V

MBR0540

16 15 13

639

U13

CRITICAL

SSOP

C131

4700pF

25V

CERM

603

C124

603

CERM

50V

10%

470pF

C137

0.1uF

20% 50V

CERM

805

C121

603

CERM

25V

4700pF

051-6680

33 46

SUPERCAP

RES,MF,1/16W,357K OHM,1%,0402,SMD

114S3575

R604

1625_BST_ESR

1625_VFB

1625_TG

1625_BG

1625_ENABLE_L

+4_6V_BU

+4_85V_RAW

FB_4_85V_BU

+4_85V_ESR

+ADAPTER_OR_BATT

3V_PMU_VTAP

1625_VSW

1625_DIV

1625_ENABLE

1625_RUNSS

1625_VIN

+3V_PMU_ESR

+ADAPTER

+ADAPTER_ILIM

1625_BST

1V20_REF

1625_FCB

1625_SGND

+PWR_SUPERCAP

COMP_RC

1625_EXTVCC

1625_INTVCC

1625_COMP

40 40

34 31

SGND PGND

STBYMD

FCB FREQSET

SNS1-

PGOOD

VOSNS2

VOUT

3.3

VCCVCC

EXT INT VIN

TG2

SW2

SNS2-

BG2

SNS2+

BOOST2

ITH2 RUN/

SS2SS1

SNS1+

BG1

SW1

BOOST1

TG1

VOSNS1 ITH1 RUN/

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

3.3V/5V REGULATOR

DCDC_EN TRUTH TABLE

DCDC_EN

+3V_PMU

+4_6V_BU

+3V_PMU

+5V_SLEEP LOADS

DCDC_EN_L

Shutdown

SLEEP

+3V_PMU

THIS SIGNAL IS OPEN COLLECTOR TO GND WHEN POWER IS NOT GOOD

220PF IS USED TO QUIET NOISE ON PGOOD ONCE INTERNAL OPEN DRAIN IS DISENGAGED

DISTRIBUTE CAPS ALONG TOP EDGE AND FAN CUT-OUT

3.3V/5V MAIN SUPPLY

DISTRIBUTE CAPS ALONG TOP EDGE AND FAN CUT-OUT

State Run Sleep

VOLTAGE

10) PMU - I2C PULLUPS

9) WIRELESS

8) HARD DRIVE (IF USING 3V LOGIC)

7) BOOT BANGER

6) DVI LEVEL SHIFTERS & PULLUPS & HPD

5) LVDS DDC PULL-UPS

4) GRAPHIC CHIP SPREAD SPECTRUM CHIP

3) MAP31 - 3V RAIL (IF USING D3COLD)

2) INTREPID - I2C PULLUPS & OSCILLATOR

1) CPU PLL CONFIG CONTROL

+3V_SLEEP LOADS

1 (2.99V)

1) FAN

5V START TO TURN ON ~12.5MS AFTER DCDC_EN_L

3V START TO TURN ON ~25MS AFTER DCDC_EN_L

DIODE WILL ENSURE DCDC_EN_L IS QUICKLY DISCHARGED DURING SHUT-DOWN

POWERDOWN DELAY IS AROUND 4MS-15.6MS

PMU_POWER_UP_L

2) Headphone amplifier

3) OPTICAL DRIVE

4) DVI

5) TRACKPAD

SLEEP LEVEL SHIFTER (3V -> 5V)

124

1627

1726

151

118

1825

1923

U35

SSOP

CRITICAL

LTC3707

R521

5% 1/16W MF 402

R533

470K

5% MF

402

1/16W

Q44

SOT-363

2N7002DW

C694

20% 16V CERM 402

0.01uF

Q44

2N7002DW

SOT-363

R534

100K

1/16W

402

R538

0.005

CRITICAL

1% FF

1/4W 1206

+5V_SLEEP

C575

0.22uF

20% 25V

CERM

805

C432

0.01uF

20% 16V

CERM

402

+5V_MAIN

3 6

5 2 1

Q26

TSOP

SI3443DV

3 6

5 2 1

Q27

TSOP

SI3443DV

C433

0.1uF

10V

20%

CERM

402

C429

10uF

20%

6.3V CERM 805

R321

100K

1/16W

402

R322

1/16W

402

100K

R409

4.7

5% MF

603

1/16W

R307

100K

1/16W

5% MF

402

Q24

2N7002DW

SOT-363

C410

0.01uF

20% 16V

402

CERM

R310

1/16W

402

100K

+5V_MAIN

R306

1/16W

100K

402

Q24

SOT-363

2N7002DW

+3V_SLEEP

+3V_MAIN

C576

0.001uF

20% 50V

CERM

402

3 6

5 2 1

Q21

SI3443DV

TSOP

C398

2200pF

50V

CERM

603

R311

100K

1/16W

402

R294

1/16W

402

100K

R408

113K

1/16W

402

D14

MBR0540

D13

MBR0540

R402

4.7

1/16W

603

3 1

D27

1N914

SOT23

R524

1/16W

402

C688

0.01uF

CERM 402

20% 16V

C428

10uF

20%

6.3V CERM 805

R410

1/16W

21.5K

1% MF

402

C578

220pF

5% 25V CERM 402

Q43

2N7002

0.1uF

20%

CERM

10V 402

C114

0.1uF

20% 10V

CERM

402

C415

0.1uF

20% 10V

CERM

402

C123

0.1uF

20% 10V

402

CERM

C554

0.1uF

20% 10V

CERM

402

0.1uF

10V

20% 402

CERM

C573

NO STUFF

180pF

5% 50V CERM 402

C557

20% 10V

CERM

402

0.1uF

C562

0.1uF

20% 402

CERM

10V

C629

0.1uF

20% 10V

CERM

402

+5V_MAIN

C353

0.1uF

10V

20%

CERM

402

C143

0.1uF

20% 10V

CERM

402

C628

0.1uF

20% 10V

CERM

402

C416

402

CERM

10V

20%

0.1uF

C574

20%

4.7uF

10V CERM 1206

C126

402

CERM

10V

20%

0.1uF

C555

20% 10V

CERM

402

0.1uF

C627

0.1uF

20% 10V

CERM

402

+3V_MAIN

C563

402

CERM

10V

20%

0.1uF

C556

0.1uF

20% 10V

CERM

402

Q20

NO STUFF

2N7002DW

SOT-363

Q20

NO STUFF

2N7002DW

SOT-363

+5V_MAIN

R301

100K

1/16W

402

R291

402

1/16W

100K

5% MF

R572

NO STUFF

402

1/16W

100K

Q50

2N7002DW

SOT-363

NO STUFF

R548

100K

1/16W

NO STUFF

5% MF

402

R551

NO STUFF

402

1/16W

100K

C566

0.1uF

20% 10V CERM 402

R550

NO STUFF

470K

5% 1/16W

402

+5V_MAIN

Q50

SOT-363

2N7002DW

NO STUFF

+3V_SLEEP

D28

MBRS140T3

D26

MBRS140T3

XW32

OMIT

C577

0.047uF

10% 16V

CERM

402

XW31

OMIT

2 1

L61

4.7uH

CRITICAL

IHLP-5050

L62

IHLP-5050

4.7uH

CRITICAL

C469

402

CERM

50V

20%

0.001uF

NO STUFF

C277

NO STUFF

0.001uF

20% 50V

CERM

402

C703

CASE-D4

330uF

CRITICAL

20%

6.3V TANT

C685

20%

6.3V TANT

CASE-D4

330uF

CRITICAL

3 2 1

8 7 6 5

Q41

CRITICAL

IRF7805

321

8765

Q45

IRF7805

CRITICAL

3 2 1

8 7 6 5

Q42

IRF7811W

SO-8

CRITICAL

321

8765

Q47

IRF7811W

SO-8

CRITICAL

C582

2.2UF

10% 50V X7R 1206

C581

10% 1206

50V

2.2UF

X7R

C580

2.2UF

10% 50V X7R 1206

C579

1206

2.2UF

10% 50V X7R

C561

2.2UF

10% 50V X7R 1206

C560

50V

2.2UF

10% X7R

1206

C559

2.2UF

10% 50V X7R 1206

C558

2.2UF

10% 50V X7R 1206

C564

0.22uF

20% 25V CERM 805

C709

POLY

CASE-B-3528

100UF

20%

6.3V

C710

100UF

20%

6.3V POLY CASE-B-3528

C713

100UF

6.3V POLY

CASE-B-3528

20%

C568

NO STUFF

CERM

402

50V

180pF

R401

63.4K

1% 1/16W MF 402

R400

20K

1% 1/16W MF 402

C572

0.01uF

20% 16V

CERM

402

R405

1/16W

402

R406

100K

1% 1/16W

402

R407

100K

1% 1/16W MF 402

C569

402

CERM

50V

0.0022uF

10%

C567

50V

100pF

CERM

402

R403

402

1/16W

12K

C571

0.0022uF

50V

CERM

10% 402

C570

100pF

5% 50V CERM 402

R404

15K

1/16W

1% MF

402

+5V_MAIN

C699

22uF

20%

10V CERM 1210

C700

22uF

20% 10V CERM 1210

C686

22uF

20% 10V CERM 1210

C687

20% 10V

CERM

22uF

1210

XW13

R523

5% 1/16W MF 402

R539

1/16W

402

R537

1/16W

402

R522

0.005

1206

1/4W

CRITICAL

+24V_PBUS

C565

0.001uF

20% 50V

CERM

402

R411

1/16W

402

5% MF

R399

5% 1/16W MF 402

+5V_MAIN

+3V_MAIN

051-6680

3V_RUNSS

3V_RSNS

SLEEP_NET

3V_SLEEP_PWREN_L

+3V_SLP_ON

SLEEP_LS5

SLEEP_L_LS5

5V_VOSNS

5V_SW

3707_FSET

+4_6V_BU

3V_5V_OK

5V_RSNS

SLEEP

3V_SNSM

3V_SNSP

3V_VOSNS

+5V_HD_SLEEP

SLEEP_LS5

5V_HD_PWREN

3V_BOOST

5V_BG

3V_TG

3707_STBY

SLEEP_L_LS5_NET

+5V_MAIN_AUD

SLEEP_NET_INV

SLEEP

PMU_POWER_UP_L

DCDC_EN_L

DCDC_EN

SLEEP

5V_SLEEP_PWREN

5V_ITH_RC 3V_ITH_RC

+3V_SLP_OK_L

5V_ITH

+3V_MAIN_AUD

3707_FCB

5V_BOOST

SLEEP_LS5_EN_L

3V_SW 3V_BG

3V_BOOST_ESR

5V_BOOST_ESR

3707_INTVCC

3V_ITH

SLEEP_L_LS5_EN_L

SLEEP

LTC3707_START_RC

DCDC_EN_L

3707_SGND

5V_SNSP

5V_TG

5V_RUNSS

5V_SNSM

D0 D1 D2 D3 D4

SKP/SDN

VCC VDD

V+

ILIM

FBS

GNDS A/B

REF

TON CC

BST

LX DL

GND

VGATE

TIME

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

CRITICAL BOM OPTION

TABLE_5_HEAD

PART#

DESCRIPTION

QTY

REFERENCE DESIGNATOR(S)

TABLE_5_ITEM

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(1.28VCORE)

1.67GHZ

(1.26VCORE)

(VALUE WITHOUT OFFSET)

1.67GHZ

1.300V->0.975V

VCORE POWER SEQUENCING

Fmax Test Connections

ROUTE AS DIFFERENTIAL PAIR

1.67GHZ(1.26VCORE)

1.67GHZ

1.300V->0.990V

(CPU SPEC: 1.260V -> 0.980V)

(CPU SPEC: 1.200V -> 0.980V)

1.240V->0.990V

1.50GHZ

(CPU SPEC: 1.280V -> 0.980V)

1.320V->0.990V

(VCORE_VPLUS)

Hi/Fast

D<4..0>

<= 1K PD

>= 100K PD

>= 100K PU

<= 1K PU

Lo/Slow

Keep trace fat and short!!

NC (RFU)

A/B_ =

CPU core follows CPU I/O voltage (approx. 7ms delay)

1.200V->0.975V

1.50GHZ

MAX1717 VID INPUTS ARE 3.3-5V TOLERANT

<D0>

(VCORE_SNS)

(VCORE_GNDSNS)

(R93 CPU_BTR BOM OPTION SEE BOM TABLE)

Note:No stuff R67 to set skip mode of VCore

(R93&R97 CPU_BTR BOM OPTION SEE BOM TABLE)

(Rb)

(Ra)

OUTPUT VOLTAGE

DAC

D4=0 D4=1

D3 D2 D1 D0

0 1 0 1 0 1 0 1 0 1

0 0

1 0 1111

NO CPUNO CPU

1.30

1.35

1.40

1.45

1.50

1.55

1.60

1.65

1.70

1.75

1.80

1.85

1.90

1.95

2.00

1.275

1.250

1.225

1.200

1.175

1.150

1.125

1.100

1.075

1.050

1.025

1.000

0.975

0.950

0.925

1 1 1

000 0 0 0 0 0 0 0 1 1 1 1 1 1 1

FOR V-STEP:

When A/B_ is high (fast): D4-D0 read as-is When A/B_ is low (slow): <=1K-ohm -> 0 >=100K-ohm -> 1

If all pull-ups are >=100K and all

pull-downs are <=1K, V = V .

CLOSEST TO CPU

PIN OF 1000uF CAP

PLACE THIS SHORT AT

Keep trace fat and short!!

(CPU Vcore value with offset)

GROUND SENSE VOLTAGE DIVIDER

This allows for an offset to the ground sense to adjust the output voltage. VREF = 2.0V, HENCE VOFFSET = 2.0V*0.85*(Rb / Ra) AND VCORE = VDAC + VOFFSET.

NOTE: Ra NO STUFFED FOR NO OFFSET CASE

to GND at bottom-side FET

Connect MAX1717 GND pin 13

VGATE PULLUP PROVIDED BY INTREPID

TO PINS 15 & 13!!

PLACE C423 CLOSE

Keep trace fat (40-100 mils) and short!!

Keep trace fat and short!!

(VCORE=1.385V for EVTB)

VCORE SUPPLY

R106

100K

1/16W

402

+5V_MAIN

R101

100K

1/16W

402

2N3904

R99

10K

1/16W

402

XW29

XW27

+PBUS

MBR0530

CRITICAL

C93

1uF

20% 10V CERM 603

+5V_MAIN

R86

1/16W

402

C64

20% 25V CERM 603

0.1uF

157

10 11

MAX1717

QSOP

CRITICAL

R72

402

1/16W

100

XW2

C70

402

CERM

50V

20%

0.001uF

R69

390K

1/16W

402

C84

1uF

20% 10V

CERM

603

R85

1/16W

402

C80

220pF

25V

CERM

402

R91

27.4K

402

1/16W

C94

1uF

603

CERM

10V

20%

R95

12.7K

402

1/16W

C66

0.01uF

20% 16V

CERM

402

R66

CPU_BTR

5% 1/16W MF 402

XW28

R98

402

1/16W

158K

5 2

DP2

BAS16TW

SOT-363

4 3

DP2

BAS16TW

SOT-363

6 1

DP2

BAS16TW

SOT-363

R67

178K

1/16W

402

C65

NO STUFF

0.0047uF

10% 25V CERM 402

R90

NO STUFF

1210

1/4W

2.2

2 1

R71

2.2

1/16W

603

C12

10uF

20%

805

CERM

6.3V

C74

10uF

20%

6.3V CERM

805

C100

10uF

20%

6.3V CERM

805

C16

10uF

20%

6.3V CERM

805

C101

10uF

20%

6.3V CERM

805

C15

10uF

20%

6.3V CERM

805

10uF

20%

6.3V CERM

805

C21

10uF

20%

CERM

805

6.3V

C57

10uF

20%

6.3V CERM

805

C90

10uF

20%

6.3V CERM

805

C14

10uF

20%

6.3V CERM

805

10uF

6.3V

20%

CERM

805

10uF

20%

6.3V CERM

805

C63

10uF

6.3V CERM

805

20%

C83

805

CERM

6.3V

20%

10uF

C13

10uF

20%

6.3V CERM

805

10uF

20%

6.3V CERM

805

C105

805

CERM

6.3V

20%

10uF

C106

10uF

20%

6.3V CERM

805

C76

805

CERM

6.3V

20%

10uF

NO STUFF

M-ST-SM-52465-1217

R706

NO STUFF

2.05K

1/16W

402

R708

NO STUFF

100

1/16W

402

C79

603

CERM

50V

10%

0.0022uF

NO STUFF

D33

CRITICAL

B540C

+3V_MAIN

R662

402

1/16W

R137

470K

5% 1/16W MF 402

CPU_BST&CPU_BST_VCORE126

R660

NO STUFF

402

1/16W

R634

CPU_BTR

402

1/16W

470K

R139

CPU_BTR

470K

5% 1/16W MF 402

R126

402

1/16W

470K

CPU_BST&CPU_BST_VCORE126

+3V_MAIN

R81

1/16W

402

R80

NO STUFF

1/16W

402

C77

OMIT

CRITICAL

10uF

CASE-D

TANT

16V

20%

C52

OMIT

CRITICAL

10uF

20% 16V

TANT

CASE-D

C92

OMIT

CRITICAL

10uF

CASE-D

TANT

16V

20%

C111

CRITICAL

OMIT

10uF

CASE-D

TANT

16V

20%

C51

OMIT

10uF

CASE-D

TANT

16V

20%

CRITICAL

C78

OMIT

CRITICAL

10uF

TANT

16V

20%

CASE-D

C91

OMIT

CRITICAL

10uF

TANT

16V

20%

CASE-D

R757

CPU_BTR

470K

5% MF

402

1/16W

C797

CRITICAL

330uF

20%

2.5V-ESR9V

POLY CASE-D2E

C774

CRITICAL

330uF

CASE-D2E

POLY

2.5V-ESR9V

20%

L71

CRITICAL

OMIT

1.2uH-18.3A

SM1

R743

0.001

1% 1W MF

2512

321

Q62

SI7860DP

SO-8-PWRPK

CRITICAL

321

Q65

CRITICAL

SO-8-PWRPK

SI7860DP

321

8765

Q60

SO-8

IRF7832

CRITICAL

321

8765

Q63

SO-8

IRF7832

CRITICAL

321

8765

Q66

SO-8

IRF7832

CRITICAL

C843

402

CERM

50V

20%

0.001uF

C842

402

CERM

50V

20%

0.001uF

C841

0.001uF

402

CERM

50V

20%

R790

100K

1/16W

5% MF

402

CPU_BST&CPU_BTR

+3V_MAIN

R791

1/16W

402

CPU_BST&CPU_BTR

R792

1/16W

MF 402

CPU_BST_VCORE126

Q82

2N7002DW

SOT-363

Q82

SOT-363

2N7002DW

C802

CRITICAL

330uF

20%

2.5V-ESR9V POLY CASE-D2E

C788

CRITICAL

330uF

20%

POLY

2.5V-ESR9V CASE-D2E

C781

CASE-D2E

POLY

2.5V-ESR9V

20%

330uF

CRITICAL

C793

CASE-D2E

POLY

2.5V-ESR9V

20%

330uF

CRITICAL

R631

470K

402

1/16W

CPU_BST&CPU_BST_VCORE126

R65

402

1/16W

CPU_BST&CPU_BST_VCORE126

R93

1/16W MF

402

6.04K

CPU_BST

R97

1/16W

402

CPU_BST

R111

100K

1/16W MF 402

051-6680

4635

1 ?

R97

CPU_BST_VCORE126

RES,MF,1/16W,1.5K OHM,1%,0402,SMD

114S1503

R93

CPU_BTR

RES,MF,1/16W,2.49K OHM,1%,0402,SMD

114S2493

1 ?

CPU_BTR

RES,MF,1/16W,4.02K OHM,1%,0402,SMD

R97

114S4023

R93

RES,MF,1/16W,0 OHM,5%,0402,SMD

CPU_BST_VCORE126

116S1000

CRITICAL

126S0036

CAP,AL,POLY,8.2uF,20%,16V,V CASE,SMD

C51,C52,C77,C78,C91,C92,C111

CRITICAL

152S0242

IND,PWR,1.0UH,20,20.5A,SMD

L71

MAXBUS_SLEEP

VCORE_VID<3>

VCORE_CC

VCORE_VID<1>

VCORE_SNS

VCORE_VID<2>

VCORE_VID<0>

VCORE_GNDA

VCORE_TON

VCORE_REF

VCORE_AB_SEL

VCORE_VID<1>

VCORE_SHDN_L

VCORE_DL

VCORE_GNDDIV

VCORE_LX

VCORE_BOOST

VCORE_GNDDIV

VCORE_VID<4>

CPU_VCORE_SLEEP

VCORE_FB

CPU_VCORE_SLEEP

VCORE_AB_SEL

VCORE_OFFSET_DIV

CPU_VCORE_SNUB

VCORE_D0

VCORE_TIME

VCORE_DH

+3V_PMU_RESET

VCORE_D4

VCORE_GND

VCORE_AB_SEL_OPT

VCORE_BST

CPU_VCORE_SEQ

CPU_VCORE_HI_OC

CPU_VCORE_PWR_SEQ

CPU_VCORE_SEQ_L

VCORE_D1 VCORE_D2 VCORE_D3

VCORE_GNDSNS

VCORE_VSENSE

VCORE_VGATE

SOFT_PWR_ON_L

VCORE_GNDSNS_TEST

INT_GPIO1_PU

VCORE_AB_SEL_INV

SLEEP_L_LS5

DCDC_EN

VCORE_GNDDIV_TEST

VCORE_ILIM

VCORE_GNDSNS

VCORE_VCC

VCORE_VID<3> VCORE_VID<4>

VCORE_VID<2>

40 16 15

AGND

THRML

NC_28

NC_23

NC_15

BST2

OUT1

TON

PGOOD REF

DL1

LX1

DH1

VCC

BST1

ON2

ON1

ILIM2

ILIM1

OUT2

SKIP

DL2

LX2

PGND

DH2

VDD

V+

FB1

FB2

PVINSVIN

SHDN/RT SYNC/MODE

SW VFB ITH

PGOOD

PGND SGND

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

3) CPU PLL Config Straps

2) CPU JTAG & MaxBus Pull-ups

1) MPC7447 - MAXBUS I/O - IF 1.8V INTERFACE

+1_8V_SLEEP LOADS

1.5V/1.8V/2.5V SUPPLIES

M11 Power Shut down Sequencing

1) FBCORE/FBIO IF USING D3COLD

+2_5V_SLEEP LOADS

DIODE PROVIDE PROVIDE QUICK SHUT-DOWN

POWER DOWN DELAY 1.5MS TO 3.5MS

1.5V/2.5V SWITCHER

1) INTREPID CORE

+1_5V_MAIN LOADS

2) MAXBUS I/O - IF 1.5V INTERFACE

1) AGP I/O - IF USING D3COLD

+1_5V_SLEEP LOADS

1.8V SWITCHER

+1_8V_MAIN LOADS

+2_5V_MAIN LOADS

1) MAP31 - FBCORE/FBIO IF USING D3HOT

2) GIGABIT ETHERNET - AVDDL

3) DDR SODIMMS - CORE/IO

(CONTINUOUS MODE)

MAX1715_GND

4) DDR MUXES

1) INTREPID PLLS

(PULSE MODE)

(BURST MODE)

. .

L63

CRITICAL

2.2uH

SM1

+2_5V_MAIN

C298

603

CERM

10V

20%

1uF

2 1

R177

1/16W

402

+1_8V_SLEEP

+1_8V_MAIN

C719

805

CERM

6.3V

20%

10uF

R566

100K

402

1/16W

3 6

5 2 1

U50

SI3447DV

TSOP

C715

805

CERM

6.3V

20%

10uF

C716

1000pF

10% 25V X7R 402

R557

5% MF

402

1/16W

100K

+2_5V_MAIN

+2_5V_SLEEP

C693

10pF

50V

CERM

402

2021

141

1627

132

1924

1726

1825

U19

QSOP

MAX1715

CRITICAL

L67

SM4

CRITICAL

4.7uH

3 2 1

8 7 6 5

Q56

CRITICAL

IRF7805

321

8765

Q55

IRF7805

CRITICAL

R211

158K

1% 1/16W MF 402

R210

1/16W

402

158K

5 2

DP3

SOT-363

BAS16TW

R171

1/16W

603

4.7

R170

4.7

1/16W

603

C196

0.1uF

20% 25V CERM 603

D31

MBRS130LT3

R212

402

1/16W

5.11K

R222

402

1% 1/16W

10K

+1_5V_MAIN

+5V_MAIN

4 3

DP3

SOT-363

BAS16TW

C193

0.1uF

20% 25V CERM 603

C307

150uF

20%

6.3V TANT SMD-1

L65

CRITICAL

4.7uH

SM4

R220

1/16W

402

R226

NO STUFF

402

1/16W MF

+PBUS

C267

SMD-1

TANT

6.3V

20%

150uF

C393

SMD-1

TANT

6.3V

20%

150uF

C405

150uF

20%

6.3V TANT SMD-1

C396

150uF

20%

6.3V TANT SMD-1

C338

1206

CERM

25V

20%

4.7uF

CRITICAL

C355

CRITICAL

1206

CERM

25V

20%

4.7uF

C209

CRITICAL

20%

25V CERM 1206

4.7uF

C232

CRITICAL

20%

25V CERM 1206

4.7uF

R227

NO STUFF

402

1/16W

R221

1/16W

402

NO STUFF

D30

MBRS130LT3

C697

22uF

20% 10V CERM 1210

R525

5% 1/16W MF 402

R526

NO STUFF

5% 1/16W MF 402

10K

R536

NO STUFF

10K

5% 1/16W MF 402

R532

402

1% 1/16W MF

16.2K

C691

1000pF

5% 25V CERM 603

U46

MSOP

LTC3411

CRITICAL

XW17

OMIT

XW25

OMIT

+1_5V_SLEEP

+1_5V_MAIN

C717

805

CERM

6.3V

20%

10uF

C725

10uF

20%

6.3V CERM 805

C738

20%

6.3V CERM 805

10uF

C194

805

CERM

10V

20%

2.2uF

C195

2.2uF

20% CERM

10V 805

6 1

DP3

SOT-363

BAS16TW

R184

402

1/16W

330K

C133

402

CERM

16V

20%

0.01uF

Q53

TSOP

SI3446DV

Q10

2N7002

R117

402

1/16W

100K

321

8765

Q54

CRITICAL

SO-8

IRF7811W

3 2 1

8 7 6 5

Q57

SO-8

IRF7811W

CRITICAL

Q31

2N7002

2 1

R535

1/16W

402

324K

R398

5% 1/16W MF 402

+2_5V_SLEEP

+1_8V_SLEEP

+1_5V_SLEEP

+3V_SLEEP

DP4

SOT-363

BAS16TW

DP4

SOT-363

BAS16TW

DP4

SOT-363

BAS16TW

2 1

C722

402

X7R

10% 25V

1000pF

Q11

2N7002DW

SOT-363

Q11

SOT-363

2N7002DW

R115

402

1/16W

100K

+5V_MAIN

R116

402

1/16W

100K

R114

100K

1/16W

402

C129

402

X7R

10% 25V

1000pF

C718

1000pF

10% 25V X7R 402

C720

10% 25V X7R 402

NO STUFF

1000pF

R571

NO STUFF

100K

1/16W

402

C714

1000pF

10% 25V X7R 402

NO STUFF

R554

1/16W

402

100K

NO STUFF

XW21

XW8

XW10

XW23

C845

50V

402

CERM

20%

NO STUFF

0.001uF

C844

0.001uF

402

CERM

50V

20%

NO STUFF

7632

851

U48

SI6467BDQ

TSSOP

R468

1% 1/16W MF 402

15.4K

R601

402

10K

1% 1/16W MF

C695

10uF

20% 805

CERM

6.3V

R529

887K

402

1/16W

R528

698K

1/16W

402

R531

5% MF

1/16W

402

C690

CERM

603

10V

1uF

20%

R527

5% 1/16W MF 402

+1_8V_MAIN

+3V_MAIN

4636

051-6680

SLEEP_L_LS5_INV

+1_8V_SLEEP_NECK

3V_5V_OK

LTC3411_VCC

SLEEP_L_LS5_INV

+2_5V_SLEEP_NECK2

1_5V_FB

LTC3411_GND

LTC3411_ITH_RC

SLEEP

LTC3411_ITH

1_5V_FB

LTC3411_SYNC

LTC3411_SHDN

LTC3411_EN_L

LTC3411_VCC

1_5V_SLEEP_EN_L

+1_5V_SLEEP_NECK

+3V_SLEEP_NECK

SLEEP_L_LS5

MAX1715_GND

2_5V_ILIM

1_5V_BST

1_5V_DL

+1_5V_MAIN

2_5V_FB

SLEEP

SLEEP_L_LS5_INV

1_8V_SW

2_5V_DH

2_5V_BST

2_5V_BOOST

2_5V_LX

SLEEP_L_LS5_NET

MAX1715_VCC

MAX1715_REF

1_8V_SLEEP_PWREN_L

MAX1715_SKIP

+2_5V_MAIN

MAX1715_GND

2_5V_DL

1_5V_ILIM

2_5V_SLEEP_PWREN_L

1_8V_VFB

DCDC_EN_L

MAX1715_TON

1_5V_SLEEP_EN_L

MAX1715_ON_RC

3V_5V_OK

1_5V_BOOST

1_5V_DH

1_5V_LX

40 40

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

SIGNAL CONSTRAINTS - PAGE 1

SECONDARY LAYERS: 2,9 GOAL: MINIMIZE EXPOSURE ON LONG NETS

PRIORITY: 2 PRIMARY LAYERS: 4,7

SECONDARY LAYERS: 2,9 GOAL: MINIMIZE

EXPOSED ROUTES MINIMIZE VIAS

GROUP

SIG_NAME

MATCHED_DELAY

PRIMARY LAYERS: 4,7

PRIORITY: 1

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200) (200) (200) (200) (200) (200)

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200)

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200) (200)

(200)

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200)

(200) (200) (200)

(200)

TOTAL LENGTH CONTROLLED BY SPREADSHEET

(200)

(200) (200)

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200) (200)

(200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) (200)

(200)

(200) (200) (200) (200) (200) (200) (200)

(200) (200) (200) (200) (200) (200)

(200)

STUB_LENGTH OF 200 MILS NEEDED WHEN WE CONVERT TO 14.2

FIREWIRE

ETHERNET

SOUND

CRYSTALS

OSC

M11

CLOCKS

INTREPID

MAX EXPOSED LENGTHMAX VIAS STUB_LENGTH NET_SPACING_TYPE PULSE PARAM

CLOCK LINE CONSTRAINTS

PROPAGATION_DELAY

PULSE_PARAMNO_TESTNET_SPACING_TYPESTUB_LENGTHMAX_VIASPROPAGATION_DELAYSIG_NAMEGROUP MAX_EXPOSED_LENGTH

DIGITAL SIGNALS

GROUP 0

GROUP 1

GROUP 2

GROUP 3

GROUP 4

DDR RAM

GROUP 5

GROUP 6

GROUP 7

ADDR

CONTROL

I256 I257

I258

I259

I260

I261 I262 I263 I264 I265 I266 I267 I268 I269

I270 I271 I272

I273

I274

I275

I276

I277

I278

I279 I280

051-6680

4637

25.00 MHz:::L:S::300 MIL

CLKENET_PHY_TX

25.00 MHz:::

L:S:8000 MIL:9000 MIL

500.0000

10 MIL SPACING

CLKENET_LINK_TX

125.0 MHz:::L:S::300 MIL

CLKENET_LINK_GTX

125.0 MHz:::

L:S:8000 MIL:9000 MIL

600.0000

10 MIL SPACING

CLKENET_PHY_GTX

49.15 MHz:::L:S::300 MIL

CLKFW_PHY_PCLK

49.15 MHz:::

L:S:7500 MIL:8000 MIL

10 MIL SPACING

500.0000

CLKFW_LINK_PCLK

49.15 MHz:::

L:S:7500 MIL:8000 MIL

10 MIL SPACING

500.0000

CLKFW_PHY_LCLK

98.03 MHz:::L:S::500 MIL

10 MIL SPACING

FW_XI

L:S::500

MEM_CKE<3..0>

L:S:2500:3200

RAM_CS_L<3..0>

L:S:2500:3200

RAM_CKE<3..0>

L:S::500 MIL

MEM_RAS_L

L:S:2000 MIL:4100 MIL

RAM_RAS_L

L:S::500 MIL

MEM_CAS_L

L:S::500

MEM_BA<1..0>

L:S::500

83 MHZ

MEM_ADDR<12..0>

L:S:1809 MIL:1887 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<7>

L:S:1809 MIL:1887 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<7>

L:S:1809:1887

500

167 MHZ

RAM_DATA_B<63..56>

L:S:1611 MIL:1696 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<7>

L:S:1611:1696

500

167 MHZ

RAM_DATA_A<63..56>

L:S:1903 MIL:2000 MIL

500.0000

167.0 MHz:::

MEM_DQS<7>

L:S:1204 MIL:1357 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<6>

L:S:2101 MIL:2170 MIL

500.0000

167.0 MHz:::

MEM_DQS<6>

L:S:2101:2170

500

167 MHZ

MEM_DATA<55..48>

L:S:1716 MIL:2102 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<5>

L:S:1716 MIL:2102 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<5>

L:S:1607:1898

500

167 MHZ

RAM_DATA_A<47..40>

L:S:1915 MIL:2000 MIL

500.0000

167.0 MHz:::

MEM_DQM<4>

L:S:1907 MIL:2356 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<3>

L:S:1907:2356

500

167 MHZ

RAM_DATA_B<31..27>

L:S:1907 MIL:2356 MIL

167.0 MHz:::

RAM_DATA_B<26>

L:S:1907:2356

500

167 MHZ

RAM_DATA_B<25..24>

L:S:1700 MIL:2165 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<3>

L:S:1707 MIL:1800 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<2>

L:S:1435 MIL:1500 MIL

500.0000

167.0 MHz:::

MEM_DQS<2>

L:S:1435 MIL:1500 MIL

500.0000

167.0 MHz:::

MEM_DQM<2>

L:S:2004 MIL:2412 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<1>

L:S:2004:2412

500

167 MHZ

RAM_DATA_B<15..8>

L:S:1905 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<1>

L:S:1435:1500

500

167 MHZ

MEM_DATA<23..16>

L:S:2004 MIL:2412 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<1>

L:S:1905 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<1>

L:S:1905:2000

500

167 MHZ

RAM_DATA_A<15..8>

L:S:1344 MIL:1660 MIL

500.0000

167.0 MHz:::

MEM_DQS<1>

500.0000

L:S:1344 MIL:1660 MIL

167.0 MHz:::

MEM_DQM<1>

L:S:1344:1660

500

167 MHZ

MEM_DATA<15..8>

L:S:2000:2100

500

167 MHZ

RAM_DATA_B<7..0>

L:S:1903 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<0>

L:S:1903 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<0>

L:S:1903:2000

500

167 MHZ

RAM_DATA_A<7..0>

L:S:2000 MIL:2100 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<0>

L:S:2000 MIL:2100 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<0>

167.0 MHz:::

L:S:500 MIL:600 MIL

250.0000

10 MIL SPACING

INT_CPUFB_OUT_NORM

10 MIL SPACING

167.0 MHz:::

L:S:500 MIL:600 MIL

250.0000

INT_CPUFB_IN_NORM

167.0 MHz:::

L:S:700 MIL:800 MIL

10 MIL SPACING

250.0000

INT_CPUFB_IN

167.0 MHz:::

SYSCLK_DDRCLK_B1_UF:G:L:S:0 MIL:25 MIL

DDRCLK_B1_UFL:S:300 MIL:350 MIL

10 MIL SPACING

SYSCLK_DDRCLK_B1_L_UF

167.0 MHz:::

SYSCLK_DDRCLK_A0:G:L:S:0 MIL:25 MIL

L:S:2900 MIL:3000 MILDDRCLK_A0

10 MIL SPACING

250.0000

SYSCLK_DDRCLK_A0

250.0000

167.0 MHz:::

SYSCLK_DDRCLK_A0:G:L:S:0 MIL:25 MIL

L:S:2900 MIL:3000 MILDDRCLK_A0

10 MIL SPACING

SYSCLK_DDRCLK_A0_L

250.0000

167.0 MHz:::

SYSCLK_DDRCLK_A1:G:L:S:0 MIL:25 MIL

DDRCLK_A1L:S:2900 MIL:3000 MIL

10 MIL SPACING

SYSCLK_DDRCLK_A1

L:S::1800 MIL

10 MIL SPACING

500.0000

ATI_SSCLK_IN

L:S::200 MIL

10 MIL SPACING

ATI_SSCLK_UF

L:S::200 MIL

10 MIL SPACING

ATI_CLK27M_IN

33.00 MHz:::L:S::250 MIL

10 MIL SPACING

CLK33M_AIRPORT_UF

66.00 MHz:::

L:S:1450 MIL:1550 MIL

10 MIL SPACING

500.0000

INT_AGP_FB_IN

66.00 MHz:::L:S::150 MIL

10 MIL SPACING

INT_AGP_FB_OUT

66.00 MHz:::

L:S:1800 MIL:1900 MIL

10 MIL SPACING

400.0000

CLK66M_GPU_AGP

167.0 MHz:::

L:S:1900 MIL:2000 MIL

10 MIL SPACING

250.0000

INT_REF_CLK_IN

167.0 MHz:::

SYSCLK_DDRCLK_B0:G:L:S:0 MIL:25 MIL

L:S:3100 MIL:3200 MILDDRCLK_B0

250.0000

10 MIL SPACING

SYSCLK_DDRCLK_B0_L

SYSCLK_DDRCLK_B1_UF:G:L:S:0 MIL:25 MIL

L:S:300 MIL:350 MILDDRCLK_B1_UF

10 MIL SPACING

SYSCLK_DDRCLK_B1_UF

SYSCLK_DDRCLK_A1_UF:G:L:S:0 MIL:25 MIL

167.0 MHz:::

DDRCLK_A1_UFL:S:300 MIL:350 MIL

10 MIL SPACING

SYSCLK_DDRCLK_A1_UF

SYSCLK_DDRCLK_A0_UF:G:L:S:0 MIL:25 MIL

167.0 MHz:::

DDRCLK_A0_UFL:S:300 MIL:350 MIL

10 MIL SPACING

SYSCLK_DDRCLK_A0_L_UF

10 MIL SPACING

DDRCLK_A0_UFL:S:300 MIL:350 MIL

167.0 MHz:::

SYSCLK_DDRCLK_A0_UF:G:L:S:0 MIL:25 MIL

SYSCLK_DDRCLK_A0_UF

167.0 MHz:::

L:S:1050 MIL:1150 MIL

10 MIL SPACING

250.0000

INT_CPUFB_LONG

250.0000

167.0 MHz:::L:S::150 MIL

10 MIL SPACING

INT_CPUFB_OUT

250.0000

167.0 MHz:::

L:S:2650 MIL:2750 MIL

10 MIL SPACING

SYSCLK_CPU

L:S:1602:1700

500

167 MHZ

MEM_DATA<7..0>

L:S:1700:2165

500

167 MHZ

RAM_DATA_A<31..24>

L:S:1602 MIL:1700 MIL

500.0000

167.0 MHz:::

MEM_DQS<0>

L:S:1602 MIL:1700 MIL

500.0000

167.0 MHz:::

MEM_DQM<0>

L:S:1611 MIL:1696 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<7>

33.00 MHz:::L:S::250 MIL

10 MIL SPACING

CLK33M_CBUS_UF

L:S::300 MIL

10 MIL SPACING

CLK18M_XTAL_IN

L:S:1903 MIL:2000 MIL

500.0000

167.0 MHz:::

MEM_DQM<7>

L:S:1400 MIL:1546 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<6>

L:S:1400 MIL:1546 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<6>

500

L:S:1400:1546

167 MHZ

RAM_DATA_B<55..48>

L:S:1607 MIL:1898 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<5>

L:S:1607 MIL:1898 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<5>

500.0000

L:S:1719 MIL:1893 MIL

167.0 MHz:::

MEM_DQS<5>

500.0000

L:S:1719 MIL:1893 MIL

167.0 MHz:::

MEM_DQM<5>

L:S:1719:1893

500

167 MHZ

MEM_DATA<47..40>

L:S:1404 MIL:1686 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<4>

L:S:1404 MIL:1686 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<4>

L:S:1404:1686

500

167 MHZ

RAM_DATA_B<39..32>

L:S:1707:1800

500

167 MHZ

RAM_DATA_A<23..16>

L:S:1707 MIL:1800 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<2>

L:S:1900:2000

500

167 MHZ

RAM_DATA_B<23..16>

L:S:1900 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQM_B<2>

L:S:1900 MIL:2000 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<2>

L:S:1233 MIL:1485 MIL

500.0000

167.0 MHz:::

MEM_DQM<3>

L:S:1700 MIL:2165 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<3>

L:S:1915:2000

500

167 MHZ

MEM_DATA<39..32>

L:S:1205 MIL:1387 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<4>

L:S:2101 MIL:2170 MIL

500.0000

167.0 MHz:::

MEM_DQM<6>

L:S:1204:1357

500

167 MHZ

RAM_DATA_A<55..48>

L:S:1204 MIL:1357 MIL

500.0000

167.0 MHz:::

RAM_DQM_A<6>

L:S:1903:2000

500

167 MHZ

MEM_DATA<63..56>

L:S:2000:3000

RAM_ADDR<12..0>

L:S:2000:3300

RAM_BA<1..0>

L:S::500

MEM_CS_L<3..0>

L:S:2000 MIL:4100 MIL

RAM_CAS_L

L:S::500 MIL

MEM_WE_L

L:S:2000 MIL:3100 MIL

RAM_WE_L

L:S:1233 MIL:1485 MIL

500.0000

167.0 MHz:::

MEM_DQS<3>

L:S:1233:1485

500

167 MHZ

MEM_DATA<31..24>

L:S:1205 MIL:1387 MIL

500.0000

167.0 MHz:::

RAM_DQS_A<4>

L:S:1907 MIL:2356 MIL

500.0000

167.0 MHz:::

RAM_DQS_B<3>

L:S:1205:1387

500

167 MHZ

RAM_DATA_A<39..32>

L:S:1915 MIL:2000 MIL

500.0000

167.0 MHz:::

MEM_DQS<4>

L:S:1700 MIL:3000 MIL

MEM_MUXSEL_LSB

L:S:1700 MIL:3000 MIL

MEM_MUXSEL_MSB

33.00 MHz:::L:S::250 MIL

10 MIL SPACING

CLK33M_NEC_UF

33.00 MHz:::

L:S:6500 MIL:7500 MIL

10 MIL SPACING

500.0000

INT_PCI_FB_IN

L:S:1716:2102

500

167 MHZ

RAM_DATA_B<47..40>

49.15 MHz:::L:S::300 MIL

CLKFW_LINK_LCLK

125.0 MHz:::

L:S:8000 MIL:9000 MIL

10 MIL SPACING

500.0000

CLKENET_LINK_GBE_REF

10 MIL SPACING

500.0000

INT_I2S0_SND_MCLK

125.0 MHz:::L:S::300 MIL

CLKENET_PHY_RX

125.0 MHz:::

L:S:8000 MIL:9000 MIL

10 MIL SPACING

800.0000

CLKENET_LINK_RX

33.00 MHz:::L:S::300 MIL

10 MIL SPACING

INT_PCI_FB_OUT

SYSCLK_DDRCLK_A1_UF:G:L:S:0 MIL:25 MIL

167.0 MHz:::

L:S:300 MIL:350 MILDDRCLK_A1_UF

10 MIL SPACING

SYSCLK_DDRCLK_A1_L_UF

167.0 MHz:::

SYSCLK_DDRCLK_B0_UF:G:L:S:0 MIL:25 MIL

DDRCLK_B0_UFL:S:300 MIL:350 MIL

10 MIL SPACING

SYSCLK_DDRCLK_B0_UF

167.0 MHz:::

SYSCLK_DDRCLK_B0_UF:G:L:S:0 MIL:25 MIL

L:S:300 MIL:350 MILDDRCLK_B0_UF

10 MIL SPACING

SYSCLK_DDRCLK_B0_L_UF

250.0000

167.0 MHz:::

SYSCLK_DDRCLK_A1:G:L:S:0 MIL:25 MIL

DDRCLK_A1L:S:2900 MIL:3000 MIL

10 MIL SPACING

SYSCLK_DDRCLK_A1_L

167.0 MHz:::

SYSCLK_DDRCLK_B0:G:L:S:0 MIL:25 MIL

L:S:3100 MIL:3200 MILDDRCLK_B0

10 MIL SPACING

250.0000

SYSCLK_DDRCLK_B0

167.0 MHz:::

SYSCLK_DDRCLK_B1:G:L:S:0 MIL:25 MIL

DDRCLK_B1L:S:3100 MIL:3200 MIL

10 MIL SPACING

250.0000

SYSCLK_DDRCLK_B1

167.0 MHz:::

SYSCLK_DDRCLK_B1:G:L:S:0 MIL:25 MIL

L:S:3100 MIL:3200 MILDDRCLK_B1

10 MIL SPACING

250.0000

SYSCLK_DDRCLK_B1_L

49.92 MHz:::L:S::400 MIL

10 MIL SPACING

INT_REF_CLK_OUT_UF

49.92 MHz:::

L:S:1000 MIL:1150 MIL

10 MIL SPACING

250.0000

INT_REF_CLK_OUT

66.00 MHz:::L:S::150 MIL

10 MIL SPACING

CLK66M_GPU_AGP_UF

33.00 MHz:::

L:S:9500 MIL:10500 MIL

10 MIL SPACING

500.0000

CLK33M_AIRPORT

33.00 MHz:::

L:S:4000 MIL:6000 MIL

10 MIL SPACING

500.0000

CLK33M_NEC

L:S::400 MIL

10 MIL SPACING

ATI_CLK27M_OSC

L:S::400 MIL

10 MIL SPACING

ATI_CLK27M_OSC_SS

L:S:1400 MIL:1500 MIL

10 MIL SPACING

CLK18M_INT_XIN

L:S:1250 MIL:1350 MIL

10 MIL SPACING

CLK18M_INT_XOUT

125.0 MHz:::L:S::300 MIL

CLKENET_PHY_GBE_REF

98.03 MHz:::L:S::300 MIL

10 MIL SPACING

FW_OSC

L:S::400 MIL

10 MIL SPACING

CLK18M_INT_EXT

33.00 MHz:::

L:S:5000 MIL:6000 MIL

10 MIL SPACING

500.0000

CLK33M_CBUS

250.0000

167.0 MHz:::

L:S:700 MIL:850 MIL

10 MIL SPACING

INT_CPUFB_OUT_SHORT

167.0 MHz:::L:S::150 MIL

10 MIL SPACING

SYSCLK_CPU_UF

29 29

11 11

13 13

9 9

8 8

9 9

10 10

9 9

14 14

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

(250) (250) (250) (250) (250) (250) (250) (250) (250) (250) (250) (250) (250)

(250)

(250) (250) (250) (250) (250) (250) (250)

STUB_LENGTH OF 250 MILS NEEDED WHEN DESIGN SWITCHED TO 14.2

MAXBUS

SIG_NAME

NET_SPACING_TYPESTUB_LENGTH

SECONDARY LAYERS: 4,7

GROUP

PRIORITY: 4 PRIMARY LAYERS: 9

GOAL: MINIMIZE TH VIAS

MAX_EXPOSED_LENGTH

MAX_VIAS

PROPAGATION_DELAY NO_TEST PULSE_PARAM

SIGNAL CONSTRAINTS - PAGE 1

ALL THE DVOD GROUP SIGNALS ROUTE AT LAYER 4 OR 7 AND ROUTE AS STANDARD 50OHM SIGNALS AT 4 MILS

ALL TMDS GROUP SIGNALS ROUTE AT LAYER 4 OR 7 AND HAVE SAME WIDTH SPACING RULE AS OTHER TMDS SIGNALES

TMDS/DVO SIGNAL CONSTRAINTS

DIGITAL SIGNALS

I239

I240

I241

I242

I243

I244

I245

I246

I263

I264

I265

I266

I267

I268 I269

I270

I271

I272 I273 I274 I275

I276 I277

I278

I279

I280 I281

I282 I283

I284

I285

I286 I287

I294

I295

I296

I297

I298

I299

I300 I301

I302 I303 I304

051-6680

4638

L:S:1500 MIL:3100 MIL

CPU_WT_L

100 OHM SPACING FOR TMDS

SI_TMDS_DP<5>

SI_TMDS_D5

100 OHM SPACING FOR TMDS

SI_TMDS_DN<5>

SI_TMDS_D5

100 OHM SPACING FOR TMDS

SI_TMDS_DP<4>

SI_TMDS_D4

100 OHM SPACING FOR TMDS

SI_TMDS_D3

SI_TMDS_DN<3>

100 OHM SPACING FOR TMDS

SI_TMDS_D2

SI_TMDS_DP<2>

100 OHM SPACING FOR TMDS

SI_TMDS_D2

SI_TMDS_DN<2>

100 OHM SPACING FOR TMDS

SI_TMDS_D1

SI_TMDS_DN<1>

100 OHM SPACING FOR TMDS

SI_TMDS_D0

SI_TMDS_DP<0>

100 OHM SPACING FOR TMDS

SI_TMDS_D0

SI_TMDS_DN<0>

100 OHM SPACING FOR TMDS

SI_TMDS_D1

SI_TMDS_DP<1>

L:S:1500 MIL:2700 MIL

CPU_GBL_L

L:S:1500 MIL:2800 MIL

CPU_HIT_L

L:S:1500 MIL:2700 MIL

CPU_QACK_L

L:S:1500 MIL:2700 MIL

CPU_TBST_L

TMDS_CONN_DP<1>

100 OHM SPACING FOR TMDS

500.0000

CONN_TMDS_D1

100 OHM SPACING FOR TMDS

TMDS_CONN_DN<1>

100 OHM SPACING FOR TMDS

500.0000

CONN_TMDS_D1

100 OHM SPACING FOR TMDS

L:S:1500:3500

CPU_TSIZ<0..2>

L:S:1100:2700

83 MHZ

CPU_DATA<32..63>

L:S:1500 MIL:2700 MIL

CPU_CI_L

L:S:1500:3100

83 MHZ

TRUE

CPU_ADDR<0..31>

L:S:1500 MIL:2700 MIL

CPU_AACK_L

L:S:1500 MIL:3000 MIL

CPU_TEA_L

L:S:1500 MIL:2700 MIL

CPU_TS_L

L:S:1500 MIL:2700 MIL

CPU_QREQ_L

L:S:1500:3400

CPU_TT<0..4>

L:S:1500 MIL:2700 MIL

CPU_TA_L

L:S:1500 MIL:2700 MIL

CPU_DBG_L

100 OHM SPACING FOR TMDS

SITMDS:G:L:S:0 MIL:300 MIL

SI_CLKTMDS

SI_TMDS_CLKP

100 OHM SPACING FOR TMDS

SITMDS:G:L:S:0 MIL:300 MIL

SI_CLKTMDS

SI_TMDS_CLKN

610.0000

ATIDVOD:G:L:S:1600 MIL:1700 MIL

ATI_DVO_HSYNC

TMDS_CONN_CLKP

100 OHM SPACING FOR TMDS

500.0000

TMDS_CONN:G:L:S:0 MIL:50 MIL

CLKCONN_TMDS

100 OHM SPACING FOR TMDS

TMDS_CONN_DN<0>

100 OHM SPACING FOR TMDS

500.0000CONN_TMDS_D0

100 OHM SPACING FOR TMDS

TMDS_CONN_DP<0>

100 OHM SPACING FOR TMDS

500.0000CONN_TMDS_D0

100 OHM SPACING FOR TMDS

TMDS_CONN_DN<2>

100 OHM SPACING FOR TMDS

500.0000

CONN_TMDS_D2

100 OHM SPACING FOR TMDS

TMDS_DN<3>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D3

TMDS_DN<4>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D4

TMDS_DP<4>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D4

TMDS_DP<5>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D5

TMDS_CONN_DP<5>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D5

500.0000

100 OHM SPACING

GPU_B

500.0000

100 OHM SPACING

GPU_G

500.0000

100 OHM SPACING

GPU_R

TMDS_CONN_DN<4>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D4

L:S:1500 MIL:2700 MIL

CPU_BR_L

L:S:1500 MIL:2700 MIL

CPU_ARTRY_L

L:S:1500 MIL:3200 MIL

CPU_DRDY_L

L:S:1500:2950

CPU_DTI<0..2>

L:S:1100:2700

83 MHZ

TRUE

CPU_DATA<0..31>

L:S:1500 MIL:2700 MIL

CPU_BG_L

TMDS_DP<3>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D3

TMDS_CONN_DP<3>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D3

TMDS_CONN_DN<3>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D3

TMDS_DN<5>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

TMDS_D5

610.0000

ATIDVOD:G:L:S:1600 MIL:1700 MIL

ATI_DVOD_DE

610

ATIDVOD:G:L:S:1600 MIL:1700 MIL

ATI_DVOD<23..0>

610.0000

ATI_DVO_VSYNC

ATIDVOD:G:L:S:1600 MIL:1700 MIL

100 OHM SPACING FOR TMDS

SI_TMDS_D3

SI_TMDS_DP<3>

100 OHM SPACING FOR TMDS

SI_TMDS_D4

SI_TMDS_DN<4>

610.0000

ATIDVOD:G:L:S:0 MIL:1100 MIL

165.0 MHz:::

GPU_DVO_CLKP_R1

TMDS_CONN_DP<2>

100 OHM SPACING FOR TMDS

500.0000

CONN_TMDS_D2

100 OHM SPACING FOR TMDS

610.0000

ATIDVOD:G:L:S:0 MIL:500 MIL

165.0 MHz:::

ATI_DVO_CLKP

610.0000

ATIDVOD:G:L:S:0 MIL:1100 MIL

165.0 MHz:::

GPU_DVO_CLKP_R2

TMDS_CONN_CLKN

100 OHM SPACING FOR TMDS

500.0000

TMDS_CONN:G:L:S:0 MIL:50 MIL

CLKCONN_TMDS

100 OHM SPACING FOR TMDS

TMDS_CONN_DP<4>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D4

TMDS_CONN_DN<5>

100 OHM SPACING FOR TMDS

500.0000

100 OHM SPACING FOR TMDS

CONN_TMDS_D5

23 23

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PRIMARY LAYERS: 4,7 FOR CONTROLLED IMPEDANCE DIFF PAIRS SECONDARY LAYERS: 2,9 FOR UNCONTROLLED IMPEDANCE DIFF PAIRS

PRIORITY: 3

MAX_VIASMAX_EXPOSED_LENGTHDIFFERENTIAL_PAIRSIG_NAMEGROUP

(400)

TOTAL UIDE+HD SKEW <500MIL

(200)

(200) (200) (200) (200) (200) (200) (200)

(400)

(400) (400)

NEED TO MATCH DELAY TO 250

(200)

(250) (250)

(250)

(350) (350)

(250)

REMOVE CONSTRAIN TO AVOID DRC OCCUR

NET_SPACING_TYPE

RELATIVE_PROPAGATION_DELAY

Digital Signals (cont’d)

Differential Signals

PROPAGATION_DELAY

MAX_VIAS

MAX_EXPOSED_LENGTH

STUB_LENGTH

NET_SPACING_TYPE

NO_TEST

PULSE_PARAM

SIG_NAMEGROUP

AGP

AGP BYTES 0-1

AGP BYTES 2-3

AGP SIDEBAND

AGP CONTROL

PCI

ULTRA ATA-100

EIDE

INTREPID

OPTICAL

ETHERNET MII

FIREWIRE MII

THERMOSTAT

Zo = 90

USB 2.0

Zo = 90

USB 1.1

Zo = 100

TMDS

UPPER

LOWER

Zo = 100

LVDS

Zo = 100

ETHERNET

Zo = 110

FIREWIRE

GOAL: MINIMIZE TH VIAS

SECONDARY LAYERS: 4,7

PRIMARY LAYERS: 9

PRIORITY: 4

PRIORITY: 7 PRIMARY

LAYERS: 4,7 SECONDARY

LAYERS: 2,9

PRIORITY: 6 PRIMARY

LAYERS: 4,7 SECONDARY

LAYERS: 2,9

PRIORITY: 8 PRIMARY

LAYERS: 4,7 SECONDARY

LAYERS: 2,9

PRIORITY: 5 PRIMARY

LAYERS: 4,7

LAYERS: 2,9

SECONDARY

PRIORITY: 5 PRIMARY

LAYERS: 4,7 SECONDARY

LAYERS: 2,9

SIGNAL CONSTRAINTS - PAGE 2

LAYERS 2 OR 9

Zo(single) = 46.6 OHMS

Zo(diff) = 89.8 OHMS

T = 0.6MIL (TRACE THICKNESS)

H = 9.6MIL (DIST BETW PLANES)

S = 5.6MIL (TRACE SEPERATION)

W = 3.9MIL (TRACE WIDTH)

Er = 4.3 (DIELECTRIC CONSTANT)

LAYERS 4 OR 7

Zo(single) = 50 OHMS

Zo(diff) = 94 OHMS

T = 0.6MIL (TRACE THICKNESS)

H = 9.6MIL (DIST BETW PLANES)

S = 4.9MIL (TRACE SEPERATION)

W = 3.1MIL (TRACE WIDTH)

Er = 4.3 (DIELECTRIC CONSTANT)

LAYERS 4 OR 7

asymmetric stackup.

Zo will be lower due to

Clear adjacent power plane!

Zo(single) = 55.4 OHMS

Zo(diff) = 106.2 OHMS

T = 0.6MIL (TRACE THICKNESS)

H = 16.8MIL (DIST BETW PLANES)

S = 11MIL (TRACE SEPERATION)

W = 3MIL (TRACE WIDTH)

Er = 4.3 (DIELECTRIC CONSTANT)

LAYERS 4 OR 7

I233 I234 I235 I236 I237 I238

I239

I240

I241 I242

I243

I244

051-6680

4639

TMDS_CLKN

500.0000

CLKTMDS

100 OHM SPACING

TMDS:G:L:S:0 MIL:50 MIL

100 OHM SPACING

TMDS_DP<0>

TMDS_D0

500.0000

100 OHM SPACING

33.00 MHz:::

L:S::850 MIL

EIDE_CS1_L

33.00 MHz:::

L:S::500 MIL

EIDE_IOCHRDY

33.00 MHz:::

L:S::500 MIL

EIDE_INT

33.00 MHz:::

L:S::500 MIL

EIDE_RST_L

FW_TPI0N

500.0000

FW_TPI0

110 OHM SPACINGFW_TPI0:G:L:S:0 MIL:5 MIL

500.0000

FW_TPB1

FW_TPB1P

110 OHM SPACINGFW_TPB1:G:L:S:0 MIL:4%

500.0000

FW_TPI1N

FW_TPI1

110 OHM SPACINGFW_TPI1:G:L:S:0 MIL:4%

500.0000

FW_TPI1P

FW_TPI1

110 OHM SPACINGFW_TPI1:G:L:S:0 MIL:4%

500.0000

FW_TPO1

FW_TPO1P

110 OHM SPACINGFW_TPO1:G:L:S:0 MIL:4%

ENET_MDI0

ENET 11 MIL SPACING

ENET_MDI0:G:U43.31:J23.2:0 MIL:100 MIL

ENET 11 MIL SPACING

MDI_M<0>

CLKLVDS_LN

CLKLVDS_L

500.0000

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

5V_SNSM 5V_SNSP

1772_CSIP

1772_CSIN

1772_CSSP

THERM2_DP

THERM2:G:L:S:0 MIL:100 MIL

THERM2_DM

THERM2:G:L:S:0 MIL:100 MIL

THERM1_DP

THERM1:G:L:S:0 MIL:100 MIL

THERM1_DM

NEC_USB_DBP

USB_D2

500.0000

USB_D2:G:L:S:0 MIL:20 MIL

90 OHM SPACING

USB_D2

NEC_USB_DBM

500.0000

USB_D2:G:L:S:0 MIL:20 MIL

90 OHM SPACING

NEC_USB_DAP

USB_D1

500.0000

USB_D1:G:L:S:0 MIL:20 MIL

90 OHM SPACING

USB_TPAD_P

TPAD_USB:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

USB_TPAD_N

TPAD_USB:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

BT_USB_DP

BT_USB_D

BT_USB:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

BT_USB_DM

BT_USB_D

BT_USB:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

TMDS_DP<1>

500.0000

TMDS_D1

100 OHM SPACING

ENET_MDI0

MDI_P<0>

ENET_MDI0:G:U43.29:J23.1:0 MIL:100 MIL

ENET 11 MIL SPACING

FW_TPB1N

500.0000

FW_TPB1

110 OHM SPACINGFW_TPB1:G:L:S:0 MIL:4%

FW_TPA1P

500.0000

FW_TPA1

110 OHM SPACINGFW_TPA1:G:L:S:0 MIL:4%

FW_TPA1

500.0000

FW_TPA1N

110 OHM SPACINGFW_TPA1:G:L:S:0 MIL:4%

FW_TPO0

500.0000

FW_TPO0N

110 OHM SPACINGFW_TPO0:G:L:S:0 MIL:5 MIL

FW_TPI0

FW_TPI0P

500.0000

110 OHM SPACINGFW_TPI0:G:L:S:0 MIL:5 MIL

500.0000

FW_TPO0

FW_TPO0P

110 OHM SPACINGFW_TPO0:G:L:S:0 MIL:5 MIL

FW_TPAO0 500.0000

FW_TPAO0N

110 OHM SPACING

FW_TPAO0:G:L:S:0 MIL:5 MIL

FW_TPAO0P

FW_TPAO0 500.0000

110 OHM SPACING

FW_TPAO0:G:L:S:0 MIL:5 MIL

ENET_MDI1

MDI_P<1>

ENET 11 MIL SPACING

ENET_MDI1:G:U43.33:J23.3:0 MIL:100 MIL

ENET 11 MIL SPACING

MDI_M<1>

ENET_MDI1

ENET 11 MIL SPACING

ENET_MDI1:G:U43.34:J23.4:0 MIL:100 MIL

ENET 11 MIL SPACING

ENET_MDI2

ENET 11 MIL SPACING

ENET_MDI2:G:U43.41:J23.8:0 MIL:100 MIL

ENET 11 MIL SPACING

MDI_M<2> MDI_P<3>

ENET_MDI3

ENET_MDI3:G:U43.42:J23.9:0 MIL:100 MIL

ENET 11 MIL SPACING

LVDS_L0

LVDS_L0P

500.0000

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

LVDS_L1N

500.0000

LVDS_L1

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

LVDS_L1

500.0000

LVDS_L1P

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

CLKLVDS_U

CLKLVDS_UN

500.0000

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

LVDS_U0

500.0000

LVDS_U0N

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

LVDS_U2P

500.0000

LVDS_U2

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

TMDS_DN<0>

TMDS_D0

500.0000

100 OHM SPACING

ATI_CLKTMDS

ATI_TMDS_CLKN

200.0000

100 OHM SPACING

ATITMDS:G:L:S:0 MIL:50 MIL

100 OHM SPACING

ATI_TMDS_CLKP

ATI_CLKTMDS

200.0000

100 OHM SPACING

ATITMDS:G:L:S:0 MIL:50 MIL

100 OHM SPACING

ATI_TMDS_DN<0>

ATI_TMDS_D0

200.0000

100 OHM SPACING

ATI_TMDS_DP<1>

ATI_TMDS_D1

200.0000

100 OHM SPACING

USB_DFM

USB_DF

USB_DF:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

USB_DEP

USB_DE

USB_DE:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

USB_DF

USB_DFP

USB_DF:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

1772_CSSN

3V_SNSM 3V_SNSP

THERM2_M_DM THERM2_M_DP THERM1_A_DM THERM1_A_DP THERM2_A_DM THERM2_A_DP

FW_PHY_DATA<7..0>

L:S:4700:5500

FW_PINT

L:S:8500 MIL:9500 MIL

FW_LINK_CNTL<1..0>

L:S:9000:10000

FW_LINK_DATA<7..0>

L:S:2700:3500

ENET_CRS

L:S:8000 MIL:9000 MIL

ENET_COL

L:S:8000 MIL:9000 MIL

ENET_MDC

L:S:8000 MIL:9000 MIL

ENET_MDIO

L:S:8000 MIL:9000 MIL

ENET_LINK_TX_EN

L:S::400 MIL

ENET_LINK_TXD<7..0>

L:S::600

ENET_PHY_TXD<7..0>

L:S:8000:9000

ENET_LINK_RXD<7..0>

L:S:8000:9000

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_DMA_RQ

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_WR_L

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_CS0_L

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_CS1_L

33 MHZ

L:S:4000:6000

EIDE_OPTICAL_DATA<15..0>

33.00 MHz:::

L:S::500 MIL

EIDE_DMACK_L

33.00 MHz:::

L:S::500 MIL

EIDE_RD_L

33.00 MHz:::

L:S::850 MIL

EIDE_CS0_L

100.0 MHz:::

10 MIL SPACING

L:S:6200 MIL:6300 MIL

HD_IOCHRDY

100.0 MHz:::

10 MIL SPACING

L:S:6100 MIL:6150 MIL

HD_DIOR_L

100 MHZ

L:S:5000:6500

HD_ADDR<2..0>

100 MHZ

L:S::600

UIDE_DATA<6..0>

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_STOP_L

MIN_DAISY_CHAIN

33 MHzL:S:6000:12500

PCI_CBE<3..0>

MIN_DAISY_CHAIN

33 MHzL:S:6000:12500

PCI_AD<31..0>

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_RBF_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_PAR

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_DEVSEL_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_TRDY_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_IRDY_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_FRAME_L

66 MHzL:S:1050:1450

AGP_SBA<7..0>

66 MHzL:S:1050:1450

AGP_CBE<3..2>

66 MHzL:S:1050:1450

AGP_AD<31..16>

8 MIL SPACING

133.0 MHz:::L:S:1050 MIL:1450 MIL

AGP_AD_STB_L<0>

8 MIL SPACING

133.0 MHz:::L:S:1050 MIL:1450 MIL

AGP_AD_STB<0>

66 MHzL:S:1050:1450

AGP_CBE<1..0>

8 MIL SPACING

133.0 MHz:::L:S:1050 MIL:1450 MIL

AGP_AD_STB_L<1>

8 MIL SPACING

66.00 MHz:::L:S:1050 MIL:1450 MIL

AGP_SB_STB_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_GNT_L

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_FRAME_L

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_IRDY_L

66 MHzL:S:1050:1450

AGP_AD<15..0>

8 MIL SPACING

133.0 MHz:::L:S:1050 MIL:1450 MIL

AGP_AD_STB<1>

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_PAR

100 MHZ

L:S::710

UIDE_DATA<15..8>

100 MHZ

L:S::650

UIDE_ADDR<2..0>

100.0 MHz:::

10 MIL SPACING

L:S::600 MIL

UIDE_IOCHRDY

100.0 MHz:::

L:S::400 MIL

UIDE_INTRQ

100 MHZ

L:S:5000:6500

HD_DATA<15..0>

33 MHZ

L:S:4000:6000

EIDE_OPTICAL_ADDR<2..0>

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_DMAACK_L

ENET_RX_DV

L:S:8000 MIL:9000 MIL

FW_LINK_LREQ

L:S::300 MIL

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_TRDY_L

MIN_DAISY_CHAIN

33.00 MHz:::L:S:6000 MIL:12500 MIL

PCI_DEVSEL_L

100.0 MHz:::

L:S:3000 MIL:6000 MIL

HD_CS0_L

100.0 MHz:::

L:S:3000 MIL:6000 MIL

HD_CS1_L

ENET_PHY_TX_EN

L:S:8000 MIL:9000 MIL

ENET_LINK_TX_ER

L:S::400 MIL

ENET_PHY_TX_ER

L:S:8000 MIL:9000 MIL

100.0 MHz:::

L:S:4500 MIL:6000 MIL

HD_DMACK_L

100.0 MHz:::

L:S:3000 MIL:5200 MIL

HD_DIOW_L

100.0 MHz:::

L:S:4000 MIL:6000 MIL

HD_RESET_L

100.0 MHz:::

L:S::400 MIL

UIDE_DMARQ

100.0 MHz:::

L:S::400 MIL

UIDE_DMACK_L

100.0 MHz:::

L:S::400 MIL

UIDE_RST_L

100.0 MHz:::

U51.V1:RP19.3::600 MIL

UIDE_DATA<7>

8 MIL SPACING

66.00 MHz:::L:S:1050 MIL:1450 MIL

AGP_SB_STB

USB_DE

USB_DEM

USB_DE:G:L:S:0 MIL:200 MIL

5.6 MIL SPACING

ATI_TMDS_D2

ATI_TMDS_DP<2>

500.0000

100 OHM SPACING

ATI_TMDS_DN<2>

ATI_TMDS_D2

500.0000

100 OHM SPACING

TMDS_D2

TMDS_DN<2>

500.0000

100 OHM SPACING

TMDS_D1

TMDS_DN<1>

500.0000

100 OHM SPACING

500.0000

LVDS_U0

LVDS_U0P

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

MDI_M<3>

ENET_MDI3

ENET 11 MIL SPACING

ENET_MDI3:G:U43.43:J23.10:0 MIL:100 MIL

ENET 11 MIL SPACING

500.0000

LVDS_L0

LVDS_L0N

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

500.0000

LVDS_L2

LVDS_L2P

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

CLKLVDS_UP

500.0000

CLKLVDS_U

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_REQ_L

MDI_P<2>

ENET_MDI2

ENET 11 MIL SPACING

ENET_MDI2:G:U43.39:J23.7:0 MIL:100 MIL

ENET 11 MIL SPACING

CLKLVDS_LP

CLKLVDS_L

500.0000

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_READ_L

100.0 MHz:::

L:S:4500 MIL:6000 MIL

HD_DMARQ

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_RST_L

33.00 MHz:::

L:S:5000 MIL:7000 MIL

EIDE_OPTICAL_INT

33.00 MHz:::

L:S:4500 MIL:6500 MIL

EIDE_OPTICAL_IOCHRDY

100.0 MHz:::

L:S::400 MIL

UIDE_DIOW_L

100.0 MHz:::

10 MIL SPACING

L:S::600 MIL

UIDE_DIOR_L

66.00 MHz:::L:S:1250 MIL:1950 MIL

AGP_STOP_L

100.0 MHz:::

L:S::500 MIL

UIDE_CS0_L

FW_PHY_LREQ

L:S:8500 MIL:9500 MIL

ENET_RX_ER

L:S:8000 MIL:9000 MIL

33.00 MHz:::

L:S::500 MIL

EIDE_DMARQ

FW_PHY_CNTL<1..0>

L:S::300

100.0 MHz:::

L:S::500 MIL

UIDE_CS1_L

33 MHZ

L:S::850

EIDE_DATA<15..0>

100.0 MHz:::

L:S:3000 MIL:5000 MIL

HD_INTRQ

LVDS_U1N

500.0000

LVDS_U1

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

LVDS_L2

500.0000

LVDS_L2N

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

33.00 MHz:::

L:S::500 MIL

EIDE_WR_L

33 MHZ

L:S::850

EIDE_ADDR<2..0>

ATI_TMDS_D0

ATI_TMDS_DP<0>

200.0000

100 OHM SPACING

LVDS_U1P

500.0000

LVDS_U1

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

500.0000

LVDS_U2N

LVDS_U2

100 OHM SPACING

LVDS:G:L:S:0 MIL:110 MIL

100 OHM SPACING

NEC_USB_DAM

USB_D1

500.0000

USB_D1:G:L:S:0 MIL:20 MIL

90 OHM SPACING

FW_TPO1N

500.0000

FW_TPO1

110 OHM SPACINGFW_TPO1:G:L:S:0 MIL:4%

FW_TPBI0P

FW_TPBI0 500.0000

110 OHM SPACING

FW_TPBI0:G:L:S:0 MIL:5 MIL

FW_TPBI0 500.0000

FW_TPBI0N

110 OHM SPACING

FW_TPBI0:G:L:S:0 MIL:5 MIL

ATI_TMDS_DN<1>

ATI_TMDS_D1

200.0000

100 OHM SPACING

TMDS_CLKP

500.0000

CLKTMDS

TMDS:G:L:S:0 MIL:50 MIL

100 OHM SPACING

THERM1_M_DP

THERM1_M_DM

TMDS_D2

TMDS_DP<2>

500.0000

100 OHM SPACING

41 41

26 26

41 41

18 18

26 26

41 41

23 23

17 17

26 26

13 13

30 30

28 28

21 21

34 34

27 27

13 13

12 12

26 26

13 13

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

OPT DRIVER

LMU CONN

CY28512D

INT PLLS

LTC1962

LTC3411

LTC1778

MAX1717

CONTROL

1.65V SWITCHER

2.5V SWITCHER

MAX1715

3V SWITCHER

5V SWITCHER

LTC3707

14V SWITCHER

LTC1625

INTREPID

PLLS

REFERENCE

AIRPORT

CARDBUS ATI M11

ETHERNET

SIG_NAME

VOLTAGE

TRACKPAD

MIN_LINE_WIDTH

GROUP

MIN_NECK_WIDTHMIN_LINE_WIDTHVOLTAGE

GROUP

MIN_NECK_WIDTHMIN_LINE_WIDTHVOLTAGE

SIG_NAME

MIN_NECK_WIDTH

MAIN/SLEEP

ADAPTER

BATTERY CHARGER

PMU

MISC

HALL EFFECT

TRACKPAD

VIDEO

AUDIO

FAN

I/O AREA INVERTER

LVDS

DDR RAM

CPU

GROUP

88E1111

NEC USB2.0

SIG_NAME

POWER NET CONSTRAINTS

SIGNAL CONSTRAINTS - PAGE 3

I308

I310

I311

I312

I314

I315

I316

I317

CHGND1

CHGND2

CHGND3

CHGND4

I332

I333

I345

I346

I347 I348

I349

I350 I351

I352

I353 I354

I355

I356

I357

I358

I359

I360 I361

I362 I363

I364

I365

I366

I367

051-6680

4640

MIN_LINE_WIDTH=25

MIN_NECK_WIDTH=6

VOLTAGE=0V

MIN_LINE_WIDTH=25MIN_NECK_WIDTH=12

VOLTAGE=0V

MIN_LINE_WIDTH=25MIN_NECK_WIDTH=12

VOLTAGE=0V

MIN_NECK_WIDTH=12MIN_LINE_WIDTH=25

VOLTAGE=0V

MIN_LINE_WIDTH=25MIN_NECK_WIDTH=12

VOLTAGE=0V

MIN_LINE_WIDTH=10

INT_MEM_REF_H

MIN_LINE_WIDTH=8

1_8V_VFB

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

VOLTAGE=1.3V

CPU_AVDD_VOUT

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

VOLTAGE=3.3V

CPU_AVDD_VIN

VOLTAGE=1.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

CPU_VCORE_SLEEP

VOLTAGE=1.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

CPU_AVDD

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+2_5V_MARVELL

VOLTAGE=1.0V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

LTC3405_SW

VOLTAGE=12.8V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_AMP_SENSE

VOLTAGE=33V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_PWR_OR

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_FW_AVDD_PORT1

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_FW_AVDD_PORT2

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_FW_UF

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+3V_FW

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=0V

FAN2_GND

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=0V

FAN1_GND

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+FAN_PWR

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_MAIN_AUD

MIN_LINE_WIDTH=25

VOLTAGE=0V

GPU_TV_GND2

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=15

VOLTAGE=5V

+5V_DDC_SLEEP

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=14V

+14V_INV

MIN_LINE_WIDTH=10

VOLTAGE=5V

+5V_TPAD_SLEEP

MIN_LINE_WIDTH=10

VOLTAGE=4.85V

+4_85V_ESR

MIN_LINE_WIDTH=10

VOLTAGE=4.6V

+4_6V_BU

MIN_LINE_WIDTH=10

VOLTAGE=4.85V

+4_85V_RAW

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=0V

BATT_NEG

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=16.8V

+BATT_POS

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=50

VOLTAGE=24V

+ADAPTER_SENSE

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=50

VOLTAGE=24V

+ADAPTER_SW

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=50

VOLTAGE=24V

+ADAPTER

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=25

VOLTAGE=1.8V

+1_8V_MAIN

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=2.5V

+2_5V_SLEEP

MIN_LINE_WIDTH=25

MIN_NECK_WIDTH=10

VOLTAGE=2.5V

+2_5V_MAIN

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_PMU

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_MAIN

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=12.8V

+PBUS

MIN_NECK_WIDTH=25MIL

MIN_LINE_WIDTH=10MIL

VOLTAGE=12.8V

+BATT

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+1_8V_GPU_PNLPLL

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=1.5V

+1_5V_LDO

VOLTAGE=1.5V

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=15

+1_5V_INTREPID_PLL8

VOLTAGE=5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VCORE_VCC

VOLTAGE=1.4V

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=200

VCORE_LX

MIN_LINE_WIDTH=25

VOLTAGE=0V

TV_GND2

VOLTAGE=1.25V

MIN_LINE_WIDTH=10

INT_MEM_VREF

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_GPU_FLT

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=12.6V

1772_LX

MIN_LINE_WIDTH=10

VOLTAGE=24V

1772_DCIN

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

+1_8V_ATI_TPVDD

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=10

+1_8V_GPU_MEMPLL

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

+2_5V_GPU_PNLIO

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+1_8V_GPU

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

GPU_MEM_IO_FLT

MIN_LINE_WIDTH=25

VOLTAGE=0V

GPU_TV_GND1

MIN_LINE_WIDTH=25

VOLTAGE=5V

MIN_NECK_WIDTH=10

+5V_SLEEP_OPT

MIN_LINE_WIDTH=8

1778_VRNG

MIN_LINE_WIDTH=8

1778_ITH_RC

MIN_LINE_WIDTH=8

1778_ION

VOLTAGE=1.2V

MIN_LINE_WIDTH=50 MIN_NECK_WIDTH=10

GPU_VCORE_SW

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

1778_TG

MIN_NECK_WIDTH=10

VOLTAGE=5V

MIN_LINE_WIDTH=15

1778_BST_RC

MIN_LINE_WIDTH=8

VOLTAGE=0V

VCORE_GNDSNS

VOLTAGE=2.5V

MIN_LINE_WIDTH=30 MIN_NECK_WIDTH=10

+2_5V_GPU

VOLTAGE=2.5V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

GPU_MEM_IO

VOLTAGE=2.5V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+2_5V_GPU_MEMCORE

VOLTAGE=1.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+1_5V_AGP

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

+1_8V_ATI_PVDD

VOLTAGE=1.5V

MIN_LINE_WIDTH=20 MIN_NECK_WIDTH=10

+1_5V_AGP_GPU

VOLTAGE=1.5V

MIN_LINE_WIDTH=20 MIN_NECK_WIDTH=10

+1_5V_GPU_VDD15

VOLTAGE=1.8V

MIN_LINE_WIDTH=15 MIN_NECK_WIDTH=10

+1_8V_GPU_VDDDI

VOLTAGE=1.2V

MIN_LINE_WIDTH=15 MIN_NECK_WIDTH=10

GPU_VCORE_VDDCI

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+2_5V_GPU_A2VDD

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+1_8V_GPU_AVDD

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+1_8V_GPU_PNLIO

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=10

+2_5V_GPU_MCLK

MIN_NECK_WIDTH=10

VOLTAGE=1.8V

MIN_LINE_WIDTH=10

+1_8V_GPU_AVDDQ

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=10

+3V_ATI_OSC_SLEEP

VOLTAGE=3.3V

MIN_LINE_WIDTH=10 MIN_NECK_WIDTH=10

+3V_ATI_SS

VOLTAGE=1.5V

MIN_LINE_WIDTH=20 MIN_NECK_WIDTH=10

+GPU_VDD15_UF

VOLTAGE=2.5V

MIN_LINE_WIDTH=10

+2_5V_SLEEP_NECK1

VOLTAGE=1.5V

MIN_LINE_WIDTH=10

+1_5V_AGP_NECK

VOLTAGE=1.2V

MIN_LINE_WIDTH=10

GPU_VCORE_NECK

VOLTAGE=2.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+2_5V_MARVELL_AVDD

VOLTAGE=1.0V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+1_0V_MARVELL

MIN_LINE_WIDTH=30 MIN_NECK_WIDTH=10

VOLTAGE=1.8V

1_8V_SW_F

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VOLTAGE=14V

1778_VIN

MIN_LINE_WIDTH=10

VOLTAGE=0V

VCORE_GNDA

VOLTAGE=1.25V

MIN_LINE_WIDTH=10

INT_AGP_VREF

ENET_CTAP_CHGND

MIN_NECK_WIDTH=12MIN_LINE_WIDTH=25

VOLTAGE=0V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VOLTAGE=2.5V

2_5V_DH

MIN_LINE_WIDTH=10

VOLTAGE=0V

1772_GND

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=5V

2_5V_BST

VOLTAGE=1.5V

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=15

+1_5V_INTREPID_PLL1

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=14V

1625_VSW

MIN_LINE_WIDTH=10

VOLTAGE=24V

1625_VIN

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=5V

2_5V_BOOST

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=50

VOLTAGE=2.5V

2_5V_LX_F

VOLTAGE=1.5V

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=15

+1_5V_INTREPID_PLL6

VOLTAGE=1.5V

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=10

+1_5V_INTREPID_PLL4

VOLTAGE=1.5V

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=15

+1_5V_INTREPID_PLL7

MIN_LINE_WIDTH=10

VOLTAGE=14V

+PBUS_JUMPER

MIN_LINE_WIDTH=10

VOLTAGE=5V

1625_EXTVCC

MIN_LINE_WIDTH=10

VOLTAGE=5V

1625_INTVCC

MIN_LINE_WIDTH=10

VOLTAGE=0V

1625_SGND

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=1.2V

1V20_REF

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=10

VOLTAGE=5V

3707_INTVCC

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=5V

5V_SW

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=3.3V

3V_SW

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_MAIN_JUMPER

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=50

VOLTAGE=1.5V

1_5V_LX

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=50

VOLTAGE=1.5V

1_5V_LX_F

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=5V

1_5V_BST

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=5V

1_5V_BOOST

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VOLTAGE=1.5V

1_5V_DH

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VOLTAGE=1.5V

1_5V_DL

MIN_LINE_WIDTH=8

1_5V_ILIM

MIN_LINE_WIDTH=8

MAX1715_TON

VOLTAGE=2.0V

MIN_LINE_WIDTH=8

MAX1715_REF

VOLTAGE=5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

MAX1715_VCC

VOLTAGE=0V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=30

MAX1715_GND

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VCORE_DH

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+HD_LOGIC_SLEEP

MIN_LINE_WIDTH=10

VOLTAGE=3.3V

+3V_PMU_ESR

MIN_LINE_WIDTH=10

VOLTAGE=3.3V

+3V_PMU_AVCC

VOLTAGE=12.8V

MIN_LINE_WIDTH=100

MIN_NECK_WIDTH=12

FW_VDD_ON

VOLTAGE=0V

MIN_LINE_WIDTH=100

MIN_NECK_WIDTH=12

FW_VGND1

VOLTAGE=0V

MIN_LINE_WIDTH=100

MIN_NECK_WIDTH=12

FW_VGND0

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_PLL500VDD

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_INV_SW

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_INV_UF_SW

VOLTAGE=5V

MIN_LINE_WIDTH=8

VCORE_TON

VOLTAGE=1.8V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+1_8V_GPU_TP_PLL

MIN_LINE_WIDTH=10

VOLTAGE=24V

+ADAPTER_OR_BATT

MIN_LINE_WIDTH=8

VCORE_ILIM

MIN_LINE_WIDTH=8

VOLTAGE=1.4V

VCORE_FB

VOLTAGE=5V

MIN_LINE_WIDTH=15 MIN_NECK_WIDTH=10

VCORE_BOOST

VOLTAGE=0V

MIN_LINE_WIDTH=8

UIDE_REF

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

VOLTAGE=3.3V

+VCC_CBUS_SW

VOLTAGE=1.2V

MIN_LINE_WIDTH=30 MIN_NECK_WIDTH=10

GPU_VCORE

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_GPU

VOLTAGE=3V

MIN_LINE_WIDTH=10

+3V_SLEEP_NECK

VOLTAGE=1.8V

MIN_LINE_WIDTH=10

+1_8V_PVDD_NECK

VOLTAGE=1.5V

MIN_LINE_WIDTH=10

+GPU_VDD15_NECK

VOLTAGE=2.5V

MIN_LINE_WIDTH=10

+2_5V_SLEEP_NECK2

VOLTAGE=1.8V

MIN_LINE_WIDTH=10

+1_8V_SLEEP_NECK

VOLTAGE=1.5V

MIN_LINE_WIDTH=10

+1_5V_SLEEP_NECK

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_PLL400VDD

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_PLLVDD

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_DVDD_PORT1

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_DVDD_TX0

MIN_LINE_WIDTH=30 MIN_NECK_WIDTH=10

VOLTAGE=1.8V

1_8V_SW

MIN_LINE_WIDTH=8

1778_VFB

MIN_LINE_WIDTH=8

VOLTAGE=0V

VCORE_GNDDIV

MIN_LINE_WIDTH=8

VOLTAGE=1.4V

VCORE_SNS

MIN_LINE_WIDTH=8

VOLTAGE=1.5V

1_5V_FB

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VOLTAGE=2.5V

2_5V_DL

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=3.3V

3V_RSNS

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_MAIN_JUMPER

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

VOLTAGE=5V

5V_RSNS

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=24V

+24V_PBUS

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=12.6V

+BATT_24V_FUSE

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=12

VOLTAGE=3.3V

+3V_LCD

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_LCD_SW

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_FW_AVDD

VOLTAGE=33V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_VP1

VOLTAGE=12.8V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_SW

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_DVDD_RX0

VOLTAGE=1.95V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+1_95V_FW_DVDD

VOLTAGE=12.8V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_PBUS

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+3V_NEC_VDD

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

NEC_AVDD

VOLTAGE=33V

MIN_NECK_WIDTH=12MIN_LINE_WIDTH=40

LM2594_IN

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_FW_AVDD_PORT0

VOLTAGE=1.25V

MIN_LINE_WIDTH=10

DDR_VREF

VOLTAGE=1.5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

+1_5V_INTREPID_PLL

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=10

VOLTAGE=1.5V

+1_5V_INTREPID_PLL3

VOLTAGE=1.5V

MIN_LINE_WIDTH=15

MIN_NECK_WIDTH=6

+1_5V_INTREPID_PLL2

MIN_LINE_WIDTH=10

VOLTAGE=0V

3707_SGND

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=50

VOLTAGE=2.5V

2_5V_LX

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

LTC1962_INT_VIN

VOLTAGE=1.8V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

MAXBUS_SLEEP

MIN_LINE_WIDTH=10

VOLTAGE=24V

+ADAPTER_ILIM

MIN_LINE_WIDTH=10

VOLTAGE=5.4V

1772_DLOV

MIN_LINE_WIDTH=10

VOLTAGE=5.4V

1772_LDO

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=10

VOLTAGE=12.6V

+BATT_VSNS

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_SLEEP

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

+3V_MAIN

MIN_LINE_WIDTH=25

MIN_NECK_WIDTH=10

VOLTAGE=5V

+5V_SLEEP

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+3V_AIRPORT

VOLTAGE=5V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+VPP_CBUS_SW

MIN_LINE_WIDTH=8

2_5V_ILIM

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VOLTAGE=5V

1778_BST

MIN_LINE_WIDTH=8

1778_ITH

MIN_LINE_WIDTH=8

1778_FCB

MIN_LINE_WIDTH=20 MIN_NECK_WIDTH=10

VOLTAGE=3.3V

LTC3411_VCC

MIN_LINE_WIDTH=30 MIN_NECK_WIDTH=10

VOLTAGE=0V

LTC3411_GND

MIN_LINE_WIDTH=8

LTC3411_ITH_RC

MIN_LINE_WIDTH=8

LTC3411_ITH

MIN_LINE_WIDTH=8

LTC3411_SYNC

MIN_LINE_WIDTH=8

LTC3411_SHDN

VOLTAGE=3.3V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+3V_MAIN_SSCG

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

MIN_NECK_WIDTH=10

+3V_MAIN_LMU

MIN_LINE_WIDTH=8

VCORE_VGATE

MIN_LINE_WIDTH=8

VCORE_TIME

MIN_LINE_WIDTH=8

VCORE_CC

MIN_LINE_WIDTH=8

VCORE_REF

VOLTAGE=5V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=15

VCORE_BST

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

VCORE_DL

MIN_LINE_WIDTH=8

MAX1715_SKIP

MIN_LINE_WIDTH=25

VOLTAGE=3.3V

MIN_NECK_WIDTH=10

+3V_SLEEP_PCCARD

MIN_LINE_WIDTH=30

VOLTAGE=0V

VCORE_GND

VOLTAGE=1.2V

MIN_LINE_WIDTH=50 MIN_NECK_WIDTH=10

GPU_VCORE_SW_F

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=20

1778_BG

MIN_LINE_WIDTH=30

VOLTAGE=0V

MIN_NECK_WIDTH=10

1778_GND

MIN_NECK_WIDTH=10

VOLTAGE=5V

MIN_LINE_WIDTH=20

1778_VCC

MIN_NECK_WIDTH=6

MIN_LINE_WIDTH=15

VOLTAGE=1.5V

+1_5V_INTREPID_PLL5

VOLTAGE=1.8V

MIN_LINE_WIDTH=15 MIN_NECK_WIDTH=10

+1_8V_GPU_PLL

VOLTAGE=3.3V

MIN_NECK_WIDTH=10MIN_LINE_WIDTH=25

+3V_INTREPID_USB

VOLTAGE=2.5V

MIN_LINE_WIDTH=25 MIN_NECK_WIDTH=10

+2_5V_INTREPID

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=1.8V

+1_8V_SLEEP

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=1.5V

+1_5V_MAIN

MIN_LINE_WIDTH=25

VOLTAGE=1.5V

MIN_NECK_WIDTH=10

+1_5V_SLEEP

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=1.5V

+1_5V_SLEEP_VIN

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=50

VOLTAGE=24V

+ADAPTER_SW

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=12.6V

+BATT_14V_FUSE

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=12.6V

+BATT_RSNS

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_HD_SLEEP

MIN_LINE_WIDTH=10

VOLTAGE=3.3V

+3V_HALL_EFFECT

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=15

VOLTAGE=5V

+5V_DDC_SLEEP_UF

MIN_LINE_WIDTH=25

VOLTAGE=0V

TV_GND1

MIN_NECK_WIDTH=10

MIN_LINE_WIDTH=25

VOLTAGE=5V

+5V_MAIN_AUD

MIN_LINE_WIDTH=50

VOLTAGE=0V

AUD_GND

VOLTAGE=33V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_VP0

VOLTAGE=33V

MIN_NECK_WIDTH=12

MIN_LINE_WIDTH=100

+FW_PWR1

35 35

19 22

22 22

19 19

28 28

33 33

33 32

36 36

21 36

17 17

36 36

IN IN

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

FUNC_DIST IS SIMILARLY USED TO DEFINE MAXIMUM DISTANCE FROM A CONNECTOR.

LISTS THE NUMBER OF TEST POINTS ON THAT NET AND WITHIN THAT GROUP/CONNECTOR.

FUNC_TEST IS ONLY PROPERTY USED BY THE TOOLS. FUNC_QTY IS FOR REFERENCE AND

PROBES ARE ON BOTTOM SIDE. MINIMUM PAD/HOLE SIZE IS 25 MIL.

FUNCTIONAL TEST POINTS

SCAN/TEST

BATTERY

LIO

S-VIDEO

INVERTER

USB

RT. USB WIRELESS

OPTICAL

TRACKPAD

SERIAL

FANS

ETHERNET

FIREWIRE

LMU/ALS

SIG_NAME

DVI

CARDBUS

PWR/GND

INT I2C

FUNC_DIST

GROUP

SIG_NAME

FUNC_TEST

SIG_NAME

GROUP

FUNC_QTY

FUNC_DIST FUNC_DIST

FUNC_QTY

FUNC_TEST

GROUP

FUNC_TEST

FUNC_QTY

KEYBOARD

LVDS

MODEM/

REMOVE CONSTRAIN FOR UNUSED FUNCTIONAL TP

(CONT.)

MISC.

FIREWIRE

DC PWR IN

(100 MIL PROBE PREFERRED) (100 MIL PROBE PREFERRED)

(100 MIL PROBE PREFERRED)

I10

I100

I101

I102

I103

I104

I105

I106

I107

I108

I109

I11

I110

I111

I112

I113

I114

I115

I116

I117

I118

I119

I12

I120

I121

I123

I124

I125

I126

I127

I128 I129

I13

I130

I131

I132

I133

I134

I135

I136

I139

I14

I140

I141

I142

I143

I144

I145

I146

I147

I148

I149

I15

I150

I151

I152

I153

I154

I155

I156

I157

I158

I159

I16

I160

I161

I162

I163

I164

I166

I167

I168 I169

I17

I170

I171

I173

I174

I176

I177

I178

I179

I18

I180

I181

I182

I183

I184

I185

I186 I187

I188

I189

I19

I192

I195 I196

I197

I198

I20

CHGND1

I21

I215 I216

I217

I218

I219 I220

I221

I222

I223

I224

I225 I226

I229

I230

I24

CHGND4

I248

I249

I25

I250

I251

I252

I253

I254 I255

I256

I257 I258

I259

I26

I260

I261 I262 I263 I264

I27

I35

I36

I39

I40

I41

I42

I43

I44

I45

I46

I47 I48 I49

I51

I52

I53

I54

I55

I56

I57

I58 I59

I60 I62

I66

I67

I68

I70

I71

I72

I73 I74

I75

I76

I77

I78

I79

I80

I81

I82

I83

I84 I85 I86

I87 I88 I89

I90

I94

I95

I96

I97 I98 I99

051-6680

TRUE

1000

2000

TRUE

TRUE 1000

1000

TRUE

1000

TRUE

1000

TRUE

2000

TRUE TRUE

1000

TRUE

3000

+5V_TPAD_SLEEP

TRUE

3000

TPAD_F_TXD

2000

TRUE

EIDE_OPTICAL_CS1_L

2000

TRUE

EIDE_OPTICAL_RST_L

2000

TRUE

EIDE_OPTICAL_DATA<0..15>

TRUE

2000

+3V_AIRPORT

1000

TRUE

AIRPORT_CLKRUN_L

1000

TRUE

RF_DISABLE_L

2000

TRUE

EIDE_OPTICAL_DMA_RQ

2000

TRUE

EIDE_OPTICAL_READ_L

TRUE

2000

EIDE_OPTICAL_DMAACK_L

TRUE

2000

EIDE_OPTICAL_ADDR<0..2>

TRUE

1000

ROM_RW_L

1000

TRUE

AIRPORT_PCI_INT_L

1000

TRUE

AIRPORT_PCI_REQ_L

1000

TRUE

PCI_STOP_L

1000

TRUE

PCI_DEVSEL_L

1000

PCI_IRDY_L

TRUE

PCI_AD<0..31>

TRUE

1000

USB_TPAD_P

TRUE

USB_TPAD_N

TRUE

BT_USB_DP

TRUE

1000

TRUE

PCI_PAR

1000

TRUE

CLK33M_AIRPORT

1000

TRUE

ROM_ONBOARD_CS_L

TRUE

3000

TPAD_F_RXD

TRUE

2000

EIDE_OPTICAL_IOCHRDY

TRUE

ROM_CS_L

1000

TRUE

ROM_OE_L

1000

TRUE

PMU_PME_L

1000

TRUE

MAIN_RESET_L

1000

PCI_TRDY_L

TRUE

NEC_RUSB_OCI_UF

TRUE

NEC_RUSB_PPON

PMU_SLEEP_LED

TRUE TRUE

PMU_LID_CLOSED_L LMU_DETECT

TRUE

1000

TRUE

AIRPORT_PCI_GNT_L

1000

TRUE

FW_VGND

ST7_SLEEP_LED_H

TRUE

NEC_USB_DAP

TRUE

NEC_USB_DBM

TRUE

BT_USB_DM

TRUE

NEC_USB_DAM

TRUE

COMM_TRXC

4000

TRUE

INT_I2C_CLK1

TRUE

+3V_PMU_RESET

TRUE

MMM_ACC_X_AXIS

TRUE

MMM_ACC_Z_AXIS

TRUE

+BATT_ISNS_P

TRUE

MMM_ACC_Y_AXIS

1000

TRUE

VGA_R

TRUE

2000

CBUS_DET_2_L

2000

TRUE

+5V_DDC_SLEEP

2000

TRUE

+5V_INV_SW

2000

TRUE

+14V_INV

3000

TRUE

SOFT_PWR_ON_L

COMM_SHUTDOWN

TRUE

4000

COMM_RING_DET_L

TRUE

4000

TRUE

COMM_GPIO_L

4000

COMM_TXD_L

TRUE

2000

TRUE

EIDE_OPTICAL_CS0_L

4000

TRUE

COMM_DTR_L

KBD_ID

TRUE

3000

KBD_JIS

TRUE

3000

KBD_CAPSLOCK_LED

TRUE

3000

KBD_NUMLOCK_LED

TRUE

3000

+FAN_PWR

1000

TRUE

TMDS_CONN_CLKN

TRUE

+3V_MAIN

1000

TRUE

DVI_DDC_CLK_UF

TRUE

2000

+3V_LCD

TRUE

2000

+3V_SLEEP

1000

TRUE

LVDS_DDC_DATA

TRUE

1000

INT_I2S0_SND_LRCLK

1000

TMDS_CONN_CLKP

TRUE

VGA_B

1000 1000

TRUE

VGA_HSYNC

1000

TRUE

VGA_VSYNC

1000

TRUE

SND_AMP_MUTE

1000

TRUE

SND_HP_SENSE_L

1000

TRUE

INT_I2C_CLK2

TRUE

1000

ADAPTER_DET

TRUE

1000

SND_LIN_SENSE_L

1000

TRUE

INT_I2S0_SND_FROM_ADC

1000

TRUE

SND_HP_MUTE_L

TRUE

1000

INT_I2S0_SND_MCLK

TRUE

SLEEP

TRUE

SLEEP_LED

1000

TRUE

+FW_VP1

1000

+ADAPTER

TRUE

1000

FW_TPI1N

TRUE

1000

FW_TPI1P

MMM_ACC_SELFTEST

TRUE

PMU_KB_RESET_L

TRUE

PMU_CPU_HRESET_L

TRUE

BB_RESET_L

NEC_USB_DBP

TRUE

1000

PCI_FRAME_L

TRUE

1000

MDI_P<0..3>

TRUE

1000

MDI_M<0..3>

FW_TPO0P

TRUE

1000

FW_TPI0N

TRUE

1000

NEC_LUSB_PPON

TRUE

1000

+5V_MAIN

TRUE

2000

+5V_SLEEP

TRUE

3000

1000

TRUE

INT_I2C_DATA2

TRUE

1000

SND_HW_RESET_L

TRUE

1000

CHARGE_LED_L

+3V_SLEEP

TRUE

2000

3000

FAN2_GND

TRUE

FW_TPO0N

TRUE

1000

FW_TPI0P

TRUE

1000

TRUE

1000

FW_TPO0R

+FW_VP0

TRUE

1000

FW_VGND

TRUE

1000

TRUE

1000

NEC_LUSB_OCI_UF

TRUE

JTAG_ASIC_TMS

TRUE

CPU_SRESET_L

TRUE

INT_TST_MONIN_PD

TRUE

INT_I2C_DATA1

TRUE

JTAG_CPU_TMS

TRUE

1000

FW_TPO1P

TRUE

CPU_CHKSTP_OUT_L

FW_TPO1N

TRUE

1000

COMM_RESET_L

TRUE

4000

TRUE

COMM_RXD

TRUE

CPU_VCORE_SLEEP

TMDS_DP<0..2>

TMDS_DN<0..2>

LID_CLOSED_L

+3V_HALL_EFFECT

TRUE

+PWR_SUPERCAP

TRUE

+PPBATT_ISNS_N

2000

TRUE

EIDE_OPTICAL_INT

2000

TRUE

EIDE_OPTICAL_WR_L

COMM_RTS_L

TRUE

4000

3000

KBD_INTL

TRUE

KBD_CONTROL_L

3000

KBD_OPTION_L

3000

KBD_COMMAND_L

3000

KBD_FUNCTION_L

3000

TRUE

KBD_Y<0..7>

KBD_SHIFT_L

3000

FAN1_GND

TRUE

3000

TRUE

PMU_BATT_DET_L

1000

TRUE

+BATT_POS

3000

KBD_X<0..9>

TRUE

FAN2_TACH

3000

FAN1_TACH

TRUE

3000

1000

TRUE

BATT_DATA

1000

BATT_CLK

TRUE

BATT_NEG

1000

+1_8V_MAIN

TRUE

1000

DVI_DDC_DATA_UF

1000

TRUE

DVI_HPD_UF

1000

LVDS_L0N

1000

LVDS_L1N

1000

LVDS_L1P

1000

TRUE

LVDS_DDC_CLK

TRUE

2000

BRIGHT_PWM

TRUE

2000

INV_GND

TRUE

TV_C

2000

TRUE

TV_GND1

1000

TRUE

INT_I2S0_SND_SCLK

1000

TRUE

INT_I2S0_SND_TO_DAC

2000

TV_GND2

TRUE

2000

TRUE

TV_COMP

2000

TRUE

TV_Y

TRUE

+5V_SLEEP

TRUE

+2_5V_MAIN

TRUE

1778_VFB

TRUE

GPU_VCORE

TRUE

+PBUS

TRUE

INT_I2C_DATA0

TRUE

INT_JTAG_TEI

TRUE

INT_TST_MONOUT_TP

TRUE

CPU_HRESET_L

TRUE

JTAG_ASIC_TRST_L

TRUE

JTAG_ASIC_TCK

TRUE

JTAG_ASIC_TDO_TP

TRUE

JTAG_ASIC_TDI

TRUE

JTAG_CPU_TDI

TRUE

JTAG_CPU_TDO_TP

TRUE

JTAG_CPU_TCK

TRUE

JTAG_CPU_TRST_L

TRUE

INT_TST_PLLEN_PD

TRUE

INT_I2C_CLK0

TRUE

+24V_PBUS

TRUE

VCORE_FB

+5V_MAIN

TRUE

+3V_PMU

TRUE

2000

CBUS_DET_1_L

1000

TRUE

VGA_G

1000

LVDS_L0P

1000

LVDS_L2N

1000

LVDS_L2P

1000

TRUE

CLKLVDS_LN

1000

TRUE

CLKLVDS_LP

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

09/01/04 - 1. CHANGE ALL FONTS INTO SMALL ONES

4. CHANGE 2 CAPS (C233, C803) TO IMPROVE FEEDBACK PROTECTION AND PBUS CURRENT LIMIT CIRCUIT

08/16/04 - 1. MODIFY CPU_AVDD SETTING

5. MODIFY CPU_VCORE VID AND CPU_VCORE SETTING

3. ADD 2 RESISTORS (NO STUFF) BETWEEN FAN_PWM AND FAN_PWM_L OF FAN1 AND FAN2

2. MODIFY CPU_AVDD SEETING AGAIN

08/13/04 - 1. CHANGE EXT TMDS SWING RESISTORS TO 510 OHM (R869, R876), REMOVE SI_RESET PULL HIGH

08/20/04 - 1. ADD TRACKPAD POWER +5V_TPAD CONTROL CIRCUIT

EVT2 RELEASE

REVISION HISTORY

09/03/04 - 1. ADD MMM CIRCUIT, ARRANGE 2 INTREPID GPIOS FOR MM_FFIRQ_L, MM_SIRQ_L AND PULL UP RESISTORS R801, R802

2. ADD R803 BETWEEN DP6 AND DCDC_IN

3. CHANGE INT TMDS DAMPING RESISTERS (R760-R767) TO 0 OHM

4. CHANGE TRACKPAD CONNECTOR J10 AND PIN OUT 09/06/04 - 1. ADD EMI SOLUTION L12

2. ADD PULL UP AND PULL DOWN RESISTORS FOR MMM SENSOR

09/13/04 - 1. ADD CURRENT LIMITER R821 BETWEEN PMU(U29) AND U33

09/10/04 - 1. MODIFY FIREWIRE PORT0 POWER CIRCUIT

09/07/04 - 1. CHANGE TRACKPAD CONNECTOR PIN OUT

09/27/04 - 1. ADD ST MMM SENSOR CIRCUIT

DVT RELEASE

2. CHANGE RGB SIGNAL INPEDENCE (R341, R342, R346, R456, R458, R462)

09/02/04 - 1. MODIFT CPU_VCORE VID AND CPU_VCORE SEETING AGAIN

3. ADD R804 AND SUPERCAP C692 ON +4_6V_BU

09/08/04 - 1. ADD BATTERY CURRENT SENSOR CIRCUIT

2. ADD NET FROM BATTERY CURRENT SENSOR CIRCUIT TO PMU

09/09/04 - 1. ADD EMI SOLUTION R816; ADD MMM RESET CIRCUIT

PVT RELEASE

12/17/04 - 1. REMOVE ALL OPEN JUMPER 12/17/04 - 2. SCHEMATIC RELEASE FOR PRODUCTION

10/14/04 - 2. ADD FIREWIRE POWER PROTECT CIRCUIT 10/15/04 - 3. CHANGE EXT_TMDS TERMINAL RESISTERS AND V SWINING RESISTOR 10/22/04 - 4. CHANGE FAN CONTROLLER FROM ADT7460 TO ADT7467 11/02/04 - 5. CHANGE BBANG IC TO ATTINY2313

42 46

051-6680

8 7

2 1

7 6

*** Signal Cross-Reference for the entire design ***

+1_0V_MARVELL 28D2< 40B3> +1_5V_AGP 12B5< 12D1< 12D4< 15D6< 16C8<

19C6< 19D6< 21A8< 21B4<> 21D5<>

22B8< 22D6< 40C3> +1_5V_AGP_GPU 22C5< 40C3> +1_5V_AGP_NECK 21B4<> 40B3> +1_5V_GPU_VDD15 21D3< 40C3> +1_5V_INTREPID_PLL 8D6< 12D4< 12D8< 14D6<> 40D3> +1_5V_INTREPID_PLL1 14C3< 40D3> +1_5V_INTREPID_PLL2 14D3< 40D3> +1_5V_INTREPID_PLL3 14D3< 40D3> +1_5V_INTREPID_PLL4 14D3< 40D3> +1_5V_INTREPID_PLL5 12D3< 40D3> +1_5V_INTREPID_PLL6 12D6< 40D3> +1_5V_INTREPID_PLL7 8D5< 40D3> +1_5V_INTREPID_PLL8 14D3< 40C3> +1_5V_LDO 40D6> +1_5V_MAIN 40D6> +1_5V_SLEEP 40D6> +1_5V_SLEEP_NECK 36D2<> 40B3> +1_5V_SLEEP_VIN 40D6> +1_8V_ATI_PVDD 21C5<> 22B6< 22B6< 22D6<> 40C3> +1_8V_ATI_TPVDD 22D2<> 40B3> +1_8V_GPU 19A8< 20A6< 21D7< 22A2< 22A6<

22B1< 22B6< 22C8< 22D6< 22D8< 40C3> +1_8V_GPU_AVDD 22D5< 40B3> +1_8V_GPU_AVDDQ 22D4< 22D7< 40B3> +1_8V_GPU_DVO 22B2< +1_8V_GPU_MEMPLL 22B5< 40B3> +1_8V_GPU_PLL 22D5< 40C3> +1_8V_GPU_PNLIO 22A5< 40B3> +1_8V_GPU_PNLPLL 22B5< 40B3> +1_8V_GPU_TP_PLL 22B5< 22D1< 40B3> +1_8V_GPU_VDDDI 22C7< 22D4< 40C3> +1_8V_MAIN 40D6> 41C6> +1_8V_PVDD_NECK 21B5<> 40B3> +1_8V_SLEEP 40D6> +1_8V_SLEEP_NECK 36D2<> 40B3> +1_95V_FW_DVDD 29C4< 29C7<> 29D5< 40A3> +1_95V_FW_DVDD_PORT1 29D6< 40A3> +1_95V_FW_DVDD_RX0 29C5< 40A3> +1_95V_FW_DVDD_TX0 29C5< 40A3> +1_95V_FW_PLL400VDD 29C4< 40A3> +1_95V_FW_PLL500VDD 29D4< 40A3> +1_95V_FW_PLLVDD 29D4< 29D6<> 40A3> +2_5V_CG_MAIN 14C6< +2_5V_GPU 22A7<> 40C3> +2_5V_GPU_A2VDD 22D4< 22D7< 40B3> +2_5V_GPU_MCLK 22C7< 22D4< 40B3> +2_5V_GPU_MEMCORE 22C5< 40C3> +2_5V_GPU_PNLIO 22A5< 40C3> +2_5V_INTREPID 9A7< 10D3< 10D5< 10D6< 10D8< 15D6<

16B8< 40D3> +2_5V_MAIN 40D6> 41C6> +2_5V_MARVELL 28B8< 28C4< 40B3> +2_5V_MARVELL_AVDD 28C4< 40B3> +2_5V_MARVELL_CONN 28B3<> +2_5V_REG 30A6< +2_5V_REG_F 30A7<> +2_5V_SLEEP 40D6> +2_5V_SLEEP_NECK1 21C4<> 40B3> +2_5V_SLEEP_NECK2 36D2<> 40B3> +3V_AIRPORT 40C3> 41C3> +3V_ATI_OSC_SLEEP 19B2< 40B3> +3V_ATI_SS 19A3< 40B3> +3V_CG_PLL_MAIN 14C6< +3V_FW 29A3< 29D7<> 30B7<> 30D5< 40A3> +3V_FW_AVDD 29C6< 40A3> +3V_FW_AVDD_PORT0 29C6< 40A3> +3V_FW_AVDD_PORT1 29C6< 40A3> +3V_FW_AVDD_PORT2 29D6< 40A3> +3V_FW_ESD 30A5< 30B4<> 30D3<> +3V_FW_ESD_ILIM 30D4< +3V_FW_ESD_R 30A6< +3V_FW_UF 29D7<> 40A3> +3V_GPU 12D1< 19B8< 19C6< 19C8< 19D6<

21C4< 21C5< 21C7< 21D7< 22A6< 22B1<

40C3> +3V_GPU_FLT 22B2< 40C3> +3V_HALL_EFFECT 24B2<> 40B6> 41C1> +3V_INTREPID_USB 14C3< 40D3> +3V_LCD 23B4<> 40B6> 41B6> +3V_LCD_SW 23B4<> 40B6> +3V_MAIN 24B8<> 40D6> 41C6> +3V_MAIN_AUD 27C6<> 34C1<> 40B6> +3V_MAIN_JUMPER 34D2<> 40D1> +3V_MAIN_LMU 24D7<> 40A1> +3V_MAIN_SSCG 40A1> +3V_NEC_VDD 17B3< 17D7< 17D7< 40A3> +3V_PMU 40D6> 41C6> +3V_PMU_AVCC 27B1< 31B6< 31D5<> 40C6> +3V_PMU_ESR 33A2< 40C6> +3V_PMU_RESET 31C7< 35A4<> 41C1> +3V_SENSOR 24B4<> +3V_SLEEP 40D6> 41A6> 41B6> +3V_SLEEP_NECK 36D1<> 40B3> +3V_SLEEP_PCCARD 18D7< 40C3> +3V_SLP_OK_L 34B4<> +3V_SLP_ON 34A5<> +4_6V_BU 33B3<> 34B7< 40C6> +4_85V_ESR 33A4< 40C6> +4_85V_RAW 31A4< 33B4<> 40C6> +5V_DDC_SLEEP 23D3<> 23D5<> 40B6> 41B6> +5V_DDC_SLEEP_UF 23D6< 40B6> +5V_HDD 26D1<> +5V_HD_SLEEP 26D1<> 34A7<> 40C6> +5V_INV_SW 23B2<> 40B6> 41A6> +5V_INV_UF_SW 23B2<> 40B6> +5V_MAIN 40D6> 41A6> 41C6> +5V_MAIN_AUD 27C6<> 34C8<> 40B6> +5V_MAIN_JUMPER 34D8<> 40D1> +5V_SLEEP 40D6> 41A6> 41C6> +5V_SLEEP_LMU 24C6<> 24C7<> +5V_SLEEP_OPT 26B5<> 40A1> +5V_TPAD 24B5<> +5V_TPAD_FB 24B4<> +5V_TPAD_SLEEP 40B6> 41B3> +14V_INV 23B2<> 40B6> 41B6> +24V_PBUS 40D6> 41C6> +ADAPTER 32D8<> 33A7< 40C6> 41D1> +ADAPTER_ILIM 33A6<> 40C6> +ADAPTER_OR_BATT 33A5<> 40C6> +ADAPTER_SENSE 32D4<> 40C6> +ADAPTER_SW 32D5<> 40C6> 40C6> +BATT 40D6> +BATT_14V_FUSE 32D1<> 40C6> +BATT_24V_FUSE 32B1< 32D2<> 40C6> +BATT_ISNS_P 25A5<> 41C1> +BATT_POS 32A4<> 40C6> 41A3> +BATT_RSNS 32B2< 40C6> +BATT_VSNS 32A4< 40C6> +FAN_PWR 27A3< 27A4< 40B6> 41A3> +FW_AMP_SENSE 40A3> +FW_PBUS 30D7<> 40A3> +FW_PWR1 30B5< 40A3> +FW_PWR_CTRL 30A7<> +FW_PWR_OR 29B8< 29D8<> 30D5<> 40A3> +FW_PWR_OR_F 30B7<> +FW_PWR_OR_GATE 30B8<> +FW_PWR_OR_GATE_L 30A8< +FW_SW 30D5<> 40A3> +FW_VP0 30C1<> 40A3> 41A3> +FW_VP1 30A3<> 40A3> 41D1> +GPU_VDD15_NECK 21B5<> 40B3> +GPU_VDD15_UF 21B5<> 21D4<> 40B3> +HD_LOGIC_SLEEP 26C2<> 40C6> +PBUS 40D6> 41C6> +PBUS_JUMPER 33C3<> 40D1> +PPBATT_ISNS_N 25A4<> 41C1> +PWR_SUPERCAP 33A4< 41C1> +VCC_CBUS_SW 18B1< 18B2< 18D2<> 40C3> +VPP_CBUS_SW 18B1< 18B2< 18D2<> 40C3> 1V20_REF 32C7< 33C8< 40D1> 1V65_REF 32A5< 1_5V_BOOST 36C6<> 40C1> 1_5V_BST 36C5<> 40C1> 1_5V_DH 36C5<> 40C1> 1_5V_DL 36B5<> 40C1> 1_5V_FB 36B5< 36B7< 40C1> 1_5V_ILIM 36C5<> 40C1> 1_5V_LX 36B5<> 40C1> 1_5V_LX_F 36B7<> 36C5> 40C1> 1_5V_SLEEP_EN_L 36C7<> 36D7<> 1_8V_PVDD_STD 22D6< 1_8V_SLEEP_PWREN_L 36A3<> 1_8V_SW 36A5<> 40A1>

1_8V_SW_F 36A4<> 40A1> 1_8V_TPVDD_STD 22D1< 1_8V_VFB 36A5<> 40A1> 2_5V_BOOST 36C4<> 40D1> 2_5V_BST 36C4<> 40D1> 2_5V_DH 36C3<> 40D1> 2_5V_DL 36B3<> 40C1> 2_5V_FB 36B4< 2_5V_ILIM 36C5<> 40C1> 2_5V_LX 36B3<> 40D1> 2_5V_LX_F 36B2<> 36C4<> 40D1> 2_5V_SLEEP_PWREN_L 36C2<> 3V_5V_OK 24A6< 34B4<> 36A8< 36D6< 3V_5V_OK_G 24A6< 3V_5V_OK_L 24B5<> 3V_BG 34C4<> 3V_BOOST 34C4<> 3V_BOOST_ESR 34D3<> 3V_ITH 34C4<> 3V_ITH_RC 34C3< 3V_PMU_VTAP 33B3< 3V_RSNS 34D2< 40D1> 3V_RUNSS 34C4< 3V_SLEEP_PWREN_L 34B3<> 3V_SNSM 34C4< 39A2> 3V_SNSP 34C4< 39A2> 3V_SW 34C4<> 40D1> 3V_TG 34D4<> 3V_VOSNS 34C4<> 5V_BG 34C5<> 5V_BOOST 34C5<> 5V_BOOST_ESR 34D6<> 5V_HD_PWREN 34A8<> 5V_ITH 34C5<> 5V_ITH_RC 34C6< 5V_RSNS 34D7< 40D1> 5V_RUNSS 34C5< 5V_SLEEP_PWREN 34A8<> 5V_SNSM 34C5< 39A2> 5V_SNSP 34C5< 39A2> 5V_SW 34C5<> 40D1> 5V_TG 34C5<> 5V_VOSNS 34C5<> 1625_BG 33C5<> 1625_BST 33C5< 1625_BST_ESR 33C5<> 1625_COMP 32D2< 33C6< 1625_DIV 33C8< 1625_ENABLE 33D7<> 1625_ENABLE_L 33D6<> 1625_EXTVCC 33D5<> 40D1> 1625_FCB 33C6< 1625_INTVCC 33C5<> 40D1> 1625_RUNSS 33C6< 1625_SGND 33B7<> 40D1> 1625_TG 33C5<> 1625_VFB 33B5<> 1625_VIN 33C6< 40D1> 1625_VSW 33C4<> 40D1> 1772_ACIN 32B5< 1772_ACOK_L 32B5<> 32C4<> 1772_BST 32B4<> 1772_BST_ESR 32C3< 1772_CCI 32B5<> 1772_CCS 32B5< 1772_CCV 32B5<> 1772_CCV_RC 32B5< 1772_CELLS 32B4< 1772_CLS 32A4< 1772_CSIN 32B4<> 39A2> 1772_CSIP 32B4<> 39A2> 1772_CSSN 32C5< 39A2> 1772_CSSP 32C5< 39A2> 1772_DCIN 32B5< 40C6> 1772_DHI 32B4<> 1772_DLO 32B4<> 1772_DLOV 32B4<> 40C6> 1772_GND 32A5<> 40C6> 1772_ICHG 32B5<> 1772_ICTL 32B5<> 1772_IINP 32B5< 1772_LDO 32C4<> 40C6> 1772_LX 32B4<> 40C6> 1772_REF 32B5<> 1772_VCTL 32B5< 1778_BG 21A5<> 40B1> 1778_BST 21A5<> 40B1> 1778_BST_RC 21A5< 40B1> 1778_FCB 21A6< 40B1> 1778_GND 21A6< 21A7<> 40B1> 1778_ION 21A5< 40B1> 1778_ITH 21A6<> 40B1> 1778_ITH_RC 21A7< 40B1> 1778_SHDN_L 21A6<> 1778_TG 21A5<> 40B1> 1778_VCC 21A5< 40B1> 1778_VFB 21A2< 21A5< 40B1> 41C6> 1778_VIN 21A5< 40B1> 1778_VRNG 21A6< 40B1> 3405_MODE 28D5< 3405_VFB 28D4<> 3707_FCB 34C5< 3707_FSET 34C5< 3707_INTVCC 34D4<> 40D1> 3707_SGND 34B5<> 40D1> 3707_STBY 34C5<> A29_CLS_ADJ 32A5<> A29_CURRENT_ADJ 32C4<> A29_DETECT 31A2< 32A5<> 32C4<> A29_DET_L 31A3< A29_DET_REF 31A4< AC_DET 31A4< AC_DIV 32C7< AC_ENABLE_GATE 32D6<> AC_ENABLE_L 32C5<> AC_GTR_18V 32C3<> AC_IN 28B8<> 30C8< 31B3< 32C5<> 32C6<> AC_IN_FW_CNTL 30C7<> AC_IN_L 31A8<> 32C2<> 32C6<> AC_IN_L_RC 32C2<> ADAPTER_DET 27D8<> 31A4< 41A6> ADAPTER_I_REG 32D3<> ADT7467_ADR_ENABLE_L 27B3<> ADT7467_TACH3_TP 27B3< ADT7467_THERM_L 24B4<> 27A2<> 27B3< ADT7467_VCC 27C4< ADT7467_VCORE_MON 5C8<> 27B4< AGP8X_DET_PU 19C6<> AGP_AD<0> 12D2<> 19C7<> AGP_AD<15..0> 39D5> AGP_AD<1> 12C2<> 19C7<> AGP_AD<2> 12C2<> 19C7<> AGP_AD<3> 12C2<> 19C7<> AGP_AD<4> 12C2<> 19C7<> AGP_AD<5> 12C2<> 19C7<> AGP_AD<6> 12C2<> 19C7<> AGP_AD<7> 12C2<> 19C7<> AGP_AD<8> 12C2<> 19C7<> AGP_AD<9> 12C2<> 19C7<> AGP_AD<10> 12C2<> 19C7<> AGP_AD<11> 12C2<> 19C7<> AGP_AD<12> 12C2<> 19C7<> AGP_AD<13> 12C2<> 19C7<> AGP_AD<14> 12C2<> 19C7<> AGP_AD<15> 12C2<> 19C7<> AGP_AD<16> 12C2<> 19C7<> AGP_AD<31..16> 39D5> AGP_AD<17> 12C2<> 19C7<> AGP_AD<18> 12C2<> 19C7<> AGP_AD<19> 12C2<> 19C7<> AGP_AD<20> 12C2<> 19C7<> AGP_AD<21> 12C2<> 19C7<> AGP_AD<22> 12C2<> 19C7<> AGP_AD<23> 12C2<> 19C7<> AGP_AD<24> 12C2<> 19C7<> AGP_AD<25> 12C2<> 19C7<> AGP_AD<26> 12C2<> 19D7<> AGP_AD<27> 12B2<> 19D7<> AGP_AD<28> 12B2<> 19D7<> AGP_AD<29> 12B2<> 19D7<> AGP_AD<30> 12B2<> 19D7<> AGP_AD<31> 12B2<> 19D7<> AGP_AD_STB<0> 12A2<> 12B2< 19D6<> 39D5> AGP_AD_STB<1> 12A2<> 12B2< 19D6<> 39D5> AGP_AD_STB_L<0> 12A2<> 12B2< 19D6<> 39D5> AGP_AD_STB_L<1> 12A2<> 12A2< 19D6<> 39D5> AGP_ATI_INT_L 14B5<> 19B7<> AGP_ATI_RESET_L 19B7<

AGP_ATI_VREF 19B7< AGP_ATI_VREFG 19B7< AGP_BUSY_L 12C4<> 12D2< 19D6> AGP_CBE<0> 12B2<> 19B7<> AGP_CBE<1..0> 39D5> AGP_CBE<1> 12B2<> 19B7<> AGP_CBE<2> 12B2<> 19B7<> AGP_CBE<3..2> 39D5> AGP_CBE<3> 12B2<> 19B7<> AGP_DEVSEL_L 12B2<> 12C2< 19B7<> 39D5> AGP_FRAME_L 12B2<> 12C2< 19B7<> 39D5> AGP_GNT_L 12C2< 12D2<> 19B7< 39D5> AGP_IRDY_L 12B2<> 12C2< 19B7<> 39D5> AGP_PAR 12B2<> 19B7> 39D5> AGP_PIPE_L 12A2<> 12B2< AGP_RBF_L 12A2<> 12C2< 19C6> 39C5> AGP_REQ_L 12C2< 12D2<> 19B7<> 39D5> AGP_SBA<0> 12B2< 19C6> AGP_SBA<7..0> 39D5> AGP_SBA<1> 12B2<> 19C6> AGP_SBA<2> 12B2<> 19C6> AGP_SBA<3> 12B2<> 19C6> AGP_SBA<4> 12B2<> 19C6> AGP_SBA<5> 12B2<> 19C6> AGP_SBA<6> 12B2<> 19C6> AGP_SBA<7> 12B2<> 19C6<> AGP_SB_STB 12B2<> 12B2< 19C6<> 39D5> AGP_SB_STB_L 12A2< 12A2<> 19C6<> 39D5> AGP_ST<0> 12A2<> 19C6< AGP_ST<1> 12A2<> 19C6< AGP_ST<2> 12A2<> 19C6< AGP_STOP_L 12B2<> 12C2< 19B7<> 39D5> AGP_STP_L 19C6< AGP_SUS_STAT_L_PU 19C6< AGP_TRDY_L 12B2<> 12C2< 19B7<> 39D5> AGP_WBF_L 12A4<> 12B2< 19B7> AIRPORT_CLKRUN_L 26C6<> 41C3> AIRPORT_IDSEL 26C5<> AIRPORT_PCI_GNT_L 12D7<> 26D5<> 41C3> AIRPORT_PCI_INT_L 14B5<> 14D7< 26D5<> 41C3> AIRPORT_PCI_REQ_L 12A7< 12D7<> 26D6<> 41C3> ATI_AGP_FBSKEW<0> 21C2< 21C7<> ATI_AGP_FBSKEW<1> 21C2< 21C7<> ATI_BUS_CFG<0> 21B2< 21C7<> ATI_BUS_CFG<1> 21B2< 21C7<> ATI_BUS_CFG<2> 21B2< 21C7<> ATI_CLK27M_IN 19A1< 21B7< 37B1> ATI_CLK27M_OSC 19B2< 37B1> ATI_CLK27M_OSC_SS 19A3< 19B1< 37B1> ATI_DBI_HI_PU 19C6<> ATI_DBI_LO_PU 19C6<> ATI_DVOD<0> 20B8< 21D7<> ATI_DVOD<23..0> 38C1> ATI_DVOD<1> 20B8< 21D7<> ATI_DVOD<2> 20B8< 21D7<> ATI_DVOD<3> 20B8< 21D7<> ATI_DVOD<4> 20B8< 21D7<> ATI_DVOD<5> 20B8< 21D7<> ATI_DVOD<6> 20B8< 21D7<> ATI_DVOD<7> 20B8< 21D7<> ATI_DVOD<8> 20B8< 21D7<> ATI_DVOD<9> 20B8< 21D7<> ATI_DVOD<10> 20B8< 21D7<> ATI_DVOD<11> 20A8< 21D7<> ATI_DVOD<12> 20B6< 21D7<> ATI_DVOD<13> 20B6< 21D7<> ATI_DVOD<14> 20B6< 21D7<> ATI_DVOD<15> 20B6< 21D7<> ATI_DVOD<16> 20B6< 21D7<> ATI_DVOD<17> 20B6< 21D7<> ATI_DVOD<18> 20B6< 21C7<> ATI_DVOD<19> 20B6< 21C7<> ATI_DVOD<20> 20B6< 21C7<> ATI_DVOD<21> 20B6< 21C7<> ATI_DVOD<22> 20B6< 21C7<> ATI_DVOD<23> 20A6< 21C7<> ATI_DVOD_DE 20A6< 20A8< 21C7<> 38C1> ATI_DVOVMODE 22A3< ATI_DVO_CLKP 19B4< 21C7<> 38C1> ATI_DVO_HSYNC 20A8< 21C7<> 38C1> ATI_DVO_VSYNC 20A6< 20A8< 21C7<> 38C1> ATI_GPIO8_PD 21C7<> ATI_GPIO9_SPN 21C7<> ATI_GPIO10_SPN 21C7<> ATI_GPIO11_SPN 21C7<> ATI_GPIO12_SPN 21C7<> ATI_GPIO13_SPN 21C7<> ATI_HSYNC 21D5<> 23D8< ATI_HSYNC_BUF 23D8<> ATI_MEMTEST 19A6<> ATI_MEMVMODE0 19A7< ATI_MEMVMODE1 19A7< ATI_OSC_OE 19B3< ATI_PVDD_BYP 22D6<> ATI_R2SET 21D6<> ATI_RSET 21D6<> ATI_RSTB_MSK 19C6<> ATI_SSCLK_IN 19A2< 21B7<> 37B1> ATI_SSCLK_UF 19A2<> 37B1> ATI_TESTEN 21B7< ATI_TMDS_CLKN 20C2< 21B7> 39B2> ATI_TMDS_CLKP 20C2< 21B7> 39B2> ATI_TMDS_DN<0> 20D2< 21B7> 39B2> ATI_TMDS_DN<1> 20D2< 21B7> 39B2> ATI_TMDS_DN<2> 20C2< 21B7> 39B2> ATI_TMDS_DP<0> 20D2< 21B7> 39B2> ATI_TMDS_DP<1> 20D2< 21B7> 39B2> ATI_TMDS_DP<2> 20C2< 21B7> 39B2> ATI_TPVDD_BYP 22D1<> ATI_VSYNC 21D5<> 23D8< ATI_VSYNC_BUF 23D8<> ATI_X1CLK_SKEW<0> 21C2< 21C7<> ATI_X1CLK_SKEW<1> 21B2< 21C7<> AUD_GND 27C8<> 40B6> AUXWIN_PU 21C6<> BATTV_HIGH 32B7<> BATTV_LOW 32B8<> BATT_14PBUS_EN 32C1<> BATT_14V_GATE 32C1<> BATT_24PBUS_EN 32C2<> BATT_24V_GATE 32C1<> BATT_CLK 32A4<> 41A3> BATT_DATA 32A4<> 41A3> BATT_DIV 32A5< BATT_ISNS_OUT 25A4<> BATT_ISNS_R 25A3<> BATT_LOW 32A6<> BATT_LOW_L 32B6<> BATT_NEG 32A4<> 40C6> 41A3> BBANG_HRESET_L 6A2< 6B3<> BBANG_JTAG_TCK 6A4< 6B2<> 6C2< BBANG_TCK_EN 6A4< BB_EEPR_ADDR0 6D3< BB_EEPR_ADDR1 6D3< BB_EEPR_ADDR2 6D3< BB_EEPR_WP_PD 6D2<> BB_MISO 6B3<> 6C2< BB_MOSI 6B3<> 6C2< BB_RESET_L 6C3< 41C1> BB_SCK 6B3<> 6C2< BFR_TDO 6C2< 6C2<> BKFD_PROT_EN_L 32C5<> BKFD_PROT_GATE 32D5<> BRIGHT_PWM 23A2<> 41A6> BRIGHT_PWM_UF 23A2<> BT_USB_DM 14C1< 27D8<> 39B2> 41D3> BT_USB_DP 14C1< 27D8<> 39B2> 41D3> CBUS_ADDR<0> 18B1< 18B4> CBUS_ADDR<1> 18B1< 18B4> CBUS_ADDR<2> 18B1< 18B4> CBUS_ADDR<3> 18B1< 18B4> CBUS_ADDR<4> 18B1< 18B4> CBUS_ADDR<5> 18B1< 18B4> CBUS_ADDR<6> 18B1< 18B4> CBUS_ADDR<7> 18B1< 18B4> CBUS_ADDR<8> 18B1< 18B4> CBUS_ADDR<9> 18B1< 18B4> CBUS_ADDR<10> 18B4> 18C1< CBUS_ADDR<11> 18B1< 18B4> CBUS_ADDR<12> 18B1< 18B4> CBUS_ADDR<13> 18B1< 18B4> CBUS_ADDR<14> 18B1< 18B4> CBUS_ADDR<15> 18B1< 18B4> CBUS_ADDR<16> 18B1< 18B4< CBUS_ADDR<17> 18B2< 18B4> CBUS_ADDR<18> 18B2< 18B4> CBUS_ADDR<19> 18B2< 18B4> CBUS_ADDR<20> 18B2< 18B4>

CBUS_ADDR<21> 18B2< 18B4> CBUS_ADDR<22> 18A4> 18B2< CBUS_ADDR<23> 18A4> 18B2< CBUS_ADDR<24> 18A4> 18B2< CBUS_ADDR<25> 18A4> 18B2< CBUS_ADDR_16_UF 18B5<> CBUS_BVD1_L 18A2< 18C4< CBUS_BVD2_L 18B2< 18C4< CBUS_CE1_L 18C1< 18C4> CBUS_CE2_L 18B2< 18B4> CBUS_DATA<0> 18A1< 18A4<> CBUS_DATA<1> 18A1< 18A4<> CBUS_DATA<2> 18A1< 18A4<> CBUS_DATA<3> 18A4<> 18C1< CBUS_DATA<4> 18A4<> 18C1< CBUS_DATA<5> 18A4<> 18C1< CBUS_DATA<6> 18A4<> 18C1< CBUS_DATA<7> 18A4<> 18C1< CBUS_DATA<8> 18A2< 18A4<> CBUS_DATA<9> 18A2< 18A4<> CBUS_DATA<10> 18A2< 18A4<> CBUS_DATA<11> 18A4<> 18C2< CBUS_DATA<12> 18A4<> 18C2< CBUS_DATA<13> 18A4<> 18C2< CBUS_DATA<14> 18A4<> 18C2< CBUS_DATA<15> 18A4<> 18C2< CBUS_DET_1_L 18C2< 18C4< 41C6> CBUS_DET_2_L 18A2< 18C4< 41C6> CBUS_INPACK_L 18B2< 18B4< CBUS_INT_L 14B5<> 14D7< 18A7<> CBUS_IORD_L 18B2< 18C4> CBUS_IOWR_L 18B2< 18C4> CBUS_MFUNC1_PD 18A7< 18A7<> CBUS_MFUNC2_PD 18A7< 18A7<> CBUS_MFUNC3_PD 18A7< 18A7<> CBUS_MFUNC4_PD 18A7< 18A7<> CBUS_MFUNC5_PD 18A7< 18A7<> CBUS_MFUNC6_PD 18A7< 18A7<> CBUS_OE_L 18B1< 18C4> CBUS_PCI_GNT_L 12D7<> 18A7< CBUS_PCI_IDSEL 18B7< CBUS_PCI_REQ_L 12A7< 12D7<> 18A7> CBUS_PCI_RESET_L 18A7< CBUS_READY 18B1< 18C4< CBUS_REG_L 18B2< 18C4> CBUS_RESET_L 18B2< 18C4> CBUS_SUSPEND_PU 18A7< 18D7< CBUS_VCCD0_L 18C4<> CBUS_VCCD1_L 18C4<> CBUS_VPPD0 18C4<> CBUS_VPPD1 18C5<> CBUS_VS1 18B2< 18C4<> CBUS_VS2 18B2< 18C4<> CBUS_WAIT_L 18B2< 18B4< CBUS_WE_L 18B1< 18C4> CBUS_WP_L 18A1< 18B4< CG_ADDRSEL 14B7< CG_CLKOUT 14B6<> CG_FSEL 14B7< 14C5< CG_FSEL_INT 14C5<> CG_LOCK 14B7<> CG_RESET_L 14B7< CG_SYSCLK_EN 14B5< 14B7< CHARGE_DISABLE 32A7<> CHARGE_LED_L 27D8<> 31C6<> 31D7< 41A6> CLK10M_PMU_XIN 31B6< CLK10M_PMU_XOUT 31B6< CLK10M_PMU_XOUT_UF 31B7< CLK18M_INT_EXT 14B6<> 37B1> CLK18M_INT_XIN 14A5< 37B1> CLK18M_INT_XOUT 14A5<> 37B1> CLK18M_XTAL_IN 14A5< 37B1> CLK25M_ENET_XIN 28A7<> CLK25M_ENET_XOUT 28A7<> CLK25M_XTAL_IN 28A7<> CLK32K_PMU_XIN 31B3<> CLK32K_PMU_XOUT 31B3<> CLK32K_PMU_XOUT_UF 31B2<> CLK33M_AIRPORT 12D8< 26D5<> 37C1> 41C3> CLK33M_AIRPORT_UF 12C7<> 37C1> CLK33M_CBUS 12D8< 18A7< 37C1> CLK33M_CBUS_UF 12C7<> 37C1> CLK33M_NEC 12C8< 17B7< 37C1> CLK33M_NEC_UF 12C7<> 37C1> CLK66M_AGP_1_5V_TP 12C4> CLK66M_GPU_AGP 12C8< 19B7< 37C1> CLK66M_GPU_AGP_UF 12C7<> 37C1> CLKENET_LINK_GBE_REF 13C5< 28C8< 37B1> CLKENET_LINK_GTX 13C5<> 37A1> CLKENET_LINK_RX 13D5< 28C8< 37B1> CLKENET_LINK_TX 13D5< 28D8< 37A1> CLKENET_PHY_GBE_REF 28C7<> 37B1> CLKENET_PHY_GTX 13C6< 28C7< 37A1> CLKENET_PHY_RX 28C7<> 37B1> CLKENET_PHY_TX 28D7<> 37A1> CLKFW_LINK_LCLK 13C3<> 37A1> CLKFW_LINK_PCLK 13C3<> 29C3< 37A1> CLKFW_PHY_LCLK 13C2< 29B7< 37A1> CLKFW_PHY_PCLK 29B4> 29C4< 37A1> CLKLVDS_LN 21B5> 23A4<> 39C2> 41B6> CLKLVDS_LP 21B5> 23A4<> 39C2> 41B6> CLKLVDS_UN 39C2> CLKLVDS_UP 39C2> COMM_DTR_L 14C2> 27C1<> 41B3> COMM_GPIO_L 14C2<> 27C2<> 41B3> COMM_RESET_L 14C5<> 27D3< 41B3> COMM_RING_DET_L 14B5<> 14C7< 27D3< 31C6<> 41B3> COMM_RTS_L 14C2> 27C1<> 41B3> COMM_RXD 14C2<> 27C1<> 41B3> COMM_SHUTDOWN 41B3> COMM_TRXC 14C2<> 27C2<> 41B3> COMM_TXD_L 14C2<> 27C2<> 41B3> COMP_RC 33C6< CPU_AACK_L 5A7< 8B5<> 8C2< 38D5> CPU_ADDR<0> 5C7<> 8D5<> CPU_ADDR<0..31> 38D5> CPU_ADDR<1> 5C7<> 8D5<> CPU_ADDR<2> 5C7<> 8D5<> CPU_ADDR<3> 5C7<> 8D5<> CPU_ADDR<4> 5C7<> 8D5<> CPU_ADDR<5> 5C7<> 8C5<> CPU_ADDR<6> 5C7<> 8C5<> CPU_ADDR<7> 5C7<> 8C5<> CPU_ADDR<8> 5C7<> 8C5<> CPU_ADDR<9> 5C7<> 8C5<> CPU_ADDR<10> 5B7<> 8C5<> CPU_ADDR<11> 5B7<> 8C5<> CPU_ADDR<12> 5B7<> 8C5<> CPU_ADDR<13> 5B7<> 8C5<> CPU_ADDR<14> 5B7<> 8C5<> CPU_ADDR<15> 5B7<> 8C5<> CPU_ADDR<16> 5B7<> 8C5<> CPU_ADDR<17> 5B7<> 8C5<> CPU_ADDR<18> 5B7<> 8C5<> CPU_ADDR<19> 5B7<> 8C5<> CPU_ADDR<20> 5B7<> 8C5<> CPU_ADDR<21> 5B7<> 8C5<> CPU_ADDR<22> 5B7<> 8C5<> CPU_ADDR<23> 5B7<> 8C5<> CPU_ADDR<24> 5B7<> 8C5<> CPU_ADDR<25> 5B7<> 8C5<> CPU_ADDR<26> 5B7<> 8C5<> CPU_ADDR<27> 5B7<> 8C5<> CPU_ADDR<28> 5B7<> 8C5<> CPU_ADDR<29> 5B7<> 8C5<> CPU_ADDR<30> 5B7<> 8C5<> CPU_ADDR<31> 5B7<> 8C5<> CPU_ARTRY_L 5A7<> 8B5<> 8D2< 38D5> CPU_AVDD 5C3< 40D3> CPU_AVDD_ADJ 5C2<> CPU_AVDD_SHDN_L 5C3<> CPU_AVDD_VIN 5C3< 40D3> CPU_AVDD_VOUT 5C2<> 40D3> CPU_BG_L 5C7< 8C2< 8D5<> 38D5> CPU_BR_L 5C7> 8D2< 8D5< 38D5> CPU_BUS_VSEL 5C3< 7A6< CPU_CHKSTP_OUT_L 5B3<> 5C2< 41D6> CPU_CHKS_L 5A3< 5D2< CPU_CI_L 5A7> 8B5<> 38D5> CPU_CLKOUT_SPN 5C3> CPU_CLK_EN 8A5< 31C4<> CPU_DATA<0> 6D8<> 8D3<> CPU_DATA<0..31> 38D5> CPU_DATA<1> 6D8<> 8D3<> CPU_DATA<2> 6D8<> 8D3<> CPU_DATA<3> 6D8<> 8D3<> CPU_DATA<4> 6D8<> 8D3<> CPU_DATA<5> 6D8<> 8D3<>

CPU_DATA<6> 6D8<> 8D3<> CPU_DATA<7> 6D8<> 8D3<> CPU_DATA<8> 6D8<> 8D3<> CPU_DATA<9> 6C8<> 8D3<> CPU_DATA<10> 6C8<> 8D3<> CPU_DATA<11> 6C8<> 8D3<> CPU_DATA<12> 6C8<> 8C3<> CPU_DATA<13> 6C8<> 8C3<> CPU_DATA<14> 6C8<> 8C3<> CPU_DATA<15> 6C8<> 8C3<> CPU_DATA<16> 6C8<> 8C3<> CPU_DATA<17> 6C8<> 8C3<> CPU_DATA<18> 6C8<> 8C3<> CPU_DATA<19> 6C8<> 8C3<> CPU_DATA<20> 6C8<> 8C3<> CPU_DATA<21> 6C8<> 8C3<> CPU_DATA<22> 6C8<> 8C3<> CPU_DATA<23> 6C8<> 8C3<> CPU_DATA<24> 6C8<> 8C3<> CPU_DATA<25> 6C8<> 8C3<> CPU_DATA<26> 6C8<> 8C3<> CPU_DATA<27> 6C8<> 8C3<> CPU_DATA<28> 6C8<> 8C3<> CPU_DATA<29> 6C8<> 8C3<> CPU_DATA<30> 6C8<> 8C3<> CPU_DATA<31> 6C8<> 8C3<> CPU_DATA<32> 6C8<> 8C3<> 8D8< CPU_DATA<32..63> 38D5> CPU_DATA<33> 6C8<> 8C3<> 8D8< CPU_DATA<34> 6C8<> 8C3<> 8D8< CPU_DATA<35> 6C8<> 8C3<> 8D8< CPU_DATA<36> 6B8<> 8C3<> 8D8< CPU_DATA<37> 6B8<> 8C3<> 8D8< CPU_DATA<38> 6B8<> 8C3<> 8D8< CPU_DATA<39> 6B8<> 8B3<> 8D8< CPU_DATA<40> 6B8<> 8B3<> 8C8< CPU_DATA<41> 6B8<> 8B3<> 8C8< CPU_DATA<42> 6B8<> 8B3<> 8C8< CPU_DATA<43> 6B8<> 8B3<> 8C8< CPU_DATA<44> 6B8<> 8B3<> 8C8< CPU_DATA<45> 6B8<> 8B3<> 8C8< CPU_DATA<46> 6B8<> 8B3<> 8B8< CPU_DATA<47> 6B8<> 8B3<> 8B8< CPU_DATA<48> 6B8<> 8A8< 8B3<> CPU_DATA<49> 6B8<> 8A8< 8B3<> CPU_DATA<50> 6B8<> 8A8< 8B3<> CPU_DATA<51> 6B8<> 8A8< 8B3<> CPU_DATA<52> 6B8<> 8A8< 8B3<> CPU_DATA<53> 6B8<> 8A8< 8B3<> CPU_DATA<54> 6B8<> 8A8< 8B3<> CPU_DATA<55> 6B8<> 8A8< 8B3<> CPU_DATA<56> 6B8<> 8B3< 8B3<> CPU_DATA<57> 6B8<> 8B3< 8B3<> CPU_DATA<58> 6B8<> 8B3< 8B3<> CPU_DATA<59> 6B8<> 8B3< 8B3<> CPU_DATA<60> 6B8<> 8B3< 8B3<> CPU_DATA<61> 6B8<> 8B3< 8B3<> CPU_DATA<62> 6A8<> 8B3< 8B3<> CPU_DATA<63> 6A8<> 8B3< 8B3<> CPU_DBG_L 5C3< 8A3<> 8C2< 38D5> CPU_DRDY_L 5C3> 8A3< 8C2< 38D5> CPU_DTI<0> 5C3< 8A3<> CPU_DTI<0..2> 38D5> CPU_DTI<1> 5C3< 8A3<> CPU_DTI<2> 5C3< 8A3<> CPU_EDTI 5A2< 5C3< CPU_EMODE0_L 5A3< 7A4< CPU_EMODE1_L 5A3< 5C2< CPU_GBL_L 5A7<> 8B5<> 38D5> CPU_HIT_L 5A7> 8B5< 8D2< 38D5> CPU_HRESET_INV 7A7<> CPU_HRESET_L 5B3< 5C2< 6A1<> 7A5< 7A8< 41D6> CPU_L1TSTCLK 5B2< 5B3< CPU_L2TSTCLK 5B3< 5C2< CPU_LSSD_MODE 5B3< 5C2< CPU_MCP_L 5B3< 5D2< CPU_PLL_CFG<0> 5C3< 7D3< CPU_PLL_CFG<1> 5C3< 7D3< CPU_PLL_CFG<2> 5C3< 7D3< CPU_PLL_CFG<3> 5C3< 7D3< CPU_PLL_CFG<4> 5C3< 7D3<> CPU_PLL_CFGEXT 7D4<> CPU_PLL_FS00 7C4<> CPU_PLL_FS01 7C4< CPU_PLL_FS10 7C4< CPU_PLL_STOP_BASE 7C7< CPU_PLL_STOP_OC 7C4<> 7C8<> 31B6<> CPU_PMONIN_L 5A3< 5C2< CPU_PULLDOWN 5A2< 5A3< 5A3< 5C7<> CPU_PULLUP 5A3< 5C2< CPU_QACK_L 5B3< 8B5<> 38D5> CPU_QREQ_L 5B3> 8B5< 8C2< 38D5> CPU_SHD0_L 5A7<> 5D2< CPU_SHD1_L 5A7<> 5D2< CPU_SMI_L 5B3< 5C2< 31C4<> CPU_SRESET_L 5B2< 5B3< 41D6> CPU_SRWX_L 5A3< 5C2< CPU_TA_L 5B3< 8A3<> 8D2< 38D5> CPU_TBEN 5B3< 5D2< 8A5<> CPU_TBST_L 5A7> 8B5<> 38D5> CPU_TEA_L 5B3< 8A3<> 8C2< 38D5> CPU_THERM_DM 6A6<> 27A6< CPU_THERM_DP 6A6<> 27A6< CPU_TSIZ<0> 5A7> 8B5<> CPU_TSIZ<0..2> 38D5> CPU_TSIZ<1> 5A7> 8B5<> CPU_TSIZ<2> 5A7> 8B5<> CPU_TS_L 5C7<> 8D2< 8D5<> 38D5> CPU_TT<0> 5A7<> 8B5<> CPU_TT<0..4> 38D5> CPU_TT<1> 5A7<> 8B5<> CPU_TT<2> 5A7<> 8B5<> CPU_TT<3> 5A7<> 8B5<> CPU_TT<4> 5A7<> 8B5<> CPU_VCORE_HI_OC 7B8< 31D4<> 35C8< CPU_VCORE_PWR_SEQ 35D8<> CPU_VCORE_SEQ 35D8< CPU_VCORE_SEQ_L 35D8< CPU_VCORE_SLEEP 5D2< 5D8<> 6C6<> 35C1< 35D2< 40D3>

41C6> CPU_VCORE_SNUB 35B3< CPU_WT_L 5A7> 8B5<> 38C5> CSLOT_ADDR3_SPN 13B7> CSLOT_ADDR4_SPN 13B7> CSLOT_ADDR5_SPN 13B7> CSLOT_ADDR6_SPN 13B7> CSLOT_ADDR7_SPN 13B7> CSLOT_ADDR8_SPN 13B7> CSLOT_ADDR9_SPN 13B7> CSLOT_CE1_L_SPN 13C7> CSLOT_CE2_L_SPN 13C7> CSLOT_IORD_L_SPN 13C7> CSLOT_IOWAIT_L_PU 13C7< CSLOT_IOWR_L_SPN 13C7> CSLOT_OE_L_SPN 13C7> CSLOT_WE_L_SPN 13C7> CURRENT_THRESHOLD 32C3< CY25811_S0 19A3< CY25811_S1 19A3< DCDC_EN 21A7<> 30C8< 34B7<> 35C7<> DCDC_EN_CTRL 30C7<> DCDC_EN_L 34B6< 34B7<> 36C7<> DDC_CLK_ISO 23D4<> DDR_VREF 11D1< 11D3<> 11D5<> 11D6<> 11D8<>

40D3> DVI_DDC_CLK 23D4<> DVI_DDC_CLK_UF 23C5<> 23D3<> 41B6> DVI_DDC_DATA 23C4<> DVI_DDC_DATA_UF 23C5<> 41B6> DVI_HPD 23C4<> DVI_HPD_DIV 23C2< DVI_HPD_UF 23C3< 23C5<> 41B6> DVI_TURN_ON 23D3<> DVI_TURN_ON_BASE 23D2<> DVI_TURN_ON_ILIM 23D2< EIDE_ADDR<0> 13B7> 26B8< EIDE_ADDR<2..0> 39B5> EIDE_ADDR<1> 13B7> 26B8< EIDE_ADDR<2> 13B7> 26B8< EIDE_CS0_L 13B7> 26B8< 39B5> EIDE_CS1_L 13B7> 26A8< 39B5> EIDE_DATA<0> 13C7<> 26C8< EIDE_DATA<15..0> 39B5> EIDE_DATA<1> 13C7<> 26C8< EIDE_DATA<2> 13C7<> 26C8< EIDE_DATA<3> 13C7<> 26C8< EIDE_DATA<4> 13C7<> 26B8< EIDE_DATA<5> 13B7<> 26B8<

EIDE_DATA<6> 13B7<> 26B8< EIDE_DATA<7> 13B7<> 26B8< EIDE_DATA<8> 13B7<> 26D8< EIDE_DATA<9> 13B7<> 26C8< EIDE_DATA<10> 13B7<> 26D8< EIDE_DATA<11> 13B7<> 26C8< EIDE_DATA<12> 13B7<> 26C8< EIDE_DATA<13> 13B7<> 26C8< EIDE_DATA<14> 13B7<> 26C8< EIDE_DATA<15> 13B7<> 26C8< EIDE_DMACK_L 13A7<> 26A8< 39B5> EIDE_DMARQ 13A7< 26A8< 39B5> EIDE_INT 13A7< 26A8< 39B5> EIDE_IOCHRDY 13B7< 26A8< 39B5> EIDE_OPTICAL_ADDR<0> 26A5<> 26B7< EIDE_OPTICAL_ADDR<2..0> 39B5> 41C3> EIDE_OPTICAL_ADDR<1> 26A5<> 26B7< EIDE_OPTICAL_ADDR<2> 26A6<> 26B7< EIDE_OPTICAL_CS0_L 26A5<> 26B7< 39B5> 41C3> EIDE_OPTICAL_CS1_L 26A6<> 26A7< 39B5> 41C3> EIDE_OPTICAL_DATA<0> 26A5<> 26C7< EIDE_OPTICAL_DATA<15..0> 39B5> 41C3> EIDE_OPTICAL_DATA<1> 26A5<> 26C7< EIDE_OPTICAL_DATA<2> 26A5<> 26C7< EIDE_OPTICAL_DATA<3> 26A5<> 26C7< EIDE_OPTICAL_DATA<4> 26A5<> 26B7< EIDE_OPTICAL_DATA<5> 26A5<> 26B7< EIDE_OPTICAL_DATA<6> 26A5<> 26B7< EIDE_OPTICAL_DATA<7> 26A5<> 26B7< EIDE_OPTICAL_DATA<8> 26A6<> 26D7< EIDE_OPTICAL_DATA<9> 26A6<> 26C7< EIDE_OPTICAL_DATA<10> 26A6<> 26D7< EIDE_OPTICAL_DATA<11> 26A6<> 26C7< EIDE_OPTICAL_DATA<12> 26A6<> 26C7< EIDE_OPTICAL_DATA<13> 26A6<> 26C7< EIDE_OPTICAL_DATA<14> 26A6<> 26C7< EIDE_OPTICAL_DATA<15> 26A6<> 26C7< EIDE_OPTICAL_DMAACK_L 26A6<> 26A7< 39A5> 41C3> EIDE_OPTICAL_DMA_RQ 26A6<> 26A7< 39A5> 41C3> EIDE_OPTICAL_INT 26A5<> 26A7< 39A5> 41B3> EIDE_OPTICAL_IOCHRDY 26A5<> 26A7< 39A5> 41B3> EIDE_OPTICAL_READ_L 26A6<> 26A7< 39B5> 41C3> EIDE_OPTICAL_RST_L 26A7< 26B5<> 39A5> 41C3> EIDE_OPTICAL_WR_L 26A5<> 26A7< 39B5> 41B3> EIDE_RD_L 13A7> 26A8< 39B5> EIDE_RST_L 13B7> 26A8< 39B5> EIDE_WR_L 13A7> 26A8< 39B5> ENET_COL 13C5< 28B7> 39A5> ENET_COMA 28B7<> ENET_CRS 13C5< 28B7> 39A5> ENET_CTAP_CHGND 40A6> ENET_ENERGY_DET 14B5<> 28B7<> ENET_HSDACM 28A7<> ENET_HSDACP 28A7<> ENET_LINK_RXD<0> 13C5< 28C7> ENET_LINK_RXD<7..0> 39A5> ENET_LINK_RXD<1> 13C5< 28C7> ENET_LINK_RXD<2> 13C5< 28C7> ENET_LINK_RXD<3> 13C5< 28B7> ENET_LINK_RXD<4> 13C5< 28B7> ENET_LINK_RXD<5> 13C5< 28B7> ENET_LINK_RXD<6> 13C5< 28B7> ENET_LINK_RXD<7> 13C5< 28B7> ENET_LINK_TXD<0> 13B4< 13D5> ENET_LINK_TXD<7..0> 39A5> ENET_LINK_TXD<1> 13B4< 13D5> ENET_LINK_TXD<2> 13B4< 13D5> ENET_LINK_TXD<3> 13B4< 13D5> ENET_LINK_TXD<4> 13B4< 13D5> ENET_LINK_TXD<5> 13B4< 13D5> ENET_LINK_TXD<6> 13A4< 13D5> ENET_LINK_TXD<7> 13A4< 13D5> ENET_LINK_TX_EN 13D5<> 39A5> ENET_LINK_TX_ER 13D5<> 39A5> ENET_MDC 13C5> 28B7< 39A5> ENET_MDIO 13C5<> 28B7<> 39A5> ENET_PHY_TXD<0> 13B5< 28C7< ENET_PHY_TXD<7..0> 39A5> ENET_PHY_TXD<1> 13B5< 28C7< ENET_PHY_TXD<2> 13B5< 28C7< ENET_PHY_TXD<3> 13B5< 28C7< ENET_PHY_TXD<4> 13B5< 28C7< ENET_PHY_TXD<5> 13B5< 28C7< ENET_PHY_TXD<6> 13A5< 28C7< ENET_PHY_TXD<7> 13A5< 28C7< ENET_PHY_TX_EN 13D6< 28C7< 39A5> ENET_PHY_TX_ER 13D6< 28C7< 39A5> ENET_RSET 28A5< ENET_RST_L 28B7< ENET_RX_DV 13D5< 28B7> 39A5> ENET_RX_ER 13C5< 28B7> 39A5> ENET_VSSC 28A7<> ESP_EN_L 6C2<> 6C2< EXT_TMDS_D3_CMF 20B3< EXT_TMDS_D4_CMF 20A3< EXT_TMDS_D5_CMF 20A3< FAN1_GND 40B6> 41A3> FAN1_PWM 27A4<> FAN1_PWM_L 27A5<> 27B2<> FAN1_TACH 27A4< 27B2< 41A3> FAN2_GND 40B6> 41A3> FAN2_PWM 27A3<> FAN2_PWM_L 27A3<> 27B2<> FAN2_TACH 27A3< 27B2< 41A3> FB_4_85V_BU 33A5< FP_PWR_EN 21C6<> 23A5< 23B3<> FP_PWR_EN_L 23B3<> FWB_TPB0 29A3< FWB_TPB1 29A3< FWPLL_BYP 29D8<> FW_BIAS0 29A4<> FW_BIAS1 29A4<> FW_BMODE 29B6< FW_CORE_ADJ 29C7< FW_CORE_BYP 29C7<> FW_CPS 29B6< FW_GATE_EN 30D6<> FW_GATE_EN_RC 30C6<> FW_INPUT_PD 29A6< FW_LINK_CNTL<0> 13C3<> 29C3< FW_LINK_CNTL<1..0> 39A5> FW_LINK_CNTL<1> 13C3<> 29C3< FW_LINK_DATA<0> 13D3<> 29B7< FW_LINK_DATA<7..0> 39A5> FW_LINK_DATA<1> 13D3<> 29B7< FW_LINK_DATA<2> 13D3<> 29B7< FW_LINK_DATA<3> 13D3<> 29B7< FW_LINK_DATA<4> 13C3<> 29B7< FW_LINK_DATA<5> 13C3<> 29A7< FW_LINK_DATA<6> 13C3<> 29A7< FW_LINK_DATA<7> 13C3<> 29A7< FW_LINK_LREQ 13C3<> 39A5> FW_LKON 13C3<> 29B4<> FW_OSC 29A4< 37A1> FW_OSC_EN 29A3< FW_PC_PD 29B6< FW_PC_PU 29B6< FW_PHY_CNTL<0> 29B4<> 29C4< FW_PHY_CNTL<1..0> 39A5> FW_PHY_CNTL<1> 29B4<> 29C4< FW_PHY_DATA<0> 29B7<> FW_PHY_DATA<7..0> 39A5> FW_PHY_DATA<1> 29B7<> FW_PHY_DATA<2> 29B7<> FW_PHY_DATA<3> 29B7<> FW_PHY_DATA<4> 29B7<> FW_PHY_DATA<5> 29A7<> FW_PHY_DATA<6> 29A7<> FW_PHY_DATA<7> 29A7<> FW_PHY_LPS 13C3<> 29B7< FW_PHY_LREQ 13C2< 29B7< 39A5> FW_PHY_PD 14C5<> 29B7< FW_PHY_RESET_L 29A7< FW_PINT 13C3<> 29B4> 39A5> FW_PLL_ADJ 29C7< FW_PORT1_SEL 29B6< FW_POWER_UP 30C7<> FW_R0 29A4<> FW_R1 29A4<> FW_TESTM 29A6< FW_TPA1N 29B2<> 30A4<> 39D2> FW_TPA1P 29B2<> 30A4<> 39D2> FW_TPAO0N 30C2<> 39D2> FW_TPAO0P 30C2<> 39D2> FW_TPB1N 29A2<> 30A4<> 39D2> FW_TPB1P 29B2<> 30A4<> 39D2> FW_TPB2_PD 29A4<> FW_TPBI0N 30C2<> 39D2>

FW_TPBI0P 30C2<> 39D2> FW_TPI0N 29B2<> 30C3<> 39D2> 41A3> FW_TPI0P 29B2<> 30C3<> 39D2> 41A3> FW_TPI1N 30A3<> 39D2> 41D1> FW_TPI1P 30A3<> 39D2> 41D1> FW_TPO0N 29B2<> 30C3<> 39D2> 41A3> FW_TPO0P 29B2<> 30C3<> 39D2> 41A3> FW_TPO0R 30C1<> 41A3> FW_TPO1N 30A3<> 39D2> 41D1> FW_TPO1P 30A3<> 39D2> 41D1> FW_VDD_ON 40A3> FW_VGND 41A3> 41D1> FW_VGND0 30C1<> 40A3> FW_VGND1 30A3<> 40A3> FW_VREG_PD 29A6< FW_XI 29A4<> 37A1> GPU_AGP_TEST 19C6< GPU_B 21D6<> 23C8< 38A1> GPU_C 21D6<> 23A8< GPU_COMP 21D6<> 23A8< GPU_CORE_OK 21A6<> 21D4<> 22D2<> 22D7<> GPU_DVI_DDC_CLK 21C5<> 23D3<> GPU_DVI_DDC_DATA 21C5<> 23C3<> GPU_DVO_CLKP 19B3< GPU_DVO_CLKP_R1 19B2< 20A8< 38C1> GPU_DVO_CLKP_R2 19B2< 20A6< 38C1> GPU_G 21D6<> 23C8< 38B1> GPU_HPD 21C5< 23C3<> GPU_MEM_IO 19A6<> 19B8< 22A7< 22B4< 22D2<

40C3> GPU_MEM_IO_FLT 22C2< 40C3> GPU_R 21D6<> 23B8< 38B1> GPU_THERM_DM 19A6<> 27A6< GPU_THERM_DP 19A6<> 27A6< GPU_TV_GND1 23B8<> 40B6> GPU_TV_GND2 23A8<> 40B6> GPU_VCORE 19D8< 21B3<> 21B5<> 21D4< 40C3>

41C6> GPU_VCORE_CNTL 21A3<> GPU_VCORE_CNTL_L 21A4< 21B7<> GPU_VCORE_CNTL_RC 21A3<> GPU_VCORE_NECK 21B5<> 40B3> GPU_VCORE_PWR_SEQ 21A8<> GPU_VCORE_SEQ 21A8< GPU_VCORE_SEQ_L 21A8< GPU_VCORE_SW 21A4<> 40B1> GPU_VCORE_SW_F 21A3<> 40B1> GPU_VCORE_VDDCI 19C8< 19D6< 40B3> GPU_Y 21D6<> 23B8< HD_ADDR<0> 26C2<> 26C3< HD_ADDR<2..0> 39C5> HD_ADDR<1> 26C2<> 26C3< HD_ADDR<2> 26B3< 26C1<> HD_CS0_L 26C2<> 26C3< 39B5> HD_CS1_L 26B3< 26C1<> 39B5> HD_DATA<0> 26C2<> 26D3< HD_DATA<15..0> 39C5> HD_DATA<1> 26C2<> 26D3< HD_DATA<2> 26D2<> 26D3< HD_DATA<3> 26D2<> 26D3< HD_DATA<4> 26C3< 26D2<> HD_DATA<5> 26C3< 26D2<> HD_DATA<6> 26C3< 26D2<> HD_DATA<7> 26C3< 26D2<> HD_DATA<8> 26C3< 26D1<> HD_DATA<9> 26C3< 26D1<> HD_DATA<10> 26C3< 26D1<> HD_DATA<11> 26D1<> 26D3< HD_DATA<12> 26B3< 26D1<> HD_DATA<13> 26B3< 26D1<> HD_DATA<14> 26C1<> 26C3< HD_DATA<15> 26B3< 26C1<> HD_DIOR_L 26A3< 26C2<> 39B5> HD_DIOW_L 26A3< 26C1<> 39B5> HD_DMACK_L 26A3< 26C2<> 39B5> HD_DMARQ 13C6< 26C2<> 39B5> HD_INTRQ 13C6< 26C1<> 39B5> HD_IOCHRDY 26A3< 26C1<> 39B5> HD_RESET_L 26A3< 26D2<> 39C5> HIGH_VCORE 21A2<> HIGH_VCORE_DIVD 21A3< HPD_4V_REF 23C2< HPD_PWR_SNS_EN 21C7<> 23C3<> HPD_PWR_SW 23C1< HPD_PWR_SW_BASE 23C2<> HPD_REF_EN_L 23C2<> IAC_FB 32D4< IAC_RC_COMP 32D3< ICT_TRST_L 6B2<> 6C2< INTREPID_ACS_REF 8A5< INT_AGPPVT 12D4<> INT_AGP_FB_IN 12C4< 37C1> INT_AGP_FB_OUT 12C4<> 37C1> INT_AGP_VREF 12B5< 12D4<> 19D6< 40C3> INT_CPUFB_IN 8A5< 8B5< 37D1> INT_CPUFB_IN_NORM 8A4< 37D1> INT_CPUFB_LONG 8A3< 37D1> INT_CPUFB_OUT 8A5<> 8A5< 37D1> INT_CPUFB_OUT_NORM 8A4< 37D1> INT_CPUFB_OUT_SHORT 8A5< 37D1> INT_DDRCLK2_N_TP 9B6<> INT_DDRCLK2_P_TP 9B6<> INT_DDRCLK5_N_TP 9B6<> INT_DDRCLK5_P_TP 9B6<> INT_ENET_RST_L 14B5<> 28B8< INT_EXTINT3_PU 14A7< 14B5<> INT_EXTINT8_PU 14B5<> 14C7< INT_EXTINT10_PU 14B5<> 14B7< INT_EXTINT13_PU 14B5<> 14B7< INT_EXTINT14_PU 14B5<> 14C7< INT_EXTINT16_PU 14B5<> 14B7< INT_GPIO1_PU 14B7< 14C5<> 35C8< INT_GPIO9_PU 14B5<> 14B7< INT_GPIO12_PU 14B5<> 14B7< INT_GPIO15_PU 14B5<> 14B7< INT_I2C_CLK0 6B3<> 6D2< 11A5<> 11A8<> 13C2<

13C3<> 24D7<> 41C6> INT_I2C_CLK1 13C2< 13C3<> 14B7< 24B3<> 25C2<>

27B4< 41C6> INT_I2C_CLK2 14A2<> 27D7<> 41A6> INT_I2C_DATA0 6B3<> 6D2<> 11A5<> 11A8<> 13C2<

13C3<> 24D7<> 41C6> INT_I2C_DATA1 13B2< 13C3<> 14B7< 24B3<> 25C2<>

27B4<> 41C6> INT_I2C_DATA2 14A2<> 27D7<> 41A6> INT_I2S0_SND_FROM_ADC 14B2< 27D7<> 41A6> INT_I2S0_SND_LRCLK 14B1< 27D8<> 41A6> INT_I2S0_SND_LRCLK_UF 14A3<> INT_I2S0_SND_MCLK 14B1< 27D8<> 37B1> 41A6> INT_I2S0_SND_MCLK_UF 14A3<> INT_I2S0_SND_SCLK 14B1< 27D7<> 41A6> INT_I2S0_SND_SCLK_UF 14A3<> INT_I2S0_SND_TO_DAC 14B1< 27D8<> 41A6> INT_I2S0_SND_TO_DAC_UF 14B3<> INT_JTAG_TEI 13C2< 13C5< 41D6> INT_MEM_REF_H 9B6< 40C3> INT_MEM_VREF 9A7< 9B6<> 40C3> INT_MOD_BITCLK 14A1< 27C3< INT_MOD_BITCLK_UF 14A3<> 14A7< INT_MOD_CLKOUT 14A1< 27C3< INT_MOD_CLKOUT_UF 14A3<> 14A7< INT_MOD_DTI 14A2< 14A7< 27C3< INT_MOD_DTO 14B1< 27C3< INT_MOD_DTO_UF 14A3<> 14A7< INT_MOD_SYNC 14A1< 27C3< INT_MOD_SYNC_UF 14A3<> 14A7< INT_PCI_FB_IN 12C7< 37C1> INT_PCI_FB_OUT 12C7<> 37C1> INT_PEND_PROC_INT 14A5> 31C4<> INT_PROC_SLEEP_REQ_L 14A5< 31B4<> INT_PU_RESET_L 13D3< 27D5<> 31A2< 31C4<> INT_REF_CLK_IN 14A5< 14B5< 37C1> INT_REF_CLK_OUT 14A5< 14B7< 37C1> INT_REF_CLK_OUT_UF 14A5<> 37C1> INT_RESET_L 9B3< 13D3< 31C7< 31D4<> INT_ROM_CS_L 12A5< 12C7> INT_ROM_OE_L 12A5< 12C7> INT_ROM_RW_L 12A5< 12C7> INT_SUSPEND_ACK_L 8B5> 31B6<> INT_SUSPEND_REQ_L 8B5< 31B6<> 31C7< INT_TDO 13C5> 13D2< 14A6< 28A5< INT_TST_MONIN_PD 13C2< 13C5< 41C6> INT_TST_MONOUT_TP 13C5> 41C6> INT_TST_PLLEN_PD 13C5< 13D2< 41C6> INT_WATCHDOG_L 14A5> 31C6<> INV_GND 23A1<> 41A6> INV_ON_PWM 21C6<> 23A3<

IO_RESET_L 17A8< 24D7<> 25C2< 28B8< 31C6<>

31D7< JTAG_ASIC_TCK 13C5< 13D2< 28A5< 41D6> JTAG_ASIC_TDI 13C5< 13D2< 41D6> JTAG_ASIC_TDO_TP 28A5> 41D6> JTAG_ASIC_TMS 13C5< 13D2< 28A5< 41D6> JTAG_ASIC_TRST_L 13C2< 13C5< 28A5< 41D6> JTAG_CPU_TCK 5A2< 5B3< 6A3> 41D6> JTAG_CPU_TDI 5B2< 5C3< 6B2<> 41D6> JTAG_CPU_TDO_TP 5C3> 41D6> JTAG_CPU_TMS 5B2< 5B3< 6B2<> 41D6> JTAG_CPU_TRST_L 5B3< 6A4< 6B2<> 41D6> KBDLED_ANODE 24B3<> 24D7<> KBDLED_RETURN 24B3<> 24D7<> KBD_CAPSLOCK_LED 41B3> KBD_COMMAND_L 24C2< 31C6<> 41B3> KBD_CONTROL_L 24C2< 31C6<> 41A3> KBD_FUNCTION_L 24C2< 31B6<> 41B3> KBD_ID 24D2< 31B6<> 41B3> KBD_INTL 41B3> KBD_JIS 41B3> KBD_NUMLOCK_LED 41B3> KBD_OPTION_L 24C2< 31B6<> 41B3> KBD_SHIFT_L 24C2< 31C6<> 41A3> KBD_X<0> 24D2< 31C6<> KBD_X<0..9> 41A3> KBD_X<1> 24D2< 31C6<> KBD_X<2> 24C2< 31C6<> KBD_X<3> 24C2< 31C6<> KBD_X<4> 24C2< 31C6<> KBD_X<5> 24C2< 31C6<> KBD_X<6> 24C2< 31C6<> KBD_X<7> 24C2< 31C6<> KBD_X<8> 24C2< 31C6<> KBD_X<9> 24C2< 31C6<> KBD_Y<0..7> 41A3> LCD_DIGON_L 23B6< LCD_PWREN_L 23B5<> LED_LINK10 28B5<> LED_LINK100 28B5<> LED_RX_SPN 28B5> LID_CLOSED_L 24A3<> 41C1> LM2594_IN 29D8<> 40A3> LMU_DETECT 24C7< 24D6<> 41D1> LT1962_INT_ADJ 14D7< LT1962_INT_BYP 14D7<> LTC1625_ITH 32D2<> LTC1962_INT_VIN 14D8<> 40A1> LTC3405_SW 28D4<> 40A3> LTC3411_EN_L 36A7< LTC3411_GND 36A5<> 40A1> LTC3411_ITH 36A5<> 40A1> LTC3411_ITH_RC 36A5< 40A1> LTC3411_SHDN 36A6<> 40A1> LTC3411_SYNC 36A6<> 40A1> LTC3411_VCC 36A6< 36A7< 40B1> LTC3707_START_RC 34B6< LUX_ALS_GAIN_SW 24B8<> 24D6<> LUX_ALS_OUT 24B8<> 24D6<> LVDS_DDC_CLK 21C5<> 23A4< 23B4<> 41B6> LVDS_DDC_DATA 21C5<> 23A4< 23B4<> 41B6> LVDS_L0N 21B5> 23B4<> 39C2> 41B6> LVDS_L0P 21B5> 23B4<> 39C2> 41B6> LVDS_L1N 21B5> 23B4<> 39C2> 41B6> LVDS_L1P 21B5> 23B4<> 39C2> 41B6> LVDS_L2N 21B5> 23A4<> 39C2> 41B6> LVDS_L2P 21B5> 23A4<> 39C2> 41B6> LVDS_L3N_TP 21B5> LVDS_L3P_TP 21B5> LVDS_U0N 39C2> LVDS_U0P 39C2> LVDS_U1N 39C2> LVDS_U1P 39C2> LVDS_U2N 39C2> LVDS_U2P 39C2> MAIN_RESET_L 14C7< 17A8< 18A7< 19B8< 20B6<

26D6<> 31D4<> 31D7< 41C3> MASTER_SWING 20B7< 20D6< MAX1715_GND 36B5<> 36C5< 40C1> MAX1715_ON_RC 36C7<> MAX1715_REF 36B5<> 40C1> MAX1715_SKIP 36C4< 40C1> MAX1715_TON 36C5< 40C1> MAX1715_VCC 36D5< 40C1> MAX4172_OUT 32D4<> MAXBUS_SLEEP 5D2< 5D5< 6A3< 6B2< 6B4< 7B7< 7D8<

8B3< 8B8< 8C8< 8D1< 8D8< 15D8< 16D8<

35D8< 40D3> MDI0_PD 28B4< MDI1_PD 28B4< MDI2_PD 28B4< MDI3_PD 28B3< MDI_M<0> 28B5<> 39D2> MDI_M<0..3> 41A3> MDI_M<1> 28B5<> 39D2> MDI_M<2> 28B5<> 39C2> MDI_M<3> 28B5<> 39C2> MDI_P<0> 28B5<> 39D2> MDI_P<0..3> 41A3> MDI_P<1> 28B5<> 39D2> MDI_P<2> 28B5<> 39C2> MDI_P<3> 28B5<> 39C2> MEM_ADDR<0> 9B5< 9D6<> MEM_ADDR<12..0> 37A5> MEM_ADDR<1> 9B5< 9D6<> MEM_ADDR<2> 9B5< 9D6<> MEM_ADDR<3> 9B5< 9D6<> MEM_ADDR<4> 9B5< 9D6<> MEM_ADDR<5> 9B5< 9D6<> MEM_ADDR<6> 9B5< 9D6<> MEM_ADDR<7> 9B5< 9D6<> MEM_ADDR<8> 9B5< 9D6<> MEM_ADDR<9> 9A5< 9D6<> MEM_ADDR<10> 9A5< 9D6<> MEM_ADDR<11> 9A5< 9D6<> MEM_ADDR<12> 9A5< 9D6<> MEM_BA<0> 9A5< 9D6<> MEM_BA<1..0> 37A5> MEM_BA<1> 9A5< 9C6<> MEM_CAS_L 9A5< 9C6<> 37A5> MEM_CKE<0> 9B6<> 9C5< MEM_CKE<3..0> 37A5> MEM_CKE<1> 9B6<> 9C5< MEM_CKE<2> 9B6<> 9C5< MEM_CKE<3> 9B6<> 9C5< MEM_CS_L<0> 9C5< 9C6<> MEM_CS_L<3..0> 37A5> MEM_CS_L<1> 9C5< 9C6<> MEM_CS_L<2> 9C5< 9C6<> MEM_CS_L<3> 9C5< 9C6<> MEM_DATA<0> 9D8<> 10C7<> MEM_DATA<7..0> 37D5> MEM_DATA<1> 9D8<> 10C7<> MEM_DATA<2> 9D8<> 10C7<> MEM_DATA<3> 9D8<> 10C7<> MEM_DATA<4> 9D8<> 10C7<> MEM_DATA<5> 9D8<> 10C7<> MEM_DATA<6> 9D8<> 10C7<> MEM_DATA<7> 9D8<> 10C7<> MEM_DATA<8> 9D8<> 10C7<> MEM_DATA<15..8> 37D5> MEM_DATA<9> 9D8<> 10C7<> MEM_DATA<10> 9D8<> 10C7<> MEM_DATA<11> 9D8<> 10C7<> MEM_DATA<12> 9D8<> 10B7<> MEM_DATA<13> 9C8<> 10B7<> MEM_DATA<14> 9C8<> 10B7<> MEM_DATA<15> 9C8<> 10B7<> MEM_DATA<16> 9C8<> 10C5<> MEM_DATA<23..16> 37C5> MEM_DATA<17> 9C8<> 10C5<> MEM_DATA<18> 9C8<> 10C5<> MEM_DATA<19> 9C8<> 10C5<> MEM_DATA<20> 9C8<> 10C5<> MEM_DATA<21> 9C8<> 10C5<> MEM_DATA<22> 9C8<> 10C5<> MEM_DATA<23> 9C8<> 10C5<> MEM_DATA<24> 9C8<> 10C5<> MEM_DATA<31..24> 37C5> MEM_DATA<25> 9C8<> 10C5<> MEM_DATA<26> 9C8<> 10C5<> MEM_DATA<27> 9C8<> 10C5<> MEM_DATA<28> 9C8<> 10C5<> MEM_DATA<29> 9C8<> 10B5<> MEM_DATA<30> 9C8<> 10B5<> MEM_DATA<31> 9C8<> 10B5<> MEM_DATA<32> 9C8<> 10C3<> MEM_DATA<39..32> 37C5>

MEM_DATA<33> 9C8<> 10C3<> MEM_DATA<34> 9C8<> 10C3<> MEM_DATA<35> 9C8<> 10C3<> MEM_DATA<36> 9C8<> 10C3<> MEM_DATA<37> 9C8<> 10C3<> MEM_DATA<38> 9C8<> 10C3<> MEM_DATA<39> 9B8<> 10C3<> MEM_DATA<40> 9B8<> 10C3<> MEM_DATA<47..40> 37B5> MEM_DATA<41> 9B8<> 10C3<> MEM_DATA<42> 9B8<> 10C3<> MEM_DATA<43> 9B8<> 10C3<> MEM_DATA<44> 9B8<> 10C3<> MEM_DATA<45> 9B8<> 10B3<> MEM_DATA<46> 9B8<> 10B3<> MEM_DATA<47> 9B8<> 10B3<> MEM_DATA<48> 9B8<> 10C1<> MEM_DATA<55..48> 37B5> MEM_DATA<49> 9B8<> 10C1<> MEM_DATA<50> 9B8<> 10C1<> MEM_DATA<51> 9B8<> 10C1<> MEM_DATA<52> 9B8<> 10C1<> MEM_DATA<53> 9B8<> 10C1<> MEM_DATA<54> 9B8<> 10C1<> MEM_DATA<55> 9B8<> 10C1<> MEM_DATA<56> 9B8<> 10C1<> MEM_DATA<63..56> 37A5> MEM_DATA<57> 9B8<> 10C1<> MEM_DATA<58> 9B8<> 10C1<> MEM_DATA<59> 9B8<> 10C1<> MEM_DATA<60> 9B8<> 10C1<> MEM_DATA<61> 9B8<> 10B1<> MEM_DATA<62> 9B8<> 10B1<> MEM_DATA<63> 9B8<> 10B1<> MEM_DQM<0> 9C6<> 10C7<> 37D5> MEM_DQM<1> 9C6<> 10B7<> 37D5> MEM_DQM<2> 9C6<> 10C5<> 37C5> MEM_DQM<3> 9C6<> 10B5<> 37C5> MEM_DQM<4> 9C6<> 10C3<> 37B5> MEM_DQM<5> 9C6<> 10B3<> 37B5> MEM_DQM<6> 9C6<> 10C1<> 37B5> MEM_DQM<7> 9C6<> 10B1<> 37A5> MEM_DQS<0> 9C6<> 10C7<> 37D5> MEM_DQS<1> 9C6<> 10B7<> 37D5> MEM_DQS<2> 9C6<> 10C5<> 37C5> MEM_DQS<3> 9C6<> 10B5<> 37C5> MEM_DQS<4> 9C6<> 10C3<> 37B5> MEM_DQS<5> 9C6<> 10B3<> 37B5> MEM_DQS<6> 9C6<> 10C1<> 37B5> MEM_DQS<7> 9C6<> 10B1<> 37A5> MEM_MUXSEL_LSB 9B6<> 10B5<> 10B7<> 37A5> MEM_MUXSEL_LSB_L_TP 9B6<> MEM_MUXSEL_MSB 9B6<> 10B1<> 10B3<> 37A5> MEM_MUXSEL_MSB_L_TP 9B6<> MEM_RAS_L 9A5< 9C6<> 37A5> MEM_WE_L 9A5< 9C6<> 37A5> MMM_ACC_DETECT 25B8<> 25C2<> MMM_ACC_PWRDOWN 25B8<> 25C1< 25C7<> MMM_ACC_SELFTEST 25B8<> 25C2<> 25C7<> 41C1> MMM_ACC_X_AXIS 25C5> 25C6< 25D2<> 41C1> MMM_ACC_Y_AXIS 25B6< 25C2<> 25C5> 41C1> MMM_ACC_Z_AXIS 25B6< 25C2<> 25C5> 41C1> MMM_FFIRQ_L 14A6< 14B5<> 25C1< MMM_PIC_AAC_PWRDOWN 25C2<> MMM_PIC_AN2_PD 25C4<> MMM_PIC_AN3_PU 25C4<> MMM_PIC_FFIRQ_L 25C2<> MMM_PIC_SIRQ_L 25C2<> MMM_RESET_L 25C1< 25C2<> MMM_SIRQ_L 14A6< 14B5<> 25C1< MPIC_CPU_INT_L 5B2< 5B3< 14B5> MSEN_M 20B7> 20D7< MSEN_S 20B4> 20D6< NEC_AMC_TP 17A5< NEC_AVDD 17D6< 40A3> NEC_AVSS_F 17A5< 17B4< NEC_CRUN_L 17A7<> NEC_IDSEL 17B7< NEC_IO_RESET_L 17A7< 17B7< NEC_LEGC 17A7< 17A8< NEC_LUSB_OCI 17B3< 17B5< NEC_LUSB_OCI_UF 17B1< 27D8<> 41A6> NEC_LUSB_PPON 17B5> 27D8<> 41A6> NEC_MAIN_RESET_L 17A7< 17A7< NEC_NANDTESTEN_TP 17A4< NEC_NANDTESTOUT_TP 17A4<> NEC_NC<1> 17B5<> NEC_NC<2> 17B5<> NEC_OCI<3> 17B5< NEC_OCI<4> 17B5< NEC_OCI<5> 17B5< NEC_PCI_GNT_L 12C7<> 17B7< NEC_PCI_INTA_L 17B7<> NEC_PCI_INTB_L 17B7<> NEC_PCI_INTC_L 17B7<> NEC_PCI_INT_L 14B5<> 14D7< 17B8< NEC_PCI_REQ_L 12A7< 12D7<> 17B7> NEC_PME_L 17A7> 17A7< NEC_PPON3_TP 17B5> NEC_PPON4_TP 17B5> NEC_PPON5_TP 17B5> NEC_RREF 17B5<> NEC_RUSB_OCI 17B3< 17B5< NEC_RUSB_OCI_UF 17B1< 27D1<> 41D3> NEC_RUSB_PPON 17B5> 27D1<> 41D3> NEC_SMI_L_TP 17A7> NEC_USB_DAM 17D2<> 27D7<> 39B2> 41D3> NEC_USB_DAP 17D2<> 27D7<> 39B2> 41D3> NEC_USB_DBM 17C2<> 27D2<> 39B2> 41D3> NEC_USB_DBP 17C2<> 27D2<> 39B2> 41D3> NEC_USB_RSDM1 17C5<> NEC_USB_RSDM2 17C5<> NEC_USB_RSDP1 17C5<> NEC_USB_RSDP2 17C5<> NEC_XT1 17D5< NEC_XT2 17D5<> NEC_XT2_R 17D4< OVER_18V_ADJ 32C3<> PCI1510_VR_EN_L 18C7< PCI_AD<0> 9C3< 12D6<> 17D7<> 18C7<> 26B5<> PCI_AD<31..0> 39C5> 41D3> PCI_AD<1> 9C3< 12D6<> 17D7<> 18C7<> 26B6<> PCI_AD<2> 9C3< 12D6<> 17D7<> 18C7<> 26C5<> PCI_AD<3> 9C3< 12D6<> 17C7<> 18C7<> 26C6<> PCI_AD<4> 9C3< 12D6<> 17C7<> 18C7<> 26C5<> PCI_AD<5> 9C3< 12D6<> 17C7<> 18C7<> 26C6<> PCI_AD<6> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<7> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<8> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<9> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<10> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<11> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<12> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<13> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<14> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<15> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<16> 9C3< 12C6<> 17C7<> 18C7<> 26C5<> PCI_AD<17> 9C3< 12C6<> 17C7<> 18C7<> 26C6<> PCI_AD<18> 9C3< 12C6<> 17C7<> 18B7<> 26C5<>

26D4< PCI_AD<19> 9B3< 12C6<> 17C7<> 18B7<> 26C6<> PCI_AD<20> 9B3< 12C6<> 17C7<> 18B7<> 26C5<> PCI_AD<21> 12C6<> 17C7<> 18B7<> 26C6<> PCI_AD<22> 12C6<> 17C7<> 18B7<> 26C5<> PCI_AD<23> 12C6<> 17C7<> 18B7<> 26C6<> PCI_AD<24> 9C1<> 12C6<> 17C7<> 18B7<> 26C5<> PCI_AD<25> 9C1<> 12C6<> 17C7<> 18B7<> 26C6<> PCI_AD<26> 9C1<> 12C6<> 17C7<> 18B7<> 26C5<> PCI_AD<27> 9C1<> 12C6<> 17C8<> 18B7<> 26D6<> PCI_AD<28> 9C1<> 12C6<> 17C7<> 18B7<> 26C5<> PCI_AD<29> 9C1<> 12C6<> 17B7<> 18B7<> 26D6<> PCI_AD<30> 9C1<> 12C6<> 17B7<> 18B7<> 26D5<> PCI_AD<31> 9C1<> 12C6<> 17B7<> 18B7<> 26D6<> PCI_CBE<0> 12C7<> 17B7<> 18B7<> 26C5<> PCI_CBE<3..0> 39C5> PCI_CBE<1> 12C7<> 17B7<> 18B7<> 26C6<> PCI_CBE<2> 12C7<> 17B7<> 18B7<> 26C6<> PCI_CBE<3> 12C7<> 17B7<> 18B7<> 26C6<> PCI_DEVSEL_L 12B7< 12C7<> 17B7<> 18A7<> 26C5<>

39C5> 41C3> PCI_FRAME_L 12B7< 12C7<> 17B7<> 18B7<> 26C5<>

39C5> 41D3> PCI_IRDY_L 12B7< 12C7<> 17B7<> 18B7<> 26C6<>

39C5> 41D3> PCI_PAR 12C7<> 17B7<> 18B7<> 26C5<> 39C5>

41C3> PCI_PERR_L 17B7<> 18B7<> 18D7< PCI_SERR_L 17B7> 18B7> 18D7<

SIZE

SHT

DRAWING NUMBER

NOTICE OF PROPRIETARY PROPERTY

I TO MAINTAIN THE DOCUMENT IN CONFIDENCE

III NOT TO REVEAL OR PUBLISH IN WHOLE OR PART

II NOT TO REPRODUCE OR COPY IT

AGREES TO THE FOLLOWING

PROPERTY OF APPLE COMPUTER, INC. THE POSSESSOR

THE INFORMATION CONTAINED HEREIN IS THE PROPRIETARY

REV.

APPLE COMPUTER INC.

SCALE

NONE

PCI_STOP_L 12A7< 12C7<> 17B7<> 18B7<> 26C5<>

39C5> 41C3>

PCI_TRDY_L 12B7< 12C7<> 17B7<> 18A7<> 26C5<>

39C5> 41D3> PLL_STOP_L 7C4<> 7C8<> PMU_ACK_L 14C2< 31C4<> PMU_AC_DET 31A5< 31B4<> PMU_AC_IN 31B4<> PMU_BATT0_DET_L 31B4<> PMU_BATT1_DET_L_PU 31B4<> 31D2< PMU_BATT_DET_L 31A8<> 31B3< 31D2< 32A4<> 41A3> PMU_BYTE 31B6< 31C7< PMU_CHARGE_V 31C4<> 32B8<> PMU_CHRG_BATT_0 31C4<> 32A8<> PMU_CLK 14C2<> 31C4<> PMU_CNVSS 31B6< 31C7< PMU_CPU_HRESET_L 6A2< 6C3<> 31C4<> 41C1> PMU_CUSTOM_RESET 31A7<> 31B8< PMU_CUSTOM_RESET_L 31A8<> PMU_EPM 31C4<> 31D2< PMU_FROM_INT 14C2<> 31C4<> PMU_I2C_CLK 31B4<> 31C2< PMU_I2C_DATA 31B4<> 31C2< PMU_INT_L 14B5<> 14B7< 31B6<> PMU_INT_NMI 14B5<> 14B7< 31D4<> PMU_KB_RESET_L 41C1> PMU_LID_CLOSED_L 24A1< 24D6<> 31B2< 31C4<> 41D1> PMU_NMI_BUTTON_L 31C2< 31C4<> PMU_NMI_L 31C2< 31C4<> PMU_OOPS 31B2< 31B4<> PMU_PME_L 14A5<> 17A8< 26D5<> 31B2< 31C4<>

41C3> PMU_POWERUP_OK 31B4<> 31D2< PMU_POWER_UP_L 30C8<> 31C6<> 31D7< 34B8< PMU_REQ_L 14B7< 14C2> 31C4<> PMU_RESET_BUTTON_L 24A7< 31C4<> 31D2< PMU_RESET_L 31B6< 31B7> PMU_SELECT 31C6<> PMU_SLEEP_LED 24C7<> 24D6<> 41D1> PMU_SLEEP_LED_L 24C8<> 31C4<> PMU_SMB_CLK 31B4<> 31C2< 32A3< PMU_SMB_DATA 31B4<> 31C2< 32A2< PMU_TO_INT 14C2<> 31C4<> POWER_UP 30D7<> POWER_VALID 31B2< 31C4<> PP3V3_MMM 25C8< 25D5< PP3V3_MMM_PIC 25C1< 25D5< PP3V3_SI_AVCC1 20C7< 20D7< PP3V3_SI_AVCC2 20C5< 20D7< PP3V3_SI_PVCC1 20C7< PP3V3_SI_PVCC2 20C5< PP3V3_SI_VCC1 20C7< 20D8< PP3V3_SI_VCC2 20C5< 20D7< PWR_BUTTON_L 24A7< 24B3<> RAM_ADDR<0> 9B4< 11B3<> 11B6<> RAM_ADDR<12..0> 37A5> RAM_ADDR<1> 9B4< 11B5<> 11B8<> RAM_ADDR<2> 9B4< 11B3<> 11B6<> RAM_ADDR<3> 9B4< 11B5<> 11B8<> RAM_ADDR<4> 9B4< 11B3<> 11B6<> RAM_ADDR<5> 9B4< 11B5<> 11B8<> RAM_ADDR<6> 9B4< 11B3<> 11B6<> RAM_ADDR<7> 9B4< 11B5<> 11B8<> RAM_ADDR<8> 9B4< 11B3<> 11B6<> RAM_ADDR<9> 9A4< 11B5<> 11B8<> RAM_ADDR<10> 9A4< 11B5<> 11B8<> RAM_ADDR<11> 9A4< 11B3<> 11B6<> RAM_ADDR<12> 9A4< 11B5<> 11B8<> RAM_BA<0> 9A4< 11B5<> 11B8<> RAM_BA<1..0> 37A5> RAM_BA<1> 9A4< 11B3<> 11B6<> RAM_CAS_L 9A4< 11B3<> 11B6<> 37A5> RAM_CKE<0> 9A4< 9C4< 11C6<> RAM_CKE<3..0> 37A5> RAM_CKE<1> 9A4< 9C4< 11C8<> RAM_CKE<2> 9A4< 9C4< 11C3<> RAM_CKE<3> 9A4< 9C4< 11C5<> RAM_CS_L<0> 9C4< 11B8<> RAM_CS_L<3..0> 37A5> RAM_CS_L<1> 9C4< 11B6<> RAM_CS_L<2> 9C4< 11B5<> RAM_CS_L<3> 9C4< 11B3<> RAM_DATA_A<0> 10C8<> 11D8<> RAM_DATA_A<7..0> 37D5> RAM_DATA_A<1> 10C8<> 11D8<> RAM_DATA_A<2> 10C8<> 11D8<> RAM_DATA_A<3> 10B8<> 11D8<> RAM_DATA_A<4> 10B8<> 11D6<> RAM_DATA_A<5> 10B8<> 11D6<> RAM_DATA_A<6> 10B8<> 11D6<> RAM_DATA_A<7> 10B8<> 11D6<> RAM_DATA_A<8> 10B8<> 11D8<> RAM_DATA_A<15..8> 37C5> RAM_DATA_A<9> 10C7<> 11D8<> RAM_DATA_A<10> 10C7<> 11D8<> RAM_DATA_A<11> 10C7<> 11D8<> RAM_DATA_A<12> 10C7<> 11D6<> RAM_DATA_A<13> 10C7<> 11D6<> RAM_DATA_A<14> 10C7<> 11D6<> RAM_DATA_A<15> 10C7<> 11D6<> RAM_DATA_A<16> 10C6<> 11D8<> RAM_DATA_A<23..16> 37C5> RAM_DATA_A<17> 10C6<> 11C8<> RAM_DATA_A<18> 10C6<> 11C8<> RAM_DATA_A<19> 10B6<> 11C8<> RAM_DATA_A<20> 10B6<> 11D6<> RAM_DATA_A<21> 10B6<> 11C6<> RAM_DATA_A<22> 10B6<> 11C6<> RAM_DATA_A<23> 10B6<> 11C6<> RAM_DATA_A<24> 10B6<> 11C8<> RAM_DATA_A<31..24> 37C5> RAM_DATA_A<25> 10C5<> 11C8<> RAM_DATA_A<26> 10C5<> 11C8<> RAM_DATA_A<27> 10C5<> 11C8<> RAM_DATA_A<28> 10C5<> 11C6<> RAM_DATA_A<29> 10C5<> 11C6<> RAM_DATA_A<30> 10C5<> 11C6<> RAM_DATA_A<31> 10C5<> 11C6<> RAM_DATA_A<32> 10C4<> 11B8<> RAM_DATA_A<39..32> 37B5> RAM_DATA_A<33> 10C4<> 11B8<> RAM_DATA_A<34> 10C4<> 11B8<> RAM_DATA_A<35> 10C4<> 11B8<> RAM_DATA_A<36> 10B4<> 11B6<> RAM_DATA_A<37> 10B4<> 11B6<> RAM_DATA_A<38> 10B4<> 11B6<> RAM_DATA_A<39> 10B4<> 11B6<> RAM_DATA_A<40> 10B4<> 11B8<> RAM_DATA_A<47..40> 37B5> RAM_DATA_A<41> 10D3<> 11B8<> RAM_DATA_A<42> 10C3<> 11A8<> RAM_DATA_A<43> 10C3<> 11A8<> RAM_DATA_A<44> 10C3<> 11B6<> RAM_DATA_A<45> 10C3<> 11B6<> RAM_DATA_A<46> 10C3<> 11A6<> RAM_DATA_A<47> 10C3<> 11A6<> RAM_DATA_A<48> 10C2<> 11A8<> RAM_DATA_A<55..48> 37B5> RAM_DATA_A<49> 10C2<> 11A8<> RAM_DATA_A<50> 10C2<> 11A8<> RAM_DATA_A<51> 10C2<> 11A8<> RAM_DATA_A<52> 10B2<> 11A6<> RAM_DATA_A<53> 10B2<> 11A6<> RAM_DATA_A<54> 10B2<> 11A6<> RAM_DATA_A<55> 10B2<> 11A6<> RAM_DATA_A<56> 10B2<> 11A8<> RAM_DATA_A<63..56> 37A5> RAM_DATA_A<57> 10D1<> 11A8<> RAM_DATA_A<58> 10C1<> 11A8<> RAM_DATA_A<59> 10C1<> 11A8<> RAM_DATA_A<60> 10C1<> 11A6<> RAM_DATA_A<61> 10C1<> 11A6<> RAM_DATA_A<62> 10C1<> 11A6<> RAM_DATA_A<63> 10C1<> 11A6<> RAM_DATA_B<0> 10C8<> 11D5<> RAM_DATA_B<7..0> 37D5> RAM_DATA_B<1> 10C8<> 11D5<> RAM_DATA_B<2> 10C8<> 11D5<> RAM_DATA_B<3> 10C8<> 11D5<> RAM_DATA_B<4> 10C8<> 11D3<> RAM_DATA_B<5> 10C8<> 11D3<> RAM_DATA_B<6> 10C8<> 11D3<> RAM_DATA_B<7> 10C8<> 11D3<> RAM_DATA_B<8> 10C8<> 11D5<> RAM_DATA_B<15..8> 37C5> RAM_DATA_B<9> 10C8<> 11D5<> RAM_DATA_B<10> 10C8<> 11D5<> RAM_DATA_B<11> 10C8<> 11D5<>

RAM_DATA_B<12> 10C8<> 11D3<> RAM_DATA_B<13> 10C8<> 11D3<> RAM_DATA_B<14> 10C8<> 11D3<> RAM_DATA_B<15> 10C8<> 11D3<> RAM_DATA_B<16> 10C6<> 11D5<> RAM_DATA_B<23..16> 37C5> RAM_DATA_B<17> 10C6<> 11C5<> RAM_DATA_B<18> 10C6<> 11C5<> RAM_DATA_B<19> 10C6<> 11C5<> RAM_DATA_B<20> 10C6<> 11D3<> RAM_DATA_B<21> 10C6<> 11C3<> RAM_DATA_B<22> 10C6<> 11C3<> RAM_DATA_B<23> 10C6<> 11C3<> RAM_DATA_B<24> 10C6<> 11C5<> RAM_DATA_B<25..24> 37C5> RAM_DATA_B<25> 10C6<> 11C5<> RAM_DATA_B<26> 10C6<> 11C5<> 37C5> RAM_DATA_B<27> 10C6<> 11C5<> RAM_DATA_B<31..27> 37C5> RAM_DATA_B<28> 10C6<> 11C3<> RAM_DATA_B<29> 10C6<> 11C3<> RAM_DATA_B<30> 10C6<> 11C3<> RAM_DATA_B<31> 10C6<> 11C3<> RAM_DATA_B<32> 10D4<> 11B5<> RAM_DATA_B<39..32> 37B5> RAM_DATA_B<33> 10C4<> 11B5<> RAM_DATA_B<34> 10C4<> 11B5<> RAM_DATA_B<35> 10C4<> 11B5<> RAM_DATA_B<36> 10C4<> 11B3<> RAM_DATA_B<37> 10C4<> 11B3<> RAM_DATA_B<38> 10C4<> 11B3<> RAM_DATA_B<39> 10C4<> 11B3<> RAM_DATA_B<40> 10C4<> 11B5<> RAM_DATA_B<47..40> 37B5> RAM_DATA_B<41> 10C4<> 11B5<> RAM_DATA_B<42> 10C4<> 11A5<> RAM_DATA_B<43> 10C4<> 11A5<> RAM_DATA_B<44> 10C4<> 11B3<> RAM_DATA_B<45> 10C4<> 11B3<> RAM_DATA_B<46> 10C4<> 11A3<> RAM_DATA_B<47> 10C4<> 11A3<> RAM_DATA_B<48> 10D2<> 11A5<> RAM_DATA_B<55..48> 37B5> RAM_DATA_B<49> 10C2<> 11A5<> RAM_DATA_B<50> 10C2<> 11A5<> RAM_DATA_B<51> 10C2<> 11A5<> RAM_DATA_B<52> 10C2<> 11A3<> RAM_DATA_B<53> 10C2<> 11A3<> RAM_DATA_B<54> 10C2<> 11A3<> RAM_DATA_B<55> 10C2<> 11A3<> RAM_DATA_B<56> 10C2<> 11A5<> RAM_DATA_B<63..56> 37A5> RAM_DATA_B<57> 10C2<> 11A5<> RAM_DATA_B<58> 10C2<> 11A5<> RAM_DATA_B<59> 10C2<> 11A5<> RAM_DATA_B<60> 10C2<> 11A3<> RAM_DATA_B<61> 10C2<> 11A3<> RAM_DATA_B<62> 10C2<> 11A3<> RAM_DATA_B<63> 10C2<> 11A3<> RAM_DQM_A<0> 10B8<> 11D6<> 37D5> RAM_DQM_A<1> 10C7<> 11D6<> 37C5> RAM_DQM_A<2> 10B6<> 11C6<> 37C5> RAM_DQM_A<3> 10C5<> 11C6<> 37C5> RAM_DQM_A<4> 10B4<> 11B6<> 37B5> RAM_DQM_A<5> 10C3<> 11B6<> 37B5> RAM_DQM_A<6> 10B2<> 11A6<> 37B5> RAM_DQM_A<7> 10C1<> 11A6<> 37A5> RAM_DQM_B<0> 10C8<> 11D3<> 37D5> RAM_DQM_B<1> 10C8<> 11D3<> 37C5> RAM_DQM_B<2> 10C6<> 11C3<> 37C5> RAM_DQM_B<3> 10C6<> 11C3<> 37C5> RAM_DQM_B<4> 10C4<> 11B3<> 37B5> RAM_DQM_B<5> 10C4<> 11B3<> 37B5> RAM_DQM_B<6> 10C2<> 11A3<> 37B5> RAM_DQM_B<7> 10C2<> 11A3<> 37A5> RAM_DQS_A<0> 10B8<> 11D8<> 37D5> RAM_DQS_A<1> 10C7<> 11D8<> 37C5> RAM_DQS_A<2> 10B6<> 11C8<> 37C5> RAM_DQS_A<3> 10C5<> 11C8<> 37C5> RAM_DQS_A<4> 10B4<> 11B8<> 37B5> RAM_DQS_A<5> 10C3<> 11B8<> 37B5> RAM_DQS_A<6> 10B2<> 11A8<> 37B5> RAM_DQS_A<7> 10C1<> 11A8<> 37A5> RAM_DQS_B<0> 10C8<> 11D5<> 37D5> RAM_DQS_B<1> 10C8<> 11D5<> 37C5> RAM_DQS_B<2> 10C6<> 11C5<> 37C5> RAM_DQS_B<3> 10C6<> 11C5<> 37C5> RAM_DQS_B<4> 10C4<> 11B5<> 37B5> RAM_DQS_B<5> 10C4<> 11B5<> 37B5> RAM_DQS_B<6> 10C2<> 11A5<> 37B5> RAM_DQS_B<7> 10C2<> 11A5<> 37A5> RAM_RAS_L 9A4< 11B3<> 11B6<> 37A5> RAM_WE_L 9A4< 11B5<> 11B8<> 37A5> RESET_VREF 6C3<> RF_DISABLE_L 26D6<> 41C3> ROM_CS_L 9B3< 12A4< 41C3> ROM_CS_TP_L 9C4< 26B6<> ROM_OE_L 9B3< 12A4< 41C3> ROM_OE_TP_L 9B3< 26C5<> ROM_ONBOARD_CS_L 9B3< 41C3> ROM_ONBOARD_CS_TP_L 9B3< 26C6<> ROM_RW_L 9B3< 12A4< 41C3> ROM_RW_TP_L 9B3< 26C6<> ROM_WP_L 9B3< SI_DUAL_MODE 20A8< 20D7< SI_I2C_CLK 20B4< 20B7< 20D7< 21C5<> SI_I2S_DATA 20B4<> 20B7<> 20D7< 21C5<> SI_M_HTPLG 20B7< SI_RESET_L 20B6< 21C7<> SI_RESET_L_R 20B4< 20B7< 20D7< SI_SECONDARY 20A6< 20D6< SI_S_HTPLG 20B4< SI_TMDS_CLKN 20A7< 20C2< 38D1> SI_TMDS_CLKP 20A7< 20C2< 38D1> SI_TMDS_DN<0> 20A7< 20B2< 38D1> SI_TMDS_DN<1> 20A7< 20B2< 38D1> SI_TMDS_DN<2> 20A7< 20B2< 38D1> SI_TMDS_DN<3> 20A4< 20B2< 38D1> SI_TMDS_DN<4> 20A2< 20A4< 38D1> SI_TMDS_DN<5> 20A2< 20A4< 38D1> SI_TMDS_DP<0> 20A7< 20B2< 38D1> SI_TMDS_DP<1> 20A7< 20B2< 38D1> SI_TMDS_DP<2> 20A7< 20B2< 38D1> SI_TMDS_DP<3> 20A4< 20B2< 38D1> SI_TMDS_DP<4> 20A2< 20A4< 38D1> SI_TMDS_DP<5> 20A2< 20A4< 38C1> SI_VREF 20A6< 20A8< SLAVE_SWING 20B4< 20D6< SLEEP 24D7<> 27D7<> 31B6<> 31D7< 34A4<

34A6< 34B3< 34B8<> 36B3< 36C2< 41C1>

SLEEP_LED 24C3<> 41C1> SLEEP_LED_DGND 24C3<> SLEEP_LED_I 24D3< SLEEP_LED_L 24D4< SLEEP_LED_SW_L 24D4<> SLEEP_LED_UF 24D3< SLEEP_LS5 34A4<> 34A8< SLEEP_LS5_EN_L 34A5<> SLEEP_L_LS5 18D5< 21A7<> 28A8<> 34A5<> 35C7<>

36C8< SLEEP_L_LS5_EN_L 34A6<> SLEEP_L_LS5_INV 36A3< 36C2< 36C8<> SLEEP_L_LS5_NET 34B3<> 36C8<> SLEEP_NET 34A3<> SLEEP_NET_INV 34A3<> SND_AMP_MUTE 27C7<> 27D6<> 41A6> SND_AMP_MUTE_CTRL 27B5<> 27D6<> SND_AMP_MUTE_L 14B5<> 27D5<> SND_HP_MUTE 27C5<> SND_HP_MUTE_L 14C5<> 27C5<> 41A6> SND_HP_MUTE_LO 27C6<> 27C7<> SND_HP_SENSE_L 14B5<> 27C8<> 41A6> SND_HW_RESET_L 14A8< 14B5<> 27D7<> 41A6> SND_LIN_SENSE_L 14B5<> 27C8<> 41A6> SOFTMODEM_FC_RGDT 27D3< SOFT_PWR_ON_L 23D1<> 24B1< 31A8<> 31C6<> 31D7<

35A4<> 41B3> ST7_SLEEP_LED_H 24C5<> 24C6<> 24D6<> 41D1> STOP_AGP_L 12D2< 12D4<> SYSCLK_CPU 5C3< 8A6< 37D1> SYSCLK_CPU_UF 8A5<> 37D1> SYSCLK_DDRCLK_A0 9D4< 11D8<> 37D1> SYSCLK_DDRCLK_A0_L 9D4< 11D8<> 37C1> SYSCLK_DDRCLK_A0_L_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_A0_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_A1 9D4< 11A6<> 37C1> SYSCLK_DDRCLK_A1_L 9D4< 11A6<> 37C1>

SYSCLK_DDRCLK_A1_L_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_A1_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_B0 9D4< 11D5<> 37C1> SYSCLK_DDRCLK_B0_L 9C4< 11D5<> 37C1> SYSCLK_DDRCLK_B0_L_UF 9B6<> 9C5< 37D1> SYSCLK_DDRCLK_B0_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_B1 9D4< 11A3<> 37C1> SYSCLK_DDRCLK_B1_L 9D4< 11A3<> 37C1> SYSCLK_DDRCLK_B1_L_UF 9B6<> 9D5< 37D1> SYSCLK_DDRCLK_B1_UF 9B6<> 9D5< 37D1> SYSCLK_LA_TP 8A5<> SYSTEM_CLK_EN 14A5< 14B6< 31C4<> SYS_BATT_ISNS 25A2< 31C2< SYS_BATT_ISNS1 31B4<> 31C3< SYS_BATT_ISNS2 31B4<> 31C3< THERM1_A_DM 27A7< 27A8< 39A2> THERM1_A_DP 27A7< 27A8< 39A2> THERM1_DM 27A5< 27A6< 27B5<> 27B6< 39B2> THERM1_DP 27A5< 27A6< 27B5<> 27B6< 39A2> THERM1_M_DM 27B7< 27B8< 39A2> THERM1_M_DP 27B7< 27B8< 39A2> THERM2_A_DM 27A7< 27A8< 39A2> THERM2_A_DP 27A7< 27A8< 39A2> THERM2_DM 27A5< 27A6< 27B5<> 27B6< 39A2> THERM2_DP 27A5< 27A6< 27B5<> 27B6< 39A2> THERM2_M_DM 27B7< 27B8< 39A2> THERM2_M_DP 27B7< 27B8< 39A2> THERM_INV 27B1<> THERM_L_OC 27B1<> 31B4<> TMDS_CLKN 20C1< 20C1< 20D3< 23C8<> 39C2> TMDS_CLKP 20C1< 20C1< 20D4< 23C8<> 39C2> TMDS_CLK_CMF 20D3< TMDS_CONN_CLKN 23C6<> 23C7<> 38C1> 41C6> TMDS_CONN_CLKP 23C6<> 23C7<> 38C1> 41C6> TMDS_CONN_DN<0> 23D6<> 38C1> TMDS_CONN_DN<1> 23C4<> 23D5<> 38C1> TMDS_CONN_DN<2> 23C4<> 23D5<> 38C1> TMDS_CONN_DN<3> 23B3<> 23C5<> 38B1> TMDS_CONN_DN<4> 23C1<> 23C5<> 38B1> TMDS_CONN_DN<5> 23C1<> 23C6<> 38B1> TMDS_CONN_DP<0> 23D6<> 38C1> TMDS_CONN_DP<1> 23B4<> 23D5<> 38C1> TMDS_CONN_DP<2> 23C4<> 23D5<> 38B1> TMDS_CONN_DP<3> 23B3<> 23C5<> 38B1> TMDS_CONN_DP<4> 23C1<> 23C5<> 38B1> TMDS_CONN_DP<5> 23B1<> 23C6<> 38B1> TMDS_D0_CMF 20D3< TMDS_D1_CMF 20C3< TMDS_D2_CMF 20C3< TMDS_DN<0> 20B1< 20D1< 20D3< 23D7<> 39C2> TMDS_DN<0..2> 41C1> TMDS_DN<1> 20B1< 20C3< 20D1< 23C3<> 39C2> TMDS_DN<2> 20B1< 20C1< 20C3< 23C3<> 39B2> TMDS_DN<3> 20B1< 20B2< 23B4<> 38B1> TMDS_DN<4> 20A1< 20A2< 23C2<> 38B1> TMDS_DN<5> 20A1< 20A2< 23C2<> 38B1> TMDS_DP<0> 20B1< 20D1< 20D4< 23D7<> 39C2> TMDS_DP<0..2> 41C1> TMDS_DP<1> 20B1< 20C4< 20D1< 23B3<> 39B2> TMDS_DP<2> 20B1< 20C1< 20C4< 23C3<> 39B2> TMDS_DP<3> 20B1< 20B4< 23B4<> 38B1> TMDS_DP<4> 20A1< 20A4< 23C2<> 38B1> TMDS_DP<5> 20A1< 20A4< 23B2<> 38B1> TMDS_MASTER 20A8< 20D7< TMDS_SYNC 20A6< 20A8< TPAD_F_RXD 41B3> TPAD_F_TXD 41B3> TPAD_RXD 31C2< 31C4<> TPAD_TXD 31B2< 31C4<> TPS2211_SHTDWN_L 18C5< TP_BB_XTAL1 6C3<> TP_MMM_ICSP_PGC 25C3<> TP_MMM_ICSP_PGD 25C3<> TP_MMM_ICSP_PGM 25C3<> TV_C 23A6<> 41A6> TV_COMP 23A6<> 41A6> TV_GND1 23B6<> 40B6> 41A6> TV_GND2 23A6<> 40B6> 41A6> TV_Y 23A6<> 41A6> UIDE_ADDR<0> 13D7<> 26C4< UIDE_ADDR<2..0> 39C5> UIDE_ADDR<1> 13D7<> 26C4< UIDE_ADDR<2> 13D7<> 26B4< UIDE_CS0_L 13C7<> 26C4< 39C5> UIDE_CS1_L 13C7<> 26B4< 39C5> UIDE_DATA<0> 13D7<> 26D4< UIDE_DATA<6..0> 39C5> UIDE_DATA<1> 13D7<> 26D4< UIDE_DATA<2> 13D7<> 26D4< UIDE_DATA<3> 13D7<> 26D4< UIDE_DATA<4> 13D7<> 26C4< UIDE_DATA<5> 13D7<> 26C4< UIDE_DATA<6> 13D7<> 26C4< UIDE_DATA<7> 13D7<> 26C4< 39C5> UIDE_DATA<8> 13D7<> 26C4< UIDE_DATA<15..8> 39C5> UIDE_DATA<9> 13D7<> 26C4< UIDE_DATA<10> 13D7<> 26C4< UIDE_DATA<11> 13D7<> 26D4< UIDE_DATA<12> 13D7<> 26B4< UIDE_DATA<13> 13D7<> 26B4< UIDE_DATA<14> 13D7<> 26C4< UIDE_DATA<15> 13D7<> 26B4< UIDE_DIOR_L 13C7<> 26A4< 39C5> UIDE_DIOW_L 13C7<> 26A4< 39C5> UIDE_DMACK_L 13C7<> 26A4< 39C5> UIDE_DMARQ 13C7<> 39C5> UIDE_INTRQ 13C7< 39C5> UIDE_IOCHRDY 13C7< 26A4< 39C5> UIDE_REF 13C7<> 40C3> UIDE_RST_L 13C7<> 26A4< 39C5> USB_DAM 14B2<> 14D2< USB_DAP 14B2<> 14D2< USB_DBM 14B2<> 14D2< USB_DBP 14B2<> 14D2< USB_DCM 14B2<> 14D2< USB_DCP 14B2<> 14D2< USB_DDM 14B2<> 14C2< USB_DDP 14B2<> 14C2< USB_DEM 14B2<> 14C2< 39B2> USB_DEP 14B2<> 14C2< 39B2> USB_DFM 14B2<> 14B2< 39B2> USB_DFP 14B2<> 14C2< 39B2> USB_OC_AB_L 14B2< 14C7< USB_OC_CD_L 14B2< 14C7< USB_OC_EF_L 14B2< 14C7< USB_PWREN_AB_L 14B2<> 14C7< USB_PWREN_CD_L 14B2<> 14C7< USB_PWREN_EF_L 14B2<> 14C7< USB_TPAD_N 14B1< 24A4<> 39B2> 41D3> USB_TPAD_P 14C1< 24B4<> 39B2> 41D3> VCORE_AB_SEL 35A7<> 35C6< VCORE_AB_SEL_INV 35A7<> VCORE_AB_SEL_OPT 35A6<> VCORE_BOOST 35C4<> 40C1> VCORE_BST 35C5<> 40C1> VCORE_CC 35B6<> 40C1> VCORE_D0 35A3<> VCORE_D1 35A3<> VCORE_D2 35A3<> VCORE_D3 35A3<> VCORE_D4 35A3<> VCORE_DH 35B5<> 40C1> VCORE_DL 35B5<> 40C1> VCORE_FB 35B5< 40B1> 41C6> VCORE_GND 35B5<> 40B1> VCORE_GNDA 35B6<> 40B1> VCORE_GNDDIV 35A5< 35A5< 40B1> VCORE_GNDDIV_TEST 35A4<> VCORE_GNDSNS 35A1<> 35A5< 40B1> VCORE_GNDSNS_TEST 35A4<> VCORE_ILIM 35C6<> 40C1> VCORE_LX 35B5<> 40C1> VCORE_OFFSET_DIV 35B6<> VCORE_REF 35B6<> 40C1> VCORE_SHDN_L 5B3< 35C6<> VCORE_SHDN_L_3V 5B3<> VCORE_SNS 35A1<> 40B1> VCORE_TIME 35B4<> 40B1> VCORE_TON 35B6< 40C1> VCORE_VCC 35C6< 40C1> VCORE_VGATE 14B5< 14B7< 35B4> 40B1> VCORE_VID<0> 35B7< VCORE_VID<1> 35B7< 35D4< VCORE_VID<2> 35B7< 35D4< VCORE_VID<3> 35B7< 35D4< VCORE_VID<4> 35B7< 35D4< VCORE_VSENSE 35C2<>

VGA_B 23C6< 23C6<> 41B6> VGA_G 23C5<> 23C6< 41B6> VGA_HSYNC 23C6<> 23D7< 41B6> VGA_R 23B6< 23C5<> 41B6> VGA_VSYNC 23C5<> 23D7< 41B6> ZT10_SPN 4C2<> ZT301_SPN 4C2<> ZT302_SPN 4C2<>

051-6680

4644

8 7

2 1

7 6

R396 RES 21

R395 RES 21

R394 RES 21

R393 RES 21

R392 RES 21

R391 RES 21

R390 RES 21

R389 RES 21

R388 RES 19

R387 RES 21

R386 RES 21

R385 RES 21

R384 RES 21

R383 RES 21

R382 RES 21

R381 RES 21

R380 RES 21

R379 RES 22

R378 RES 21

R377 RES 20

R376 RES 19

R375 RES 19

R374 RES 20

R373 RES 19

R372 RES 19

R371 RES 19

R370 RES 19

R369 RES 20

R368 RES 21

R367 RES 20

R366 RES 21

R365 RES 19

R364 RES 31

R363 RES 22

R362 RES 20

R361 RES 21

R360 RES 21

R359 RES 21

R358 RES 21

R357 RES 21

R356 RES 21

R355 RES 20

R354 RES 23

R353 RES 21

R352 RES 21

R351 RES 21

R350 RES 20

R349 RES 31

R348 RES 31

R347 RES 23

R346 RES 21

R345 RES 31

R344 RES 21

R343 RES 21

R342 RES 21

R341 RES 21

R340 RES 20

R339 RES 21

R338 RES 19

R337 RES 19

R336 RES 19

R335 RES 19

R334 RES 12

R333 RES 21

R332 RES 21

R331 RES 21

R330 RES 21

R329 RES 21

R328 RES 21

R327 RES 21

R326 RES 21

R325 RES 19

R324 RES 19

R323 RES 19

R322 RES 34

R321 RES 34

R320 RES 19

R319 RES 22

R318 RES 12

R317 RES 12

R316 RES 12

R315 RES 19

R314 RES 12

R313 RES 19

R312 RES 22

R311 RES 34

R310 RES 34

R309 RES 19

R308 RES 12

R307 RES 34

R306 RES 34

R305 RES 19

R304 RES 19

R303 RES 11

R302 RES 5

R301 RES 34

R300 RES 20

R299 RES 11

R298 RES 19

R297 RES 19

R296 RES 14

R295 RES 14

R294 RES 34

R293 RES 14

R292 RES 14

R291 RES 34

R290 RES 19

R289 RES 19

R288 RES 14

R287 RES 14

R286 RES 14

R285 RES 19

R284 RES 14

R283 RES 5

R282 RES 12

R281 RES 5

R280 RES 14

R279 RES 14

R278 RES 12

R277 RES 12

R276 RES 15

R275 RES 22

R274 RES 15

R273 RES 12

R272 RES 12

R271 RES 9

R270 RES 13

R269 RES 13

R268 RES 26

R267 RES 31

R266 RES 26

R265 RES 9

R264 RES 12

R263 RES 13

R262 RES 26

R261 RES 31

R260 RES 9

R259 RES 13

R258 RES 14

R257 RES 9

R256 RES 12

R255 RES 12

R254 RES 12

R253 RES 12

R252 RES 12

R251 RES 26

R250 RES 14

R249 RES 31

R248 RES 31

R247 RES 9

R246 RES 12

R245 RES 12

R244 RES 12

R243 RES 14

R242 RES 26

R241 RES 14

R240 RES 14

R239 RES 12

R238 RES 26

R237 RES 26

R236 RES 9

R235 RES 12

R234 RES 26

R233 RES 33

R232 RES 13

R231 RES 33

R230 RES 12

R229 RES 26

R228 RES 24

R227 RES 36

R226 RES 36

R225 RES 12

R224 RES 13

R223 RES 20

R222 RES 36

R221 RES 36

R220 RES 36

R219 RES 12

R218 RES 14

R217 RES 26

R216 RES 26

R215 RES 26

R214 RES 26

R213 RES 26

R212 RES 36

R211 RES 36

R210 RES 36

R209 RES 9

R208 RES 9

R207 RES 13

R206 RES 14

R205 RES 13

R204 RES 26

R203 RES 26

R202 RES 9

R201 RES 14

R200 RES 26

R199 RES 26

R198 RES 24

R197 RES 12

R196 RES 26

R195 RES 13

R194 RES 9

R193 RES 19

R192 RES 19

R191 RES 14

R190 RES 24

R189 RES 27

R188 RES 31

R187 RES 14

R186 RES 13

R185 RES 24

R184 RES 36

R183 RES 14

R182 RES 14

R181 RES 14

R180 RES 14

R179 RES 14

R178 RES 14

R177 RES 36

R176 RES 9

R175 RES 14

R174 RES 14

R173 RES 24

R172 RES 17

R171 RES 36

R170 RES 36

R169 RES 8

R168 RES 8

R167 RES 12

R166 RES 14

R165 RES 14

R164 RES 14

R163 RES 24

R162 RES 9

R161 RES 8

R160 RES 13

R159 RES 8

R158 RES 14

R157 RES 31

R156 RES 27

R155 RES 8

R154 RES 24

R153 RES 14

R152 RES 8

R151 RES 8

R150 RES 8

R149 RES 13

R148 RES 14

R147 RES 8

R146 RES 8

R145 RES 13

R144 RES 14

R143 RES 14

R142 RES 14

R141 RES 8

R140 RES 8

R139 RES 35

R138 RES 24

R137 RES 35

R136 RES 8

R135 RES 27

R134 RES 14

R133 RES 7

R132 RES 7

R131 RES 7

R130 RES 33

R129 RES 14

R128 RES 8

R127 RES 33

R126 RES 35

R125 RES 14

R124 RES 17

R123 RES 14

R122 RES 33

R121 RES 14

R120 RES 33

R119 RES 32

R118 RES 33

R117 RES 36

R116 RES 36

R115 RES 36

R114 RES 36

R113 RES 14

R112 RES 9

R111 RES 35

R110 RES 7

R109 RES 33

R108 RES 33

R107 RES 33

R106 RES 35

R105 RES 6

R104 RES 6

R103 RES 6

R102 RES 32

R101 RES 35

R100 RES 6

R99 RES 35

R98 RES 35

R97 RES 35

R96 RES 32

R95 RES 35

R94 RES 32

R93 RES 35

R92 RES 7

R91 RES 35

R90 RES 35

R89 RES 5

R88 RES 7

R87 RES 32

R86 RES 35

R85 RES 35

R84 RES 7

R83 RES 32

R82 RES 32

R81 RES 35

R80 RES 35

R79 RES 7

R78 RES 7

R77 RES 32

R76 RES 7

R75 RES 32

R74 RES 32

R73 RES 32

R72 RES 35

R71 RES 35

R70 RES 7

R69 RES 35

R68 RES 7

R67 RES 35

R66 RES 35

R65 RES 35

R64 RES 7

R63 RES 7

R62 RES 32

R61 RES 32

R60 RES 7

R59 RES 32

R58 RES 32

R57 RES 32

R56 RES 32

R55 RES 32

R54 RES 32

R53 RES 32

R52 RES 32

R51 RES 32

R50 RES 7

R49 RES 32

R48 RES 7

R47 RES 32

R46 RES 5

R45 RES 5

R44 RES 7

R43 RES 7

R42 RES 32

R41 RES 32

R40 RES 32

R39 RES 33

R38 RES 5

R37 RES 5

R36 RES 5

R35 RES 7

R34 RES 5

R33 RES 5

R32 RES 5

R31 RES 7

R30 RES 32

R29 RES 32

R28 RES 5

R27 RES 5

R26 RES 5

R25 RES 5

R24 RES 5

R23 RES 7

R22 RES 32

R21 RES 32

R20 RES 5

R19 RES 5

R18 RES 7

R17 RES 7

R16 RES 32

R15 RES 32

R14 RES 7

R13 RES 5

R12 RES 7

R11 RES 5

R10 RES 6

R9 RES 6

R8 RES 5

R7 RES 5

R6 RES 5

R5 RES 7

R4 RES 5

R3 RES 5

R2 RES 5

R1 RES 9

Q83 TRA_2N7002DW 27

Q82 TRA_2N7002DW 35

Q79 TRA_2N7002DW 27

Q78 TRA_2N7002DW 27

Q77 TRA_2N7002DW 27

Q76 TRA_FDG6324L 23

Q74 TRA_2N7002DW 32

Q73 TRA_2N7002 30

Q72 TRA_2N7002DW 32

Q71 TRA_2N7002DW 32

Q70 TRA_IRF7805 32

Q69 TRA_SI4435DY 32

Q68 TRA_SI4435DY 32

Q67 TRA_2N3904 27

Q66 TRA_IRF7832 35

Q65 TRA_SI7860DP 35

Q64 TRA_IRF7811W 32

Q63 TRA_IRF7832 35

Q62 TRA_SI7860DP 35

Q61 TRA_2N3904 27

Q60 TRA_IRF7832 35

Q59 TRA_2N3904 27

Q58 TRA_2N3906 24

Q57 TRA_IRF7811W 36

Q56 TRA_IRF7805 36

Q55 TRA_IRF7805 36

Q54 TRA_IRF7811W 36

Q53 TRA_SI3446DV 36

Q52 TRA_2N3904 21

Q51 TRA_2N3904 21

Q50 TRA_2N7002DW 34

Q49 TRA_IRF7832 21

Q48 TRA_SI7860DP 21

Q47 TRA_IRF7811W 34

Q46 TRA_2N3904 27

Q45 TRA_IRF7805 34

Q44 TRA_2N7002DW 34

Q43 TRA_2N7002 34

Q42 TRA_IRF7811W 34

Q41 TRA_IRF7805 34

Q40 TRA_2N7002DW 23

Q39 TRA_2N7002DW 23

Q38 TRA_TP0610 23

Q37 TRA_SI2319DS 30

Q36 TRA_SI3443DV 24

Q35 TRA_DUAL_MMDT3904 23

Q34 TRA_NDS9407 30

Q33 TRA_2N7002DW 30

Q32 TRA_2N7002DW 28

Q31 TRA_2N7002 36

Q30 TRA_2N7002 31

Q29 TRA_SI3443DV 23

Q28 TRA_2N7002 23

Q27 TRA_SI3443DV 34

Q26 TRA_SI3443DV 34

Q25 TRA_2N7002DW 21

Q24 TRA_2N7002DW 34

Q23 TRA_SI3446DV 21

Q22 TRA_2N7002 24

Q21 TRA_SI3443DV 34

Q20 TRA_2N7002DW 34

Q19 TRA_2N7002DW 31

Q18 TRA_2N7002DW 24

Q17 TRA_IRF7805 33

Q16 TRA_IRF7811W 33

Q15 TRA_FDG6324L 33

Q14 TRA_2N7002DW 7

Q13 TRA_2N7002 7

Q12 TRA_2N3904 7

Q11 TRA_2N7002DW 36

Q10 TRA_2N7002 36

Q9 TRA_2N7002DW 32

Q8 TRA_2N3904 35

Q7 TRA_SUD45P03 32

Q6 TRA_SI4435DY 32

Q5 TRA_2N3904 35

Q4 TRA_2N7002DW 32

Q3 TRA_2N7002DW 7

Q2 TRA_2N7002DW 32

Q1 TRA_2N7002DW 32

L91 IND 20

L90 IND 20

L86 IND 20

L85 FILTER_4P 23

L84 IND 20

L82 IND 20

L81 IND 22

L77 FILTER_4P 30

L76 FILTER_4P 30

L75 IND 22

L74 IND 23

L73 IND 23

L72 IND 23

L71 IND_3P 35

L70 IND 32

L69 IND_3P 33

L68 IND 24

L67 IND 36

L66 IND 19

L65 IND 36

L64 IND_3P 21

L63 IND 36

L62 IND 34

L61 IND 34

L60 IND 28

L59 IND 29

L58 IND 30

L57 IND 23

L56 IND 23

L55 IND 23

L54 IND 23

L53 IND 23

L52 FILTER_4P 30

L51 IND 30

L50 IND 20

L49 FILTER_4P 23

L48 FILTER_4P 30

L47 FILTER_4P 23

L46 FILTER_4P 23

L45 FILTER_4P 23

L44 FILTER_4P 23

L42 IND 23

L39 IND 30

L38 IND 23

L37 FILTER_4P 23

L36 IND 23

L35 IND 28

L34 IND 29

L33 IND 22

L32 IND 22

L31 IND 22

L30 IND 22

L29 IND 22

L28 IND 22

L27 IND 23

L26 IND 22

L25 IND 22

L24 IND 22

L23 IND 22

L22 IND 19

L21 IND 22

L20 IND 22

L19 IND 22

L18 IND 22

L17 IND 21

L16 IND 19

L15 IND 14

L14 IND 14

L13 IND 14

L11 IND 24

L9 IND 24

L8 IND 24

L7 IND 17

L6 IND 32

L5 IND 32

L4 IND 32

L3 IND 32

L2 IND 32

L1 IND 23

J28 CON_10STSM_5087 27

J27 CON_M4RT_S_SM 32

J26 CON_M8RT_S_SM 32

J25 CON_F400RT_DDRDIMM_SM3 11

J24 CON_F6RT_S4MT_TH1 30

J23 CON_RJ45_10RT_S4MT_TH1 28

J22 CON_F30RT_T6MT_TH1 23

J21 CON_F5RT_MINIDIN_TH 23

J20 CON_F9RT_1394B_S6MT_SMA 30

J19 CON_F20ST_D_SM 24

J18 CON_M4RT_S2MT_SM 27

J17 CON_M16ST_D_SMA 27

J16 CON_3RTSM_125 33

J15 CON_F10RT_S2MT_SM 27

J14 CON_F30RT_S2MT_SM 23

J13 CON_M50SM_5MM 26

J12 CON_M50SM_5MM 26

J10 CON_M16ST_D_SMA 24

J9 CON_F1ST_S2MT_SM 14

J8 CON_2RTSM_125 24

J7 CON_12 35

J6 CON_F80ST_D4MT_SM 26

J5 CON_M80ST_D4MT_SM 18

J4 CON_4RT_WRIB 23

J3 CON_M40ST_D4MT_SM 27

J2 CON_4RT_WRIB 24

J1 CON_M4RT_S2MT_SM 27

G2 OSC 29

G1 OSC 19

FL3 FILTER_LC 23

FL2 FILTER_LC 23

FL1 FILTER_LC 23

F5 FUSE 32

F4 FUSE 32

F3 FUSE 30

F2 FUSE 23

F1 FUSE 30

DP8 DPAK3P 31

DP7 DPAK3P 21

DP6 DPAK3P 30

DP5 DPAK3P 21

DP4 DPAK3P 36

DP3 DPAK3P 36

DP2 DPAK3P 35

DP1 DPAK3P 32

D36 DIODE_SCHOT 32

D35 DIODE_SCHOT 30

D34 DIODE 20

D33 DIODE 35

D32 DIODE_SCHOT 33

D31 DIODE_SCHOT 36

D30 DIODE_SCHOT 36

D29 DIODE_SCHOT 21

D28 DIODE_SCHOT 34

D27 DIODE 34

D26 DIODE_SCHOT 34

D25 DIODE_SCHOT_3P2 29

D24 DIODE_SCHOT 30

D23 DIODE_DUAL_6P 30

D22 DIODE_DUAL_6P 30

D21 ZENER 30

D20 DIODE_DUAL_6P 30

D19 DIODE_SCHOT 23

D18 DIODE_DUAL_6P 30

D17 DIODE_SCHOT 5

D16 DIODE_SCHOT 29

D15 DIODE 28

D14 DIODE_SCHOT 34

D13 DIODE_SCHOT 34

D12 DIODE 21

D11 DIODE_SCHOT 33

D10 DIODE_SCHOT 33

D9 ZENER_MMBZ15VDLT1 24

D8 DIODE 33

D7 DIODE_SCHOT 33

D6 DIODE 32

D5 DIODE_SCHOT 35

D4 DIODE 32

D3 DIODE 33

D2 DIODE_SCHOT 33

D1 DIODE_SCHOT 33

C913 CAP 20

C912 CAP 20

C911 CAP 20

C910 CAP 20

C909 CAP 20

C908 CAP 20

C907 CAP 20

C906 CAP 20

C905 CAP 20

C893 CAP 20

C892 CAP 20

C891 CAP 20

C890 CAP 20

C889 CAP 20

C887 CAP 20

C886 CAP 20

C885 CAP 20

C883 CAP 20

C882 CAP 20

C881 CAP 22

C880 CAP 22

C870 CAP 20

C869 CAP 27

C868 CAP 27

C853 CAP 32

C852 CAP 28

C851 CAP 28

C850 CAP 27

C849 CAP 27

C848 CAP_P 27

C847 CAP 13

C846 CAP 21

C845 CAP 36

C844 CAP 36

C843 CAP 35

C842 CAP 35

C841 CAP 35

C838 CAP 21

C837 CAP 20

C836 CAP 20

C835 CAP 22

C834 CAP 22

C833 CAP 22

C832 CAP 22

C831 CAP 22

C830 CAP 22

C829 CAP 27

C828 CAP 27

C826 CAP 30

C825 CAP 30

C824 CAP 30

C823 CAP 25

C822 CAP 30

C821 CAP 25

C820 CAP 25

C819 CAP 23

C818 CAP 27

C817 CAP 27

C816 CAP 23

C815 CAP 23

C814 CAP 27

C813 CAP 23

C812 CAP 23

C811 CAP 5

C810 CAP 5

C809 CAP 32

C808 CAP 26

C807 CAP 32

C806 CAP_P 33

C805 CAP 26

C804 CAP_P 33

C803 CAP 32

C802 CAP_P 35

C801 CAP 32

C800 CAP 18

C799 CAP 32

C798 CAP 32

C797 CAP_P 35

C796 CAP 18

C795 CAP 32

C794 CAP 32

C793 CAP_P 35

C792 CAP 32

C791 CAP 18

C790 CAP 32

C789 CAP 18

C788 CAP_P 35

C787 CAP 18

C786 CAP 18

C785 CAP 32

C784 CAP 18

C783 CAP 18

C782 CAP 18

C781 CAP_P 35

C780 CAP 32

C779 CAP_P 32

C778 CAP 18

C777 CAP 32

C776 CAP 18

C775 CAP 18

C774 CAP_P 35

C773 CAP 9

C772 CAP 33

C771 CAP 33

C770 CAP 16

C769 CAP 17

C768 CAP 17

C767 CAP 33

C766 CAP 24

C765 CAP 17

C764 CAP 10

C763 CAP 27

C762 CAP 6

C761 CAP 17

C760 CAP 17

C759 CAP 17

C758 CAP 10

C757 CAP 10

C756 CAP 17

C755 CAP 33

C754 CAP 33

C753 CAP 33

C752 CAP 17

C751 CAP 17

C750 CAP 17

C749 CAP 17

C748 CAP 17

C747 CAP 17

C746 CAP 17

C745 CAP 10

C744 CAP 17

C743 CAP 17

C742 CAP 10

C741 CAP 10

C740 CAP 33

C739 CAP 16

C738 CAP 36

C737 CAP 33

C736 CAP 16

C735 CAP 16

C734 CAP 10

C733 CAP 10

C732 CAP 10

C731 CAP 31

C730 CAP 10

C729 CAP 31

C728 CAP 31

C727 CAP 10

C726 CAP 10

C725 CAP 36

C724 CAP 31

C723 CAP 14

C722 CAP 36

C721 CAP 14

C720 CAP 36

C719 CAP 36

C718 CAP 36

C717 CAP 36

C716 CAP 36

C715 CAP 36

C714 CAP 36

C713 CAP_P 34

C712 CAP 21

C711 CAP_P 21

C710 CAP_P 34

C709 CAP_P 34

C708 CAP 21

C707 CAP_P 21

C706 CAP 21

C705 CAP_P 21

C704 CAP 21

C703 CAP_P 34

C702 CAP 23

C701 CAP 23

C700 CAP 34

C699 CAP 34

C698 CAP 24

C697 CAP 36

C696 CAP 25

C695 CAP 36

C694 CAP 34

C693 CAP 36

C692 CAP_P 33

C691 CAP 36

C690 CAP 36

C689 CAP 27

C688 CAP 34

C687 CAP 34

C686 CAP 34

C685 CAP_P 34

C684 CAP 29

C683 CAP 29

C682 CAP 29

C681 CAP 29

C680 CAP 28

C679 CAP 29

C678 CAP 29

C677 CAP 29

C676 CAP 29

C675 CAP 28

C674 CAP 28

C673 CAP 29

C672 CAP 29

C671 CAP 29

C670 CAP_P 29

C669 CAP 27

C668 CAP 23

C667 CAP 23

C666 CAP 30

C665 CAP 29

C664 CAP 23

C663 CAP 23

C662 CAP 30

C661 CAP 23

C660 CAP 23

C659 CAP 23

C658 CAP 23

C657 CAP 23

C656 CAP 23

C655 CAP 23

C654 CAP 23

C653 CAP 23

C652 CAP 30

C651 CAP 30

C650 CAP 30

C649 CAP 30

C648 CAP 28

C647 CAP 28

C646 CAP 28

C645 CAP 28

C644 CAP 30

C643 CAP 25

C642 CAP 25

C641 CAP 23

C640 CAP 30

C639 CAP 30

C638 CAP 30

C637 CAP 30

C636 CAP 25

C635 CAP 25

C634 CAP 23

C633 CAP 30

C632 CAP 25

C631 CAP 23

C630 CAP 30

C629 CAP 34

C628 CAP 34

C627 CAP 34

C626 CAP 5

C625 CAP 29

C624 CAP 28

C623 CAP 28

C622 CAP 28

C621 CAP 29

C620 CAP 29

C619 CAP 28

C618 CAP 28

C617 CAP 28

C616 CAP 28

C615 CAP 28

C614 CAP 28

C613 CAP 28

C612 CAP 28

C611 CAP 28

C610 CAP 29

C609 CAP 29

C608 CAP 28

C607 CAP 29

C606 CAP 29

C605 CAP 29

C604 CAP 28

C603 CAP 28

C602 CAP 28

C601 CAP 28

C600 CAP 28

C599 CAP 28

C598 CAP 28

C597 CAP 28

C596 CAP 29

C595 CAP 28

C594 CAP 28

C593 CAP 29

C592 CAP 28

C591 CAP 29

C590 CAP 29

C589 CAP 29

C588 CAP 29

C587 CAP 29

C586 CAP 29

C585 CAP 29

C584 CAP 29

C583 CAP 29

C582 CAP 34

C581 CAP 34

C580 CAP 34

C579 CAP 34

C578 CAP 34

C577 CAP 34

C576 CAP 34

C575 CAP 34

C574 CAP 34

C573 CAP 34

C572 CAP 34

C571 CAP 34

C570 CAP 34

C569 CAP 34

C568 CAP 34

C567 CAP 34

C566 CAP 34

C565 CAP 34

C564 CAP 34

C563 CAP 34

C562 CAP 34

C561 CAP 34

C560 CAP 34

C559 CAP 34

C558 CAP 34

C557 CAP 34

C556 CAP 34

C555 CAP 34

C554 CAP 34

C553 CAP 22

C552 CAP 22

C551 CAP 22

C550 CAP 22

C549 CAP 23

C548 CAP 23

C547 CAP 22

C546 CAP 22

C545 CAP 22

C544 CAP 22

C543 CAP 22

C542 CAP 22

C541 CAP 22

C540 CAP 22

C539 CAP 22

C538 CAP 22

C537 CAP 22

C536 CAP 20

C535 CAP 22

C534 CAP 22

C533 CAP 21

C532 CAP 21

C531 CAP 21

C530 CAP 19

C529 CAP 21

C528 CAP 21

C527 CAP 22

C526 CAP 21

C525 CAP 21

C524 CAP 21

C523 CAP 22

C522 CAP 25

C521 CAP 22

C520 CAP 22

C519 CAP 22

C518 CAP 22

C517 CAP 22

C516 CAP 19

C515 CAP 20

C514 CAP 22

C513 CAP 21

C512 CAP 21

C511 CAP 22

C510 CAP 21

C509 CAP 21

C508 CAP 19

C507 CAP 24

C506 CAP 22

C505 CAP 21

C504 CAP 22

C503 CAP 23

C502 CAP 5

C501 CAP 22

C500 CAP 22

C499 CAP 22

C498 CAP 21

C497 CAP 20

C496 CAP 22

C495 CAP 21

C494 CAP 21

C493 CAP 22

C492 CAP 22

C491 CAP 22

C490 CAP 19

C489 CAP 22

C488 CAP 22

C487 CAP 20

C486 CAP 21

C485 CAP 21

C484 CAP 21

C483 CAP 22

C482 CAP 21

C481 CAP 21

C480 CAP 21

C479 CAP 20

C478 CAP 22

C477 CAP 21

C476 CAP 19

C475 CAP 22

C474 CAP 23

C473 CAP 22

C472 CAP 22

C471 CAP 22

C470 CAP 22

C469 CAP 34

C468 CAP 22

C467 CAP 31

C466 CAP 21

C465 CAP 21

C464 CAP 22

C463 CAP 22

C462 CAP 22

C461 CAP 22

C460 CAP 22

C459 CAP 22

C458 CAP 19

C457 CAP 19

C456 CAP 22

C455 CAP 21

C454 CAP 22

C453 CAP 22

C452 CAP 21

C451 CAP 21

C450 CAP 22

C449 CAP 21

C448 CAP 21

C447 CAP 22

C446 CAP 21

C445 CAP 21

C444 CAP 22

C443 CAP 21

C442 CAP 19

C441 CAP 21

C440 CAP 21

C439 CAP 22

C438 CAP 22

C437 CAP 22

C436 CAP 22

C435 CAP 21

C434 CAP 21

C433 CAP 34

C432 CAP 34

C431 CAP 21

C430 CAP 22

C429 CAP 34

C428 CAP 34

C427 CAP 22

C426 CAP 22

C425 CAP 22

C424 CAP 22

C423 CAP 22

C422 CAP 22

C421 CAP 22

C420 CAP 22

C419 CAP 22

C418 CAP 22

C417 CAP 22

C416 CAP 34

C415 CAP 34

C414 CAP 22

C413 CAP 22

C412 CAP 19

C411 CAP 21

C410 CAP 34

C409 CAP 19

C408 CAP 19

C407 CAP 21

C406 CAP 31

C405 CAP_P 36

C404 CAP 11

C403 CAP 11

C402 CAP 14

C401 CAP 19

C400 CAP 14

C399 CAP 14

C398 CAP 34

C397 CAP 11

C396 CAP_P 36

C395 CAP 16

C394 CAP 14

C393 CAP_P 36

C392 CAP 14

C391 CAP 11

C390 CAP 19

C389 CAP 14

C388 CAP 14

C387 CAP 14

C386 CAP 14

C385 CAP 16

C384 CAP 19

C383 CAP 11

C382 CAP 16

C381 CAP 16

C380 CAP 16

C379 CAP 16

C378 CAP 16

C377 CAP 16

C376 CAP 16

C375 CAP 16

C374 CAP 16

C373 CAP 16

C372 CAP 12

C371 CAP 16

C370 CAP 31

C369 CAP 16

C368 CAP 16

C367 CAP 16

C366 CAP 16

C365 CAP 16

C364 CAP 16

C363 CAP 16

C362 CAP 12

C361 CAP 16

C360 CAP 16

C359 CAP 16

C358 CAP 16

C357 CAP 16

C356 CAP 11

C355 CAP 36

C354 CAP 16

C353 CAP 34

C352 CAP 16

C351 CAP 16

C350 CAP 16

C349 CAP 16

C348 CAP 16

C347 CAP 16

C346 CAP 16

C345 CAP 16

C344 CAP 16

C343 CAP 16

C342 CAP 16

C341 CAP 16

C340 CAP 31

C339 CAP 31

C338 CAP 36

C337 CAP 14

C336 CAP 33

C335 CAP 16

C334 CAP 16

C333 CAP 16

C332 CAP 16

C331 CAP 16

C330 CAP 16

C329 CAP 16

C328 CAP 16

C327 CAP 16

C326 CAP 33

C325 CAP 16

C324 CAP 16

C323 CAP 16

C322 CAP 16

C321 CAP 16

C320 CAP 16

C319 CAP 16

C318 CAP 16

C317 CAP 16

C316 CAP 16

C315 CAP 16

C314 CAP 16

C313 CAP 16

C312 CAP 16

C311 CAP 12

C310 CAP 16

C309 CAP 16

C308 CAP 16

C307 CAP_P 36

C306 CAP 16

C305 CAP 16

C304 CAP 16

C303 CAP 16

C302 CAP 16

C301 CAP 16

C300 CAP 16

C299 CAP 16

C298 CAP 36

C297 CAP 16

C296 CAP 16

C295 CAP 16

C294 CAP 16

C293 CAP 16

C292 CAP 16

C291 CAP 12

C290 CAP 16

C289 CAP 16

C288 CAP 16

C287 CAP 16

C286 CAP 16

C285 CAP 16

C284 CAP 26

C283 CAP 16

C282 CAP 16

C281 CAP 16

C280 CAP 16

C279 CAP 16

C278 CAP 16

C277 CAP 34

C276 CAP 33

C275 CAP 16

C274 CAP 16

C273 CAP 16

C272 CAP 16

C271 CAP 16

C270 CAP 12

C269 CAP 16

C268 CAP 16

C267 CAP_P 36

C266 CAP 16

C265 CAP 16

C264 CAP 16

C263 CAP 16

C262 CAP 16

C261 CAP 16

C260 CAP 16

C259 CAP 16

C258 CAP 16

C257 CAP 16

C256 CAP 14

C255 CAP 31

C254 CAP 16

C253 CAP 16

C252 CAP 16

C251 CAP 16

C250 CAP 16

C249 CAP 9

C248 CAP 16

C247 CAP 16

C246 CAP 14

C245 CAP 16

C244 CAP 33

C243 CAP 16

C242 CAP 16

C241 CAP 16

C240 CAP 16

C239 CAP 16

C238 CAP 16

C237 CAP 16

C236 CAP 16

C235 CAP 14

C234 CAP 16

C233 CAP 32

C232 CAP 36

C231 CAP 16

C230 CAP 16

C229 CAP 16

C228 CAP 16

C227 CAP 16

C226 CAP 16

C225 CAP 16

C224 CAP 16

C223 CAP 16

C222 CAP 16

C221 CAP 16

C220 CAP 24

C219 CAP 16

C218 CAP 16

C217 CAP 16

C216 CAP 16

C215 CAP 16

C214 CAP 16

C213 CAP 16

C212 CAP 16

C211 CAP 11

C210 CAP 20

C209 CAP 36

C208 CAP 16

C207 CAP 16

C206 CAP 16

C205 CAP 16

C204 CAP 16

C203 CAP 16

C202 CAP 16

C201 CAP 16

C200 CAP 16

C199 CAP 24

C198 CAP 24

C197 CAP 17

C196 CAP 36

C195 CAP 36

C194 CAP 36

C193 CAP 36

C192 CAP 16

C191 CAP 16

C190 CAP 12

C189 CAP 16

C188 CAP 24

C187 CAP 8

C186 CAP 16

C185 CAP 16

C184 CAP 16

C183 CAP 16

C182 CAP 16

C181 CAP 16

C180 CAP 16

C179 CAP 16

C178 CAP 16

C177 CAP 16

C176 CAP 16

C175 CAP 16

C174 CAP 11

C173 CAP 17

C172 CAP 16

C171 CAP 16

C170 CAP 16

C169 CAP 11

C168 CAP 16

C167 CAP 16

C166 CAP 16

C165 CAP 16

C164 CAP 16

C163 CAP 16

C162 CAP 16

C161 CAP 16

C160 CAP 16

C159 CAP 16

C158 CAP 16

C157 CAP 11

C156 CAP 11

C155 CAP 33

C154 CAP 33

C153 CAP 33

C152 CAP 14

C151 CAP 14

C150 CAP 11

C149 CAP 16

C148 CAP 16

C147 CAP 16

C146 CAP 16

C145 CAP 16

C144 CAP 16

C143 CAP 34

C142 CAP 16

C141 CAP 16

C140 CAP 11

C139 CAP 16

C138 CAP 33

C137 CAP 33

C136 CAP 17

C135 CAP 33

C134 CAP 33

C133 CAP 36

C132 CAP 11

C131 CAP 33

C130 CAP 20

C129 CAP 36

C128 CAP 11

C127 CAP 11

C126 CAP 34

C125 CAP 9

C124 CAP 33

C123 CAP 34

C122 CAP 9

C121 CAP 33

C120 CAP 6

C119 CAP 33

C118 CAP 32

C117 CAP 32

C116 CAP 32

C115 CAP 32

C114 CAP 34

C113 CAP 32

C112 CAP 32

C111 CAP_P 35

C110 CAP 5

C109 CAP 5

C108 CAP 5

C107 CAP 5

C106 CAP 35

C105 CAP 35

C104 CAP 5

C103 CAP 5

C102 CAP 5

C101 CAP 35

C100 CAP 35

C99 CAP 32

C98 CAP 32

C97 CAP 32

C96 CAP 32

C95 CAP 32

C94 CAP 35

C93 CAP 35

C92 CAP_P 35

C91 CAP_P 35

C90 CAP 35

C89 CAP 5

C88 CAP 5

C87 CAP 5

C86 CAP 5

C85 CAP 5

C84 CAP 35

C83 CAP 35

C82 CAP 5

C81 CAP 5

C80 CAP 35

C79 CAP 35

C78 CAP_P 35

C77 CAP_P 35

C76 CAP 35

C75 CAP 5

C74 CAP 35

C73 CAP 5

C72 CAP 5

C71 CAP 32

C70 CAP 35

C69 CAP 5

C68 CAP 5

C67 CAP 32

C66 CAP 35

C65 CAP 35

C64 CAP 35

C63 CAP 35

C62 CAP 5

C61 CAP 5

C60 CAP 18

C59 CAP 5

C58 CAP 5

C57 CAP 35

C56 CAP 5

C55 CAP 5

C54 CAP 5

C53 CAP 5

C52 CAP_P 35

C51 CAP_P 35

C50 CAP 5

C49 CAP 5

C48 CAP 5

C47 CAP 5

C46 CAP 5

C45 CAP 5

C44 CAP 5

C43 CAP 32

C42 CAP 32

C41 CAP 32

C40 CAP 18

C39 CAP 5

C38 CAP 5

C37 CAP 18

C36 CAP 32

C35 CAP 32

C34 CAP 5

C33 CAP 5

C32 CAP 5

C31 CAP 5

C30 CAP 5

C29 CAP 5

C28 CAP 5

C27 CAP 5

C26 CAP 5

C25 CAP 5

C24 CAP 32

C23 CAP 32

C22 CAP 23

C21 CAP 35

C20 CAP 5

C19 CAP 23

C18 CAP 5

C17 CAP 5

C16 CAP 35

C15 CAP 35

C14 CAP 35

C13 CAP 35

C12 CAP 35

C11 CAP 32

C10 CAP 5

C9 CAP 5

C8 CAP 34

C7 CAP 34

C6 CAP 35

C5 CAP 35

C4 CAP 35

C3 CAP 35

C2 CAP 5

C1 CAP 5

*** Part Cross-Reference for the entire design ***

8 7

2 1

7 6

R397 RES 19 R398 RES 36 R399 RES 34 R400 RES 34 R401 RES 34 R402 RES 34 R403 RES 34 R404 RES 34 R405 RES 34 R406 RES 34 R407 RES 34 R408 RES 34 R409 RES 34 R410 RES 34 R411 RES 34 R412 RES 29 R413 RES 29 R414 RES 29 R415 RES 29 R416 RES 29 R417 RES 29 R418 RES 29 R419 RES 29 R420 RES 29 R421 RES 28 R422 RES 28 R423 RES 28 R424 RES 28 R425 RES 28 R426 RES 29 R427 RES 28 R428 RES 28 R429 RES 28 R430 RES 28 R431 RES 28 R432 RES 28 R433 RES 28 R434 RES 28 R435 RES 28 R436 RES 28 R437 RES 28 R438 RES 28 R439 RES 28 R440 RES 28 R441 RES 28 R442 RES 28 R443 RES 29 R444 RES 29 R445 RES 28 R446 RES 30 R447 RES 30 R448 RES 30 R449 RES 5 R450 RES 14 R451 RES 30 R452 RES 5 R453 RES 5 R454 RES 27 R455 RES 5 R456 RES 23 R457 RES 14 R458 RES 23 R459 RES 23 R460 RES 23 R461 RES 30 R462 RES 23 R463 RES 23 R464 RES 23 R465 RES 30 R466 RES 30 R467 RES 14 R468 RES 36 R469 RES 23 R470 RES 23 R471 RES 30 R472 RES 23 R473 RES 23 R474 RES 23 R475 RES 23 R476 RES 23 R477 RES 23 R478 RES 23 R479 RES 23 R480 RES 23 R481 RES 23 R482 RES 23 R483 RES 23 R484 RES 23 R485 RES 23 R486 RES 29 R487 RES 29 R488 RES 29 R489 RES 29 R490 RES 29 R491 RES 29 R492 RES 29 R493 RES 29 R494 RES 29 R495 RES 29 R496 RES 29 R497 RES 29 R498 RES 29 R499 RES 29 R500 RES 29 R501 RES 29 R502 RES 29 R503 RES 28 R504 RES 28 R505 RES 29 R506 RES 28 R507 RES 28 R508 RES 29 R509 RES 29 R510 RES 29 R511 RES 29 R512 RES 29 R513 RES 28 R514 RES 29 R515 RES 29 R516 RES 29 R517 RES 29 R518 RES 29 R519 RES 29 R520 RES 29 R521 RES 34 R522 RES 34 R523 RES 34 R524 RES 34 R525 RES 36 R526 RES 36 R527 RES 36 R528 RES 36 R529 RES 36 R530 RES 27 R531 RES 36 R532 RES 36 R533 RES 34 R534 RES 34 R535 RES 36 R536 RES 36 R537 RES 34 R538 RES 34 R539 RES 34 R540 RES 26 R541 RES 26 R542 RES 26 R543 RES 23 R544 RES 23 R545 RES 26 R546 RES 26 R547 RES 27 R548 RES 34 R549 RES 21 R550 RES 34 R551 RES 34 R552 RES 12 R553 RES 12 R554 RES 36 R555 RES 21 R556 RES 21 R557 RES 36 R558 RES 21 R559 RES 21 R560 RES 31 R561 RES 31 R562 RES 31 R563 RES 31 R564 RES 31

R565 RES 14 R566 RES 36 R567 RES 14 R568 RES 14 R569 RES 24 R570 RES 26 R571 RES 36 R572 RES 34 R573 RES 26 R574 RES 14 R575 RES 31 R576 RES 31 R577 RES 24 R578 RES 26 R579 RES 26 R580 RES 31 R581 RES 31 R582 RES 31 R583 RES 31 R584 RES 31 R585 RES 31 R586 RES 31 R587 RES 31 R588 RES 31 R589 RES 31 R590 RES 31 R591 RES 31 R592 RES 31 R593 RES 31 R594 RES 31 R595 RES 31 R596 RES 20 R597 RES 19 R598 RES 31 R599 RES 31 R600 RES 31 R601 RES 36 R602 RES 31 R603 RES 14 R604 RES 33 R605 RES 33 R606 RES 17 R607 RES 17 R608 RES 17 R609 RES 17 R610 RES 17 R611 RES 24 R612 RES 17 R613 RES 17 R614 RES 17 R615 RES 17 R616 RES 24 R617 RES 17 R618 RES 8 R619 RES 8 R620 RES 8 R621 RES 8 R622 RES 8 R623 RES 8 R624 RES 8 R625 RES 8 R626 RES 8 R627 RES 8 R628 RES 8 R629 RES 8 R630 RES 13 R631 RES 35 R632 RES 17 R633 RES 27 R634 RES 35 R635 RES 14 R636 RES 17 R637 RES 6 R638 RES 8 R639 RES 8 R640 RES 8 R641 RES 8 R642 RES 8 R643 RES 8 R644 RES 8 R645 RES 8 R646 RES 8 R647 RES 20 R648 RES 8 R649 RES 8 R650 RES 8 R651 RES 8 R652 RES 8 R653 RES 8 R654 RES 8 R655 RES 8 R656 RES 8 R657 RES 8 R658 RES 8 R659 RES 27 R660 RES 35 R661 RES 27 R662 RES 35 R663 RES 33 R664 RES 8 R665 RES 8 R666 RES 8 R667 RES 8 R668 RES 8 R669 RES 8 R670 RES 8 R671 RES 20 R672 RES 24 R673 RES 33 R674 RES 9 R675 RES 20 R676 RES 20 R677 RES 8 R678 RES 8 R679 RES 8 R680 RES 8 R681 RES 8 R682 RES 8 R683 RES 8 R684 RES 8 R685 RES 8 R686 RES 27 R687 RES 27 R688 RES 27 R689 RES 27 R690 RES 33 R691 RES 9 R692 RES 6 R693 RES 8 R694 RES 8 R695 RES 8 R696 RES 8 R697 RES 8 R698 RES 8 R699 RES 8 R700 RES 27 R701 RES 27 R702 RES 27 R703 RES 27 R704 RES 27 R705 RES 27 R706 RES 35 R707 RES 6 R708 RES 35 R709 RES 6 R710 RES 32 R711 RES 32 R712 RES 6 R713 RES 32 R714 RES 18 R715 RES 32 R716 RES 32 R717 RES 32 R718 RES 18 R719 RES 18 R720 RES 32 R721 RES 18 R722 RES 18 R723 RES 18 R724 RES 18 R725 RES 32 R726 RES 18 R727 RES 32 R728 RES 32 R729 RES 32 R730 RES 32 R731 RES 32 R732 RES 32

R733 RES 32 R734 RES 32 R735 RES 32 R736 RES 32 R737 RES 26 R738 RES 32 R739 RES 26 R740 RES 32 R741 RES 32 R742 RES 32 R743 RES 35 R744 RES 32 R745 RES 32 R746 RES 14 R747 RES 26 R748 RES 5 R749 RES 27 R750 RES 23 R751 RES 27 R752 RES 27 R753 RES 23 R754 RES 24 R755 RES 5 R756 RES 18 R757 RES 35 R758 RES 24 R759 RES 26 R760 RES 20 R761 RES 20 R762 RES 20 R763 RES 20 R764 RES 20 R765 RES 20 R766 RES 20 R767 RES 20 R768 RES 27 R769 RES 20 R770 RES 27 R771 RES 27 R772 RES 27 R773 RES 27 R774 RES 27 R775 RES 5 R776 RES 20 R777 RES 30 R778 RES 27 R779 RES 21 R780 RES 20 R781 RES 20 R782 RES 20 R783 RES 20 R784 RES 24 R785 RES 25 R786 RES 21 R787 RES 22 R788 RES 22 R789 RES 24 R790 RES 35 R791 RES 35 R792 RES 35 R793 RES 25 R794 RES 25 R795 RES 25 R796 RES 25 R797 RES 25 R798 RES 17 R799 RES 25 R800 RES 25 R801 RES 14 R802 RES 14 R803 RES 30 R804 RES 33 R805 RES 25 R806 RES 27 R807 RES 27 R808 RES 27 R809 RES 24 R810 RES 25 R811 RES 25 R812 RES 25 R813 RES 25 R814 RES 28 R815 RES 31 R816 RES 30 R817 RES 27 R818 RES 25 R819 RES 31 R820 RES 25 R821 RES 31 R822 RES 25 R823 RES 25 R824 RES 25 R825 RES 31 R826 RES 31 R827 RES 25 R828 RES 20 R829 RES 30 R830 RES 30 R831 RES 30 R832 RES 20 R833 RES 30 R834 RES 30 R835 RES 30 R836 RES 30 R837 RES 30 R838 RES 6 R839 RES 6 R840 RES 21 R841 RES 22 R842 RES 22 R843 RES 22 R844 RES 6 R845 RES 6 R846 RES 6 R847 RES 6 R848 RES 27 R849 RES 27 R850 RES 20 R851 RES 20 R852 RES 20 R857 RES 20 R858 RES 20 R859 RES 20 R867 RES 20 R869 RES 20 R871 RES 20 R872 RES 20 R876 RES 20 RP1 RPAK10P2C 18 RP2 RPAK4P 8 RP3 RPAK4P 8 RP4 RPAK4P 14 RP5 RPAK4P 14 RP6 RPAK4P 14 RP7 RPAK4P 14 RP8 RPAK4P 14 RP9 RPAK4P 9 RP10 RPAK4P 13 RP11 RPAK4P 14 RP12 RPAK4P 9 RP13 RPAK4P 14 RP14 RPAK4P 9 RP15 RPAK4P 14 RP16 RPAK4P 13 RP17 RPAK4P 9 RP18 RPAK4P 26 RP19 RPAK4P 26 RP20 RPAK4P 9 RP21 RPAK4P 26 RP22 RPAK4P 9 RP23 RPAK4P 26 RP24 RPAK4P 26 RP25 RPAK4P 26 RP26 RPAK4P 26 RP27 RPAK4P 26 RP28 RPAK4P 26 RP29 RPAK4P 9 RP30 RPAK4P 26 RP31 RPAK4P 9 RP32 RPAK4P 13 RP33 RPAK4P 12 RP34 RPAK4P 12 RP35 RPAK4P 13 RP36 RPAK4P 12 RP37 RPAK4P 29 RP38 RPAK4P 29 RP39 RPAK4P 31 RP40 RPAK10P2C 24

RP41 RPAK4P 31 RP42 RPAK10P2C 24 RP43 RPAK4P 17 RP44 RPAK4P 17 RP45 RPAK4P 17 RP46 RPAK10P2C 6 RP47 RPAK4P 14 RP61 RPAK2P 20 RP70 RPAK2P 20 RP72 RPAK2P 20 RP74 RPAK2P 20 RP75 RPAK2P 20 SH1 SHLD_3P_EMI 4 U1 COMPARATOR_LMC7211 32 U2 NC7S32 23 U3 AMP_MAX4172 32 U4 PWR_CNTRL_TPS2211 18 U5 FAN2558 5 U6 MAX1772 32 U7 MAX1717 35 U8 PCI1510GGU 18 U9 SN74AUC1G08 6 U10 SN74AUC1G08 6 U11 FEPR_1MX8 9 U12 SN74AUC1G04 7 U13 LTC1625 33 U14 COMPARATOR_LMC7211 33 U15 PIC16F818_QFN 25 U16 CBTV4020 10 U17 UPD720101_FBGA 17 U18 CBTV4020 10 U19 MAX1715 36 U20 KXM52 25 U21 741125 24 U22 VREG_LP2951 33 U23 VREG_LP2951 33 U24 SIL178 20 U25 SIL178 20 U26 MAX6804 31 U27 CBTV4020 10 U28 CBTV4020 10 U29 M16C62 31 U30 CLK_GEN_CY25811 19 U31 CLK_GEN_CY28512 14 U32 LTC1778 21 U33 COMPARATOR_LMC7211 31 U34 VREG_MM1571J 22 U35 LTC3707 34 U36 TSB81BA3A 29 U37 VREG_LM2594 29 U38 VREG_LT1962 29 U39 741G32 23 U40 741G32 23 U41 INA138 25 U42 COMPARATOR_LMC7211 23 U43 TRANSCEIVER_88E1111 28 U44 LTC1761 29 U45 LTC3405 28 U46 LTC3411 36 U47 RAGE_MBLTY_M11_CSP64_667 19 21 22 U48 TRA_SI6467BDQ 36 U49 VREG_LT1962 14 U50 TRA_SI3447DV 36 U51 INTREPID 8 9 12 13 14 15 U52 EEPROM_32KX8_M24256B 6 U53 ADT7467 27 U54 ATTINY2313 6 U55 OPAMP_LMC7111 32 U56 APOLLO_MPC7447A_360 5 6 U57 COMPARATOR_LMC7211 32 U58 LIS3L02AQ 25 U59 COMPARATOR_LMC7211 30 U60 VREG_MM1571J 22 XW1 SHORT 32 XW2 SHORT 35 XW3 SHORT 33 XW4 SHORT 21 XW5 SHORT 21 XW6 SHORT 21 XW7 JUMPER 21 XW8 SHORT 36 XW9 SHORT 21 XW10 SHORT 36 XW11 SHORT 21 XW12 SHORT 21 XW13 SHORT 34 XW14 SHORT 23 XW15 SHORT 23 XW16 JUMPER 22 XW17 SHORT 36 XW18 JUMPER 26 XW19 JUMPER 33 XW20 JUMPER 34 XW21 SHORT 36 XW22 JUMPER 34 XW23 SHORT 36 XW24 JUMPER 36 XW25 SHORT 36 XW26 JUMPER 36 XW27 SHORT 35 XW28 SHORT 35 XW29 SHORT 35 XW30 SHORT 27 XW31 SHORT 34 XW32 SHORT 34 XW33 JUMPER 36 XW34 SHORT 5 XW35 SHORT 25 XW36 SHORT 25 XW37 SHORT 25 Y1 CRYSTAL 17 Y2 CRYSTAL 14 Y3 CRYSTAL_4PIN 31 Y4 CRYSTAL 31 Y5 CRYSTAL_4PIN 28 ZT1 HOLE_VIA 4 ZT2 HOLE_VIA 4 ZT3 HOLE_VIA 4 ZT4 HOLE_VIA 4 ZT5 HOLE_VIA 4 ZT6 HOLE_VIA 4 ZT7 HOLE_VIA 4 ZT8 HOLE_VIA 4 ZT9 HOLE_VIA 4 ZT10 HOLE_VIA 4 ZT11 HOLE_VIA 4 ZT12 HOLE_VIA 4 ZT13 HOLE_VIA 4 ZT14 HOLE_VIA 4 ZT15 HOLE_VIA 4 ZT16 HOLE_VIA 4 ZT17 HOLE_VIA 4 ZT18 HOLE_VIA 4 ZT19 HOLE_VIA 4 ZT20 HOLE_VIA 4 ZT21 HOLE_VIA 4 ZT22 HOLE_VIA 4 ZT23 HOLE_VIA 4 ZT24 HOLE_VIA 4 ZT25 HOLE_VIA 4 ZT26 HOLE_VIA 4 ZT27 HOLE_VIA 4 ZT28 HOLE_VIA 4 ZT29 HOLE_VIA 4 ZT30 HOLE_VIA 4 ZT31 HOLE_VIA 4 ZT32 HOLE_VIA 4 ZT33 HOLE_VIA 4 ZT34 HOLE_VIA 4 ZT35 HOLE_VIA 4 ZT36 HOLE_VIA 4 ZT37 HOLE_VIA 4 ZT38 HOLE_VIA 4 ZT39 HOLE_VIA 4 ZT40 HOLE_VIA 4 ZT41 HOLE_VIA 4 ZT42 HOLE_VIA 4 ZT43 HOLE_VIA 4 ZT44 HOLE_VIA 4 ZT45 HOLE_VIA 4 ZT46 HOLE_VIA 4 ZT47 HOLE_VIA 4 ZT48 HOLE_VIA 4 ZT49 HOLE_VIA 4 ZT50 HOLE_VIA 4 ZT51 HOLE_VIA 4 ZT52 HOLE_VIA 4 ZT53 HOLE_VIA 4

ZT54 HOLE_VIA 4 ZT55 HOLE_VIA 4 ZT56 HOLE_VIA 4 ZT57 HOLE_VIA 4 ZT58 HOLE_VIA 4 ZT59 HOLE_VIA 4 ZT60 HOLE_VIA 4 ZT61 HOLE_VIA 4 ZT62 HOLE_VIA 4 ZT63 HOLE_VIA 4 ZT64 HOLE_VIA 4 ZT65 HOLE_VIA 4 ZT66 HOLE_VIA 4 ZT67 HOLE_VIA 4 ZT68 HOLE_VIA 4 ZT69 HOLE_VIA 4 ZT70 HOLE_VIA 4 ZT71 HOLE_VIA 4 ZT72 HOLE_VIA 4 ZT73 HOLE_VIA 4 ZT74 HOLE_VIA 4 ZT75 HOLE_VIA 4 ZT76 HOLE_VIA 4 ZT77 HOLE_VIA 4 ZT78 HOLE_VIA 4 ZT79 HOLE_VIA 4 ZT80 HOLE_VIA 4 ZT81 HOLE_VIA 4 ZT82 HOLE_VIA 4 ZT83 HOLE_VIA 4 ZT84 HOLE_VIA 4 ZT85 HOLE_VIA 4 ZT86 HOLE_VIA 4

Apple A1106 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
