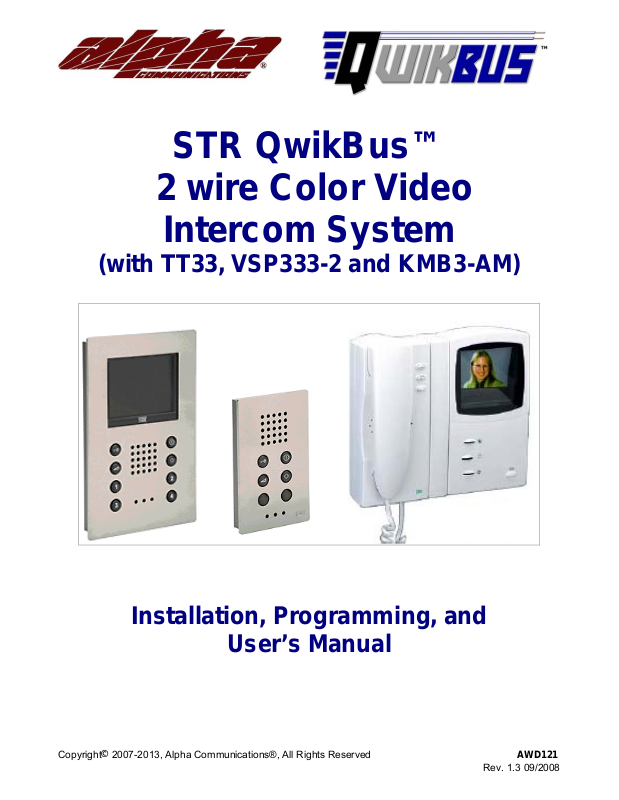

STR QwikBus™ 2 wire Color Video Intercom System
(with TT33, VSP333-2 and KMB3-AM)
Installation, Programming, and
User’s Manual
Copyright© 2007-2013, Alpha Communications®, All Rights Reserved |
AWD121 |
|
Rev. 1.3 09/2008 |
STR QwikBus™ 2 wire Color Video Intercom System
|
|
Introduction |
1 |
Compatible Inside Stations |
1 |
Planning the Installation |
2 |
Wiring Diagrams |
|
Single Entry STR Modular Panel |
4 |
Multiple Entry STR Modular Panels |
5 |
Single Entry Custom Panel |
6 |
Multiple Entry Custom Panels |
7 |
Important Notes on Monitor Riser Connections |
8 |
EVB33 Distribution Units |
9 |
Dipswitch Settings |
10 |
System Camera Options – Lobby Panels, and Observation |
11 |
End of Line Resistors Jumper Locations |
12 |
The Matrix – Wiring Custom Panel Buttons to the TT33 |
13 |
E56 E88 E120 Matrix Extenders |
13 |
The IC2 database chip |
14 |
Opening and Closing the VFS1500/1000 VH3033 Inside Stations |
14 |
|
|
Programming the QwikBus™ System -- Open Voice (VFS1500/1000) |
15 |
Programming (on site) |
15 |
Programming Inside Stations for parallel operation |
15 |
One Man Bench Programming |
16 |
Programming VFS1500 stations for Intercommunication |
17 |
|
|
Programming the QwikBus™ System --Handset (VHC3033-2) |
18 |
Programming (on site) |
18 |
Programming Inside Stations for parallel operation |
18 |
One Man Bench Programming |
19 |
|
|
USER Operation |
|
VHC3033-2 Color Handset |
20 |
VFS1500/ VFS1000 Monitors & FS1500/FS1000 Audio Stations |
21 |
b
The STR QwikBus™ takes advantage of the latest in digital technology to provide a high tech, high quality color video intercom system operating on a 2 common wire BUS.
QwikBus™ video monitor stations all feature a crystal clear 4" LCD Color screen (measured diagonally) and can be surface or flush mounted (with optional UMV1000 flush housing). You can choose from the VFS1000 series (hands free VOX without internal communications) or the VFS1500 series hands free VOX (with internal communications for up to 5 units per apt.),
as well as handset style monitors and audio only stations all on the same 2 twisted
wires. Audio only stations are available as well and can be mixed and matched to suit your particular application.
QwikBUS™ COMPATIBLE INSIDE STATIONS
VFS1000 |
|
VFS1500 |
|||
COLOR MONITOR |
|
COLOR MONITOR |
|||
Voice Operated hands free |
|
Voice Operated hands free |
|||
Available in 6 Designer |
|
Available in 6 Designer |
|||
Finishes |
|
Finishes |
|||
|
|
|
|
Communicate internally |
|
|
|
|
|
between up to 5 stations per |
|
|
|
|
|
apartment. |
|
|
|
|
|
|
|
FS1000 |
|
FS1500 |
|||
|
AUDIO STATION |
|
|
AUDIO STATION |
|
|
Voice Operated Hands free |
|
|
Voice Operated Hands free |
|
|
Available in 6 Designer |
|
|
Available in 6 Designer |
|
|
Finishes |
|
|
Finishes |
|
|
Crystal Clear Digital Sound |
|
|
Crystal Clear Digital Sound |
|
|
|
|
|
Internal Communications |
|
|
|
|
|
Capable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VHC3033-2 |
|
HT3033 |
||
|
COLOR |
|
AUDIO HANDSET |
||
|
MONITOR |
|
|
|
|
|
W/HANDSET |
|
|
|
|
|
|
|
|
Available in White, |
|
|
Available in White, |
|
Titanium, and Anthracite |
||
|
Titanium, and |
|
|
|
|
|
Anthracite |
|
|
|
|
|
|
|
|
|
|
1
PLANNING THE INSTALLATION
Is this a COLOR Video installation?
This manual is written expressly for the QwikBus™ 2-wire Color systems that will be using the Inside monitors listed on the previous page. If you are installing a Black and White system please refer to the QwikBus™ 4-wire Black & White Manual.
How many apartments?
QwikBus™ can run up to 120 apartments and can exceed that number if specially designed. If you will be installing a larger system please contact Alpha Communications® for assistance.
How many apartments will need more than 1 monitor?
An apartment can have up to 5 monitors and or audio stations that will ring when the entry button is pressed.
Will these multiple monitor apartments need intercommunication?
Intercommunication is only available using the VFS1500/ FS1500 series stations which allow you to ring 2-4 other stations in the apartment depending on the equipment used.
How many Entrances?
QwikBus™ can have up to 8 Entrance panels. If you will be installing a larger number of entrances please contact Alpha Communications® for design assistance.
Modular Panel?
STR modular panels are available in White, Titanium, and Dark Brown and are usually used in small installations from a 1 button residential application up to multi-apartment configurations and feature beautiful contemporary looks, illuminated buttons, and outside weather resistance.
Stainless Steel or Brass Panel?
Alpha Communications can custom design and build flush and surface mount entry panels in Stainless Steel or Polished Brass with all necessary apartment button numbering and address engraving.
How many observation cameras will be in the system?
Additional Cameras can be added in addition to the Entrance Cameras for a total of 8, enabling the apartment monitors to view the various feeds on demand.
What type of Inside stations will you use?
Although all the compatible stations connect the same way, each model does have certain capabilities and advantages depending on the needs of the tenant and can be exchanged for another unit at anytime if necessary by simply installing the 2 wires and reprogramming the system to recognize the unit.
2
Are you running new wire or using existing wire from a previous system?
Although digital systems are fairly forgiving in wiring requirements, they are still susceptible to RFI from unusually strong nearby transmitters, EMI from electrical lines running nearby, or existing wiring that is not twisted, in poor condition, or not a suitable gauge. Please refer to the wiring thickness chart below to determine the minimum recommended wire gauge needed. If the existing wiring is more than 12 years old, has deteriorating insulation, questionable splice connections, corrosion, or is not configured as twisted pair wiring, it is highly recommended that new wire be run.
To reduce the risk of interference problems:
Always use a single twisted pair wire for the two wire BUS line.
Do NOT double wires to increase effective wire diameter. This will cause interference problems.
Do NOT install any unused additional wires with open ends.
Never connect the shield from a cable, or connect the shield from one cable to another.
Use a separate cable to the door strike from the SP333.
Only use a 12VAC door strike or 12VAC relay with less than 1 amp draw.
If it is absolutely necessary to run the door strike wiring in the same cable as the BUS line, you must use a transient voltage suppressor at the door strike end.
Loop resistance should be less than 20 ohms.
Twisted pair is always recommended.
Cat5, Cat5E, Cat6, and the new Cat7 spec. wire is NOT recommended.
How many risers will you be using?
The recommended maximum number of monitors on a riser is 10 with each riser originating from the VSP333-2 Control Unit, including from the EVB333 Amplified Splitter(s) if your system requires them.
For technical assistance and help determining equipment needed please call:
Alpha Communications® at (800) 666-4800 Monday – Friday 8:30- 5:00 pm
3
System Notes – 2 wire COLOR with Single Modular Entry
A Single Entry Modular system requires the following dipswitch settings on the back of the TSMB3 unit:
Switches 4, 5, & 6 identify the entrance number (all OFF = Entrance 1)
Switch 3 If the door strike is to be connected to the SP333 (Tö1) = OFF If the door strike is to be connected to the TSMB3 (Tö) = ON
For more information refer to Page 10 - Dipswitch Settings.
Be sure that the End of Line Jumpers are used on the camera circuit board and in the last monitor on each riser. If the last unit on a riser is an audio only unit, the End of Line Jumper would still be used on the last monitor on that riser. This is important for best picture quality.
For more information refer to Page 12 - End of Line Jumper Locations.
When connecting C333-2 harness between SP333 and SNT333, ALWAYS observe 24VDC Polarity.
4
System Notes – 2 wire COLOR with Multiple Modular Entries
Multiple Entry Modular systems require the following dipswitch settings on the back of the TSMB3 unit:
Switches 4,5, &6 identify the entrance number. In the above example:
Entrance #1 = 4 OFF/ 5 OFF/ 6 OFF Entrance #2 = 4 ON / 5 OFF/ 6 OFF
Switch 3 If the door strike is connected to the SP333 (Tö2) = OFF (as shown at Entrance 2) If the door strike is connected to the TSMB3 (Tö) = ON (as shown at Entrance 1)
For more information refer to Page 10 - Dipswitch Settings.
Be sure that the End of Line Jumpers are used on the camera circuit board and in the last monitor on each riser. If the last unit on a riser is an audio only unit, the End of Line Jumper would still be used on the last monitor on that riser. This is important for best picture quality.
For more information refer to Page 12 - End of Line Jumper Locations.
When connecting C333-2 harness between SP333 and SNT333, ALWAYS observe 24VDC Polarity.
5
