WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with an arrowhead symbol, within
the equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient
magnitude to cause an electric shock.
The exclamation point within the equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in this owner manual.
WARNI NG:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK , MA TCH WIDE BLADE OF PLUG T O WIDE SLO T , FULL Y INSER T .
INVISIBLE LASER RADIATION WHEN
CAUTION
OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM
This symbol means that the unit complies with
European saftely and electrical interference
directives.
This product contains a
low power laser device.
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASS E 1
PRODUCTO LASER DE CLASE 1
PRODUTO LASER CLA SSE 1
The symbol for
Class II (Double
lnsulation)
On Placement
• Do not use the Unit in places which are extremely hot, cold, dusty, or humid.
• Place the Unit on a flat and even surface.
• Do not restrict the air flow of the Unit by placing it in a place with poor air flow, by covering it with a cloth, or
by placing it on carpeting.
On Safety
• When connecting or disconnecting the AC cord, grip the plug and not the cord itself. Pulling the cord may
damage it and create a hazard.
• When you are not going to use the Unit for a long period of time, disconnect the AC power cord.
On Condensation
• When left in a heated room where it is warm and damp, water droplets or condensation may form inside the
Unit. When there is condensation inside the Unit, the Unit may not function normally. Let the Unit stand for
1 to 2 hours before turning the power on, or gradually heat the room up and dry the Unit before use.
WARNING:
• Should any trouble occur, disconnect the AC power cord and refer servicing to a qualified technician.
• Do not place anything directly on the top of the Unit. Damage to the Unit can result.
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098 and 4,907,093 licensed for limited
viewing uses only.
DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product
incorporates copyright protection technology that is protected by method claims of certain U.S. patents and
other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
E - 1
TABLE OF CONTENTS
Important Safety Instruction ......................... 1
The Unit can playback discs bearing any of the following marks:
DVDs
[8cm(3")/12cm(5”) disc]
Audio CDs
[8cm(3")12cm(5”) disc]
Region Management Information
Region Management Information: This Unit is designed and manufactured to respond to the Region Management
Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond
to the Region number of this Unit, this Unit cannot play that disc.
Compatible
The region number of this Unit is 2.
Disc Function or Operation that is Not Available
2
When the symbol appears on the TV screen, it indicates that the function or operation attempted is not
available at that time. This occurs because the DVD disc manufacturer determines the specific functions.
Certain functions may not be available on some discs. Be sure to read the documentation provided with the
disc.
Icons Used on DVDs
Sample lcons
1. English
2
2
2. French
1. English
2. French
Language selections for audio
Language selections for subtitles
Screen aspect ratio
2

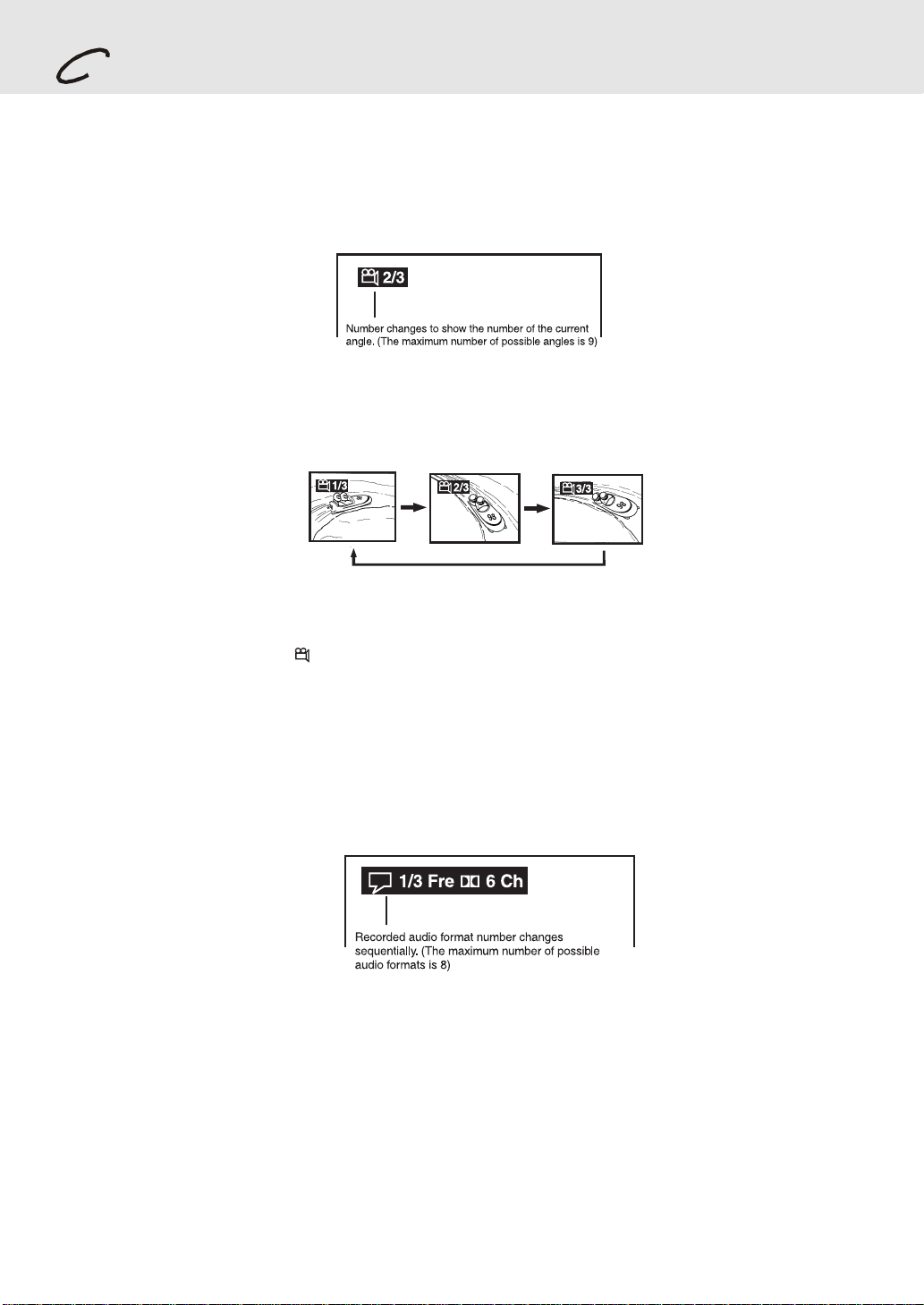

Multiple camera angles
Region code indicator
Notes:
• This Unit supports 2-channel (L/R) audio and 5.1ch (Multi-channel) MPEG Audio 1/2 (only when the DIGITAL
AUDIO OUT coaxial jack is used for connection). It does not support 7.1 channel MPEG Audio Version 2.0.
• When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic
images will not be shown.
Title, Chapter and Tracks
• DVDs are divided into “titles” and “chapters”. If the
disc has more than one movie on it, each movie would
be a separate “title”. “Chapters” are sections of titles.
T
Chapter 1Chapter 1Chapter 2Chapter 2Chapter 3
• Audio CDs are divided into “tracks”. A “track” is
usually one song on an Audio CD.
Track 1Track 2Track 3Track 4Track 5
Note :
• Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on them,
but some do not.
Notes on Unauthorized Discs
You may not be able to play back some DVD discs on this Unit if they were purchased from outside your
geographic area or made for business purposes.
E - 3
Before Y ou Start
Using the Remote Control
• Point the Remote Control at the REMOTE SENSOR located on the Unit.
• When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may be
degraded, causing unreliable operation.
• The recommended effective distance for remote operation is about 16 feet (5 meters).
To install Batteries
1.Open the battery door.
Battery Replacement
When batteries become weak, the operating distance of the Remote Control is greatly reduced and you will
need to replace the batteries.
2. Insert two "AA" or UM-3 size batteries.
Notes:
• If the Remote Control is not going to be used for a long time, remove the batteries to avoid damage caused
by battery leakage corrosion.
• Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable
(NICKEL-CADMIUM) batteries.
E - 4
PARTS AND FUNCTIONS
Front Panel
1) Disc tray
Open or close tray by pushing OPEN/CLOSE button.
Place a disc on the disc tray, label side up.
standby indicator
2)
When the Unit is turned on by pressing the POWER/
STANDBY button, the light will illuminate a few
seconds. If you press POWER button on the
Remote control. The Unit will turn off and go to
standby mode. The light will continue to illuminate.
3) 3 STEREO indicator
When 3 STEREO sound selected in AV_IN mode,
the light will illuminate.
4) PRO LOGIC indicator
When PRO LOGIC sound selected in AV_IN
mode, the light will illuminate.
5) Display window
Display system information.
6) VOLUME control
Change the loudness of the sound from the speakers
connected to the Unit.
7) Remote sensor
Accept the remote control unit signals.
123456
910111213
8) FUNCTION button
Select the source.
STOP button
9)
Stop playing a disc.
10) PAUSE button
Press to pause playback. Each time you press the
PAUSE button the picture advances one frame.
Press the PLAY button to resume.
11) PLAY button
Press to start or resume playback
SKIP buttons
12)
Press SKIP
tracks.
Press SKIP button to advance to chapters / tracks.
Press and hold
Four speeds are available.
Scan all available radio stations.
13) OPEN/CLOSE button
Use to open and close the disc tray.
14) POWER/STANDBY button
Turn the power on or off.
button to go back to previous chapters/
SKIP button to begin fast scan.
7814
Note:
Screen saver - If no button is pressed within 3 minutes, the function will active, If you want to return the normal screen,
press any button.
Rear Panel
15) FM ANTENNA jack
16) S-VIDEO (DVD) output jack
17) VIDEO OUT jack
18) SCART socket
19) AUDIO IN (L/R) jacks
20) Front speaker (R) terminals
21) Center speaker terminals
22) Front speaker (L) terminals
23) AM LOOP ANTENNA terminal
24) DIGITAL AUDIO OUT jack
25) AUDIO OUT (L/R) jacks
26) VIDEO IN (VCR) jack
27) REAR speaker (R) terminals
28) SUBWOOFER terminals
29) REAR speaker (L) terminals
30) Power cord
E - 5
(Continued on next page)(Continued on next page)
(Continued on next page)
(Continued on next page)(Continued on next page)
PARTS AND FUNCTIONS
Front Panel
1) Disc tray
Open or close tray by pushing OPEN/CLOSE button.
Place a disc on the disc tray, label side up.
standby indicator
2)
When the Unit is turned on by pressing the POWER/
STANDBY button, the light will illuminate a few
seconds. If you press POWER button on the
Remote control. The Unit will turn off and go to
standby mode. The light will continue to illuminate.
3) 3 STEREO indicator
When 3 STEREO sound selected in AV_IN mode,
the light will illuminate.
4) PRO LOGIC indicator
When PRO LOGIC sound selected in AV_IN
mode, the light will illuminate.
5) Display window
Display system information.
6) VOLUME control
Change the loudness of the sound from the speakers
connected to the Unit.
7) Remote sensor
Accept the remote control unit signals.
123456
910111213
8) FUNCTION button
Select the source.
STOP button
9)
Stop playing a disc.
10) PAUSE button
Press to pause playback. Each time you press the
PAUSE button the picture advances one frame.
Press the PLAY button to resume.
11) PLAY button
Press to start or resume playback
SKIP buttons
12)
Press SKIP
tracks.
Press SKIP button to advance to chapters / tracks.
Press and hold
Four speeds are available.
Scan all available radio stations.
13) OPEN/CLOSE button
Use to open and close the disc tray.
14) POWER/STANDBY button
Turn the power on or off.
button to go back to previous chapters/
SKIP button to begin fast scan.
7814
Note:
Screen saver - If no button is pressed within 3 minutes, the function will active, If you want to return the normal screen,
press any button.
Rear Panel
15) FM ANTENNA jack
16) S-VIDEO (DVD) output jack
17) VIDEO OUT jack
18) SCART socket
19) AUDIO IN (L/R) jacks
20) Front speaker (R) terminals
21) Center speaker terminals
22) Front speaker (L) terminals
23) AM LOOP ANTENNA terminal
24) DIGITAL AUDIO OUT jack
25) AUDIO OUT (L/R) jacks
26) VIDEO IN (VCR) jack
27) REAR speaker (R) terminals
28) SUBWOOFER terminals
29) REAR speaker (L) terminals
30) Power cord
E - 5
(Continued on next page)(Continued on next page)
(Continued on next page)
(Continued on next page)(Continued on next page)
Setup
For better reception
FM
Connect FM antenna (included) to the FM ANTENNA jack.
AM(MW)
Connect the loop antenna (included) to the AM(MW) LOOP ANTENNA terminals.
FM antenna
AM(MW) LOOP ANTENNA (SUPPLIED)
To w all o u t le t
A.Connecting your TV
The Unit can be connected to your TV in several different ways, depending on the design of your TV.
RCA-SCART 3 Phono/Scart AV cable
Use the included 3 Phono/Scart AV cable.
1. Connect the VIDEO OUT and left/right AUDIO OUT jack to the SCART jack on your TV.
or
S-Video Jack
Use an S-Video cable (sold separately).
1. Use an S-Video cable to connect the S-VIDEO (DVD) jack on your Unit to the S-VIDEO IN jack on your TV.
TV
To AUDIO OUT
DVD Unit
(white)(red)(yellow)
SCART cable (not included)
E - 9
(continued to next page)(continued to next page)
(continued to next page)
(continued to next page)(continued to next page)
Setup
B. Connecting a VCR
1. Using the supplied 3 Phono/Scart AV cable, connect the yellow plug from VIDEO OUT jack on your Unit to
SCART jack on your TV, connect the left and right AUDIO OUT jac ks on y our Unit to SCAR T jac ks on y our TV. If
you want the sound come from the speakers of the Main Unit, you need not to connect these left and right Audio
cable from the Main Unit to your TV.
2.Using the Video cable (not supplied), connect the VIDEO IN (VCR) jack on your Unit to VIDEO OUT jack on y our
VCR.
3.Using the Audio cable (not supplied), connect the left/right A UDIO IN jacks on your Unit to the AUDIO OUT jacks
on your VCR.
TV
To AUDIO
OUT
(white)(red)
VCR
AUDIO OUT
To VID EO
OUT
(yellow)
To AUDIO
OUT
(yellow)
DVD Unit
(red)
To VID EO I N
(yellow)
(white)
(red)
To AUDIO IN
(yellow)
(white)
Watching a DVD
1.Turn on the Unit, use the FUNCTION button on the remote control or the front panel to select "DVD".
2.Turn on your TV and follow the instructions included with it to select VIDEO function which is correspond to the
VIDEO IN jack you need connected with the Main Unit.
Watching a Videotape
1.Turn on the Unit, use the FUNCTION button on the remote control or the front panel to select "AV_IN".
2.Turn on your TV and follow the instructions included with it to select VIDEO function which is correspond to the
VIDEO IN jack that is connected with the Main Unit.
3. Turn on the VCR and follow the instructions included with it to play the videotape.
Notes:
• When playing VCR, you want the sound come from the speakers (supplied), you need not connect the Audio
cable to the TV.
• If VCR Audio is mono, surround speakers sound level will be low.
(continued to next page)(continued to next page)
(continued to next page)
E - 10
(continued to next page)(continued to next page)
Setup
C. Connecting an other audio equipment
Using the supplied Audio/Video cable, connect ONLY the left and right AUDIO OUT jack on your Unit to the
AUDIO IN jack or use a coaxial digital Audio cable (not supplied) to connect to the coaxial in jack on your another
equipment. Do not connect the yellow video plug.
Listening to an other audio equipment
1. Turn on the Unit.
2.Turn on your audio equipment and follow the instructions included with it to select the AUDIO IN or DIGITAL IN
function.
Analogue connection
Amplifier of stereo
DVD Unit
system, etc. (not included)
AUDIO IN
Digital connection
To AUDIO OUT
(white)(red)(yellow)
To AUDIO IN
(white)
(red)
(yellow)
Audio equip m ent wit h
DVD Unit
Notes:
• If the external equipment is a television and this audio system is close to it, you may experience interference if
the tuner function is selected while the television is working.
• When you have selected TUNER function, sound will ONLY come from the front left, right speakers and subwoof er .
• Ensure that a VCR connected to this Unit is set to stereo mode otherwise the activated speakers may be
different from those outlined in the table on page 15.
• Due to copyright protection, DVD movies cannot be copied. If you copy a DVD movie onto a videotape, the
resulting copy will be unclear, with poor sound quality. This is NOT caused by a defective DVD system.
• When playing VCR, press the FUNCTION button on the remote control or front panel to AV_IN mode, all
speakers will be activated a few minutes later.
digi tal audio input jack
COAXIAL
E - 11
(continued to next page)(continued to next page)
(continued to next page)
(continued to next page)(continued to next page)
Setup
D. Connecting the speakers & subwoofer
1. The speaker cords have been color-coded to simplify connection. Just plug the POSITIVE (+) and NEGATIVE (-)
ends of each speaker wire into the corresponding jacks on the rear of the Unit, matching the color tube on the end
of the speaker wire to the color-coded connector.
2. Connect each of the speaker wires to the satellite speakers. The front left/right and rear left/right speakers are all
the same. However, make sure you connect to the center speaker (color) to the one speaker which is slightly longer
than the rest.
FRONT (RIGHT)
CENTER
FRONT (LEFT)
+
To
VIDEO IN
AUDIO IN
TELEVISION
E. Speaker positioning
Place on the top of
or below the TV.
FRONT SPEAKERS
Place on both sides of the TV,
equal distances apart.
To
CENTER
REAR (RIGHT)
REAR
LEFT
SUB-WOOFER
FRONT
LEFT
CENTER
REAR
RIGHT
REAR (LEFT)
FRONT
RIGHT
SUB-
WOOFER
+
SUBWOOFER
Can be placed anywhere.
E - 12
REAR SPEAKERS
REAR SPEAKERS
Place right beside or slightly
Place right beside or slightly
behind your listening position,
behindyour listening position,and a littlehigherthan your ears.
and a little higher than your ears.
(continued to next page)(continued to next page)
(continued to next page)
(continued to next page)(continued to next page)
Setup
Mounting rear surround speakers
1) Mark the correct mounting position on the wall.
2) Insert a fixing screw(s) at the marked position on the wall.
3) Align the slot hole(s) of the speaker over the screw and pull the speaker downward until it is firmly hooked.
Turning on the Unit and TV
1)Press the POWER button to turn the Unit ON, or
2)Press the
Unit while the Unit is at standby mode.
3)Turn on the TV by pressing its POWER button.
4)Select the channel on your TV corresponding to the VIDEO IN jack that the Unit is connected to. See TV User
guide for more information.
• If you have connected the Unit successfully, the DVD logo (start-up picture) will appear on your TV screen.
/POWER button on the remote control or the FUNCTION button or the PLAY button to turn on the
Power cord connection
• Make sure that all the components and speakers are connected correctly.
• Be sure the AC power cord is disconnected and all functions are off before making connections.
• When you are not going to use the Unit for a long period of time, disconnect the power cord.
E - 13
Adjusting the Sound
To adjust the surround sound balance while Pro Logic decoding is in effect
Use the remote control to make the following changes to speaker balance:
Front speaker (left)
• Press the SOUND button repeatedly to display LEFT, then press the
sound level. It will show on the display of the Unit.
Front speaker (right)
• Press the SOUND button repeatedly to display RIGHT, then press the or CURSOR button toadjust the
sound level. It will show on the display of the Unit.
Center speaker
• Press the SOUND button repeatedly to display CENTER, then press the
the sound level. It will show on the display of the Unit.
Rear speaker (left)
• Press the SOUND button repeatedly to display REAR L, then press the
sound level. It will show on the display of the Unit.
Rear speaker (right)
• Press the SOUND button repeatedly to display REAR R, then press the or CURSOR button to adjust the
sound level. It will show on the display of the Unit.
Subwoofer
• Press the SOUND button repeatedly to display WOOFER, then press the
the sound level. It will show on the display of the Unit.
Note :
• If you do not press any button within a few seconds, the display will return to normal.
or CURSOR button to adjust the
or CURSOR button to adjust
or CURSOR button to adjust the
or CURSOR button to adjust
To adjust the sound quality
Press the SOUND button repeatedly to select an equalization mode (BASS, MIDDLE, TREBLE). Press the
or CURSOR button to adjust the sound level.
BASS : the low range of sounds
MIDDLE : the mid range of sounds
TREBLE : the high range of sounds
Bass, middle and treble control the sound from the front left and right speakers.
Dolby Pro Logic is a sound system that was developed to get a better sense of presence from sources encoded with
Dolby Surround. The feeling of position has been improved by the addition of a separate center speaker channel. Look
for this logo on your DVD Unit.
Dolby Digital
Dolby Digital is a sound system developed by Dolby Laboratories Inc. that gives movie theatre ambience to audio output
when the Unit is connected to a Dolby Digital 5.1 channel processor or amplifier.
This Unit automatically recognizes DVDs that have been recorded with Dolby Digital.
Not all Dolby Digital sources are recorded with 6 channels.
Some sources marked Dolby Digital may be recorded in Dolby Surround, a 2 channel system. Look for this logo on your
DVD Unit.
DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.
This Unit does not decode DTS Digital Surround signal.
To enjoy DTS Digital SurroundTM playback, an external 5.1 channel DTS Digital SurroundTM decoder system must be
connected to the DIGITAL AUDIO OUT jack of the Main Unit.
3 STEREO
The 3 STEREO mode creates a Dolby Pro Logic sound effect using just the left, right and centre channels. No sound
comes from the surround channel speakers. You can still select normal or wide effect in this mode.
Manufactured under license from Dolby Laboratories.
'Dolby' , 'Pro Logic' and the double-D symbol
are trademarks of Dolby Laboratories.
E - 14
(continued to next page)(continued to next page)
(continued to next page)
(continued to next page)(continued to next page)
Loading...
+ 28 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
