Congratulations to your new Cooker Hood
Thank you for your choice of an Electrolux product. We are convinced that you will have great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity, it is important that the cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Safety instructions
At installation and service
●The cooker hood is made for normal households with normal cooking. If it is used for other purposes there is a risk of damage which is not covered by the warranty.
●All eventual electric installation has to be carried out by a qualified electrician. The installation of the hood should be made by a person with enough knowledge. Installation made otherwise could lead to loss of performance and even injuries and /or damage on properties.
●The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.
Please, keep to the provisions of official directives regarding the question of fumes discharge.
●When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.

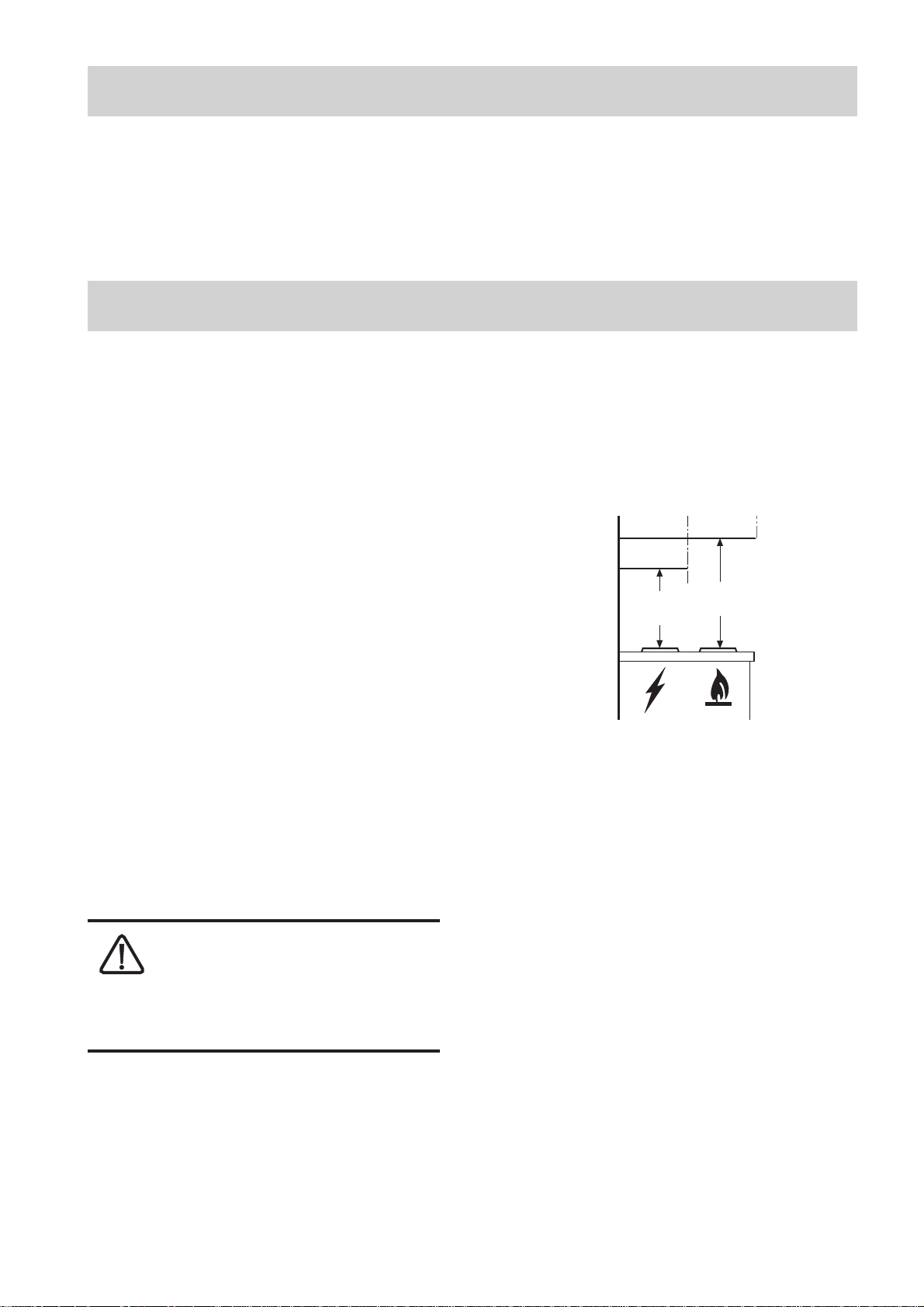

●When installed, the hood must be not less than 65 cm. above electric burners or 75 cm. above gas or mixed-fuel burners. (Fig. 4).
●The power cord should be drawn so that there is no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambee underneath the hood.
●The use of an unprotected flame is dangerous for the filters and could cause fires.
●Never leave the deep-frying or frying pan over a cooker/hob. The oil contained in the pan may spontaneously ignite through overheating.
●Observe the filter change or cleaning intervals. Failure to observe these intervals may cause the risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker hood and the heating zone; Cover the fire , Never use water.
At disposal
●Help to avoid damages even when the cooker hood should be disposed. Disconnect the power plug and cut the power cord at hood inlet. Check with the authorities for information of how to proceed for disposal.
47
Description of the appliance

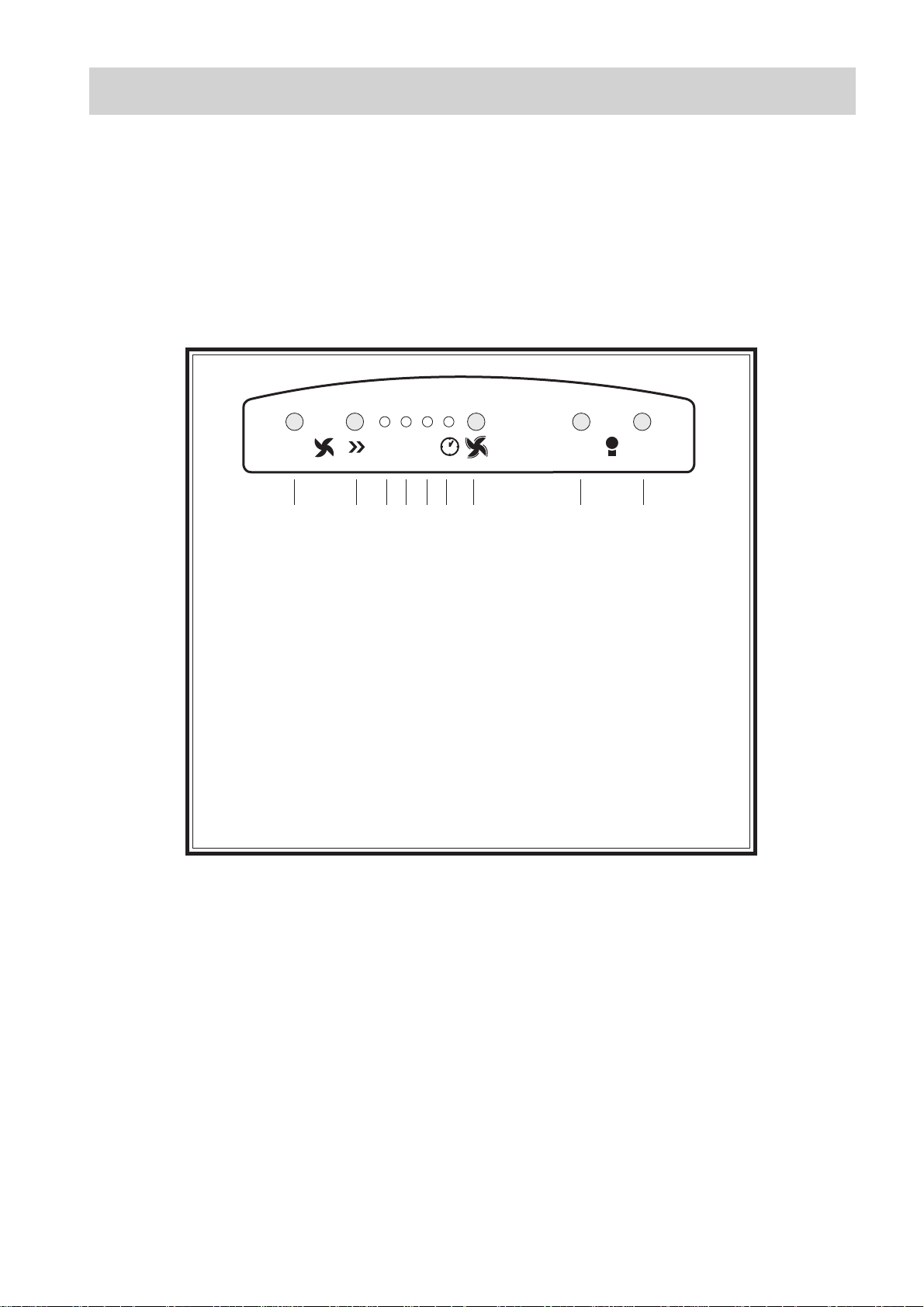

1.Control panel

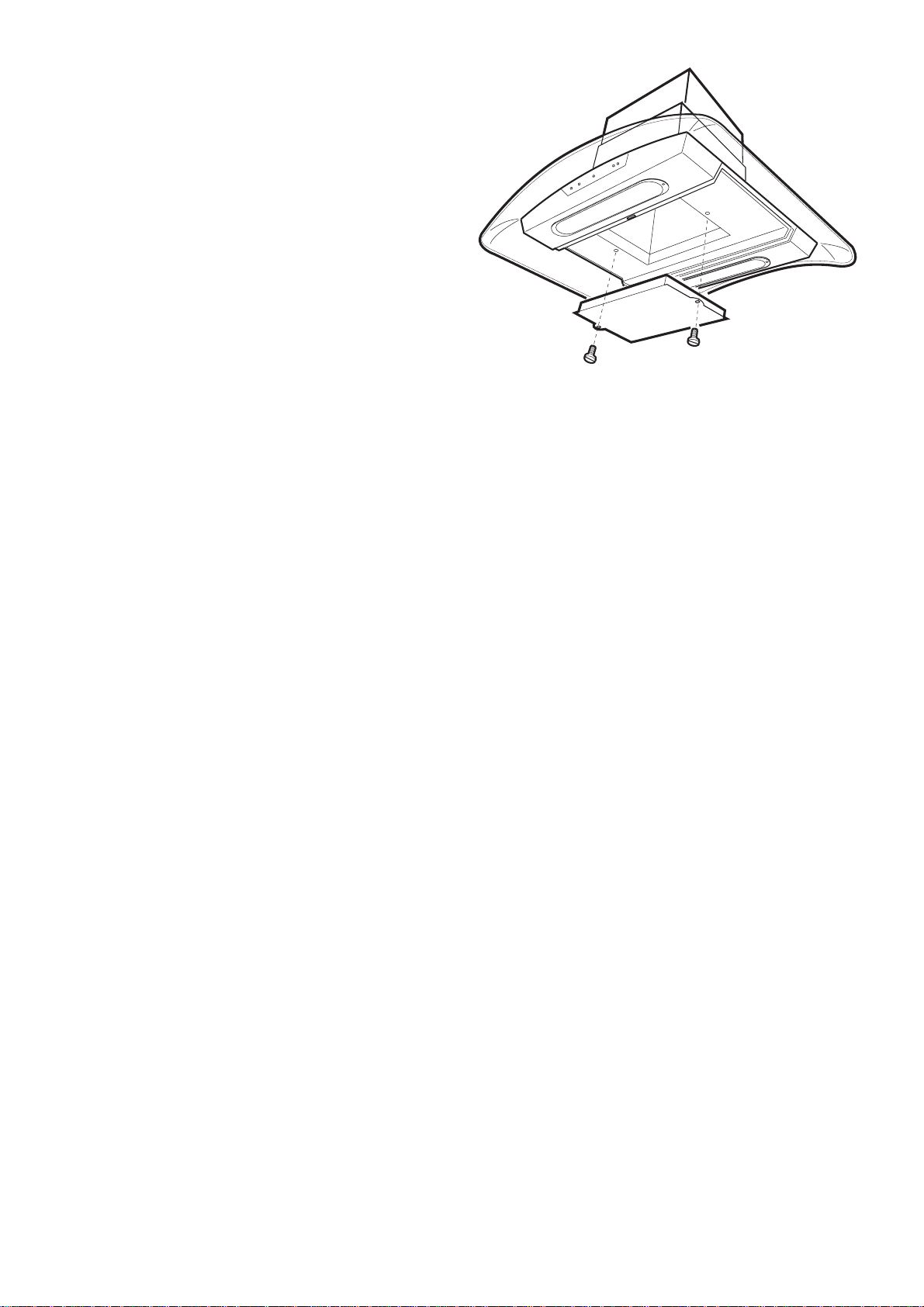

2.Operating light
3.Grease filters
Standard accessories included:
●Screws for mounting
●No return valve (mounted on air outlet)
●Drilling scheme
●Connection ring
●Deflector (Recycling version)
1
2
3

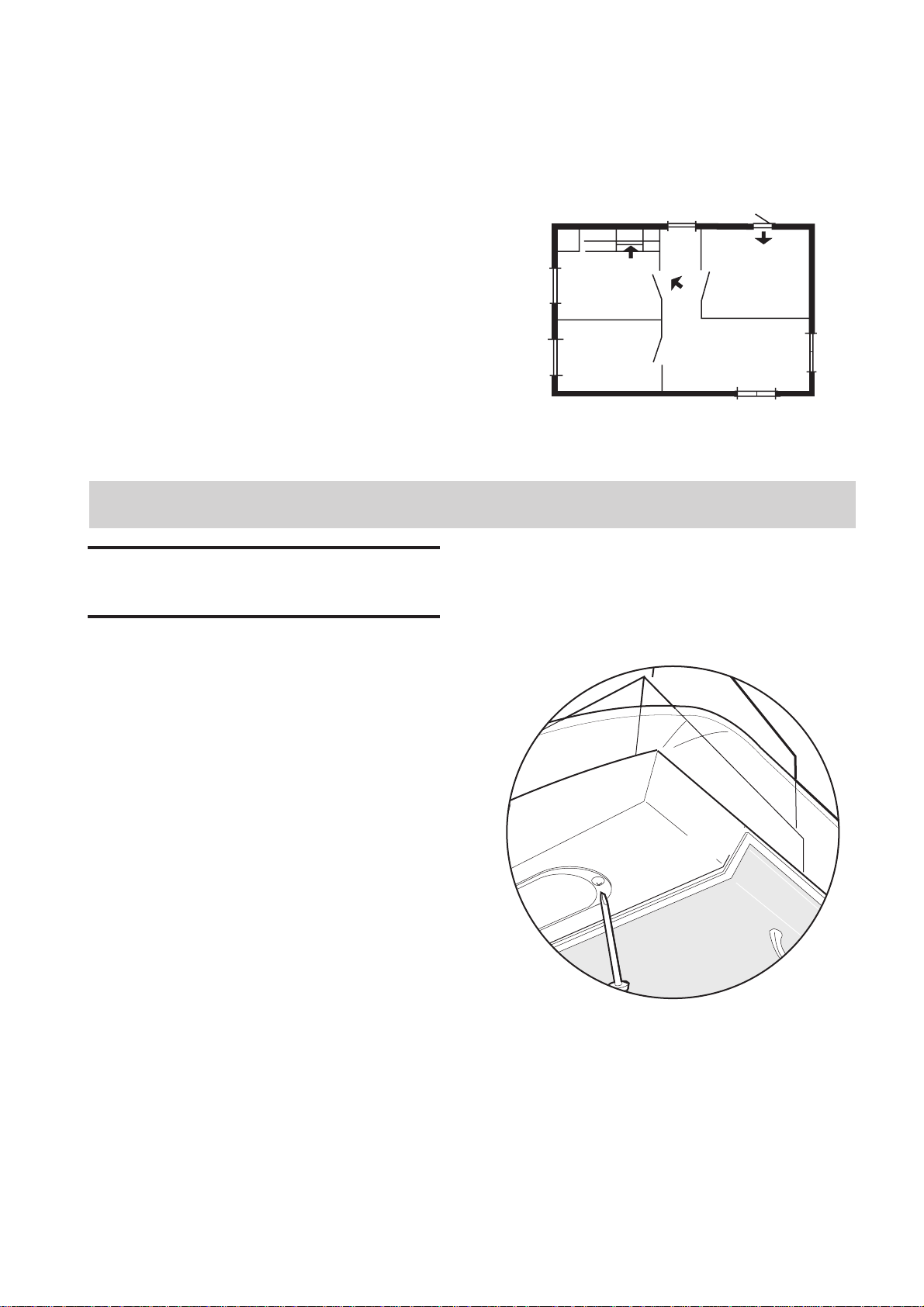

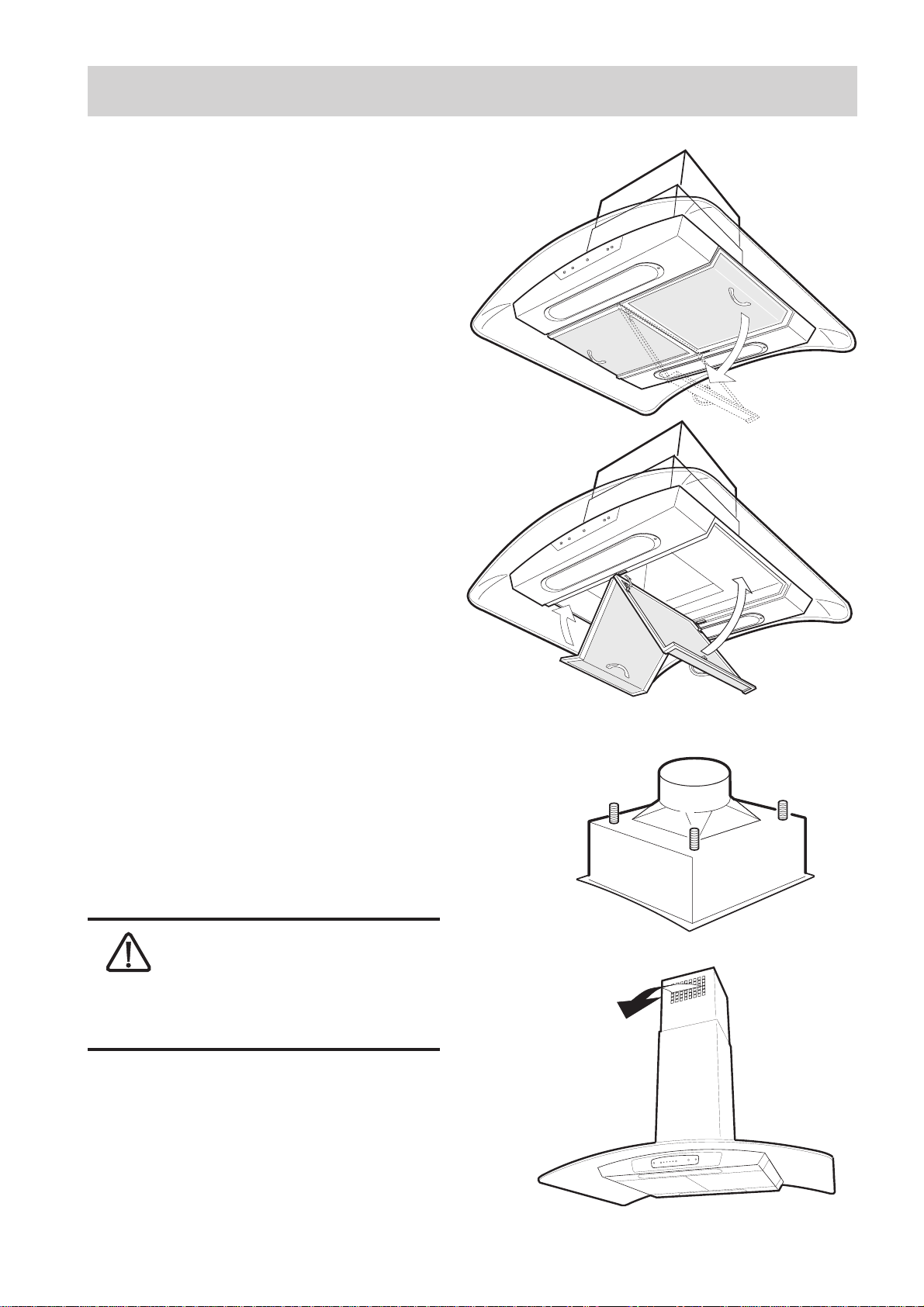

Mounting of grease filters
The grease filters are supplied apart inside an apposite package; follow these instructions for mounting:
●Fit the hooks at the centre of the hood and push the handle upwards until the filter locks.
Dismount the filter the opposite way
●Pull the handle downwards to loosen the filter. (Fig. 1).
Function
The hood may be used as follows:
-Exhausting version
-Recycling version
Exhausting version

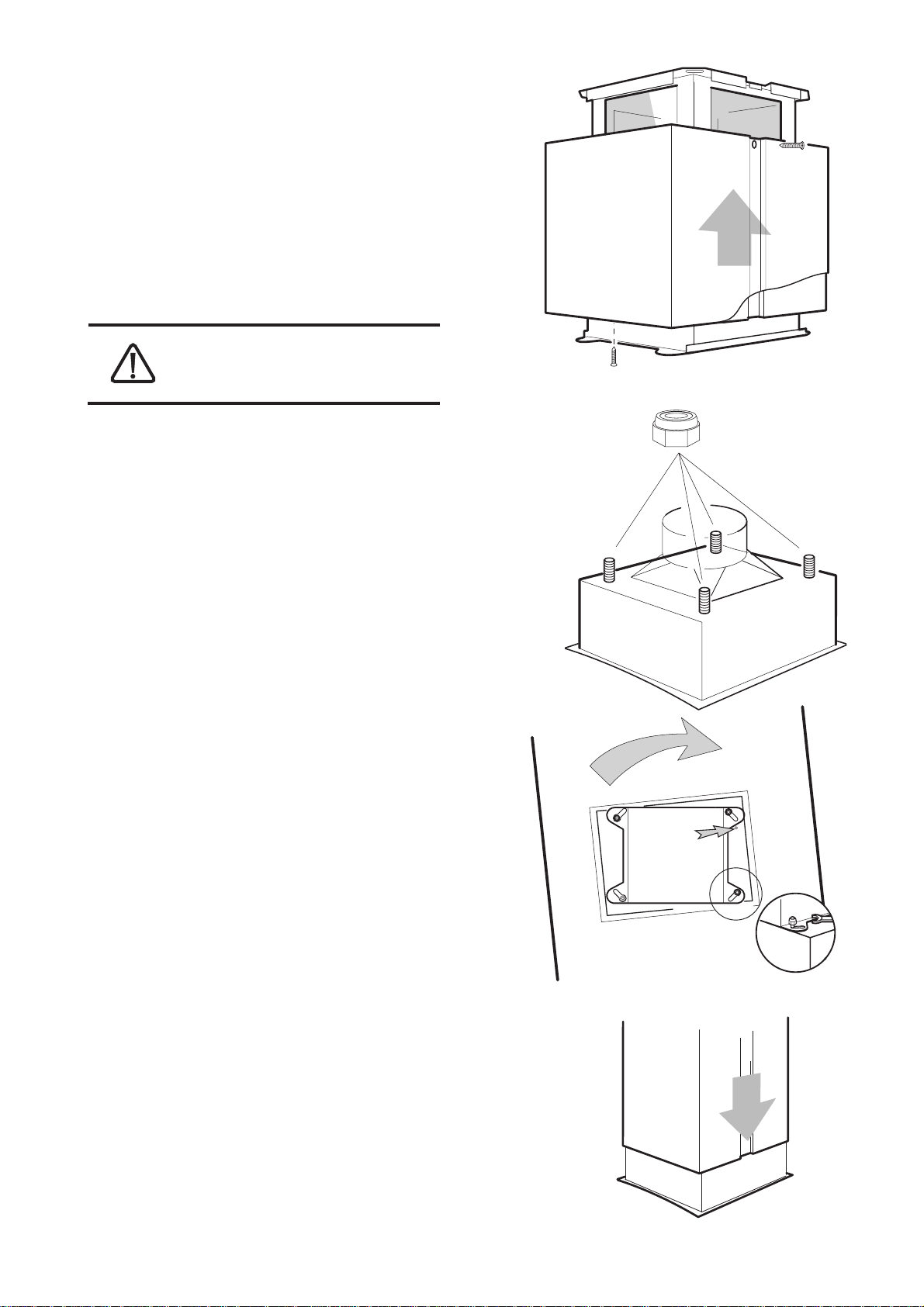

The air is vented outdoors by a 150 mm duct which must be connected to connecting ring with no return valve A on top of the motor package (Fig. 2).
The hood cannot be connected to flues of other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official directives regarding the question of fumes discharge.
Recycling version
The air is filtered through a carbon filter and recirculated into the room through the top sides of the chimney (Fig. 3).
This version is used when there is no exhaust duct for venting outdoors or when it is impossible to install one.
Fig. 1
A - Ø 150 mm
Fig. 2
Fig. 3
