Luna
LAB, LPB, LTB, LBB Series
Operating Manual
For internal (‘i’) and external (‘e’) calibration models
© Adam Equipment Company 2020
© Adam Equipment Company 2020
1.0 |
KNOW YOUR BALANCE.......................................................................................................... |
3 |
||
2.0 |
PRODUCT OVERVIEW............................................................................................................ |
4 |
||
3.0 |
PRODUCT SPECIFICATIONS ................................................................................................. |
5 |
||
4.0 |
UNPACKING THE BALANCE................................................................................................. |
10 |
||
5.0 |
LOCATING THE BALANCE.................................................................................................... |
10 |
||
6.0 SETTING UP THE BALANCE................................................................................................. |
11 |
|||
6.1 |
ASSEMBLING THE BALANCE ........................................................................... |
11 |
||
|
6.1.1 |
Levelling the balance .................................................................................. |
11 |
|
|
6.1.2 |
Warm - Up Time ............................................................................................ |
11 |
|
|
6.1.3 |
Weighing ..................................................................................................... |
11 |
|
6.2 |
CALIBRATION..................................................................................................... |
12 |
||
|
6.2.1 |
External Calibration ..................................................................................... |
12 |
|
|
6.2.2 |
Motorised Internal Calibration ..................................................................... |
12 |
|
|
6.2.3 |
Calibration Errors ........................................................................................ |
12 |
|
7.0 |
DISPLAY |
................................................................................................................................. |
13 |
|
7.1 |
SYMBOLS AND TEXT ........................................................................................ |
13 |
||
8.0 |
KEYPAD.............................................................................................................. |
14 |
||
8.1 |
NUMERIC ..............................................................................ENTRY METHOD |
15 |
||
9 |
INPUT/OUTPUT...................................................................................................................... |
15 |
||
10.0 OPERATIONS......................................................................................................................... |
16 |
|||
10.1 |
INITIALISATION.................................................................................................. |
16 |
||
10.2 |
PASSCODES ...................................................................................................... |
16 |
||
10.3 |
WEIGHING.......................................................................................................... |
17 |
||
10.4 |
FUNCTIONS........................................................................................................ |
18 |
||
|
10.4.1 ............................................................................................ |
Parts Counting |
19 |
|
|
10.4.2 .................................................................................. |
Percentage Weighing |
19 |
|
|
10.4.3 ........................................................................................... |
Check weighing |
20 |
|
|
10.4.4 ........................................................................ |
Animal (Dynamic) Weighing |
21 |
|
|
10.4.5 ................................................................................................... |
Net / Total |
23 |
|
|
10.4.6 ................................................................................. |
Density Determination |
23 |
|
11.0 RS-232 INTERFACE............................................................................................................... |
25 |
|||
11.1 |
HARDWARE........................................................................................................ |
25 |
||
11.2 |
OUTPUT ...........................................................................................FORMATS |
25 |
||
|
11.2.1 ............................................................................. |
Single - line output format |
25 |
|
|
11.2.2 ................................................................................. |
Custom output format |
26 |
|
11.3 |
INPUT ....................................................COMMANDS USING REMOTE KEYS |
27 |
||
|
11.3.1 ............................................................................... |
Invalid input command: |
27 |
|
12.0 ERROR CHECKING ............................................................................................................... |
28 |
|||
13.0 SUPERVISOR ...........................................................................................................MENUS |
29 |
|||
13.1 |
ENABLE ...............................................................................WEIGHING UNITS |
29 |
||
13.2 |
ENABLE .............................................................................WEIGHING MODES |
29 |
||
13.3 |
ENABLE ..................................................SERIAL INTERFACE PARAMETERS |
29 |
||
13.4 |
FORMAT ........................................................OF CUSTOM FORMS #1 and #2 |
30 |
||
13.5 |
SETUP ...................................................................................PARAMETERS |
31 |
||
13.6 |
CALIBRATION ........................................................................................SETUP |
32 |
||
13.7 |
PASSCODES ...................................................................................................... |
32 |
||
14.0 ACCESSORIES .........................................................................................& SPARE PARTS |
33 |
|||
15.0 SAFETY AND ..............................................................................................MAINTENANCE |
34 |
|||
16.0 TROUBLE ...........................................................................................................-SHOOTING |
35 |
|||
16.1 |
TROUBLE ...........................................................................-SHOOTING GUIDE |
36 |
© Adam Equipment Company 2020

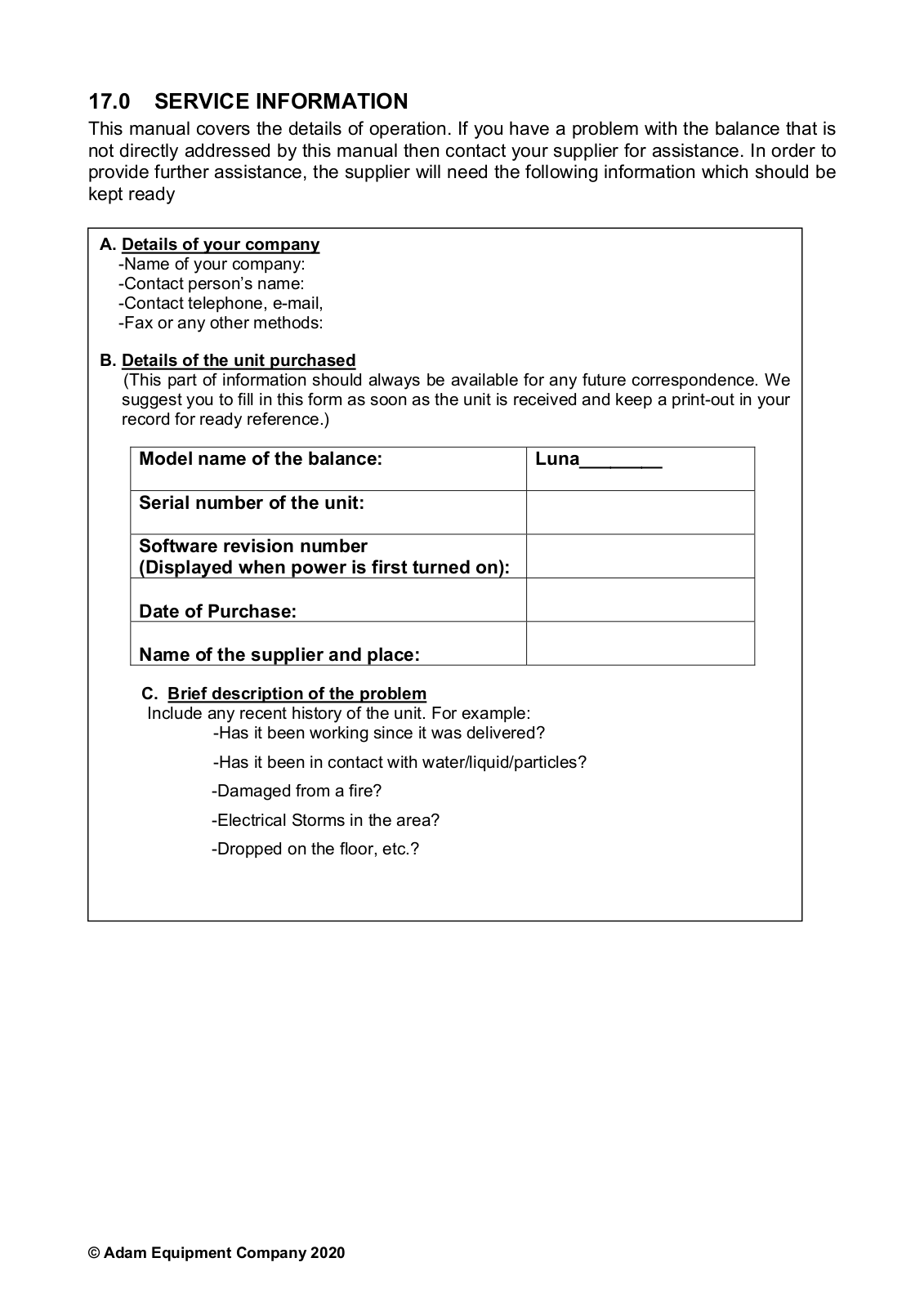

17.0 SERVICE INFORMATION ...................................................................................................... |
38 |
18.0 BALANCE MENU STRUCTURE............................................................................................. |
39 |
19.0 LANGUAGE TABLE................................................................................................................ |
42 |
20.0 WARRANTY INFORMATION ................................................................................................. |
43 |
© Adam Equipment Company 2020
1.0KNOW YOUR BALANCE
Thank you for selecting the Luna Balance from Adam Equipment.
This Instruction Manual will familiarise you with the installation, use, general maintenance etc. of the balance, and will guide you through the various applications. It also covers accessories, trouble-shooting, after sales service information, and other important information.
These balances are highly accurate precision instruments and contain sensitive mechanisms and components. They should be transported and handled with care. When in operation, be careful to place loads gently on the weighing surface and do not overload or exceed recommended maximum capacity of the instrument or damage may occur.
H
Please read this Manual thoroughly before starting operation. If you need any clarifications, feel free to contact your supplier or Adam Equipment.
© Adam Equipment Company 2020
2.0PRODUCT OVERVIEW
The Luna balances are ideal for laboratory and general purpose weighing. They can also be used for some advanced weighing functions.
FEATURES:
External menu-driven calibration allowing user-selectable range of calibration weights.
Internal calibration (option) for outstanding accuracy without the need for manual calibration.
Mains powered.
Wipe clean ABS plastic housing with 304 grade stainless steel pan.
Large easy to read dual line LCD display with backlight.
Standard applications include weighing, percentage weighing, parts counting, dynamic (animal) weighing and solid and liquid density determination.
Bi-directional RS-232 interface and USB interface as standard.
Can be configured to print a GLP Compliant report after each calibration to include the time, date, balance number and a verification of the calibration.
Force-restoration mechanism for supreme accuracy, or alloy load cell technology for stable yet accurate weighing.
Automatic temperature compensation.
Multiple weighing units.
Easy to use, wipe-clean sealed membrane keypad.
Below balance weighing facility (accessory hook required).
Display in a choice of 4 languages – English, German, French & Spanish.
Password protection.
Security locking point.
© Adam Equipment Company 2020
3.0PRODUCT SPECIFICATIONS
Luna Models
(Suffix e for external calibration models, Suffix i for internal calibration models)
Model # |
|
LAB 84 e/i |
|
|
LAB 124 e/i |
|
LAB 214 e/i |
|
LAB 254 e/i |
||||
Maximum Capacity |
80 g |
|
|
120 g |
|
|
210 g |
|
250 g |
||||
|
|
|
|
|
|
|
|
|
|
|
|
||
Readability (d) |
0.0001 g |
|
|
0.0001 g |
|
0.0001 g |
|
0.0001 g |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||
Number of intervals |
800000 |
|
1200000 |
|
2100000 |
|
2500000 |
||||||
n= |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Min. weight (USP) |
0.4 g |
|
|
0.4 g |
|
|
0.4 g |
|
0.4 g |
||||
|
|
|
|
|
|
|
|
|
|
|
|
||
Repeatability |
0.0002 g |
|
|
0.0002 g |
|
0.0002 g |
|
0.0002 g |
|||||
(Std. Dev) |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Linearity + |
|
0.0003 g |
|
|
0.0003 g |
|
0.0003 g |
|
0.0003 g |
||||
|
|
|
|
|
|
|
|
|
|
||||
Units of Measure |
grams, milligrams, |
|
carats, grains, |
Newtons, ounces, troy ounces, Drams, |
|||||||||
Taels-HK, Taels-T, Taels-S, Mommes, Tolas, Ticals, pennyweight, custom |
|||||||||||||
|
|
|
|||||||||||
Stabilization Time |
|
|
|
Typically 3 seconds |
|
|
|||||||
|
|
|
|
|
|
||||||||
Operating Temp |
15ºC to 35ºC recommended, 40 – 60 % RH (non-condensing) |
||||||||||||
|
|
|
|
|
|
|
|||||||
Power Supply |
External mains power adapter - supplied as standard |
||||||||||||
|
|
(Input Voltage 100–240 VAC, 50/60 Hz) |
|
|
|||||||||
|
|
|
|
|
|
|
|||||||
Input Voltage |
|
|
|
18 VDC - 830 mA |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weighing |
|
|
|
|
Force Restoration |
|
|
||||||
mechanism |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Calibration |
|
Suffix i = internal calibration mechanism, e = external calibration only |
|||||||||||
|
|
|
|
|
|
||||||||
External Calibration |
Recommended OIML class: E2, ASTM / ANSI class: 1 |
||||||||||||
Mass |
|
50 g |
|
|
100 g |
|
100 g |
|
100 g |
||||
|
|
|
|
|
|
|
|||||||
Display |
|
LCD with black backlight, 7 characters, 24 mm high, and symbols |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Draft Shield |
|
|
Sliding door Draft Shield |
(198 x 212 x 240 mm) |
|||||||||
(w x d x h) |
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Pan Size |
|
|
|
|
Round, 90mm diameter |
|
|
||||||
|
|
|
|
|
|
|
|
||||||
Overall Dimensions |
|
|
|
228 x 377 x 333 mm |
|
|
|||||||
(w x d x h) |
|
|
|
|
9 x 14.8 x 13.1 in |
|
|
||||||
Net |
|
e models |
|
|
|
5.9 kg / 13 lb 0 oz |
|
|
|||||
Weight |
|
i models |
|
|
|
6.2 kg / 13 lb 10 oz |
|
|
© Adam Equipment Company 2020
Model # |
|
LPB 223 e / i |
|
|
LPB 423 e / i |
||
|
|
|
|
|
|
||
Maximum Capacity |
220 g |
|
|
420 g |
|||
|
|
|
|
|
|||
Readability (d) |
|
0.001 g |
|||||
|
|
|
|
|
|
||
Number of intervals |
220000 |
|
|
420000 |
|||
n= |
|
|
|
||||
|
|
|
|
|
|||
Min. weight (USP) |
4 g |
|
|
4 g |
|||
|
|
|
|
|
|
||
Repeatability |
|
0.002 g |
|||||
(Std. Dev) |
|
|
|||||
|
|
|
|
|
|||
Linearity + |
|
|
0.003 g |
||||
|
|
|
|
|
|||
|
|
|
Kilograms, grams, milligrams, carats, grains, Newtons, pounds, ounces, troy |
||||
Units of Measure |
ounces, Drams, Taels-HK, Taels-T, Taels-S, Mommes, Tolas, Ticals, |
||||||
|
|
|
pennyweight, custom |
|
|||
Stabilization Time |
Typically 3 seconds |
||||||
|
|
|
|
||||
Operating Temp |
15ºC to 35ºC recommended, 40 – 60 % RH (non-condensing) |
||||||
|
|
|
|
|
|||
|
|
|
External mains power adapter - supplied as standard |
||||
Power Supply |
(Input Voltage 100–240 VAC, 50/60 Hz) |
||||||
|
|
|
[Removed text related to battery]. |
||||
Input Voltage |
18 VDC - 830 mA |
||||||
|
|
|
|
|
|
|
|
Weighing |
|
Precision Load Cell |
|||||
mechanism |
|||||||
|
|
|
|
||||
Calibration |
|
Suffix i = internal calibration mechanism, e = external calibration only, |
|||||
|
|
|
|
||||
External Calibration |
Recommended OIML class: E2, ASTM / ANSI class: 2 |
||||||
Mass |
|
50, 100, 200 g |
|
|
100, 200, 400 g |
||
|
|
|
|
|
|
||
Display |
|
LCD with black backlight, 7 characters, 24 mm high, and symbols |
|||||
|
|
|
|
|
|
||
Draft Shield |
Sliding door Draft Shield |
(198 x 212 x 120 mm) |
|||||
(w x d x h) |
|
||||||
|
|
|
|
|
|||
Pan Size |
|
Round, 120 mm diameter |
|||||
|
|
|
|
||||
Overall Dimensions |
228 x 377 x 213 mm |
||||||
(w x d x h) |
|
9 x 14.8 x 8.4 in |
|||||
Net |
|
e models |
4.3 kg / 9 lb 8 oz |
|
4.3 kg / 9 lb 8 oz |
||
Weight |
|
i models |
4.7 kg / 10 lb 5.7 oz |
|
4.9 kg / 10 lb 12.8 oz |
© Adam Equipment Company 2020
Model # |
|
LPB 623 e / i |
|
LPB 823 e / i |
||
Maximum Capacity |
620 g |
|
820 g |
|||
|
|
|
|
|||
Readability (d) |
0.001 g |
|||||
|
|
|
|
|
||
Number of intervals |
620000 |
|
820000 |
|||
n= |
|
|
||||
|
|
|
|
|||
Min. weight (USP) |
4 g |
|
4 g |
|||
|
|
|
|
|
||
Repeatability |
0.002 g |
|||||
(Std. Dev) |
||||||
|
|
|
||||
Linearity + |
0.003 g |
|||||
|
|
|
|
|
||
|
|
|
Kilograms, grams, milligrams, pounds, carats, grains, Newtons, pounds, |
|||
Units of Measure |
ounces, troy ounces, Drams, Taels-HK, Taels-T, Taels-S, Mommes, |
|||||
|
|
|
Tolas, Ticals, pennyweight, custom |
|
||
Stabilization Time |
Typically 3 seconds |
|||||
|
|
|
|
|||
Operating Temp |
15ºC to 35ºC recommended, 40 – 60 % RH (non-condensing) |
|||||
|
|
|
|
|
||
Power Supply |
External mains power adapter - supplied as standard |
|||||
(Input Voltage 100–240 VAC, 50/60 Hz) |
||||||
|
|
|
||||
Input Voltage |
18 VDC - 830 mA |
|||||
|
|
|
|
|
|
|
Weighing |
|
Force Restoration |
||||
mechanism |
||||||
|
|
|
||||
Calibration |
Suffix i = internal calibration mechanism, e = external calibration only |
|||||
|
|
|
|
|||
External Calibration |
Recommended OIML class: E2, ASTM / ANSI class: 2 |
|||||
Mass |
|
500 g |
||||
|
|
|
|
|
||
Display |
|
LCD with black backlight, 7 characters, 24 mm high, and symbols |
||||
|
|
|
|
|
||
Draft Shield |
Sliding door Draft Shield |
(198 x 212 x 120 mm) |
||||
(w x d x h) |
||||||
|
|
|
||||
Pan Size |
|
Round, 120 mm diameter |
||||
|
|
|
|
|||
Overall Dimensions |
228 x 377 x 213 mm |
|||||
(w x d x h) |
9 x 14.8 x 8.4 in |
|||||
Net |
|
e models |
5.9 kg / 13 lb 0 oz |
|
5.9 kg / 13 lb 0 oz |
|
Weight |
|
i models |
6.4 kg / 14 lb 1.6 oz |
|
6.6 kg / 14 lb 8.8 oz |
© Adam Equipment Company 2020
Model # |
|
LTB 2602 e / i |
|
LTB 3602 e / i |
LTB 4602 e / i |
LTB 6002 e / i |
||
Maximum Capacity |
2600 g |
|
3600 g |
4600 g |
6000 g |
|||
|
|
|
|
|
|
|
|
|
Readability (d) |
0.01 g |
|
0.01 g |
0.01 g |
0.01 g |
|||
|
|
|
|
|
|
|
|
|
Number of intervals |
260000 |
360000 |
460000 |
|
600000 |
|||
n= |
|
|
||||||
|
|
|
|
|
|
|
||
Min. weight (USP) |
40 g |
|
40 g |
40 g |
40 g |
|||
|
|
|
|
|
|
|
|
|
Repeatability |
|
|
0.02 g |
|
||||
(Std. Dev) |
|
|
|
|
||||
|
|
|
|
|
|
|
||
Linearity + |
|
|
|
0.03 g |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Kilograms, grams, milligrams, carats, grains, Newtons, pounds, ounces, troy |
|||||
Units of Measure |
ounces, Drams, Taels-HK, Taels-T, Taels-S, Mommes, Tolas, Ticals, |
|||||||
|
|
|
|
|
pennyweight, custom |
|
||
Stabilization Time |
|
|
Typically 3 seconds |
|
||||
|
|
|
|
|
|
|
||
Operating Temp |
15ºC to 35ºC recommended, 40 – 60 % RH (non-condensing) |
|||||||
|
|
|
|
|
|
|
|
|
Power Supply |
External mains power adapter - supplied as standard |
|||||||
|
|
(Input Voltage 100–240 VAC, 50/60 Hz) |
|
|||||
|
|
|
|
|
|
|||
Input Voltage |
|
|
18 VDC - 830 mA |
|
||||
|
|
|
|
|
|
|
|
|
Weighing mechanism |
|
|
Precision Load Cell |
|
||||
|
|
|
|
|
|
|
|
|
Calibration |
|
Suffix i = internal calibration mechanism, e = external calibration only |
||||||
|
|
|
|
|
|
|
||
External Calibration |
Recommended OIML class: F1, ASTM / ANSI class: 3 |
|||||||
Mass |
0.5, 1, 2 kg |
|
1, 2, 3 kg |
1, 2, 4 kg |
1, 2, 5 kg |
|||
|
|
|
|
|
|
|
|
|
Display |
|
LCD with black backlight, 7 characters, 24 mm high, and symbols |
||||||
|
|
|
|
|
|
|
|
|
Draft Shield |
|
|
|
None |
|
|||
(w x d x h) |
|
|
|
|
||||
|
|
|
|
|
|
|
||
Pan Size |
|
|
|
Square, 185x185 mm |
|
|||
|
|
|
|
|
|
|
|
|
Overall Dimensions |
|
|
228 x 337 x 108 mm |
|
||||
(w x d x h) |
|
|
|
9 x 14.8 x 4.3 in |
|
|||
Net |
|
e models |
|
|
3.6 kg / 7 lb 14.8 oz |
|
||
|
|
4.6 kg / 10 lb 2.2 |
|
4.8 kg / 10 lb 9.3 |
|
|
|
|
Weight |
|
i models |
|
5.0 kg / 11 lb 0 oz |
|
5.0 kg / 11 lb 0 oz |
||
|
|
|
oz |
|
oz |
|
|
|
© Adam Equipment Company 2020
Model # |
LBB 6001e |
LBB 8001e |
|
LBB 12001e |
LBB 15001e |
|
Maximum Capacity |
6000g |
8000g |
|
12000g |
15000g |
|
|
|
|
|
|
|
|
Readability (d) |
0.1g |
0.1g |
|
0.1g |
0.1g |
|
|
|
|
|
|
|
|
Number of intervals |
60000 |
80000 |
120000 |
|
150000 |
|
n= |
|
|||||
|
|
|
|
|
|
|
Min. weight (USP) |
400 g |
400 g |
|
400 g |
400 g |
|
|
|
|
|
|
|
|
Repeatability |
|
0.2g |
|
|||
(Std. Dev) |
|
|
||||
|
|
|
|
|
|
|
Linearity + |
|
0.3g |
|
|||
|
|
|
|
|||
|
Kilograms, grams, milligrams, carats, grains, Newtons, pounds, ounces, troy |
|||||
Units of Measure |
ounces, Drams, Taels-HK, Taels-T, Taels-S, Mommes, Tolas, Ticals, |
|||||
|
|
pennyweight, custom |
|
|||
Stabilization Time |
|
Typically 3 seconds |
|
|||
|
|
|
|
|||
Operating Temp |
15ºC to 35ºC recommended, 40 – 60 % RH (non-condensing) |
|||||
|
|
|
|
|||
|
External mains power adapter - supplied as standard |
|||||
Power Supply |
|
(Input Voltage 100–240 VAC, 50/60 Hz) |
|
|||
|
|
[Removed text related to battery] |
|
|||
Input Voltage |
|
18 VDC - 830 mA |
|
|||
|
|
|
|
|
|
|
Weighing |
|
Precision Load Cell |
|
|||
mechanism |
|
|
||||
|
|
|
|
|
|
|
Calibration |
|
External calibration only |
|
|||
|
|
|
|
|||
External Calibration |
Recommended OIML class: F2, ASTM / ANSI class: 4 |
|||||
Mass |
1, 2, 5 kg |
2, 5, 8 kg |
|
2 ,5 ,10 kg |
|
5,10, 15 kg |
|
|
|
|
|
||
Display |
LCD with blue backlight, 7 characters, 24 mm high, and symbols |
|||||
|
|
|
|
|
|
|
Draft Shield |
|
None |
|
|||
(w x d x h) |
|
|
||||
|
|
|
|
|
|
|
Pan Size |
|
Square, 185x185 mm |
|
|||
|
|
|
|
|||
Overall Dimensions |
|
228 x 337 x 108 mm |
|
|||
(w x d x h) |
|
9 x 14.8 x 4.3 in |
|
|||
Net Weight |
|
3.7 kg / |
8 lb 2.4 oz |
|
||
|
|
|
|
|
|
|
© Adam Equipment Company 2020
4.0UNPACKING THE BALANCE
Remove the balance from the packing by carefully lifting it out of the box. Inside the box you will find everything needed to start using the balance-
AC mains power adapter & cord
Stainless Steel Top Pan
Alloy sub-pan
User documentation
Carefully follow the quick setup guide included to assemble the balance.
5.0LOCATING THE BALANCE
The balance should not be placed in a location that will reduce the accuracy.
Avoid extremes of temperature. Do not place in direct sunlight or near air conditioning vents.
Avoid unsuitable tables. The table or floor must be rigid and not vibrate.
Avoid unstable power sources. Do not use near large users of electricity such as welding equipment or large motors.
Do not place near vibrating machinery.
Avoid high humidity that might cause condensation. Avoid direct contact with water. Do not spray or immerse the balances in water.
Avoid air movement such as from fans or opening doors. Do not place near open windows or air-conditioning vents.
Keep the balance clean. Do not stack material on the balances when they are not in use.
Avoid sources of static electricity. This can affect measurement accuracy and may damage sensitive electronics.
© Adam Equipment Company 2020
6.0SETTING UP THE BALANCE
6.1ASSEMBLING THE BALANCE
Carefully follow the below guide to assemble the balance. Ensure that you locate the balance on a solid level surface, free from vibration.
6.1.1Levelling the balance
After placing the balance in a suitable location, level it by using the spirit level on the front of the balance. To level the balance turn the two adjustable feet at the front of the balance until the bubble in the spirit level is centred.
6.1.2Warm-Up Time
Before you start weighing, you should allow the balance to achieve a stable internal temperature. For accurate weighing to the manufacturer’s specification it is important to power on the balance and allow to warm up for at least 6 hours for LBB + LTB models, and
12 hours for LAB + LPB models.
Insert the power supply cable DC connector to the connector on the rear of the balance. Plug the power supply module into the mains and press the power switch on the keypad to turn on the balance. The display will indicate the balance serial number followed by the software revision number, followed by the maximum capacity of the balance. Next the balance will run a selftest by displaying all segments followed by a busy symbol and a line of 7 dashes indicating the balance is in busy mode. Once ready, the display will show a zero weight reading, accompanied by the 0 symbol.
6.1.3Weighing
Once a suitable warm-up period is complete and you are ready to start weighing, place an item to be weighed on the balance. A stable symbol is shown when the balance is in stable condition. It will turn off if the balance is not stable.
Exact zero is shown when the “0“ symbol is visible on the top left of the display area. [display photo changed]
© Adam Equipment Company 2020
6.2 CALIBRATION
Units with an ‘i’ suffix can be calibrated using either internal calibration mechanism or by using an external mass. Units with an ‘e’ suffix can only be calibrated with an external mass.
Internal calibration option must be enabled in the setup menu options or else external calibration mode will be used when the [Cal] key is pressed
6.2.1External Calibration
Pressing the [Cal]
Display shows:
Press the [Setup
|
Display shows |
For analytical and LPB623 and LPB823 models, the display shows an appropriate weight for your model, load the weight.
|
For precision models, then display shows |
press [Unit] or [Cal] to |
|
|
select calibration weight value, and then press the [Setup], display shows |
||
|
|
load the weight |
|
|
Display shows |
|
|
|
Display shows |
remove the weight and clear the top pan. |
Display shows: then returns to zero. The calibration is complete
6.2.2Motorised Internal Calibration
If your balance is fitted with internal calibration (i models), then press [Cal] and the balance will automatically run through the above processes and finish calibration.
6.2.3Calibration Errors
Occasionally during calibration an error will be detected. These errors can be caused by:
Unstable readings
Improper calibration weights being used
Large shifts of zero from the factory settings
When an error is found a displayed message will be shown and the calibration must be done again. If the balance has error messages more than once it is possible the mechanics have been damaged
© Adam Equipment Company 2020
7.0DISPLAY
The LCD has several areas-
A large 7 digit area to display the weight with symbols for common weighing units on its right and symbols for zero, tare (Net) and stability on the left.
Text symbols above the display show the current operation or function being used.
7.1 SYMBOLS AND TEXT
The LCD has unique symbols to indicate the following:
0 |
Zero |
|
|
|
Busy |
|
|
|
Stable |
g, mg, kg, ct, dwt, GN, ozt, oz, |
Symbols shown for units and modes |
N, Custom, g/cc, Pcs, %, |
|
[removed battery symbol from the table above]
Indicators: |
|
“CAL” |
When calibration is occurring or about to occur |
“ti” |
For a time driven calibration |
“ºC” |
When a temperature is shown or a temperature |
|
driven calibration is to occur |
“Net” |
When a net weight is shown |
© Adam Equipment Company 2020
