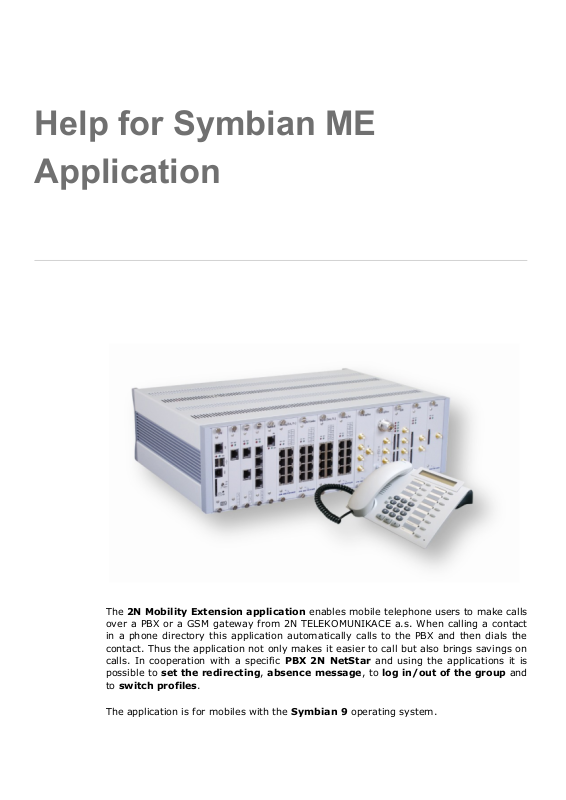

Help for Symbian ME
Application
The enables mobile telephone users to make calls2N Mobility Extension application
over a PBX or a GSM gateway from 2N TELEKOMUNIKACE a.s. When calling a contact
in a phone directory this application automatically calls to the PBX and then dials the
contact. Thus the application not only makes it easier to call but also brings savings on
calls. In cooperation with a specific and using the applications it isPBX 2N NetStar
possible to , , to andset the redirecting absence message log in/out of the group
to .switch profiles
The application is for mobiles with the operating system.Symbian 9
Installation
The application 2N Mobility Extension Symbian is installed using the standard tools in
the . The installation file is . With regards to the factNokia PC Suite MobileExt.sis
that it is possible to change some parameters after installation (the prefix to the PSTN,
the transfer code, etc.) it is necessary to allow the installation of all the software before
the actual installation. (It is set in ).Application manager -> Options -> Settings
Figure: Software installation
Now you can connect your mobile to the computer (by cable or Bluetooth) and run the
PC Suite application. Select "Install Application" and chose the site where you want to
save the file MobileExt.sis. After successfully completing the installation you will be
asked to complete the installation on your mobile.
Note. When installing on the disk C:/DATA on your mobile phone create the file
. This is where all of the application's settings will be stored. By overwritingAina.bin
this file you can change the settings - see the chapter on Extended Settings).
Settings
After successfully installing the "2N Mobility Extension - " will be among yourME
applications.
Figure: Mobility Extension
On the first run you will be familiarised with the application's conditions and basic
properties. The application is licensed but contains a . To get theten-day trial licence
license key please contact , then enter it into the menu.sales@2n.cz Licence
It is now necessary to set the SIM card number in the PBX that the application will
communicate with. . Communications take place using SMS (forOptions -> Settings
services) and calling + DTMF (for calls). It is possible to switch to the regime without
SMS in the configuration file Aina.bin, i.e. only calling + DTMF.
Figure: Access number for SMS Access number for calls
Main menu
The great advantage of this application is its simplicity and user friendliness. To get
into the main menu press .Options
Figure: Main menu
Contacts - enables a number to be called directly from your telephone directory.
Call - enables a dialled number to be called manually.
Profile - to set a specific profile.
Mobile Ext - turns on/off calling to the station (ME).
Call Transfer - enables call forwarding to be set (including redirecting to
Voicemail).
Group - Logging in/out a user or station to/from the call group (bundle).
Set Absence message - enables the reason for absence to be defined and the
time of return.
Settings - setting the access numbers for the PbX (generally an SIM in a GSM
gateway).
Help - displays help on the application.
Exit - leaving the application.
Incoming call
There are the following options with incoming calls:
Hold - puts an incoming call on hold.
Resume - takes you back to the caller.
Call Transfer - puts a caller on hold and enables you to switch to a number from
the telephone directory.
Send DTMF - enables a call to be switched to a number entered by you
(manually).
Exit - deactivates the application.
Figure: Options Mobility ExtensionCall Forwarding
Figure: Logging in/out Absence message Call Transfer
Tested telephones
Currently the following phones have been tested:
N73, N78, N82, N91, N92,N93, N93i, N95, N96,
E50, E51, E60, E61, E61i, E65, E66, E70, E71 a E90
An up-to-date list can be found at .www.2n.cz
Advanced settings
Advanced settings can be made in the afore-mentioned file. The file hasAina.bin
these parameters:
PBX +420739586586 - Access number (mostly SIM) in your PBX.
PBX2 +420739586587 - Access number in case the SIM is busy. You can define
up to 8 numbers.
PBXSMS +420739586587 - Access number for SMS (for services).
SMSProfiles - if this flag is 0 or empty, the application will send services codes
to the PBX by dialing to a ME gateway number and sending the setting using
DTMF codes.
If this flag is set, (SMSProfiles 1) the application will change services using SMS
messages.
SMSCode *61 - Service code for „Set presence".
CodeDial - this code is sent to the PBX before the actual phone number to be
dialled when a call
is dialled via the PBX. This code may be empty.
PopupOnlyforPbxNumbers 1 - application runing on background. If the calls
comes from any number defined in PBX...PBX8 - it automatically appears. If the
settings is 0 - application appears with every incoming call.
CodeMobileExtOn *55 - Service code for „Ring at call to user".
CodeMobileExtOff #55 - Service code for „Don't ring at call to user".
CodeUCDExt *64 - Service code for „Bundle station login".
CodeUCDUsr *65 - Service code for „Bundle user login".
CodeUCDExtOff #64 - Service code for „Bundle station logout".
CodeUCDUsrOff #65 - Service code for „Bundle user logout".
CodeTfrImmed *11 - Service code for „Forward user - unconditional".
CodeTfrBusy *12 - Service code for „Forward user - busy".
CodeTfrDelay *13 - Service code for „Forward user - no answer".
CodeTfrOff #10 - Service code for „Cancel all user forward".
CodeTfrImmedVM*31 - Service code for „Forward to VM - unconditional".
CodeTfrBusyVM *32 - Service code for „Forward to VM - busy".
CodeTfrDelayVM *33 - Service code for „Forward to VM - no answer".
CodeTfrOffVM #30 - Service code for „Cancel forward to VM - all".
CodeTfrDuring 7* - Service code for Call Transfer.
CodeUnHoldDuring 7* Service code for Return from Call Transfer.
AbsentMsg1 - „Absence message" text . You can predefine up to 8 messages.
Profile1 - Name of the profile. You can predefine up to 8 profiles.
ProfileCodeOff #60 - Service code for „Deactivate profile".
ProfileCode1 *601# - Service code for „Activate profile" (up to 8 profiles).
NationalPrefixRemove +420 - This prefix is removed from the phone number
to be dialled, before the number is sent to the PBX.
NationalPrefixReplace - This prefix is added to the phone number to be
dialled, before the number is sent to the PBX.
InternationalPrefix 00 - + is replaced with this prefix before the number is
sent to the PBX.
DialoutPrefix 0 - This prefix number is appended to all phone numbers which
are longer than ExtensionDigits.
DtmfDelayms 200 - Delay in milliseconds, after this parameter DTMF is sent.
DisaDelayms 2000 - Delay (milliseconds) before dialing another PBX gateway
number if the connection fails.
ExtensionDigits 4 - This setting tells how many digits the extension numbers of
the pbx may contain. If a phone number to be dialled (entered by user or found
from the contacts book), contains more digits than allowed by this setting, it is
consider as an external numberand it is prefixed with the "DialoutPrefix".
