2N® Helios IP Video Kit

Door Access Intercom

Installation Manual

Version

1.0.2

www.2n.cz

The 2N TELEKOMUNIKACE joint-stock company is a Czech manufacturer and supplier of telecommunications equipment.

The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years and represented a symbol of stability and prosperity on the telecommunications market for almost two decades. At present, we export our products into over 120 countries worldwide and have exclusive distributors on all continents.

2N® is a registered trademark of 2N TELEKOMUNIKACE a.s.. Any product and/or other names mentioned herein are registered trademarks and/or trademarks or brands protected by law.

2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www.faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.

2N TELEKOMUNIKACE hereby declares that the 2N® Helios IP Video Kit product complies with all basic requirements and other relevant provisions of the 1999/5/EC directive. For the full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may.

The 2N TELEKOMUNIKACE company is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our.

Content

1.

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



1.1

Components and Associated Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



1.2

Terms and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

2.

Description and Installation . . . . . . . . . . . . . . . . . . . . . . . . . .

9



2.1

Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10



2.2

Electric Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12



2.3

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

3. Technical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4. Supplementary Information . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

4.2

Directives, Laws and Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

4.3

General Instructions and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27

1. Product Overview

Basic Features

2N® Helios IP Video Kit is a universal and reliable IP intercom module designed for integration in the third parties' equipment. It is provided with a number of useful functions that are not quite common in the devices of this category. Featuring the SIP standard support and compatibility with renowned IP exchange and telephone

manufacturers, 2N® Helios IP Video Kit can make use of all VoIP services available on the market.

2N® Helios IP Video Kit is equipped with two composite video inputs, and can support two analog cameras with PAL or NTSC standard. The intercom transcodes the analog signal to video stream in selected format, such as H.264, H.264, MJPEG etc.

2N® Helios IP Video Kit is equipped with a 10W power amplifier for external loudspeaker connection. If the power output of the internal loudspeaker is insufficient for your specific application, you can connect an external loudspeaker to the line output. You can also connect an external electret microphone or another audio signal source to the IP intercom line output.

2N® Helios IP Video Kit allows up to 16 separate buttons or a 16-button matrix keypad to be connected. Set the button function flexibly according to your specific application needs. You can set up to three telephone numbers and call time profiles to each of the buttons to make the called subscriber accessible any time. Configure the buttons as a numerical keypad, which can be used as a switch activation code lock or for dialling a preset or any other telephone number.

2N® Helios IP Video Kit is equipped with one relay output and two active 12V outputs. Use the numerical keypad or, during the call, any telephone to control these outputs. A wide range of output mode settings help you make use of a high number of applications.

2N® Helios IP Video Kit is equipped with two galvanically isolated digital inputs and three status signalling outputs.

2N® Helios IP Video Kit is very easy to install. All you have to do is connect it to your LAN using the LAN cable. An integrated two-port LAN switch simplifies installation

2N® TELEKOMUNIKACE a.s., www.2n.cz

4

on sites with a limited LAN infrastructure. Supply the intercom either from a 9-36V source or directly from your POE supporting LAN.

Use a PC web browser to configure your 2N® Helios IP Video Kit . Apply the IP Manager to administer extensive intercom installations easily and quickly.

Advantages of Use

Industrial design and variable mounting options

Wide supply power range + PoE supply

Two analog cameras connection

Integrated 10W power amplifier

External amplifier connection

External microphone/audio signal source connection

Galvanically isolated relay output

Two controlled active 12V outputs

Two galvanically isolated logic inputs

Up to 3 signalling LED outputs

Up to 16 external buttons/matrix keypad connection

Integrated two-port LAN switch

Bidirectional communication – acoustic echo cancelling

Configuration via web interface/special PC application

SIP 2.0 support

HTTP(S) server for configuration

SNTP client for server time synchronisation

RTSP server for audio streaming

TFTP client for automatic configuration and firmware update

Here is what you can find in this section:

1.1 Components and Associated Products 1.2 Terms and Symbols

2N® TELEKOMUNIKACE a.s., www.2n.cz

5

2N Helios IP Video Kit User Manual

1.1 Components and Associated Products

Basic Units

9154100C

9154101C

Intercom module in plastic box

Intercom module without box

VoIP Telephones

91378351

91378354

Grandstream GXV3140 VoIP video telephone

Grandstream GXV3175 VoIP telephone

Electric Locks

932070E

932080E

932090E

BEFO 1211 12V / 600

BEFO 1221with

BEFO 1211MBwith mechanical

mA

momentum pin

blocking

2N® TELEKOMUNIKACE a.s., www.2n.cz

6

Power Supply

91378100E

91378100US

PoE injector

91341481E



Adapter 12 V/2 A

932928E

A stabilised power supply has to be used if the

Ethernet

12 V transformer

(PoE) power supply is not available.



Additional Modules

9159010

9137410E

Security Relay

External IP relay

2N® TELEKOMUNIKACE a.s., www.2n.cz

7

1.2 Terms and Symbols

The following symbols and pictograms are used in the manual:

Safety

Always abide by this information to prevent persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Caution

Important information for system functionality.

Tip

Useful information for quick and efficient functionality.

Note

Routines or advice for efficient use of the device.

2N® TELEKOMUNIKACE a.s., www.2n.cz

8

2. Description and Installation

Product Completeness Check

Before installing this product, please check whether the 2N® Helios IP Video Kit deliv ery complies with the following packing list.

1x 2N® Helios IP Video Kit

1x Short Installation Manual

Here is what you can find in this section:

2.1 Mechanical Installation

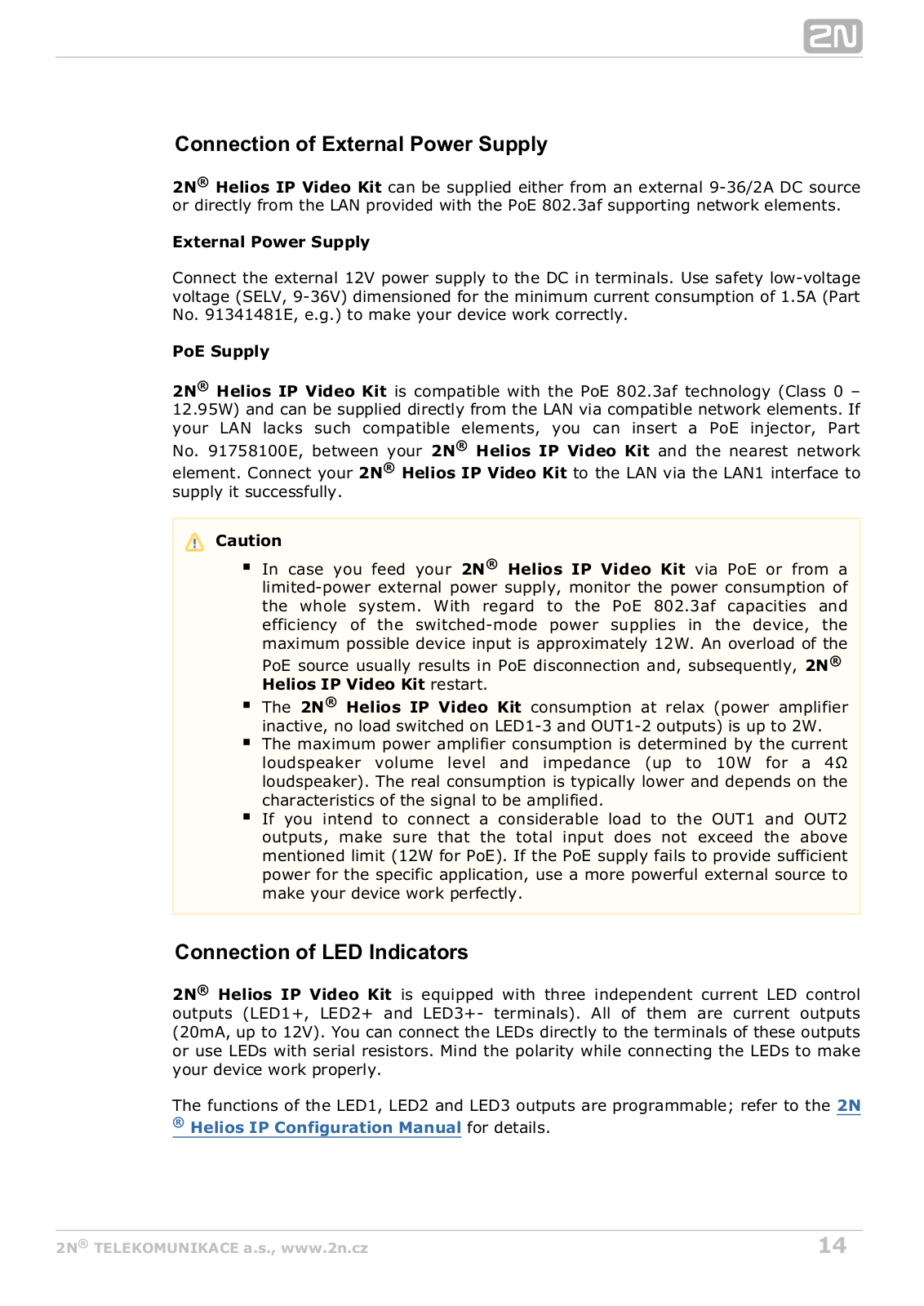

2.2 Electric Installation

2.3 Configuration

2N® TELEKOMUNIKACE a.s., www.2n.cz

9
