2N® Helios IP Uni

Door Access Intercom

Installation Manual

Version

1.0.2

www.2n.cz

The 2N TELEKOMUNIKACE joint-stock company is a Czech manufacturer and supplier of telecommunications equipment.

The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years and represented a symbol of stability and prosperity on the telecommunications market for almost two decades. At present, we export our products into over 120 countries worldwide and have exclusive distributors on all continents.

2N® is a registered trademark of 2N TELEKOMUNIKACE a.s.. Any product and/or other names mentioned herein are registered trademarks and/or trademarks or brands protected by law.

2N TELEKOMUNIKACE administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www.faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...“.

2N TELEKOMUNIKACE hereby declares that the 2N® Helios IP Uni product complies with all basic requirements and other relevant provisions of the 1999/5/EC directive. For the full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may.

The 2N TELEKOMUNIKACE company is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our.

Content

1.

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4



1.1

Components and Associated Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6



1.2

Terms and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

2.

Description and Installation . . . . . . . . . . . . . . . . . . . . . . . . . .

10



2.1

Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11



2.2

Electric Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15



2.3

Button Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

3.

Function and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18



3.1

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19



3.2

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20



3.3

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

4. Technical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

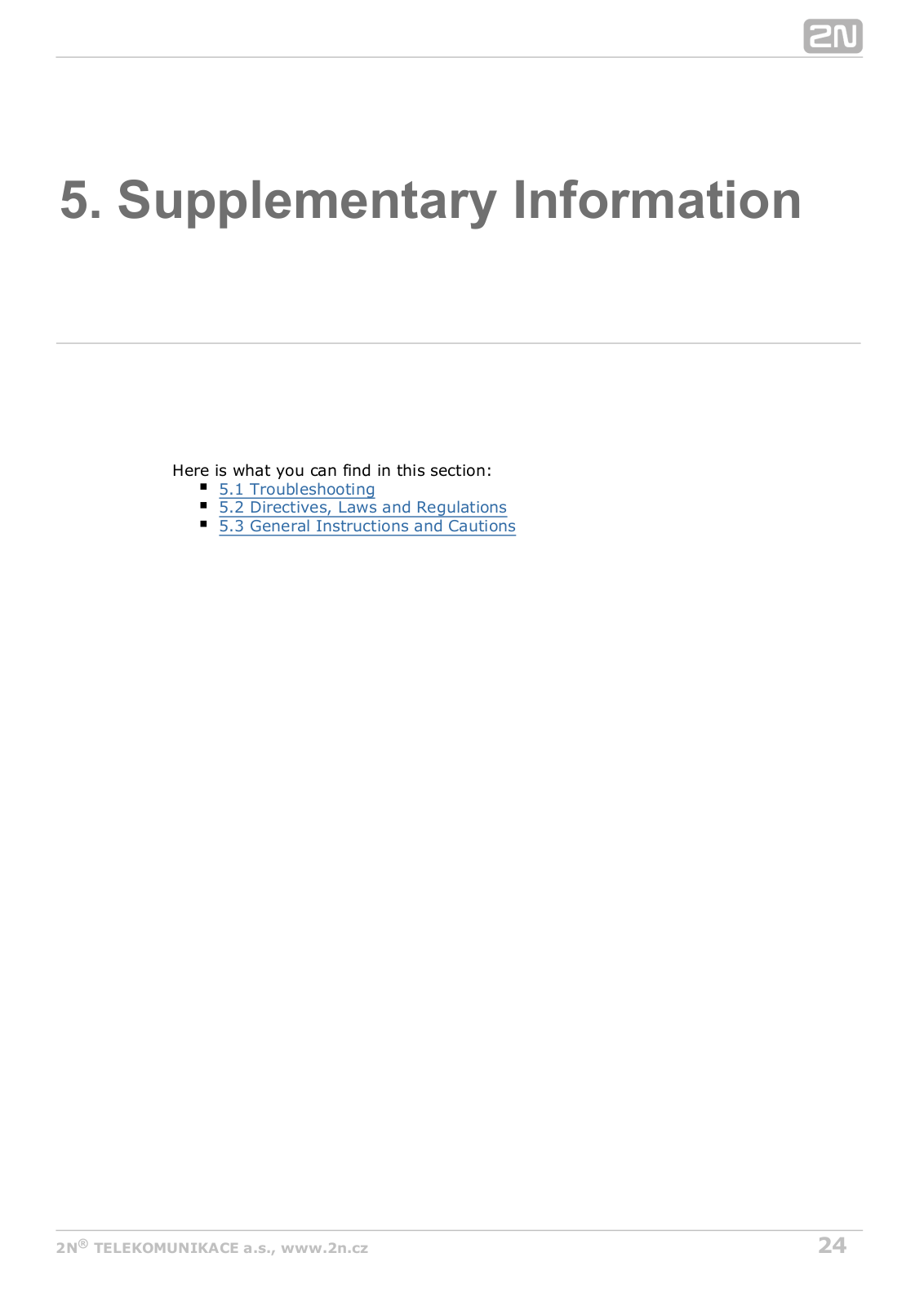

5. Supplementary Information . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

5.2

Directives, Laws and Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26

5.3

General Instructions and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

1. Product Overview

Basic Features

2N® Helios IP Uni is a highly resistant and reliable IP door access intercom provided with a lot of useful above-standard functions. Supporting the SIP standard and being

compatible with the leading IP PBX and telephone suppliers, 2N® Helios IP Uni can

make use of all VoIP services. 2N® Helios IP Uni can emergency door access intercom for buildings, entrances manufacturing halls, highways and so on.

work as a standard or to premises or garages,

2N® Helios IP Uni is equipped with a loudspeaker (1W). Thanks to an integrated acoustic echo cancelling (AEC) system, the product provides mutual audibility even of persons talking at the same time under normal conditions.

2N® Helios IP Uni can be provided with 1 or 2 pre-programmed buttons. You can set up to three telephone numbers and time profiles for each of the buttons to increase the accessibility of the called party.

2N® Helios IP Uni is equipped with an electric lock switch. You can control the switch during a call, using any telephone set.

2N® Helios IP Uni is very easy to install. All you have to do is connect the system into your LAN via a network cable and feed it from a 12V power supply or your PoE supporting LAN.

Configure 2N® Helios IP Uni using your PC via any web browser. Use the IP Manager to manage extensive 2N® Helios IP Uni systems easily and quickly.

2N® TELEKOMUNIKACE a.s., www.2n.cz

4

Advantages of Use

Variable mounting options (brick/plasterboard flush mounting, wall mounting)

Sensitive microphone and powerful loudspeaker

Bidirectional communication – acoustic echo cancelling

Optional dial buttons including name tags and backlight

Integrated electronic lock switches with wide setting options

LAN (PoE) or external 12V power supply

Configuration via web interface or dedicated PC application

SIP 2.0 support

HTTP server for configuration

SNTP client for time synchronisation with server Here is what you can find in this section:

1.1 Components and Associated Products

1.2 Terms and Symbols

2N® TELEKOMUNIKACE a.s., www.2n.cz

5

2N Helios IP Uni User Manual

1.1 Components and Associated Products

Basic Units

9153101

9153102

1 button

2 buttons

2N® Helios IP Uni is designed for outdoor applications and requires no additional roof.

All 2N® Helios IP Uni units can be flush mounted without requiring any additional accessories. Use the appropriate mounting box (see below) for wall (surface) mounting.

Mounting Accessories

9153003

Wall mounting box

Brick flush mounting box

(Al casting)

(included in the delivery)

2N® TELEKOMUNIKACE a.s., www.2n.cz

6

VoIP Telephones

91378351

91378354

Grandstream GXV3140 VoIP video telephone

Grandstream GXV3175 VoIP telephone

Electric Locks

932070E

932080E

932090E

BEFO 1211 12V / 600

BEFO 1221with

BEFO 1211MBwith mechanical

mA

momentum pin

blocking

Power Supply

91378100E

91378100US

PoE injector

91341481E



Adapter 12 V/2 A

932928E

A stabilised power supply has to be used if the

12 V transformer

Ethernet (PoE) power supply is not available.



2N® TELEKOMUNIKACE a.s., www.2n.cz

7

Additional Modules

9159010

9137410E

Security Relay

External IP relay

2N® TELEKOMUNIKACE a.s., www.2n.cz

8

1.2 Terms and Symbols

The following symbols and pictograms are used in the manual:

Safety

Always abide by this information to prevent persons from injury.

Warning

Always abide by this information to prevent damage to the device.

Caution

Important information for system functionality.

Tip

Useful information for quick and efficient functionality.

Note

Routines or advice for efficient use of the device.

2N® TELEKOMUNIKACE a.s., www.2n.cz

9
