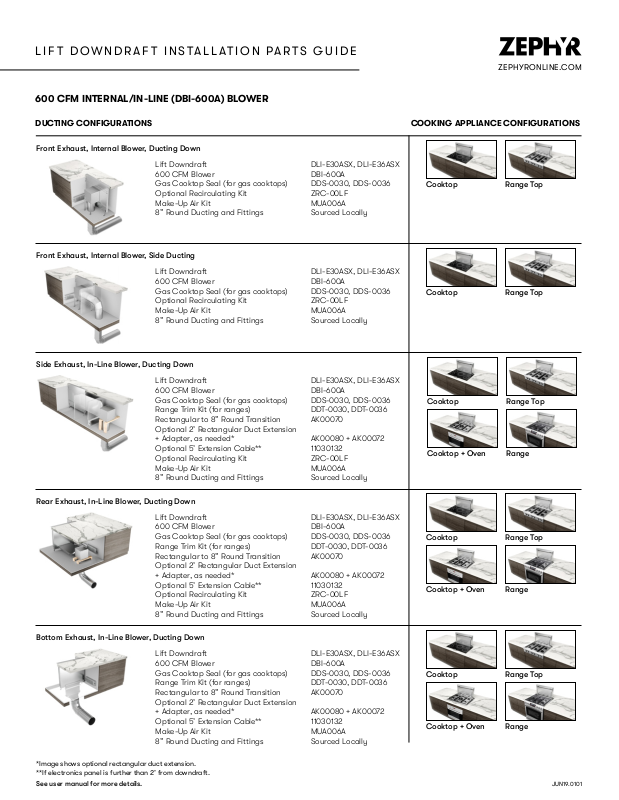

L I F T D OW N D R A F T I N STA L L AT I O N PA RTS G U I D E
ZEPHYRONLINE.COM
600 CFM INTERNAL/IN-LINE (DBI-600A) BLOWER
DUCTING CONFIGURATIONS |
COOKING APPLIANCE CONFIGURATIONS |
Front Exhaust, Internal Blower, Ducting Down |
|
Lift Downdraft |
DLI-E30ASX, DLI-E36ASX |
600 CFM Blower |
DBI-600A |
Gas Cooktop Seal (for gas cooktops) |
DDS-0030, DDS-0036 |
Optional Recirculating Kit |
ZRC-00LF |
Make-Up Air Kit |
MUA006A |
8” Round Ducting and Fittings |
Sourced Locally |
Front Exhaust, Internal Blower, Side Ducting |
|
Lift Downdraft |
DLI-E30ASX, DLI-E36ASX |
600 CFM Blower |
DBI-600A |
Gas Cooktop Seal (for gas cooktops) |
DDS-0030, DDS-0036 |
Optional Recirculating Kit |
ZRC-00LF |
Make-Up Air Kit |
MUA006A |
8” Round Ducting and Fittings |
Sourced Locally |
Side Exhaust, In-Line Blower, Ducting Down |
|
Lift Downdraft |
DLI-E30ASX, DLI-E36ASX |
600 CFM Blower |
DBI-600A |
Gas Cooktop Seal (for gas cooktops) |
DDS-0030, DDS-0036 |
Range Trim Kit (for ranges) |
DDT-0030, DDT-0036 |
Rectangular to 8” Round Transition |
AK00070 |
Optional 2’ Rectangular Duct Extension |
|
+ Adapter, as needed* |
AK00080 + AK00072 |
Optional 5’ Extension Cable** |
11030132 |
Optional Recirculating Kit |
ZRC-00LF |
Make-Up Air Kit |
MUA006A |
8” Round Ducting and Fittings |
Sourced Locally |
Rear Exhaust, In-Line Blower, Ducting Down |
|
Lift Downdraft |
DLI-E30ASX, DLI-E36ASX |
600 CFM Blower |
DBI-600A |
Gas Cooktop Seal (for gas cooktops) |
DDS-0030, DDS-0036 |
Range Trim Kit (for ranges) |
DDT-0030, DDT-0036 |
Rectangular to 8” Round Transition |
AK00070 |
Optional 2’ Rectangular Duct Extension |
|
+ Adapter, as needed* |
AK00080 + AK00072 |
Optional 5’ Extension Cable** |
11030132 |
Optional Recirculating Kit |
ZRC-00LF |
Make-Up Air Kit |
MUA006A |
8” Round Ducting and Fittings |
Sourced Locally |
Bottom Exhaust, In-Line Blower, Ducting Down |
|
Lift Downdraft |
DLI-E30ASX, DLI-E36ASX |
600 CFM Blower |
DBI-600A |
Gas Cooktop Seal (for gas cooktops) |
DDS-0030, DDS-0036 |
Range Trim Kit (for ranges) |
DDT-0030, DDT-0036 |
Rectangular to 8” Round Transition |
AK00070 |
Optional 2’ Rectangular Duct Extension |
|
+ Adapter, as needed* |
AK00080 + AK00072 |
Optional 5’ Extension Cable** |
11030132 |
Make-Up Air Kit |
MUA006A |
8” Round Ducting and Fittings |
Sourced Locally |
*Image shows optional rectangular duct extension. **If electronics panel is further than 2’ from downdraft.
Cooktop
Cooktop
Cooktop
Cooktop + Oven
Cooktop
Cooktop + Oven
Cooktop
Cooktop + Oven
Range Top
Range Top
Range Top
Range
Range Top
Range
Range Top
Range
See user manual for more details. |
JUN19.0101 |
