ZQ500™ Series
Mobiele printers
Aan de slag
© 2014, ZIH Corp.
P1064720-201 rev. A
April 2014
Zebra Technologies Corporation
Zebra Technologies Corporation
Inhoud
In de doos .................................................................................... 3
Overzicht ...................................................................................... 4
De accu verwijderen en plaatsen .................................................. 6
De Smart Battery opladen ............................................................ 7
UCLI72-4 Quad Charger (AC18177-5) ............................................7
Smart Charger-2 (SC2) lader voor één accu (P1031365-063) .............8
AC-voedingsadapter (meegeleverd met set P1031365-XXX) ...............9
Apparaathouder (P1063406-029) .....................................................10
Voedingsstation met 4 compartimenten (P1063406-027) .................10
Media laden (ZQ510 weergegeven) ............................................ 11
Printercommunicatie .................................................................. 12
Via een computer ..............................................................................12
Via Bluetooth (NFC) ..........................................................................12
Via BT/WLAN ....................................................................................12
Bedieningselementen printer ...................................................... 13
De printers reinigen .................................................................... 14
Toebehoren ................................................................................ 15
Magnetische kaartlezer ....................................................................15
Toebehoren (vervolg) ................................................................. 16
Polsriem (BT16899-1) .......................................................................16
Schouderriem (BT11132-1) ...............................................................16
Tasje (P1063406-037/-038) ..............................................................16
Toebehoren (vervolg) ................................................................. 17
Riemclip ............................................................................................17
Productondersteuning ................................................................ 18
Lees altijd eerst het gegevensblad Belangrijke veiligheidsinformatie dat met elke printer wordt
meegeleverd en het Technische bulletin dat bij elke accu wordt geleverd. In deze documenten
staan procedures beschreven waarmee de maximale betrouwbaarheid en veiligheid kunnen
worden gegarandeerd bij het gebruik van deze printer.
In de doos
ZEBRA PRODUCT REGISTRATION CARD
Register today to receive beneftis including free updates and product protection!
Registrazione via internet
©2013 ZIH Corp.
/
AA18153-104 Rev. B
August 2012
475 Half Day Road, Suite 500
Lincolnshire, IL 60069 USA
T: +1 847.634.6700 or +1 800.423.0442
In the Americas contact:
475 Half Day Road, Suite 500
Lincolnshire, IL 60069 USA
T: +1 847.634.6700 or +1 800.423.0442
In Europe, Africa, the Middle East, and India contact:
Zebra Technologies Europe Limited
Dukes Meadow, Millboard Road
Bourne End
Buckinghamshire SL8 5XF, UK
T: +44 (0)1628 556000
F: +44 (0)1628 556001
120 Robinson Road
#06-01 Parakou Building
Singapore 068913
T: +65 6858 0722
F: +65 6885 0838
AA18153-104
®
Zebra
Wireless Compliance
Information Guide for
ZQ510 and ZQ520
P107xxxx-001 Rev. A
March 2014
333 Corporate Woods Parkway
Vernon Hills, IL 60061-3109 USA
T: +1 847 634 6700
F: +1 847 914 8766
www.zebra.com
May 31, 2011
Technical Bulletin: Battery Management and Safety Practices for Lithium Ion Battery Packs
Lithium ion (Li-Ion) technology is the state-of-the-art in DC energy storage and has been widely
adopted to meet user demand for more power and longer operating times. No other battery
technology available at this time allows Zebra to meet market and competitive requirements for
operating times and label capacity for thermal printers. Zebra actively monitors the Li-Ion battery
technology industry and we have become aware of published concerns about Li-Ion batteries,
including batteries for laptop computers, cell phones, digital cameras, wireless speakerphones
and numerous other products.
Although Li-Ion technology is state-of-the-art, its use does come with a tradeoff: the design and
manufacture of Li-Ion batteries has not yet reached a level that guarantees performance under all
circumstances and that batteries will never overheat or out-gas. Theref
understand and follow proper and safe practices for the use, storage, disposal; handling; and
charging of Li-Ion batteries. Failure to follow safe practices may result in bodily injury and/or
property damage.
While our battery manufacturers have made significant improvements from a design and
manufacturing process perspective, we strongly recommend that you implement the following
battery management practices to further reduce any residual risk of overheating and/or outgassing:
I. Use, Storage and Disposal
1. Only use genuine Zebra® battery packs in Zebra printers.
2. Our experience indicates that the incidence of failure may increase with battery service life due
to the stresses of daily charging and discharging. We strongly recommend that Li-Ion batteries be
replaced after one year’s daily service, or 600 charge-discharge cycles, whichever occurs first.
3. In the unused state, a Li-Ion battery pack may become unstable if the voltage drops below 4.6
volts. The printer will shut down before a battery reaches this voltage, but a battery may further
self discharge below 4.6 volts if it is left in the discharged state for more than a few weeks. We
recommend periodic use of a voltmeter to check such batteries before recharging. If the voltage of
any battery pack drops below 4.6 volts, the batte
4. Keep battery packs and chargers away from combustible materials.
5. Do not store battery packs in temperatures exceeding 60ºC/140ºF and do not store the battery
packs in direct sunlight.
6. Keep battery packs away from children.
7. Promptly and properly dispose of used battery packs according to local regulations for the
disposal of batteries. Before disposal, you should insulate the terminals with tape.
Zebra voluntarily participates in the RBRC program. Call 1-800-8-BATTERY in North
America for information on recycling. Outside of North America, please follow local battery
recycling guidelines.
AA18298-002 Rev. C
ry pack should be discarded.
ore, it is important to
Werkt met:
Gecertificeerd:
54
IP
pag. 2 P1064720-201 Rev. A
MIL-STD
810
P1064720-201 Rev. A pag. 3

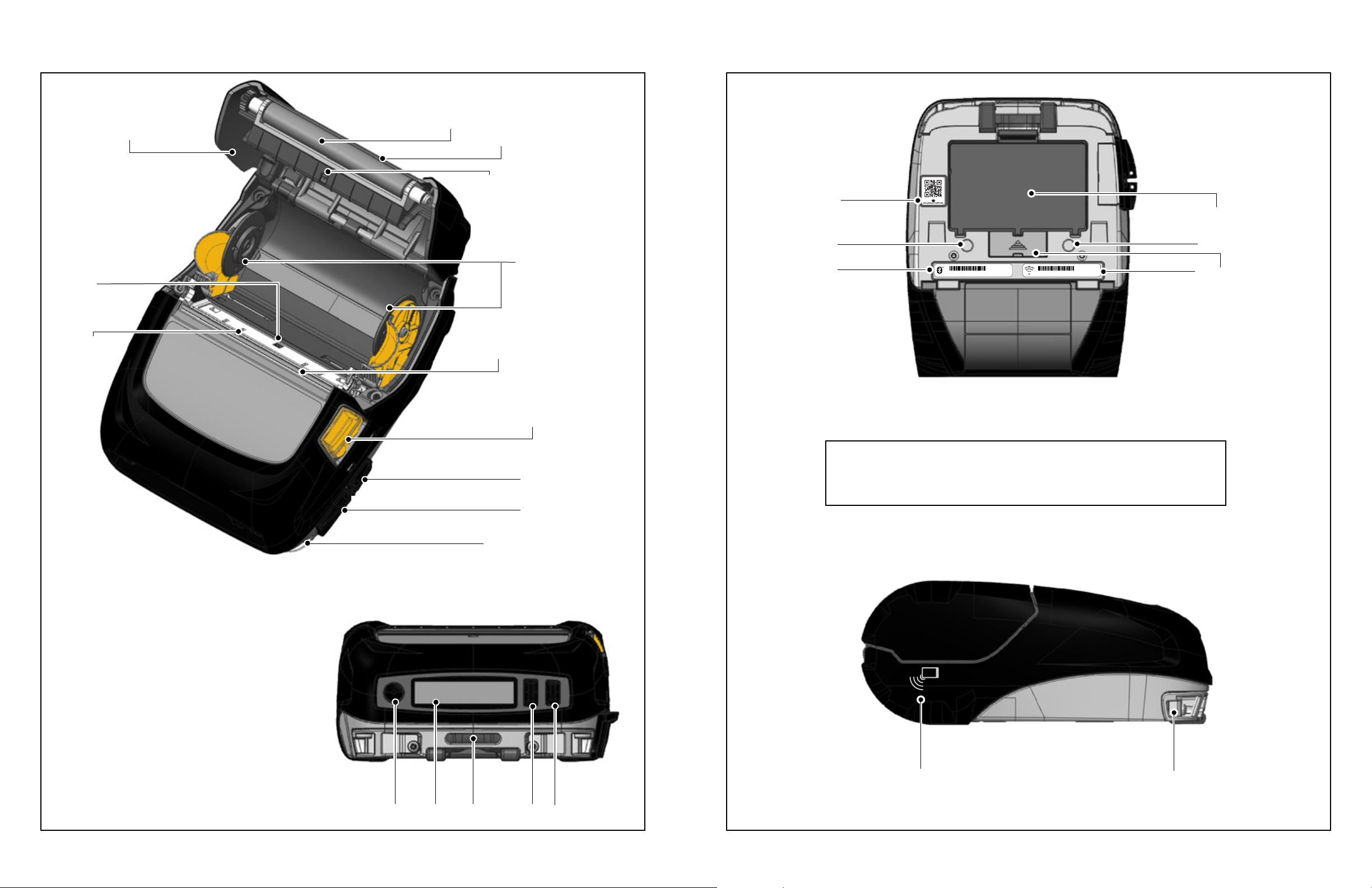

Overzicht
1
6
(Niet aanwezig in
4
printers zonder
rugpapier.
In plaats daarvan
2
scraper aanwezig.)
19
17
20
21
18
21
3
20
XXXXXXXXXXXX
+M
XXXXXXXXXXXX
+M
8
7
4
5
11
17. Accu
18. Dockingcontacten/kap
19. QR-code
20. MAC-adreslabels
21. Montagepunten
22. Zebra Print TouchTM-
pictogram (NFC)
10
9
1. Degelrol
2. Zwarte barsensor
3. Schijven voor media-ondersteuning
4. Trekbalk
5. Knop mediakap
6. Mediakap
7. Printkop
8. Sensoropening
9. Riembevestiging
10. USB-poort
11. DC-ingang
12. Aan/uit-knop
13. Bedieningspaneel
14. Opening voor draagriem
15. Knop Selecteren
16. Knop Papierinvoer
pag. 4 P1064720-201 Rev. A
