MC20
Mobile Computer
Quick Start Guide
MN-004190-02EN Rev. A
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2021 Zebra
Technologies Corporation and/or its affiliates. All rights reserved.
For further information regarding legal and proprietary statements, go to:
COPYRIGHTS:zebra.com/copyright
WARRANTY:zebra.com/warranty
END USER LICENSE AGREEMENT: zebra.com/eula
Terms of Use
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra
Technologies”). It is intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any
other parties for any other purpose without the express, written permission of Zebra Technologies.
MC20 Quick Start Guide
Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
2
Unpacking
To unpack the device:
1. Carefully remove all protective material from the device and save the shipping container for later storage
and shipping.
2. Verify that the following were received:
• Mobile computer
• PowerPrecision Lithium-ion battery
• Hand strap
• Regulatory Guide.
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer
Support center immediately.
Features

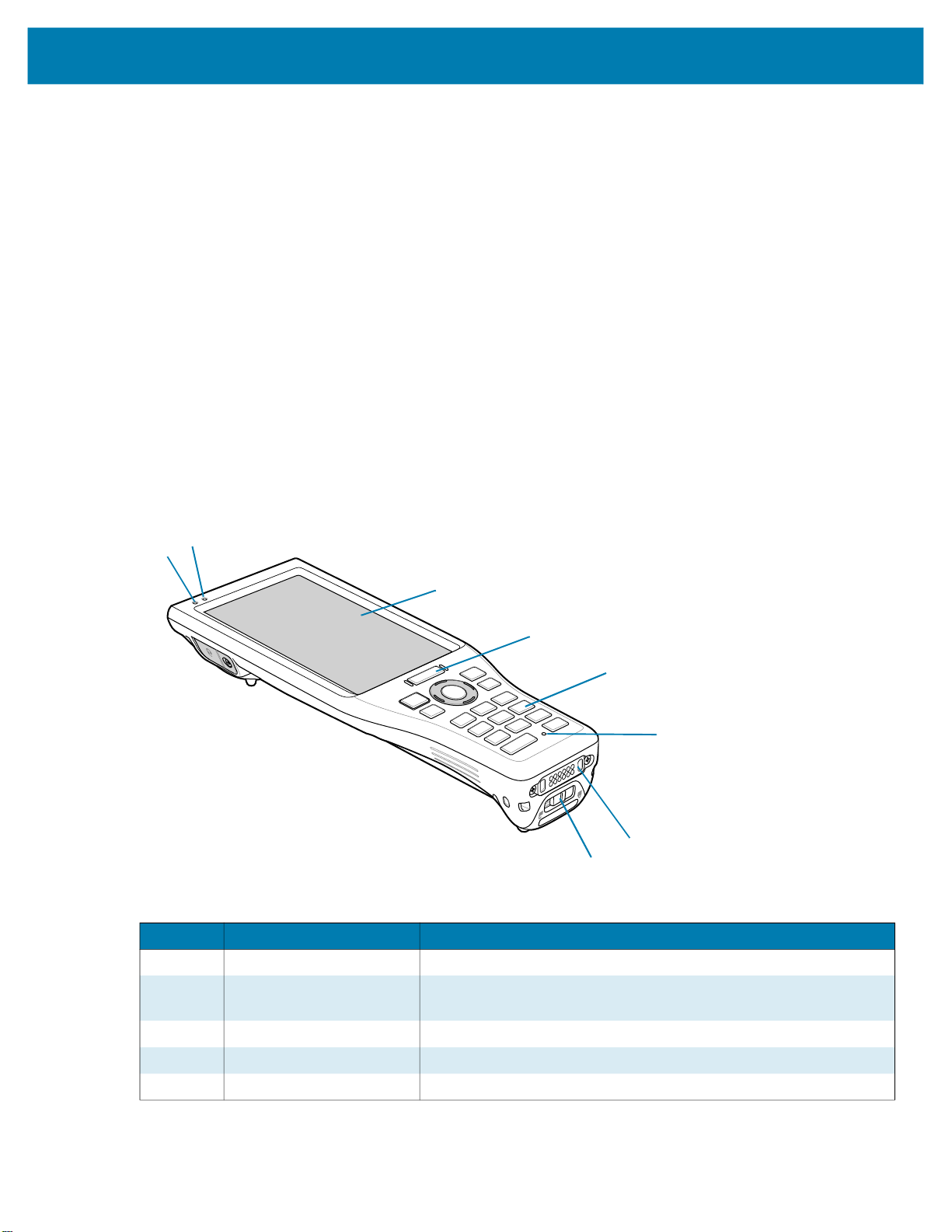

Front View
MC20 Quick Start Guide
2
1
3
4
5
6
7
8
Table 1 Front View Features
Number Item Function
1 Data capture LED Indicates data capture status
2 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
3 Touch screen Displays all information needed to operate the device.
4 Scan button Initiates data capture when a scan application is enabled.
5 Keypad Use to enter data and navigate on screen functions.
3
Table 1 Front View Features (continued)
Number Item Function
6 Microphone Use for communications in Speakerphone mode
7 Interface connector Provides USB host and client communications, and device
8 Battery door latch Secures battery cover.

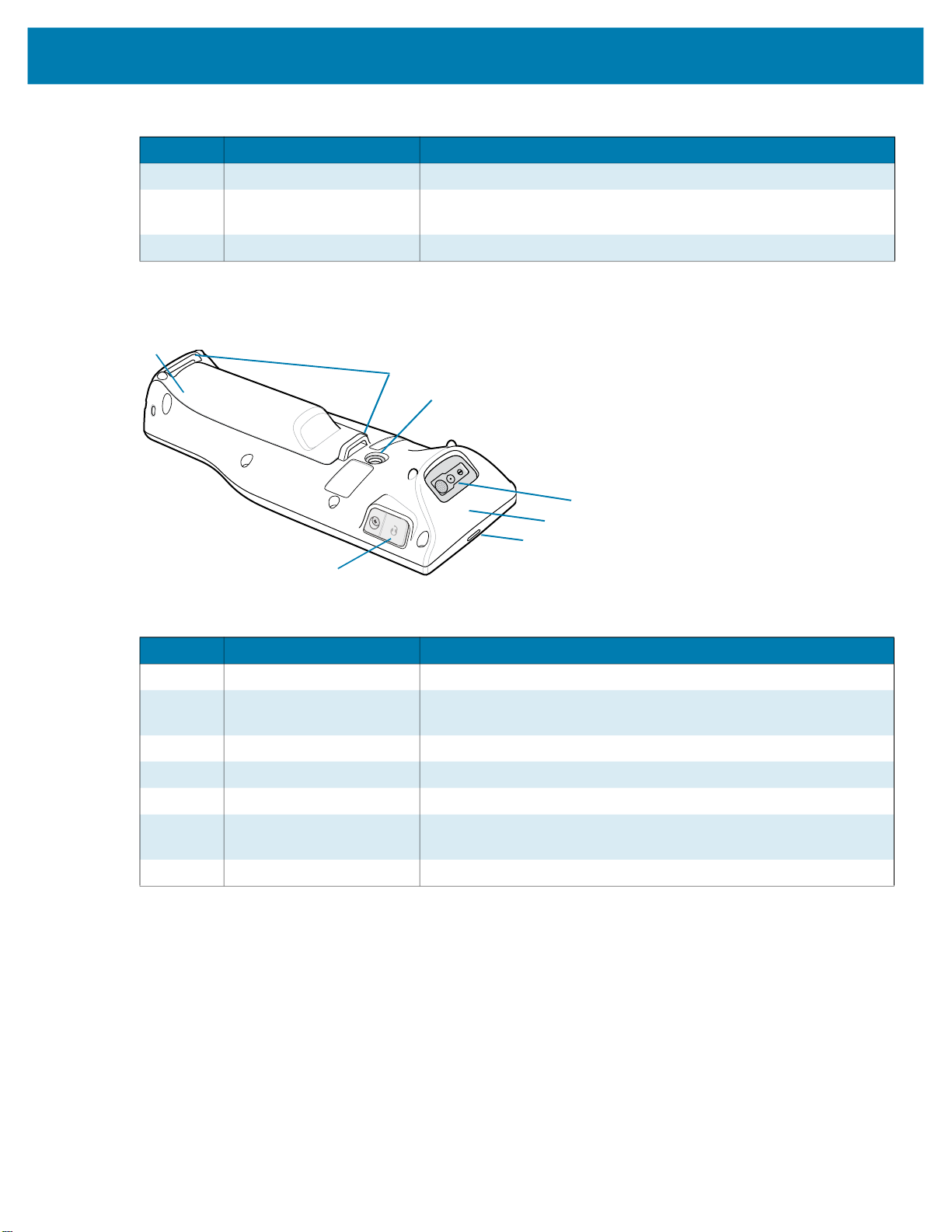

Back View
1
MC20 Quick Start Guide
charging via cables and accessories.
2
3
4
5
6
Table 2 Back View Features
Number Item Function
1 Battery cover Provides access to the battery.
2 Hand strap mounting
points
3 Camera Takes photos and videos.
4 Exit window Provides data capture using integrated scanner/imager option.
5 NFC antenna Provides communication with other NFC-enabled devices.
6 Speaker Provides audio output for voice communication, video and music
7 3.5 mm headset jack For audio output to a wired headset.
Setting Up the Device
To start using the device for the first time:
1. Install a micro secure digital (SD) card (optional).
7
Use for securing the hand strap to the device.
playback.
2. Install the battery.
3. Install the hand strap (recommended).
4. Charge the device.
5. Power on the device.
4
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack.
Refer to the documentation provided with the card for more information, and follow the manufacturer’s
recommendations for use.
CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card.
Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator
is properly grounded.

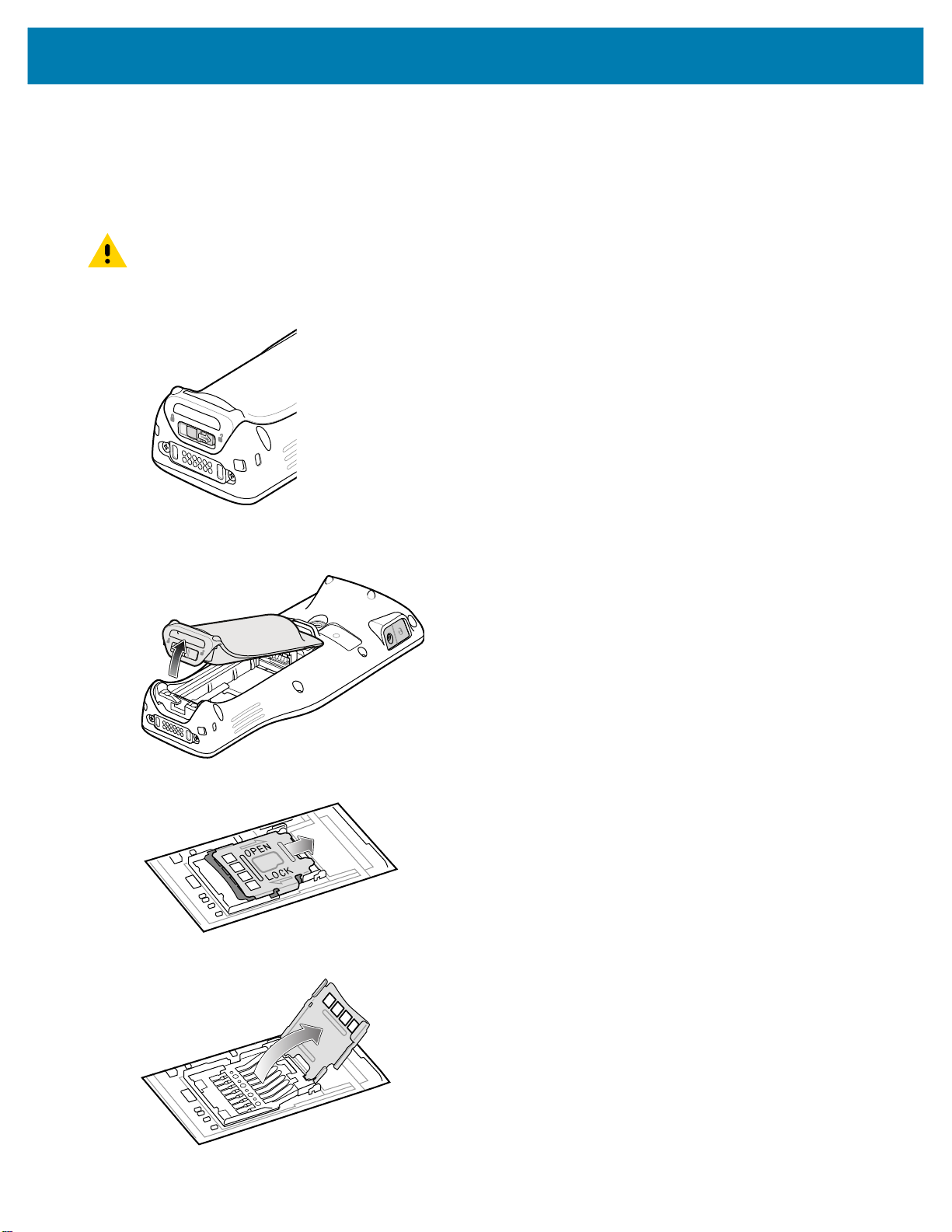

1. Slide the battery latch to the unlock position.
MC20 Quick Start Guide
2. Lift the battery cover.
If a battery was previously installed, the microSD card holder is located under the battery.
3. Slide the microSD card holder to the Open position.
4. Lift the microSD card holder.
5
MC20 Quick Start Guide

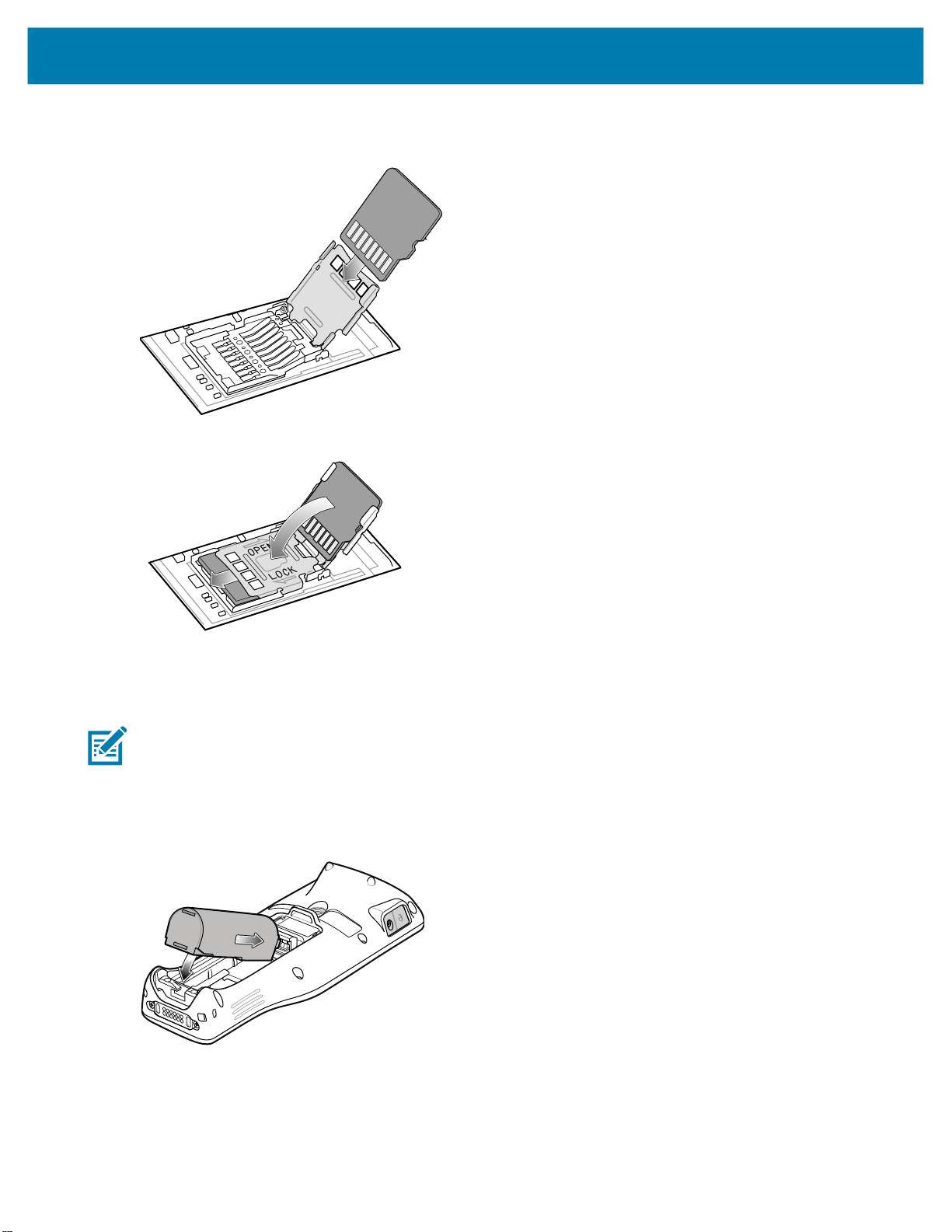

5. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
6. Close the microSD card holder and slide into the Lock position.
7. Replace the battery. See Installing the Battery on page 6.
Installing the Battery
NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,
stickers, etc., may compromise the intended performance of the device or accessories. Performance levels
such as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature
resistance, etc. could be effected. DO NOT put any labels, asset tags, engravings, stickers, etc. in the battery
well.
1. Insert the battery, top first, into the battery compartment in the back of the device.
6
MC20 Quick Start Guide

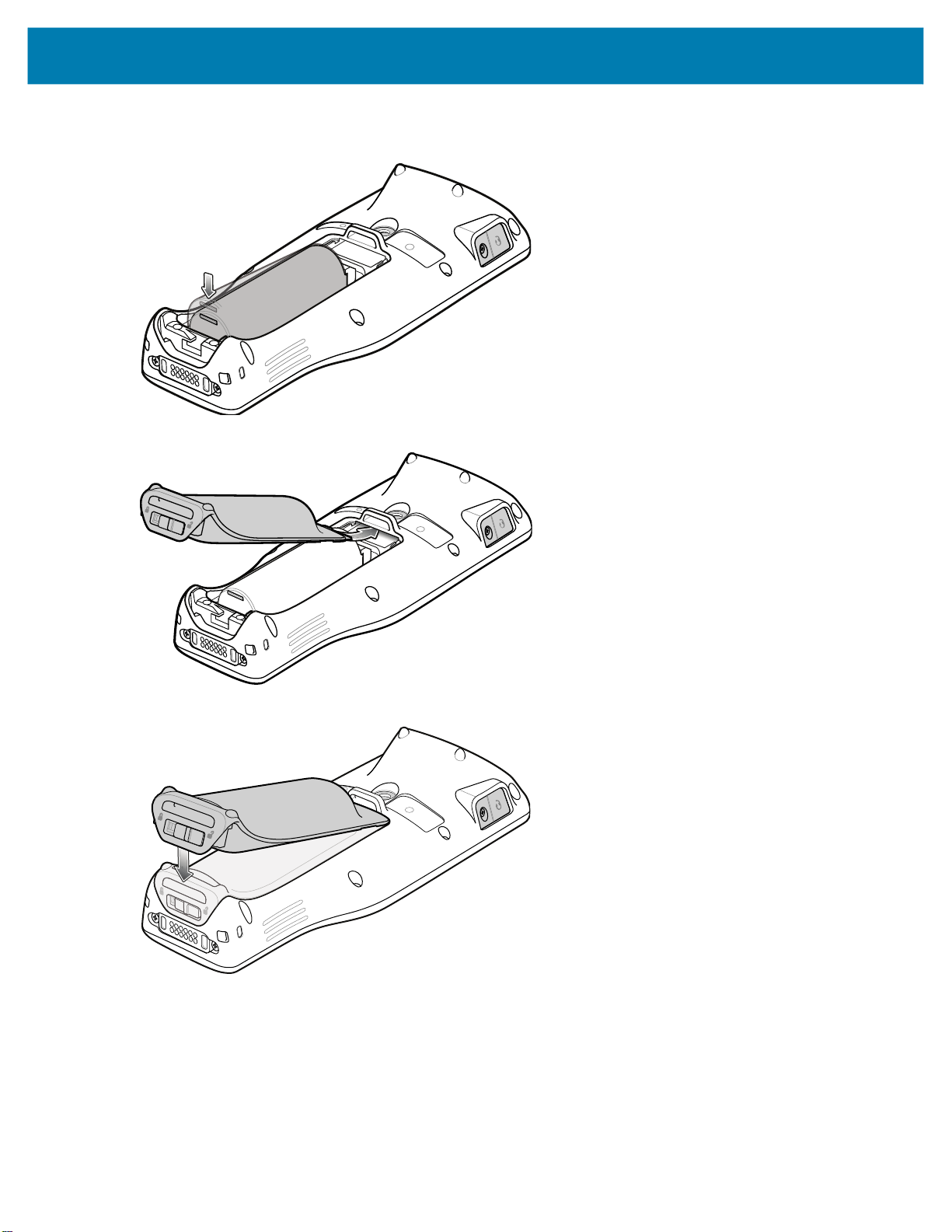

2. Press the bottom of the battery down, into the battery compartment, until the bottom battery tab locks into
place.
3. Insert the battery cover, top first, into the battery well.
4. Press down the battery cover at the bottom of the device.
7
