Zebra KR403 DATASHEET

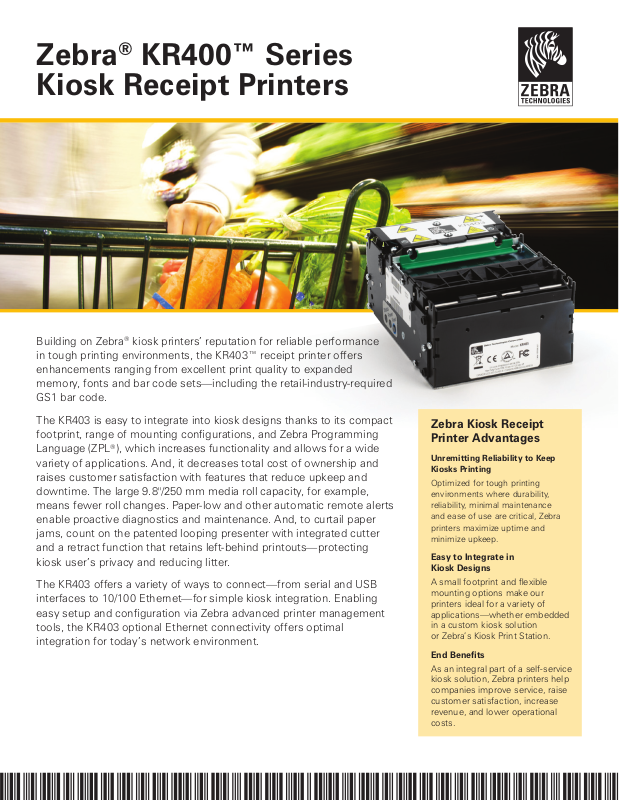

Zebra® KR400™ Series
Kiosk Receipt Printers

Building on Zebra® kiosk printers’ reputation for reliable performance
in tough printing environments, the KR403™ receipt printer offers
enhancements ranging from excellent print quality to expanded
memory, fonts and bar code sets—including the retail-industry-required
GS1 bar code.

The KR403 is easy to integrate into kiosk designs thanks to its compact
footprint, range of mounting configurations, and Zebra Programming
Language (ZPL®), which increases functionality and allows for a wide
variety of applications. And, it decreases total cost of ownership and
raises customer satisfaction with features that reduce upkeep and
downtime. The large 9.8"/250 mm media roll capacity, for example,
means fewer roll changes. Paper-low and other automatic remote alerts
enable proactive diagnostics and maintenance. And, to curtail paper
jams, count on the patented looping presenter with integrated cutter
and a retract function that retains left-behind printouts—protecting
kiosk user’s privacy and reducing litter.

The KR403 offers a variety of ways to connect—from serial and USB
interfaces to 10/100 Ethernet—for simple kiosk integration. Enabling
easy setup and configuration via Zebra advanced printer management
tools, the KR403 optional Ethernet connectivity offers optimal
integration for today’s network environment.

Zebra Kiosk Receipt
Printer Advantages

Unremitting Reliability to Keep
Kiosks Printing

Optimized for tough printing
environments where durability,
reliability, minimal maintenance
and ease of use are critical, Zebra
printers maximize uptime and
minimize upkeep.

Easy to Integrate in
Kiosk Designs

A small footprint and flexible
mounting options make our
printers ideal for a variety of
applications—whether embedded
in a custom kiosk solution
or Zebra’s Kiosk Print Station.

End Benefits

As an integral part of a self-service
kiosk solution, Zebra printers help
companies improve service, raise
customer satisfaction, increase
revenue, and lower operational
costs.

Specifications at a Glance*

Printer Model

KR403

Standard Features

• Print methods: direct thermal receipt and label
printing for 2.3"/58 mm to 3.25"/82.5 mm width
media

• Patented looping presenter with pull detector and
retract & retain function

• Auto media loading

• Horizontal and vertical mounting capability

• Various media mounting options behind and below
give flexibility to kiosk design, up to 9.8"/250 mm
diameter media rolls

• USB and RS232 serial connectivity

• 203-dpi printing

• Excellent print quality achieved through printhead
alignment features and Element Energy Equalizer™
(E3™) for superior print quality

• Windows® drivers for plug and play

• 21 resident 1-D and 10 resident 2-D bar codes

• 15 bitmap fonts and 1 scalable font

• Unicode™-compliant

• 1.5 MB Flash memory supports a wide range of
graphic types

• Maintenance alerts

• Numerous software tools for commissioning, using
and troubleshooting the printer

Printer Specifications

Resolution

203 dpi/8 dots per mm

Max Print Width

3.1"/80 mm

Max Print Length

23.6"/600 mm

Print Speed

6"/152 mm per second

Media Sensors

Out-of-paper, paper in presenter, paper in retract path,
black mark, and input for external paper-low sensor

Media Characteristics

Max Roll Size

9.8"/ 250 mm

Core Diameter

1"/25 mm typical, 0.5"/12 mm with optional accessories

Media Thickness

0.002"/ 0.054 mm to 0.004"/ 0.11 mm

Media Types

Roll or fanfold paper, label with black mark

Operating Characteristics

Environmental

• Operating Temp.: 14° F/-10° C to 122° F/50° C

• Storage Temp.: 14° F/-10° C to 122° F/50° C

• Operating Humidity: 10% to 95% non-condensing

• Storage Humidity: 5% to 95% non-condensing
excluding paper

Electrical

24Vdc +/-5% average of 2.92A when printing

Physical Characteristics

Embedded

• Width: 4.2"/107 mm

• Height: 2.7"/68 mm

• Depth: 5.7"/144 mm

• Weight: 2.4 lbs/1.1 kg

Fonts/Graphics/Symbologies

Bar Codes

• Linear Bar Codes: Codabar, Code 11, Code 128,
Code 128 with subsets A/B/C/ Code 39, Code
93, EAN-13, EAN-8, EAN-13 and EAN-8 with 2 or
5 digit extensions, Industrial 2-of-5, Interleaved
2-of-5, Logmars, MSI, MSI-3, Plessey, Postnet, RSS
(reduced space symbology), Standard 2-of-5, UCC/
EAN-128, UPC-A, UPC-A and UPC-E with 2 or 5 digit
extensions, UPC-E

• 2-Dimensional Bar Codes: Aztec, Codablock,
Code 49, Data Matrix, MacroPDF417, Maxicode,
MicroPDF417, PDF417, QR Code, RSS/GS1 DataBar
Family (12 bar codes)

Graphics

Supports user-defined fonts and graphics—including
custom logos

Shared Fonts

15 bitmap fonts and one scalable font

Communication and Interface Capabilities

• RS-232 serial and USB 1.1 (2.0 compatible)

• 10/100 Ethernet and USB 1.1 (2.0 compatible)—
Optional

Operating System

Operating System: Windows® XP, Vista, 7, Server 2003,
OPOS and Linux™—RedHat and Caldera

Corporate Headquarters

[phone]
[e-mail]

Options and Accessories

• Media guides: 58, 60, 80, and 82.5 mm

• Roll holder “universal” variable position, 7.9"/200 mm
diameter max

• Adapter for roll holder below position, 9.8"/250 mm
diameter max

• Roll holder wall mount, 5.9"/150 mm diameter max

• Quick fit hubs for easy mounting and removal of printer

• Paper-low sensor with 11.8"/300 mm cable

• Adapter plate and spindle for 0.5"/12 mm media rolls

• Paper-low sensor with 19.7"/500 mm cable

• Output bezel for easier integration

• Output shutter to protect the printer from intrusion
or damage

• Accessory kits for quick deployment

• ZBI 2.0™—Zebra Basic Interpreter for stand-alone
applications

• Expanded 64 MB flash memory

• Large media roll adapter

• Small media core adapter

• Paper-low sensor with 19.7"/500 mm cable

• 10/100 Ethernet and USB 1.1 connectivity

*Specifications subject to change without notice.
