Please visit our website and watch the ZM-WB3 Gold installation video for easy installation.
※ Please read this manual thoroughly before installation.
※ The specifications of this product and its components may change without prior notice to
improve performance.
http://www.zalman.co.kr http://www.zalmanusa.com
Intel Pentium 4
Socket 775 CPU
Intel Pentium 4
Socket 478 CPU
AMD Duron/Athlon/Athlon XP/Sempron
Socket 462 CPU
AMD Sempron/AMD64 (Athlon 64/Opteron)
Socket 754/939/940 CPU
ZM-WB3 Gold
User
’’
s Manual
User
’’
s Manual
(English version)
※
The specifications of any product may change without prior notice to improve performance.
3. Exploded View
1
Bolt
Clip
Grip (L-Type)
Fitting
Clip Support for Socket 478
CPU Water Block
Retention Guide
Bolt
Clip
Grip (S-Type)
Fitting
CPU Water Block
Clip Support Fixing Bolt
Clip Support for Socket 775
Motherboard
Backplate for Socket 775
Intel Pentinum 4 - Socket 775 Intel Pentinum 4 - Socket 478
1)
Pure copper Water Block base maximizes cooling performance and gold plating prevents galvanic corrosion.
2)
Intel Pentium 4 (Socket 775/478), AMD Duron/Athlon/Athlon XP/Sempron (Socket 462), and AMD Sempron/AMD64
(Socket 754/939/940) compatible design for broad compatibility.
3) Two types of fittings are provided for use with various kinds of tubes.
1. Features
1) Weight : 260g (Water Block only)
2) Material : Pure Copper (Water Block Base), Pure Aluminum (Water Block Cover)
3) Dimensions : 60(L) x 60(W) x 20(H)mm
4) Compatible Tubes (Outer x Inner) : 13 x 10mm, 13 x 9mm, 12 x 8mm, 11 x 8mm, 10 x 8mm
2. Specifications
1) Test the product for leakage before installation away from the system first. After no leakage is confirmed, proceed with
installation and use.
2) To prevent corrosion, only use coolant that has been approved for computer water-cooling.
3) Only use coolant tubes with compatible specifications.
4) The exposed core of a Socket 462 CPU can be damaged due to improper installation. Please read the “Installation”
section thoroughly before installing.
5) Tubes that are not of 12 x 8mm should be used with spare fittings.
6) If interference with components of the mother board is encountered, do not install this product.
7) Keep this product and its associated system away from children.
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper
use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
Precautions
Disclaimer
※
The specifications of any product may change without prior notice to improve performance.
2
4. Components
1) Common Components
① CPU Water Block Assembly (ZM-WB3 Gold)
② One (1) Clip
③ Four (4) Grips (2 each for S-Type and L-Type)
④ Four (4) Bolts (Gold; for installing the block)
⑤ Two (2) Spare Fittings
⑥ One (1) Thermal Grease
⑦ Two (2) Tube Clamps
⑧ User’s Manual (in English and Korean)
2) Components for Intel Pentium 4 (Socket 775)
⑨ One (1) Clip Support for Socket 775
⑩ One (1) Backplate for Socket 775
⑪ Four (4) Clip Support Fixing Bolts
3) Components for Intel Pentium 4 (Socket 478)
⑫ Two (2) Clip Supports for Socket 478
Bolt
Clip
Grip (S-Type)
Fitting
CPU Water Block
Clip Support A
for Socket 462
Motherboard
AMD Duron/Athlon/Athlon XP/Sempron - Socket 462 AMD Sempron/AMD64 - Socket 754/939/940
Bolt
Small Washer
Small Washer
Clip Support B
for Socket 462
Fitting
CPU Water Block
Backplate for AMD64
Bolt
Clip
Grip (L-Type)
Nipple
Small Washer
Motherboard
❶
❷
❸
❹
❺
❻❼❽
❾
❿
※
The specifications of any product may change without prior notice to improve performance.
3
4) Components for AMD Duron/Athlon/Athlon XP/Sempron (Socket 462)
⑬ One (1) A-Type Clip Support for Socket 462
⑭ One (1) B-Type Clip Support for Socket 462
⑮ Four (4) Bolts (Silver; for fastening the Clip Supports)
⒃ One (1) set of Washers
5) Components for AMD Sempron/AMD64 (Socket 754/939/940)
Two (2) Nipples
One (1) Backplate for AMD64
Small Washers (from component 16)
1) Intel Pentium 4 - Socket 775/478
All CPUs conforming to Socket 775/478 platform
Caution)
For Socket 478, as shown in Figure 2, a motherboard that is not compliant with the “10.2mm motherboard component
he
ight restriction” standard, introduced by Intel, may create interference between its components and the Grips of ZM-WB3
Gold. Please do not install the ZM-WB3 Gold if this interference is observed.
2) AMD Duron/Athlon/Athlon XP/Sempron - Socket 462
All CPUs conforming to Socket 462 platform
Caution)
This product requires 4 “Heatsink Attach Holes” around the CPU
socket, as shown on the right.
3) AMD Sempron/AMD64 - Socket 754/939/940
All CPUs conforming to Socket 754/939/940 platform
5. Compatible CPU Types
10.2mm Motherboard component height restriction
Motherboard Component
Heatsink Attach Hole
Motherboard Component
Grip
Grip
Figure 1
Compatible
Figure 2
Not Compatible
※
The specifications of any product may change without prior notice to improve performance.
4
6. Installation
※
ZM-WB3 Gold must be installed with a specific grip that is
compatible with a particular CPU socket. Refer to the table
on the right for the correct grip.
1) Intel Pentium 4 - 775
① Installing the Clip Support for Socket 775
Align the clip support for socket 775 and the backplate for socket 775 with the mounting holes on the motherboard
and fasten them together using the Clip Support Fixing Bolts. The Lever Slot on the Clip Support should be properly
oriented on the hinged side of the Socket Lever when installing.
※
The Backplate Support is used for the
convenience of installation.
You can remove it if it is not
deemed necessary.
② Applying Thermal Grease
Clean off particles and residue then spread a
generous amount of thermal grease thoroughly
on top of the CPU.
※
Unlike the flat-milled base of the FHS, the top surface
of the LGA775 CPU may have minute dips and peaks
causing pockets of non-contact between the FHS and
CPU. Please apply a generous amount of Thermal
Grease on top of the CPU.
③ Installing the Grips and Bolts
Interlock the S-type grips with the clip.
Insert the two Bolts into the holes of the Grips.
④ Installing the CPU Water Block
Set the CPU Water Block at the center of the CPU.
Screw the Bolts in slightly, then tighten each Bolt a
few turns at a time while alternating between the two
until the Grips are completely pressed against
the Clip Support.
Socket
775
478
462
754/939/940
Grip
S-Type
L-Type
S-Type
L-Type
Hole
Hole
Inner Hole
Hole
Outer Hole
Clip Support Fixing Bolt
Socket Lever Hinge
Socket Lever
Lever Slot
Clip Support for Socket 775
Motherboard
Backplate for Socket 775
Backplate Support
Lever
Slot
CPU (IHS)
Thermal Grease
Bolt
Grip (S-Type)
CPU Water Block
Grip (S-Type)
Clip Support for
Socket 775
※
The specifications of any product may change without prior notice to improve performance.
5
2) Intel Pentium 4 - 478
① Applying Thermal Grease
Clean off particles and residue then spread a
generous amount of Thermal Grease
thoroughly
on top of the CPU.
② Installing the Clip Supports for Socket 478
Install the Clip Supports for Socket 478 on both
sides of the Retention Guide as shown in the
diagram on the right.
③ Installing the Grips and Bolts
Interlock the L-type Grips with the Clip.
Insert the two Bolts into the inner holes of the Grips.
④ Installing the CPU Water Block
Set the CPU Water Block at the center of the CPU.
Screw the Bolts in slightly, then tighten each Bolt a
few turns at a time while alternating between the
two until the Clip Supports are completely pressed
against the Grips.
CPU (IHS)
Thermal Grease
Clip Support for Socket 478
Retention Guide
Bolt
Grip (L-Type)
Inner Hole
CPU Water Block
Grip (L-Type)
Clip Support for
Socket 478
※
The specifications of any product may change without prior notice to improve performance.
6
3) AMD Duron/Athlon/Athlon XP/Sempron - 462
① Installing the Clip Supports for Socket 462
Install the Clip Supports for Socket 462 on the motherboard,
while making sure that their locations are not swapped.
※
The A-type Clip Support must be installed next to the lever.
Install in the order of : Bolts > Small Washers > Motherboard
>
Small Washers > Clip Supports.
② Applying Thermal Grease
Clean off particles and residue then spread a thin
layer of Thermal Grease evenly on the CPU core
(Only on the core’s surface that actually makes
contact with the Block Base).
③ Installing the Grips and Bolts
Interlock the S-type Grips with the Clip.
Insert the two Bolts into the holes of the Grips.
④ Installing the CPU Water Block
Set the CPU Water Block at the center of the CPU.
Screw the Bolts in slightly, then tighten each Bolt a
few turns at a time while alternating between the
two until the Grips are completely pressed against
the Clip Supports.
Clip Support B for Socket 462
Small Washer
Clip Support
A for Socket 462
Motherboard
Bolt
Clip Support B for Socket 462
Small Washer
CPU
Thermal Grease
Bolt
Grip (S-Type)
CPU Water Block
Clip Support for
Socket 462
Grip (S-Type)
※
The specifications of any product may change without prior notice to improve performance.
7

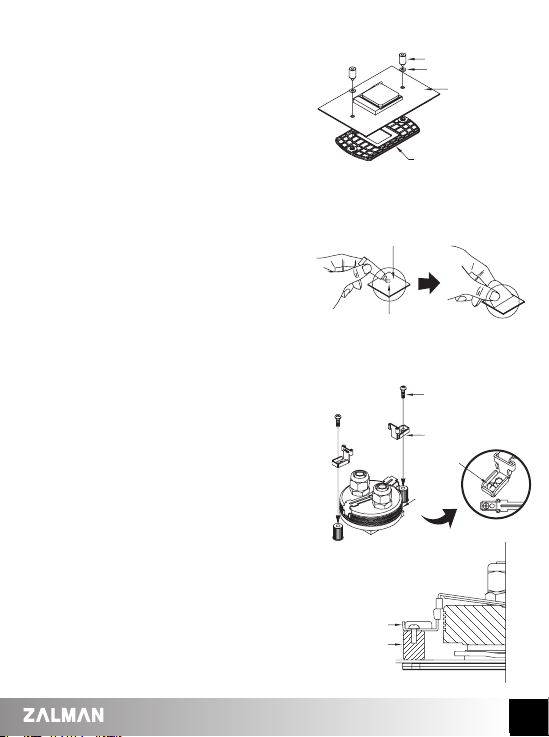

4) AMD Sempron/AMD64 - 754/939/940
① Installing the Nipples
Place a Small Washer on the motherboard. Then, put a
Nipple over it and fasten the Nipple until the Backplate
for AMD64 is firmly attached to the motherboard on the
opposite side of the CPU.
※ The
Retention Guide is not necessary for installing the
ZM-WB3 Gold on a Socket 754/939/940.
② Applying Thermal Grease
Clean off particles and residue then spread a
generous amount of Thermal Grease thoroughly on
top of the CPU.
③ Installing the Grips and Bolts
Interlock the L-type Grips with the Clip.
Insert the two Bolts into the outer holes of the Grips.
④ Installing the CPU Water Block
Set the CPU Water Block at the center of the CPU.
Screw the Bolts in slightly, then tighten each Bolt a few
turns at a time while alternating between the two until
the Grips are completely pressed against the Nipples.
CPU (Lid)
Thermal Grease
Bolt
Grip (L-Type)
Outer Hole
CPU Water Block
Nipple
Small Washer
Motherboard
Backplate for AMD64
Grip (L-Type)
Nipple
※
The specifications of any product may change without prior notice to improve performance.
8

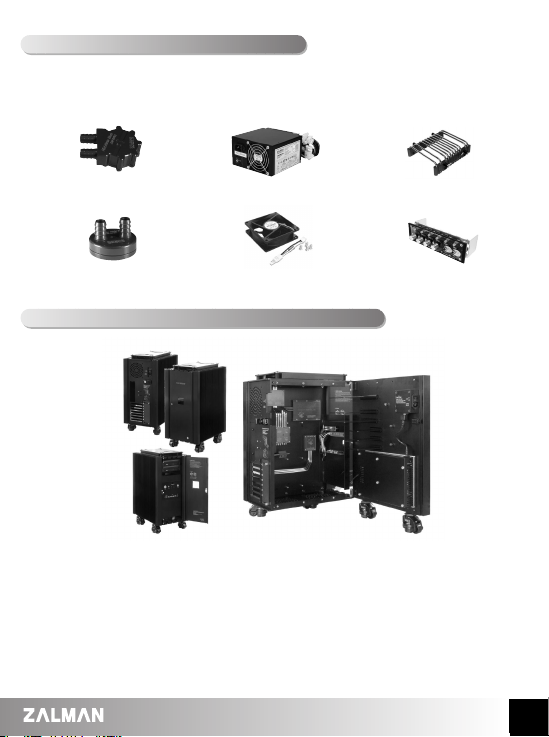

When building a noiseless computer, use Zalman’s VGA Water Block, Northbridge Water Block, Noiseless
Power Supply, Noiseless Case Fan, Heatpipe HDD Cooler, and Fan Controller for stable performance and
a noiseless Water-Cooled system.
7. Zalman Noise Prevention System
8. TNN (Totally No Noise) Computer Enclosure
The TNN 500AF is the world's first absolutely noiseless, anti-dust computer case for high-end systems that
has been developed with Heatpipe Technology, HSC (Heat Source Contact) Power Technology, High
Capacity Extrusion Technique, and FMS (Flexible Mounting Structure) Design Technology by ZALMAN
Tech Co., Ltd.
The TNN 500AF package includes a high performance aluminum computer case with an absolutely
noiseless cooling solution that does not require the use of a fan, making it ideal for:
1. Digital Audio Workstations (DAW) in broadcasting, recording, and postproduction studio control rooms.
2. Multi Media & Storage Servers for offices, educational facilities, and hotels.
3. Home Theater and Multi- Media Systems for living rooms.
4. High Performance Noiseless Workstations & Servers for SOHO (Small Office Home Office) systems.
For more information, please visit our website.
Northbridge Water Block
Noiseless Power SupplyVGA Water Block Heatpipe HDD Cooler
Noiseless Case Fan Fan Controller
