User’s Manual
CNPS9500 AT
Intel Socket 1156/775 CPU
Core i7
Core i5
Core 2 Quad
Core 2 Duo
Core 2 Extreme
Dual Core Pentium
Pentium D
Pentium 4
Celeron D
To ensure safe and easy installation,
please read the following precautions.
www.ZALMAN.com
V 2.0
1. Precautions
1) Use and keep product away from reach of children and pets.
2) Do not ingest the Thermal Grease, and avoid its contact with skin and
eyes. If contact is mad
irritation persists, seek medical attention.
3) To prevent possible injuries, gloves must be worn while handling this
product.
4) Excessive force exerted on the fan may cause damage to the fan and/
or system.
5) Avoid inserting objects or hands into the fan while it is in operation to
prevent product damage and injuries.
6) Check the components list and
installation. If any problem is found, contact the retailer to obtain a
replacement.
7) Zalman Tech Co., Ltd. is not responsible for any damages due to
overclocking.
8) During transportation of the system, the cooler must be removed.
Zalman is not responsible for any damages that occur during the
transport of a system.
9) Product design and specifications may be revise
and performance.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due
to external causes, including but not limited to, improper use,
problems with electrical power, accident, neglect, alteration,
repair, improper installation, or improper testing.
e with skin, wash off with water. If ingested or
condition of the product before
d to improve quality
2. Specifications
Spec.
Material Pure Copper
Weight 530g
Dimensions 85(L) Ⅹ 112(W) Ⅹ 125(H)㎜
Fan
Model
Bearing-type 2 Ball-Bearing
RPM 1,300rpm ± 30% ~ 2,650rpm ± 10%
Noise Level 18.0dBA ± 10% ~ 27.5dBA ± 10%
Input Voltage 12V
Fan Function PWM Control, Auto Restart
.COM
CNPS9500 AT
1
3. Components
Cooler
Clip Support
Clip Clip Fixing Bolts
Thermal Grease
User’s Manual
WashersClip Support Fixing Bolts
Nuts
.COM
2
4. Installation Requirements
1) Space Requirements
The cooler’s installation requires unobstructed space with dimensions of 90㎜
(width), 115㎜(length), 135㎜(height), and the CPU as a central reference point.
Please check if components such as ODDs and PSU protrude into the required
space.
2) Air Guide Removal
Air guides on enclosures must be removed, before the cooler’s installation, for
they protrude into the
135㎜
3) Cooler Orientation
It is recommended that the cooler be installed so that air flows from the cooler toward
the enclosure’s rear exhaust fan.
cooler’s required space.
90㎜
115㎜
.COM
3

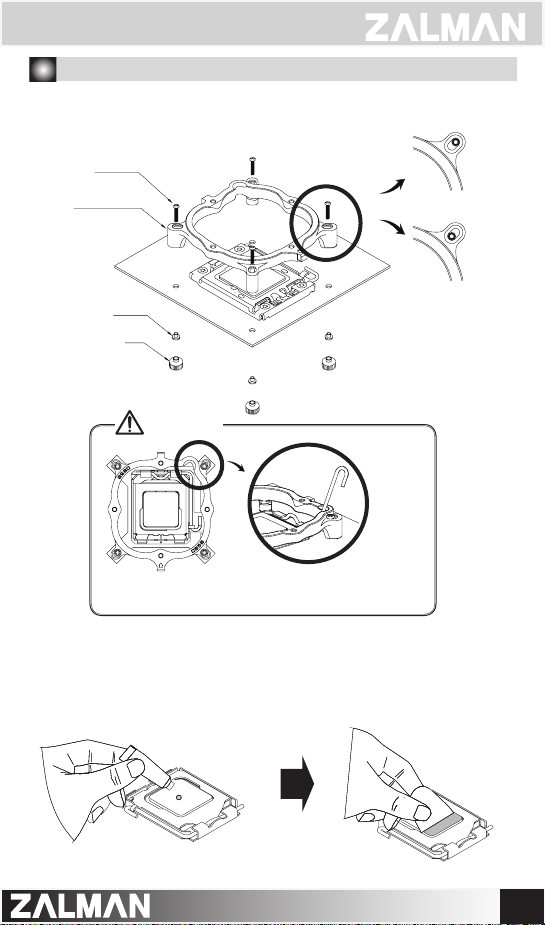

5. Installation
1) Clip Support Installation
Install the Clip Support to the motherboard according to the Socket-type.
Bolt (silver)
Clip Support
Washer
Nut
M/B
Caution
▶ Please make note of the Lever Slot’s direction when
installing the Clip Support.
Socket 1156
Socket 775
2) Thermal Grease Application
Clear off any particles or residue from the CPU’s surface then spread
(outwards from center) a thorough layer of Thermal Grease on the CPU
and the base of the cooler.
.COM
4
3) Cooler Installation
Insert the Clip Fixing Bolts to the Clip’s Installation Holes and fasten with a
screwdriver.
4) Fan Connector
Connect the Fan Connector to the motherboard’s PWM fan header (4-Pin).
.COM
M/B
5
GS1000 / GS1000SE
• E-ATX / Standard ATX / microATX Compatible
* Supports Intel Dual Xeon server motherboards
• UP to 6 Hot Swap HDD Bays
* GS1000(3 Standard / 3 Optional)
* GS1000 SE(Optional)
• Tool-Free HDD Installation
• Airflow Optimized Design
• Vibration Absorbing HDD Dampers and Feet
• The World’s First Roller Rails for Smooth
& Easy PSU Installation
• Cable Compartment Behind the Motherbo
for Cable Management
• Dedicated Fan Compartment for Fanless PSU Users
• Up to a Total of 8 HDD Bays
* 2 Adaptors & Bezels included for use of two 5.25” bays as 3.5” Internal(HDD)/
External(FDD) Bays
ard
GT1000
• High-End Gaming Enclosure Built with Sturdy
All Aluminum Panels
• Three Tool-Free Hinged Magnetic Panels
(2 Left, 1 Right) for Easy Installation and
Access to Components
• Tool-Free
• Accommodates up to 6 Hard Drives
• Luxurious and Cool Aesthetics.
• Color Option: Black (Red LED Fans),
Installation of Disk Drives,
Fan Controlles, Audio Interfaces etc.
Titanium (Blue LED Panel).
For more information, please visit our website.
