Page 1

RX-V2600

AV Receiver

Ampli-tuner audio-vidéo

OWNER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

BRUKSANVISNING

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

GEBRUIKSAANWIJZING

Page 2

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. Allow ventilation space of at least 30 cm on the top, 20 cm on the left and right, and 20 cm on the back of this unit.

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that this unit is faulty.

18 Before moving this unit, press MASTER ON/OFF to release it

outward to the OFF position to turn off this unit, the main room, Zone 2 and Zone 3 and then disconnect the AC power plug from the AC wall outlet.

19 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are:

Asia model ................................ AC 220/230–240 V, 50/60 Hz

General model .............AC 110/120/220/230–240 V, 50/60 Hz

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by MASTER ON/OFF. In this state, this unit is designed to consume a very small quantity of power.

■ For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below.

Note

The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

■ Special Instructions for U.K. Model

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

Page 3

CONTENTS

INTRODUCTION

FEATURES............................................................. 2

GETTING STARTED............................................ 3

Supplied accessories .................................................. 3

Installing batteries in the remote controls.................. 4

Handling the remote control ...................................... 5

Opening and closing the front panel door.................. 5

CONTROLS AND FUNCTIONS ......................... 6

Front panel ................................................................. 6

Remote control........................................................... 8

Zone 2/Zone 3 remote control ................................. 10

Front panel display .................................................. 11

Rear panel ................................................................ 13

PREPARATION

CONNECTIONS .................................................. 14

Before connecting speakers ..................................... 14

Connecting speakers ................................................ 15

Using bi-wire and bi-AMP connections .................. 19

Information on cables and jacks

used for connections ............................................ 20

Connecting HDMI components ............................... 23

Connecting video components................................. 24

Connecting audio components................................. 27

Connecting the antennas ..........................................29

Connecting the power cable..................................... 30

Turning on and off this unit ..................................... 30

Setting the speaker impedance................................. 31

AUTO SETUP....................................................... 32

Introduction.............................................................. 32

Optimizer microphone setup.................................... 32

Using AUTO SETUP .............................................. 33

Confirming the results .............................................35

BASIC OPERATION

PLAYBACK.......................................................... 37

Basic operations....................................................... 37

Additional operations............................................... 39

RECORDING ....................................................... 46

FM/AM TUNING ................................................. 47

Automatic tuning ..................................................... 47

Manual tuning..........................................................48

Automatic preset tuning........................................... 48

Manual preset tuning ...............................................50

Selecting preset stations........................................... 51

Exchanging preset stations ...................................... 52

Receiving Radio Data System stations ....................53

Changing the Radio Data System mode .................. 53

PTY SEEK function ................................................ 54

EON function........................................................... 55

SOUND FIELD PROGRAMS

EDITING SOUND FIELD PARAMETERS ......56

What is a sound field? ............................................. 56

Changing parameter settings ................................... 56

SOUND FIELD PROGRAM

DESCRIPTIONS...............................................58

For movie/video sources.......................................... 58

For music sources .................................................... 60

SOUND FIELD PARAMETER

DESCRIPTIONS...............................................61

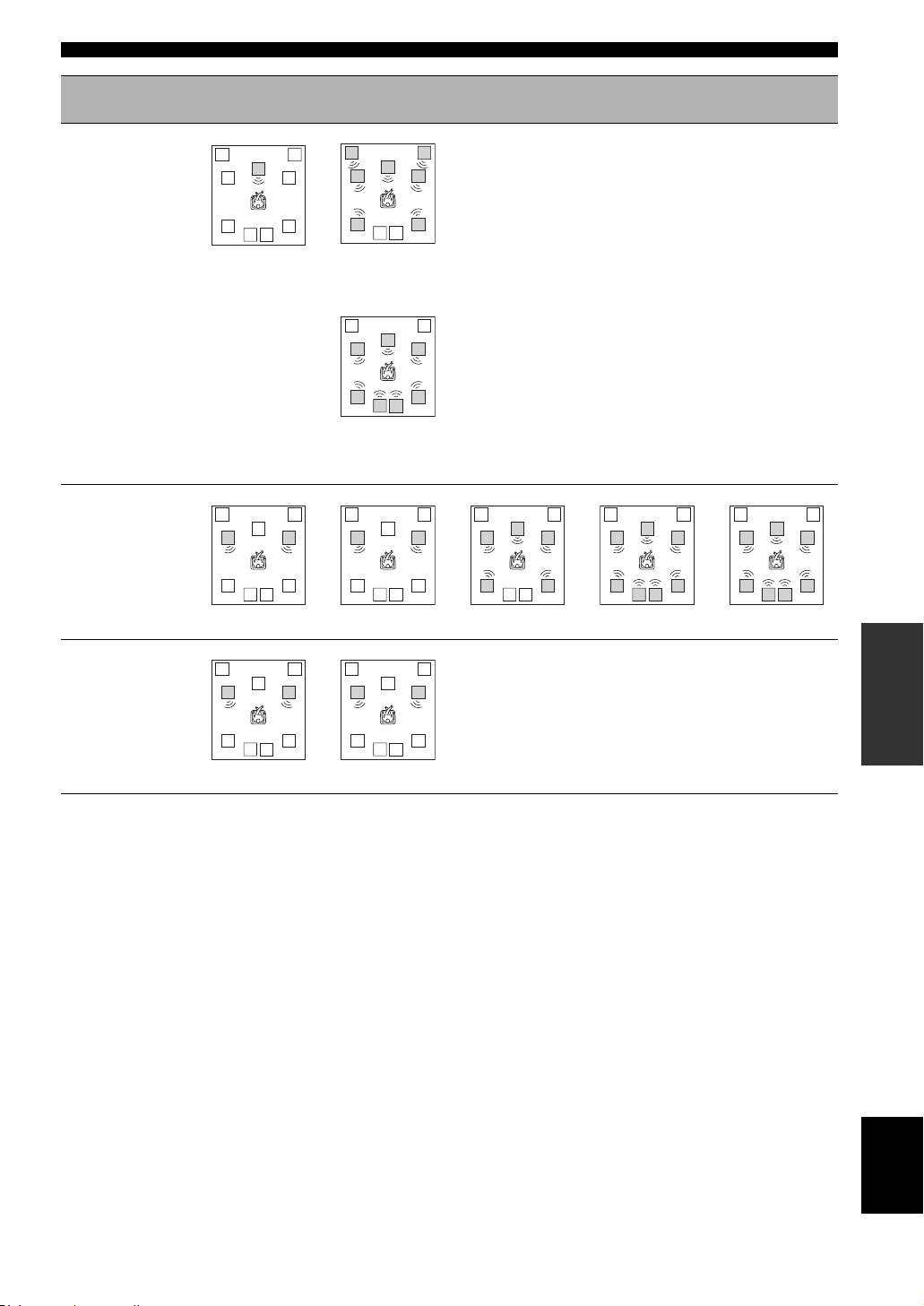

SOUND FIELD PROGRAM

SPEAKER LAYOUTS......................................66

ADVANCED OPERATION

SYSTEM OPTIONS .............................................70

Changing parameter settings ................................... 72

Input Select .............................................................. 73

Manual Setup (Sound) ............................................. 76

Manual Setup (Video) ............................................. 80

Manual Setup (Basic) .............................................. 83

Manual Setup (Option) ............................................ 87

System Memory....................................................... 92

Language ................................................................. 93

ADVANCED SETUP ............................................94

Using ADVANCED SETUP ................................... 94

REMOTE CONTROL FEATURES ...................96

Control area ............................................................. 96

Controlling each component.................................... 97

Setting remote control codes ...................................98

Using LEARN ....................................................... 100

Using RE-NAME .................................................. 102

Using MACRO ...................................................... 103

Using CLEAR........................................................ 105

ZONE 2/ZONE 3 .................................................108

Connecting the Zone 2 and

Zone 3 components ........................................... 108

Selecting Zone 2 or Zone 3.................................... 109

Controlling Zone 2 and Zone 3.............................. 110

Using the control mode of

Zone 2 and Zone 3.............................................111

HDMI ...................................................................112

What is HDMI? ..................................................... 112

Setting the HDMI parameters................................ 113

Basic HDMI operations ......................................... 113

ADDITIONAL INFORMATION

TROUBLESHOOTING .....................................114

GLOSSARY.........................................................121

Audio information ................................................. 121

Video information.................................................. 124

Sound field program information .......................... 124

Parametric equalizer information ..........................125

SPECIFICATIONS.............................................126

PREPARATIONINTRODUCTION

OPERATION

BASIC

SOUND FIELD

PROGRAMS

OPERATION

ADVANCED

INFORMATION

ADDITIONAL

English

Page 4

FEATURES

Built-in 7-channel power amplifier

◆ Minimum RMS Output Power (0.04% THD, 20 Hz to 20 kHz, 8 Ω) Front: 130 W + 130 W Center: 130 W Surround: 130 W + 130 W Surround Back: 130 W + 130 W

Sound field features

◆ Proprietary YAMAHA technology for the creation of sound fields

◆ THX Select2

◆ Dolby Digital/Dolby Digital EX decoder

◆ DTS/DTS-ES Matrix 6.1, Discrete 6.1,

DTS Neo:6 decoder, DTS 96/24

◆ Dolby Pro Logic/Dolby Pro Logic x decoder

◆ Virtual CINEMA DSP

◆ SILENT CINEMA

™

HDMI (High-Definition Multimedia Interface)

◆ HDMI interface for standard, enhanced or high-definition video as well as multi-channel digital audio

◆ Analog video to HDMI digital video up-conversion (composite video ↔ S-video ↔ component video → HDMI digital video) and up-scaling (480i → 480p/ 1080i/720p and 480p → 1080i/720p) capabilities for monitor out

Sophisticated AM/FM tuner

◆ 40-station random access preset tuning

◆ Automatic preset tuning

◆ Preset station shifting capability (preset editing)

Radio Data System (U.K. and Europe models only)

◆ Radio Data System tuning capability

Other features

◆ YPAO (YAMAHA Parametric Room Acoustic Optimizer) for automatic speaker setup

◆ 192-kHz/24-bit D/A converter

◆ GUI (graphical user interface) menus that allow you to

optimize this unit to suit your individual audio/video system

◆ GUI display menu language switching capability (English, Japanese, French, German and Spanish)

◆ 6 or 8-channel additional input jacks for discrete multi-channel input

◆ Short message function

◆ PURE DIRECT for pure fidelity sound with analog and

PCM sources

◆ S-video input/output capability

◆ Component video input/output capability

◆ Analog video I/P conversion from 480i (NTSC) or

576i (PAL) to 480p (NTSC) or 576p (PAL)

◆ Optical and coaxial digital audio signal jacks

◆ Sleep timer

◆ Cinema and music night listening mode

◆ Remote control with preset remote control codes and

learning/macro capability

◆ Zone 2/Zone 3 custom installation facility

◆ Zone 2/Zone 3 remote control to control Zone 2 or

Zone 3

◆ Zone 2 OSD (on-screen display) capability

• y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the main unit or on the remote control. In cases when the button names differ between the main unit and the remote control, the button name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and product, the product has priority.

Manufactured under license from Dolby Laboratories. “Dolby”, “Surround EX”, and the double-D symbol are trademarks of Dolby Laboratories.

“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of Digital Theater Systems, Inc.

“HDMI”, the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC.

“SILENT CINEMA” is a trademark of YAMAHA CORPORATION.

Page 5

GETTING STARTED

Supplied accessories

Please check that you received all of the following parts.

Remote control

POWER POWER

PHONO TUNER CD

V-AUX

DTV DVR/VCR2VCR 1 DVD

DTV DVR/VCR2VCR 1

TV VOL

–

TV MUTE TV INPUT

GUI TOP

TITLE

BAND

RETURN

XM MEMORY

STEREO

THX

5678

FREQ/TEXT EON MODE PTY SEEK START

REC

DISC SKIP

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

MULTI CH IN

CD-R

CBL/SAT MD/TAPE

DVD

SELECT

AMP

SOURCE

VOLUME

–

MUTE

PRESET/CH

PRESET

EXIT

PURE DIRECT

SRCH MODE

NIGHT

ENTER

AUDIO

A/B/C/D/E

A-E/CAT.

STRAIGHT

DISPLAY

EFFECT

MUSIC ENTERTAIN MOVIE

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

CLEAR

LEARN

MACROONOFF

RE–NAME

Zone 2/Zone 3

remote control

TUNER1CD2CD-R

DTV4CBL/SAT5MD/TAPE

VCR17DVR/VCR2

POWER

STANDBY

PHONO

DVD

8 9

PRESET

VOLUME

–

A/B/C/D/E

MUTE

ID2ID1

INTRODUCTION

Batteries (x6)

ENT

V-AUX

ZONE 3ZONE 2

(AAA, LR03)

Power cable

AM loop antenna

Speaker terminal

wrench

Indoor FM antenna (U.S.A., Canada, Asia, General, China and Korea models)

Optimizer microphone

Indoor FM antenna (Australia, U.K. and Europe models)

75-ohm/300-ohm antenna adapter (U.K. model only)

English

Page 6

GETTING STARTED

Installing batteries in the remote controls

Notes

• Change all of the batteries if you notice conditions such as the operation range of the remote control decreases, the indicator does not flash, or its light or display window become dim.

• Do not use old batteries together with new ones.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

• We strongly recommend using alkaline batteries.

• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

• Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.

■ Installing batteries

1 Press the part and slide the battery

compartment cover off.

2 Insert four supplied batteries

(AAA, LR03) according to the polarity markings on the inside of the battery compartment.

3 Slide the cover back until it snaps into place.

■ Zone 2/Zone 3 remote control

1 Press the part and slide the battery

compartment cover off.

2 Insert two supplied batteries (AAA, LR03)

according to the polarity markings (+ and –) on the inside of the battery compartment.

3 Slide the cover back until it snaps into place.

If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. When the memory is cleared, insert new batteries, set up the remote control code and program any acquired functions that may have been cleared.

Page 7

Handling the remote control

GETTING STARTED

The remote control transmits a directional infrared ray. Be sure to aim the remote control directly at the remote control sensor on the main unit during operation.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

SOURCE/ REMOTE

DTV

CBL/SAT

VCR 1

ON/OFF

DVR/ VCR 2 V-AUX

REC OUT/ZONE 2

MASTER

ON OFF

Approximately 6 m

PRESET/

TUNING

PRESET/

MEMORY

FM/AM

TUNING

MODE

TUNING

A/B/C/D/E

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

SPEAKERS

MD/TAPEDVD

MULTI ZONE

CD-R

ZONE 2

ZONE 3

YPAO

SILENT CINEMA S VIDEO VIDEO L

AUDIO R OPTICAL

PHONO

TUNER

OPTIMIZER

PHONES

MIC

VIDEO/AUX

STRAIGHT

PROGRAM

POWER POWER

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

PRESET

GUI TOP

TITLE

BAND

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARDSELECT EXTD SUR.

5678

FREQ/TEXT EON MODEPTY SEEKSTART

REC

DISC SKIP

MACROONOFF

TONE

CONTROL

STANDBY

AVTV

AUDIO SEL

VOLUME

–

EXIT

ENTER

A/B/C/D/E

DISPLAY

3421

+10

LEARN

VOLUME

30 30

POWER

SLEEP

MULTI CH IN

CD-R

SELECT

AMP

SOURCE

–

MUTE

PURE DIRECT

NIGHT

AUDIO

STRAIGHT

EFFECT

SPEAKERSMEMORY

ENT.

CLEAR

RE–NAME

Notes

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following types of conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or stove – extremely low temperatures – dusty places

INTRODUCTION

Opening and closing the front panel door

When you want to use the controls behind the front panel door, open the door by gently pressing on the lower part of the panel. Keep the door closed when not using these controls.

To open, press gently on the lower part of the panel.

English

Page 8

CONTROLS AND FUNCTIONS

Front panel

CONTROLS AND FUNCTIONS

12 4567890ABCE F

ON/OFF

MASTER

ON OFF

MULTI CH

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

CBL/SAT

VCR 1

DVR/ VCR 2

DTV

V-AUX

REC OUT/ZONE 2

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

PHONO

TUNER

PRESET/ TUNING

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

MIC

PHONES

MULTI ZONE

PRESET/ TUNING

EDIT

FM/AM

ZONE 2

VIDEO/AUX

MEMORY

MAN'L/AUTO FM

ZONE ON/OFF

ZONE 3

AUDIO R OPTICAL

TUNING

MODE

AUTO/MAN'L EFFECT

ZONE CONTROL

STRAIGHT

PROGRAM

TONE

CONTROL

GJ MNLKIH

1 MASTER ON/OFF

Press inward to the ON position.

• Turns on this unit.

• Turns on the main room.

• Sets Zone 2 and Zone 3 to the standby mode. Press again to release it outward to the OFF position.

• Turns off this unit.

• Turns off the main room, Zone 2 and Zone 3. See page 30 for details.

2 MAIN ZONE ON/OFF

Turns on this unit only or sets it to the standby mode.

In the standby mode, this unit consumes a small quantity of power.

Notes

• When you turn on this unit, there will be a 6 to 7 second delay before this unit can reproduce sound.

• This button is operational only when MASTER ON/OFF is pressed inward to the ON position.

3 INPUT selector

Selects the desired input source.

4 AUDIO SELECT

Toggles the priority for the type of audio input jack between AUTO, HDMI, COAX/OPT and ANALOG when one component is connected to two or more input jacks on the rear panel (see page 44).

5 MULTI CH INPUT

Selects the input source connected to the MULTI CH INPUT jacks. When selected, the MULTI CH INPUT source takes priority over the input source selected with the INPUT selector (or the input selector buttons on the remote control).

6 A/B/C/D/E

Selects one of the 5 preset station groups (A to E) when TUNER is selected as the input source (see page 51).

7 PRESET/TUNING l / h

Selects the preset station number (1 to 8) when TUNER is selected as the input source and the colon (:) is displayed next to the band indication in the front panel display. Selects the tuning frequency when TUNER is selected as the input source and the colon (:) is not displayed in the front panel display. See pages 47 to 52 for details.

PURE DIRECT

VOLUME

Page 9

CONTROLS AND FUNCTIONS

8 Front panel display

Shows information about the operational status of this unit.

9 PRESET/TUNING (EDIT)

Switches the function of PRESET/TUNING l / h between selecting preset station numbers and tuning when TUNER is selected as the input source (see pages 47 to

52).

0 FM/AM

Switches the reception band (FM or AM) when TUNER is selected as the input source (see page 47).

Note

The frequency of the previously received station is automatically recalled.

A MEMORY (MAN’L/AUTO FM)

Stores a station in the memory when TUNER is selected as the input source. Hold down for more than 3 seconds to start automatic preset tuning (see page 48).

B TUNING MODE (AUTO/MAN’L), DISPLAY

Switches the tuning mode between automatic (the AUTO indicator is turned on) and manual (the AUTO indicator is turned off) when TUNER is selected as the input source.

C STRAIGHT (EFFECT)

Turns the sound field programs on or off. When STRAIGHT is selected, 2-channel or multi-channel input signals are output directly from the respective speakers without effect processing.

D Remote control sensor

Receives infrared signals from the remote control.

E TONE CONTROL

Use to adjust the balance of bass and treble for the front left and right and center channels (see page 39).

F PURE DIRECT

Turns on or off the PURE DIRECT mode (see page 42).

Note

The indicator around the button lights up when the unit is in the PURE DIRECT mode.

G REC OUT/ZONE 2

Selects the input source you want to direct to the audio/ video recorder and Zone 2 outputs independently of the input source you are listening to or watching in the main room. When set to the SOURCE/REMOTE position, the input source is directed to all outputs.

Note

The Zone 2 output is always identical with the input source you record.

H OPTIMIZER MIC jack

Use to connect the supplied optimizer microphone to run AUTO SETUP (see page 32).

I SPEAKERS A/B

Turn on or off the set of front speakers connected to the SPEAKERS A and/or B terminals on the rear panel each time the corresponding button is pressed.

J PHONES (SILENT CINEMA) jack

Outputs audio signals for private listening with headphones.

Notes

• When you connect headphones, no signals are output at the PRE OUT jacks or to the speakers.

• All Dolby Digital and DTS audio signals are mixed down to 2channel stereo (front left and right channels).

K VIDEO AUX jacks

Input audio and video signals from an external source such as a game console. To reproduce source signals at these jacks, select V-AUX as the input source.

L MULTI ZONE buttons

ZONE 2 ON/OFF

Turns on Zone 2 only or sets it to the standby mode. See page 30 for details.

Note

This button is operational only when MASTER ON/OFF is pressed inward to the ON position.

ZONE 3 ON/OFF

Turns on Zone 3 only or sets it to the standby mode. See page 30 for details.

Note

This button is operational only when MASTER ON/OFF is pressed inward to the ON position.

ZONE CONTROL

Switches the zone you want to control between the main unit, Zone 2 and Zone 3 (see page 110). After you press ZONE CONTROL, the indicator for the currently selected zone flashes in the front panel display for approximately 5 seconds. While the indicator is flashing, perform the desired operation.

M PROGRAM selector

Use to select sound field programs or adjust the balance of bass and treble in conjunction with TONE CONTROL.

N VOLUME

Controls the volume level of all audio channels.

Note

This does not affect the OUT (REC) level.

INTRODUCTION

English

Page 10

CONTROLS AND FUNCTIONS

Remote control

This section describes the function of each control on the remote control used to control this unit. Set AMP/ SOURCE/TV to AMP to operate this unit. To operate other components, see “REMOTE CONTROL FEATURES” on page 96.

POWER POWER

AVTV

STANDBY

AUDIO SEL

POWER

SLEEP

C D E

PHONO TUNER CD

MULTI CH IN

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1

TV VOL

–

TV MUTE TV INPUT

PRESET

GUI TOP

TITLE

BAND

ENTER

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARD SELECT EXTD SUR.

5678

FREQ/TEXT EON MODE PTY SEEK

REC

DISC SKIP

LEARN

MACROONOFF

VOLUME

EXIT

A/B/C/D/E

DISPLAY

3421

+10

–

MUTE

SPEAKERSMEMORY

CLEAR

CD-R

DVD

SELECT

AMP

SOURCE

PURE DIRECT

NIGHT

AUDIO

STRAIGHT

EFFECT

ENT.

START

RE–NAME

K L

P Q R

1 Infrared window

Outputs infrared control signals. Aim this window at the component you want to operate.

2 Transmission indicator

Flashes while the remote control is sending infrared signals.

3 Input selector buttons

Select the input source and change the control area. Set AMP/SOURCE/TV to SOURCE and then press TUNER to select TUNER as the input source.

4 Display window

Shows the name of the selected input source that you can control.

5 Light button

Press to light up the remote control buttons and the display window.

6 GUI TOP, BAND

Displays the top screen in the graphical user interface (GUI) menu on your video monitor when AMP/SOURCE/ TV is set to AMP. Switches the reception band between FM and AM when AMP/SOURCE/TV is set to SOURCE and TUNER is selected as the input source.

7 Cursor buttons k / n / l / h, ENTER

Selects and adjusts the DSP program parameters or GUI menu items when AMP/SOURCE/TV is set to AMP. Press l / h to select a preset station group (A to E) and k / n to select a preset station number (1 to 8) when AMP/SOURCE/TV is set to SOURCE and TUNER is selected as the input source.

8 Sound field program / numeric buttons

Select sound field programs when AMP/SOURCE/TV is set to AMP. Use SELECT to play back 2-channel sources in the multichannel format (see page 41). Use EXTD SUR. to switch between 5.1 and 6.1/7.1 channel playback of multi-channel software (see page 40). Use numbers 1 to 8 to select preset stations when AMP/ SOURCE/TV is set to SOURCE and TUNER is selected as the input source.

9 MEMORY 1/2

Use to recall favorite sound field programs, YPAO settings or additional preset stations (see page 92).

0 MACRO ON/OFF

Turns on or off the macro function (see page 104).

A MACRO

Programs a series of operations to be controlled with a single button (see page 103).

Page 11

CONTROLS AND FUNCTIONS

B STANDBY

Sets this unit, Zone 2 and Zone 3 to the standby mode (see page 30).

Note

This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.

C POWER

Turns on this unit, Zone 2 and Zone 3 (see page 30).

Note

This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.

D AUDIO SEL

Toggles the priority for the type of audio input jack between AUTO, HDMI, COAX/OPT and ANALOG when one component is connected to two or more input jacks on the rear panel (see page 44).

E SLEEP

Sets the sleep timer.

F MULTI CH IN

Selects MULTI CH INPUT when using an external decoder, etc.

G SELECT k / n

Selects another input source that you can control independently of the input source selected with the input selector buttons.

H VOLUME +/–

Increases or decreases the volume level.

I AMP/SOURCE/TV

Selects the component you want to control with the remote control.

AMP

Set to this position to operate this unit.

SOURCE

Set to this position to operate the component selected with an input selector button.

Set to this position to operate the television assigned to either DTV or PHONO.

Note

If televisions are assigned to both DTV and PHONO, the one assigned to DTV takes priority and gets operated when AMP/ SOURCE/TV is set to TV.

To set the remote control codes for other components, see page 98.

J MUTE

Mutes the sound. Press again to restore the audio output to the previous volume level.

K PURE DIRECT

Turns on or off the PURE DIRECT mode (see page 42).

L EXIT

Exits the GUI mode.

M NIGHT

Turns on or off the night listening modes (see page 42).

N STRAIGHT (EFFECT)

Switches the sound field programs off or on. When STRAIGHT is selected, 2-channel or multi-channel input signals are output directly from their respective speakers without effect processing.

O SPEAKERS A/B

Turns on or off the set of front speakers connected to the SPEAKERS A and/or B terminals on the rear panel each time the corresponding button is pressed.

P RE-NAME

Changes the name of the input source in the display window (see page 102).

Q CLEAR

Clears remote control codes or functions acquired from the learn, macro and rename features (see page 105).

R LEARN

Programs remote control codes or functions from other remote controls (see page 100).

S Radio Data System tuning buttons

(U.K. and Europe models only)

These buttons are operational only when TUNER is selected as the input source.

FREQ/TEXT

Switches the Radio Data System display between the PS mode, PTY mode, RT mode, CT mode (if the station offers the corresponding data services) and the frequency display (see page 53).

PTY SEEK MODE

Sets this unit to the PTY SEEK mode (see page 54).

PTY SEEK START

Starts searching for a station after the desired program type has been selected in the PTY SEEK mode (see page 54).

EON

Selects a radio program type (NEWS, INFO, AFFAIRS, SPORTS) tune in automatically (see page 55).

INTRODUCTION

English

Page 12

CONTROLS AND FUNCTIONS

Zone 2/Zone 3 remote control

This section describes the function of each control on the Zone 2/Zone 3 remote control used to control Zone 2 or Zone 3.

POWER

TUNER1CD2CD-R

DTV4CBL/SAT5MD/TAPE

VCR17DVR/VCR2

8 9

PRESET

–

3 8

A/B/C/D/E

ID2ID1

DVD

VOLUME

–

MUTE

STANDBY

PHONO

ENT

V-AU X

ZONE 3ZONE 2

1 Input selector buttons

Select the desired input source of Zone 2 or Zone 3 and change the control area.

2 PRESET +/–

Selects the preset station number (1 to 8) when TUNER is selected as the input source or Zone 2 or Zone 3.

3 A/B/C/D/E

Selects the preset station group (A to E) when TUNER is selected as the input source or Zone 2 or Zone 3.

4 ID1/ID2 switch

Switches the remote control ID between ID1 and ID2 (see page 99).

5 POWER

Turns on Zone 2 or Zone 3.

Note

This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.

6 STANDBY

Sets Zone 2 or Zone 3 to the standby mode.

Note

This button is operational only when MASTER ON/OFF on the front panel is pressed inward to the ON position.

7 VOLUME +/–

Increases or decreases the volume level or Zone 2 or Zone 3.

8 MUTE

Mutes the sound of Zone 2 or Zone 3. Press again to restore the audio output to the previous volume level.

9 ZONE 2/ZONE 3 switch

Switches between the operation mode of Zone 2 and that of Zone 3.

Page 13

Front panel display

CONTROLS AND FUNCTIONS

Note

The XM indicator is only applicable to the U.S.A. model.

123 4 5 6 7 890A

YPAO

A B

SILENT CINEMA

V-A UX

HiFi DSP

VIRTUAL

DIGITAL PL x EX

DISCRETE

MATRIX

96 24

PCM

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

VOLUME

96/24

LL C R

LFE

SL SB SR

MUTE

TUNERPHONO

STEREO AUTO

ZONE2 ZONE3

NIGHT SLEEP

PTY

TUNED

MEMORY

PTY

RT CT

EON

HOLD

PNOMLKJIHGFEDCB

1 YPAO indicator

Lights up when the AUTO SETUP procedure is in progress and when the AUTO SETUP speaker settings are used without any modifications.

2 HDMI indicator

Lights up when HDMI components are assigned to the HDMI IN 1 and HDMI IN 2 jacks and they are recognized by this unit. Turns off when no HDMI component is assigned to the either HDMI IN 1 or HDMI IN 2 jack or when no HDMI component is recognized by this unit although they are assigned to the HDMI IN jacks. See page 112 for details.

A MEMORY indicator

Flashes to indicate that a station can be stored.

B Headphones indicator

Lights up when headphones are connected.

C SILENT CINEMA indicator

Lights up when headphones are connected and a sound field program is selected (see page 39).

D SP A B indicators

Light up according to the set of front speakers selected. Both indicators light up when both sets of front speakers are selected or when bi-wiring.

E VIRTUAL indicator

3 CINEMA DSP indicator

Lights up when you select a CINEMA DSP sound field program.

Lights up when Virtual CINEMA DSP is active (see page 44).

F Sound field indicators

4 Decoder indicators

When any of the decoders of this unit operate, the respective indicator lights up.

5 Input source indicators

Light up when the corresponding input source is selected.

6 VOLUME level indicator

Indicates the volume level.

7 MUTE indicator

Flashes while the MUTE function is on.

8 AUTO indicator

Lights up when this unit is in the automatic tuning mode.

9 STEREO indicator

Lights up when this unit is receiving a stereo signal for an FM stereo broadcast while the AUTO indicator is lit.

Light up to indicate the active DSP sound fields.

Presence DSP sound field

Listening position

Left surround DSP sound field

Surround/surround back DSP sound field

Right surround DSP sound field

G HiFi DSP indicator

Lights up when you select a HiFi DSP sound field program.

H PCM indicator

Lights up when this unit is reproducing PCM (pulse code modulation) digital audio signals.

I Multi-information display

Shows the name of the current sound field program and other information when adjusting or changing settings.

0 TUNED indicator

Lights up when this unit is tuned into a station.

INTRODUCTION

English

Page 14

CONTROLS AND FUNCTIONS

J 96/24 indicator

Lights up when a DTS 96/24 signal is input to this unit.

K LFE indicator

Lights up when the input signal contains an LFE signal.

L Input channel and speaker indicators

Input channel indicators

Indicate the channel components of the current digital input signal.

LL C R

SL SB SR

Presence and surround back speaker indicators

Light up according to the number of presence and surround back speakers set for Presence (see page 85) and Surround Back (see page 84) in Manual Setup when Test Tone in Manual Setup is set to On (see page 83).

You can make settings for the presence and surround back speakers automatically by running Auto Setup (see page 32) or manually by adjusting settings for Presence (see page 85) and Surround Back (see page 84) in Manual Setup.

M ZONE 2/ZONE 3 indicators

Light up when Zone 2 or Zone 3 is turned on.

N NIGHT indicator

Lights up when you select a night listening mode.

O SLEEP indicator

Lights up while the sleep timer is on.

P Radio Data System indicators

(U.K. and Europe models only)

The name of the Radio Data System data offered by the currently received Radio Data System station lights up.

EON

Lights up when a Radio Data System station that offers the EON data service is being received.

PTY HOLD

Lights up while searching for stations in the PTY SEEK mode.

Page 15

Rear panel

CONTROLS AND FUNCTIONS

12 3 4 56 7 0

CD DVD

DVD

DTV

CBL/SAT

MD/TAPE

CD-R

DIGITAL

OUTPUT

DIGITAL INPUT

OPTICAL

RS-232C

HDMI

COAXIAL

DVR/ VCR 2

IN 1

IN 2

OUT

DVD

DTV

CBL/ SAT

COMPONENT VIDEO

PBY

MONITOR OUT

MONITOR

ZONE 2

S VIDEO

OUT

VIDEO

AUDIOVIDEO

VIDEO

(PLAY)

MD/TAPE

OUT

(REC) (PLAY)

CD-R

OUT

(REC)

PHONO

FRONT(6CH)/SB(8CH)

SURROUND

MULTI CH INPUT

DVR/VCR 2

OUTPUT

DVD

DTV

CBL/

SAT

VCR 1

OUT

ZONE

AUDIO

CENTERSUBWOOFER

CONTROL OUT

+12V 15mA MAX.

REMOTE

WRENCH

HOLDER

OUT

GND

OUT

PRE OUT

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

CENTER

FRONT

SINGLE

(SB)

TUNER

FM ANT

75Ω

UNBAL.

SPEAKERS

–

SURROUND/ZONE 2(3)

–

SURROUND BACK

AM ANT

GND

–

CENTER

–

SPEAKER IMPEDANCE

++––

–

SINGLE

–

PRESENCE/ZONE 2(3)

8 9

VOLTAGE

SELECTOR

(General model)

1 DIGITAL OUTPUT jacks

See pages 24, 25 and 27 for connection information.

2 DIGITAL INPUT jacks

See pages 24, 25 and 27 for details.

3 Video component jacks

See pages 24 and 25 for connection information.

4 Audio component jacks

See pages 24, 25 and 27 for connection information.

5 CONTROL OUT jacks

These are control expansion terminals for factory use only.

6 WRENCH HOLDER

Use to hook the supplied speaker terminal wrench when not in use (see page 16).

7 Antenna terminals

See page 29 for connection information.

8 VOLTAGE SELECTOR

(Asia and General models only)

A HDMI IN/OUT connectors

See page 112 for connection information.

B RS-232C terminal

This is a control expansion terminal for factory use only. Consult you dealer for details.

C ZONE 2/ZONE 3 OUTPUT jacks

See page 108 for details.

D MULTI CH INPUT jacks

See page 26 for connection information.

E PRE OUT jacks

See page 28 for connection information.

F REMOTE 1/2 IN/OUT jacks

See page 108 for details.

G Speaker terminals

See page 15 for connection information.

H PRESENCE/ZONE 2(3) speaker terminals

See page 17 for connection information.

HGFEDCB

See page 30 for detailed information.

AC OUTLETS

SWITCHED

50W MAX.TOTAL

INTRODUCTION

AC IN

9 AC OUTLETS

Use to supply power to your other A/V components (see page 30).

0 AC IN

Use this inlet to plug in the supplied power cable (see page 30).

English

Page 16

CONNECTIONS

Before connecting speakers

The speaker layout below shows the standard ITU-R* speaker setting. You can use it to enjoy CINEMA DSP, multi-channel audio sources and THX.

ITU-R is the radio communication sector of the ITU (International Telecommunication Union).

1.8 m

30˚

60˚

80˚

SBL

More than 30 cm

SBR

Front speakers (FR and FL)

The front speakers are used for the main source sound plus effect sounds. Place these speakers an equal distance from the ideal listening position. The distance of each speaker from each side of the video monitor should be the same.

Center speaker (C)

The center speaker is for the center channel sounds (dialog, vocals, etc.). If for some reason it is not practical to use a center speaker, you can do without it. Best results, however, are obtained with the full system. Align the front face of the center speaker with the front face of your video monitor. Place the speaker centrally between the front speakers and as close to the monitor as possible, such as directly over or under it.

1.8 m

Surround speakers (SR and SL)

The surround speakers are used for effect and surround sounds. Place these speakers behind your listening position, facing slightly inwards, about 1.8 m above the floor.

Surround back speakers (SBR and SBL)

The surround back speakers supplement the surround speakers and provide for more realistic front-to-back transitions. Place these speakers directly behind the listening position and at the same height as the surround speakers. They should be positioned at least 30 cm apart. Ideally, they should be positioned at the same width as the front speakers.

Subwoofer

The use of a subwoofer, such as the YAMAHA Active Servo Processing Subwoofer System, is effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity reproduction of the LFE (lowfrequency effect) channel included in Dolby Digital and DTS software. The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce wall reflections.

Presence speakers (PR and PL)

Presence speakers supplement the sound from the front speakers with extra ambient effects produced by CINEMA DSP (see page 58). These effects include sounds that filmmakers intend to locate a little farther back behind the screen in order to create more theater-like ambience. Place these speakers at the front of the room about 0.5 – 1 m outside the front speakers, facing slightly inwards, and about 1.8 m above the floor.

Note

Surround back and presence speakers do not output sound simultaneously. You can set to prioritize either set of speakers using the PR/SB Priority parameter in Manual Setup (see page 79).

Page 17

■ Di-pole speaker layout

Either di-pole or direct radiating speaker types can be used for THX surround. If you choose di-pole speakers, please place the surround and surround back speakers according to the speaker layout below.

: Di-pole speaker

: Direction of the di-pole speaker phase

SBL

SBR

CONNECTIONS

Connecting speakers

Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

CAUTION

• If you will use 6 ohm speakers, be sure to set this unit’s speaker

impedance setting to 6 ohms before using (see page 31). If you will use 8 ohm speakers, use this unit’s initial setting for speaker impedance.

• Before connecting the speakers, make sure that this unit is

disconnected from the power source.

• Do not let the bare speaker wires touch each other or do not let

them touch any metal part of this unit. This could damage this unit and/or speakers.

• Use magnetically shielded speakers. If this type of speaker still

creates interference with the monitor, place the speakers away from the monitor.

Note

A speaker cord is actually a pair of insulated cables running side by side. One cable is colored or shaped differently, perhaps with a stripe, groove or ridges. Connect the striped (grooved, etc.) cable to the “+” (red) terminals on this unit and your speaker. Connect the plain cable to the “–” (black) terminals.

PREPARATION

■ Connecting to the speaker terminals

FRONT terminals

Connect one or two speaker systems to these terminals. If you use only one speaker system, connect it to either of the FRONT A or B terminals.

Note

The Canada model cannot output to two pairs of speaker systems simultaneously.

CENTER terminals

Connect a center speaker to these terminals.

SURROUND ZONE 2(3) terminals

Connect surround speakers to these terminals.

SUBWOOFER jack

Connect a subwoofer with a built-in amplifier, such as the YAMAHA Active Servo Processing Subwoofer System, to this jack.

SURROUND BACK terminals

Connect surround back speakers to these terminals. If you only connect one surround back speaker, connect it to the left (L) terminals.

English

Page 18

CONNECTIONS

1 Remove approximately 10 mm of insulation

from each of the speaker cables.

10 mm

2 Twist the exposed wires of the cable together

to prevent short circuits.

3 Loosen the knob using the supplied speaker

terminal wrench.

Speaker terminal wrench

5 Tighten the knob to secure the wire using the

supplied speaker terminal wrench.

Speaker terminal wrench

Red: positive (+)

Black: negative (–)

6 Hook the speaker terminal wrench onto

WRENCH HOLDER on the rear panel of this unit when not in use.

Red: positive (+)

Black: negative (–)

4 Insert one bare wire into the hole on the side

of each terminal.

Red: positive (+)

Black: negative (–)

Page 19

CONNECTIONS

PRESENCE/ZONE 2(3) terminals

Connect presence speakers to these terminals.

Note

You can also use these terminals to connect the Zone 2 speakers (see page 109).

1 Open the tab.

2 Insert one bare wire into the hole of each

terminal.

3 Return the tab to secure the wire.

■ Speaker layout

Refer to the following illustration as to where to place each speaker in your listening room.

1 Subwoofer 2 Front right speaker 3 Front left speaker 4 Center speaker 5 Surround back right speaker 6 Surround back left speaker 7 Surround right speaker 8 Surround left speaker 9 Presence right speaker 10 Presence left speaker

PREPARATION

■ Connecting the banana plug

(With the exception of U.K., Europe and Asia models) First, tighten the knob and then insert the banana plug connector into the end of the corresponding terminal.

Banana plug

(With the exception of U.K., Europe and Asia models)

You can also use banana plugs with the PRESENCE/ZONE 2(3) speaker terminals. Open the tab and then insert one banana plug connector into the hole of each terminal. Do not attempt to close the tabs after connecting the banana plugs.

English

Page 20

CONNECTIONS

(General model)

Subwoofer with

built-in amplifier

Front speakers (A)

LeftRight

Center

speaker

Front

speakers

(B)

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

LeftRight LeftRight

Surround speakers

SPEAKERS

–

FRONT

–

PRE OUT

CENTER

SINGLE

SURROUND/ZONE 2(3)

(SB)

–

SURROUND BACK

Surround back speakers

–

CENTER

–

++––

–

SINGLE

–

SPEAKER IMPEDANCE

–

PRESENCE/ZONE 2(3)

LeftRight

Presence speakers

• You can connect both surround back and presence speakers to this unit, but they do not output sound simultaneously. You can set to prioritize either set of speakers using the PR/SB Priority parameter in Manual Setup (see page 79).

• The surround back speakers output the surround back channel included in Dolby Digital EX and DTS-ES software and operate only when the Dolby Digital EX, DTS-ES, Dolby Pro Logic x, THX Select2, THX Music, THX Games or THX Surround EX decoder is turned on.

• The presence speakers output ambient effects created by the DSP sound fields. They do not output sound when other sound fields are selected.

Page 21

Using bi-wire and bi-AMP connections

Some of the speakers commercially available these days have speaker wire connections that allow bi-wiring or biamplification to enhance the performance of the speaker system. This unit allows you to make bi-wire and bi-AMP connections to one speaker system. Check if your speakers support bi-wiring or bi-amplification. As these speakers are shipped to you, you will note gold-plated shorting bars or bridges, one connecting the two red input terminals and the other connecting the two black input terminals. Remove these shorting bars or bridges only if you plan to bi-wire or bi-AMP your speakers.

FRONT

++–

–

This unit

CONNECTIONS

–

PREPARATION

■ Conventional connection

If you want to connect your speakers as traditional loudspeakers using the conventional connection method, connect your speakers using the regular left and right speaker wire connections and ignore the second set of terminals.

–

This unit

–

Shorting bars or bridges

Shorting bars

or bridges

FRONT

++–

■ Bi-wire connection

The bi-wire connection separates the woofer from the combined midrange and tweeter section. A bi-wire compatible speaker has four binding post terminals. These two sets of terminals allow the speaker to be split into two independent sections. This split connects the mid and high frequency drivers to one set of terminals and the low frequency driver to the other pair.

■ Bi-AMP connection

The bi-AMP connection uses two amplifiers for both speakers. One amplifier is connected to the woofer section of a loudspeaker while the other is connected to the combined mid and tweeter section. With this arrangement each amplifier operates over a restricted frequency range. This restricted range presents each amplifier with a much simpler job and each amplifier is less likely to influence the sound in some way. The internal crossover of the speaker consists of a LPF (low pass filter) and a HPF (high pass filter). As its name implies, the LPF passes frequencies below a cutoff and rejects frequencies above the cutoff frequency. Likewise, the HPF passes frequencies above its cutoff.

Notes

• Remove the shorting bars or bridges to separate the LPF (low pass filter) and HPF (high pass filter) crossovers.

• To activate the bi-AMP connections, set BI-AMP to ON in ADVANCED SETUP (see page 95).

• To make the bi-AMP connections, use the FRONT and SURROUND BACK terminals as shown below.

–+–

Notes

• Remove the shorting bars or bridges to separate the LPF (low pass filter) and HPF (high pass filter) crossovers.

• To use the bi-wire connections, press SPEAKERS A on the front panel so that SP A lights up in the front panel display.

FRONT

SURROUND BACK

This unit

–+–

SINGLE

English

Page 22

CONNECTIONS

Information on cables and jacks used for connections

CAUTION

Do not connect this unit or other components to the main power until all connections between components are complete.

■ Cable indications

For analog signals

left analog cables

right analog cables

For digital signals

optical cables

coaxial cables

For video signals

video cables

S-video cables

■ Analog jacks

You can input analog signals from audio components by connecting audio pin cables to the analog jacks on this unit. Connect red plugs to the right jacks and white plugs to the left jacks.

■ Digital jacks

This unit has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, Dolby Digital and DTS bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks, priority is given to signals input at the COAXIAL jack. All digital input jacks are compatible with 96-kHz sampling digital signals.

Note

This unit handles digital and analog signals independently. Thus audio signals input at the analog jacks are only output at the analog OUT (REC) jacks. Likewise, audio signals input at the digital (OPTICAL or COAXIAL) jacks are only output at the DIGITAL OUTPUT jacks.

For HDMI signals

Page 23

CONNECTIONS

■ Audio jacks

This unit has four types of audio jacks (analog audio, digital audio coaxial, digital audio optical and HDMI). Connection depends on the availability of audio jacks on your other components.

AUDIO

DIGITAL AUDIO

AUDIO jacks

For conventional analog audio signals.

DIGITAL AUDIO (COAXIAL) jacks

For digital audio signals transmitted via digital coaxial cables.

■ Audio signal flow for OUT (REC)

Input

HDMI

DIGITAL AUDIO (COAXIAL)

DIGITAL AUDIO (OPTICAL)

(COAXIAL)

DIGITAL AUDIO

(OPTICAL)

HDMI

DIGITAL AUDIO (OPTICAL) jacks

For digital audio signals transmitted via digital optical cables.

HDMI jacks

For HDMI digital audio signals.

Output

OUT (REC)

Digital audio

PREPARATION

AUDIO

Through

Digital output

Analog output

Analog audio

Notes

• The audio signals input at the HDMI IN 1 or HDMI IN 2 jack are output at the DIGITAL OUTPUT jacks only and are not output at the analog OUT (REC) jacks.

• 2-channel as well as multi-channel PCM, Dolby Digital and DTS signals input at the HDMI IN 1 or HDMI IN 2 jack can be output at the HDMI OUT jack only when HDMI Set is set to Other (see page 92).

• 2-channel PCM, Dolby Digital and DTS signals except multi-channel PCM signals input at the HDMI IN 1 or HDMI IN 2 jack can be output at the DIGITAL AUDIO (OPTICAL) jacks.

• Copy-protected 2-channel PCM signals with over 48 kHz/16 bit input at the HDMI IN 1 or HDMI IN 2 jack are not output at the DIGITAL AUDIO (OPTICAL) jacks.

English

Page 24

CONNECTIONS

■ Video jacks

This unit has four types of video jacks (composite, component, S-video and HDMI). Connection depends on the availability of input jacks on your monitor. When Conversion is set to On (see page 81), the analog video signals input at the VIDEO, S VIDEO and COMPONENT VIDEO jacks can be output at the VIDEO, S VIDEO and COMPONENT VIDEO jacks interchangeably. In addition, when Conversion On (see page 81), the analog video signals input at the VIDEO, S VIDEO and COMPONENT VIDEO jacks can be digitally up-converted and output at the HDMI OUT jack.

VIDEO

S VIDEO

is set to On (see page 81) and HDMI Up-Scaling is set to

COMPONENT VIDEO

Y PBP

HDMI

VIDEO jacks

For conventional composite video signals.

S VIDEO jacks

For S-video signals, separated into luminance (Y) and color (C) video signals to achieve high-quality color reproduction.

■ Video signal flow for MONITOR OUT

Input

HDMI

COMPONENT VIDEO

S VIDEO

VIDEO

Through

COMPONENT VIDEO jacks

For component signals, separated into luminance (Y) and color difference (P

B, PR) to provide the best quality in

picture reproduction.

HDMI jacks

For HDMI digital video signals.

Output

(MONITOR OUT)

Digital video

Analog video

Component I/P (see page 81) only when Conversion is set to On (see page 81)

HDMI Up-Scaling (see page 81) only when Conversion is set to On (see page 81)

Notes

• The analog video signals output at the COMPONENT VIDEO jacks can be deinterlaced from 480i (NTSC) or 576i (PAL) to 480p (NTSC) or 576p (PAL). Set Component I/P to On in Manual Setup to activate this feature (see page 81).

• The analog video signals input at the COMPONENT VIDEO jacks and output at the S VIDEO or VIDEO jacks cannot be converted to 480p (NTSC) or 576p (PAL) /1080i/720p.

• The analog video signals output at the HDMI jack can be up-scaled to 480p/1080i/720p.

• When the analog video signals are input at the COMPONENT VIDEO, S VIDEO and VIDEO jacks, the priority order of the input signals is as follows where the analog video signals input at the COMPONENT VIDEO jacks have the top priority.

1. COMPONENT VIDEO

2. S VIDEO

3. VIDEO

Page 25

CONNECTIONS

Connecting HDMI components

This unit has the HDMI IN 1 and HDMI IN 2 jacks for digital audio and video signal input as well as the HDMI OUT jack for digital audio and video signal output. Connect the HDMI IN 1 or HDMI IN 2 jack of this unit to the HDMI OUT jack of other HDMI components (such as a DVD player). Connect the HDMI OUT jack of this unit to the HDMI IN jack of other HDMI components (such as a TV and a projector). The video or audio signals input at the HDMI IN 1 or HDMI IN 2 jack you selected using the HDMI IN menu in I/O Assignment (see page 74) or the INPUT selector on the front panel are output at the HDMI OUT jack of this unit. In addition, the audio signals input at the HDMI IN 1 or HDMI IN 2 jack are output to speakers, headphones and the DIGITAL OUTPUT jacks.

Notes

• We recommend using an HDMI cable shorter than 5 meters with the HDMI logo printed on it.

• Digital audio signals input at the HDMI IN jacks are not output at the analog AUDIO OUT jacks.

• Some audio signals may not be output at the DIGITAL OUTPUT jacks depending on the signal type.

• The analog video signals input at the composite video, S-video and component video jacks can be digitally up-converted and up-scaled to 480p/1080i/720p to be output at the HDMI OUT jack. Set Conversion to On in Manual Setup (see page 81) and adjust settings for HDMI Up-Scaling to activate this feature (see page 81).

• Some video monitors connected to this unit via a DVI connection fail to recognize the HDMI audio signals being input if they are in the standby mode. In this case, the HDMI indicator flashes irregularly and HDCP ERROR appears in the front panel display as if the DVI monitors do not support the HDCP copy protection standards.

IN 1

IN 2

OUT

HDMI

DVD Player

Cable TV or

Satellite tuner

Video

monitor

HDMI out

HDMI in

PREPARATION

English

Page 26

CONNECTIONS

Connecting video components

■ Connecting a DVD player

HDMI out

Optical out

Audio out

Video out

S VIDEO

VIDEO

AUDI OVIDEO

DVD

Video

monitor

Coaxial out

DVD

DIGITAL INPUT

DVD

OPTICAL

COAXIAL

DVD player

COMPONENT VIDEO

DVD

PBY

Video in

MONITOR OUT

MONITOR

OUT

OUTPUT

DIGITAL OUTPUT

IN 1

IN 2

OUT

HDMI

HDMI in

Note

Check the availability of jacks on your DVD player and select one type of connection for audio/video input/output. However, in case you make an HDMI connection, you can make both audio and video connections using a single HDMI cable.

Page 27

■ Connecting other video components

HDMI out

Cable TV or

COAXIAL

DVR/

VCR 2

IN 1

satellite tuner

COMPONENT VIDEO

DTV

CBL/

SAT

Optical out

DIGITAL INPUT

OPTICAL

CBL/SAT

Video out

PRPBY

Audio out

S VIDEO

VIDEO

CBL/

SAT

VCR 1

OUT

CONNECTIONS

PREPARATION

AUDIOVIDEO

Video

monitor

IN 2

OUT

HDMI

LR LR

Audio in

Video out

DVD recorder

or VCR

Audio out

Video out

Coaxial out

HDMI in

HDMI out

Note

Check the availability of jacks on your other video components and select one type of connection for audio/video input/output. However, in case you make an HDMI connection, you can make both audio and video connections using a single HDMI cable.

English

Page 28

CONNECTIONS

■ Connecting to the MULTI CH INPUT jacks

This unit is equipped with 6 additional input jacks (left and right FRONT, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from a multi-format player, external decoder, sound processor or pre-amplifier. If you set INPUT CH to 8ch in Multi CH Assign (see page 75), you can use the input jacks assigned as FRONT INPUT in Multi CH Assign (see page 75) together with the MULTI CH INPUT jacks to input 8-channel signals. Connect the output jacks on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to match the left and right outputs to the left and right input jacks for the front and surround channels.

For 6-channel input For 8-channel input

FRONT(6CH)/SB(8CH)

SURROUND

SUBWOOFER

MULTI CH INPUT

Subwoofer

out

Multi-format player/

External decoder

Front out

CENTER

Center out

Surround out

Surround back out

FRONT(6CH)/SB(8CH)

SURROUND

CENTER

SUBWOOFER

MULTI CH INPUT

Subwoofer out

Center out

Multi-format player/

External decoder

LRLR

Surround out

Front out

DVD

DTV

CBL/

SAT

VCR 1

OUT

DVR/VCR 2

AUDIO

(

PLAY

MD/TAPE

OUT

(REC)

(

PLAY

CD-R

OUT

(REC)

AUDIO

)

Notes

• When you select MULTI CH INPUT as the input source, this unit automatically turns off the digital sound field processor, and you cannot select sound field programs.

• This unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that you connect at least a 5.1-channel speaker system before using this feature.

• When headphones are used, only front L/R channels are output.

■ Connecting to the VIDEO AUX jacks on the front panel

Use these jacks to connect any video source, such as a game console or video camera, to this unit.

VIDEO AUX

S VIDEO VIDEO OPTICALL AUDIO R

Optical out

Audio out R Audio out L

Video out

Game console or video camera

S-video out

Page 29

Connecting audio components

Optical in

CD recorder

CONNECTIONS

Optical in

MD recorder or

tape deck

MD/TAPE

CD-R

DIGITAL OUTPUT

Audio in

DIGITAL INPUT

OPTICAL

COAXIAL

Audio out

LRLRLR LR

AUDIO

(PLAY)

MD/TAPE

OUT

(REC) (PLAY)

CD-R

OUT

(REC)

PHONO

Audio inAudio out

PREPARATION

GND

LRLR

Audio out

Optical out

Coaxial out

Audio out

CD player

GND

Turntable

Notes

• Check the availability of jacks on your audio components and select one type of connection for audio/video input/output.

• PHONO jacks are for connecting a turntable with an MM or high-output MC cartridge. If you have a turntable with a low-output MC cartridge, use an in-line boosting transformer or MC-head amplifier when connecting to these jacks.

• Connect your turntable to the GND terminal to reduce noise in the signal. However you may hear less noise without the connection to the GND terminal for some record players.

English

Page 30

CONNECTIONS

■ Connecting an external amplifier

If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the PRE OUT jacks as follows.

Notes

• When audio pin plugs are connected to the PRE OUT jacks for output to an external amplifier, it is not necessary to use the corresponding SPEAKERS terminals. Set the volume of the external amplifier connected to this unit to the maximum.

• The signal output at the FRONT PRE OUT and CENTER PRE OUT jacks are affected by the TONE CONTROL settings.

• If SPEAKERS A is turned off and SPEAKERS B is set to Zone B (see page 88), signals will only be output at the FRONT PRE OUT jacks.

PRE OUT

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

CENTER

SINGLE

(SB)

1 FRONT PRE OUT jacks

Front channel line output jacks.

2 SURROUND PRE OUT jacks

Surround channel line output jacks.

3 SUBWOOFER PRE OUT jack

Connect a subwoofer with built-in amplifier, such as the YAMAHA Active Servo Processing Subwoofer System, to this jack.

4 SURROUND BACK/PRESENCE PRE OUT

jacks

Surround back or presence channel line output jacks. If you only connect one external amplifier for the surround back channel, connect it to the left (L) jack.

5 CENTER PRE OUT jack

Center channel line output jack.

Notes

• Each PRE OUT jack outputs the same channel signal as the corresponding speaker terminals. However, when both surround back and presence speakers are setup in this unit, the signals output at SURROUND BACK/PRESENCE PRE OUT jacks may not correspond to the correct speakers.

• Adjust the volume level of the subwoofer with the control on the subwoofer.

• Some signals may not be output at the SUBWOOFER PRE OUT jack depending on the Speaker Set settings (see page 83).

Page 31

CONNECTIONS

Connecting the antennas

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength. Connect each antenna correctly to the designated terminals.

Ground (GND terminal)

For maximum safety and minimum interference, connect the antenna ground. A good earth ground is a metal stake driven into moist earth.

GND terminal to a good earth

■ Connecting the AM loop antenna

1 Set up the AM loop antenna.

Indoor FM antenna

(included)

3 Orient the AM loop antenna for the best

reception.

FM ANT

UNBAL.

AM loop antenna (included)

TUNER

75Ω

AM ANTGND

PREPARATION

2 Press and hold the tab to insert the AM loop

antenna lead wires into the AM ANT and GND terminals.

Notes

• The AM loop antenna should be placed away from this unit.

• The AM loop antenna should always be connected, even if an outdoor AM antenna is connected to this unit.

• A property installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about outdoor antennas.

English

Page 32

CONNECTIONS

Connecting the power cable

■ Connecting the AC power cable

Plug the supplied AC power cable into the AC inlet after all other connections are complete and then plug the AC power cable to an AC wall outlet.

CAUTION

Use the supplied AC cable. Do not use other AC power cables as doing so may result in fire hazard or electrical shock.

VOLTAGE

SELECTOR

AC IN

AC OUTLETS

SWITCHED

50W MAX.TOTAL

(General model)

AC OUTLET(S) (SWITCHED)

U.K. and Australia models .................................... 1 outlet

Korea model ...............................................................None

Other models .........................................................2 outlets

Use these outlets to supply power to any connected components. Connect the AC power cables of your other components to these outlets. Power to these outlets is supplied when the main room, Zone 2 or Zone 3 is turned on. However, power to these outlets is cut off when the main room, Zone 2 and Zone 3 are turned off or when MASTER ON/OFF on the front panel is pressed and released outward to the OFF position. The maximum power or the total power consumption of the components that can be connected to these outlets is as follows.

Asia and General models........................................... 50 W

Other models ...........................................................100 W

VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are as follows:

Asia model............................AC 220/230–240V, 50/60 Hz

General model ...... AC 110/120/220/230–240 V, 50/60 Hz

Turning on and off this unit

When all connections are complete, turn on the power of this unit.

2,3

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2

V-AUX

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

VIDEO/AUX

ZONE 2

ZONE 3

AUDIO R OPTICAL

PROGRAM

MULTI ZONE

PRESET/

MULTI CH

1,4

1 Press MASTER ON/OFF on the front panel

inward to the ON position to turn on the power of this unit.

• Only this unit is turned on.

• Zone 2 and Zone 3 are set to the standby mode.

MASTER

OFF

2 Press MAIN ZONE ON/OFF on the front panel

(or STANDBY on the remote control) to set this unit to the standby mode.

ON/OFF

Front panel Remote control

STANDBY

VOLUME

TONE

Memory back-up

The memory back-up circuit prevents the stored data from being lost. However, the stored data will be lost in case the power cord is disconnected from the AC wall outlet for more than one week.

Page 33

CONNECTIONS

3 Press MAIN ZONE ON/OFF, ZONE 2 ON/OFF

or ZONE 3 ON/OFF on the front panel (or POWER on the remote control) to turn on this unit, Zone 2 or Zone 3.

ON/OFF

Front panel Remote control

POWER

• When MASTER ON/OFF is pressed inward to the ON position, you can also press POWER or STANDBY on the remote control to turn on or set this unit, Zone 2 and Zone 3 to the standby mode simultaneously.

• For details about controlling Zone 2 and Zone 3 using the remote control, see page 110.

Note

MAIN ZONE ON/OFF, ZONE 2 ON/OFF and ZONE 3 ON/OFF on the front panel as well as POWER and STANDBY on the remote control are operational only when MASTER ON/OFF is pressed inward to the ON position.

4 Press MASTER ON/OFF on the front panel

again to release it outward to the OFF position to turn off this unit.

This unit, Zone 2 and Zone 3 are turned off.

MASTER

OFF

Setting the speaker impedance

Follow the procedure below to change the impedance setting for all speakers.

CAUTION

If you are using 6 ohm speakers, set the impedance to 6 ohms before using this unit.

1 Press MASTER ON/OFF on the front panel to

release it outward to the OFF position to set this unit, Zone 2 and Zone 3 to the standby mode.

MASTER

OFF

2 Press and hold STRAIGHT (EFFECT) on the

front panel and then press MASTER ON/OFF inward to the ON position to turn on the power of this unit.

SP IMP.–8ΩMIN appears in the front panel display.

MASTER

OFF

STRAIGHT

EFFECT

ADVANCED SETUP SP IMP.-8 MIN

PREPARATION

3 Press STRAIGHT (EFFECT) on the front

panel repeatedly to select the impedance of your speakers.

STRAIGHT

EFFECT

• Select 6 ohms if you are using 6 ohm speakers.

• Select 8 ohms if you are using 8 ohm speakers.

4 Press MASTER ON/OFF on the front panel to

release it outward to the OFF position to save the new setting and set this unit, Zone 2 and Zone 3 to the standby mode.

This unit will be set to the standby mode.

MASTER

OFF

Note

You can also set the speaker impedance by using the SP IMP. parameter in the ADVANCED SETUP menu (see page 94).

English

Page 34

AUTO SETUP

Introduction

This receiver employs YAMAHA Parametric Room Acoustic Optimizer (YPAO) technology which lets you avoid troublesome listening-based speaker setup and achieves highly accurate sound adjustments. The supplied optimizer microphone collects and analyzes the sound your speakers produce in your actual listening environment.

Notes

• Please be advised that it is normal for loud test tones to be output during the AUTO SETUP procedure.

• If the AUTO SETUP procedure stops and error messages appear on the screen, follow the troubleshooting on page 119.

YPAO performs the following checks and makes appropriate adjustments to give you the best possible sound from your system.

Wiring

Checks which speakers are connected and the polarity of each speaker.

Distance

Checks the distance of each speaker from the listening position and adjusts the timing of each channel.

Size

Checks the speaker’s frequency response and sets the appropriate low frequency crossover for each channel.

Equalizing

Adjusts frequency and levels of each channel’s parametric equalizer to reduce coloration across the channels and create a cohesive sound field. This is particularly important if you use different brands or sizes of speakers for some channels or have a room with unique sonic characteristics. YPAO equalizing calibration incorporates three parameters (frequency, level and Q factor) for each of the seven bands in its parametric equalizer to provide highly precise automatic adjustment of frequency characteristics.

Level

Checks and adjusts the volume level of each speaker.

Optimizer microphone setup

1 Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front panel.

MULTI CH

SELECT

CBL/SAT

VCR 1

AUDIO

DTV

DVR/ VCR 2

V-AUX

REC OUT/ZONE 2

SOURCE/ REMOTE

INPUT

MD/TAPEDVD

CD-R

PHONO

TUNER

PRESET/ TUNING

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

MULTI ZONE

PRESET/ TUNING

EDIT

FM/AM

ZONE 2

VIDEO/AUX

MEMORY

MAN'L/AUTO FM

ZONE ON/OFF

ZONE 3

AUDIO R OPTICAL

TUNING

MODE

AUTO/MAN'L EFFECT

ZONE CONTROL

Notes

• After you have completed the AUTO SETUP procedure, be sure to disconnect the optimizer microphone.

• The optimizer microphone is sensitive to heat. – Keep it away from direct sunlight. – Do not place it on top of this unit.

2 Place the optimizer microphone on a flat

level surface with the omni-directional microphone head upward, at your normal listening position.

If possible, use a tripod (etc.) to affix the optimizer mic at the same height as your ears would be when you are seated in your listening position.

Optimizer microphone position

STRAIGHT

PROGRAM

CONTROL

TONE

Page 35

AUTO SETUP

CLEAR

LEARN

RE–NAME

REC

DISC SKIP

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

MACROONOFF

SPEAKERSMEMORY

EXIT

PURE DIRECT

TOP

SELECT

VOLUME

–

POWER POWER

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

Using AUTO SETUP

For best results, make sure the room is as quiet as possible during the AUTO SETUP procedure (YPAO). If there is too much ambient noise, the results may not be satisfactory.

• You can run AUTO SETUP using the system menu that appears in the GUI or in the front panel display. This manual uses the GUI illustrations to explain the AUTO SETUP procedure.

• If an error occurs during the AUTO SETUP procedure and an error message appears in the front panel display, see pages 119 and 120 for a complete list of error messages and proper remedies.

• If your subwoofer can adjust the output volume and the crossover frequency, set the volume to about half way (or slightly less) and set the crossover frequency to the maximum.

CROSSOVER

GUI TOP

TITLE

BAND

RETURN

HIGH CUT

MAX

MIN

PRESET

EXIT

PURE DIRECT

NIGHT

STRAIGHT

AUDIO

3-9

EFFECT

ENTER

A/B/C/D/E

DISPLAY

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1

MIN

VOLUME

MAX

Subwoofer

MULTI CH IN

CD-R

DVD

1 Switch on this unit and video monitor.

2 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Video

Basic

Option

GUI TOP

TITLE

BAND

3 Press k / n repeatedly to select Auto Setup

and then press h.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

PREPARATION

FREQ/TEXT EON MODE PTY SEEK START

Input Select

Manual Setup

Auto Setup

System Memory

Signal Info.

Information

Setup Menu

Setup Type

Start

4 Press k / n repeatedly to select Setup Menu

and then press h.

Information

Setup Menu

Setup Type

Start

Wiring

Distance

Size

English

Page 36

AUTO SETUP

5 Press k / n repeatedly to select Wiring,

Distance, Size, Equalizing or Level and then press h.

Skip

Wiring

Distance

Size

Wiring

Distance

Size

Equalizing

Wiring

Distance

Size

Equalizing

Level

Distance

Size

Equalizing

Level

Check

Skip

Check

Skip

Check

Skip

Check: Natural

Check: Flat

Check: Front

For Equalizing, press k / n to select:

Skip To skip the selected item and perform no

adjustments.

Check: Natural To average out the frequency response of all

speakers with higher frequencies being less emphasized. Recommended if the “Flat” setting sounds a little harsh.

Check: Flat To average the frequency response of all

speakers. Recommended if all of your speakers are of similar quality.

Check: Front To adjust the frequency response of each

speaker in accordance with the sound of your front speakers. Recommended if your front speakers are of much higher quality than your other speakers.

7 Once you have selected the desired setting,

press l to move back to Setup Menu.

Information

Setup Menu

Setup Type

Start

Wiring

Distance

Size

Equalizing

Level

Skip

Check

6 For Wiring, Distance, Size or Level, select:

Check To automatically check and adjust the selected

item.

Skip To skip the selected item and perform no

When using THX speakers, select “Skip” for Size and make sure that “Small” or “Small x2” is selected in Speaker Set (see page 83) and that “80Hz” is selected in Bass Cross Over (see page 85).

adjustments.

8 Press n to select Setup Type and then select:

Auto To automatically perform the entire

AUTO SETUP procedure.

Step To pause for confirmation between

each check in the AUTO SETUP procedure.

Information

Setup Menu

Setup Type

Start

Auto

Step

Page 37

AUTO SETUP

9 Press n to select Start and then press

ENTER.

Loud test tones are output from each speaker and “Measuring” appears during the AUTO SETUP procedure.

Setup Menu

Setup Type

Press ENTERStart

• To stop the AUTO SETUP procedure, press one of the cursor buttons ( mode, press k to retry the procedure, SETUP.

• If an error message appears during testing, refer to TROUBLESHOOTING on page 119, and after carrying out the remedy, retry the AUTO SETUP procedure.

k / n / l / h) or ENTER. In the pause

l to cancel AUTO

Confirming the results

You can confirm the results of each analysis.

If you set Setup Type to “Auto”

The results are displayed after all items have been analyzed.

Setup Menu

Setup Type

Start

•Press n and select Setup to set the measured values.

•Press k and select Retry to retry the AUTO SETUP procedure.

•Press h and select Detail to view information about measurement results and warning messages. For more details about warning messages, see TROUBLESHOOTING on page 119.

•Press l and select Exit to exit from the AUTO SETUP procedure. If you select Exit, “Don’t Setup?” appears on the screen. To set the measured values and exit, select Yes. To cancel the settings and exit, select No.

If you set Setup Type to “Step”

The results are displayed individually after each analysis.

Retry

Exit Detail

Setup

Measurement Over

Successfully

PREPARATION

Distance

Size

Equalizing

Level Result

Retry

Exit Detail

•Press n and select Next to start measurement of the next menu item.

•Press k and select Retry to retry the AUTO SETUP procedure.

•Press h and select Detail to view information about measurement results and warning messages. For more details about warning messages, see TROUBLESHOOTING on page 119.

English

Page 38

AUTO SETUP

After all menu items have been measured, “Measurement Over” appears on the screen and the results for each item are displayed.

•Press n and select Setup to set the measured values.

•Press k and select Retry to retry the AUTO SETUP procedure.

•Press h and select Detail to view information about measurement results and warning messages. For more details about warning messages, see TROUBLESHOOTING page 119.

• If you want to make more detailed settings, change the system parameters using the Manual Setup menu. If you want to return to the Auto Setup settings after making settings in the Manual Setup menu, navigate to the Information screen in the Auto Setup menu, press k / n repeatedly to select the parameter you want to adjust and then press ENTER.

• If you are not satisfied with the result or want to manually adjust each step parameter, THX recommends running the Manual Setup (see page 76).

Notes

• If you change speakers, speaker positions, or the layout of your listening environment, perform AUTO SETUP again to recalibrate your system.

• Depending on your listening environment, SubWfr:REV may appear in the Wiring results. In this case, SWFR Phase in the Manual Setup menu (see page 85) is automatically set to Reverse. To select the desired setting, change the SWFR Phase parameter in the Manual Setup menu.

• In the Distance results, the distance displayed may be longer than the actual distance depending on the characteristics of your subwoofer. This may also be the case when using an external amplifier.

• In the Equalizing results, different values may be set for the same band to provide finer adjustments.

Page 39

PLAYBACK

CLEAR

LEARN

RE–NAME

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

BAND

A/B/C/D/E

NIGHT

AUDIO

ENTER

GUI TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

MACROONOFF

SPEAKERSMEMORY

EXIT

PURE DIRECT

TOP

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

VOLUME

–

POWER POWER

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

PLAYBACK

CAUTION

Extreme caution should be exercised when you play back CDs encoded in DTS. If you play back a CD encoded in DTS on a DTS-incompatible CD player, you will only hear some unwanted noise that may damage your speakers. Check whether your CD player supports CDs encoded in DTS. Also, check the sound output level of your CD player before you play back a CD encoded in DTS.

Basic operations

PRESET/

MULTI CH

AUDIO

SELECT

INPUTMAIN ZONE

DTV

CBL/SAT

ON/OFF

MASTER

ON OFF

VCR 1

DVR/ VCR 2

V-AUX

REC OUT/ZONE 2

INPUT

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

PHONO

TUNER

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

TUNING

PRESET/

FM/AM

TUNING

EDIT

MULTI ZONE

ZONE 2

VIDEO/AUX

TUNING

STRAIGHT

MEMORY

MODE

MAN'L/AUTO FM

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

PROGRAM

ZONE 3

AUDIO R OPTICAL

PRESET

FREQ/TEXT EON MODE PTY SEEK START

2 Turn on the power of the video monitor

connected to this unit.

3 Press SPEAKERS A or B on the front panel

PURE DIRECT

VOLUME

TONE

CONTROL

EXIT

PURE DIRECT

STRAIGHT

7 3

(or press SPEAKERS A or B on the remote control).

Each time you press SPEAKERS A or B, the respective speakers are turned on or off.

SPEAKERS

Front panel Remote control

+10

SPEAKERS

ENT.

Note

When bi-wiring, select both A and B.

4 Rotate the INPUT selector on the front panel

(or press one of the input selector buttons on the remote control) to select the desired input source.

INPUT

OPERATION

BASIC

1 Press MAIN ZONE ON/OFF (or set

AMP/SOURCE/TV to AMP and then press POWER on the remote control) to turn on the power of this unit.

ON/OFF

Front panel

AMP

SOURCE

Remote control

POWER

Front panel Remote control

The name of the currently selected input source appears in the front panel display and on the video monitor for a few seconds.

V-AUX

Name of the currently selected input source

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

INPUT: DVD A.SEL: AUTO

VOLUME

L R

TUNERPHONO

5 Start playback or select a broadcast station

on the source component.

Refer to the operation instructions for the component. See page 47 for details about tuning instructions.

English

Page 40

PLAYBACK

6 Rotate VOLUME on the front panel (or press

VOLUME +/– on the remote control) to adjust the volume to the desired output level.

VOLUME

–

Front panel

Remote control

7 Rotate the PROGRAM selector on the front

panel (or press one of the sound field program buttons on the remote control) to select the desired sound field program.

The name of the selected sound field program appears in the front panel display and on the video monitor. See page 58 for details about sound field programs.

STEREO

PROGRAM

MUSIC ENTERTAIN MOVIE

THX

5678

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

■ Notes on Dialogue Normalization (Dial Norm)

Dialogue Normalization (Dial Norm) is a feature of Dolby Digital and DTS, which is used to keep the programs at the same average listening level so the user does not have to change the volume control between Dolby Digital and DTS programs. When playing back software which has been encoded in Dolby Digital and DTS, sometimes you may see a brief message in the front panel display which will read “Dial Norm X dB” (X being a numeric value). The display is showing how the program level relates with THX calibration level. If you want to play the program at calibrated theatrical levels, you may wish to adjust the volume.

DialNorm;;+4dB

For example, if you see the following message: “Dial Norm + 4 dB” in the front panel display, to keep the overall output level at THX calibrated loudness, just turn down the volume control by 4dB. However, unlike a movie theater where the playback loudness is preset, you can choose your preferred volume setting for best enjoyment.

Front panel

Remote control

Name of the sound field category

V-AUX

HiFi DSP

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

MUSIC

Hall in Vienna

VOLUME

L R

TUNERPHONO

Program name

Notes

• Choose a sound field program based on your listening preference, and not on the name of the program.

• When you select an input source, this unit automatically selects the last sound field program used with that source.

• Sound field programs cannot be selected when the MULTI CH INPUT is selected.

Page 41

Additional operations

PLAYBACK

■ Muting the sound output

Use this feature to mute the sound output.

■ Adjusting the tonal quality

Use this feature to adjust the balance of bass and treble for the front L/R and center speaker channels.

1 Press TONE CONTROL on the front panel

repeatedly to select TREBLE or BASS.

TONE

CONTROL

2 Rotate the PROGRAM selector to adjust the

high-frequency response (TREBLE) or the low-frequency response (BASS).

PROGRAM

3 Press TONE CONTROL repeatedly to select

BYPASS and cancel the tone control.

TONE

CONTROL

Notes

• If you increase or decrease the high-frequency or the low-frequency sound to an extreme level, the tonal quality of the surround speakers may not match that of the front L/R and center speakers.

• TONE CONTROL is not effective when THX (see page 41) or PURE DIRECT (see page 42) is selected, or when MULTI CH INPUT is selected.

1 Press MUTE on the remote control.

The MUTE indicator flashes in the front panel display.

MUTE

Flashes

2 Press MUTE again (or press VOLUME +/–) to

resume the sound output.

The MUTE indicator disappears from the display.

MUTE

You can adjust how much the muting function reduces the sound output (see page 79).

■ Using SILENT CINEMA

Use this feature to enjoy multi-channel music or movie sound, including Dolby Digital and DTS surround, through ordinary headphones. SILENT CINEMA activates automatically whenever you connect headphones to the PHONES jack while listening to CINEMA DSP or HiFi DSP sound field programs. When activated, the SILENT CINEMA indicator lights up in the front panel display.

Note

SILENT CINEMA is ineffective in the following cases:

– MULTI CH INPUT is selected as the input mode. – PURE DIRECT is selected. – A 2ch Stereo program is selected. – This unit is in the STRAIGHT mode.

VOLUME

–

OPERATION

BASIC

English

Page 42

PLAYBACK

■ Selecting the MULTI CH INPUT

Press MULTI CH INPUT on the front panel or MULTI CH IN on the remote control so that MULTI CH INPUT appears in the front panel display and on the video monitor.

MULTI CH

INPUT

Front panel Remote control

MULTI CH IN

Note

When MULTI CH INPUT is shown in the front panel display and the video monitor, no other source can be played. To select another input source with the INPUT selector on the front panel (or one of the input selector buttons on the remote control), press MULTI CH INPUT so that MULTI CH INPUT disappears from the front panel display and the video monitor.

■ Enjoying multi-channel software in

6.1/7.1 channel surround

If you connected one or two surround back speakers, use this feature to enjoy 6.1/7.1-channel playback for multi-channel sources using the Dolby Pro Logic x, Dolby Digital EX or DTS-ES decoders.

1 Set AMP/SOURCE/TV to AMP and then press

EXTD SUR. on the remote control to switch between 5.1 and 6.1/7.1 channel playback.

AMP

SOURCE

EXTD SUR.

2 Press l / h repeatedly to select a decoder

when the name of a decoder (PL xMovie, for example) is displayed in the front panel display.

PRESET

ENTER

A/B/C/D/E

Auto

AUTO

If a signal flag can be recognized, the unit selects the optimum decoder to play back the signal in 6.1/7.1 channels. If the signal flag cannot be recognized, or no flag is present in the input signal, this unit cannot automatically play back the signal in 6.1/7.1 channels.

Decoders

You can select a decoder from the following list depending on the format of the software you are playing.

PL xMovie

To play back Dolby Digital or DTS signals in 7.1 channels using the Pro Logic x movie decoder.

PL xMusic

To play back Dolby Digital or DTS signals in 6.1/7.1 channels using the Pro Logic x music decoder.

EX/ES To play back Dolby Digital signals in 6.1/7.1 channels using the Dolby Digital EX decoder. DTS signals are played back in 6.1/7.1 channels using the DTS-ES decoder.

EX To play back Dolby Digital or DTS signals in 6.1/7.1 channels using the Dolby Digital EX decoder.

OFF

To play back Dolby Digital or DTS signals in 5.1 channels.

When Surround Back is set to Large x1 or Small x1 (see page 84), the surround back channel will output from the left SURROUND BACK speaker terminals.

Notes

• Some 6.1-channel compatible discs do not have a signal flag which cannot be automatically detected. When you play these

kinds of discs in 6.1-channel, select decoders (PL xMovie, PL xMusic, EX/ES or EX) manually.

• 6.1/7.1-channel playback is not possible even if EXTD SUR. is pressed in the following cases: – When Surround (see page 84) or Surround Back (see page 84)

is set to None.

– When the source connected to the MULTI CH INPUT jacks

are being played.

– When the source being played does not contain surround L/R

channel signals. – When a Dolby Digital KARAOKE source is being played. – When 2ch Stereo, 7ch Stereo or PURE DIRECT is selected.

• When the power of this unit is turned off, the input mode will be reset to AUTO.

• The Pro Logic x decoder is not available when Surround Back is set to None (see page 84).

• PL xMovie cannot be selected when Surround Back is set to Large x1 or Small x1 (see page 84).

Page 43

PLAYBACK

■ Enjoying 2-channel software in surround

Signals input from 2-channel sources can also be played back in multiple channels.

1 Set AMP/SOURCE/TV to AMP and then press

STANDARD on the remote control to switch between the Surround and Enhanced programs.

AMP

SOURCE

STANDARD

You can also press MOVIE or THX on the remote control to select the MOVIE THEATER or THX programs.

MOVIE

THX

2 Press SELECT on the remote control to

select a decoder.

SELECT

Decoder types for the Enhanced, MOVIE THEATER or THX program

Dolby Pro Logic processing for any sources.

Dolby Pro Logic x processing for movie software.

<Neo:6 Cinema>

DTS processing for movie software.

• You can also select a decoder by using Decoder Mode in Input Select (see page 75).

• You can also select a decoder by pressing l / h on the remote control when the decoder type is displayed in the short message display.

Note

The Pro Logic x decoder automatically changes to the Pro Logic decoder when Surround Back is set to None

(see page 84).

OPERATION

BASIC

You can select a decoder from the following list depending on the type of software you are playing and your personal preference.

Decoder types for the Surround program

Dolby Pro Logic processing for any sources.

Dolby Pro Logic x processing for movie software.

Dolby Pro Logic x processing for music software.

Dolby Pro Logic x processing for game software.

<Neo:6 Cinema>

DTS processing for movie software.

<Neo:6 Music>

DTS processing for music software.

English

Page 44

PLAYBACK

■ Using PURE DIRECT

PURE DIRECT bypasses the decoders and DSP processors of this unit as well as shuts down the video circuitry, allowing you to enjoy the highest possible sound fidelity from analog and PCM sources.

Notes

• To avoid unexpected noise, do not play DTS-encoded CDs in the PURE DIRECT mode.

• When a multi-channel signal (Dolby Digital or DTS) is input, this unit automatically switches to the corresponding analog input. When DTS is selected as an input mode, no sound will be heard.

• No sound will be output from the subwoofer.

• TONE CONTROL on the front panel and the GUI menu settings are ineffective in the PURE DIRECT mode.

• The following operations are not possible in the PURE DIRECT mode: – switching the sound field program – displaying the short message – adjusting GUI menu parameters – all video functions including video conversions – HDMI digital video up-conversion of analog video signals – HDMI digital output

• PURE DIRECT is automatically canceled whenever this unit is set to the standby mode.

1 Press PURE DIRECT on the front panel or on

the remote control to activate pure direct.

The indicator around the button on the front panel lights up and the front panel display automatically goes out

PURE DIRECT

Front panel Remote control

PURE DIRECT

■ Using the night listening modes

The night listening modes are designed to improve listenability at lower volume levels or at night. Choose either NIGHT:CINEMA or NIGHT:MUSIC depending on the type of source you are playing.

Notes

• You cannot use the night listening modes if PURE DIRECT or MULTI CH INPUT are being used or if headphones are connected even though the NIGHT indicator lights up when PURE DIRECT is selected.

• The night listening modes may vary in effectiveness depending on the input source and the surround sound settings being used.

1 Set AMP/SOURCE/TV to AMP and then press

NIGHT on the remote control repeatedly to select NIGHT:CINEMA or NIGHT:MUSIC.

When a night listening mode is selected, the NIGHT indicator lights up in the front panel display.

AMP

SOURCE

• Select NIGHT:CINEMA when watching films to reduce the dynamic range of film soundtracks and make dialog easier to hear at lower volume levels.

• Select NIGHT:MUSIC when listening to music sources to preserve ease-of-listening for all sounds.

• Select NIGHT:OFF if you do not want to use this function.

NIGHT

AUDI O

NIGHT

Lights up

Note

The front panel display switches on momentarily when an operation is performed.

2 Press PURE DIRECT on the front panel or on

the remote control again to deactivate pure direct.

The indicator around the button on the front panel goes out and the previous settings are restored.

PURE DIRECT

Front panel Remote control

PURE DIRECT

2 Press l / h to adjust the effect level of

compression while NIGHT:CINEMA or NIGHT:MUSIC is displayed.

Choices: MIN, MID, MAX

PRESET

ENTER

A/B/C/D/E

Remote control

Effect.Lvl:MID

• Select MIN for minimum compression.

• Select MID for standard compression.

• Select MAX for maximum compression.

NIGHT:CINEMA and NIGHT:MUSIC settings are stored independently.

Page 45

PLAYBACK

■ Using the sleep timer

Use this feature to automatically set this unit in the standby mode after a certain amount of time. The sleep timer is useful when you are going to sleep while this unit is playing or recording a source. The sleep timer also automatically turns off any external components connected to the AC OUTLETS.

1 Select an input source and start playback on

the source component.

2 Press SLEEP on the remote control

repeatedly to set the amount of time.

SLEEP

Each time you press SLEEP, the front panel display changes as shown below.

SLEEP 120min SLEEP 90min

SLEEP 60minSLEEP 30minSLEEP OFF

The SLEEP indicator flashes while switching the amount of time for the sleep timer.

V-AUX

VCR 1

DTV DVD CD-R CDXMTUNERPHONO

MD/TAPECBL/SATDVR/VCR 2

SLEEP 120min

SLEEP00120min

VOLUME

L R

SLEEP

The SLEEP indicator lights up in the front panel display, and the display returns to the selected sound field program.

V-AUX

HiFi DSP

VCR 1

DTV DVD CD-R CDXMTUNERPHONO

MD/TAPECBL/SATDVR/VCR 2

MUSIC

Hall in Vienna

VOLUME

L R

SLEEP

3 Press SLEEP repeatedly so that SLEEP OFF

appears in the front panel display.

The SLEEP indicator turns off and then SLEEP OFF appears in the front panel display. After a few seconds, the display returns to the selected sound field program.

SLEEP

V-AUX

VCR 1

DTV DVD CD-R CD

SLEEP OFF

VOLUME

L R

TUNERPHONO

MD/TAPECBL/SATDVR/VCR 2

■ Downmixing to 2 channels

You can enjoy 2-channel stereo playback from multichannel sources.

Rotate the PROGRAM selector (or set AMP/SOURCE/TV to AMP and then press STEREO on the remote control) to select 2ch Stereo.

2ch Stereo appears in the front panel display.

PROGRAM

Front panel

STEREO

AMP

SOURCE

Remote control

MUSIC ENTERTAIN MOVIE

THX

5678

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

2ch Stereo

Note

You can use a subwoofer with this program when SWFR or Both is selected in Bass Out (see page 85).

■ Listening to unprocessed input signals

When the unit is in the STRAIGHT mode, 2-channel stereo sources are output only from the front L/R speakers. Multi-channel sources are decoded straightly into the appropriate channels without any additional effect processing.

1 Press STRAIGHT (EFFECT) on the front

panel or on the remote control to select STRAIGHT.

STRAIGHT appears in the front panel display.

STRAIGHT

EFFECT

Front panel Remote control

STRAIGHT

EFFECT

OPERATION

BASIC

The sleep timer setting can also be canceled by pressing STANDBY on the remote control (or MAIN ZONE ON/OFF on the front panel) to set this unit, Zone 2 and Zone 3 to the standby mode.

English

Page 46

PLAYBACK

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

2 Press STRAIGHT (EFFECT) on the front

panel or on the remote control again to turn the sound effect back on.

STRAIGHT disappears from the front panel display.

STRAIGHT

EFFECT

Front panel Remote control

■ Virtual CINEMA DSP

Virtual CINEMA DSP allows you to enjoy the CINEMA DSP programs without surround speakers. It creates virtual speakers to reproduce a natural sound field. If you set Surround to None (see page 84), Virtual CINEMA DSP activates automatically whenever you select a CINEMA DSP sound field program.

Note

Virtual CINEMA DSP is ineffective even if Surround is set to None (see page 84) in the following cases:

– If MULTI CH INPUT is selected as the input source. – If headphones are connected to the PHONES jack.

■ Playing video sources in the background

You can combine images from a video source with sound from an audio source. For example, you can listen to classical music while enjoying beautiful scenery from the video source on the video monitor.

Press one of the input selector buttons on the remote control to select a video source and then select an audio source.

Note

If you want to enjoy an audio source connected to the MULTI CH INPUT jacks together with a video source, first select the video source and then press MULTI CH INPUT on the front panel or on the remote control.

STRAIGHT

EFFECT

Audio sources

Video sources

■ Selecting audio input modes

This unit comes with a variety of input jacks. You can select the type of input signal you want to use.

Press AUDIO SELECT on the front panel or AUDIO SEL on the remote control to select an input mode.

AUDIO

SELECT

POWER POWER

AVTV

PHONO TUNER CD

Front panel Remote control

V-AUX

VCR 1

DTV DVD CD-R CDXMTUNERPHONO

MD/TAPECBL/SATDVR/VCR 2

INPUT: DVD A.SEL: AUTO

Type of the input mode

AUTO

Automatically selects input signals in the following order:

1) HDMI

2) Digital signals

3) Analog signals

HDMI

Selects only HDMI signals. If no HDMI signals are input, no sound is output.

COAX/OPT

Selects digital signals input at the OPTICAL or COAXIAL jacks. Use if HDMI signals are also being input.

ANALOG

Selects only analog signals. If no analog signals are input, no sound is output.

• We recommend using AUTO in most cases.

• You can designate the default input mode to be selected when the power of this unit is turned on (see page 30).

Notes

• This feature is not available if no digital input jacks (OPTICAL, COAXIAL and HDMI) are assigned. In addition, HDMI is not available as an input mode if HDMI IN 1 and HDMI IN 2 jacks are not assigned. Use I/O Assignment in Input Select to reassign the respective input jacks (see page 74).

• If the digital output data of the player has been processed in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.

• If this unit detects a Dolby Digital or DTS signal, the decoder automatically switches to the appropriate sound field program.

• The input jacks not assigned are not available as input modes.

STANDBY

AUDIO SEL

VOLUME

L R

POWER

SLEEP

MULTI CH IN

Page 47

PLAYBACK

■ Displaying information about the input source

You can display the type, format and sampling frequency of the current input signal.

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Video

Basic

Option

GUI TOP

TITLE

BAND

2 Press n repeatedly to select Signal Info. and

then press h.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

3 Press l / h repeatedly to select Audio Info.

or Video Info..

The following information appears.

PRESET

ENTER

A/B/C/D/E

Auto Setup

System Memory

Signal Info.

Language

Audio Info. Video

Format

- - -

Sampling

48kHz

Channel

???

Bitrate

- - -

Dialogue

- - -

Flag1

- - -

Flag2

- - -

Audio Info. (Audio information)

Format

Signal format display. When the unit cannot detect a digital signal, it automatically switches to analog input.

Sampling

Sampling frequency. When the unit is unable to detect the sampling frequency “?” appears.

Channel

Number of source channels in the input signal. For example, a multi-channel soundtrack with 3 front channels, 2 surround channels and LFE, is displayed as “3/2/0.1”.

Bitrate

Bit rate. When the unit is unable to detect the bit rate “– – –” appears.

Dialogue

Dialogue normalization information for Dolby Digital and DTS signals.

Flag1/Flag2

Flag data encoded in Dolby Digital, DTS and PCM signals that cue this unit to automatically switch decoders.

Video Info. (Video information)

HDMI Signal

Type of the HDMI signals input or output at the HDMI IN/OUT jacks of this unit.

HDMI Resolution

Resolution of the HDMI signals input or output at the HDMI IN/OUT jacks of this unit.

Analog Resolution

Resolution of the analog signals input or output at the video component jacks of this unit.

4 Press EXIT on the remote control to exit.

EXIT

OPERATION

BASIC

Auto Setup

System Memory

Signal Info.

Language

Video Info. Audio HDMI Signal

- - -

HDMI Resolution

- - - - - Analog Resolution 480i

480i

English

Page 48

RECORDING

Recording adjustments and other operations are performed from the recording components. Refer to the operation instructions for those components.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2 V-AUX

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

MIC

PRESET/

TUNING

PHONES

TUNING

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

ZONE 2

ZONE 3

AUDIO R OPTICAL

PROGRAM

MULTI ZONE

VIDEO/AUX

PRESET/

MULTI CH

VOLUME

TONE

CONTROL

1 Turn on the power of this unit and all

connected components.

See page 30 for details.

2 Rotate the INPUT selector on the front panel

(or set AMP/SOURCE/TV to SOURCE and then press one of the input selector buttons) to select the input source you want to record from.

INPUT

Front panel

AMP

SOURCE

Remote control

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1

AUDIO SEL

SLEEP

MULTI CH IN

CD-R

DVD

3 Start playback (or select a broadcast station)

on the source component.

4 Start recording on the recording component.

Do a test recording before you start an actual recording.

Notes

• The source you record and the source sent to Zone 2 can be selected separately.

• When this unit is in the standby mode, you cannot record from other components connected to this unit.

• The settings for Tone Control (see page 39), VOLUME, Speaker Level (see page 86) and programs do not affect recorded material.

• A source connected to the MULTI CH INPUT jacks of this unit cannot be recorded.

• S-video and composite video signals pass independently through the video circuits of this unit. Therefore, when recording or dubbing video signals, if your video source component is connected to provide only an S-video or only a composite video signal, you can record only an S-video or only a composite video signal to your VCR.

• Digital signals input at the DIGITAL INPUT jacks are not output at the analog AUDIO OUT L/R jacks for recording. Likewise, analog signals input at the AUDIO IN L/R jacks are not output at the DIGITAL OUTPUT jack. Therefore, if your source component is connected to provide only digital or analog signals, you can only record digital or analog signals.

• A given input source is not output on the same OUT (REC) channel. For example, the signal input at VCR 1 IN is not output at VCR 1 OUT.

• Check the copyright laws in your country to record from records, CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.

• Some HDMI audio signals input at the HDMI IN 1 or HDMI IN 2 jack of this unit may not be output at the DIGITAL AUDIO (OPTICAL) jacks depending on the type of those HDMI audio signals.

If you play back a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture itself may be disturbed due to those signals.

■ Notes on the DTS software

The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources that have DTS signals recorded on them, the following considerations and adjustments need to be made. For DVDs and CDs encoded in DTS, when your player is compatible with the DTS format, follow its operation instructions to make a setting so that the analog signal will be output from the player.

Page 49

FM/AM TUNING

Automatic tuning

Automatic tuning is effective when station signals are strong and there is no interference.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2

V-AUX

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

ZONE 2

ZONE 3

AUDIO R OPTICAL

PROGRAM

MULTI ZONE

VIDEO/AUX

332

PRESET/

MULTI CH

1 Rotate the INPUT selector on the front panel

(or set AMP/SOURCE/TV to SOURCE and then press TUNER on the remote control) to select TUNER as the input source.

INPUT

Front panel

AMP

SOURCE

TUNER

VOLUME

TONE

3 Press TUNING MODE (AUTO/MAN’L)

repeatedly so that the AUTO indicator lights up in the front panel display.

TUNING

MODE

AUTO/MAN'L

AUTO

Lights up

If a colon (:) appears in the front panel display, this unit is in PRESET mode and tuning is not possible. Press PRESET/TUNING (EDIT) to turn it off.

PRESET/

TUNING

EDIT

Preset station

group and

number

V-AUX

Name of the sound field program

Reception band

VCR 1

DTV DVD CD-R CD

A1:AM 1070 kHz

Sci-Fi

Frequency of the received station

MD/TAPECBL/SATDVR/VCR 2

VOLUME

L R

TUNERPHONO

AUTO

4 Press PRESET/TUNING l / h once to begin

automatic tuning.

Press h to tune into a higher frequency. Press l to tune into a lower frequency.

PRESET/

TUNING

OPERATION

BASIC

Remote control

2 Press FM/AM on the front panel (or BAND on

the remote control) to select the reception band.

FM or AM appears in the front panel display.

FM/AM

Front panel

GUI TOP

TITLE

BAND

Remote control

V-AUX

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

A1:AM 1530 kHz

Sci-Fi

VOLUME

L R

TUNERPHONO

TUNED

AUTO

When the unit is tuned into a station, the TUNED indicator lights up and the frequency of the received station is shown in the front panel display.

English

Page 50

FM/AM TUNING

Manual tuning

Manual tuning is effective when stations signals are weak. Manually tuning into an FM station will automatically change the reception mode to monaural reception to increase the signal quality.

1 Repeat steps 1 and 2 in “Automatic tuning”

to select TUNER and the reception band.

2 Press TUNING MODE (AUTO/MAN’L)

repeatedly so that the AUTO indicator disappears from the front panel display.

TUNING

MODE

AUTO/MAN'L

If a colon (:) appears in the front panel display, this unit is in the PRESET mode and tuning is not possible. Press PRESET/TUNING (EDIT) to turn it off.

V-AUX

VCR 1

A1:AM 1070 kHz

3 Press PRESET/TUNING l / h to manually

tune into the desired station.

Press h to tune into a higher frequency. Press l to tune into a lower frequency.

Press and hold the button to continue searching.

PRESET/

TUNING

EDIT

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

Straight

PRESET/

TUNING

VOLUME

L R

TUNERPHONO

Automatic preset tuning

You can use the automatic preset tuning feature to store FM stations. This function enables this unit to automatically tune into FM stations with strong signals and store up to 40 (8 stations in each of the 5 groups, A1 to E8) of those stations in order. You can then recall any preset station easily by selecting the preset station number.

Note

You must first set AMP/SOURCE/TV to SOURCE and then press TUNER on the remote control to select TUNER as the input source.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2

V-AUX

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

VIDEO/AUX

ZONE 2

AUDIO R OPTICAL

PROGRAM

ZONE 3

MULTI ZONE

PRESET/

MULTI CH

321

1 Press FM/AM on the front panel (or BAND on

the remote control) to select FM as the reception band.

FM/AM

Front panel

Remote control

2 Press TUNING MODE (AUTO/MAN’L) so that

the AUTO indicator lights up in the front panel display.

TUNING

MODE

AUTO/MAN'L

AUTO

Lights up

TONE

GUI TOP

TITLE

BAND

VOLUME

Page 51

3 Press and hold MEMORY (MAN’L/AUTO FM)

on the front panel for more than 3 seconds.

The preset group and number as well as the MEMORY and AUTO indicators flash. After approximately 5 seconds, automatic presetting starts from the currently selected frequency and proceeds toward the higher frequencies.

MEMORY

MAN'L/AUTO FM

V-AUX

When automatic preset tuning is completed, the front panel display shows the frequency of the last preset station.

Notes

• Any station data stored under a preset station number is cleared when you store a new station under the same preset station number.

• If the preset number of the received stations does not reach 40 (E8), automatic preset tuning automatically stops after programming all available stations.

• Only FM stations with sufficient signal strength are stored automatically by automatic preset tuning. If the station you want to store is weak in signal strength, tune into it manually and store it by following the procedure in “Manual preset tuning”.

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

C8:FM 87.50MHz

Straight

VOLUME

L R

TUNERPHONO

AUTO MEMORY

FM/AM TUNING

■ Customized automatic preset tuning

You can specify a preset station group and a preset station number from which this unit stores the FM stations received by automatic preset tuning.

1 Repeat steps 1 and 2 in “Automatic tuning”.

2 Press A/B/C/D/E and then PRESET/TUNING

l / h on the front panel to select the preset station group and the preset station number where the first received station will be stored.

For example, if you select C5, the first received station is automatically programmed to C5 and the next received stations are sequentially programmed to C6, C7, etc.

PRESET/

A/B/C/D/E

Note

Automatic preset tuning stops when the received stations have all been stored up to E8.

Memory back-up

The memory back-up circuit prevents the stored data from being lost. However, the stored data will be lost in case the power cord is disconnected from the AC wall outlet for more than one week.

TUNING

OPERATION

BASIC

English

Page 52

FM/AM TUNING

Manual preset tuning

You can also store up to 40 FM or AM stations (8 stations in each of the 5 groups, A1 to E8) manually.

Note

You must first set AMP/SOURCE/TV to SOURCE and then press TUNER on the remote control to select TUNER as the input source.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2 V-AUX

REC OUT/ZONE 2

3 2,5

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

ZONE 2

ZONE 3

AUDIO R OPTICAL

PROGRAM

MULTI ZONE

VIDEO/AUX

PRESET/

MULTI CH

1 Repeat steps in “Automatic tuning” or

“Manual tuning” to tune into a station automatically or manually.

See page 47 for tuning instructions.

V-AUX

When this unit is tuned into a station, the front panel display shows the frequency of the received station.

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

A :AM 630 kHz

Sci-Fi

VOLUME

TONE

TUNERPHONO

TUNED

VOLUME

L R

3 Press A/B/C/D/E on the front panel

repeatedly to select a preset station group (A to E) while the MEMORY indicator is flashing.

The group letter appears. Check that the colon (:) appears in the front panel display.

A/B/C/D/E

Preset station group

V-AUX

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

C :AM 630 kHz

Sci-Fi

VOLUME

L R

TUNERPHONO

TUNED

MEMORY

4 Press PRESET/TUNING l / h on the front

panel to select a preset station number (1 to

8) while the MEMORY indicator is flashing.

Press PRESET/TUNING h on the front panel to select a higher preset station number. Press PRESET/TUNING l on the front panel to select a lower preset station number.

PRESET/ TUNING

2 Press MEMORY (MAN’L/AUTO FM) on the

front panel.

The MEMORY indicator flashes for about 5 seconds.

MEMORY

MAN'L/AUTO FM

MEMORY

Flashes

V-AUX

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

C3:AM 630 kHz

Sci-Fi

VOLUME

L R

TUNERPHONO

TUNED

MEMORY

Page 53

FM/AM TUNING

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

TV MUTE TV INPUT

MUTE

EXIT

PRESET

5 Press MEMORY (MAN’L/AUTO FM) on the

front panel while the MEMORY indicator is flashing.

The station band and frequency appear in the front panel display with the preset group and number you have selected.

MEMORY

MAN'L/AUTO FM

V-AUX

VCR 1

DTV DVD CD-R CDXMTUNERPHONO

MD/TAPECBL/SATDVR/VCR 2

C3:AM 630 kHz

Sci-Fi

VOLUME

L R

TUNED

6 Repeat steps 1 to 5 to store other stations.

Notes

• Any stored station data existing under a preset number is cleared when you store a new station under that preset number.

• The reception mode (stereo or monaural) is stored along with the station frequency.

Selecting preset stations

You can tune into any desired station simply by selecting the preset station number under which it was stored.

Note

Prior to selecting a preset station, you should preset stations first. For details, see “Automatic preset tuning” on page 48 or “Manual preset tuning” on page 50.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2

V-AUX

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

ZONE 2

ZONE 3

AUDIO R OPTICAL

PROGRAM

MULTI ZONE

VIDEO/AUX

PRESET/

MULTI CH

1 Rotate the INPUT selector on the front panel

(or set AMP/SOURCE/TV to SOURCE and then press TUNER on the remote control) to select TUNER as the input source.

INPUT

VOLUME

TONE

OPERATION

BASIC

AMP

SOURCE

Front panel

TUNER

Remote control

English

Page 54

FM/AM TUNING

2 Press A/B/C/D/E (or l / h on the remote

control) to select the preset station group.

The preset group letter appears in the front panel display and changes each time you press the button.

PRESET

A/B/C/D/E

Front panel

ENTER

A/B/C/D/E

Remote control

3 Press PRESET/TUNING l / h (or

PRESET k / n on the remote control) to select a preset station number (1 through 8).

The preset group and number appear in the front panel display along with the station band, frequency and the TUNED indicator lights up.

PRESET

PRESET/

Front panel

V-AUX

TUNING

VCR 1

E1:FM 87.50MHz

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

Sci-Fi

ENTER

A/B/C/D/E

Remote control

TUNERPHONO

VOLUME

L R

TUNED

Exchanging preset stations

You can exchange the assignment of two preset stations with each other. The example below describes the procedure for exchanging preset station E1 with A5.

PURE DIRECT

AUDIO

INPUT

SELECT

INPUTMAIN ZONE

ON/OFF

MASTER

ON OFF

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

PHONO

DVR/

TUNER

VCR 2

V-AUX

REC OUT/ZONE 2

1,3

A/B/C/D/E

SPEAKERS

YPAO

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

1,3

PRESET/

TUNING

CONTROL

STRAIGHT

MEMORY

FM/AM

TUNING

MODE

MAN'L/AUTO FM

EDIT

AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

VIDEO/AUX

ZONE 2

AUDIO R OPTICAL

PROGRAM

ZONE 3

MULTI ZONE

2,4

PRESET/

MULTI CH

1 Select preset station E1 by using

A/B/C/D/E and PRESET/TUNING l / h.

See “Selecting preset stations”.

A/B/C/D/E

2 Press and hold PRESET/TUNING (EDIT) for

more than 3 seconds.

E1 and the MEMORY indicator flash in the front

panel display.

PRESET/ TUNING

EDIT

TONE

PRESET/ TUNING

VOLUME

V-AUX

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

E1:FM 87.50MHz

Sci-Fi

VOLUME

L R

3 Select preset station A5 by using

A/B/C/D/E and PRESET/TUNING l / h.

A5 and the MEMORY indicator flash in the front panel display.

V-AUX

VCR 1

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

A5:FM 90.60MHz

Sci-Fi

VOLUME

4 Press PRESET/TUNING (EDIT) again.

The stations stored at the two preset assignments are exchanged.

V-AUX

VCR 1

EDIT E1-A5

PRESET/ TUNING

EDIT

DTV DVD CD-R CD

MD/TAPECBL/SATDVR/VCR 2

Sci-Fi

VOLUME

L R

TUNERPHONO

TUNED

MEMORY

TUNERPHONO

TUNED

MEMORY

TUNERPHONO

TUNED

Page 55

FM/AM TUNING

Receiving Radio Data System stations

Radio Data System is a data transmission system used by FM stations in many countries. The Radio Data System function is carried out among the network stations. This unit can receive various Radio Data System data such as PS (Program Service name), PTY (Program Type), RT (Radio Text), CT (Clock Time), EON (Enhanced Other Networks) when receiving Radio Data System broadcasting stations.

■ PS (Program Service name) mode

The name of the Radio Data System station being received is displayed.

■ PTY (Program Type) mode

There are 15 program types to classify Radio Data System stations.

NEWS News

AFFAIRS Current affairs

INFO General information

SPORT Sports

EDUCATE Education

DRAMA Drama

CULTURE Culture

SCIENCE Science

VARIED Light entertainment

POP M Pops

ROCK M Rock

M.O.R. M Middle-of-the-road music

(easy-listening)

LIGHT M Light classics

CLASSICS Serious classics

OTHER M Other music

■ RT (Radio Text) mode

Information about the program (such as the title of the song or name of the singer) on the Radio Data System station being received is displayed using a maximum of 64 alphanumeric characters, including the umlaut symbol. If other characters are used for RT data, they are displayed with an underbar (_).

■ CT (Clock Time) mode

The current time is displayed and updated every minute. If the data are accidentally cut off, “CT WAIT” may appear.

■ EON (Enhanced Other Networks)

See “EON function” on page 55.

Changing the Radio Data System mode

Four modes are available for displaying Radio Data System data. The PS, PTY, RT and/or CT indicators that correspond to the Radio Data System data services offered by the station light up in the front panel display.

1 Set AMP/SOURCE/TV to SOURCE, then press

TUNER on the remote control to set this unit to the tuner mode.

AMP

SOURCE

2 Press FREQ/TEXT repeatedly on the remote

control to display the various Radio Data System data offered by the transmitting station.

FREQ/TEXT

Remote control

Frequency display

Notes

• Do not press FREQ/TEXT until a Radio Data System indicator lights up in the front panel display. You cannot change the mode if you press the button prior to this. This is because this unit has not finished receiving all of the Radio Data System data from the station.

• Radio Data System data not offered by the station cannot be selected.

• This unit cannot utilize the Radio Data System data source if the signal received is not strong enough. In particular, the RT mode requires a large amount of data, so it is possible that the RT mode may not be displayed even if other Radio Data System modes (PS, PTY, etc.) are displayed.

• Radio Data System data may not be received under poor reception conditions. In such cases, press TUNING MODE (AUTO/MAN’L MONO) so that the AUTO indicator disappears from the front panel display. Although this will change the reception mode to manual, Radio Data System data may be displayed when you change the display to Radio Data System mode.

• If the signal strength is weakened by external interference during the reception of a Radio Data System station, the Radio Data System data service may be cut off suddenly and “...WAIT” will appear in the front panel display.

TUNER

PTY

OPERATION

BASIC

English

Page 56

FM/AM TUNING

CLEAR

LEARN

RE–NAME

EXIT

FREQ/RDS EON MODE PTY SEEK START

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

TV MUTE TV INPUT

MUTE

MACROONOFF

SPEAKERSMEMORY

PRESET

PTY SEEK function

If you select the desired program type, this unit automatically searches all preset Radio Data System stations that are broadcasting a program of the required type.

2,4

1 Set AMP/SOURCE/TV to SOURCE and then

press TUNER on the remote control to select TUNER as the input source.

AMP

SOURCE

TUNER

3 Press PRESET k / n to select the desired

program type.

The selected program type appears in the front panel display.

PRESET

ENTER

A/B/C/D/E

POP M

Lights up

4 Press PTY SEEK START to begin searching

all preset Radio Data System stations.

The selected program type flashes and the PTY HOLD indicator lights up in the front panel display while searching for stations. To cancel searching, press PTY SEEK START again.

MODE PTY SEEK START

PTY HOLD

Lights up

• The unit stops searching when it finds a station broadcasting the selected type of program.

• If the found station is not the one you desire, press PTY SEEK START again. This unit resumes searching for another station broadcasting the same type of program.

2 Press PTY SEEK MODE to set this unit in the

PTY SEEK mode.

The program type of the station being received or “NEWS” flashes in the front panel display. To exit from the PTY SEEK mode, press PTY SEEK MODE again.

MODE PTY SEEK START

Flashes

Page 57

FM/AM TUNING

CLEAR

LEARN

RE–NAME

FREQ/RDS EON MODE PTY SEEK START

REC

DISC SKIP

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

MACROONOFF

SPEAKERSMEMORY

EON function

This function uses the EON data service on the Radio Data System station network. If you select the desired program type (NEWS, INFO, AFFAIRS or SPORT), this unit automatically searches for all preset Radio Data System stations that are scheduled to broadcast the selected type of program and switches from the station currently being received to the new station when the broadcast starts.

Note

This function can only be used when a Radio Data System station that offers the EON data service is being received. When such a station is being received, the EON indicator lights up in the front panel display.

3 Press EON repeatedly to select the desired

program type (NEWS, INFO, AFFAIRS or SPORT).

The selected program type name appears in the front panel display.

EON

Remote control

• If a preset Radio Data System station type starts broadcasting the selected type of program, the unit automatically switches from the program being received to that program. The EON indicator flashes as a result.

• When broadcasting of the selected program ends, the unit returns to the previous station (or another program on the same station).

■ To cancel this function

Press EON repeatedly until no program type name is shown and EON OFF appears in the front panel display.

OPERATION

BASIC

1 Check that the EON indicator is lit in the front

panel display.

If the EON indicator is not lit up, tune into another Radio Data System station so that the EON indicator lights up.

2 Set AMP/SOURCE/TV to SOURCE and then

press TUNER on the remote control to select TUNER as the input source.

AMP

SOURCE

TUNER

English

Page 58

EDITING SOUND FIELD PARAMETERS

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

VOLUME

–

POWER POWER

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

–

TV VOL

–

AMP

SOURCE

CLEAR

LEARN

RE–NAME

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

THX

STANDARD SELECT EXTD. SUR

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

MACROONOFF

SPEAKERSMEMORY

EDITING SOUND FIELD PARAMETERS

What is a sound field? Changing parameter settings

A significant factor that creates the rich, full tones of a live instrument are the multiple reflections from the walls of the room. In addition to making the sound live, these reflections enable us to tell where the player is situated, and the size and shape of the room in which we are sitting.

■ Elements of a sound field

In any environment, in addition to the direct sound coming straight to our ears from the player’s instrument, there are two distinct types of sound reflections that combine to make up the sound field:

Early reflections

Reflected sounds reach our ears extremely rapidly (50 ms – 100 ms after the direct sound), after reflecting from one surface only — for example, from the ceiling or a wall. Early reflections help add clarity to the direct sound.

Reverberations

These are caused by reflections from more than one surface — walls, ceiling, the back of the room — so numerous that they merge together to form a continuous sonic afterglow. They are non-directional, and lessen the clarity of the direct sound.

Direct sound, early reflections and subsequent reverberation taken together help us to determine the subjective size and shape of the room, and it is this information that the digital sound field processor reproduces in order to create sound fields.

If you could create the appropriate early reflections and subsequent reverberations in your listening room, you would be able to create your own listening environment. The acoustics in your room could be changed to those of a concert hall, a dance floor, or virtually any size room at all. This ability to create sound fields at will is exactly what YAMAHA has done with the digital sound field processor.

You can enjoy good quality sound with the factory preset parameters. Although you do not have to change the initial settings, you can change some of the parameters to better suit the input source or your listening room. The following parameters are not always found in every program.

PRESET

2-4

EXIT

FREQ/TEXT EON MODE PTY SEEK START

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Video

Basic

Option

GUI TOP

TITLE

BAND

Page 59

EDITING SOUND FIELD PARAMETERS

2 Press k / n repeatedly to select

Stereo/Surround and then press h.

The following display appears.

PRESET

ENTER

A/B/C/D/E

STEREO

MUSIC

ENTERTAINMENT

MOVIE THEATER

Munich

Vienna

Freiburg

PRESET

ENTER

A/B/C/D/E

3 Press k / n repeatedly to select the sound

field program you want to adjust and then press h.

The following display appears.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

5 Press EXIT on the remote control to exit.

EXIT

Note

You cannot change parameter values when Memory Guard is set to On. If you want to change the parameter values, set Memory Guard to Off (see page 91).

Memory back-up

The memory back-up circuit prevents the stored data from being lost. However, the stored data will be lost in case the power cord is disconnected from the AC wall outlet for more than one week.

■ Initializing sound field programs

To initialize each sound field program individually

1 Repeat steps 1 to 3 to select the sound field

program you want to reset and then press h.

2 Press k / n repeatedly to select Initialize.

3 Press EXIT on the remote control to exit.

EXIT

SOUND FIELD

PROGRAMS

Munich

Vienna

Freiburg

DSP Level

Init. Delay

Room Size

4 Press k / n repeatedly to select the sound

field parameter you want to adjust and then press h.

See“SOUND FIELD PARAMETER DESCRIPTIONS” on page 61 for detailed descriptions of each sound field parameter.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

To initialize all sound field programs

Use the Sur.Initialize parameter in the Option menu (see page 91).

English

Page 60

SOUND FIELD PROGRAM DESCRIPTIONS

This unit is equipped with a variety of precise digital decoders that allow you to enjoy multi-channel playback from almost any sound source (stereo or multi-channel). This unit is also equipped with a YAMAHA digital sound field processing (DSP) chip containing several sound field programs which you can use to enhance your playback experience. Most of these sound field programs are precise digital recreations of actual acoustic environments found in famous concert halls, music venues, and movie theaters.

The YAMAHA CINEMA DSP modes are compatible with all Dolby Digital, DTS, and Dolby Surround sources. Set the input mode to AUTO (see page 44) to enable this unit to automatically switch to the appropriate digital decoder according to the input signal.

Notes

• This unit’s DSP sound field programs are recreations of real-world acoustic environments made from precise measurements taken in actual halls, etc. Thus you may notice variations in the strength of the reflections coming from the front, back, left and right.

• Feel free to choose a sound field program based on your listening preference, and not purely on the name of the program itself.

For movie/video sources

You can select from the following sound fields when playing movie or video sources. The sound fields marked MULTI can be used with multi-channel sources, like DVD, digital TV, etc. Those marked 2-CH can be used with 2-channel (stereo) sources like TV programs, video tapes, etc.

Program selection methods vary depending on sound field program types. For details on how to select sound field programs, see “Basic operations” on page 37.

Sources

MULTI

2-CH

Remote control button

Category

and

Program

THX Cinema

THX THX Game

THX THX Select2 Cinema

STANDARD DOLBY DIGITAL

STANDARD

q D+PL x Movie

STANDARD DOLBY D EX

STANDARD DTS

STANDARD DTS 96/24

STANDARD DTS+PL x Movie

STANDARD DTS+DOLBY EX

STANDARD DTS ES

STANDARD DTS 96/24 ES

STANDARD Enhanced

STANDARD Pro Logic

STANDARD PL x Movie

STANDARD PL x Game

STANDARD Neo:6 Cinema

STANDARD Enhanced

Features

THX processing for movie software.

THX processing for game software.

THX Select2 processing for movie software.

Standard 5.1 channel processing for Dolby Digital sources.

Standard 7.1 channel processing for Dolby Digital sources.

Standard 6.1 channel processing for Dolby Digital sources.

Standard 5.1 channel processing for DTS sources.

Standard 5.1 channel processing for 96kHz/24-bit DTS sources.

Standard 7.1 channel processing (Dolby Pro Logic x) for DTS sources.

Standard 6.1 channel processing (Dolby Digital EX) for DTS sources.

Standard 6.1 channel processing (DTS-ES Matrix and DTS-ES Discrete) for DTS sources.

Standard 6.1 channel processing (DTS-ES Matrix and DTS-ES Discrete) for 96kHz/24-bit DTS sources.

CINEMA DSP enhanced processing for the selected decoder.

Standard processing for Dolby Surround sources.

Dolby Pro Logic x processing for movie software.

Dolby Pro Logic x processing for game software.

DTS processing for movie software.

CINEMA DSP enhanced processing for the selected decoder.

SOUND FIELD

PROGRAMS

English

Page 62

SOUND FIELD PROGRAM DESCRIPTIONS

For music sources

You can select from the following sound fields when playing music sources, like CD, FM/AM broadcasting, tapes, etc.

Program selection methods vary depending on sound field program types. For details on how to select sound field programs, see “Basic operations” on page 37.

Remote

Sources

MULTI

2-CH

MULTI

control button

Program Features

STEREO

2 channel (left and right) playback.

2ch Stereo

STEREO 7ch Stereo

MUSIC Munich

MUSIC Vienna

MUSIC Freiburg

MUSIC The Bottom Line

MUSIC The Roxy Theatre

MUSIC Pop/Rock

MUSIC Classic/Opera

ENTERTAINMENT Disco

THX

HiFi DSP processing. Use to increase the output stereo sources (in stereo) from all speakers. This provides a larger sound field and is ideal for background music at parties, etc.

HiFi DSP processing. This is a large fan-shaped concert hall which has approximately 2500 seats. Almost the whole interior is made of wood. There is relatively little reflection from the walls, and sound spreads finely and beautifully.

HiFi DSP processing. A classic shoe-box type concert hall with approximately 1700 seats. Pillars and ornate carvings create extremely complex reflections which produce a very full, rich sound.

HiFi DSP processing. This program recreates the acoustic environment of a big church with a high dome and columns along each side. The reverberation delay is very long while the early reflections are smaller than with other sound field programs.

HiFi DSP processing. This is the sound field at stage front in “The Bottom Line”, a famous New York jazz club. The floor can seat 300 people to the left and right in a sound field offering real and vibrant sound.

HiFi DSP processing. The ideal program for lively, dynamic rock music. The data for this program was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-left of the hall.

CINEMA DSP processing. This program produces a vibrant atmosphere and lets you feel as if you are at an actual jazz or rock concert.

CINEMA DSP processing. This program provides excellent vocal depth and overall clarity by restraining excessive reverberation. The surround sound field is relatively moderate but it reproduces beautiful sound using data collected from a concert hall.

HiFi DSP processing. This program recreates the acoustic environment of a lively disco in the heart of a big city. The sound is dense and highly concentrated. It is also characterized by high-energy, “immediate” sound.

THX processing for all 5.1 encoded music sources.

THX Music

STANDARD

q D+PL x Music

STANDARD DTS+PL x Music

STANDARD PL x Music

STANDARD

Standard Dolby Digital and Dolby Pro Logic x processing for music sources.

Standard DTS and Dolby Pro Logic x processing for music sources.

Dolby Pro Logic x processing for music software.

DTS processing for music software.

Neo:6 Music

STANDARD

CINEMA DSP enhanced processing for the selected decoder.

Enhanced

Page 63

SOUND FIELD PARAMETER DESCRIPTIONS

You can adjust the values of certain digital sound field parameters so the sound fields are recreated accurately in your listening room. Not all of the following parameters are found in every program.

■ DSP Level (DSP level)

Function: Adjusts the level of all the DSP effect sounds within a narrow range. Description: Depending on the acoustics of your listening room, you may want to increase or decrease the DSP

effect level relative to the level of the direct sound.

Control Range: –6 dB to +3 dB

■ Init. Delay (Initial delay)

Function: Changes the apparent distance the sound source is from the reflection face by adjusting the delay

between the direct sound and the first reflection heard by the listener.

Description: The smaller the value, the closer the reflection face seems to the sound source. The larger the value, the

farther it seems. For a small room, set to a small value. For a large room, set to a large value.

Control range: 1

to 99 ms

Source sound

Early reflections

Level

INIT. DLY INIT. DLY INIT. DLY

Sound source

Reflection face

Small value = 1 ms Large value = 99 ms

Time Time Time

Level

■ Room Size (Room size)

Function: Adjusts the apparent size of the surround sound field. The larger the value, the larger the surround

sound field becomes.

Description: As the sound is repeatedly reflected around a room, the larger the hall is, the longer the time between

the original reflected sound and the subsequent reflections. By controlling the time between the reflected sounds, you can change the apparent size of the virtual venue. Changing this parameter from one to two, doubles the apparent length of the room.

Control range: 0.1 to 2.0

Source sound

Early reflections

Level

Time

Level

Time

Level

Time

SOUND FIELD

PROGRAMS

Sound source

Small value = 0.1

English

Large value = 2.0

Page 64

SOUND FIELD PARAMETER DESCRIPTIONS

■ Liveness (Liveness)

Function: Adjusts the reflectivity of the virtual walls in the hall by changing the rate at which the early reflections

decay.

Description: The early reflections of a source sound decay much faster in a room with acoustically absorbent wall

surfaces than in one which has highly reflective surfaces. A room with acoustically absorbent surfaces is referred to as dead, while a room with highly reflective surfaces is referred to as live. The LIVENESS parameter lets you adjust the early reflection decay rate, and thus the liveness of the room.

Control range: 0 to 10

Source sound

Live

Dead

Level

Time

Level

Time Time

Level

Small reflected sound

Small value = 0

Large reflected sound

Large value = 10

■ Sur. Init. Delay (Surround initial delay)

Function: Adjusts the delay between the direct sound and the first reflection on the surround side of the sound

field. You can only adjust this parameter when at least two front channels and two surround channels are used.

Control range: 1 to 49 ms

■ Sur. Room Size (Surround room size)

Function: Adjusts the apparent size of the surround sound field. Control range: 0.1 to 2.0

■ Sur. Liveness (Surround liveness)

Function: Adjusts the apparent reflectivity of the virtual walls in the surround sound field. Control range: 0 to 10

■ SB. Init. Delay (Surround back initial delay)

Function: Adjusts the delay between the direct sound and the first reflection in the surround back sound field. Control range: 1 to 49 ms

■ SB. Room Size (Surround back room size)

Function: Adjusts the apparent size of the surround back sound field. Control range: 0.1 to 2.0

■ SB. Liveness (Surround back liveness)

Function: Adjusts the apparent reflectivity of the virtual wall in the surround back sound field. Control range: 0 to 10

Page 65

SOUND FIELD PARAMETER DESCRIPTIONS

■ Rev. Time (Reverberation time)

Function: Adjusts the amount of time it takes for the dense, subsequent reverberation sound to decay by 60 dB

(at 1 kHz). This changes the apparent size of the acoustic environment over an extremely wide range.

Description: The longer the reverberation time, the more live the listening room environment seems. The shorter the

reverberation time, the more dead the listening room environment seems.

Control range: 1.0 to 5.0 s

Reverberation

60 dB 60 dB 60 dB

Source sound

Early reflections

Reverberation

REV.TIME

Sound source Short

Small value = 1.0 s Large value = 5.0 s

reverberation

REV.TIME REV.TIME

Long reverberation

■ Rev. Delay (Reverberation delay)

Function: Adjusts the time difference between the beginning of the direct sound and the beginning of the

reverberation sound.

Description: The larger the value, the later the reverberation sound begins. A later reverberation sound makes you

feel like you are in a larger acoustic environment.

Control range: 0 to 250 ms

Source sound

Level

(dB)

60 dB

Reverberation

Time

REV.TIMEREV.DELAY

SOUND FIELD

PROGRAMS

■ Rev. Level (Reverberation level)

Function: Adjusts the volume of the reverberation sound. Description: The larger the value, the stronger the reverberation becomes. Control range: 0 to 100%

Source sound

Level

REV. LEVEL

English

Time

Page 66

SOUND FIELD PARAMETER DESCRIPTIONS

■ Dialogue Lift (Dialog lift)

Function: Adjusts the height of the front and center channel sounds by assigning some of the front and center

channel elements to the presence speakers.

Description: The larger the parameter, the higher the position of the front and center channel sound. Choices: 0, 1, 2, 3, 4, 5

For 2ch Stereo

Direct (Pure direct)

Function: Bypasses the decoders and DSP processors of this unit and shuts down the video circuitry to ensure the

highest possible sound fidelity from analog and PCM sources.

Choices: Off, Auto

For 7ch Stereo

Function: Adjusts the volume level for each channel in 7-channel stereo mode. Control range: 0 to 100%

Center Level (Center level)

Surround L Level (Surround left level)

Surround R Level (Surround right level)

Sur.Back Level (Surround back level)

Presence L Level (Presence left level)

Presence R Level (Presence right level)

For PL x Music

Panorama (Panorama)

Function: Extends the front stereo image to include the surround speakers for a wraparound effect. Choices: Off, On

Center Width (Center width)

Function: Adjusts the center image from all three front speakers to varying degrees.

A larger value adjusts the center image towards the front left and right speakers.

Control range: 0 (center channel sound is output only from center speaker) to 7 (center channel sound is output only

from front left and right speakers), initial setting is 3

Dimension (Dimension)

Function: Gradually adjusts the sound field either towards the front or towards the rear. Control range: –3 (towards the rear) to +3 (towards the front), initial setting is STD (standard)

For Neo:6 Music

Center Image (Center image)

Function: Adjusts the center image from all three front speakers to varying degrees. Control range: 0.0 to 1.0 Initial setting: 0.3

Page 67

SOUND FIELD PARAMETER DESCRIPTIONS

■ Decode Type (Decoder type) For MOVIE THEATER

Function: Selects the decoder used to playback 2-channel sources using MOVIE THEATER programs. Choices: Pro Logic / Pro Logic x / Neo:6

For THX Cinema

Function: Selects the decoder used to playback 2-channel sources using THX Cinema. Choices: Pro Logic / Pro Logic x / Neo:6

For SURROUND Standard

Function: Selects the decoder used to playback 2-channel sources using SURROUND Standard. Choices: Pro Logic / PL x Movie / PL x Music / PL x Game / Neo:6 Cinema / Neo:6 Music

For SURROUND Enhanced

Function: Selects the decoder used to playback 2-channel sources using SURROUND Enhanced. Choices: Pro Logic / Pro Logic x / Neo:6

Note

Pro Logic x appears when the surround back speakers are available.

■ Initialize (Initialize)

Function: Initializes each sound field program individually. Choices: No, Yes

Note

If you want to initialize all sound field programs, use the Sur.Initialize parameter in the Option menu (see page 91).

SOUND FIELD

PROGRAMS

English

Page 68

SOUND FIELD PROGRAM SPEAKER LAYOUTS

Sound output from each speaker depends on the type of audio signals being input. Refer to the following diagrams in the table below to understand the speaker layout for each sound field program.

Note

Be advised that there may be no or not enough sound output from speakers depending on the type of input source being played back. Furthermore, there may be some channels that can only be used partially when they are adjusted to specific aspects of movies, such as special sound effects, etc.

The abbreviations and symbols used in each diagram are as follows:

L Front left speaker PL Presence left speaker SR Surround right speaker

C Center speaker PR Presence right speaker SBL Surround back left speaker

R Front right speaker SL Surround left speaker SBR Surround back right speaker

Speaker from which sound is being output Speaker from which no sound is being output

When the q EX / q PL IIx / ES indicators are turned off

When the q EX / q PL IIx / ES indicators are lit up and PR/SB Priority is set to Presence (see page 79)

When the q EX / q PL IIx / ES indicators are lit up and PR/SB Priority is set to Surround Back (see page 79)

STEREO

2ch Stereo

STEREO

7ch Stereo

2-channel audio

(monaural)

SBRSBL

2-channel audio

(stereo)

SBRSBL

when surround back speakers are connected

SBRSBL

when surround back speakers are not connected

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

Page 69

SOUND FIELD PROGRAM SPEAKER LAYOUTS

MUSIC

Hall in Vienna The Bttm Line The Roxy Thtr

ENTERTAINMENT

Disco

MUSIC

Pop/Rock

ENTERTAINMENT

Variety/Spor ts Mono Movie Game

THX

THX Cinema THX Surround EX

THX

THX Select2 Cinema THX Music

2-channel audio

(monaural)

SBRSBL

2-channel audio

(stereo)

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

THX

THX Game

STANDARD

DOLBY DIGITAL PRO LOGIC DTS

MOVIE THEATER Enhanced

DOLBY DIGITAL PRO LOGIC DTS

SBRSBL

PRO LOGIC PRO LOGIC

SBRSBL

PRO LOGIC PRO LOGIC

SOUND FIELD

SBRSBL

PROGRAMS

English

Page 70

SOUND FIELD PROGRAM SPEAKER LAYOUTS

STANDARD

PLIIx Movie PLIIx Music PLIIx Game

MOVIE THEATER Enhanced

PLIIx Movie

2-channel audio

(monaural)

SBRSBL

2-channel audio

(stereo)

Movie/Game Movie/Music/Game

SBRSBL

Music

SBRSBL

When PR/SB Priority

is set to Presence

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

5.1/6.1-channel

audio *

STANDARD

Neo:6 Cinema Neo:6 Music

When PR/SB Priority

is set to Surround

SBRSBL

Cinema Cinema/Music

SBRSBL

Music

Back

SBRSBL

Page 71

SOUND FIELD PROGRAM SPEAKER LAYOUTS

MOVIE THEATER Enhanced

Neo:6 Cinema

STRAIGHT

2-channel audio

(monaural)

SBRSBL

2-channel audio

(stereo)

When PR/SB Priority

is set to Presence

When PR/SB Priority

is set to Surround

Back

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

5.1/6.1-channel

audio *

SBRSBL

PURE DIRECT

Monaural playback

SBRSBL

Monaural playback

SOUND FIELD

PROGRAMS

SBRSBL

English

Page 72

SYSTEM OPTIONS

You can use the following parameters to adjust a variety of system settings and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

■ Stereo/Surround (Stereo/Surround menu)

Use to edit sound field parameters (see page 56).

■ Input Select (Input select menu)

Use to reassign digital input/outputs, select the input signal, rename the inputs, or adjust the output volume of each jack (see page 73).

■ Manual Setup (Manual setup menu)

Use to manually adjust speaker and system settings (see page 76).

Sound (Sound menu)

Use to manually adjust the sound parameters.

Item Features Page

LFE Level Adjusts the output level of the LFE channel for Dolby Digital or DTS signals.

Dynamic Range Adjusts the dynamic range for Dolby Digital or DTS signals.

Parametric EQ Adjusts the parametric equalizer of each speaker.

Tone Control Adjusts the tonal balance of speakers and headphones.

Audio Option Customizes overall audio settings for this unit.

Channel Mute Selects specific speaker channels to be muted.

Video (Video menu)

Use to manually adjust the video parameters.

Item Features Page

Conversion Converts the analog video signals.

Component I/P Deinterlaces the analog video signals from 480i to 480p (NTSC) or 576i to 576p (PAL).

HDMI Up-Scaling Up-scales the analog video signals to HDMI.

HDMI Aspect Selects the HDMI aspect ratio.

Short Message Displays short messages regarding system operations.

Position Adjusts the vertical and horizontal position of the GUI display.

Wall Paper Selects the background of the GUI display.

Basic (Basic menu)

Use to manually adjust basic system parameters.

Item Features Page

Test Tone Turns the test tone output on or off for Speaker Set, Speaker Distance and Speaker Level settings.

Speaker Set

Speaker Distance Adjusts the delay time of each speaker.

Speaker Level Adjusts the output level of each speaker.

THX Set Adjusts the THX settings.

Selects the output mode suitable for each speaker, the speakers for low-frequency signal output, and the cross over frequency.

Page 73

SYSTEM OPTIONS

Option (Optional menu)

Use to manually adjust the optional system settings.

Item Features Page

Dimmer Adjusts the GUI and front panel displays.

Multi Zone Customizes the Zone 2, Zone 3 and Zone B settings.

Sur.Initialize Initializes the parameters of all or a group of sound field programs.

Audio Select Selects the initial input mode of the source.

Decoder Mode Selects the decoder used by this unit.

Memory Guard Locks the menu parameter settings.

HDMI Set Adjusts the HDMI support audio.

■ Auto Setup (Auto setup menu)

Use to run AUTO SETUP and specify which speaker parameters to be adjusted (see page 32).

■ System Memory (System memory menu)

Use to save and recall various settings (see page 92).

■ Signal Info. (Signal information menu)

Use to check signal information (see page 45).

■ Language (GUI language menu)

Use to select the language of your choice that appears in the GUI (graphical user interface) menu of this unit (see page 93).

You can also select the GUI language using the LANG. parameter in ADVANCED SETUP in the front panel display (see page 95).

OPERATION

ADVANCED

English

Page 74

SYSTEM OPTIONS

EXIT

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

VOLUME

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

Changing parameter settings

Use the remote control to access and adjust each parameter. (Speaker set is used in the following example to change parameter settings.)

Manual Setup > Basic > Speaker Set >

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

2 Press k / n repeatedly to select a menu and

then press h to enter the selected menu.

Test Tone

Speaker Set

Speaker Distance

Speaker Level

Sound

Video

Basic

Option

Front

Center

Surround

5 2-4

GUI TOP

TITLE

BAND

3 Press k / n repeatedly to select the

parameter you want to adjust.

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

4 Press ENTER or h and then press k / n

repeatedly to change the setting of the item you want to adjust.

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

5 Press EXIT.

If you want to continue adjusting parameter settings, press ENTER to return to the previously selected menu item.

Notes

• The available parameters may be displayed on more than one page of the GUI display. To scroll through pages, press k / n.

• You cannot change parameter values when Memory Guard is set to “On”. If you want to change the parameter values, set Memory Guard to “Off” (see page 91).

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cable is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the parameter values will return to the factory settings. If this happens, edit the parameter value again.

Front

Center

Surround

Surround Back

Presence

Large

Small

None

Page 75

SYSTEM OPTIONS

Input Select

Use this feature to reassign digital input/outputs, select the input signal, rename the inputs, or adjust the level of the signal input at each jack.

Choices: TUNER, PHONO, CD, CD-R, MD/TAPE, DVD,

DTV, CBL/SAT, VCR1, DVR/VCR2, V-AUX, MULTI CH

Note

Some parameters described below may not be available for all input sources and some parameters are only available for specific input sources.

Input source Parameter

TUNER

PHONO

CD-R

MD/TAPE

DVD DTV

CBL/SAT

VCR1

DVR/VCR2

V- AU X

MULTI CH

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Volume Trim Rename

I/O Assignment Audio Select Decoder Mode Volume Trim Rename

Audio Select Decoder Mode Volume Trim Rename

Volume Trim Multi CH Assign

GUI TOP

TITLE

BAND

2 Select Input Select and then press h.

CD-R

Stereo/Surround

Input Select

Manual Setup

Auto Setup

MD/TAPE

DVD

DTV

CBL/SAT

3 Select the desired input source (CD, DVD,

etc.) and then press h to access and adjust.

■ Volume Trim (Volume trimming)

You can adjust the level of the signal input at each jack. This is useful if you want to balance the level of each input source to avoid sudden changes in volume when switching between input sources.

Manual Setup > Input Select > input source (DVD, etc.) > Volume Trim > Control range: –6.0 dB to +6.0 dB

Audio Select Decoder Mode

Volume Trim

Rename

Note

You can only adjust the volume for the current input source using this setting.

0.0dB

OPERATION

ADVANCED

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Video

Basic

Option

English

Page 76

SYSTEM OPTIONS

■ Rename (Rename)

Use this feature to change the name of the inputs in the GUI or the front panel display menu. (DVD is used as the source component in the following example.)

Input Select > input source (DVD, etc.) > Rename

1 Press an input selector button to select the

input you want to change the name of.

2 Press l / h to place the _ (under-bar) under

the space or character you want to edit.

Decoder Mode

Volume Trim

Rename

CAPITAL

DVD

OK RESET

3 Press ENTER to select a character type

(CAPITAL/SMALL/FIGURE/MARK).

4 Press k / n to select the character you want

to use and l / h to move to the next one.

• You can use up to 8 characters for each input.

• Press n to change the character in the following order, or press k to go in the reverse order. Press ENTER to switch between character types: CAPITAL A to Z, space SMALL a to z, space FIGURE 0 to 9, space MARK !, #, %, &, etc.

• Repeat steps 1 to 3 to rename each input.

■ I/O Assignment (Input/output assignment)

You can assign the digital audio input/output and component video jacks to other components if this unit’s initial settings do not correspond to your needs. Change the following parameters to reassign the jacks and effectively connect more components. Once the jacks are reassigned, you can select the corresponding component using the INPUT selector on the front panel or the input selector buttons on the remote control.

Input Select > input source (DVD, etc.) > I/O Assignment >

Example 1:

To assign the COAXIAL 7 (CD) jack to the DVD input.

1) Select Input Select and then select DVD.

2) Select I/O Assignment > Coaxial Input and then select

7 CD.

Example 2:

To clear a jack assignment.

1) Select Input Select and then select the input source

(DVD, etc.).

2) Select I/O Assignment and then select the jack

assignment (Coaxial Input, Optical Input, Optical Output, Component Video, or HDMI).

3) Select NONE and then press ENTER to clear the

assignment.

Optical Output

Component Video

I/O Assignment

Audio Select

Decoder Mode

HDMI

5 Press l / h to select OK and press ENTER

when complete.

To change source names in the display window on the remote control, see page 102.

Note

You can only change the name of the current input source (except for multi channel input sources) using this setting.

Notes

• You cannot select a specific item more than once for the same

type of jack.

• When you connect a component to both the COAXIAL and

OPTICAL jacks, priority is given to signals input at the COAXIAL jack.

Page 77

SYSTEM OPTIONS

■ Audio Select (Audio selection)

This unit comes with a variety of input jacks. You can select the type of input signal you want to use.

Input Select > input source (DVD, etc.) > Audio Select > Choices: Auto, HDMI, Coax/Opt, Analog

I/O Assignment

Audio Select

Decoder Mode

Volume Trim

• Select “Auto” if you want signals to be input to this unit in the following order: HDMI signals, digital

and analog signals.

signals

• Select “HDMI” if you only want HDMI signals to be input to this unit. If no HDMI signals are input, no sound is output.

• Select “Coax/Opt” if you want digital signals to be input to this unit at the OPTICAL or COAXIAL jacks. Use if HDMI signals are also being input.

• Select “Analog” if you only want analog signals to be input to this unit. If no analog signals are input, no sound is output.

If this unit detects a Dolby Digital or DTS signal, the decoder automatically switches to the appropriate sound field program.

• You can adjust the default input mode this unit selects when the

power is turned on (see page 91).

• DTS mode is recommended for playback of a CD or LD

encoded in DTS.

Note

If the digital output data of the player has been processed in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.

Auto

HDMI

Coax/Opt

■ Decoder Mode (Decoder mode)

Use this feature to switch the input mode. You can designate the reassigned digital input jacks (see page 74) for specific audio signals (DTS, etc.).

Input Select > input source (DVD, etc.) > Decoder Mode > Choices: Auto, DTS

I/O Assignment Audio Select

Decoder Mode

Volume Trim

Rename

Auto

DTS

• Select “Auto” if you want this unit to automatically detect input signal types and select the appropriate input mode.

• Select “DTS” if you want this unit to select DTS as the input mode.

■ Multi CH Assign

(Multi channel assignment)

Use this feature to set the direction of the signals input into the center, subwoofer and surround channels when a source component is connected to the MULTI CH INPUT jacks. If you are inputting 8-channel signals from an external decoder, use this feature to select jacks for the additional front signals.

Input Select > MULTI CH > Multi CH Assign >

Volume Trim

Multi CH Assign

Input Channels

Front Input

OPERATION

ADVANCED

Input Channels (Input channels)

This setting is used to select the number of channels input from an external decoder. Choices: 6ch, 8ch

Note

If Zone2 Amplifier (page 89) is set to “Internal”, no sound is output from the surround back speakers even if you select “8ch”. In this case, select “6ch” and set the output setting of the external component to 6 channels.

Front Input (Front input)

If you selected “8ch” in Input Channels, you can select analog jacks at which front signals from an external decoder will be input. Choices: DVD, DTV, CBL/SAT, VCR1, DVR/VCR2,

V-AUX, CD, CD-R, MD/TAPE

English

Page 78

SYSTEM OPTIONS

Manual Setup (Sound)

Use this menu to adjust the sound parameters.

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

AMP

SOURCE

2 Press k / n on the remote control to select

Manual Setup and then press h.

PRESET

GUI TOP

TITLE

BAND

PRESET

■ LFE Level (Low-frequency effect level)

Use to adjust the output level of the LFE (low-frequency effect) channel according to the capacity of your subwoofer or headphones. The LFE channel carries low-frequency special effects which are only added to certain scenes. This setting is effective only when this unit decodes Dolby Digital or DTS signals. To access these parameters, select:

Manual Setup > Sound > LFE Level > Control range: –20.0 to 0.0 dB Control step: 1 dB

Speaker

Headphone

0.0dB

ENTER

A/B/C/D/E

ENTER

A/B/C/D/E

3 Press k / n on the remote control to select

Sound and then press h.

PRESET

ENTER

Sound

Video

Basic

A/B/C/D/E

LFE Level

Dynamic Range

Parametric EQ

Tone Control

Audio Option

PRESET

ENTER

A/B/C/D/E

4 Select the desired parameters and then press

h to access and adjust.

Speaker (Speaker low-frequency effect level)

Select to adjust the speaker LFE level.

Headphone (Headphone low-frequency effect level)

Select to adjust the headphone LFE level.

Note

Depending on the settings of LFE Level, some signals may not be output at the SUBWOOFER jack.

PRESET

ENTER

A/B/C/D/E

Page 79

■ Dynamic Range (Dynamic range)

Use to select the amount of dynamic range compression to be applied to your speakers and headphones. This setting is effective only when the unit is decoding Dolby Digital and DTS signals. To access these parameters, select:

Manual Setup > Sound > Dynamic Range > Choices: MAX (maximum), STD (standard),

MIN (minimum)

Speaker

Headphone

MAX

STD

MIN

Speaker (Speaker dynamic range)

Select to adjust the speaker compression.

Headphone (Headphone dynamic range)

Select to adjust the headphone compression.

• Select “MAX” to preserve the greatest amount of dynamic range.

• Select “STD” for general use.

• Select “MIN” for listening to sources at low volume levels.

■ Parametric EQ (Parametric equalizer)

Use this feature to adjust the parametric equalizer of each speaker.

Manual Setup > Sound > Parametric EQ >

SYSTEM OPTIONS

1 Press k / n to select Test Tone or the speaker

you want to adjust.

• Test Tone turns on or off the test tone output

when adjusting the tonal quality of each speaker.

• Front L adjusts the tonal quality of the front left

speaker.

• Front R adjusts the tonal quality of the front right

speaker.

• Center adjusts the tonal quality of the center

speaker.

• Surround L adjusts the tonal quality of the

surround left speaker.

• Surround R adjusts the tonal quality of the

surround right speaker.

• Surround Back L adjusts the tonal quality of the

surround back left speaker.

• Surround Back R adjusts the tonal quality of the

surround back right speaker.

• Presence L adjusts the tonal quality of the

presence left speaker.

• Presence R adjusts the tonal quality of the

presence right speaker.

2 Press h to access the settings window.

PARAM RESET

Test Tone

Front L

Front R

Center

EDIT EXIT

Band / Gain

LFE Level

Dynamic Range

Parametric EQ

Tone Control

Audio Option

Test Tone

Front L

Front R

3 Press l / h to select PARAM and then press

ENTER to select a parameter from Band (band), Freq. (frequency) or Q (Q factor).

4 Press n to select EDIT and press ENTER to

access the edit window.

Band

Gain

0.0dB

Freq.

Test Tone

Front L

Front R

Center

125.0Hz

1.000

The parameter selected in PARAM is highlighted.

•Press l / h to adjust the parameter.

•Press k / n to adjust the Gain.

• Press ENTER to exit the edit window.

OPERATION

ADVANCED

English

Page 80

SYSTEM OPTIONS

5 Repeat steps 3 and 4 until you are satisfied

with the results.

If you want to reset all PEQ parameter settings for the selected speaker, select RESET and press ENTER.

6 Select EXIT and press ENTER to exit the

settings window.

• If you select “Band” in step 3, you can use this menu as a graphic equalizer.

• For more information on the parametric equalizer, see page 77.

■ Tone Control (Tone control)

Use to adjust the amount of bass and treble output to your speakers and headphones.

Manual Setup > Sound > Tone Control > Choices: Control, Bass, Treble, Audio Bypass

Note

Tone Control is not effective when:

– THX (see page 65) or PURE DIRECT (see page 64) is

selected.

– MULTI CH INPUT is selected.

Control (Tone control)

Choices: Speakers, Headphones

Treble (Treble control)

Use this feature to adjust high-frequencies output to your speakers or headphones. Choices: 2.5kHz, 3.5kHz, 8.0kHz (frequency)

–6.0dB to +6.0dB (gain), initial setting: 0.0dB

Control

Bass

Treble

Auto Bypass

Speaker Freq : 3.5kHz Gain : 0.0dB

-6

Auto Bypass (Auto bypass)

Use to set this unit to automatically bypass any adjustments made for Tone Control. Choices: Auto, Off

Bass

Treble

Auto Bypass

Auto

Off

• Select “Auto” to set this unit to automatically bypass any Tone Control settings.

• Select “Off” to set this unit to reflect the Tone Control settings.

Control

Bass

Treble

Speakers

Headphones

• Select “Speakers” to adjust the bass/treble balance of your speakers.

• Select “Headphones” to adjust the bass/treble balance of your headphones.

Bass (Bass control)

Use this feature to adjust low-frequencies output to your speakers or headphones. Choices: 125Hz, 350Hz, 500Hz (frequency)

–6.0dB to +6.0dB (gain), initial setting: 0.0dB

Speaker

Control

Bass

Treble

Freq : 350Hz Gain : 0.0dB

-6

■ Audio Option (Audio options)

Use to customize this unit’s overall audio settings. Manual Setup > Sound > Audio Option >

Choices: Muting Type, Audio Delay, Max Volume,

Initial Volume, PR/SB Select

Muting Type (Muting type)

Use to adjust how much the mute function reduces the output volume. Choices: Full, –20dB

Muting Type

Audio Delay Max Volume

• Select “Full” to completely halt all output of sound.

• Select “–20dB” to reduce the current volume by 20 dB.

Full

-20dB

Page 81

SYSTEM OPTIONS

Audio Delay (Audio delay)

Use to delay the sound output and synchronize it with the video image. This may be necessary when using certain LCD monitors or projectors. Control range: 0 to 240 (ms)

Muting Type

Audio Delay

Max Volume

Initial Volume

0ms

Max Volume (Maximum volume)

Use to set the maximum volume level so that the sound output level will not increase beyond the limited volume level. For example, the original volume range is –30.0 dB to –80 dB. However, if Max Volume is set to –5 dB, the volume range becomes –5 dB to –90 dB. Control range: –30.0dB to –80dB Control step: 5 dB

Muting Type

Audio Delay

Max Volume

Initial Volume

PR/SB Priority

-30.0dB

Notes

• When a test tone is output, the Max Volume setting is automatically deactivated because the volume level is automatically set to 0 dB regardless of the current Max Volume setting.

• The Max Volume setting takes priority over the Initial Volume setting (see below). For example, if Initial Volume is set to 5 dB and then Max Volume is set to 3 dB, the volume level is automatically set to 3 dB when you turn on the power of this unit next time. However, the Initial Volume setting is kept as 5 dB.

Initial Volume (Initial volume)

Use to set the volume level of the main room when the power of this unit is turned on. Choices: Off, –80dB to +16.5dB Control step: 0.5 dB

Audio Delay

Max Volume

Initial Volume

PR/SB Priority

Off

Note

The Max Volume setting (see above) takes priority over the Initial Volume setting. Therefore, Initial Volume cannot be set beyond the existing Max Volume setting.

PR/SB Priority (Presence/surround back speaker priority)

Surround back and presence speakers do not output sound simultaneously. You can select to prioritize either speaker set when playing sources that contain surround back channel signals using CINEMA DSP sound field programs. Choices: Presence, Surround Back

Max Volume Initial Volume PR/SB Priority

Presence

Surround Back

• Select “Presence” to use presence speakers even when surround back channel signals are input. The signals for the surround back channel will be output from surround speakers.

• Select “Surround Back” to use surround back speakers when a surround back channel signal is detected in a CINEMA DSP sound field program. Presence channel signals will be output from front speakers.

OPERATION

ADVANCED

English

Page 82

SYSTEM OPTIONS

■ Channel Mute (Channel mute)

Use to select specific speaker channels to be muted. Manual Setup > Sound > Channel Mute >

Mode (Mode)

Use to activate or deactivate the Channel Mute setting for each speaker. Choices: Off, On

Presence R

Subwoofer

Mode

Front L

Front R

• Select “Off” to deactivate the Channel Mute settings.

• Select “On” to activate the Channel Mute settings.

Speaker settings Choices: Mute, Off

Subwoofer

Mode

Front L

Front R

Center

Off

Mute

Off

Manual Setup (Video)

Use this menu to adjust the video parameters.

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

AMP

SOURCE

2 Press k / n on the remote control to select

Manual Setup and then press h.

PRESET

ENTER

A/B/C/D/E

3 Press k / n on the remote control to select

Video and then press h.

PRESET

GUI TOP

TITLE

BAND

PRESET

ENTER

A/B/C/D/E

PRESET

• Select “Mute” to mute the selected speaker channel.

• Select “Off” not to mute the selected speaker channel.

• Front L sets whether to mute the audio output from

the front left speaker.

• Front R sets whether to mute the audio output from

the front right speaker.

• Center sets whether to mute the audio output from the

center speaker.

• Surround L sets whether to mute the audio output

from the surround left speaker.

• Surround R sets whether to mute the audio output

from the surround right speaker.

• Surround Back L sets whether to mute the audio

output from the surround back left speaker.

• Surround Back R sets whether to mute the audio

output from the surround back right speaker.

• PRESENCE L sets whether to mute the audio output

from the presence left speaker.

• PRESENCE R sets whether to mute the audio output

from the presence right speaker.

• Subwoofer sets whether to mute the audio output

from the subwoofer.

ENTER

Sound

Video

Basic

Option

A/B/C/D/E

Conversion

Component I/P

HDMI Up-Scaling

ENTER

A/B/C/D/E

4 Select the desired parameters and then press

h to access and adjust.

PRESET

ENTER

A/B/C/D/E

Page 83

SYSTEM OPTIONS

■ Conversion (Video conversion)

Use this feature to activate or deactivate the video conversion as well as the HDMI up-conversion of the analog video signals input at the composite video, S-video and component video jacks. Choices: Off, On

Off

Conversion

Component I/P

HDMI Up-Scaling

• Select “Off” to deactivate the video conversion as well as the HDMI up-conversion of the analog video signals.

• Select “On” to activate the video conversion as well as the HDMI up-conversion of the analog video signals.

For optimal video performance, THX recommends setting Conversion to Off.

Notes

• Even when Conversion is set to On, HDMI digital signals are

not converted to analog video signals.

• If Conversion is set to Off, the Component I/P and HDMI Up-

Scaling features are deactivated.

• Converted video signals are only output at the MONITOR OUT

jacks. When recording, you must make the same type of video connections (composite or S-video) between each component.

• When converting composite video or S-video signals from a

VCR to component video signals, the picture quality may suffer depending on your VCR.

• The GUI display becomes grayed out under the following

circumstances: – If Conversion is set to Off. – If the selected HDMI Up-Scaling setting is not supported by

the HDMI component connected to the HDMI OUT jack on the rear panel of this unit.

– If the resolution of the analog video signals being input is

either 1080i or 720p.

– If the selected HDMI Up-Scaling setting is lower than the

resolution of the analog video signals being input.

• Unconventional signals (such as those output from a game

console, etc.) input at the composite video, S-video or component video jacks cannot be converted even if Conversion is set to On.

• If unconventional signals are being input at the composite

video, S-video or component video jacks, the video output may be abnormal as a result. In such cases, set Conversion to Off.

• Even if Conversion is set to Off, each video signal is converted

to display the GUI display menu and is output at the MONITOR OUT jacks.

■ Component I/P (Component interlace/ progressive)

Use this feature to activate or deactivate the analog I/P upconversion of the analog video signals input at the composite, S-video and component video jacks so that the analog video signals deinterlaced from 480i to 480p (NTSC) or 576i to 576p (PAL) are output at the MONITOR OUT jacks. Choices: Off, On

Conversion

Component I/P

HDMI Up-Scaling

HDMI Aspect

Off

• Select “Off” to deactivate the analog I/P up-conversion

of the analog video signals.

• Select “On” to activate the analog I/P up-conversion of

the analog video signals.

Notes

• This menu item is not available and hence not visible in the GUI

menu if Conversion is set to Off.

• If your video monitor does not support the analog video signals

with 480p (NTSC) or 576p (PAL) of resolution, the system options menu items may not be displayed on your video monitor when Component I/P is set to On.

■ HDMI Up-Scaling (HDMI up-scaling)

Use this feature to activate or deactivate the HDMI upconversion of the analog video signals input at the composite video, S-video and component video jacks so that the up-scaled analog video signals (480i (NTSC) or 576i (PAL) → 480p (NTSC) or 576p (PAL) /1080i/720p and 480p (NTSC) or 576p (PAL) → 1080i/720p) are output at the HDMI OUT jack. Choices: Through, 480p (NTSC) or 576p (PAL), 1080i,

720p

Conversion

Component I/P

HDMI Up-Scaling

HDMI Aspect

Short Message

• Select “Through” not to up-scale any analog video

signals.

• Select “480p” (NTSC) or “576p” (PAL), “1080i” or

“720p” to up-scale analog video signals to 480p (NTSC) or 576p (PAL), 1080i or 720p of resolution.

Note

This menu item is not available and hence not visible in the GUI menu if Conversion is set to Off.

Through

480p

1080i

720p

OPERATION

ADVANCED

English

Page 84

SYSTEM OPTIONS

■ HDMI Aspect (HDMI aspect ratio)

Use to select the HDMI aspect ratio. Choices: Through, 16:9 Normal

Component I/P

HDMI Up-Scaling

HDMI Aspect

Short Message

Position

Through

16:9 Normal

• Select “Through” if you do not make any adjustments to the HDMI aspect ratio.

• Select “16:9 Normal” if you want to display video images with 4:3 of HDMI aspect ratio on your video monitor with 16:9 of HDMI aspect ratio. Black stripes appear on the right and left sides as a result.

Note

When HDMI Up-Scaling is set to Through (see page 81), you cannot make any adjustments to HDMI Aspect.

■ Short Message (Short message)

Use to select whether to display short messages regarding system operations on your video monitor. Choices: Off, On

■ Position (Position)

Use to adjust the vertical and horizontal position of the GUI display. Control range: –5 (downward/left) to +5 (upward/right)

HDMI Aspect

Short Message

Position

Wall Paper

:-5

:+5 //

•Press k to raise the position of the GUI display.

•Press n to lower the position of the GUI display.

•Press h to shift the position of the GUI display to the right. Press l to shift the position of the GUI display to the left.

•

■ Wall Paper (Wall paper)

Use to select the background of the GUI display. Choices: None, Yes, Gray

Short Message

Position

Wall Paper

None

Yes

Gray

HDMI Up-Scaling

HDMI Aspect

Short Message

Position

Wall Paper

Off

• Select “Off” if you do not want to display any short messages.

• Select “On” if you want to display short messages.

Notes

• The short message display may not display properly depending

on the type of input signal and video monitor used.

• If Conversion is set to Off, the short message display is not

displayed even if On is selected.

• Select “None” not to display any background in the GUI display.

• Select “Yes” to display a background image in the GUI display.

• Select “Gray” to display a gray background in the GUI display.

Note

If Video Conv. is set to “Off”, no background is displayed even if “Yes” is selected.

Page 85

Manual Setup (Basic)

Use this menu to set up basic system parameters.

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

AMP

SOURCE

GUI TOP

TITLE

BAND

SYSTEM OPTIONS

■ Test Tone (Test tone)

Turns the test tone output on or off for Speaker Set, Speaker Distance and Speaker Level settings.

Manual Setup > Basic > Test Tone > Choices: Off, On

Test Tone

Speaker Set

Speaker Distance

Off

2 Press k / n on the remote control to select

Manual Setup and then press h.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

3 Press k / n on the remote control to select

Basic and then press h.

PRESET

ENTER

Sound

Video

Basic

Option

A/B/C/D/E

Test Tone

Speaker Set

Speaker Distance

Speaker Level

PRESET

ENTER

A/B/C/D/E

4 Select the desired parameters and then press

h to access and adjust.

PRESET

If you use a handheld SPL meter, hold at arms length and point upwards so that the meter is in the listening position. With the meter set to the 70 dB scale and to C SLOW, calibrate each speaker to 75 dB.

Note

Loud test tones will be output when “On” is selected. In this case, make sure no children are present in the listening room.

■ Speaker Set (Speaker set)

Use to manually adjust any speaker setting. Manual Setup > Basic > Speaker Set >

Choices: Front, Center, Surround, Surround Back,

Presence, Bass Out, Bass Cross Over, SWFR Phase

Bass Cross Over

Test Tone

Speaker Set

Speaker Distance

Speaker Level

If you are not satisfied with the bass sounds from your speakers, you can change these settings according to your preference.

Note

Set any THX speakers to Small.

SWFR Phase

Front

Center

Surround

OPERATION

ADVANCED

ENTER

A/B/C/D/E

• Most of the parameters described in the basic menu are set automatically when you run AUTO SETUP. You can use the basic menu to make further adjustments, but we recommend running AUTO SETUP first.

• You can reset these parameters by performing the AUTO SETUP procedure (see page 32).

English

Page 86

SYSTEM OPTIONS

Front (Front speakers) Choices: Large, Small

Large

Front

Center

Surround

Small

• Select “Large” if you have large front speakers. The unit directs the entire range of the front left and right channel signals to the front left and right speakers.

• Select “Small” if you have small front speakers. The unit directs the low-frequency signals of the front channel to the speakers selected with Bass Out.

Center (Center speaker) Choices: Large, Small, None

Front

Center

Surround Back

Large

Small

NoneSurround

• Select “Large” if you have a large center speaker. The unit directs the entire range of the center channel signal to the center speaker.

• Select “Small” if you have a small center speaker. The unit directs the low-frequency signals of the center channel to the speakers selected with Bass Out.

• Select “None” if you do not have a center speaker. The unit directs all of the center channel signal to the front left and right speakers.

Surround (Surround left/right speakers) Choices: Large, Small, None

Front

Center

Surround

Presence

Large

Small

NoneSurround Back

• Select “Large” if you have large surround left and right speakers or if a rear subwoofer is connected to the surround speakers. The entire range of the surround channel signal is directed to the surround left and right speakers.

• Select “Small” if you have small surround left and right speakers. The low-frequency signals of the surround channel are directed to the speakers selected with Bass Out.

• Select “None” if you do not have surround speakers. This sets the unit to the Virtual CINEMA DSP mode (see page 44) and automatically sets the surround back speaker setting (Surround Back) to “None”.

Surround Back (Surround back left/right speakers) Choices: Large x2, Small x2, Large x1, Small x1, None

Center

Surround

Surround Back

Presence

Bass Out

Large x2

Small x2

Large x1

Small x1

• Select “Large x2” if you have two large surround back speakers. The unit directs the entire range of the surround back channel signal to the surround back speakers.

• Select “Small x2” if you have two small surround back speakers. The low-frequency signals of the surround back channels are directed to the speakers selected with Bass Out.

• Select “Large x1” if you have a large surround back speaker. The unit directs the entire range of the surround back channel signal to the surround back left speaker.

• Select “Small x1” if you have a small surround back speaker. The low-frequency signals of the surround back channel are directed to the speakers selected with Bass Out, and the rest of the frequency signals are directed to the surround back left speaker.

• Select “None” if you do not have a surround back speaker. The unit directs all of the surround back channel signal to the surround left and right speakers.

Note

If you select “Large x1” or “Small x1”, connect a speaker to the SURROUND BACK (SINGLE) speaker terminals.

Page 87

SYSTEM OPTIONS

Presence (Presence speakers) Choices: Yes, None

Surround

Surround Back

Presence

Bass Out

Bass Cross Over

Yes

None

• Select “Yes” if you have presence speakers.

• Select “None” if you do not have presence speakers. This unit directs all presence channel signals to the front left and right speakers.

Note

When Zone2 Amplifier is set to “INT:Sur.” or “INT:BOTH” (see page 89), Presence is automatically set to “None”.

Bass Out (Bass out)

LFE signals carry low-frequency effects when this unit decodes Dolby Digital or DTS signals. These low-frequency signals can be directed to both front left and right speakers, and to the subwoofer (which can be used for both stereo reproduction and sound field programs). Choices: Both, SWFR, Front THX recommendation: SWFR

Bass Cross Over (Bass cross over)

Use this feature to select a cross-over (cut-off) frequency for all low-frequency signals. All frequencies below the selected frequency are sent to the subwoofer. Choices: 40Hz, 60Hz, 80Hz (THX), 90Hz, 100Hz,

110Hz, 120Hz, 160Hz, 200Hz

THX recommendation: 80Hz (THX)

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

SWFR Phase (Subwoofer Phase)

If bass sounds are lacking or unclear, use this feature to adjust the frequency phase characteristics of your subwoofer. Choices: Normal, Reverse

Bass Out

Bass Cross Over

SWFR Phase

Normal

Reverse

Surround Back

Presence

Bass Out

Bass Cross Over

SWFR Phase

Both

SWFR

Front

Notes

• Select “Both” to direct LFE signals to the subwoofer. Front L/R low-frequency signals are directed to both the subwoofer and front channels, and all other low-frequency signals are directed in accordance with other speaker settings.

• Select “SWFR” if you connected a subwoofer. The unit directs all LFE and low-frequency signals in accordance with other speaker settings.

• Select “Front” if you have not connected a subwoofer. The unit directs all low-frequency and LFE signals to the front speakers (even if you have previously set Front to Small in Speaker Set).

• Select “Normal” not to reverse the phase for your subwoofer(s).

• Select “Reverse” to reverse the phase for your subwoofer(s).

■ Speaker Distance (Speaker distance)

Use this feature to manually input the distance of each speaker and adjust the delay applied to the respective channel. Ideally, each speaker should be the same distance from the main listening position. However, this is not possible in most home situations. Thus, a certain amount of delay must be applied to the sound from each speaker so that all sound will arrive at the listening position at the same time.

Manual Setup > Basic > Speaker Distance >

Test Tone

Speaker Set

Speaker Distance

Speaker Level

THX Set

Subwoofer

Unit

Front L

Front R

Center

OPERATION

ADVANCED

English

Page 88

SYSTEM OPTIONS

Speaker distances

Control range: 0.30 to 24.00 m (1.0 to 80.0 ft) Initial setting: 3.00 m (10.0 ft) Control step: 0.1 m (0.5 ft)

• Front L adjusts the distance of the front left speaker.

• Front R adjusts the distance of the front right speaker.

• Center adjusts the distance of the center speaker.

• Surround L adjusts the distance of the surround left

speaker.

• Surround R adjusts the distance of the surround right

speaker.

• Surround Back L adjusts the distance of the

surround back left speaker.

• Surround Back R adjusts the distance of the

surround back right speaker.

• Presence L adjusts the distance of the presence left

speaker.

• Presence R adjusts the distance of the presence right

speaker.

• Subwoofer adjusts the distance of the subwoofer.

Notes

• You cannot adjust the distance of speakers set to “None” in Speaker Set.

• If you are only using one surround back speaker, connect it to the SURROUND BACK (SINGLE) jack, and adjust the distance in Surround Back L.

Unit (Unit)

Choices: Meter (m), Feet (ft) Initial setting:Feet (U.S.A. and Canada models)

Meter (Other models)

• Select “Meter” to input speaker distances in meters.

• Select “Feet” to input speaker distances in feet.

Presence R

Subwoofer

Unit

Front L

Front R

Meter

Feet

■ Speaker Level (Speaker level)

Use these settings to manually balance the speaker levels between the front left speakers and each speaker selected in Speaker Set (see page 83).

Manual Setup > Basic > Speaker Level

Speaker Set

Speaker Distance

Speaker Level

THX Set

Control range: –10.0 dB to +10.0 dB Initial setting: 0.0 dB Control step: 0.5 dB

• Front L adjusts the balance of the front left speaker.

• Front R adjusts the balance of the front right speaker.

• Center adjusts the balance of the center speaker.

• Surround L adjusts the balance of the surround left

speaker.

• Surround R adjusts the balance of the surround right

speaker.

• Surround Back L adjusts the balance of the surround

back left speaker.

• Surround Back R adjusts the balance of the

surround back right speaker.

• Presence L adjusts the balance of the presence left

speaker.

• Presence R adjusts the balance of the presence right

speaker.

• Subwoofer adjusts the balance of the subwoofer.

To calibrate correctly to THX reference levels, use Test Tone (see page 83).

Notes

• You cannot adjust the level of channels set to “None” in Speaker Set.

• If you are only using one surround back speaker, connect it to the SURROUND BACK (SINGLE) jack, and adjust the balance in Surround Back L.

Presence R

Subwoofer

Front L

Front R

Center

Page 89

■ THX Set (THX settings)

Dimmer

Speaker B

Dimmer

Use to manually adjust the THX settings. Manual Setup > Basic > THX Set >

SYSTEM OPTIONS

Manual Setup (Option)

This menu adjusts the optional system settings.

Speaker Distance

Speaker Level

THX Set

Information

Input Mode

Dimmer

Speaker B

SB Speaker Dist.

Output

Zone 3 Volume

SB Speaker Dist. (Surround back speaker distance)

Use this feature to optimize the surround sound field when you have to place the surround back speakers apart. Choices: U.S.A. and Canada models: under 1ft, 1 – 4ft, over 4ft Other models: under 0.3m, 0.3 – 1.2m, over 1.2m

Input Assign

Support Audio

SB Speaker Dist.

Information

Input Mode

Dimmer

under 0.3m

0.3-1.2m

over 1.2m

Zone 3 Volume

• Select “under 0.3m” or “under 1ft” if the distance between the two surround back speakers is less than

0.3 m (1 ft).

• Select “0.3 – 1.2m” or “1 – 4ft” if the distance between the two surround back speakers is between 0.3 and 1.2 m (1 and 4 ft).

• Select “over 1.2m” or “over 4ft” if the distance between the two surround back speakers is more than

1.2 m (4 ft).

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

AMP

SOURCE

GUI TOP

TITLE

BAND

2 Press k / n on the remote control to select

Manual Setup and then press h.

PRESET

ENTER

A/B/C/D/E

PRESET

ENTER

A/B/C/D/E

3 Press k / n on the remote control to select

Option and then press h.

PRESET

ENTER

Video

Basic

Option

A/B/C/D/E

Dimmer

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode

PRESET

ENTER

A/B/C/D/E

OPERATION

ADVANCED

4 Select the desired parameters and then press

h to access and adjust.

PRESET

ENTER

A/B/C/D/E

English

Page 90

SYSTEM OPTIONS

5 When finished adjusting parameters, press

ENTER on the remote control.

PRESET

ENTER

A/B/C/D/E

■ Dimmer (Dimmer)

Use to adjust the brightness of the front panel display. Manual Setup > Option > Dimmer >

Control range: –4 to 0

Dimmer

Multi Zone

Sur.Initialize

■ Multi Zone (Multi zone)

Use this feature to customize the Zone 2 and Zone 3 settings.

Manual Setup > Option > Multi Zone > Choices: Speaker B, Zone2 Amplifier, Zone3 Amplifier,

Zone2 Volume, Zone3 Volume, Zone2 OSD

Speaker B (Speaker B)

Use this feature to select the location of the front speakers connected to the SPEAKERS B terminals. Choices: Main, Zone B

Speaker B

Zone2 Amplifier

Zone3 Amplifier

Main

Zone B

• Select “Main” to turn on/off SPEAKERS A and B when the speakers connected to the SPEAKERS B terminals are set in the main room.

• Select “Zone B” if the speakers connected to the SPEAKERS B terminals are set in another room. If SPEAKERS A is turned off and SPEAKERS B is turned on, all the speakers including the subwoofer in the main room are muted and the unit outputs sound from SPEAKERS B only.

Notes

• If you select “Zone B” and connect headphones to the PHONES

jack on this unit, the sound is output from both the headphones and SPEAKERS B.

• When a DSP program is selected, the unit automatically enters

the Virtual CINEMA DSP mode.

Dimmer

Multi Zone

Sur.Initialize

Audio Select

Speaker B

Zone2 Amplifier

Zone3 Amplifier

Zone2 Volume

Page 91

SYSTEM OPTIONS

Zone2 Amplifier (Zone 2 amplifier)

Use to select how the Zone 2 speakers are amplified. Choices: EXT, INT:Sur., INT:PRNS, INT:BOTH

Speaker B

Zone2 Amplifier

Zone3 Amplifier

Zone2 Volume

EXT

INT:Sur.

INT:PRNS

• Select “EXT” if you want to connect your Zone 2 speakers through an external amplifier connected to the ZONE 2 OUTPUT jacks on the rear panel of this unit.

• Select “INT:Sur.” to use the internal surround amplifier of this unit if you want to connect your Zone 2 speakers directly to the PRESENCE/ZONE 2(3) speaker terminals on the rear panel of this unit.

• Select “INT:PRNS” to use the internal surround back amplifier of this unit if you want to connect your Zone 2 speakers directly to the PRESENCE/ZONE 2(3) speaker terminals on the rear panel of this unit.

• Select “INT:Both” to use the internal surround and surround back amplifiers of this unit if you want to connect you Zone 2 speakers directly to both the PRESENCE/ZONE 2(3) and the SURROUND/ZONE 2(3) speaker terminals on the rear panel of this unit.

Zone3 Amplifier (Zone 3 amplifier)

Use to select how the Zone 3 speakers are amplified. Choices: EXT, INT:Sur., INT:PRNS, INT:BOTH

Speaker B

Zone2 Amplifier

Zone3 Amplifier

Zone2 Volume

Zone3 Volume

EXT

INT:Sur.

INT:PRNS

• Select “EXT” if you want to connect your Zone 3 speakers through an external amplifier connected to the ZONE 2 OUTPUT jacks on the rear panel of this unit.

• Select “INT:Sur.” to use the internal surround amplifier of this unit if you want to connect your Zone 3 speakers directly to the PRESENCE/ZONE 2(3) speaker terminals on the rear panel of this unit.

• Select “INT:PRNS” to use the internal surround back amplifier of this unit if you want to connect your Zone 3 speakers directly to the PRESENCE/ZONE 2(3) speaker terminals on the rear panel of this unit.

• Select “INT:Both” to use the internal surround and surround back amplifiers of this unit if you want to connect you Zone 3 speakers directly to both the PRESENCE/ZONE 2(3) and the SURROUND/ZONE 2(3) speaker terminals on the rear panel of this unit.

Notes

• If BI-AMP is set to ON in the ADVANCED SETUP menu (see page 95), there will be no audio output at the selected speaker terminals although INT:Sur., INT:PRNS and INT:BOTH can be selected in the GUI menu.

• Zone 2 and Zone 3 cannot use the same amplifier at the same time. If INT:Both is selected for Zone2 Amplifier, for instance, only EXT can be selected for Zone3 Amplifier and vice versa.

• The Intelligent Power AMP Assign feature of this unit becomes in effect in the following cases so that the surround and surround back amplifiers of this unit are automatically assigned to the main room for the use of the surround back speakers connected to the SURROUND BACK speaker terminals in the

7.1-channel system. – When Zone2 Amplifier and Zone3 Amplifier are set to

INT:PRNS and EXT respectively and Zone 2 is turned off

– When Zone2 Amplifier and Zone3 Amplifier are set to EXT

and INT:PRNS respectively and Zone 3 is turned off

• If either Zone2 Amplifier or Zone3 Amplifier is set to INT:Sur. or INT:BOTH, Surround (see page 84), Surround Back (see page 84) and Presence (see page 85) in Speaker Set are all automatically set to None. As a result, the speaker system of the main room is limited to 3.1 or 2.1-channel playback no matter when Zone 2 or Zone 3 is turned off because the SURROUND/ ZONE 2(3) speaker terminals are used for the zone connection.

Notes

• Zone 2 and Zone 3 cannot use the same amplifier at the same time. If INT:Both is selected for Zone2 Amplifier, for instance, only EXT can be selected for Zone3 Amplifier and vice versa.

7.1-channel system. – When Zone2 Amplifier and Zone3 Amplifier are set to

INT:PRNS and EXT respectively and Zone 2 is turned off

– When Zone2 Amplifier and Zone3 Amplifier are set to EXT

and INT:PRNS respectively and Zone 3 is turned off

OPERATION

ADVANCED

English

Page 92

SYSTEM OPTIONS

Zone2 Volume (Zone 2 volume)

Use to select how the volume control will operate with regard to the ZONE 2 OUTPUT jacks. When Zone2 Amplifier is set to “Internal”, this feature is automatically set to “Variable”. Choices: Fixed, Variable

Zone2 Amplifier

Zone3 Amplifier

Zone2 Volume

Zone3 Volume

Zone2 OSD

Fixed

Variable

• Select “Fixed” to fix the ZONE 2 OUTPUT volume level to a standard line level.

• Select “Variable” to adjust the ZONE 2 OUTPUT volume simultaneously using VOL +/– on the remote control.

Zone3 Volume (Zone 3 volume)

Use to select how the volume control will operate with regard to the ZONE 3 OUTPUT jacks. Choices: Fixed, Variable

Zone3 Amplifier

Zone2 Volume

Zone3 Volume

Zone2 OSD

Fixed

Variable

• Select “Fixed” to fix the ZONE 3 OUTPUT volume level to a standard line level.

• Select “Variable” to adjust the ZONE 3 OUTPUT volume simultaneously using VOL +/– on the remote control.

Zone2 OSD (Zone 2 on-screen display)

Use this feature to display the operational status of Zone 2 as well as Zone 3 on the Zone 2 video monitor connected to the ZONE 2 VIDEO jacks on the rear panel of this unit. The Zone 2 and Zone 3 information to be displayed is listed as follows:

• The input source of Zone 2 and Zone 3

• The volume level of Zone 2 and Zone 3

• The audio mute status of Zone 2 and Zone 3

• The tonal quality status of Zone 2 and Zone 3 Choices: Off, Zone2, Zone2&Zone3

Zone2 Volume

Zone3 Volume

Zone2 OSD

Off

Zone2

Zone2&Zone3

• Select “Off” not to display any operational status of Zone 2 and Zone 3 on the Zone 2 video monitor.

• Select “Zone2” to display the operational status of Zone 2 only on the Zone 2 video monitor.

• Select “Zone2&Zone3” to display the operational status of Zone 2 and Zone 3 on the Zone 2 video monitor.

Notes

• If Zone2 OSD is set to Zone2&Zone3, changes to the

operational status of Zone 3 is displayed on the Zone 2 video monitor. For example, if the input source of Zone 3 is changed while you are watching TV in Zone 2, the name of the changed input source of Zone 3 is displayed on your TV in Zone 2.

• If Zone2 OSD is set to Zone2&Zone3, the display contents of

Zone 2 and Zone 3 depends on whether or not Zone 2 and Zone 3 are turned on with ZONE 2 ON/OFF and ZONE 3 ON/OFF on the front panel (see page 109). – If both Zone 2 and Zone 3 are turned on, the video signals of

the current input source of Zone 2 and the corresponding OSD are displayed on the Zone 2 video monitor.

– If Zone 2 is turned off and Zone 3 is turned on, only the

corresponding OSD is displayed in the gray background regardless of the REC OUT/ZONE 2 status on the front panel.

– If Zone 2 is turned on and Zone 3 is turned off, the video

signals of the current input source of Zone 2 and the corresponding OSD are displayed on the Zone 2 video monitor.

– If both Zone 2 and Zone 3 are turned off, no video signals and

no OSD are displayed on the Zone 2 video monitor.

Page 93

SYSTEM OPTIONS

■ Sur.Initialize (Surround initialize)

Use this feature to initialize the parameters for each sound field program within sound field program groups. When you initialize a sound field program group, all of the parameter values within that group revert to their initial settings. Adjusted sound field parameter settings are displayed in blue.

Manual Setup > Option > Sur.Initialize Choices: STEREO, MUSIC, ENTERTAINMENT,

MOVIE THEATER, SURROUND, All

Dimmer

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode

STEREO MUSIC ENTERTAINMENT MOVIE THEATER SURROUND All

•Press k / n to select the sound field program you want to initialize and then press ENTER.

• Select “All” to initialize settings for all sound field program parameters.

Note

Sound field program groups cannot be initialized when Memory Guard is set to “On” (see page 91).

■ Audio Select (Audio selection)

Use this feature to designate the default input mode this unit selects when the power is turned on and the input source (such as a DVD player) is connected to the DIGITAL INPUT jacks on this unit.

Manual Setup > Option > Audio Select Choices: Auto, Last

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode Memory Guard

Auto

Last

■ Decoder Mode (Decoder mode)

You can select the decoder used by this unit. Manual Setup > Option > Decoder Mode

Choices: Auto, Last

Sur. Initialize

Audio Select

Decoder Mode

Memory Guard

HDMI Set

Auto

Last

• Select “Auto” if you want this unit to automatically detect input signal types and select the appropriate decoder.

• Select “Last” if you want this unit to automatically select the last decoder used for the connected source.

■ Memory Guard (Memory Guard)

Use this feature to prevent accidental changes to DSP program parameter values and other system settings.

Manual Setup > Option > Memory Guard Choices: Off, On

Audio Select

Decoder Mode

Memory Guard

HDMI Set

Select “On” to protect:

• DSP program parameters

• All menu items except Memory Guard and System Memory – Load.

Note

In general, front panel and remote control operations are not affected when Memory Guard is set to “On”. However, you cannot adjust the tone control using Tone Control.

Off

OPERATION

ADVANCED

• Select “Auto” if you want this unit to automatically detect input signal types and select the appropriate input mode.

• Select “Last” if you want this unit to automatically select the last input mode used for the connected source.

Note

Selecting “Last” does not recall the last setting for the EXTD SUR. button.

English

Page 94

SYSTEM OPTIONS

■ HDMI Set (HDMI settings)

Use to adjust the HDMI support audio.

Decoder Mode Memory Guard

HDMI Set

Support Audio (Support audio)

Use to select whether to play back HDMI audio signals on this unit or on another HDMI component connected to the HDMI OUT jack on the rear panel of this unit. Choices: RX-V2600, Other

Support Audio

System Memory

This feature allows you to save up to six of your favorite settings that can be easily recalled when needed. You can save settings such as the following:

• Sound field program parameters

• Speaker settings

• Speaker channel settings

•LFE level

• Dynamic range settings

• Parametric equalizer settings

■ To save settings

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

Support Audio

RX-V2600

Other

• Select “RX-V2600” to play back HDMI audio signals on this unit. The HDMI audio signals input at the HDMI IN jacks of this unit are not output to the HDMI component connected to the HDMI OUT jack on the rear panel of this unit.

• Select “Other” to play back HDMI audio signals on another HDMI component connected to the HDMI OUT jack on the rear panel of this unit.

Note

The HDMI video signals input at the HDMI IN 1 or HDMI IN 2 jack of this unit are always output at the HDMI OUT jack of this unit.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Video

Basic

Option

GUI TOP

TITLE

BAND

2 Press k / n on the remote control repeatedly

to select System Memory and then press h.

3 Select Save and then press ENTER.

Sci-Fi

A:ON B:OFF 3/4/0.1 0dB MAX Reset

Current

Memory 1

Memory 2

Speaker SpeakerCH LFE Level D-Range PEQ

Current displays the current settings of this unit.

4 Press k / n on the remote control repeatedly

to select the memory number under which you want to save settings and then press h.

“Save: ENTER” appears in the bottom right corner of the window.

5 Press ENTER to save settings.

Page 95

■ To load settings

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

GUI TOP

TITLE

BAND

2 Press k / n on the remote control repeatedly

to select System Memory and then press h.

3 Select Load and then press ENTER.

Sci-Fi

Current

Memory 1

Memory 2

Memory 3

Speaker SpeakerCH LFE Level D-Range PEQ

A:ON B:OFF 3/4/0.1 0dB MAX Reset

4 Press k / n on the remote control repeatedly

to select the memory number you want to load and then press h.

“Load: ENTER” appears in the bottom right corner of the window.

5 Press ENTER to load settings.

SYSTEM OPTIONS

Language

This feature allows you to select the language of your choice that appears in the GUI (graphical user interface) menu of this unit. Choices: English (English), (Japanese),

Français (French), Deutsch (German), Español (Spanish)

You can also select the GUI language using the LANG. parameter in ADVANCED SETUP in the front panel display (see page 95).

1 Set AMP/SOURCE/TV to AMP and then press

GUI TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

2 Press k / n on the remote control repeatedly

to select Language and then press h.

Sound

Video

Basic

Option

GUI TOP

TITLE

BAND

Memory 1 and Memory 2 settings can be recalled simply by pressing MEMORY 1/2 on the remote control. When you press MEMORY 1, the message “Load Memory 1? Yes:Press Again” appears in the front panel display. Press MEMORY 1 once more to recall the settings.

MEMORY1 2

When you press MEMORY 2, the message “Load Memory 2? Yes:Press Again” appears in the front panel display. Press MEMORY 2 once more to recall the settings.

MEMORY1 2

System Memory

Signal Info.

Language

English

Français

3 Press k / n on the remote control repeatedly

to select the language of your choice.

4 Press ENTER to confirm your selection.

OPERATION

ADVANCED

English

Page 96

ADVANCED SETUP

This unit has additional menus that are displayed in the front panel display. The ADVANCED SETUP menu offers additional operations to adjust and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

Using ADVANCED SETUP

1 Press MASTER ON/OFF on the front panel to

release it outward to the OFF position to set this unit, Zone 2 and Zone 3 to the standby mode.

MASTER

OFF

2 Press and hold STRAIGHT (EFFECT) on the

front panel and then press MASTER ON/OFF inward to the ON position to turn on the power of this unit.

Current settingName of the selected parameter

MASTER

OFF

STRAIGHT

EFFECT

3 Rotate the PROGRAM selector on the front

panel to select the parameter you want to adjust.

The name of the selected parameter appears in the front panel display. See page 94 and 95 for a complete list of available parameters.

PROGRAM

ADVANCED SETUP SP IMP.-8 MIN

4 Press STRAIGHT (EFFECT) on the front

panel repeatedly to change the setting.

STRAIGHT

EFFECT

5 Press MASTER ON/OFF on the front panel to

release it outward to the OFF position to save the new setting and set this unit, Zone 2 and Zone 3 to the standby mode.

MASTER

OFF

The new setting is activated next time you press MASTER ON/OFF inward to the ON position to turn on the power of this unit, Zone 2 and Zone 3.

Notes

• The control buttons on the remote control and VOLUME as well as the other control buttons on the front panel except MASTER ON/OFF, STRAIGHT (EFFECT) and the PROGRAM selector are ineffective while you are using the ADVANCED SETUP menu.

• Zone 2, Zone 3 and the speaker relay are all turned off and all audio and video output is muted while you are using the ADVANCED SETUP menu.

• The ADVANCED SETUP menu is only available in the front panel display.

■ Speaker impedance SP IMP.

Use to set the impedance of this unit so that it matches that of your speakers. Choices: 6ΩMIN, 8ΩMIN

• Select 6ΩMIN for speakers with 6 ohms or higher.

• Select 8ΩMIN for speakers with 8 ohms or higher.

■ User preset PRESET

Use to reset all the parameters of this unit to the initial factory settings with the exception of System Memory and AUTO SETUP settings. Choices: CANCEL, RESET

• Select CANCEL if you do not want to reset the

parameters of this unit.

• Select RESET to reset the parameters of this unit.

Notes

• This setting does not affect the ADVANCED SETUP menu item parameters.

• The initial factory settings are activated next time you turn on the power of this unit.

Page 97

ADVANCED SETUP

■ Remote sensor REMOTE SEN

Use to activate or deactivate the signal-receiving capability of the remote control sensor on the front panel of this unit. Choices: ON, OFF

• Select ON if you want to activate the signal-receiving capability of the remote control sensor.

• Select OFF if you want to deactivate the signalreceiving capability of the remote control sensor.

Note

We recommend setting this parameter to ON in most cases.

■ Wake on RS-232C access WAKE ON 232C

Use to set this unit to transmit data via the RS-232C interface when this unit is in the standby mode. Choices: Y (yes), N (no)

• Select Y set this unit to transmit data via the RS-232C interface.

• Select N set this unit not to transmit data via the RS-232C interface.

■ Remote control AMP ID REMOTE AMP

Use to set the AMP ID of this unit for remote control recognition (see page 99). Choices: ID1, ID2

• Select ID1 when the remote control AMP library code is set to 2001.

• Select ID2 when the remote control AMP library code is set to 2002.

Note

You need to set the corresponding remote control code for the remote control.

■ Remote control tuner ID REMOTE TUN

Use to set the tuner ID of this unit for remote control recognition (see page 99). Choices: ID1, ID2

• Select ID1 when the remote control tuner library code is set to 2602.

• Select ID2 when the remote control tuner library code is set to 2603.

Note

You need to set the corresponding remote control code for the remote control.

■ Fan operation mode FAN MODE

Use to set the operation of the cooling fan of this unit. Choices: AUTO, CONT.

• Select AUTO to set the fan to operate automatically according to the temperature of this unit.

• Select CONT. to set the fan to operate continuously regardless of the temperature of this unit.

■ Tuner frequency step TU (Asia and General models only)

Use to set the tuner frequency step according to the frequency spacing in your area. Choices: AM10/FM100, AM9/FM50

• Select AM10/FM100 for North, Central and South

America.

• Select AM9/FM50 for all other areas.

■ Bi-AMP BI-AMP

Use to activate or deactivate the bi-AMP function. Choices: ON, OFF

• Select ON if you want to activate the bi-AMP function.

• Select OFF if you want to deactivate the bi-AMP

function.

Note

When BI-AMP is set to ON, the SURROUND BACK terminals cannot be used to connect surround back speakers in that the SURROUND BACK terminals are already used for the bi-AMP connection (see page 19).

■ Video reset V-RESET

Use to initialize the parameter settings for Dimmer in the Option menu (see page 88). This feature is useful if the SET MENU items are not displayed on your video monitor due to a technical error between the CMPNT I/P setting and the capability of your video monitor. That is, if your video monitor does not support the analog video signals with 480p (NTSC) or 576p (PAL) of resolution, the SET MENU items may not be displayed on your video monitor when Component I/P is set to On (see page 81). Choices: YES, CANCEL

Note

The parameter setting for Dimmer is not initialized (see page 88).

■ TV format TV FORMAT

Use to set the color encoding format of your television. Choices: PAL, NTSC Initial setting:

NTSC (U.S.A., Canada, General and Korea models) PAL (other models)

Note

This parameter setting only affects the video monitor connected to the MONITOR OUT jacks and does not affect the Zone 2 video monitor connected to the ZONE 2 VIDEO jacks.

■ GUI language LANG.

Use to select the language of your choice that appears in the GUI (graphical user interface) menu of this unit. Choices: ENGLISH (English), JAPANESE (Japanese),

FRENCH (French), GERMAN (German), SPANISH (Spanish)

OPERATION

ADVANCED

English

Page 98

REMOTE CONTROL FEATURES

FREQ/RDS

EON

MODE

PTY SEEK

START

REMOTE CONTROL FEATURES

In addition to controlling this unit, the remote control can also operate other audio and video components made by YAMAHA and other manufacturers. To control these other components, you must set up the remote control with the appropriate remote control codes. This remote control also has a learn feature which allows the remote to acquire functions from other remote controls equipped with an infrared remote control transmitter.

Control area

■ Controlling this unit

The shaded areas below can be used to control this unit after setting AMP/SOURCE/TV to AMP to activate the AMP mode.

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

MULTI CH IN

CD-R

SELECT

AMP

–

PRESET

ENTER

SOURCE

VOLUME

–

MUTE

PURE DIRECT

EXIT

NIGHT

AUDIO

A/B/C/D/E

STRAIGHT

DISPLAY

EFFECT

3421

SPEAKERSMEMORY

ENT.

+10

CLEAR

LEARN

RE–NAME

The buttons inside the dotted lines control this unit in any mode (POWER, STANDBY, SLEEP, AUDIO SEL, the input selector buttons, VOLUME +/–, MUTE, STRAIGHT (EFFECT) and PURE DIRECT).

Display window

AMP/SOURCE/

Set to AMP to

operate this unit.

POWER POWER

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

GUI TOP

TITLE

BAND

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARD SELECT EXTD SUR.

5678

FREQ/TEXT EON MODE PTY SEEK START

FREQ/RDS EON MODE PTY SEEK START

REC

DISC SKIP

MACROONOFF

■ Controlling other components

The shaded areas below can be used to control other components. Each button has a different function depending on the selected components. Select the component you want to control by pressing an input selector button or SELECT k / n. The name of the selected component appears in the display window.

The A and input selector buttons switch the function of the component control area below.

Use the A button to control other components regardless of whether they are connected to this unit. Factory setting: A...Tape deck

Display

window

Component control area

You can control up to 14 different components by setting appropriate remote control codes (see page 98).

POWER POWER

PHONO TUNER CD

V-AUX

TITLE

RETURN

STEREO

FREQ/RDS EON MODE PTY SEEK START

DISC SKIP

STANDBY

AVTV

AUDIO SELECT

POWER POWER

MULTI CH IN

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

TOP

BAND

THX

5678

REC

VOL

–

MUTE

TV VOL

PRESET

EXIT

PURE DIRECT

–

PRG SELECT

TV MUTE TV INPUT

ENTER

PRESET

GUI TOP

A/B/C/D/E

TITLE

STRAIGHT

BAND

DISPLAY

MUSIC ENTERTAIN MOVIE

3421

RETURN

STANDARD SELECT EXTD. SUR

STEREO

MUSIC ENTERTAIN MOVIE

SPEAKERSMEMORY

+10

THX

STANDARD SELECT EXTD SUR.

5678

FREQ/TEXT EON MODE PTY SEEK START

FREQ/RDS

CLEAR

LEARN

MACROONOFF

REC

DISC SKIP

ENTER

SELECT k / n switches control to

POWER

another component

SLEEP

without changing the input source on

this unit.

CD-R

SELECT

AMP

SOURCE

–

NIGHT

AUDIO

EXIT

EFFECT

A/B/C/D/E

DISPLAY

ENT.

+10

EON

MODE

RE–NAME

3421

SPEAKERSMEMORY

PTY SEEK

NIGHT

AUDIO

ENT.

START

AMP/ SOURCE/ TV Set to SOURCE to operate the component selected with an input selector button. Set to TV to operate the television (you must set the remote control code in DTV or PHONO).

■ Controlling optional components (OPTN area)

OPTN is an additional component control area that can be programmed with remote control functions independently from any input source. This area is useful for programming commands that are to be used only as a part of a macro function or for components that do not have a valid remote control code. To select the OPTN control area, press n repeatedly until OPTN appears in the display window.

Note

You cannot set a remote control code for this area. See page 100 to program buttons operated within this component control area.

Page 99

Controlling each component

CLEAR

LEARN

RE–NAME

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

VOL

–

3421

+10

ENT.

5678

–

TV VOL

TV MUTE TV INPUT

MUTE

–

SOURCE

MACROONOFF

SPEAKERSMEMORY

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

GUI TOP

TITLE

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

VOLUME

–

POWER POWER

POWER

STANDBY

AVTV

SLEEP

AUDIO SEL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

EXIT

PRESET

EXIT

REMOTE CONTROL FEATURES

Once you set the appropriate remote control codes, you can use this remote to control your other components. Note that some buttons may not correctly operate the selected component. Use the input selector buttons to select the component you want to operate. The remote control automatically switches to the appropriate control mode for that component.

*1 *2

1 AV PO WE R 2 TV POWER 3 TV VOL +

TV VOL – CH + CH – TV INPUT TV MUTE

4 TITLE 5 MENU 6 ENTER

DVD player/ DVD recorder

Power

TV power *2TV power *2TV power *2Power

TV volume + *2TV volume + *2TV volume +

TV volume – *2TV volume – *2TV volume – TV channel + TV channel – TV input *2TV input *2TV input TV mute *2TV mute *2TV mute

Title Title Title Title Band

Menu Menu Menu

Menu enter Menu select Menu select

VCR

Power

Channel + Channel + Channel +

Channel – Channel – Channel –

k Menu up Menu up Menu up

n Menu down Menu down Menu down

l Menu left Menu left Menu left

h Menu right Menu right Menu right Direction A/B

7 RETURN 8 1-9, 0, +10 9 ll

Return Return Return Return

Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons

Search backward

hh Search forward Search forward

b Skip backward

a Skip forward

REC/ DISC SKIP

Disc skip (player) Rec (recorder)

Rec

s Stop Stop e Pause Pau se h Play Play

0 AUDIO A DISPLAY B ENTER

This button functions only when the original remote control of the component has a POWER button. These buttons can operate your TV without switching the input if the remote control code is set in DTV or PHONO. When the remote control code for your TV is set up in both the DTV and PHONO areas, priority is given to the signal in the DTV area. These buttons can operate your VCR without switching the input to VCR 1 if the remote control code is set in VCR 1.

Audio Audio

Display Display Display Display Display Display

Enter Enter/recall

Cable TV/ Satellite tuner

Power

VCR search backward

VCR search forward

VCR rec *3VCR rec

VCR stop *3VCR stop VCR pause *3VCR pause VCR play *3VCR play

TV LD player CD player

VCR power *3Power

TV power *2TV power *2TV power *2TV power *2TV power

Volume +

Volume –

Input Mute

VCR search backward

VCR search forward

Enter/ numeric button

TV volum e + *2TV volum e + *2TV volume + *2TV volume + *2TV volume +

TV volume – *2TV volume – *2TV volume – *2TV volume – *2TV volume – TV channel + *2TV channel + *2TV channel + *2TV channel + *2TV channel + TV channel – *2TV channel – *2TV channel – *2TV channel – *2TV channel – TV input *2TV input *2TV input *2TV input *2TV input TV mute

backward

Search forward Search forward Search forward Search forward

Chapter/Skip backward

Chapter/Skip forward

Stop Stop Stop Stop

Pause Pause Pause Pause

Play Play Play Play

1 2

6 7

FREQ/TEXT EON MODE PTY SEEK START

MD recorder/ CD recorder

Power

TV mute *2TV mute *2TV mute *2TV mute

Search backward

Skip backward Skip backward Direction back

Skip forward Skip forward

Disc skip Rec Rec

FREQ/TEXT EON MODE PTY SEEK START

Tape deck Tuner

Power

Search backward

Direction forward

0 A

Power

Preset up (1 to 8)

Preset down (1 to 8)

Preset down (A to E)

Preset up (A to E)

OPERATION

ADVANCED

English

Page 100

REMOTE CONTROL FEATURES

Setting remote control codes

You can control other components by setting the appropriate remote control codes. Codes can be set up for each input area. For a complete list of available remote control codes, refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

The following table shows the default component (Library: component category) and the remote control code for each input area.

Remote control code default settings

Library

Input area

(component

category)

ATAPE 2700

BLD2200 PHONO TV – TUNER TUNER 2602

CD CD 2300

MULTI CH

INPUT

DVD 2102

V-AUX VCR –

CBL/SAT CABLE –

MD/TAPE MD 2500

CD-R CD-R 2400

DTV TV –

VCR 1 VCR –

DVR/VCR2 DVR 2807

DVD DVD 2102

Note

You may not be able to operate your YAMAHA component even if a YAMAHA remote control code is preset as listed above. In this case, try setting another YAMAHA remote control code.

Default YAMAHA

code

3 Press and hold LEARN for about 3 seconds

using a ballpoint pen or similar object.

The library name (ex. L;DVD) and the selected component name (ex. DVD) appear alternately in the display window.

LEARN

If you want to setup for another component, press the input selector button or SELECT k / n to select the component.

Notes

• Be sure to press and hold LEARN for at least 3 seconds, otherwise the learning process will start.

• If you do not complete each of the following steps within 30 seconds, the setting mode will be automatically canceled. In this case, press LEARN again.

4 If you want to change a library (component

category), press l / h. You can set a different type of component.

Library choices: L;DVD, L;DVR, L;LD, L;CD, L;CDR, L;MD, L;TAP (tape), L;TUN (tuner), L;AMP, L;TV, L;CAB (cable), L;SAT (satellite), L;VCR

Notes

• The tuner library (L;TUN) code is preset in the TUNER button in order to operate this unit. The initial settings for the TUNER button is 2602. However, you can switch the tuner library code by entering one of the following codes if necessary.

• The AMP library (L;AMP) code is preset to 2001 in order to operate this unit. However, you can switch the AMP library code by entering one of the following codes if necessary.

1 Set AMP/SOURCE/TV to SOURCE.

AMP

SOURCE

2 Press an input selector button to select the

source component you want to set up.

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1

AUDIO SEL

SLEEP

MULTI CH IN

CD-R

DVD
