Xilinx Virtex-4 FPGA Configuration User Manual

Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

The information disclosed to you hereunder (the “Materials”) is provided solely for the selection and use of Xilinx products. To the

maximum extent permitted by applicable law: (1) Materials are made available "AS IS" and with all faults, Xilinx hereby DISCLAIMS ALL WARRANTIES AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and (2) Xilinx shall not be liable (whether in contract or tort, including negligence, or under any other theory of liability) for any loss or damage of any kind or nature related to, arising under, or in connection with, the Materials (including your use of the Materials), including for any direct, indirect, special, incidental, or consequential loss or damage (including loss of data, profits, goodwill, or any type of loss or damage suffered as a result of any action brought by a third party) even if such damage or loss was reasonably foreseeable or Xilinx had been advised of the possibility of the same. Xilinx assumes no obligation to correct any errors contained in the Materials or to notify you of updates to the Materials or to product specifications. You may not reproduce, modify, distribute, or publicly display the Materials without prior written consent. Certain products are subject to the terms and conditions of Xilinx’s limited warranty, please refer to Xilinx’s Terms of Sale which can be viewed at

http://www.xilinx.com/legal.htm#tos

Xilinx products are not designed or intended to be fail-safe or for use in any application requiring fail-safe performance; you assume sole risk and liability for use of Xilinx products in such critical applications, please refer to Xilinx’s Terms of Sale which can be viewed at

http://www.xilinx.com/legal.htm#tos

© 2004–2017 Xilinx, Inc. XILINX, the Xilinx logo, Virtex, Spartan, ISE, and other designated brands included herein are trademarks of Xilinx in the United States and other countries. The PowerPC name and logo are registered trademarks of IBM Corp. and used under license. All other trademarks are the property of their respective owners.

; IP cores may be subject to warranty and support terms contained in a license issued to you by Xilinx.

Revision History

The following table shows the revision history for this document.

Version Revision

08/02/04 1.0 Initial Xilinx release. Printed Handbook version.

09/10/04 1.1 Chapters 11, 12, and 13 in the printed handbook are now Chapters 1, 2, and 3 in this

guide. Chapter 14 in the printed handbook is now Chapter 6 in this guide. There are now eight chapters in this guide.

08/08/05 1.2 System Monitor functions are not supported in Virtex-4 devices, removed references.

General typographical edits for correctness and clarity. Edited Table 1-1, Table 1-4,

Figure 1-11, Table 2-4, and Figure 2-11 to add information on Slave SelectMAP32 mode.

Removed the Virtex-4 bitstream length tables in favor of the exact numbers reported in the ISE BitGen tool. Edited Table 1-3 and removed the Power-Up Timing table to consolidate data in the Virtex-4 FPGA Data Sheet. Edited Figure 1-11. Removed the Dynamic Reconfiguration Timing table to consolidate data in the Virtex-4 FPGA

Data Sheet.

08/16/05 1.3 Due to a documentation error, all configuration I/O notations have been changed from

LVTTL to LVCMOS.

Virtex-4 FPGA Configuration User Guide www.xilinx.com UG071 (v1.12) June 2, 2017

Version Revision

01/19/06 1.4 Completed grammatical and style edits for clarity and compliance to Xilinx

documentation standards. Added preface, not included in previous versions. Corrected Table 1-1, page 13 (Note 2.). Added “HSWPEN has a weak pull-up prior to and during configuration” to Table 1-2,

page 14. Clarified first paragraph of “Clear Configuration Memory (Step 2, Initialization),” page 16. Clarified title of Table 1-10, page 22 (status register), to

differentiate from Figure 1-10 (signal sequencing). Added descriptions for GWE, GTS, EOS, DCI_MATCH, and DCM_LOCK to Table 1-10, page 22. Added “ICAP is not supported with an encrypted bitstream in the LX, SX, and FX12 devices” as last paragraph in “Loading the Encryption Key,” page 24 and as last line in first paragraph in “Bitstream Encryption and Internal Configuration Access Port (ICAP),” page 25. Added third paragraph to “Loading Encrypted Bitstreams,” page 24. Clarified SelectMAP Data Pin Description in Table 2-4, page 39. Added port width to “SelectMAP

Reconfiguration,” page 51. Added first paragraph to Chapter 4, “Frame ECC Logic,” page 75. Updated the BitGen option to DONE_CYCLE:KEEP in Chapter 5, “User Access Register,” page 77. Added “Frame Address Register (FAR),” page 92. Corrected

Configuration Data in Table 8-2, page 103 (step 4 and step 6). Changed DESYCH to DESYNC (throughout).

01/12/07 1.5 Updated notes relevant to Figure 2-5. Updated Table 2-4, Table 3-3, and the “Instruction

Updated the “Control Register (CTL)” section, Table 7-7, and Figure 8-2.

06/21/07 1.6 Updated “Introduction,”Table 1-2, “Master Serial Configuration,” “SelectMAP Data

Loading,” Chapter 5, “User Access Register,” “Changing the Multiply and Divide Values,” “Dynamic Phase Shifting Through the DRP in Direct Mode,” Table 7-1, CBC

address value in Table 7-5, “Configuration Memory Read Procedure (SelectMAP),” and

Table 8-2. Added

“Packet Types”section.

07/30/07 1.7 Added TAP controller state definitions in the “TAP Controller” section and a NOOP note

to Table 8-1.

08/08/07 1.8 Replaced instructions for setting a direct phase shift value in the “Dynamic Phase

Shifting Through the DRP in Direct Mode” section.

10/01/07 1.9 Title: Updated corporate disclaimer.

Chapter 2: Updated notes relevant to Figure 2-3 and updated Figure 2-19.

Chapter 3: Updated “TAP Controller” section.

Chapter 8: Updated Table 8-5.

04/08/08 1.10 Chapter 1: Updated Table 1-6 and “Loading Encrypted Bitstreams” section.

Chapter 3: Updated “Identification Register” section, including Table 3-4 and Table 3-5.

06/09/09 1.11 Chapter 1:

• Interchanged phase events 5 and 6 in Table 1-9.

Chapter 2:

• Added cross reference to the Virtex-4 FPGA Data Sheet.

• Changed default oscillator frequency to 4 MHz in Note 3 following Figure 2-4.

• Updated “Single Device SelectMAP Configuration” section.

Chapter 8:

• Updated description of .rba and .rbb files in “Verifying Readback Data” section.

UG071 (v1.12) June 2, 2017 www.xilinx.com Virtex-4 FPGA Configuration User Guide

Version Revision

06/02/17 1.12 Chapter 8:

• Added note after first paragraph to clarify that configuration memory readback is not supported for flight applications in Virtex-4QV devices.

Virtex-4 FPGA Configuration User Guide www.xilinx.com UG071 (v1.12) June 2, 2017

Preface: About This Guide

Guide Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Online Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter 1: Configuration Overview

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setup (Steps 1-3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Device Power-Up (Step 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Clear Configuration Memory (Step 2, Initialization) . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sample Mode Pins (Step 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Delaying Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Bitstream Loading (Steps 4-7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Synchronization (Step 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Check Device ID (Step 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Load Configuration Data Frames (Step 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cyclic Redundancy Check (Step 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Startup (Step 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Bitstream Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

AES Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Creating an Encrypted Bitstream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Loading the Encryption Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Loading Encrypted Bitstreams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Bitstream Encryption and Internal Configuration Access Port (ICAP) . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

BATT

Chapter 2: Configuration Interfaces

Serial Configuration Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Clocking Serial Configuration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Master Serial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Slave Serial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Serial Daisy Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Configuring a Serial Daisy Chain with a Microprocessor or CPLD . . . . . . . . . . . . . . . . 32

Mixed Serial Daisy Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Guidelines and Design Considerations for Serial Daisy Chains . . . . . . . . . . . . . . . . . . . 33

Ganged Serial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Startup Sequencing (GTS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Disable the Active DONE Driver On for All Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Connect All DONE Pins if Using a Master Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

DONE Pin Rise Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Configuration Clock (CCLK) as Clock Signal for Board Layout . . . . . . . . . . . . . . . . . . . 38

Signal Fanout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

PROM Files for Ganged Serial Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Virtex-4 FPGA Configuration User Guide www.xilinx.com 5

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Single Device SelectMAP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Multiple Device SelectMAP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Ganged SelectMAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

SelectMAP Data Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Continuous SelectMAP Data Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Non-Continuous SelectMAP Data Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

SelectMAP ABORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Configuration Abort Sequence Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Readback Abort Sequence Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

ABORT Status Word. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Resuming Configuration or Readback After an Abort . . . . . . . . . . . . . . . . . . . . . . . . . . 51

SelectMAP Reconfiguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

SelectMAP Data Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Configuration Data Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Byte Swapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Generating PROM Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

PROM Files for Serial Daisy Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

PROM Files for SelectMAP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Chapter 3: Boundary-Scan and JTAG Configuration

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1 . . . . . . . . . . . . . 57

Test Access Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

TAP Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Boundary-Scan Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Boundary-Scan Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Instruction Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

BYPASS Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Identification Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuration Register (Boundary-Scan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

USERCODE Register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

USER1, USER2, USER3, and USER4 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Using Boundary-Scan in Virtex-4 Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Configuring Through Boundary-Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Reconfiguring through Boundary-Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1532 . . . . . . . . . . . . . . 71

ISC Modal States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Clocking Startup and Shutdown Sequences (JTAG) . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Configuration Flows Using JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Chapter 4: Frame ECC Logic

Using Frame ECC Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Chapter 5: User Access Register

Using the User Access Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Chapter 6: Reconfiguration Techniques

Dynamic Reconfiguration of Functional Blocks (DRP) . . . . . . . . . . . . . . . . . . . . . . . 79

Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

6 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

FPGA Fabric Port Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

DRP DCM Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Changing the Multiply and Divide Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Dynamic Phase Shifting Through the DRP in Direct Mode . . . . . . . . . . . . . . . . . . . . . 84

ICAP - Internal Configuration Access Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Chapter 7: Configuration Details

Configuration Memory Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Configuration Control Logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Packet Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Type 1 Packet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Type 2 Packet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Command Register (CMD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Control Register (CTL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Frame Address Register (FAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Status Register (STAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Configuration Options Register (COR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Bitstream Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Default Initial Configuration Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Chapter 8: Readback and Configuration Verification

Preparing a Design for Readback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Readback Command Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Accessing Configuration Registers through the SelectMAP Interface . . . . . . . . . . . . 100

Configuration Register Read Procedure (SelectMAP) . . . . . . . . . . . . . . . . . . . . . . . . . 101

Configuration Memory Read Procedure (SelectMAP) . . . . . . . . . . . . . . . . . . . . . . . . . 102

Accessing Configuration Registers through the JTAG Interface . . . . . . . . . . . . . . . . 104

Configuration Register Read Procedure - JTAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Configuration Memory Read Procedure (1149.1 JTAG) . . . . . . . . . . . . . . . . . . . . . . . . 106

Configuration Memory Read Procedure (1532 JTAG) . . . . . . . . . . . . . . . . . . . . . . . . . 109

Verifying Readback Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Readback Capture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Virtex-4 FPGA Configuration User Guide www.xilinx.com 7

UG071 (v1.12) June 2, 2017

8 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

About This Guide

This document describes the Virtex®-4 Configuration. Complete and up-to-date documentation of the Virtex-4 family of FPGAs is available on the Xilinx web site at

http://www.xilinx.com/products/virtex4/index.htm

Guide Contents

• Chapter 1, “Configuration Overview”

• Chapter 2, “Configuration Interfaces”

• Chapter 3, “Boundary-Scan and JTAG Configuration”

• Chapter 4, “Frame ECC Logic”

• Chapter 5, “User Access Register”

• Chapter 6, “Reconfiguration Techniques”

• Chapter 7, “Configuration Details”

• Chapter 8, “Readback and Configuration Verification”

Preface

Additional Documentation

The following documents are also available for download at

http://www.xilinx.com/products/virtex4/index.htm

• Virtex-4 Family Overview

The features and product selection of the Virtex-4 family are outlined in this overview.

• Virtex-4

This data sheet contains the DC and Switching Characteristic specifications for the Virtex-4 family.

• Virtex-4

Chapters in this guide cover the following topics:

- Clocking Resources

- Digital Clock Manager (DCM)

- Phase-Matched Clock Dividers (PMCD)

- Block RAM and FIFO memory

- Configurable Logic Blocks (CLBs)

-SelectIO™ Resources

FPGA Data Sheet: DC and Switching Characteristics

FPGA User Guide

Virtex-4 FPGA Configuration User Guide www.xilinx.com 9

UG071 (v1.12) June 2, 2017

Preface: About This Guide

• XtremeDSP™ Design Considerations

- SelectIO Logic Resources

- Advanced SelectIO Logic Resources

This guide describes the XtremeDSP slice and includes reference designs for using DSP48 math functions and various FIR filters.

• Virtex-4

This designer’s guide provides information on the design of PCBs for Virtex-4 devices. It considers all aspects of the PCB from the system level down to the minute details. This guide focuses on strategies for making design decisions at the PCB and interface level.

• Virtex-4

This specification includes the tables for device/package combinations and maximum I/Os, pin definitions, pinout tables, pinout diagrams, mechanical drawings, and thermal specifications.

• Virtex-4 RocketIO

This guide describes the RocketIO Multi-Gigabit Transceivers available in the Virtex-4-FX family.

• Virtex-4

This guide describes the Tri-Mode Ethernet Media Access Controller available in the Virtex-4 FX family.

• PowerPC®

This guide is updated to include the PowerPC 405 processor block available in the Virtex-4 FX family.

Additional Resources

FPGA PCB Designers Guide

FPGA Packaging and Pinout Specification

™ Multi-Gigabit Transceiver User Guide

FPGA Embedded Tri-Mode Ethernet MAC User Guide

405 Processor Block Reference Guide

To search the database of silicon and software questions and answers, or to create a technical support case in WebCase, see the Xilinx website at:

http://www.xilinx.com/support

Typographical Conventions

This document uses the following typographical conventions. An example illustrates each convention.

Convention Meaning or Use Example

Italic font

References to other documents

Emphasis in text

See the Virtex-4 Configuration Guide for more information.

The address (F) is asserted after clock event 2.

10 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Online Document

The following conventions are used in this document:

Convention Meaning or Use Example

Typographical Conventions

Blue text

Red text

Blue, underlined text

Cross-reference link to a location in the current document

Cross-reference link to a location in another document

Hyperlink to a website (URL)

See the section “Additional

Resources” for details.

Refer to “Title Formats” in

Chapter 1 for details.

See the Virtex-4 User Guide.

Go to http://www.xilinx.com for the latest speed files.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 11

UG071 (v1.12) June 2, 2017

Preface: About This Guide

12 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Configuration Overview

Introduction

Virtex®-4 devices are configured by loading application-specific configuration data—the bitstream—into internal memory. Because Xilinx® FPGA configuration memory is volatile, it must be configured each time it is powered-up. The bitstream is loaded into the device through special configuration pins. These configuration pins serve as the interface for a number of different configuration modes:

• Master-serial configuration mode

• Slave-serial configuration mode

• Master SelectMAP (parallel) configuration mode

• Slave SelectMAP (parallel) configuration mode

In addition, the bitstream can be loaded through the JTAG interface:

Chapter 1

• JTAG/Boundary-Scan configuration mode

The configuration modes are explained in detail in Chapter 2 The configuration mode is selected by setting the appropriate level on the dedicated MODE input pins. Table 1-1 lists the Virtex-4 configuration modes.

Table 1-1: Virtex-4 Configuration Modes

Configuration Mode M2 M1 M0 Data Width CCLK Direction

Master Serial 000 1 bit Output

Slave Serial 111 1 bit Input

Master SelectMAP 011 8 bits Output

Slave SelectMAP8 110 8 bits Input

Slave SelectMAP32

JTAG/Boundary-Scan only

Notes:

1. JTAG configuration uses the JTAG TCK pin instead of the configuration clock (CCLK).

2. I/O pre-configuration pull-up resistors are disabled with the HSWAPEN pin.

3. In SelectMAP32 D0:D31 data bits are not swapped. D0 is the LSB. D31 is the MSB.

4. If the pins are left unconnected a weak pull-up resistor on the mode pins makes slave serial the default mode.

(3)

(1)

001 32 bits Input

101 1 bit –

Virtex-4 FPGA Configuration User Guide www.xilinx.com 13

UG071 (v1.12) June 2, 2017

Chapter 1: Configuration Overview

The terms Master and Slave refer to the direction of the configuration clock (CCLK):

• In Master configuration modes, the Virtex-4 device drives the configuration clock (CCLK) from an internal oscillator

• In Slave configuration modes, the configuration clock is an input.

The JTAG/Boundary-Scan configuration interface is always available, regardless of the MODE pin settings. The JTAG/Boundary-Scan configuration mode disables all other configuration modes. This prevents conflicts between configuration interfaces.

The JTAG interface is available after the mode pins are sampled. Activating PROGRAM_B disables JTAG until INIT is completed.

Certain pins are dedicated to configuration, while others are dual-purpose (Table 1-2). Dual-purpose pins serve both as configuration pins and as user I/O after configuration. Dedicated configuration pins retain their function after configuration.

Table 1-2: Virtex-4 Configuration Pins

Pin Name Type

M[2:0] Input Dedicated Mode pins that determine configuration mode. Sampled on the rising

CCLK Input or

D_IN Input Dedicated Serial data input for serial configuration modes.

DOUT_BUSY Output Dedicated In Serial configuration mode, pin acts as serial data output for daisy-chain

DONE Bidirectional,

Open-Drain

INIT_B Input or

Open-Drain

PROGRAM_B Input Dedicated Active Low asynchronous full-chip reset.

SelectMAP Data

Bidirectional Dual-Purpose Parallel data inputs for SelectMAP modes.

(1)

Output

or Active

Output,

Dedicated or

Dual-Purpose

Dedicated Configuration clock source for all configuration modes except JTAG.

Dedicated Active High signal indicating configuration is complete.

Dedicated Before MODE pins are sampled, INIT_B is an input that can be held Low

(2)

edge of INIT_B.

configuration. In SelectMAP mode, pin acts as BUSY output.

0 = FPGA not configured 1 = FPGA configured

Refer to the “BitGen” section of the Development System Reference Guide for software settings.

to delay configuration. After MODE pins are sampled, INIT_B is an open-drain active Low

output indicating whether a CRC error occurred during configuration:

0 = CRC error 1 = No CRC error

For 8-bit SelectMAP:

D0 = MSB D7 = LSB

For 32-bit SelectMAP:

D0 = LSB D31 = MSB

Description

14 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Setup (Steps 1-3)

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_02_122105

Bitstream

Steps

12345678

Table 1-2: Virtex-4 Configuration Pins (Continued)

Pin Name Type

(1)

HSWAPEN Input Dedicated Active High input used to disable weak pre-configuration I/O pull-up

Notes:

1. The Bidirectional type describes a pin that is bidirectional under all conditions. If the pin is an input for some configuration modes or an output for others, it is listed as an Input or Output type.

2. Dual-purpose pins can become user I/O after configuration. See “

Dedicated or

Dual-Purpose

(2)

Description

resistors:

0 = weak pre-configuration I/O pull-up resistors enabled 1 = weak pre-configuration I/O pull-up resistors disabled

HSWAPEN must be connected to either enable or disable the pull-up resistors.

HSWAPEN has a weak pull-up prior to and during configuration. The weak pull-up does not always provide a reliable 1.

PERSIST” in Chapter 7 for details.

Setup (Steps 1-3)

While each of the configuration interfaces is different, the basic steps for configuring a Virtex-4 device are the same for all modes. Figure 1-1 shows the Virtex-4 configuration process. Each step is described in detail in the following sections.

Steps

Start

12345678

Device

Power-Up

Clear

Configuration

Memory

Sample Mode

Pins

Synchronization

Figure 1-1: Virtex-4 Configuration Process

Device Power-Up (Step 1)

Figure 1-2: Device Power-Up (Step 1)

For configuration, Virtex-4 devices require power on the V V

All JTAG and serial configuration pins are located in a separate, dedicated bank with a dedicated V purpose pins, and are located in Bank 2 (V V voltage level with the output standard set to LVCMOS_12F. In SelectMAP mode, V must be connected to the appropriate voltage to match the I/O standard of the configuration device.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 15

UG071 (v1.12) June 2, 2017

pins. There are no power-supply sequencing requirements.

CCINT

CC_CONFIG

) supply. The SelectMAP data pins are shared dual-

CCO_0

CCO_2

CC_CONFIG

LVCMOS level. All active dedicated output pins operate at the V

Device ID

Check

Configuration

Bitstream

Load

Data

CC_CONFIG

CRC Check

, V

CCAUX

Startup

Sequence

ug071_01_122105

, and

). All dedicated input pins operate at

CC_CONFIG

Finish

CCO_2

Chapter 1: Configuration Overview

For power-up, the V I/O voltage supplies (V

power pins must be supplied with a 1.2V source. None of the

CCINT

), except V

CCO

CCO_0 (VCC_CONFIG

), need to be powered for Virtex-4 configuration in JTAG or serial modes. Table 1-3 shows the power supplies required for configuration; for recommended operating conditions, see Table 2 of the

Virtex-4 FPGA Data Sheet. Table 41 of the Virtex-4 FPGA Data Sheet shows the configuration

power-up timing parameters. Table 7-1 shows the number of frames per Virtex-4 device.

Table 1-3: Power Supplies Required for Configuration

Pin Name Description

CCINT

(1)

BATT

CC_CONFIG

CCAUX

Notes:

1. V

is required only when using bitstream encryption.

BATT

PROGRAM_B

CCLK Output or Input

Internal core voltage relative to GND.

Encryption Key battery supply.

Configuration output supply voltage (also known as V

CCO_0

)

Auxiliary power input for configuration logic and other FPGA functions.

INIT_B

POR

ICCK

M0, M1, M2*

(Required)

*Can be either 0 or 1, but must not toggle during and after configuration.

Figure 1-3: Device Power-Up Timing

should rise monotonically within the specified ramp rate. If this is not possible,

CCINT

delay configuration by holding the INIT_B pin or the PROGRAM_B pin Low (see

“Delaying Configuration”) while the system power reaches V

The configuration logic power input (V (V

) are used as a logic input to the Power-On-Reset (POR) circuitry. If either of these

CCAUX

CC_CONFIG

) and the auxiliary voltage input

voltage planes dips below the specified level, POR can trigger.

Clear Configuration Memory (Step 2, Initialization)

Steps

12345678

Clear

Configuration

Memory

Sample Mode

Pins

Synchronization

Device ID

Check

Bitstream

Figure 1-4: Initialization (Step 2)

Start

Device

Power-Up

POR

Load

Configuration

Data

VAL ID

CRC Check

ug071_03_073007

Startup

Sequence

ug071_04_122105

Finish

16 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Setup (Steps 1-3)

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_05_122105

Bitstream

Steps

12345678

Configuration memory is cleared sequentially any time the device is powered up, when the PROGRAM_B pin is pulsed Low, or when the JTAG JPROGRAM instruction is used. During this time, I/Os are placed in a high-Z state except for the dedicated Configuration and JTAG pins. INIT_B is held Low by the device during initialization, then released after T

(Figure 1-3.) If the INIT_B pin is held Low externally, the device waits at this point in

POR

the initialization process until the pin is released.

The minimum Low pulse time for PROGRAM_B is defined by the T parameter. The PROGRAM_B pin can be held active (Low) for as long as necessary, and the device remains held in the reset state.

Sample Mode Pins (Step 3)

When the INIT_B pin transitions to High, the device samples the MODE pins and begins driving CCLK if in Master Serial or Master SelectMAP mode. At this point, the device begins sampling the configuration data input pins (D pins for SelectMAP modes on rising configuration clock signals).

Delaying Configuration

There are two ways to delay configuration for Virtex-4 devices:

Figure 1-5: Sample Mode Pins (Step 3)

pin for Serial Modes or the D0–D7

PROGRAM

timing

• The first is to hold the INIT_B pin Low during initialization (Figure 1-3). This method

only works if INIT_B is prevented from going High. After INIT_B goes High, configuration cannot be delayed by subsequently pulling INIT_B Low.

• The second is to hold the PROG pin Low, continuously clearing configuration

memory (“Clear Configuration Memory (Step 2, Initialization),” page 16). The signals relating to initialization and delaying configuration (Table 1-4).

Virtex-4 FPGA Configuration User Guide www.xilinx.com 17

UG071 (v1.12) June 2, 2017

Chapter 1: Configuration Overview

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_06_122105

Bitstream

Steps

12345678

Table 1-4: Signals Relating to Initialization and Delaying Configuration

Signal Name Type

(1)

Access

(2)

Description

PROGRAM_B Input Externally accessible via

the PROGRAM_B pin.

Global asynchronous chip reset.

Can be held Low to delay

configuration.

INIT_B Input or

Output

Externally accessible via the INIT_B pin.

Before the MODE pins are

sampled, INIT_B is an input that

can be held Low to delay

configuration.

After the MODE pins are sampled,

INIT_B is an open-drain active

Low output indicating whether a

CRC error occurred during

configuration:

0 = CRC error 1 = No CRC error

INIT_COMPLETE Status Internal signal,

accessible through the

Indicates whether INIT_B signal

has been internally released.

Virtex-4 status register.

MODE_STATUS[2:0] Status Internal signals,

accessible through the Virtex-4 status register.

Reflects the values sampled on the

MODE pins when INIT_B is

asserted High.

Notes:

The Status type symbolizes an internal status signal without a corresponding pin.

2. Information on the Virtex-4 status register is available in Table 7-9. Information on accessing the

JTAG capture sequence is available in Table 8-4.

Bitstream Loading (Steps 4-7)

The bitstream loading process is similar for all configuration modes; the primary difference between modes is the interface to the configuration logic. Details on the different configuration interfaces are provided in Chapter 2.

The most important steps in the bitstream loading process are, synchronization, device ID check, loading configuration data, and the CRC check. Each of these steps involves distinct parts of the configuration bitstream. The steps prior to synchronization and after the CRC check do not directly involve the configuration bitstream.

Synchronization (Step 4)

Figure 1-6: Synchronization (Step 4)

Before the configuration data frames can be loaded, a special 32-bit synchronization word (0xAA995566) must be sent to the configuration logic. The synchronization word alerts

18 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Bitstream Loading (Steps 4-7)

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_07_122105

Bitstream

Steps

12345678

the device to upcoming configuration data and aligns the configuration data with the internal configuration logic. Any data on the configuration input pins prior to synchronization is ignored.

Synchronization is transparent to most users because all configuration bitstreams (.bit files) generated by the Xilinx ISE® Bitstream Generator (BitGen) software include the synchronization word. Table 1-5 shows signals relating to synchronization.

Table 1-5: Signals Relating to Synchronization

Signal Name Type Access Description

DALIGN Status Only available through the

Check Device ID (Step 5)

Once the device is synchronized, a device ID check must pass before the configuration data frames can be loaded. This prevents an attempted configuration with a bitstream that is formatted for a different device.

For example, the device ID check should prevent an XC4VLX15 from being configured with an XC4VLX80 bitstream.

SelectMAP interface during an ABORT. (See “Configuration

Abort Sequence Description,” page 49.)

Figure 1-7: Check Device ID (Step 5)

Indicates whether device is synchronized.

The device ID check is built into the bitstream, making this step transparent to most designers. Figure 1-7 shows the relative position of the device ID check, Table 1-6 shows the Virtex-4 device IDs, and Table 1-7 shows the sig nals re latin g to the devic e ID che ck. The device ID check is performed through commands in the bitstream to the configuration logic, not through the JTAG IDCODE register in this case.

Table 1-6: Virtex-4 Device ID Codes

Device IDCODE Device IDCODE Device IDCODE

XC4VLX15 01658093 XC4VFX12 01E58093

XC4VLX25 0167C093 XC4VSX25 02068093 XC4VFX20 01E64093

XC4VLX40 016A4093 XC4VSX35 02088093 XC4VFX40 01E8C093

XC4VLX60 016B4093 XC4VSX55 020B0093 XC4VFX60 01EB4093

XC4VLX80 016D8093

XC4VLX100 01700093 XC4VFX100 01EE4093

XC4VLX160 01718093 XC4VFX140 01F14093

Virtex-4 FPGA Configuration User Guide www.xilinx.com 19

UG071 (v1.12) June 2, 2017

(1)

Chapter 1: Configuration Overview

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_08_122105

Bitstream

Steps

12345678

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_09_122105

Bitstream

Steps

12345678

Table 1-6: Virtex-4 Device ID Codes (Continued)

Device IDCODE Device IDCODE Device IDCODE

XC4VLX200 01734093

Notes:

1. Does not reflect the actual device array size.

Table 1-7: Signals Relating to the Device ID Check

Signal Name Type Access

ID_Err Status Internal signal. Accessed

Notes:

1. Information on the Virtex-4 status register is available in Table 7-9. Information on accessing the JTAG capture sequence is available in Table 8-4.

Load Configuration Data Frames (Step 6)

(1)

only through the Virtex-4 status register.

Description

Indicates a mismatch between the device ID specified in the bitstream and the actual device ID.

Figure 1-8: Load Configuration Data Frames (Step 6)

After the synchronization word is loaded and the device ID has been checked, the configuration data frames are loaded. This process is transparent to most users. For details, refer to Chapter 7

Cyclic Redundancy Check (Step 7)

Figure 1-9: Cyclic Redundancy Check (Step 7)

As the configuration data frames are loaded, the device calculates a Cyclic Redundancy Check (CRC) value from the configuration data packets. After the configuration data frames are loaded, the configuration bitstream can issue a Check CRC instruction to the device, followed by an expected CRC value. If the CRC value calculated by the device does not match the expected CRC value in the bitstream, the device pulls INIT_B Low and aborts configuration. The CRC check is included in the configuration bitstream by default, although the designer can disable it if desired. (Refer to the Development System Reference

Guide, BitGen section.) If the CRC check is disabled, there is a risk of loading incorrect

20 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Startup (Step 8)

x32x28x27x26x25x23x22x20x19x18x14x13x11x10x9x8x61+ + + + + + + + + + + + + ++++

Device

Power-Up

Sample Mode

Pins

Synchronization

Device ID

Check

CRC Check

Clear

Configuration

Memory

Startup

Sequence

Load

Configuration

Data

Start

Finish

ug071_10_122105

Bitstream

Steps

12345678

configuration data frames, causing incorrect design behavior, or even damaging the device.

If a CRC error occurs during configuration, the device must be resynchronized and reconfigured. In serial modes, the device can only be resynchronized by pulsing the PROGRAM_B pin and restarting the configuration process from the beginning. In SelectMAP modes, either the PROGRAM_B pin can be pulsed Low or an ABORT sequence can be initiated (see “SelectMAP Configuration Interface” in Chapter 2).

Virtex-4 devices use a 32-bit CRC check. The CRC check is designed to catch errors in transmitting the configuration bitstream. There is a scenario where errors in transmitting the configuration bitstream can be missed by the CRC check:

Certain clocking errors, such as double-clocking, can cause loss of synchronization between the 32-bit bitstream packets and the configuration logic. Once synchronization is lost, any subsequent commands are not understood, including the command to check the CRC. In this situation, configuration fails with DONE Low and INIT_B High.

Virtex-4 configuration uses a standard CRC32C checksum algorithm. The CRC32C polynomial is:

Startup (Step 8)

After the configuration frames are loaded, the bitstream instructs the device to enter the startup sequence. The startup sequence is controlled by an 8-phase (phases 0–7) sequential state machine. The startup sequencer performs the tasks outlined in Table 1-8.

Table 1-8: User-Selectable Cycle of Startup Events

Figure 1-10: Start-Up Sequence (Step 8)

Phase Event

1–6 Wait for DCMs to Lock (optional)

1–6 Wait for DCI to Match (optional)

–6 Assert GWE (Global Write Enable), allowing RAMs and flip-flops to change state

1–6 Negate GTS (Global 3-State), activating I/O

1–6Release DONE pin

7 Assert EOS (End Of Startup)

The specific order of startup events (except for EOS assertion) is user-programmable through BitGen options (refer to the Development System Reference Guide). Table 1-8 shows the general sequence of events, although the specific phase for each of these startup events is user-programmable (EOS is always asserted in the last phase). Refer to Chapter 2,

Virtex-4 FPGA Configuration User Guide www.xilinx.com 21

UG071 (v1.12) June 2, 2017

Chapter 1: Configuration Overview

“Configuration Interfaces” for important startup option guidelines. By default, startup

events occur as shown in Table 1-9.

Table 1-9: Default Sequence of Startup Events

Phase Event

4Release DONE pin

5 Negate GTS, activating I/O

6 Assert GWE, allowing RAMs and FFs to change state

7Assert EOS

The start-up sequence can be forced to wait for the DCMs to lock or for DCI to match with the appropriate BitGen options. These options are typically set to prevent DONE, GTS, and GWE from being asserted (preventing device operation) before the DCMs have locked and/or DCI has matched.

The DONE signal is released by the start-up sequencer on the cycle indicated by the user, but the start-up sequencer does not proceed until the DONE pin actually sees a logic High. The DONE pin is an open-drain bidirectional signal by default. By releasing the DONE pin, the device simply stops driving a logic Low and the pin goes into a high-Z state. An external pull-up resistor is needed for the DONE pin to reach a logic High in this case.

Table 1-10 shows signals relating to the status register. Figure 1-11 shows the signals

relating to the start-up sequencer.

Table 1-10: Signals Relating to Status Register

Signal Name Type

DONE Bidirectional

Release_DONE

GWE Global Write Enable. When de asserted GWE

GTS Global Tri-State. When asserted, GTS

EOS End of Startup. EOS indicates the absolute

DCI_MATCH DCI_MATCH indicates when all the

DCM_LOCK DCM_LOCK indicates when all the Digital

Status

Access

(2)

DONE pin or Virtex-4 Status Register

Virtex-4

Status Register

(1)

Indicates configuration is complete. Can be held Low externally to synchronize startup with other FPGAs.

Indicates whether device has released DONE pin. If pin is held Low externally, Release_DONE can differ from actual value on DONE pin.

disables CLB and IOB flips-flops as well as other synchronous elements on the FPGA.

disables all the I/O drivers except for configuration pins.

end of the configuration and startup process.

Digitally Controlled Impedance (DCI) controllers have matched their internal resistor to the external reference resistor.

Clock Managers (DCMs) have locked. This signal is asserted by default. It is active if the LOCK_WAIT option is used on a DCM and the LockCycle option is used when the bitstream is generated.

Description

Notes:

1. Information on the Virtex-4 status register is available in Table 7-9. Information on accessing the JTAG capture sequence is available in Table 8-4.

2. Open-drain output by default; optional driver enabled using BitGen drivedone option.

22 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

POR

INIT_B

DONE

GWE

GTS

EOS

CCLK

Bitstream Encryption

Initialization Configuration StartupEnd of Bitstream

Figure 1-11: Configuration Signal Sequencing (Default Startup Settings)

Bitstream Encryption

Virtex-4 devices have on-chip AES (Advanced Encryption Standard) decryption logic to provide a high degree of design security. Without knowledge of the encryption key, potential pirates cannot analyze an externally intercepted bitstream to understand or clone the design. Encrypted Virtex-4 designs cannot be copied or reverse-engineered.

The Virtex-4 AES system consists of software-based bitstream encryption and on-chip bitstream decryption with dedicated memory for storing the encryption key. Using the Xilinx ISE software, the user generates the encryption key and the encrypted bitstream. During configuration, the Virtex-4 device performs the reverse operation, decrypting the incoming bitstream. The Virtex-4 AES encryption logic uses a 256-bit encryption key.

The on-chip AES decryption logic cannot be used for any purpose other than bitstream decryption; i.e., the AES decryption logic is not available to the user design and cannot be used to decrypt any data other than the configuration bitstream.

Virtex-4 devices store the encryption key internally in dedicated RAM, backed up by a small externally connected battery. The encryption key can only be programmed onto the device through the JTAG interface; once programmed, it is not possible to read the encryption key out of the device through JTAG or any other means.

ICAP is not supported with an encrypted bitstream in the LX, SX, and FX12 devices.

ug071_11_080305

AES Overview

The Virtex-4 encryption system uses the Advanced Encryption Standard (AES) encryption algorithm. AES is an official standard supported by the National Institute of Standards and Technology (NIST) and the U.S. Department of Commerce (http://csrc.nist.gov/publications/fips/fips197/fips-197.pdf)

The Virtex-4 AES encryption system uses a 256-bit encryption key (the alternate key lengths of 128- and 192- bits described by NIST are not implemented) to encrypt or decrypt blocks of 128 bits of data at a time. According to NIST, there are 1.1 x 10 combinations for a 256-bit key.

Symmetric encryption algorithms such as AES use the same key for encryption and decryption. The security of the data is therefore dependent on the secrecy of the key.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 23

UG071 (v1.12) June 2, 2017

possible key

Chapter 1: Configuration Overview

Creating an Encrypted Bitstream

The Xilinx Bitstream Generator (BitGen, provided with the Xilinx ISE software) can generate encrypted as well as non-encrypted bitstreams. For AES bitstream encryption, the user specifies a 256-bit key as an input to BitGen. BitGen in turn generates an encrypted bitstream file (.bit) and an encryption key file (.nky).

For specific BitGen commands and syntax, refer to the Development System Reference Guide.

Loading the Encryption Key

The encryption key can only be programmed onto a Virtex-4 device through the JTAG interface. The iMPACT tool, provided with the Xilinx ISE software, can accept the .nky file as an input and program the device with the key through JTAG, using a supported Xilinx programming cable.

To program the key, the device enters a special key-access mode using the ISC_PROGRAM instruction, as detailed in the JTAG 1532 specification. In this mode, all FPGA memory, including the encryption key and configuration memory, is cleared. Once the key is programmed and the key-access mode is exited, it cannot be read out of the device by any means, and it cannot be reprogrammed without clearing the entire device. The key-access mode is transparent to most users.

Loading Encrypted Bitstreams

Once the device has been programmed with the correct encryption key, the device can be configured with an encrypted bitstream. After configuration with an encrypted bitstream, it is not possible to read the configuration memory through JTAG or SelectMAP readback, regardless of the BitGen security setting.

After loading the encryption key, a non-encrypted bitstream can be used to configure the device; in this case the key is ignored. After configuring with a non-encrypted bitstream, readback is possible (if allowed by the BitGen security setting). The encryption key still cannot be read out of the device, preventing the use of Trojan Horse bitstreams to defeat the Virtex-4 encryption scheme.

However, once an encrypted bitstream has been used to configure a device, the device cannot be reconfigured with a non-encrypted bitstream unless a full-chip reset is performed first by pulling the PROGRAM_B pin Low, cycling power, or issuing a JPROGRAM instruction. Additional encrypted reconfigurations can be performed.

The method of configuration is not affected by encryption. The configuration bitstream can be delivered in any mode (Serial, SelectMAP, or JTAG) from any configuration solution (PROM, System ACE™ tool, etc.). Configuration timing and signaling are unaffected by encryption.

The encrypted bitstream must configure the entire device, because partial reconfiguration through the external configuration interfaces is not permitted for encrypted bitstreams. After configuration, the device cannot be reconfigured without toggling the PROG pin, cycling power, or issuing the JTAG JSTART or JPROG instruction. Readback is available through the ICAP primitive (see “Bitstream Encryption and Internal Configuration Access

Port (ICAP)”). None of these events resets the key if V

BATT

or V

is maintained.

CCAUX

24 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Bitstream Encryption

A mismatch between the key in the encrypted bitstream and the key stored in the device causes configuration to fail with the INIT pin remaining High and the DONE pin remaining Low. A mismatch between the key and bitstream can result in a high current on V

CCINT

Note:

1. Do not use or monitor BUSY when loading an encrypted bitstream.

2. SelectMAP-32 mode is not supported with encrypted bitstreams.

Bitstream Encryption and Internal Configuration Access Port (ICAP)

The Internal Configuration Access Port (ICAP) primitive provides the user logic with access to the Virtex-4 configuration interface. The ICAP interface is similar to the SelectMAP interface, although the restrictions on readback and reconfiguration for the SelectMAP interface do not apply to the ICAP interface after configuration. Users can perform readback and reconfiguration through the ICAP interface even if bitstream encryption is used. Unless the designer wires the ICAP interface to user I/O, this does not offer attackers a method for defeating the Virtex-4 AES encryption scheme. ICAP is not supported with an encrypted bitstream in the LX, SX, and FX12 devices.

Users concerned about the security of their design should not:

BATT

• Wire the ICAP interface to user I/O

-or-

• Not instantiate the ICAP primitive.

Like the other configuration interfaces, the ICAP interface does not provide access to the key register.

The encryption key memory cells are volatile and must receive continuous power to retain their contents. During normal operation, these memory cells are powered by the auxiliary voltage input (V the key after V

CCAUX

), although a separate V

CCAUX

is removed. Because V

power input is provided for retaining

BATT

draws very little current (on the order of

BATT

nano amperes), a small watch battery is suitable for this supply. (To estimate the battery life, refer to V

DC Characteristics in the Virtex-4 FPGA Data Sheet and the battery

BATT

specifications.) At less than a 100 nA load, the endurance of the battery should be limited only by its shelf life.

does not draw any current and can be removed while V

BATT

cannot be used for any purpose other than retaining the encryption keys when V

CCAUX

is applied. V

CCAUX

BATT

removed.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 25

UG071 (v1.12) June 2, 2017

Chapter 1: Configuration Overview

26 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Configuration Interfaces

Virtex®-4 devices have three configuration interfaces. Each configuration interface corresponds to one or more configuration modes, shown in Table 2-1. For detailed interface timing information, see the Virtex-4 FPGA Data Sheet.

Table 2-1: Configuration Interfaces and Corresponding Configuration Modes

Configuration Interface Corresponding Configuration Mode(s)

Serial Master Serial, Slave Serial

SelectMAP (8-bit or 32-bit) Master SelectMAP, Slave SelectMAP

JTAG JTAG

Serial Configuration Interface

Chapter 2

In serial configuration modes, the FPGA is configured by loading one configuration bit per CCLK cycle:

• In Master serial mode, CCLK is an output.

• In Slave serial mode, CCLK is an input.

Figure 2-1 shows the basic Virtex-4 serial configuration interface.

There are four methods of configuring an FPGA in serial mode:

• Master serial configuration

• Slave serial configuration

• Serial daisy chain configuration

• Ganged serial configuration

Virtex-4 FPGA Configuration User Guide www.xilinx.com 27

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

Table 2-2 describes the Serial Configuration Interface.

Table 2-2: Virtex-4 Serial Configuration Interface Pins

Pin Name Type

M[2:0]

DOUT

D_IN INIT_B PROGRAM_B

DONE

CCLK

ug071_14_073007

Figure 2-1: Virtex-4 Serial Configuration Interface

Dedicated

or Dual-

Description

Purpose

M[2:0] Input Dedicated Mode Pins – determine configuration mode.

CCLK

Input or

Output

Dedicated

D_IN Input Dedicated

DOUT_BUSY Output Dedicated

Configuration clock source for all configuration modes except JTAG.

Serial configuration data input, synchronous to rising CCLK edge.

Serial data output for downstream daisy-chained devices.

Active High signal indicating configuration is complete:

DONE

Bidirectional,

open-drain

or active

Dedicated

0 = FPGA not configured 1 = FPGA configured

Refer to the “BitGen” section of the Development System Reference Guide for software settings.

Before the MODE pins are sampled, INIT_B is an input that can be held Low to delay configuration.

INIT_B

Input or Output,

open-drain

Dedicated

After the MODE pins are sampled, INIT_B is an open-drain active Low output indicating whether a CRC error occurred during configuration:

0 = CRC error 1 = No CRC error

PROGRAM_B Input Dedicated Active-Low asynchronous full-chip reset.

28 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Clocking Serial Configuration Data

PROGRAM_B

INIT_B

CCLK

DONE

Master DIN

Master CLK Begins Here

(2)

Data bits clocked on rising edge of CCLK

ug071_016_073007

BIT 0

(1)

BIT 1 BIT n BIT n+1

BIT n-63BIT n-64

Master DOUT /

Slave DIN

Xilinx

Serial PROM

Virtex-4

Master

Serial

DATA DOUT

INIT_B

DIN

CCLK

PROGRAM_B

DONE

M0 M1

CLK

RESET/OE

PROGRAM_B

UG071_12_073007

(2)(1)

(7)

Figure 2-2 shows how configuration data are clocked into Virtex-4 devices in Slave serial

and Master serial modes.

Figure 2-2: Serial Daisy Chain Configuration Clocking Sequence

Notes relevant to Figure 2-2:

Serial Configuration Interface

1. In Figure 2-2, bit 0 represents the MSB of the first byte. For example, if the first byte is 0xAA (1010_1010), bit 0=1, bit 1=0, bit 2=1, etc.

2. For Master configuration mode, CCLK does not transition until after MODE pins are sampled, as indicated by the arrow.

3. CCLK can be free-running in Slave serial mode.

Master Serial Configuration

The Master serial mode is designed so that the FPGA can be configured from a Xilinx® serial configuration PROM, as shown in Figure 2-3.

Figure 2-3: Master Serial Mode Configuration

Virtex-4 FPGA Configuration User Guide www.xilinx.com 29

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

Notes relevant to Figure 2-3:

1. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. The DONE pin has a programmable active driver. To enable it, enable the DriveDONE option in BitGen.

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

3. The BitGen startup clock setting must be set for CCLK for serial configuration. The oscillator frequency can be selected in BitGen (default is 4 MHz). Selectable frequencies are 4, 5, 7, 8, 9, 10, 13, 15, 20, 26, 30, 34, 41, 45, 51, 55, and 60 MHz. Because the oscillator can vary by ± 50%, select a maximum frequency not to exceed the F of the configuration device.

4. The PROM in this diagram represents one or more Xilinx serial PROMs. Multiple serial PROMs can be cascaded to increase the overall configuration storage capacity.

5. The .bit file must be reformatted into a PROM file before it can be stored on the serial PROM. Refer to the “Generating PROM Files” section.

6. On XC17V00 PROMs, the reset polarity is programmable. RESET active Low when using an XC17V00 device in this setup.

7. Connect pull-up resistors to V

8. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

9. The CCLK pin is an output and an input.

CC_CONFIG

(identical to VCC Bank 0).

MAX

should be set for

Slave Serial Configuration

Slave serial configuration is typically used for devices in a serial daisy chain, or when configuring a single device from an external microprocessor or CPLD. Design considerations are similar to Master serial configuration except for the direction of CCLK. A single device in Slave serial mode cannot simply be connected to a PROM, because CCLK is an input on both devices.

Serial Daisy Chains

Multiple Virtex-4 devices can be configured from a single configuration source by arranging the devices in a serial daisy chain. In a serial daisy chain, devices receive their configuration data through their DIN pin, passing configuration data along to downstream devices through their DOUT pin. The device closest to the configuration data source is considered the most upstream device, while the device furthest from the configuration data source is considered the most downstream device.

In a serial daisy chain, the configuration clock is typically provided by the most upstream device in Master serial mode. All other devices are set for Slave serial mode. Figure 2-4 illustrates this configuration.

Alternatively, if a CPLD or microprocessor is used as a configuration controller, all devices can be set for Slave serial mode. (See “Configuring a Serial Daisy Chain with a

Microprocessor or CPLD,” page 32.)

30 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Serial Configuration Interface

Xilinx

Serial PROM

DATA DOUT

CLK

RESET/OE

PROGRAM

(7)

M0 M1

DIN

CCLK

Virtex-4

Master

Serial

PROGRAM_B

DONE

INIT_B

M0 M1

Virtex-4

Slave Serial

DOUT

(1)

INIT_B

ug071_17_073007

DIN

CCLK

(2)

PROGRAM_B

DONE

Figure 2-4: Master/Slave Serial Mode Daisy Chain Configuration

Notes relevant to Figure 2-4:

1. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. For all devices except the last, the active driver on DONE must be disabled. For the last device in the chain, the active driver on DONE can be enabled. See “Guidelines and Design Considerations for Serial

Daisy Chains.”

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

MAX

of the configuration device.

4. The PROM in this diagram represents one or more Xilinx serial PROMs. Multiple serial PROMs can be cascaded to increase the overall configuration storage capacity.

5. The .bit file must be reformatted into a PROM file before it can be stored on the serial PROM. Separate bitstream files cannot be concatenated together to form a daisy-chain bitstream. Refer to the “Generating PROM Files” section.

6. On XC17V00 PROMs, the reset polarity is programmable. RESET

should be set for

active Low when using an XC17V00 device in this setup.

7. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

The first device in a serial daisy chain is the first to be configured. No data is passed onto the DOUT pin until all the data frames, the start-up command, and CRC check have been loaded. CRC checks only include the data for the current device, not for any others in the chain. (See “Cyclic Redundancy Check (Step 7)” in Chapter 1.)

After the first device in the chain finishes configuration and passes its CRC check, it enters the Start-Up sequence. At the Release DONE pin phase in the Start-Up sequence, the device

Virtex-4 FPGA Configuration User Guide www.xilinx.com 31

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

places its DONE pin in a high-Z state while continuing to pass configuration data and commands to downstream devices. After all devices release their DONE pins, the common DONE signal is either pulled High externally or driven High by the last device in the chain. On the next rising CCLK edge, all devices move out of the Release DONE pin phase and complete their startup sequences.

It is important that all DONE pins in a Slave serial daisy chain be connected. Only the last device in the serial daisy chain should have the DONE driver enabled. Enabling the DONE driver on upstream devices causes contention on the DONE signal.

Configuring a Serial Daisy Chain with a Microprocessor or CPLD

If a microprocessor or CPLD is driving configuration instead of a Xilinx serial PROM, all devices in the serial daisy chain can be set for Slave serial configuration mode, or the lead FPGA can be set for Master serial, as shown in Figure 2-5.

Non-Xilinx

PROM (Parallel)

ADDRESS[18:0]

DATAOUT[7:0]

CPLD

ADDRESS[18:0]

DATAIN

ROM_CS

INIT_B

DOUT

CLKIN

LDC_DONE

(6)

INIT_B

DIN

CCLK

(6)

DONE

DOUT

Virtex-4

Master

Serial

INIT_B

DIN

CCLK

Virtex-4

Slave Serial

DONE

PROGRAM_B

Control Signal

ug071_18_073007

Figure 2-5: Serial Daisy Chain Configuration from Parallel EPROM and CPLD

Notes relevant to Figure 2-5:

1. This schematic shows one of many possible implementations.

2. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. For all devices except the first, the active driver on DONE must be disabled. For the first device in the chain, the active driver on DONE can be enabled. See “Guidelines and Design Considerations for Serial

Daisy Chains.”

3. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

4. The BitGen startup clock setting must be set for CCLK for serial configuration.

5. The .bit file must be reformatted into a PROM file before it can be stored on the PROM. Refer to the “Generating PROM Files” section.

6. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

32 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Serial Configuration Interface

Mixed Serial Daisy Chains

Virtex-4 devices can be daisy-chained with the Virtex, Spartan®-II, Virtex-E, Spartan-IIE, Virtex-II, Virtex-II Pro, and Spartan-3 families. There are three important design considerations when designing a mixed serial daisy chain:

• Many older devices cannot accept as fast a CCLK frequency as a Virtex-4 device can generate. Select a configuration CCLK speed supported by all devices in the chain.

• Newer devices should be grouped at the beginning of the serial daisy chain, with older devices located at the end of the chain.

• The number of configuration bits that a device can pass through its DOUT pin is limited. This limit varies for different families (Table 2-3). The sum of the bitstream lengths for all downstream devices must not exceed the number in this table for each family.

Table 2-3: Maximum Number of Configuration Bits, Various Device Families

Architecture Maximum DOUT Bits

Virtex-4 32 x( 2

Virtex-II Pro, Virtex-II 32 x( 2

Spartan-3 32 x (2

Virtex, Virtex-E, Spartan-II, Spartan-IIE 32 x (2

– 1) = 4,294,967,264

– 1) = 33,554,216

Guidelines and Design Considerations for Serial Daisy Chains

There are a number of important considerations for serial daisy chains:

Startup Sequencing (GTS)

GTS should be released before DONE or during the same cycle as DONE to ensure the Virtex-4 device is operational when all DONE pins have been released.

Active DONE Driver

All devices except the first should disable the driver on the DONE pin (refer to the BitGen section of the Development System Reference Guide for software settings):

• DriveDone enabled (first device)

• DriveDone disabled (all devices except the first)

Alternatively, the driver can be disabled for all DONE pins and an external pull-up resistor added to pull the signal High after all devices have released it.

Connect All DONE Pins

It is important to connect the DONE pins for all devices in a serial daisy chain. Failing to connect the DONE pins can cause configuration to fail. For debugging purposes, it is often helpful to have a way of disconnecting individual DONE pins from the common DONE signal, so that devices can be individually configured through the serial or JTAG interface.

DONE Pin Rise Time

After all DONE pins are released, the DONE pin should rise from logic 0 to logic 1 in one CCLK cycle. If there are several devices in the serial daisy chain or other loads on the DONE signal (such as LEDs or microprocessor inputs), external pull-up resistors can be

Virtex-4 FPGA Configuration User Guide www.xilinx.com 33

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

required. If additional time is required for the DONE signal to rise, the BitGen donepipe option can be set for all devices in the serial daisy chain. (Refer to the BitGen section of the Development System Reference Guide for software settings.)

Board Layout for Configuration Clock (CCLK)

The Virtex-4 output standard for all configuration I/Os, including CCLK, is different from previous Xilinx FPGAs. To improve performance, the Virtex-4 configuration I/Os use the LVCMOS fast slew rate standard of 12 mA. This change results in faster edge rates to support higher configuration frequencies. This requires more attention to PCB trace routing and termination for proper signal integrity.

These basic guidelines must be followed:

• Route the CCLK net as a 50Ω controlled impedance transmission line.

• Always route the CCLK net without any branching, do not use a star topology

(Figure 2-9).

• Stubs, if necessary, must be shorter than 8 mm (0.3 inches).

• Terminate the end of the CCLK transmission line with a parallel termination of 100Ω

to V trace characteristic impedance of 50Ω).

, and 100Ω to GND (the Thevenin equivalent of V

CCO

/2, and assuming a

CCO

Xilinx recommends simulating the CCLK distribution with an IBIS simulator (such as HyperLynx) to check for glitches on each CLK input, including the CCLK of the master FPGA.

Figure 2-6 through Figure 2-8 show the recommended topologies for CCLK distribution.

Figure 2-6 shows the basic point-to-point topology for one CCLK driver (FPGA master)

and one CCLK receiver (PROM or FPGA slave).

CCLK

Output

Z0 (50 Ω)

(50 Ω)

CCLK Output = Master FPGA CCLK Input = PROM or Slave FPGA

CCLK

Input

CCO_0

2 x Z0 (100 Ω)

ug071_2_06_072505

Figure 2-6: Point-to-Point: One CCLK Output, One CCLK Input

34 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Serial Configuration Interface

CCLK

Output

ug071_2_07_072505

Z0 (50 Ω)

CCLK

Input 2

(50 Ω)

CCLK

Input 1

(50 Ω)

2 x Z0 (100 Ω)

CCO_0

(50 Ω)

length < 8mm

CCLK

Output

Z0 (50 Ω)

CCLK

Input 4

(50 Ω)

2 x Z0 (100 Ω)

CCO_0

Z0 (50 Ω)

(50 Ω)

CCLK

Input 2

length < 8mm

Z0 (50 Ω)

(50 Ω)

CCLK

Input 3

length < 8mm

Z0 (50 Ω)

(50 Ω)

CCLK

Input 1

length < 8mm

ug071_2_08_072505

Figure 2-7 shows the basic multi-drop flyby topology for one CCLK driver and two CCLK

receivers. The stub at CCLK input 1 has a length constraint.

Figure 2-7: Multi-Drop: One CCLK Output, Two CCLK Inputs

Figure 2-8 shows the multi-drop flyby topology for one CCLK driver and more than two

CCLK receivers (four in this example). All CCLK inputs except input 4 have length constraints.

Figure 2-8: Multi-Drop: One CCLK Output, More Than Two CCLK Inputs

Virtex-4 FPGA Configuration User Guide www.xilinx.com 35

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

CCLK

Output

ug071_2_09_080204

Impedance Discontinuity

CCLK

Input 1

CCLK

Input 2

Figure 2-9 shows a star topology where the transmission line branches to the multiple

CCLK inputs. The branch point creates a significant impedance discontinuity. This arrangement is Not Recommended.

Figure 2-9: Not Recommended

Star Topology: One CCLK Output, Two CCLK Inputs

Daisy-Chaining Virtex-4 with Earlier FPGA Generations

A serial daisy chain can include earlier generations of Xilinx FPGAs (Virtex-II, Virtex, Spartan-II, 4000, etc.). In general, newer devices should appear upstream of older devices. For example, a daisy chain consisting of a Virtex-4, a Virtex-II, a Virtex, and a 4000E device should be arranged with the Virtex-4 device first in the chain, the Virtex-II device second, the Virtex device third, and the 4000E device last.

BitGen Options for Mixed Daisy Chains

36 www.xilinx.com Virtex-4 FPGA Configuration User Guide

All Virtex-based device families have similar BitGen options. The guidelines provided for Virtex-4 BitGen options should be applied to all Virtex-based devices in a serial daisy chain.

If 4000-series devices are included in the daisy chain, it is important to set the BitGen SyncToDONE option for the startup settings.

UG071 (v1.12) June 2, 2017

Maximum CCLK Rate Varies Between Xilinx Device Families

(1)

DATA

PROGRAM

CLK

DOUTDIN

M1M0

CCLK

PROGRAM_B

DONE

DIN

CCLK

PROGRAM_B

DONE

INIT_B

DOUT

INIT_B

RESET/OE

ug071_15_073007

Xilinx

Serial PROM

Virtex-4

Master

Serial

Virtex-4

Slave Serial

(2)

(8)

Older Xilinx device families require slower CCLK rates than Virtex-4 devices. For mixed serial daisy chains, ensure the Master device does not toggle CCLK faster than the slowest device can tolerate.

PROM File Considerations

The PROM file for a serial daisy chain is larger than the sum of all bitstreams due to additional configuration instructions. See “Generating PROM Files.”

Ganged Serial Configuration

More than one device can be configured simultaneously from the same bitstream using a ganged serial configuration setup (Figure 2-10). In this arrangement, the serial configuration pins are tied together such that each device sees the same signal transitions. One device is typically set for Master serial mode (to drive CCLK) while the others are set for Slave serial mode. For ganged serial configuration, all devices must be identical. Configuration can be driven from a configuration PROM or from an external configuration controller.

Serial Configuration Interface

Figure 2-10: Ganged Serial Configuration

Notes relevant to Figure 2-10:

1. For ganged serial configuration, the optional DONE driver must be disabled for all

Virtex-4 FPGA Configuration User Guide www.xilinx.com 37

UG071 (v1.12) June 2, 2017

devices if one device is set for Master mode, because each device might not start up on exactly the same CCLK cycle. An external pull-up resistor is required in this case.

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

Chapter 2: Configuration Interfaces

3. The BitGen startup clock setting must be set for CCLK for serial configuration.

4. The PROM in this diagram represents one or more Xilinx serial PROMs. Multiple serial PROMs can be cascaded to increase the overall configuration storage capacity.

5. The .bit file must be reformatted into a PROM file before it can be stored on the serial PROM. Refer to the “Generating PROM Files” section.

6. On XC17V00 devices, the reset polarity is programmable. RESET active Low when using an XC17V00 device in this setup.

7. For ganged serial configuration, all devices must be identical (same IDCODE) and must be configured with the same bitstream.

8. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

There are a number of important considerations for ganged serial configuration:

Startup Sequencing (GTS)

GTS should be released before DONE or during the same cycle as DONE to ensure all devices are operational when all DONE pins have been released.

Disable the Active DONE Driver On for All Devices

should be set for

For ganged serial configuration, the active DONE driver must be disabled for all devices if the DONE pins are tied together, because there can be variations in the startup sequencing of each device. A pull-up resistor is therefore required on the common DONE signal.

-g DriveDone:no (BitGen option, all devices)

Connect All DONE Pins if Using a Master Device

It is important to connect the DONE pins for all devices in ganged serial configuration if one FPGA is used as the Master device. Failing to connect the DONE pins can cause configuration to fail for individual devices in this case. If all devices are set for Slave serial mode, the DONE pins can be disconnected (if the external CCLK source continues toggling until all DONE pins go High).

For debugging purposes, it is often helpful to have a way of disconnecting individual DONE pins from the common DONE signal.

DONE Pin Rise Time

After all DONE pins are released, the DONE pin should rise from logic 0 to logic 1 in one CCLK cycle. If additional time is required for the DONE signal to rise, the BitGen donepipe option can be set for all devices in the serial daisy chain.

Configuration Clock (CCLK) as Clock Signal for Board Layout

The CCLK signal is an LVCMOS fast 12 mA driver (LVCMOS_P12.) Signal integrity issues on the CCLK signal can cause configuration to fail. (Typical failure mode: DONE Low, INIT_B High.) Therefore, careful attention to signal integrity, including signal integrity simulation with IBIS, is recommended.

Signal Fanout

Special care must be taken in assuring good signal integrity when using ganged serial configuration. Signal integrity simulation is recommended.

38 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

PROM Files for Ganged Serial Configuration

BUSY

DONE

CCLK

PROGRAM_B

INIT_B

SelectMap Data

M[2:0]

CS_B

RDWR_B

ug071_21_073007

PROM files for ganged serial configuration are identical to the PROM files used to configure single devices. There are no special PROM file considerations.

SelectMAP Configuration Interface

The SelectMAP configuration interface (Figure 2-11) provides an 8-bit bidirectional data-bus interface to the Virtex-4 configuration logic that can be used for both configuration and readback. (For details, refer to Chapter 8)

CCLK is an output in Master SelectMAP mode; in Slave SelectMAP, CCLK is an input. One or more Virtex-4 devices can be configured through the SelectMAP bus.

There are four methods of configuring an FPGA in SelectMAP mode:

• Single device Master SelectMAP

• Single device Slave SelectMAP

• Multiple device SelectMAP bus

• Multiple device ganged SelectMAP

Table 2-4 describes the SelectMAP configuration interface.

SelectMAP Configuration Interface

Virtex-4 FPGA Configuration User Guide www.xilinx.com 39

UG071 (v1.12) June 2, 2017

Figure 2-11: Virtex-4 SelectMAP Configuration Interface

Table 2-4: Virtex-4 SelectMAP Configuration Interface Pins

Dedicated

Pin Name Type

or Dual-

Description

Purpose

M[2:0] Input Dedicated MODE pins - determines configuration mode

CCLK

SelectMAP Data

Input and

Output

Three-State

Bidirectional

Dedicated

Dual

Purpose

Configuration clock source for all configuration modes except JTAG

Byte-wide (SelectMAP 8 bit) configuration and readback data bus, clocked on rising edge of CCLK. D0 is the most-significant bit (MSB), D7 the least-significant bit (LSB). In SelectMAP 32 bit, configuring the data order is straight D0 = LSB and D31 = MSB.

(1)

Chapter 2: Configuration Interfaces

Table 2-4: Virtex-4 SelectMAP Configuration Interface Pins (Continued)

Pin Name Type

DOUT_BUSY

Three-State

Output

Dedicated

or Dual-

Purpose

Dedicated

Description

Indicates that the device is not ready to send readback data. For Virtex-4 devices, the BUSY signal is only needed for readback; it is not needed for configuration (see “SelectMAP Data

Loading”).

Active High signal indicating configuration is complete:

0 = FPGA not configured 1 = FPGA configured

DONE

Bidirectional,

Open-Drain

or active

Dedicated

Before MODE pins are sampled, INIT_B is an input that can be held Low to delay configuration.

INIT_B

Input or Output,

Open-Drain

Dedicated

After MODE pins are sampled, INIT_B is an opendrain active Low output indicating whether a CRC error occurred during configuration:

0 = CRC error 1 = No CRC error

PROGRAM_B Input Dedicated Active-Low asynchronous full-chip reset

Active-Low chip select to enable the SelectMAP

CS_B Input Dedicated

data bus (see “SelectMAP Data Loading”):

0 = SelectMAP data bus enabled 1 = SelectMAP data bus disabled

(2)

Determines the direction of the SelectMAP data bus (see “SelectMAP Data Loading”):

0 = inputs

RDWR_B Input Dedicated

1 = outputs

RDWR_B input can only be changed while CS_B is deasserted, otherwise an ABORT occurs (see

“SelectMAP ABORT”)

(2)

Notes:

1. If SelectMAP32 is used and the bitstream is compressed by the -g compress in BitGen then the

CONFIG_MODE constraint must be used. the values for the CONFIG_MODE constraint are either S_SelectMAP32 or S_SelectMAP32+READBACK. S_SelectMAP32+READBACK preserves the S_SelectMAP32 data pins for readback (also known as persist).

2. If the SelectMAP interface is not used, the CS_B and RDWR_B pins can be left unconnected. Weak pullups pull these pins High, and their state is ignored.

40 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Single Device SelectMAP Configuration

The simplest way to configure a single device in SelectMAP mode is to connect it directly to a parallel configuration PROM as shown in Figure 2-12. In this arrangement, the device is set for Master SelectMAP mode, and the RDWR_B and CS_B pins are tied to Ground for continuous data loading (see “SelectMAP Data Loading”).

Xilinx

Serial PROM

DATA[0:7]

CCLK

(10)

SelectMAP Configuration Interface

Virtex-4

Master

SelectMAP

M0 M1

D[0:7]

CCLK

PROGRAM_B

(2)(1)

RESET/OE

DONE

INIT_B

RDWR_B

CS_B

ug071_22_073007

Figure 2-12: Single Device Master SelectMAP Configuration

Notes relevant to Figure 2-12:

1. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. In this arrangement, the active DONE driver can be enabled, eliminating the need for an external pull-up resistor.

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

3. The BitGen startup clock setting must be set for CCLK for SelectMAP configuration.

4. The PROM in this diagram represents one or more Xilinx serial PROMs. Multiple serial PROMs can be cascaded to increase the overall configuration storage capacity.

5. The .bit file must be reformatted into a PROM file before it can be stored on the serial PROM. Refer to the “Generating PROM Files” section.

6. On XC17V00 devices, the reset polarity is programmable. RESET

should be set for

active Low when using an XC17V00 device in this setup.

7. The Xilinx PROM must be set for parallel mode. Note that this mode is not available for all devices.

8. When configuring a Virtex-4 device in SelectMAP mode from a Xilinx configuration PROM, the RDWR_B and CS_B signals can be tied Low (see “SelectMAP Data

Loading”).

9. The BUSY signal does not need to be monitored for this setup and can be left unconnected (see “SelectMAP Data Loading”).

10. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

11. The CCLK pin is an output and an input.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 41

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

For custom applications where a microprocessor or CPLD is used to configure a single Virtex-4 device, either Master or Slave SelectMAP mode can be used (Figure 2-13). See Xilinx Application Note XAPP502 microprocessor). Refer to “SelectMAP Data Loading” for details on handling the CS_B, RDWR_B, and BUSY signals.

for information on configuring Virtex devices using a

(7)

ADDRESS

DATA

CSO

CS1

Microprocessor

CPLD

Program Register

Config.

Memory

(7)

Input

Used for storage of the configuration bitstream

PROGRAM_B

CS_B

RDWR_B

CCLK D[0:7]

(3)(2)

INIT_B DONE

BUSY

Virtex-4

Slave

SelectMAP

ug071_19_073007

Figure 2-13: Single Slave Device SelectMAP Configuration

from Microprocessor and CPLD

Notes relevant to Figure 2-13:

1. This schematic is from Xilinx Application Note XAPP502

. It is one of many possible

implementations.

2. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. In this arrangement, the active DONE driver can be enabled, eliminating the need for an external pull-up resistor.

3. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

4. The BitGen startup clock setting must be set for CCLK for SelectMAP configuration.

5. The BUSY signal can be left unconnected if readback is not needed.

6. The CS_B and RDWR_B signals can be tied to ground if only one FPGA is going to be configured and readback is not needed.

7. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

Multiple Device SelectMAP Configuration

Multiple Virtex-4 devices in Slave SelectMAP mode can be connected on a common SelectMAP bus (Figure 2-14). In a SelectMAP bus, the data pins (SelectMAP data, CCLK, RDWR_B, BUSY, PROGRAM_B, DONE, and INIT_B share a common connection between all of the devices. To allow each device to be accessed individually, the CS_B (Chip Select) inputs must not be tied together. External control of the CS_B signal is required and is usually provided by a microprocessor or CPLD.

If Readback is going to be performed on the device after configuration, the RDWR_B and BUSY signals must be handled appropriately. (For details, refer to Chapter 8)

42 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface

PROGRAM

INIT

DONE

Virtex-4

Slave

SelectMAP

INIT_B

D[0:7]

CCLK

RDWR_B

BUSY

CS_B

PROGRAM_B

DONE

M1 M2

CS(1)

ug071_20_073007

Virtex-4

Slave

SelectMAP

INIT_B

D[0:7]

CCLK

RDWR_B

BUSY

CS_B

DATA[0:7]

CCLK

WRITE

BUSY

PROGRAM_B

DONE

M1 M2

CS(0)

(1) (2)

(6)

Otherwise, RDWR_B can be tied Low and BUSY can be ignored. Unlike earlier Virtex devices, the BUSY signal never needs to be monitored when configuring Virtex-4 devices. Refer to “Bitstream Loading (Steps 4-7)” in Chapter 1 and to Chapter 8.

Figure 2-14: Multiple Slave Device Configuration on an 8-bit SelectMAP Bus

Notes relevant to Figure 2-14:

1. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. In this arrangement, the active DONE driver must be disabled.

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

3. The BitGen startup clock setting must be set for CCLK for SelectMAP configuration.

4. The BUSY signals can be left unconnected if readback is not needed.

5. An external controller such as a microprocessor or CPLD is needed to control configuration.

6. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 43

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

(2)

DATA[0:7]

CCLK

D[0:7]

CCLK

PROGRAM_B

D[0:7]

CCLK

PROGRAM_B

DONE

BUSY

INIT_B

RDWR_B

CS_B

RDWR_B

CS_B

INIT_B

RESET/OE

ug071_24_073007

Xilinx

Serial PROM

Virtex-4

SelectMAP

Master

Virtex-4

SelectMAP

Slave

(1)

M1 M0

(10)

Ganged SelectMAP

It is also possible to configure simultaneously multiple devices with the same configuration bitstream by using ganged SelectMAP configuration. In a ganged SelectMAP arrangement, the CS_B pins of two or more devices are connected together (or tied to ground), causing all devices to recognize data presented on the SelectMAP data pins.

All devices can be set for Slave SelectMAP mode if an external oscillator is available, or one device can be designated as the Master device, as illustrated in Figure 2-15.

Notes relevant to Figure 2-15:

1. The DONE pin is by default an open-drain output requiring an external pull-up resistor. A 330Ω pull-up resistor is recommended. In this arrangement, the active DONE driver must be disabled for both devices.

Figure 2-15: Ganged SelectMAP Configuration

2. The INIT_B pin is a bidirectional, open-drain pin. An external pull-up resistor is required.

3. The BitGen startup clock setting must be set for CCLK for SelectMAP configuration.

4. The BUSY signal is not used for ganged SelectMAP configuration.

44 www.xilinx.com Virtex-4 FPGA Configuration User Guide

5. The PROM in this diagram represents one or more Xilinx Platform Flash PROMs. Multiple serial PROMs can be cascaded to increase the overall configurations storage capacity.

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface

6. The .bit file must be reformatted into a PROM file before it can be stored on the serial PROM. Refer to the “Generating PROM Files” section.

7. On 17V00 devices, the reset polarity is programmable. Reset should be set for active Low when using a 17V00 device in this setup.

8. The Xilinx PROM must be set for parallel mode. This mode is not available for all devices.

9. When configuring a Virtex-4 device in SelectMAP mode from a Xilinx configuration PROM, the RDWR_B and CS_B signals can be tied Low (see “SelectMAP Data

Loading”).

10. The CCLK net requires Thevenin parallel termination. See “Board Layout for

Configuration Clock (CCLK),” page 34.

If one device is designated as the Master, the DONE pins of all devices must be connected and with the active DONE drivers disabled. An external pull-up resistor is required on the common DONE signal. Careful attention must be paid to signal integrity due to the increased fanout of the outputs from the PROM. Signal integrity simulation is recommended.

Readback is not possible if the CS_B signals are tied together, as all devices simultaneously attempt to drive the SelectMAP data signals.

SelectMAP Data Loading

The SelectMAP interface allows for either continuous or non-continuous data loading. Data loading is controlled by the CS_B, RDWR_B, CCLK, and BUSY signals.

CS_B

The Chip Select input (CS_B) enables the SelectMAP bus. When CS_B is High, the Virtex-4 device ignores the SelectMAP interface, neither registering any inputs nor driving any outputs. SelectMAP data and BUSY are placed in a high-Z state, and RDWR_B is ignored.

♦ If CS_B = 0, the device's SelectMAP interface is enabled.

♦ If CS_B = 1, the device's SelectMAP interface is disabled.

CS_B is used for arbitrating between two or more devices on a SelectMAP bus. The active device is selected by asserting its CS_B signal, while all other devices are deactivated by deasserting their CS_B signals. If used, the CS_B should be actively driven until the startup cycle completes, as signaled by the EOS.

If only one device is being configured through the SelectMAP, or if ganged SelectMAP configuration is used, the CS_B signal can be tied to ground, as illustrated in Figure 2-12 and Figure 2-15.

In Slave Serial mode, the CS_B pin can be left unconnected or can be pulled High in a noisy environment.

RDWR_B

RDWR_B is an input to the Virtex-4 device that controls whether the SelectMAP data pins are inputs or outputs:

♦ If RDWR_B = 0, the data pins are inputs (writing to the FPGA).

♦ If RDWR_B = 1, the data pins are outputs (reading from the FPGA).

Virtex-4 FPGA Configuration User Guide www.xilinx.com 45

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

For configuration, RDWR_B must be set for write control (RDWR_B = 0). For readback, RDWR_B must be set for read control (RDWR_B = 1) while CS_B is deasserted. (For details, refer to Chapter 8)

Changing the value of RDWR_B while CS_B is asserted triggers an ABORT if the device gets a rising CCLK edge (see “SelectMAP ABORT”). If readback is not needed, RDWR_B can be tied to ground.

The RDWR_B signal is ignored while CS_B is deasserted. Read/write control of the data pins is asynchronous. The FPGA actively drives SelectMAP data without regard to CCLK if RDWR_B is set for read control (RDWR_B = 1, Readback) while CS_B is asserted.

CCLK

All activity on the SelectMAP data bus is synchronous to CCLK. When RDWR_B is set for write control (RDWR_B = 0, Configuration), the FPGA samples the SelectMAP data pins on rising CCLK edges. When RDWR_B is set for read control (RDWR_B = 1, Readback), the FPGA updates the SelectMAP data pins on rising CCLK edges.

In Slave SelectMAP mode, configuration can be paused by stopping CCLK (see “Non-

Continuous SelectMAP Data Loading”).

BUSY

BUSY is an output from the FPGA indicating when the device is ready to drive readback data. Unlike earlier Virtex devices, Virtex-4 FPGAs never drive the BUSY signal during configuration, even at the maximum configuration frequency with an encrypted bitstream. The Virtex-4 device only drives BUSY during readback. (For details, refer to Chapter 8)

♦ If BUSY = 0 during readback, the SelectMAP data pins are driving valid readback

data.

♦ If BUSY = 1 during readback, the SelectMAP data pins are not driving valid

readback data.

When CS_B is deasserted (CS_B = 1), the BUSY pin is placed in a high-Z state.

BUSY remains in a high-Z state until CS_B is asserted. If CS_B is asserted before power up (that is, if the pin is tied to ground), BUSY initially is in a high-Z state, then driven Low after POR finishes, usually a few milliseconds (T

BUSY

), after V

CCINT

reaches V

before INIT_B goes High.

Unless readback is used, the BUSY pin can be left unconnected.

Continuous SelectMAP Data Loading

Continuous data loading is used in applications where the configuration controller can provide an uninterrupted stream of configuration data. After power-up, the configuration controller sets the RDWR_B signal for write control (RDWR_B = 0) and asserts the CS_B signal (CS_B = 0), causing the device to drive BUSY Low (this transition is asynchronous). RDWR_B must be driven Low before CS_B is asserted, otherwise an ABORT occurs (see

“SelectMAP ABORT”).

POR

but

On the next rising CCLK edge, the device begins sampling the SelectMAP data pins. Configuration begins after the synchronization word is clocked into the device.

After the configuration bitstream is loaded, the device enters the startup sequence. The device asserts its DONE signal (DONE=1) in the phase of the startup sequence that is specified by the bitstream (see “Startup (Step 8)” in Chapter 1). The configuration controller should continue sending CCLK pulses until after the startup sequence has

46 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface

PROGRAM_B

INIT_B

CCLK

CS_B

RDWR_B

DATA[0:7]

ug071_25_073007

Byte 0 Byte 1 Byte n

BUSY

DONE

(1)

(2)

(3)

(4)

(5)

(7)

(6)

(8) (9) (10) (11)

(12)

(13)

(14)

High-Z

finished. (This can require several CCLK pulses after DONE goes High. See “Startup (Step

8)” in Chapter 1 for details).

After configuration, the CS_B and RDWR_B signals can be deasserted, or they can remain asserted. Because the SelectMAP port is inactive, toggling RDWR_B at this time does not cause an abort. Figure 2-16 summarizes the timing of SelectMAP configuration with continuous data loading.

Figure 2-16: Continuous SelectMAP Data Loading

Notes relevant to Figure 2-16:

1. CS_B signal can be tied Low if there is only one device on the SelectMAP bus. If CS_B is not tied Low, it can be asserted at any time.

2. RDWR_B can be tied Low if readback is not needed. RDWR_B should not be toggled after CS_B has been asserted, because this triggers an ABORT. (See “SelectMAP

ABORT”).

3. If CS_B is tied Low, BUSY is tristated and pulled up until INIT_B toggles High.

4. The MODE pins are sampled when INIT_B goes High.

5. RDWR_B should be asserted before CS_B to avoid causing an abort.

6. CS_B is asserted, enabling the SelectMAP interface.

7. BUSY remains in high-Z state until CS_B is asserted.

8. With 8-bit SelectMAP, the first byte is loaded on the first rising CCLK edge after CS_B is asserted.

9. The configuration bitstream is loaded one byte per rising CCLK edge.

10. After the last byte is loaded, the device enters the startup sequence.

11. The startup sequence lasts a minimum of eight CCLK cycles. See “Startup (Step 8)” in

Chapter 1

12. The DONE pin goes High during the startup sequence. Additional CCLKs can be required to complete the startup sequence. (See “Startup (Step 8)” in Chapter 1).

13. After configuration has finished, the CS_B signal can be deasserted.

14. After the CS_B signal is deasserted, RDWR_B can be deasserted.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 47

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

PROGRAM_B

INIT_B

CCLK

CS_B

RDWR_B

DATA[0:7]

ug071_26_073007

BUSY

(2)

(5) (6) (7) (8) (9) (10) (11) (12) (13) (14)

(1)

(3)

(4)

High-ZHigh-Z High-Z

Non-Continuous SelectMAP Data Loading

Non-continuous data loading is used in applications where the configuration controller cannot provide an uninterrupted stream of configuration data—for example, if the controller pauses configuration while it fetches additional data.

Configuration can be paused in two ways: by deasserting the CS_B signal (Free-Running CCLK method, Figure 2-17) or by halting CCLK (Controlled CCLK method, Figure 2-18).

Figure 2-17: Non-Continuous SelectMAP Data Loading with Free-Running CCLK

Notes relevant to Figure 2-17:

1. RDWR_B is driven Low by the user, setting the SelectMAP data pins as inputs for configuration. RDWR_B can be tied Low if readback is not needed. RDWR_B should not be toggled after CS_B has been asserted, as this triggers an ABORT. (See

“SelectMAP ABORT”).

2. Device is ready for configuration after INIT_B toggles High.

3. The user asserts CS_B Low, enabling SelectMAP data bus. CS_B signal can be tied Low if there is only one device on the SelectMAP bus. If CS_B is not tied Low, it can be asserted at any time.

4. BUSY goes Low shortly after CS_B is asserted. If CS_B is tied Low, BUSY is d riven Low before INIT_B toggles High.

5. Byte loaded on rising CCLK edge.

6. Byte loaded on rising CCLK edge.

7. The user deasserts CS_B; byte ignored.

8. The user deasserts CS_B; byte ignored.

9. Byte loaded on rising CCLK edge.

10. Byte loaded on rising CCLK edge.

11. The user deasserts CS_B; byte ignored.

12. Byte loaded on rising CCLK edge.

13. Byte loaded on rising CCLK edge.

14. Byte loaded on rising CCLK edge.

48 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface

CCLK

CS_B

RDWR_B

DATA[0:7]

ug071_27_080204

Byte 0 Byte 1 Byte

(1)

(2)

(3)

(4) (5) (6)

Figure 2-18: Non-Continuous SelectMAP Data Loading with Controlled CCLK

Notes relevant to Figure 2-18:

1. SelectMAP data pins are in High-Z state while CS_B is deasserted.

2. RDWR_B has no effect on the device while CS_B is deasserted.

3. CS_B is asserted by the user. Device begins loading configuration data on rising CCLK edges.

4. Byte loaded on rising CCLK edge.

5. Byte loaded on rising CCLK edge.

6. Byte loaded on rising CCLK edge.

SelectMAP ABORT

An ABORT is an interruption in the SelectMAP configuration or readback sequence occurring when the state of RDWR_B changes while CS_B is asserted. During a configuration ABORT, an 8-bit status word is driven onto the SelectMAP data pins over the next four CCLK cycles. After the ABORT sequence finishes, the user can resynchronize the configuration logic and resume configuration. For applications that must de-assert RDWR_B between bytes, see Controlled CCLK method, Figure 2-18.

Configuration Abort Sequence Description

An ABORT is signaled during configuration as follows:

1. The configuration sequence begins normally.

2. The user pulls the RDWR_B pin High while the device is selected (CS_B asserted Low).

3. BUSY goes High if CS_B remains asserted (Low). The FPGA drives the status word onto the data pins if RDWR_B remains set for read control (logic High).

4. The ABORT lasts for four clock cycles and Status is updated.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 49

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

DATA[0:7]

BUSY

CCLK

STAT US

ABORT

ug071_028_091207

CS_B

RDWR_B

DATA[0:7]

BUSY

CCLK

FPGA

ABORT

ug071_029_031104

CS_B

RDWR_B

Figure 2-19: Configuration Abort Sequence

Readback Abort Sequence Description

An ABORT is signaled during readback as follows:

1. The readback sequence begins normally.

2. The user pulls the RDWR_B pin Low while the device is selected (CS_B asserted Low).

3. BUSY goes High if CS_B remains asserted (Low).

4. The ABORT ends when CS_B is deasserted.

Figure 2-20: Readback Abort Sequence

ABORTs during readback are not followed by a status word, because the RDWR_B signal is set for write control (FPGA SelectMAP data pins are inputs).

ABORT Status Word

During the configuration ABORT sequence, the device drives a status word onto the SelectMAP data pins. The key for that status word is given in Table 2-5.

50 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

SelectMAP Configuration Interface

Table 2-5: ABORT Status Word

Bit Number Status Bit Name Meaning

Configuration error (active Low)

D7 CFGERR_B

0 = A configuration error has occurred. 1 = No configuration error.

Sync word received (active High)

D6 DALIGN

0 = No sync word received. 1 = Sync word received by interface logic.

Readback in progress (active High)

D5 RIP

0 = No readback in progress. 1 = A readback is in progress.

ABORT in progress (active Low)

D4 IN_ABORT_B

0 = Abort is in progress. 1 = No abort in progress.

D3-D0 1111

The ABORT sequence lasts four CCLK cycles. During those cycles, the status word changes to reflect data alignment and ABORT status. A typical sequence might be:

11011111 => DALIGN = 1, IN_ABORT_B = 1 11001111 => DALIGN = 1, IN_ABORT_B = 0 10001111 => DALIGN = 0, IN_ABORT_B = 0 10011111 => DALIGN = 0, IN_ABORT_B = 1

After the last cycle, the synchronization word can be reloaded to establish data alignment.

Resuming Configuration or Readback After an Abort

There are two ways to resume configuration or readback after an ABORT:

• The device can be resynchronized after the ABORT completes.

• The device can be reset by pulsing PROGRAM_B Low at any time.

To resynchronize the device, CS_B must be deasserted, then reasserted. The configuration synchronization word can then be sent. Configuration or readback can be resumed by sending the last configuration or readback packet that was in progress when the ABORT occurred. Alternatively, configuration or readback can be restarted from the beginning.

SelectMAP Reconfiguration

The term reconfiguration refers to reprogramming an FPGA after its DONE pin has gone High. Reconfiguration can be initiated by pulsing the PROGRAM_B pin (this method is identical to configuration), or by resynchronizing the device and sending configuration data. The latter method is only available in SelectMAP and JTAG configuration modes.

To reconfigure a device in SelectMAP mode without pulsing PROGRAM_B, the BitGen persist option must be set—otherwise, the SelectMAP data pins become user I/O after configuration. Reconfiguration must be enabled in BitGen. The SelectMAP port width is either 8 or 32 bits as selected by the mode pin settings.

Reconfiguration begins when the synchronization word is clocked into the SelectMAP port. The remainder of the operation is identical to configuration as described above.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 51

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

SelectMAP Data Ordering

In many cases, SelectMAP configuration is driven by a user application residing on a microprocessor, CPLD, or in some cases another FPGA. In these applications, it is important to understand how the data ordering in the configuration data file corresponds to the data ordering expected by the FPGA.

In SelectMAP 8-bit mode, configuration data is loaded at one byte per CCLK, with the MSB of each byte presented to the D0 pin. This convention (D0 = MSB, D7 = LSB) differs from many other devices. This can be a source of confusion when designing custom configuration solutions. Table 2-6 shows how to load the hexadecimal value 0xABCD into the SelectMAP data bus.

Table 2-6: Bit Ordering for SelectMAP 8-bit Mode

CCLK Cycle

Hex

Equivalent

D0 D1 D2 D3 D4 D5 D6 D7

1 0xAB 1 0 1 0 1 0 1 1

2 0xCD 1 1 0 0 1 1 0 1

Notes:

1. D[0:7] represent the SelectMAP 8-bit mode data pins.

Some applications can accommodate the non-conventional data ordering without difficulty. For other applications, it can be more convenient for the source configuration data file to be byte-swapped, meaning that the bits in each byte of the data stream are reversed. For these applications, the Xilinx PROM file generation software can generate byte-swapped PROM files (see “Configuration Data Files”).

In SelectMAP 32-bit mode, configuring the data order is straight D0 = LSB and D31 = MSB.

52 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Configuration Data Files

Xilinx design tools can generate configuration data files in a number of different formats, as described in Table 2-7. BitGen converts the post-PAR .ncd file into a configuration file, or bitstream. The bitstream contains commands to the FPGA configuration logic as well as configuration data. (For details on the bitstream format, refer to Chapter 7)

PROMGen, the PROM file generator, converts one or more bitstream files into a PROM file. PROM files can be generated in a number of different file formats, and need not be used with a PROM. They can be stored anywhere and delivered by any means.

Table 2-7: Xilinx Configuration File Formats

Configuration Data Files

File

Extension

.bit

.rbt

.bin

.mcs .exo .tek

Byte

Swapping

(1)

Not

byte-swapped

Not

byte-swapped

Not

byte-swapped

Byte-swapped

Xilinx Software

(2)

Tool

BitGen (generated

by default)

BitGen (generated if

-b option is set)

BitGen (generated if

-g binary:yes option is set)

PROMGen or

iMPACT

Description

Binary configuration data file containing header information that does not need to be downloaded to the FPGA. Used to program devices from iMPACT with a programming cable.

ASCII equivalent of the .bit file containing a text header and ASCII 1s and 0s.

Binary configuration data file with no header information. Similar to .bit file. Can be used for custom configuration solutions (microprocessors, etc.), or in some cases to program third-party PROMs.

ASCII PROM file formats containing address and checksum information in addition to configuration data. Used mainly for device programmers and iMPACT.

ASCII PROM file format

.hex

Determined

by user

PROMGen or

iMPACT

containing only configuration data. Used mainly in custom configuration solutions.

Notes:

1. Byte swapping is discussed in the “Byte Swapping” section.

2. For complete BitGen and PROMGen syntax, refer to the Development System Reference Guide.

Byte Swapping

The .mcs,.exo, and .tek PROM file formats are always byte-swapped. The .hex file format can be byte-swapped or not byte-swapped, depending on user options. The bitstream files (.bit,.rbt,.bin) are never byte-swapped.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 53

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

ug071_30_120903

Hex:

Binary:

ByteSwapped Binary:

ByteSwapped Hex:

SelectMAP Data Pin:

D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

1 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1

A B C D

1 1 0 1 0 1 0 1 1 0 1 1 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0 D7 D6 D5 D4 D3 D2 D1 D0

D 5 B 3

SelectMAP Data Pin:

The .hex file format contains only configuration data. The other PROM file formats include address and checksum information that should not be sent to the FPGA. The address and checksum information is used by some third-party device programmers, but is not programmed into the PROM.

Figure 2-17 shows how two bytes of data (0xABCD) are byte-swapped.

Figure 2-21: Byte Swapping Example

The MSB of each byte goes to the D0 pin regardless of the orientation of the data:

• In the byte-swapped version of the data, the bit that goes to D0 is the rightmost bit

• In the non-byte-swapped data, the bit that goes to D0 is the leftmost bit.

Whether or not data must be byte-swapped is entirely application-dependent, and is only applicable for SelectMAP configuration applications. Non-byte-swapped data should be used for Slave serial downloads.

Generating PROM Files

PROM files are generated from bitstream files with the PROMGen utility. Users can access PROMGen directly from the command line, or indirectly through the iMPACT File Generation Mode. For PROMGen syntax, refer to the Development System Reference Guide. For information on iMPACT, refer to the ISE® Software Documentation). PROM files serve to reformat bitstream files for PROM programming and combine bitstream files for serial daisy chains (see “PROM Files for Serial Daisy Chains”).

PROM Files for Serial Daisy Chains

Configuration data for serial daisy chains requires special formatting in that separate .bit files cannot simply be concatenated together to program the daisy chain. The special formatting is performed by PROMGen (or iMPACT) when generating a PROM file from multiple bitstreams. To generate the PROM file, specify multiple bitstreams using the PROMGen -n option or the iMPACT File Generation Wizard. Refer to software documentation for details.

54 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

PROMGen reformats the configuration bitstreams by nesting downstream configuration data into configuration packets for upstream devices. Attempting to program the chain by sending multiple bitstreams to the first device causes the first device to configure and then ignore the subsequent data.

PROM Files for SelectMAP Configuration

The .mcs file format is most commonly used to program Xilinx serial configuration PROMs that in turn programs a single FPGA in SelectMAP mode. For custom configuration solutions, the .bin and .hex files are the easiest PROM file formats to use due to their raw data format. In some cases, additional formatting is required; refer to

Xilinx Application Note XAPP502

If multiple configuration bitstreams for SelectMAP configuration resides on a single memory device, the bitstreams must not be combined into a serial daisy chain PROM file. Instead, the target memory device should be programmed with multiple .bin or .hex files. If a single PROM file with multiple, separate data streams is needed, one can be generated in iMPACT by targeting a Parallel PROM, then selecting the appropriate number of data streams. This can also be accomplished through the PROMGen command line. Refer to software documentation for details.

for details.

Generating PROM Files

Virtex-4 FPGA Configuration User Guide www.xilinx.com 55

UG071 (v1.12) June 2, 2017

Chapter 2: Configuration Interfaces

56 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Chapter 3

Boundary-Scan and JTAG Configuration

Introduction

Virtex®-4 devices support the new IEEE 1532 standard for In-System Configuration (ISC), based on the IEEE 1149.1 standard. The IEEE 1149.1 Test Access Port and Boundary-Scan Architecture is commonly referred to as JTAG. JTAG is an acronym for the Joint Test Action Group, the technical subcommittee initially responsible for developing the standard. This standard provides a means to ensure the integrity of individual components and the interconnections between them at the board level. With multi-layer PC boards becoming increasingly dense and more sophisticated surface mounting techniques in use, BoundaryScan testing is becoming widely used as an important debugging standard.

Devices containing Boundary-Scan logic can send data out on I/O pins in order to test connections between devices at the board level. The circuitry can also be used to send signals internally to test the device-specific behavior. These tests are commonly used to detect opens and shorts at both the board and device level.

In addition to testing, Boundary-Scan offers the flexibility for a device to have its own set of user-defined instructions. The added common vendor-specific instructions, such as configure and verify, have increased the popularity of Boundary-Scan testing and functionality.

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

The Virtex-4 family is fully compliant with the IEEE Standard 1149.1 Test Access Port and Boundary-Scan Architecture. The architecture includes all mandatory elements defined in the IEEE 1149.1 Standard. These elements include the Test Access Port (TAP), the TAP controller, the instruction register, the instruction decoder, the Boundary-Scan register, and the bypass register. The Virtex-4 family also supports a 32-bit identification register and a configuration register in full compliance with the standard. Outlined in the following sections are the details of the JTAG architecture for Virtex-4 devices.

Test Access Port

The Virtex-4 TAP contains four mandatory dedicated pins as specified by the protocol given in Table 3-1 and illustrated in Figure 3-1, a typical JTAG architecture. Three input pins and one output pin control the 1149.1 Boundary-Scan TAP controller. Optional control pins, such as TRST (Test Reset) and enable pins might be found on devices from other manufacturers. It is important to be aware of these optional signals when interfacing Xilinx® devices with parts from different vendors, because they might need to be driven.

The TAP controller is a state machine (16-states) shown in Figure 3-2. The four mandatory TAP pins are outlined below.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 57

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

IEEE Standard 1149.1 Compliant Device

TMS

Instruction Register

Instruction Decoder

Bypass[1] Register

IDCODE[32] Register

Boundary-Scan[N] Register

Select Data Register

Shift-IR/Shift-DR

Select Next State

TAP State Machine

TCK

TDI

TDO

I/O I/O I/O I/O

Test-Logic-Reset

Run-Test/Idle

Select-DR

Capture-DR

Shift-DR

Exit1-DR

Pause-DR

Exit2-DR

Update-DR

Select-IR

Capture-IR

Shift-IR

Exit1-IR

Pause-IR

Exit2-IR

Update-IR

UG071_47_042704

Table 3-1: Virtex-4 TAP Controller Pins

Pin Description

TDI Test Data In. This pin is the serial input to all JTAG instruction and data registers.

The state of the TAP controller and the current instruction determine the register that is fed by the TDI pin for a specific operation. TDI has an internal resistive pull-up to provide a logic High to the system if the pin is not driven. TDI is applied into the JTAG registers on the rising edge of TCK.

TDO Test Data Out. This pin is the serial output for all JTAG instruction and data registers.

The state of the TAP controller and the current instruction determine the register (instruction or data) that feeds TDO for a specific operation. TDO changes state on the falling edge of TCK and is only active during the shifting of instructions or data through the device. TDO is an active driver output.

TMS Test Mode Select. This pin determines the sequence of states through the TAP

controller on the rising edge of TCK.

TMS has an internal resistive pull-up to provide a logic High if the pin is not driven.

TCK Test Clock. This pin is the JTAG Test Clock.

TCK sequences the TAP controller and the JTAG registers in the Virtex-4 devices.

Notes:

1. As specified by the IEEE Standard, the TMS and TDI pins both have internal pull-up resistors. These internal pull-up resistors of 50-150 kΩ are active, regardless of the mode selected.

For JTAG configuration mode, JTAG inputs use the V

Figure 3-1: Typical JTAG Architecture

CCO_CFG

supply.

58 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

TAP Controller

Figure 3-2 diagrams a 16-state finite state machine. The four TAP pins control how data is

scanned into the various registers. The state of the TMS pin at the rising edge of TCK determines the sequence of state transitions. There are two main sequences, one for shifting data into the data register and the other for shifting an instruction into the instruction register.

A transition between the states only occurs on the rising edge of TCK, and each state has a different name. The two vertical columns with seven states each represent the Instruction Path and the Datapath. The data registers operate in the states whose names end with "DR," and the instruction register operates in the states whose names end in "IR." The states are otherwise identical.

The operation of each state is described below.

Test-Logic-Reset: All test logic is disabled in this controller state, enabling the normal operation of the IC. The TAP controller state machine is designed so that regardless of the initial state of the controller, the Test-Logic-Reset state can be entered by holding TMS High and pulsing TCK five times. Consequently, the Test Reset (TRST) pin is optional.

Run-Test-Idle: In this controller state, the test logic in the IC is active only if certain instructions are present. For example, if an instruction activates the self test, then it is executed when the controller enters this state. The test logic in the IC is idle otherwise.

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

Select-DR-Scan: This controller state controls whether to enter the Datapath or the Select-IR-Scan state.

Select-IR-Scan: This controller state controls whether or not to enter the Instruction Path. The controller can return to the Test-Logic-Reset state otherwise.

Capture-IR: In this controller state, the shift register bank in the Instruction Register parallel loads a pattern of fixed values on the rising edge of TCK. The last two significant bits must always be 01.

Shift-IR: In this controller state, the instruction register gets connected between TDI and TDO, and the captured pattern gets shifted on each rising edge of TCK. The instruction available on the TDI pin is also shifted in to the instruction register. If the Shift-IR state is entered after a Pause-IR state is used, then the first bit shifted is always 0. This does not occur if the Pause-IR state is not used prior to a Shift-IR state, which is not fully compliant with the JTAG 1149.1 specification.

Exit1-IR: This controller state controls whether to enter the Pause-IR state or Update-IR state.

Pause-IR: This state allows the shifting of the instruction register to be temporarily halted.

Exit2-DR: This controller state controls whether to enter either the Shift-IR state or Update-IR state.

Update-IR: In this controller state, the instruction in the instruction register is latched to the latch bank of the Instruction Register on every falling edge of TCK. This instruction becomes the current instruction after it is latched.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 59

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

ug071_34_121703

TEST-LOGIC-RESET

RUN-TEST/IDLE

SELECT-DR-SCAN

CAPTURE-DR CAPTURE-IR

SHIFT-DR SHIFT-IR

EXIT1-DR EXIT1-IR

PAUSE-DR PAUSE-IR

EXIT2-DR

EXIT2-IR

UPDATE-DR

UPDATE-IR

SELECT-IR-SCAN

1 0

NOTE: The value shown adjacent to each state transition in this figure represents the signal present at TMS at the time of a rising edge at TCK.

Capture-DR: In this controller state, the data is parallel-loaded into the data registers selected by the current instruction on the rising edge of TCK.

Shift-Dr, Exit1-DR, Pause-DR, Exit2-DR, and Update-DR: These controller states are similar to the Shift-IR, Exit1-IR, Pause-IR, Exit2-IR, and UpdateIR states in the Instruction path.

Figure 3-2: Boundary-Scan Tap Controller

Virtex-4 devices support the mandatory IEEE 1149.1 commands, as well as several Xilinx vendor-specific commands. The EXTEST, INTEST, SAMPLE/PRELOAD, BYPASS, IDCODE, USERCODE, and HIGHZ instructions are all included. The TAP also supports internal user-defined registers (USER1, USER2, USER3, and USER4) and configuration/readback of the device.

The Virtex-4 Boundary-Scan operations are independent of mode selection. The BoundaryScan mode in Virtex-4 devices overrides other mode selections. For this reason, BoundaryScan instructions using the Boundary-Scan register (SAMPLE/PRELOAD, INTEST, and EXTEST) must not be performed during configuration. All instructions except the userdefined instructions are available before a Virtex-4 device is configured. After configuration, all instructions are available.

JSTART and JSHUTDOWN are instructions specific to the Virtex-4 architecture and configuration flow.

For details on the standard Boundary-Scan instructions EXTEST, INTEST, and BYPASS, refer to the IEEE Standard.

60 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

Boundary-Scan Architecture

Virtex-4 device registers include all registers required by the IEEE 1149.1 Standard. In addition to the standard registers, the family contains optional registers for simplified testing and verification (Table 3-2).

Table 3-2: Virtex-4 JTAG Registers

Boundary-Scan Register 3 bits per I/O

Instruction Register 10 bits

Bypass Register 1 bit Device bypass.

Identification Register 32 bits Captures device ID.

JTAG Configuration Register 32 bits

USERCODE Register 32 bits Captures user-programmable code.

User-Defined Registers (USER1, USER2, USER3, and USER4)

Controls and observes input, output, and output enable.

Holds current instruction OPCODE and captures internal device status.

Allows access to the configuration bus when using the CFG_IN or CFG_OUT instructions.

Design-specific Design-specific.

Boundary-Scan Register

The test primary data register is the Boundary-Scan register. Boundary-Scan operation is independent of individual IOB configurations. Each IOB, bonded or un-bonded, starts as bidirectional with 3-state control. Later, it can be configured to be an input, output, or 3-state only. Therefore, three data register bits are provided per IOB (Figure 3-3).

When conducting a data register (DR) operation, the DR captures data in a parallel fashion during the CAPTURE-DR state. The data is then shifted out and replaced by new data during the SHIFT-DR state. For each bit of the DR, an update latch is used to hold the input data stable during the next SHIFT-DR state. The data is then latched during the UPDATE-DR state when TCK is Low. The internal DR CLK follows TCK when the TAP controlle r is in the CAPTURE-DR state and SHIFT-DR state, however, it can toggle in other states.

The update latch is opened each time the TAP controller enters the UPDATE-DR state. Care is necess ary when exercis ing an INTEST or EXTEST to ensure that the proper data has been latched before exercising the command. This is typically accomplished by using the SAMPLE/PRELOAD instruction.

Consider internal pull-up and pull-down resistors when developing test vectors for testing opens and shorts. The Boundary-Scan mode determines whether the IOB has a pull-up resistor. Figure 3-3 is a representation of Virtex-4 Boundary-Scan architecture.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 61

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

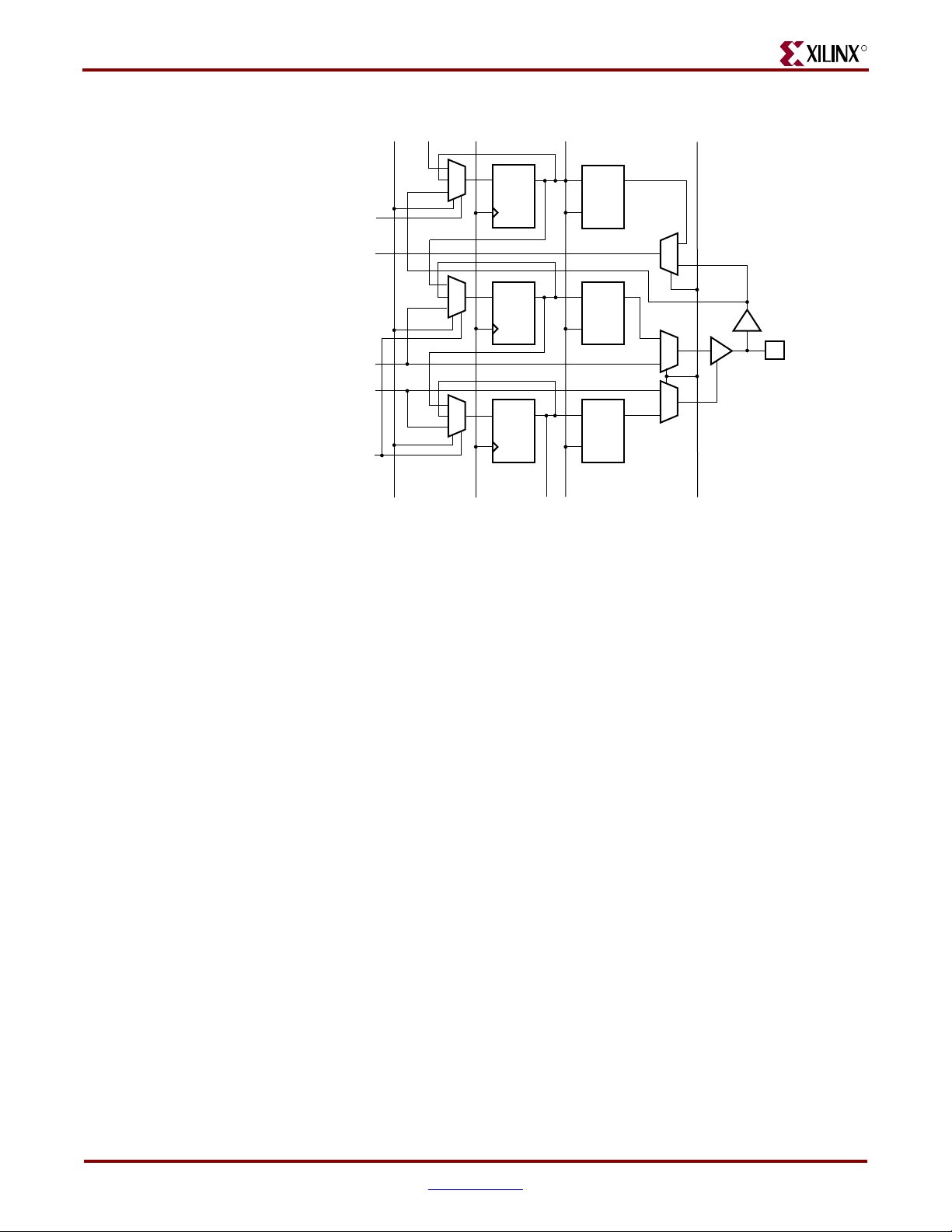

D Q

1x 01 00

D Q

TDI

IOB.I

INTEST

IOB.O

IOB.T

EXTEST

SHIFT CLOCK DATA

TDO UPDATE INTEST is OR'd with EXTEST

ug071_39_121703

Figure 3-3: Virtex-4 Family Boundary-Scan Logic

Bit Sequence Boundary-Scan Register

The order of each non-TAP IOB is described in this section. The input is first, then the output, and finally the 3-state IOB control. The 3-state IOB control is closest to the TDO. The input-only pins contribute only the input bit to the Boundary-Scan I/O data register. The bit sequence of the device is obtainable from the Boundary-Scan Description Language Files (BSDL files) for the Virtex-4 family. (These files can be obtained from the Xilinx software download area.) The bit sequence always has the same bit order and the same number of bits, and is independent of the design.

Instruction Register

The Instruction Register (IR) for the Virtex-4 device is connected between TDI and TDO during an instruction scan sequence. In preparation for an instruction scan sequence, the

62 www.xilinx.com Virtex-4 FPGA Configuration User Guide

instruction register is parallel-loaded with a fixed instruction capture pattern. This pattern is shifted out onto TDO (LSB first), while an instruction is shifted into the instruction register from TDI.

To determine the operation to be invoked, an OPCODE necessary for the Virtex-4 Boundary-Scan instruction set is loaded into the Instruction Register. The length of the IR is device size-specific. The IR is 10 bits wide for all Virtex-4 LX, SX, and single-processor FX devices. FX devices with two processors have a 14-bit IR. The bottom six bits of the instruction codes are the same for all devices sizes to support the new IEEE Standard 1532 for In-System Configurable (ISC) devices. The additional IR bits for each instruction are 1s.

Table 3-3 lists the available instructions for Virtex-4 devices. Figure 3-4 shows the

instruction capture values loaded into the IR as part of an instruction scan sequence.

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

Table 3-3: Virtex-4 Boundary-Scan Instructions

Boundary-Scan Command

Binary Code

(9:0)

Description

EXTEST 1111000000 Enables Boundary-Scan EXTEST operation

SAMPLE 1111000001 Enables Boundary-Scan SAMPLE operation

USER1 1111000010 Access user-defined register 1

USER2 1111000011 Access user-defined register 2

USER3 1111100010 Access user-defined register 3

USER4 1111100011 Access user-defined register 4

CFG_OUT 1111000100 Access the configuration bus for readback

CFG_IN 1111000101 Access the configuration bus for configuration

INTEST 1111000111 Enables Boundary-Scan INTEST operation

USERCODE 1111001000 Enables shifting out user code

IDCODE 1111001001 Enables shifting out of ID code

HIGHZ 1111001010 3-state output pins while enabling Bypass Register

JPROGRAM 1111001011 Equivalent to and has the same affect as PROGRAM

JSTART 1111001100 Clocks the start-up sequence when StartClk is TCK

JSHUTDOWN 1111001101 Clocks the shutdown sequence

ISC_ENABLE 1111010000 Marks the beginning of ISC configuration. Full shutdown is executed

ISC_PROGRAM 1111010001 Enables in-system programming

ISC_PROGRAM_SECURITY 1111010010 Change security status from secure to non-secure mode and vice versa

ISC_ADDRESS_SHIFT 1111010011 For programming, key address is shifted first, before the key

ISC_NOOP 1111010100 No operation

ISC_READ 1111010101 Used to read back BBR

ISC_DISABLE 1111010111 Completes ISC configuration. Startup sequence is executed

BYPASS 1111111111 Enables BYPASS

RESERVED

Notes:

1. For FX devices with two processors, the instruction codes are MSB extended with 1s. For example, the CFG_IN instruction is 1111 1111 000101.

TDI →

IR[9:6] IR[5] IR[4] IR[3] IR[2] IR[1:0]

Reserved DONE INIT ISC_ENABLED ISC_DONE 0 1

All other codes

Xilinx reserved instructions

→ TDO

Figure 3-4: Virtex-4 Instruction Capture Values Loaded into IR as Part of an Instruction Scan Sequence

Virtex-4 FPGA Configuration User Guide www.xilinx.com 63

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

BYPASS Register

The other standard data register is the single flip-flop BYPASS register. It passes data serially from the TDI pin to the TDO pin during a bypass instruction. This register is initialized to zero when the TAP controller is in the CAPTURE-DR state.

Identification Register

Virtex devices have a 32-bit identification register called the IDCODE register. The IDCODE is based on the IEEE 1149.1 standard, and is a fixed, vendor-assigned value that is used to identify electrically the manufacturer and the type of device that is being addressed. This register allows easy identification of the part being tested or programmed by Boundary-Scan, and it can be shifted out for examination by using the IDCODE instruction.

The Virtex-4 JTAG ID Code register has the following format:

vvvv:fffffff:aaaaaaaaa:ccccccccccc1

where

v = the revision code f = the 7-bit family code (0001011 for Virtex-4 LX family, 0010000 for Virtex-4 SX family, 0001111 for Virtex-4 FX family) a = the number of array rows plus columns in the part, expressed in 9 bits:

XC4VLX15 columns + rows = 64 + 24 = 88 = 0x058

XC4VLX25 columns + rows = 96 + 28 = 124 = 0x07C

XC4VLX40 columns + rows = 128 + 36 = 164 = 0x0A4

XC4VLX60 columns + rows = 128 + 52 = 180 = 0x0B4

XC4VLX80 columns + rows = 160 + 56 = 216 = 0x0D8

XC4VLX100 columns + rows = 192 + 64 = 256 = 0x100

XC4VLX160 columns + rows = 192 + 88 = 280 = 0x118

XC4VLX200 columns + rows = 192 + 116 = 308 = 0x134

XC4VSX25 columns + rows = 64 + 40 = 104 = 0x068

XC4VSX35 columns + rows = 96 + 40 = 136 = 0x088

XC4VSX55 columns + rows = 128 + 48 = 176 = 0x0B0

XC4VFX12 columns + rows = 64 + 24 = 88 = 0x058

XC4VFX20 columns + rows = 64 + 36 = 100 = 0x064

XC4VFX40 columns + rows = 96 + 52 = 148 = 0x094

(1)

XC4VFX60 columns + rows = 128 + 52 = 180 = 0x0B4

XC4VFX100 columns + rows = 160 + 68 = 228 = 0x0E4

XC4VFX140 columns + rows = 192 + 84 = 276 = 0x114

Notes:

1. The actual array size is 148. The JTAG ID code reflects an array size of 96 + 44 = 140 (0x08C).

c = the company code.

The last bit of the IDCODE is always 1 (based on JTAG IEEE 1149.1). The last three hex digits appear as 0x093. IDCODEs assigned to Virtex-4 FPGAs are shown in Table 3-4. Note the similarity to the device ID codes in Table 1-6.

64 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

Table 3-4: Virtex-4 Device JTAG ID Codes

Device IDCODE Device IDCODE Device IDCODE

XC4VLX15 01658093 XC4VFX12 01E58093

XC4VLX25 0167C093 XC4VSX25 02068093 XC4VFX20 01E64093

XC4VLX40 016A4093 XC4VSX35 02088093 XC4VFX40 01E8C093

XC4VLX60 016B4093 XC4VSX55 020B0093 XC4VFX60 01EB4093

XC4VLX80 016D8093

XC4VLX100 01700093 XC4VFX100 01EE4093

XC4VLX160 01718093 XC4VFX140 01F14093

XC4VLX200 01734093

Notes:

1. Does not reflect the actual device array size.

Examples of how the binary digits translate into hex codes appear in Table 3-5.

Table 3-5: Example JTAG IDCODE Concatenation

vvvv ffff fffa aaaa aaaa cccc cccc ccc1

XC4VLX15 bin <vvvv> 0001 0110 0101 1000 0000 1001 0011

hex <v>1658093

XC4VLX25 bin <vvvv> 0001 0110 0111 1100 0000 1001 0011

hex <v>167C093

XC4VLX40 bin <vvvv> 0001 0110 1010 0100 0000 1001 0011

hex <v>16A4093

XC4VLX60 bin <vvvv> 0000 0110 1011 0100 0000 1001 0011

hex <v>16B4093

XC4VLX80 bin <vvvv> 0001 0110 1101 1000 0000 1001 0011

hex <v>16D8093

XC4VLX100 bin <vvvv> 0001 0111 0000 0000 0000 1001 0011

hex <v>1700093

XC4VLX160 bin <vvvv> 0001 0111 0001 1000 0000 1001 0011

hex <v>1718093

XC4VLX200 bin <vvvv> 0001 0111 0011 0100 0000 1001 0011

hex <v>1734093

XC4VSX25 bin <vvvv> 0010 0000 0110 1000 0000 1001 0011

hex <v>2068093

XC4VSX35 bin <vvvv> 0010 0000 1000 1000 0000 1001 0011

hex <v>2088093

XC4VSX55 bin <vvvv> 0010 0000 1011 0000 0000 1001 0011

hex <v>20B0093

XC4VFX12 bin <vvvv> 0001 1110 0101 1000 0000 1001 0011

hex <v>1E58093

XC4VFX20 bin <vvvv> 0001 1110 0110 0100 0000 1001 0011

(1)

Virtex-4 FPGA Configuration User Guide www.xilinx.com 65

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

Table 3-5: Example JTAG IDCODE Concatenation (Continued)

vvvv ffff fffa aaaa aaaa cccc cccc ccc1

hex <v>1E64093

XC4VFX40

XC4VFX60 bin <vvvv> 0001 1110 1011 0100 0000 1001 0011

XC4VFX100 bin <vvvv> 0001 1110 1110 0100 0000 1001 0011

XC4VFX140 bin <vvvv> 0001 1111 0001 0100 0000 1001 0011

Notes:

1. Does not reflect the actual device array size.

(1)

bin <vvvv> 0001 1110 1001 0100 0000 1001 0011

hex <v>1E8C093

hex <v>1EB4093

hex <v>1EE4093

hex <v>1F14093

Configuration Register (Boundary-Scan)

The configuration register is a 64-bit register. This register allows access to the configuration bus and readback operations.

USERCODE Register

The USERCODE instruction is supported in the Virtex-4 family. This register allows a user to specify a design-specific identification code. The USERCODE can be programmed into the device and can be read back for verification later. The USERCODE is embedded into the bitstream during bitstream generation (BitGen -g UserID option) and is valid only after configuration. If the device is blank or the USERCODE was not programmed, the USERCODE register contains 0xFFFFFFFF.

USER1, USER2, USER3, and USER4 Registers

The USER1, USER2, USER3, and USER4 registers are only available after configuration. These four registers must be defined by the user within the design. These registers can be accessed after they are defined by the TAP pins.

The BSCAN_VIRTEX4 library macro is required when creating these registers. This symbol is only required for driving internal scan chains (USER1, USER2, USER3, and USER4).

A common input pin (TDI) and shared output pins represent the state of the TAP controller (RESET, SHIFT, and UPDATE). Unlike earlier FPGA families that required the BSCAN macro to dedicate TAP pins for Boundary-Scan, Virtex-4 TAP pins are dedicated and do not require the BSCAN_VIRTEX4 macro for normal Boundary-Scan instructions or operations. For HDL, the BSCAN_VIRTEX4 macro must be instantiated in the design.

Using Boundary-Scan in Virtex-4 Devices

Characterization data for some of the most commonly requested timing parameters shown in Figure 3-5 are listed in the Virtex-4 FPGA Data Sheet in the Configuration Switching Characteristics table.

66 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

ug071_35_121703

Data to be captured

Data to be driven out

TDO

TCK

TDI

TMS

Data Valid

TCKTDO

TAPTCK

TCKTAP

Figure 3-5: Virtex-4 Boundary-Scan Port Timing Waveforms

For further information on the startup sequence, bitstream, and internal configuration registers referenced here, refer to “Setup (Steps 1-3)” in Chapter 1.

Configuring Through Boundary-Scan

One of the most common Boundary-Scan vendor-specific instructions is the configure instruction. An individual Virtex-4 device can be configured through JTAG on power-up. If the Virtex-4 device is configured on power-up, it is advisable to tie the mode pins to the Boundary-Scan configuration mode settings: 101 (M2 = 1, M1 = 0, M0 = 1).

The configuration flow for Virtex-4 device configuration with JTAG is shown in Figure 3-6. The sections that follow describe how the Virtex-4 device can be configured as a single device through the Boundary-Scan or as part of a multiple-device scan chain.

A configured device can be reconfigured by toggling the TAP and entering a CFG_IN instruction after pulsing the PROGRAM pin or issuing the shut-down sequence. (Refer to

Figure 3-6.)

Designers who wish to implement the Virtex-4 JTAG configuration algorithm are encouraged to use the SVF-based flow provided in Xilinx Application Note XAPP058

Virtex-4 FPGA Configuration User Guide www.xilinx.com 67

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

Sample

Mode Pins

JTAG Available

Keep Clearing Configuration

Memory

Ye s

Clear Configuration Memory Once More

Power-Up

CCINT

> 1.0 V

CRC

Correct?

Load CFG_IN

Instruction

Load

Bitstream

Abort Startup

Shutdown

Sequence

Reconfigure?

Load JSTA RT

Instruction

Synchronous

TAP Reset

Startup

Sequence

Operational

INIT_B = High?

PROGRAM_B

Low?

ug071_40_073007

Load

JSHUTDOWN

Instruction

(Clock five 1s on TMS)

68 www.xilinx.com Virtex-4 FPGA Configuration User Guide

Figure 3-6: Device Configuration Flow Diagram

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1149.1

Single Device Configuration

Table 3-6 describes the TAP controller commands required to configure a Virtex-4 device.

Refer to Figure 3-2 for TAP controller states. These TAP controller commands are issued automatically if configuring the part with the iMPACT software.

Table 3-6: Single Device Configuration Sequence

TAP Controller Step and Description

Set & Hold # of Clocks

TDI TMS TCK

1. On power-up, place a logic 1 on the TMS, and clock the TCK five times. This ensures starting in the TLR

X15

(Test-Logic-Reset) state.

2. Move into the RTI state. X01

3. Move into the SELECT-IR state. X12

4. Enter the SHIFT-IR state. X02

5. Start loading the CFG_IN instruction, LSB first: 111000101 0 9

6. Load the MSB of CFG_IN instruction when exiting SHIFT-IR, as defined in the IEEE standard.

111

7. Enter the SELECT-DR state. X12

8. Enter the SHIFT-DR state. X02

9. Shift in the Virtex-4 bitstream. Bit bit in the bitstream

(1)

10. Shift in the last bit of the bitstream. Bit0 (LSB) shifts on the transition to EXIT1-DR.

(MSB) is the first

bit1... bit

bit

(bits in

bitstream)-1

11. Enter UPDATE-DR state. X11

12. Reset TAP by clocking five 1s on TMS X15

13. Enter the SELECT-IR state. X12

14. Move to the SHIFT-IR state. X02

15. Start loading the JSTART instruction. The JSTART instruction initializes the startup sequence.

111001100 0 9

16. Load the last bit of the JSTART instruction. 111

17. Move to the UPDATE-IR state. X11

18. Move to the RTI state and clock the startup sequence by applying a minimum of 12 clock cycles

X012

to the TCK.

19. Move to the TLR state. The device is now functional.

Notes:

1. In the Configuration Register, data is shifted in from the right (TDI) to the left (TDO), MSB first. (Shifts into the Configuration Register are different from shifts into the other registers in that they are MSB first.)

X13

Virtex-4 FPGA Configuration User Guide www.xilinx.com 69

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

Multiple Device Configuration

It is possible to configure multiple Virtex-4 devices in a chain. (See Figure 3-7.) The devices in the JTAG chain are configured one at a time. The multiple device configuration steps can be applied to any size chain.

Refer to the state diagram in Figure 3-2 for the following TAP controller steps:

1. On power-up, place a logic 1 on the TMS and clock the TCK five times. This ensures starting in the TLR (Test-Logic-Reset) state.

2. Load the CFG_IN instruction into the target device (and BYPASS in all other devices). Go through the RTI state (RUN-TEST/IDLE).

3. Load in the configuration bitstream per step 7 through step 11 in Table 3-6.

4. Repeat step 2 and step 3 for each device.

5. Reset all TAPs by clocking five 1s on TMS.

6. Load the JSTART command into all devices.

7. Go to the RTI state and clock TCK 12 times.

All devices are active at this point.

JTAG Header

TDO

TDI

TMS

TCK

Virtex-4

FPGA

TDO

TDI

TMS

TCK

PROGRAM_B

Virtex-4

FPGA

TDI

TMS

TCK

PROGRAM_B

TDO

Device 0 Device 1 Device 2

Virtex-4

FPGA

TDOTDI

TMS

TCK

PROGRAM_B

ug071_36_073007

Figure 3-7: Boundary-Scan Chain of Devices

Reconfiguring through Boundary-Scan

The ability of Virtex-4 devices to perform partial reconfiguration is the reason that the configuration memory is not cleared when reconfiguring the device. When reconfiguring a chain of devices, refer to step 3 in Table 3-6. There are two methods to reconfigure Virtex-4 devices without possible internal contention. The first method is to pulse the PROGRAM_B pin, resetting the internal configuration memory. The alternate method is to perform a shutdown sequence, placing the device in a safe state. The following shutdown sequence includes using internal registers. (For details on internal registers, refer to

Chapter 8)

1. Load the CFG_IN instruction.

2. In the SHIFT-DR state, load the synchronization word followed by the Reset CRC Register (RCRC) command.

1111 1111 1111 1111 1111 1111 1111 1111→ Dummy word 1010 1010 1001 1001 0101 0101 0110 0110→ Synchronization word 0011 0000 0000 0000 1000 0000 0000 0001→ Header: Write to CMD register 0000 0000 0000 0000 0000 0000 0000 0111→ RCRC command 0000 0000 0000 0000 0000 0000 0000 0000→ flush pipe

70 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1532

Unprogrammed

(0,0)

Power

ISC_ENABLE is executed

TLR & ISC_Done is clear

ISC_Accessed

(1,X)

Operational

(0,1)

ISC Complete

(0,X)

Any non-test instruction, but ISC_ENABLE executed

Any non-test instruction,

but ISC_DISABLE loaded

and ISC_DONE is set

Any non-test instruction, but ISC_DISABLE loaded and ISC_DONE is clear

TLR and ISC_Done is set

ISC_ENABLE

executed

(ISC_Enabled, ISC_Done)

ISC_Done is clear

ISC_Done is set

Any non-test instruction, but ISC_DISABLE executed

ISC_DISABLE loaded

ISC_DISABLE executed

UG071_32_121803

3. Load JSHUTDOWN.

4. Go to the RTI state and clock TCK at least 12 times to clock the shutdown sequence.

5. Proceed to the SHIFT-IR state and load the CFG_IN instruction again.

6. Go to the SHIFT-DR state and load the configuration bits. Make sure the configuration bits contain the AGHIGH command, asserting the global signal GHIGH_B. This prevents contention while writing configuration data.

0011 0000 0000 0000 1000 0000 0000 0001→ Header: Write to CMD 0000 0000 0000 0000 0000 0000 0000 1000→ AGHIGH command asserts GHIGH_B 0000 0000 0000 0000 0000 0000 0000 0000→ flush pipe

7. When all configuration bits have been loaded, reset the TAP by clocking five 1s on TMS.

8. Go to the SHIFT-IR state and load the JSTART instruction.

9. Go to the RTI state and clock TCK at least 12 times to clock the startup sequence.

10. Go to the TLR state to complete the reconfiguration process.

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1532

ISC Modal States

Figure 3-8: ISC Modal States

Virtex-4 FPGA Configuration User Guide www.xilinx.com 71

UG071 (v1.12) June 2, 2017

Once the device is powered up, it goes to the Unprogrammed state. The I/Os are all either 3-stated or pulled up. When ISC_ENABLE is successfully executed, the ISC_Enabled signal is asserted, and the device moves to the ISC_Accessed state. When the device moves

Chapter 3: Boundary-Scan and JTAG Configuration

to the ISC_Accessed state from the Operational state, the shutdown sequence is executed. The I/Os are all either 3-stated or pulled up.

The startup sequence is executed when in the ISC_Accessed state. At the end of the startup sequence, ISC_Enabled is cleared and the device moves to ISC_Complete. The minimum clock cycle requirement is the number of clock cycles required to complete the startup sequence. At the completion of the minimum required clock cycles, ISC_Enabled is deasserted.

Whether the startup sequence is successful or not is determined by CRC or configuration error status from the configuration processor. If the startup is completed, ISC_Done is asserted; otherwise, ISC_Done stays Low. The I/Os are either 3-stated or pulled up.

When ISC_Done is set in ISC_Complete state, the device moves to the Operational state. Otherwise, if ISC_Done is clear, the device moves to the Un programmed state. H owever, if the TAP controller goes to the TLR state while the device is in ISC_Accessed state, and if ISC_Done is set, then the device moves to the Operational state.

Though Operational, the I/O is not active yet because the startup sequence has not been performed. The startup sequence has to be performed in the Operational state to bring the I/O active.

Clocking Startup and Shutdown Sequences (JTAG)

There are three clock sources for startup and shutdown sequence: CCLK, UserCLK, and JTAGCLK. Clock selection is set by BitGen. The startup sequence is executed in the ISC_Accessed state. When it is clocked by JTAGCLK, the startup sequence receives the JTAGCLK in TAP Run/Test Idle state while ISC_DISABLE is the current JTAG instruction. The number of clock cycles in Run/Test Idle state for successful completion of ISC_DISABLE is determined by the number of clock cycles needed to complete the startup sequence.

When UserCLK or CCLK is used to clock the startup sequence, the user should know how many JTAGCLK cycles should be spent in Run/Test Idle to complete the startup sequence successfully.

The shutdown sequence is executed when the device transitions from the Operational to the ISC_Accessed state. Shutdown is done while executing the ISC_ENABLE instruction. When the shutdown sequence is clocked using JTAGCLK, the clock is supplied in the Run/Test Idle state of the ISC_ENABLE instruction. The number of clock cycles in Run/Test Idle is determined by the number of clock cycles needed to complete the shutdown sequence.

When the shutdown sequence is clocked by CCLK or UserCLK, the user is responsible for knowing how many JTAGCLK cycles in Run/Test Idle are needed to complete the shutdown sequence.

Note:

When configuring the device through JTAG, the startup and shutdown clock should come from TCK, regardless of the selection in BitGen. In IEEE 1532 configuration mode, the startup and shutdown clock source is always TCK.

72 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Boundary-Scan for Virtex-4 Devices Using IEEE Standard 1532

Configuration Flows Using JTAG

PROGRAM_B

Power-Up

Vcc > ?

Ye s

PROGRAM_B?

Clear Configuration

memory once more

INIT_B

= High?

Ye s

Sample mode pins

Load ISC_ENABLE

Ye s

Keep clearing

Configuration memory

Load 64 bits of

bitstream data

RTI

1 TCK cycles

End of Data?

Ye s

CRC

correct?

Ye s

Load ISC_DISABLE

RTI minimum

12 TCK cycles

Pull INIT_B Low STOP

Load 00000

RTI minimum

12 TCK cycles

Load ISC_PROGRAM

Operational

Ye s

Reconfigure?

Figure 3-9: IEEE 1532 Configuration Flow

UG071_33_073007

Virtex-4 FPGA Configuration User Guide www.xilinx.com 73

UG071 (v1.12) June 2, 2017

Chapter 3: Boundary-Scan and JTAG Configuration

IDCODE

Unprog. ISC_Accessed

Disable (3-stated)

ISC_Complete Operational

Active

Start-up

ISC_ENABLE Anything but ISC_DISABLE ISC_DISABLE BYPASSTAP Instr.

ISC_Enabled

ISC_Done

End of Startup

Modal State

System

Output

ug071_37_121703

IDCODE

Operational

ISC_Accessed

Disabled

ISC_Complete Operational

Active

Start-up

ISC_ENABLE Anything but ISC_DISABLE ISC_DISABLE BYPASS

TAP Instr.

ISC_Enabled

ISC_Done

End of Startup

Modal State

System

Output

ug071_38_121703

Figure 3-10: Signal Diagram for Successful First Time ISC Configuration

Figure 3-11: Signal Diagram for Successful ISC Partial and Full Reconfiguration

74 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Frame ECC Logic

Using Frame ECC Logic

Configurable memory is highly reliable, however to provide extra reliability, the solution explained in this chapter has been provided.

The Frame error correction code (ECC) logic of the Virtex®-4 FPGA is designed to detect single- or double-bit errors in configuration frame data. It uses SECDED (Hamming code) parity values based on the frame data generated by BitGen. During readback, the Frame ECC logic calculates a syndrome value using all the bits in the frame, including the ECC bits. If the bits have not changed from the original programmed values, then the syndrome are all 0s. If a single bit has changed, including any of the ECC bits, then the location of the bit is indicated by syndrome bits 10:0 and syndrome bit 11 is 1. If two bits have changed, then syndrome bit 11 is 0 and the remaining bits is non-zero and meaningless. If more than two bits have changed then the syndrome is indeterminate. The error output of the block is asserted if one or two bits have changed, indicating that action needs to be taken.

Chapter 4

To use the Frame ECC logic, FRAME_ECC _VIRTEX4 must be instantiated in the user's design, and readback must be performed through SelectMAP, JTAG, or ICAP. At the end of each frame of readback, the syndrome_valid signal is asserted for one cycle of the readback clock (CCLK, TCK, or ICAP_CLK). The number of cycles required to read back a frame varies with the interface used. Refer to Chapter 8, “Readback and Configuration

Verification,” for further information.

The FRAME_ECC_VIRTEX4 logic does not repair changed bits; this requires a user design. The design must be able to store at least one frame of data, or be able to fetch original frames of data for reload. A single frame is 1,312 bits. Following is an example of a simple repair implementation:

1. A frame is read out through ICAP and stored in block RAM. The frame address must be generated as each frame is read.

2. If an error is indicated by the error output of the FRAME_ECC block, then the readback is halted and the syndrome value saved. If bit 11 is 0, then the whole frame must be restored. If bit 11 is 1, then bits 10:0 are used to locate the error bit in the saved frame, and the bit inverted.

3. The repaired frame is then written back into the frame address generated in step 1.

4. Readback then begins again with the next frame address.

The syndrome bits S[10:0] are derived from the Hamming parity bits, while S[11] is derived from the overall parity bit. The syndrome bit is interpreted as follows:

S[11]

= 0, S[10:0] = 0: no error.

S[11]

patch (indirectly).

Virtex-4 FPGA Configuration User Guide www.xilinx.com 75

UG071 (v1.12) June 2, 2017

= 1, S[10:0] ≠ 0: single bit (SED) error; S[10:0] denotes location of bit to

Chapter 4: Frame ECC Logic

S[11] = 1, S[10:0] = 0: single-bit error; overall parity bit p[11] is in error.

S[11]

= 0, S[10:0] ≠ 0: double-bit error, not correctable.

In case of a single-bi t error in the frame data, the s yndrome bits S[10:0] points t o the flipped bit in the address space from 704 (location of the first bit in the frame) to 2047 (last bit in the frame). To convert the syndrome value S[10:0] to the index of the flipped bit in the range 0 to 1311, subtract 704 decimal (2C0 hexadecimal or 01011000000 binary) if the syndrome is less than 1,024 decimal; otherwise, subtract 736 decimal (2E0 hexadecimal or 01011100000 binary). This is equivalent to subtracting 22 or 23 decimal from S[10:5], and can be calculated as bit_index = {S[10:5] –6'd22-S[10],S[5:0]}.

If S[10:0] is 0 or a power of 2, however, an error in a parity bit has occurred. The Hamming parity bits are stored in locations 640-651. If bit S[11] indicates a single-bit error, then (in the case of a Hamming code parity bit error) a 1 is presented in the appropriate power-of-2 bit position, with the other syndrome bits set to 0:

100000000001 -> 640

100000000010 -> 641

100000000100 -> 642

100000001000 -> 643

100000010000 -> 644

100000100000 -> 645

100001000000 -> 646

100010000000 -> 647

100100000000 -> 648

101000000000 -> 649

110000000000 -> 650

100000000000 -> 651

76 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

User Access Register

Using the User Access Register

The User Access Register (USR_ACCESS_VIRTEX4) is a 32-bit register that allows data from the bitstream to be directly accessible by the FPGA fabric. The register has two outputs: the 32-bit DATA bus and a data_valid signal that is asserted for one cycle of the configuration-data source clock whenever a new value is available. The configuration-data source clock can be CCLK or TCK.

The UAR allows data from a bitstream data storage source (e.g., PROM) to be accessed by the fabric after the FPGA has been configured. To accomplish this, the STARTUP_VIRTEX4 block should also be instantiated.

The STARTUP_VIRTEX4 block has inputs that allow the user to take control of the CCLK and DONE pins after the EOS (End-Of-Startup) signal has been asserted. These pins are USR_CCLK_O, USR_CCLK_TS, USR_DONE_O, and USR_DONE_TS. The BitGen option

-g DONE_cycle:KEEP should be used to prevent the DONE pin from going High,

because that can reset or disable the configuration storage source. The USR_CCLK_O pin should be connected to a controlled clock in the fabric. The configuration device should contain data with the USR_ACCESS register as the target. After EOS has been asserted, the data can be loaded by clocking the USR_CCLK_O pin while keeping USR_CCLK_TS Low (it can be tied Low in this usage).

Chapter 5

The DATAVALID output indicates that a word is available on the data output port. DATAVALID goes High for one CCLK cycle after the register is updated. A write to the User Bitstream Access Register (AXSS) after configuration is required. Similar to other configuration registers, the AXSS register can be accessed through the configuration interface (e.g., JTAG, SelectMap, ICAP).

The USR_ACCESS register can be used to provide a single 32-bit constant value to the fabric as an alternative to using a block RAM or LUTRAM to hold the constant.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 77

UG071 (v1.12) June 2, 2017

Chapter 5: User Access Register

78 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Reconfiguration Techniques

Dynamic Reconfiguration of Functional Blocks (DRP)

Background

In the Virtex® family of FPGAs, the Configuration Memory is used primarily to implement user logic, connectivity and I/Os, but it is also used for other purposes. For example, it is used to specify a variety of static conditions in functional blocks, such as Digital Clock Managers (DCMs) and RocketIO™ Multi-Gigabit Transceivers (MGTs).

Sometimes an application requires a change in these conditions in the functional blocks while the block is operational. This can be accomplished through the global Internal Configuration Access Port (ICAP), or through partial dynamic reconfiguration using JTAG or SelectMAP in the Persist mode. However, the reconfiguration port that is an integral part of each functional block simplifies this process greatly. Such configuration ports exist in the DCMs and RocketIO MGTs.

Chapter 6

Overview

This document describes the addressable, parallel write/read configuration memory that is implemented in each functional block that might require reconfiguration. This memory has the following attributes:

• It is directly accessible from the FPGA fabric. Configuration bits can be written to and/or read from depending on their function.

• Each bit of memory is initialized with the value of the corresponding configuration memory bit in the bitstream. Memory bits can also be changed later through the ICAP.

• The output of each memory bit drives the functional block logic, so the content of this memory determines the configuration of the functional block.

The address space can include status (read-only) and function enables (write-only). Note that read-only and write-only operations can share the same address space. Figure 6-1 shows how the configuration bits drive the logic in functional blocks directly in earlier FPGA families, and Figure 6-2 shows how the reconfiguration logic changes the flow to read or write the configuration bits.

All configuration bits for this block

Configuration Logic Functional Block (DCM or MGT)

Figure 6-1: Block Configuration Logic without Dynamic Interface

to block logic

ds071_46_071505

Virtex-4 FPGA Configuration User Guide www.xilinx.com 79

UG071 (v1.12) June 2, 2017

Chapter 6: Reconfiguration Techniques

CONTROLLER

Block Status (Read-Only Ports)

Function Enables (Write-Only Ports)

Reconfigurable Bits

All configuration bits for this block

Non-reconfigurable Bits

to block logic

Standard Reconfiguration Port (to fabric)

Configuration Logic Functional Block (DCM or MGT)

Logic Plane

ds071_42_071705

CONTROLLER

Block Status (Read-Only Ports)

Function Enables (Write-Only Ports)

Reconfigurable Bits

All configuration bits for this block

Non-reconfigurable Bits

to block logic

Standard Reconfiguration Port (to fabric)

Configuration Logic Functional Block (DCM or MGT)

Logic Plane

ds071_43_071705

DCLK

DRDY

DEN

DWE DADDR[m:0]

DI[n:0]

DO[n:0]

Figure 6-2: Block Configuration Logic with Dynamic Interface

Figure 6-3 is the same as Figure 6-2, except the port between the Logic Plane and

Functional Block is expanded to show the actual signal names and directions.

FPGA Fabric Port Definition

Table 6-1, page 82, lists each signal on the FPGA Fabric port. The individual functional

blocks can implement all or only a subset of these signals. The DCM chapter in the

Virtex-4 FPGA User Guide and the Virtex-4 RocketIO Multi-Gigabit Transceiver User Guide

shows the signals and functions implemented for the specific blocks. In general, the port is a synchronous parallel memory port, with separate read and write buses similar to the block RAM interface. Bus bits are numbered least-significant to most-significant, starting at 0. All signals are active High.

80 www.xilinx.com Virtex-4 FPGA Configuration User Guide

Figure 6-3: Block Configuration Logic Expanded to Show Signal Names

UG071 (v1.12) June 2, 2017

Dynamic Reconfiguration of Functional Blocks (DRP)

DCLK

DEN

DRDY

DWE

DADDR[m:0]

DI[n:0]

DO[n:0]

ds071_44_123003

DCLK

DEN

DRDY

DWE

DADDR[m:0]

DI[n:0]

DO[n:0]

ds071_45_031804

Synchronous timing for the port is provided by the DCLK input, and all the other input signals are registered in the functional block on the rising edge of DCLK. Input (write) data is presented simultaneously with the write address and DWE and DEN signals prior to the next positive edge of DCLK. The port asserts DRDY for one clock cycle when it is ready to accept more data. The timing requirements relative to DCLK for all the other signals are the same. The output data is not registered in the functional blocks. Output (read) data is available after some cycles following the cycle that DEN and DADDR are asserted. The availability of output data is indicated by the assertion of DRDY.

Figure 6-4 and Figure 6-5 show the timing relationships between the port signals for write

and read operations. Absolute timing parameters, such as maximum DCLK frequency, setup time, etc., are defined in the Virtex-4 FPGA Data Sheet.

Figure 6-4: Write Timing with Wait States

Figure 6-5: Read Timing with Wait States

Virtex-4 FPGA Configuration User Guide www.xilinx.com 81

UG071 (v1.12) June 2, 2017

Chapter 6: Reconfiguration Techniques

Table 6-1: Port Signal Definitions

Signal Name Direction

DCLK Input

DEN Input

(1)

Description

The rising edge of this signal is the timing reference for all the other port signals. The required hold time for the other input signals relative to the rising edge of DCLK is zero (maximum). Normally, DCLK is driven with a global clock buffer.

This signal enables all port operations. If DWE is FALSE, it is a read operation, otherwise a write operation. For any given DCLK cycle, all other input signals are don't care if DEN is not active.

DWE Input

When active, this signal enables a write operation to the port (see DEN, above).

The value on this bus specifies the individual cell that is

DADDR[m:0] Input

written or read on the next cycle of DCLK. The address is presented in the cycle that DEN is active.

The value on this bus is the data that is written to the addressed cell. The data is presented in the cycle that

DI[n:0] Input

DEN and DWE are active, and is captured in a register at the end of that cycle, but the actual write occurs at an unspecified time before DRDY is returned.

If DWE was inactive when DEN was activated, the

DO[n:0] Output

value on this bus when DRDY goes active is the data read from the addressed cell. At all other times, the value on DO[n:0] is undefined.

This signal is a response to DEN to indicate that the DRP cycle is complete and another DRP cycle can be initiated. In the case of a port read, the DO bus must be

DRDY Output

captured on the rising edge of DCLK in the cycle that DRDY is active. The earliest that DEN can go active to start the next port cycle is the same clock cycle that DRDY is active.

Notes:

1. Input denotes input (write) to the DRP.

82 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

DRP DCM Implementation

The DRP implementation allows dynamic adjustment of M, D, and PS values (dire ct mode) in the DCM. The following ports are available in DCM_ADV primitive (see Chapter 2 of the Virtex-4 FPGA User Guide):

Inputs:

DI[15:0] DADDR[6:0] DWE DEN DCLK

Outputs:

DO[15:0] DRDY

DADDR[6:0] is latched at DCLK rising edge while DEN is asserted. The DO output reflects the status of that latched address location. After reset, the internal address is reset to 0, and the DCM DRP DO outputs are used to signal the default status Phase Shift Overflow, CLKIN Stopped, CLKFX Stopped, and CLKFB Stopped. However, if the DRP is used to reprogram M, D, or PS value, the DO is no longer showing default status. To access default status, the user must perform a DRP read with DADDR[6:0] = 0.

Dynamic Reconfiguration of Functional Blocks (DRP)

Changing the Multiply and Divide Values

The Multiply and Divide (M/D) values can be directly programmed in the DCM through the DRP by writing to hex addresses 50h and 52h respectively. The five least-significant data bits represent the multiply-minus-1 and divide-minus-1 values, as shown in Table 6-2 and Table 6-3. DRDY indicates that the new value has been written successfully.

The DCM must be held in reset by activating input RST while changing the M/D values. At some point after RST is released, signal LOCKED goes true, indicating that the clock outputs of the DCM are valid.

Table 6-2: Multiplier Settings

DADDR[15:0] DEC DI[15:0] Function

50h 0000 0000h (0000000000000000) N/A

50h 0001 0001h (0000000000000001) Multiply by 2

50h 0002 0002h (0000000000000010) Multiply by 3

50h 0003 0003h (0000000000000011) Multiply by 4

50h 0004 0004h (0000000000000100) Multiply by 5

•

50h 0030 001Eh (0000000000011110) Multiply by 31

•

50h 0031 001Fh (0000000000011111) Multiply by 32

Virtex-4 FPGA Configuration User Guide www.xilinx.com 83

UG071 (v1.12) June 2, 2017

Chapter 6: Reconfiguration Techniques

Table 6-3: Divider Settings

DADDR[15:0] DEC DI[15:0] Function

52h 0000 0000h (0000000000000000) N/A

52h 0001 0001h (0000000000000001) Divide by 2

52h 0002 0002h (0000000000000010) Divide by 3

52h 0003 0003h (0000000000000011) Divide by 4

52h 0004 0004h (0000000000000100) Divide by 5

•

52h 0030 001Eh (0000000000011110) Divide by 31

52h 0031 001Fh (0000000000011111) Divide by 32

If the M or D values are dynamically charged, then in some cases, the frequency mode must also be charged to comply with the specifications in the data sheet. For the DFS_FREQUENCY_MODE DRP address, 41h must be read and bit 6 (DI[5]) is then set to:

• 0 for low frequency mode

• 1 for high frequency mode

All other bits must remain unchanged.

For the DLL_FREQUENCY_MODE DRP address, 58h must be read and bits 7 and 8 (DI[7:6) are then set to:

• 0 for low frequency mode

• 1 for high frequency mode

Again, all other bits must be left undisturbed.

Dynamic Phase Shifting Through the DRP in Direct Mode

In addition to the phase shift modes already available in Virtex-II and Virtex-II Pro devices, the Virtex-4 FPGA has implemented a Direct Phase Shift Mode (DPSM). This allows the user to control the phase-shift delay line elements (tabs) directly. The DPSM can be accessed through either the standard Phase Shift (PS) interface or the DRP. If the DCM attribute CLKOUT_PHASE_SHIFT is set to DIRECT, then the PS interface is in direct mode and controls individual taps. The initial tap value is 0 delay line elements. All four PS interface signals act identically to the legacy-phase shift mode, thus allowing increment or decrement of the tabs. The delay line element is inserted at the CLKIN path. CLKIN leads CLKFB mode when more delay line elements are inserted until the delay elements are equal to one clock period, at which time the dynamic phase starts over again.

•

If DLL_PHASE_SHIFT_LOCK_BY1 = 1, each increment/decrement changes one tab. If 0, each increment/decrement changes eight tabs.

The DRP interface allows to the user to directly set an initial phase-shift value to a specified number of taps. After RESET, the phase-shift delay line has no elements inserted. A value between 0 and 3FFh (0-1023 taps) can be written to the DRP, then setting the tap target value in the DCM. A write to a specific address of the DRP then initiates the adjustment cycles necessary to set the proper delay value in the DPS. The DCM requires fewer clock cycles to achieve the final value than in the other modes, where a phase shift is expressed

84 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Dynamic Reconfiguration of Functional Blocks (DRP)

as a percentage of the clock. Just as in legacy mode, PSDONE indicates completion of the phase shift. If DLL_PHASE_SHIFT_LOCK_BY1 = 0, then the lower three bits of phase shift value are ignored, because it works on eight tabs as a unit.

Phase shift overflow does not toggle in the Direct Mode if the end of the delay line is reached.

It is recommended that the same clock be used for DCLK and PSCLK. Although the PSDONE pin is a function of the PSCLK domain, the data written to the DRP is in the DCLK domain. If this cannot be done, then the following two scenarios should be considered:

1. Connect DCLK, but not PSCLK. PSDONE is not asserted. The phase shift value is executed, although there is no indication when it is completed.

2. Connect PSCLK and DCLK to different sources. PSDONE is in the PSCLK domain and can be asynchronous to DCLK.

Setting a direct phase shift value:

1. If the CLKOUT_PHASE_SHIFT was not set to DIRECT, then write 00Dh (DI) to DADDR address 56h. (DRP should not be used to change configuration memory other than phase shift value.)

2. Write the desired tab value 0-3FFh (DI) (0-1023 tabs) to DADDR 55h.

3. Write to DADDR 11h to start the phase shift. (Data on DI does not matter.)

4. PSDONE asserts for one PSCLK cycle to indicate that the phase shift is done.

ICAP - Internal Configuration Access Port

The Internal Configuration Access Port (ICAP) allows access to configuration data in the same manner as SelectMAP. ICAP has the same interface signaling as SelectMAP other than the data bus, which is separated into read and write data buses. ICAP has a chipselect signal (CS), a read-write control signal (RD), a clock (CLK), a write data bus (DIN), and a read data bus (OUT). ICAP can be configured to two different data bus widths, 8 bits or 32 bits. When the 8-bit ICAP interface is used, the data is byte-reversed like SelectMAP. When the 32-bit interface is used, the data is not reversed, which is the same as SelectMAP32.

The ICAP interface can be used to perform readback operations or partial reconfiguration. When using ICAP for partial reconfiguration, the user must avoid changing the logic or interconnect which the ICAP is itself connected to. ICAP can also be used to read or write to the configuration registers, such as the STAT, CTL, or FAR registers. See “Accessing

Configuration Registers through the SelectMAP Interface” for details.

There are two ICAP sites in Virtex-4 devices: TOP and BOTTOM. The implementation has the two interfaces share the same underlying logic. The only difference between them is their location on the chip and the interconnect to which they can be connected. The two interfaces can never be active at the same time. The default site for a single ICAP is the TOP site, because the TOP site is active after configuration by default. If both sites are used, the TOP site must be activated first before switching to the BOTTOM site. The process of switching between the two sites is as follows:

1. Synchronize the current interface (if it's not already synched).

2. Write bit 30 of the MASK register with a 1.

3. Write bit 30 of the CTL register with a 1 if switching to the BOTTOM site or a 0 if switching to the TOP site.

4. Write the DESYNCH command to the CMD register.

5. Synchronize the new ICAP site.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 85

UG071 (v1.12) June 2, 2017

Chapter 6: Reconfiguration Techniques

86 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Configuration Details

All user-programmable features inside Virtex®-4 devices are controlled by volatile memory cells that must be configured at power-up.

These memory cells are collectively known as configuration memory. They define the LUT equations, signal routing, IOB voltage standards, and all other aspects of the user design.

To program configuration memory, instructions for the configuration control logic and data for the configuration memory are provided in the form of a bitstream. The bitstream is delivered to the device through one of the configuration interfaces (JTAG, SelectMAP, or Slave/Master Serial).

The composition of the bitstream is largely independent of the configuration method. Certain operations, however, such as readback, can only be performed through the SelectMAP and JTAG interfaces.

Chapter 7

Configuration Memory Frames

Virtex-4 configuration memory is arranged in frames that are tiled about the device. These frames are the smallest addressable segments of the Virtex-4 configuration memory space, and all operations must therefore act upon whole configuration frames. Virtex-4 frame counts and configuration sizes are shown in Table 7-1. Depending on BitGen options, additional overhead exists in the configuration bitstream. The exact bitstream length is available in the .rbt (rawbits) file created by using the "-b" option with bitgen or selecting "Create ASCII Configuration File" in the Generate Programming File options popup in ISE® software. Bitstream length (words) are roughly equal to the configuration array size (words) plus configuration overhead (words). Bitstream length (bits) are roughly equal to the bitstream length in words times 32.

Table 7-1: Virtex-4 Frame Count, Frame Length, Overhead and Bitstream Size

Device

XC4VLX15 140 3,600 3,740 41 147,600 1312

XC4VLX25 234 5,928 6,162 41 243,048 1312

XC4VLX40 376 9,312 9,688 41 381,792 1312

XC4VLX60 536 13,472 14,008 41 552,352 1312

XC4VLX80 710 17,720 18,430 41 726,520 1312

XC4VLX100 948 23,376 24,324 41 958,416 1312

XC4VLX160 1,260 30,720 29,460 41 1,259,520 1312

XC4VLX200 1,620 39,120 37,500 41 1,603,920 1312

Non-Configuration

Frames

(1)

Configuration

Frames

(2)

Device

Frames

Frame Length

(3)

(words)

(4)

Configuration

Array Size

(words)

(5)

Configuration

Overhead

(words)

(6)

Virtex-4 FPGA Configuration User Guide www.xilinx.com 87

UG071 (v1.12) June 2, 2017

Chapter 7: Configuration Details

Table 7-1: Virtex-4 Frame Count, Frame Length, Overhead and Bitstream Size (Continued)

Device

XC4VSX25 440 6,940 7,380 41 284,540 1312

XC4VSX35 660 10,410 11,070 41 426,810 1312

XC4VSX55 1,104 17,304 18,408 41 709,464 1312

XC4VFX12 248 3,600 3,848 41 147,600 1312

XC4VFX20 360 5,488 5,848 41 225,008 1312

XC4VFX40 660 10,296 10,956 41 422,136 1312

XC4VFX60 1,040 15,976 17,016 41 665,016 1312

XC4VFX100 1,660 25,170 26,830 41 1,031,970 1312

XC4VFX140 2,424 36,444 38,868 41 1,494,204 1312

Notes:

1. Non-configuration frames should be considered when calculating TPL (Program Latency) but do not contribute to the bitstream size. See Table 41: Configuration Switching Characteristics in the Virtex-4 FPGA Data Sheet.

2. Configuration frames contribute to both the T

3. The number of device frames equals the number of non-configuration plus configuration frames, and is the number of frames to use when calculating T

4. All Virtex-4 configuration frames consist of 41 32-bit words.

5. Configuration array size equals the number of configuration frames times the number of words per frame.

6. Configuration overhead consists of commands in the bitstream that are needed to perform configuration, but do not themselves program any memory cells. Configuration overhead contributes to the overall bitstream size.

Non-Configuration

Frames

(1)

Configuration

Frames

(2)

calculation and the overall bitstream size.

Device

Frames

Frame Length

(3)

(words)

(4)

Configuration

Array Size

(words)

(5)

Configuration

Overhead

(words)

(6)

Configuration Control Logic

The Virtex-4 configuration logic consists of a packet processor, a set of registers, and global signals that are controlled by the configuration registers. The packet processor controls the flow of data from the configuration interface (SelectMAP, JTAG, or Serial) to the appropriate register. The registers control all other aspects of configuration.

Packet Types

The FPGA bitstream consists of two packet types: Type 1 and Type 2. These packet types and their usage are described below.

Type 1 Packet

The Type 1 packet is used for register reads and writes. Only 5 out of 14 register address bits are used in Virtex-4 FPGAs. The header section is always a 32-bit word.

Following the Type 1 packet header is the Type 1 Data section, which contains the number of 32-bit words specified by the word count portion of the header. See Table 7-2 and

Table 7-3.

88 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Table 7-2: Type 1 Packet Header Format

Configuration Control Logic

Header

Type

Opcode Register Address Reserved Word Count

[31:29] [28:27] [26:13] [12:11] [10:0]

001 xx RRRRRRRRRxxxxx RR xxxxxxxxxxx

Notes:

1. "R" means the bit is not used and reserved for future use.

Table 7-3: Opcode Format

Opcode Function

NOP

01 Read

10 Write

11 Reserved

Type 2 Packet

The Type 2 packet, which must follow a Type 1 packet, is used to write long blocks. No address is presented here because it uses the previous Type 1 packet address. The header section is always a 32-bit word.

Following the Type 2 packet header is the Type 2 Data section, which contains the number of 32-bit words specified by the word count portion of the header. See Table 7-4.

Table 7-4: Type 2 Packet Header

Header

Type

Opcode Word Count

[31:29] [28:27] [26:0]

010 RR xxxxxxxxxxxxxxxxxxxxxxxxxx

Configuration Registers

All bitstream commands are executed by reading or writing to the configuration registers.

Table 7-5 summarizes these registers. A detailed explanation of selected registers follows.

Table 7-5: Configuration Registers

Reg. Name Read/Write Address Description

CRC

FAR

FDRI

FDRO

CMD

CTL

Read/Write 00000

Read/Write 00001

Read/Write 00100

Read/Write 00101

Write 00010

CRC register

Frame Address Register

Frame Data Register, Input (write configuration data)

Frame Data Register, Output register (read configuration data)

Command Register

Control Register

Virtex-4 FPGA Configuration User Guide www.xilinx.com 89

UG071 (v1.12) June 2, 2017

Chapter 7: Configuration Details

Table 7-5: Configuration Registers (Continued)

Reg. Name Read/Write Address Description

MASK

STAT

LOUT

COR

MFWR

CBC

IDCODE

AXSS

Read/Write 00110

Write 01000

Read/Write 01001

Write 01010

Write 01011

Read/Write 01100

Read/Write 01101

Masking Register for CTL

Status Register

Legacy Output Register (DOUT for daisy chain)

Configuration Option Register

Multiple Frame Write

Initial CBC value register

Device ID register

User bitstream access register

Command Register (CMD)

The Command Register is used to instruct the configuration control logic to strobe global signals and perform other configuration functions. The command present in the CMD register is executed each time the FAR is loaded with a new value. Table 7-6 gives the Command Register commands and codes.

Table 7-6: Command Register Codes

Command Code Description

NULL

WCFG

MFWR

LFRM

RCFG

START

RCAP

RCRC

0000

0001

0010

0011

0100

0101

0110

0111

Null Command

Write Configuration Data: used prior to writing configuration data to the FDRI.

Multiple Frame Write: used to perform a write of a single frame data to multiple frame addresses.

Last Frame: Deasserts the GHIGH_B signal, activating all interconnect. The GHIGH_B signal is asserted with the AGHIGH command.

Read Configuration Data: used prior to reading configuration data from the FDRO.

Begin Startup Sequence: initiates the startup sequence. The startup sequence begins after a successful CRC check and a DESYNC command are performed.

Reset Capture: resets the CAPTURE signal after performing readbackcapture in single-shot mode (see “Readback Capture,” page 113).

Reset CRC: resets the CRC register

Assert GHIGH_B Signal: places all interconnect in a high-Z state to

AGHIGH

SWITCH

GRESTORE

SHUTDOWN

90 www.xilinx.com Virtex-4 FPGA Configuration User Guide

1000

1001

1010

1011

prevent contention when writing new configuration data. This command is only used in shutdown reconfiguration. Interconnect is reactivated with the LFRM command.

Switch CCLK Frequency: updates the frequency of the Master CCLK to the value specified by the OFSEL bits in the COR.

Pulse the GRESTORE Signal: sets/resets (depending on user configuration) IOB and CLB flip-flops.

Begin Shutdown Sequence: initiates the shutdown sequence, disabling the device when finished. Shutdown activates on the next successful CRC check or RCRC instruction (typically an RCRC instruction).

UG071 (v1.12) June 2, 2017

Table 7-6: Command Register Codes (Continued)

Command Code Description

Configuration Control Logic

GCAPTURE

DESYNC

Control Register (CTL)

The Control Register is used to set the configuration security level, the persist setting, and to toggle the Global Three-State signal. Writes to the CTL register are masked by the value in the MASK register (this allows the GTS_USR_B signal to be toggled without respecifying the Security and Persist bits). The default value of the GLUTMASK_B bit in the CTL register is 1, which leads to corruption of SRL16 and distributed RAM (LUTRAM) during active readback of the device. Active readback is defined as readback that occurs while the device is not in the shutdown state. To prevent corruption of SRL16 and distributed RAM during active readback, the user must set the GLUTMASK_B bit to 0. This is accomplished by writing a 1 to bit 8 of the MASK register followed by writing a 0 to bit 8 of the CTL register. The MASK register is cleared after each write to the CTL register, which prevents inadvertent changes to the Control Register.

The fields are illustrated in Figure 7-1 and defined in Table 7-7.

Reserved

ICAP SEL

1100

1101

Pulse GCAPTURE: loads the capture cells with the current register states (see “Readback Capture,” page 113).

Reset DALIGN Signal: used at the end of configuration to desynchronize the device. After de-synchronization, all values on the configuration data pins are ignored.

Figure 7-1: Control Register

Reserved

GLUTMASK_B

Reserved

SBITS

PERSIST

Reserved

GTS_USR_B

Description

Bit Index

Value 0000000000000000x xxxxx xxxx xxxxx x

3130292827262524232221201918171615141312111

9 8 76543 210

Table 7-7: Control Register Description

Name Bit Index Description

Reserved

ICAP_SEL

SBITS

Various Reserved CTL register bits. Always leave these bits set to 0.

ICAP Port Select.

5:4

0: Top ICAP Port Enabled (default) 1: Bottom ICAP Port Enabled

Security Level.

00: Read/Write OK (default) 01: Readback disabled 1x: Readback disabled, writing disabled except CRC

Virtex-4 FPGA Configuration User Guide www.xilinx.com 91

UG071 (v1.12) June 2, 2017

Chapter 7: Configuration Details

Table 7-7: Control Register Description (Continued)

Name Bit Index Description

PERSIST

GLUTMASK

GTS_USER_B

The configuration interface defined by M2:M0 remains after configuration. Typically used only with the SelectMAP

interface to allow reconfiguration and readback. See also

“SelectMAP Reconfiguration” in Chapter 2.

0: No (default) 1: Yes

GLUTMASK affects how certain memory cells are read back. This applies to SRL16 and distributed RAM (LUTRAM) bits as well as configuration bits that are accessible through a DRP port.

0=Readback all 0s from SRL16 and Distributed RAM. Use with active device readback.

1=Readback dynamic values from SFR16 and Distributed RAM. Use with shutdown readback.

Active Low high-Z state for I/Os.

0: I/Os placed in high-Z state 1: I/Os active

Frame Address Register (FAR)

The Virtex-4 devices are divided into two halves, the top, and the bottom. Frames in the bottom half mirror images in the top half with the exception of the vertical HCLK rows that contain the global and regional clocks. The HCLK title bits are in the same order in the both of the top and bottom frames.

All Frames in Virtex-4 have a fixed, identical length of 1312 bits (41 32-bit words). One Frame configures one HCLK with either 4 block RAMS, 32 IOBs or 4 DSPs.

The FAR is divided into five fields: top/bottom bit, block type, row address, column address, and minor address. The address can be written directly or can be autoincremented at the end of each frame. The typical bitstream starts at address 0 and autoincrement to the final count.

Table 7-8: Frame Address Register Description

Address Type Bit Index Description

Top_B Bit 22 Select between top-half rows and bottom-half rows.

Block Type 21:19 Block types are, CLB/IO/CLK (000), block RAM Interconnect

(001), block RAM content (010), CFG_CLB (011), and CFG_BRAM (100). A normal bitstream stops at type 010.

Row Address 18:14 Selects a row of frames, for example, a row of 16 CLBs in height,

with an HCLK row in the middle. The row addresses increase away from the middle (in both top and bottom).

Column Address 13:6 Selects a major column, such as a column of CLBs. Column

addresses start at 0 on the left and increase to the right.

Minor Address 5:0 Selects a memory-cell address line within a major column.

92 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Configuration Control Logic

Status Register (STAT)

The Status Register indicates the value of numerous global signals. The register can be read through the SelectMAP or JTAG interfaces. Figure 7-2 gives the name of each bit position in the STAT register; a detailed explanation of each bit position is given in Table 7-9.

Figure 7-2: Status Register

Reserved

DEC_ERROR

ID_ERROR

DONE

RELEASE_DONE

INIT

INIT_COMPLETE

MODE

GHIGH_B

GWE

GTS_CFG_B

EOS

DCI_MATCH

DCM_LOCK

PART_SECURED

CRC_ERROR

Description

Bit Index

Value 0000000000000000x xxxxx xxxx xxxxx x

3130292827262524232221201918171615141312111

–

9 8 76543 210

Table 7-9: Status Register Description

Name Bit Index Description

FDRI write attempted before or after decrypt operation.

DEC_ERROR

ID_ERROR

DONE

RELEASE_DONE

INIT

INIT_COMPLETE

14 Value on DONE pin.

12 Value on INIT pin

0: No DEC_ERROR 1: DEC_ERROR

Attempt to write to FDRI without successful DEVICE_ID check.

0: No ID_ERROR 1: ID_ERROR

Value of internal DONE signal.

0: DONE signal not released (pin is actively held Low) 1: DONE signal released (can be held Low externally)

Internal signal indicating initialization has completed.

0: Initialization has not finished 1: Initialization finished

MODE

GHIGH_B

GWE

GTS_CFG_B

EOS

Virtex-4 FPGA Configuration User Guide www.xilinx.com 93

UG071 (v1.12) June 2, 2017

10:8 Status of the MODE pins (M2:M0).

Status of GHIGH_B.

0: GHIGH_B asserted 1: GHIGH_B deasserted

Status of GWE.

0: FFs and block RAM are write disabled 1: FFs and block RAM are write enabled

Status of GTS_CFG_B.

0: All I/Os are placed in high-Z state 1: All I/Os behave as configured

End of Startup signal from Startup Block.

0: Startup sequence has not finished 1: Startup sequence has finished

Chapter 7: Configuration Details

Table 7-9: Status Register Description (Continued)

Name Bit Index Description

DCI_MATCH

DCM_LOCK

0: DCI not matched 1: DCI is matched

This is a logical AND function of all the MATCH signals (one per bank). If no DCI I/Os are in a particular bank, the bank's MATCH signal = 1.

0: DCMs not locked 1: DCMs are locked

This is a logical AND function of all DCM LOCKED signals. Unused DCM LOCKED signals = 1.

PART_SECURED

CRC_ERROR

0: Decryptor security not set 1: Decryptor security set

0: No CRC error 1: CRC error

Configuration Options Register (COR)

The Configuration Options Register is used to set certain configuration options for the device. The name of each bit position in the COR is given in Figure 7-3 and described in

Table 7-10.

Figure 7-3: Configuration Options Register

Reserved

CRC_BYPASS

Reserved

DONE_PIPE

DRIVE_DONE

SINGLE

Description

Bit Index

Value 0000000000000000xxxx xxxxx xxxxxxx

3130292827262524232221201918171615141312111

Table 7-10: Configuration Options Register Description

OSCFSEL

SSCLKSRC

DONE_CYCLE

MATCH_CYCLE

LOCK_CYCLE

9 8 76543 210

GTS_CYCLE

GWE_CYCLE

Name Bit Index Description

CRC_BYPASS

DONE_PIPE

DRIVE_DONE

94 www.xilinx.com Virtex-4 FPGA Configuration User Guide

0: CRC enabled. 1: CRC disabled.

0: No pipeline statue for DONEIN 1: Add pipeline stage for DONEIN

The FPGA waits on DONE that is delayed by one StartupClk cycle. Use this option when StartupClk is running at high speeds.

0: DONE pin is open drain 1: DONE is actively driven High

UG071 (v1.12) June 2, 2017

Configuration Control Logic

Table 7-10: Configuration Options Register Description (Continued)

Name Bit Index Description

0: Readback is not single-shot New captured values are loaded on each successive

CAP assertion on the CAPTURE_VIRTEX4

SINGLE

primitive. Capture can also be performed with the GCAPTURE instruction in the CMD register.

1: Readback is single-shot. The RCAP instruction must be loaded into the CMD

OSCFSEL

SSCLKSRC

DONE_CYCLE

MATCH_CYCLE

LOCK_CYCLE

22:17

16:15

14:12

11:9

8:6

Select CCLK frequency in Master configuration modes.

Startup-sequence clock source.

00: CCLK 01: UserClk (per connection on the

CAPTURE_VIRTEX4 block)

1x: JTAGClk

Startup cycle to release the DONE pin.

001: Startup cycle 2 010: Startup cycle 3 011: Startup cycle 4 100: Startup cycle 5 101: Startup cycle 6

Startup cycle to stall in until DCI matches.

000: Startup cycle 1 001: Startup cycle 2 010: Startup cycle 3 011: Startup cycle 4 100: Startup cycle 5 101: Startup cycle 6 111: No Wait

Startup cycle to stall in until DCMs lock.

000: Startup cycle 1 001: Startup cycle 2 010: Startup cycle 3 011: Startup cycle 4 100: Startup cycle 5 101: Startup cycle 6 111: No Wait

Virtex-4 FPGA Configuration User Guide www.xilinx.com 95

UG071 (v1.12) June 2, 2017

Chapter 7: Configuration Details

Table 7-10: Configuration Options Register Description (Continued)

Name Bit Index Description

GTS_CYCLE

GWE_CYCLE

Bitstream Composition

5:3

2:0

Startup cycle to deassert the Global Three-State (GTS) signal.

001: Startup cycle 2 010: Startup cycle 3 011: Startup cycle 4 100: Startup cycle 5 101: Startup cycle 6

Startup phase to deassert the Global Write Enable (GWE) signal.

001: Startup cycle 2 010: Startup cycle 3 011: Startup cycle 4 100: Startup cycle 5 101: Startup cycle 6

Configuration can begin after the device is powered and initialization has finished, as indicated by the INIT pin being released. After initialization, the packet processor ignores all data presented on the configuration interface until it receives the synchronization word. After synchronization, the packet processor waits for a valid packet header to begin the configuration process.

Default Initial Configuration Process

Initial configuration using a default bitstream (a bitstream generated using the default BitGen settings) begins by pulsing the PROGRAM_B pin for SelectMAP and Serial configuration modes or by issuing the JPROG_B instruction for JTAG configuration mode. Configuration proceeds as shown in Table 7-11:

Table 7-11: Configuration Sequence

Configuration

Data (hex)

FFFFFFFF Dummy word

AA995566 Sync word

30008001 Type 1 write 1 words to CMD

00000007 RCRC command

20000000

Explanation

NO-OP

30012001 Type 1 write 1 words to COR

XXXXXXXX Data word 0

30018001 Type 1 write 1 words to ID

0167C093 Device_ID

30008001 Type 1 write 1 words to CMD

96 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Bitstream Composition

Table 7-11: Configuration Sequence (Continued)

Configuration

Data (hex)

Explanation

00000009 SWITCH command

20000000 NO-OP

30008001 Type 1 write 1 words to CMD

00000000 NULL command

20000000 NO-OP

3000C001 Type 1 write 1 words to MASK

XXXXXXXX Data word 0

3000A001 Type 1 write 1 words to CTL

XXXXXXXX Data word 0

20000000 NO-OP

... 1149 more NO-OPs

3000C001 Type 1 write 1 words to MASK

XXXXXXXX Data word 0

3000A001 Type 1 write 1 words to CTL

XXXXXXXX Data word 0

30002001 Type 1 write 1 words to FAR

00000000 Data word 0

30008001 Type 1 write 1 words to CMD

00000001 WCFG command

30004000 Type 1 write 0 words to FDRI

5003B568 Type 2 write 243048 words to FDRI

XXXXXXXX Data word 0

... ...

XXXXXXXX Data word 243047

30000001 Type 1 write 1 words to CRC

XXXXXXXX Data word 0

30008001 Type 1 write 1 words to CMD

0000000A GRESTORE command

20000000 NO-OP

30008001 Type 1 write 1 words to CMD

00000003 LFRM command

20000000 NO-OP

... 99 more NO-Ops

30008001 Type 1 write 1 words to CMD

0000000A GRESTORE command

Virtex-4 FPGA Configuration User Guide www.xilinx.com 97

UG071 (v1.12) June 2, 2017

Chapter 7: Configuration Details

Table 7-11: Configuration Sequence (Continued)

Configuration

Data (hex)

Explanation

20000000 NO-OP

30008001 Type 1 write 1 words to CMD

00000000 NULL command

20000000 NO-OP

30002001 Type 1 write 1 words to FAR

00000000 Data word 0

30008001 Type 1 write 1 words to CMD

00000005 START command

20000000 NO-OP

3000C001 Type 1 write 1 words to MASK

XXXXXXXX Data word 0

3000A001 Type 1 write 1 words to CTL

XXXXXXXX Data word 0

30000001 Type 1 write 1 words to CRC

XXXXXXXX Data word 0

30008001 Type 1 write 1 words to CMD

0000000D DESYNC command

20000000

Type 1 NO OP

20000000

98 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017

Chapter 8

Readback and Configuration Verification

Virtex®-4 devices allow users to read configuration memory through the SelectMAP or JTAG interface. There are two styles of readback: Readback Verify and Readback Capture. During Readback Verify, the user reads all configuration memory cells, including the current values on all user memory elements (LUT RAM, SRL16, and block RAM). Readback Capture is a superset of Readback Verify—in addition to reading all configuration memory cells, the current state of all internal CLB and IOB registers is read, and is useful for design debugging.

Note:

Xilinx does not support or recommend using configuration memory readback in flight applications. The Correcting Single-Event Upsets in Virtex-4 FPGA Configuration Memory application note (XAPP1088) describes the recommended solution to correct single event upsets (SEUs) for Virtex-4QV FPGAs in flight. This application note is available on the High Reliability and Space

Developers’ Site.

To read configuration memory, users must send a sequence of commands to the device to initiate the readback procedure; once initiated the device dumps the contents of its configuration memory to the SelectMAP or JTAG interface. The configuration memory read procedure sections for SelectMAP, IEEE 1149.1 JTAG, and IEEE 1532 JTAG describe the steps for reading configuration memory

Users can send the readback command sequence from a custom microprocessor, CPLD, or FPGA-based system, or use iMPACT to perform JTAG-based readback verify. iMPACT, the device programming software provided with the ISE® tools, can perform all readback and comparison functions for Virtex-4 devices and report to the user whether there were any configuration errors. iMPACT cannot perform capture operations, although Readback Capture is seldom used for design debugging because the Chipscope™ Integrated Logic Analyzer (ILA), sold separately through the Xilinx website, provides superior design debugging functionality in a user-friendly interface.

Once configuration memory has been read from the device, the next step is to determine if there are any errors by comparing the readback bitstream to the configuration bitstream. The “Verifying Readback Data” section explains how this is done.

Virtex-4QV device configuration memory readback is only supported during design debug.

Preparing a Design for Readback

There are two mandatory bitstream settings for readback: the BitGen security setting must not prohibit readback (-g security:none), and bitstream encryption must not be used. Additionally, if readback is to be performed through the SelectMAP interface, the port must be set to retain its function after configuration by setting the persist option in BitGen (-g Persist:Yes), otherwise the SelectMAP data pins revert to user I/O, precluding further configuration operations. Beyond these security and encryption requirements, no special considerations are necessary to enable readback through the Boundary-Scan port.

Virtex-4 FPGA Configuration User Guide www.xilinx.com 99

UG071 (v1.12) June 2, 2017

Chapter 8: Readback and Configuration Verification

CS_B

RDWR_B

DATA[0:7]

UG071_48_090704

WRITE

Byte

Byte 0

CCLK

Byte 0

READ

If capture functionality is needed, the CAPTURE_VIRTEX4 primitive can instantiated in the user design (Figure 8-7, page 113). Alternatively, writing the GCAPTURE command to the CMD register can be used (see Readback Capture). To capture the state of user registers, the user design triggers the CAP input on this primitive, storing the current register values in configuration memory. The register values are later read out of the device along with all other configuration memory.

Readback Command Sequences

Virtex-4 configuration memory is read from the FDRO (Frame Data Register - Output) configuration register and can be accessed from the JTAG and SelectMAP interfaces. Readback is possible while the FPGA design is active or in a shutdown state, although block RAMs cannot be accessed by the user design while they are being accessed by the configuration logic.

Accessing Configuration Registers through the SelectMAP Interface

To read configuration memory through the SelectMAP interface, users must set the interface for write control to send commands to the FPGA, and then switch the interface to read control to read data from the device. Write and read control for the SelectMAP interface is determined by the RDWR_B input: the SelectMAP data pins (D0:7) are inputs when the interface is set for Write control (RDWR_B = 0); they are outputs when the interface is set for Read control (RDWR_B = 1).

The CS_B signal must be deasserted (CS_B =1) before toggling the RDWR_B signal, otherwise the user causes an abort (refer to “SelectMAP ABORT” in Chapter 2 for details).

The procedure for changing the SelectMAP interface from Write to Read Control, or vice versa, is:

1. Deassert CS_B.

2. Toggle RDWR_B.

RDWR_B = 0: Write control RDWR_B = 1: Read control

3. Assert CS_B.

4. This procedure is illustrated in Figure 8-1.

Figure 8-1: Changing the SelectMAP Port from Write to Read Control

100 www.xilinx.com Virtex-4 FPGA Configuration User Guide

UG071 (v1.12) June 2, 2017
