Xilinx System Generator v2.1 for

Simulink

User Guide

Xilinx Blockset

Reference Guide

Introduction

Xilinx Blockset Overview

Xilinx Blocks

System Generator Software Features

Using the Xilinx Software

Auxiliary Files

Printed in U.S.A.

Xilinx System Generator v2.1 Reference Guide

About This Manual

This document is a reference guide for system designers who are unfamiliar with the System Generator v2.1 and the Xilinx Blockset.

Manual Contents

This guide covers the following topics:

Chapter 1, Introduction, gives a high-level overview of the System Generator and its uses.

Chapter 2, Xilinx Blockset Overview, describes the Xilinx Blockset: how to instantiate a Xilinx block within your Simulink model, how to configure it through its block parameters dialog box, the common options that can be used in several of the blocks, and the nature of the signals used in the System Generator software.

Chapter 3, Xilinx Blocks, describes the details of each block, including options, and use of Xilinx LogiCOREs. This chapter also tells where to find descriptions of the cores on your computer.

Chapter 4, System Generator Software Features, describes the System Generator software and gives tips for using it to create efficient hardware designs.

Chapter 5, Using the Xilinx Software, tells, step-by-step, how to use System Generator as a front-end to the Xilinx Foundation 4.1i ISE software, from VHDL to bitstream generation.

Chapter 6, Auxiliary Files, contains instructions for accessing System Generator demo designs, as well as a list of Perl scripts that are delivered with the System Generator software. The demo designs show examples of designs using Xilinx blocks. The scripts are used by the System Generator to create auxiliary project files, but can also be used as stand-alone tools.

2

Xilinx Development System

Additional Resources



For additional information, go to http://support.xilinx.com. The following



table lists some additional resources.





Resource

Description/URL





IP Center

Information on Xilinx LogiCOREs and IP solutions.



http://www.xilinx.com/ipcenter/



This page contains a link to the Xilinx Xtreme DSP solutions page.





Technical Tips

Latest news, design tips, and patch information for the Xilinx design environment.



http://support.xilinx.com/xlnx/xil_tt_home.jsp





Tutorials

Tutorials covering Xilinx ISE 4.1i design flows, from design entry to verification and



debugging.



http://support.xilinx.com/support/techsup/tutorials/



tutorials4.htm





Documentation

Xilinx Software Manuals online.



http://toolbox.xilinx.com/docsan/xilinx4/





Software

Periodic software service packs, IP updates, and information is available online.

Updates

http://support.xilinx.com/support/software/install_info.htm





The

MATLABâ , Simulinkâ , DSP design, and other company information.

MathWorks

http://www.mathworks.com





3

Xilinx System Generator v2.1 Reference Guide

Conventions

This document uses the following conventions. An example illustrates each convention.

Typographical

The following conventions are used for all System Generator documents.

Courier font (a fixed-width font) indicates messages, prompts, menu pick items, and dialog box entries that the system displays.

speed grade: - 100

Courier bold indicates literal commands that you enter in a command-line prompt or dialog box. However, triangular braces “<>” in Courier bold are not literal.

>> cd <your $MATLAB home directory>

Italic font denotes the following items.

Introduction of words being used with a context-specific definition The System Generator provides bit true and cycle true modeling.

References to other manuals or sections in this manual

See the Development System Reference Guide for more information.

Emphasis in text

If a wire is drawn so that it overlaps the pin of a symbol, the two nets are not connected.

4

Xilinx Development System

Contents



Chapter 1

Introduction





Industry and Product Overview .................................................................................

8



System Generator .....................................................................................................

9



System Level Modeling with System Generator .......................................................

9



The System Generator Design Flow .........................................................................

10



Arithmetic Data Types ..............................................................................................

12



Hardware Handshaking ............................................................................................

13



Multirate Systems ................................................................................................

13



Bit-True and Cycle-True Modeling ............................................................................

14



Automatic Testbench Generation ........................................................................

14

Chapter 2 Xilinx Blockset Overview





What is a Xilinx Block? .............................................................................................

15



Instantiating Xilinx Blocks within a Simulink Model ...................................................

16



The Block Parameters Dialog Box ............................................................................

16



The Nature of Signals in the Xilinx Blockset .............................................................

16



Use of Xilinx Smart-IP Cores by the System Generator ...........................................

18



Licensed Cores ....................................................................................................

18



Xilinx LogiCORE Versions ...................................................................................

19



Common Options in Block Parameters Dialog Box ..................................................

19



Arithmetic Type ....................................................................................................

20



Implement with Xilinx Smart-IP Core (if possible) ...............................................

20



Generate Core .....................................................................................................

20



Latency ................................................................................................................

20



Precision ..............................................................................................................

21



Number of Bits .....................................................................................................

21



Overflow and Quantization ..................................................................................

21



Override with Doubles .........................................................................................

21



Sample Period .....................................................................................................

22

Chapter 3

Xilinx Blocks





Basic Elements .........................................................................................................

23



System Generator ...............................................................................................

23



Addressable Shift Register ..................................................................................

26



Black Box .............................................................................................................

28

5

Xilinx System Generator v2.1 Reference Guide

Concat .................................................................................................................

30

Constant ..............................................................................................................

31

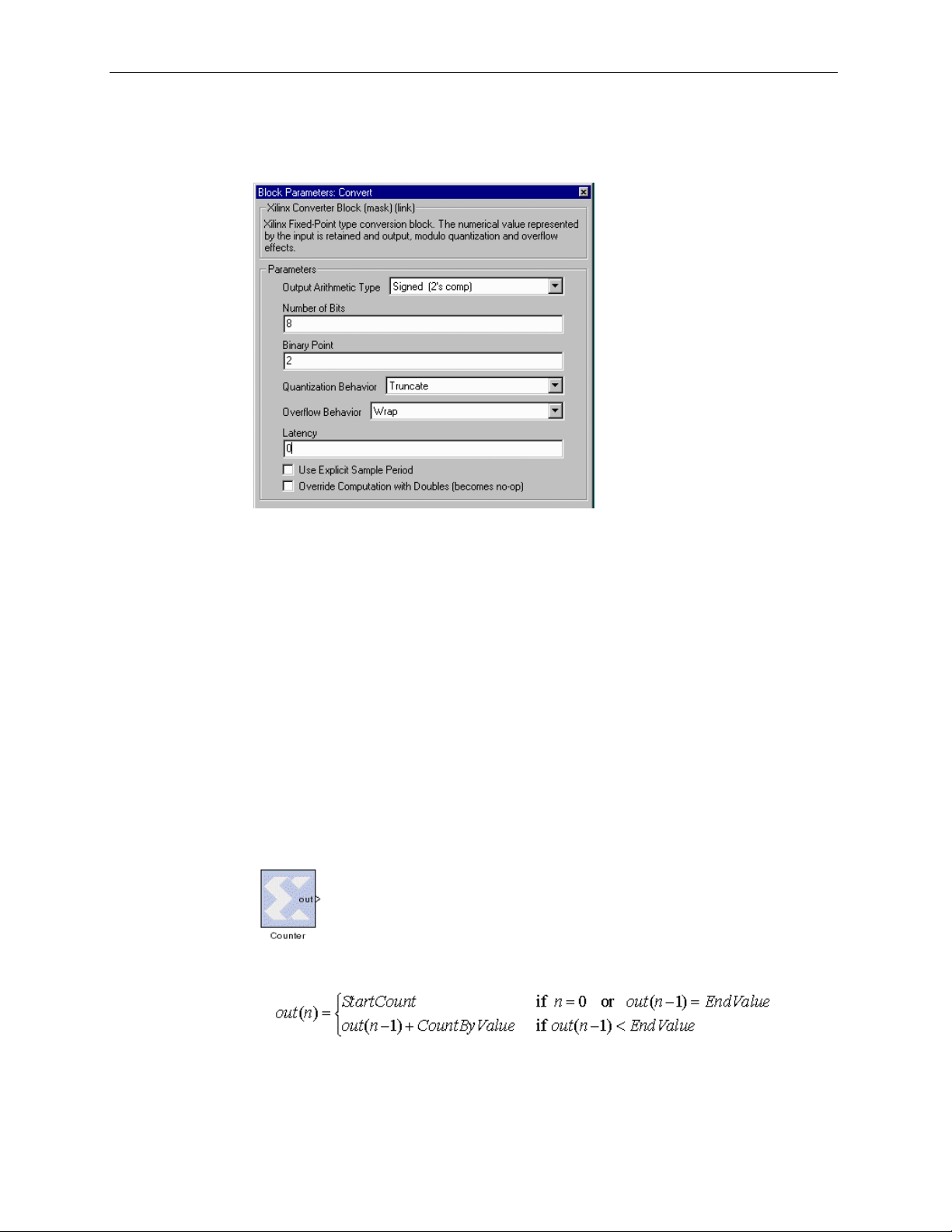

Convert ................................................................................................................

31

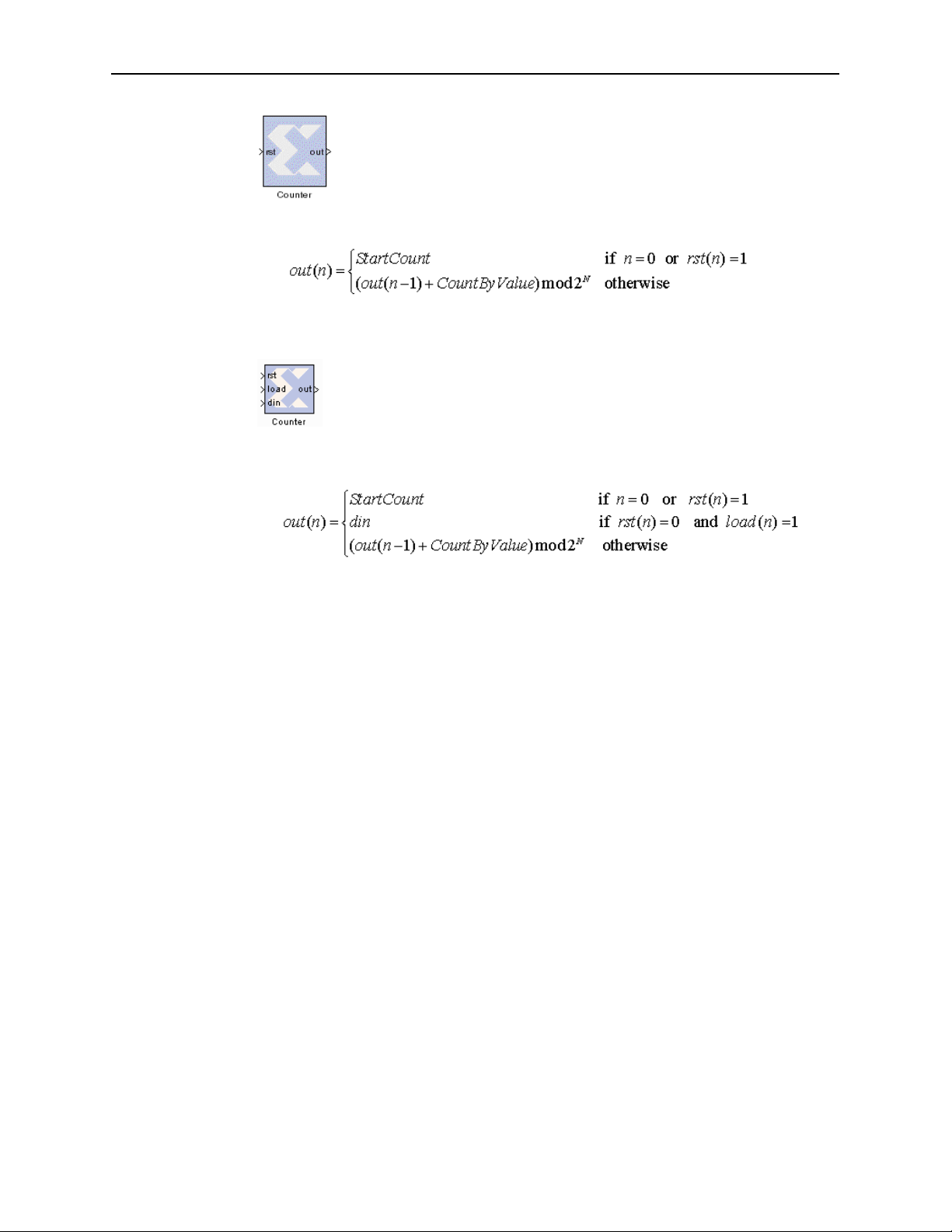

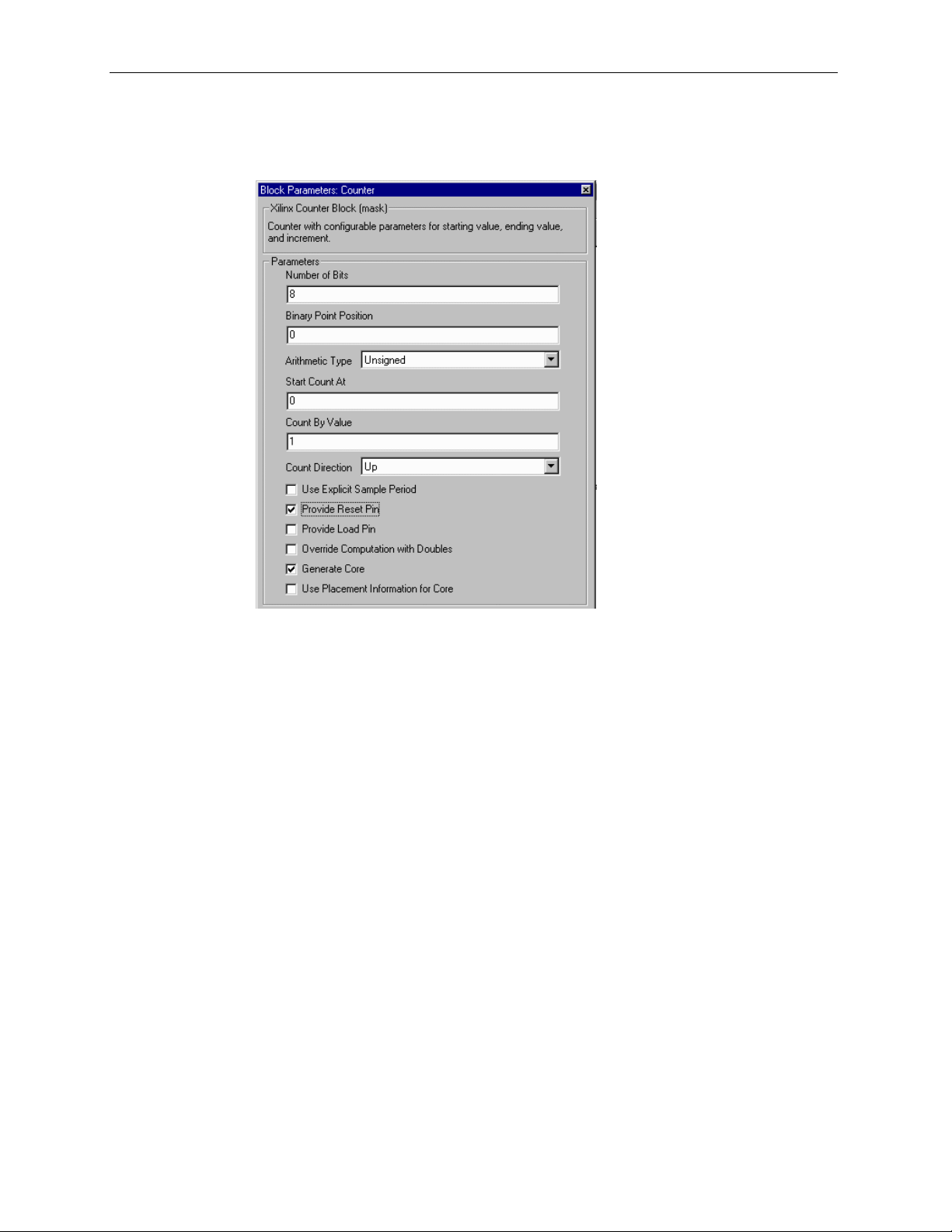

Counter ................................................................................................................

32

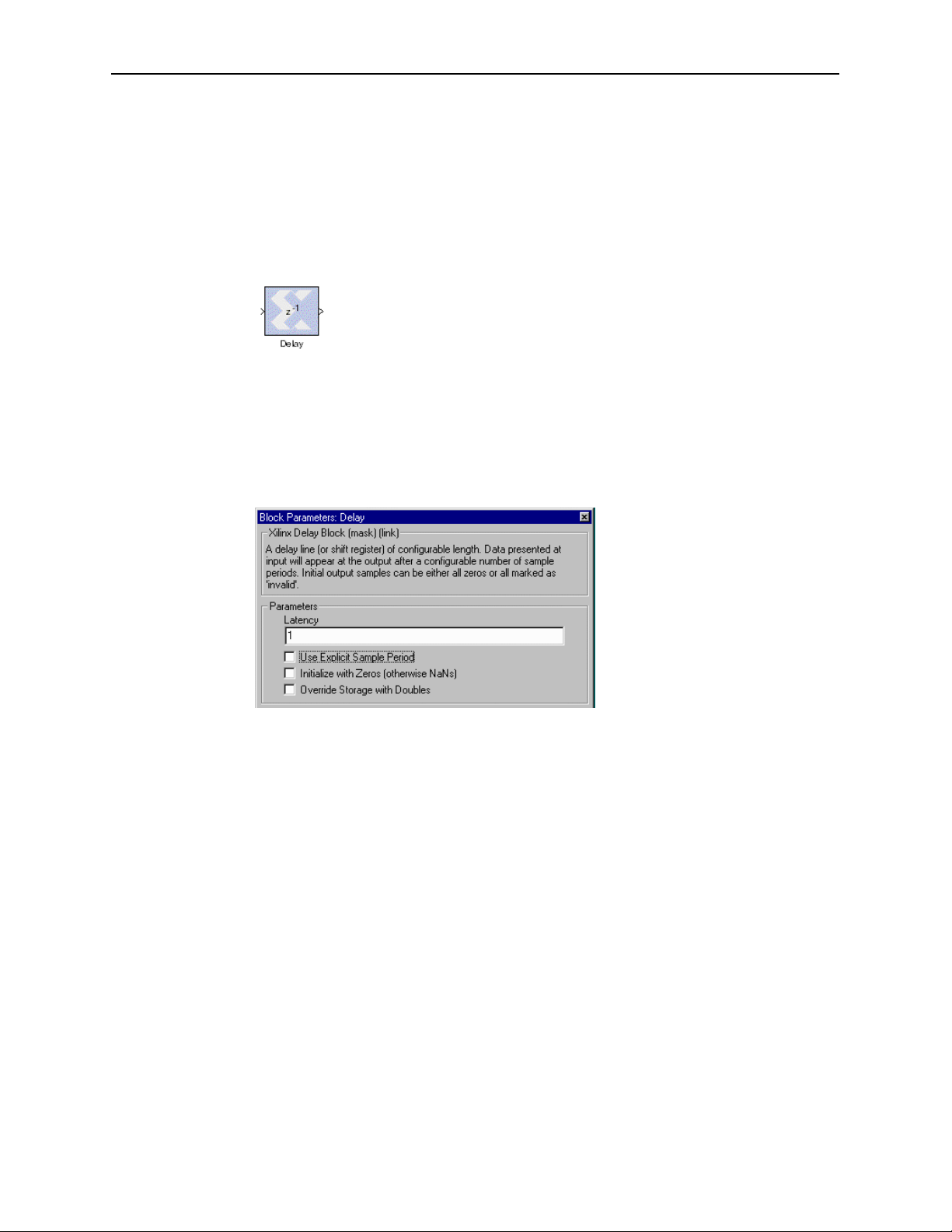

Delay ...................................................................................................................

35

Down Sample ......................................................................................................

36

Get Valid Bit .........................................................................................................

37

Mux ......................................................................................................................

38

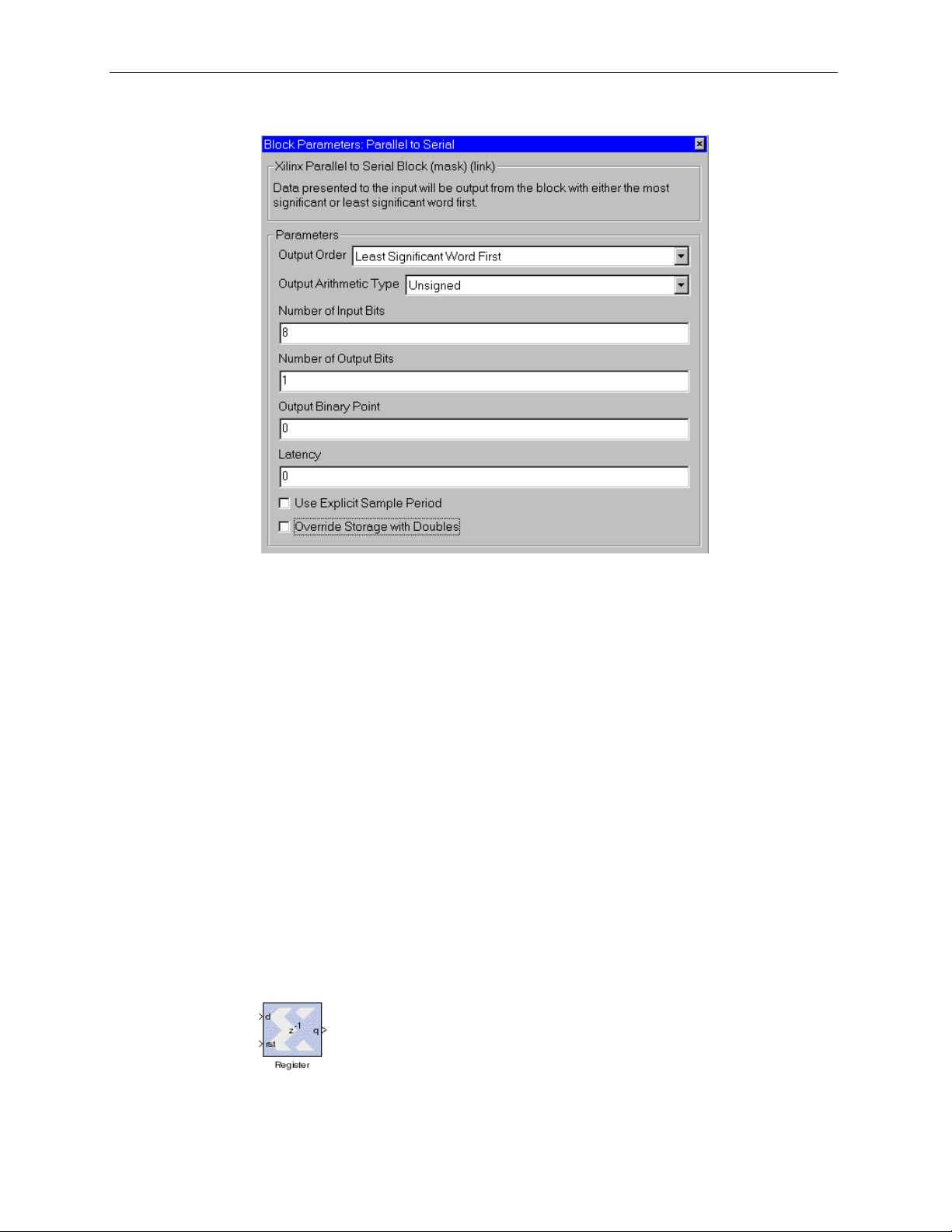

Parallel to Serial ..................................................................................................

39

Register ...............................................................................................................

40

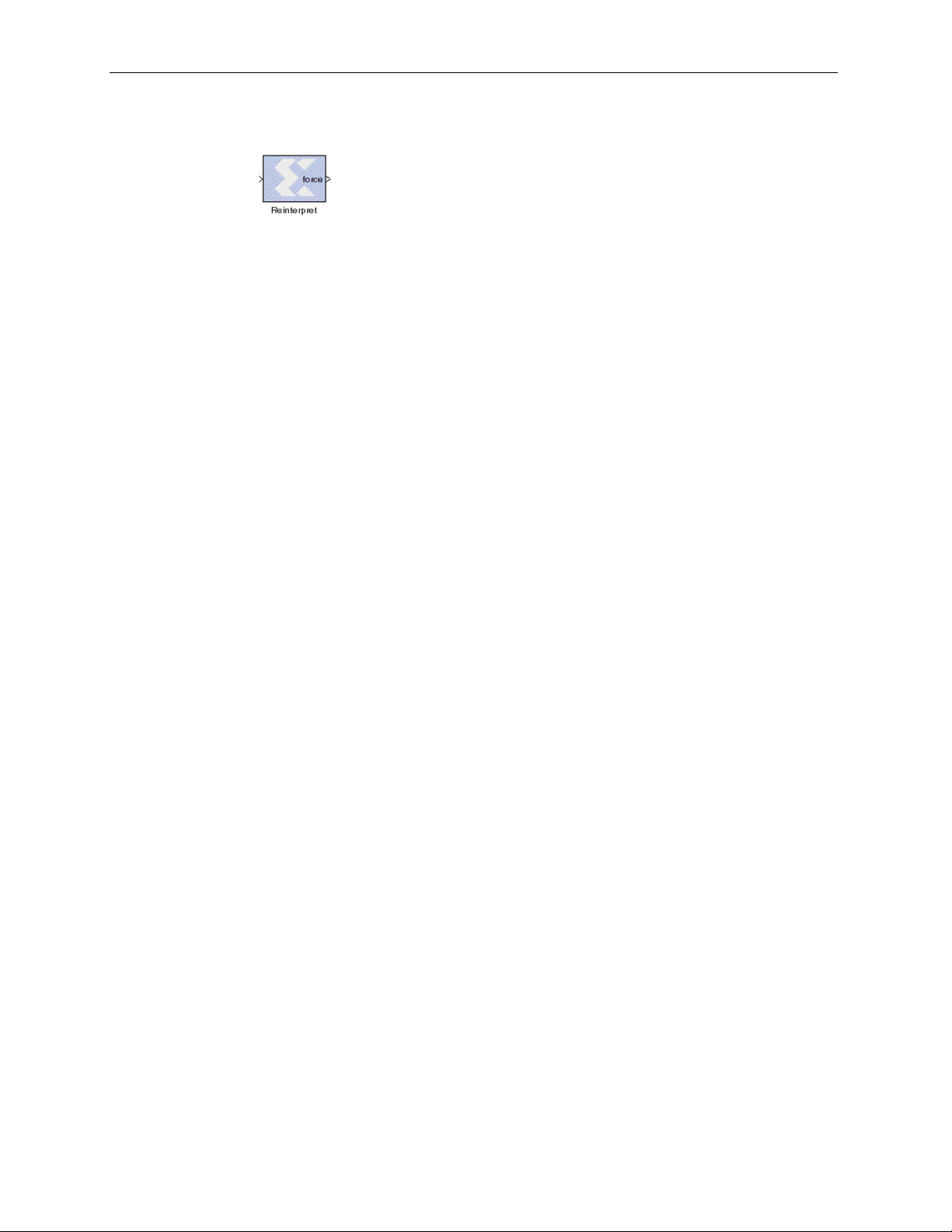

Reinterpret ...........................................................................................................

42

Serial to Parallel ..................................................................................................

43

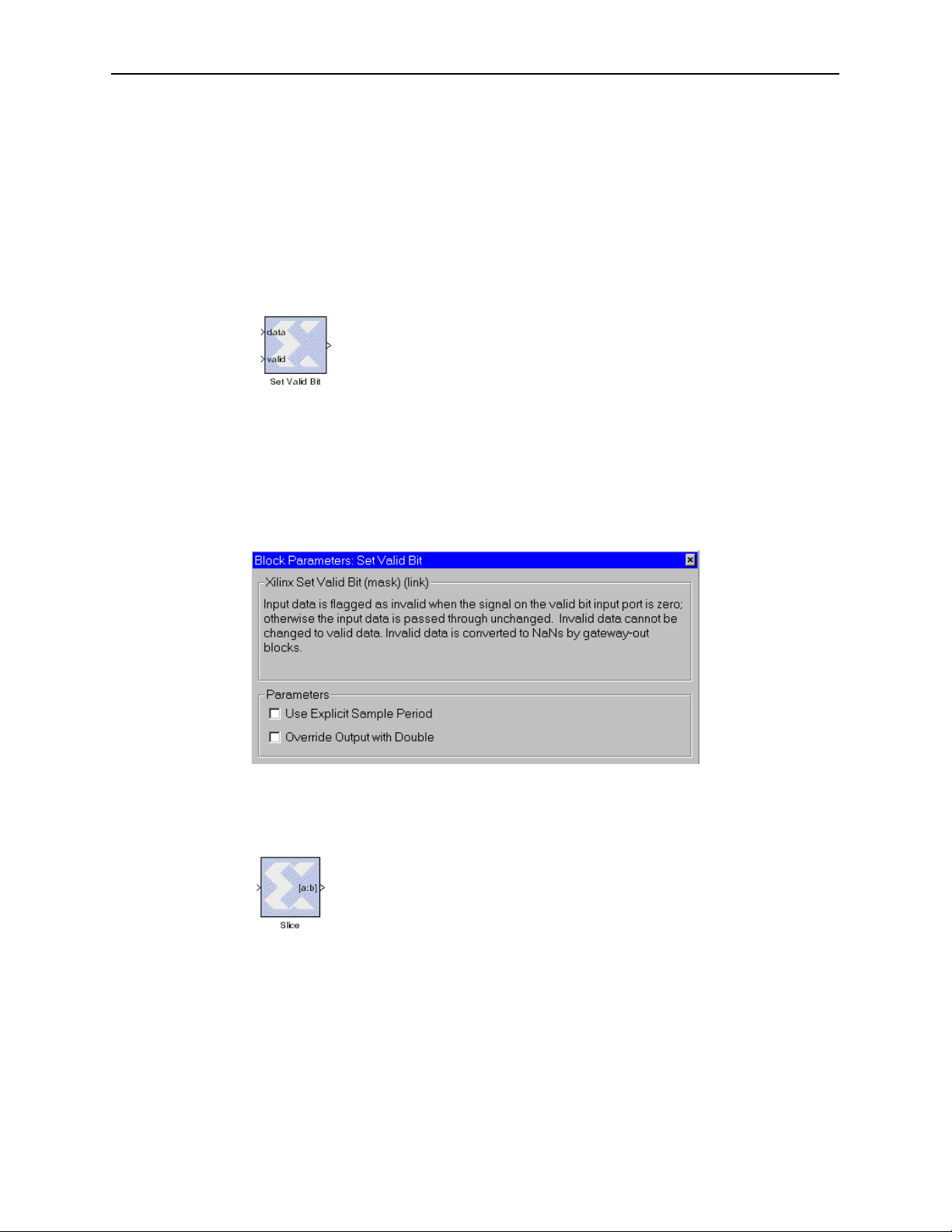

Set Valid Bit .........................................................................................................

45

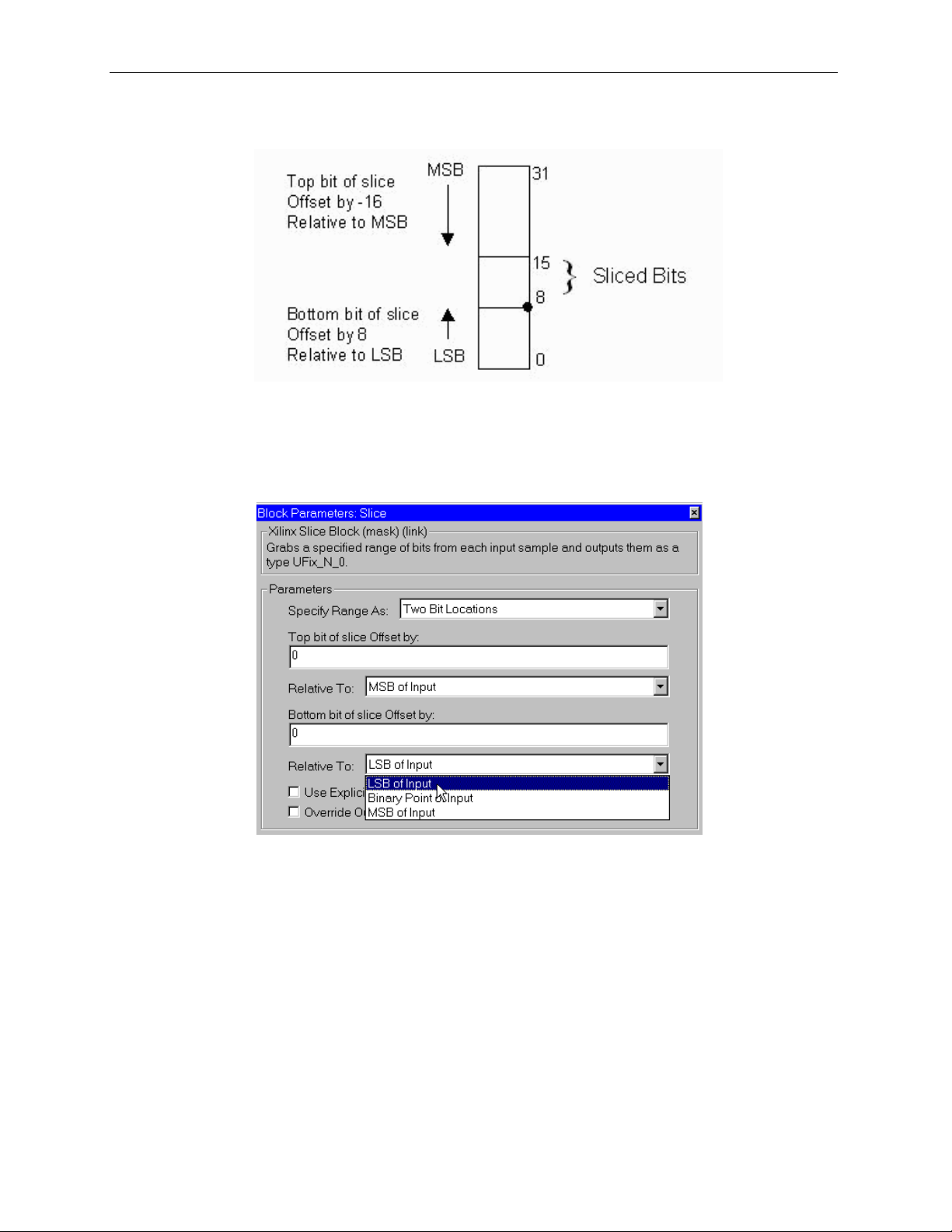

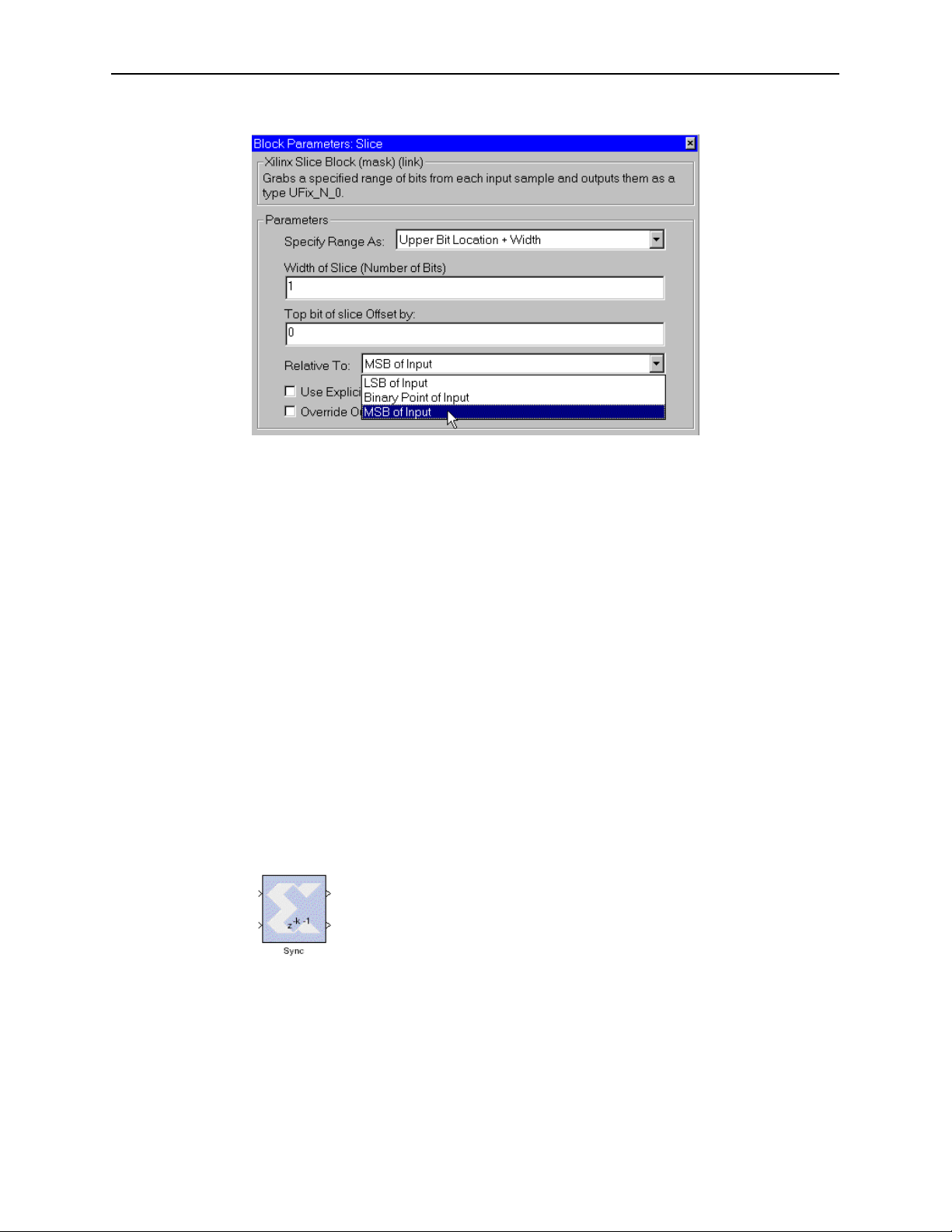

Slice .....................................................................................................................

45

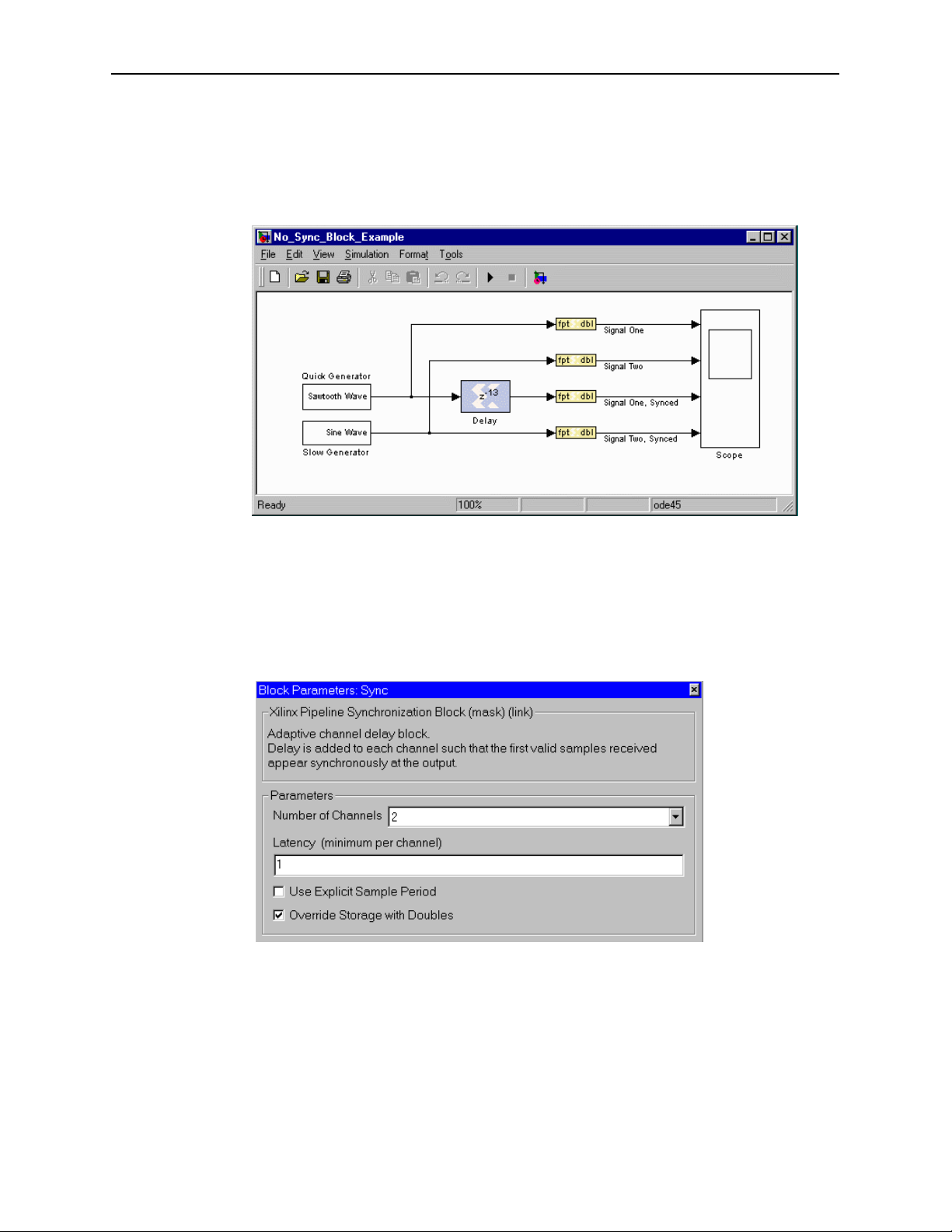

Sync .....................................................................................................................

47

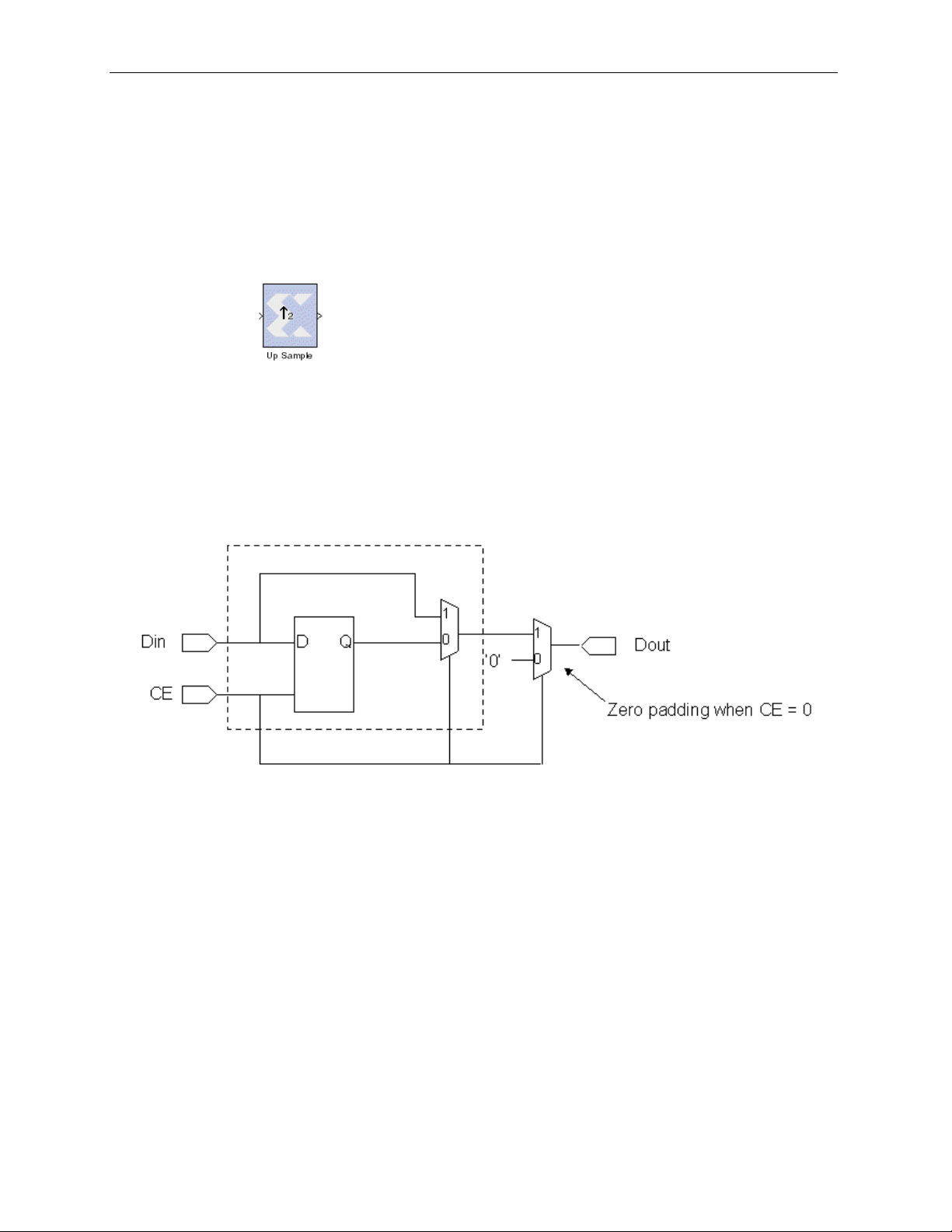

Up Sample ...........................................................................................................

50

Communication .........................................................................................................

52

Convolutional Encoder ........................................................................................

52

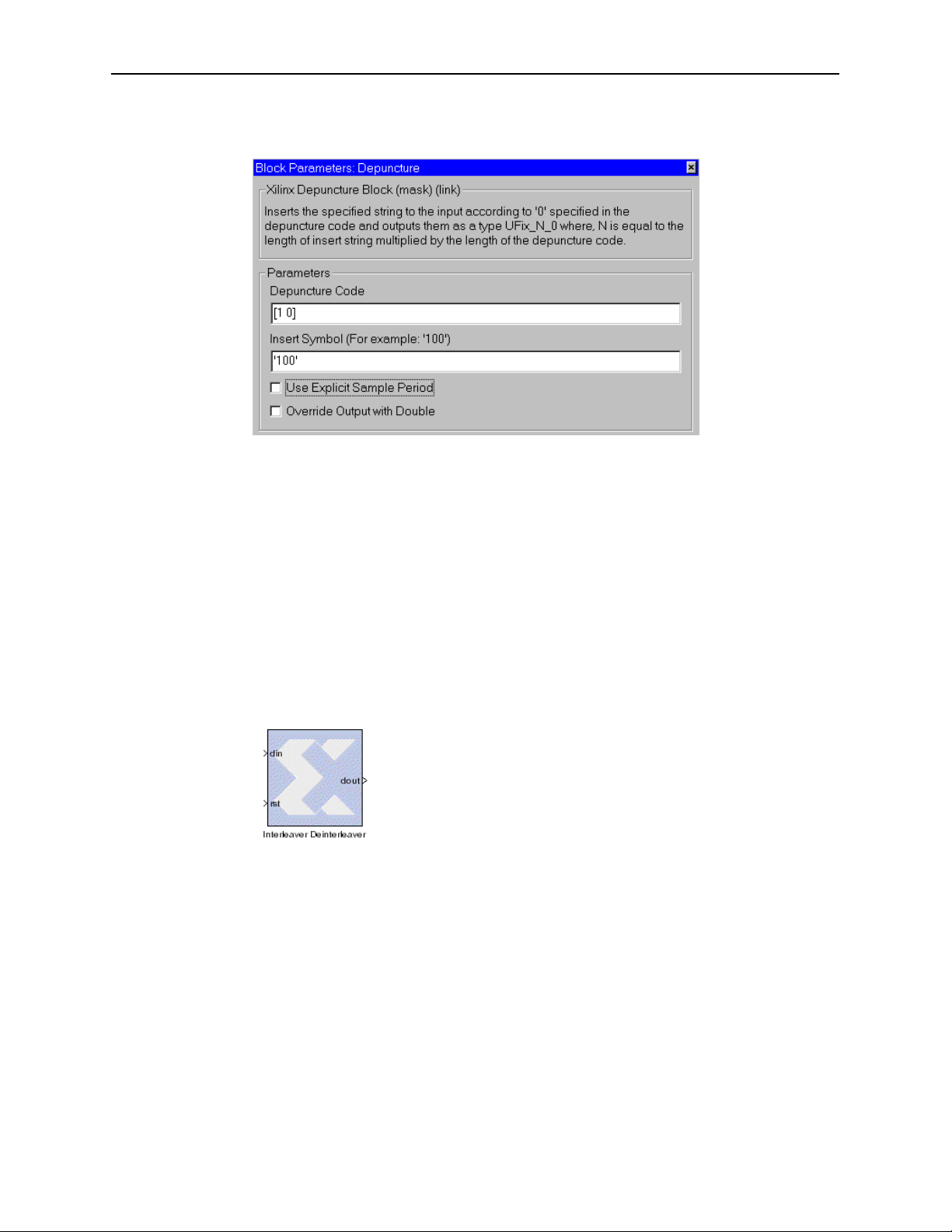

Depuncture ..........................................................................................................

54

Interleaver Deinterleaver .....................................................................................

55

Puncture ..............................................................................................................

58

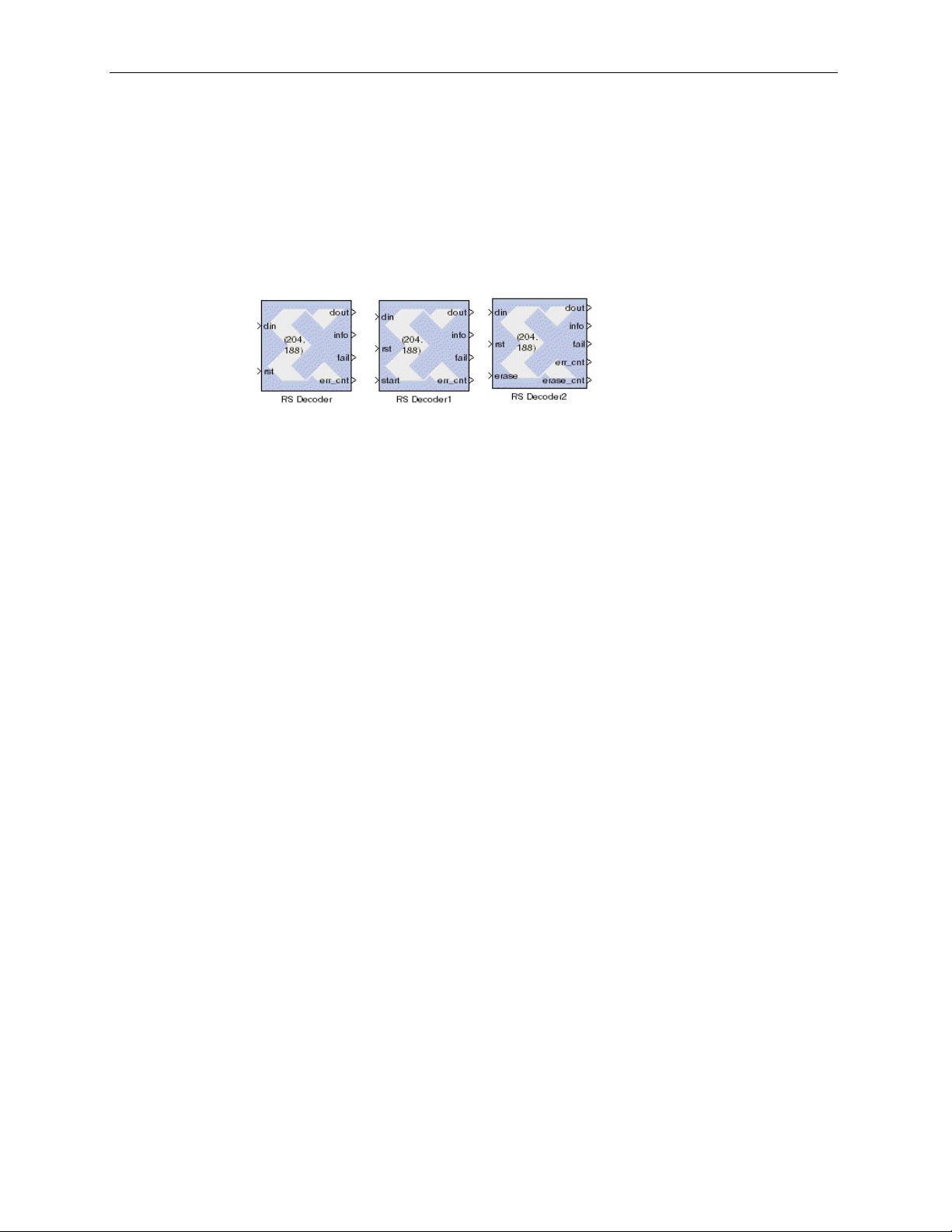

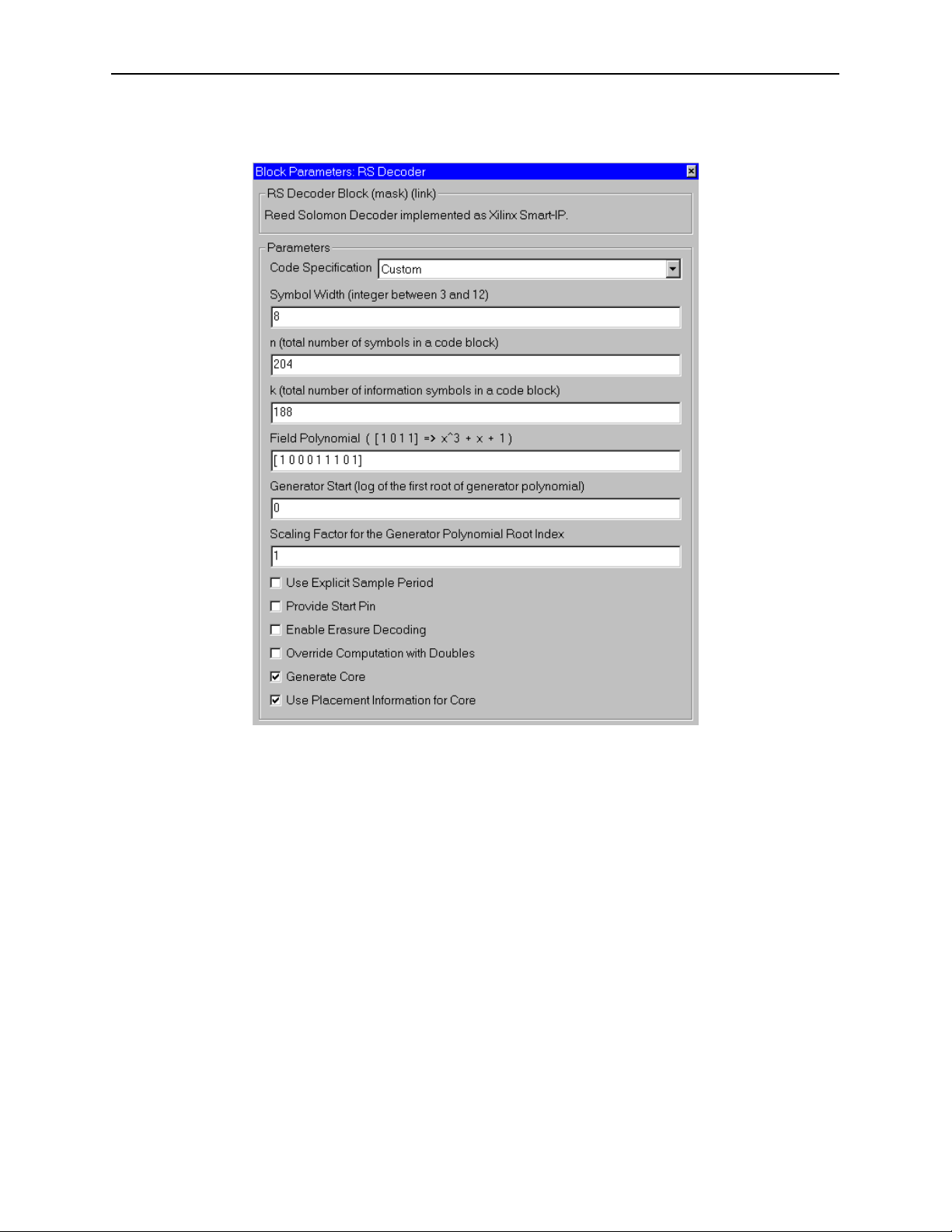

RS Decoder .........................................................................................................

59

RS Encoder .........................................................................................................

63

Viterbi Decoder ....................................................................................................

68

DSP ..........................................................................................................................

70

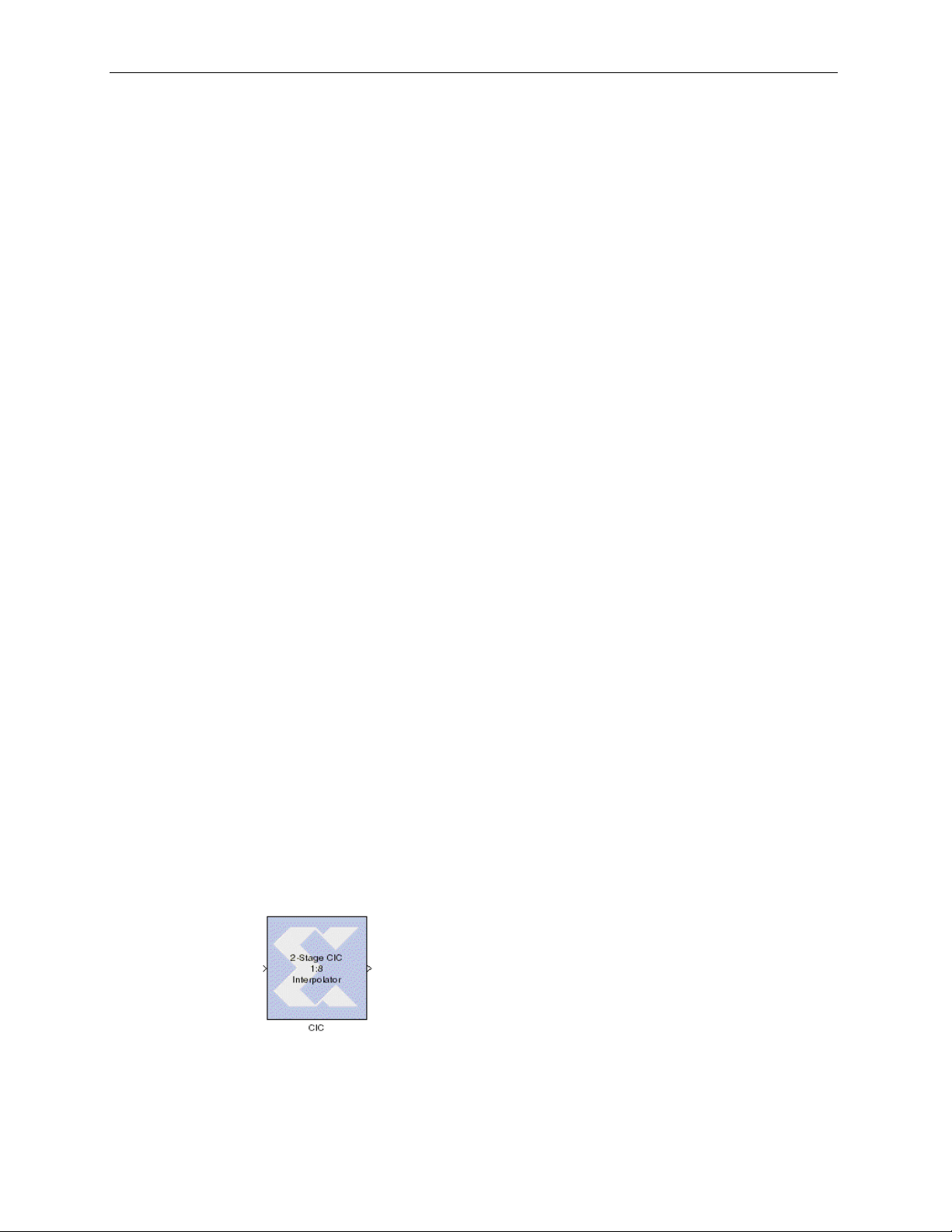

CIC ......................................................................................................................

70

DDS .....................................................................................................................

73

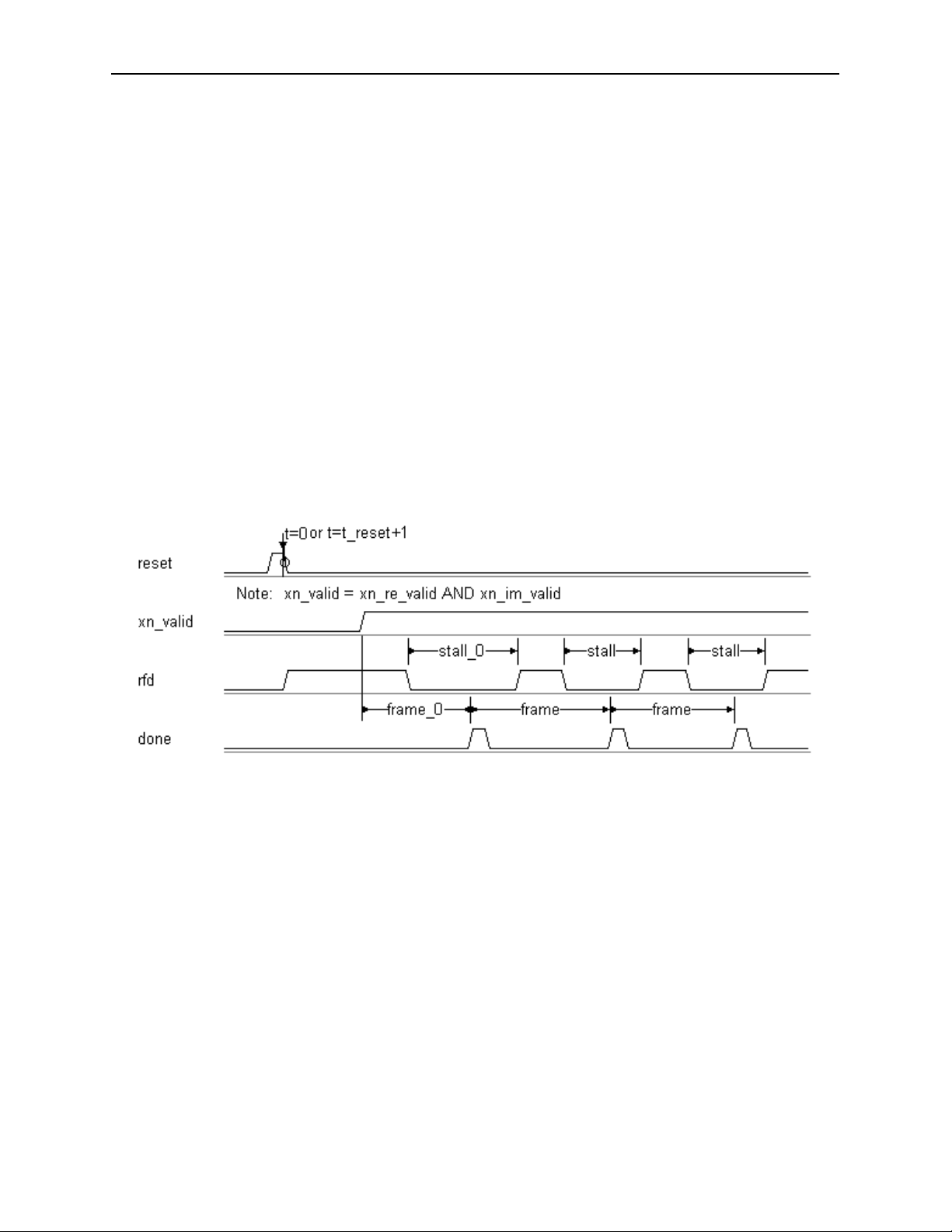

FFT ......................................................................................................................

75

FIR .......................................................................................................................

79

Math ..........................................................................................................................

81

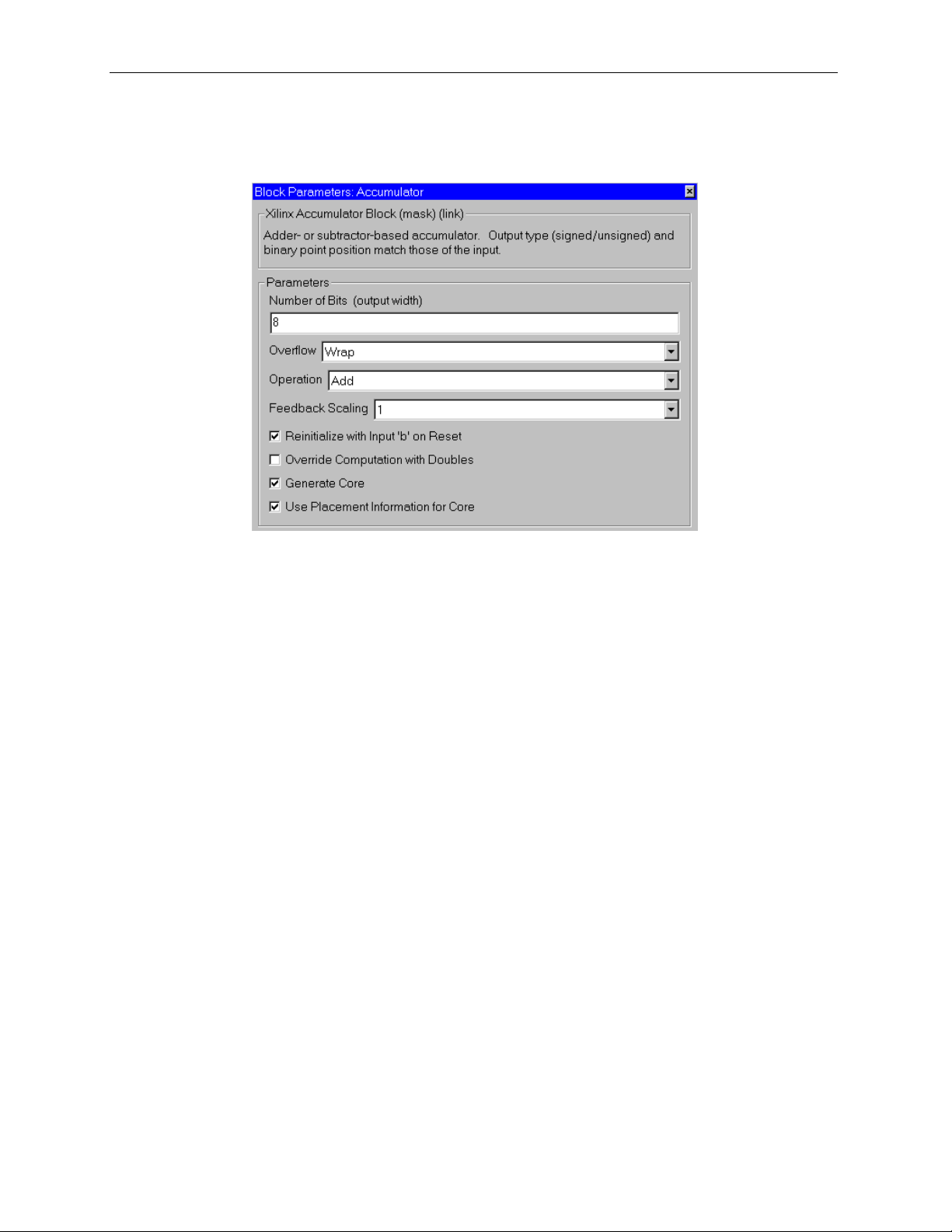

Accumulator .........................................................................................................

81

AddSub ................................................................................................................

83

CMult ...................................................................................................................

84

Inverter ................................................................................................................

85

Logical .................................................................................................................

86

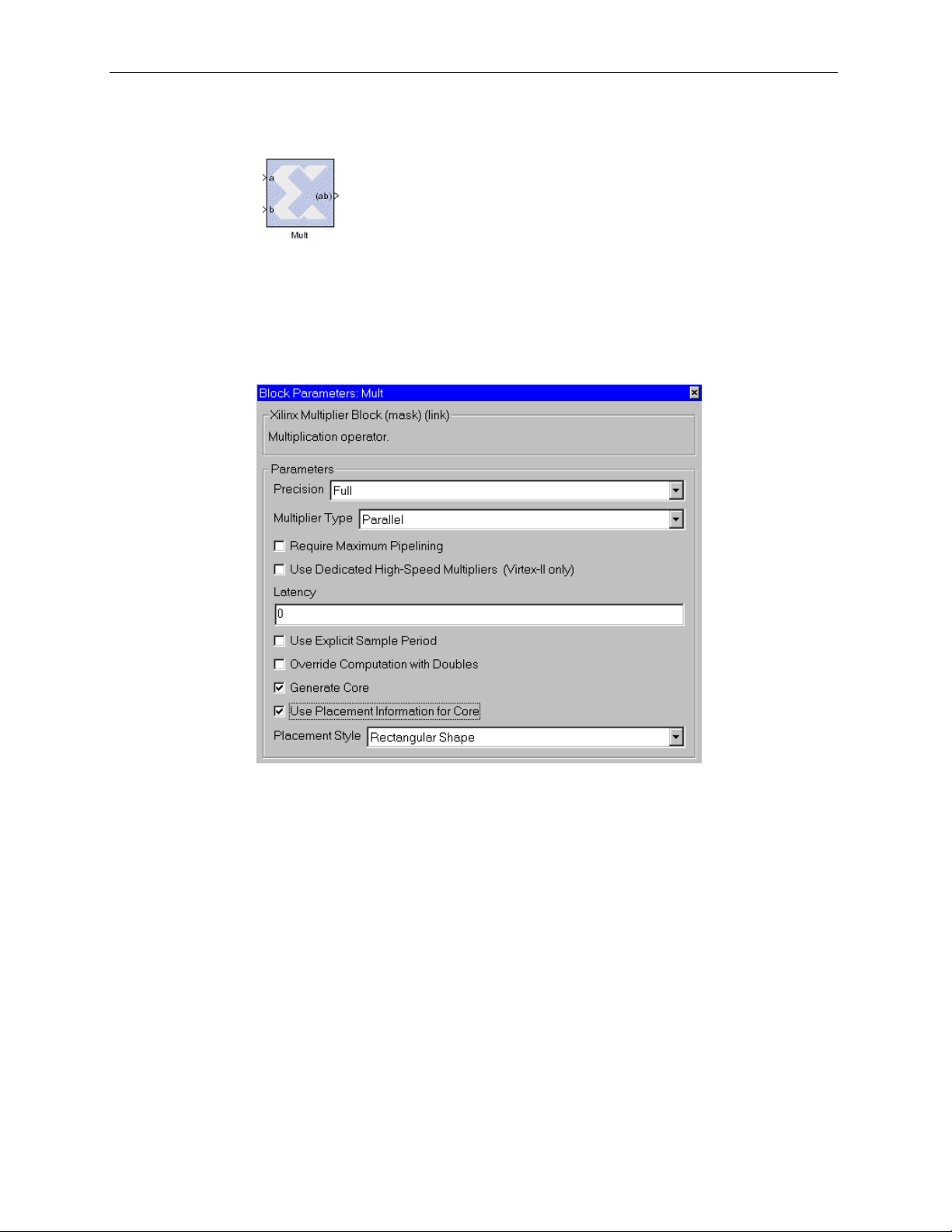

Mult ......................................................................................................................

88

Negate .................................................................................................................

90

Relational .............................................................................................................

90

Scale ....................................................................................................................

92

Shift .....................................................................................................................

92

SineCosine ..........................................................................................................

93

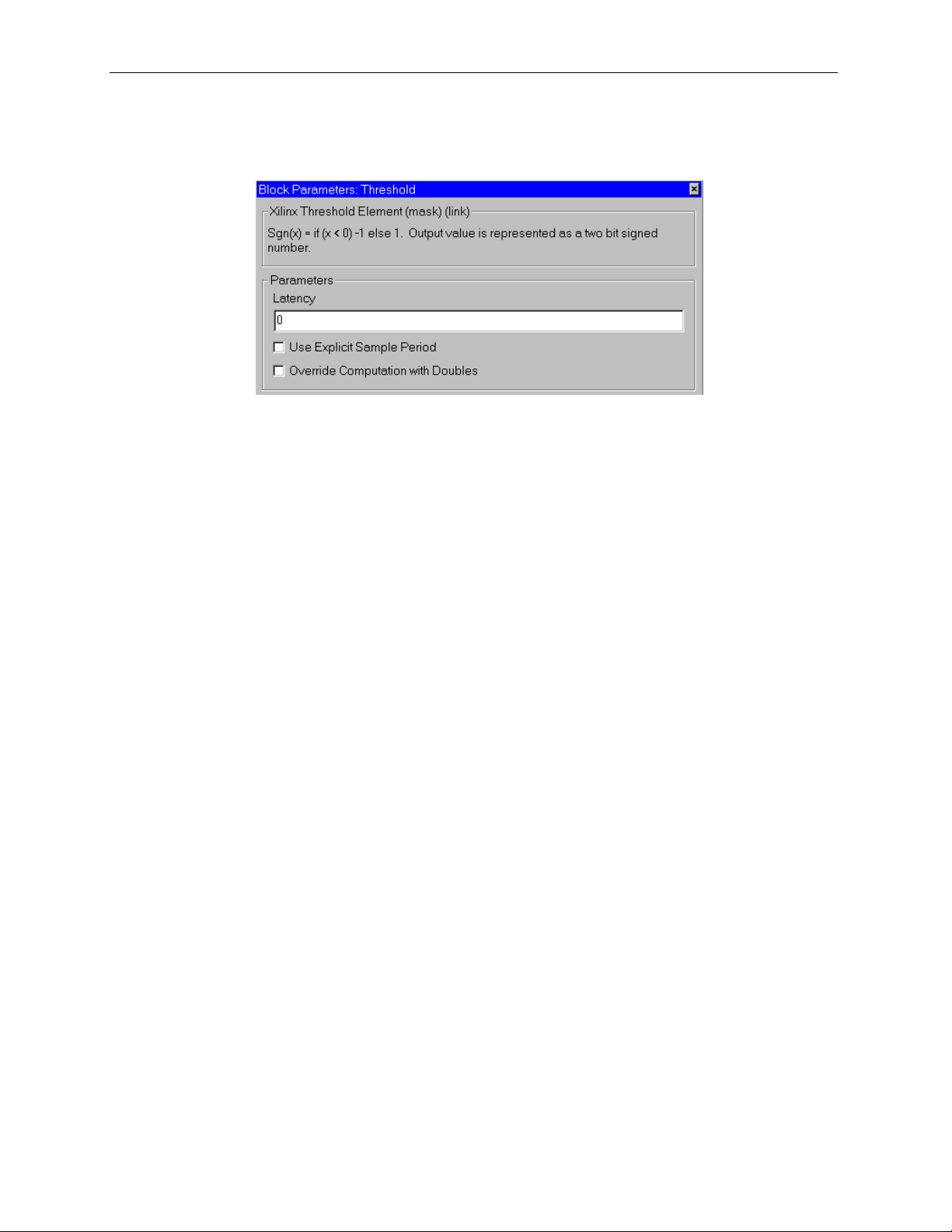

Threshold .............................................................................................................

95

MATLAB I/O ..............................................................................................................

96

Gateway Blocks ...................................................................................................

96

Enabled Subsystems ...........................................................................................

96

Gateway In ...........................................................................................................

97

6

Xilinx Development System

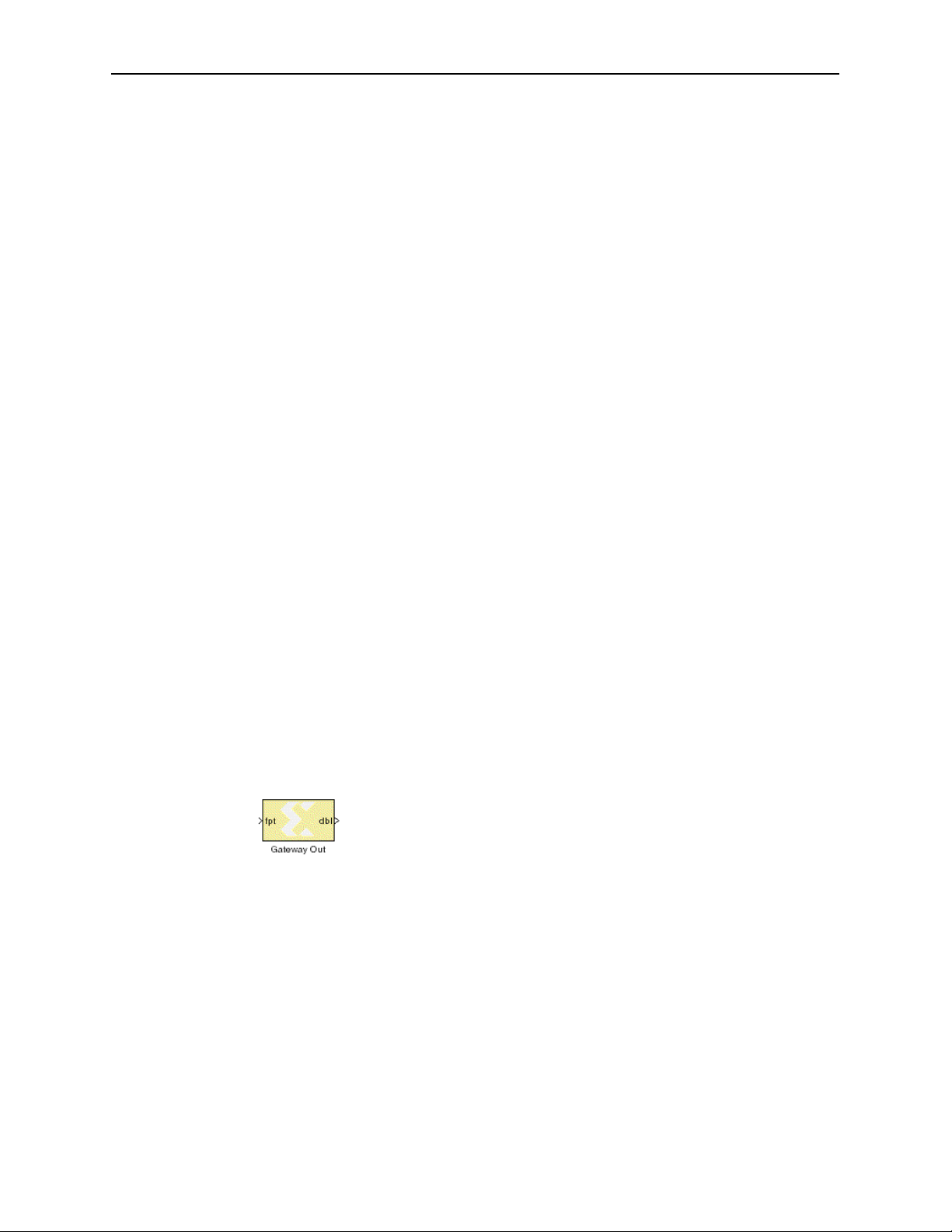

Gateway Out.........................................................................................................

99

Quantization Error Blocks ....................................................................................

101

Display .................................................................................................................

101

Memory .....................................................................................................................

102

Dual Port RAM .....................................................................................................

102

FIFO ....................................................................................................................

106

ROM ....................................................................................................................

107

Single Port RAM ..................................................................................................

110

State Machine ...........................................................................................................

114

Mealy State Machine ...........................................................................................

114

Moore State Machine ..........................................................................................

116

Registered Mealy State Machine .........................................................................

119

Registered Moore State Machine ........................................................................

123

Chapter 4 System Generator Software Features



Using the System Generator installer .......................................................................

127

Uninstalling previous System Generator directories ............................................

127

Installed System Generator directory ..................................................................

128

Using Black Boxes ....................................................................................................

128

Example model ....................................................................................................

128

Black Box window ................................................................................................

129

Use of mixed language projects ...............................................................................

130

Incorporating mixed language black boxes .........................................................

130

Tips for creating a high performance design ............................................................

132

Using the System Generator Constraints Files..........................................................

133

System Clock Period ............................................................................................

133

Multicycle Path Constraints ..................................................................................

133

IOB Timing and Placement Constraints ...............................................................

134

Example for showing constraints use ...................................................................

134

Important Issues ...................................................................................................

136

Files automatically created by System Generator ....................................................

137

Chapter 5 Using the Xilinx Software



Xilinx ISE 4.1i Project Navigator ...............................................................................

139

Opening a System Generator project ..................................................................

139

Customizing your System Generator project .......................................................

139

Implementing your design ...................................................................................

140

Simulating using ModelSim within the Project Navigator ....................................

141

Using an EDIF software flow ....................................................................................

143

Simulation .................................................................................................................

143

Compiling your IP ................................................................................................

143

Associating ModelSim with ISE 4.1i Project Navigator ........................................

144

Xilinx software tools resources .................................................................................

145

Chapter 6 Auxiliary Files



Demonstration designs ..............................................................................................

146

Perl scripts .................................................................................................................

147

7

Xilinx System Generator v2.1 Reference Guide

Chapter 1

Introduction

This chapter describes the basic concepts and tools of the System Generator v2.1.

This chapter contains the following sections.

Industry and Product Overview

System Generator

System Level Modeling with System Generator

The System Generator Design Flow

Arithmetic Data Types

Hardware Handshaking

Bit-true and Cycle-true Modeling

Industry and Product Overview

In recent years, field-programmable gate arrays (FPGAs) have become key components in implementing high performance digital signal processing (DSP) systems, especially in the areas of digital communications, networking, video, and imaging. The logic fabric of today's FPGAs consists not only of look-up tables, registers, multiplexers, distributed and block memory, but also dedicated circuitry for fast adders, multipliers, and I/O processing (e.g., giga-bit I/O). The memory bandwidth of a modern FPGA far exceeds that of a microprocessor or DSP processor running at clock rates two to ten times that of the FPGA. Coupled with a capability for implementing highly parallel arithmetic architectures, this makes the FPGA ideally suited for creating high-performance custom data path processors for tasks such as digital filtering, fast Fourier transforms, and forward error correction.

For example, all major telecommunication providers have adopted FPGAs for highperformance DSP out of necessity. A third-generation (3G) wireless base station typically contains FPGAs and ASICs in addition to microprocessors and digital signal processors (DSPs). The processors and DSPs, even when running at GHz clock rates, are increasingly used for relatively low MIPs packet level processing, with the chip and symbol rate processing being implemented in the FPGAs and ASICs. The fluidity of emerging standards often makes FPGAs, which can be reprogrammed in the field, better suited than ASICs.

Despite these characteristics, broader acceptance of FPGAs in the DSP community has historically been hampered by several factors. First, there is a general lack of familiarity with hardware design and especially, FPGAs. DSP engineers conversant with programming in C or assembly language are often unfamiliar with digital design using hardware description languages (HDLs) such as VHDL or Verilog. Furthermore, although VHDL provides many high level abstractions and language

8

Xilinx Development System

Introduction

constructs for simulation, its synthesizable subset is far too restrictive for system design.

System Generator is a software tool for modeling and designing FPGA-based DSP systems in Simulink. The tool presents a high level abstract view of a DSP system, yet nevertheless automatically maps the system to a faithful hardware implementation. What is most significant is that System Generator provides these services without substantially compromising either the quality of the abstract view or the performance of the hardware implementation.

System Generator

Simulink provides a powerful high level modeling environment for DSP systems, and consequently is widely used for algorithm development and verification. System Generator maintains an abstraction level very much in keeping with the traditional Simulink blocksets, but at the same time automatically translates designs into hardware implementations that are faithful, synthesizable, and efficient.

The implementation is faithful in that the system model and hardware implementation are bit-identical and cycle-identical at sample times defined in Simulink. The implementation is made efficient through the instantiation of intellectual property (IP) blocks that provide a range of functionality from arithmetic operations to complex DSP functions. These IP blocks have been carefully designed to run at high speed and to be area efficient. In System Generator, the capabilities of IP blocks have been extended transparently and automatically to fit gracefully into a system level framework. For example, although the underlying IP blocks operate on unsigned integers, System Generator allows signed and unsigned fixed point numbers to be used, including saturation arithmetic and rounding. User-defined IP blocks can be incorporated into a System Generator model as black boxes which will be embedded by the tool into the HDL implementation of the design.

System Level Modeling with System Generator

The creation of a DSP design begins with a mathematical description of the operations needed and concludes with a hardware realization of the algorithm. The hardware implementation is rarely faithful to the original functional description --instead it is faithful enough. The challenge is to make the hardware area and speed efficient while still producing acceptable results.

In a typical design flow --a flow supported by System Generator-- the following steps occur:

1.Describe the algorithm in mathematical terms,

2.Realize the algorithm in the design environment, initially using double precision,

3.Trim double precision arithmetic down to fixed point,

4.Translate the design into efficient hardware.

Step 4 is error prone because it can be difficult to guarantee the hardware implements the design faithfully. System Generator eliminates this concern by automatically generating a faithful hardware implementation.

Step 3 is error prone because an efficient hardware implementation uses just enough fixed point precision to give correct results. System Generator does not automate this step, which typically involves subtle trade off analysis, but it does provide tools to make the process tractable. You might wonder why it is not possible to eliminate Step

System Generator

9

Xilinx System Generator v2.1 Reference Guide

3 and simply use floating point operations in hardware. The answer is that most operations have a sufficiently small dynamic range that a fixed point representation is acceptable, and the hardware realization of fixed point is considerably cheaper.

The System Generator Design Flow

Simulink provides a graphical environment for creating and modeling dynamical systems. System Generator consists of a Simulink library called the Xilinx Blockset, and software to translate a Simulink model into a hardware realization of the model. System Generator maps system parameters defined in Simulink (e.g. as mask variables in Xilinx Blockset blocks), into entities and architectures, ports, signals, and attributes in a hardware realization. In addition, System Generator automatically produces command files for FPGA synthesis, HDL simulation, and implementation tools, so that the user can work entirely in graphical environments in going from system specification to hardware realization.

10

Xilinx Development System

Introduction

The System Generator design flow is shown in the following figure.

Library





MATLAB Environment

(including







Xilinx







Blockset)





Simulink







Simulation

Input

System Model



Output









+

Z–1







k

including





Simulation

S-functions











Data

Synthesis







ENTITY mult IS



System Generator

GENERIC(w:



Code Generation Software

PORT(a,b:IN



- map to IP libraries

PORT(y:OUT



- control signals

END ENTITY



- VHDL design

...





- HDL testbench









- constraints





- simulation scripts, project files



Core

Xilinx

VHDL

DesignTools

Parameters

Environment





Synthesis

CORE



Compiler

Generator

Test





EDIF



Vectors





FPGA

EDIF + Timing

Logic



Place & Route



Simulator

Bit stream



Pass/Fail

Figure 1-1: System Generator design flow diagram

The Xilinx Blockset is accessible in the Simulink library browser, and elements can be freely combined with other Simulink elements. Only those subsystems denoted as Xilinx black boxes, and blocks and subsystems consisting of blocks from the Xilinx Blockset are translated by System Generator into a hardware realization. The generation process is controlled from the System Generator block found in the Xilinx Blockset Basic Elements library. The System Generator parameterization GUI allows the user to choose the target FPGA device, target system clock period, and other implementation options.

System Generator translates the Simulink model into a hardware realization by mapping Xilinx Blockset elements into IP library modules, inferring control signals and circuitry from system parameters (e.g. sample periods), and converting the

The System Generator Design Flow

11

Xilinx System Generator v2.1 Reference Guide

Simulink hierarchy into a hierarchical VHDL netlist. In addition, System Generator creates the necessary command files to create the IP block netlists using CORE Generator, invokes CORE Generator, and creates project and script files for HDL simulation, synthesis, technology mapping, placement, routing, and bit stream generation. To ensure efficient compilation of multi-rate systems, System Generator creates constraint files for the physical implementation tools. System Generator also creates an HDL test bench for the generated realization, including test vectors computed during Simulink simulation.

Arithmetic Data Types

System Generator provides the three arithmetic data types that are of greatest use in DSP: double precision floating point, and signed and unsigned fixed point numbers. Floating point data cannot be converted into hardware, but is supported for simulation and modeling.

The set of signed arbitrary precision fixed point numbers has nice mathematical properties, allowing for operations that are much cleaner than those on familiar floating point representations. Operations on floating point numbers entail implicit rounding on the result, and consequently, desirable algebraic characteristics such as associativity and distributivity are lost. Both are retained for arbitrary precision fixed point numbers.

System Generator allows the quantization of the design to be addressed as an issue separate from the implementation of the mathematical algorithm. The transition from double precision to fixed point can be done selectively. In practice this means the designer gets the design working using double precision, then converts to fixed point incrementally. At all times, these three representations can be freely intermingled without any changes to the signal flow graph. This mixing is possible because library building blocks are polymorphic, changing their internal behavior based on the types of their inputs.

There is another benefit from this scheme in which quantization events are broken out as separate design parameters. At every point and stage of the design, the designer can specify how both the overflow and the rounding issues are to be addressed. For cases of overflow, the designer can choose whether or not saturation should be applied, and do so in consideration of the hardware cost versus the benefit to the system design. Saturation is a more faithful reflection of the underlying mathematics, but more expensive in hardware; wrapping is inexpensive but less faithful. It is also possible to trap overflow events in the system level simulation, which can be a useful debugging mechanism in the design of subsystem that are intended never to result in overflow.

Likewise, when quantizing at the least significant bit, the designer can choose whether the value should be truncated (with no hardware cost) or rounded under some particular rule (possibly improving the system design, but with added cost in hardware).

In System Generator, many operators support full precision outputs, which means that the output precision is always sufficient to carry out the operation without loss information. Combined with the data type propagation rules supported in Simulink, this allows great convenience when designing an algorithm. Naturally, any operator that increases the output width of its inputs (e.g. an adder) cannot feed back on itself with full precision.

The designer specifies the translation to fixed precision at key points in the design (in particular, at gateways from the outside world and in feedback loops), and System

12

Xilinx Development System

Introduction

Generator then propagates signal types and precisions as appropriate. The automatically chosen type is the least expensive that preserves full precision. Translations from signed to unsigned and vice versa are automatic as well.

System Generator also allows designs to contain elements that cannot be realized in hardware, but assist development and debugging. Examples of such elements are signal sources, scopes, and machinery that tracks the divergence between fixed point and double precision calculations. System Generator automatically discards such elements when asked to translate to hardware.

Hardware Handshaking

In Simulink, time evolution is defined by sample rates for each block in the system. There are propagation rules along signals so that not every block need set an explicit sample period. This is extremely flexible, but has implications for modeling hardware. Sequential circuits are clocked, and a key aspect of designing, especially multirate systems, is the interplay between clock and clock enable signals. Although abstracted, a bit and cycle true simulation must have mechanisms for defining and controlling clocked behavior in the system model.

Every signal has a fixed point value as defined in the previous section. In addition, it carries an implicit boolean valid bit that can be used to achieve hardware handshakes between blocks. For example, upon startup, a pipeline may define its output invalid until it has flushed its pipe. By inspecting the valid bits of its inputs, a block can determine how to process its input data.

Multirate Systems

Multirate systems can be implemented in System Generator by using sample rate conversion blocks for up-sampling and down-sampling. The necessary control logic is automatically generated when the design is netlisted. Before netlisting, the sample rates in the system are normalized to integer values; in hardware, the system clock period corresponds to the GCD of the integer sample periods. Clock enables are used to activate the hardware blocks at the appropriate moment in time with respect to the system clock.

Consider for example, the multirate system model shown in the figure below, which consists of I/O registers, an up-sampler, an anti-aliasing filter, and a down-sampler. The input signal is up-sampled by a factor of two, and subsequently down-sampled by a factor of three, giving an overall sample rate conversion by a factor of 2/3. The ST blocks in the system model extract the sample period from a Simulink signal, which can then be displayed. In the example, the input sample period is one. In the generated hardware implementation shown below the system model, each element is driven by the system clock, with its respective clock enable driven according to its sample period in the original system model.

Figure 1-2: Example of a multirate system model

Hardware Handshaking

13

Xilinx System Generator v2.1 Reference Guide

Bit-True and Cycle-True Modeling

System Generator produces a hardware implementation that is bit and cycle true to the system level simulation. We define the term bit and cycle true at the boundaries of the design. The boundaries of a design in System Generator are specified by the presence of Gateway In and Gateway Out blocks. These form interfaces between data representation within System Generator and data types that can be examined and manipulated in the standard Simulink environment. The gateways are translated into ports in the implemented hardware design. The Gateway In blocks become input ports to the design and the Gateway Out blocks become output ports.

In the Simulink simulation, Gateway in and Out blocks have data samples flowing through at regular sample periods. The values flowing in provide the stimuli, and those flowing out represent the response. In the generated hardware, if an identical stimulus sequence is presented at the input ports (at clock events corresponding to the input sample periods), then identical output sequences will be observed (here at clock events corresponding to Simulink output events). The values presented to the hardware input ports and produced by the output ports are bit vectors interpreted as representing the fixed point values of the Simulink simulation. This correspondence between Simulink and hardware results is guaranteed to hold regardless of the particular input stimulus to the design or the positioning or number of Gateway Out blocks.

Automatic Testbench Generation

For a black box instantiation, the design must provide both a Simulink model and an implementation. System Generator cannot automatically provide the verification that the two representations of the black box match. To assist the designer in verifying that the system model simulated in Simulink mirrors the generated hardware circuit, a VHDL test bench is automatically created during HDL code generation.

Test bench input stimuli are recorded by Gateway In blocks during Simulink simulation. These blocks quantize double precision input date into a fixed point representation. The fixed point values are saved to a data file and then used as input stimuli during VHDL simulation.

Gateway Out blocks convert the fixed point representation into Simulink floating point and define the output data ports of the HDL design. The signal connected to the input of a Gateway In block is sampled at a given sample rate and is used as expected data in the HDL simulation.

During HDL code generation, each Gateway In block is translated to a VHDL component which reads the input stimuli. Gateway Out blocks are translated to components that compare the VHDL results to the expected results. The comparisons are performed at the blocks' sample rates. Only values which are tagged as valid by the valid bit are compared.

The fixed point data type in Simulink is represented using a std_logic_vector in VHDL. The position of the binary point, size of the container, and treatment of sign are supplied to the VHDL as generic parameters. To ease the interpretation of fixed point types in VHDL, the Gateway In and Out blocks convert the std_logic_vector into a real number representation by using the generic parameter information. A sequence of real numbers can then be viewed as an analog waveform in an HDL simulator.

14

Xilinx Development System

Xilinx Blockset Overview

Chapter 2

Xilinx Blockset Overview

This chapter gives an overview of the Xilinx Blockset, including background information on underlying blockset implementation, which will help you understand how each block can be used to create and simulate your designs.

This chapter contains the following sections.

What is a Xilinx Block?

Instantiating Xilinx Blocks Within a Simulink Model

The Block Parameters Dialog Box

The Nature of Signals in the Xilinx Blockset

Use of Xilinx Smart-IP Cores by the System Generator

Common Options in Xilinx Block Parameters Dialog Box

What is a Xilinx Block?

The Xilinx Blockset is a Simulink library, accessible from the Simulink library browser. It consists of building blocks that can be instantiated within a Simulink model and, like other Simulink blocksets, blocks can be combined to form subsystems and arbitrary hierarchies. The Xilinx Gateway blocks (from the Xilinx Blockset’s MATLAB I/O library) are used to interface between the Xilinx Blockset fixed point data type and other Simulink blocks.

Every Xilinx Block can be configured using a block parameters dialog box, with few exceptions even during simulation. Many blocks share common parameters, which are described later in this chapter. Most also have parameters specific to the function computed.

The System Generator is able to

generate an FPGA implementation consisting of RTF VHDL and Xilinx Smart-IP Cores from a Simulink subsystem built from the Xilinx Blockset. The overall design, including test environment, may consist of arbitrary Simulink blocks. However, the

What is a Xilinx Block?

15

Xilinx System Generator v2.1 Reference Guide

portion of a Simulink model to be implemented in an FPGA must be built exclusively of Xilinx blocks, with the exception of subsystems denoted as black boxes.

Instantiating Xilinx Blocks within a Simulink Model

Xilinx blocks can be dragged (from the Simulink library browser, or from an expanded sheet showing the blocks in the library) and dropped onto a Simulink model sheet. Double-clicking on a block icon will open its block parameters dialog box and allow customization of that instance of the block. It is also possible to build user libraries of customized blocks and subsystems. Refer to the manual: Using Simulink from The MathWorks.

The Xilinx blocks operate on fixed point data, using an arbitrary precision arithmetic type. The Gateway blocks found in the Xilinx MATLAB I/O library comprise the interface between Xilinx blocks and other Simulink blocks, and enable Xilinx blocks to be freely instantiated within a Simulink model. Of course, the only blocks that System Generator will convert to hardware are those from the Xilinx Blockset.

The Block Parameters Dialog Box

Most Xilinx blocks have parameters that can be configured. The typical block has a dialog box with several common parameters (common to most blocks in the blockset) and some specific parameters (specific to the particular block only). Double-clicking on any block icon on a sheet will open its block parameters dialog box. Details of the use of each block’s parameters dialog can be found elsewhere in this document.

Each parameters dialog contains four buttons: OK, Cancel, Help, and Apply. Apply applies your configuration changes to the block, leaving the box still visible on your screen. Help launches HTML help information for the block. Cancel closes the box without saving any changes, and OK applies your configuration changes and closes the box.

Figure 2-1: Buttons common to each block parameters dialog box

The Nature of Signals in the Xilinx Blockset

The fundamental scalar signal type in Simulink is double precision floating point. In contrast, for bit and cycle true simulation of hardware, System Generator signals are represented in an arbitrary precision fixed point arithmetic type. The Xilinx Gateway In block converts double precision values into fixed point, and the Gateway Out block converts fixed point values back into double precision floating point.

Some blocks produce full precision values by default, which is to say their output signal has sufficient precision to represent the output without rounding error or overflow. Some blocks also support the option of defining the output precision to be a specific arithmetic type (e.g., 16-bit signed data with 8 bits of fraction), with quantization options of rounding or truncation, and with overflow options of saturation or truncation.

16

Xilinx Development System

Xilinx Blockset Overview

As an example, the figures shown below depict the Xilinx Negate block parameters dialog box with full and user defined precision. Note in the latter case the additional options for selecting quantization and overflow behavior.

Figure 2-2: User-Defined Precision Options (available if selected instead of full precision)

Valid and Invalid Data

In the Xilinx Blockset portion of a Simulink model, every data sample is accompanied by a handshake validation signal. In the corresponding hardware, every data-carrying bus has a companion net that carries a valid or invalid status indicator. This is a commonly used handshaking mechanism. There are different circumstances under which the status indicator may be set to invalid. For example, invalid data might mean that a pipeline has not yet filled up, or it may denote bursty outputs, as with an FFT. Blocks in the Xilinx Blockset can use this valid bit signal to determine what to do with the input data. Some of the Xilinx blocks, for example, the storage blocks and the FFT, use the valid bit to determine when to store input data.

Port Data Types

Selecting the Port Data Types option (under the Format menu in the Simulink window) shows the data type and precision of a signal. An example port data type string is Fix_11_9, which indicates that the signal is a signed 11-bit number with the binary point 9 bits from the right side. Similarly, an unsigned signal is indicated by the UFix_ prefix.

The Nature of Signals in the Xilinx Blockset

17

Xilinx System Generator v2.1 Reference Guide

Use of Xilinx Smart-IP Cores by the System Generator

To increase hardware performance, most System Generator blocks are implemented using Xilinx Smart-IP (Intellectual Property) LogiCOREs. These are hand crafted modules that make optimal use of FPGA resources to maximize performance. Some System Generator blocks map onto multiple LogiCOREs, for example, the 1024-point FFT, maps onto Dual Port Memory blocks as well as the FFT core itself.

Some Xilinx blocks also can be implemented as synthesizable VHDL modules, hence the LogiCORE is an option. When such a block cannot be implemented as a LogiCORE, System Generator automatically maps the block onto the synthesizable module. For example, the Xilinx Negate block generates a LogiCORE if you specify input of up to 256 bits, but for more than 256 bits the block is realized in synthesizable VHDL.

Many Xilinx blocks have implementations only as LogiCOREs. The reason for this is circuit performance. Because they are handcrafted for FPGA implementation, LogiCOREs have predictable performance in all design contexts. For example, the Xilinx FIR Filter block can be implemented only as the Distributed Arithmetic FIR Filter LogiCORE.

During algorithm exploration in Simulink and System Generator, it is common to iterate through block customization, Simulink simulation, and code generation. When you incorporate Black Box functionality, you can also add HDL simulation to this flow. To speed this design cycle, it is possible to instruct System Generator to not invoke Xilinx CORE Generator to re-generate LogiCOREs that have already been generated and have not changed. This can be done on individual blocks by the Generate Core checkbox control, or globally using the System Generator block parameters dialog box.

Licensed Cores

The System Generator targets a suite of new ready-to-use licensed LogiCORE algorithms for forward error correction (FEC), which are critical for detecting and correcting errors in wired and wireless communication systems during transmission of data to optimize the use of available bandwidth. The new algorithms include ReedSolomon Encoder/ Decoder, a Viterbi Decoder, and an Interleaver/De-interleaver. These cores may be used for communication applications such as broadcast equipment, wireless LAN, cable modems, xDSL, satellite communications, microwave networks, and digital TV.

The System Generator allows you to build and simulate your FEC designs in Simulink using the Xilinx Blockset Communication library. System Generator creates a VHDL design and testbench that allows you to do a VHDL simulation of the FEC cores. Free evaluation versions of the FEC cores provide the behavioral models needed for VHDL simulation. The System Generator will allow you to generate the licensed core using the Xilinx CORE Generator after you have purchased and installed the FEC cores.

Licensing information, as well as instructions for downloading the cores, can be found at the Xilinx IP Center: http://www.xilinx.com/ipcenter/fec_index.htm.

18

Xilinx Development System

Xilinx Blockset Overview

Xilinx LogiCOREVersions

The Xilinx LogiCOREblocks (indicating the version numbers being supported by the System Generator) used in Xilinx System Generator v2.1 are listed below.

Xilinx Block

Xilinx LogiCORE



Version









Accumulator

ACCUMULATOR

V5.0



Addressable Shift

RAM_SHIFT

V5.0



Register







Adder/Subtractor

ADDSUB

V5.0



CIC

CIC

V1.0



Counter

BINARY_COUNTER

V5.0



Constant Multiplier

MULT_GEN

V4.0



Convolutional

CONVOLUTION

V1.0



Encoder







DDS

DDS

V4.0



Dual Port Ram

MEM_DP_BLOCK

V3.2



FIFO

SYNC_FIFO

V3.0



FFT

FFT and MEM_DP_BLOCK

V1.0

(Virtex, Spartan-II),





V2.0

(Virtex-II)





V3.2

(MEM_DP_BLOCK)

FIR Filter

DA_FIR

V6.0



Interleaver/

INTERLEAVER

V1.1



Deinterleaver







Inverter

GATE_BUS

V5.0



Logical

GATE_BUS

V5.0



Multiplier (mult)

MULT_GEN

V4.0



Mutiplexer (mux)

BUS_MUX

V5.0



Negate

TWOS_COMP

V5.0



Relational

COMPARE

V5.0



RS Decoder

RS_DECODER

V2.0



RS Encoder

RS_ENCODER

V2.0



Sine Cosine

SIN_COS

V3.0



Single Port RAM

MEM_SP_BLOCK and

V3.2(BRAM), V5.0 (dist.)



DIST_MEM





State Machines

MEM_SP_BLOCK and

V3.2(BRAM), V5.0 (dist.)



DIST_MEM





ROM

MEM_SP_BLOCK and

V3.2

(BRAM), V5.0 (dist.)



DIST_MEM





Viterbi Decoder

VITERBI

V1.0



Common Options in Block Parameters Dialog Box

Each Xilinx block has several configurable parameters, seen in the block parameters dialog box. Many of these parameters are specific to that particular block. Those block

Common Options in Block Parameters Dialog Box

19

Xilinx System Generator v2.1 Reference Guide

specific parameters are described in the specific block documentation in the next chapter.

The remainder of the parameters in each block’s parameters dialog box are common to most blocks. These common parameters are described below.

Arithmetic Type

In the Type field of the block parameters dialog box, you can choose unsigned or signed (two’s complement) as the datatype of the output signal.

Implement with Xilinx Smart-IP Core (if possible)

This checkbox (sometimes referred to as the Use Core checkbox) asks the software to instantiate a core in the generated VHDL. If you do not select this checkbox, the software will instead create synthesizable VHDL.

Selecting this option does not guarantee that a Xilinx LogiCORE will be used. If the parameters for your block are such that a core cannot be generated, synthesizable VHDL will be generated instead. The System Generator software determines this at code generation time.

Generate Core

When the Generate Core checkbox is selected, the Xilinx CORE Generator will be invoked during System Generator code generation. If Generate Core is not selected, a Xilinx LogiCORE will not be generated, and if the core doesn’t already exist in your project directory, subsequently running the Xilinx Implementation tools will produce an error.

If you select Implement with Xilinx Smart-IP Core but do not select

Generate Core, you will be able to simulate your generated VHDL because (1) a core will be instantiated in the VHDL, and (2) the behavioral VHDL models will be available for a simulator to use. However, you will not be able to complete implementation into a Xilinx FPGA until you have also generated the core.

In some blocks, only the Generate Core option is available. If the Implement with Smart IP-Core option is not available, only a core implementation is available from the System Generator, but no synthesizable VHDL implementation.

Use Placement Information for Core

If Generate Core is selected,the generated core includes relative placement information. This generally results in a faster implementation. Because the placement is constrained by this information, it can sometimes hinder the place and route software.

Latency

Many elements in the Xilinx Blockset have a latency option. This defines the number of sample periods by which the block’s output is delayed. One sample period may correspond to multiple clock cycles in the corresponding FPGA implementation (for example, when the hardware is overclocked with respect to the Simulink model). System Generator v2.1 does not perform extensive pipelining; additional latency is usually implemented as a shift register on the output of the block.

20

Xilinx Development System

Xilinx Blockset Overview

Precision

The fundamental computational mode in the Xilinx Blockset is arbitrary precision fixed point arithmetic. Most blocks give you the option of choosing the precision, i.e. the number of bits and binary point position.

By default, the output of Xilinx blocks is full precision; that is, sufficient precision to represent the result without error. Most blocks have a User-Defined precision option that fixes the number of total and fractional bits.

Number of Bits

When you have specify user-defined precision, you will be asked to specify how many bits the output should have.

Binary Point

You will also be asked to specify how many bits are to the right of the binary point (i.e., the size of the fraction). The binary point position must be between zero and the number of bits in the number’s container.

Overflow and Quantization

When user-defined precision is selected, errors may result from overflow or quantization. Overflow occurs if a value lies outside the representable range. Quantization error occurs if the number of fractional bits is insufficient to represent the fractional portion of a value.

The Xilinx fixed point data type supports several options for user-defined precision. In the case of overflow, the options are to saturate to the largest positive (or smallest negative) value, wrap the value (i.e., discard any significant bits beyond the mostsignificant bit in the fixed point number), or flag an overflow as a Simulink error during simulation.

In the case of quantization, the options are to round to the nearest representable value or to the value farthest from zero if there are two equidistant nearest representable values, or to truncate the data (i.e., discard bits to the right of the least significant bit).

It is important to realize that whatever option is selected, the generated HDL model and Simulink model will behave identically.

Override with Doubles

An Override with Doubles message appears on many Xilinx Blocks, with some variations. Variations are:

Override Computation with Doubles

Override Constant with Double

Override Output with Doubles

Override Storage with Doubles

Most Simulink blocks use double precision floating point signals and arithmetic. However, when such a signal passes through Xilinx Gateway In block, it is converted to a fixed point signal. Later, when passing through a Xilinx Gateway Out block, the signals are converted back into double precision floating point.

Common Options in Block Parameters Dialog Box

21

Xilinx System Generator v2.1 Reference Guide

In the Simulink environment, the Override with Doubles option allows you to simulate the entire design in double precision floating point.

This option is useful in selecting fixed point widths or when debugging. If you detect unacceptable quahtization errors with fixed point signals, you can choose to simulate your entire design, or only specific blocks, using double precision floating point signals and arithmetic operations. This option will help you discover which part of your design is responsible for the unacceptable quantization error.

You may choose Override with Doubles on a particular block. You may also choose this option for an entire sheet or an entire subsystem (the sheet plus underlying hierarchy) by instantiating a System Generator token on the sheet, and choosing Override with Doubles as one of the System Generator block’s configurable parameters.

When the output of one block with Override with Doubles set is connected to the input of another block where the option is also set, data samples are transmitted in double precision.

You can easily identify which blocks are currently set to Override with Doubles. When this option is set, affected Xilinx blocks are displayed in gray rather than the normal blue or yellow.

Sample Period

Data streams are processed at a specific sample rate as they flow through Simulink. Typically, each block detects the input sample rate and produces the correct sample rate on its output. Xilinx blocks Up Sample and Down Sample provide a means to increase or decrease sample rates.

Use Explicit Sample Period

If you select Use Explicit Sample Period rather than the default, you may set the sample period required for all the block outputs. This is useful when implementing features such as feedback loops in your design. In a feedback loop, it is not possible for the System Generator to determine a default sample rate, because the loop makes an input sample rate depend on a yet-to-be-determined output sample rate. System Generator under these circumstances requires you to supply a hint to establish sample periods throughout a loop.

The following image (the Concat block’s parameters dialog box) shows the options with Use Explicit Sample Period selected.

Figure 2-3: Use Explicit Sample Period options (available if selected)

22

Xilinx Development System

Xilinx Blocks

Chapter 3

Xilinx Blocks

This chapter describes each Xilinx block in detail. Xilinx blocks are grouped within six categories, also shown in the Simulink library browser. They are:

Basic Elements

Communication

DSP

Math

MATLAB I/O

Memory

State Machine

Basic Elements

The Xilinx Basic Elements library includes the standard building blocks for digital designs. Using these blocks, you may insert delay, change the sample rate, and introduce constants, counters, multiplexers, etc. The Basic Elements library also has two special blocks: the System Generator and the Black Box.

System Generator

The System Generator is a special Xilinx block that invokes the tool’s code generation software.

By placing the System Generator token on your Simulink project sheet, you can generate HDL and Xilinx LogiCOREs for all the Xilinx blocks on that sheet and on any sheets beneath it in the hierarchy. The System Generator block parameters dialog box allows you to tailor your

Simulink simulation and code generation.

Basic Elements

23

Xilinx System Generator v2.1 Reference Guide

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-1: System Generator block parameters dialog box

Parameters specific to the System Generator block are:

Xilinx Product Family

Supported families currently are: Virtex, Virtex2, Spartan2, and VirtexE.

Target Directory

Specify where the output files (VHDL, cores, and project files) will be written. It is suggested that you create a separate directory (away from your Simulink model files) to generate your files in order to keep your Xilinx project files and Simulink model files directories organized separately.

System Clock Period

Enter the desired System Clock Period of your design in nanoseconds (ns). This information will be passed to the Xilinx software tools through the user constraints file (.ucf) that will be created by the System Generator. This value will be used as the global PERIOD constraint and multi-cycle paths will be constrained to a multiple of this value.

Create Testbench

Checking the Create Testbench box instructs the tool to save test vectors to be used downstream, during behavioral simulation.

When the Create Testbench box is checked, a VHDL testbench wrapper file is created for your design. Data vectors (created during Simulink simulation) are also generated.

24

Xilinx Development System

Xilinx Blocks

The wrapper file is named to match the top level VHDL file generated for your project. For example, if your top level file is named design_project, the wrapper is called design_project_testbench.vhd. The top level of the project is taken to be the Simulink sheet from which you invoked the System Generator token.

In addition to the testbench VHDL file, test vectors (.dat files) are also generated. These vectors represent the inputs and expected outputs seen in Simulink simulation. The testbench (which uses these test vectors) can be run in a behavioral simulator such as ModelSim from Model Technology. It will report any discrepancies between the Simulink and VHDL simulations.

Global Clock Enable and Global Clear

A global clock enable or clear clock signal can be added to the design by selecting these options. This may result in a large fanout signal thus degrading system performance. Use this option only if absolutely necessary.

Override with Doubles

The System Generator token allows you to override fixed point values with double precision values for your Simulink simulation. This is particularly useful during design and debugging. The Override with Doubles directive from a System Generator token is applied to all Xilinx blocks on the same sheet and recursively through all subsystems on the sheet. Additional System Generator tokens can be inserted into the subsystems to selectively mask this effect. For an explanation of the Override with Doubles behavior, see the Common Parameters section of the previous chapter.

Generate Cores

The Generate Cores pulldown menu on the System Generator token gives three ways to determine for which blocks the Xilinx LogiCOREs should be generated. They are:

According to Block Masks: Each block that uses a Xilinx LogiCORE has a Generate Core checkbox on its parameters dialog box. When According to Block Masks is selected on the System Generator dialog, a core is generated for each block whose Generate Core box is checked.

Everywhere Available: When Everywhere Available is selected, cores are generated without regard to the settings of Generate Core checkboxes on individual blocks.

Not Needed - Already Generated: When Not Needed - Already Generated is selected, no cores are generated. This is useful in the early stages of design development because it saves the time that would otherwise be used in unnecessary calls to the Xilinx CORE Generator. When, in the later stages, you plan to run the design through the Xilinx Implementation tools, you must remember to regenerate your design with According to Block Masks or Everywhere Available selected so that your cores are up to date.

Generate button

Finally, clicking the Generate button invokes the code generation software, and your Simulink design is converted to VHDL and Xilinx LogiCOREs. Note that the Cancel button is active during code generation. If you want to cancel the code generation phase while it is running, you may do so by selecting Cancel during code generation.

Basic Elements

25

Xilinx System Generator v2.1 Reference Guide

Addressable Shift Register

The Xilinx Addressable Shift Register block is a variable-length shift register (or delay chain). This block differs from the Xilinx Delay block in that the amount of latency experienced by data from input to block output is variable and depends on the address value.

Data presented to the block will traverse the entire delay chain. The output of the block is not necessarily the output of the last register in the chain, however. Instead, the output of the block is taken from the register pointed to by the address presented on the addr port.

Block Interface

The block interface (inputs and outputs as seen on the Addressable Shift Register icon) are as follows:

Input signals:

d

data input

addr

address

en

enable signal

Output signals:

q

data output

In Simulink, the addr port is given priority over the data (d) port, i.e. on each successive cycle, the addressed data value is read from the register before the shift operation occurs. This order is needed in the Simulink software model to guarantee one clock cycle of latency between the data port and the first register of the delay chain. (If the shift operation were to come first, followed by the read, then there would be no delay, and the hardware would be incorrect.)

26

Xilinx Development System

Xilinx Blocks

Block Parameters Dialog Box

The Addressable Shift Register Block Parameters Dialog Box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-2: Addressable Shift Register block parameters dialog box

Parameters specific to the Addressable Shift Register block are:

Infer Maximum Latency (depth) using Address Port Width: you can choose to allow the block to automatically determine the depth or maximum latency of the shift-register based on the bit-width of the address port.

Maximum Latency (depth): In the case thaqt the maximum latency is not inferred (previous option), the maximum latency can be set explicitly. It must be a positive integer.

Allow Additional Hardware in Certain Rate-Change Cases: several rate-change conditions require the use of extra hardware beyond that used by the IP core to make it compliant with the Simulink simulation output. A rate-change condition will be detected if the address and data rates differ and the address port is running at a non-system rate. Choosing this parameter allows additonal hardware to be used in these cases.

Use Enable Port: when checked, the optional enable port is activated.

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

Xilinx LogiCORE

The block always uses the Xilinx LogiCORE Ram-based Shift Register V5.0. When the

Generate Core parameter is checked, the Use Placement Information parameter provides the option of generating the core as a Relationally Placed Macro (RPM) or as unplaced logic.

The core datasheet can be found on your local disk at:

%XILINX%\coregen\ip\xilinx\eip1\com\xilinx\ip\baseblox_v5_0\do c\ram_shift.pdf

Basic Elements

27

Xilinx System Generator v2.1 Reference Guide

Black Box

The Xilinx Black Box token enables you to instantiate your own specialized functions in your model, and subsequently into a generated design. Like the System Generator token, the Black Box token can be placed in any Simulink subsystem, identifying the subsystem as a black box. If you choose to include functionality in your Simulink model that does not exist in the current blockset, any Simulink subsystem can be

treated as a black box. You may want to build a model out of non-Xilinx blocks for an HDL representation of functionality that you want to turn into a Simulink model.

To create a black box in the System Generator, you must supply both a Simulink model and a corresponding HDL file.

Incorporating mixed language black boxes

System Generator creates VHDL for the Xilinx blocks in your design. But if you include a black box that is written in Verilog HDL, System Generator will produce a mixed language project.

A VHDL black box and a Verilog black box share the same interface, as is seen below in the description of the block parameters. You must specify the VHDL/Verilog design unit name, and specify types, names, and values of generics or parameters. You must also specify how many clocks the black box has and how these clocks should be associated with ports.

In addition, you must specify whether you are inserting a VHDL black box or a Verilog black box by choosing the appropriate language in the HDL Language option on the Black Box block parameter dialog. System Generator will generate a corresponding wrapper in the chosen language.

Block Parameters Dialog Box

The Black Box block parameters dialog box encapsulates the design information necessary for the compiler to create the correct instantiation interfaces. This black box support allows you to abstract commonly used control signals and ports, and then

28

Xilinx Development System

Xilinx Blocks

infer them in the generated VHDL. The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-3: Black Box block parameters dialog box

Parameters specified as cell arrays (generic or parameter names, types, and values) permit several methods for entering data. You can specify your data directly in the dialog box as shown. You may also specify the cell arrays as MATLAB expressions.

This is useful if you have many elements in your cell arrays. Generic types can be any VHDL type. Parameter types can be any Verilog type.

The black box block parameters dialog box allows you to specify multiple clocks on a black box. To handle more than one clock, the System Generator must be told how fast each clock should run. To specify a clock’s speed, you must associate the clock to a port on the black box; the frequency of the clock is then the frequency of the signal passing through the port. System Generator allows more than one port to be associated to a clock, but all associated ports must have the same frequency.

Note - Constant inputs match any paired frequency.

For example, a black box with two ports (a fast input and a slow output) should have clocks called fast_clk and slow_clk with frequencies that match those of the

Basic Elements

29

Xilinx System Generator v2.1 Reference Guide

input and output ports respectively. To configure the black box, enter the parameters in the black box block parameters dialog box as shown in the figure below.

Figure 3-4: Customizing Clocks in the Black Box block parameters dialog box

These settings indicate that the black box should have clocks named fast_clk and slow_clk. The fast_clk should have the same frequency as the samples presented to input port #1, and the slow_clk should have the same frequency as output port #1.

Concat

The Xilinx Concat block performs a concatenation of two bit vectors represented by unsigned integer numbers, i.e. two unsigned numbers with binary points at position zero.

The Xilinx Reinterpret block provides capabilities that can extend the functionality of the Concat block.

Block Interface

The block has two input ports and one output port. The two input ports are labeled hi and low. The number input to the hi port will occupy the most significant bits of the output and the number that is input to the low port will occupy the least significant bits of the output.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-5: Concat block parameters dialog box

Parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Concat block does not use a Xilinx LogiCORE.

30

Xilinx Development System

Xilinx Blocks

Constant

The Xilinx Constant block generates a constant. This block is similar to the Simulink constant block, but can be used to drive the inputs on Xilinx blocks.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-6: Constant block parameters dialog box

Parameters specific to the block are:

Constant Value: specifies the value of the constant. When changed, the new constant value of the block will appear on the block icon.

Sampled Constant: allows a sample period to be associated with the constant ouput and inherited by blocks that the constant block drives. (This is useful mainly because the blocks eventually target hardware and the sample periods of Simulink are used to establish hardware clock periods.)

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Constant block does not use a Xilinx LogiCORE.

Convert

The Xilinx Convert block converts each input sample to a number of a desired arithmetic type. For example, a number can be converted to a signed (two’s complement) or unsigned value.

Basic Elements

31

Xilinx System Generator v2.1 Reference Guide

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-7: Convert block parameters dialog box

All the parameters of the Convert block are parameters common to other blocks. Please refer to the Common Parameters section in the previous chapter for details.

Parameters defining the desired output type are:

Output Arithmetic Type

Number of Bits

Binary Point

Parameters defining the quantization effect and the overflow effect are:

Quantization Behavior

Overflow Behavior

The Convert block does not use a Xilinx LogiCORE.

Counter

The Xilinx Counter block implements an up or down counter. It can be configured to step between the starting and ending values, provided the increment evenly divides the difference between the starting and ending values. The counter output and increment values can be fixed point numbers in addition to integers.

The output for an up counter is calculated as follows:

The down counter calculation replaces addition by subtraction.

32

Xilinx Development System

Xilinx Blocks

The block can be configured as a free running up or down counter by selecting the Provide Reset Pin option on the block parameters dialog box. In this case, the block has a reset input port in addition to its output port.

The output for a free running up counter is calculated as follows:

Here N denotes the number of bits in the counter. The down counter calculations replace addition by subtraction.

The free running up or down counter can be configured to load the output of the counter with a value on the input din port by selecting the Provide Load Pin option on the block parameters dialog box.

In this case, the block has three (rst, Load, din) input ports in addition to its output port.

The output for a free running up counter with load capability is calculated as follows:

Here N denotes the number of bits in the counter. The down counter calculations replace addition by subtraction.

Basic Elements

33

Xilinx System Generator v2.1 Reference Guide

Block Parameters Dialog Box

The Counter block parameters dialog box is invoked by double-clicking the block icon.

Figure 3-8: Counter block parameters dialog box

Parameters specific to the block are:

Number of Bits: specifies the number of bits in the counter.

Binary Point Position: specifies the location of the binary point.

Arithmetic Type: specifies the block ouput to be either Signed or Unsigned.

Start Count at: specifies the starting and reset value. The default is zero.

Count to Value: specifies the ending value, the number at which the counter resets. A value of Inf denotes the largest representable output in the specified precision. This cannot be the same as the start count.

Count By Value: specifies the increment, which must evenly divide the difference between the extreme values.

Count Direction: specifies the direction of the count (Up or Down).

Provide Reset Pin: when checked, the block operates as a free running

counter with explicit reset port. In this case, there is no Count to Value setting.

Provide Load Pin: when checked, the block operates as a free running load counter with explicit load and din port. The load capability is available only for free running counter.

Other parameters used by this block are described in the Common Parameters section of the previous chapter.

34

Xilinx Development System

Xilinx Blocks

Xilinx LogiCORE

The block always uses the Xilinx LogiCORE: Binary Counter V5.0.

The Core datasheet can be found on your local disk at:

%XILINX%\coregen\ip\xilinx\eip1\com\xilinx\ip\baseblox_v5_0\do c\binary_counter.pdf

Delay

The Xilinx Delay block is a delay line (also called a shift register) of configurable length, allowing you to add latency to your design. Data presented at the input will appear at the output after a user specified number of sample periods.

The Delay block differs from the Register in that the Register allows only latency of 1, and contains an Initial Value parameter. The Delay block supports a user specified latency, but no initial value, other than zeroes.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-9: Delay block parameters dialog box

Parameters specific to this block are:

Initialize with Zeros: The block’s internal registers are set to zero if this option is selected, otherwise the output will be NaN (Not a Number) until the registers are flushed. For example, if the Delay block has a latency of 5 and this option is selected, the first five output values will be zeros. If this option is not selected, the first five output values will be NaN.

Latency: You may set the amount of latency in the Latency field.

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Delay block does not use a Xilinx LogiCORE, but is efficiently mapped to utilize the SRL16 feature of Xilinx devices.

Basic Elements

35

Xilinx System Generator v2.1 Reference Guide

Down Sample

The Xilinx Down Sample block reduces the sample rate at the point where the block is placed in your design. The input signal is undersampled so that every nth input sample is presented at the output and held.

Output sample period is ki, where k is the sampling rate and i is the input sample period.

In Simulink, a block changes its output right after it is enabled. In hardware, a register does not change until the clock enable is sampled, i.e. one clock cycle later. To make the hardware cycle-true to the Simulink model, the down sample block is implemented with the following circuit in hardware:

Figure 3-10: Hardware implementation of down sample block

The clock enable connected to this circuit is the same one that is distributed to the blocks connected to its output. The timing diagram shown below demonstrates the circuit's behavior. It is important to notice that this circuit has a combinatorial path from din to dout. Whenever possible put a register or delay block after a down sample block.

Figure 3-11: Down sample circuit behavior

36

Xilinx Development System

Xilinx Blocks

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-12: Down sample block parameters dialog box

Parameters specific to the block are:

Sampling Rate: must be an integer greater or equal to 2. This is the ratio of the output sample period to the input, and is essentially a sample rate divider. For example, a ratio of 2 indicates a 2:1 division of the input sample rate. If a noninteger ratio is desired, the Up Sample block can be used in combination with the Down Sample block.

Zero Initial Output (otherwise NaN): NaN means Not a Number. This option lets you choose what the first value of the new sample (before it has valid data) will be. By selecting Zero Initial Output, you can validate the first sample with valid data of zero. Otherwise, an invalid data (NaN) will be the block’s first output.

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Down Sample block does not use a Xilinx LogiCORE.

Get Valid Bit

The Xilinx Get Valid Bit element sets its output to 1 when its input is a valid data value. The output is set to 0 otherwise.

In the Xilinx Blockset, every data sample that flows through the model is accompanied by a handshake validation signal. In the corresponding hardware, every data-carrying bus has a companion net that carries a

status indicator. Under different circumstances the status indicator may be set to invalid. For example, a pipeline might not yet have filled, or outputs might be bursty, as with an FFT. This block simply reports the valid status of the samples presented to it.

There are no parameters for this block.

Basic Elements

37

Xilinx System Generator v2.1 Reference Guide

Mux

The Xilinx Mux block implements a multiplexer.

The block has one select input (type unsigned) and a userconfigurable number of data bus inputs, ranging from 2 to 32.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-13: Mux block parameters dialog box

Parameters specific to the block are:

Number of Inputs: specifies the number of data bus inputs, from 2 to 32.

Use Placement Information for Core: when checked, the generated core includes relative placement information. This usually results in a faster implementation. The resulting floorplan is a single column with two bits per slice. With this placement, large multiplexers may not fit into small Xilinx devices. When unchecked, the core is generated as unplaced logic.

Other parameters used by this block are described in the Common Parameters section of the previous chapter.

Xilinx LogiCORE

The block uses the Xilinx LogiCORE Bus Multiplexer V5.0. When the Generate Core parameter is checked, the Use Placement Information for Core parameter provides the option of generating the core as a Relationally Placed Macro (RPM) or as unplaced logic.

The Core datasheet can be found on your local disk at:

38

Xilinx Development System

Xilinx Blocks

%XILINX%\coregen\ip\xilinx\eip1\com\xilinx\ip\baseblox_v5_0\do c\bus_mux.pdf

Parallel to Serial

The Parallel to Serial block takes an input word and splits it into N time multiplexed output words where N equals the number of input bits/ number of output bits. The order of the output is either least significant bit first or most significant bit first.

The following waveform illustrates the block’s behavior:

Figure 3-14: Example of Parallel to Serial behavior

This example illustrates the case where the input width is 4, output width is 2, word size is 1 bit, and the block is configured to output the least significant partial word first.

Block Interface

The Parallel to Serial block has one input and one output port. The input port can be any size. The output port size is indicated on the block parameters dialog box.

Basic Elements

39

Xilinx System Generator v2.1 Reference Guide

Block Parameters Dialog Box

Figure 3-15: Parallel to Serial block parameters dialog box

Parameters specific to the block are:

Output Order: Most significant word first or least significant word first. Word size is determined by the size of the input port.

Output Arithmetic Type: unsigned or signed

Number of Input Bits: Input width. Must match size of input port.

Number of Output Bits: Output width. Must divide Number of Input Bits evenly.

Binary Point: Output binary point location.

An error is reported when the number of output bits does not evenly divide the number of input bits.

The minimum latency of this block is 1.

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Parallel to Serial block does not use a Xilinx LogiCORE.

Register

The Xilinx Register block models a D flip flop-based register, having latency of one sample period.

40

Xilinx Development System

Xilinx Blocks

Block Interface

The block has one input port for the data and an optional input reset port. The initial output value is specified by the user in the block parameters dialog box (below). Data presented at the input will appear at the output after one sample period. Upon reset, the register assumes the initial value specified in the parameters dialog box.

The Register block differs from the Xilinx Delay block by providing an optional reset port and a user specifiable initial value.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-16: Register block parameters dialog box

Parameters specific to the block are:

Initial Value: specifies the initial value in the register.

Quantization (of Initital Value): specifies desired quantization effect; one on Round or Truncate.

Overflow Effect (of Initital Value): specifies desired overflow effect; Wrap, Saturate, or Flag as Error.

Register Only Valid Data: when checked, only valid values are registered. Extra logic is added when this option is selected, thus decreasing system performance.

Use Reset Port: when checked, the optional reset port is activated.

Use Enable Port: when checked, the optional clock enable port is activated.

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Register block is implemented as a synthesizable VHDL module. It does not use a Xilinx LogiCORE.

Basic Elements

41

Xilinx System Generator v2.1 Reference Guide

Reinterpret

The Reinterpret block forces its output to a new type without any regard for retaining the numerical value represented by the input. The binary representation is passed through unchanged, so in hardware this block consumes no resources. The number of bits in the output will always be the same as the number of bits in the input.

The block allows for unsigned data to be reinterpreted as signed data, or, conversely, for signed data to be reinterpreted as unsigned. It also allows for the reinterpretation of the data’s scaling, through the repositioning of the binary point within the data.

The Xilinx Scale block provides an analagous capability.

An example of this block’s use is as follows: if the input type is 6 bits wide and signed, with 2 fractional bits and the output type is forced to be unsigned with 0 fractional bits, then an input of -2.0 (1110.00 in binary, two’s complement) would be translated into an output of 56 (111000 in binary).

This block can be particularly useful in applications that combine it with the Xilinx Slice block or the Xilinx Concat block. To illustrate the block’s use, consider the following scenario:

Given two signals, one carrying signed data and the other carrying two unsigned bits (a UFix_2_0), we want to design a system that concatenates the two bits from the second signal onto the tail (least significant bits) of the signed signal.

We can do so using two Reinterpret blocks and one Concat block. The first Reinterpret block is used to force the signed input signal to be treated as an unsigned value with its binary point at zero. The result is then fed through the Concat block along with the other signal’s UFix_2_0. The Concat operation is then followed by a second Reinterpret that forces the output of the Concat block back into a signed interpretation with the binary point appropriately repositioned.

Though three blocks are required in this construction, the hardware implementation will be realized as simply a bus concatenation, which has no cost in hardware.

42

Xilinx Development System

Xilinx Blocks

Block Parameters Dialog box

Figure 3-17: Reinterpret block parameters dialog box

Parameters specific to the block are:

Force Arithmetic Type: When checked, the Output Arithmetic Type parameter can be set and the output type will be forced to the arithmetic type chosen according to the setting of the Output Arithmetic Type parameter. When unchecked, the arithmetic type of the output will be unchanged from the arithmetic type of the input.

Force Binary Point Position: When checked, the Output Binary Point parameter can be set and the binary point position of the output will be forced to the position supplied in the Output Binary Point parameter. When unchecked, the arithmetic type of the output will be unchanged from the arithmetic type of the input.

Output Arithmetic Type: The arithemetic type (unsigned or signed, 2’s complement) to which the output is to be forced.

Output Binary Point: The position to which the output’s binary point is to be forced. The supplied value must be an integer between zero and the number of bits in the input (inclusive).

This block does not use any hardware resources. The block does not use a Xilinx LogiCORE.

Serial to Parallel

The Serial to Parallel block takes a series of inputs of any size and creates a single output of a specified multiple of that size. The input series can be ordered either with the most significant word first or the least significant word first.

Basic Elements

43

Xilinx V2.1 User Manual

Xilinx System Generator v2.1 Reference Guide

The following waveform illustrates the block’s behavior:

Figure 3-18: Example of Serial to Parallel behavior

This example illustrates the case where the input width is 1, output width is 4, word size is 1 bit, and the block is configured for most significant word first.

Block Interface

The Serial to Parallel block has one input and one output port. The input port can be any size. The output port size is indicated on the block parameters dialog box.

Block Parameters Dialog Box

Figure 3-19: Serial to Parallel block parameters dialog box

Parameters specific to the block are:

Input Order: Most Significant Word First or Least Significant Word First

Output Arithmetic Type: Unsigned or Signed

Number of Input Bits: Input width. Must match size of input port.

Number of Output Bits: Output width which must be a multiple of the number of input bits.

44

Xilinx Development System

Xilinx Blocks

Binary Point: Output binary point location

Other parameters used by this block are explained in the Common Parameters section of the previous chapter.

The Parallel to Serial block does not use a Xilinx LogiCORE.

An error is reported when the number of output bits cannot be divided evenly by the number of input bits. The minimum latency for this block is zero.

Set Valid Bit

The Xilinx Set Valid Bit block flags input data as invalid when the signal on the valid bit input port is zero. This block only sets data invalid; it cannot change input data to valid.

In the Xilinx Blockset, every data sample that flows through the model is accompanied by a handshake validation signal. In the corresponding hardware, every data-carrying bus has a companion net that carries a valid or invalid

status indicator. This block provides some explicit control over this handshake mechanism.

Block Parameters Dialog Box

The block parameters dialog box can be invoked by double-clicking the icon in your Simulink model.

Figure 3-20: Set Valid Bit block parameters dialog box

Slice

The Xilinx Slice block allows you to slice off a sequence of bits from your input data and create a new data value. This value is presented as the output from the block. The output data type is unsigned with its binary point at zero.

The block provides several mechanisms by which the sequence of bits can be specified. If the input type is known at the time of parameterization, the various mechanisms do not offer any gain in functionality. If, however, a Slice block is used in a design where the input data width or binary point position are subject to change, the variety of mechanisms becomes useful. The block can be configured, for example, always to extract only the top bit of the input, or only the integral bits, or

Basic Elements

45
