Whirlpool CBA 35, CBB 35, CBA 25, SC 350, SC 360 User Manual
...

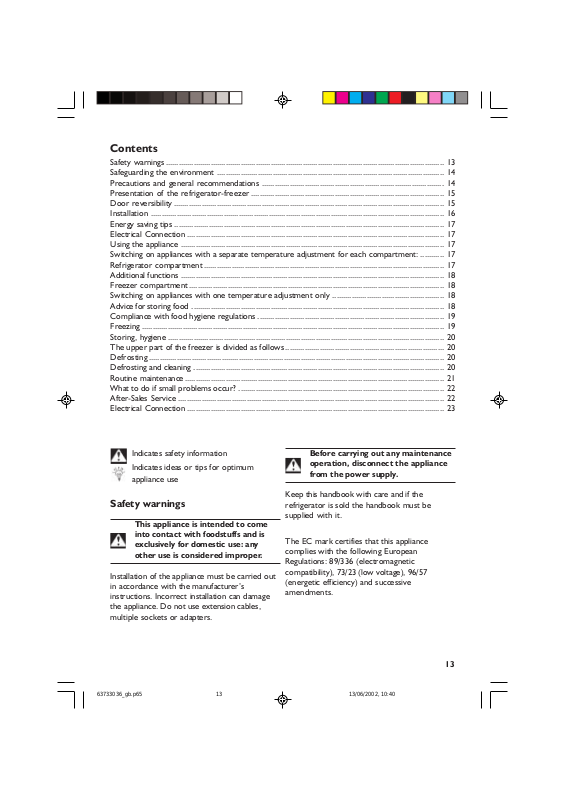

Contents |
|
Safety warnings .................................................................................................................................. |
13 |
Safeguarding the environment .......................................................................................................... |
14 |
Precautions and general recommendations ..................................................................................... |
14 |
Presentation of the refrigerator-freezer .......................................................................................... |
15 |
Door reversibility .............................................................................................................................. |
15 |
Installation ......................................................................................................................................... |
16 |
Energy saving tips .............................................................................................................................. |
17 |
Electrical Connection ........................................................................................................................ |
17 |
Using the appliance ........................................................................................................................... |
17 |
Switching on appliances with a separate temperature adjustment for each compartment: ........... |
17 |
Refrigerator compartment ................................................................................................................ |
17 |
Additional functions ........................................................................................................................... |
18 |
Freezer compartment ....................................................................................................................... |
18 |
Switching on appliances with one temperature adjustment only .................................................... |
18 |
Advice for storing food ...................................................................................................................... |
18 |
Compliance with food hygiene regulations ....................................................................................... |
19 |
Freezing ............................................................................................................................................. |
19 |
Storing, hygiene ................................................................................................................................. |
20 |
The upper part of the freezer is divided as follows .......................................................................... |
20 |
Defrosting .......................................................................................................................................... |
20 |
Defrosting and cleaning ..................................................................................................................... |
20 |
Routine maintenance ......................................................................................................................... |
21 |
What to do if small problems occur? ................................................................................................ |
22 |
After-Sales Service ............................................................................................................................ |
22 |
Electrical Connection ........................................................................................................................ |
23 |
Indicates safety information
Indicates ideas or tips for optimum appliance use
Safety warnings
This appliance is intended to come into contact with foodstuffs and is exclusively for domestic use: any other use is considered improper.
Installation of the appliance must be carried out in accordance with the manufacturer’s instructions. Incorrect installation can damage the appliance. Do not use extension cables, multiple sockets or adapters.
Before carrying out any maintenance operation, disconnect the appliance from the power supply.
Keep this handbook with care and if the refrigerator is sold the handbook must be supplied with it.
The EC mark certifies that this appliance complies with the following European Regulations: 89/336 (electromagnetic compatibility), 73/23 (low voltage), 96/57 (energetic efficiency) and successive amendments.
13
63733036_gb.p65 |
13 |
13/06/2002, 10:40 |
Safeguarding the environment
1. Packaging
Information:
The packaging material is entirely recyclable and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.
2. Appliance
This appliance does not contain CFCs (replaced with R134a) or HFCs (replaced with R600a Isobutane). For more information, refer to the identification data plate affixed to the appliance.
The appliance is made using recyclable materials. Disposal must be carried out in accordance with local environmental regulations for waste disposal. Make the appliance unusable by cutting off the power cord. The appliance must be delivered to an authorized collection centre for the recovery of refrigerant gas.
Precautions and general recommendations
•Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ices cubes.
•Do not cover or obstruct the air vents of the appliance.
•Do not store liquids in glass containers in the freezer compartment - danger of bursting.
•Do not eat ice cubes or ice lollies immediately after taking them out of the freezer compartment - risk of “cold” burns.
•Do not allow children to play or hide inside the appliance - risk of becoming trapped and suffocating.
•Before servicing or cleaning the appliance, unplug it from the mains or disconnect the electrical power supply.
•The power cable may only be replaced by an authorized person.
•Do not store or use gasoline or other flammable vapours/liquids in the vicinity of this or any other appliance - risk of fire or explosion.
Declaration of conformity
This appliance is intended to come into contact with foodstuffs and conforms to D.L. 108 of 25.01.1992 (European Directive 89/109/EEC).
Appliances with Isobutane (R600a)
Isobutane is a natural gas with low environmental impact. Caution is required, however, since isobutane is flammable. Therefore, it is essential to ensure that refrigerant pipelines are not damaged.
14
63733036_gb.p65 |
14 |
13/06/2002, 10:40 |
Presentation of the refrigerator-freezer
Fig. 1
Door reversibility
The direction of door opening can be changed. How to proceed:
Disconnect the appliance from the power supply.
Empty the appliance and remove grids and baskets.
1.Turn the thermostat knob/s to “0”.
2.Tilt the appliance backwards to access screws 1, 2 and 3 of the lower hinge (fig. 2). Unscrew using an 8 mm socket wrench. Remove the hinge and then the freezer door.
Q
R
S
Fig. 2
3.Leaving the door of the refrigerator open,unscrew screws 4 and 5 (fig. 3), using a cross head screwdriver, remove the hinges, and then the refrigerator door.
U
T
Fig. 3
4.Remove the plastic protections that cover the fixing holes on the left of the middle hinge and fit the new plastic protections supplied on the opposite side.
Put a protection (cloth, carton) on the floor and place the items on it, so that the doors are not ruined when they are being removed
5.Unscrew upper pin 6 (fig. 4), using a 6 mm pipe wrench and then screw it on the opposite side.
6.Remove the upper pin on the refrigerator door and the support-cover 7 (fig. 5), located on the opposite side. Reverse the elements. (Same procedure as for freezer door).
15
63733036_gb.p65 |
15 |
13/06/2002, 10:40 |
V
10.Replace the appliance in vertical position and, if necessary, adjust the doors (intermediate and lower hinge adjustment) in order to ensure perfect adherence of seals and correct coupling alignment.
11.Make sure that all the screws have been tightened correctly and check the door seal by placing a sheet of paper between the cover and the seal: the sheet must resist when it is pulled or moved.
Fig. 4
12. Switch on the appliance again.
W
Fig. 5
7.Unscrew the lower pin of the refrigerator door 8 (Fig.6), then fix it on the opposite side, after removing the protection. Put the protection in the original position of the pin support. (Same procedure as for freezer door).
X
Fig. 6
8.Position the refrigerator door fitting the upper pin in its support, then fit the middle hinge and screw it on.
9.Proceed as described above for the freezer door and tighten the screws of the lower hinge.
16
Installation
After unpacking the appliance, check for damage. Any damage must be immediately reported to the supplier.
Keep the packaging materials (plastic film, polystyrene parts, etc.) out of reach of children and do not dispose of in the environment.
Choose a well-ventilated place where the ambient temperature is between + 16°C and + 32°C. Observe this warning in order to store your frozen food in good conditions and in compliance with European regulations.
Install your appliance away from sources of heat, radiators, oven, cookers, direct and intense sunlight ... Check the installation location to be sure you have clearance on all sides.
Mount the two spacers 1 and 2 (fig. 7) on the condenser grill to prevent it from touching the wall.
R
Q
Fig. 7
63733036_gb.p65 |
16 |
13/06/2002, 10:40 |
