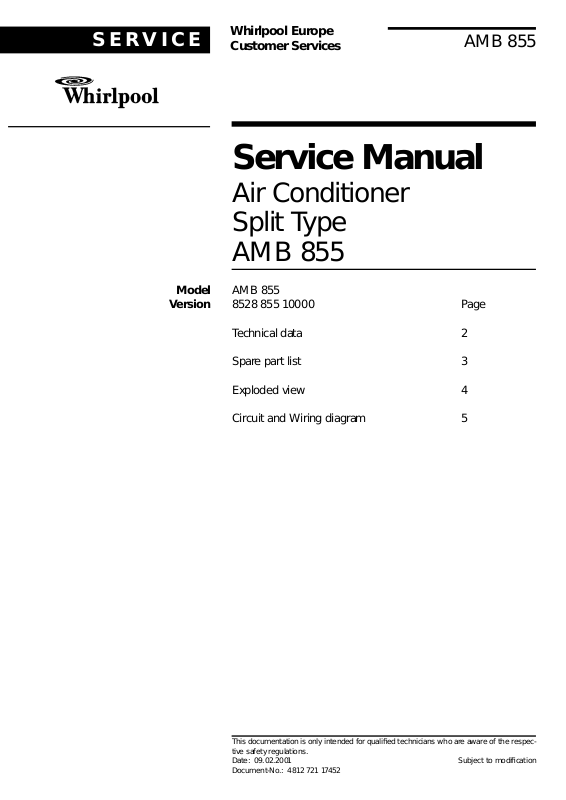

S E R V I C E |
Whirlpool Europe |
AMB 855 |
Customer Services |
Service Manual
Air Conditioner
Split Type
AMB 855
Model |
AMB 855 |
|
Version |
8528 855 10000 |
Page |
|
Technical data |
2 |
|
Spare part list |
3 |
|
Exploded view |
4 |
|
Circuit and Wiring diagram |
5 |
This documentation is only intended for qualified technicians who are aware of the respec-
tive safety regulations. |
|
Date: 09.02.2001 |
Subject to modification |
Document-No.: 4812 721 17452 |
|
09.02.2001 / Page 2 |
AMB 855 |
Whirlpool Europe |
|
S E R V I C E |
Doc. No: 4812 721 17452 |
8528 855 10000 |
Customer Service |
||
|
|
|
|
|
Technical data
Operation type |
|
|
Cooling / Heating |
|
|
Dimensions |
|
|
Indoor - unit |
|
|
Height |
897 |
mm |
Width |
297 |
mm |
Depth |
179 |
mm |
Outdoor - unit |
|
|
Height |
720 |
mm |
Width |
535 |
mm |
Depth |
228 |
mm |
Weight |
|
|
Indoor - unit |
10 |
kg / net |
Outdoor - unit |
29 |
kg / net |
Electrical connection |
|
|
Voltage |
220 |
V |
Frequency |
50 |
Hz |
Rated Current (Cooling) |
4.0 |
A |
Rated Current (Heating) |
3.8 |
A |
Power Supply |
|
|
Input (max.) |
980 |
W |
Power Consumption |
|
|
Cooling |
850 |
W |
Heating |
815 |
W |
Refrigerant |
|
|
Type |
R 22 |
|
Quantity |
1000 |
g |
Cooling Capacity |
|
|
|
2500 |
Watt |
|
8500 |
BTU / h |
Heating Capacitiy |
|
|
|
2800 |
Watt |
|
9500 |
BUT / h |
Airflow / Evaporator Airvolume |
|
|
|
480 |
m3 / h |
Dehumidifying Capacity |
|
|
|
1.2 |
l / h |
Noise Level |
|
|
Indoor - unit |
40 |
dB(A) |
Outdoor - unit |
52 |
dB(A) |
Outdoor IP class
IPX 4
