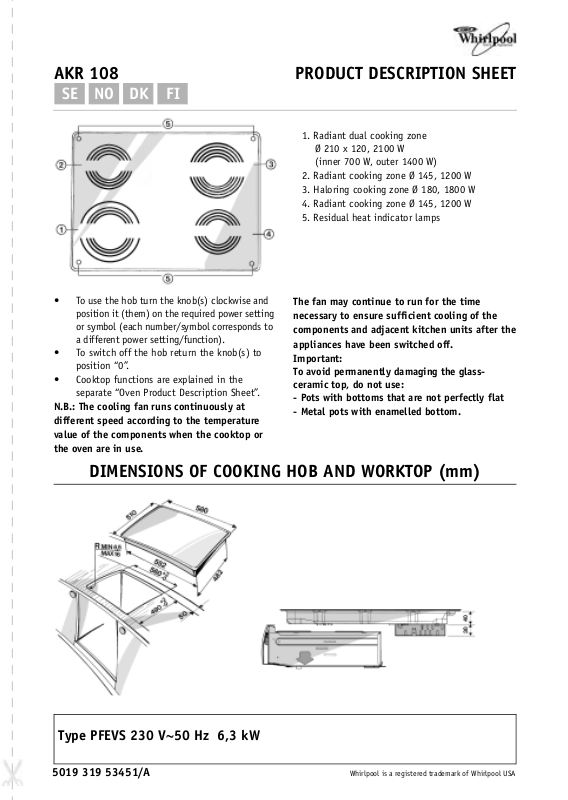

AKR 108 PRODUCT DESCRIPTION SHEET
SE NO DK FI
1. Radiant dual cooking zone
Ø 210 x 120, 2100 W
(inner 700 W, outer 1400 W)
2. Radiant cooking zone Ø 145, 1200 W
3. Haloring cooking zone Ø 180, 1800 W
4. Radiant cooking zone Ø 145, 1200 W
5. Residual heat indicator lamps
• To use the hob turn the knob(s) clockwise and
position it (them) on the required power setting
or symbol (each number/symbol corresponds to
a different power setting/function).
• To switch off the hob return the knob(s) to
position “0”.
• Cooktop functions are explained in the
separate “Oven Product Description Sheet”.
N.B.: The cooling fan runs continuously at
different speed according to the temperature
value of the components when the cooktop or
the oven are in use.
DIMENSIONS OF COOKING HOB AND WORKTOP (mm)
The fan may continue to run for the time
necessary to ensure sufficient cooling of the
components and adjacent kitchen units after the
appliances have been switched off.
Important:
To avoid permanently damaging the glassceramic top, do not use:
- Pots with bottoms that are not perfectly flat
- Metal pots with enamelled bottom.
Type PFEVS 230 V~50 Hz 6,3 kW
5019 319 53451/A
Whirlpool is a registered trademark of Whirlpool USA
