Whirlpool ADG 7800 Quick Reference Guide

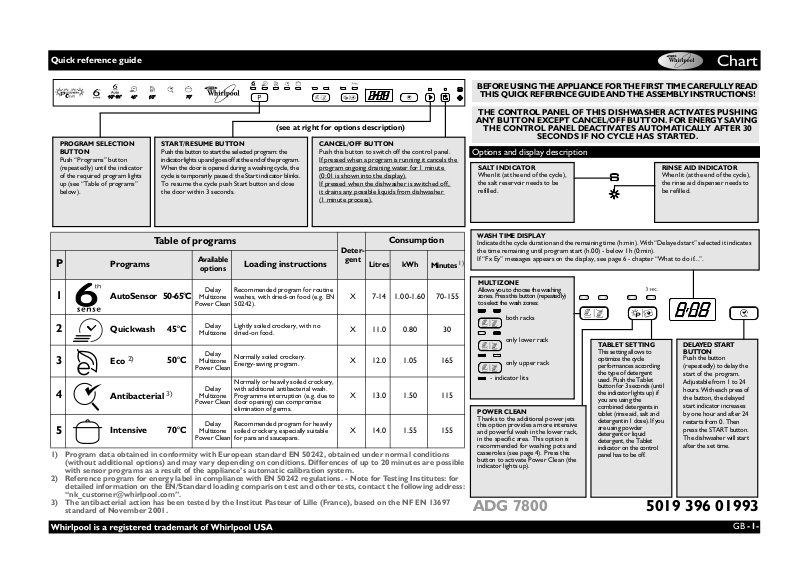

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ

THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!

PROGRAM SELECTION BUTTON

Push “Programs” button (repeatedly) until the indicator of the required program lights up (see “Table of programs” below).

(see at right for options description)

START/RESUME BUTTON

Push this button to start the selected program: the indicator lights up and goes off at the end of the program. When the door is opened during a washing cycle, the cycle is temporarily paused: the Start indicator blinks. To resume the cycle push Start button and close the door within 3 seconds.

CANCEL/OFF BUTTON

Push this button to switch off the control panel. If pressed when a program is running it cancels the program ongoing draining water for 1 minute (0:01 is shown into the display).

If pressed when the dishwasher is switched off, it drains any possible liquids from dishwasher (1 minute process).

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON. FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.

Options and display description

SALT INDICATOR	RINSE AID INDICATOR
When lit (at the end of the cycle),	When lit (at the end of the cycle),
the salt reservoir needs to be	the rinse aid dispenser needs to
refilled.	be refilled.

		Table of programs				Deter-	Consumption
	P	Programs		Available	Loading instructions	gent	Litres	kWh	Minutes 1)
				options
	1	AutoSensor	50-65°C	Delay	Recommended program for routine	X	7-14	1.00-1.60	70-155
				Multizone	washes, with dried-on food (e.g. EN
				Power Clean	50242).
	2	Quickwash	45°C	Delay	Lightly soiled crockery, with no	X	11.0	0.80	30
				Multizone	dried-on food.
	3	Eco 2)	50°C	Delay	Normally soiled crockery.	X	12.0	1.05	165
				Multizone
					Energy-saving program.
				Power Clean
					Normally or heavily soiled crockery,
	4	Antibacterial 3)		Delay	with additional antibacterial wash.	X	13.0	1.50	115
				Multizone	Programme interruption (e.g. due to
				Power Clean	door opening) can compromise
					elimination of germs.
	5	Intensive	70°C	Delay	Recommended program for heavily	X	14.0	1.55	155
				Multizone	soiled crockery, especially suitable
				Power Clean	for pans and saucepans.

1)Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2)Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

3)The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.

WASH TIME DISPLAY

Indicated the cycle duration and the remaining time (h:min). With “Delayed start” selected it indicates the time remaining until program start (h.00) - below 1h (0:min).

If “Fx Ey” messages appears on the display, see page 6 - chapter “What to do if...”.

	MULTIZONE
	Allows you to choose the washing
	zones. Press this button (repeatedly)
	to select the wash zones:
	both racks
	only lower rack	TABLET SETTING
		This setting allows to
	only upper rack	optimize the cycle
		performances according
	- indicator lits	the type of detergent
		used. Push the Tablet
		button for 3 seconds (until
		the indicator lights up) if
		you are using the
	POWER CLEAN	combined detergents in
		tablet (rinse aid, salt and
	Thanks to the additional power jets	detergent in 1 dose). If you
	this option provides a more intensive	are using powder
	and powerful wash in the lower rack,
		detergent or liquid
	in the specific area. This option is
		detergent, the Tablet
	recommended for washing pots and
		indicator on the control
	casseroles (see page 4). Press this
		panel has to be off.
	button to activate Power Clean (the
	indicator lights up).

DELAYED START BUTTON

Push the button (repeatedly) to delay the start of the program. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 0. Then press the START button. The dishwasher will start after the set time.

ADG 7800

5019 396 01993

GB -1-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10spray arms

Water hardness should be set only before the first wash or if water hardness has been changed

-Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.

-The current water hardness setting will be visible on the display.

-Press the Programs button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press of the start button will set the level back to 1).

-Wait 30 seconds (control panel switches off) or press Start/Resume button to save setting.

Water hardness level is factory set for medium-hard water (level 4).

Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.

	1. Ask your water supply company what the water hardness is...						2. ...enter this value on	Suggestions for detergent use
							your dishwasher
	German		French		English	Water hardness	Insert value is shown	Gel or Powder	Tablets
	degrees °dH		degrees °fH		degrees °eH	level	in the display	(rinse aid and salt)
	0	- 5	0	- 9	0 - 6.3	Soft	1
	6 - 10		10	- 18	7 - 12.6	Medium	2
	11	- 15	19	- 27	13.3 - 18.9	Average	3	go to step 1
	16	- 21	28	- 37	19.6 - 25.9	Medium-hard	4	(see “Daily	if water is
								check”)
	22	- 28	38	- 50	26.6 - 35	Hard	5		HARD extra salt
									needs to be added
	29	- 35	51	- 63	35.7 - 44.1	Very hard	6
									(go to step 1,
									“Daily check”)
	36	- 50	64	- 90	44.8 - 62.4	Extremely hard	7

At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).

Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)		Daily check
1	Visual indicator	Screw on the cap.
	(depending	Salt residual
	on the model).	around the cap
	Unscrew cap.	need to be
		removed. Some
		salt reservoir have
		a level indicator
		integrated in the
		cap (see below
		how to check).

		Fill the salt reservoir with water		Add salt (never add detergent!)
			before the first wash only.	min. 0.8 kg / max. 1 kg
			(depending on the model)
	The salt level indicator lamp may remain lit Salt indicator on the control panel				Salt indicator on the salt reservoir cap
	at the end of several wash cycles. If the		The indicator lamp lights up when SALT			clear: NEEDS TO
	water hardness level falls within category				green: OK.
			NEEDS TO BE ADDED.			BE ADDED
	(soft), no salt is required.

GB -2-

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

2	Visual
	indicator

If required, open the cover B (press the dedicated button).

Add rinse aid to the max. line ~150 ml

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4).

Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Check the rinse aid indicator to check the level into the dispenser.

(depending on the model)

Rinse aid indicator on the control panel

The indicator lamp lights up when RINSE AID NEEDS TO BE ADDED.

Rinse aid indicator on the dispenser

dark: OK.

clear: NEEDS TO BE ADDED

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Daily use

Open the cover A	Insert detergent: Tablet / powder / liquid into the big chamber		Shut the cover
(press the dedicated button).			by pressing dedicated ribs.
3	Only fill the	Use only one tablet per one cycle, only
	detergent dispenser	placed in detergent dispenser.
	prior to starting a
	wash program.	All types of tablets can be used, but for
		2 in 1 type adding of salt is mandatory.

GB -3-
