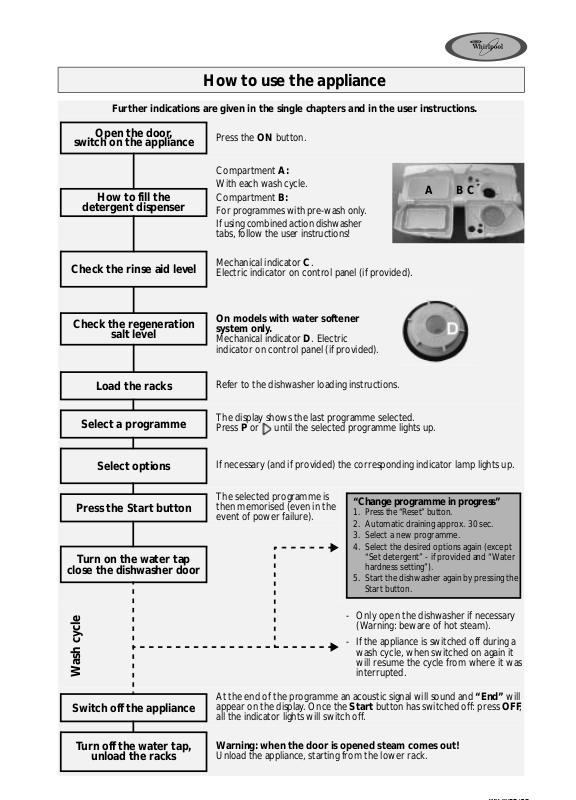

How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door,
switch on the appliance
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Press the ON button.
Compartment
With each wash cycle.
Compartment
For programmes with pre-wash only.
If using combined action dishwasher
tabs, follow the user instructions!
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The display shows the last programme selected.
Press P or until the selected programme lights up.
A:
B:
ABC
Select options
Press the Start button
Turn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
At the end of the programme an acoustic signal will sound and
appear on the display. Once the
all the indicator lights will switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme in progress”
1. Press the “Reset” button.
2. Automatic drai ni ng approx. 30 sec.
3. Select a new programme.
4. Select the desired options again (except
“Set detergent” - if provided and “Water
hardness setting”).
5. Start the dishwasher again by pressing the
Start button.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
will
button has switched off: press
Start
“End”
OFF
,
Page 2
Dishwasher loading instructions and racks provided
depending on the model
Upper rack:
Crockery holder (A):
Depending on the position, for long-handles utensils, cups and
plates.
Glass holder (B):
Long-stemmed glasses.
Long-handled utensils (e.g. carving forks, knives) must
be arranged with the sharp end facing in towards the
appliance.
Half Load:
Load the upper rack (see description of Options). Place the
cutlery basket (C), if provided, in the upper rack.
Rack height adjustment (also when loaded):
Lower adjustment:
Upper adjustment:
The rack must be level on both sides.
Removing the top rack to provide clearance for large
items of crockery in the bottom rack:
Open the rack guide retainers (E) on the right and left and
remove the top rack.
When the upper rack is in place the retainers must always be
closed.
Pull the
outwards and lower the rack.
Pull the
upwards until the rack clicks
into place (factory setting).
rack handles (D)
two
rack handles (D)
two
B
A
C
D
D
Retainer
open
E
Retainer
closed
E
Lower rack:
Depending on the model with
fixed, tilting (F) or tilting split
plate holders (G).
Half Load:
Load the lower rack (see
description of Options).
Greater washing power,
particularly for plates and
saucepans.
F
F
H
Power Clean load
Increased wash power in the dedicated area (H) and high
flexibility for lower rack loading.
G
Cutlery basket (I):
Grid (J) to keep items separate.
Sharp knives and forks that might cause injury must be
placed in the cutlery basket with the sharp end facing
downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, tin, hand-decorated crockery (unglazed), silver cutlery.
J
I
C
Page 3
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Sandy or grainy
residues
Colour of plastic parts
faded
• No water supply. • Open the tap.
• The appliance does not load sufficient
water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. •Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
• The water jet does not reach the
crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice, ... • Depending on the material, if necessary use a
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the safety circuit breaker.
• Arrange crockery so that items do not touch each
other. Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
•Removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• Not removable • Insufficient water softening, calcium
Opaque glasses/ glasses
deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add salt *.
not sparkling
Rust on cutlery
Identifying appliance
faults
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water
supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault
• The appliance type and model
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
• Not made of stainless steel. •Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the ST ART button for 2 seconds, until the
START indicator lamp switches off . Select a new
programme and press the Start button again.
Page 4
Before using the dishwasher, read the user instructions!
ADG 8200
On button
Off button
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before
starting a wash programme.

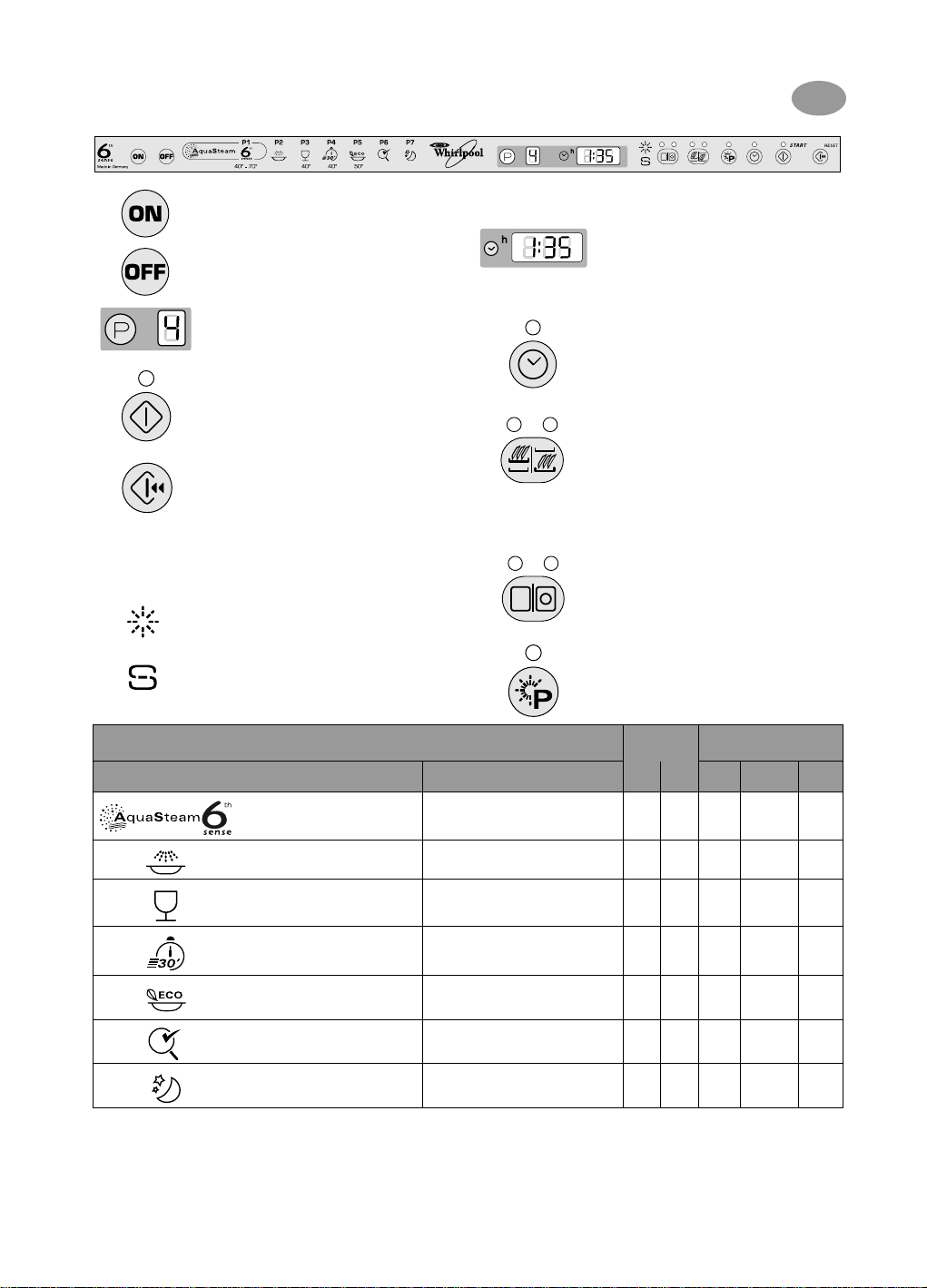

Quick Reference Guide
Programme selection button
The selected programme is shown in the window of
the display.
Start button
Switches “on” when the dishwasher is operating.
Flashes when a fault occurs. Switches off at the end
of the programme.
Reset button
After pressing the Reset button, the selected programme
and the supplementary functions are cancelled (except
the detergent and water hardness settings, see user
instructions) and must be reset. On releasing the button
this is confirmed by an acoustic signal.
Options
GB
3)
Time and failure display
Indicates in hours the time remaining until the start of
the wash cycle. Switches off when the programme starts
and indicates the time remaining in hours and minutes.
“F....” Identification of faults for service techni cian
“Delayed start” button
The wash cycle can be programmed to start after 1 - 24
hours. With each successive touch of the button, the
delayed start indicator increases by 1 hour, and after 24
returns to 00. Then press the Start button. The
dishwasher will start at the set time.
“Half load - Multizone” button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack
(the indication lamp/symbol comes on)
Press twice = lower rack
(the indication lamp/symbol comes on)
Press 3 times = Off (half load function deactivated).
When washing without the top rack, press the “Half
Load” button twice, or “Lower rack wash” (the
corresponding LED/symbol comes on).
Set detergent
(when the appliance is used for the first time and when
using a different type of detergent)
Off indicator = detergent (powder, gel, tablets)
Left indicator =2 in 1 detergent
Right indicator = 3 in 1 / 4 in 1 detergent
Pow er Clean
An increased pressure combined with additional spray
level offers better cleaning result and more flexibility of
dish loading in the lower rack.
7)
Programme chart
Detergent
Programmes Loading instructions A B
7)
AquaSteam
40-70°C
Pre-Rinse cold
Party Glass 40°C
Rapid 30 min 40°C
1) 6) 7)
Eco
Antibacterial
50°C
4) 5) 7)
Overnight 55°C
1) Reference programme for energy label EN 50242.
2) Refer to “User instructions”.
3) The data relevant to programmes are values obtained in the laboratory
in conformity with Standard EN 50242. In practice there may be time
variations or leaps depending on different loads, function options, sensor
calibration (only for sensor-controlled programmes) water
temperatures or hardness and different power supply voltages.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected] m”.
Whirlpool is a registered trademark of Whirlpool USA
Lightly, normally or heavily soiled
crockery, including pots and pans.
Crockery to be washed later.
Light soiling, for example glasses and
cups.
Lightly soiled crockery with no dried-on
food.
Normally soiled crockery.
Normally or heavily soiled crockery,
with additional antibacterial action.
Normally soiled crockery, gentle and
quiet programme thanks to the low
spray pressure (39dbA).
4) The bacteria removal efficiency has been tested by the Institut
Pasteur de Lille (France), based on the NF EN 13697 standard of
November 2001;
5) Programme interruption (e.g. the door being opened) may
compromise the result of the antibacterial rinse;
6) Energy saving programme with pr olonged drying cycle.
7) These programmes can be used with the “Power Clean” option.
(We reserve the right to make technical modifications)
2)
Consumption
Litres kWh Minutes
X X 7-17 0.99-1.75 65-220
- - 4.0 0.03 14
X - 10.0 0.85 100
X - 10.0 0.65 30
X X 13.0 1.05 195
X X 13.0 1.50 115
X X 13.0 1.20 290
5019 396 01048
3)
