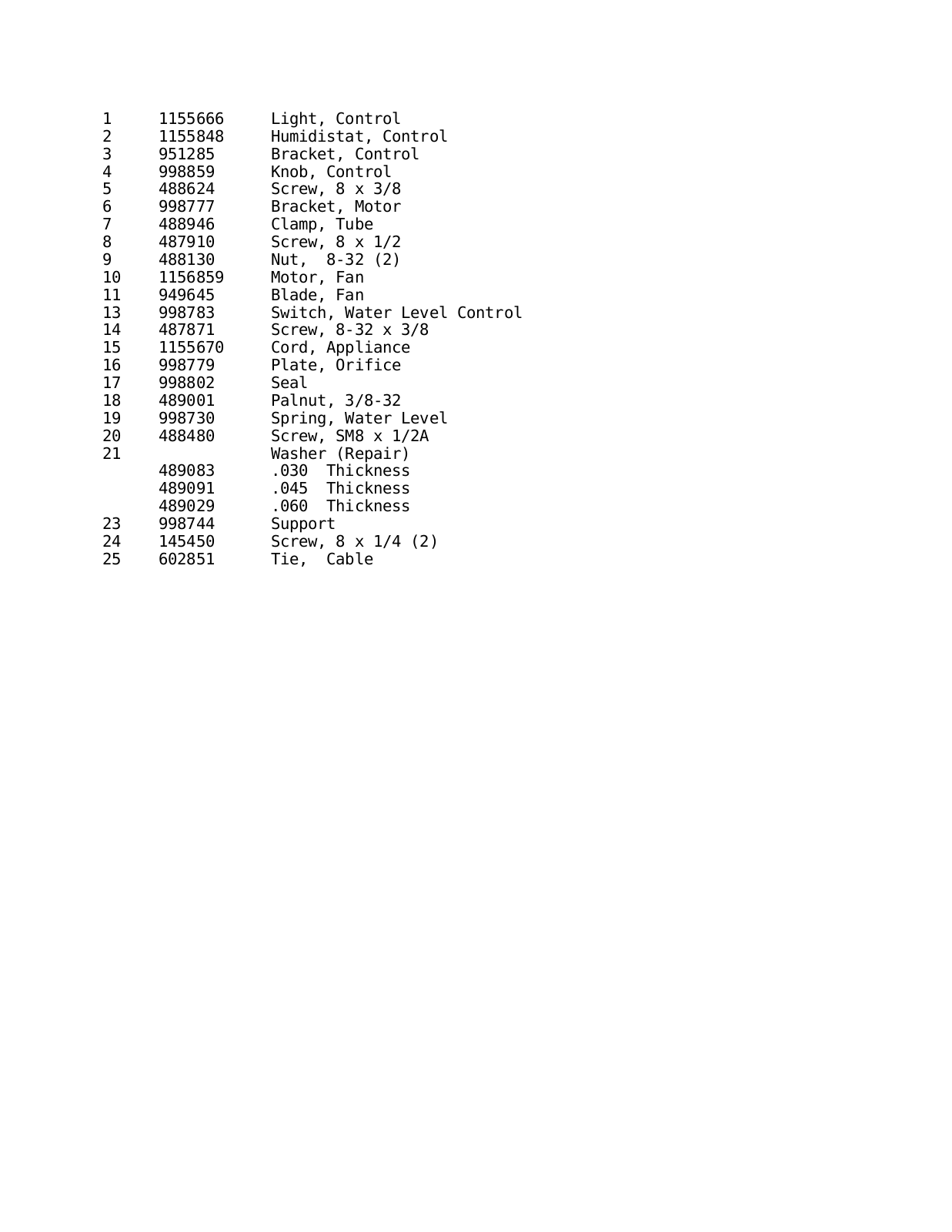

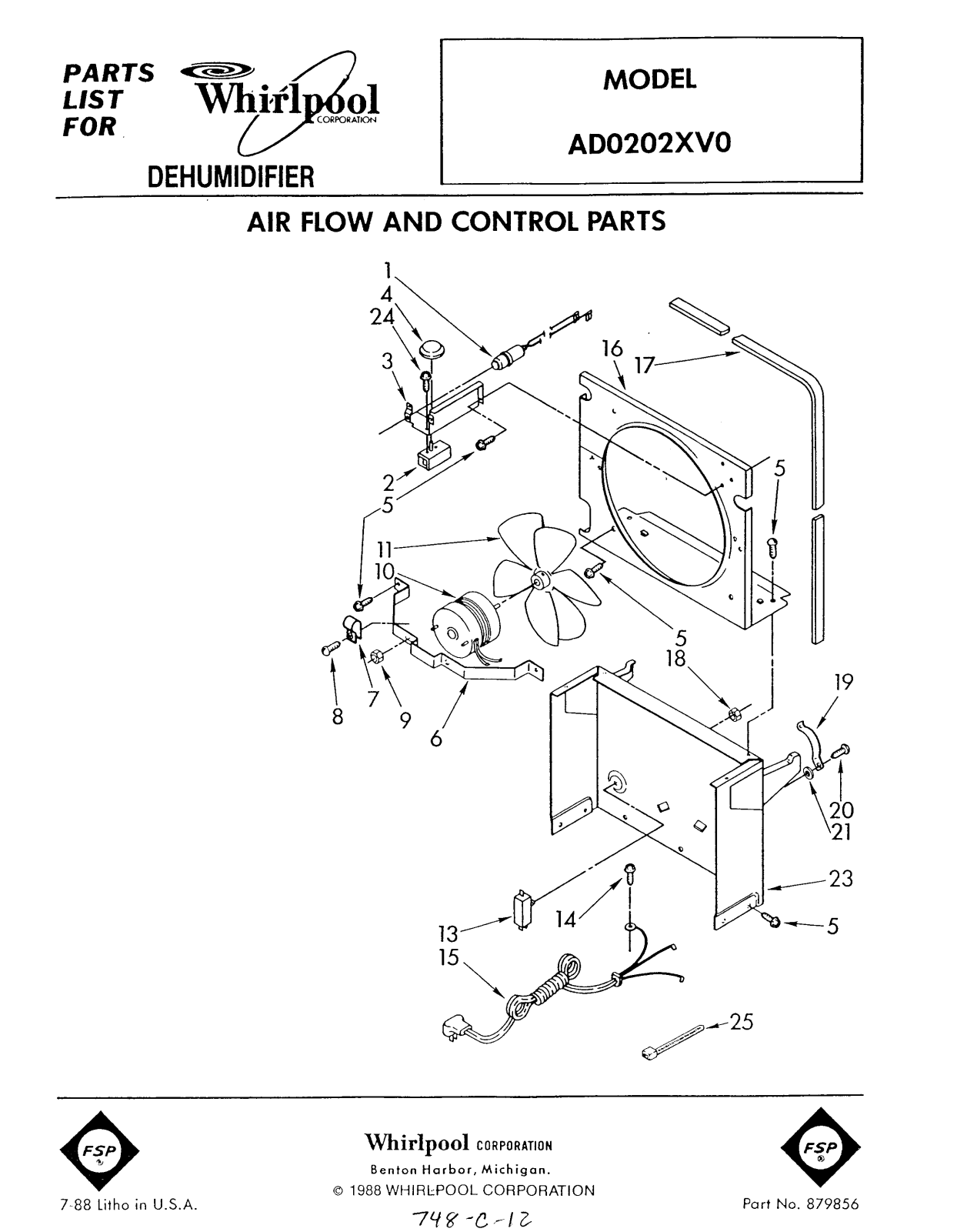

Whirlpool Ad0202xv0 Installation Template

1 1155666 Light, Control
2 1155848 Humidistat, Control
3 951285 Bracket, Control
4 998859 Knob, Control
5 488624 Screw, 8 x 3/8
6 998777 Bracket, Motor
7 488946 Clamp, Tube
8 487910 Screw, 8 x 1/2
9 488130 Nut, 8-32 (2)
10 1156859 Motor, Fan
11 949645 Blade, Fan
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1155670 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM8 x 1/2A
21 Washer (Repair)

489083 .030 Thickness
489091 .045 Thickness

489029 .060 Thickness
23 998744 Support
24 145450 Screw, 8 x 1/4 (2)
25 602851 Tie, Cable
