Page 1
Page 2

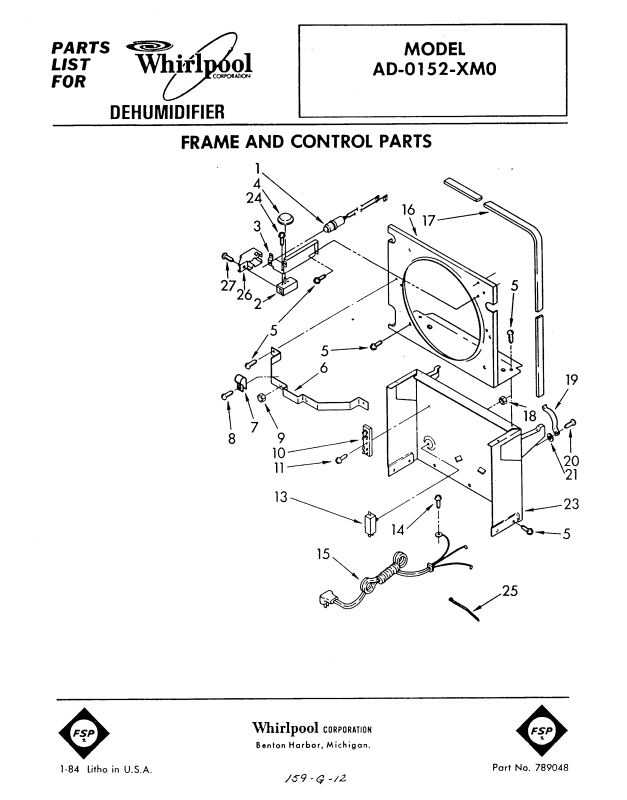

1 950747 Light, Indicator
2 951280 Humidistat Assembly
3 951285 Bracket, Humidistat & Light Assembly
4 998859 Knob, Humidistat Control
5 488624 Screw, SM #8 x 3/8A
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube (4)
8 487910 Screw, 8 x 1/2A
9 488130 Nut, Fan Motor 8-32 (2)
10 950431 Board, Terminal
11 488966 Screw, SM #6 x 3/8
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 5/32
15 950743 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM #8 x 1/2A
21 Washer, Repair
489083 .030 Thickness
489091 .045 Thickness
489029 .060 Thickness
23 998729 Support
24 488889 Screw, 8-32 x 5/32
25 857547 Tie, Cable
26 951281 Cover, Terminal
27 488234 Screw, 8-32 x 1/4
Page 3
Page 4

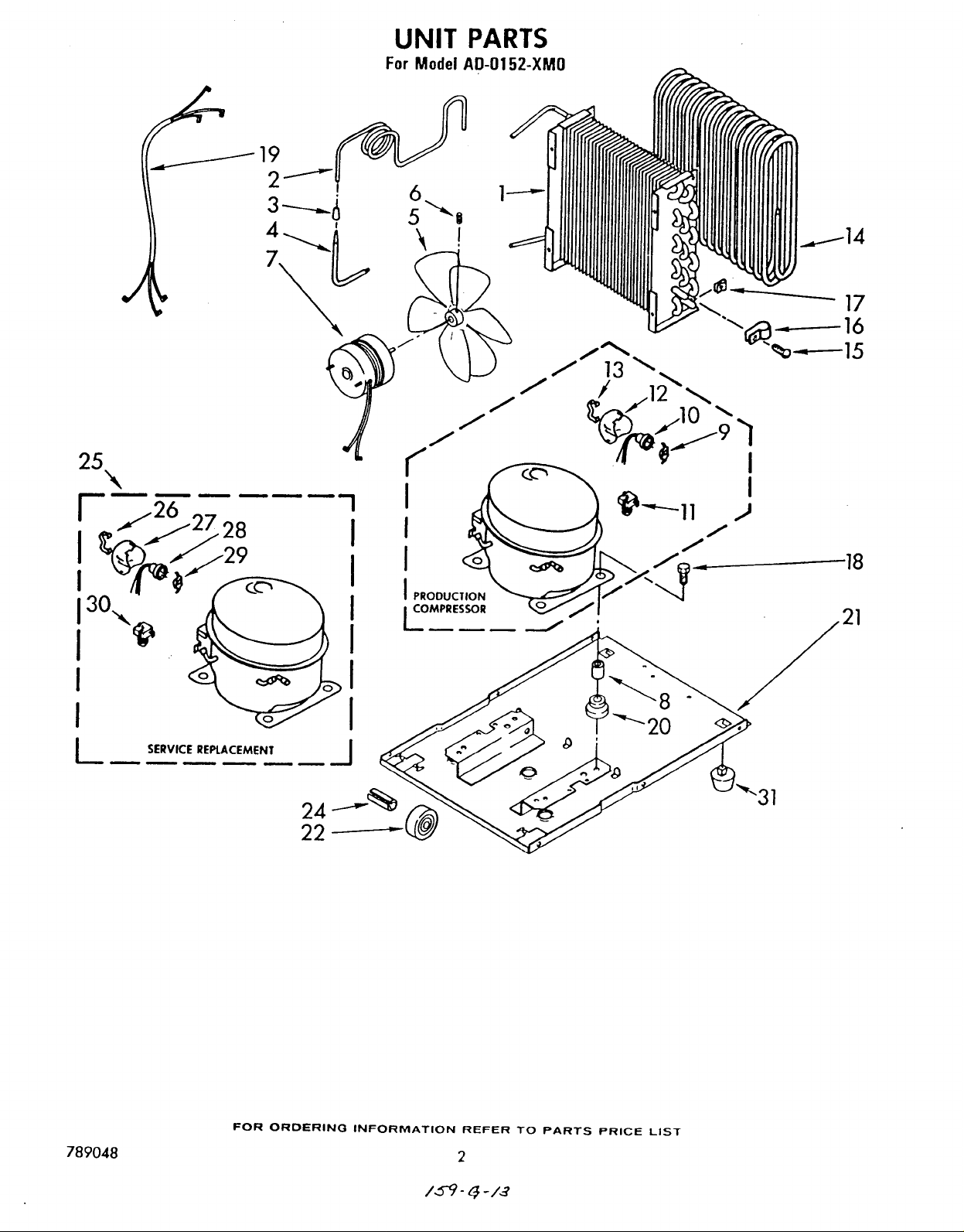

1 949893 Condenser
2 998759 Tube, Restrictor (Length 35.0")
3 474013 Strainer, Outlet Tube
4 949896 Tube, Outlet (Includes Item 3)
5 948756 Blade, Fan (Includes Item 6)
6 488035 Setscrew, 1/4 x 5/16
7 949635 Motor, Fan
8 646498 Sleeve (4)
9 950061 Spring, Overload
10 950248 Overload, Protector
11 950249 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 995082 Evaporator
15 487910 Screw, 8 x 3/8 (4)
16 488946 Clamp, Tube (4)
17 486197 Nut, Speed (4)
18 488400 Screw, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 646499 Grommet (4)
21 949976 Base
22 998726 Roller (2)
24 489015 Roll Pin (2)
25 485780 Compressor, Service (Complete Assembly)
26 831282 Retainer, Cover
27 865068 Cover, Terminal
28 876690 Overload, Protector
29 549086 Spring, Overload
30 876693 Relay
31 998725 Glide (2)
Page 5
Page 6

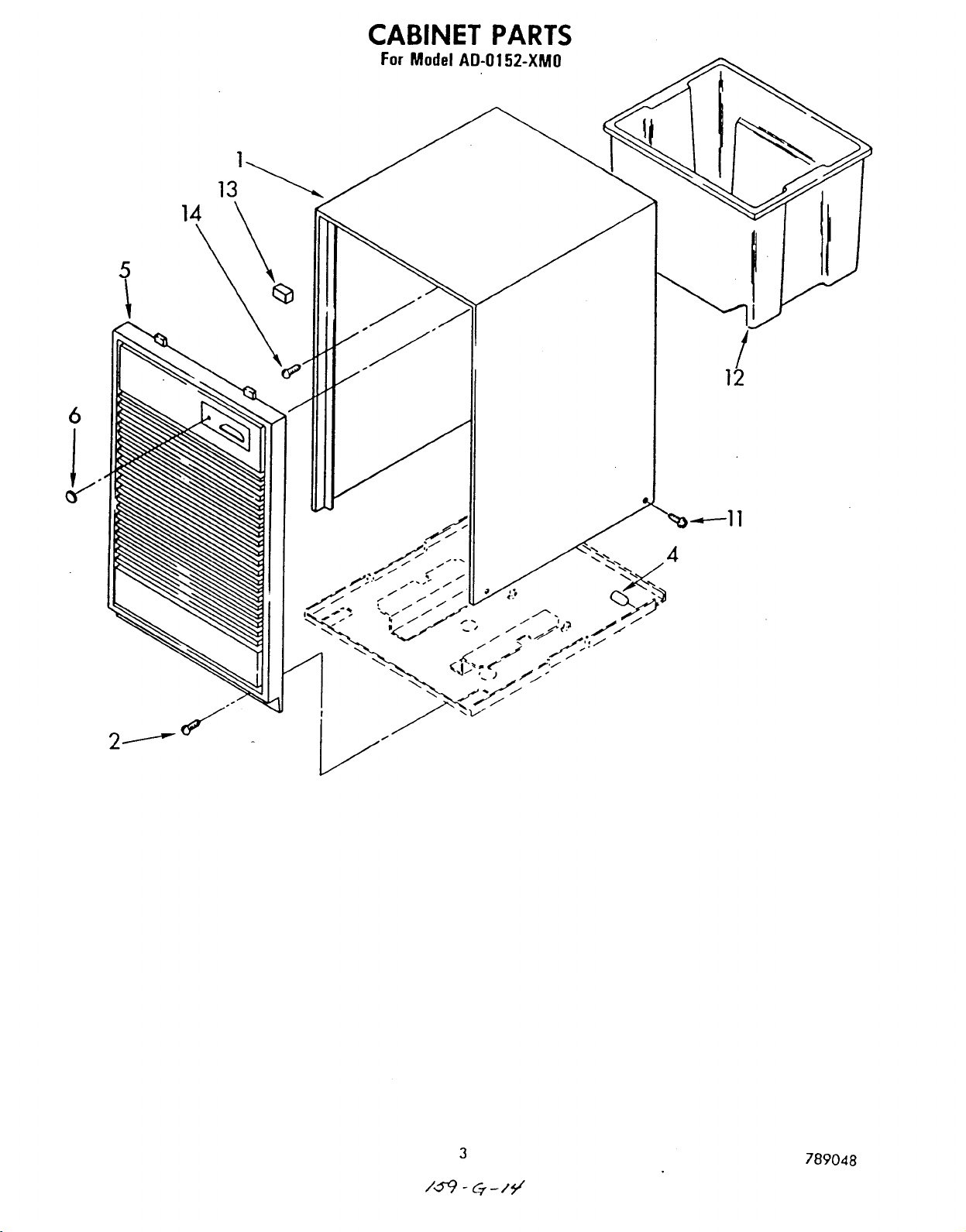

1 998821 Cabinet
2 489104 Screw, 8-32 x 3/8 (2)
4 998869 Cap, Thread Cover (2)
5 950269 Grille, Front
6 998846 Light Lens
11 489016 Screw, TC 8-32 x 3/8 (4)
12 998801 Pan, Condensate
13 948584 Spacer, Grille
14 489073 Screw, SM #8 x 32 (2)
Parts Not Illustrated And Optional Parts (Not Included)
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
799351 Thinner (1 Gal.)
484310 Kit, Evaporator Repair (Aluminum Epoxy)
505168 Tape, No Drip
978025 Valve, Access (1/4")
978026 Valve, Access (5/16")
978027 Valve, Access (3/8")
978028 Valve, Access (1/2")
978029 Valve, Access (5/8")
978030 Valve, Access (3/4")
998866 Guide, Use & Care
950626 Sheet, Tech (Service Information)
950628 Guide, Use & Care
789048 List, Repair Parts
