Page 1
Page 2

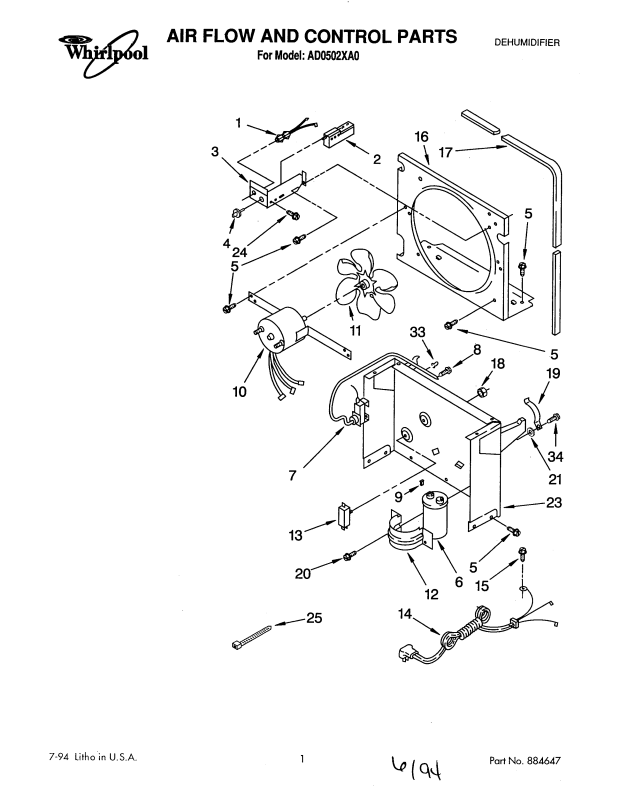

1 1162368 Light, Indicator
2 1162578 Humidistat, Control
3 951284 Bracket, Control
4 1162670 Knob, Control
5 488624 Screw, S.M. #8 x 3/8
6 1162586 Capacitor
7 1164779 Thermostat, De-icer
8 488234 Screw, 8-32 x 1/4 (2)
9 1159258 Cap, Tab
10 1162312 Motor, Fan
11 949645 Blade, Fan
12 1163801 Bracket, Cap Mtg
13 999747 Switch, Water Level Control
14 1155669 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488480 Screw,8x1/2 (2)
21 Washer, Repair
489083 .030 Thickness
489029 .062 Thickness
489091 .091 Thickness
23 1163800 Support
24 1162513 Screw (2)
25 602851 Tie, Cable (2)
33 471363 Clamp, Tube To Evaporator Mtg (2)
34 488248 Screw,8x3/4A
Page 3
Page 4

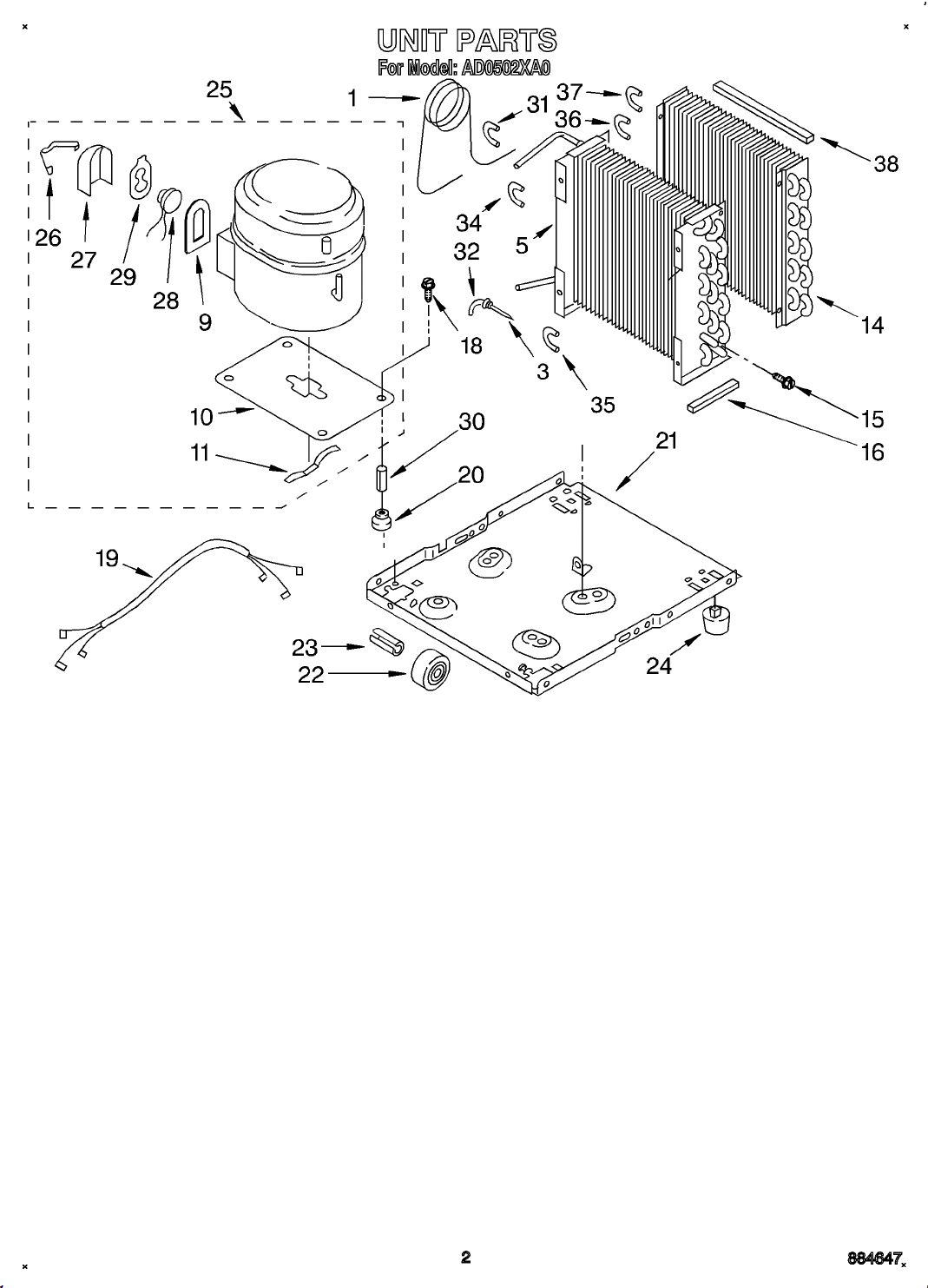

1 1162154 Tube, Restrictor (36.0" Length)
3 1162526 Strainer
5 1162646 Condenser
9 798471 Gasket, Cover (Service Only)
10 876944 Plate, Compressor Mounting (Service Only)
11 643179 Spring, Mounting (ServiceOnly)
14 1161199 Evaporator
15 488624 Screw, 8 x 3/8 (4)
16 1162372 Seal
18 1163835 Screw, 1/4-28 x 1
19 484136 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 1162658 Compressor, (Complete Assembly)
26 Retainer, Cover
950056 Production
832008 Service
27 Cover, Terminal
950055 Production
798470 Service
28 Overload
951312 Production
798479 Service
29 Spring, Overload
950061 Production
798469 Service
30 646498 Sleeve (4)
31 1158407 Bend, Return
32 708532 Bend, Return
34 708531 Bend, Return
35 1156533 Bend, Return
36 855199 Bend, Return
37 854624 Bend, Return
38 1162348 Seal, Evap. Top
REFRIGERANT CHARGE
9.25 OZ. (Production R-500)(Service R-12)
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 5
Page 6

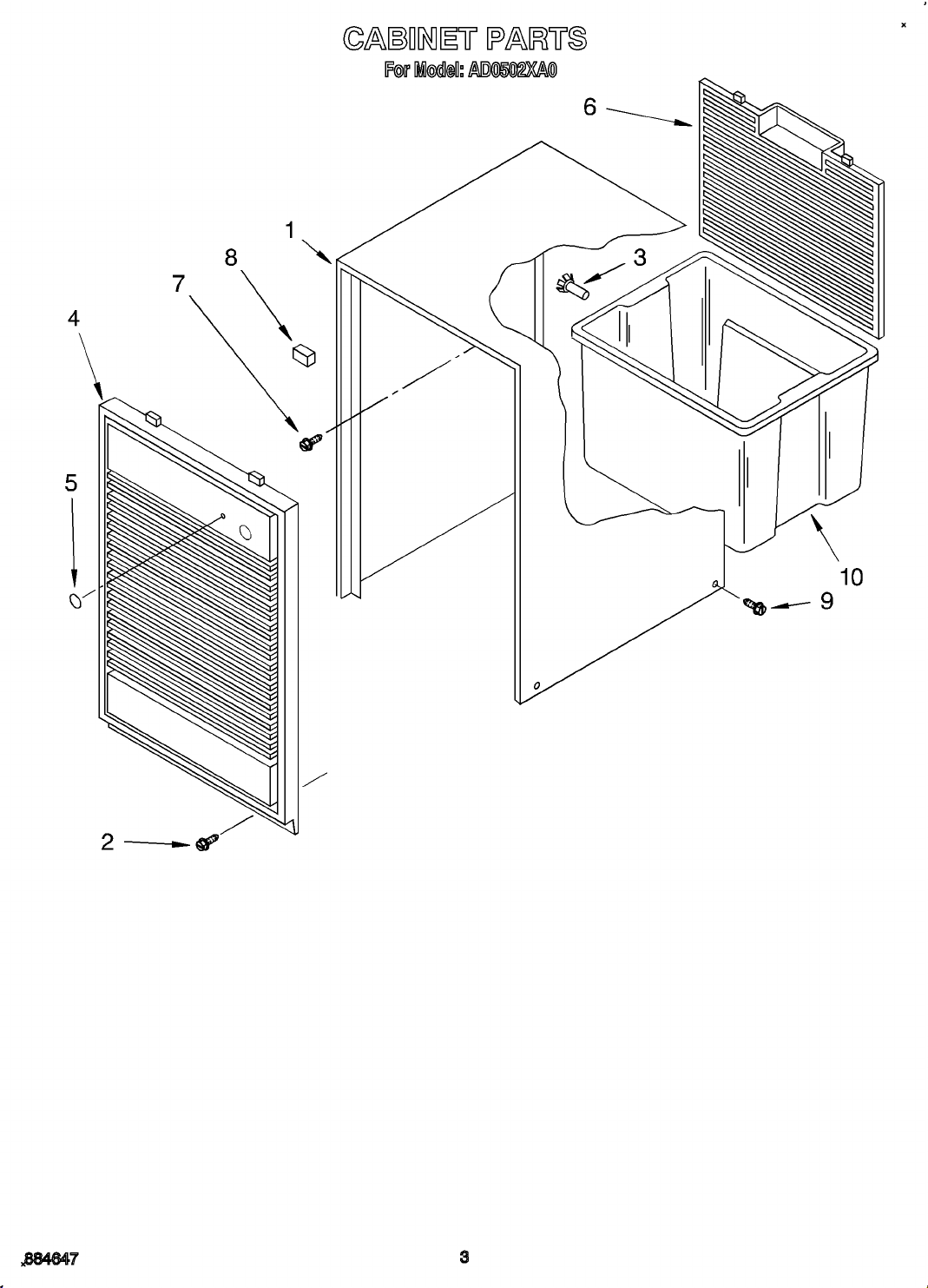

1 1164265 Cabinet
2 1164763 Screw, 8-32 x 1/2
3 998813 Retainer, Pin (2) (Rear Grille)
4 1164263 Grille, Front (Includes,Illus. No.11.)
5 998846 Lens, Light
6 1164264 Grille, Rear
7 489073 Screw, SM #8 x 3/8
8 948584 Spacer, Grille
9 1158781 Screw
10 1164771 Pan, Condensate
LITERATURE PARTS
LIT1162687 Tech Sheet
LIT1155645 Wiring Diagram
LIT1164267 Guide, Use and Care
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Condensate Pan
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access valve (20 - Pack)
212643 Permagum, Sealer (4 - 12" Strips)
