Page 1
Page 2

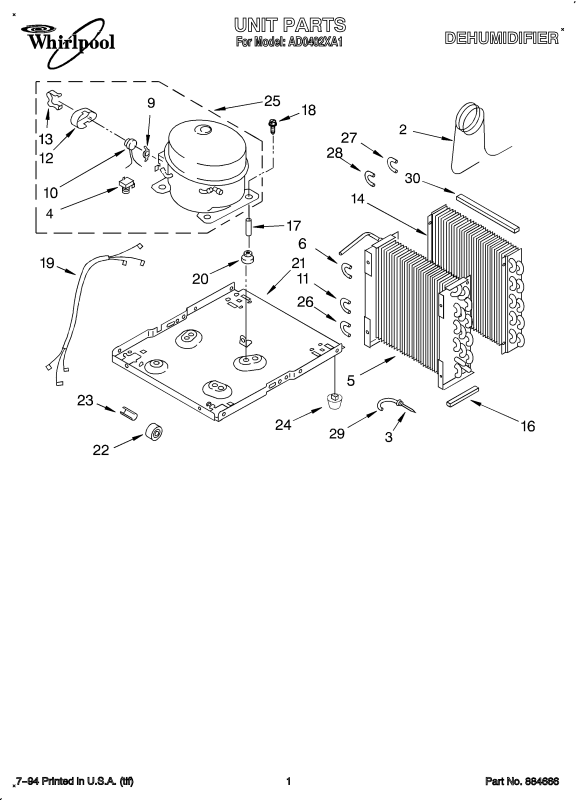

LITERATURE PARTS
LIT1165327 Sheet, Tech
LIT1165310 Wiring Diagram
LIT1164267 Use and Care Guide
2 1162154 Tube, Restrictor (46.O" Length)
3 1162526 Strainer
4 950058 Relay
5 1163097 Condenser
6 1158407 Bend, Return (1)
9 950061 Spring, Overload
10 1163837 Overload
11 70853 Bend, Return (8)
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1162933 Evaporator
16 1162372 Seal
17 646498 Sleeve (4)
18 1166034 Bolt, 1/4-28x1(4)
19 1164816 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin-2.0 LG
24 951886 Glide-Natural (2)
25 1164774 Compressor (Complete Assembly)
26 708532 Bend, Return (4)
27 855199 Bend, Return (8)
28 854624 Bend, Return (1)
29 1156533 Bend, Return (1)
30 1162348 Seal, Evaporator Top
REFRIGERANT CHARGE 8.75 OZ.
Following Parts Not Illustrated and Optional Parts Not Inculded
1162476 PTC Start Device
1162477 PTC Clamp
1162377 Wire Assy. (2)
488480 Screw 8-18 x 1/2
Page 3
Page 4

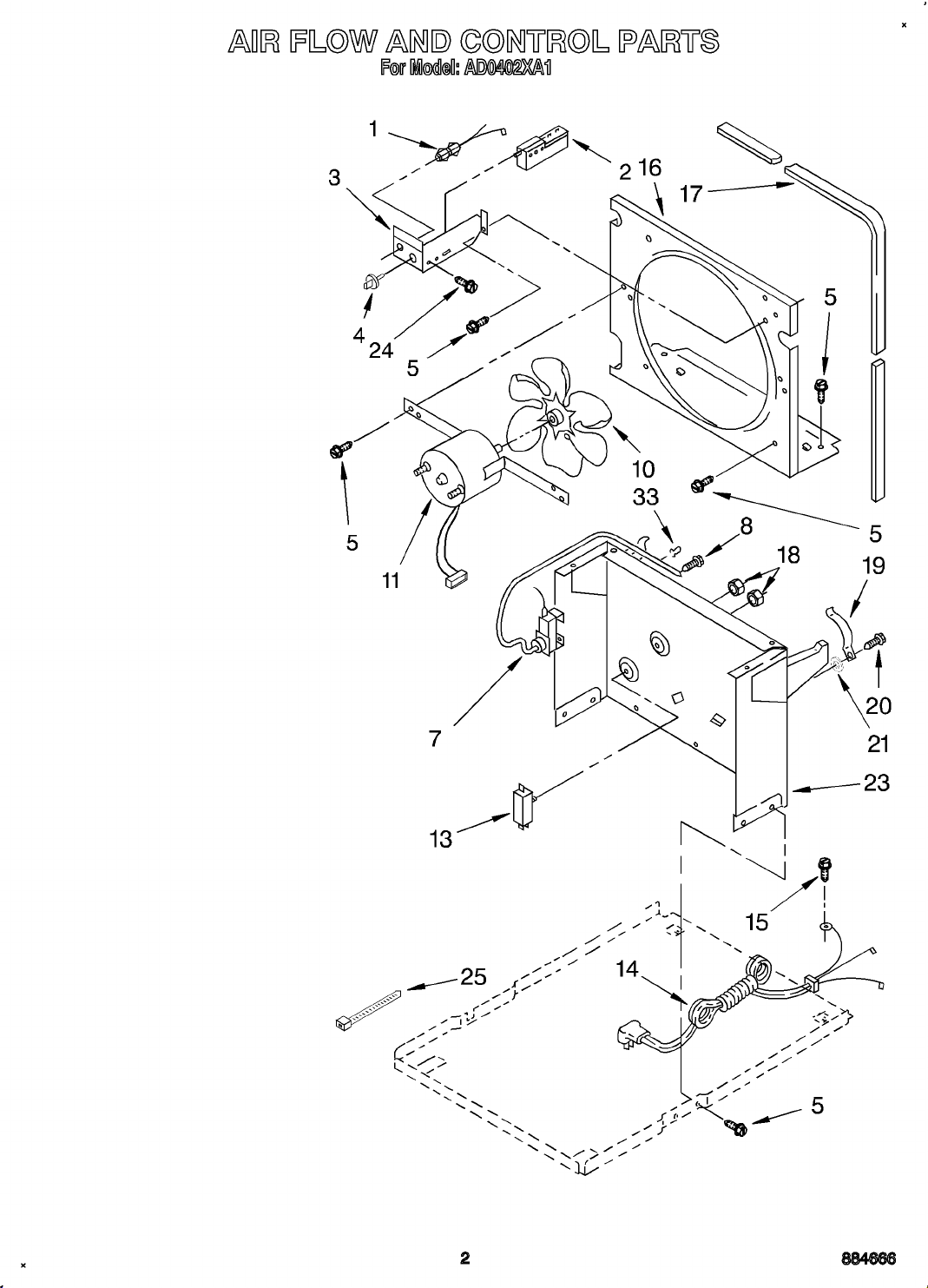

1 1164804 Light, Indicator
2 1162578 Humidistat, Control
3 951284 Bracket, Control
4 1162670 Knob, Control (1)
5 488480 Screw, S.M. #8 x 1/2
7 1164779 Control, Deicer
8 488234 Screw, 8-32 x 1/4 (2)
10 949645 Blade, Fan
11 1164813 Motor, Fan
13 999747 Switch, Water Level Control
14 1166038 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 1166054 Screw 8-18 x 5/8
21 Washer, Repair
489083 .030 Thickness
489091 .045 Thickness
489029 .060 Thickness
23 1163800 Support
24 1162513 Screw, S.M.#8 x 1/4
25 602851 Tie, Cable (3)
33 471363 Clamp, Tube to Evaporator Mtg (2)
Page 5
Page 6

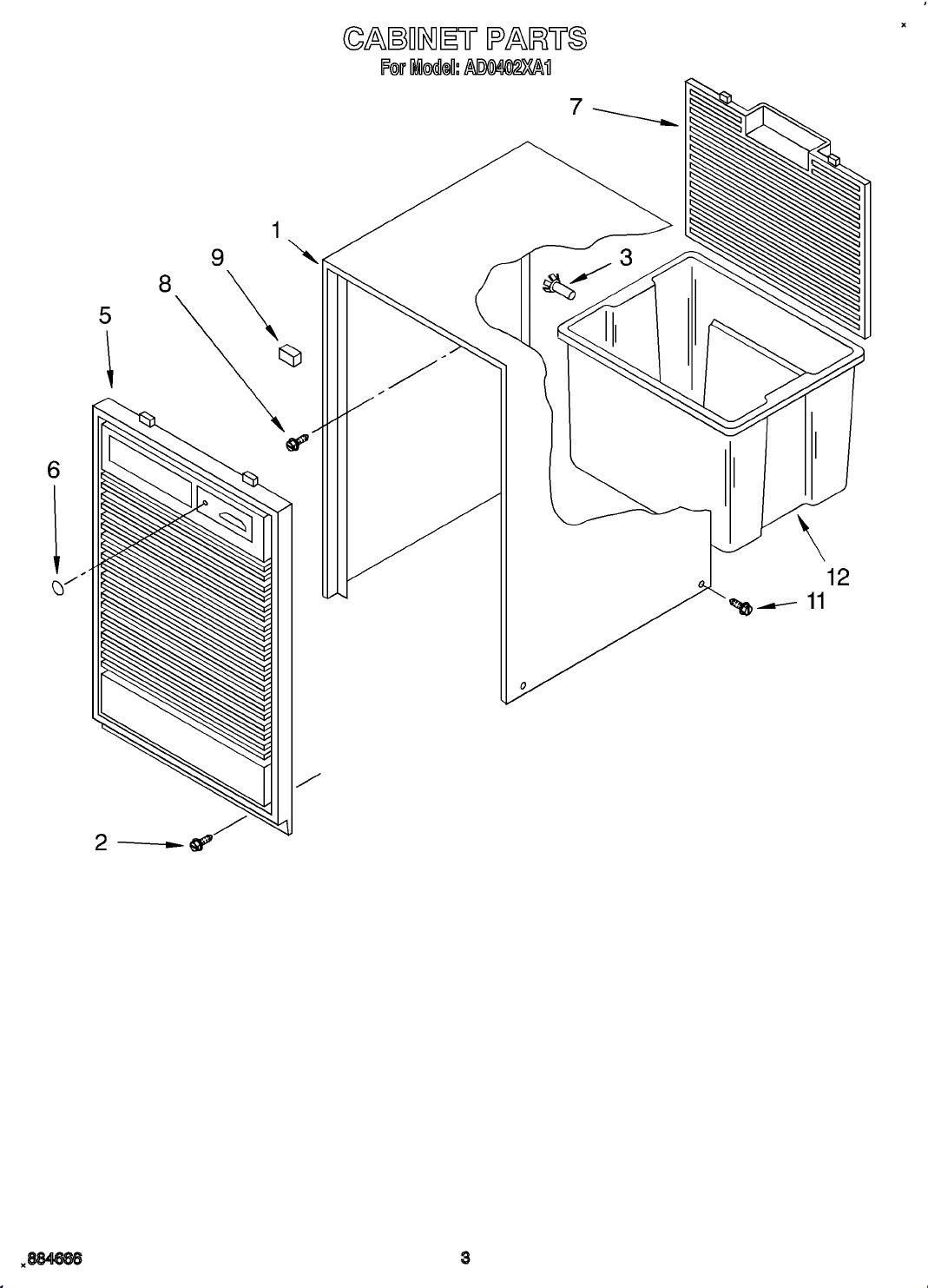

1 1164265 Cabinet
2 1166018 Screw (2)
3 998813 Retainer, Pin (2) (Rear Grille)
5 1164263 Grille, Front
6 998846 Lens, Light
7 1164264 Grille, Rear
8 489073 Screw,8x3/8
9 948584 Spacer, Grille
11 1166017 Screw (4)
12 1164771 Pan, Condensate
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
212643 Sealer, Permagum (4-12" Strips)
