Page 1
Page 2

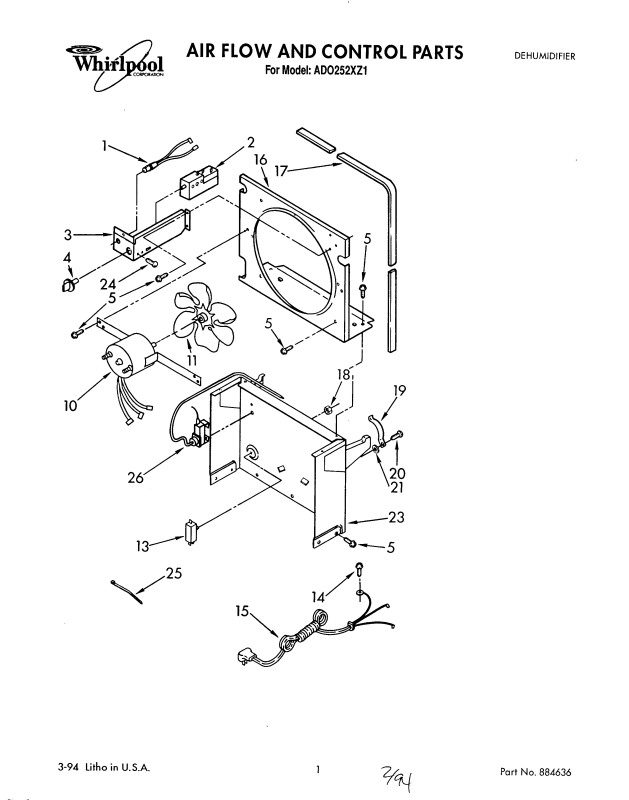

1 1158419 Indicator, Light
2 1162578 Humidistat, Control
3 951284 Bracket, Humidistat
4 1162670 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8
10 1164208 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1155670 Cord, Appliance
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488248 Screw, S.M.#8 x 3/4
21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness
23 1163800 Support
24 1162513 Screw,8-18x1/4
25 602851 Tie, Cable
26 1163280 Thermostat, De-icer
Page 3
Page 4

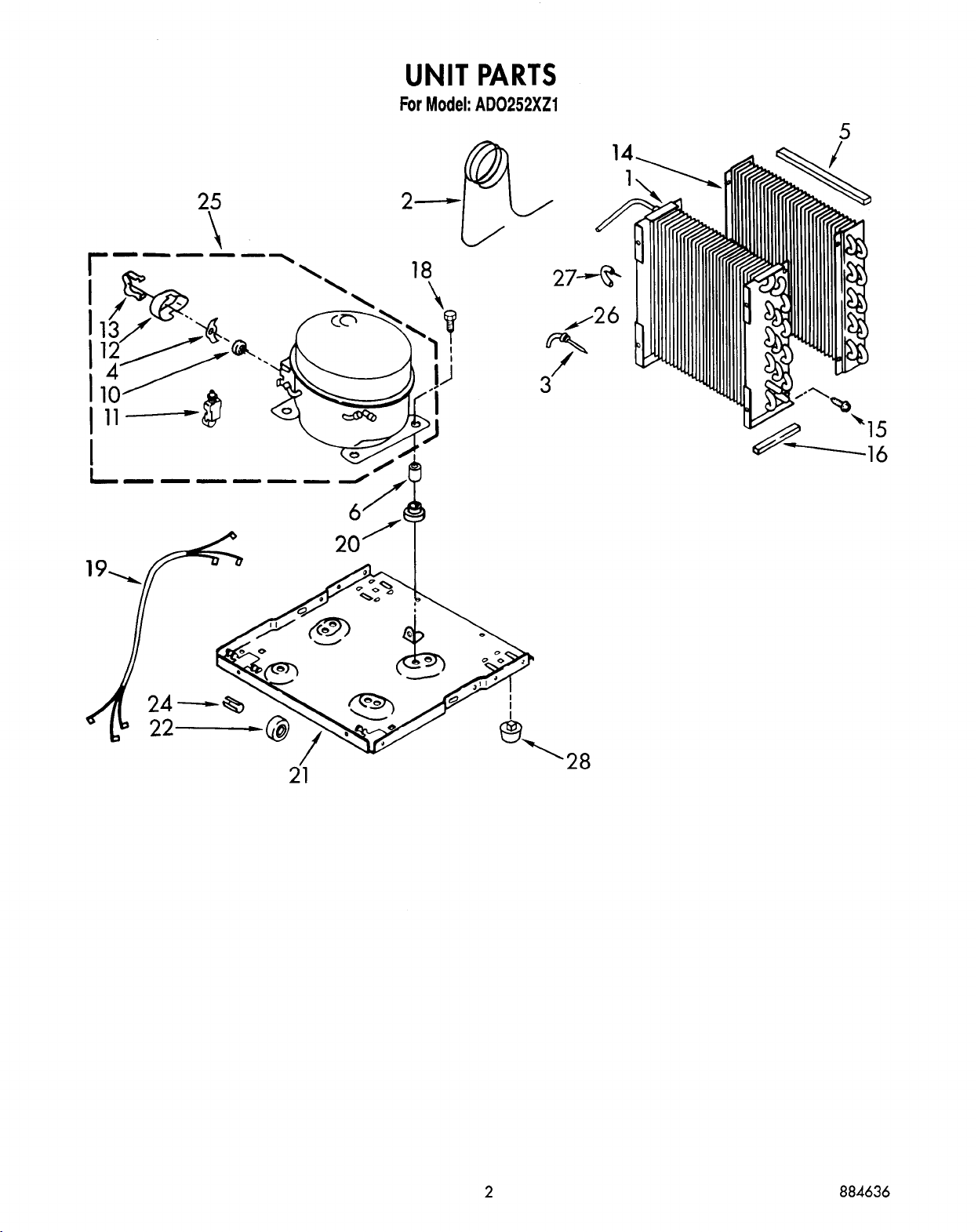

1 1164219 Condenser
2 1164204 Tube, Restrictor (Length 24.00")
3 1162037 Strainer
4 Spring Overload
950061 Production
549086 Service Overload
5 1162348 Seal Evaporator Top
6 646498 Sleeve (4)
10 Overload, Protector
1163837 Production
2154760 Service
11 Relay, Start
1163838 Production
1108143 Service
12 Cover, Terminal
950055 Production
1108115 Service
13 Retainer, Cover
950056 Production
549342 Service
14 1161199 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1162372 Seal
18 1163835 Bolt, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
24 489015 Pin, Roller (2)
25 1163836 Compressor, (Complete Assembly)
26 854624 Bend, Return
27 855199 Bend, Return (17)
28 951886 Glide (2)
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 5
Page 6

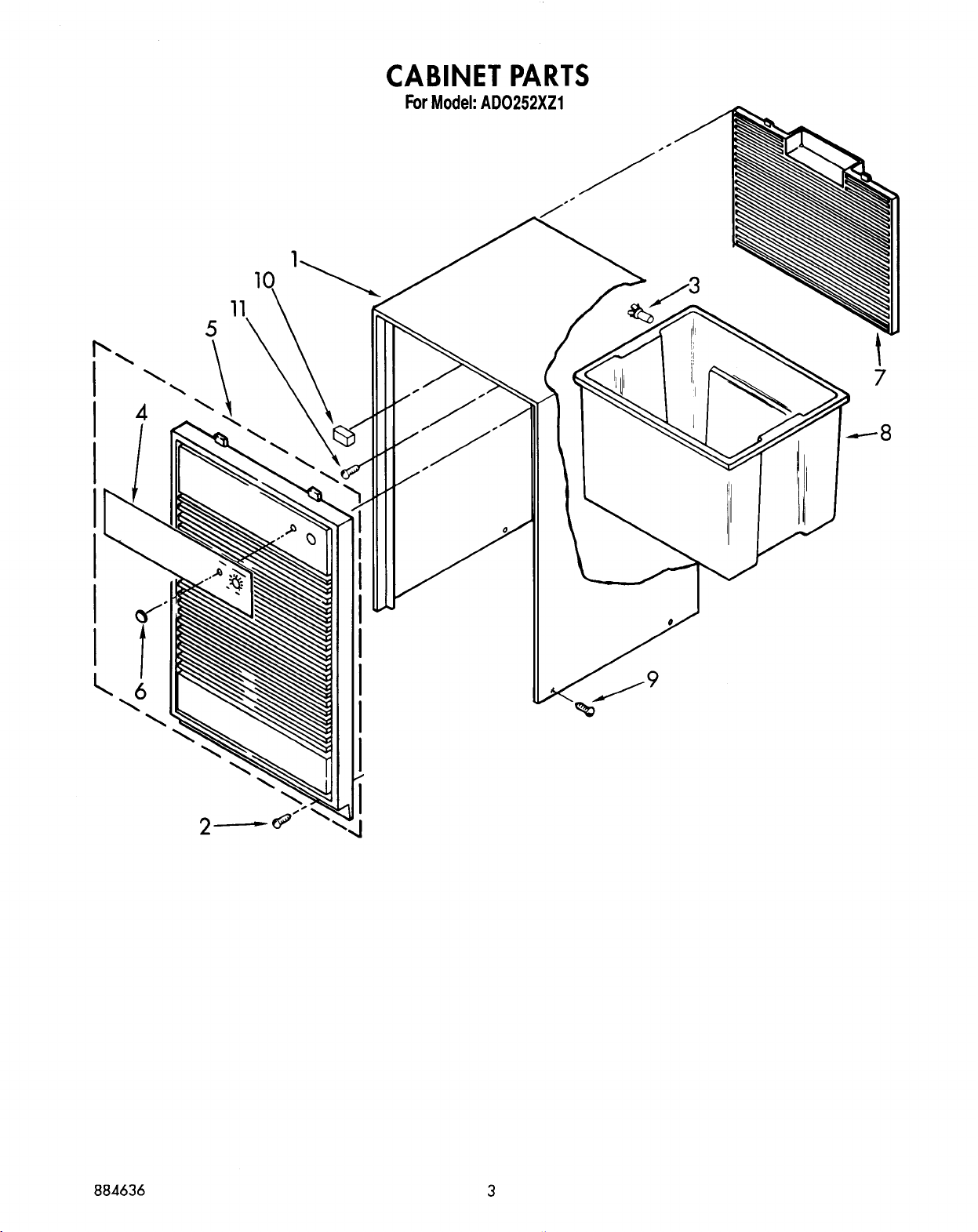

1 998821 Cabinet
2 489120 Screw, #8 x 1/2 (2)
3 998813 Retainer Pin (Rear Grille)
4 1162674 Escutcheon
5 1162673 Grille, Front (Includes, Illus. No.4 )
6 998846 Lens, Light
7 998832 Grille, Rear
8 951901 Pan, Condensate
9 1158781 Screw
10 948584 Spacer, Grille
11 489073 Screw, 8 x 3/8 (2)
Following Parts Not Illustrated and Optional Parts Not Included
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
484310 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
LITERATURE PARTS
LIT1164210 Tech Sheet
LIT1164212 Wiring Diagram
LIT1162830 Guide, Use And Care
LIT884636 List, Repair Parts
