Page 1
Page 2

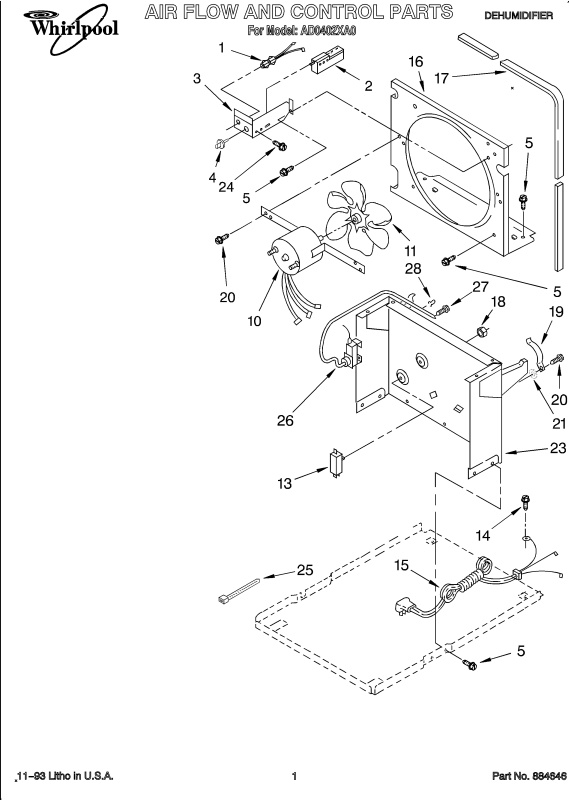

1 1158419 Indicator, Light
2 1162578 Humidistat, Control
3 951284 Bracket, Humidistat
4 1162670 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8
10 1162030 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1155670 Cord, Appliance
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488248 Screw, S.M.#8 x 3/4A
21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness
489091 .091 Thickness
23 1163800 Support
24 1162513 Screw,8-18x1/4(2)
25 602851 Tie, Cable
26 1164779 Thermostat, De-icer
27 488234 Screw, 8-32 x 1/4 (2)
28 471363 Clamp, Tube (2)
Page 3
Page 4

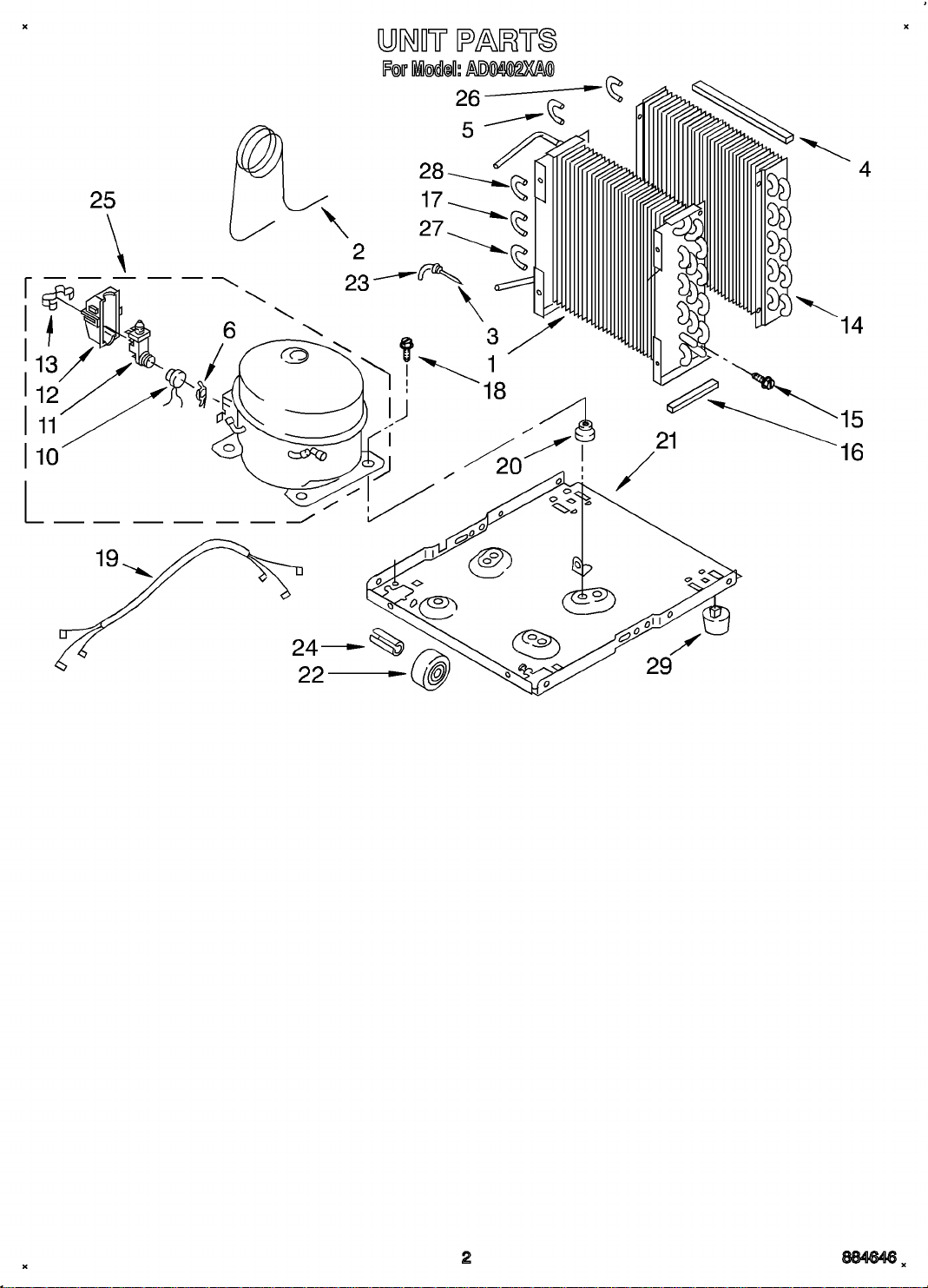

1 1162646 Condenser
2 1162154 Tube, Restrictor (Length 36.00")
3 1162526 Strainer
4 1162348 Seal, Evaporator Top
5 1158407 Bend, Return
6 Spring, Overload
549086 Service
10 Overload, Protector
1158823 Production
876686 Service
11 Relay, Start
1156815 Production
876689 Service
12 Cover, Terminal
1157582 Production
865068 Service
13 Retainer, Cover
938384 Production
831282 Service
14 1162933 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1162372 Seal
17 708531 Bend, Return
18 1163835 Screw, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 1156748 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 708532 Bend, Return
24 489015 Pin, Roller (2)
25 1156854 Compressor, Service (Complete Assembly)
26 1156533 Bend, Return
27 854624 Bend, Return
28 855199 Bend, Return
29 951886 Glide (2)
REFRIGERANT CHARGE
10.5 OZ. (Production R-500) (Service R-12)
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 5
Page 6

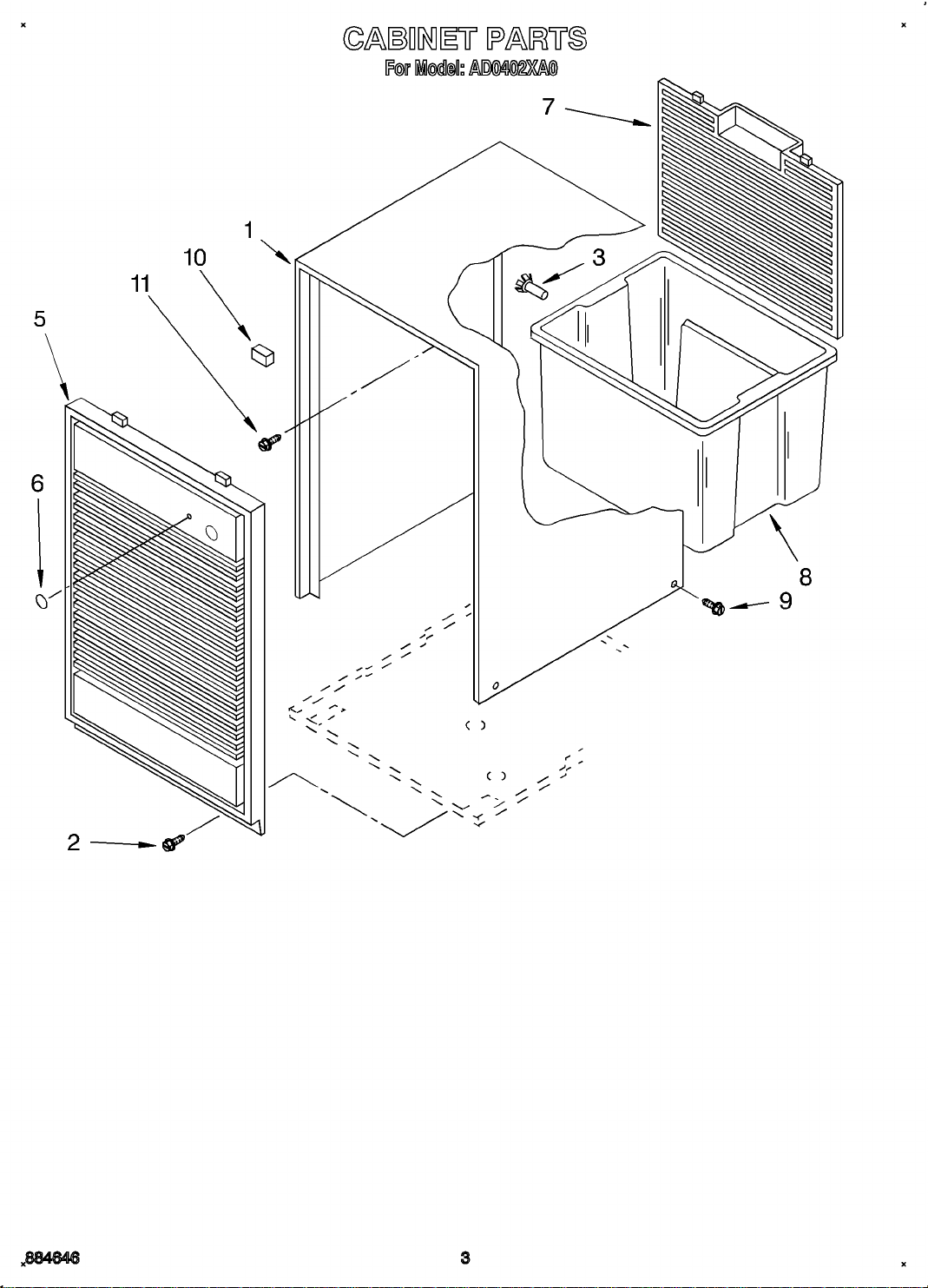

1 1164265 Cabinet
2 1164763 Screw, #8 x 1/2 (2)
3 998813 Retainer Pin (Rear Grille)
5 1164263 Grille, Front
6 998846 Lens, Light
7 1164264 Grille, Rear
8 1164771 Pan, Condensate
9 1158781 Screw
10 948584 Spacer, Grille
11 489073 Screw, 8 x 3/8 (2)
LITERATURE PARTS
LIT1162714 Tech Sheet
LIT1157768 Wiring Diagram
LIT1164267 Guide, Use And Care
Following Parts Not Illustrated and Optional Parts Not Included
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
484310 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access Valve (20 Pack)
