Page 1
Page 2

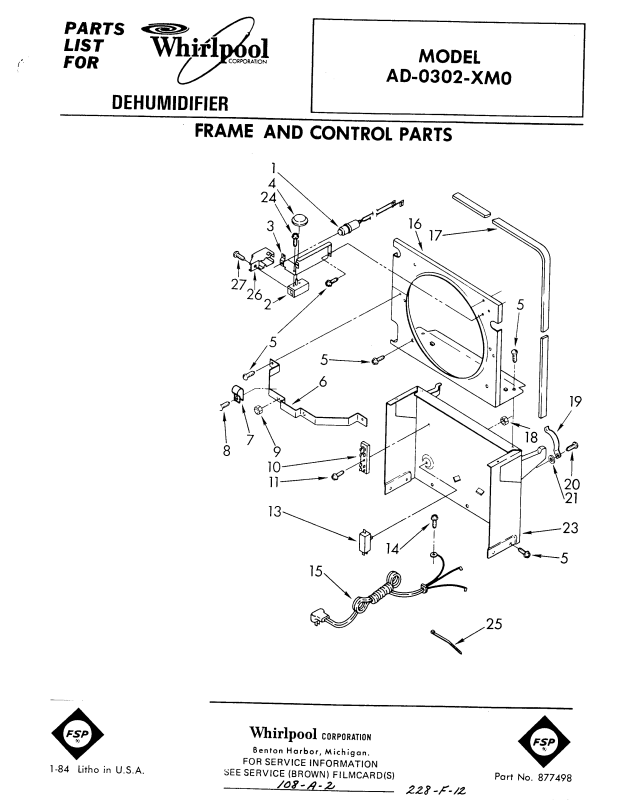

1 950747 Light Assembly
2 951280 Humidistat Assembly
3 951285 Bracket, Humidistat & Light Assembly
4 998859 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube
8 487910 Screw, 8 x 1/2
9 488130 Nut, Fan Motor 8-32 (2)
10 950431 Board, Terminal
11 488966 Screw, 6 x 3/8
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 950743 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM #8 x 1/2
21 Washer, Repair
489083 .030 Thickness
489091 .045 Thickness
489029 .060 Thickness
23 998729 Support
24 489064 Screw, Mach 8-32 x 5/32 (2)
25 857547 Tie, Cable
26 951281 Cover, Terminal
27 488234 Screw, 8-32 x 1/4
Page 3
Page 4

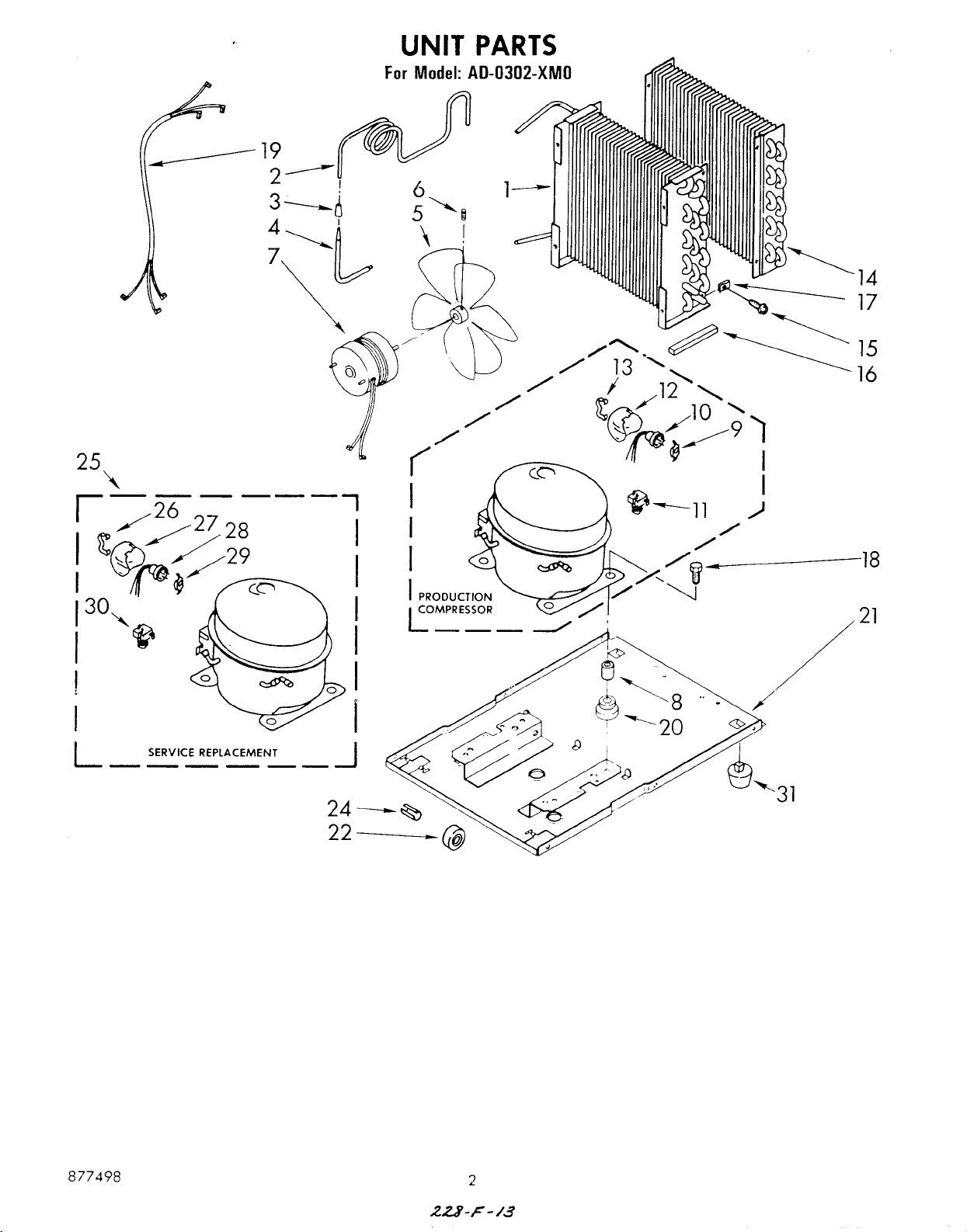

1 949908 Condenser
2 948795 Tube, Restrictor (Length 31.75")
3 474013 Strainer, Tube
4 949896 Tube, Outlet (Includes Item 3)
5 948756 Blade, Fan (Includes Item 6)
6 488035 Setscrew, 1/4 x 5/16
7 949635 Motor, Fan
8 646498 Sleeve (4)
9 950061 Spring, Overload
10 950057 Overload, Protector
11 950058 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 998746 Evaporator
15 487910 Screw, 8 x 3/8 (4)
16 998867 Seal
17 486197 Nut, Speed (4)
18 488400 Screw, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 646499 Grommet (4)
21 949976 Base
22 998726 Roller (2)
24 489015 Pin, Roller (2)
25 876684 Compressor, Service (Complete Assembly)
26 831282 Retainer, Cover
27 865068 Cover, Terminal
28 876686 Overload
29 549086 Spring, Overload
30 876689 Relay
31 998725 Glide (2)
Page 5
Page 6

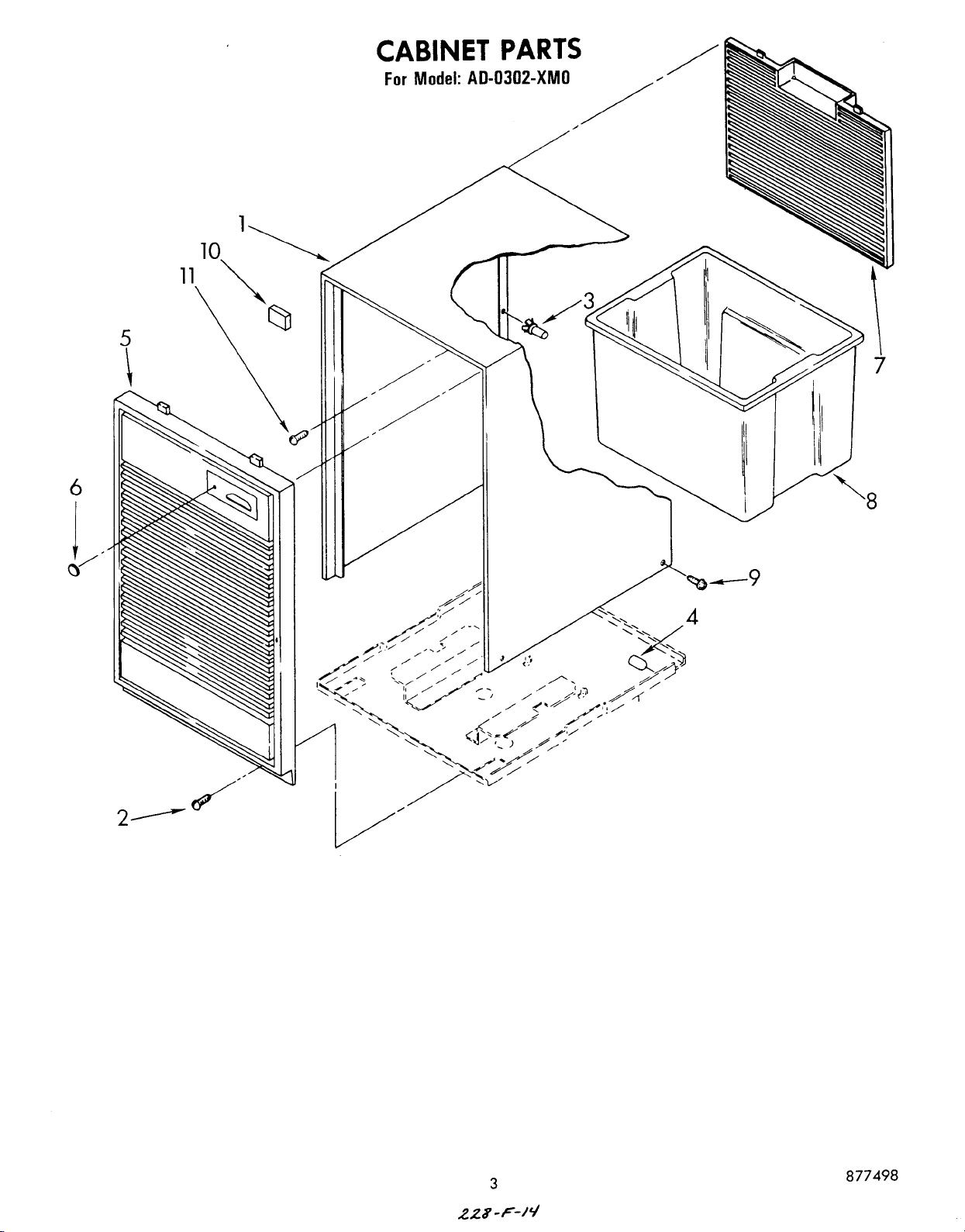

1 998821 Cabinet
2 489104 Screw, #8-32 x 3/8 (2)
3 998813 Retainer Pin (Rear Grille)
4 998869 Cap, Thread
5 950269 Grille, Front
6 998846 Lens, Light
7 998832 Grille, Rear
8 998801 Pan, Condensate
9 489016 Screw, TC 8-32 x 3/8 (6)
10 948584 Spacer, Grille
11 489073 Screw, 8 x 3/8 (2)
Parts Not Illustrated And Optional Parts (Not Included)
646753 Cap, Condensate Pan
647338 Washer, Cap (Condensate Pan)
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
799351 Thinner (1 Gal.)
484310 Kit, Evaporator Repair (Aluminum Epoxy)
505168 Tape, No Drip
978025 Valve, Access (1/4")
978026 Valve, Access (5/16")
978027 Valve, Access (3/8")
978028 Valve, Access (1/2")
978029 Valve, Access (5/8")
978030 Valve, Access (3/4")
Literature Parts
951037 Sheet, Service Tech
998866 Guide, Use & Care
950298 Guide, Consumer Buy
877498 List, Repair Parts
