Page 1
Page 2

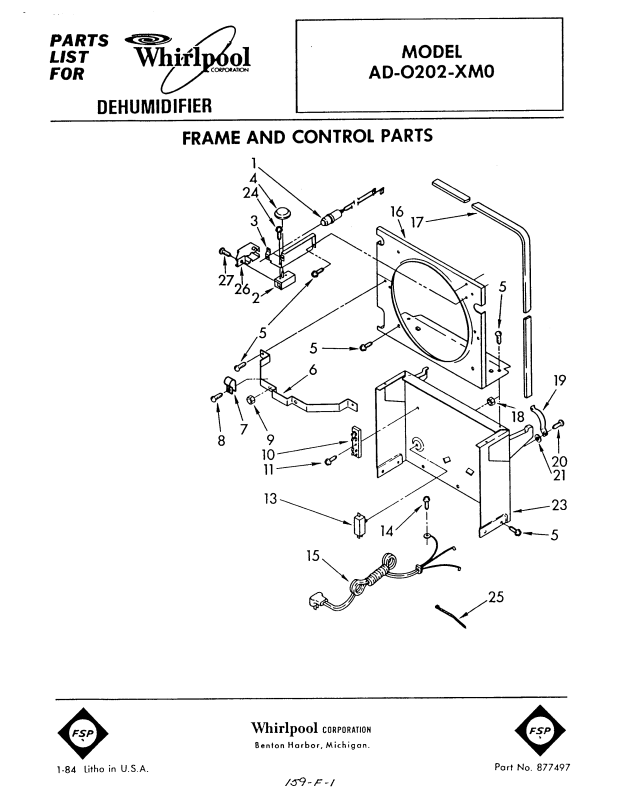

1 950747 Light Assembly
2 951280 Humidistat Assembly
3 951285 Bracket, Humidistat & Light Assembly
4 998859 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8A
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube
8 487910 Screw, 8 x 1/2A
9 488130 Nut, Fan Motor 8-32 (2)
10 950431 Board, Terminal
11 488966 Screw, 6 x 3/8
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 950743 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM8 x 1/2A
21 Washer (Repair)
489083 .030 Thickness
489091 .045 Thickness
489029 .060 Thickness
23 998729 Support
24 489064 Screw, Mach 8-32 x 5/32 (2)
25 857547 Tie, Cable
26 951281 Cover, Terminal
27 488234 Screw, 8-32 x 1/4
Page 3
Page 4

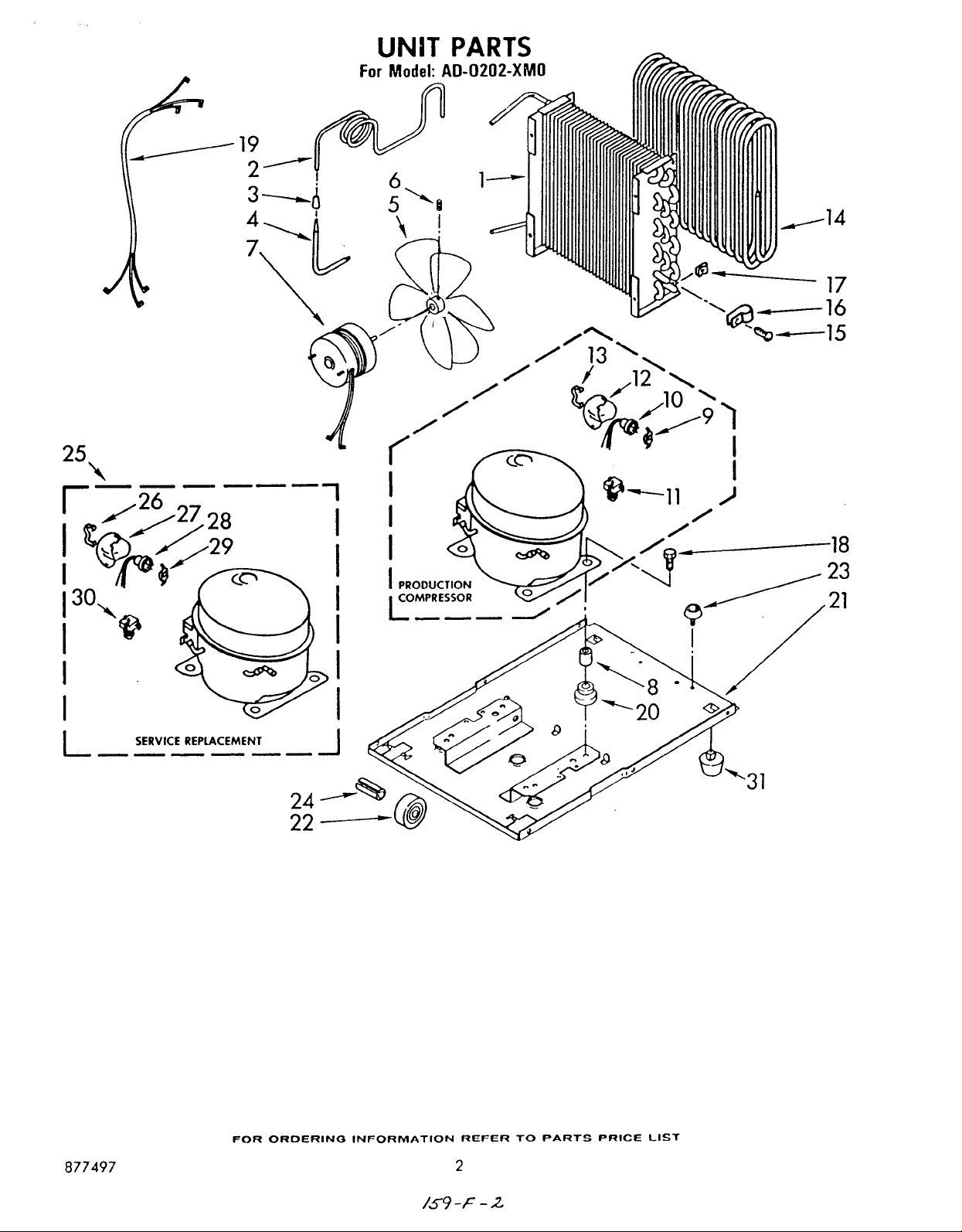

1 949921 Condenser
2 998759 Tube, Restrictor (Length 35.0")
3 474013 Strainer, Outlet Tube
4 949896 Tube, Outlet (Includes Item 3)
5 948756 Blade, Fan (Includes Item 6)
6 488035 Setscrew, 1/4 x 5/16
7 949636 Motor, Fan
8 646498 Sleeve (4)
9 950061 Spring, Overload
10 950234 Overload, Protector
11 950235 Relay, Start
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 996604 Evaporator
15 487910 Screw, SM#8 x 1/2 (4)
16 488946 Clamp, Tube (4)
17 486197 Nut, Speed (4)
18 488400 Screw, 1/4-28 x 1" (4)
19 484136 Harness, Wire
20 646499 Grommet (4)
21 949976 Base
22 998726 Roller (2)
23 472577 Foot (2)
24 489015 Roll Pin (2)
25 485781 Compressor, Service (Complete Assembly)
26 831282 Retainer, Cover
27 865068 Cover, Terminal
28 876690 Overload, Protector
29 549086 Spring, Overload
30 876693 Relay
31 998725 Glide (2)
Page 5
Page 6

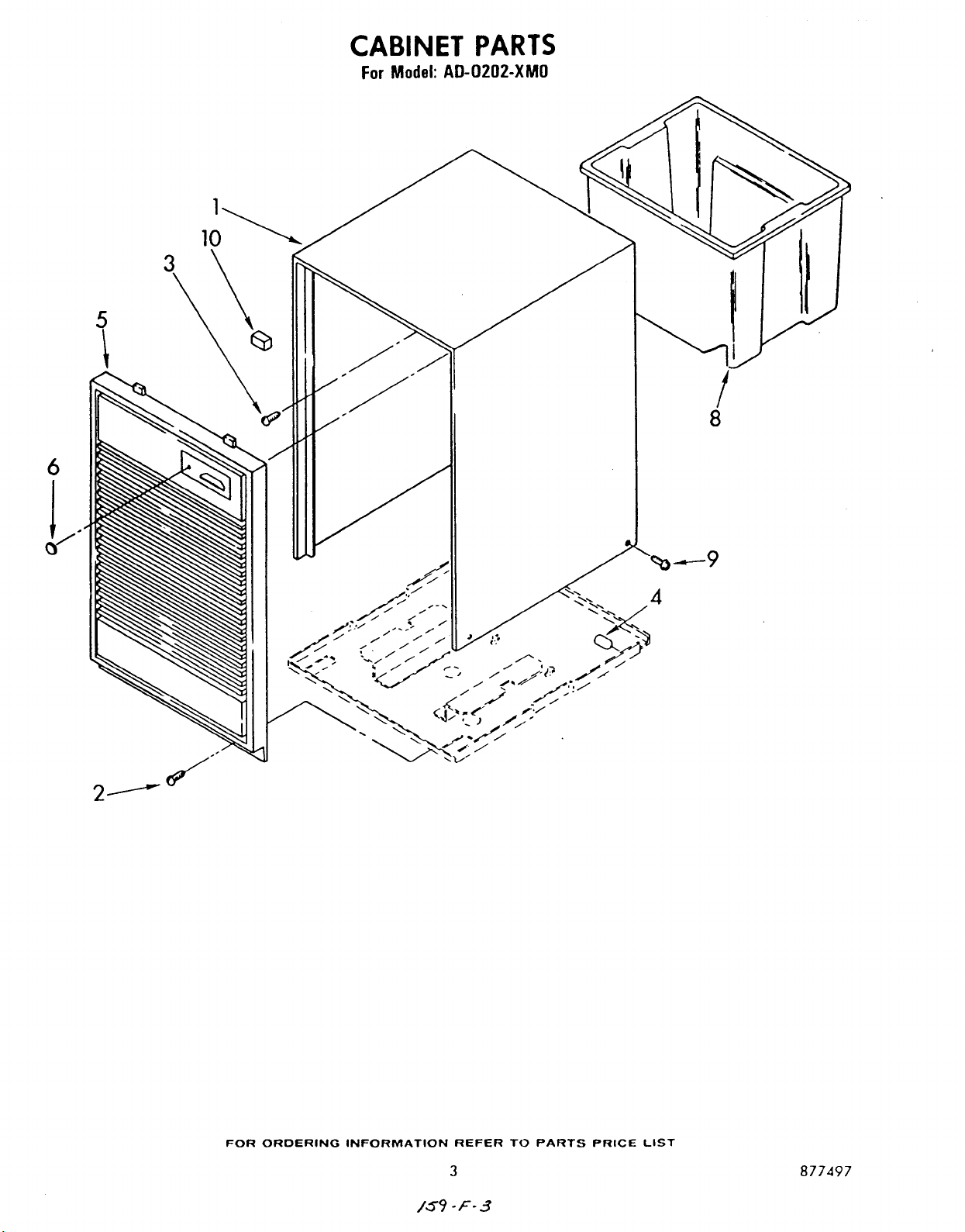

1 998821 Cabinet
2 489104 Screw, 8-32 x 3/8 (2)
3 489073 Screw, SM #8 x 3/8 (2)
4 998869 Thread Cap
5 950269 Grille, Front
6 998846 Light Lens
8 998801 Pan, Condensate
9 489016 Screw, TC 8-32 x 3/8 (4)
10 948584 Spacer, Block
Parts Not Illustrated And Optional Parts (Not Included)
646753 Cup, Condensate Pan
647338 Washer, Condensate Pan
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
799351 Thinner (1 Gal.)
484310 Kit, Evaporator Repair (Aluminum Epoxy)
505168 Tape, No Drip
978025 Valve, Access (1/4")
978026 Valve, Access (5/16")
978027 Valve, Access (3/8")
978028 Valve, Access (1/2")
978029 Valve, Access (5/8")
978030 Valve, Access (3/4")
LITERATURE PARTS
950270 Guide, Consumer Buy
951036 Sheet, Service Tech
998866 Guide, Use & Care
877497 List, Repair Parts
