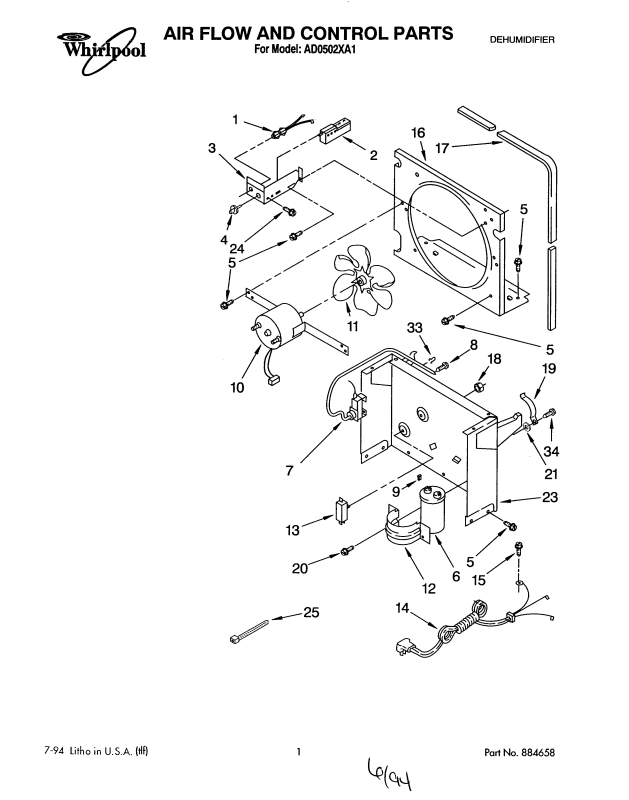

1 1164804 Light, Indicator
2 1162578 Humidistat, Control
3 951284 Bracket, Control
4 1162670 Knob, Control
5 488480 Screw, S.M. #8 x 1/2
6 1162586 Capacitor
7 1164779 Thermostat, De-icer
8 488234 Screw, 8-32 x 1/4 (2)
9 1159258 Cap, Tab
10 1164813 Motor, Fan
11 949645 Blade, Fan
12 1163801 Bracket, Cap Mtg
13 999747 Switch, Water Level Control
14 1166038 Cord, Appliance
15 487871 Screw, 8-32 x 3/8
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488480 Screw,8x1/2 (2)
21 Washer, Repair
489083 .030 Thickness
489029 .062 Thickness
489091 .091 Thickness
23 1163800 Support
24 1162513 Screw (2)
25 602851 Tie, Cable (2)
33 471363 Clamp, Tube To Evaporator Mtg (2)
34 488248 Screw,8x3/4A
Page 3
Page 4

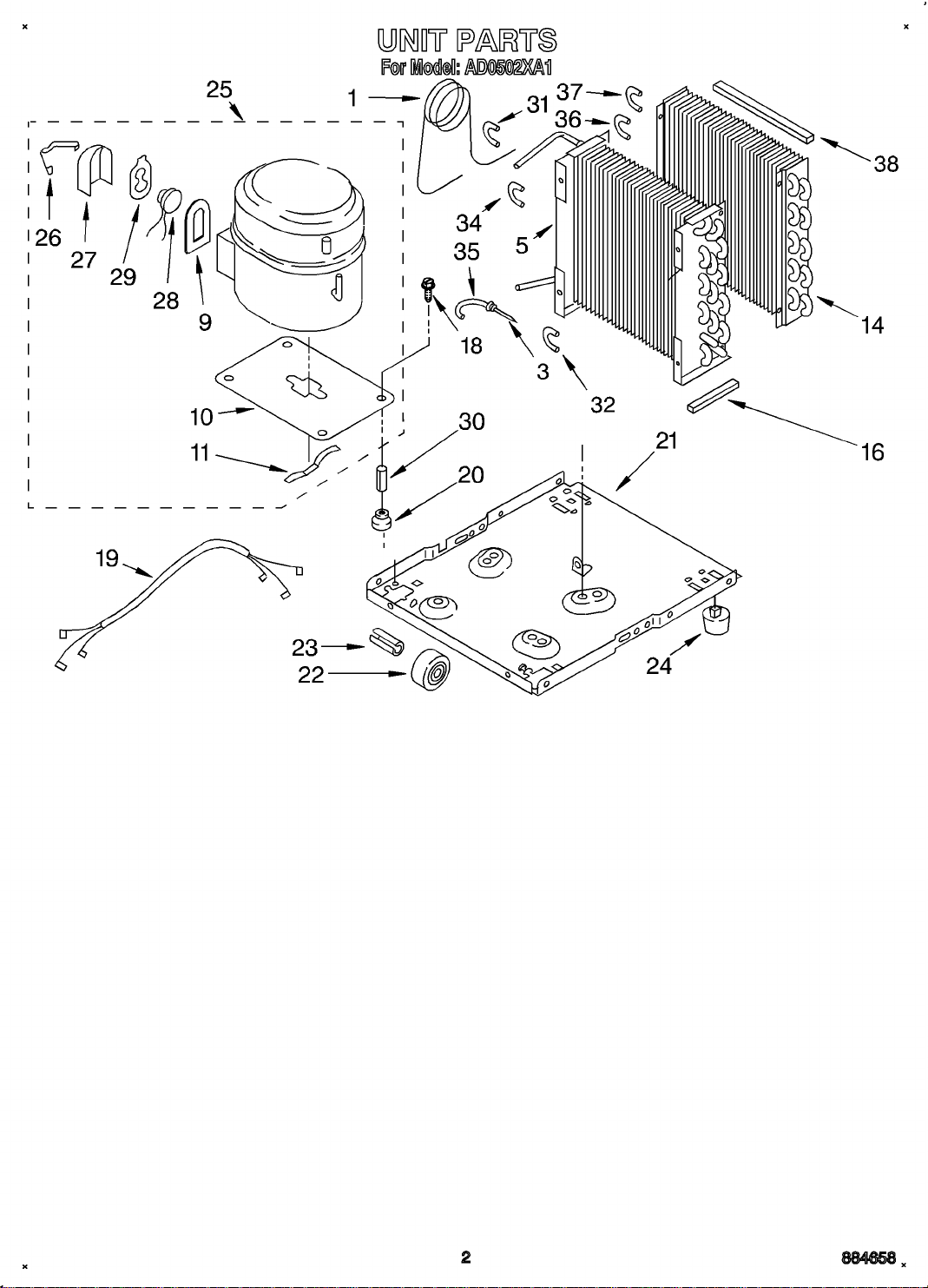

1 1162154 Tube, Restrictor (36.0" Length)
3 1162526 Strainer
5 1162646 Condenser
9 798471 Gasket, Cover (Service Only)
10 876944 Plate, Compressor Mounting (Service Only)
11 643179 Spring, Mounting (Service Only)
14 1161199 Evaporator
16 1162372 Seal
18 1166034 Bolt, 1/4 x 1
19 1164819 Harness, Wire
20 646499 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin (2)
24 951886 Glide (2)
25 1162658 Compressor, (Complete Assembly)
26 Retainer, Cover
950056 Production
832008 Service
27 Cover, Terminal
950055 Production
798470 Service
28 Overload
951312 Production
798479 Service
29 Spring, Overload
950061 Production
798469 Service
30 646498 Sleeve (4)
31 1158407 Bend, Return (1)
32 708532 Bend, Return (4)
34 708531 Bend, Return (8)
35 1156533 Bend, Return (1)
36 855199 Bend, Return (8)
37 854624 Bend, Return (1)
38 1162348 Seal, Evap. Top
REFRIGERANT CHARGE 9.25 OZ.
Page 5
Page 6

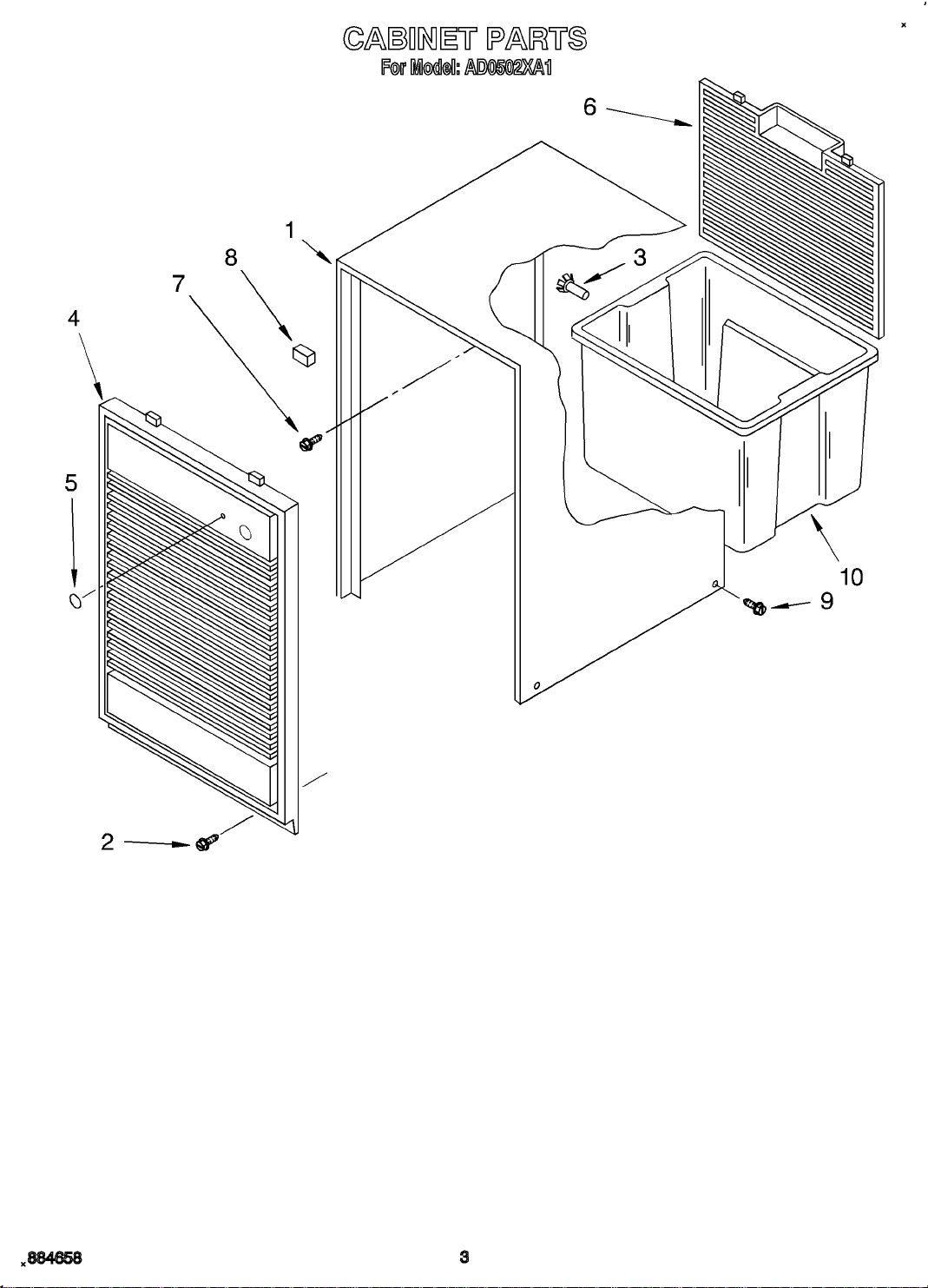

1 1164265 Cabinet
2 1166018 Screw (2)
3 998813 Retainer, Pin (2) (Rear Grille)
4 1164263 Grille, Front (Includes,Illus. No.11.)
5 998846 Lens, Light
6 1164264 Grille, Rear
7 489073 Screw, SM #8 x 3/8
8 948584 Spacer, Grille
9 1166017 Screw (4)
10 1164771 Pan, Condensate
LITERATURE PARTS
LIT1166026 Tech Sheet
LIT1166025 Wiring Diagram
LIT1164267 Guide, Use and Care
Following Parts Not Illustrated and Optional Parts Not Included
485426 Lacquer, Starlight Gray (1/2 Pt. Uncut)
646753 Cap, Condensate Pan
647338 Washer, Condensate Pan
799833 Epoxy, Tube (Aluminum Repair)
505168 Tape, No Drip (30') Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring Access valve (20 - Pack)
212643 Permagum, Sealer (4 - 12" Strips)
