Whirlpool 3967363 User Manual
3967363
Compact Two Speed
Automatic Washers
A Note to You...........................................2
Washer Safety..........................................3
Parts and Features..................................4
Washer Installation..................................5
Using Your Washer..................................7
Starting your washer.............................7
Loading .................................................9
Selecting a cycle and time....................9
Drain and spin.....................................10

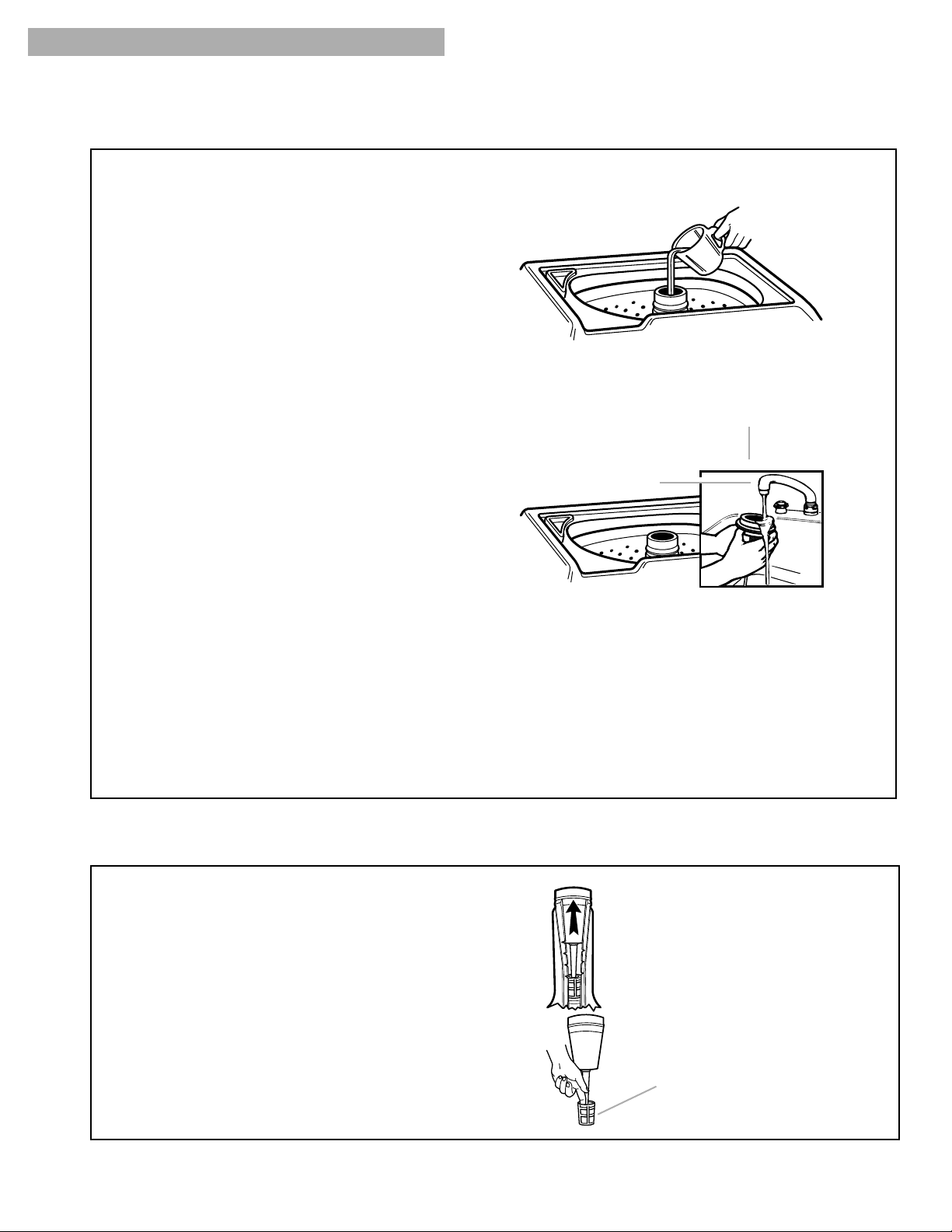

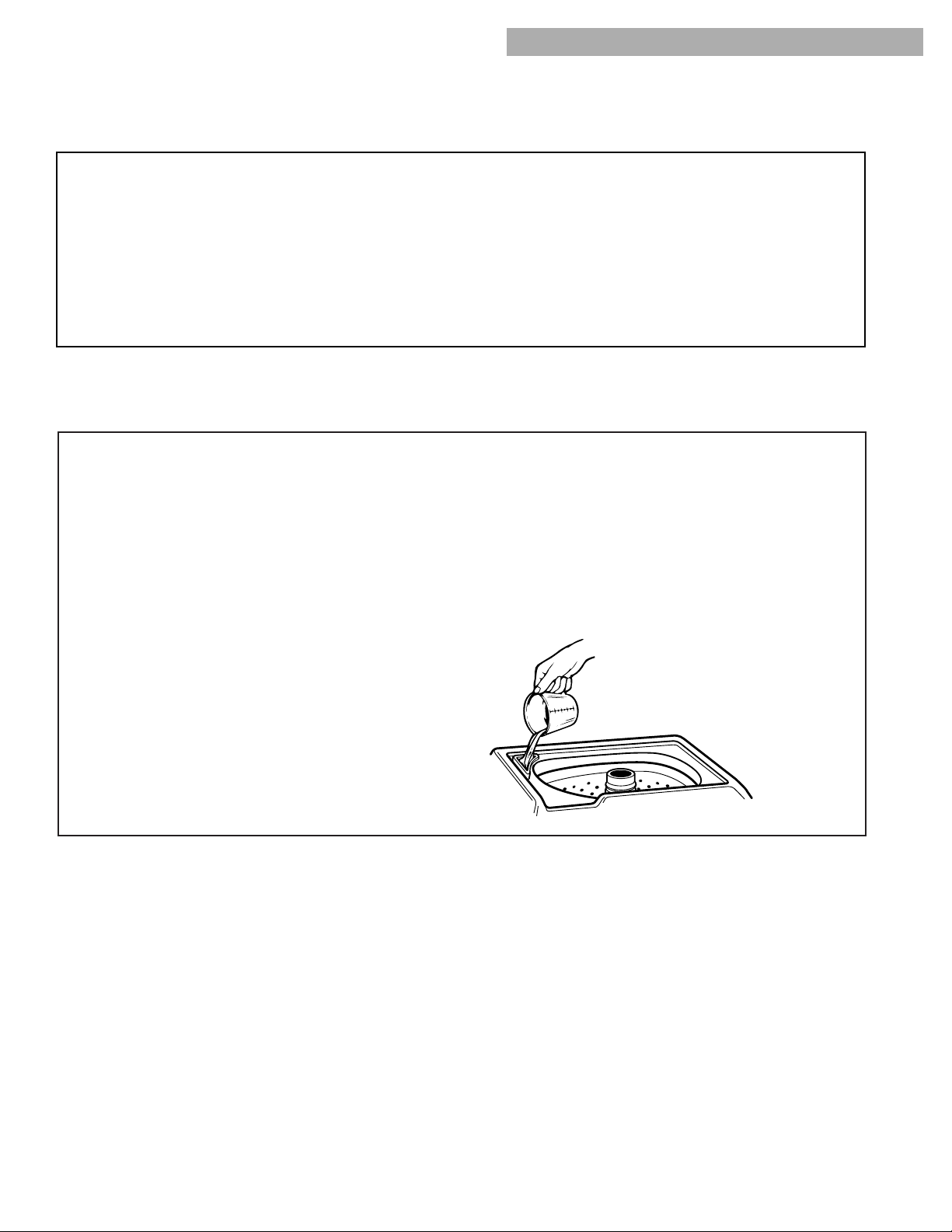

Using the liquid chlorine
bleach dispenser.................................11
Using the liquid fabric
softener dispenser...............................11
Manual clean lint filter.........................12
Understanding normal washer sounds
..12

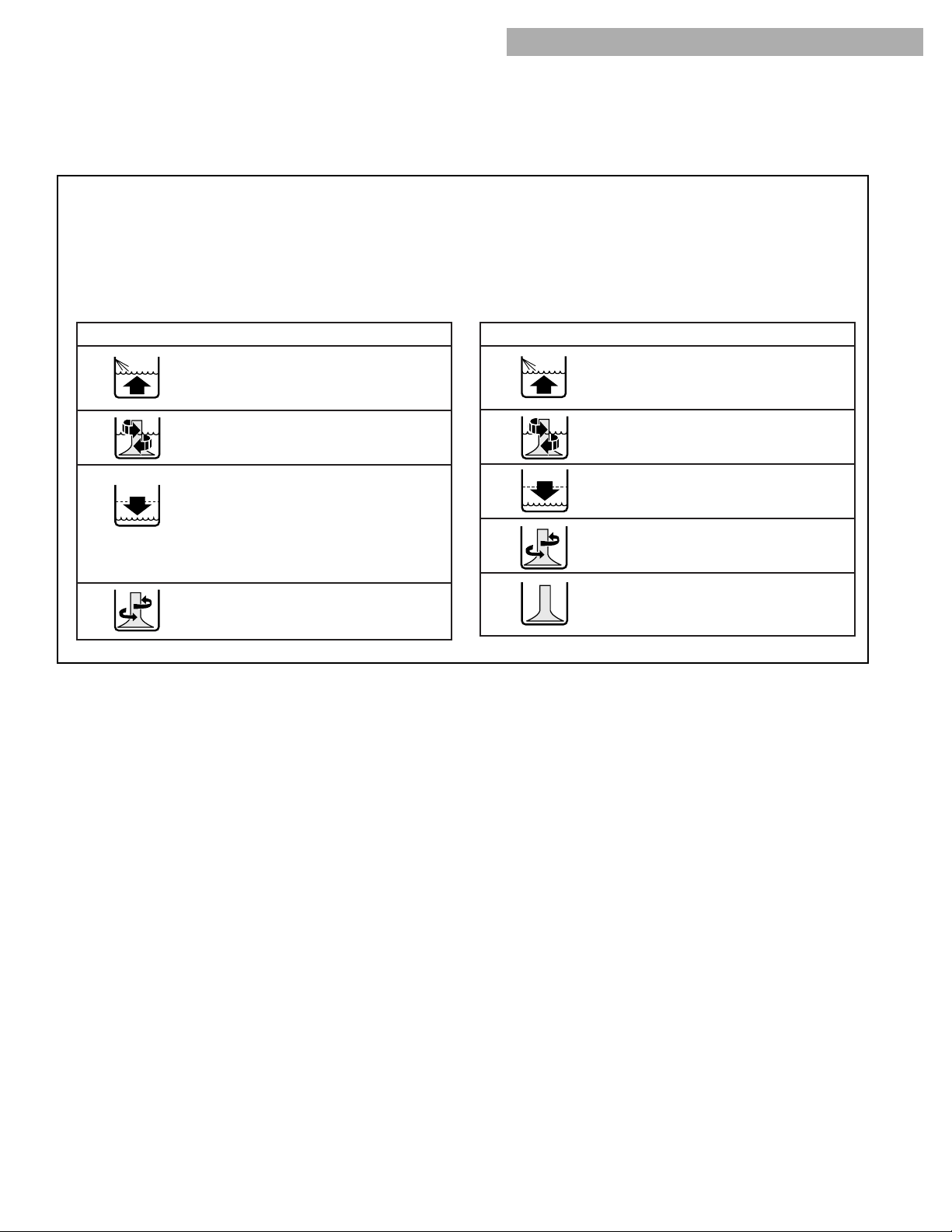

Understanding what happens in
each cycle...........................................13
Caring For Your Washer .......................14
Troubleshooting ....................................15
Assistance or Service...........................18
Warranty.................................................20
In the U.S.A. for assistance or service,
call the Consumer Assistance Center:
1-800-253-1301
In Canada, for assistance or service,
see page 19.
2
A NOTE TO YOU
Thank you for buying a WHIRLPOOL*appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make
your life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care
Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely.
Please read it carefully.
Also, complete and mail the Ownership Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance, you need to know your complete model number
and serial number. You can find this information on the
model and serial number plate (see the diagram on the
“Parts and Features” page for the location of the plate).
Please record the purchase date of your appliance and
your dealer's name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference.
Model Number ______________________________
Serial Number________________________________
Purchase Date ______________________________
Dealer Name ________________________________
Dealer Address ______________________________
Dealer Phone ________________________________
1-800-253-1301
Our Consumer Assistance Center number is toll free.
In Canada, for assistance or service, see the “Assistance or Service” section.
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
In Canada, visit our Web site at www.whirlpool.com/canada
3
WASHER SAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury to persons when using the
washer, follow basic precautions, including the following:
•
Read all instructions before using the
washer.
•
Do not wash articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry cleaning
solvents, other flammable or explosive
substances as they give off vapors that
could ignite or explode.
•
Do not add gasoline, dry cleaning
solvents, or other flammable or explosive
substances to the wash water. These
substances give off vapors that could
ignite or explode.
•
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been
used for such a period, before using the
washing machine, turn on all hot water
faucets and let the water flow from each
for several minutes. This will release any
accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open
flame during this time.
SAVE THESE INSTRUCTIONS
•
Do not allow children to play on or in the
washer. Close supervision of children is
necessary when the washer is used near
children.
•
Before the washer is removed from service
or discarded, remove the lid.
•
Do not reach into the washer if the basket
or agitator is moving.
•
Do not install or store the washer where it
will be exposed to the weather.
•
Do not tamper with controls.
•
Do not repair or replace any part of the
washer or attempt any servicing unless
specifically recommended in this Use and
Care Guide or in published user-repair
instructions that you understand and have
the skills to carry out.
•
See Installation Instructions for grounding
requirements.
You will be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
4

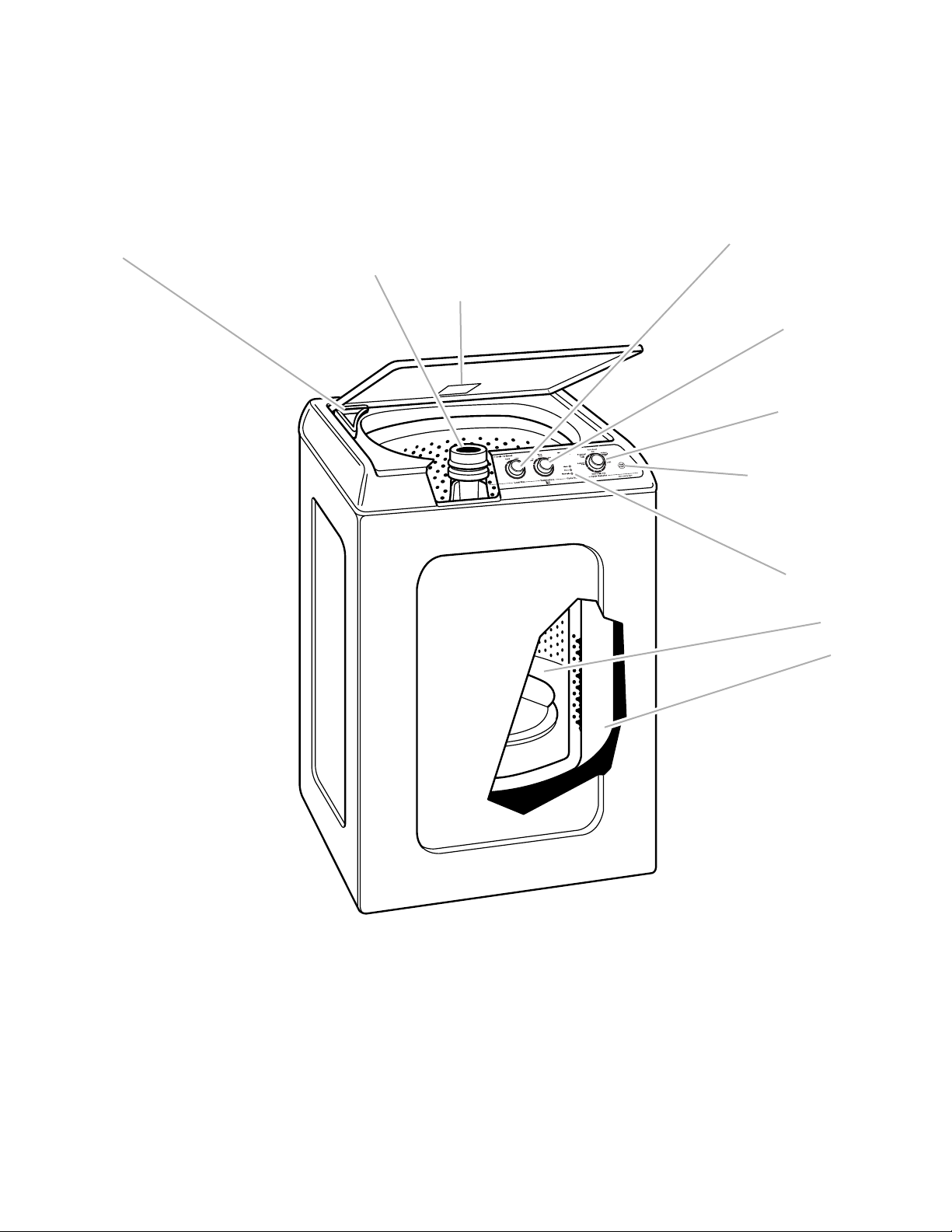

PARTS AND FEATURES
The drawings in this book may vary from your washer model. They are designed to show the different
features of all models covered by this book. Your model may not include all features.
Liquid chlorine
bleach dispenser
(p. 11)
Liquid fabric
softener dispenser
(p. 11)
Model and serial
number plate
(p. 2)
Temperature
selector
(p. 8)
Cycle
selector knob
(p. 8)
Start/Pause
button
(p. 8)
Cycle status
lights
(p. 8)
Basket
Tub
Manual clean
lint filter
(attached to
bottom of fabric
softener dispenser
– not shown)
(p. 12)
Load size selector
(p. 7)
To order Stand Kits:
• Washer Stand Kit for permanent installation,
secured to the wall:
–#49971, White
–#49978, Almond
NOTE: The wall must be strong enough to support
the washer’s weight. (Do not use in mobile homes.)
5
Hose connector
Locking collar
Water flow
button
Faucet adapter

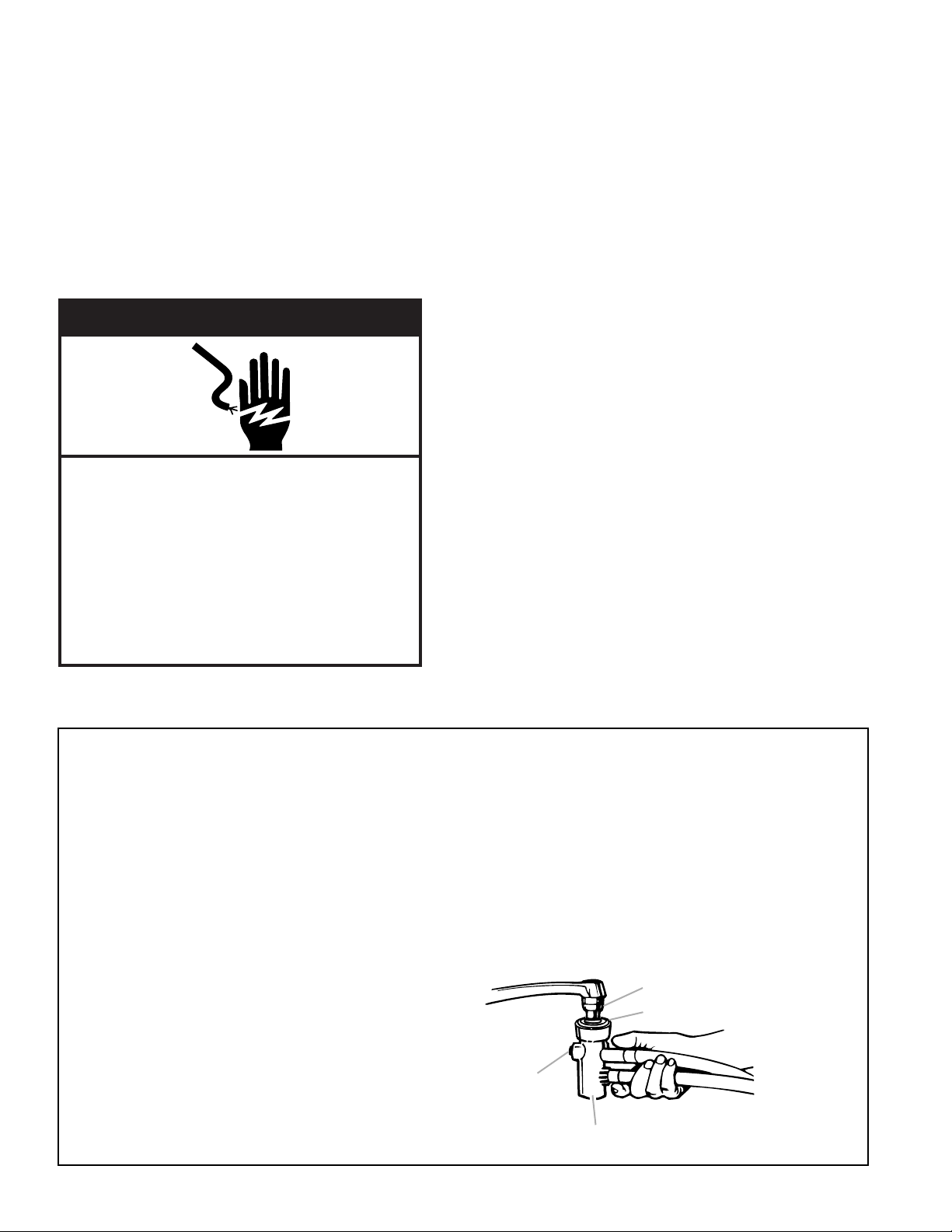

PORTABLE ONE-FAUCET CONNECTION
NOTE: Make sure the lid is closed before
moving the washer.
•
Use the hose connector provided with the washer
for a one-faucet connection.
•
To convert Model LCR5232H for portable installation, call our Consumer Assistance Center number
at 1-800-253-1301 from anywhere in the U.S.A. In
Canada, call your authorized Whirlpool dealer.
•
Set the Temperature Selector to Warm/Warm or
to Warm/Cold (depending on your model).
•
Attach the hose connector to the faucet adapter
by pulling down on the locking collar while lifting
up on the connector until it snaps into place.
•
Slowly turn the water faucet on all the way.
•
Pull the electrical power cord from the storage
area in the back of the washer. Plug the power
cord into a 3 prong grounded outlet.
Water temperature adjustment:
Adjust water temperature as follows:
•
Wash Water: Adjust faucets for wash water
temperature prior to the fill for wash.
•
Rinse Water: Adjust faucets for temperature prior
to fill for rinse.
NOTE: Always use cold rinse water for permanent
press fabrics.
WASHER INSTALLATION
ELECTRICAL REQUIREMENTS
wWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electrical shock.
A 120-volt, 60-Hz., AC-only, 15-or 20-ampere fused
electrical supply is required. Time-delay fuse or circuit
breaker is recommended.
GROUNDING INSTRUCTIONS
For your personal safety, this washer must be
grounded. Check with a qualified electrician or
serviceman if you are in doubt as to whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
• Model LCR7244H comes equipped for portable installation.
• Model LCR5232H comes equipped for permanent installation.
Both models can be converted to portable or permanent installation. In the U.S.A., call our Consumer
Assistance Center and in Canada, contact your authorized Whirlpool dealer to obtain kit numbers.
6

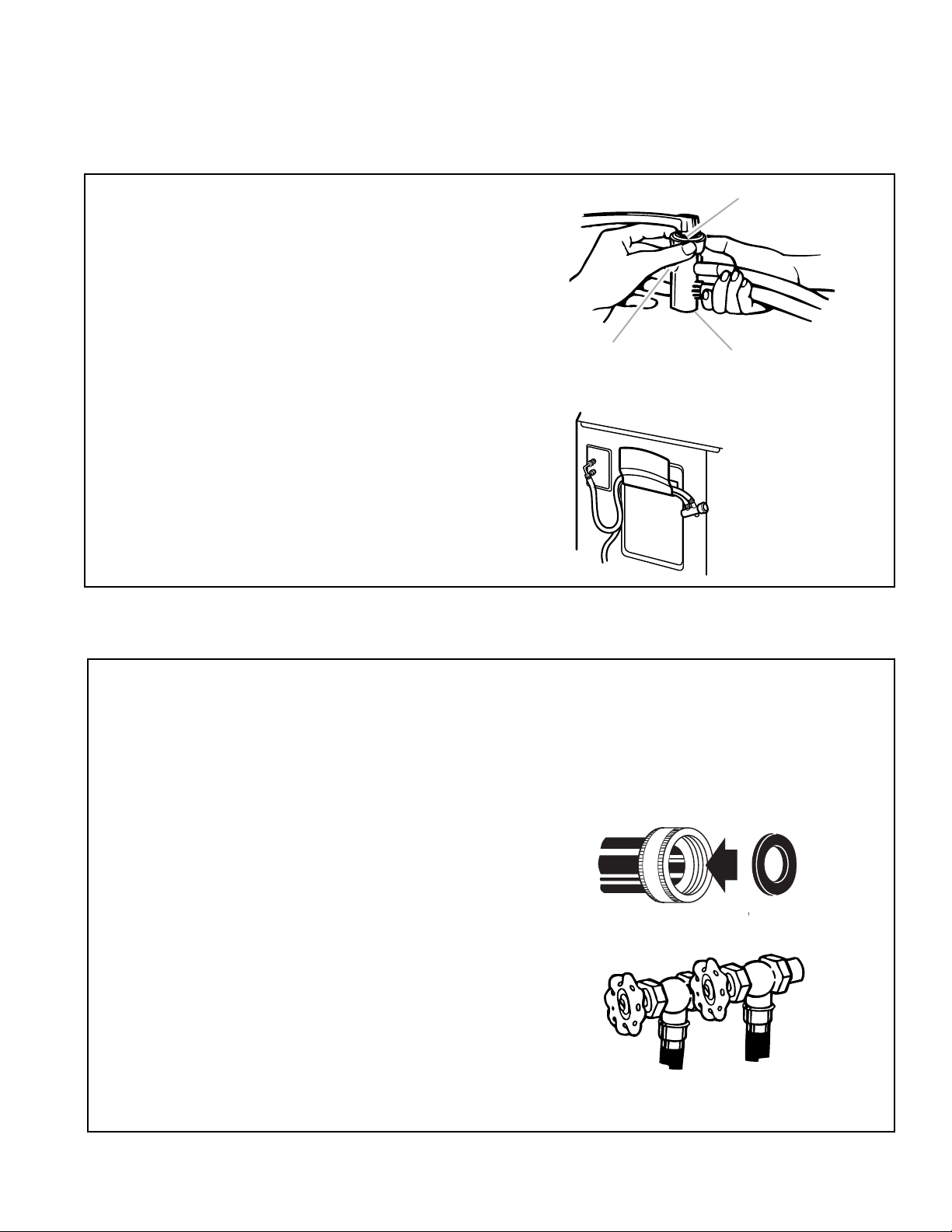

PORTABLE ONE-FAUCET CONNECTION (CONT.)
To disconnect washer:
•
Unplug the electrical power cord and put it back in
its storage area.
•
Turn the water faucet off.
•
Press the red water flow button to release the
water pressure.
•
Move the locking collar down and pull the hose
connector down to disengage from the faucet
adapter.
•
Drain water from the hoses through the hose
connector.
•
Hang the hoses on the storage rack.
PORTABLE TWO-FAUCET CONNECTIONS
IMPORTANT: Whirlpool Service Kit #3430190 must
be purchased when using a portable model on a
two-faucet connection.
NOTE: Make sure the lid is closed before
moving the washer.
If you have two separate water connections, your
washer can be connected to both the hot and cold
water faucets. For more information about a service
kit, contact your authorized Whirlpool dealer.
To connect the washer:
•
Insert one new, flat washer into each end of the
water inlet hoses. Check that washers are firmly
seated in the couplings.
•
Connect the hot and cold water inlet hoses to the
hot and cold faucets.
•
Secure the drain hose to the sink or standpipe.
•
Slowly turn the water faucets on all the way.
•
Plug the power cord into a 3 prong grounded
outlet.
To disconnect the washer:
•
Unplug power cord and return it to the storage
area.
•
Turn water faucets off.
•
Disconnect the drain and water supply hoses.
Hang them on the storage rack.
Locking collar
Water flow button
Hose connector
C
H
WASHER INSTALLATION
WASHER
COUPLING
Coupling
Washer
7
7
STARTING YOUR WASHER
1. Measure detergent and pour it into the
washer. If desired, add powdered or liquid colorsafe bleach.
2. Drop a sorted load of clothes loosely into your
washer.
•
Load evenly to maintain washer balance.
•
Mix large and small items. See the “Loading”
section.
3. (OPTIONAL STEP) If desired, add measured
liquid chlorine bleach to the bleach dispenser.
See “Using the liquid chlorine bleach dispenser”
later in this section.
4. (OPTIONAL STEP) If desired, pour measured
liquid fabric softener into the liquid fabric
softener dispenser. See “Using the liquid fabric
softener dispenser” later in this section.”
5. Close the washer lid.
6. Set the Load Size selector to the correct setting
for your wash load and the type of fabric being
washed.
•
Choose a water level that allows the load to
move freely. See “Loading” later in this
section.
•
To change the setting after the water has
started filling, turn the selector to a different
setting.
wWARNING
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion,
or fire.
USING YOUR WASHER
continued on next page
8
8

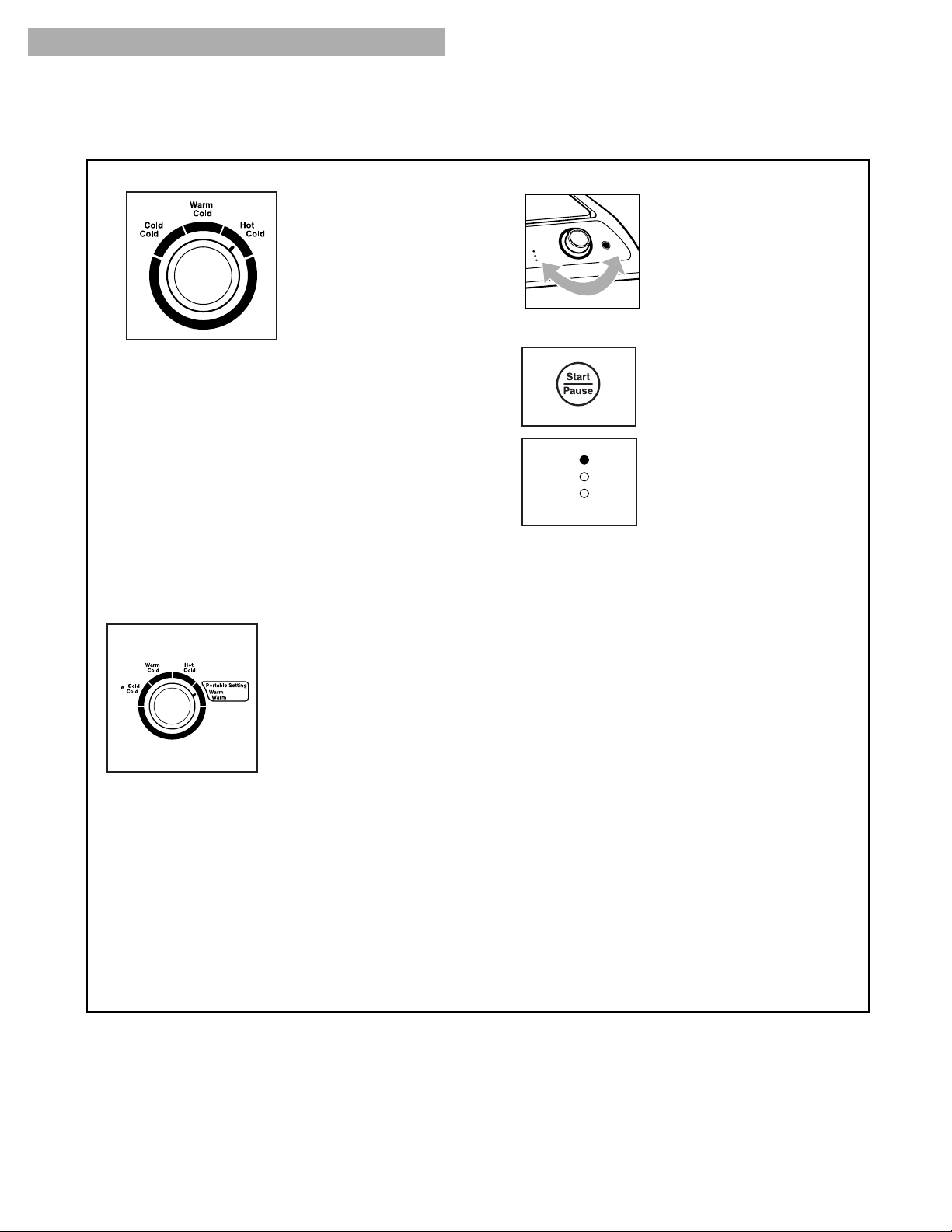

USING YOUR WASHER
STARTING YOUR WASHER (CONT.)
7. Select a wash/rinse temperature with the
Temperature selector.
Match the water
temperature with the type
of fabric and soils being
washed.
•
Use the warmest water safe for fabric.
•
Follow garment label instructions.
HOT: 111°F (44°C) or above.
– Whites and pastels.
– Heavy and greasy soils.
WARM: 90 to 110°F (32 to 43°C).
– Bright colors.
– Moderate to light soils.
COLD: 70 to 90°F (21 to 32°C).
– Colors that bleed or fade.
– Light soils.
For portable use:
•
Set the Temperature selector to Warm/Warm or
Warm/Cold (depending on
your model).
•
To select a different wash
or rinse water temperature,
adjust the faucet prior to
the wash or rinse water fill.
8. Turn the Cycle Selector knob to the desired
wash cycle. See “Selecting a
cycle and time” later in this
section.
9. Push the Start/Pause button to start the
washer.
NOTE: The cycle selector
knob will NOT rotate as the
cycle progresses.
•
The Cycle Status lights
indicate the operation being
performed within the cycle.
•
When the cycle is complete, all Cycle Status lights
will be Off.
NOTE: To change a cycle selection after the
cycle has started, turn the Cycle Control knob
to Off, then select a new cycle.
Stopping/restarting your washer
•
To pause the washer at any time, push the
Start/Pause button. The Cycle Status lights will
flash while the washer cycle is paused. If left in
pause, the cycle will terminate after 2 hours.
•
To restart the washer, close the lid (if necessary)
and push the Start/Pause button.
•
To cancel cycle, turn Cycle Selector knob to Off.
Cycle Status lights will turn off.
NOTE: When lid is opened during a cycle, all
machine operation will stop. Cycle will resume when
lid is closed.
Cycle Status
Wash
Rinse
Final Spin
9
9
USING YOUR WASHER
LOADING
Loading suggestions
For these suggested full-sized loads, set the Load Size selector to the highest load size setting.
COMPACT WASHERS
Permanent Press
6 shirts
– or –
2 double sheets
2 pillowcases
– or –
2 single sheets
2 pillowcases
Knits
2 slacks
2 shirts
– or –
3 dresses
Delicates
1 camisole
2 slips
2 panties
2 bras
1 nightie
1 half slip
Mixed Load
1 pair slacks
2 pillowcases
2 shirts
1 T-shirt
Heavy Work Clothes
3 work shirts
2 pair pants
Towels
9 bath towels
– or –
6 bath towels
3 hand towels
6 wash cloths
SELECTING A CYCLE AND TIME
This section illustrates and describes the wash
cycles you can select with the Cycle Selector knob.
Use this information to help you make the best cycle
selections for your wash loads. Each cycle is
designed for different types of fabrics and soil levels.
Depending on your model, your washer may have
either seven or five cycles.
The cycle descriptions which follow apply to both
models, except where noted.
•
Refer to page 13 to help you understand what
happens during a wash cycle.
NOTE: During Spin, the washer will cycle On and Off.
This is normal.
10
SELECTING A CYCLE AND TIME (CONT.)

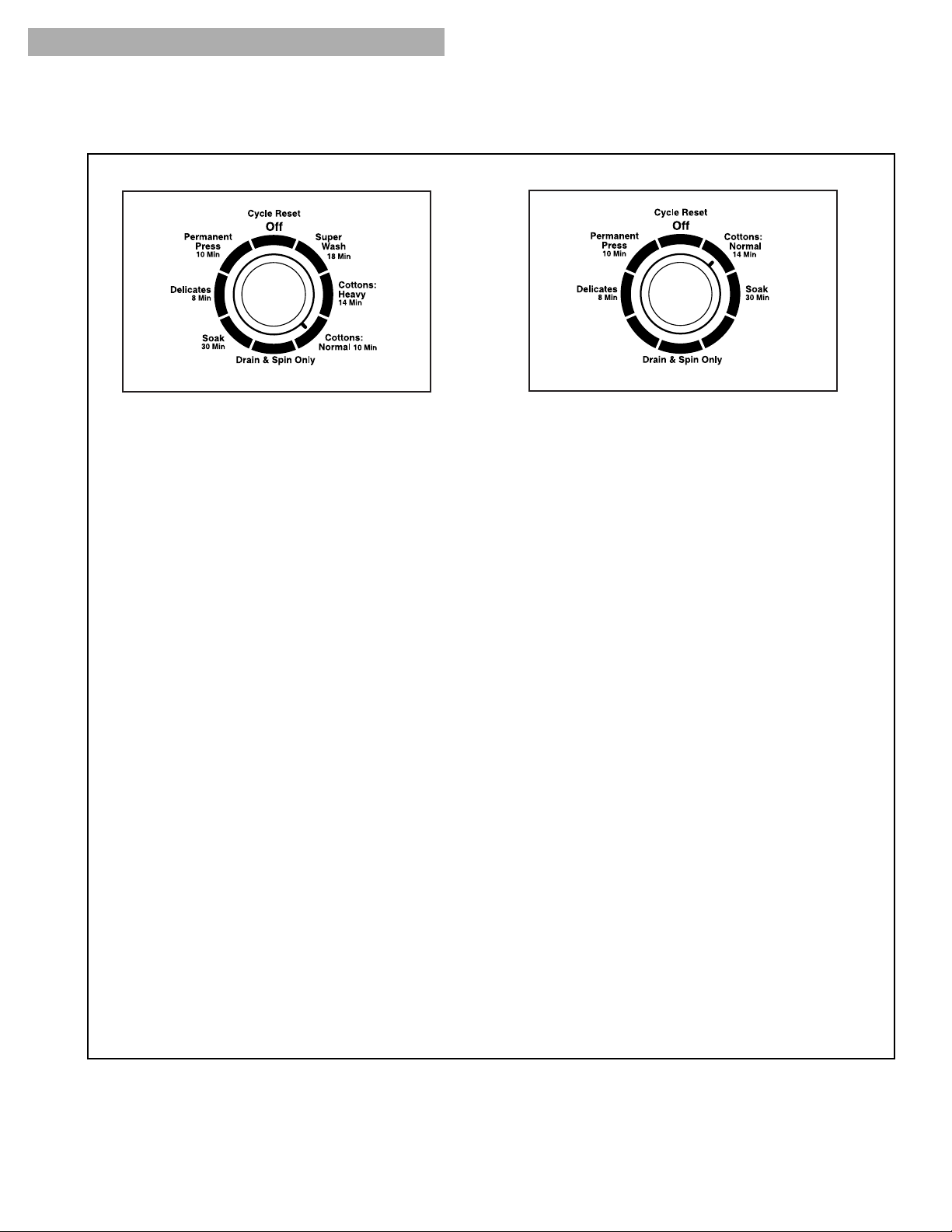

7-cycle model 5-cycle model
Delicates Cycle
The Delicates cycle features a reduced agitation
speed for gentle soil removal, and low spin speeds to
reduce wrinkling. Use this 8-minute cycle to clean
delicate items and washable knits that are lightly to
moderately soiled.
Soak Cycle
The Soak cycle features brief periods of agitation and
soak time. Use this 30-minute cycle to remove heavy
soils and stains that need pretreatment. Use warm
water when soaking laundry. (Hot water can set
stains.) Use the amount of detergent or presoak
additive recommended by manufacturer.
•
When soaking with color safe bleach, you may
extend the soak cycle for up to 2 hours by lifting the
lid.
•
When using liquid chlorine bleach, never extend the
soak cycle. Prolonged soaking with liquid chlorine
bleach may damage clothes.
•
When soaking with detergent alone, soak for at least
5 minutes.
•
When the Soak cycle ends, add detergent and set a
new wash cycle.
NOTE: During the agitation and soak time, the wash
Cycle Status light will be on.
USING YOUR WASHER
DRAIN AND SPIN
The Drain and Spin Only cycle helps shorten drying
times for some heavy fabrics or special-care items
by removing excess water.
Super Wash cycle
(on 7-cycle models)
The Super Wash cycle (18 minutes) features an
extended wash time for washing heavily soiled
loads that need maximum soil removal.
For improved cleaning, use twice the amount of
detergent recommended for a wash cycle.
Cottons Cycle
The Cottons cycle features high agitation and
longer spin speeds to shorten drying time. Use this
cycle for cleaning sturdily-constructed cotton and
linen fabrics.
•
On the 7-cycle model, select 10 or 14 minutes
of wash time, depending on whether your wash
load is lightly or moderately soiled.
•
On the 5-cycle model, use 14 minutes of wash
time.
Permanent Press Cycle
The Permanent Press cycle features high
agitations, a cool-down rinse and low spin speeds
to reduce wrinkling. Use 10 minutes of wash time to
clean permanent press and some synthetic fabrics
that are moderately soiled.
1. For a drain and spin, turn the Cycle Selector
knob to the Drain and Spin Only setting.
2. Push the Start/Pause button. The washer drains,
then spins.
11
USING THE LIQUID FABRIC SOFTENER DISPENSER
1. Add detergent and load clothes into the basket.
2. Pour liquid fabric softener into the dispenser using
the amount recommended on the package. Avoid
dripping or spilling any fabric softener on the load.
3. Dilute fabric softener with warm water.
Fill dispenser with warm water until liquid reaches
the cross bar in the opening.
4. Start the washer. Diluted fabric softener will be
added to the load during the rinse cycle.
NOTE: Do not stop the washer before the rinse part
of the cycle begins. Staining can occur.
Cleaning the liquid fabric softener dispenser
Flush dispenser periodically with warm water, as
illustrated.
•
To remove the dispenser, grasp the top of the
dispenser with both hands. Squeeze and push
upward with thumbs to remove.
•
Clean dispenser by holding under water faucet.
Replace after cleaning.
NOTE: Do not wash clothes with this dispenser
removed. Do not add detergent or bleach to
dispenser. The dispenser is for liquid fabric
softener use only.
USING YOUR WASHER
Flush to clean
USING THE LIQUID CHLORINE BLEACH DISPENSER
Always measure liquid chlorine bleach. Do not
guess. Never use more than 1 cup (250 mL) for a
full load. Use less with smaller Load Size settings.
Follow manufacturer’s directions for safe use. Use a
cup with a pouring spout to avoid spilling.
1. Load the washer.
2. Pour measured liquid chlorine bleach carefully
into the dispenser. Do not let bleach splash,
drip, or run down into washer basket. Undiluted
bleach will damage any fabric it touches.
3. Start the washer. Bleach will be diluted and
dispensed automatically during wash part of
cycle.
NOTE: Do not use this dispenser to add powdered
chlorine or color safe bleach to your wash load. The
dispenser is for liquid chlorine bleach use only.
12
USING YOUR WASHER
Lint filter
MANUAL CLEAN LINT FILTER
Clean filter after every load.
1. To remove, grasp the top of the fabric softener
dispenser with both hands. Pull upward to
remove top of fabric softener dispenser. Lint filter
is attached to the end of the shaft.
2. Wash or wipe the lint filter clean.
3. Push lint filter and fabric softener dispenser firmly
back into agitator.
UNDERSTANDING NORMAL WASHER SOUNDS
Your new washer may make sounds that your old
one didn’t. Because the sounds are unfamiliar, you
may be concerned about them.
The following describes some of the normal sounds
you may hear and what causes them.
During Drain
The rate that water is drained from your washer
depends on your installation. If water is drained quickly
from the washer, you may hear air being pulled
through the pump. This happens during the end of
draining.
After Wash and Before Drain
When the cycle changes from washing to draining,
you may hear a noise as the gearcase shifts.
During Spin
The washer will cycle On and Off.
Loading...
