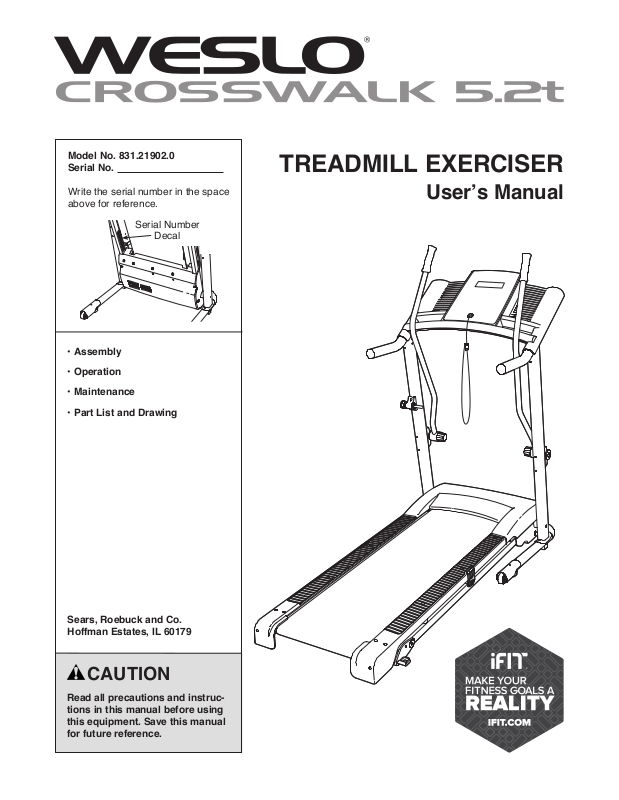

Weslo 831.21902.0 Owner's Manual
Model No. 831.21902.0
Serial No.
TREADMILL EXERCISER
Write the serial number in the space
above for reference.
Serial Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
User’s Manual
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
256841
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OPERATION AND ADJUSTMENT .............................................................12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING ......................................................................19

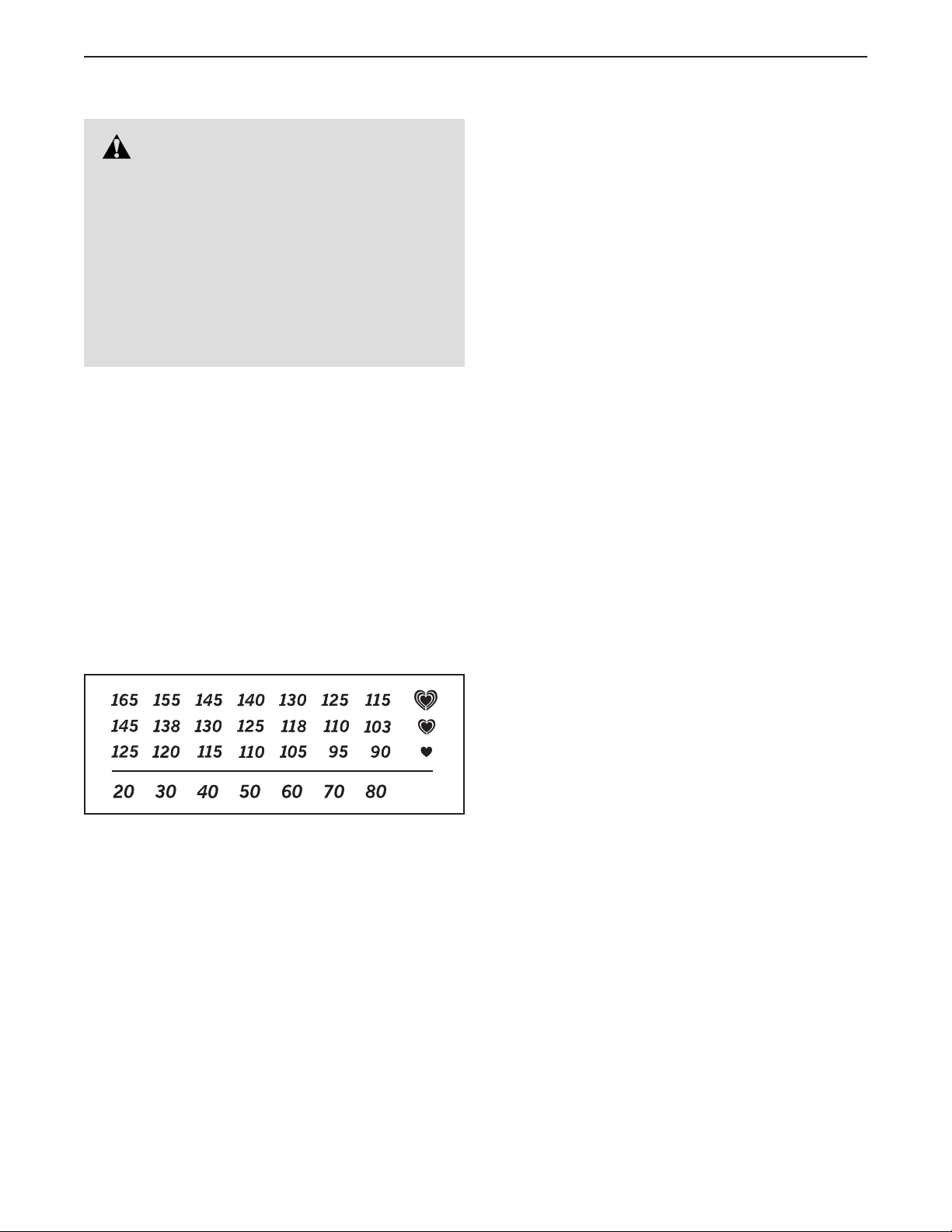

EXERCISE GUIDELINES ....................................................................22
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

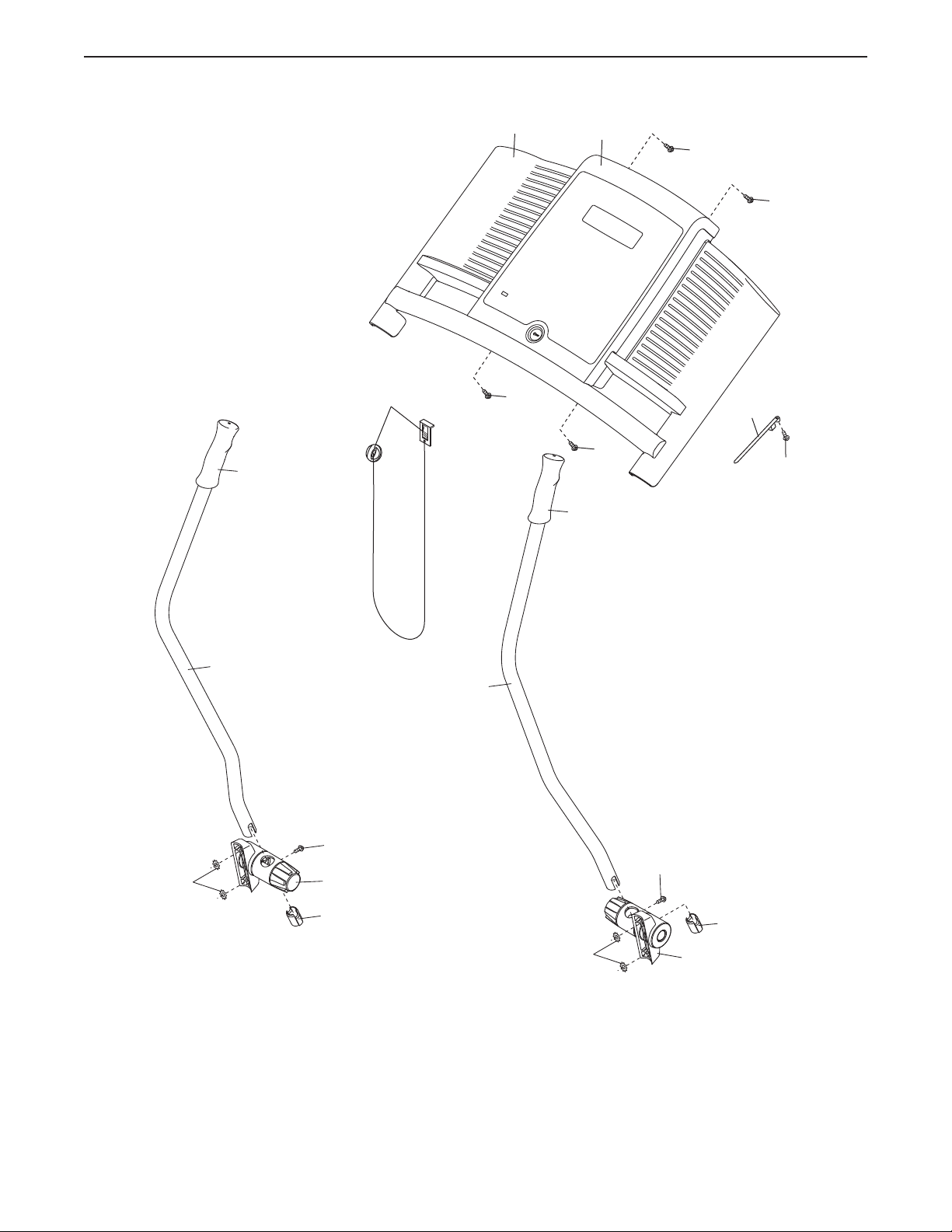

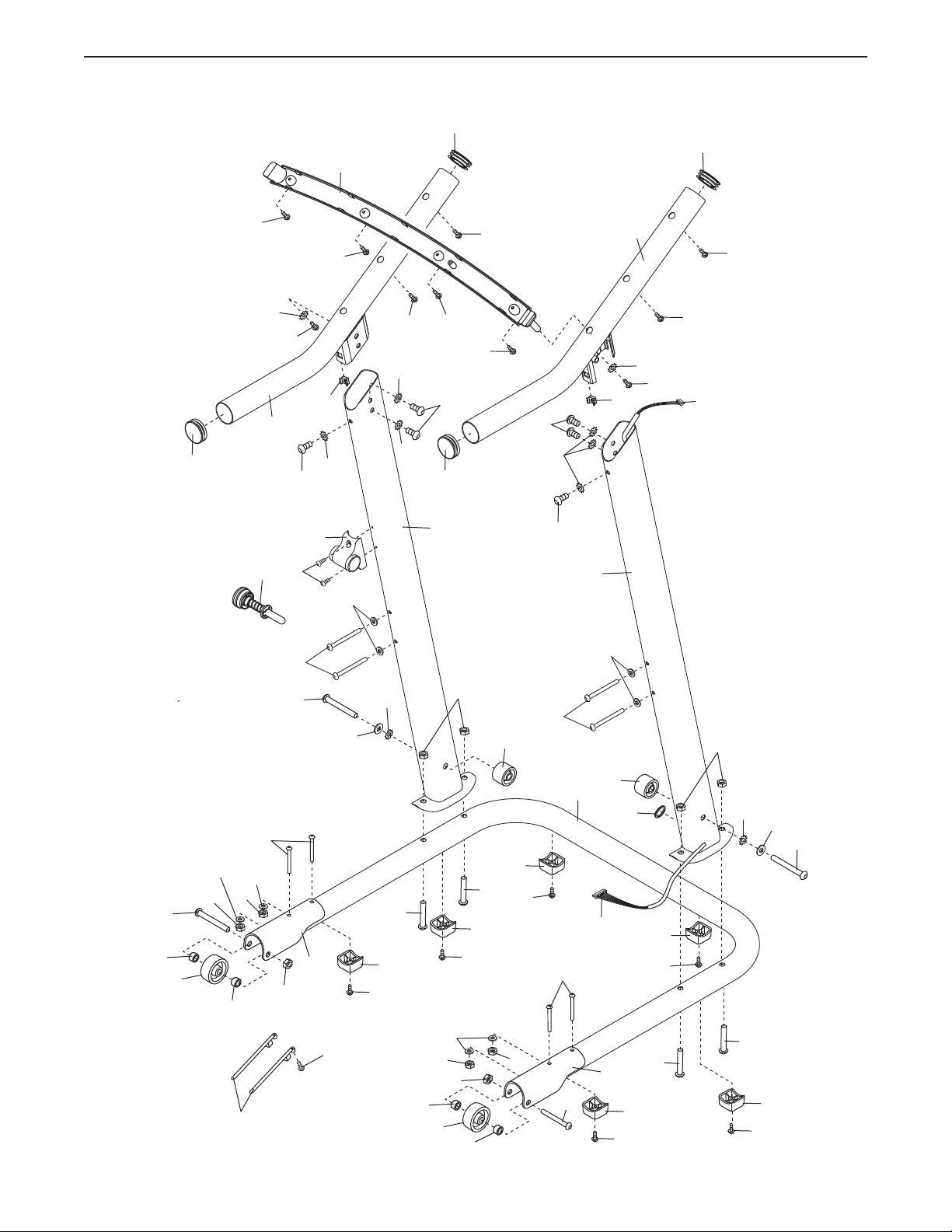

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
90-DAY FULL WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or illeg-
ible, call 1-866-699-3756 and request a free
replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. Sears assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
7. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
8. Keep children under age 12 and pets away
from the treadmill at all times.
9. The treadmill should be used only by per-
sons weighing 250 lbs. (113 kg) or less.
10. Never allow more than one person on the
treadmill at a time.
11. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.

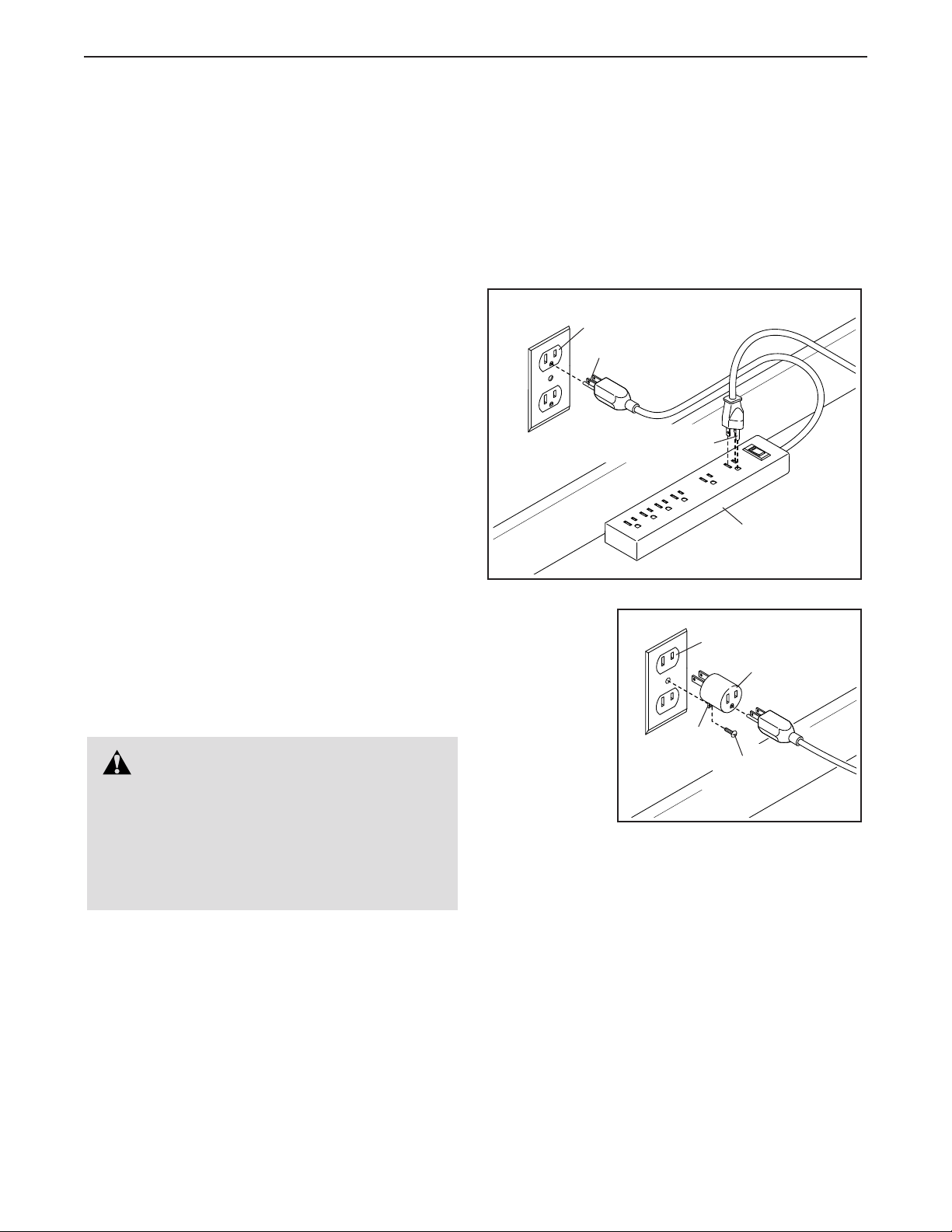

12. Plug the power cord into a surge suppressor
(not included), and plug the surge suppressor into an appropriate outlet (see page 12).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
13. Use only a surge suppressor that meets all of
the specifications described on page 12. To
purchase a surge suppressor, see your local
Sears store, call the telephone number on the
back cover of this manual, or see your local
electronics store.
14. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
15. Keep the power cord and the surge suppressor away from heated surfaces.
16. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 19 if the treadmill is not working properly.)
17. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 14).
18. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails or upper body arms while using the
treadmill.
19. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
3
20. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
21. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
22. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO FOLD AND MOVE THE
TREADMILL on page 18.) You must be able to
safely lift 45 lbs. (20 kg) to move the treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Never insert any object into any opening on
the treadmill.
25. Inspect and properly tighten all parts of the
treadmill regularly.
26. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new WESLO®
CROSSWALK 5.2T treadmill. The CROSSWALK 5.2T
treadmill offers a selection of features designed to
make your workouts at home more effective. And
when you’re not exercising, the unique treadmill can
be folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 5 in. (74 cm)
Handrail
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

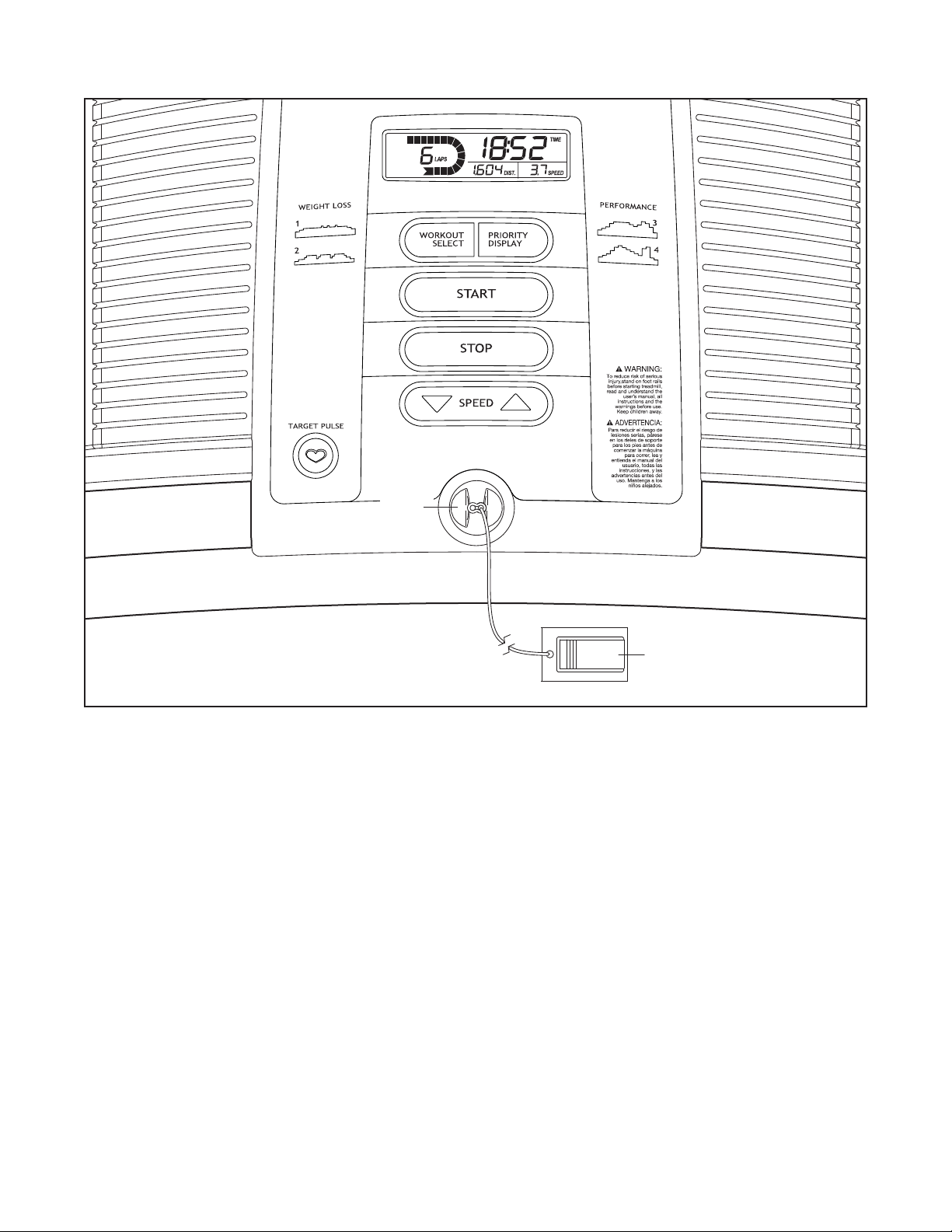

Console
Key/Clip
Storage Latch
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Motor Hood
Power Switch
Power Cord
Wheel
Platform Cushion
5
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. If it is not, call 1-866-699-3756. Extra parts may be included.
M5 Star
Washer (7)–2
M4.2 x 18mm
Screw (58)–2
M8 Star
Washer (5)–6
M4.2 x 19mm
Screw (10)–4
1/4" x 3 1/2" Screw (103)–4
Washer (9)–4
M10 Star
1/4" Flat Washer
(101)–4
M5 x 16mm
Screw (85)–2
M10 Nut (73)–4
M8 x 15mm
Bolt (8)–6
M10 x 58mm Bolt (2)–4
6
ASSEMBLY
• To watch an assembly
video, go to
http://productvideo.co/
assembly/kmart/weslo
or use your mobile
phone or smartphone to
read the QR code at the
right. A reader application such as ShopSavvy
must be installed on your mobile phone or
smartphone.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
needlenose pliers
To avoid damaging parts, do not use power tools.
1. Go to www.wesloservice.com/registration on
your computer and register your product.
•activatesyourwarranty
•savesyoutimeifyoueverneedtocontact
Customer Care
•allowsustonotifyyouofupgradesandoffers
Note: If you do not have Internet access, call
1-866-699-3756 and register your product.
1
7
2. With the help of a second person, carefully tip
the treadmill onto its side. Unfold the Frame (51)
away from the Uprights (53, 54).
Orient the Base (52) as shown. Attach the Base
to the Left Upright (53) and the Right Upright
(54) with four M10 x 58mm Bolts (2) and four
M10 Nuts (73). Start all four Nuts, and then
tighten them.
With the help of a second person, carefully tip
the treadmill so that the Base (52) is flat on the
floor.
2
51
2
54
73
52
2
3. Set the console assembly face down on a soft
surface to avoid scratching it.
Identify the Right Handrail (33), which has a
large hole in the location shown. Hold the Right
Handrail near the console assembly.
Next, insert the console wire into the large hole
in the side of the Right Handrail (33). Using
needlenose pliers, carefully grasp the connector
and pull the console wire out of the hole near the
bracket on the Right Handrail.
3
Console
Assembly
2
Console Wire
Bracket
73
53
Connector
Large
Hole
33
8

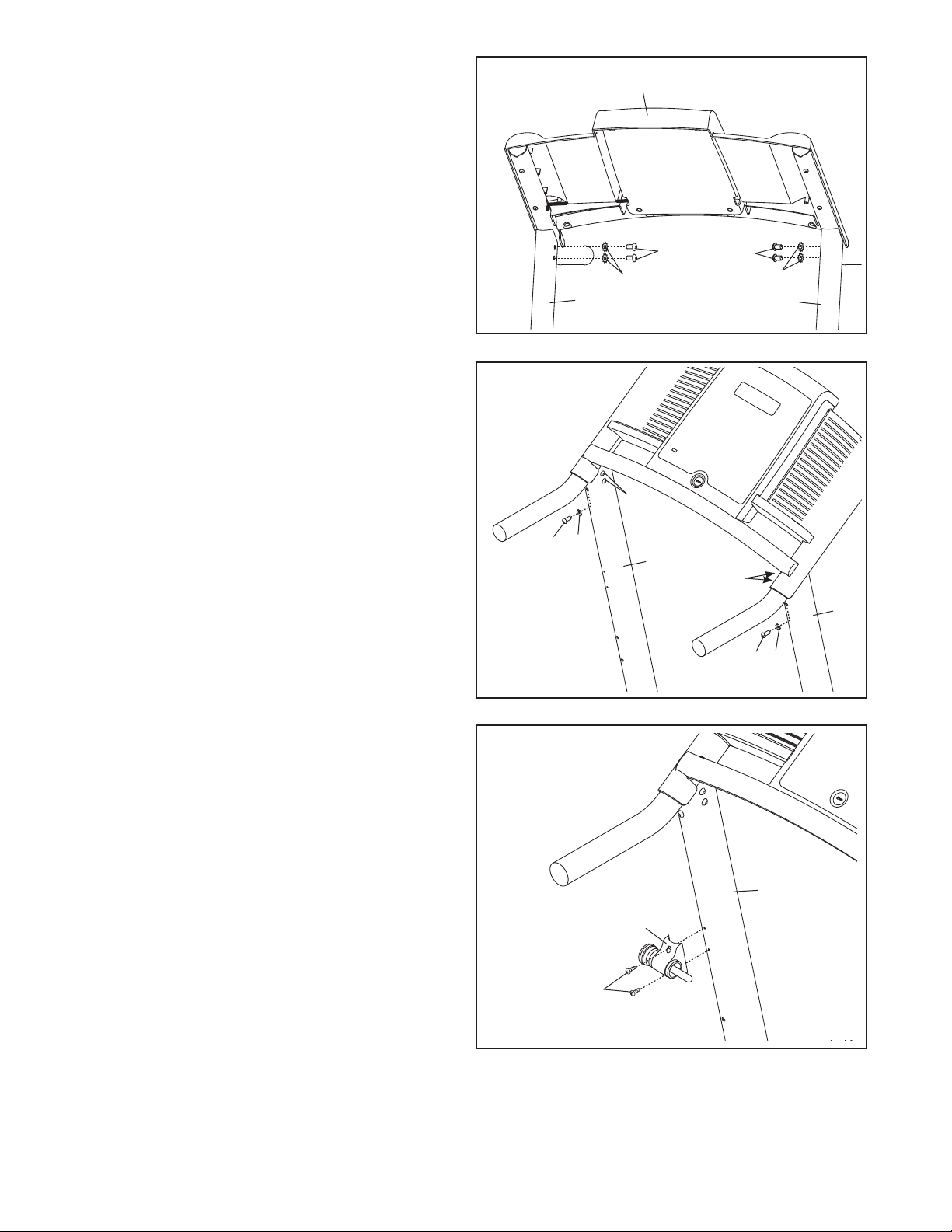

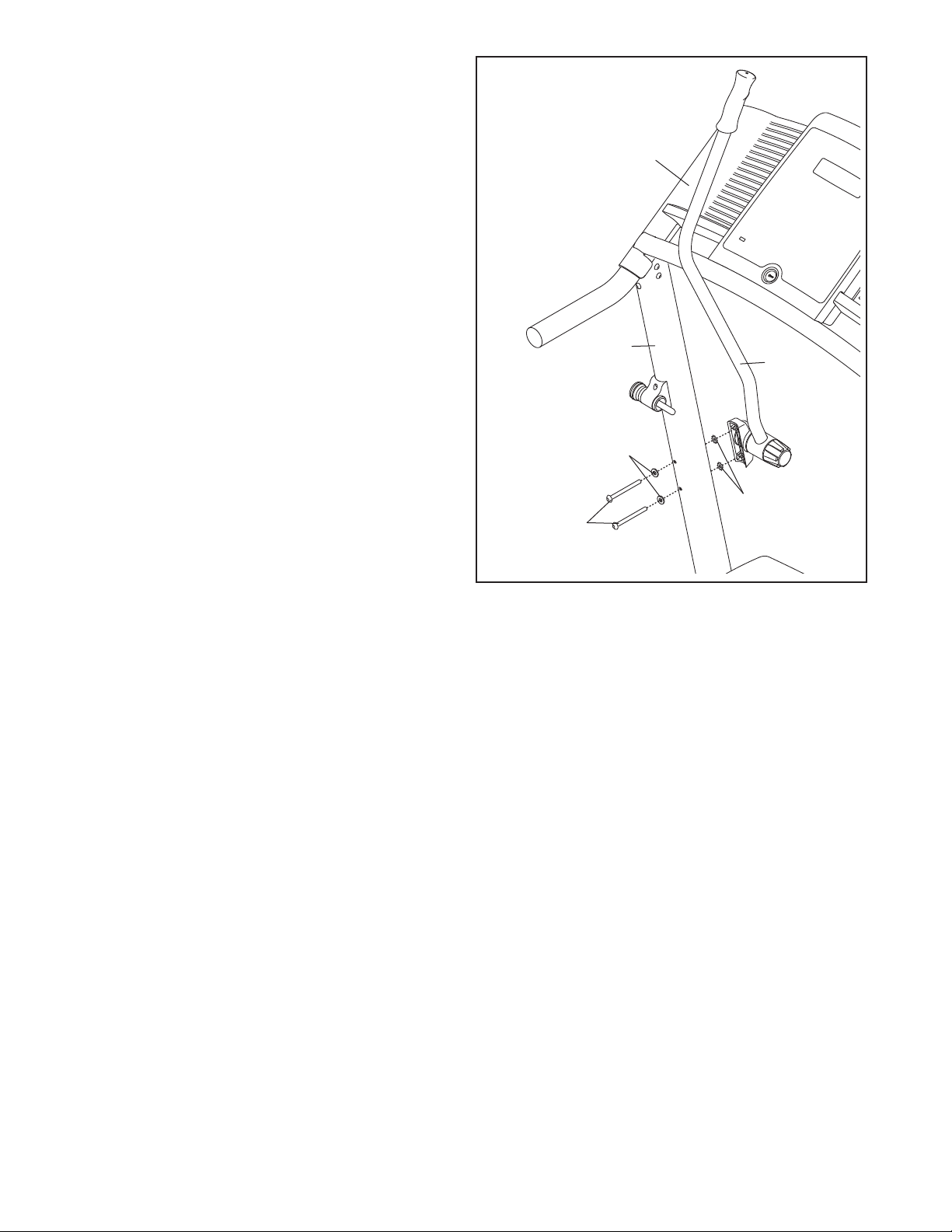

4. Set the Right Handrail (33) on the console
assembly. Make sure that the console wire is
not pinched. Remove the tie from the bracket
on the Right Handrail. If necessary, press the
Cage Nut (102) back into place.
Start an M5 x 16mm Screw (85) with an M5
Star Washer (7) into the Right Handrail, and
then start two M4.2 x 19mm Screws (10) into
the Right Handrail. Tighten the M5 x 16mm
Screw and then tighten the two M4.2 x 19mm
Screws; do not overtighten the Screws.
Attach the Left Handrail (not shown) to the
console assembly in the same way. Note:
There is no wire on the left side.
4
Assembly
Console
Console Wire
102
Bracket
Wire Tie
85
7
33
10

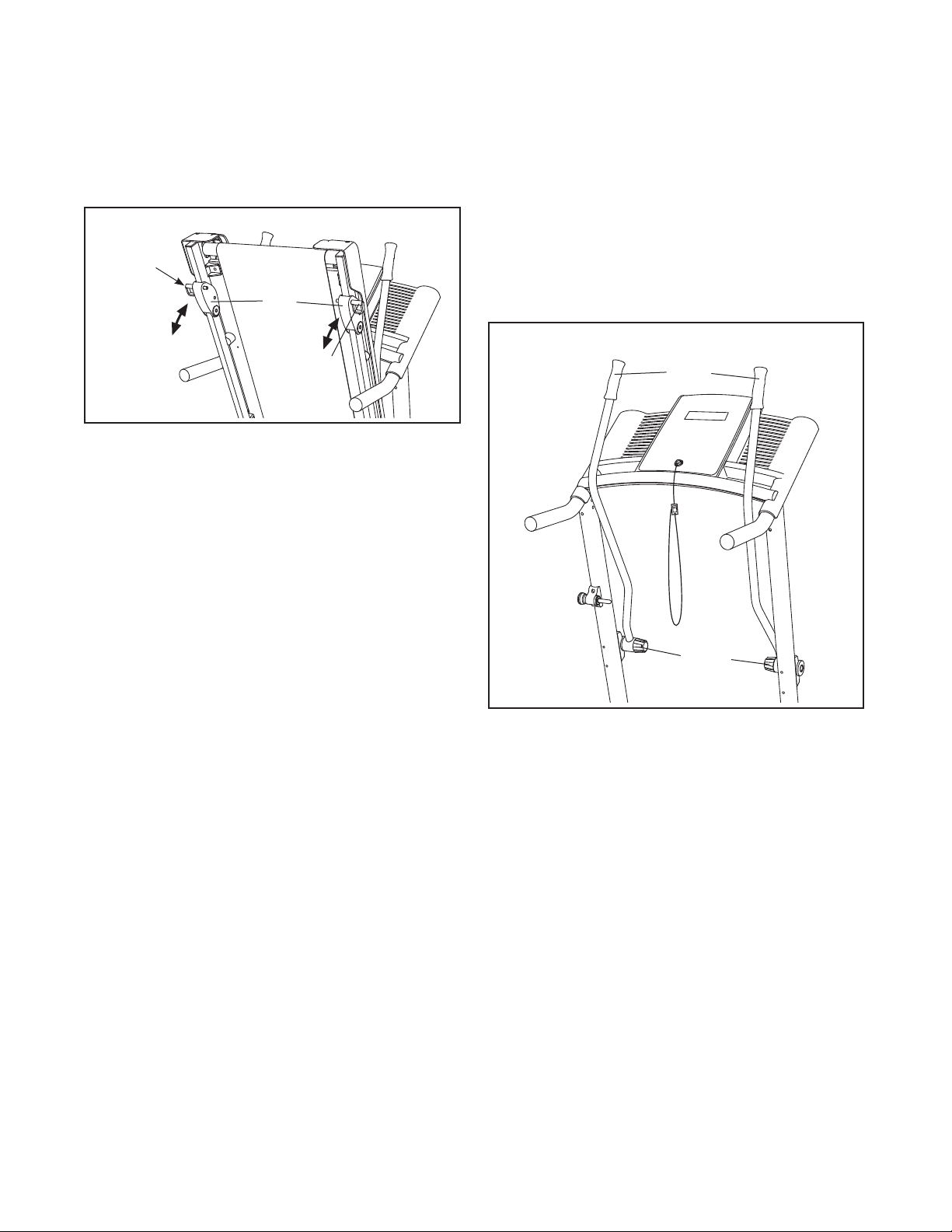

5. With the help of a second person, hold the console assembly near the Right Upright (54).
Connect the Wire Harness (39) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. If there is a wire tie on the Wire
Harness, remove the wire tie. Insert the connectors and the excess wire downward into the
Right Upright (54).
5
Console
Assembly
Console
39
Console
Wire
54
Wire
39
9
Loading...
