User’s Manual

INTRODUCTION

Kidizoom® Twist Plus is a fun, durable and easy to use 2 megapixel digital camera with a twisting lens: take photos or movies of your friends, then take fantastic self portraits. You can also add a range of great photo effects to make your pictures really stand out! Rotate the rotary ring on

the front of the camera to add cool colour lters! The camera features a 4x digital zoom, built-in ash, 2.2” colour screen, 5 great games, dual view nders and a great voice recording feature with 5 different

voice changing effects. There is also an editing feature allowing you to enhance your photos with a variety of frames, stamps and wacky effects. In addition, you can create your very own photo animations using the new feature Animation Maker or make talking albums!

If you want more, connect your Kidizoom

Twist Plus to your

computer and download extra photo effects, apps and games from the VTech Learning Lodge. Some new carnival effects will be available for download as a free gift for registering your camera.

There is 256 MB of memory built into the camera, or you can use a

microSD card to expand the memory and store even more photos and videos!

FEATURES

PRODUCT LAYOUT AND BUTTONS

Introduction / Features

Shutter button

On/off button

OK button

Zoom wheel

Magic button

Delete button

Home button

Playback button

Volume button

Flash button

View nder

Twisting lens

4-Directional cursor buttons

Flash

USB port

microSD card slot

Mic

Rotary ring

On/Off Press this button to turn the camera on or off.

Shutter Button

Press this button to take a photo, start or stop the video recording.

Playback Button

Press this button to browse your photos or videos.

4-Directional Cursor Button

Press these buttons to move the cursor and make selections.

Home Button Press this button to go to the main menu or go back to the previous

submenu.

OK Button

Press this button to conrm a choice or action.

Tips: The OK button can also be used to take a photo when in camera mode.

Magic Button

Press this button to add effects to photos and video or to display the effect menu in other modes.

Rotary Ring

Turn the Rotary Ring to add or change the colour lter effect in camera

or video modes.

Flash Button

When in camera mode, press this button to switch between auto-ash, forced ash on and ash off.

Volume Button Press the volume button and then the left or right cursor buttons to

adjust the volume.

Delete Button

Press this button to delete a photo, video or voice le.

Zoom Wheel

Push this button upwards to zoom in, push it downwards to zoom out.

USB Port

Plug the included USB cable into this port to connect to your computer.

Memory Card Slot

Insert a microSD card here for memory expansion.

Features

INCLUDED IN THIS PACKAGE

• 1 VTech® Kidizoom® Twist Plus

• 1 USB cable

• 1 wrist strap

• 1 user’s manual

WARNING: All packing materials, such as tape, plastic sheets,

packaging locks and tags are not part of this toy, and should be discarded for your child’s safety.

NOTE: Please keep user’s manual as it contains important information.

PRODUCT SPECIFICATIONS

Display 2.2” TFT colour LCD

Photo Resolution

1600 X 1200 (2.0 MP) or 640 X 480 (0.3 MP)

Video Resolution

320 X 240 pixel @15 fps

Video Length

limit per le

5 minutes when using internal memory

10 minutes when using SD card memory

Digital Zoom 4X

Focus Range 1.5 feet - ∞

Flash Range 3 – 9 feet

Internal Memory 256 MB built-in memory (shared with program

data, actually memory available for user storage will be less)

File Format Photos: Standard Baseline JPEG

Videos: AVI (Motion JPEG)

Memory Card Format And Capacity

microSD / microSDHC card (not included) with

capacity from 1 GB to 32 GB are recommended

Connectivities USB 2.0 cable (included) for computer connection

Batteries 4 X AA (LR6) alkaline batteries

Operating Temperature

0 - 40°C

Product Specifications

STORAGE CAPACITY FOR REFERENCE

Memory size

2.0 MP photos

0.3 MP photos

Video in 320 X 240

(minutes)

Internal memory ~350 ~1400 ~10

Memory

card

2 GB ~4,000 ~16,000 ~100

4 GB ~8,000 ~32,000 ~200

8 GB ~16,000 ~64,000 ~400

16 GB ~32,000 ~128,000 ~800

NOTE: The above amounts are approximations, the actual capacity depends on the shooting environments.

The video length limit is 5 minutes per le when using the internal memory and 10 minutes per le when using a memory card.

GETTING STARTED

BATTERY INSTALLATION

Note: Adult assembly is required for battery installation.

• Make sure the camera is turned OFF.

• Locate the battery covers on the bottom of the camera. Open the

battery covers by separately pressing each trigger inwards.

• Install 4 new AA batteries (2 on each side) as illustrated.

• Replace each battery cover with the arrow on the trigger pointing

inwards and push down until they click into position.

Getting Started

BATTERY NOTICE

• Use new alkaline batteries for maximum performance.

• Use only batteries of the same or equivalent type as recommended.

• Do not mix different types of batteries: alkaline, standard (carbon-

zinc) or rechargeable (Ni-Cd, Ni-MH), or new and used batteries.

• Do not use damaged batteries.

• Insert batteries with the correct polarity.

• Do not short-circuit the battery terminals.

• Remove exhausted batteries from the toy.

• Remove batteries during long periods of non-use.

• Do not dispose of batteries in re.

• Do not charge non-rechargeable batteries.

• Remove rechargeable batteries from the toy before charging

(if removable).

• Rechargeable batteries are only to be charged under adult supervision.

Disposal of batteries and product

The crossed-out wheelie bin symbols on products and batteries, or on their respective packaging, indicates they must not be disposed of in domestic waste as they contain substances that can be damaging to the environment and human health.

The chemical symbols Hg, Cd or Pb, where marked, indicate

that the battery contains more than the specied value of mercury (Hg), cadmium (Cd) or lead (Pb) set out in Battery Directive (2006/66/EC).

The solid bar indicates that the product was placed on the

market after 13th August, 2005.

Help protect the environment by disposing of your product or batteries responsibly.

For more information, please visit:

www.recycle-more.co.uk

www.recyclenow.com

Battery Notice

MEMORY CARD INSTALLATION

• Kidizoom® Twist Plus supports the below memory cards for memory

expansion.

• Make sure the camera is turned OFF.

• Locate the memory card slot at the bottom of the camera.

• Pull up the rubber cover.

• Insert the memory card (not included)

as illustrated. Once the memory card is detected and can be used, the default memory will set as the memory card automatically.

• To remove the memory card from the

slot, push the card once and it will eject.

NOTE: If the memory card is being used, data stored in the internal memory cannot be seen in the camera unless the memory card is removed. To prevent accidental data loss, make sure you have backed up all important data from your memory card before using.

TO BEGIN USING KIDIZOOM® TWIST PLUS

• Press the ON/OFF Button to turn on the camera.

• If it is the rst time that you are turning on the camera, the Try-me demo movie will start playing. Press the Shutter Button

to exit the Try-me demo mode. The Try-me demo will be disabled and will not play again on start-up.

• After the camera exits demo mode, you can set the time and date.

Press the Up

or Down Cursor Button to select the correct day,

month, year, hour and minute. Press the Left or Right Cursor

Button to jump to the previous or the next settings item. Finally press the OK Button to conrm that setting. If you wish to change the

date & time later, please go to Settings.

• After the Try-me demo mode has been disabled, when turning the

To Begin Using Kidizoom

Twist Plus

microSD Logo and microSDHC Logo are trademarks of SD-3C, LCC

microSD

microSDHC

camera on, it will go directly into the preview screen of the camera mode and you can start taking photos.

• Press the Home Button

to go to the main menu where you can

enter other activities.

• Press the ON/OFF Button

again to turn the camera off.

BATTERY STATUS

When the screen shows a Low Battery icon , we recommend installing a fresh set of batteries as soon as possible.The unit will not work properly when it shows the Batteries Exhausted icon . New batteries should be inserted before further use.

AUTOMATIC SHUT-OFF

To preserve battery life, Kidizoom® Twist Plus will automatically turn off after 3 minutes without operation in the Camera or Movies modes. In other modes, the auto-off time is 2 minutes. While using Wacky Slide

Show, the auto-off time is 15 minutes.

CONNECTING TO A COMPUTER

You can connect Kidizoom® Twist Plus to a PC or Mac computer using

the included USB cable. Once connected, you can transfer les between

the camera and computer. Please follow the below steps to make the connection.

• Turn the camera OFF before connecting to a computer.

• Pull up the rubber cover of the USB port at the bottom of your camera.

• Insert the USB cable (small end) into the USB port on the camera.

• Insert the larger end of the USB cable into a USB port on the computer. A USB port is usually marked with this symbol

• Two removable drives called VTech 1408 and VT SYSTEM will appear. VTech 1408 is for storage of your data, VT SYSTEM is for

storage of system data and cannot be accessed. If there is a memory card in the camera, the removable drive will show the content on the memory card only.

Connecting To A Computer

To avoid any potential damage to your Kidizoom® Twist Plus

• When the USB cable is not connected to the unit, ensure the USB rubber cover is fully covering the USB port of the camera.

• Please ensure the microSD card slot rubber cover of the camera is tted in place.

NOTE: Once the camera is connected to your computer, do not insert or remove the memory card and do not disconnect the camera while

les are uploading or downloading. After you have nished, remove

the camera by following the steps to safely remove hardware from your computer. You can then physically unplug the camera from the computer.

To back up photo or video les taken by the camera:

• Locate and open the DCIM folder in the removable drive VTech 1408.

• Your photos or video les will be placed in the subfolder 100VTECH. Drag and drop the les to a location in your computer for back up.

To back up voice les recorded by the camera:

• Locate and open the VOICE folder in the removable drive VTech

1408.

• Drag and drop the recorded voice les to a location in your computer

for back up.

To transfer photo or video les to the camera:

• Select the photo or video les you would like to upload from your computer rst.

• Locate and open the DOWNLOAD folder in the removable drive VTech 1408, drag and drop the photo les into the PHOTO subfolder, or VIDEO subfolder for video les.

NOTE:

• Do not transfer photo or video les created by other cameras to

Kidizoom

Twist Plus, as these le formats may not be compatible.

• To download extra fun effects, applications or games to the camera,

please refer to the Download section in this manual.

SYSTEM REQUIREMENTS FOR COMPUTER CONNECTION: Microsoft

Windows® XP, Windows Vista®, Windows® 7 or Windows® 8

Operating System or Macintosh Computer with Mac OS X version 10.5,

10.6, 10.7 or 10.8.

Connecting To A Computer

ACTIVITIES

Home Menu

• Press the Home Button to go to the main menu to select different activities:

Camera

, Video , Voice Recorder ,

Wacky Slide Show

, Downloads , Games

, Creative Tools (Photo Editor ,

Animation Maker

, Talking Album ) and

Settings

• Press the 4-directional Cursor Buttons

to select different modes

and press OK to enter the selected mode.

NOTE: You can change the main menu wallpaper to a preset picture, or you can select a photo you’ve taken. Please see the Settings section for more information.

1. Camera

In Camera mode you can take normal photos, or you can take pictures adding stamps, photo frames, funny face effects, Kaleidoscope effects,

Fantasy effects, All me effects and Colour lter effects.

• Press the Shutter Button

or OK Button to take a photo.

• Operate the zoom wheel anytime to use the digital zoom function.

• When the camera is rst turned ON, it will be in Auto-ash mode, press the ash Button (shared with the Up

Cursor Button) to toggle

between different ash modes.

Warning: Turn off the Auto-ash when taking a close up photo of a person’s or animal’s face to avoid eye damage.

If the batteries are too weak and this icon is displayed

, the Auto-ash

and ash feature may not be available.

• Rotate the twisting lens of Kidizoom

Twist Plus to face inwards to

take self-portraits.

• To take photos with different photo effects, you can press the Left

Right Cursor Buttons to select an effect rst, then press the shutter

Button or OK Button to take a photo with the selected effect.

• Or press the Magic Button

to go to the photo effect menu to select

the photo effects by types.

• To add or change the colour lter effect, turn the rotary ring when in camera mode. The lter will also affect any other photo effects selected.

Activities

NOTE: Turn the self-timer on in the settings menu to allow a count down period before taking a photo. In the preview screen, you can also press the down cursor button to turn the self-timer on or off.

Photos taken by Kidizoom

Twist Plus will be saved in the DCIM folder.

To download photos to be viewed in Kidizoom® Twist Plus, save them to the folder DOWNLOAD\PHOTO when connecting to the computer.

2. Video

In Video mode you can take normal movies, or take movies adding funny

cartoon animations, as well as adding a colour lter effect. Select the Video mode icon in the main menu and press the OK Button to enter.

Taking Normal Movies

• Press the Shutter Button

or OK Button to start or stop recording

a movie.

• Operate the zoom wheel anytime to use the digital zoom function.

• To add or change the colour lter effect, turn the rotary ring when in movie mode and not lming. The lter will also affect any selected

video themes.

Selecting a Cartoon Video Theme

• You can select a cartoon theme by pressing the

Left

or Right Cursor Buttons and pressing

the OK Button to conrm the selection

without starting movie recording. Press the Shutter Button to start recording with the selected theme directly.

• Press the Magic Button

to go to the video theme menu to view all

cartoon video themes and select your favourite one.

Clip Art Theme

• After you have conrmed a clip art theme, you

will see the 4-directional effect icons on the

screen. Press the Delete Button

to return to the theme selection to select another cartoon theme, or press the Cursor Keys to apply a

specic effect. You can press the Shutter Button

or OK Button to start recording at any

time.

• While recording, press a Cursor Key

to move

to the specic effects. Press the Shutter Button

or OK Button to stop recording.

Activities

Music Video Theme

• After you have conrmed a music video theme,

the theme music and cartoon animation will start automatically for you to see until the music

nishes. Press the Delete Button

to return

to the theme selection. Press the Shutter Button

or OK Button to start recording with the

selected theme any time.

• While recording, press the Shutter Button

or OK Button to

stop recording. The recording will end automatically when the music

nishes.

NOTE:

• Turn the self-timer on in the settings menu to allow a count down

period before taking a movie. In the preview screen, you can also press the down cursor button to turn the self-timer on or off.

• When recording video with a cartoon video theme, do not mute the

camera otherwise the music and sound effects of the cartoon theme will not be recorded.

Movies taken by Kidizoom

Twist Plus will be saved in the DCIM

folder. To download movies to be viewed in Kidizoom® Twist Plus,

save them to the folder DOWNLOAD\VIDEO when connecting to the

computer.

3. Playback

Press the Playback Button to view the captured photos / videos.

• Press the Up

or Down Cursor Buttons to view the previous / next

le.

• Operate the zoom wheel to zoom out

to view the les as thumbnails.

Then, operate the zoom wheel to zoom in to return to a full screen browser.

• Press the OK Button

to play a movie. While playing the movie, press the Left or Right Cursor Buttons once to use the fast rewind or forward at 2X speed, press this button again to change the speed to 4X and press it one more time or press the OK Button to return to 1X playing speed.

• When zoomed in on a photo, press the Cursor Buttons

to pan to a

different part of the photo. Operate the zoom wheel to zoom out or

press the OK Button to return to standard viewing.

• Press the magic button

to show the wallpaper menu. Select Yes

to conrm setting the current photo as the main menu wallpaper.

Activities

4. Voice Recorder

In Voice Recorder mode, you can record your own

voice for up to 10 minutes per le. Select the Voice

Recording icon in the main menu to go to this mode.

• Press the OK Button

to start recording a new le when the highlight

is on the Recording icon . Press the OK Button again to stop recording. After recording, it will show the play list automatically.

• Press the OK Button

to play the recorded voice when the highlight

is on the Play icon . Press the OK Button again to pause.

• In the play list, press the Left

or Right Cursor Buttons to move the highlight anytime to the Record icon to record a new voice le or the Play icon to play the selected le.

• To add a voice changing effect to an existing voice le, press the Left or Right Cursor Buttons to move the highlight to the Effect icon

and press the OK Button or press the Magic Button to go

to the voice changing effect menu.

In this menu, press the 4-directional Cursor Buttons

to select a different voice changing effect and

press the OK Button to add the selected effect. To save the changed voice as another voice le, press the Cursor Buttons to move the highlight

to the Save As icon and press the OK Button

to start the saving process. It will return to the play list automatically after the saving process is complete.

5. Wacky Slide Show

In Wacky Slide Show, you can view all photos on the camera as a slideshow.

All photos to be shown in the slideshow will be displayed in descending order. There is a delay time between each photo that can be changed (see settings information below). There are also several different transition effects that can be seen when the photos change.

When the wacky effects are turned on, different effects will be applied to

the photos. The original photo will rst be shown followed by the same

photo with the effect added.

Note: The photos with the applied effects will not be saved.

Activities

• Press the Magic Button to go to the Wacky Slide Show Menu to change the settings.

There are 4 settings in this menu:

Items Settings

Wacky effects (Set the effects applied to photos)

Off

On (Default)

Transition effects (Set the effects when changing from one photo to the next)

Off

On (Default)

Random (Set the display order of the photos to be random)

Off (Default)

Delay (Set the delay time between photos)

4 seconds (Default)

6 seconds

8 seconds

10 seconds

6. Creative Tools

There are 3 creative and fun tools here:

• Photo Editor

: to add more fantastic effects to your taken photos.

• Animation Maker

: to create your very own photo animations with

great background music.

• Talking Album

: to turn your travel photos, party pictures or family portraits into photo albums, then you can record voice for each photo so you can narrate each album.

Press the Left

or Right Cursor Buttons to select a function and press

the OK Button

to enter the selected function.

Photo Editor

In the Photo Editor, you can add photo frames, stamps, special effects

and fantasy effects to a photo.

Press the Up

or Down Cursor Button to view photos, then press

the OK Button

to conrm your selection and start editing. An editing

Activities

menu will appear. Press the 4-directional Cursor Buttons to choose one of the below functions, then press the OK Button to begin.

Photo Frames

Choose this icon to add a photo frame to your photo. Press the Left

Right Cursor Buttons to select a frame, then press the OK Button

to conrm your selection.

Stamps

Choose this icon to add a stamp to your photo. Press the Left

Right Cursor Buttons to choose a stamp, then press the Up Cursor

Button or Down Cursor Button to enlarge or shrink the size of the stamp. Press the OK Button to conrm to the selection, then press the 4-directional Cursor Button to move the stamp to where you want to apply it. Finally, press the OK Button again to add the stamp to

the photo.

Special Effects

Choose this icon to add funny face, distortion, kaleidoscope or colour

lter effects to your photo. Press the Left

or Right Cursor Buttons to choose an effect, then press the Up Cursor Button or Down Cursor Button to change the size of the area it will be applied to. Press the OK Button to conrm your selection. Press the 4-directional Cursor Button to move the effect to where you want to apply it, then press the OK Button to add it to the photo.

For the colour lter effect, just simply select the effect and then press the

OK button

to apply it.

Note: Generating a special effect on your camera may take more than

1 minute.

Fantasy Effects

Choose this icon to add a fantasy effect to your photo. Press the Left or Right Cursor Buttons to select an effect, then press the OK Button

to conrm your selection.

Undo

Choose this icon to undo the last editing operation.

Save As

Choose this icon to save the photo that you just edited as another le.

Note: The process of saving an edited photo with a distortion effect may take more than 1 minute.

Activities

B. Animation Maker

Animation Maker is an easy tool for creating your

very own photo animations. You will nd some

demo projects when you enter the project selection screen. In this screen you can play the animation, edit it or add your own new projects. Press the Up or Down

cursor button to select a project. Press

the Left

or Right cursor button to select the function and then press

the OK button to continue. To delete a project, press the delete button

to display the delete menu, then select Yes to conrm.

NOTE: The demo projects are for reference only, they cannot be edited,

deleted or saved as video.

Add a new project

In the preview screen you can start taking photos. This series of photos will become the frames of your animation. When completed, the photos you took can be played continuously to create your animation. In the preview screen, press the OK button or shutter button to take a photo when the camera icon

is highlighted. The last image taken will be overlaid

on the screen to help line up the next photo. Press the Left or Right cursor button

to select this icon after you have taken enough photos. It will go to the project selection screen again. Press the Left or Right cursor button to select to play the animation , further edit it

or create a new project .

Play the animation

You can preview the animation made here with fantastic background music. While playing the animation, press the OK button

to stop and

return to the project.

Edit Animation

Here you can further edit the project:

Add frames

Take more photos after the last captured frame. (Maximum number of frames = 100)

Activities

Play animation

Preview the animation with the chosen background music.

Save as video

Save the animation as a video (AVI le) to

watch or share on a computer. (It may take a few minutes to save the animation as a video)

Advanced Options

Change the settings

• Animation Speed

• Background Music

• Overlay of the last frame on the preview

screen

NOTE: You can delete the frame currently being viewed by pressing the

delete button

to display the delete frame menu, then select Yes to

conrm and continue.

Talking Album

In Talking Album, you can create albums (maximum 100 albums) for grouping certain photos together (max. 30 photos per album) and recording a short voice (up to 10 seconds) for each photo. The photos in the album can be played with the recorded voice (if any) automatically.

You will need to create a new album to start. If you have already created some albums, you can select to play an album, edit it or add a new album. Press the Up

or Down cursor button to select

an album. Press the Left

or Right cursor button to select the function and then press the OK button to continue.

Add a new album

or Edit Album

To start, add the rst photo to a new album. After

adding a photo, you can see the album menu. Here you can add the next photo, record a voice

for current photo or return to the album selection.

Add a photo: select this icon and press the OK button to go

to the photo selection screen. In this screen, press the Up

or Down

Activities

cursor button to select the photo you would like to add next and then

press the OK button

to conrm adding this to the album.

Record Voice: select this icon and press the OK button to start

recording a voice for the current photo. While recording, press the OK button

to stop or it will stop automatically after 10 seconds.

If there is a recorded voice, two more icons will appear on screen:

Play voice: select this icon and press the OK button to hear the

recorded voice accompanying the current photo.

Delete voice: select this icon and press the OK button to display

the delete voice menu, select Yes to conrm.

To delete a photo, press the delete button

to show the delete photo

menu and select Yes to conrm.

Add the photos you wish to use photos and record voice for each of them. Select the return icon

when you are done. It will go back to the project selection screen. Select the play icon and press the OK button to start playing the entire album.

To delete an album, press the delete button in the album selection

screen to display the album delete menu. Select Yes to conrm deleting

the album shown.

7. Games

There are 5 built-in games in Kidizoom® Twist Plus. In the game menu, press the Left

or Right Cursor Buttons to select a game and press

the OK Button to enter the selected game.

A. Kung Fu Star

You are a Kung Fu movie director, identify the best Kung Fu actor as quickly as you can! An actor will

be shown in the top left of the screen, nd and

select the right one as quickly as possible. Take a picture to see it appear in the game!

Press the Left

or Right cursor button to select

an answer and then press the OK button to

conrm.

B. Dive Adventure

The ocean hides lots of treasures, let’s go for a dive and nd them! Seek out all the treasure, but

watch out for all the creatures!

Activities

Press the Up or Down cursor button to move up or down to avoid the obstacles and get the treasure.

C. Germ Mania

Bottles containing germ samples have been knocked to the oor and different types of germs

are spreading through the air! You need to collect a particular type of germ each go in order to classify them and put them back in to storage.

The image on the preview screen will become the background for the game.

To play, move the camera and point it at the germs, then press the OK

Button

to capture them.

Note: In environments that are either too dark or too bright, the sensitivity of the camera movement will be affected.

D. Funky Hair Salon

Fancy a crazy new hair style? Arrows will be displayed on the screen, press the corresponding

cursor key in time to style the customer’s hair. If

you miss too many arrows, your customer may get a strange hairstyle! Take a picture of yourself or a friend to play!

E. Crazy Cafe

In this game you can practise your memory and reaction skills. A customer will order some food with the ingredients listed in a particular sequence. Remember the sequence and collect the falling food in the correct order to complete their meal. Press the Left

or Right Cursor Button to move.

8. Downloads

After registering an account and downloading the VTech Learning Lodge software, you can connect your Kidizoom

Twist Plus to your

computer to download more content. The content you downloaded can be accessed by selecting the download

icon

from the camera’s main menu. Press the OK button to enter

the download menu. When there are no downloads in your Kidizoom

Twist Plus, you will

see a slide show of the fantastic content you can download. Press the OK button

to skip it and enter the download menu.

Activities

Note: Downloads stored in either internal memory or on a memory card (if inserted) will be available.

Besides the downloaded contents, there are two functions in Download:

Download Manager and How To Download.

A. Download Manager

In the Download Manager, you can view the memory size of each download, or you can delete any unwanted downloads to free up memory.

To delete the downloads, press the up

or down button to select the

application and then press the delete button

to display the delete

menu. Select Yes and press the OK button

again to conrm the

delete command. Note: Once the downloads are deleted, you may connect to the VTech

Learning Lodge to download the application to the camera again.

B. How To Download

Follow these steps to download the VTech Learning Lodge software:

1. Connect Kidizoom

Twist Plus to a computer using the USB cable.

2. Click the ‘Download Website’ link in the Kidizoom drive that appears

on your computer, or visit this link directly:

www.vtechuk.com/download

3. Download and install the Learning Lodge software.

4. Run the software and download extra features for your Kidizoom!

Note: For details about downloading contents from the VTech Learning Lodge, please refer to the online help section.

Minimum System Requirements

PC Hardware Requirements:

CPU: Pentium

4, 1 GHz or above Memory: 256 MB Video Adaptor: Graphic card with 1024 x 768 at 16 or 32 bit colour

Monitor Resolution: 1024 x 768

USB 1.1 or higher 300 MB Hard disk space

Windows

compatible sound card and speakers

PC Software Requirements:

Microsoft

Windows® XP, Windows Vista®, Windows® 7 or Windows® 8

Operating System

Internet Explorer

version 6 or above

Activities

Adobe® Flash® Player 10 – Other Browsers Version (To acquire the latest version of Flash player, please visit www.adobe.com)

Macintosh Hardware Requirements:

Macintosh Computer with an Intel (1GHz or faster) processor 256 MB RAM (512 MB recommended) 300 MB Hard disk space USB Port required

Macintosh Software Requirements:

Mac OS X version 10.5, 10.6, 10.7 or 10.8 Safari Internet Browser version 3.0 or later

Adobe

Flash® Player 10 – Other Browsers Version (To acquire the

latest version of Flash player, please visit www.adobe.com)

*Internet connection required for Internet enabled functions on both PC and Macintosh computers.

Microsoft

and Windows® and Windows Vista® are either registered trademarks or trademarks of Microsoft Corporation in the United States and / or other countries. Adobe

, the Adobe logo, Flash® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Intel

, Pentium® are trademarks of Intel Corporation in the United States and other countries. Macintosh, Mac, Mac OS, and Safari are trademarks of Apple Inc, registered in the United States and other countries. All other trademarks are the property

of their respective owners. THIS PRODUCT IS NOT ENDORSED OR SPONSORED BY ADOBE SYSTEMS INCORPORATED, PUBLISHER

OF FLASH.

9. Settings

You can scroll through the Settings menu by pressing the Left or Right

Cursor Buttons to adjust the settings below in your Kidizoom® Twist

Plus.

A. Self-Timer

Press the Up

or Down Cursor Buttons to set the self-timer ON or

OFF and press the OK Button to conrm. The self-timer will be set

as OFF every time the unit is turned on.

B. Set Wallpaper

Here you can set your favourite wallpaper or your own photo as the background picture in the main menu.

Activities

Press the Up or Down Cursor Button to select your favourite wallpaper and press the OK button to conrm. To set one of your own photos as the wallpaper, select the photo icon to go to the photo selection screen. Then press the Up or Down Cursor Button to select the photo you would like to use and press the OK button to conrm.

C. Memory

This menu allows you to review the status of the camera’s internal

memory or memory card (if inserted). There will be three advanced commands here:

Erase All Photos And Videos

This will delete all les in the DCIM and DOWNLOAD folders in the

internal memory or memory card if inserted.

Format

This will erase all data in the internal memory or memory card if inserted, including the downloads.

Factory Reset

Factory Reset will erase the contents stored in the internal memory and

reset all system settings to factory default, e.g le index, frequency,

photo resolution, game level and captured game faces.

Following these three commands you will be asked to conrm your choice. Follow the instructions on screen to conrm the action.

Note: If the memory card is being used, data stored in the internal memory cannot be seen in the camera unless the memory card is removed. When the internal memory of the Kidizoom

Twist Plus is

getting full, or when the le indexes are used up, you should back up all the les from the camera’s internal memory to your computer. Then, delete the les in the camera’s internal memory to free up space.

D. Photo Resolution

Press the Up

or Down Cursor Buttons to select the photo resolution

and press the OK Button to conrm.

For the best picture quality, please select 2.0 megapixel, otherwise choose the lower quality at 0.3 megapixel if you want to save more pictures.

E. Indoor Light Frequency

Press the Up

or Down Cursor Buttons to select the frequency and

press the OK Button to conrm.

Activities

The default frequency is set according to the A.C. frequency of your region, please leave your camera set to the default value unless you are travelling.

F. Date & Time

This menu shows the current date and time. If you want to change the

date or time, press the OK Button

. After entering the Set Date & Time menu, press the Up or Down Cursor Buttons to change the settings, press the Left or Right Cursor Buttons to jump to the next

item. If all the items are nished, press the OK Button to exit this menu.

CARE & MAINTENANCE

1. Keep the camera clean by wiping it with a slightly damp cloth.

2. Keep the camera out of direct sunlight and away from any direct heat

source.

3. Remove the batteries when the camera is not in use for an extended

period of time.

4. Do not drop the camera on a hard surface and do not expose it to

moisture or immerse it in water.

WARNING

A very small percentage of the public, due to an existing condition, may experience epileptic seizures or momentary loss of consciousness when

viewing certain types of ashing colours or patterns.

While Kidizoom

Twist Plus does not contribute to any additional

risks, we do recommend that parents supervise their children while they play games. If your child experiences dizziness, altered vision, disorientation, or convulsions, discontinue use immediately and consult your doctor. Please note that focusing on at close range and handling a Kidizoom® Twist Plus as a game controller for a prolonged period of time may cause fatigue or discomfort. We recommend that children take

a 15-minute break for every hour of play.

Care & Maintenance

TROUBLESHOOTING

Go through this section if you experience difculty in operating

Kidizoom® Twist Plus.

Problem Solution

Camera stops working 1. Let the camera sit for a few minutes

without batteries, then replace the batteries.

2. Turn the camera ON. It should now work properly.

3. If the camera does not work, replace the batteries with an entire set of new batteries.

Image taken is not clear

1. Check if the camera is held steadily.

2. Make sure the lighting conditions of the shooting environment are good.

3. Check to see if the camera lens protection window is clean.

Cannot connect to computer

Check the connections on the USB cable

between the camera and the computer and review the appropriate connection procedure in this manual.

Memory card can’t be

detected

1. Check if the memory card is correctly inserted.

2. Check to see if the memory card is the supported type. The camera only supports microSD or microSDHC card.

3. Check to see if the le system of

your memory card is FAT or FAT32,

Kidizoom

Twist Plus does not support

NTFS or exFAT le systems. You should

back up all important data from your memory card and format it in either the

FAT or FAT32 le system before using in

your Kidizoom® Twist Plus.

Cannot save les Check if the memory card is full.

If there is no memory card inserted, check the Kidizoom

Twist Plus internal

memory.

Troubleshooting

Can’t view the

Downloaded video or

photo les

1. Check if the Downloaded les are put in

the correct directory in the Kidizoom® Twist Plus. Photos should be put in

the DOWNLOAD/PHOTO folder, videos should be put in the DOWNLOAD/ VIDEO folder in Kidizoom® Twist Plus when it is connected to a computer.

2. Kidizoom

Twist Plus only supports the

below formats:

photos in Standard Baseline JPEG and videos in AVI (Motion JPEG) created by

Kidizoom

Twist Plus.

Screen displays incorrectly

Turn off the camera and let it sit for a few minutes without batteries, then replace the batteries.

If the problem persists, please call our Consumer Services Department

at 01235 546810 (from UK) and +44 1235 546810 (outside UK), and a

service representative will be happy to help you.

IMPORTANT NOTE:

Creating and developing VTech

products is accompanied by a responsibility that we take very seriously. We make every effort to ensure the accuracy of the information, which forms the value of our products. However, errors sometimes can occur. It is important for you to know that we stand behind our products and encourage

you to call our Consumer Services Department at 01235 546810 (from UK) and +44 1235 546810 (outside UK) with any problems

and/or suggestions that you might have. A service representative will be happy to help you.

Troubleshooting

HOW TO TAKE A GOOD PHOTO

Are you ready to have fun taking photos? Here are some tips on how to get the best results from your new Kidizoom® Twist Plus.

Step One

First, slide the wrist strap over your hand to help you hold your new Kidizoom properly.

Step Two

There are two ways to look at your photo before you take it. You can either use the colour LCD screen on the back of your Kidizoom, or the

dual viewnders above the screen.

Note: What you see via the dual viewnders may not be the same as the colour LCD screen and the nal captured photos.

Step Three

Now you are ready to take some photos! Make sure you hold your Kidizoom as still as you can with both hands.

Step Four

Get close to the object you are taking a photo of. Be careful not to get

too close or your photo will be blurry. This can take some extra practice

so don’t worry if you don’t get your photo right the rst time.

Step Five

Your Kidizoom has an automatic ash so don’t worry if you think your

photo might be a little dark. If you are taking outdoor photos on a sunny day, stand with the sun behind you.

Step Six

Listen for the click your Kidizoom makes when you have taken a photo. Once you hear the clicking sound, you can take another photo!

Have fun!

How to Take a Good Photo

KIDIZOOM® TWIST PLUS FREQUENTLY ASKED QUESTIONS

Question 1:

I have bought a VTech® Kidizoom® Twist Plus, but it will not work with my PC, my PC is looking for a driver. I have searched the internet and

cannot nd a VTech® camera driver. What can I do? Answer: There is no separate driver needed for the Kidizoom® Twist Plus. It

uses a standard USB mass storage device driver. Such a driver comes

standard on all Windows® operating systems starting with Windows® 2000 Service Pack 3 (including Windows® XP, Vista and upwards) and Mac OS® 9.0 or above.

If your computer meets these OS requirements and is still looking for a driver, please contact your PC manufacturer for further assistance. For earlier operating systems that do not support mass storage, a system upgrade or mass storage device driver may be available. Again, please check with your PC manufacturer.

Question 2:

The pictures I take aren’t matching what I see when I look through the viewnder. The actual captured image covers a greater area than what the viewnder shows.

Answer:

The actual image and digital saved image may vary due to the refraction

of light through the viewnder lens. Light bends through the lenses at

different angles based on a variety of factors including the distance between the lens and your eyes, the angle at which you are viewing the

lenses and even the distance between your eyes. Generally speaking,

when the lenses are placed close to the eyes the way they are intended to be, light will refract through the lenses in such a way that it focuses in a tighter and closer area, making the image and the viewing area appear smaller than what is digitally captured.

Question 3:

What is the ISO value (light sensitivity) of the Kidizoom

Twist Plus?

Answer:

The Kidizoom® Twist Plus uses an auto-ISO value. It auto adjusts the exposure time and light sensitivity depending on the lighting environment.

Kidizoom

Twist Plus Frequently Asked Questions

Question 4:

My camera turns on then immediately shuts off.

Answer:

Please make sure you are using new batteries. If there is no bad contact due to dirt on the contact spring/plate or deformation of the contact spring or plate, the camera should be able to turn on. If the problem persists after normal battery installation, you might have a defective unit.

Question 5:

Why are my pictures sometimes grainy and fuzzy? Is there anything I can do to improve the picture quality?

Answer:

In a poorly lit environment, the frame rate (shutter speed) drops to allow for a longer exposure time. The downside of this is that any movement in the frame, or of the hand holding the camera, can result in greater blur. Furthermore, the camera sensor will soften the edges in low light to counteract the darkness by reducing the image noise. This too can sometimes result in a blurred picture. Try to improve the lighting to get better results.

The sensitivity of the photo sensor in low lighting conditions and the vulnerability of the image to hand shake have been improved in the most recent models.

Question 6:

Can you delete a group of pictures at one time, or do they have to be deleted one at a time on the camera?

Answer:

If you connect Kidizoom

Twist Plus to your computer and access it or

the memory card as an external drive, you can select multiple pictures to delete at any one time.

Question 7:

If you accidentally delete the pictures by reformatting, is there any way to get them back?

Answer:

Unfortunately, if you delete the pictures by formatting the internal

storage memory, there’s no way to retrieve them. There is third party

software that can help recover deleted data from storage, but we do not recommend using this.

Kidizoom

Twist Plus Frequently Asked Questions

Question 8:

Will changing batteries erase the unit’s internal memory?

Answer:

Battery replacement under normal operation as detailed in the user’s

manual should not cause data corruption or data loss in either the builtin memory or the memory card.

Question 9:

When connecting the camera to the USB port, I get the message ‘USB device not recognised, one of the USB devices attached to this computer

has malfunctioned and Windows

does not recognise it.’ I am running

Windows® XP.

Answer:

This is most likely a hardware or OS issue. A number of consumers have reported this problem with their computers not recognising mass storage devices of all kinds. Please contact your PC manufacturer for support.

Question 10:

I am trying to transfer my pictures to my PC. I connected per the

instructions (connecting the USB cable to the camera and PC) and the

new drive appears. However, no pictures are automatically downloading. Is there something I need to do at start up to get the pictures downloaded and saved?

Answer:

The picture transfer operation does not start by itself. After you have

connected the USB cable to your PC and the drive appears ready, you can open the drive, look under the folder DCIM and you should nd the

images you captured with the Kidizoom

Twist Plus. Moreover, if you

wish to download images to be viewed on the camera, you can do so

by moving the JPEG image les into the folder DOWNLOAD/PHOTO.

Microsoft

, Windows® and Windows Vista® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh, Mac and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. All other trademarks are the property of their respective owners.

Kidizoom

Twist Plus Frequently Asked Questions

WRIST STRAP ATTACHMENT

INSTRUCTIONS

Step 1:

Locate the thread loop on the end of the strap. Insert it into the groove behind the bar and then push it through

Step 2:

Feed the end of the strap up through the loop and pull it all the way through

Step 3:

Make sure the loop is securely tightened around the bar

Join the VTech club online at www.vtechuk.com

This warranty is valid for the UK and Eire only. For products purchased outside the UK and Eire, please contact your local distributor or place of purchase.

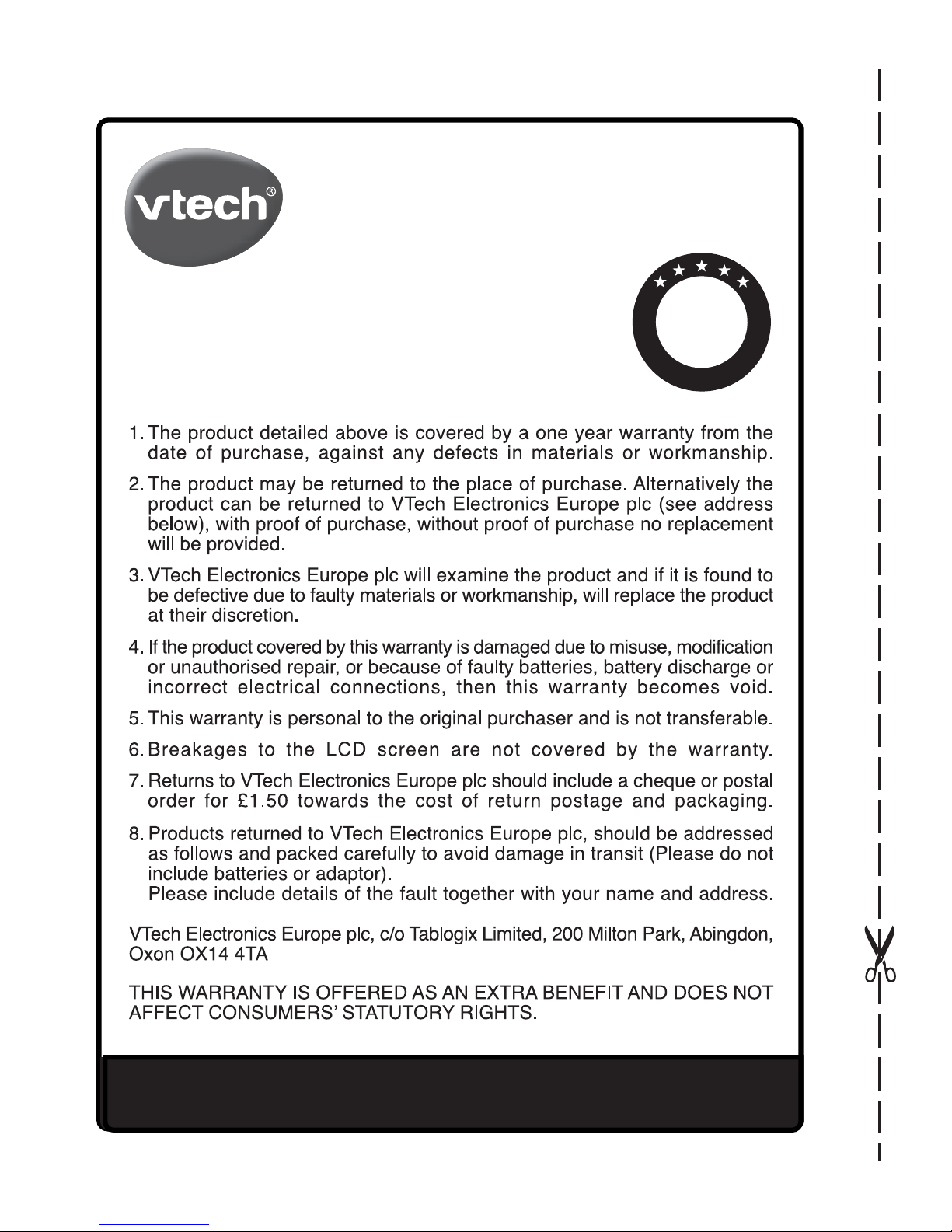

PRODUCT WARRANTY

ONE

YEAR

Thank you for choosing this quality product from VTech. We hope it will bring many hours of entertainment, imaginative play and learning.

VTech Kidizoom Twist Plus User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
