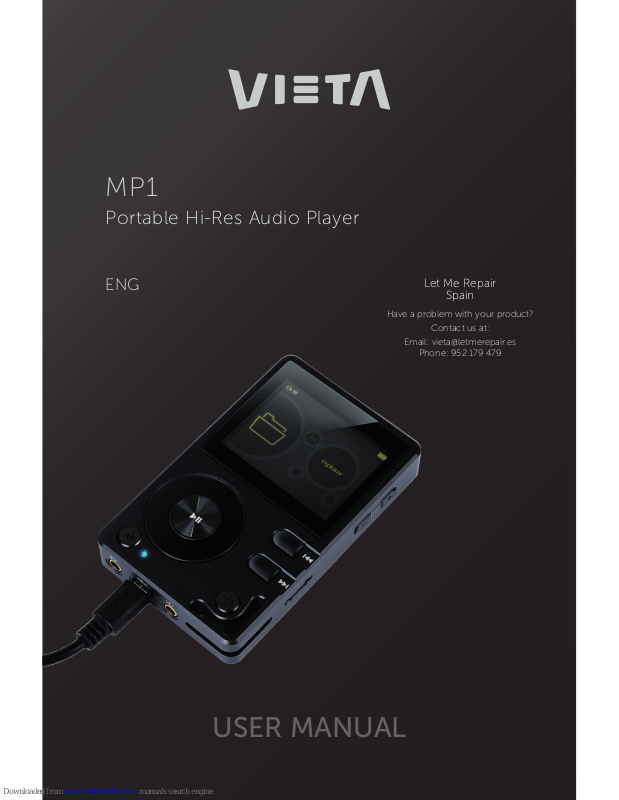

VIETA MP1 User Manual
USER MANUAL
ENG
MP1
Portable Hi-Res Audio Player
Have a problem with your product?
Contact us at:
Email: vieta@letmerepair.es
Phone: 952 179 479
Let Me Repair
Spain
1. Power
2. Volume +
3. Volume -
4. TF card slot
5. Hang rope hole
6. Display
7. Previous
8. Next
9. Back
10. Line out
11. USB/DAC
12. Light
13. Earphone
14. Menu
15. S/N
16. OK
17.Turntable
1. Turn On/Turn O:
Long press Power button for 3 seconds, the device will be
turned on, long press Power button for 3 seconds to shut it down.
2. Lock Screen:
Short press the “Power” button to lock the screen. In the lock
screen mode, all the buttons are locked except the volume plus and minus buttons.
Press the Power button again, all the buttons restore.
3. Plug TF Card:
The TF card is inserted to the slot, when you plug the TF card in the
end, TF card automatically pop up, you can remove the card. Suggestions: use CLASS
10 and above high-speed TF card.
4. Blue light:
The LED will light up after power on, and will be o after power o.
5. System reset:
System is no response for some reason, or other abnormal circums-
tances, the system can be restarted by long pressing the power button for 8 seconds
6. Charge:
Do remember to check about the remaining battery power. If the power is
low, please charging to ensure can be using. The device will be automatically shut
down when power was very low;
7. Category:
Turn the Turntable or short press “Previous” and “Next” buttons can
select items (including Songs, My favorite, Play list, Recent played songs, Artist,
Album, Genre.)
8. Explorer:
Turn the Turntable or short press “Previous” and “Next” buttons can select
“TF card” or “OTG”.
13
14
9
8
7
16
17
15
11 10
12
6
2
3
4
5
