Vieta HCD30 User Manual

CONTENTS

CONTENTS

Contents 02

SAFETY PRECAUTIONS

Safety precautions 03

IMPORTANT INFORMATION

Important information 04

CONNECTION TO THE MAINS

Connection to the mains 05

REMOTE CONTROL

Installation of batteries 06
Using the remote control 06

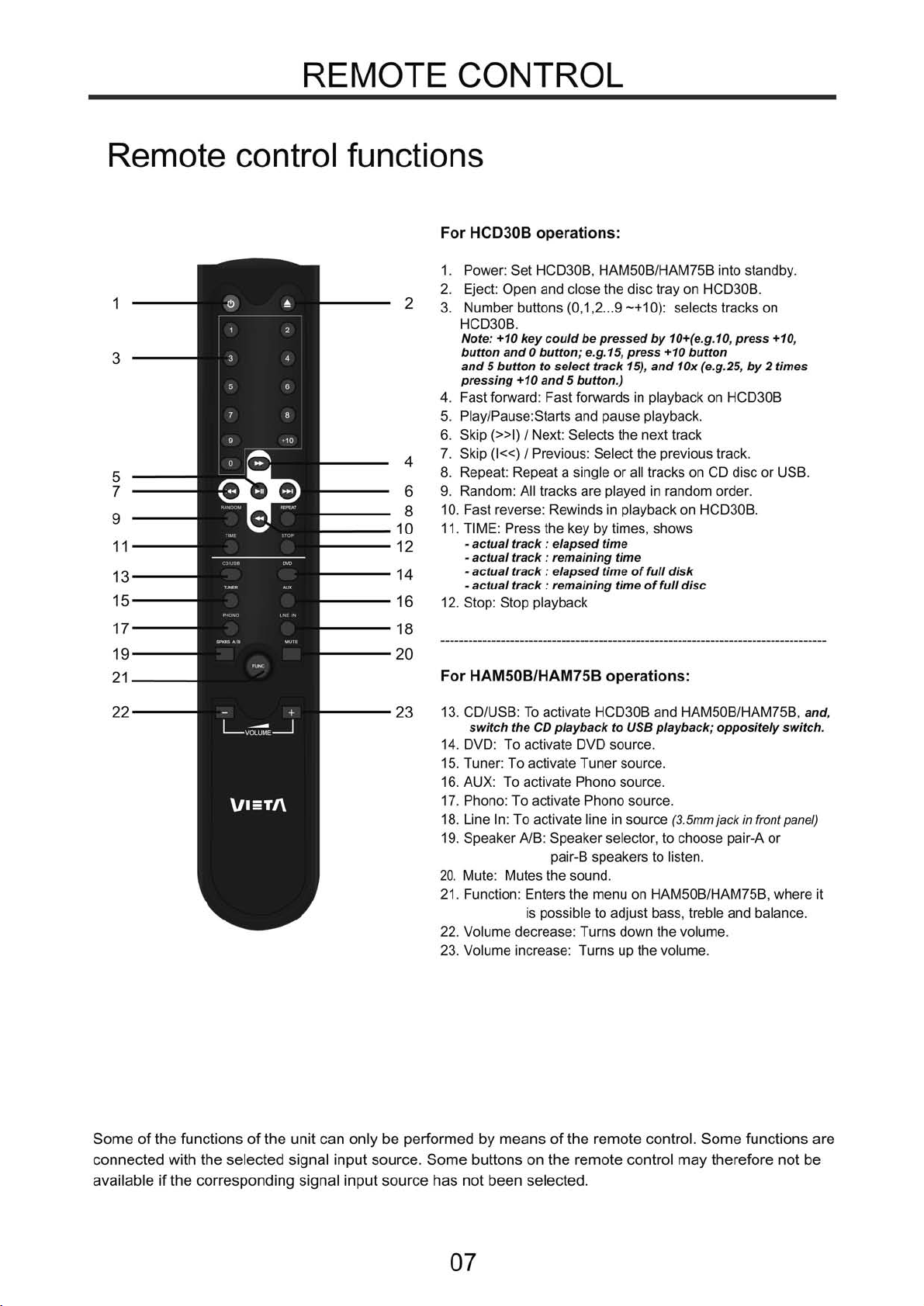

Remote control functions 07

BACK PANEL CONNECTIONS

Connections 09

Explanation of LCD Display 09

CONNECTION WITH AMPLIFIER

Audio connection layout 10

OPERATION AND FUNCTIONS

ON, OFF and Standby 11

Load a disc 11
Play/Pause 11

Stop, Skip, Search, Random 12

TROUBLESHOOTING

Troubleshooting 13

FRONT PANEL CONNECTIONS

Front panel 08

TECHNICAL DATA

Technical data 14

02

SAFETY PRECAUTIONS

A triangle with a lightning symbol draws the user's

attention to "dangerous voltage" without insulation in the

cabinet which may be high enough to entail a risk of

electric shock.

A triangle with an exclamation mark draws the user's

attention to important instructions for use and

maintenance in the accompanying manual, which should

be studied.

A symbol for CLASS II (double insulation)

WARNING:

CAUTION:

TO MINIMISE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE

THE UNIT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET AS IT

CONTAINS DANGEROUS VOLTAGE. ONLY QUALIFIED TECHNICIANS ARE

ALLOWED TO CARRY OUT REPAIR AND SERVICE.

if the plug of the power cord needs to be replaced, it is important that the

replacement is identical to the plug to be replaced, or that the new plug has been

recommended by the manufacturer

TO AVOID ELECTRICAL SHOCK, IT IS IMPORTANT TO INSERT THE PLUG

CORRECTLY INTO THE SOCKET.

03

IMPORTANT INFORMATION

Handling instructions

- The top and back panel of the unit may become
warm after prolonged use. This is not due to a
defect.

- Turn off the power when the unit is not used.

Protect the power cord

- Follow the instructions below to prevent
abnormal operation, electrical shock, fire or
personal injury:

- Hold the plug firmly when inserting it into the
socket.

- Avoid heat-producing devices.

- Do not place objects on the power cord.

- Do not carry out service work on or change the
power cord.

Positioning

Do not place the unit in any of the fol. places:

- In sunlight, close to heat-producing devices or in
an enclosed rack.

- In places with high temperatures (40C or more)
or high relative humidity (90% or more).

- In dirty places as some internal parts may be
damaged.

Condensation

Condensation may occur in the following cases:

- When the unit is moved directly from a cold to a
warm place.

- When the unit is used in a room where the
radiator has just been switched on or a place
where the cold air from the air-conditioning
system is directed at the unit.

- If the unit is used in the summer in a warm and
humid room just after it has been moved from an
air-conditioned room.

- If there is steam or a high level of humidity in the
room.

In case of condensation, the unit will not work

properly. Turn off the unit. Unplug the unit and
leave it for 2-3 hours. The unit will then have
adapted to the environment and any
condensation will have disappeared.

Do not put your fingers or any
other objects into the unit

- Touching the internal parts is dangerous and
may cause injury or damage. Do not open the
cabinet.

- Do not place any foreign matter in the unit.

Interference

Placing the unit near a television set, radio or video
player may cause poor picture and sound quality.
In that case, move the unit further away from the
television set, radio or video player.

04

CONNECTION TO THE MAINS

Connection to the mains

Ster eo Outp ut

220-240V AC~50Hz

AC INPU T:

HCD30 B

USE ONLY WI TH 250V F USE

Do not turn on the power before all connections have been made correctly.
Check that all connections have been made correctly before turning on the
power.
Check that the mains voltage is 220-240V AC50Hz before turning on the power.

Connection to the mains

Check that all other connections have been made correctly before inserting the mains plug into the wall
socket.
Then insert the plug into a suitable socket.
If the unit is to be used abroad, you may need an adapter.

05

REMOTE CONTROL

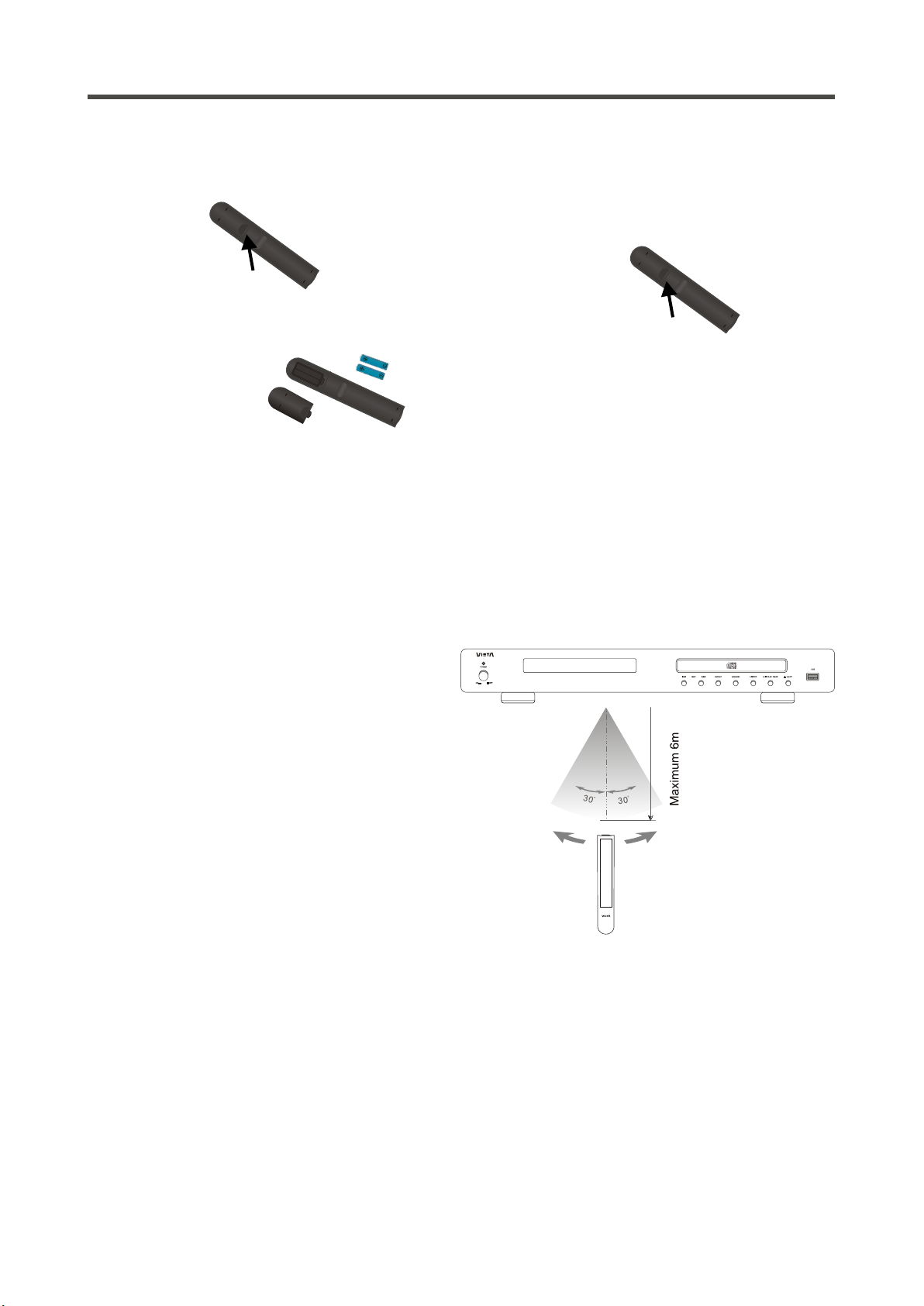

Installation of batteries

1 Remove the cover as illustrated.

2 Position two batteries of the type AAA/R03/UM4

in the battery compartment. Make sure that the
orientation of the batteries is correct (see
drawing at bottom).

- Do not mix new and old batteries and do not use different types of batteries.

- If the remote control is not used for prolonged periods, remove the batteries from the remote control to
avoid corrosion.

3 Replace the cover.

Using the remote control

Direct the remote control at the sensor on the front
panel of the unit. When the remote control signal is
received, the unit reacts accordingly. The remote
control works within a range of 6 metres.

- Sometimes the remote control does not work well in strong light. You may have to move the unit if it is a
problem.

- Malfunction may occur if other remote controls are used near the unit.

- Do not place any objects on the remote control, as the batteries may become flat if a key is depressed
constantly.

- Make sure that there are no obstacles between remote control and unit.

- Do not position the unit behind tinted glass as it may reduce the maximum range of the remote control.

HCD30B

06

FRONT PANEL AND CONNECTIONS

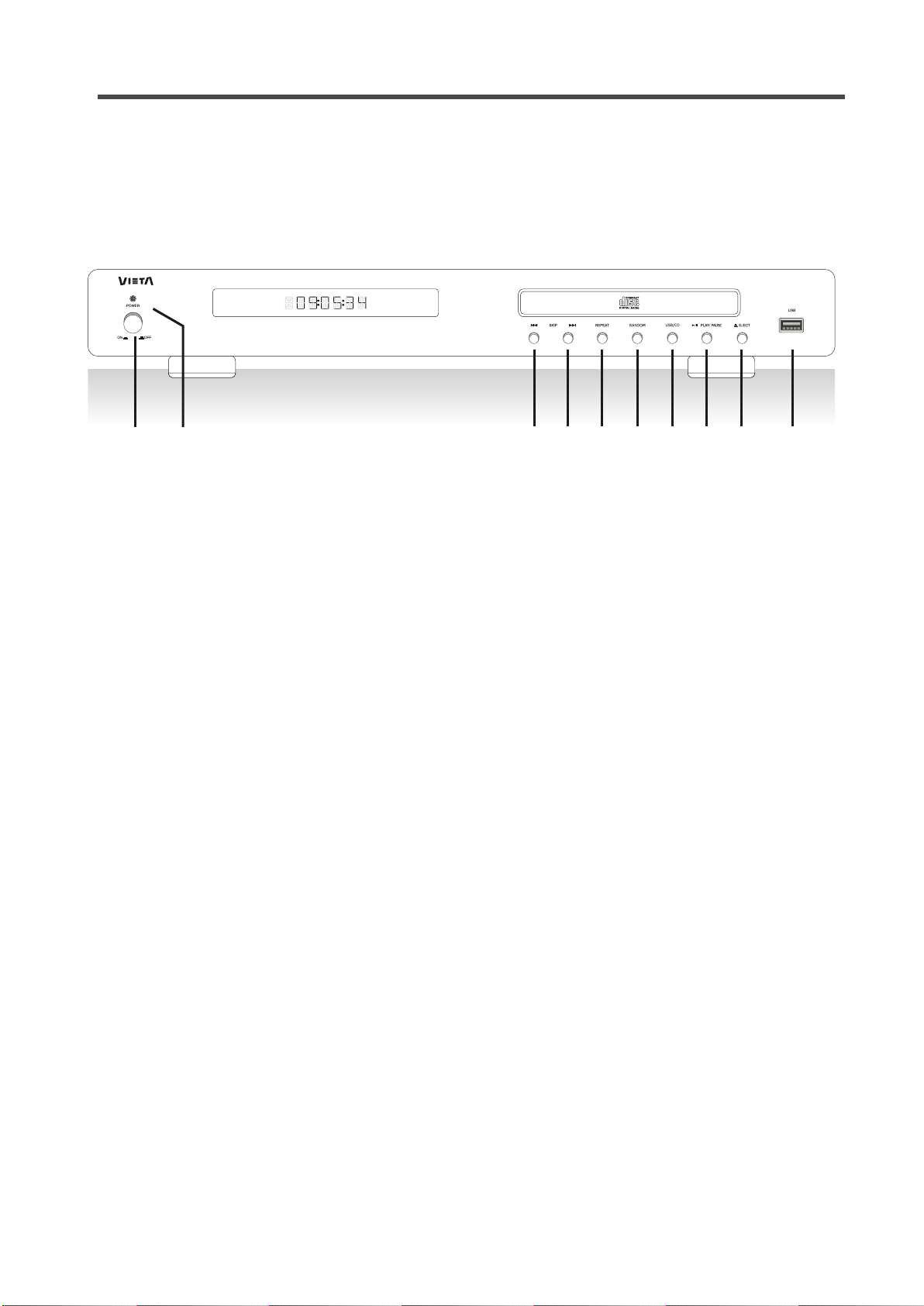

Front panel

HCD30 B

1 2

1. Mains switch: Used to turn ON/OFF the power.

2. LED .

3. Skip backward (Previous): Selects the previous track.

4. Skip forward (Next）: Selects the next track.

5. Repeat: Repeats a single track or all tracks on a CD.

6. Random: Makes it possible to play the tracks of a CD in random order.

7. USB/CD selector: oppositely switch.

8. Play/Pause: Starts playback at first press and stops playback at second press.

: Lights off when HCD30B turns on, lights blue when in standby mode

Switch the CD playback to USB playback;

3 6

5 8 9

4 7

10

9 Eject: Open and close the disc tray on HCD30B.

10. USB port: Inserts USB for directly playback.

08

BACK PANEL AND CONNECTIONS

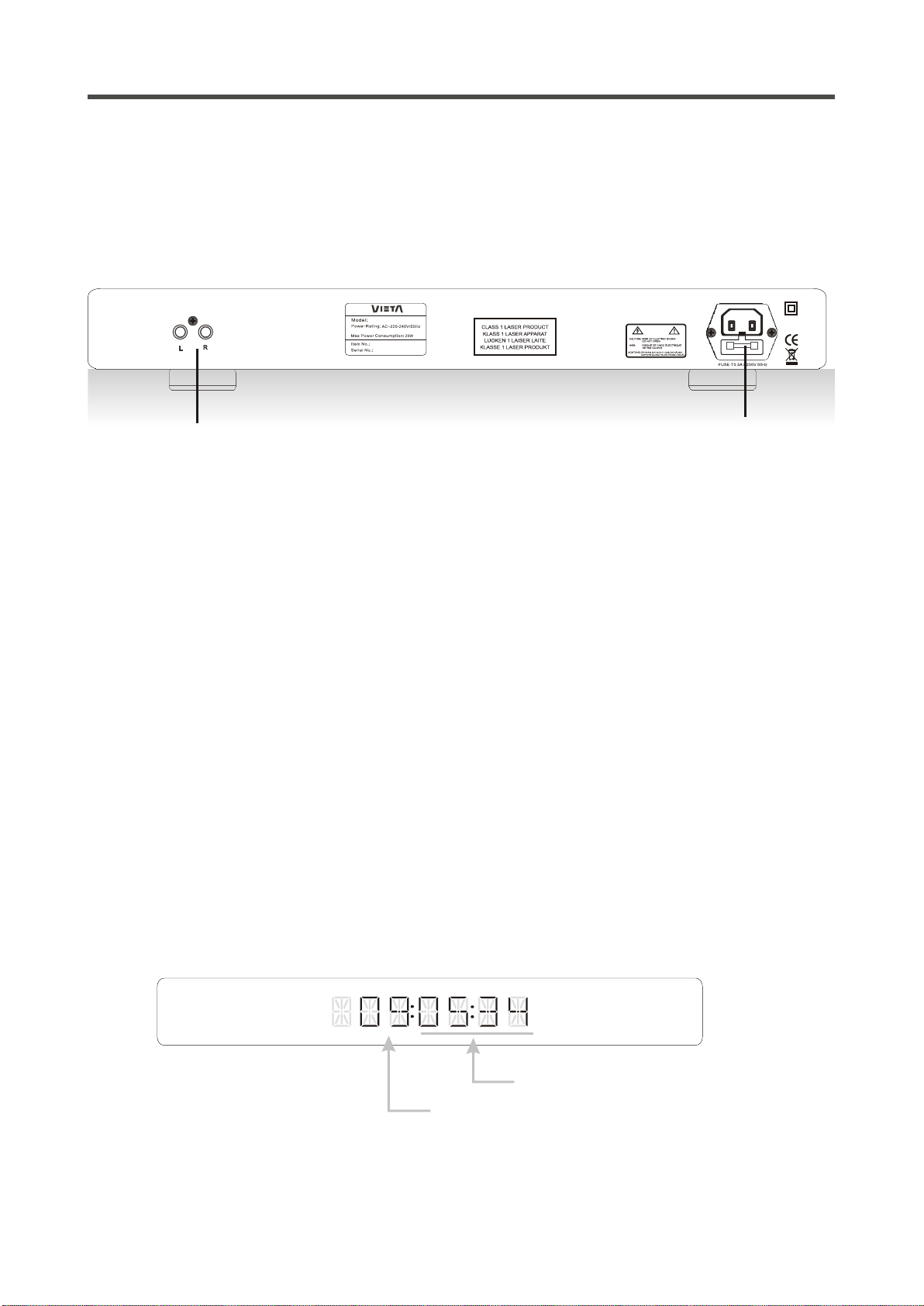

Connections

Ster eo Outp ut

HCD30 B

1

AC INPU T:

USE ONLY WI TH 250V F USE

2

1. Stereo Output: Analogue stereo output. For connection to stereo amplifier or receiver

with analogue input.

2. AC input: For connection of mains voltage. Make sure that the plug has been correctly

inserted, and that the voltage corresponds to the text printed on the back panel of the
cabinet.

Explanation of VFD display

This unit does not feature any OSD (On Screen Display). Instead it features a more descriptive VFD display
that displays all the information required. Below you can see a picture of the display and an explanation of
the various symbols.

Track number

09

Track time

CONNECTION WITH AMPLIFIER

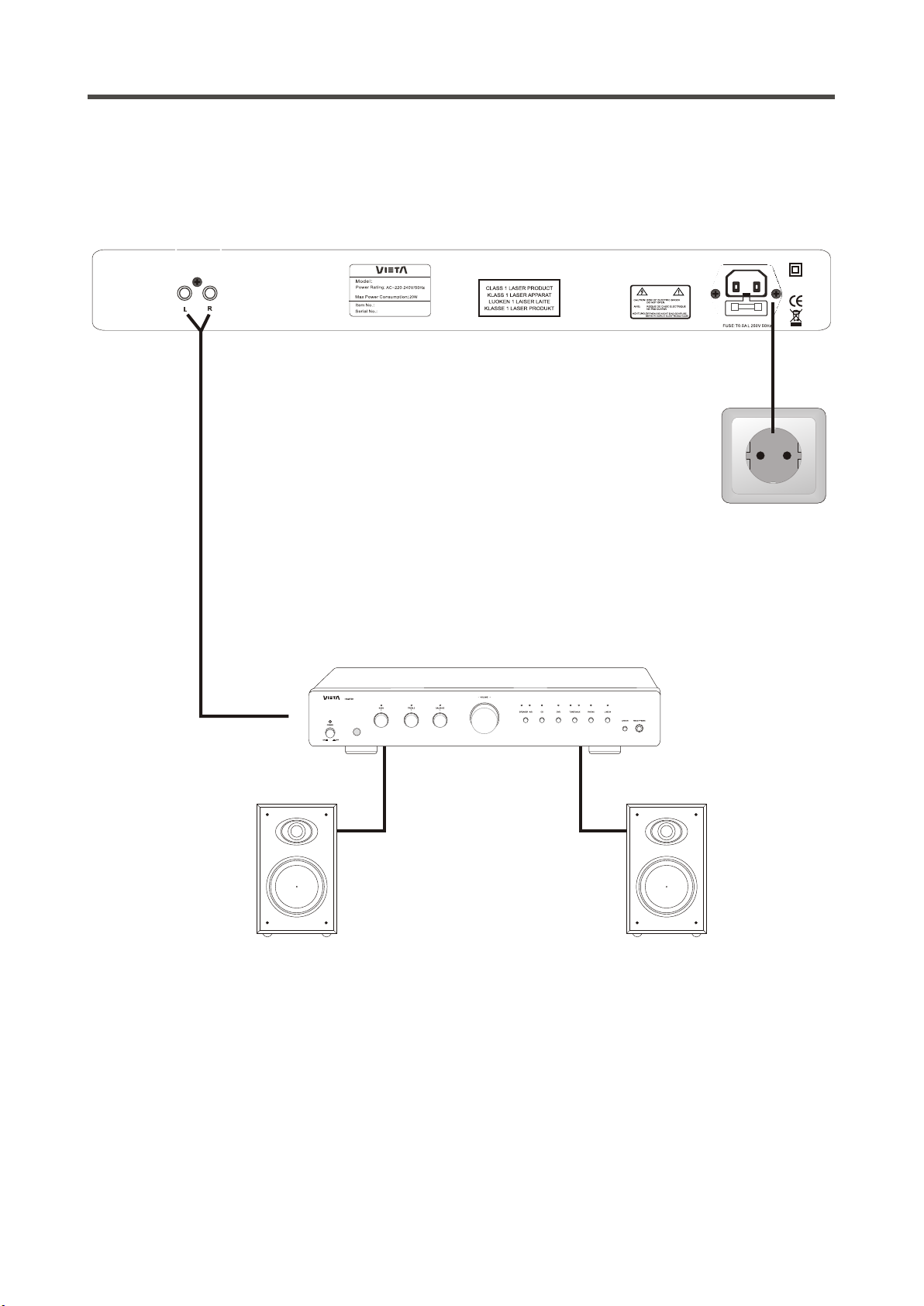

Audio connection layout

Ster eo Outp ut

AC INPU T:

HCD30 B

USE ONLY WI TH 250V F USE

Analog amplifier/receiver

-+-

L R

+

This page only contains suggestions for connection of your HCD30B.
Note that the accessories in the pictures on this page are not included in the supply.

10

OPERATION AND FUNCTIONS

HCD3 0B

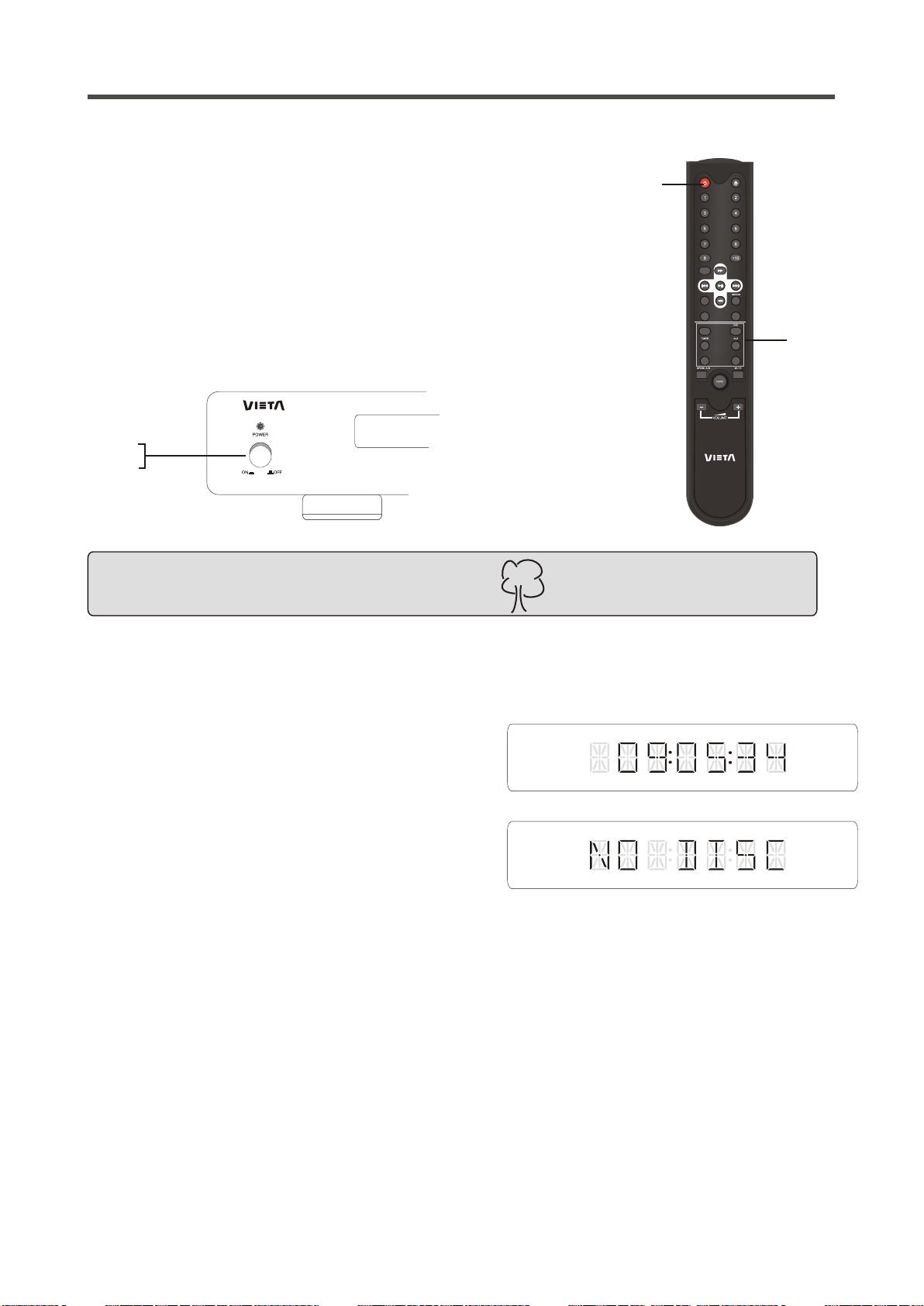

On, Off and standby

1 Turn on the unit by pressing the mains switch.
2 Press the standby button on the remote control to switch into standby

mode. The display will turn off and all functions will be reduced to a
minimum to make sure that the unit uses minimal power. When in
standby mode the unit can be only reacted by the INPUT buttons
(CD/USB, DVD, TUNER, AUX, PHONO, LINE IN) in remote control - (3).

1

4

2

0

RANDOM

TIME

STOP

CD/USB

LINE INPHONO

3

4. Protect the environment and turn off the unit after use.

Load a disc

If you want to play a disc, you must load it. You do that
by pressing the eject button on the remote control or on
the front panel of the CD player.
When the disc has been read, the display will show the
number of tracks on the disc and the total playback time.

If there is not disc in the tray, the message "NO DISC"
will be displayed. If the unit has trouble reading a disc,
you must check if the disc is clean and free from dirt. If
the disc can still not be played, you must contact your
dealer.

Play/Pause

Press the PLAY/PAUSE button on the remote control or on the front panel once to start playback; the counter
on the left side of the display will start to count upward.

Press the PLAY/PAUSE button once more to stop playback; the counter in the display will start to blink.

To continue playback, press the PLAY/PAUSE button again.

11

OPERATION AND FUNCTIONS

Stop

To stop playback completely, press the STOP button once.

The display will display all the number of tracks on the disc and the total playback time.

SKIP (I<<, >>I) : Previous / Next

When a CD track is being played it is possible to switch to the previous track or to the next track.

If you want to continue to the next track, you must press the >>I (next) button on the remote control or on the
front panel once. If you want to move on several tracks, you must press >>I until you reach the track desired.

If you wish to go back to one of the previous tracks, you must use the same procedure but not the same
button. Use the I<< (Previous) button instead.

Search (<<, >>) : Forward and rewind

It is possible to perform a search in the track played.

If you wish to search forward, depress the >> (forward) button on the remote until you get to that part of the
track that you wish to hear, and then press play. You will see that the time counter in the display counts up
very quickly.

If you wish to search backward, use the same procedure as when you search forward, but use the <<
(Rewind) button instead.

Random

It is possible to select random play by pressing the RANDOM button on the remote control or the front panel.

The CD tracks will be played in random order. The dash between the first and second number from the left
starts to flash when this functiopn has been activated.

It is possible to activate random play both in stop mode and during playback.

Press the RANDOM button again if you wish to deactivate random play.

Note:
When you press SKIP buttons ( I<< or >>I ) during random play, it will not be possible to select the next track
but any other track.

12

TROUBLESHOOTING

Troubleshooting

PROBLEM SOLUTION

No power when unit is turned on.

No sound.

The unit will not read the disc.

The unit skips some parts
during playback.

A buzzing can be heard.

- Switch on the electric current at the socket.

- Check that the plug has been correctly inserted into the
socket.

- The internal fuse has blown and must be replaced by a
qualified service technician.

- The power cord has been damaged and must be
replaced.

- The unit has not been turned on.

- Incorrect connection to the amplifier.

- No loudspeakers have been connected to the amplifier.

- No CD in the unit; or no MP3 files in the USB.

- Check if the disc has been turned upside down.

- Check if the disc is clean and undamaged.

- Check if it is a CD or a CD-R.

- Check if the disc is clean and undamaged.

- The unit is positioned on an unstable surface.

-The RCA cables between HCD30B and the
amplifier/receiver have been damaged.

-The RCA cables between the HCD30B and the
amplifier/receiver have been wound around the power
cord.

13

TECHNICAL DATA

Technical data

Disc playback: CD, CD-R
USB playback MP3

Frequency: 16-Bit,96KHz

Output Level(TCD784): 2Vrms

Distortion @ 20Hz-20Khz: < 0.1%

Separation @ 1KHz: >70dB

Frequency range -1dB@1KHz: 20Hz-20KHz

S/N Ratio @ 8Ω/1KHz: >90dB

Nose Output: < 2mV

Mains Voltage : AC 220-240V 50Hz

Dimensions (WxDxH) 430 x 285 x 50 mm

Net Weight: 4.1 kg

Supplied Accessories:

1. User manual;

2. Mains Lead;

3. Remote Control;

4. 1pcs 2-RCA cable.

We reserve the right to change the technical data and the design of the product without notice as a result of
further development.
