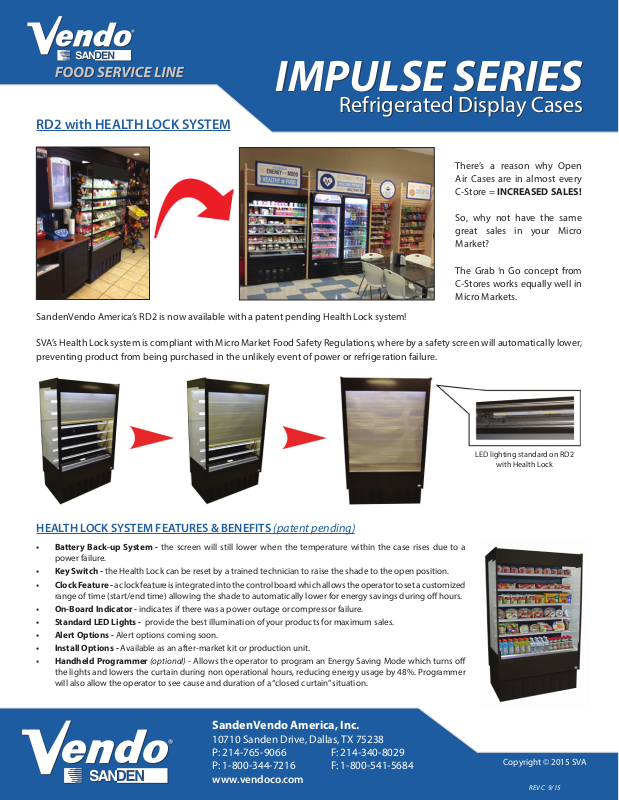

IMPULSE SERIES
Refrigerated Display Cases
RD2 with HEALTH LOCK SYSTEM
There’s a reason why Open
Air Cases are in almost every
C-Store = INCREASED SALES!
So, why not have the same
great sales in your Micro
Market?
The Grab ‘n Go concept from
C-Stores works equally well in
Micro Markets.
SandenVendo America’s RD2 is now available with a patent pending Health Lock system!
SVA’s Health Lock system is compliant with Micro Market Food Safety Regulations, where by a safety screen will automatically lower,
preventing product from being purchased in the unlikely event of power or refrigeration failure.
HEALTH LOCK SYSTEM FEATURES & BENEFITS (patent pending)
Battery Back-up System -• the screen will still lower when the temperature within the case rises due to a
power failure.
Key Switch - • the Health Lock can be reset by a trained technician to raise the shade to the open position.
Clock Feature -• a clock feature is integrated into the control board which allows the operator to set a customized
range of time (start/end time) allowing the shade to automatically lower for energy savings during o hours.
On-Board Indicator -• indicates if there was a power outage or compressor failure.
Standard LED Lights -• provide the best illumination of your products for maximum sales.
Alert Options -• Alert options coming soon.
Install Options -• Available as an after-market kit or production unit.
Handheld Programmer• (optional) - Allows the operator to program an Energy Saving Mode which turns o
the lights and lowers the curtain during non operational hours, reducing energy usage by 48%. Programmer
will also allow the operator to see cause and duration of a “closed curtain” situation.
SandenVendo America, Inc.
10710 Sanden Drive, Dallas, TX 75238
P: 214-765-9066 F: 214-340-8029
P: 1-800-344-7216 F: 1-800-541-5684
www.vendoco.com
LED lighting standard on RD2
with Health Lock
Copyright © 2015 SVA
REV C 9/15
IMPULSE SERIES
Refrigerated Display Cases
RD2C CASE
SPECIFICATIONS
RD2 Refrigerated Display Case
Model RD2C
Product Temperature Maintain product temperature at or below 40°F
Environmental Conditions Indoor 75°F, 55% relative humidity, maximum air velocity = 60 ft/min
External
Dimensions
Structure
Color Internal: Black, External: Black (Optional: White/White or Beige/Black)
Shelves (10.6” depth)
Top Shelf Tilt 7.5°
Electrical Parts
Transformer Controller 12VAC 16A 2HP 250VAC
Compressor(s)/ Condenser
Input Voltage
Pipe Size of Connection
Point
Refrigerant R404A
Evaporator Fin Tube Type
Expansion Valve Internally equalized automatic thermal expansion valve
Solenoid Valve Hermetic direct acting solenoid valve for refrigeration
Thermostat Electronic-defrost on demand (10 ~ 30 minutes every 2 hours)
Drain Pipe Dimension 1.25” Copper Tube
Internal Volume 26.4 ft
Weight 468 lb.
Noise Less than 65 dB at 3.3 ft.
Agency Approvals C-UL-US, UL NSF
NOTE: The manufacturer reserves the right to make product improvements and change specications without notice.
Width
Depth 27.56”
Height 75.52”
Outer/Inner Box Glass & baked acrylic resin nish on electrolytic zinc-coated steel
Inner Box Baked acrylic resin nish on electrolytic zinc-coated steel
Insulation Rigid polyurethane foam
Power 115/60/1 (10 Amp)
Evaporator Fan Motor 6 Watts, 3 each
Lighting
Power 230/60/1 (20 Amp)
Fans
Liquid Line 3/8” OD
Suction Line 1/2” OD
45.67”
6
25 Watts, 0.39 Amp
1.25 HP
10 Amp
210-253/60/1 (Buck & Boost Transformer required when voltage below
210VAC or above 253VAC)
SandenVendo America, Inc.
10710 Sanden Drive, Dallas, TX 75238
P: 214-765-9066 F: 214-340-8029
P: 1-800-344-7216 F: 1-800-541-5684
www.vendoco.com
NSF/ANSI Standard 7
Copyright © 2015 SVA
REV C 9/15
