I N S I D E T H E V - 2 1
V-21 offers fast setup — Converting columns from bottles to
cans has never been easier!
No shims, no spacers, no gauge bars, no gauge bar clips and
no cams to adjust!
Simply move the back spacer, adjust the product slide and
select the appropriate depth setting!
For additional time-savings at product setup, the vend
mechanisms are self-priming.
Vend mechanism, at standby has built-in anti-theft features.
Pr od uct S li de in Ca n Po si tio n
NOTE: This is a demonstration module for photographic purposes only.
It is not an actual “V-21” column.
Pr od uct S li de in Bo tt le Posi ti on
Reinforced top hinge
plate with deadbolt
for increased security.
Rugged top retainer
ensures consistent
product alignment
every time the door
is closed.
Lower hinge hook
assembly completely
enclosed to help
prevent vandal attacks.
The V-21 anti-theft
hopper is designed
for easy access to
vended packages.
Door-to-cabinet
roller assembly
for smooth
door closure.
Slide out loading rack
allows for greater access
to the columns during
product loading.
Epoxy coated vend chute
for smooth product delivery.
The V-21 refrigeration
system provides superior
cooling performance
while using less energy.
The condenser and
evaporator use copper
and aluminum construction
which reduces energy
consumption. The V-21
fan blades are shrouded
to greatly reduce
audible noise and
improve performance.
One piece air dam with
integral condensation gutter.
Modular power cord positioned
for easy access from front
of machine.
The V-21 product delivery
system ensures reliable vending
by being less sensitive to
package diameter shape and
firmness (carbonation).
The V-21 stack allows maximum
flexibility for product loading.
Product can be loaded caps
to back, butt-to-butt or in
combination to optimize
vending reliability.
V - 2 1 M O T O R S
24 volt , DC motors.
No micro switches.
No timing cams.
Motors installed
with only 2 screws.
V - 2 1 C O N T R O L L E R
Full function MDB controller,
with DEX/UCS compatibility.
Energy management
features included
as standard:
•
Real time clock
•
Lighting control
•
Refrigeration control
Diagnostic LED’s for
vend sensor status.
E N E R G Y C O N S U M P T I O N
9.50
9.00
8.50
8.00
7.50
7.00
6.50
6.00
0.00
11.87 KWhr / 24hr
Competitor A
Ma chi ne
7.79 KWhr / 24hr
7.10 KWhr / 24hr
Competitor B
11.50
11.00
10.50
10.00
Data from California Energy Commission - 2003.
All vending machines tested per ASHRAE 32.1 Standard.
Page 3

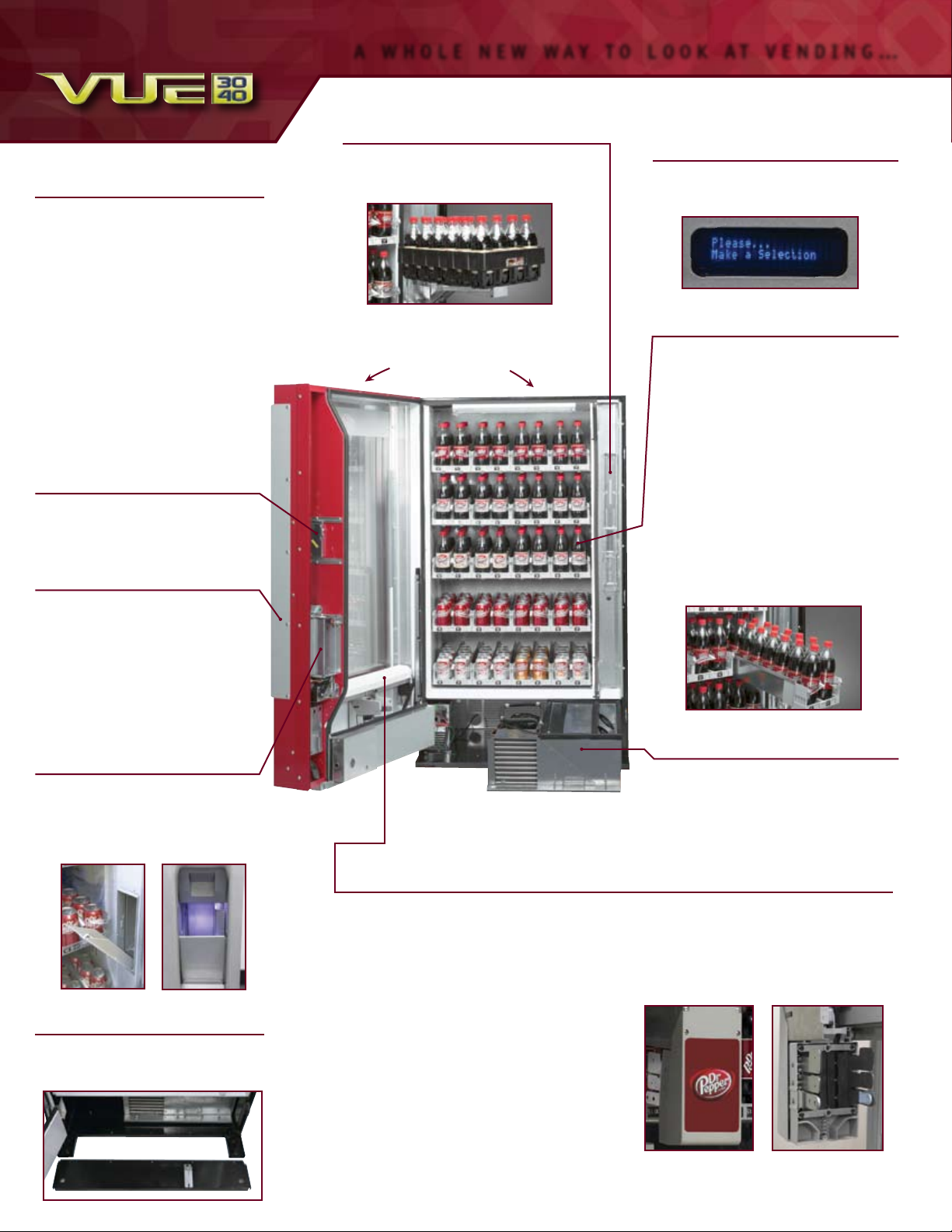

A W H O L E N E W W A Y T O L O O K A T V E N D I N G …
C O N T R O L L E R
Full function MDB controller with
DEX/UCS compatibility.
Energy management features include:
• Real time clock
• Lighting control
• Refrigeration control
Diagnostic LED’s on boards and
components for easier trouble shooting.
Full range of diagnostic menus and
test programs.
C O I N A G E M O U N T
Sliding coinage mount for easy access
and servicing.
C O N S T R U C T I O N
Foamed-in-place door construction,
with double pane, argon filled
tempered glass panel.
L O A D I N G R A C K
Telescopic loading rack available as an
optional accessory.
Only 90º door swing
needed for loading.
H I G H V I S I B I L I T Y
D I S P L A Y
2 x 20 VF display for better customer
communication
P R O D U C T T R A Y S
Product trays pull forward for
easy loading.
Product pushers lock at back of trays
for hands-free, FIFO loading; and will
automatically reset when product trays
are pushed back into place.
All product trays lift out easily
for cleaning.
Machine can be configured with 5, 6 or
7 shelves of product trays (at production
or on location).
Modular construction employed for
easy service - minimum number of
fasteners used.
D E L I V E R Y H O P P E R
LED-illuminated motorized hopper for
customer convenience. Auto-retreat
feature in case obstruction is
encountered when closing.
C A B I N E T F O O T E R
Removable cabinet footer - to facilitate
installation through narrow doorways.
D E L I V E R Y S Y S T E M
Flexible dispensing mechanism - no shims or
kits required to vend virtually any beverage
package 2” - 3” in diameter and 3” - 9.5”
in height.
Patent pending delivery mechanism
retrieves each vended package and places it
within a secure delivery port with little or no
agitation.
Total product control throughout vend cycle,
to eliminate product tipping from shelves
during or after vend.
Delivery system housed in door - no wires,
switches, solenoids, or motors in cabinet.
U N I T
Cassette-style refrigeration unit totally self-contained, simple to
remove/replace. Quiet operation.
Delivery system retracts out of sight at the
bottom of door between vends. This provides
customers with an unobstructed view of all
available products and does not interfere
with product reloading.
“TractorFeed” concept employed in
X, Y, and Z motions.
Page 4
V U E - S P E C I F I C A T I O N S
Vue Model Number Vue - 30 Vue - 40
Total Ca n Capacity with 7 shelves 378 504
Total PE T Bottle Ca pacity with 5 shel ves 240 320
# of Selections wit h 7 she lves 42 56
# of Selections wit h 5 she lves 30 40
Dimensio ns* - H x W x D 72” x 34” x 35 ” 72” x 41.5” x 35”
Shipping Weight* 750 lbs 800 lbs
Opera tion Volta ge 115v60 Hz 115v60 Hz
Amp Rating 10 10
Capacity per Facing
8oz. / 12oz. can 9 9
250ml can 11 11
16.9oz. / 20oz. PE T bottles** 8-9 8- 9
330ml Tetra Pri sma® Aseptic Cartons 11 11
250ml Tetra Pri sma® Aseptic Cartons 12 12
* Dimensions and s hipping weight will vary slig htly due to manufact uring tolerances,
shipping boa rds a nd whether or not coinage is installed.
** Product capa citie s will vary base d on the diameter of t he bo ttle.
* Diet Graphics available.
* Chameleon 2 Graphics NOT available in 621.
V - 2 1 - S P E C I F I C A T I O N S
V-21 Model Number 621 721 821
Total Ca n Capacity 544 680 800
Selection/Columns 8 10 10
Dimensio ns* - H x W x D
Curved Front N/A 72” x 39.5” x 34.7 5” 79” x 39.5” x 34.7 5”
Flat Front 72” x 32.5” x 31.5 ” N/A N/A
Shipping Weight* 640 lb 670 lb 730 lb
Capacity per Colum n
12oz. can 68 68 80
16oz. glass 30 30 36
20oz. PET** 30 30 36
